Mita-Kyocera KM-4530, KM-5530 PARTS LIST
PARTS LIST
Published in Dec.’01
842BC120
NOTE
1.Indicate parts number and machine model when placing an order.
eg. Parts Number Parts Name Machine Model Cycle Quantity
2BC04010 FRONT COVER KM-4530 50Hz 1
2BD04010 FRONT COVER KM-5530 50Hz 1
2.Service calls and freight will be charged separately.
3.Symbols in the "Parts Number" column.
• Parts with "'" indicates the service parts and the parts without "'" can not be supplied.
• Parts with "•" are component parts or sub-assemblies of the assembly appearing immediately above them.
eg. Parts Number Parts Name Parts Number Parts Name
2AC00700 LSU ADJUSTMENT ASS’Y •2AC13040 MOUNT,LSU ADJUSTMENT
•2AC13030 PIN,LSU ADJUSTMENT
• Parts with "• •" are component parts or sub-assembly with "•" appearing immediately above them.
eg. Parts Number Parts Name Parts Number Parts Name
•2A068171 GRID ASS’Y ••36710061 FRONT HOUSING,GRID
••61710330 WIRE,GRID(SUS)
4.See the last page of this parts list for the classification of the screws in the illustrations.
5.Items indicated by shaded areas ( ) are supply parts and should be ordered through your Regional Office.
CONTENTS
FIG. 1 COVER SECTION · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 2
FIG. 2 FRAME SECTION · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 4
FIG. 3 CASSETTE SECTION · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 6
FIG. 4 DECK A SECTION · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 8
FIG. 5 DECK B SECTION · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 10
FIG. 6 DECK CONVEYING SECTION · · · · · · · · · · · · · · · · · · · · · · 12
FIG. 7 PRIMARY PAPER FEED SECTION · · · · · · · · · · · · · · · · · · · 14
FIG. 8 IMAGING SECTION I · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 16
FIG. 9 IMAGING SECTION II (MC) · · · · · · · · · · · · · · · · · · · · · · · · · 18
FIG. 10 OPTICAL SECTION I · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 20
FIG. 11 OPTICAL SECTION II· · · · · · · · · · · · · · · · · · · · · · · · · · · · · 22
FIG. 12 LASER SCANNER UNIT · · · · · · · · · · · · · · · · · · · · · · · · · · 24
FIG. 13 DEVELOPING SECTION · · · · · · · · · · · · · · · · · · · · · · · · · · 26
FIG. 14 CLEANING SECTION I· · · · · · · · · · · · · · · · · · · · · · · · · · · · 28
FIG. 15 CLEANING SECTION II · · · · · · · · · · · · · · · · · · · · · · · · · · · 30
FIG. 16 CONVEYING SECTION I · · · · · · · · · · · · · · · · · · · · · · · · · · 32
FIG. 17 CONVEYING SECTION II · · · · · · · · · · · · · · · · · · · · · · · · · 34
FIG. 18 CONVEYING SECTION III · · · · · · · · · · · · · · · · · · · · · · · · · 36
FIG. 19 FIXING SECTION · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 38
FIG. 20 TRANSFER SECTION · · · · · · · · · · · · · · · · · · · · · · · · · · · · 40
FIG. 21 DRIVING SECTION I · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 42
FIG. 22 DRIVING SECTION II · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 44
FIG. 23 DUPLEX SECTION I· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 46
FIG. 24 DUPLEX SECTION II · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 48
FIG. 25 DUPLEX SECTION III· · · · · · · · · · · · · · · · · · · · · · · · · · · · · 50
FIG. 26 EJECT SECTION · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 52
FIG. 27 BYPASS FEED SECTION · · · · · · · · · · · · · · · · · · · · · · · · · 54
FIG. 28 BYPASS & VERTICAL CONVEYING SECTION· · · · · · · · · 56
FIG. 29 HOPPER SECTION I · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 58
FIG. 30 HOPPER SECTION II· · · · · · · · · · · · · · · · · · · · · · · · · · · · · 60
FIG. 31 COVER SECTION (DF) · · · · · · · · · · · · · · · · · · · · · · · · · · · 62
FIG. 32 FRAME SECTION (DF) · · · · · · · · · · · · · · · · · · · · · · · · · · · 64
FIG. 33 PAPER FEED-IN SECTION (DF) · · · · · · · · · · · · · · · · · · · · 66
FIG. 34 PAPER CONVEYING SECTION (DF) · · · · · · · · · · · · · · · · 68
FIG. 35 REVERSING SECTION (DF) · · · · · · · · · · · · · · · · · · · · · · · 70
FIG. 36 PAPER EJECT SECTION (DF)· · · · · · · · · · · · · · · · · · · · · · 72
FIG. 37 DRIVING SECTION (DF) · · · · · · · · · · · · · · · · · · · · · · · · · · 74
FIG. 38 ELECTRICAL SECTION (DF)· · · · · · · · · · · · · · · · · · · · · · · 76
FIG. 39 ELECTRICAL SECTION I· · · · · · · · · · · · · · · · · · · · · · · · · · 78
FIG. 40 ELECTRICAL SECTION II · · · · · · · · · · · · · · · · · · · · · · · · · 80
FIG. 41 OPERATION SECTION · · · · · · · · · · · · · · · · · · · · · · · · · · · 82
FIG. 42 ACCESSORIES & TOOLS · · · · · · · · · · · · · · · · · · · · · · · · · 84

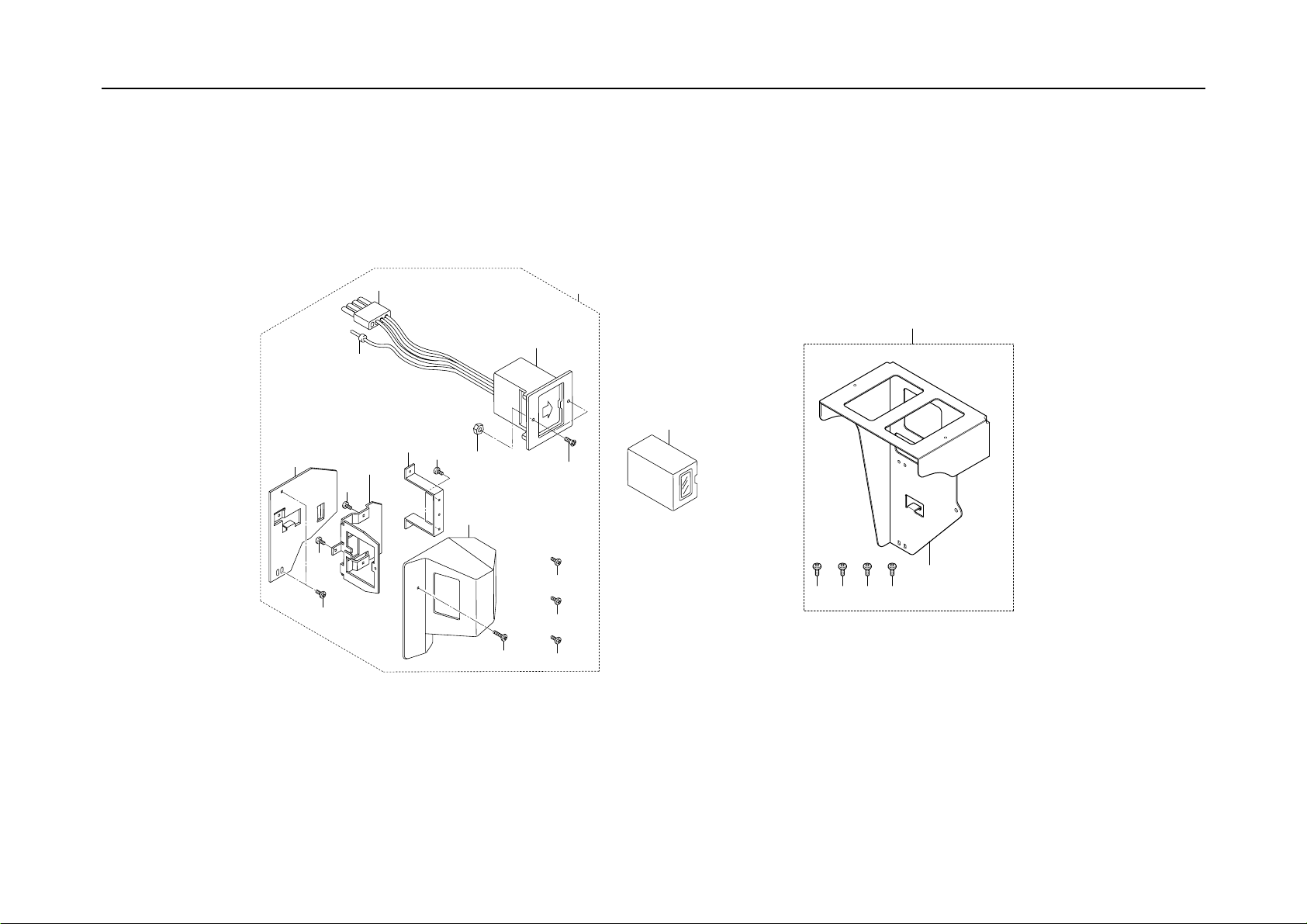

FIG. 43 OPTION · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 86
• INDEX · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 88
– 1 –
FIG. 1 COVER SECTION
2BC/2BD
HCA
19
HCA
HCA
20
HCA
BHI
30
29
23 24
BHI
47
31
HCA
49
21
HCA
BHF
HCA
BHF
28
BHF
25
12
BBE
15
HCA
27
26
14
BBE
38
BBE
HCA
40
HCA
HBH
HBH
13
HCA
HCA
36
35
HCA
HCA
34
50
HCA
52
16
32
HDB
HCA
18
44
HCA
22
HCA
51
HCA
HCA
43
HCA
39
17
33
HCA
51
HCA
45
42
HCA
51
BHD
37
9
1
HDC
BHD
2
HDC
BHD
2
HBD
HBD
4
3
HCA
HCF
7
46
HDC
11
6
5
8
HCF
10
48
HCA
41
41
42
HCA
41
42
HCA
– 2 –
FIG. 1 COVER SECTION
Ref.
SP Part. No. Description
No.
'
1 2BC04030 LOWER RIGHT FRONT COVER 1 1 1
2 2BC04450 LOWER RIGHT FRONT MOUNT,COVER 2 2 2
'
3 2BC04180 LOWER INNER RIGHT COVER 1 1 1
'
4 2BC04080 LOWER FRONT RIGHT COVER 1 1 1
'
5 2BC04090 LOWER REAR RIGHT COVER 1 1 1
6 2BC04470 LOWER REAR RIGHT MOUNT,COVER 1 1 1
7 2AR07180 RETAINER M4 (KM-5530) 1 1 1
8 2BC04510 LOWER REAR RIGHT RETAINING PIN,COVER 2 2 2
'
9 2BC04070 RIGHT COVER,MIDDLE 1 1 1
'
10 2BC04300 LID,DEVELOPING DUCT 1 1 1
'
11 2BL27700 F AN COOLING(60-25) 1 1 1
'
12 2BC04120 LOWER LEFT COVER 1 1 1
'
13 2BC04110 LEFT COVER,MIDDLE 1 1 1
'
14 2BC16350 FILTER,OZONE 1 1 1
'
15 2BC04430 LID,CONVEYING DUCT 1 1 1
'
16 2BC04100 UPPER LEFT COVER 1 1 1
'
17 2BC04050 UPPER RIGHT COVER 1 1 1
'
18 2BC04130 UPPER REAR COVER 1 1 1
'
19 2BC04190 INNER COVER 1 1 1
'
20 2A005060 LABEL,HIGH VOLTAGE CAUTION(EUR) 1 1 1
21 2BC04480 LEFT COVER,IMAGE FORMATION 1 1 1
'
22 2BC05050 LABEL,TONER SUPPLY OPERATION(EUR) 1 1 1
'
23 2BC04010 FRONT COVER (KM-4530) 1 1 1
'
23 2BD04010 FRONT COVER (KM-5530) 1 1 1
'
24 2BC04020 UPPER RIGHT FRONT COVER 1 1 1
25 2BC04250 FRONT MOUNT,COVER HINGE 1 1 1
26 2BC04500 FRONT ADJUSTING PLATE,COVER 1 1 1
27 2BC04280 FRONT HINGE B,COVER 1 1 1
28 2BC04270 FRONT HINGE A,COVER 1 1 1
29 65004171 HOLDER,SAFETY SWITCH 1 1 1
'
30 60804120 MAGNET CATCH 1 1 1
'
31 73905191 LABEL,SUPPLY(E,F,S) 1 1 1
32 2BC04490 REAR MOUNT C,MIDDLE COVER 1 1 1
'
33 2BC04150 REAR COVER A,MIDDLE 1 1 1
'
34 2BC04160 LOWER REAR COVER 1 1 1
'
35 2BC04410 REAR COVER B,MIDDLE 1 1 1
'
36 2BC04420 REAR COVER C,MIDDLE 1 1 1
37 2BC04260 FRONT HINGE,COVER MACHINE 1 1 1
38 2BC04370 LOWER MOUNT,MAGNET 1 1 1
'
39 2BC23020 FILTER,MAIN 1 1 1
Quantity
230V120V 240V
Ref.
SP Part. No. Description
No.
40 2BC04390 PIN,HINGE STOP 1 1 1
41 2AC26320 HOLDER,GROUND 3 3 3
42 2BC26300 REAR GROUND PLATE,COVER 3 3 3
43 2BC26020 UPPER LID,SEQUENCE 1 1 1
44 2BC26030 LOWER LID,SEQUENCE 1 1 1
45 2BC04600 REAR SPONGE,COVER 2 2 2
46 2BC04520 LOWER REAR RIGHT SPONGE,COVER 1 1 1
'
47 2BC04530 FRONT MAGNET,COVER 1 1 1
'
48 2A304190 COPY TRAY(EXP) 1 1 1
49 2BC04590 LEFT SPONGE B,MIDDLE COVER(EUR) (KM-4530) 3
50 2BC04570 LOWER LEFT SPONGE,COVER(EUR) (KM-4530) 1
51 18526240 PLATE SPRING A,GROUND REINFORCEMENT 3 3
52 2BC04580 LEFT SPONGE A,MIDDLE COVER(EUR) (KM-4530) 1
2BC/2BD
Quantity
230V120V 240V
• Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
• Parts with "'" indicates the Service parts.
• Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
– 3 –

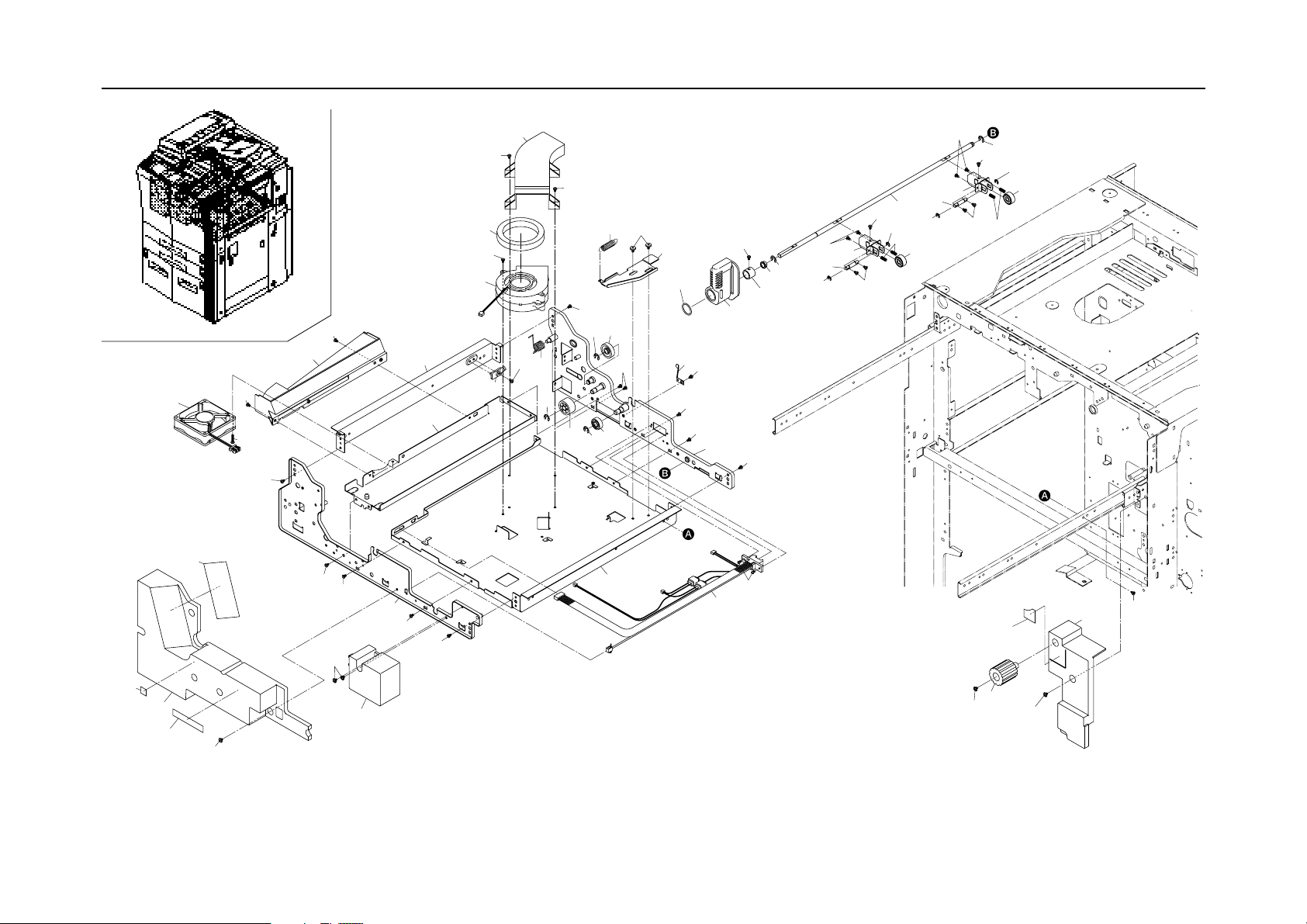

FIG. 2 FRAME SECTION
2BC/2BD
BHD
