FS-1000
Ecosys Printer
Parts Catalog
REVISION 1.01, August 11, 2000
Page 2
Contents
Diagrams
ENCLOSURES > page 3
FRAME > page 4
DEVELOPER > page 5
DRIVE-UNIT > page 6
UPPER-FRAME > page 7
FUSER UNIT > page 8
PAPER CASSETTE > page 9
OPTION FEEDER, PAPER CASSETTE > page 10
OPTION FEEDER > page 11
Parts Catalog > pages 12 to 17
A latest version of this catalog is readily available at the Ky ocera ftp site. Please contact Kyocer a Mita in this
regard.
For additional information and downloads, please visit http://www.kyocera.com/w2k.
Page 3

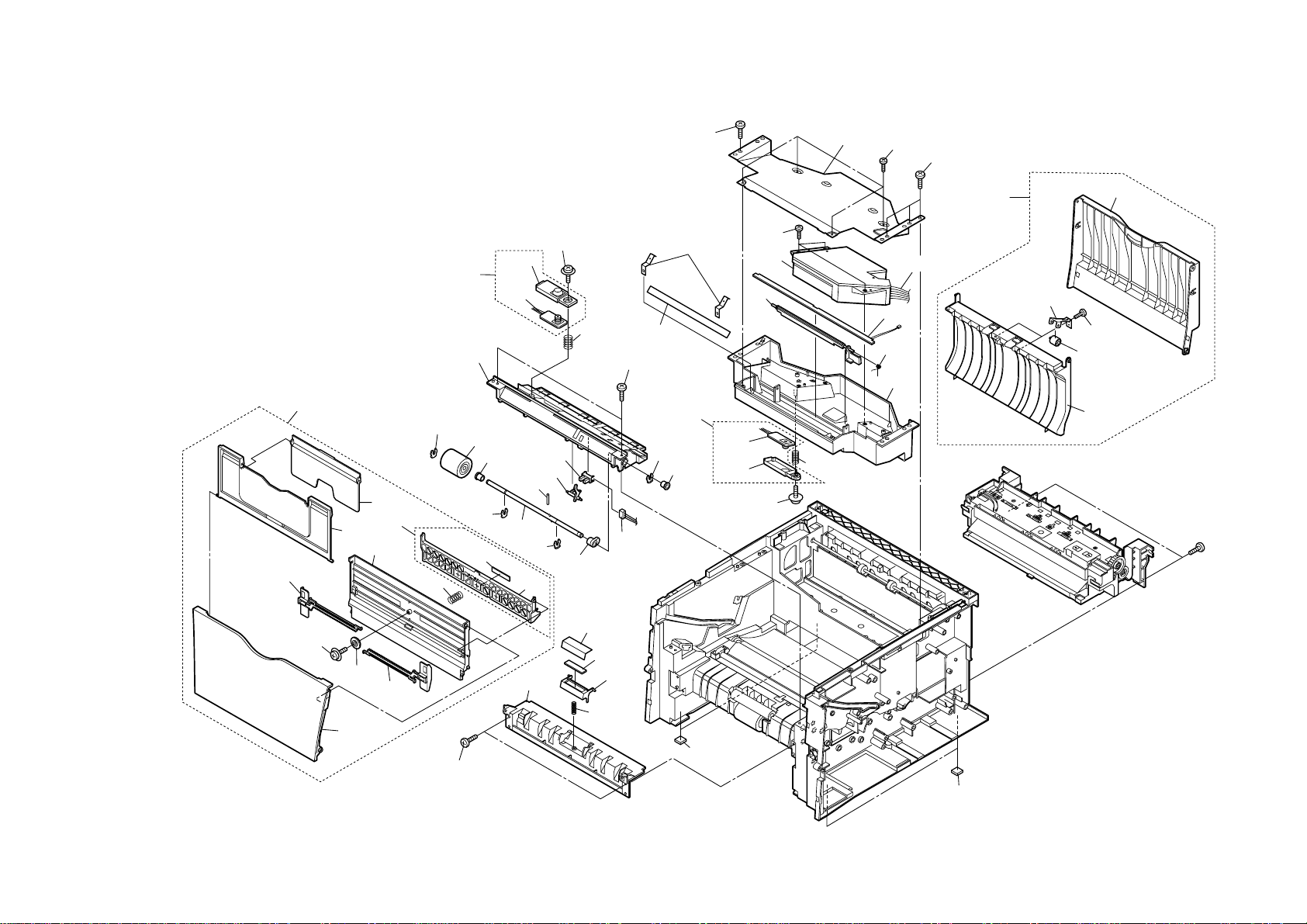

ENCLOSURES
FS-1000 PARTS CATALOG
G101
0003
0001
0010
0011
G002
0006
0012
0002
G002
G001
0013
0016
0022
0007
0A01
0017
0004
0008
0005
0024
0021
0015
0014
0023
3
Page 4
FRAME
FS-1000 PARTS CATALOG
G101
G101
2018
1053
1009
1075
2017
1011
G102
1006
1066
1003
1010
G203
1111
5034
1024
1067
1012
1011
G202
2019
1019
G101
1111
1014
G201
1007
1013
1A01
G101
1015
1052
1046
1068
1069
1061
1063
2003
G105
G111
1018
1060
1059
10231017
G105
1043
1041
1020
1077
1078
G111
1063
1072
1062
G106
1001
1042
1044
1071
1070
1079
1080
1065
1064
1038
1039
1032
1073
1049
1036
G101
1025
G101
1037
1035
1034
1033
1031
2002
1008
2010
1050
PWBA/D
2016
1048
2014
2015
2013
1002
G101
1005
G103
1040
2011
2012
2008
4
Page 5
DEVELOPER
6043
6014
G602
6004
6040
6038
G602
6002
6030
5019
6039
G501
5016
G501
6013
6012
5018
5044
G602
6011
6015
6029
6044
6042
5A03
6033
6045
5030
6028
G602
6010
6043
6042
6019
5038
5036
5032
5033
6037
6001
5009
6007
5002
6026
5031
6018
6036
6035
6037
6022
5039
5040
6009
6017
6007
6034
6021
6003
6008
6025
5037
5035
G501
5007
G601
6005
6016
6027
5044
5015
5004
5046
6020
5003
6023
6024
5A01
5024
5010
5011
5030
5017
5025
5013
5029
5A02
G501
5005
5008
5007
5027
5022
5001
5026
5014
5008
6031
FS-1000 PARTS CATALOG
5028
5023
5021
5004
6032
5020
5003
G602
G501
5
Page 6
DRIVE-UNIT
FS-1000 PARTS CATALOG
3007
3010
3009
G303
G303
3006
3008
3003
3002
3005
G303
3004
G101
G101
G101
G101
3011
G301
G103
3013
G301
3014
3001
G301
2009
G301
3012
G302
6
Page 7
UPPER-FRAME
FS-1000 PARTS CATALOG
1102
1026
1098
1099
1A02
1101
1090
1106
1029
1088
1087
1090
1108
1055
1093
1054
G109
1089
1090
1107
G102
1094
1091
1092
1030
G101
1095
4003
1090
G101
4007
4006
1093
4017
4016
G401
4012
4005
G402
4010
4002
G401
4014/4015
4013
4009
4001
G101
1047
1081
1085
G107
1086
1082
G110
1104
1096
1101
G101
1074
1112
1110
1109
1076
1051
1051
7
Page 8

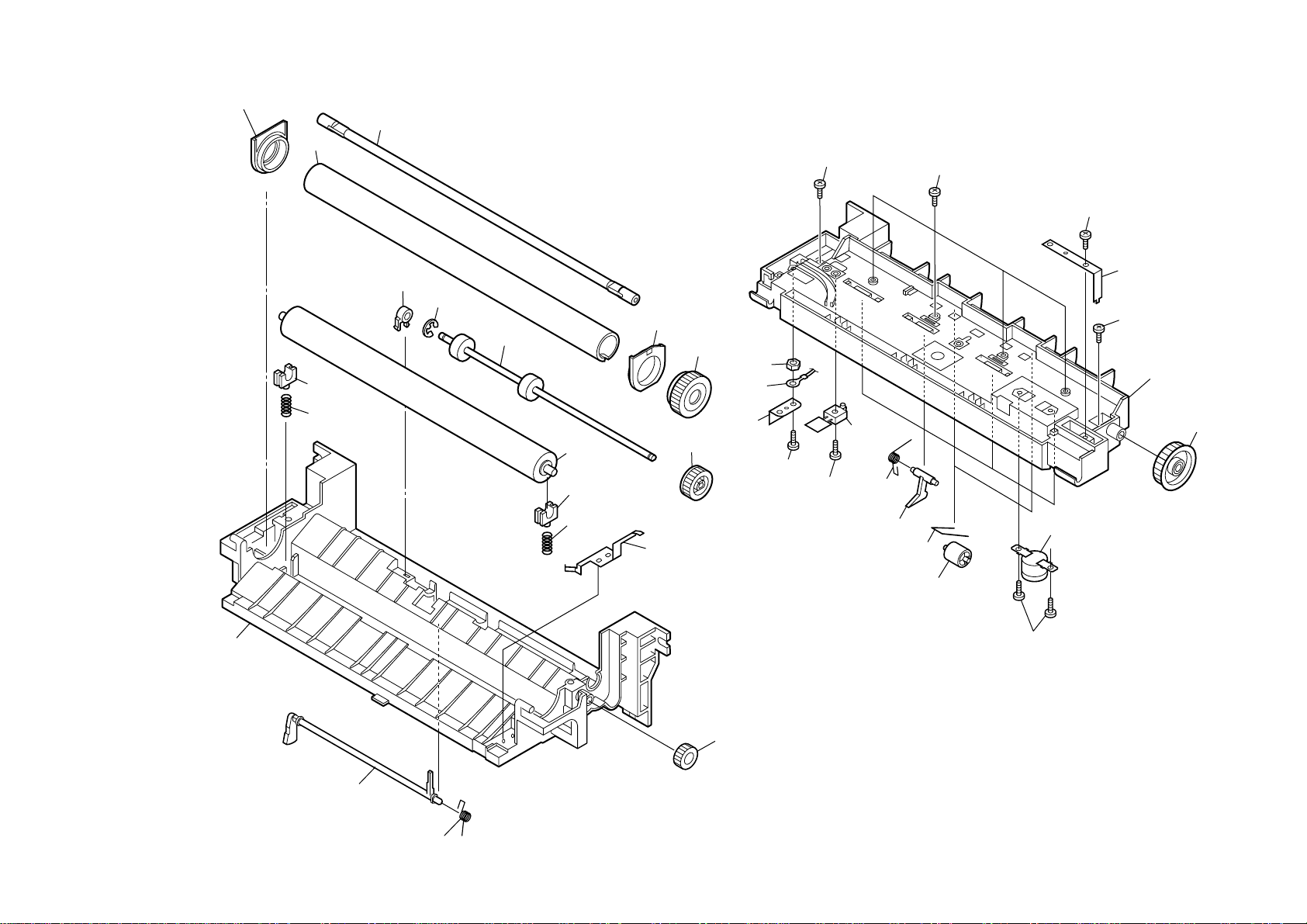

FUSER UNIT
7018
7016
7019
G701
FS-1000 PARTS CATALOG
G706
G705
7001
7005
7006
7013
G702
7012
7004
7005
7006
7017
7009
7027
7008
G704
7021
7030
G705
G706
7023
7026
7025
7029
G701
7015
7028
7024
7032
7031
G705
7010
7007
7011
8
Page 9
PAPER CASSETTE
8009
8007
8A02
8012
8005
FS-1000 PARTS CATALOG
8014
8013
8003
8A01
8002
8015
8011
8017
G801
8010
8004
8018
8008
8006
8001
8016
8018
9
Page 10

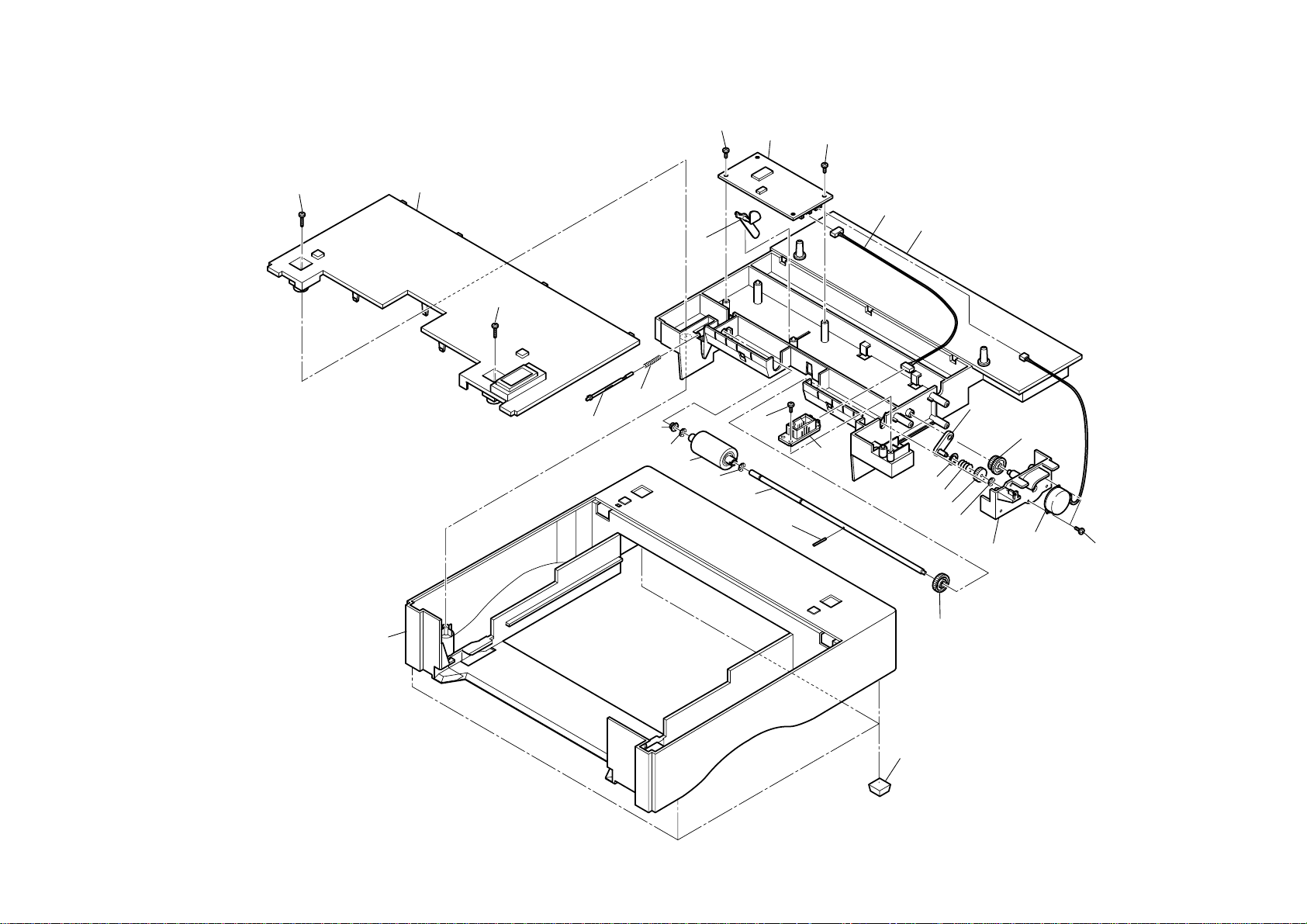

OPTION FEEDER, PAPER CASSETTE
