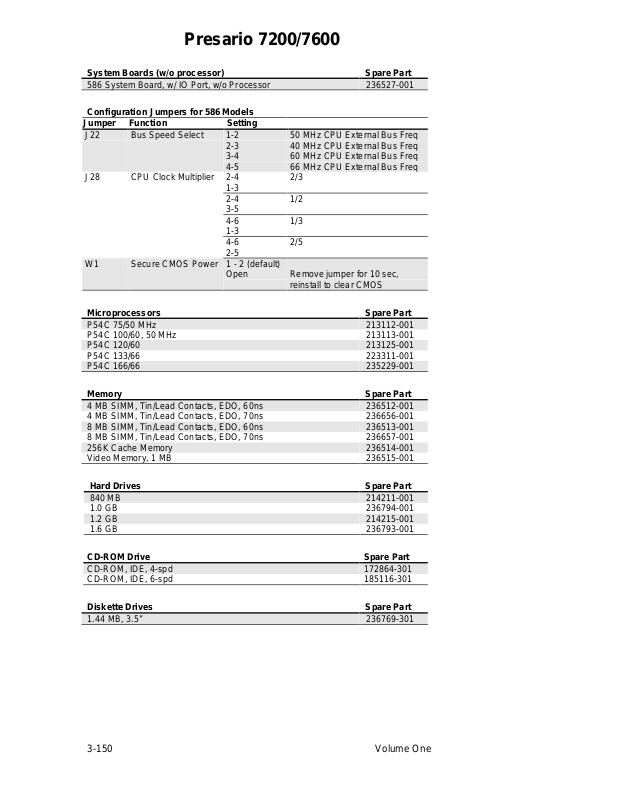

Page 1
Presario 7200/7600
System Boards (w/o processor) Spare Part
586 System Board, w/ IO Port, w/o Processor 236527-001
Configuration Jumpers for 586 Models
Jumper Function Setting
J22 Bus Speed Select 1-2
2-3
3-4
4-5
J28 CPU Clock Multiplier 2-4
1-3
2-4
3-5
4-6
1-3
4-6
2-5
W1 Secure CMOS Power 1 - 2 (default)
Open Remove jumper for 10 sec,
Microprocessors Spare Part
P54C 75/50 MHz 213112-001
P54C 100/60, 50 MHz 213113-001
P54C 120/60 213125-001
P54C 133/66 223311-001
P54C 166/66 235229-001
50 MHz CPU External Bus Freq
40 MHz CPU External Bus Freq
60 MHz CPU External Bus Freq
66 MHz CPU External Bus Freq
2/3
1/2
1/3
2/5
reinstall to clear CMOS
Memory Spare Part
4 MB SIMM, Tin/Lead Contacts, EDO, 60ns 236512-001
4 MB SIMM, Tin/Lead Contacts, EDO, 70ns 236656-001
8 MB SIMM, Tin/Lead Contacts, EDO, 60ns 236513-001
8 MB SIMM, Tin/Lead Contacts, EDO, 70ns 236657-001
256K Cache Memory 236514-001
Video Memory, 1 MB 236515-001
Hard Drives Spare Part
840 MB 214211-001
1.0 GB 236794-001
1.2 GB 214215-001
1.6 GB 236793-001
CD-ROM Drive Spare Part
CD-ROM, IDE, 4-spd 172864-301
CD-ROM, IDE, 6-spd 185116-301
Diskette Drives Spare Part
1.44 MB, 3.5” 236769-301
3-150 Volume One
Page 2
Presario 7200/7600
Miscellaneous Spare Part
Heat Sink w/ Clip 238107-001
Keyboard, Scanner, U.S. 185288-301
Keyboard, Space Saver 235496-301
Mouse, Ivory 196694-301
MPEG Card 213857-001
Riser Board 188820-001
Scanner Keyboard Adapter 185536-001
WaveTable Module (option) 213858-001
Monitor Assemblies Spare Part
Monitor Assembly, P1410, LC, MM, POL*, NA 237659-001
Monitor Assembly, P1410, LC, MM, MPR, NH 237659-002
Monitor Assembly, P1410, LC, MM, MPR, SH 237659-003
Monitor Assembly, P1410, LC, POL, NH 237659-005
Monitor Assembly, P1410 LC, MM, JPN 237659-006
Monitor Assembly, P1510, LC, MM, NA 237656-001
Monitor Assembly, P1510, LC, MM, MPR, NH 237656-002
Monitor Assembly, P1510, LC, MM, MPR, SH 237656-003
Monitor Assembly, P1510, LC, MM, POL, NH 237656-005
* POL = Polished Glass.
19.2/14.4k-bps Modem+FDSP+TAM ISA---EMEA Only
Cable
Country Spare Part
Australia 236590-011 165224-011
Belgium 236590-181 165224-181
Denmark 236590-081 165224-081
Finland 236590-351 165224-351
France 236590-051 165224-051
Germany 236590-041 165224-041
Ireland 236590-AW1 165224-AW1
Italy 236590-061 165224-061
Japan 236590-191 137256-001
Korea 236590-AD1 165224-001
Netherlands 236590-331 165224-331
New Zealand 236590-AP1 165224-API
Norway 236590-091 165224-091
Portugal 236590-131 165224-131
Singapore/Malaysia/Thailand 236590-AF1 165224-001
Sweden 236590-101 165224-101
Switzerland 236590-111 165224-111
United Kingdom 236590-031 165221-031
Spare Part
Volume One 3-151
Page 3
Presario 7200/7600
19.2/14.4k-bps Modem+FDSP+TAM ISA---US, LA, APD Only
Country Spare Part
NA 236742-001
28.8K bps Modem, FDSP + TAM, ISA
Country Assembly Spare Part
NA 004860-002 212901-002
Japan 004860-191 212901-192
Cable Information Spare Part
Cables: Diskette, HD, CD, MIDI Port, Serial, CD Audio, Modem
Audio, LED & Cable Assembly
ROM Information Spare Pa rt
ROM, BIOS 236526-001
Battery/Power Supply Spare Part
Battery, Alk, 4.5v 160274-001
Power Supply, w/ Switch, 145W 236517-001
Power Supply, w/ Switch, Europe Only, 145W 236518-001
236510-001
NO MEMORY UPGRADE CHART
CAUTION! ONLY EDO MEMORY MODULES CAN BE ADDED
NOTE: Memory is expandable up to 128 MB using 60ns or 70ns EDO memory
(60ns recommended). Tin-lead SIMMs required. When upgrading memory, modules
must be installed in matched pairs:
Memory Options Option Part Spare Part
8 MB SIMM, Tin/Lead Contacts, 60ns, Pair of 4MB 236548-001 236512-001
16 MB SIMM, Tin/Lead Contacts, 60ns, Pair of
8MB
236548-002 236513-001
3-152 Volume One
