User’s Manual

Revision: R00

Trademarks Microsoft, Windows, the Windows logo, Windows Media, Outlook and ActiveSync are registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Microsoft products are licensed to OEMs by Microsoft Licensing, Inc., a wholly owned subsidiary of Microsoft Corporation. All other brand and product names are trademarks or registered trademarks of their respective companies.

Note The information in this manual is subject to change without notice.

Table of Contents

Preface.................................................................................................. v

Getting Started .............................................................................. 1

1.1 Identifying Hardware Components ......................................................1

Front Components...............................................................................1

Back Components ...............................................................................3

Left-Side Components.........................................................................4

Right-Side Components.......................................................................5

Top Components.................................................................................5

Bottom Components............................................................................6

1.2 Getting Your Device Ready for Use ....................................................6

Performing Initial Startup.....................................................................6

Connecting to AC Power and Charging the Battery............................7

1.3 Using Your Device in a Vehicle ...........................................................8

Using the Car Holder...........................................................................8

Connecting the Car Charger................................................................8

1.4 Turning Your Pocket PC On and Off...................................................8

Turning Off to Suspend........................................................................8

Turning On to Resume ........................................................................9

1.5 Installing Microsoft ActiveSync............................................................9

1.6 Expanding Your Pocket PC...............................................................10

Using a SD/MMC Card......................................................................10

Accessories .......................................................................................11

2 Basic Skills .................................................................................. 13

2.1 Using the Stylus.................................................................................13

2.2 Using the Navigation Stick.................................................................14

2.3 Today Screen ....................................................................................14

Landscape View ................................................................................15

2.4 Navigation Bar and Toolbar...............................................................15

2.5 Running Programs.............................................................................16

2.6 Shortcut Menus..................................................................................16

2.7 Notifications ...................................................................................... 17

2.8 Entering Information.......................................................................... 17

Entering Text Using the Input Panel................................................. 17

Writing on the Screen .......................................................................19

Drawing on the Screen .....................................................................22

Recording a Message....................................................................... 24

Using My Text................................................................................... 25

2.9 Locking Your Pocket PC................................................................... 26

3 Managing Your Pocket PC..........................................................29

3.1 Managing Power............................................................................... 29

Low Battery Signals and Actions...................................................... 29

Power Management.......................................................................... 30

Power-Saving Tips............................................................................ 31

3.2 Managing Memory............................................................................ 32

Storage and Program Memory .........................................................32

Additional Memory............................................................................ 32

3.3 Customizing Your Pocket PC............................................................ 33

3.4 Searching and Organizing Information............................................. 35

3.5 Adding or Removing Programs......................................................... 36

Adding Programs.............................................................................. 36

Removing Programs......................................................................... 37

4 Microsoft Pocket Outlook ...........................................................39

4.1 Calendar: Scheduling Appointments and Meetings.......................... 39

Creating an Appointment.................................................................. 40

Using the Calendar Summary Screen.............................................. 41

4.2 Contacts: Tracking Friends and Colleagues..................................... 42

Creating a Contact............................................................................ 42

Using the Contacts Summary Screen............................................... 44

4.3 Tasks: Keeping a To Do List............................................................. 45

Creating a Task................................................................................. 45

Using the Tasks Summary Screen................................................... 46

4.4 Notes: Capturing Thoughts and Ideas.............................................. 47

Creating a Note................................................................................. 47

4.5 Messaging: Sending and Receiving E-mail Messages..................... 49

Synchronizing E-mail Messages....................................................... 49

Connecting Directly to an E-mail Server........................................... 50

Using the Message List..................................................................... 50

Composing and Sending Messages................................................. 52

Managing Email Messages and Folders........................................... 53

5 More Programs............................................................................ 55

5.1 Microsoft ActiveSync .........................................................................55

Synchronizing Data............................................................................56

5.2 Word Mobile.......................................................................................57

Creating a Document.........................................................................57

Opening a Document.........................................................................58

5.3 Excel Mobile ......................................................................................59

Creating a Workbook.........................................................................59

Opening a Workbook.........................................................................60

5.4 PowerPoint Mobile.............................................................................61

5.5 Pocket MSN.......................................................................................62

5.6 Windows Media Player for Pocket PC...............................................63

5.7 Pictures & Videos ..............................................................................64

5.8 Additional Programs ..........................................................................65

Dialer..................................................................................................65

eConverter.........................................................................................71

Picture Viewer....................................................................................73

6 Getting Connected ...................................................................... 75

6.1 Wireless Network Connection............................................................75

Connecting to a Wireless Network ....................................................75

Starting and Ending the Wireless Network Connection.....................76

6.2 Bluetooth............................................................................................76

Turning On and Off Bluetooth............................................................77

Transferring Files via Bluetooth.........................................................77

Bluetooth Partnership........................................................................78

6.3 Modem Connection............................................................................80

6.4 Using Internet Explorer Mobile ..........................................................81

Browsing the Internet.........................................................................82

Managing Favorites...........................................................................82

7 Troubleshooting and Maintenance............................................ 85

7.1 Resetting Your Pocket PC.................................................................85

7.2 Restoring Last State ..........................................................................86

7.3 Power Problems ................................................................................86

7.4 Memory Problems..............................................................................87

7.5 Screen Problems ...............................................................................88

7.6 Connection Problems ........................................................................89

ActiveSync Connection Problems .....................................................89

Modem Connection Problems ...........................................................90

Network Connection Problems..........................................................91

7.7 Taking Care of Your Pocket PC ........................................................92

General Guidelines............................................................................92

iii

Travel Guidelines.............................................................................. 93

A Regulatory Information ...............................................................95

A.1 Regulations Statements.................................................................... 95

European Notice............................................................................... 95

A.2 Safety Precautions............................................................................ 96

About Charging................................................................................. 96

About the AC Adapter....................................................................... 96

About the Battery.............................................................................. 97

Index..................................................................................................111

Preface

Welcome

Congratulations on purchasing this Windows® Mobile™ for Pocket PC with built-in GPS and Bluetooth functions. Due to the size and capabilities of the device, you can keep your most important business and personal information

up-to-date and close at hand. Microsoft your Pocket PC by allowing you to synchronize the information on your desktop or Microsoft Exchange Server with your Pocket PC.

ActiveSync® increases the power of

About this Manual

This manual contains comprehensive information of your Pocket PC to help you operate the device.

Throughout the manual, the following conventions are used to distinguish elements of text.

NOTE: provides additional hints or information that requires special attention. CAUTION: identifies important information which, if not followed, may result in loss of data

or damage to your device.

Any name of menu, command, icon or button that you can see on the screen is shown in a bold typeset. For example:

On the

Start menu, tap Settings.

Where to Find Information

For information on See this source

GPS navigation operation The manual supplied with the GPS software Programs on your Pocket PC

Connecting to and synchronizing with a desktop computer

The latest on Windows Powered Pocket PCs

This User’s Manual or online Help on your Pocket PC

Chapter 6 of this manual or ActiveSync Help on your desktop computer

The Microsoft Mobile Devices Web site: www.pocketpc.com

1 Getting Started

This chapter introduces you to the external components of your Pocket PC and guides you through the process of setting up your Pocket PC for use.

NTOE: Depending on the model you purchased, the cabinet color and the look of the accessories may be different from the ones shown in this manual.

1.1 Identifying Hardware Components

Front Components

Ref Component Description

Notification

Indicator Charge Indicator

Touch Screen

Power Button

Navigation Stick

Program Buttons

Flashes in red to inform you of scheduled appointments, alarms and reminders.

Glows in amber to indicate that battery charging is in progress and in green when the battery is fully charged.

Displays the output of your Pocket PC. Tap the screen with the stylus to select menu commands or enter information.

Turns your Pocket PC on or off by pressing briefly. Turns the screen backlight off by pressing and holding. Moves up, down, left o r right by p ushing the button towa rd

the corresponding direction. Selects by pressing. Each of the three buttons provides a quick way to use a

program or function. The buttons are customizable. The icons on the buttons indicate the default functions:

Calendar Map* Quick Find*

* The button works only if M io Map (an optional pro gram) is installed in your system.

Back Components

Ref Component Description

Car Antenna Connector

Stylus

Speaker

This connector (under rubber dust cover) allows use of an optional external antenna with magnetic mount, which may be positioned on top of the car for better signal reception in areas with poor reception.

Tap on the touch screen to make selections and enter information. Pull the stylus out of its slot to use and store it in the slot when not in use.

Sends out music, sounds and voice.

Left-Side Components

Ref Component Description

SD/MMC Slot

Headphone

Connector TMC Connector

Accepts an optional SD (Secure Digital) or MMC (MultiMediaCard) card for removable storage.

Connects to a pair of stereo headphones.

Connects to the TMC (Traffic Message Channel) antenna for receiving TMC information.

Right-Side Components

Ref Component Description

Microphone

Receives sound and voice to record voice.

Top Components

Ref Component Description

GPS Antenna

Hand String Hole

Receives signals from the GPS satellites overhead. Hand string attaches to this hole.

Bottom Components

Ref Component Description

Mini-USB

Connector Reset Button

ON/OFF Switch

Connects to the AC adapter or ActiveSync cable.

Restarts your Pocket PC. The main power/battery cutoff switch.

1.2 Getting Your Device Ready for Use

Performing Initial Startup

Initial startup includes setting the ON/OFF switch and completing the setup wizard.

1. Pull out the stylus and use it to slide the ON/OFF switch to the ON (left)

position.

CAUTION: Always leave the ON/OFF switch in the ON position for normal operation.

2. Your device will automatically turn on. Connect the AC adapter as

described in the next sub-section.

3. Follow the onscreen instructions to complete the setup wizard. You will

then see the Today screen.

Connecting to AC Power and Charging the Battery

Fully charge the battery before starting to use your Pocket PC for the first time.

1. Fit the converter plug to the AC adapter (n). Connect the mini-USB end of

the AC adapter to your device (o) and the other end to a wall outlet (p).

Converter Plug

2. The charge indicator glows amber when charging is in progress. Do not

disconnect your Pocket PC from AC power until the battery is fully charged, as indicated by the amber indicator turning into green. This will take a couple of hours. When charging the battery for the very first time, charge it for at least 8 hours.

Whenever possible, keep your Pocket PC connected to the AC adapter and a power source. Doing so keeps the battery charged.

CAUTION: For optimal performance of the lithium battery, take note of the following:

z Do not charge the battery where the temperature is high (e.g. in direct sunlight). z There is no need to fully discharge the battery before charging. You can charge the

battery before it is discharged.

z If you will not use the product for a long period of time, be sure to fully charge the

battery at least once every two weeks. Over discharge of the battery can affect the charging performance.

NOTE: Your Pocket PC can also be charged when it is connected to a desktop computer via the USB cable.

1.3 Using Your Device in a Vehicle

Using the Car Holder

CAUTION:

z When placing the car holder, make sure that the device does not obstruct the driver’s

view, or interfere with the operation of vehicle airbags and safety devices.

z If the car’s windshield is tinted with a reflective coating, an external antenna (optional)

may be needed to route the antenna to the top of the car through a window.

The car holder consists of a bracket and a flexible window mount. Use the car holder to fix your device in a vehicle. (See a separate document for installation instructions.) Make sure that the GPS antenna has a clear view of the sky.

Connecting the Car Charger

The car charger supplies power to your Pocket PC when you are using it in a car.

CAUTION: To protect your device against sudden surges in current, connect the car charger only after the car engine has been started.

Connect one end of the car charger to the power connector of your device and the other end to the cigarette lighter in the car.

1.4 Turning Your Pocket PC On and Off

After the initial startup, your Pocket PC enters a suspend state when you turn it off and resumes when you turn it on.

Turning Off to Suspend

You suspend your Pocket PC by briefly pressing the power button. By default, your Pocket PC will also automatically suspend after 3 minutes of

inactivity when operating on battery power. (To change these settings, tap

Settings Æ System Æ Power Æ Advanced.)

Turning On to Resume

You resume your Pocket PC by briefly pressing the power button. You may also press one of the program buttons to resume.

1.5 Installing Microsoft ActiveSync

You can use Microsoft ActiveSync technology to synchronize information on your desktop computer and/or a Microsoft Exchange Server with the information on your Pocket PC. ActiveSync compares the information on your Pocket PC with the information on the desktop computer and/or the server and updates all locations, keeping you up-to-date with the most recent information.

ActiveSync is already installed on your Pocket PC. You need to install ActiveSync on your desktop computer. Follow the procedure below:

CAUTION:

z Before installation, make sure that you have Microsoft Outlook installed on your desktop

computer.

z Do not connect your Pocket PC to your desktop computer before ActiveSync is

installed.

z ActiveSync connection problems may occur in some specific cases. They are likely

caused by interoperability with desktop firewall applications or applications that manage network traffic. For troubleshooting information, visit the Microsoft web site: www.microsoft.com/windowsmobile/help/activesync.

1. Turn on your desktop computer.

2. Insert the Getting Started CD into the CD-ROM drive of your desktop

computer.

3. Click

Next to continue.

4. The setup wizard will install Microsoft ActiveSync. Follow the onscreen

instructions to install ActiveSync.

5. When prompted, connect the mini-USB end of the ActiveSync cable to the

bottom of your Pocket PC and the other end to a USB port on your desktop computer.

6. Follow the onscreen instructions to establish a synchronization relationship

and synchronize your Pocket PC with your desktop computer.

After your first synchronization, the data you have stored on your desktop computer such as Calendar, Contacts and Tasks is copied to your Pocket PC. You are now ready to take it along with you when you go.

1.6 Expanding Your Pocket PC

Using a SD/MMC Card

Your Pocket PC has a SD/MMC slot where you can insert an optional Secure Digital or MultiMediaCard storage card. With the removable memory, you can store or backup your data and exchange data with other devices.

NOTE:

z A storage card is also called a memory card. z Make sure that no foreign objects enter the slot. z Keep a SD or MMC card in a well-protected box to avoid dust and humidity when you

are not using it.

To use a SD/MMC card, insert it into the slot, with the connector pointing to the slot and its label facing the front of the Pocket PC. Follow the instructions supplied with the card for more information.

To remove a card, first make sure that no application is accessing the card, then slightly push the top edge of the card to release it and pull it out of the slot.

Accessories

By purchasing accessories designed for your Pocket PC, you can expand the capabilities of your Pocket PC, replace lost parts or facilitate your operation.

NOTE:

z Please contact your dealer for the availability of accessories from your Pocket PC

manufacturer.

z The use of unauthorized accessories will void your Warranty.

For detailed information on using the accessories, see the instructions supplied with the accessories.

2 Basic Skills

This chapter familiarizes you with the basic operations of your Pocket PC such as using the stylus, navigation stick, Today screen, menus, and programs. You will also know how to enter information and lock your Pocket PC.

2.1 Using the Stylus

Use the stylus to navigate and select objects on the screen. Pull the stylus out of the slot and extend it for ease of use. Store it in the slot

when not in use.

z Tap

Touch the screen once with the stylus to open items and select options.

z Drag

Hold the stylus on the screen and drag across the screen to select text and images. Drag in a list to select multiple items.

z Tap and hold

Tap and hold the stylus on an item to see a list of actions available for that item. On the shortcut menu that appears, tap the action you want to perform.

2.2 Using the Navigation Stick

With the navigation stick, you can move up, down, left

and right within a menu. This is particularly useful for one-hand operation.

To move in a direction, simply push the button toward

Left

Right

the corresponding direction. To activate the selected item, press the button.

Down

2.3 Today Screen

When you turn on your Pocket PC for the first time each day (or after 4 hours of inactivity), you will see the Today screen. The Today screen shows your upcoming appointments, active tasks, and information about e-mail messages. Along the top of the Today screen you will see the volume icon, the clock, and connectivity indicators. You can tap a section of the Today screen to open the program that is associated with that section. The Today screen is accessible from anywhere by tapping

Tap to switch to a program.

and then

Today.

Tap to connect.

Tap to change volume or mute all sounds.

Tap to change date and time.

Left Soft Key

Your day at a glance. Tap an item to access associated program so that you can view or change information.

Right Soft Key

Landscape View

To use your Pocket PC in a landscape manner, tap Æ Settings Æ System Æ

Screen Æ Landscape.

2.4 Navigation Bar and Toolbar

The Navigation bar is located at the top of the screen. It displays the active program and current time and allows you to switch programs and close screens.

The Navigation bar and Start menu:

Tap to select a program.

Tap to quickly select a program you have recently used.

Tap to see additional programs. Tap to customize the Pocket PC.

Use the toolbar at the bottom of the screen to perform tasks in programs. The toolbar includes a left soft key, a right soft key, and the Input panel button in between. The right soft key is usually

Menu while the left soft key varies with

programs. An example of the toolbar:

Left Soft Key

Input panel button

Right Soft Key

2.5 Running Programs

You can switch from one program to another without closing any program.

z To run a program, tap

at the left-top corner of the screen and select from

the Start menu.

z To access additional programs, tap

Programs and tap the program

icon.

z You can press a program button on the front of your Pocket PC. The icons

on the buttons identify the default programs they are associated with.

2.6 Shortcut Menus

With shortcut menus, you can quickly choose an action for an item. For example, you can use the shortcut menu in the contact list to quickly delete a contact, make a copy of a contact or send an email message to a contact. The actions in the shortcut menus vary from program to program. To access a shortcut menu, tap and hold the stylus on the name of the item that you want to perform the action on. When the menu appears, lift the stylus and tap the action you want to perform. Or tap anywhere outside the menu to close the menu without performing an action.

Tap and hold to display the shortcut menu.

Lift the stylus and tap the action you want.

Tap outside the menu to close it without performing an action.

2.7 Notifications

Your Pocket PC reminds you in a variety of ways when you have something to do. For example, if you have set up an appointment in Calendar, a task with a due date in Tasks or an alarm in Clock, you will be notified in any of the following ways:

z A message appears on the screen. z A sound, which you can specify, is played. z The notification indicator flashes in red.

To choose reminder types and sounds for your Pocket PC, tap

Personal Æ Sounds & Notifications.

Settings Æ

2.8 Entering Information

You have several options for entering new information:

z Use the Input panel to enter typed text, either by using the soft keyboard or

other input methods.

z Write directly on the screen. z Draw pictures on the screen. z Speak into the microphone to record a message.

Entering Text Using the Input Panel

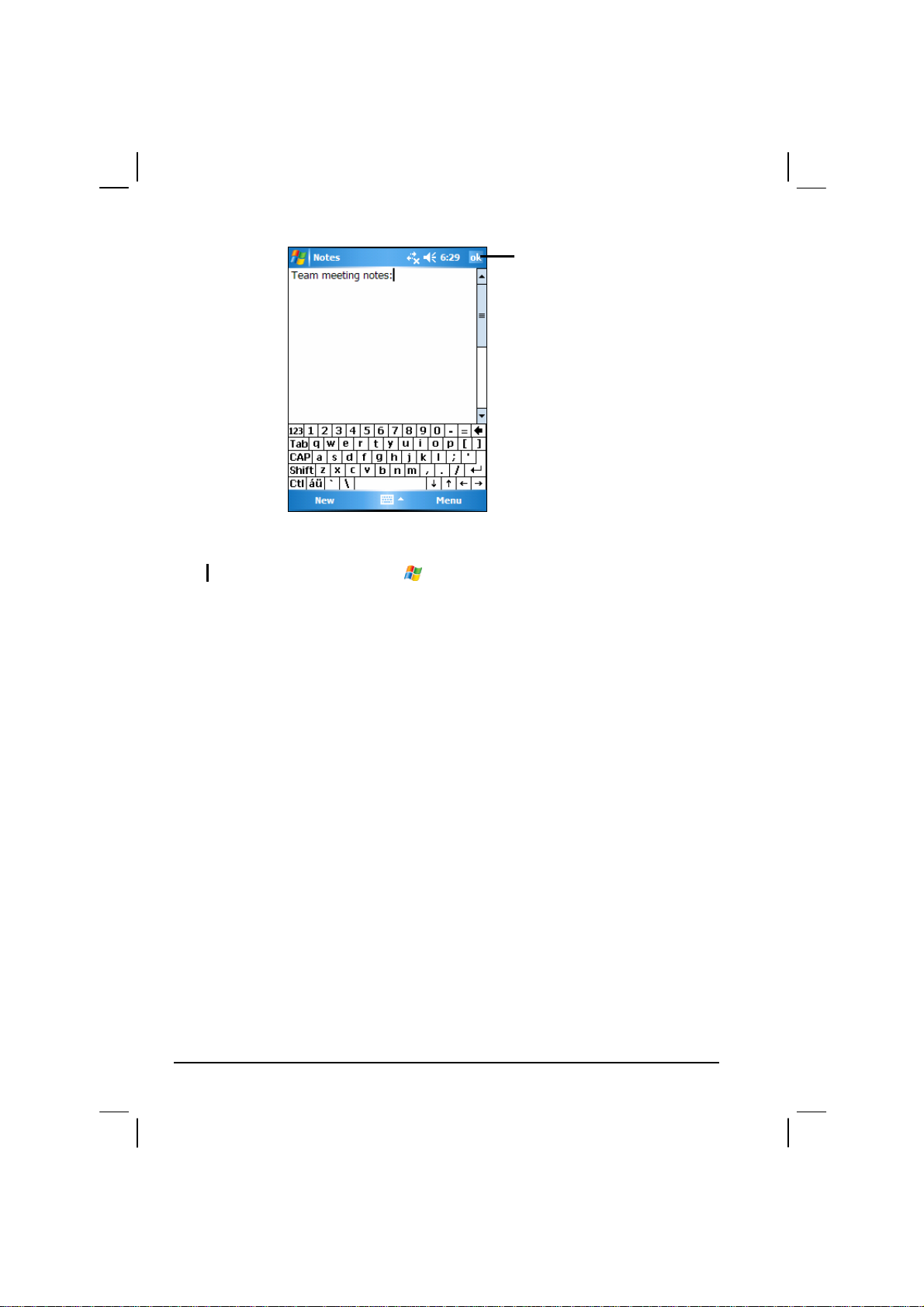

Use the Input panel to enter information in any program on your Pocket PC. You can either type using the soft keyboard or write using the soft keyboard, Block Recognizer, Letter Recognizer or Transcriber. In any case, the characters appear as typed text on the screen.

To show or hide the Input panel, tap the the Input panel button to see your choices.

Input panel button. Tap the arrow next to

Select an input method.

Input panel button.

Tap to see your choices.

When you use the Input panel, your Pocket PC anticipates the word you are typing or writing and displays it above the Input panel. When you tap the displayed word, it is inserted into your text at the insertion point. The more you use your Pocket PC, the more words it learns to anticipate.

Tap here if this is the right word.

NOTE: To change word suggestion options, such as the number of words suggested at one time, tap

Æ Settings Æ Personal Æ Input Æ Word Completion.

Block Recognizer

With Block Recognizer, you can use the stylus to input characters using strokes that are similar to the Palm™ Graffiti® method.

To type with Block Recognizer:

1. Tap the arrow next to the Input panel button and then tap

Block Recognizer.

2. Write a letter in the box. When you write a letter, it is converted to typed text that appears on the screen.

For specific instructions on using Block Recognizer, open Block Recognizer and then tap the question mark next to the writing area.

Letter Recognizer

With Letter Recognizer, you can write letters using the stylus just as you would use a pen on paper.

To type with Letter Recognizer:

1. Tap the arrow next to the Input panel button and then tap

2. Write a letter in the box. When you write a letter, it is converted to typed text that appears on the screen.

For specific instructions on using Letter Recognizer, open Letter Recognizer and then tap the question mark next to the writing area.

Letter Recognizer.

Transcriber

With Transcriber you can write anywhere on the screen using the stylus just as you would on paper. Unlike Letter Recognizer and Block Recognizer, you can write a sentence or more of information; then, you pause and let Transcriber change the written characters to typed characters.

To type with Transcriber:

1. Tap the arrow next to the Input panel button then tap

2. Write anywhere on the screen. For specific instructions on using Transcriber, open Transcriber and then tap the

question mark in the lower-right corner of the screen.

Transcriber.

Writing on the Screen

In any program that accepts writing, such as the Notes program, you can use your stylus to write directly on the screen. Write the way you do on paper. You can edit and format what you have written and convert the information to text later.

Writing

To write on the screen, tap Menu Æ Draw to switch to drawing mode. This action displays lines on the screen to help you write.

NOTE: Not all program support the drawing mode.

Editing Your Writing

If you want to edit or format writing, you must first select the writing and then edit it.

1. Tap and hold the stylus next to the text you want to select until the insertion

point appears. Without lifting, drag the stylus across the text you want to select.

2. Tap and hold the selected words and then tap an editing command (cut, copy

or paste) on the shortcut menu or tap the command on the

If you accidentally write on the screen, tap

Menu Æ Undo Ink and try again.

Menu Æ Edit menu.

Converting Your Writing to Text

1. If you want to convert only certain words, select them before going to the

next step.

2. To convert writing to text, tap Menu Æ Tools Æ Recognize or tap and hold the

selected words and then tap

Recognize on the shortcut menu. Your writing is

turned into text. If a word is not recognized, it is left as writing.

Select the text you want to convert and tap Recognize on the shortcut menu.

The writing is turned into text.

If the conversion is incorrect, you can select different words from a list of alternates or return to the original writing.

1. Tap and hold the incorrect word (tap one word at a time).

2. On the shortcut menu, tap

Alternates. A menu with a list of alternate words

appears.

3. Tap the word you want to use or tap the writing at the top of the menu to

return to the original writing.

Tap to return to your original writing.

Or, tap the word you want to use.

Some tips for getting good recognition are listed below:

z Write neatly. z Write on the lines and draw descenders below the line. Write the cross of the

“t” and apostrophes below the top line so that they are not confused with the word above. Write periods and commas above the line.

z For better recognition, use Menu Æ Zoom to increase the zoom level to

300%.

z Write the letters of a word close together and leave big gaps between words. z Hyphenated words, foreign words that use special characters such as

accents some punctuation cannot be converted.

z If you add writing to a word to change it (such as changing a “3” to an “8”)

after you attempt to recognize the word, the writing you add will not be included if you attempt to recognize the writing again.

Drawing on the Screen

You can draw on the screen in the same way that you write on the screen. The difference between writing and drawing on the screen is how you select items and how they can be edited. For example, selected drawings can be resized, while writing cannot.

Creating a Drawing

1. Tap Menu Æ Draw to enable drawing mode. A check (√) appears before the

command.

2. To create a drawing, cross three ruled lines on your first stroke. A drawing

box appears.

3. Subsequent strokes in or touching the drawing box become part of the

drawing. Drawings that do not cross three ruled lines will be treated as writing.

The drawing box indicates the boundaries of the drawing.

NOTE: You may want to change the zoom level so that you can more easily work on or view your drawing. Tap Menu Æ Zoom and then choose a zoom level.

Editing Your Drawing

If you want to edit or format a drawing, you must select it first.

1. Tap

2. Tap and hold the stylus on the drawing until the selection handle appears.

3. Tap and hold the selected drawing and then tap an editing command (cut,

4. To resize a drawing, drag a selection handle.

Menu Æ Draw to disable drawing mode. The check (√) before the

command should disappear.

copy or paste) on the shortcut menu.

Recording a Message

In any program where you can write or draw on the screen, you can also quickly capture thoughts, reminders and phone numbers by recording a message. In the Notes program, you can either create a stand-alone recording or include a recording in a written note. If you want to include the recording in a note, open the note first. In the Messaging program, you can add a recording to an email message.

To create a recording:

1. Hold the Pocket PC’s microphone near your mouth or other source of

sound.

2. Press and hold the record button on the side of your Pocket PC. If the

speaker is not muted, a beep indicates that your Pocket PC is recording. The Notification indicator glows red while recording is in progress.

3. While holding down the record button, speak into the microphone.

4. To stop recording, release the Record button. Two beeps will sound. The

new recording appears in the note list or as an embedded icon.

NOTE: You can also make a recording by tapping the Record button on the Recording toolbar. (Tap Menu Æ View Recording Toolbar to show the toolbar.)

To play a recording, tap it in the list or tap its icon in the note.

Indicates an

embedded recording.

Recording toolbar

Recording Formats

Your Pocket PC supports several formats for voice notes. The formats vary in both the quality of the recording and the size of the sound file. When selecting a recording format, you should consider the quality you need as well as how much storage memory the recording will use on your Pocket PC.

Not all recording formats are compatible with other software or computers. If you will share your recordings with others or transfer a recording to your desktop computer, be sure to choose a recording format that is supported by the software used to play recordings on the other computer.

The PCM format offers the highest quality recording and is compatible with all Pocket PC models, other Windows-powered mobile devices and desktop computers that use Windows operating systems. The GSM 6.10 format is compatible with all Pocket PC models and other Windows-powered mobile devices, but may not work with desktop computers.

To select a recording format:

Tap

2. On the

from the drop-down list.

The list of recording formats on your Pocket PC indicates the sample rate, whether the format is stereo or mono and how much storage memory is required per second of recording. You may need to experiment with different sample rates and formats to determine which format best suits your voice.

Settings Æ Input.

Options tab in the Input control panel, select a voice recording format

Using My Text

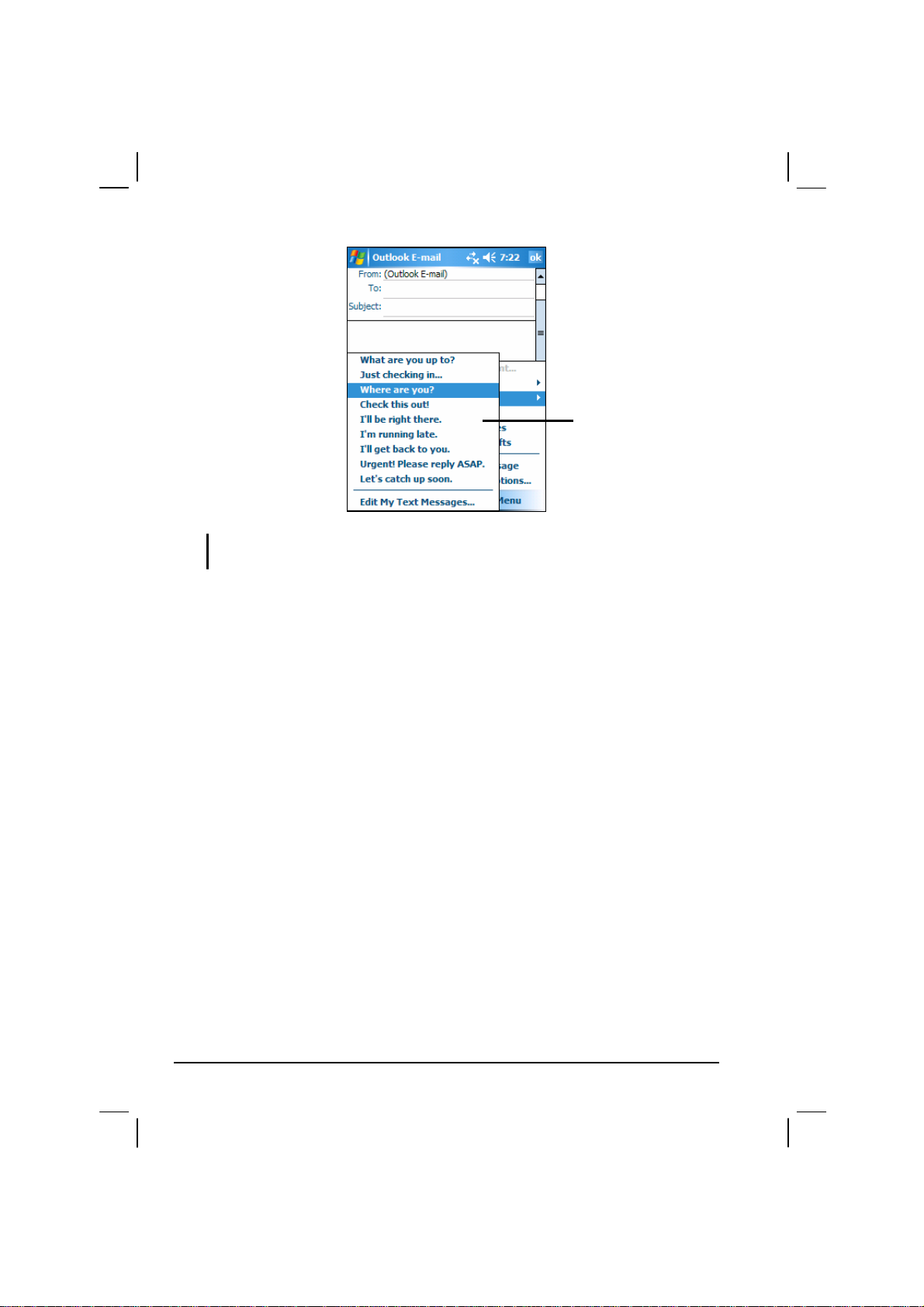

When using Messaging or MSN Messenger, use My Text to quickly insert preset or frequently used messages into the text entry area. To insert a message, tap

Menu Æ My Text and then tap a message.

Tap to select a prewritten message.

NOTE: After inserting a My Text message, you can add text to it before you send the message.

To edit a My Text message, tap

Menu Æ My Text Æ Edit My Text Messages. Select

the message you wish to edit and make desired changes.

2.9 Locking Your Pocket PC

When not using your Pocket PC, you can use the lock function so that accidental touching of the device does not cause your Pocket PC to operate.

To lock your Pocket PC, tap PC will not respond to any tapping of the screen (except the left soft key or pressing of the buttons (except the power button).

Device unlocked on the Today screen. Your Pocket

Unlock)

Tap to lock the device.

To unlock, tap

Tap to unlock

Unlock (left soft key) and tap Unlock.

3 Managing Your Pocket PC

This chapter tells you how to effectively manage power, memory, settings, data and programs of your Pocket PC.

3.1 Managing Power

A fully charged battery should provide power for up to 8 hours of use. The operating time of a fully charged battery depends on how you are using the Pocket PC. Some functions, such as using multimedia or operating a SD/MMC card, may consume the battery power considerably.

Low Battery Signals and Actions

CAUTION: When you recharge the battery upon a warning of low power, you should charge for at least 30 minutes. If you unplug the AC adapter soon, you may not have sufficient battery power for your operation.

You can monitor the battery power by tapping The remaining power is displayed on a status bar in the Power control panel.

When the battery is low, your Pocket PC will pop up a warning message. You should save your data and recharge the battery immediately upon a warning of low power; otherwise your Pocket PC will turn off automatically. You need to connect the Pocket PC to external AC power for charging before you can use it again.

Settings Æ System Æ Power.

Power Management

Supplied with your Pocket PC is a tool called “eUtility.” This tool helps you effectively manage power to prolong the battery’s operating time.

Tap

Performance, Power, and USB. They are described as below.

Æ Settings Æ System Æ eUtility. The tool consists of four tabs: System,

System

This page shows the program information. It does not contain any adjustable items.

Performance

Select a mode from the following four options.

z Auto Pocket PC will automatically adjust the CPU speed according to the

need of the current operation.

z Low Performance The CPU always runs at a lower speed, thus extending

the battery life.

z High Performance The CPU always runs at normal speed, thus providing

standard battery life.

z Superior Performance The CPU always runs at a high speed, thus

shortening the battery life.

Power

The following item is enabled by default. You can change the setting if you want.

z SD slot powered off during sleep mode

Sets if the Pocket PC will stop the power supply to the SD/MMC slot when the Pocket PC is suspended. (The default setting is unchecked.)

You can also select the events for waking up your Pocket PC. Check the desired item(s). (The default settings are all enabled.)

z Application buttons z Record Button

z SD/MMC Card insertion/removal z USB Plug-In

USB

You can select one of the following two modes for the USB connection:

z ActiveSync mode

Select this mode for using your Pocket PC as a standard Pocket PC that can synchronize with your desktop computer through ActiveSync.

z Card Reader mode

Select this mode only if you want your Pocket PC to function as a card reader for your desktop computer. Otherwise, do not select this mode.

Power-Saving Tips

Follow these suggestions to maximize the battery’s operating time, particularly when you are relying solely on the battery power for extended time periods.

z Suspend frequently.

By default, the screen backlight will automatically turn off and the Pocket PC will also turn off when it has been idle for a period of time. You can shorten the length of the idle time using

Advanced

to set up.

Settings Æ System Æ Power Æ

Press the power button to turn off your Pocket PC when it is not in use, even for a short time. You can also manually turn off the backlight by pressing and holding the power button.

z Turn off functions not needed or adjust settings.

9 Lower the volume. 9 Do not enable sounds or light flashing except for the most necessary

notifications. (Tap

Settings Æ Personal Æ Sounds & Notifications to

set up.)

z Avoid power-consuming situations such as:

9 When using a modem or other peripheral 9 When playing sound or music 9 When recording. 9 When using or monitoring wireless signals

3.2 Managing Memory

Storage and Program Memory

Files, settings and data that you add to your Pocket PC are stored in RAM (Random Access Memory). The RAM on your Pocket PC is shared between storage memory and program memory.

z Storage memory

Storage memory is used to store the data you create and additional programs you install.

z Program memory

Program memory is used to run programs on your Pocket PC.

Your Pocket PC automatically manages the allocation between storage and program memory. However, in some situations, such as when the memory is running out, your Pocket PC may not be able to automatically adjust the allocation. (For information on solving memory problems, see section 7.4.)

Additional Memory

You can buy a SD/MMC storage card for backup, storage, archives or to transfer large files to other devices. Files stored on a storage card appear in a folder called

Storage Card, listed under My Device in the File Explorer application.

3.3 Customizing Your Pocket PC

NOTE: Incorrect settings may cause your system to malfunction. Make sure that you fully understand the function of a certain item before any adjustment.

You can customize the settings of the Pocket PC to your own preferences. Tap

Settings. You can tap any of the icons on the Personal, System or

Connections tabs for the options. The items you can customize are described as

follows:

Tab Items Descriptions

Personal

Buttons

Input

Menus To customize what appear on the Start menu. MSN Options To manage your MSN settings. Owner

Information Password To set a password for security. Sounds &

Notifications Today

To assigns programs to the hardware buttons and set the repeat rate of the up/down control.

To set up items related to the input methods and voice recording format.

To enter your personal information.

To set the conditions and types of the sounds, system volume and ways of notifications.

To select the information you want displayed on the Today screen and to select a desired theme for the background.

Tab Items Descriptions

System

About

Backlight

Certificates

Clock & Alarms

Error Reporting

GPS

Memory

Power

Regional Settings

Remove Programs

Screen

To show the hardware information of the Pocket PC and to define the device name that your Pocket PC uses for identifying itself to other computers.

To adjust the brightness level of the display and to set the automatic turnoff for power saving purposes.

To establish your identify or the identify of other computers. Certificates help establish your identity when you are logging onto a secure d netw ork, suc h as a corporate network. Certificates also help establish the identity of other computers, such as servers, with which you connect. This helps prevent unauthorized users from accessing your Pocket PC and information.

To change the time and date and to set alarms.

To enable or disable error reporting. Error Reporting sends information needed by technical support groups to diagnose a program error for a device running Windows Mobile softw are .

To configure the GPS hardware settings and manage GPS.

To view the memory on the storage card (if installed) and to manually stop a program if it becomes unstable or program memory is low.

To show the remaining battery power and to set the time for the Pocket PC to turn off automatically.

To specify the region of your location and the formats of the number, currency, time and date.

To remove programs you added to the RAM of your Pocket PC.

To set the orientation of the screen to portrait or landscape.

To adjust the touch screen for accurate screen taps. To enable ClearType feature for easier reading of text in

programs that support ClearType. To adjust the text size to see more content or increase

the readability in many programs.

Tab Items Descriptions

Connections

Beam Your device hardware does not support this function. Connections

To set up or change connection information. (See Section 6.1 for more information.)

Network Cards

To configure the network card, if installed. (See Section

6.1 for more information.)

3.4 Searching and Organizing Information

The Search feature on your Pocket PC helps you quickly locate information. To search a file, tap

select a data type and then tap

Programs

Search. Enter the text you want to find,

Search to start the search.

You can also use the File Explorer to find files on your Pocket PC and to organize these files into folders. Tap

Tap to change folders.

Programs Æ File Explorer.

Select the sort order for the list.

Tap the folder name to open it.

Tap and hold to create a new folder.

NOTE: You can move files in File Explorer by tapping and holding the item you want to move, tapping Cut or Copy on the shortcut menu, browsing to the new location and then tapping Paste.

3.5 Adding or Removing Programs

You can install any program created for your Pocket PC as long as your Pocket PC has enough memory. The most popular place to find software for your Pocket PC is on the Pocket PC Web site (http://www.pocketpc.com).

Adding Programs

To Add Programs Using ActiveSync

You will need to install the appropriate software for your Pocket PC on your desktop computer before installing it on your Pocket PC.

1. Determine your Pocket PC and processor type so that you know which

version of the software to install. Tap

Version and make a note of the information in Processor.

Settings Æ System Æ About Æ

2. Download the program to your desktop computer or, if you have a CD or disk

containing the program, insert the CD or disk into your desktop computer. You might see a single *.xip, *.exe *.zip file, a Setup.exe file or several versions of files for different device types and processors. Be sure to select the program designed for the Pocket PC and your Pocket PC processor type.

3. Read any installation instructions, Read Me files or documentation that

comes with the program. Many programs provide special installation instructions.

4. Connect your Pocket PC and desktop computer.

5. Double-click on the *.exe file.

z If the file is an installer, the installation wizard begins. Follow the

directions on the screen. Once the software has been installed on your computer, the installer automatically transfers the software to your Pocket PC.

z If the file is not an installer, you will see an error message stating that

the program is valid but it is designed for a different type of computer. You will need to move this file to your Pocket PC. If you cannot find any installation instructions for the program in the Read Me file or documentation, use ActiveSync Explore to copy the program file to the Program Files folder on your Pocket PC. For more information on copying files using ActiveSync, see ActiveSync Help.

NOTE: You can also use Pocket Internet Explorer to download some programs from the Internet directly to your Pocket PC if your Pocket PC is connected to Internet.

Once installation is complete, tap

Programs and tap the program icon to

switch to it.

To Add a Program to the Start Menu

Use one of the following methods to add a program to the Start menu.

z Tap

Settings Æ Menu and tap the check box for the program. If you do

not see the program listed, use any of the following two methods.

z If you are using File Explorer on the Pocket PC:

Tap labelled on the Pocket PC). Tap and hold the program and tap

Program Æ File Explorer and locate the program (tap the folder list,

My Documents by default and tap My Device to see a list of all folders

Cut on the shortcut

menu. Open the Start Menu folder located in the Windows folder, tap and hold a blank area of the window and tap

Paste on the shortcut menu. The

program appears on the Start menu.

z If you are using ActiveSync on the desktop computer:

Use the Explorer in ActiveSync to explore your Pocket PC files and locate the program. Right-click on the program and then click on

Create Shortcut.

Move the shortcut to the Start Menu folder in the Windows folder. The shortcut appears on the Start menu.

Removing Programs

To remove a program from your Pocket PC:

1. Tap

2. Select the program in the list then tap

Settings Æ System Æ Remove Programs.

Remove.

If the program does not appear in the list of installed programs, use File Explorer on your Pocket PC to locate the program, tap and hold the program and then tap

Delete on the shortcut menu.

4 Microsoft Pocket Outlook

This chapter tells you how to use Microsoft Pocket Outlook that includes Calendar, Contacts, Tasks, Notes, and Messaging. You can use these programs individually or together. For example, e-mail addresses stored in Contacts can be used to address e-mail messages in Messaging.

4.1 Calendar: Scheduling Appointments and Meetings

Use Calendar to schedule appointments, including meetings and other events. You can check your appointments in one of several views (Agenda, Day, Week, Month and Year) and set Calendar to remind you of appointments with a sound or other method. Appointments for the day can be displayed on the Today screen.

Tap

Calendar to switch to the program.

Tap to switch to another view.

Tap to go to today. Tap to display or edit the

appointment details.

Creating an Appointment

1. In Day or Week view, tap the desired date and time for the appointment.

2. Tap

Menu Æ New Appointment.

Tap to return to the calendar (the

appointment is saved automatically).

Tap to choose from predefined text.

Tap to choose from previously entered locations.

Tap to select a time. Tap to select a date.

3. Using the Input panel, tap first to select the field, and then enter a

description and a location.

4. If needed, tap the date and time to change them.

5. Enter other desired information. You will need to hide the Input panel to see

all available fields.

6. Tap

OK to save and return to Calendar.

NOTE: For more information, tap Æ Help.

Using the Calendar Summary Screen

When you tap an appointment in Calendar, a summary screen is displayed. To change the appointment, tap

Edit.

View appointment details.

View notes.

Tap to change appointment.

4.2 Contacts: Tracking Friends and Colleagues

Contacts maintains a list of your friends and colleagues so that you can easily find the information you are looking for, whether you are at home or on the road.

Tap

Tap an alphabet group

to scroll the contact list.

Contacts to switch to the program.

Creating a Contact

1. In Contacts, tap New.

Tap to create a new contact.

Tap and enter part of a name or number to quickly find a contact in the list.

Tap to display or edit the contact details.

Tap and hold to display the shortcut menu.

Tap to return to the contact list (the

contact is saved automatically).

2. Using the Input panel, enter a name and other contact information. You will

need to scroll down to see all available fields.

3. Tap

OK to save and return to the contact list.

NOTE: For more information, tap Æ Help.

Using the Contacts Summary Screen

When you tap a contact in the contact list, a summary screen is displayed. To change the contact information, tap

Edit.

Tap to view notes.

Tap to change contact information.

4.3 Tasks: Keeping a To Do List

Use Tasks to keep track of what you have to do. Tap

Programs Æ Tasks to switch to the program.

Creating a Task

1. In Task, tap New.

Tap to quickly create a task with only a subject

Tap to display or edit the task details. Tap and hold to display the shortcut men.

Tap to create a new task.

Tap to return to the task list (the task is saved automatically).

Tap to choose from predefined subjects.

2. Using the Input panel, enter a description.

3. You can enter a start date and due date or enter other information by first

tapping the field. If the Input panel is open, you will need to hide it to see all available fields.

4. Tap

OK to save and return to the task list.

NOTE: For more information, tap Æ Help.

Using the Tasks Summary Screen

When you tap a task in the task list, a summary screen is displayed. To change the task, tap

Edit.

Tap to show and hide additional summary information.

View notes.

Tap to change task information.

4.4 Notes: Capturing Thoughts and Ideas

Quickly capture thoughts, reminders, ideas, drawings and phone numbers with Notes. You can create a written note or a recording. You can also include a recording in a note. If a note is open when you create the recording, it will be included in the note as an icon. If the note list is displayed, it will be created as a stand-alone recording.

Tap

Programs Æ Notes to switch to the program.

Tap to create a new note.

Tap to change the sort order of the list.

Tap to open a note or play a recording.

Tap and hold to display the shortcut menu

Creating a Note

1. In Notes, tap New.

2. Create your note by writing, drawing, typing, or recording. For more

information about using the Input panel, writing, and drawing on the screen and creating recordings, see section 2.8.

Tap to return to the note list (the note is saved automatically)

3. Tap

OK to save and return to the note list.

NOTE: For more information, tap

Æ Help.

4.5 Messaging: Sending and Receiving E-mail Messages

You can use Messaging to send and receive email messages in two ways:

z By synchronizing email messages with Microsoft Exchange or Microsoft

Outlook on your desktop computer.

z By connecting directly to an e-mail server through an ISP (Internet Service

Provider) or a network. This method requires an optional modem or network card.

Tap

Messaging to switch to the program.

Synchronizing E-mail Messages

E-mail messages can be synchronized as part of the general synchronization process. To do this, you need to enable Inbox synchronization in ActiveSync For information on enabling Inbox synchronization, see ActiveSync Help on the desktop computer.

During synchronization, the following occurs:

z Messages are copied from the mail folders of Exchange or Outlook on your

desktop computer to the ActiveSync folder in Inbox on your Pocket PC. By default, you receive messages from the past three days only, the first 100 lines of each message file attachments of less than 100 KB in size.

z Email messages in the Outbox folder on your Pocket PC are transferred to

Exchange or Outlook and then sent from those programs.

z The messages on the two computers are linked. When you delete a message

on your Pocket PC, it is deleted from your desktop computer the next time you synchronize.

z Email messages in subfolders in other e-mail folders in Outlook are

synchronized only if they have been selected for synchronization in ActiveSync.

Connecting Directly to an E-mail Server

You can send and receive email messages by connecting to a POP3 or IMAP4 e-mail server if you can connect to your ISP or local area network. (For information on connection, see Section 6.1.)

Setting up an Email Service

You can use multiple email services to receive your messages. For each email service you intend to use, first set up and name the email service. If you use the same service to connect to different mailboxes, set up and name each mailbox connection.

In Messaging, tap New Service Wizard. For an explanation of a screen, tap corner of the screen.

When you connect to the email server, new messages are downloaded to the Inbox folder on your Pocket PC, messages in the Pocket PC Outbox folder are sent messages that have been deleted on the email server are removed from the Inbox folder on your Pocket PC.

Messages that you receive directly from an email server are linked to your email server rather than your desktop computer. When you delete a message on your Pocket PC, it is also deleted from the email server the next time you connect based on the settings you selected in ActiveSync.

You can work online or offline. When working online, you read and respond to messages while connected to the email server. Messages are sent as soon as you tap

Send, which saves space on your Pocket PC.

When working offline, once you have downloaded new message headers or partial messages, you can disconnect from the email server and then decide which messages to download completely. The next time you connect, Inbox downloads the complete messages you have marked for retrieval and sends the messages you have composed.

Menu Æ Tools Æ New Account. Follow the directions in the

at the upper right

Using the Message List

Messages you receive are displayed in the message list. By default, the most recently received messages are displayed first in the list.

Select the service and folde you want to display.

When you receive a message, tap it to open it.

Select the sort order for messages. Tap to open a message.

Tap and hold to display the shortcut menu.

Tap to return to the message list.

When you connect to your email server or synchronize with your desktop computer or server, by default, you will receive messages from the last three days only, the first 100 lines of each new message file attachments of less than 100KB in size. The original messages remain on the server or your desktop computer.

You can mark the messages that you want to retrieve in full during your next synchronization or email server connection. In the message list, tap and hold the message you want to retrieve. On the shortcut menu, tap

Mark for Download. The

icons in the Inbox message list give you visual indications of message status. You specify your downloading preferences when you set up the service or select

your synchronization options. You can change them at any time.

z Change options for Inbox synchronization using ActiveSync options. For

more information, see ActiveSync Help.

z Change options for direct email server connections in Messaging on your

Pocket PC. Tap Tap and hold the account and tap

Menu Æ Options and tap the account you want to change.

Delete to remove an account.

Composing and Sending Messages

1. In the message list, tap Menu Æ Switch Accounts and select the account.

2. Tap

3. In the

New.

To field, enter an email address of one or more recipients, separating

them with a semicolon. If the address is already in your contact list, you can tap

To to select the e-mail address.

4. Enter your message. To quickly enter common messages, tap

and select the desired message.

Text

Menu Æ My

5. To check spelling, tap Menu Æ Spell Check.

6. If you want to attach a file to the message, tap

Menu Æ Insert and select the

desired file.

NOTE: OLE objects cannot be attached to Inbox messages.

7. Tap

Send when you have finished the message. If you are working offline,

the message is moved to the Outbox folder and is sent the next time you connect.

The message is placed in the Outbox folder on your Pocket PC and will be delivered in one of two ways:

z The message is transferred to the Outbox folder in Exchange or Outlook on

your desktop computer and sent the next time you synchronize.

z The message is transferred to your email server the next time you connect.

Managing Email Messages and Folders

Each e-mail service account has its own folder hierarchy with five default folders: Inbox, Outbox, Deleted Items, Drafts and Sent Items. The messages you receive and send through the mail service are stored in these folders. You can also create additional folders within each hierarchy.

The Deleted Items folder contains messages that have been deleted on your Pocket PC. The behaviour of the Deleted and Sent Items folders depends on the options you have chosen.

Folder Behavior

The behavior of the folders you create depends on whether you are using ActiveSync, POP3 or IMAP4.

z If you use ActiveSync, email messages in the Inbox folder in Outlook are

automatically synchronized with your Pocket PC. You can select to synchronize additional folders by designating them for ActiveSync. The folders you create and the messages you move are mirrored on the server. For example, if you move two messages from the Inbox folder to a folder named Family and you have designated Family for synchronization, the server creates a copy of the Family folder and copies the messages into that

folder. You can then read the messages while away from your desktop computer.

z If you use POP3 and you move email messages to a folder you created, the

link is broken between the messages on the Pocket PC and their copies on the mail server. The next time you connect, the mail server sees that the messages are missing from the Pocket PC Inbox and deletes them from the server. This prevents you from having duplicate copies of a message, but it also means that you no longer have access to messages that you move to folders created from anywhere except the Pocket PC.

z If you use IMAP4, the folders you create and the email messages you move

are mirrored on the server. Therefore, messages are available to you anytime you connect to your mail server, whether it is from your Pocket PC or desktop computer. This synchronization of folders occurs whenever you connect to your mail server, create new folders or rename/delete folders when connected.

For all services except ActiveSync, you can access folder options by tapping

Menu Æ Tools Æ Manage Folders in the message list.

5 More Programs

In addition to Microsoft Pocket Outlook, there are other programs built into your Pocket PC. This chapter tells you how to use these programs.

5.1 Microsoft ActiveSync

NOTE: ActiveSync is already installed on your Pocket PC. You need to install ActiveSync on your desktop computer. (For information on installing ActiveSync, see section 1.4.)

When you have established the connection between your Pocket PC and your desktop computer, you can synchronize the information between the two with ActiveSync. Synchronization compares the data on the two sides and updates both computers with the most recent information. For example, you can:

z Keep your Pocket Outlook Contacts, Calendar and Tasks databases

up-to-date by synchronizing your Pocket PC with Microsoft Outlook data on your desktop computer.

z Synchronize email messages in your Pocket PC Inbox with email messages

in Microsoft Outlook on your desktop computer.

z Synchronize Microsoft Word and Microsoft Excel files between your

Pocket PC and desktop computer. Your files are automatically converted to the correct format.

With ActiveSync, you can also:

z Back up and restore your Pocket PC data. z Copy (rather than synchronize) files between your Pocket PC and desktop

computer.

z Add and remove programs on your Pocket PC. z Pass through your desktop computer to a network or the Internet.

Synchronizing Data

Once you have created a synchronization relationship and completed the first synchronization, you can initiate synchronization from your Pocket PC.

1. Connect your Pocket PC to your desktop computer.

2. On your Pocket PC, tap

3. Tap

Sync to begin synchronization.

Æ Programs Æ ActiveSync.

By default, ActiveSync does not automatically synchronize all types of information. Use ActiveSync options to turn synchronization on and off for specific information types. You can:

z Control when synchronization occurs by selecting a synchronization mode.

For example, you can synchronize continually while the Pocket PC is connected or only when you choose the synchronize command.

z Select which information types are synchronized and control how much

data is synchronized. For example, you can choose how many weeks of past appointments you want synchronized.

For information on setting ActiveSync options and using ActiveSync on your desktop computer, see ActiveSync Help on the desktop computer. For information on using ActiveSync on your Pocket PC, see ActiveSync Help on the Pocket PC.

5.2 Word Mobile

Microsoft Word Mobile works with Microsoft Word on your desktop computer to give you easy access to copies of your documents. You can create new documents on your Pocket PC or you can copy documents from your desktop computer.

Tap

Æ ProgramsÆ Word Mobile to switch to the program.

Creating a Document

1. In Word Mobile, tap New.

Select the type of folder you want displayed in the list.

Tap to create a new document.

Tap to change the sort order of the list.

Tap to open a document.

Tap and hold an item to see a shortcut menu of actions.

NOTE: To open a template rather than a blank document, select a template for new documents. Tap Menu Æ Options and select the desired template. When you tap New, the template appears with appropriate text and formatting already provided.

2. Enter the information. (For more information on using the input panel, see

section 2.8 or Pocket PC Help.)

Tap to format text.

3. When you have finished entering the information and tap

Tap and hold to see a shortcut menu of actions.

Tap to return to the document list (changes are saved automatically).

OK, the document

is automatically saved and named according to the first characters of text entered in the document.

NOTE: For more information, tap

Æ Help.

Opening a Document

Whenever you switch to Word Mobile, you will see the document list. Tap the desired document to open it. You can open only one document at a time; when you open a second document, you will be asked to save the first.

5.3 Excel Mobile

Microsoft Excel Mobile works with Microsoft Excel on your desktop computer to give you easy access to copies of your workbooks. You can create new workbooks on your Pocket PC or you can copy workbooks from your desktop computer to your Pocket PC. Excel Mobile provides fundamental spreadsheet tools, such as formulas, functions, sorting and filtering, which enable you to create simple workbooks, such as expense reports and mileage logs.

Tap

Programs Æ Excel Mobile to switch to the program.

Creating a Workbook

NOTE: To open a template rather than a blank workbook, select a template for new workbooks. Tap Menu Æ Options and select the desired template. When you tap New, the template appears with appropriate text and formatting already provided.

1. In Excel Mobile, tap

2. To use Excel toolbar, tap

3. You can use Excel Mobile much the same way you use Excel on your

desktop computer. You can enter formulas and functions and then filter data to see the subset of information you want. (For more information on entering information, see section 2.8 or Pocket PC Help.)

New.

View Æ Toolbar.

Cell contents appear here as you enter them.

Excel Toolbar

4. When you have finished entering the information and tap OK, the workbook

is automatically saved and named according to the first characters of text entered in the workbook.

NOTE: For more information, tap

Æ Help.

Opening a Workbook

Whenever you switch to Excel Mobile, you will see the workbook list. Tap the desired workbook to open it. You can open only one workbook at a time; when you open a second workbook, you will be asked to save the first.

5.4 PowerPoint Mobile

With PowerPoint Mobile, you can open and view slide show presentations created on your desktop computer. Slide shows created in *.ppt and *.pps format with PowerPoint ’97 and later can be viewed on your Pocket PC.

1. Tap

Programs Æ PowerPoint Mobile to switch to the program.

2. In the presentation list, tap the slide show you want to view.

Select the type of folder you want displayed in the list.

Tap to change the sort order of the list.

Tap to open a slide show.

3. Tap the current slide to advance to the next slide.

If the presentation is set up as a timed slide show, slides will advance automatically.

NOTE: For more information, tap

Æ Help.

5.5 Pocket MSN

Pocket MSN provides practically instant access to your up-to-date MSN Hotmail Inbox, your MSN Messenger Contacts list, and options for customizing your Pocket MSN experience.

With Pocket MSN, you get:

z MSN Hotmail

Read, write and send e-mail. Delete e-mail and manage your Hotmail folders.

z MSN Messenger

See who’s online. Send and receive instant messages. Subscribe to status updates for selected contacts so you’re notified when they’re online.

z Options and settings you can use to create a custom Pocket MSN

experience.

Tap

Programs Æ Pocket MSN to switch to the program.

NOTE: For more information, tap

Æ Help.

5.6 Windows Media Player for Pocket PC

Use Microsoft Windows Media Player for Pocket PC to play digital audio and video files that are stored on your Pocket PC or on a network, such as on a Web site.

Tap

Æ Windows Media to switch to the program.

Library Screen Playback Screen

You can play files in either Windows Media or MP3 format (this include files with the extension.asf,.wma,.wmv and.mp3). To find content in Windows Media Format, see the WindowsMedia.com Web site (http://www.windowsmedia.com).

Use Microsoft Windows Media Player on your desktop computer to copy digital audio and video files to your Pocket PC.

NOTE: For more information, tap

Æ Help.

5.7 Pictures & Videos

Use Pictures & Videos to view and edit pictures as well as launch video clips stored on your Pocket PC or on a storage card. You can also send pictures and video clips to others, or set a picture as the background on the Today screen. You can see your pictures individual, as thumbnails, or as part of a slide show. You can edit your pictures by cropping, rotating, and adjusting the brightness and contrast.

Tap

Programs Æ Pictures and Videos to switch to the program.

NOTE: For more information, tap

Select the type of folder you want displayed in the list.

Æ Help.

Tap to change the sort order of the list.

Tap to view a picture in full screen.

5.8 Additional Programs

In addition to Microsoft software, your Pocket PC manufacturer may provide additional programs to enhance your Pocket PC or facilitate your operation.

NOTE: Depending on the continuing developments of the product, the software supplied with your Pocket PC may be changed or updated. If there is any difference between the information in this manual and your product, the operation should be based on the product you have.

Dialer

The Dialer program allows you to use your Pocket PC as a hands-free device for a Bluetooth-enabled mobile phone. You can tap your Pocket PC to place and receive calls instead of pressing the phone’s keypad.

Connecting a Bluetooth Mobile Phone

1. Tap

2. By default, your Pocket PC will switch to Pair

Mode and wait for the pairing action from your mobile phone for 60 seconds. The connection will be established as long as you initiate the pairing process on your mobile phone within this period.

Your Pocket PC will also connect the Bluetooth headset service, if available.

3. You will see the Dialer main screen after the

pairing is completed. The status bar at the bottom shows the name of the mobile phone connected.

When you next run the Dialer program, your Pocket PC will automatically pair with the available one of the last connected mobile phones.

Programs Æ Dialer to switch to the program.

NOTE:

z Your Pocket PC must be in Pair Mode for the mobile phone to discover. If you need to

manually set your Pocket PC to Pair Mode, tap Pair Mode in the main screen.

z Up to 8 sets of paired mobile phones can be stored. A 9th paired mobile phone will

replace the oldest one.

Placing a Call

After pairing with your mobile phone, you can place a call using any of the four buttons (

Tap the Keypad button on the main screen and you can enter the telephone number with the onscreen keypad.

Keypad, Contacts, Call History, and Redial) on the main screen.

Keypad

After entering the telephone number, tap

to place

the call.

NOTE:

z To delete the last digit entered, tap the Backspace

button.

z The other two buttons allow you to switch to Contacts

and Call History screens.

Contacts

Tap the Contacts button on the main screen and you can access the phone numbers (including mobile telephone, work telephone, and home telephone) stored in Microsoft Contacts from the Dialer program.

To call the default telephone number of a contact, tap the contact in the list and tap You can scroll up and down in the list with the arrow

buttons or directly scroll to a group with the alphabetical index.

to place the call.

If there is more than one telephone number for a contact, tapping the contact opens the detailed screen where you can select a number.

Call History

Tap the Call History button on the main screen to display the recent incoming, outgoing, or missed calls together with information such as date, time, and duration of each call.

Tap the respective button (incoming outgoing

20 calls of the selected type.

With an item selected, you can tap number,

phone number to Microsoft Contacts.

To clear all items in the current list, tap

, or missed ) to view the last

to delete the item, or to save the

to dial the

Redial

Tap the Redial button on the main screen to dial the last number you called or received.

Operations During a Call

During a call, four functions are available:

z If you need to input other numbers, such as an

extension number, tap

to open the keypad and tap the desired digits. The keypad will close when you tap the button again or when there has been no input for 5 seconds.

z Tap to mute your sound so that the other

party cannot hear you. To end the mute mode, tap the same button again.

z Tap to end the call.

z Tap to switch the call to your mobile phone.

To switch back to your Pocket PC, tap the same button again.

Receiving a Call

When you have a call after pairing with your mobile phone, you will see the “Incoming Call” screen.

To accept the call, tap

To reject the call, tap To mute the ring tone before receiving or rejecting, tap

Miscellaneous Buttons

In addition to buttons for placing a call, there are Connect, Pair Mode, Others, and

Exit buttons on the main screen as described below.

Connect

By tapping the Connect button on the main screen, you can manually search the last paired mobile phones for an available connection.

Pair Mode

By tapping the Pair Mode button on the main screen, you can manually set your Pocket PC to Pair Mode. Within the duration of 60 seconds, you can initiate the pairing process on your mobile phone to discover your Pocket PC as a car kit.

Others

By tapping the Others button on the main screen, you can run the BlueSoleil program. (See section 6.3 for information on BlueSoleil.)

Exit

To close the Dialer screen, tap the Exit button on the main screen.

eConverter

eConverter provides three modes: Calculator, Currency, and Metrology. You can use these modes to perform basic arithmetic and convert currency and measure.

Tap You will see the calculator screen. To switch to another mode, tap one of the

buttons at the top right corner of the screen.

Using Calculator Mode

Calculator mode allows you to perform any of the standard operations for which you would normally use a handheld calculator.

Programs Æ eConverter to switch to the program.

Using Currency Mode

Tap the switch to Currency mode.

Tap the down arrow next to the input field to display a list of currencies and select the currency to convert from. Tap the down arrow next to the output field to display a list of currencies and select the currency to convert to.

Enter the currency value in the input field by tapping the number buttons on the numeric keypad. The converted currency immediately appears in the output field.

button on the calculator screen to

Before performing the currency conversion, you can edit the exchange rate to the most up-to-date one. Tap the

Edit button on the currency screen. Enter the

exchange rate and tap the √ button to save and go back to the currency screen.

Using Metrology Mode

Tap the switch to Metrology mode.

Tap the measure button on the metrology screen to display a scroll list of measures and select the desired measure from the list.

Tap the down arrow next to the input field to display a list of units and select the unit to convert from. Tap the down arrow next to the output field to display a list of units and select the unit to convert to.

Enter the value in the input field by tapping the number buttons on the numeric keypad. The converted value immediately appears in the output field.

button on the calculator screen to

Picture Viewer

Tap

Programs Æ Picture Viewer to switch to the program.

This program provides an easy way to view image files in jpg and bmp formats. You can:

z View image files in thumbnail or list view. z Delete, rename, cut or copy an image file. z Send the current image file via email z Edit an image file. You can crop an image, add text, write directly on the

image and add a frame.

z Capture the screen. z Create a slide show. z Rotate an image.

6 Getting Connected

To take full advantage of your Pocket PC, you will want to get connected. This chapter tells you how you can get your Pocket PC connected through a variety of ways including the built-in wireless network module, Bluetooth and modem. It also describes Internet Explorer for Web browsing.

6.1 Wireless Network Connection

NOTE: Your Pocket PC incorporates wireless network and Bluetooth capabilities, but you cannot use both at the same time.

Your Pocket PC has a built-in wireless network module. As long as you are in a wireless LAN (Local Area Network) environment, you can connect to the network without physical cables.

Connecting to a Wireless Network

Networks that you have already configured are preferred networks and are listed

Network Cards (or Wireless Ethernet). You can select to connect to only

in preferred networks or have your Pocket PC search for and connect to any available network whether it is preferred or not.

1. By default, your Pocket PC will automatically detect the available wireless

networks.

2. If more than one network is detected, the screen will display a network list.

Tap the desired network and tap the

3. Select to connect to the Internet or the private network, and then tap the

Connect soft key.

4. If the selected network requires a network key, enter the key and tap the

Connect soft key.

OK soft key.

NOTE: To change the network settings, tap Æ Settings Æ Connections Æ Network Cards (or Wireless Ethernet). Tap the desired network and change the

settings.

Starting and Ending the Wireless Network Connection

After you connect to the wireless network, use the desired program when you are within the range of wireless network. For example, switch to Internet Explorer Mobile and browse to a web page. Your Pocket PC will automatically connect, and the

To end the connection, tap the connection icon on the Navigation Bar of the Today screen and tap

NOTE: When you are not using the wireless network any more, complete the actions for ending the connection as described above. Leaving the wireless network module active will consume more power.

icon will appear on the navigation bar.

Disconnect.

6.2 Bluetooth

NOTE: Your Pocket PC incorporates Bluetooth and wireless network capabilities, but you cannot use both at the same time.

Your Pocket PC incorporates the Bluetooth capability. Bluetooth is a short-range wireless communications technology. Devices with Bluetooth capabilities can exchange information over a distance of about 10 meters (30 feet) without requiring a physical connection.

Unlike infrared, you do not need to line up the devices to beam information with Bluetooth. You can even beam information to a device in a different room, as long as it is within range.

You can use Bluetooth as follows:

z Beam information, such as files, appointments, tasks, and contact cards,

between devices that have Bluetooth capabilities.

z Create a connection between your Pocket PC and a Bluetooth phone to use

the phone as a modem.

z Use a Bluetooth service. Once you connect to another device or computer

using Bluetooth, you can locate and use any of the services available on that device.

Turning On and Off Bluetooth

1. Tap Æ Settings Æ Connections Æ Bluetooth.

2. To turn on Bluetooth, tap

To transfer files via Bluetooth, tap

devices

3. To turn off Bluetooth, clear

to other devices

4. Tap

ok.

NOTE:

z By default, Bluetooth is turned off. If you turn it on, and then turn off your Pocket PC,

Bluetooth also turns off. When you turn on your Pocket PC again, Bluetooth turns on automatically.

z When you have finished using Bluetooth, complete the actions for turning it off. Leaving

the Bluetooth capability active will consume more power.

Turn on Bluetooth.

Make this device discoverable to other

Turn on Bluetooth and Make this device discoverable

Transferring Files via Bluetooth

Sending Files via Bluetooth

1. Turn on Bluetooth. (See “Turning On and Off Bluetooth” previously in this

chapter.)

2. From the program, tap and hold the item you want to beam, such as an

appointment in Calendar, a task in Tasks, a contact card in Contacts, or a file in File Explorer.

3. Tap

Beam [type of item] on the shortcut menu.

4. Your Pocket PC searches for other devices with Bluetooth capabilities

within close range, and displays them in the list. Tap the device to which you want to send the item.

CAUTION: Files are saved automatically before they are beamed. If a Word document or Excel workbook was created on a desktop computer, unsupported content and formatting may be lost when the files are saved.

Receiving Files via Bluetooth

1. Tap Æ Settings Æ Connections Æ Beam. Make sure that Receive all

incoming beams

is selected.

2. Make sure that

settings is selected. (See “Turning On and Off Bluetooth” previously in this chapter.)

3. Make sure that your Pocket PC and the device that is beaming the

information are within close range, and that device is discoverable.

4. When prompted to receive an incoming beam, tap

information.

Make this device discoverable to other devices in Bluetooth

Yes to receive the beamed

Bluetooth Partnership

A partnership is a relationship that you create between your Pocket PC and another device with Bluetooth capabilities to help exchange information in a secure manner. Creating a partnership involves entering the same Bluetooth passkey on both devices. Once a partnership is created, the devices need only have Bluetooth turned on to exchange information; they do not need to be discoverable.

Creating a Bluetooth Partnership

1. Make sure that the two devices are turned on, discoverable, and within close

range. (For information on turning on Bluetooth on Pocket PC, see “Turning On and Off Bluetooth” previously in this chapter.)

2. Tap

3. Your Pocket PC searches for other devices with Bluetooth capabilities, and

displays them in the list.

4. Tap the name of the other device, and tap

5. In

tap

Æ Settings Æ Connections Æ Bluetooth Æ Devices Æ New Partnership.

Next.

Passkey, enter an alphanumeric passkey between 1 and 16 characters, and

Next.

6. Enter the same passkey on the other device.

7. To give the partnership a more meaningful name, change the name of the

device in

Name.

8. Tap

Finish.

Accepting a Bluetooth Partnership

1. Make sure that the two devices are turned on, discoverable, and within close

range. (For information on turning on Bluetooth on Pocket PC, see “Turning On and Off Bluetooth” previously in this chapter.)

2. When prompted to accept a Bluetooth partnership with another device, tap

Yes.

3. In

Passkey, enter an alphanumeric passkey between 1 and 16 characters, and

tap

Next. You need to enter the same Bluetooth passkey as the other device.

4. To give the partnership a more meaningful name, change the name of the

device in

5. Tap

Name.

Finish. You are now ready to transfer files with that device.

Renaming a Bluetooth Partnership

1. Tap Æ Settings Æ Connections Æ Bluetooth Æ Devices.

2. Tap and hold the partnership to rename.

3. Tap

Edit on the shortcut menu.

4. In

Display Name, enter a new name for the partnership.

5. Tap the

Save soft key.

Ending a Bluetooth Partnership

1. Tap Æ Settings Æ Connections Æ Bluetooth Æ Devices.

2. Tap and hold the partnership you want to end.

3. Tap

Delete on the shortcut menu.

6.3 Modem Connection

With a modem, you can dial in to your ISP or corporate network. Before creating the connection, you need to:

z Have a modem (SD IO or Bluetooth). (For installation information, see the

documentation supplied with the product.)

z Obtain the following information from your ISP or network administrator:

server phone number, user name, password, domain name and TCP/IP settings.

Creating a Modem Connection

1. Tap Æ Settings Æ Connections Æ Connections.

2. In

My ISP or My Work Network, tap Add a new modem connection. Follow the

instructions in the New Connection wizard.

3. To view additional settings, tap

NOTE: To change modem connection settings, in either My ISP or My Work Network, tap Manage existing connections. Select the desired modem connection, tap Edit and

follow the instructions on the screen.

Starting and Ending a Modem Connection

To start the connection, install the modem and connect the modem cable. Then, use the desired program. For example, switch to Pocket Internet Explorer and browse to a Web page. Your Pocket PC will automatically connect.

To end the connection, tap the icon

Disconnect.

on the Navigation bar and then tap

6.4 Using Internet Explorer Mobile

Use Internet Explorer Mobile to view web pages in either of these ways:

z Connect to an ISP or network and browse the web. z During synchronization with your desktop computer, download your

favorite links that are stored in the Mobile Favorites subfolder in Internet Explorer on the desktop computer.

While you are connected to an ISP or network, you can also download files and programs from the Internet or an intranet.

Internet Explorer to switch to the program. The Internet Explorer

Tap Mobile home page appears:

Browsing the Internet

1. Tap Æ Internet Explorer.

2. Tap the

Favorites soft key to display the Favorites list.

Tap the favorite you want to view.

Tap to add or delete a folder or favorite link.

3. Tap the page that you want to view.

NOTE: If a favorite link is dimmed or you receive a message that the page is not available, you must download the page to your device through synchronization or connect to the Internet.

To visit web pages not included in Favorites, in the address bar that appears at the top of the screen, enter the web address you want to visit and then tap

. Or,

tap the arrow to choose from previously entered addresses.

Managing Favorites

Adding a Favorite

1. Tap Æ Internet Explorer.

2. Go to the page you want to add.

3. Tap and hold the page, and tap

4. Confirm or change the name and select a folder for storing the favorite.

Add to Favorites on the shortcut menu.

5. Tap ok to save the setting.

Adding a Folder in Favorites

1. Tap Æ Internet Explorer.

2. Tap the

3. Tap

4. Enter a name for the folder, and tap

Menu soft key Æ Favorites Æ Add/Delete.

New Folder.

Add.

Deleting a Favorite or Folder

1. Tap Æ Internet Explorer.

2. Tap the

3. Select the item you want to delete, and tap

4. Tap

Menu soft key Æ Favorites Æ Add/Delete.

Delete.

Yes to delete the item.

Synchronize a Favorite Link

You can synchronize the Internet Explorer favorites on your desktop computer with your Pocket PC so you can use them with Internet Explorer Mobile as well.

1. In ActiveSync on your desktop computer, click Tools Æ Options Æ

Favorite, and click OK. For more information on using ActiveSync, see ActiveSync Help.

2. In Internet Explorer on your desktop computer, save or move favorite links

to the Mobile Favorites subfolder in the Favorites list. For more information on using Internet Explorer, see Internet Explorer Help on the desktop computer.

3. Connect your Pocket PC to your desktop computer. If synchronization does

not start automatically, in ActiveSync on your desktop computer, click Sync.

NOTE: You need to create a partnership between your Pocket PC and desktop computer for data synchronization.

Troubleshooting and

7 Troubleshooting and Maintenance

This chapter gives solutions to common Pocket PC problems you may encounter. It also provides guidelines on taking care of your Pocket PC.

Maintenance

NOTE: If you encounter a problem you cannot solve, contact your dealer for assistance.

7.1 Resetting Your Pocket PC

CAUTION: Resetting will cause unsaved data to be lost.

Resetting your Pocket PC is similar to restarting your desktop computer. It restarts the operating system, but you will lose any unsaved data.

Occasionally, you may need to reset your Pocket PC; for example, you should reset:

z After you restore data from your desktop

computer.

z When your Pocket PC stops responding; in other

words, it appears to be “frozen” or “locked up.”

Use the stylus to press the reset button on your Pocket PC.

7.2 Restoring Last State

Follow this procedure to restore your Pocket PC to the last state when your Pocket PC does not respond after being reset.

1. Disconnect all cables, including the AC adapter, from your Pocket PC.

2. Remove the battery cover and the battery.

3. Slide the ON/OFF switch to the OFF (right) position.

4. Wait for 1 minute and then slide the switch back to the ON (left) position.

5. Replace the battery and its cover.

NOTE: You need to restore your Pocket PC to factory default state if you have set up a password but forget it. Restoring factory default state means all data you have entered in RAM, including all files, system settings, and additional programs you have installed, will be erased. Ask an authorized service personnel for help if you need to restore your Pocket PC to factory default state.

7.3 Power Problems

Power does not turn on when using battery power

z The remaining battery power may be too low to run your Pocket PC.

Connect the AC adapter to your Pocket PC and to external AC power. Then, turn on your Pocket PC.

Battery runs out of power quickly

z You might be using your Pocket PC in ways that drain power quickly. (See

“Power-Saving Tips” in section 3.1 for more information.)

7.4 Memory Problems

If a warning message of not enough memory appears due to the memory allocation problem, try the following to free memory on your Pocket PC.

CAUTION: Be discreet when you delete files. Deleting files of which the function is unknown can cause programs or features to malfunction. It is appropriate to make a backup before deleting files.

z Delete files you no longer need. Tap

hold the file you wish to delete and then tap find your largest files, tap

Larger than 64KB Æ Go.

Programs Æ Search. In the Type list, tap

Programs Æ File Explorer. Tap and

Delete on the shortcut menu. To

z Remove programs you no longer need. Tap

Remove Programs. Tap the program you want to remove and then tap Remove.

z In Internet Explorer options, delete all files and clear history. In Internet

Explorer, tap

History

z Stop programs you are not currently using. In most cases, programs

Menu Æ Tools Æ Options Æ Memory. Tap Delete Files and Clear

Settings Æ System Æ

automatically stop to free needed memory. However, in some situations, such as when confirmation dialog boxes are waiting for a user response, the program may not be able to automatically stop. To check the state of your active programs, tap Tap the program you want to view and then tap

Settings Æ System Æ Memory Æ Running Programs.

Activate. Close any open

windows or messag es an d re tu rn t he pr ogr am to li st vie w. If th is doe s no t work, you can stop the program manually. First, make sure that your work is saved by closing open items and returning the program to list view. Then, stop the program by tapping

z Reset your Pocket PC as described in section 7.1.

Stop or Stop All on the Running Programs tab.

If you have a storage card, move data to the storage card as described below.

z Tap

and tap

Edit Æ Paste. Files stored in folders other than My Documents or stored in

Programs Æ File Explorer. Tap and hold the file you want to move

Cut. Browse to My Documents folder in the storage card folder, tap

subfolders within subfolders in My Documents may not show up in the list view of some programs. When using Notes, Word Mobile Pocket or Excel, you can also move files by opening the item and tapping

Rename/Move.

z Move email attachments. In Messaging, tap Menu Æ Tools Æ Options Æ

Storage and select Store attachments on storage card. All attachments are

Menu Æ File Æ

moved to the storage card and new attachments are automatically stored on the storage card.

z Set programs such as Notes, Word Mobile and Excel Mobile to

automatically save new items on the storage card. In the program, tap Æ

Options. In Save to, select Storage Card.

7.5 Screen Problems

Screen is off

If the screen does not respond even after you press the power button, try the following in order until the problem is solved:

z Connect the AC adapter to your Pocket PC and to external AC power. z Reset your Pocket PC as described in section 7.1.

Screen responds slowly

z Make sure that your Pocket PC is not running out of battery power or

running many active programs. If the problem still exists, reset your Pocket PC as described in section 7.1.

Screen freezes

z Reset your Pocket PC as described in section 7.1.

Screen is hard to read

z Make sure that the backlight of the display is on. z Move to a location with enough light. z If you’re having a hard time reading a document on the screen, try adjusting

the zoom percentage or text size. 9 Tap

Æ Settings Æ System Æ Screen Æ Text Size and select the text

size.

9 In Notes, tap 9 In Word Mobile and Excel Mobile, tap

Menu Æ Zoom and select a zoom percentage.

View Æ Zoom and select a zoom

percentage.

9 In Pocket Internet Explorer, tap

Menu Æ Zoom and select a size.

Inaccurate response to stylus taps

z Realign the touch screen. Tap

Screen

. If you cannot correctly tap your selection, turn off the Pocket PC.

Settings Æ System Æ Screen Æ Align

Press in the scroll dial and, while keeping it pressed, press the power button to turn on the Pocket PC. You can then start to align the touch screen.

7.6 Connection Problems

ActiveSync Connection Problems

z ActiveSync connection problems may occur in some specific cases. They

are likely caused by interoperability with desktop firewall applications or applications that manage network traffic. For troubleshooting information, visit the Microsoft web site: www.microsoft.com/windowsmobile/help/activesync.

z Make sure that you have installed the correct version of ActiveSync on your

desktop computer. Install the version ActiveSync included with your Pocket PC.

z Make sure that your Pocket PC and your desktop computer are both turned

on before establishing the connection.

z Make sure that the cable is securely plugged into the USB port on your

desktop computer. Connect the USB cable directly to your desktop computer—do not run the cable through a USB hub.

z Make sure that the USB connection is enabled in ActiveSync on your

desktop computer. If the USB connection is already enabled, disable the USB connection, close the Connection Settings window and then reopen and re-enable the USB connection.

z Reset your Pocket PC before connecting the cable. (See section 7.1.)

Always disconnect your Pocket PC before you restart your desktop computer.

z Connect only one Pocket PC or personal digital assistant to your desktop

computer at a time.

Modem Connection Problems

Unable to dial out

z Do not install your Pocket PC in the cradle. You cannot dial out if your

Pocket PC has an active connection with your desktop computer.

z Make sure that the telephone line is connected correctly. z Make sure that the telephone line is analog. Do not connect a modem to a

digital telephone line unless it is specifically designed for use with a digital line.

Able to dial out but unable to make a proper connection

z Make sure that the network you are trying to connect supports the

Point-to-Point Protocol (PPP). Your ISP or network administrator can verify this.

z Make sure that your dialing location is correct. z Make sure that the phone number you are trying to reach is correct.

Modem connection is unreliable

z Make sure that the modem is installed properly. z Make sure that the telephone line is connected correctly.

Network Connection Problems

z Make sure that the network card is compatible with your Pocket PC. z Make sure that you have installed the proper drivers for your Pocket PC. z In the properties for your network card, make sure that you have correctly

configured the IP settings, and the addresses of your DNS servers and/or WINS servers. Your network administrator can verify this.

z Make sure that you have added necessary server information. z If Network Connection is not listed as a connection method in the ActiveSync

dialog box when starting synchronization, wait a few minutes and try again. Also, if synchronization does not start right away, the network is probably busy, and it may take a minute for your Pocket PC to connect to the network.

z Verify with your network administrator that your user name and password

are correct.

z Verify with your network administrator that the network you are trying to

connect to is available, to try to connect to it from another computer.

z You may need to change the device name if you are trying to connect to a

network and cannot because another device with the same name is already connected. To change the device name, tap

About Æ Device ID.

Settings Æ System Æ

7.7 Taking Care of Your Pocket PC

Taking good care of your Pocket PC will ensure trouble-free operation and reduce the risk of damage to your Pocket PC.

General Guidelines

z Keep your Pocket PC away from excessive moisture and extreme

temperatures.

z Avoid exposing your Pocket PC to direct sunlight or strong ultraviolet light

for extended periods of time.

z Do not place anything on top of your Pocket PC or drop objects on top of

your Pocket PC.

z Do not drop your Pocket PC or subject it to severe shock. z Store your Pocket PC in a protective cover when not in use. z Do not subject your Pocket PC to sudden and severe temperature changes.

This could cause moisture condensation inside the unit that could damage your Pocket PC. In the event of moisture condensation, allow you Pocket PC to dry out completely.

z Take care not to sit on your Pocket PC when it is located in the back pocket

of trousers, etc.

z The screen surface is easily scratched. Use only the stylus to tap on the

screen. Avoid touching it with your fingers, pens, pencils or any other sharp objects.

z Never clean your Pocket PC with its power on. Use a soft, lint-free cloth

moistened with water to wipe the screen and the exterior of your Pocket PC.

z Do not use paper towels to clean the screen. z Never attempt to disassemble, repair or make any modifications to your

Pocket PC. Disassembly, modification or any attempt at repair could cause damage to your Pocket PC and even bodily injury or property damage.

z Do not store or carry flammable liquids, gases or explosive materials in the

same compartment as your Pocket PC, its parts or accessories.

Mitac Digital Technology MIOP550 Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
