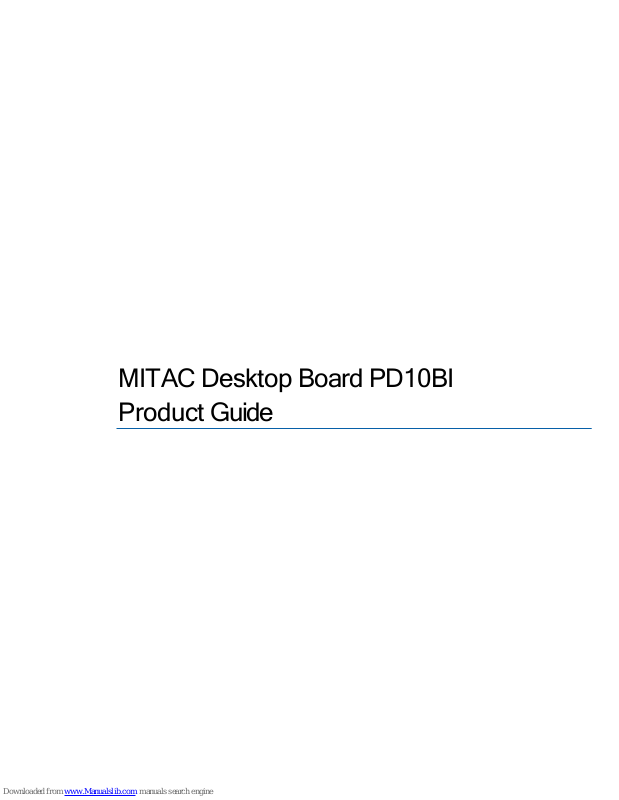

MITAC Desktop Board PD10BI
Product Guide
Page 2
2
Desktop Board Features
This chapter briefly describes the features of Desktop Board PD10BI.
Table 1 summarizes the major features of the Desktop Board.
Feature Summary
T
AB L E
1 . MITA C D
ES K TOP BOA R D
PD 10 B I F
EA T URES
Form Factor
Low-profile Mini-ITX (20 millimeters [0.79 inches] x 170.18
millimeters
[6.7 inches] x 170.18 millimeters [6.7 inches])
Processor
Chipset
Fanlessly-cooled, soldered-down dual-core/quad-core Intel Bay
Trail Processor
with integrated graphics and memory controller
Memory Support for dual channel DDR3L 1333/1600 SO-DIMMs
Support for up to 8 GB of system memory on a single
SO-DIMM (or 4 GB each by 2 SO-DIMM)
204-pin DDR3L SO-DIMM 2
Graphics
Integrated graphics:
Digital displays (High Definition Multimedia
Interface(HDMI))
Analog displays (VGA)
Internal flat panel displays:
LVDS
Embedded DisplayPort* eDP*
External graphics support via a PCI Express 1.0a x1
graphics add-in card connector
Audio
2 + 2 Channel High Definition Audio ( HD Audio) using a
Realtek* ALC888S audio codec supporting:
Analog stereo line-out (back panel jack)
In-chassis stereo speakers support (3 W/3 Ω via an
internal header)
S/PDIF digital audio output (internal header)
DMIC digital microphone input (internal header)
Analog line-in (back panel jack)
Front panel HD Audio/AC’97 headphones/mic
support (internal header)
8-channel (7.1) HD Audio via the HDMI interface
Expansion
Capability
PCI Express 1.0a x1 add-in
card connector
Option: PCI Express 1.0a x1
add-in card connector by 2
lanes
1
PCI Express Full-/Half-Mini
Card slot
1
PCI Express Half-Mini Card
slot
1
Peripheral
Interfaces
USB 2.0 front panel ports 4 (Headers)
USB 2.0 back panel
connectors (black)
2
USB 2.0
high-current/fast-charging
ports (Yellow)
2
SATA 3.0 Gb/s 2
SATA 3.0 Gb/s port 1
Page 3
3
(multiplexed with an mSATA
port, routed to the PCI
Express Full-/Half-Mini Card
slot)
Legacy I/O Legacy I/O Controller (NCT6683D) that provides:
Hardware management support
Serial ports onboard
headers
2
Parallel port via an
onboard header
1
LAN Support
Realtek RTL8111G-CG Gigabit (10/100/1000 Mb/s) Ethernet
LAN controller including an RJ-45 back panel connector with
integrated status LEDs
BIOS
BIOS resident in a Serial Peripheral Interface (SPI) Flash
device
Support for Advanced Configuration and Power Interface
(ACPI), and System Management BIOS (SMBIOS)
Hardware
Management
Nuvoton NCT6683D based subsystem, including:
Voltage sense to detect out of range power supply voltages
Thermal sense to detect out of range thermal values
3-pin system fan header with speed control
Power
Requirement
DC connectivity via back-panel DC jack(2.5mm/ ID,
5.5mm/ OD)
Internal 2 pin power connector
Environment
Operating Temperature: 0 °C to +50 °C
Storage Temperature: -20°C to +70°C
Page 4
4
Desktop Board Components
Figure 1 shows the approximate location of the major components on the top side of
MiTAC Desktop Board PD10BI.
Fi g u re 1. Mi TA C Desktop Bo a r d PD 10BI Component s ( T op)
Page 5
5
T
AB L E
2. MITA C D
ES K TOP BOA R D
PD 10 B I C
OM PONE N TS
( S
HO W N IN FIG U RE
1 )
A Back Panel Connectors
B Power 4pin header
C Power 2pin header
D Half length miniPCIe connector
E SATA 3G header
F SATA 3G
header
G SATA power header
H CPU FAN header
I DDR3 memory slot
J System FAN header
K Front I/O header
L Alternate Power LED Header 1x3
M LVDS connector
N LVDS power header (3V, 5V, 12V)
O LVDS p
ower 1x8 pin header
P LVDS inverter board header
Q Dual-Port USB 2.0 Header
R Internal COM port header
S DDR3 memory slot
T Parallel Port 2x13 pin header
U Full length miniPCIe connector
V Clear CMOS header
W Single
-
Port USB 2.0 Header
X Battery header
Y Custom Header
Z Debug header
AA Chassis
Intrusion Header
BB Digital microphone header
CC Dual-Port USB 2.0 Header
DD SPDIF Out header
EE PCIe X1 slot
FF Internal speaker header
GG Front Audio header
HH Internal COM port header
Page 6
6
Processor
MITAC Desktop Board PD10BI includes a passively-cooled, Intel Bay Trail-D
processor with integrated graphics and memory controller. The processor is soldered
to the Desktop Board and is not customer upgradeable.
NOTE
The board is designed to be passively cooled in a properly ventilated chassis. Chassis
venting locations are recommended above the processor heatsink area for maximum
heat dissipation effectiveness.
System Memory
NOTE
To be fully compliant with all applicable SDRAM memory specifications, the
board should be populated with DIMMs that support the Serial Presence Detect (SPD)
data structure. If your memory modules do not support SPD, you will see a
notification to this effect on the screen at power up. The BIOS will attempt to
configure the memory controller for normal operation.
The Desktop Board has two 204-pin DDR3L SO-DIMM sockets with gold-plated contacts.
These sockets support:
Support for DDR3L 1333/1600 MHz SO-DIMMs (DDR3L
1600 MHz SO-DIMMs operate at 1333 MHz only)
Serial Presence Detect (SPD) memory only
Non-ECC memory
Up to 8 GB of memory (on a single SO-DIMM or 4 GB each by 2 SO-DIMM)
Page 7
7
Connecting to the Internal Headers and Connectors
Front panel main header
Fi g u re 2 Fron t panel main he a d er pin-ou t
Pin Signal Name Description Pin Signal Name Description
1 HDD_POWER_LED Pull-up resistor (750) to +5V 2 POWER_LED_MAIN [Out] Front panel LED (main color)
3 HDD_LED# [Out] Hard disk activity LED 4 POWER_LED_ALT [Out] Front panel LED (alt color)
5 GROUND Ground 6 POWER_SWITCH# [In] Power switch
7 RESET_SWITCH# [In] Reset switch 8 GROUND Ground
9 +5V_DC Power 10 KEY No pin
T
AB LE 2 FRO N T P A NEL MAI N H E ADE R SI G NAL S
Page 8
8
Chassis Intrusion Detection Header
The chassis intrusion detection header must be 1x2, 2.54mm pitch, colored black
and with extended back, as defined in below
Fi g u re 3 Chassi s intrusion detection h e a der
Pin Signal Name
1
Intrusion Detection
2 Ground
T
AB LE 3 CHA S SIS I NT R USI ON D ETE C TION HE A DER SIG NALS
i
HD Audio front panel audio head er
Fi g u re 4 HD Audi o front pane l audio hea d e r pin-out di agram
Page 9
9
Pin Signal name Description
1 MIC Front panel microphone input signal (biased when supporting stereo microphone)
2 AUD_GND Ground used by analog audio circuits
3 MIC BIAS Microphone power / additional MIC input for stereo microphone support
4 PRESENCE#
Active low signal that signals BIOS that an Intel HD Audio dongle is connected to the
analog header_ PRESENCE# = 0 when an Intel HD Audio dongle is connected.
5 FP_OUT_R Right channel audio signal to front panel (Headphone drive capable)
6 AUD_GND Ground used by analog audio circuits
7 RESERVED Reserved
8 KEY No Pin
9 FP_OUT_L Left channel audio signal to front panel (headphone drive capable)
10 AUD_GND Ground used by analog audio circuits
T
AB L E 4 HD AUD IO F R ON T PA N EL A UDI O H E ADE R
Page 10
10
Inte rnal Sp eaker header
Fi g u re 5 Int e r n a l Speaker h e a d er pin-ou t diagram
Pin Signal Name
1 A_GND
2
Front_L
3
Front_R
4
A_GND
T
AB LE 5 INT E RNA L SPE K AER HEA D ER
Front panel US B header (Dual Ports)
Fi g u re 6 Fr on t panel U SB h e ader pi n- o u t
Pin Signal Pin Signal
1 +5V DC 2 +5V DC
3 Data (negative) 4 Data (negative)
5 Data (positive) 6 Data (positive)
7 Ground 8 Ground
9 Key (no pin) 10 No Connect
T
AB L E 6 FRO N T P A NEL
USB
H E ADE R SI G NALS
Page 11
11
Front panel US B header (Single Ports)
Fi g u re 7 Fr on t panel U SB h e ader pi n- o u t
Pin Signal
1 +5V DC
3 Data (negative)
5 Data (positive)
7 Ground
9 Key (no pin)
T
AB L E 7 FRO N T P A NEL
USB
H E ADE R SI G NALS
LVDS inverter power header
Fi g u re 8 LVD S i nverter p ow er header
Pin Signal Name Description
1 BKLT_EN Backlight enable
2 BKLT_PWM Backlight PWM control
3 12V/19V Inverter power
4 12V/19V Inverter power
5 GND Ground
6 GND Ground
7 BRIGHTNESS_UP BRIGHTNESS UP
8 BRIGHTNESS_DOWN BRIGHTNESS DOWN
T
AB LE 8 8-PI N
LV D S
I N VE R T ER POWE R H E ADE R PI N-OU T RE F ERE NCE
Page 12
12
LVDS data header
Fi g u re 9 LVD S d a ta header
Pin
Signal Description
1 LA_DATAP3 LVDS Channel A diff data output - positive
2 LA_DATAN3 LVDS Channel A diff data output - negative
3 LA_DATAP2 LVDS Channel A diff data output - positive
4 LA_DATAN2 LVDS Channel A diff data output - negative
5 LA_DATAP1 LVDS Channel A diff data output - positive
6 LA_DATAN1 LVDS Channel A diff data output - negative
7 LA_DATAP0 LVDS Channel A diff data output - positive
8 LA_DATAN0 LVDS Channel A diff data output - negative
9 LB_DATAP3 LVDS Channel B diff data output-positive
10 LB_DATAN3 LVDS Channel B diff data output-negative
11 LB_DATAP2 LVDS Channel B diff data output-positive
12 LB_DATAN2 LVDS Channel B diff data output-negative
13 LB_DATAP1 LVDS Channel B diff data output-positive
14 LB_DATAN1 LVDS Channel B diff data output-negative
15 LB_DATAP0 LVDS Channel B diff data output-positive
16 LB_DATAN0 LVDS Channel B diff data output-negative
17 GND Ground
18 3.3V/5V/12V Selectable LCD power output
19 3.3V/5V/12V Selectable LCD power output
20 3.3V/5V/12V Selectable LCD power output
21 NC NC
22 EDID_3.3V VCC3
23 GND Ground
24 GND Ground
25 GND Ground
26 LA_CLKP LVDS Channel A diff data output - positive
27 LA_CLKN LVDS Channel A diff data output - negative
28 GND Ground
29 GND Ground
30 GND Ground
31 EDID_CLK EDID/DDC clock signal
Page 13
13
32 BKLT_EN
33 BKLT_CTRL
34 LB_CLKP LVDS Channel B diff data output - positive
35 LB_CLKN LVDS Channel B diff data output - negative
36 BKLT_PWR Selectable BKLT power output
37 BKLT_PWR Selectable BKLT power output
38 BKLT_PWR Selectable BKLT power output
39 NC NC
40 EDID_DATA EDID/DDC data signal
T
AB LE 9
40-
PI N
LVD S
D A TA H EADE R P I N-OU T R E FERE NCE
Serial port header
Fi g u re 10 Seri al port hea d e r pin-out
Pin Signal Pin Signal
1 DCD (Data Carrier Detect) 2 RXD# (Receive Data)
3 TXD# (Transmit Data) 4 DTR (Data Terminal Ready)
5 Ground 6 DSR (Data Set Ready)
7 RTS (Request To Send) 8 CTS (Clear To Send)
9 RI (Ring Indicator) 10 Key (no pin)
T
AB LE 10 SER I AL P ORT HEA DER S IGNA LS
Page 14
14
Processor fan header
Fi g u re 11: Pr o c ess or fan h e a der
Pin Signal
4
FAN_CTRL
3
FAN_TACH
2
VCC-12V
1
GND
T
AB L E
11: P
ROC E SSO R FA N H E ADE R
System fan header
Fi g u re 12: Sys t e m fan header
T
AB L E
12: S
YS T EM F A N H EAD ER
Pin Signal
4
FAN_TACH L
3
FAN_CTR
1
GND
Page 15
15
Panel voltage selection header
Pins 2&4: jumper position for 3.3V Pins 6&4: jumper position for 5V Pins 3&4: jumper position for 12V
Fi g u re 13: LVD S p anel vol t a g e sele ct i on header
Pin Signal Name
1 NC
2 VCC3/3V
3 12V
4 LCD SEL PWR
5 NC
6 VCC/5V
T
AB L E
13 : LVD S
P A NEL V OL T A GE SELE C TI O N H E ADE R
Page 16
16
Inverter po wer voltage selection header
Fi g u re 14: In v e rter power v o ltage sele c ti on heade r
Pin Signal Name
1 Key
2 5V
3 8V~19V
4 LCD_VCC
5 Key
6 12V
T
AB LE
14: I
NV E RTE R PO WER VOL T AGE SELE CTI O N H EADE R
Page 17
17
Alternate Powe r LED header
Fi g u re 15 Alte r n a te Power LE D h e a der
Pin Signal Name
1 MAIN COLOR LED
2 KEY
3 ALT COLOR LED
T
AB L E
15: A
LT E RNAT E POWE R
LE D
H E ADE R
Parallel Port 2x13 pin heade r
Fi g u re 16 Par a l lel Port 2 x 13 pin he a de r
Page 18
18
T
AB LE
16: P
AR A LLE L POR T 2X13 P I N H E ADE R
Page 19
19
SATA power header
Fi g u re 17 SATA po w er header
T
AB L E
17 : SATA
P OWER HEA D ER
Page 20
20
Digital microphone header
Fi g u re 18 Di g i t al micr op h one header
T
AB LE
18: D
IG I T AL MIC R OPH ONE HEA D ER
Custom Header
Fi g u re 19 Cust o m H e a d er
T
AB LE
19: C
US T OM HEA DER
Page 21
21
SPDIF Out header
Fi g u re 20 SPDIF O u t header
Pin Signal Name Description
1 GND Ground
2 SPDIF_OUT SPDIF signal from the codec
3 Key (no pin) Key (no pin)
4 +5V_DC 5 V power (for optical/TOSLINK module)
T
AB L E
20 : SPDIF O
UT HE A D ER
eDP connector
Fi g u re 21 eDP c on n ector
Page 22
22
P
IN
S
IG NAL NAM E
P
IN
S
IG NAL NAM E
1 ODD _L
AN E
3_ P 21
N/ C
2 OD D_L
AN E
3_N 22
ED ID_3. 3 V
3 ODD _L
AN E
2_ P 2 3
LCD_GN D
4 OD D_L
AN E
2_N 24
LCD_GN D
5 ODD _L
AN E
1_ P 2 5
LCD_GN D
6 OD D_L
AN E
1_N 26
OD D_CL K _P
7 ODD _L
AN E
0_ P 2 7
OD D_CL K _N
8 OD D_L
AN E
0_N 28
BK LT_GND
9 EVE N_L
AN E
3_ P 29
BK LT_GND
10 EVEN_L
AN E
3_ N 3 0
BK LT_GND
11 EVEN_L
AN E
2_ P 31
ED ID_CL K
12 EVEN_L
AN E
2_ N 3 2
BK LT_ E NA BLE
13 EVEN_L
AN E
1_ P 33 BK LT_PWM_ DIM
14 EVEN_L
AN E
1_ N 3 4
EVEN_C LK_P
15 EVEN_L
AN E
0_ P 35
EVEN_C LK_N
16 EVEN_L
AN E
0_ N 3 6
BK LT_PWR
17
ED I D_GN D 37
BK LT_PWR
18
LC D_VCC 38
BK LT_PWR
19
LC D_VCC 39
N/ C
20
LC D_VCC 40
ED ID_DATA
TAB L E
21 : EDP
C ONNE CTO R
RJ45 LED behavior
Diagram LED Color State Condition
Link
N/A Off LAN link is not established
Green
On LAN link is established
Blinking LAN activity occurring
Speed
N/A Off 10 Mb/s data rate
Green On 100 Mb/s data rate
Yellow On 1000 Mb/s data rate
T
AB LE
22 : RJ45 LE D
B E H AVI OR
Note: LAN solution must be tested for IEEE802.3 conformance
Page 23
23
CMOS Clear
CMOS Clear
1-2 Normal
2-3 Clear CMOS
T
AB L E
23 :
CM O S C
LE A R B E HAV I OR
Page 24
24
MITAC Desktop Board PD10BI
BIOS Specifiction
Page 25
25
1. Main Page
Main Advanced Chipset Security Boot Save & Exit
BIOS Information
Item help
BIOS Vender American Megatrends
Core Version 5.009
Compliancy UEFI 2.3; PI 1.2
BIOS Version D7360X01
Build Date 12/22/2012
Processor Information
Intel(R) Pentium(R) CPU J2900 @ 2.41GHz
→←: Select Screen
Memory Information
↑↓: Select Item
Total Memory 8192 MB (DDR3L)
Enter: Select
Memory Slot 0 4096MB
+/- : Change Opt
Memory Slot 1 4096MB
F1: General Help
System Language
[English]
F2: Previous Values
F3: Optimized Defaults
System
Date
[Mon, mm/dd/yyyy]
F4: Save & Reset
System Time [hh:mm:ss]
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Field Name
BIOS Vender
Default Value AMI Megatrends
Comment This field is not selectable. There is no help text associated with
it.
Field Name
Core Version
Default Value 4.6.5.1
Comment This field is not selectable. There is no help text associated with
it.
Field Name
Complacency
Default Value UEFI 2.3; PI 1.2
Comment This field is not selectable. There is no help text associated with
it.
Field Name
BIOS Version
Default Value Display the version of the BIOS
Page 26
26
Comment This field is not selectable. There is no help text associated with
it.
Field Name
Build Date
Default Value Display build time of the BIOS
Comment This field is not selectable. There is no help text associated with
it.
Field Name
Processor Information
Value Display the installed CPU brand.
Comment This field is not selectable. There is no help text associated with
it.
Field Name
Total Memory
Value Display the installed memory size.
Comment This field is not selectable. There is no help text associated with
it.
Field Name
Memory Slot 0
Default Value Memory in the DIMM.
Comment This field is not selectable. There is no help text associated with
it.
Field Name
Memory Slot 1
Default Value Memory in the DIMM.
Comment This field is not selectable. There is no help text associated with
it.
Field Name
System Language
Default Value English
Possible Value English
Help Choose the system default language
Field Name
System Date
Default Value [xxx, mm dd yyyy]
Possible Value [xxx, xx:xx:xxxx]
Help Set the Date. Use Tab to switch between Date elements.
Field Name
System Time
Default Value [hh :mm :ss]
Possible Value [xx :xx :xx]
Help Set the Time. Use Tab to switch between Time elements.
Page 27
27
2. Advanced Page
Main Advanced Chipset Security Boot Save & Exit
Wireless LAN 1 RF [Enabled]
Item help
Wireless LAN 2 RF [Enabled]
Wake On Lan [Enabled]
►ACPI Settings
►SMART settings
►NCT6683D Super IO Configuration
►S5 RTC Wake Settings
►CPU Configuration
→←: Select Screen
►PPM Configuration
↑↓: Select Item
►SATA Configuration
►AMI Graphic Output Protocol Policy
Enter: Select
►Network Stack Configuration
+/- : Change Opt
►CSM Configuration
F1: General Help
►Trusted Computing
F2: Previous Values
►USB Configuration
F3: Optimized Defaults
F4: Save & Reset
►RealTek PCIe GBE Family Controller (MAC:00:22:4D:7F:87:60)
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Field Name
Wireless LAN 1 RF
Default Value [Enabled]
Possible Value Enabled
Disabled
Help Enable/Disable Wireless LAN 1 RF
Field Name
Wireless LAN 2 RF
Default Value [Enabled]
Possible Value Enabled
Disabled
Help Enable/Disable Wireless LAN 2 RF
Field Name
Wake On Lan
Default Value [Enabled]
Possible Value Enabled
Disabled
Page 28
28
Help Enable or Disable Wake On Lan.
Field Name
ACPI Settings
Help System ACPI Parameters.
Comment Press Enter when selected to go into the associated Sub-Menu.
Field Name
SMART Settings
Help System SMART settings.
Comment Press Enter when selected to go into the associated Sub-Menu.
Field Name
NCT6683D Super IO Configuration
Help System Super IO Chip Parameters.
Comment Press Enter when selected to go into the associated Sub-Menu.
Field Name
S5 RTC Wake Settings
Help Enable system to wake from S5 using RTC alarm
Comment Press Enter when selected to go into the associated Sub-Menu.
Field Name
CPU Configuration
Help CPU Configuration Parameters
Comment Press Enter when selected to go into the associated Sub-Menu.
Field Name
PPM Configuration
Help PPM Configuration Parameters.
Comment Press Enter when selected to go into the associated Sub-Menu.
Field Name
SATA Configuration
Help SATA Devices Configuration.
Comment Press Enter when selected to go into the associated Sub-Menu.
Field Name
AMI Graphic Output Protocol Policy(Hidden when system
in legacy mode)
Help User Select Monitor Output by Graphic Output Protocol.
Comment Press Enter when selected to go into the associated Sub-Menu.
Field Name
Network Stack Configuration
Help Network stack Settings.
Comment Press Enter when selected to go into the associated Sub-Menu.
Field Name
CSM Configuration
Help CSM configuration: Enable/Disable, Option ROM execution
settings, etc.
Comment Press Enter when selected to go into the associated Sub-Menu.
Page 29
29
Field Name
Trusted Computing
Help Trusted Computing Settings
Comment Press Enter when selected to go into the associated Sub-Menu.
Field Name
USB Configuration
Help USB Configuration Parameters.
Comment Press Enter when selected to go into the associated Sub-Menu.
Field Name
RealTek PCIe GBE Family Controller
(MAC:00:22:4D:7F:87:60)
Help Get driver information and configure Realtek Ethernet controller
parameter.
Comment Press Enter when selected to go into the associated Sub-Menu.
Page 30
30
2.1 ACPI Settings
Main Advanced Chipset Security Boot Save & Exit
ACPI Settings
Item help
Enable ACPI Auto Configuration [Disabled]
Enable Hibernation [Enabled]
ACPI Sleep State [S3 (Suspend to RAM)]
→←: Select Screen
↑↓: Select Item
Enter: Select
+/- : Change Opt
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Reset
ESC: Exit
Version 2.02.1205. Copyright (C) 2010 American Megatrends, Inc.
Field Name
Enable ACPI Auto Configuration
Default Value [Disabled]
Possible Value Enabled
Disabled
Help Enables or Disables BIOS ACPI Auto Configuration.
Field Name
Enable Hibernation
Default Value [Enabled]
Possible Value Enabled
Disabled
Help Enables or Disables System ability to Hibernate (OS/S4 Sleep
State). This option may be not effective with some OS.
Field Name
ACPI Sleep State
Default Value [S3 (Suspend to RAM)]
Possible Value
Suspend Disabled
S3 (Suspend to RAM)
Help Select the highest ACPI sleep state the system will enter when the
SUSPEND button is pressed.
Page 31
31
2.2 SMART Settings
Main Advanced Chipset Security Boot Save & Exit
SMART Settings
Item help
SMART Self Test [Disabled]
→←: Select Screen
↑↓: Select Item
Enter: Select
+/- : Change Opt
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Reset
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Field Name
SMART Self Test
Default Value [Disabled]
Possible Value Disabled
Enabled
Help Run SMART Self Test on all HDDs during POST.
Page 32
32
2.3 NCT6683D Super IO Configuration
Main Advanced Chipset Security Boot Save & Exit
NCT6683D Super IO Configuration
Item help
Super IO Chip NCT6683D
Serial Port 1 [Enabled]
Serial Port 2 [Enabled]
Parallel Port [Enabled]
→←: Select Screen
Device Mode [ECP and EPP 1.7 Mode]
↑↓: Select Item
Enter: Select
+/- : Change Opt
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Reset
ESC: Exit
Version 2.02.1205. Copyright (C) 2010 American Megatrends, Inc.
Field Name
Serial Port 1
Default Value [Enabled]
Possible Value Enabled
Disabled
Help Enable or Disable Serial Port (COM)
Field Name
Serial Port 2
Default Value [Enabled]
Possible Value Enabled
Disabled
Help Enable or Disable Serial Port (COM)
Field Name
Parallel Port
Default Value [Enabled]
Possible Value Enabled
Disabled
Help Enable or Disable Parallel Port (LPT/LPTE)
Field Name
Device Mode
Default Value [Output only]
Possible Value Output only
Bi-directional
EPP
Page 33
33
ECP
Help Change the Printer Port mode.
Page 34
34
2.4 S5 RTC Wake Settings
Main Advanced Chipset Security Boot Save & Exit
Wake system from S5 [Disabled]
Item help
Wake up hour 0
Wake up minute 0
Wake up second 0
→←: Select Screen
↑↓: Select Item
Enter: Select
+/- : Change Opt
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Reset
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Field Name
Wake system from S5
Default Value [Disabled]
Possible Value Disabled
Fixed Time
Dynamic Time
Help Enabler or disable System wake on alarm event, Select
FixedTime
, system will wake on the hr::min::sec specified. Select
DynamicTime , system will wake on the current time + Increase
minute (s)
Field Name
Wake up hour(Show when Wake system from S5 set to
Fixed Time)
Default Value 0
Possible Value 0-23
Help Select 0-23 For example enter 3 for 3am and 15 for 3pm
Field Name
Wake up minute(Show when Wake system from S5 set to
Fixed Time)
Default Value 0
Possible Value 0-59
Help 0 - 59
Page 35
35
Field Name
Wake up second(Show when Wake system from S5 set to
Fixed Time)
Default Value 0
Possible Value 0 - 59
Help 0 - 59
Page 36
36
Field Name
Wake up minute increase(Show when Wake system from
S5 set to Dynamic Time)
Default Value 1
Possible Value 1-5
Help 1 - 5
Page 37
37
2.5 CPU Configuration
Main Advanced Chipset Security Boot Save & Exit
CPU Configuration
Item help
Intel(R) Core(TM) CPU [CPU NAME] @ [CPU Freq.] GHz
CPU Signature 30673
Microcode Patch 31e
Max CPU Speed 2000 MHz
Min CPU Speed 800 MHz
Processor Cores 4
Intel HT Technology Supported
Intel VT-x Technology Supported
L1 Data Cache 32 KB x 4
L1 Code Cache 32 KB x 4
L2 Cache 256 KB x 4
L3 Cache 6144 KB
64-bit Supported
Hyper-threading [Enabled]
Intel Virtualization Technology [Enabled]
→←: Select Screen
↑↓: Select Item
Enter: Select
+/- : Change Opt
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Reset
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Field Name
CPU Configuration
Default Value [Intel CPU Brand String]
Comment This field is not selectable. There is no help text associated with
it.
Field Name
CPU Signature
Default Value Displays CPU Signature
Comment This field is not selectable. There is no help text associated with
it.
Field Name
Microcode Patch
Page 38
38
Default Value CPU Microcode Patch Revision
Comment This field is not selectable. There is no help text associated with
it.
Field Name
Max CPU Speed
Default Value Displays the Max CPU Speed
Comment This field is not selectable. There is no help text associated with
it.
Field Name
Min CPU Speed
Default Value Displays the Min CPU Speed
Comment This field is not selectable. There is no help text associated with
it.
Field Name
CPU Speed
Default Value Displays the CPU Speed
Comment This field is not selectable. There is no help text associated with
it.
Field Name
Processor Cores
Default Value Displays number of cores.
Comment This field is not selectable. There is no help text associated with
it.
Field Name
Intel HT Technology
Default Value When Hyper-threading is enabled, 2 logical CPUS per core is
present.
Comment This field is not selectable. There is no help text associated with
it.
Field Name
Intel VT-x Technology
Default Value CPU VMX hardware support for virtual machines.
Comment This field is not selectable. There is no help text associated with
it.
Field Name
64-bit
Default Value Displays if 64-bit supported
Comment This field is not selectable. There is no help text associated with
it.
Field Name
L1 Data Cache
Default Value L1 Data Cache Size
Comment This field is not selectable. There is no help text associated with
it.
Page 39
39
Field Name
L1 Code Cache
Default Value L1 Code Cache Size
Comment This field is not selectable. There is no help text associated with
it.
Field Name
L2 Cache
Default Value L2 Cache Size
Comment This field is not selectable. There is no help text associated with
it.
Field Name
L3 Cache
Default Value L3 Cache Size
Comment This field is not selectable. There is no help text associated with
it.
Page 40
40
Field Name
Hyper-threading (Hided if HT not Supported)
Default Value [Enabled]
Possible Value Enabled
Disabled
Help Enabled for Windows XP and Linux (OS optimized for
Hyper-Threading Technology) and Disabled
for other OS (OS not
optimized for Hyper-Threading Technology). When Disable only
one thread per enabled core is enabled.
Field Name
Intel Virtualization Technology
Default Value [Disabled]
Possible Value Enabled
Disabled
Help When enabled, a VMM can utilize the additional hardware
capabilities provided by Vanderpool Technology
Page 41
41
2.6 PPM Configuration
Main Advanced Chipset Security Boot Save & Exit
PPM Configuration
Item help
EIST [Enabled]
Turbo Mode [Enabled]
CPU C state Report [Enabled]
→←: Select Screen
↑↓: Select Item
Enter: Select
+/- : Change Opt
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Reset
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Field Name
EIST
Default Value [Enabled]
Possible Value Enabled
Disabled
Help Enable/Disable Intel SpeedStep.
Field Name
Turbo Mode
Default Value [Enabled]
Possible Value Disabled
Enabled
Help Turbo Mode.
Field Name
CPU C state Report
Default Value [Enabled]
Possible Value Enabled
Disabled
Help Enable/Disable CPU C state report to OS.
Page 42
42
2.7 SATA Configuration
Main Advanced Chipset Security Boot Save & Exit
SATA Configuration
Item help
SATA Speed Support
SATA Mode
[Gen2]
[AHCI]
Serial ATA Port 0 Empty
Serial ATA Port 1 Empty
→←: Select Screen
↑↓: Select Item
Enter: Select
+/- : Change Opt
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Reset
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Field Name
SATA Speed Support
Default Value [Gen2]
Possible Value Gen1 / Gen2
Help SATA Speed Support Gen1 or Gen2
Field Name
SATA Mode
Default Value [AHCI Mode]
Possible Value IDE Mode / AHCI Mode
Help Select IDE / AHCI
Field Name
SATA Port 0
Default Value Not Present
Possible Value SATA Device Model Name
Field Name
SATA Port1
Default Value Not Present
Possible Value SATA Device Model Name
Page 43
43
2.8 AMI Graphic Output Protocol Policy
Main Advanced Chipset Security Boot Save & Exit
Intel(R) Valley View Graphics Controller
Item help
Intel(R) GOP Driver [7.1.1005]
Output Select [Output Devices]
Brightnesst Setting 255
→←: Select Screen
↑↓: Select Item
Enter: Select
+/- : Change Opt
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Reset
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Field Name
Display Device Name
Default Value By Graphic card
Possible Value By Graphic card
Help NA
Field Name
Display Device Driver Version Information
Default Value By Graphic card
Possible Value By Graphic card
Help NA
Field Name
Output Select
Default Value Dynamic generate by graphic GOP driver, no fixed name for
LCD/HDMI-Out
Possible Value Output Device 1
Output Device 2
Help Output Interface
Field Name
Brightnesst Setting(Hidden when primary display is not
edp/LVDS)
Default Value 255
Possible Value 0~255
Help Set Gop Brightnesst value
Page 44
44
Page 45
45
2.9 Network Stack Configuration
Main Advanced Chipset Security Boot Save & Exit
Item help
Network stack [Enabled]
Ipv4 PXE Support [Enabled]
Ipv6 PXE Support [Enabled]
→←: Select Screen
↑↓: Select Item
Enter: Select
+/- : Change Opt
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Reset
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Field Name
Network stack
Default Value [Enabled]
Possible Value Disabled
Enabled
Help Enable/Disable UEFI network stack.
Field Name
Ipv4 PXE Support
Default Value [Enabled]
Possible Value Disabled
Enabled
Help Enable Ipv4 PXE Boot Support. If disabled IPV4 PXE boot option will
not be created.
Field Name
Ipv6 PXE Support
Default Value [Enabled]
Possible Value Disabled
Enabled
Help Enable Ipv6 PXE Boot Support. If disabled IPV6 PXE boot option will
not be created.
Page 46
46
2.10 CSM Configuration
Main Advanced Device Chipset Security Boot Save & Exit
Compatibility Support Module
Configuration
Item help
CSM Support [Enabled]
CSM Module Version 07.74
GateA20 Active [Upon Request]
Option ROM Message [Force BIOS]
INT19 Trap Response [Immediate]
Boot option filter [UEFI only]
→←: Select Screen
↑↓: Select Item
Option ROM execution order
Enter: Select
+/- : Change Opt
Network [UEFI]
F1: General Help
Storage [UEFI]
F2: Previous Values
Video [UEFI]
F3: Optimized Defaults
Other PCI devices [UEFI]
F4: Save & Reset
ESC: Exit
Version 2.15.1326. Copyright (C) 2012 American Megatrends, Inc.
Field Name
Compatibility Support Module Configuration
Field Name
CSM Support
Default Value [Enabled]
Possible Value Disabled
Enabled
Help Enable / Disable CSM Support.
Field Name
CSM16 Module Version
Default Value 07.74
Comment
This field is not selectable. There is no help text associated with it.
Field Name
GateA20 Active
Default Value [Upon Request]
Possible Value Upon Request
Always
Help UPON REQUEST - GA20 can be disabled using BIOS services.
ALWAYS -
do not allow disabling GA20; this option is useful when
any RT code is executed above 1MB..
Page 47
47
Field Name
Option ROM Message
Default Value [Force BIOS]
Possible Value Force BIOS
Keep Current
Help Set display mode for Option ROM
Field Name
INT19 Trap Response
Default Value [Immediate]
Possible Value Immediate
Postponed
Help BIOS reaction on INT19 trapping by Option ROM: IMMEDIATE -
execute the trap right away; POSTPONED - execute the trap
during legacy boot.
Field Name
Boot option filter
Default Value [UEFI only]
Possible Value UEFI only
Legacy only
Help This option controls Legacy/UEFI ROMs priority.
Field Name
Network
Default Value [UEFI]
Possible Value Do not launch
UEFI
Legacy
Help Controls the execution of UEFI and Legacy PXE OpROM
Field Name
Storage
Default Value [UEFI]
Possible Value Do not launch
UEFI
Legacy
Help Controls the execution of UEFI and Legacy Storage OpROM
Field Name
Video
Default Value [UEFI]
Possible Value Do not launch
UEFI
Legacy
Help Controls the execution of UEFI and Legacy Video OpROM
Field Name
Other PCI devices
Default Value [UEFI]
Possible Value UEFI
Page 48
48
Legacy
Help Determines OpROM execution policy for devices other than
Network, Storage, or Video
Page 49
49
2.11 Trusted Computing
Main Advanced Chipset Security Boot Save & Exit
Configuration
Item help
Security Device Support [Enable]
TPM State [Enabled]
Pending operation [None]
Current Status Information
→←: Select Screen
TPM Enabled Status: [Enabled]
↑↓: Select Item
TPM Active Status: [Activated]
Enter: Select
TPM Owner Status: [Unowned]
+/- : Change Opt
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Reset
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Field Name
Security Device SUPPORT
Default Value [Enable]
Possible Value Enable
Disable
Help Enables or Disables BIOS support for security device. O.S. will not
show Security Device. TCG EFI protocol and INT1A interface will not
be available.
Field Name
TPM State
Default Value [Enabled]
Possible Value Enabled
Disabled
Help Enable/Disable Security Device. NOTE: Your Computer will reboot
during restart in order to change State of the Device.
Field Name Pending operation
Default Value [None]
Possible Value None
Enable Take Ownership
Disable Take Ownership
TPM Clear
Help Schedule an Operation for the Security Device. NOTE: Your
Page 50
50
Computer will reboot during restart in order to change State of
Security Device.
Field Name
TPM Enabled Status:
Default Value [Enabled]
Comment This field is not selectable. There is no help text associated with it.
Page 51
51
Field Name
TPM Active Status:
Default Value [Activated]
Comment This field is not selectable. There is no help text associated with it.
Field Name
TPM Owner Status:
Default Value [Owned]
Comment This field is not selectable. There is no help text associated with it.
Page 52
52
2.12 USB Configuration
Main Advanced Chipset Security Boot Save & Exit
USB Configuration
Item help
USB Devices:
1 Keyboard, 1 Mouse, 2 Hubs
Legacy USB Support [Enabled]
→←: Select Screen
USB 3.0(XHCI) Support [Enabled]
↑↓: Select Item
USB 2.0(EHCI) Support [Disabled]
Enter: Select
+/- : Change Opt
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Reset
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Field Name
USB Devices:
Default Value Connected USB devices
Comment
This field is not selectable. There is no help text associated with it.
Field Name
Legacy USB Support
Default Value [Enabled]
Possible Value Disabled
Enabled
Auto
Help Enables Legacy USB support. AUTO option disables legacy
support if no USB devices are connected. DISABLE option will
keep USB devices available only for EFI applications.
Field Name
USB 3.0(XHCI) Support
Default Value [Enabled]
Possible Value Enabled
Disabled
Auto
Smart Auto
Help Mode of operation of XHCI controller
Field Name
USB2.0(EHCI) Support
Default Value [Enabled]
Possible Value Disabled
Enabled
Page 53
53
Help Control the USB EHCI (USB 2.0) functions. One EHCI controller
must always be enabled.
Page 54
54
2.13 Realtek PCIe GBE Family Controller (MAC:00:22:4D:7F:87:60)
(If Network Stack IPv4/IPv6 enabled, create by RealTek UEFI PXE Driver)
Main Advanced Chipset Security Boot Save & Exit
Driver Information
Item help
Driver Name: Realtek UEFI UNDI Driver
Driver Version 2.017
Driver Released Date: 2012/10/19
Device Information
Device Name: Realtek PCIe GBE Family
Controller
→←: Select Screen
PCI Slot: 02:00:00
↑↓: Select Item
MAC Address: 00:22:4D:7F:87:60
Enter: Select
+/- : Change Opt
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Reset
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Field Name
Driver Name:
Default Value Installed UEFI Driver Name
Comment
This field is not selectable. There is no help text associated with it.
Field Name
Driver Version:
Default Value Installed UEFI Driver Version
Comment This field is not selectable. There is no help text associated
with it.
Field Name
Driver Released Date:
Default Value Installed UEFI Driver Release Date
Comment
This field is not selectable. There is no help text associated with it.
Field Name
Device Name:
Default Value UEFI driver support device
Comment This
field is not selectable. There is no help text associated with it.
Field Name
PCI Slot:
Default Value Device PCI Bus/Device/Number
Comment
This field is not selectable. There is no help text associated with it.
Field Name
MAC Address:
Default Value LAN Device Mac address
Page 55
55
Comment
This field is not selectable. There is no help text associated with it.
Page 56
56
3. Chipset
Main Advanced Chipset Security Boot Save & Exit
Output Panel Type [LVDS]
Item help
LVDS Interface Type [Dual Channel]
LVDS Panel Type [VBIOS Default]
DeepSx Power Policies [Disabled]
Front Panel Audio [Auto]
→←: Select Screen
↑↓: Select Item
Enter: Select
DVMT Pre-Allocated [64MB]
+/- : Change Opt
DVMT Total Gfx Mem [256MB]
F1: General Help
F2: Previous Values
Restore AC Power Loss [Last State]
F3: Optimized Defaults
F4: Save & Reset
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Field Name
Output Panel Type
Default Value [LVDS]
Possible Value eDP
LVDS
Help Select output Panel Type
Field Name
LVDS Interface Type(Hidden when Output Panel Type is eDP)
Default Value [Dual Channel]
Possible Value Dual Channel
Single Channel
Help Sets LVDS connectivity.
Field Name
LVDS Panel Type(Hidden when Output Panel Type is eDP)
Default Value [VBIOS Default]
Possible Value VBIOS Default
640x480 LVDS
800x600 LVDS
1024x768 LVDS1
1280x1024 LVDS
1400x1050(RB) LVDS1
1400x1050 LVDS
1600x1200 LVDS
1366x768 LVDS
Page 57
57
1680x1050 LVDS
1920x1200 LVDS
1440x900 LVDS
1600x900 LVDS
1024x768 LVDS2
1280x800 LVDS
1920x1080 LVDS
2048x1536 LVDS
Help
Select LVDS panel used by Internal Graphics Device by selecting
the appropriate setup item.
Field Name
DeepSx Power Policies
Default Value Disabled
Possible Value Disabled
Enabled
Help Configure the DeepSx Mode configuration.
Field Name
Front Panel Audio
Default Value Auto
Possible Value Auto
High Definition Front Panel
Legacy Front Panel
Disabled
Help Automatically or Manually select the type of audio front panel
installed.
Field Name
DVMT Pre-Allocated
Default Value [64M]
Possible Value 64M / 96M / 128M / 256M / 384M
Help Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size
used by the Internal Graphics Device.
Field Name
DVMT Total Gfx Mem
Default Value [256MB]
Possible Value 128MB / 256MB / Max
Help
Select DVMT 5.0 Total Graphic Memory size used by the Internal
Graphics Device.
Field Name
Restore AC Power State
Default Value [Latest State]
Possible Value Power off
Power on
Last State
Page 58
58
Help Select AC power state when power is re-applied after a power
failure.
Page 59
59
4. Security
Main Advanced Chipset Security Boot Save & Exit
Password Description
Item help
If Only the Administrator's password is set
then this only limits access to Setup and is
only asked for when entering Setup
If ONLY the User’s password is set, then this
Is a power on password and must be entered to
boot or enter Setup. In Setup the User will.
have Administrator rights.
The password length must be
→←: Select Screen
in the following range:
↑↓: Select Item
Minimum Length 3
Enter: Select
Maximum Length 20
+/- : Change Opt
F1: General Help
Administrator Password
F2: Previous Values
User Password
F3: Optimized Defaults
F4: Save & Reset
HDD Security Configuration
ESC: Exit
P0:Device Name
►Secure Boot menu
Version 2.15.1326. Copyright (C) 2012 American Megatrends, Inc.
Field Name
Administrator Password
Help Set Administrator Password
Comment Press Enter when selected to go into the associated Sub-Menu.
Field Name
User Password
Help Set User Password.
Comment Press Enter when selected to go into the associated Sub-Menu.
Field Name
P0: Device Name
Help HDD Security Configuration for selected drive
Comment Press Enter when selected to go into the associated Sub-Menu.
Field Name
Secure Boot menu
Help Customizable Secure Boot settings.
Comment Press Enter when selected to go into the associated Sub-Menu.
Page 60
60
4.1 HDD Security Configuration
Main Advanced Chipset Security Boot Save & Exit
HDD Password Description
Item help
Allow Access to Set, Modify and Clear
Hard Disk User and Master Password.
User Password need to be installed for
Enabling Security. Master Password can
Be Modified only when successfully unlocked
With Master Password in POST.
HDD PASSWORD CONFIGURATION:
Security
Supported :
Yes
→←: Select Screen
Security
Enabled :
No
↑↓: Select Item
Security
Locked :
No
Enter: Select
Security
Frozen :
No
+/- : Change Opt
HDD User Pwd Status
NOT INSTALLED
F1: General Help
HDD Master Pwd Status
NOT INSTALLED
F2: Previous Values
F3: Optimized Defaults
Set User Password
F4: Save & Reset
ESC: Exit
Version 2.15.1326. Copyright (C) 2012 American Megatrends, Inc.
Field Name
Set User Password
Help Set HDD User Password
Comment Press Enter when selected to go into the associated Sub-Menu.
Page 61
61
4.2 Secure Boot Mode
Main Advanced Chipset Security Boot Save & Exit
Item help
System Mode Setup
Secure Boot Disabled
Secure Boot [Disable]
→←: Select Screen
Secure Boot Mode [Custom]
↑↓: Select Item
►Key Management
Enter: Select
+/- : Change Opt
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Reset
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Field Name
Secure Boot Control
Default Value [Disabled]
Possible Value Enabled / Disabled
Help Secure Boot can be enabled if 1.System running in User mode
with enrolled Platform Key(PK) 2.CSM function is disabled
Field Name
Secure Boot Mode
Default Value [Custom]
Possible Value Standard / Custom
Help Secure Boot mode selector. 'Custom' Mode allows physically
present users ability to override Image Execution policy and
manage Secure Boot Keys.
Page 62
62
4.3 Key Managerment
Main Advanced Chipset Security Boot Save & Exit
Factory Default Key Provision
[Disabled]
Item help
►Enroll All Factory Default Keys
►Save All Secure Boot Variables
Platform Key NOT INSTALLED
► Delete PK
► Set new PK
Key Exchange Key NOT INSTALLED
► Delete KEK
► Set new KEK
► Append KEK
Authorized Signature NOT INSTALLED
► Delete DB
► Set new DB
→←: Select Screen
► Append DB
↑↓: Select Item
Authorized TimeStamps
► Delete DBT
► Set new DBT
► Append DBT
NOT INSTALLED
Enter: Select
+/- : Change Opt
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Reset
ESC: Exit
Forbidden Signature NOT INSTALLED
► Delete DBX
► Set new DBX
► Append DBX
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Field Name
Factory Default Key Provisioning
Default Value [Disabled]
Possible Value Enabled
Disabled
Help Install Factory default Secure Boot Keys when System is in Setup
Mode.
Field Name
Enroll All Factory Default Key
Page 63
63
Help Force System to User Mode - install all Factory Default
keys(PK,KEK,db,dbx). Change takes effect after reboot
Comment
Page 64
64
Field Name
Delete All Secure Boot Variables
Help Force System to Setup Mode - clear all Secure Boot
Variables(PK,KEK,db,dbx). Change takes effect after reboot
Comment
Field Name
Save All Secure Boot Variables
Help Store content of each Secure Boot Variable(data formatted as
EFI_SIGNATURE_LIST) to a file with
matching name on selected file system's
root folder.
Comment
Field Name
Platform Key
Default Value NOT INSTALLED
Possible Value INSTALLED
NOT INSTALLED
Help
Field Name
Delete PK
Help Delete the Variable from NVRAM. Removing PK will reset System to Setup
Mode
Comment
Field Name
Set new PK
Help Insert Factory Default Keys or load from a file formatted as:
1.Public Key Certificate in:
a)EFI_SIGNATURE_LIST,
b)EFI_CERT_X509 (DER encoded),
c)EFI_CERT_RSA2048 (bin),
d)EFI_CERT_SHA256 (bin)
2.Efi Time-Based Authenticated Variable
Comment
Field Name
Key Exchange Key Database
Default Value NOT INSTALLED
Possible Value INSTALLED
NOT INSTALLED
Help
Field Name
Delete KEK
Help Delete the Variable from NVRAM. Removing PK will reset System to Setup
Mode
Comment
Field Name
Set new KEK
Page 65
65
Help Insert Factory Default Keys or load from a file formatted as:
1.Public Key Certificate in:
a)EFI_SIGNATURE_LIST,
b)EFI_CERT_X509 (DER encoded),
c)EFI_CERT_RSA2048 (bin),
d)EFI_CERT_SHA256 (bin)
2.Efi Time-Based Authenticated Variable
Comment
Page 66
66
Field Name
Append KEK
Help Insert Factory Default Keys or load from a file formatted as:
1.Public Key Certificate in:
a)EFI_SIGNATURE_LIST,
b)EFI_CERT_X509 (DER encoded),
c)EFI_CERT_RSA2048 (bin),
d)EFI_CERT_SHA256 (bin)
2.Efi Time-Based Authenticated Variable
Comment
Field Name
Authorized Signature
Default Value NOT INSTALLED
Possible Value INSTALLED
NOT INSTALLED
Help
Field Name
Delete DB
Help Delete the Variable from NVRAM. Removing PK will reset System to Setup
Mode
Field Name
Set new DB
Help Insert Factory Default Keys or load from a file formatted as:
1.Public Key Certificate in:
a)EFI_SIGNATURE_LIST,
b)EFI_CERT_X509 (DER encoded),
c)EFI_CERT_RSA2048 (bin),
d)EFI_CERT_SHA256 (bin)
2.Efi Time-Based Authenticated Variable
Field Name
Append DB
Help Insert Factory Default Keys or load from a file formatted as:
1.Public Key Certificate in:
a)EFI_SIGNATURE_LIST,
b)EFI_CERT_X509 (DER encoded),
c)EFI_CERT_RSA2048 (bin),
d)EFI_CERT_SHA256 (bin)
2.Efi Time-Based Authenticated Variable
Field Name
Authorized TimeStamps
Default Value NOT INSTALLED
Possible Value INSTALLED
NOT INSTALLED
Help
Page 67
67
Field Name
Delete DBT
Help Delete the Variable from NVRAM. Removing PK will reset System to Setup
Mode
Field Name
Set new DBT
Help Insert Factory Default Keys or load from a file formatted as:
1.Public Key Certificate in:
a)EFI_SIGNATURE_LIST,
b)EFI_CERT_X509 (DER encoded),
c)EFI_CERT_RSA2048 (bin),
d)EFI_CERT_SHA256 (bin)
2.Efi Time-Based Authenticated Variable
Field Name
Append DBT
Help Insert Factory Default Keys or load from a file formatted as:
1.Public Key Certificate in:
a)EFI_SIGNATURE_LIST,
b)EFI_CERT_X509 (DER encoded),
c)EFI_CERT_RSA2048 (bin),
d)EFI_CERT_SHA256 (bin)
2.Efi Time-Based Authenticated Variable
Field Name
Forbidden Signature
Default Value NOT INSTALLED
Possible Value INSTALLED
NOT INSTALLED
Help
Field Name
Delete DBX
Help Delete the Variable from NVRAM. Removing PK will reset System to Setup
Mode
Field Name
Set new DBX
Help Insert Factory Default Keys or load from a file formatted as:
1.Public Key Certificate in:
a)EFI_SIGNATURE_LIST,
b)EFI_CERT_X509 (DER encoded),
c)EFI_CERT_RSA2048 (bin),
d)EFI_CERT_SHA256 (bin)
2.Efi Time-Based Authenticated Variable
Field Name
Append DBX
Help Insert Factory Default Keys or load from a file formatted as:
1.Public Key Certificate in:
a)EFI_SIGNATURE_LIST,
Page 68
68
b)EFI_CERT_X509 (DER encoded),
c)EFI_CERT_RSA2048 (bin),
d)EFI_CERT_SHA256 (bin)
2.Efi Time-Based Authenticated Variable
Page 69
69
5 Boot
Boot mode select = UEFI
Main Advanced Chipset Boot Security Save & Exit
Boot Configuration
Item help
Setup Prompt Timeout 1
Bootup NumLock State [On]
Fast Boot [Disabled]
Boot mode select [UEFI]
FIXED BOOT ORDER Priorities
Boot Option #1 [UEFI CD/DVD]
Boot Option #2 [UEFI Hard Disk]
Boot Option #3 [UEFI USB KEY]
Boot Option #4 [UEFI Network]
Boot Option #5 [UEFI USB CD/DVD]
Boot Option #6 [UEFI USB Hard Disk]
►CSM parameters
→←: Select Screen
↑↓: Select Item
UEFI CD/DVD ROM Drive BBS Priorities
Enter: Select
UEFI Hard Disk Drive BBS Priorities
+/- : Change Opt
UEFI NETWORK Drive BBS Priorities
F1: General Help
UEFI USB CD/DVD ROM Drive BBS Priorities
F2: Previous Values
UEFI USB Hard Disk Drive BBS Priorities
F3: Optimized Defaults
UEFI USB KEY Drive BBS Priorities
F4: Save & Reset
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Page 70
70
Boot mode select = LEGACY
Main Advanced Chipset Security Boot Save & Exit
Boot Configuration
Item help
Setup Prompt Timeout 1
Bootup NumLock State [On]
Fast Boot [Enabled]
Boot mode select [Legacy]
FIXED BOOT ORDER Priorities
Boot Option #1 [CD/DVD]
Boot Option #2 [Hard Disk]
Boot Option #3 [USB KEY]
Boot Option #4 [Network]
Boot Option #5 [USB CD/DVD]
Boot Option #6 [USB Hard Disk]
Boot Option #7 [USB Floppy]
→←: Select Screen
CD/DVD ROM Drive BBS Priorities
↑↓: Select Item
Hard Disk Drive BBS Priorities
Enter: Select
NETWORK Drive BBS Priorities
+/- : Change Opt
USB CD/DVD ROM Drive BBS Priorities
F1: General Help
USB Hard Disk Drive BBS Priorities
F2: Previous Values
USB KEY Drive BBS Priorities
F3: Optimized Defaults
USB Floppy Drive BBS Priorities
F4: Save & Reset
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Field Name
Setup Prompt Timeout
Default Value 1
Possible Value 1~65535
Help Number of seconds to wait for setup activation key.
65535(0xFFFF) means indefinite waiting.
Field Name
Boot NumLock State
Default Value [On]
Page 71
71
Possible Value On
Off
Help Select the keyboard NumLock state
Page 72
72
Field Name
Fast Boot
Default Value [Disabled]
Possible Value Enabled
Disabled
Help Enables or disables boot with initialization of a minimal set of
devices required to launch active boot option. Has no effect for
BBS boot options.
Field Name
Boot mode select
Default Value [UEFI]
Possible Value
LEGACY (Restore non-Windows 8 Default)
UEFI
Help Select boot mode LEGACY/UEFI.
Boot mode select = UEFI
Field Name
Boot Option #1
Default Value [UEFI CD/DVD]
Possible Value CD/DVD, Hard Disk, Network, USB CD/DVD, USB Hard Disk,
USB KEY, USB Floppy, UEFI
Help Set boot Priority
Field Name
Boot Option #2
Default Value [UEFI Hard Disk]
Possible Value CD/DVD, Hard Disk, Network, USB CD/DVD, USB Hard Disk,
USB KEY, USB Floppy, UEFI
Help Set boot Priority
Field Name
Boot Option #3
Default Value [UEFI USB KEY]
Possible Value CD/DVD, Hard Disk, Network, USB CD/DVD, USB Hard Disk,
USB KEY, USB Floppy, UEFI
Help Set boot Priority
Field Name
Boot Option #4
Default Value [UEFI Network]
Possible Value CD/DVD, Hard Disk, Network, USB CD/DVD, USB Hard Disk,
USB KEY, USB Floppy, UEFI
Help Set boot Priority
Field Name
Boot Option #5
Default Value [UEFI USB CD/DVD]
Possible Value CD/DVD, Hard Disk, Network, USB CD/DVD, USB Hard Disk,
USB KEY, USB Floppy, UEFI
Help Set boot Priority
Page 73
73
Field Name
Boot Option #6
Default Value [UEFI USB Hard Disk]
Possible Value CD/DVD, Hard Disk, Network, USB CD/DVD, USB Hard Disk,
USB KEY, USB Floppy, UEFI
Help Set boot Priority
Boot mode select = LEGACY
Field Name
Boot Option #1
Default Value [CD/DVD]
Possible Value CD/DVD, Hard Disk, Network, USB CD/DVD, USB Hard Disk,
USB KEY, USB Floppy, UEFI
Help Set boot Priority
Field Name
Boot Option #2
Default Value [Hard Disk]
Possible Value CD/DVD, Hard Disk, Network, USB CD/DVD, USB Hard Disk,
USB KEY, USB Floppy, UEFI
Help Set boot Priority
Field Name
Boot Option #3
Default Value [USB KEY]
Possible Value CD/DVD, Hard Disk, Network, USB CD/DVD, USB Hard Disk,
USB KEY, USB Floppy, UEFI
Help Set boot Priority
Field Name
Boot Option #4
Default Value [Network]
Possible Value CD/DVD, Hard Disk, Network, USB CD/DVD, USB Hard Disk,
USB KEY, USB Floppy, UEFI
Help Set boot Priority
Field Name
Boot Option #5
Default Value [USB CD/DVD]
Possible Value CD/DVD, Hard Disk, Network, USB CD/DVD, USB Hard Disk,
USB KEY, USB Floppy, UEFI
Help Set boot Priority
Field Name
Boot Option #6
Default Value [USB Hard Disk]
Possible Value CD/DVD, Hard Disk, Network, USB CD/DVD, USB Hard Disk,
USB KEY, USB Floppy, UEFI
Help Set boot Priority
Page 74
74
Field Name
Boot Option #7
Default Value [USB Floppy]
Possible Value CD/DVD, Hard Disk, Network, USB CD/DVD, USB Hard Disk,
USB KEY, USB Floppy, UEFI
Help Set boot Priority
Field Name
CD/DVD ROM Drive BBS Priorities
Help Specifies the Boot Device Priority sequence from available
CDROM/DVD Drives.
Comment Press Enter when selected to go into the associated Sub-Menu.
Field Name
Hard Disk Drive BBS Priorities
Help Specifies the Boot Device Priority sequence from available Hard
Disk Drives.
Comment Press Enter when selected to go into the associated Sub-Menu.
Field Name
NETWORK Drive BBS Priorities
Help Specifies the Boot Device Priority sequence from available
NETWORK Drives.
Comment Press Enter when selected to go into the associated Sub-Menu.
Field Name
USB CD/DVD ROM Drive BBS Priorities
Help Specifies the Boot Device Priority sequence from available USB
CDROM/DVD Drives.
Comment Press Enter when selected to go into the associated Sub-Menu.
Field Name
USB Hard Disk Drive BBS Priorities
Help Specifies the Boot Device Priority sequence from available USB
Hard Disk Drives.
Comment Press Enter when selected to go into the associated Sub-Menu.
Field Name
USB KEY Drive BBS Priorities
Help Specifies the Boot Device Priority sequence from available USB
Key Drives.
Comment Press Enter when selected to go into the associated Sub-Menu.
Field Name
USB Floppy Drive BBS Priorities
(UEFI Boot Mode Not Support)
Help Specifies the Boot Device Priority sequence from available USB
Floppy Drives.
Comment Press Enter when selected to go into the associated Sub-Menu.
Page 75
75
Field Name
UEFI CD/DVD ROM Drive BBS Priorities
Help Specifies the Boot Device Priority sequence from available
CDROM/DVD Drives.
Comment Press Enter when selected to go into the associated Sub-Menu.
Field Name
UEFI Hard Disk Drive BBS Priorities
Help Specifies the Boot Device Priority sequence from available Hard
Disk Drives.
Comment Press Enter when selected to go into the associated Sub-Menu.
Field Name
UEFI NETWORK Drive BBS Priorities
Help Specifies the Boot Device Priority sequence from available
NETWORK Drives.
Comment Press Enter when selected to go into the associated Sub-Menu.
Field Name
UEFI USB CD/DVD ROM Drive BBS Priorities
Help Specifies the Boot Device Priority sequence from available USB
CDROM/DVD Drives.
Comment Press Enter when selected to go into the associated Sub-Menu.
Field Name
UEFI USB Hard Disk Drive BBS Priorities
Help Specifies the Boot Device Priority sequence from available USB
Hard Disk Drives.
Comment Press Enter when selected to go into the associated Sub-Menu.
Field Name
UEFI USB KEY Drive BBS Priorities
Help Specifies the Boot Device Priority sequence from available USB
Key Drives.
Comment Press Enter when selected to go into the associated Sub-Menu.
Page 76
76
6 Save & Exit
Main Advanced Chipset Security Boot Save & Exit
Save Changes and Reset
Item help
Discard Changes and Reset
Save Options
Restore user Defaults
Restore Defaults
Restore Defaults
Save as user Defaults
Restore user Defaults
Restore Windows 8-64 bits Defaults
Restore Windows 8-32 bits Defaults
→←: Select Screen
Restore Windows 7 Defaults
↑↓: Select Item
Enter: Select
Boot Override
+/- : Change Opt
UEFI: Built-in UEFI Shell
F1: General Help
Windows Boot Manager
F2: Previous Values
F3: Optimized Defaults
F4: Save & Reset
ESC: Exit
Version 2.15.1326. Copyright (C) 2012 American Megatrends, Inc.
Field Name
Save Changes and Reset
Help Reset the system after saving the changes.
Comment
Field Name
Discard Changes and Reset
Help Reset system setup without saving any changes.
Comment
Field Name
Save Options
Field Name
Save Changes
Help Save Changes done so far to any of the setup options.
Comment
Page 77
77
Field Name
Discard Changes
Help Discard Changes done so far to any of the setup options.
Comment
Field Name
Restore Defaults
Help Restore/Load Default values for all the setup options.
Comment
Field Name
Save as User Defaults
Help Save the changes done so far as User Defaults.
Comment
Field Name
Restore User Defaults
Help Restore the User Defaults to all the setup options.
Comment
Field Name
Restore Windows 8-64 bits Defaults
Help Restore/Load Windows 8-64 bits Default values for all the setup
options.
Comment
Field Name
Restore Windows 8-32 bits Defaults
Help Restore/Load Windows 8-32 bits Default values for all the setup
options.
Comment
Field Name
Restore Windows 7 Defaults
Help Restore/Load Windows 8-32 bits or Windows 7 Default values for all
the setup options.
Comment
Field Name
Boot Override
Page 78
78
Loading...
