MiTAC Maestro 3070, Maestro 3080 User Manual

Maestro 3070/3080

User Manual (Version 1.0)

To know Maestro 3070/3080

1

2

Front View

Please refer below picture showing and take note the real front view and function may differ depend on what the model you purchased.

Webcam

The Built-in webcam is 1.0M HD pixel with digital micro phone to allow your video with

chats online.

LCD Display

(Touch function enabled with optional item)

This 21.5/23.6 inch LCD panel is LED type with high brightness and contrast

appearance. The optimal resolution is 1920 x 1080, feature edge-to-edge touch function that enable ten-fingers-touch to enjoy your digital finger life.

3

Speakers

High definition sound quality brings you to enjoy great music world.

Rear View

1

2

3

Please refer below picture showing and take note the real rear view and function may differ depend on what the model you purchased.

Stand

Adjustable stand help you to position the system upright.

Less screw design

Two screws allows you open system easier.

Power ON/OFF button

Power ON/OFF switch allow you turn on/off your PC.

System SKU Matrix

Item

Spec

M3070

M3080

Panel

16:9, 1920 x 1080, full HD support

21.5"

(for M3070)

23.6"

(for M3080)

CPU

65W Coffee lake CPU support

Main board form factor

Thin Mini-ITX

Chipset

Coffee lake H310

Memory

x2 SO-DIMM slots, DDR4, 2666, up to 32GB

Audio

High definition audio codec

SATA HDD

2.5" / 3.5", SATA3, (HDD/SDD type support)

SATA ODD

Slim 9.5mm, tray type

Mini card

M.2 E key 2230 slot x 1, support wireless card

M.2 M key 2280 slot x 1 for SSD

Lan speed

10/100/1000 Ethernet

Webcam

1.0 HD mega pixel, HD 720p 16:9 lens with arrary digital microphone

Speaker

High quality speaker 5W x 2

Stand type

Aluminum L-stand

System I/O ports

USB3.0 x 4, HDMI, DisplayPort, RJ45 x1, Mic-in, Head phone out, DC inlet,

Side I/O ports

USB2.0 x2, 4-in-1 card reader

System control button

Power button, Brightness control

System Antenna

Dual Band for M.2 Wireless Card (L5 default)

TPM (Hardware TPM)

Trusted Platform Module 2.0 (optional)

Power Adapter

19V 180W

MB Information

(MB: PH12FEI)

MB Placement:

A

Front Audio Header

B

COM Port Header (RS232)

C

DMIC Header

D

PCIEx4 slot

E

MiAPI header

F

LGA1151 CPU socket

G

Dual USB2.0 Header

H

LVDS Backlight Header

I

LVDS connector

J

Front I/O Header

K

SATA

L

SATA Power

M

SATA

N

SATA

O

Dual USB2.0 Header

P

ATX 2pin

Q

ATX 4pin

R

COM Port Header (RS232)

S

COM Port Header (RS232)

T

COM Port Header (RS232/422/485)

U

RTC battery header

V

M.2 M key 2280

W

DDR4 SODIMM slot

X

M.2 E key 2230

Y

Dual USB2.0 Header

Z

System FAN Header

AA

Front SW/LEDs Header

Signal Name

Description

Signal Name

Description

1

HDD_POWER_LED

Pull-up resistor (750 ) to

+5V 2 POWER_LED_MAIN

[Out] Front panel LED (Green)

3

HDD_LED#

[Out] Hard disk activity LED

4

POWER_LED_ALT

[Out] Front panel LED (Yellow)

5

GROUND

Ground

6

POWER_SWITCH#

Power button

7

RESET_SWITCH#

Reset switch

8

GROUND

Ground

9

+5V_DC

Power

10

KEY

No pin

Connecting to the Internal Headers and Connectors

Front panel main header

Figure 1 : Front Panel Connector

Table 1: Front Panel Connector

Pins 1&2: jumper position for 12V

11

Signal Name

1

12VDUAL_HDMI

2

BKLT_PWR

3

+19V_A

Signal

Description

1

TD0P

LVDS Channel A diff data output - positive

2

TD0N

LVDS Channel A diff data output - negative

3

TC0P

LVDS Channel A diff data output - positive

4

TC0N

LVDS Channel A diff data output - negative

5

TB0P

LVDS Channel A diff data output - positive

6

TB0N

LVDS Channel A diff data output - negative

7

TA0P

LVDS Channel A diff data output - positive

8

TA0N

LVDS Channel A diff data output - negative

9

TD1P

LVDS Channel B diff data output-positive

10

TD1N

LVDS Channel B diff data output-negative

11

TC1P

LVDS Channel B diff data output-positive

12

TC1N

LVDS Channel B diff data output-negative

13

TB1P

LVDS Channel B diff data output-positive

14

TB1N

LVDS Channel B diff data output-negative

15

TA1P

LVDS Channel B diff data output-positive

16

TA1N

LVDS Channel B diff data output-negative

17

GND

Ground

18

3.3V/5V/12V

Selectable LCD power output

Pins 2&3: jumper position for 19V

Figure 2 : Inverter power voltage selection header signals

Table 2: Inverter power voltage selection header signals

Figure 3: LVDS Connector

12

19

3.3V/5V/12V

Selectable LCD power output

20

3.3V/5V/12V

Selectable LCD power output

21

VCC

22

NC

23

VCC3

24

CABLE_ID2

25

GND

Ground

26

TCK0P

LVDS Channel A diff data output - positive

27

TCK0N

LVDS Channel A diff data output - negative

28

GND

Ground

29

GND

Ground

30

CABLE_ID3

31

LVDS_DDC_SCL

32

CABLE_ID1

33

PS8625_BKLT_CTRL

34

TCK1P

LVDS Channel B diff data output - positive

35

TCK1N

LVDS Channel B diff data output - negative

36

NC

37

NC

38

NC

39

CABLE_ID4

40

NC

Table 3: 40-pin LVDS data header pin-out reference

Signal

Description

1

NC

2

GND

Ground

3

EDP_CPU_3-

MAIN LINK

4

EDP_CPU_3+

MAIN LINK

5

GND

Ground

Figure 4: eDP Connector

13

6

EDP_CPU_2-

MAIN LINK

7

EDP_CPU_2+

MAIN LINK

8

GND

Ground

9

EDP_CPU_1-

MAIN LINK

10

EDP_CPU_1+

MAIN LINK

11

GND

Ground

12

EDP_CPU_0-

MAIN LINK

13

EDP_CPU_0+

MAIN LINK

14

GND

Ground

15

EDP_CPU_AUX+

Aux channel

16

EDP_CPU_AUX-

Aux channel

17

GND

Ground

18

LCD_VCC

Selectable LCD power output

19

LCD_VCC

Selectable LCD power output

20

LCD_VCC

Selectable LCD power output

21

LCD_VCC

Selectable LCD power output

22

NC

23

CABLE_ID2

24

GND

Ground

25

GND

Ground

26

GND

Ground

27

HPDET

Hot plug detection

28

GND

Ground

29

GND

Ground

14

30

CABLE_ID3

31

GND

Ground

32

BKLT_EN

33

PCH_BACKLIGHT_PWM

34

NC

35

NC

36

BKLT_PWR

Selectable BKLT power output

37

BKLT_PWR

Selectable BKLT power output

38

BKLT_PWR

Selectable BKLT power output

39

BKLT_PWR

Selectable BKLT power output

40

NC

Table 4: 40-pin eDP data header pin-out reference

Signal Name

Description

1

LVDS_BKTEN_R

Backlight enable

2

LVDS_PWM

Backlight PWM control

3

12V/19V

Inverter power

4

12V/19V

Inverter power

5

GND

Ground

6

GND

Ground

7

BRIGHT_UP-

BRIGHTNESS UP

8

BRIGHT_DOWN-

BRIGHTNESS DOWN

Figure 5: LVDS inverter power header pin-out

Table 5: 8-pin LVDS inverter power header signals

15

Signal

1

5V_USB

2

5V_USB

3

Data (negative)

4

Data (negative)

5

Data (positive)

6

Data (positive)

7

Ground

8

Ground

9

Key (no pin)

10

No Connect

Figure 6: Dual USB2.0 pin-out

Table 6 Dual USB 2.0 Header

16

Signal Name

Description

1

VCC

Power

2

DMIC_DATA_R

DMIC DATA

3

DMIC_CLK_R

DMIC CLOCK

4

Ground

5

KEY

NO pin

Signal Name

Description

1

MIC

Front panel microphone input signal

2

AUD_GND

Ground used by analog audio circuits

3

MIC_BIAS

Microphone power / additional MIC input for stereo microphone support

4

Presence

Active low signal that signals bios that an audio dongle is connected to the analog header

5

FP_OUT_R

Right channel audio signal to front panel

6

AUD_GND

Ground used by analog audio circuits

7

Reserved

reserved

8

Key

No pin

9

FP_OUT_L

Left channel audio signal to front panel

10

AUD_GND

Ground used by analog audio circults

Figure 7: DMIC Cable pin-out

Table 7: DMIC Cable signals

Figure 8: FP Audio pin-out

Table 8: FP Audio Header

17

Signal Name

1

Front_L-

2

Front_L+

3

Front_R+

4

Front_R-

Signal Name

1

DCD

2

RXD#

3

TXD#

4

DTR

5

GND

6

DSR

7

RTS

8

CTS

9

RI

10

Key

Figure 9: Internal speaker pin-out

Table 9: Internal header signals

Figure 10: Serial port header pin-out

Table 10 Serial port header pin-out

18

Signal

1

Ground

2

+12V

3

CPU_FAN_TACH

4

CPU_FAN_CTRL

Figure 12: CMOS Clear Header

CMOS Clear

1-2

Clear CMOS

2-3

Normal

Figure 11 Processor fan header pin-out

Table 11 fan header signals

Table 12: CMOS Clear behavior

19

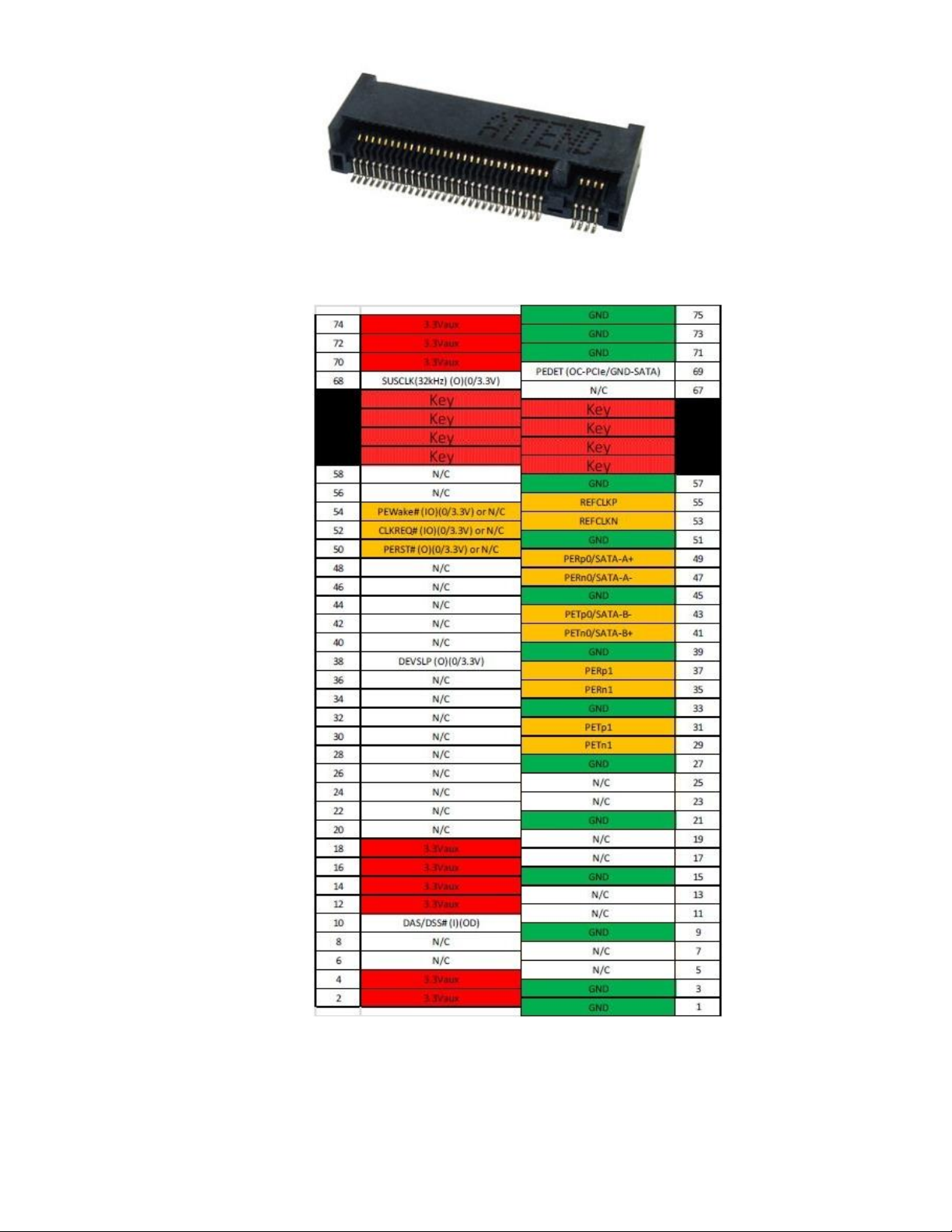

Figure 13: M.2 M key slot For Storage pin-out

Table 13: M.2 M key slot For Storage signals

20

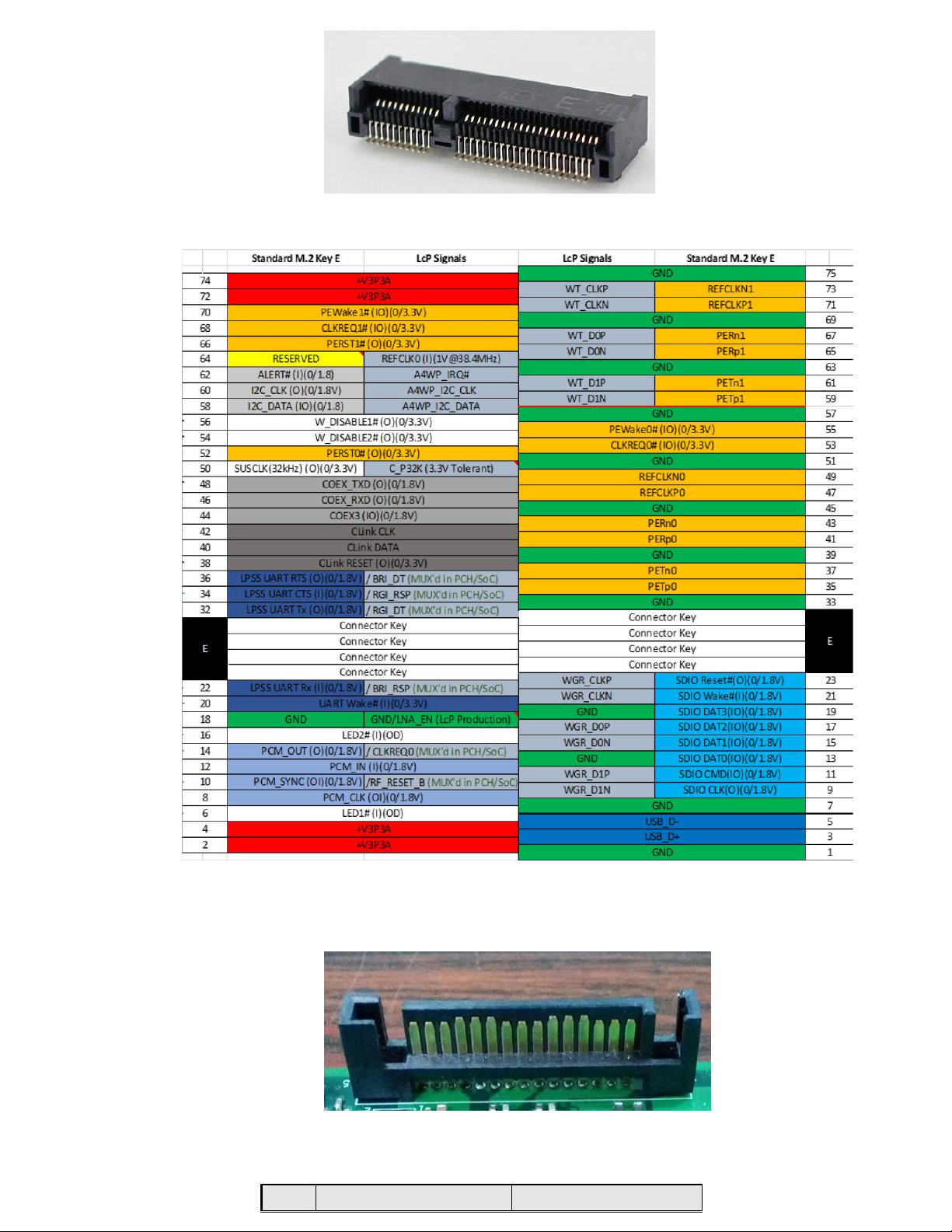

Figure 14: M.2 E key slot For wireless pin-out

Signal Name

Description

Table 14: M.2 E key slot For wireless signals

Figure 15: SATA Power Cable pin-out

21

1

VCC3

Power

2

VCC3

Power

3

VCC3

Power

4

GND

Ground

5

GND

Ground

6

GND

Ground

7

VCC

Power

8

VCC

Power

9

VCC

Power

10

GND

Ground

11

RES

NC

12

GND

Ground

13

+12V

Power

14

+12V

Power

15

+12V

Power

Table 15: SATA Power Cable signals

Signal Name

Description

1

GND

Ground

2

SATAHDR_TXP0_C

SATA DATA Transmit(positive)

3

SATAHDR_TXN0_C

SATA DATA Transmit(negative)

4

GND

Ground

5

SATAHDR_RXN0_C

SATA DATA Receive(negative)

6

SATAHDR_RXP0_C

SATA DATA Receive(positive)

7

GND

Ground

8

G1

NC 9 G2

NC

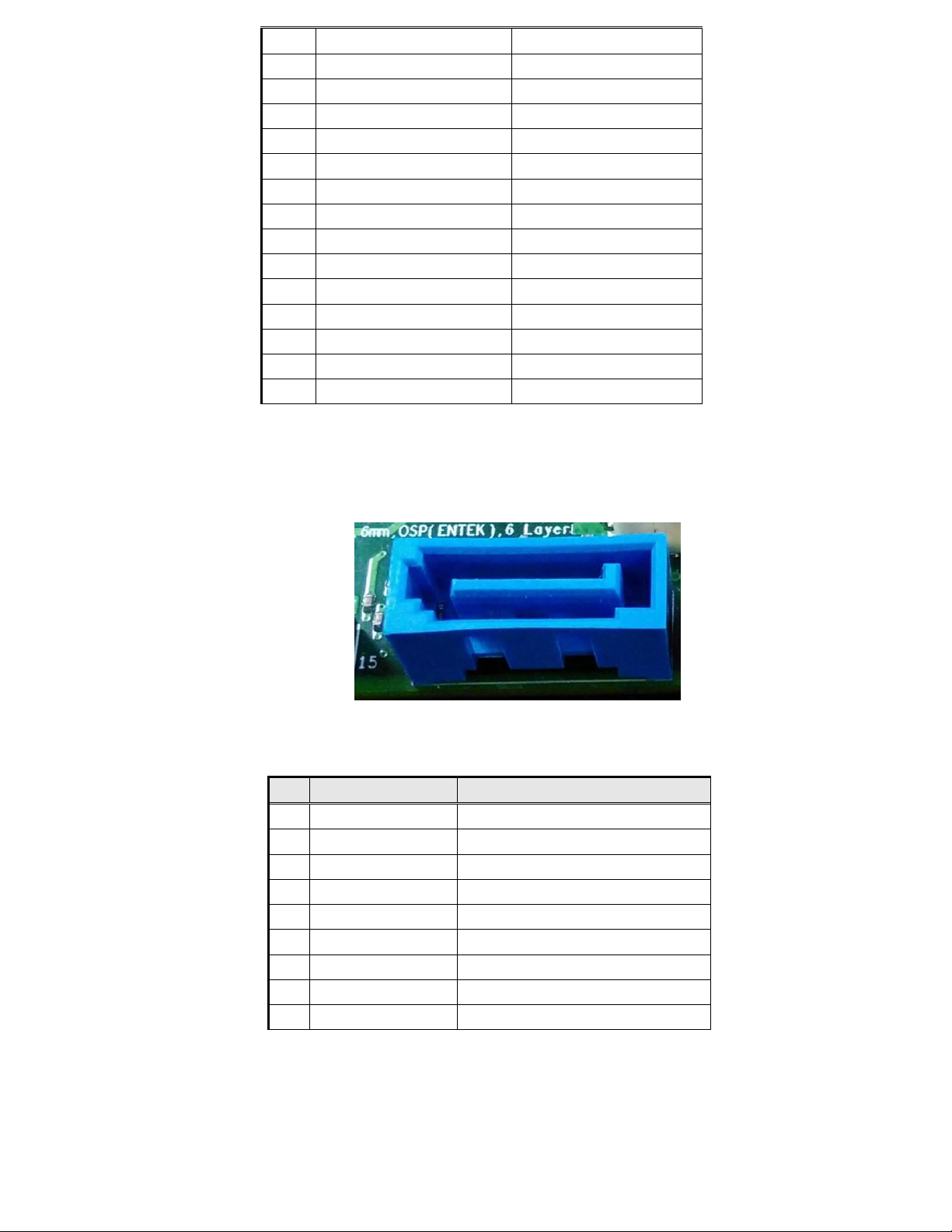

Figure 16: SATA Header pin-out

Table 16: SATA Header signals

22

Signal Name

Description

1

Key

No pin

2

3.3V

3.3V option (default)

3

12V

12V option

4

LCD_VCC

Send voltage to connector

5

Key

No pin

6

5V

5V option

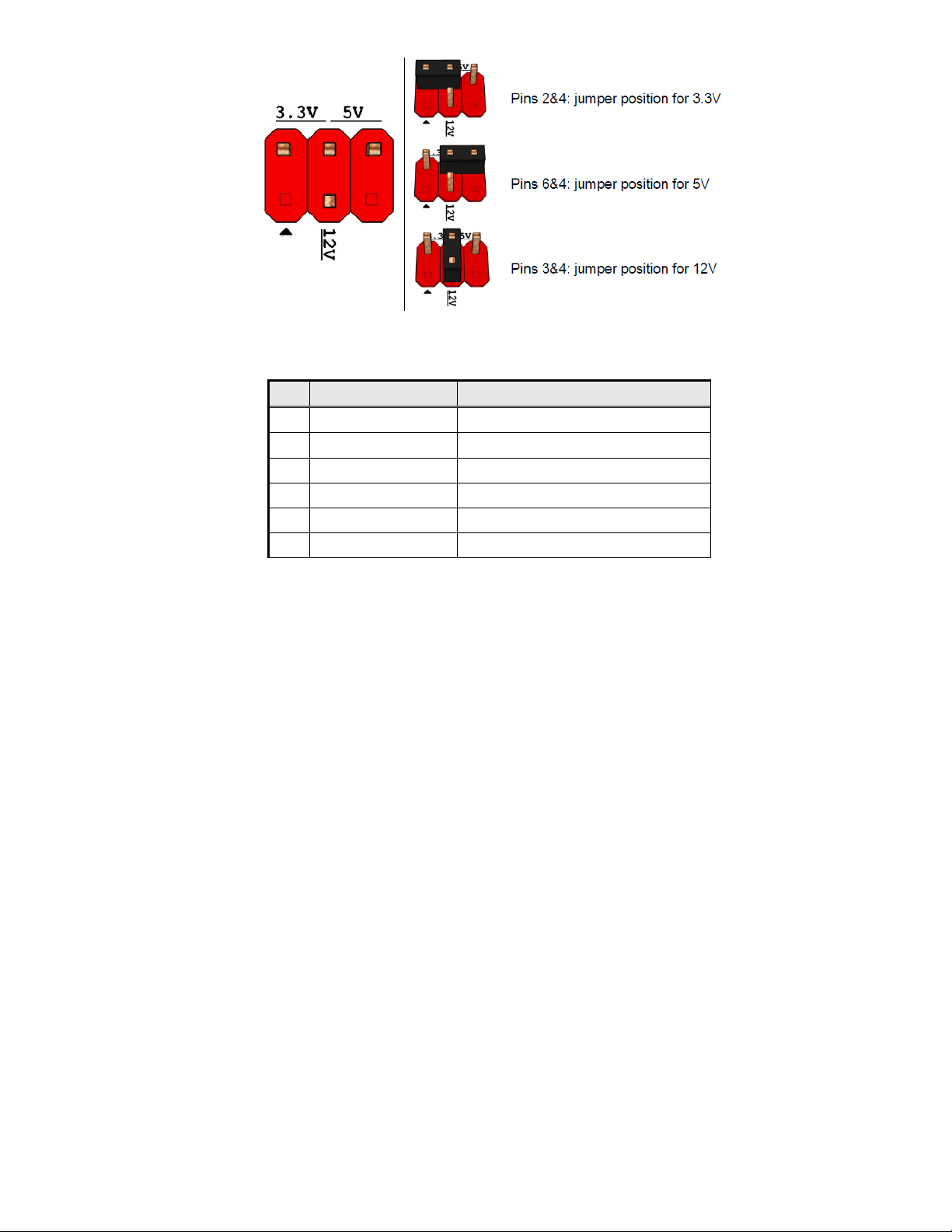

Figure 17: Panel power Header pin-out

Table 17: Panel power Header signal

23

Signal Name

1

Main Color LED

2

Key

3

Alternative color LED

Net name

1

MAPI_GPIO1

2

VCC

3

MAPI_GPIO2

4

MAPI_GPIO6

5

MAPI_GPIO3

6

MAPI_GPIO7

7

MAPI_GPIO4

8

MAPI_GPIO8

9

MAPI_GPIO5

10

MAPI_GPIO9

11

WD_Time

12

MAPI_GPIO10

13

Power Button

14

SMBUS_DATA

15

UART_TX

16

SMBUS_CLK

17

UART_RX

18

5VSB

19

GND

20

NA

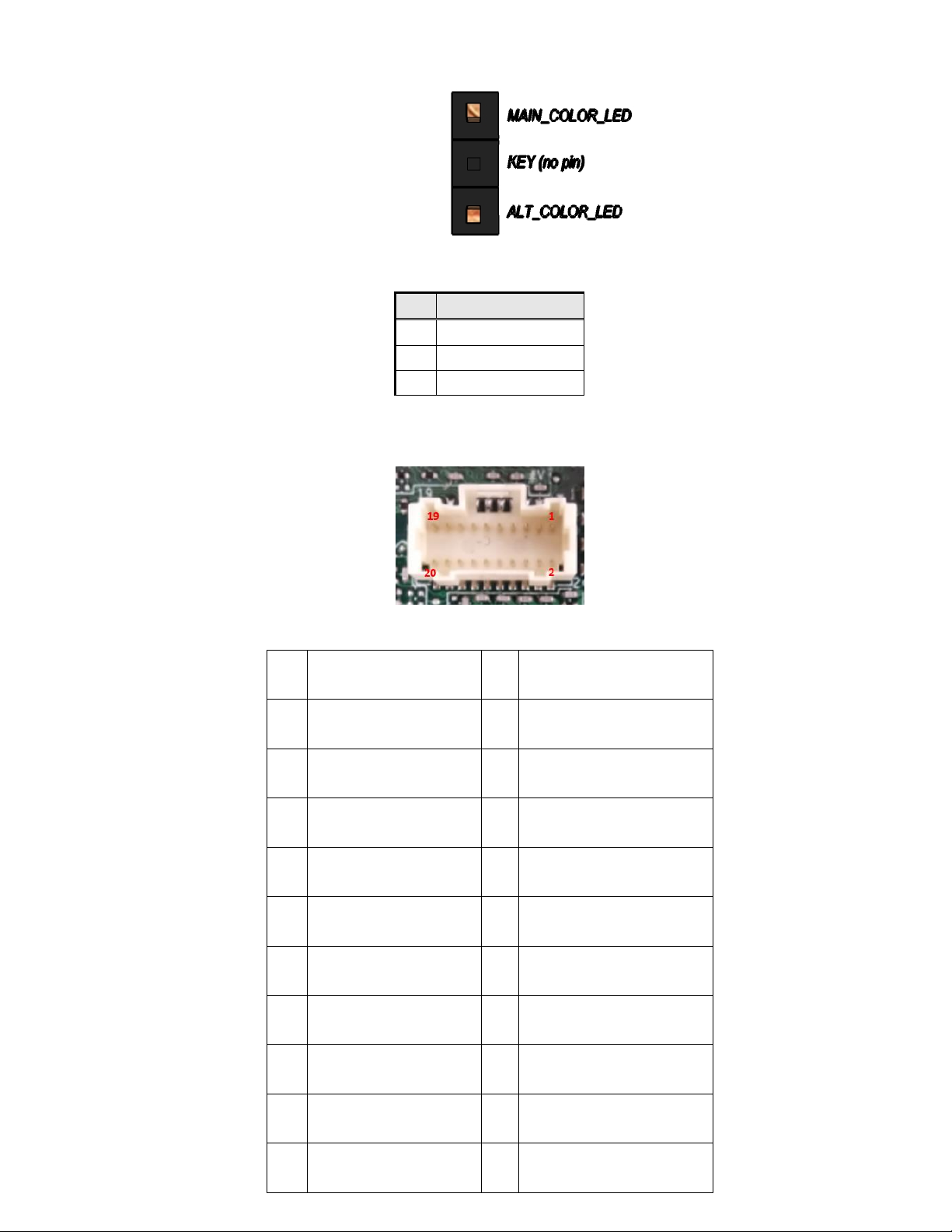

Figure 18: Alternate Power LED Header pin-out

Table 18: Alternate Power LED Header signal

Figure 19: MiAPI Header

24

Main

Advanced

Chipset

Security

Boot

Save & Exit

BIOS Information

Item help

BIOS Vender

American Megatrends

Core Version

5.13

Compliancy

UEFI 2.6 ; PI 1.4

BIOS Version

D7980A01

MITAC Desktop Board PH12FEI

BIOS Specification

1. MAIN PAGE

25

Build Date

04/21/2017

ME FW Version

11.8.50.3399

Processor Information

Intel(R) CORE(TM) i5-8500 CPU @ 3.00GHz

Memory Information

Total Memory

DIMM#1

32768 MB 16384 MB (DDR4)

DIMM#2

Memory Frequency

16384 MB (DDR4) 2133 MHz

→←: Select Screen ↑↓: Select Item

Enter: Select

SATA1

Empty

+/- : Change Opt.

SATA2 SATA3 SATA4

Empty Empty Empty

F1: General Help

F2: Previous Values

F3: Optimized Defaults

System Date

[Www mm/dd/yyyy]

F4: Save & Reset

System Time

[hh:mm:ss]

ESC: Exit

Field Name

BIOS Vender

Default Value

AMI Megatrends

Comment

This field is not selectable. There is no help text associated with it.

Field Name

Core Version

Default Value

5.12

Comment

This field is not selectable. There is no help text associated with it.

Field Name

Compliancy

Default Value

UEFI 2.6 ; PI 1.4

Comment

This field is not selectable. There is no help text associated with it.

Field Name

BIOS Version

Default Value

Display the version of the BIOS

Comment

This field is not selectable. There is no help text associated with it.

Field Name

Build Date

Default Value

Display build date of the BIOS

Comment

This field is not selectable. There is no help text associated with it.

Field Name

ME FW Version

Value

ME Firmware Version.

Comment

This field is not selectable. There is no help text associated with it.

Field Name

Processor Information

Value

Display the installed CPU brand.

Comment

This field is not selectable. There is no help text associated with it.

26

Field Name

Total Memory

Value

Display the installed memory size.

Comment

This field is not selectable. There is no help text associated with it.

Field Name

DIMM#[1:2]

Help

Memory in the DIMM.

Comment

This field is not selectable. There is no help text associated with it.

Field Name

Memory Frequency

Value

Display the installed memory frequency.

Comment

This field is not selectable. There is no help text associated with it.

Field Name

SATA1

Value

Display the installed SATA port device.

Comment

This field is not selectable. There is no help text associated with it.

Field Name

MSATA

Value

Display the installed SATA port device.

Comment

This field is not selectable. There is no help text associated with it.

Field Name

System Date

Default Value

[Www mm/dd/yyyy]

Possible Value

Www : Mon/Tue/Wed/Thu/Fri/Sat/Sun mm : 1-12 dd : 1-31 yyyy : 1998-9999

Help

Set the Date. Use Tab to switch between Date elements.

Field Name

System Time

Default Value

[hh :mm :ss]

Possible Value

hh : 0-23 mm : 0-59 ss : 0-59

Help

Set the Time. Use Tab to switch between Time elements.

27

Main

Advanced

Chipset

Security

Boot

Save & Exit

►CPU Configuration

Item help

►Trusted Computing

►ACPI Settings

►SMART Settings

►Super IO Configuration

►NCT6116D HW Monitor

→←: Select Screen

►S5 RTC Wake Settings

↑↓: Select Item

►Network Stack Configuration

Enter: Select

►NVMe Configuration

+/- : Change Opt

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Reset

ESC: Exit

Field Name

CPU Configuration

Help

CPU Configuration Parameters.

Comment

Press Enter when selected to go into the associated Sub-Menu.

Field Name

Trusted Computing

Help

Trusted Computing Settings

Comment

Press Enter when selected to go into the associated Sub-Menu.

Field Name

ACPI Settings

Help

System ACPI Parameters.

Comment

Press Enter when selected to go into the associated Sub-Menu.

Field Name

SMART Settings

Help

System SMART Settings.

Comment

Press Enter when selected to go into the associated Sub-Menu.

Field Name

Super IO Configuration

Help

System Super IO Chip Parameters.

Comment

Press Enter when selected to go into the associated Sub-Menu.

Field Name

NCT6116D HW Monitor

Help

Monitor hardware status

Comment

Press Enter when selected to go into the associated Sub-Menu.

Field Name

S5 RTC Wake Settings

Help

Enable system to wake from S5 using RTC alarm.

Comment

Press Enter when selected to go into the associated Sub-Menu.

Field Name

Network Stack Configuration

Help

Network Stack Settings.

Comment

Press Enter when selected to go into the associated Sub-Menu.

2. ADVANCED PAGE

28

Field Name

NVMe Configuration

Help

NVMe Device Options Setting.

Comment

Press Enter when selected to go into the associated Sub-Menu.

29

Main

Advanced

Chipset

Security

Boot

Save & Exit

CPU Configuration

Item help

Type

Intel(R) Core(TM) CPU i5-7300U @ 2.60 GHz

ID

0x806E9

Speed

2700 MHz

L1 Data Cache

32 KB x 2

L1 Code Cache

32 KB x 2

L2 Cache

256 KB x 2

L3 Cache

3MB

L4 Cache

N/A

VMX

Supported

SMX/TXT

Supported

→←: Select Screen

Intel Trusted Execution Technology

[Disabled]

↑↓: Select Item

Enter: Select

+/- : Change Opt

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Reset

ESC: Exit

Field Name

Type

Default Value

[Intel CPU Brand String]

Comment

This field is not selectable. There is no help text associated with it.

Field Name

ID

Default Value

Displays CPU Signature

Comment

This field is not selectable. There is no help text associated with it.

Field Name

Speed

Default Value

Displays the CPU Speed

Comment

This field is not selectable. There is no help text associated with it.

Field Name

L1 Data Cache

Default Value

L1 Data Cache Size

Comment

This field is not selectable. There is no help text associated with it.

Field Name

L1 Code Cache

Default Value

L1 Code Cache Size

Comment

This field is not selectable. There is no help text associated with it.

2.1 CPU CONFIGURATION

30

Field Name

L2 Cache

Default Value

L2 Cache Size

Comment

This field is not selectable. There is no help text associated with it.

Field Name

L3 Cache

Default Value

L3 Cache Size

Comment

This field is not selectable. There is no help text associated with it.

Field Name

L4 Cache

Default Value

L4 Cache Size

Comment

This field is not selectable. There is no help text associated with it.

Field Name

VMX

Default Value

VMX Supported or Not

Comment

This field is not selectable. There is no help text associated with it.

Field Name

SMX/TXT

Default Value

SMX/TXT Supported or Not

Comment

This field is not selectable. There is no help text associated with it.

Field Name

Intel Trusted Execution Technology

Default Value

[Disabled]

Possible Value

Enabled Disabled

Help

Enables utilization of additional hardware capabilities provided by Intel (R) Trusted Execution Technology. Changes require a full power cycle to take effect.

31

2.2 TRUSTED COMPUTING (OPTIONAL)

Main

Advanced

Chipset

Security

Boot

Save &

Exit

TPM20 Device Found

Item help

Vender : NTC

Firmware Version: 1.3

Security Device Support

[Enable]

Pending operation

[None]

→←: Select Screen

TPM2.0 UEFI Spec Version

[TCG_2]

↑↓: Select Item

Enter: Select

+/- : Change Opt

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Reset

ESC: Exit

Field Name

Security Device SUPPORT

Default Value

[Enable]

Possible Value

Enable Disable

Help

Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

Field Name

Pending operation

Default Value

[None]

Possible Value

None TPM Clear

Help

Schedule an Operation for the Security Device. NOTE: Your Computer will reboot during restart in order to change State of Security Device.

Field Name

TPM2.0 UEFI Spec Version

Default Value

[TCG_2]

Possible Value

TCG_1_2 TCG_2

Help

Select the TCG2 Spec Version Support,TCG_1_2: the Compatible mode for Win8/Win10,TCG_2: Support new TCG2 protocol and event format for Win10 or later.

Main

Advanced

Chipset

Security

Boot

Save &

Exit

ACPI Settings

Item help

Enable ACPI Auto Configuration

[Disabled]

→←: Select Screen

↑↓: Select Item

Enable Hibernation

[Enabled]

Enter: Select

2.3 ACPI SETTINGS

32

ACPI Sleep State

[S3 (Suspend to RAM)]

+/- : Change Opt

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Reset

ESC: Exit

Field Name

Enable ACPI Auto Configuration

Default Value

[Disabled]

Possible Value

Enabled Disabled

Help

Enables or Disables BIOS ACPI Auto Configuration.

Field Name

Enable Hibernation

Default Value

[Enabled]

Possible Value

Enabled Disabled

Help

Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS.

Field Name

ACPI Sleep State

Default Value

[S3 (Suspend to RAM)]

Possible Value

Suspend Disabled S3 (Suspend to RAM)

Help

Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed.

Main

Advanced

Chipset

Security

Boot

Save & Exit

SMART Settings

Item help

SMART Self Test

[Disabled]

→←: Select Screen

↑↓: Select Item

Enter: Select

+/- : Change Opt

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Reset

ESC: Exit

Field Name

SMART Self Test

Default Value

[Disabled]

Possible Value

Disabled Enabled

2.4 SMART SETTINGS

33

Help

Run SMART Self Test on all HDDs during POST.

Main

Advanced

Chipset

Security

Boot

Save & Exit

SIO Configuration

Item help

Super IO Chip NCT6116D

►Serial Port 1 Configuration

→←: Select Screen

►Serial Port 2 Configuration

↑↓: Select Item

►Serial Port 3 Configuration

Enter: Select

►Serial Port 4 Configuration

+/- : Change Opt

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Reset

ESC: Exit

Field Name

Serial Port 1 Configuration

Help

Set Parameters of Port 1 (COMA)

Comment

Press Enter when selected to go into the associated Sub-Menu.

Field Name

Serial Port 2 Configuration

Help

Set Parameters of Port 2 (COMB)

Comment

Press Enter when selected to go into the associated Sub-Menu.

Field Name

Serial Port 3 Configuration

Help

Set Parameters of Port 3 (COMC)

Comment

Press Enter when selected to go into the associated Sub-Menu.

Field Name

Serial Port 4 Configuration

Help

Set Parameters of Port 4 (COMD)

Comment

Press Enter when selected to go into the associated Sub-Menu.

2.5 SUPER IO CONFIGURATION

34

Main

Advanced

Chipset

Security

Boot

Save & Exit

Serial Port 1 Configuration

Item help

Serial Port

[Enabled]

→←: Select Screen

Device Settings

IO=3E8h; IRQ=7;

↑↓: Select Item

Enter: Select

Change Settings

[Auto]

+/- : Change Opt

Mode Configuration

[3T/5R RS232]

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Reset

ESC: Exit

Field Name

Serial Port

Default Value

[Enabled]

Possible Value

Disabled Enabled

Help

Enable or Disable Serial Port(COM)

Field Name

Device Settings

Default Value

Device Super IO COM1 Address and IRQ.

Comment

This field is not selectable. There is no help text associated with it.

Field Name

Change Settings

Default Value

[Auto]

Possible Value

Auto IO=3E8h; IRQ=7; IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2F0h; IRQ=3,4,5,6,7,9,10,11,12; IO=2E0h; IRQ=3,4,5,6,7,9,10,11,12;

Help

Select an optimal settings for Super IO Device

Field Name

Mode Configuration

Default Value

[3T/5R RS232]

Possible Value

1T/1R RS422 3T/5R RS232 1T/1R RS485 TX ENABLE Low Active 1T/1R RS485 with termination resistor TX ENABLE Low Active Disabled

Help

Configure serial port as RS232/RS422/RS485.

Main

Advanced

Chipset

Security

Boot

Save & Exit

Serial Port 2 Configuration

Item help

2.5.1 Serial Port 1 Configuration

2.5.2 Serial Port 2 Configuration

35

Serial Port

[Enabled]

→←: Select Screen

Device Settings

IO=2E8h; IRQ=7;

↑↓: Select Item

Enter: Select

Change Settings

[Auto]

+/- : Change Opt

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Reset

ESC: Exit

Field Name

Serial Port

Default Value

[Enabled]

Possible Value

Disabled Enabled

Help

Enable or Disable Serial Port(COM)

Field Name

Device Settings

Default Value

Device Super IO COM2 Address and IRQ.

Comment

This field is not selectable. There is no help text associated with it.

Field Name

Change Settings

Default Value

[Auto]

Possible Value

Auto IO=2E8h; IRQ=7; IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2F0h; IRQ=3,4,5,6,7,9,10,11,12; IO=2E0h; IRQ=3,4,5,6,7,9,10,11,12;

Help

Select an optimal settings for Super IO Device

36

Main

Advanced

Chipset

Security

Boot

Save & Exit

Serial Port 3 Configuration

Item help

Serial Port

[Enabled]

→←: Select Screen

Device Settings

IO=2F0h; IRQ=7;

↑↓: Select Item

Enter: Select

Change Settings

[Auto]

+/- : Change Opt

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Reset

ESC: Exit

Field Name

Serial Port

Default Value

[Enabled]

Possible Value

Disabled Enabled

Help

Enable or Disable Serial Port(COM)

Field Name

Device Settings

Default Value

Device Super IO COM3 Address and IRQ.

Comment

This field is not selectable. There is no help text associated with it.

Field Name

Change Settings

Default Value

[Auto]

Possible Value

Auto IO=2E0h; IRQ=7; IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2F0h; IRQ=3,4,5,6,7,9,10,11,12; IO=2E0h; IRQ=3,4,5,6,7,9,10,11,12;

Help

Select an optimal settings for Super IO Device

2.5.3 Serial Port 3 Configuration

37

Main

Advanced

Chipset

Security

Boot

Save & Exit

Serial Port 4 Configuration

Item help

Serial Port

[Enabled]

→←: Select Screen

Device Settings

IO=3F8h; IRQ=4;

↑↓: Select Item

Enter: Select

Change Settings

[Auto]

+/- : Change Opt

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Reset

ESC: Exit

Field Name

Serial Port

Default Value

[Enabled]

Possible Value

Disabled Enabled

Help

Enable or Disable Serial Port(COM)

Field Name

Device Settings

Default Value

Device Super IO COM4 Address and IRQ.

Comment

This field is not selectable. There is no help text associated with it.

Field Name

Change Settings

Default Value

[Auto]

Possible Value

Auto IO=3F8h; IRQ=4; IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12; IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12;

Help

Select an optimal settings for Super IO Device

2.5.4 Serial Port 4 Configuration

38

Main

Advanced

Chipset

Security

Boot

Save & Exit

PC Health Status

Item help

CPU temperature

: xx °C

→←: Select Screen

CPU VR temperature

: xx °C

↑↓: Select Item

DIMM temperature

: xx °C

Enter: Select

CPU Fan Speed System Fan Speed

: xxxx RPM : xxxx RPM

+/- : Change Opt

VCORE PCH IO volt

: x.xxx V : x.xxx V

F1: General Help

System Memory

: x.xxx V

F2: Previous Values

AVSB

: x.xxx V

F3: Optimized Defaults

VSB3V

: x.xxx V

F4: Save & Reset

ESC: Exit

2.6 NCT6116D HW MONITOR

39

Main

Advanced

Chipset

Security

Boot

Save & Exit

Wake system from S5

[Disabled]

Item help

→←: Select Screen

↑↓: Select Item

Enter: Select

+/- : Change Opt

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Reset

ESC: Exit

Field Name

Wake system from S5

Default Value

[Disabled]

Possible Value

Disabled Fixed Time

Help

Enabler or disable System wake on alarm event, Select FixedTime, system will wake on the hr::min::sec specified.

Field Name

Wake up hour(Show when Wake system from S5 set to Fixed Time)

Default Value

0

Possible Value

0-23

Help

Select 0-23 For example enter 3 for 3am and 15 for 3pm

Field Name

Wake up minute(Show when Wake system from S5 set to Fixed Time)

Default Value

0

Possible Value

0-59

Help

0 - 59

Field Name

Wake up second(Show when Wake system from S5 set to Fixed Time)

Default Value

0

Possible Value

0 - 59

Help

0 - 59

2.7 S5 RTC WAKE SETTINGS

40

Main

Advanced

Chipset

Security

Boot

Save & Exit

Item help

Network stack

[Disabled]

→←: Select Screen

↑↓: Select Item

Enter: Select

+/- : Change Opt

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Reset

ESC: Exit

Field Name

Network stack

Default Value

[Disabled]

Possible Value

Disabled (Restore non-Windows 8 Default) Enabled

Help

Enable/Disable UEFI Network stack.

Field Name

Ipv4 PXE Support

Default Value

[Disabled]

Possible Value

Disabled Enabled

Help

Enable Ipv4 PXE Boot Support. If disabled IPV4 PXE boot option will not be created.

Field Name

Ipv6 PXE Support

Default Value

[Disabled]

Possible Value

Disabled Enabled

Help

Enable Ipv6 PXE Boot Support. If disabled IPV6 PXE boot option will not be created.

2.8 NETWORK STACK CONFIGURATION

41

Main

Advanced

Chipset

Security

Boot

Save & Exit

NVMe Configuration

Item help

No NVME Device Found

→←: Select Screen

↑↓: Select Item

Enter: Select

+/- : Change Opt

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Reset

ESC: Exit

2.9 NVME CONFIGURATION

42

Main

Advanced

Chipset

Security

Boot

Save & Exit

►System Agent (SA) Configuration

Item help

►PCH-IO Configuration

→←: Select Screen

↑↓: Select Item

Enter: Select

+/- : Change Opt

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Reset

ESC: Exit

Field Name

System Agent (SA) Configuration

Help

System Agent (SA) Parameters

Comment

Press Enter when selected to go into the associated Sub-Menu.

Field Name

PCH-IO Configuration

Help

PCH Parameters

Comment

Press Enter when selected to go into the associated Sub-Menu.

3. CHIPSET PAGE

43

Main

Advanced

Chipset

Security

Boot

Save & Exit

System Agent (SA) Configuration

Item help

►Graphics Configuration

→←: Select Screen

↑↓: Select Item

Enter: Select

+/- : Change Opt

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Reset

ESC: Exit

Field Name

Graphics Configuration

Help

Graphics Configuration

Comment

Press Enter when selected to go into the associated Sub-Menu.

3.1 SYSTEM AGENT (SA) CONFIGURATION

44

Main

Advanced

Chipset

Security

Boot

Save & Exit

Graphics Configuration

Item help

DVMT Pre-Allocated

[64M]

DVMT Total Gfx Mem

[256M]

→←: Select Screen

↑↓: Select Item

Enter: Select +/- : Change Opt

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Reset

ESC: Exit

Field Name

DVMT Pre-Allocated

Default Value

[64M]

Possible Value

64M /32M/F7/ 36M/ 40M/ 44M/ 48M/ 52M/ 56M/ 60M

Help

Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device.

Field Name

DVMT Total Gfx Mem

Default Value

[256M]

Possible Value

128MB / 256MB / MAX

Help

Select DVMT5.0 Total Graphic Memory size used by the Internal Graphics Device.

3.1.1 Graphics Configuration

45

Main

Advanced

Chipset

Security

Boot

Save & Exit

PCH-IO Configuration

Item help

►SATA And RST Configuration

►HD Audio Configuration

→←: Select Screen

↑↓: Select Item

Wake on LAN

[Disabled]

Enter: Select

DeepSx Power Policies

[Enable in S4-S5]

+/- : Change Opt

State After G3 Chassis Intrusion

[S5 State] [Enable]

F1: General Help F2: Previous Values

F3: Optimized Defaults

F4: Save & Reset

ESC: Exit

Field Name

HD Audio Configuration

Help

HD Audio Subsystem Configuration Settings

Comment

Press Enter when selected to go into the associated Sub-Menu.

Field Name

DeepSx Power Policies

Default Value

[Enabled in S4-S5]

Possible Value

Enabled in S4-S5 Disabled

Help

configure the DeepSx Mode configuration.

Field Name

Wake On LAN

Default Value

[Disabled]

Possible Value

Enabled Disabled

Help

Enabled/Disabled integrated LAN to wake the system.

Field Name

State After G3

Default Value

[S5 State]

Possible Value

S0 State S5 State

Help

Specify what state to go to when power is re-applied after a power failure (G3 state).

Field Name

Chassis Intrusion

Default Value

[Enable]

Possible Value

Disable Enable Reset

Help

Configure Chassis Intrusion.

3.2 PCH-IO CONFIGURATION

46

Main

Advanced

Chipset

Boot

Security

Save & Exit

SATA And RST Configuration

Item help

SATA Mose Selection

[AHCI]

→←: Select Screen

↑↓: Select Item

Enter: Select

+/- : Change Opt

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Reset

ESC: Exit

Field Name

SATA Mode Selection

Value

[AHCI]

Possible Value

AHCI / Intel RST Premium With Intel Optane System Acceleration

Help

Determines how SATA controller(s) operate.

3.2.1 SATA And RST Configuration

47

Main

Advanced

Chipset

Boot

Security

Save & Exit

HD Audio Subsystem Configuration Settings

Item help

HD Audio

[Enable]

→←: Select Screen

↑↓: Select Item

Enter: Select

+/- : Change Opt

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Reset

ESC: Exit

Field Name

HD Audio

Value

[Enable]

Possible Value

Enable / Disable

Help

Control Detection of HD-Audio device. Disabled = HDA will be unconditionally disabled Enable = HDA will be unconditionally enabled

3.2.2 HD Audio Configuration

48

Main

Advanced

Chipset

Security

Boot

Save & Exit

Password Description

Item help

If Only the Administrator's password is set,

then this only limits access to Setup and is

only asked for when entering Setup.

If ONLY the User’s password is set, then this

is a power on password and must be entered to

boot or enter Setup. In Setup the User will

have Administrator rights.. The password length must be

in the following range:

Minimum length

3 Maximum length

20

→←: Select Screen

↑↓: Select Item

Administrator Password

Enter: Select

User Password

+/- : Change Opt

F1: General Help

HDD Security Configuration:

F2: Previous Values

HDD Security drive

F3: Optimized Defaults

F4: Save & Reset

►Secure Boot

ESC: Exit

►Secure Flash Update

Field Name

Administrator Password

Help

Set Administrator Password

Field Name

User Password

Help

Set User Password.

Field Name

HDD Security drive

Help

HDD Security Configuration for selected drive

Comment

Press Enter when selected to go into the associated Sub-Menu.

Field Name

Secure Boot

4. SECURITY PAGE

49

Help

Customizable Secure Boot settings

Comment

Press Enter when selected to go into the associated Sub-Menu.

Field Name

Secure Flash Update

Help

Secure Flash Update support

Comment

Press Enter when selected to go into the associated Sub-Menu.

50

Main

Advanced

Chipset

Security

Boot

Save & Exit

HDD Password Description :

Item help

Allows Access to Set, Modify and Clear

HardDisk User and Master Passwords.

User Password need to be installed for

Enabling Security. Master Password can

be Modified only when successfully unlocked

with Master Password in POST.

If the 'Set HDD Password' option is grayed out,

do power cycle to enable the option again.

HDD PASSWORD CONFIGURATION:

→←: Select Screen

Security Supported :

Yes

↑↓: Select Item

Security Enabled :

No

Enter: Select

Security Locked :

No

+/- : Change Opt

Security Frozen :

No

F1: General Help

HDD User Pwd Status :

NOT INSTALLED

F2: Previous Values

HDD Master Pwd Status :

INSTALLED

F3: Optimized Defaults

F4: Save & Reset

Set User Password

ESC: Exit

Field Name

Set User Password

Help

Set HDD User Password. *** Advisable to Power Cycle System after Setting Hard Disk Passwords ***.Discard or Save changes option in setup does not have any impact on HDD when password is set or removed. If the 'Set HDD User Password' option is grayed out, do power cycle to enable the option again

4.1 HDD SECURITY

51

Main

Advanced

Chipset

Security

Boot

Save & Exit

System Mode

Setup

Item help

Secure Boot Enable

[Disabled]

→←: Select Screen

Not Active

↑↓: Select Item

Enter: Select

Secure Boot Mode

[Custom]

+/- : Change Opt

F1: General Help

► Restore Factory Keys

F2: Previous Values

► Reset To Setup Mode

F3: Optimized Defaults

F4: Save & Reset

►Key Management

ESC: Exit

Field Name

Secure Boot Enable

Default Value

[Disabled]

Possible Value

Enabled Disabled

Help

Secure Boot feature is active if Secure Boot is Enable. Platform Key(PK) is enrolled and the System is in User mode. The mode change requires platform reset

Field Name

Secure Boot Mode

Default Value

[Custom]

Possible Value

Standard Custom

Help

Customizable Secure Boot mode: In Custom mode Secure Boot Policy variables can be configured by a physically present user without full authentication

Field Name

Key Management

Help

Enables expert users to modify Secure Boot Policy variables without full authentication

Comment

Press Enter when selected to go into the associated Sub-Menu.

Field Name

Restore Factory Keys

Help

Delete all Secure Boot key databases from NVRAM

Field Name

Reset to Setup Mode

Help

Delete NVRAM content of all UEFI Secure Boot key databases

Main

Advanced

Chipset

Security

Boot

Save & Exit

Vendor Key

Valid

Item help

Factory Key Provision

[Disabled]

4.2 SECURE BOOT

4.2.1 Key Management

52

► Restore Factory Keys

► Reset To Setup Mode

► Export Secure Boot variables

► Enroll Efi Image

► Device Guard ready

► Remove ‘UEFI CA’ from DB

→←: Select Screen

► Restore DB defaults

↑↓: Select Item

Enter: Select

Secure Boot variable

Size

Key#

Key Source

+/- : Change Opt.

► Platform Key(PK)

0 0 No Key

F1: General Help

► Key Exchange Key

0 0 No Key

F2: Previous Values

► Authorized Signatures

0 0 No Key

F3: Optimized Defaults

► Forbidden Signatures

0 0 No Key

F4: Save & Reset

► Authorized TimeStamps

0 0 No Key

ESC: Exit

► OsRecovery Signatures

0 0 No Key

Field Name

Factory Key Provision

Default Value

[Disabled]

Possible Value

Enabled Disabled

Help

Provision factory default keys on next re-boot only when System in Setup Mode

Field Name

Restore Factory Keys

Help

Force System to User Mode. Configure NVRAM to contain OEM-defined factory default Secure Boot keys

Field Name

Reset to Setup Mode

Help

Delete NVRAM content of all UEFI Secure Boot key databases

Field Name

Export Secure Boot variables

Help

Copy NVRAM content of Secure Boot variables to files in a root folder on a file system device

Field Name

Enroll Efi Image

Help

Allow the image to run in Secure Boot mode. Enroll SHA256 Hash certificate of a PE image into Authorized Signature Database (db)

Field Name

Remove ‘UEFI CA’ from DB

Help

Device Guard ready system must not list 'Microsoft UEFI CA' Certificate in Authorized Signature database (db)

Field Name

Remove DB defaults

Help

Restore DB variable to factory defaults

Field Name

Platform Key (PK)

Default Value

Size:0, Key#:0, Key source: No Key

Help

Enroll Factory Defaults or load certificates from a file:

1.Public Key Certificate in:

a)EFI_SIGNATURE_LIST

53

b)EFI_CERT_X509 (DER encoded) c)EFI_CERT_RSA2048 (bin) d)EFI_CERT_SHA256,384,512

2.Authenticated UEFI Variable

3.EFI PE/COFF Image(SHA256) Key Source: Factory,External,Mixed

comment

Press Enter when selected to go into the associated Sub-Menu “Key Management”.

Field Name

Key Exchange Key

Default Value

Size:0, Key#:0, Key source: No Key

Help

Enroll Factory Defaults or load certificates from a file:

1.Public Key Certificate in: a)EFI_SIGNATURE_LIST b)EFI_CERT_X509 (DER encoded) c)EFI_CERT_RSA2048 (bin) d)EFI_CERT_SHA256,384,512

2.Authenticated UEFI Variable

3.EFI PE/COFF Image(SHA256) Key Source: Factory,External,Mixed

comment

Press Enter when selected to go into the associated Sub-Menu.

Field Name

Authorized Signature

Default Value

Size:0, Key#:0, Key source: No Key

Help

Enroll Factory Defaults or load certificates from a file:

1.Public Key Certificate in: a)EFI_SIGNATURE_LIST b)EFI_CERT_X509 (DER encoded) c)EFI_CERT_RSA2048 (bin) d)EFI_CERT_SHA256,384,512

2.Authenticated UEFI Variable

3.EFI PE/COFF Image(SHA256) Key Source: Factory,External,Mixed

comment

Press Enter when selected to go into the associated Sub-Menu.

Field Name

Forbidden Signature

Default Value

Size:0, Key#:0, Key source: No Key

Help

Enroll Factory Defaults or load certificates from a file:

1.Public Key Certificate in: a)EFI_SIGNATURE_LIST b)EFI_CERT_X509 (DER encoded) c)EFI_CERT_RSA2048 (bin) d)EFI_CERT_SHA256,384,512

2.Authenticated UEFI Variable

3.EFI PE/COFF Image(SHA256) Key Source: Factory,External,Mixed

comment

Press Enter when selected to go into the associated Sub-Menu.

Field Name

Authorized TimeStamps

Default Value

Size:0, Key#:0, Key source: No Key

Help

Enroll Factory Defaults or load certificates from a file:

1.Public Key Certificate in: a)EFI_SIGNATURE_LIST b)EFI_CERT_X509 (DER encoded) c)EFI_CERT_RSA2048 (bin) d)EFI_CERT_SHA256,384,512

2.Authenticated UEFI Variable

3.EFI PE/COFF Image(SHA256)

54

Key Source: Factory,External,Mixed

comment

Press Enter when selected to go into the associated Sub-Menu.

Field Name

OsRecovery Signatures

Default Value

Size:0, Key#:0, Key source: No Key

Help

Enroll Factory Defaults or load certificates from a file:

1.Public Key Certificate in: a)EFI_SIGNATURE_LIST b)EFI_CERT_X509 (DER encoded) c)EFI_CERT_RSA2048 (bin) d)EFI_CERT_SHA256,384,512

2.Authenticated UEFI Variable

3.EFI PE/COFF Image(SHA256) Key Source: Factory,External,Mixed

comment

Press Enter when selected to go into the associated Sub-Menu.

Main

Advanced

Chipset

Security

Boot

Save & Exit

►Path for ROM Image

Item help

Notice :

ROM Image must in the root folder of storage device.

→←: Select Screen

File name must match with current BIOS project.

↑↓: Select Item

Enter: Select

+/- : Change Opt

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Reset

ESC: Exit

Field Name

Path for ROM Image

Help

Enter the path to the Secure flash option

4.3 SECURE FLASH UPDATE

55

Main

Advanced

Chipset

Security

Boot

Save & Exit

Boot Configuration

Item help

Setup Prompt Timeout

1

Bootup NumLock State

[On]

Boot Mode Select

[UEFI]

FIXED BOOT ORDER Priorities

→←: Select Screen

Boot Option #1

[USB Floppy]

↑↓: Select Item

Boot Option #2

[CD/DVD]

Enter: Select

Boot Option #3

[Hard Disk]

+/- : Change Opt.

Boot Option #4

[USB Key]

F1: General Help

Boot Option #5

[USB Hard Disk]

F2: Previous Values

Boot Option #6

[USB Lan]

F3: Optimized Defaults

Boot Option #7

[Network]

F4: Save & Reset

ESC: Exit

►(UEFI) USB Floppy Drive BBS Priorities ►(UEFI) CDROM/DVD Drive BBS Priorities

►(UEFI) USB CDROM/DVD Drive BBS Priorities

►(UEFI) Hard Disk Drive BBS Priorities

►(UEFI) USB Key Drive BBS Priorities

►(UEFI) USB Hard Disk Drive BBS Priorities

►(UEFI) USB Lan Drive BBS Priorities

►(UEFI) Network Drive BBS Priorities

Field Name

Setup Prompt Timeout

Default Value

1

Possible Value

1~65535

Help

Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting.

Field Name

Bootup NumLock State

Default Value

[On]

Possible Value

On Off

Help

Select the keyboard NumLock state

Field Name

Boot Mode Select

Default Value

[UEFI]

Possible Value

LEGACY (Support Skylake series for Win7) UEFI

Help

Select boot mode LEGACY/UEFI

Field Name

Boot Option #1

5. BOOT PAGE

56

Default Value

[USB Floppy]

Possible Value

Hard Disk, USB Hard Disk, USB CD/DVD, USB Key, USB Floppy , USB Lan, Network

Help

Sets the system boot order

Field Name

Boot Option #2

Default Value

[USB CD/DVD]

Possible Value

Hard Disk, USB Hard Disk, USB CD/DVD, USB Key, USB Floppy , USB Lan, Network

Help

Sets the system boot order

Field Name

Boot Option #3

Default Value

[Hard Disk]

Possible Value

Hard Disk, USB Hard Disk, USB CD/DVD, USB Key, USB Floppy , USB Lan, Network

Help

Sets the system boot order

Field Name

Boot Option #4

Default Value

[USB Key]

Possible Value

Hard Disk, USB Hard Disk, USB CD/DVD, USB Key, USB Floppy , USB Lan, Network

Help

Sets the system boot order

Field Name

Boot Option #5

Default Value

[USB Hard Disk]

Possible Value

Hard Disk, USB Hard Disk, USB CD/DVD, USB Key, USB Floppy , USB Lan, Network

Help

Sets the system boot order

Field Name

Boot Option #6

Default Value

[USB Lan]

Possible Value

Hard Disk, USB Hard Disk, USB CD/DVD, USB Key, USB Floppy , USB Lan, Network

Help

Sets the system boot order

Field Name

Boot Option #7

Default Value

[Network]

Possible Value

Hard Disk, USB Hard Disk, USB CD/DVD, USB Key, USB Floppy , USB Lan, Network

Help

Sets the system boot order

Field Name

(UEFI) USB Floppy Drive BBS Priorities

Help

Specifies the Boot Device Priority sequence from available USB Floppy Drives.

Comment

Press Enter when selected to go into the associated Sub-Menu.

Field Name

(UEFI) USB CD/DVD ROM Drive BBS Priorities

Help

Specifies the Boot Device Priority sequence from available USB CDROM/DVD Drives.

Comment

Press Enter when selected to go into the associated Sub-Menu.

Field Name

(UEFI) USB Hard Disk Drive BBS Priorities

Help

Specifies the Boot Device Priority sequence from available USB Hard Disk Drives.

Comment

Press Enter when selected to go into the associated Sub-Menu.

Field Name

(UEFI) USB KEY Drive BBS Priorities

Help

Specifies the Boot Device Priority sequence from available USB Key

57

Drives.

Comment

Press Enter when selected to go into the associated Sub-Menu.

Field Name

(UEFI) Hard Disk Drive BBS Priorities

Help

Specifies the Boot Device Priority sequence from available Hard Disk Drives.

Comment

Press Enter when selected to go into the associated Sub-Menu.

Field Name

(UEFI) NETWORK Drive BBS Priorities

Help

Specifies the Boot Device Priority sequence from available NETWORK Drives.

Comment

Press Enter when selected to go into the associated Sub-Menu.

58

Main

Advanced

Chipset

Security

Boot

Save & Exit

Boot Option #1

[Boot Device Name 1]

Item help

Boot Option #2

[Boot Device Name 2]

→←: Select Screen

↑↓: Select Item

Enter: Select

+/- : Change Opt

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Reset

ESC: Exit

Field Name

Boot Option #1

Default Value

Possible Value

Boot Device Name 1 of this type

Help

Sets the system boot order

Field Name

Boot Option #2

Default Value

Possible Value

Boot Device Name 2 of this type

Help

Sets the system boot order

Main

Advanced

Chipset

Security

Boot

Save & Exit

Save Options

Item help

Discard Changes and Exit

Save Changes and Reset

Discard Changes and Reset

Restore Defaults

→←: Select Screen

↑↓: Select Item

Enter: Select

+/- : Change Opt

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Reset

ESC: Exit

5.1 (LIST BOOT DEVICE TYPE) DRIVE BBS PRIORITIES

6. SAVE & EXIT PAGE

59

Field Name

Discard Changes and Exit

Help

Exit system setup with without saving any changes.

Field Name

Save Changes and Reset

Help

Reset the system after saving the changes.

Field Name

Discard Changes and Rest

Help

Reset system setup without saving any changes.

Field Name

Restore Defaults

Help

Restore/Load Legacy Default values for all the setup options.

60

Main

Advanced

Chipset

Security

Boot

Save & Exit

Recovery

Please select block you want to update

Item help

Reset NVRAM

[Disabled]

►Process with flash update

→←: Select Screen

↑↓: Select Item

Enter: Select

+/- : Change Opt

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Reset

ESC: Exit

Field Name

Reset NVRAM

Default Value

[Disabled]

Possible Value

Enabled Disabled

Help

Set this option to reset NVRAM to default values

Field Name

Process with flash update

Help

Select this to start flash update

7. RECOVERY PAGE (ACTIVE FOR 4.3 SECURE FLASH UPDATE ONLY)
