68
Email: [email protected] Website: www.mita.co.uk

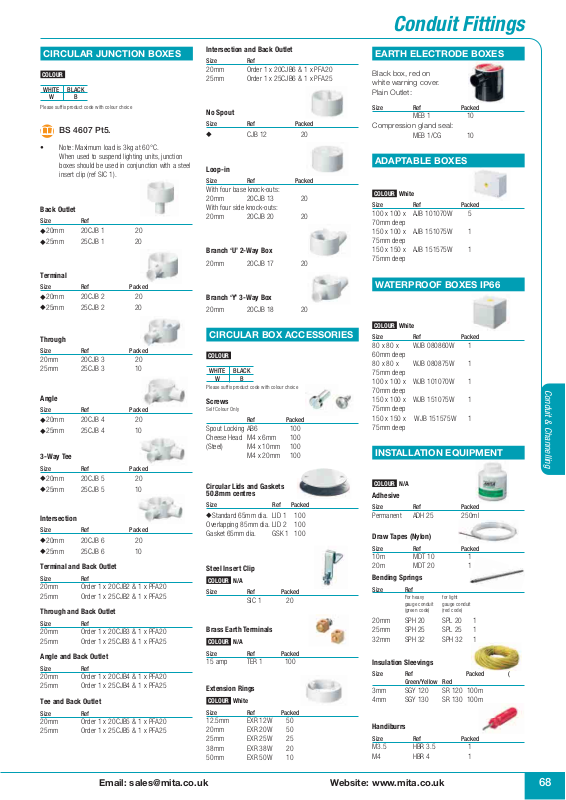

Conduit & Channelling
Conduit Fittings
CIRCULAR JUNCTION BOXES
COLOUR
WHITE BLACK
WB
Please suffix product code with colour choice
• BS 4607 Pt5.
• Note: Maximum load is 3kg at 60°C.
When used to suspend lighting units, junction
boxes should be used in conjunction with a steel
insert clip (ref SIC 1).
Back Outlet
SizeRef
20mm 20CJB 120
25mm25CJB 120
Terminal
SizeRefPacked
20mm 20CJB 220
25mm25CJB 220
Through
SizeRefPacked
20mm 20CJB 320
25mm25CJB 310
Angle
SizeRefPacked
20mm 20CJB 420
25mm25CJB 410
3-Way Tee
SizeRefPacked
20mm 20CJB 520
25mm25CJB 510
Intersection
SizeRefPacked
20mm 20CJB 620
25mm25CJB 610
Terminal and Back Outlet
Size Ref
20mm Order 1 x 20CJB2 & 1 x PFA20
25mm Order 1 x 25CJB2 & 1 x PFA25
Through and Back Outlet
Size Ref
20mm Order 1 x 20CJB3 & 1 x PFA20
25mm Order 1 x 25CJB3 & 1 x PFA25
Angle and Back Outlet
Size Ref
20mm Order 1 x 20CJB4 & 1 x PFA20
25mm Order 1 x 25CJB4 & 1 x PFA25
Tee and Back Outlet
Size Ref
20mm Order 1 x 20CJB5& 1 x PFA20
25mm Order 1 x 25CJB5 & 1 x PFA25
Intersection and Back Outlet
Size Ref
20mm Order 1 x 20CJB6 & 1 x PFA20
25mm Order 1 x 25CJB6 & 1 x PFA25
No Spout
SizeRefPacked
CJB 1220
Loop-in
SizeRefPacked
With four base knock-outs:
20mm20CJB 1320
With four side knock-outs:
20mm20CJB 2020
Branch ‘U’ 2-Way Box
20mm 20CJB 1720
Branch ‘Y’ 3-Way Box
20mm20CJB 1820
CIRCULAR BOX ACCESSORIES
COLOUR
WHITE BLACK
WB
Please suffix product code with colour choice
Screws
Self Colour Only
RefPacked
Spout Locking AB6100
Cheese Head M4x 6mm100
(Steel)M4 x 10mm100
M4 x 20mm100
Circular Lids and Gaskets
50.8mm centres
SizeRefPacked
Standard 65mm dia.LID 1100
Overlapping 85mm dia.LID 2100
Gasket 65mm dia.GSK 1100
Steel Insert Clip
COLOUR N/A
SizeRefPacked
SIC 120
Brass Earth Terminals
COLOUR N/A
SizeRefPacked
15 ampTER 1100
Extension Rings
COLOUR White
SizeRefPacked
12.5mmEXR 12W50
20mmEXR 20W50
25mmEXR 25W25
38mmEXR 38W20
50mmEXR 50W10
EARTH ELECTRODE BOXES
Black box, red on
white warning cover.
Plain Outlet:
SizeRefPacked
MEB 110
Compression gland seal:
MEB 1/CG10
ADAPTABLE BOXES
COLOUR White
SizeRefPacked
100 x 100 xAJB 101070W5
70mm deep
150 x 100 xAJB 151075W1
75mm deep
150 x 150 xAJB 151575W1
75mm deep
WATERPROOF BOXES IP66
COLOUR White
SizeRefPacked
80 x 80 xWJB 080860W1
60mm deep
80 x 80 xWJB 080875W1
75mm deep
100 x 100 xWJB 101070W1
70mm deep
150 x 100 xWJB 151075W1
75mm deep
150 x 150 xWJB 151575W1
75mm deep
INSTALLATION EQUIPMENT
COLOUR N/A
Adhesive
SizeRefPacked
Permanent ADH 25250ml
Draw Tapes (Nylon)
SizeRefPacked
10mMDT 101
20mMDT 201
Bending Springs
SizeRef
For heavy for light
gauge conduit gauge conduit
(green code) (red code)
20mmSPH 20SPL 201
25mmSPH 25SPL 251
32mmSPH 32SPH 321
Insulation Sleevings
SizeRefPacked (
Green/YellowRed
3mmSGY 120SR 120100m
4mmSGY 130SR 130100m
Handiburrs
SizeRefPacked
M3.5HBR 3.51
M4HBR 41
