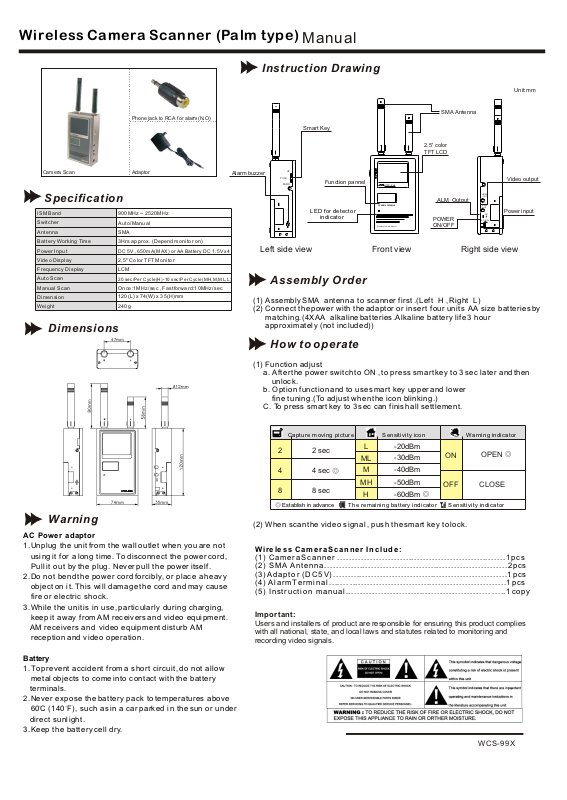

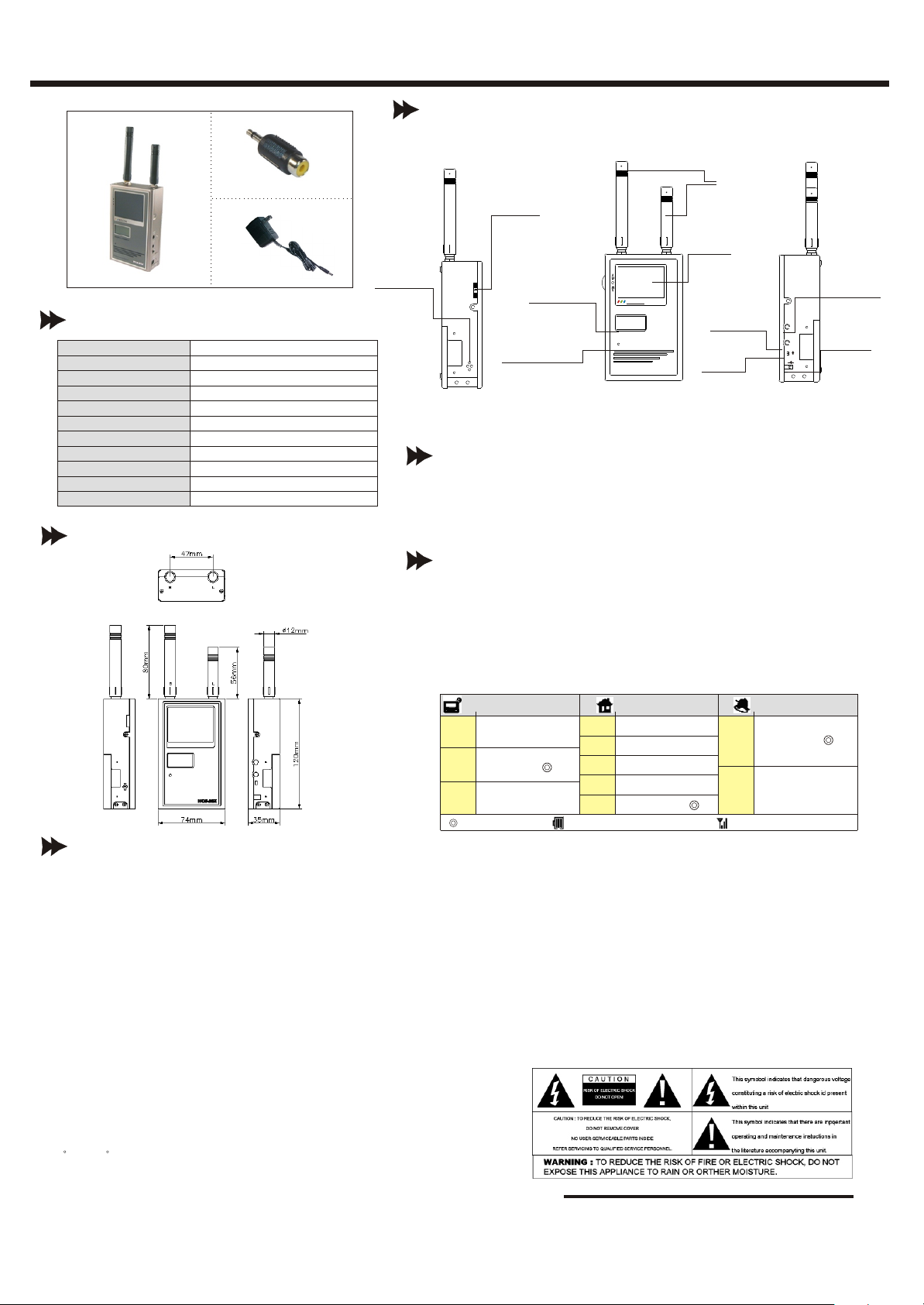

Wireless Camera Scanner (Palm type)
Instruction Drawing
Manual
Unit:mm
Phone jack to RCA for alarm(N.O)
Camera Scan
Adaptor
Specification
ISM Band
Switcher
Antenna
Battery Working Time
Power Input DC 5V , 650mA(MAX) or AA Battery DC 1.5V x4
Video Display 2.5" Color TFT Monitor
Frequency Display
Auto Scan
Manual Scan
Dimension
Weight
900MHz ~ 2520MHz
Auto/Manual
SMA
3Hrs approx. (Depend monitor on)
LCM
20 sec/Per Cycle(H)-10 sec/Per Cycle(MH,M,ML,L)
Once:1MHz/sec , Fastforward:10MHz/sec
120(L) x 74(W) x 35(H)mm
240g
Dimensions
SMA Antenna
Smart Key
2.5' color
TFT LCD
Alarm buzzer
UP
PUSH
DOWN
Left side view
Function pannel
LED for detector
indicator
NTSC / PAL
900MHz-2520MHz
Wireless Camera Scanner
Front view
ALM. Output
POWER
ON/OFF
VIDEO
OUT
ALM.
OUT
DC IN 5V
-
Right side view
Assembly Order
(1) Assembly SMA antenna to scanner first .(Left H , Right L)
(2) Connect the power with the adaptor or insert
four units AA size batteries by
matching.(4XAA alkaline batteries.Alkaline battery life 3 hour
approximately (not included))
How to operate
(1) Function adjust
a. After the power switch to ON , to press smart key to 3 sec later and then
unlock.
b. Option function and to use smart key upper and lower
fine tuning.(To adjust when the icon blinking.)
C. To press smart key to 3 sec can finish all settlement.
ON
+
Video output
Power input
Warning
AC Power adaptor
1.Unplug the unit from the wall outlet when you are not
using it for a long time. To disconnect the power cord,
Pull it out by the plug. Never pull the power itself.
2.Do not bend the power cord forcibly, or place a heavy
object on it. This will damage the cord and may cause
fire or electric shock.
3.While the unit is in use, particularly during charging,
keep it away from AM receivers and video equipment.
AM receivers and video equipment disturb AM
reception and video operation.
Battery
1.To prevent accident from a short circuit, do not allow
metal objects to come into contact with the battery
terminals.
2.Never expose the battery pack to temperatures above
60C (140 F), such as in a car parked in the sun or under
direct sunlight.
3.Keep the battery cell dry.
Capture moving picture
2
4
8
Establish in advance
2 sec
4 sec
8 sec
The remaining battery indicator Sensitivity indicator
L
ML
M
MH
H
Sensitivity icon
-20dBm
-30dBm
-40dBm
-50dBm
-60dBm
ON
OFF
Warning indicator
OPEN
CLOSE
(2) When scan the video signal , push the smart key to lock.
Wireless Camera Scanner Include :
(1) Camera Scanner .........................................................1pcs
(2) SMA Antenna..............................................................2pcs
(3) Adaptor (DC 5V)...........................................................1pcs
(4) Alarm Terminal....... .....................................................1pcs
(5) Instruction manual................................................. .....1copy
Important:
Users and installers of product are responsible for ensuring this product complies
with all national, state, and local laws and statutes related to monitoring and
recording video signals.
WCS-99X
