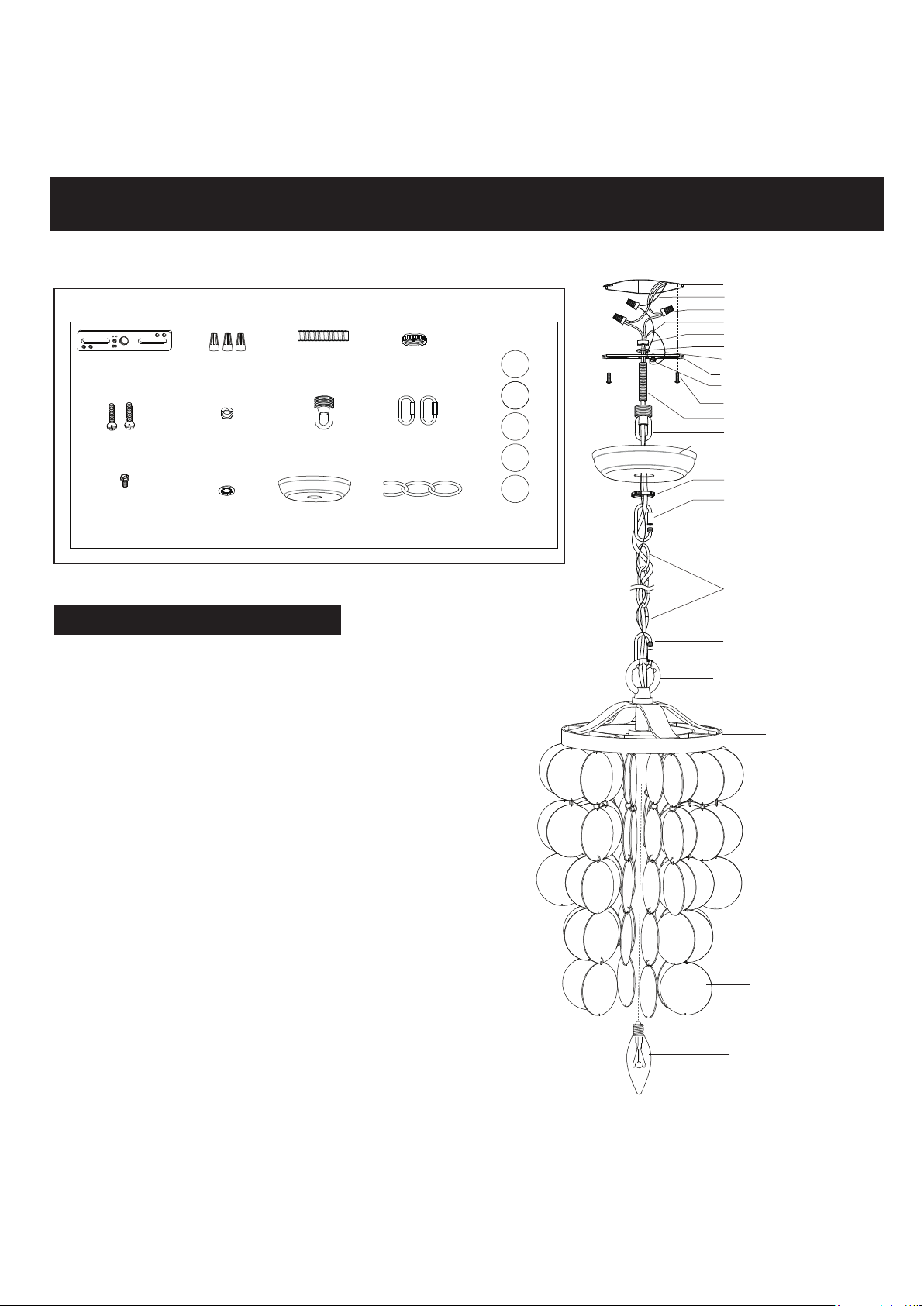

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
WARNING:
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
Hardware Package (included):
Mounting Strap (A)
Mounting Screw (B)
Green Grounding
Screw (C)
Wire Nut (D)
Hex Nut (E)
Washer (F)
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Outlet Box
House Grounding Wire
Wire Nut (D)
Fixture Wire
Hex Nut (E)
Washer (F)
Threaded Pipe(G)
Top Loop (H)
Canopy (I)
Collar (J)
Loop Lock (K)
Chain (L)
Pure Shell (M)
Fixture Grounding Wire
Mounting Strap (A)
Green Grounding Screw (C)
Mounting Screw (B)
Threaded pipe(G)
Top Loop (H)
Canopy (I)
Collar (J)
Loop Lock (K)
Installation Steps
Turn off the power at fuse or circuit box.
1. Attach threaded pipe to the mounting strap, then secure it with a
washer and hex nut.
2. Attach the mounting strap to the outlet box by using two mounting
screws.
3. Secure the top loop to the threaded pipe.
4. Connect the chain:
- Determine length of chain needed to achieve desired fixture
height. (To remove excess chain section, use pliers to bend link
open.)
- Weave the fixture wires through the chain, collar, and canopy.
Chain (L)
Loop Lock (K)
Loop
Fixture
Socket
5. Connect one end of the chain to the loop using a loop lock.
6. Connect the other end of the chain to the top loop using the
other loop lock.
7. Thread the fixture wire and fixture grounding wire through the top
loop, threaded pipe and mounting strap.
8. Pull out the source wires from the outlet box. Make wire connections
using wire nuts as follows:
---Connect the smooth-coated wire (marked) from the fixture to the black wire from the power source.
---Connect the ribbed-coated wire (unmarked) from the fixture to the white wire from the power source.
---Attach the fixture grounding wire to the mounting strap with the green grounding screw. Then connect it to the house
grounding wire with a wire nut.
Carefully put the wires back into the outlet box.
Pure Shell(M)
Bulb Type B Max.60W
(not included)
9. Attach the canopy to the mounting strap: insert the top loop through hole, then secure it by tightening collar.
10. Install bulb (not included). See relamping label at socket area or packaging for maximum allowed wattage.
Turn on the power at fuse or circuit box.

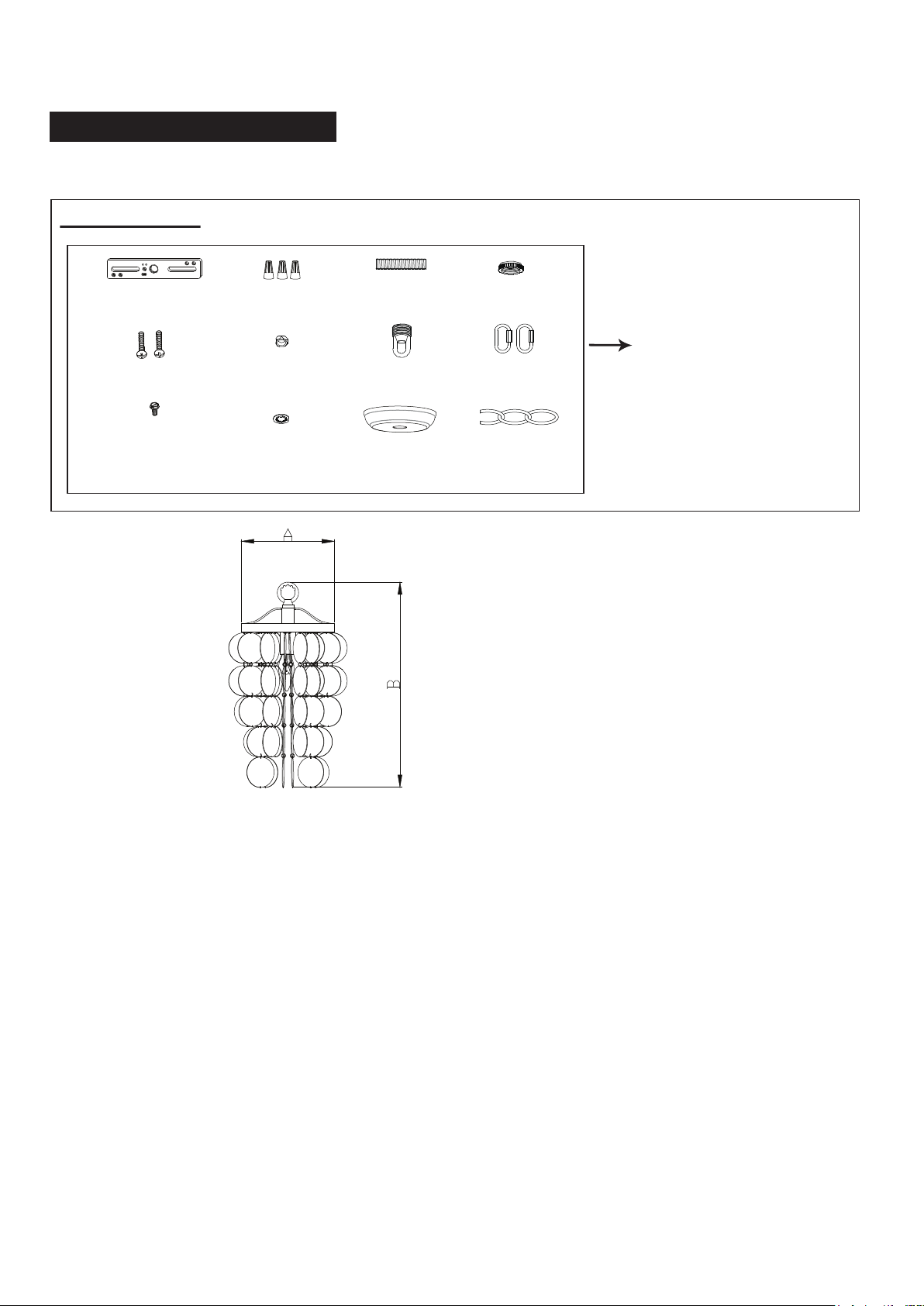

The following parts are available for re-order if damaged or missing.
Spare Parts List:
Mounting Strap (A)
Mounting Screw (B)
Green Grounding
Screw (C)
Wire Nut (D)
Hex Nut (E)
Washer (F)
Threaded Pipe(G)
Top Loop (H)
Canopy (I)
Collar (J)
Assembly Kit
Loop Lock (K)
Chain (L)
A: 6"
B: 13"
