Mistana W000293349 Installation & Assembly

ASSEMBLY

INSTRUCTIONS

BEFORE ASSEM

BLY

Thank you for purchasing this quality product. This product has been designed for easy assembly and

PART

LIST

NOT INCLUDED

constructed for durability. All parts were checked prior to packaging to insure quality. Prior to beginning
assembly, however, make sure all parts and hardware are included and free of obvious defect. If a part is
missing or defective, please contact the store where purchased.

IMPORTANT NOTE:

- Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from

being scratched.

- Remove all wrapping material, including staples & packing straps before you start to assemble.

- DO NOT tighten all screws and bolts until completely assembled.

- Keep all hardware parts out of reach of children.

ASSEMBLY TOOLS REQUIRED

When unpacking, please be careful not to discard any parts with the packaging. Before continuing,
please make sure you have the following parts:

NO Description Qty Sketch NO Description Qty Sketch

A Chair back 1 B Seat Frame 1

C

E

Middle

stretcher

Front Leg

(L-R)

1 D

2 F Seat 1

Side Stretcher

(L-R)

2

HARDWARE LIST

When unpacking, please be careful not to discard any parts with the packaging. Before continuing,

STEP 1

please make sure you have all of the following hardware:

NO Description Qty Sketch NO Description Qty Sketch

Short bolt

1

(M6x40mm)

Long bolt

3

(M6x80mm)

Short screw

5

(M3.5x15mm)

Allen Key

7

3 2

4 4

2 6

1 8

(4mm)

Medium bolt

4

(M6x60mm)

Flat Washer

11

(6.5x19mm)

Long screw

8

(M4x35mm)

Lock Washer

11

(6.5x11mm)

Attach seat frame (B) to Back (A) by using bolts (3) and (1), and washers (4) and (8).

Note: DO NOT tighten any of the bolts, until the chair is fully assembled. Put the chair on a flat level
surface, make sure the chair is level and tighten with allen key (7) as shown below.

STEP 2

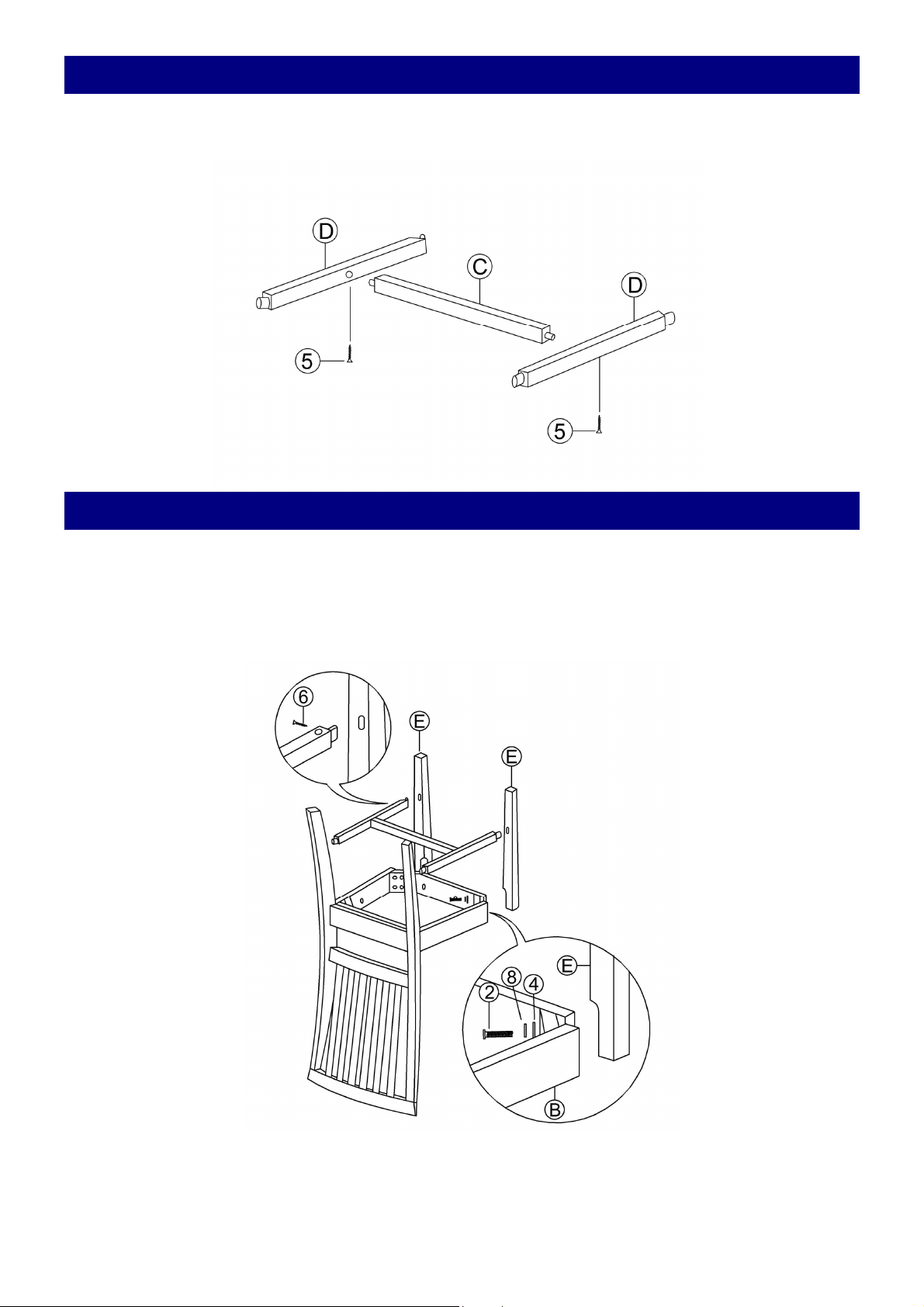

Attach middle stretcher (C) to side stretchers (D) with short screws (5). Tighten with a screwdriver.

STEP 3

Attach front legs (E) to the seat frame with bolts (2) and washers (4) and (8) .Tighten with allen key
(7).
Place side stretchers (D) between front and back legs, use the screwdriver to tighten the screws (6) as
shown below.

STEP

4

Attach seat (F) to top of the seat frame (B) by using screws (6). Tighten with a screwdriver.
