Caution : Please read instructions thoroughly before unpacking assembly parts. Sharp, exposed
staple tips can cause injury, therefore, for your protection, please remove any exposed
staples used in packing.
1. We recommend that you should assemble this product with the assistance of another person ; this will make
assembly easier, and will help to eliminate damage to the product or injury to persons during assembly.
2. Be sure to check all packing materials carefully for small parts that may have come loose inside the carton during
shipment.
3. Please do not over tighten screws or bolts.
4. Please put all parts on a non - abrasive floor before assembly. and follow the assembly step to assemble your newly
purchased product correctly and efficiently .
PART LIST
6
Align Arrow
Remark : Please be noted that the *
safety bracket set with instruction
is attached in the right top drawer
C
E
D
A
C
E
D
G
F
1
3
5
G
4x
WARNING !
USE LONG BOLT
M6 x 40mm
WARNING !
USE LONG BOLT
M6 x 30mm
4
Anti - Tip Kit
4
B
H
NO. HARDWARE LIST QTY
1
M6 x 30mm
4
2
M6 x 40mm
4
3 M6 x 19mm 8
4
M6 x 1/4"
8
5 M4 x 65mm 1
HARDWARE LOCATED IN MIRROR BOX

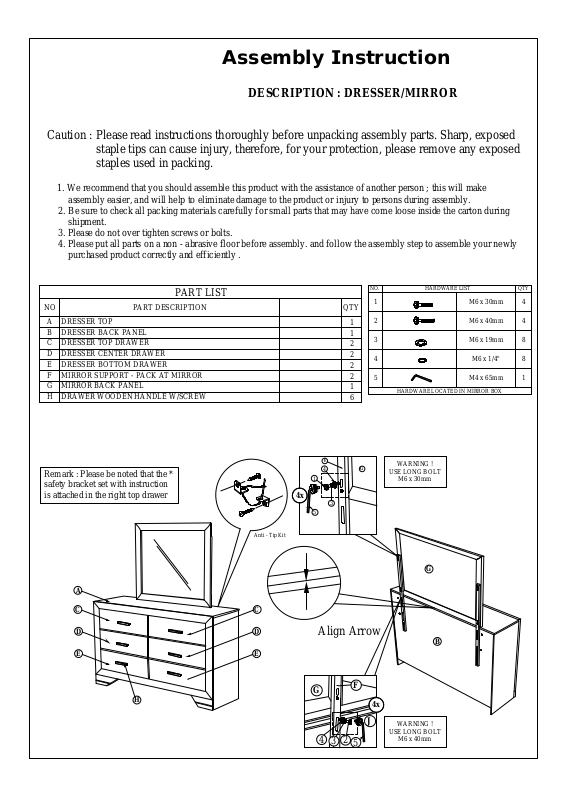

Assembly Instruction
DESCRIPTION : DRESSER/MIRROR
NO PART DESCRIPTION
A DRESSER TOP
B DRESSER BACK PANEL
C DRESSER TOP DRAWER
D DRESSER CENTER DRAWER
E DRESSER BOTTOM DRAWER
F MIRROR SUPPORT - PACK AT MIRROR
G MIRROR BACK PANEL
H
DRAWER WOODEN HANDLE W/SCREW
QTY
1
1
2
2
2
2
1
