ASSEMBLY INSTRUCTIONS

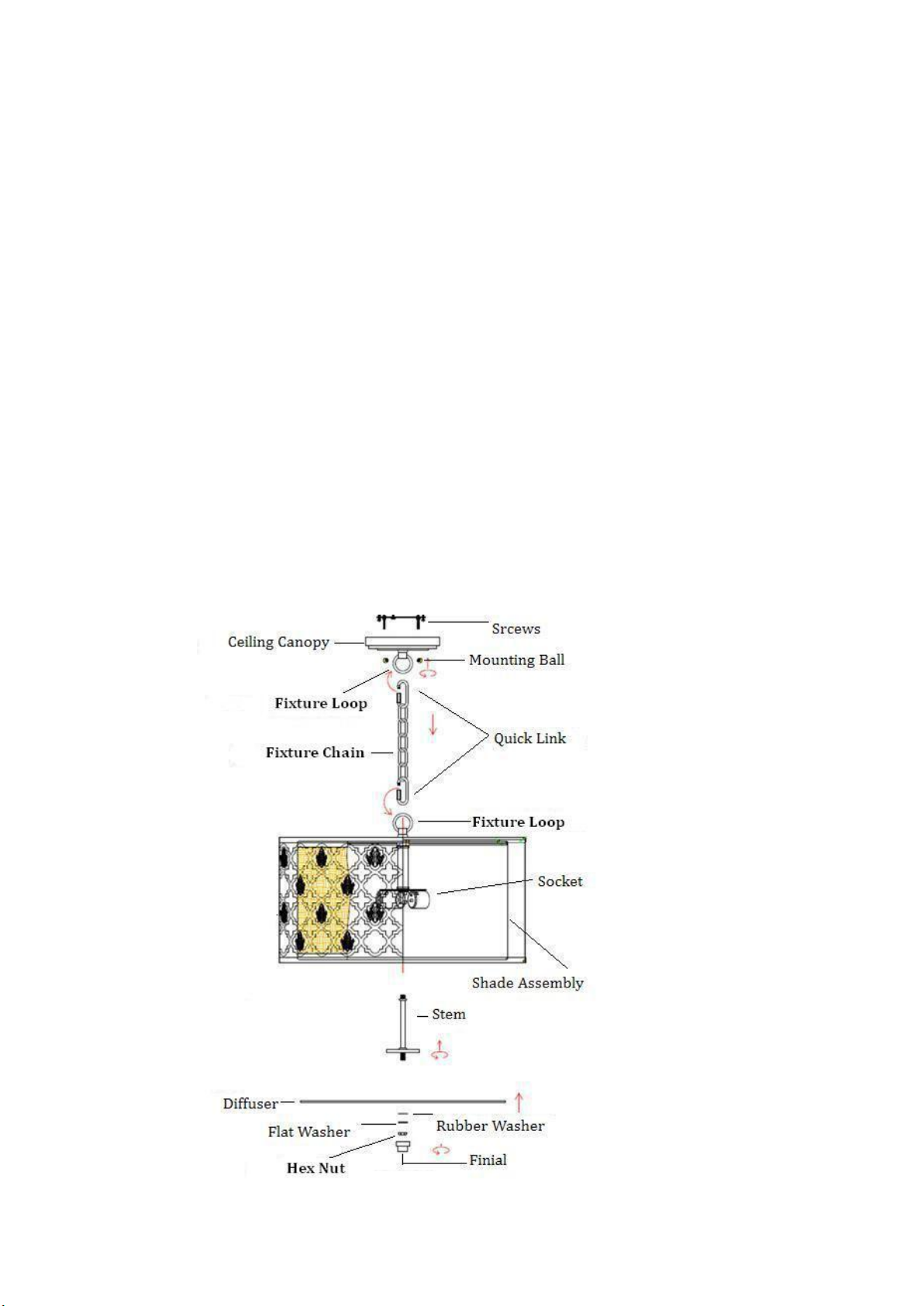

1.Take the lamp carefully out of the Carton,and place it on a flat surface.
2. Be sure the power to the installation point is power off.
3.Adjust the Fixture Chain to your desired length by removing the links if needed.
Pass Supply Wires and Ground Wire through the chosen Chain.
4.Attach one end of the Quick Link onto the Fixture Loop on the bottom Ceiling Canopy.
5.Place the Ceiling Canopy over the Mounting Screws and thread Mounting Balls onto the Mounting Screws to
secure it ,Hand tighten until sung.
6.Attach another Quick Link onto the Fixture Loop on the top of Shade Assembly.
7.Thread Stem onto Hex Coupling on the bottom of Socket. Hand tighten until snug.
8. Place Diffuser ,Rubber Washer and Flat Washer onto the Stem , secure by thread Hex Nut onto Stem.
Hand tighten until snug.
9.Thread Finial onto the end of the Stem, hand tighten until snug.
10.Install bulbs (not included).See label located at socket area for type and maximum allowed wattage.
Your installation is completed now. Restore electricity.
Retain this sheet for future reference !
Careful unpack all lamp parts from the carton.
