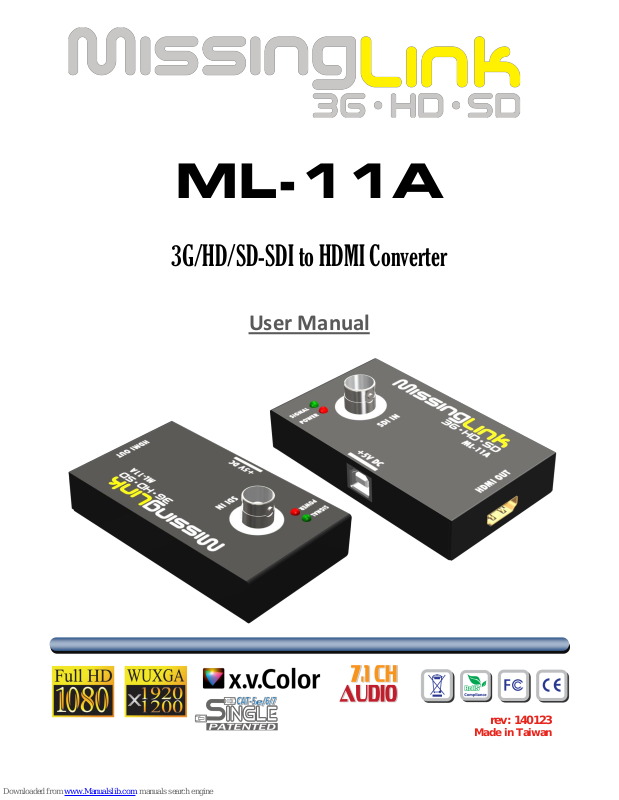

ML-11A
3G/HD/SD-SDI to HDMI Converter
User Manual
rev: 140123
Made in Taiwan
The ML-11A 3G/HD/SD-SDI to HDMI Converter has been tested for conformance to safety
regulations and requirements, and has been certified for international use. However, like all
electronic equipments, the ML-11A should be used with care. Please read and follow the safety
instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
● Follow all instructions and warnings marked on this unit.
● Do not attempt to service this unit yourself, except where explained in this manual.
● Provide proper ventilation and air circulation and do not use near water.
● Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
● Use only the power adapter and power cords and connection cables designed for this unit.
● Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
TABLE OF CONTENTS
INTRODUCTION ................................................................................................................ 1
FEATURES ........................................................................................................................ 1
SPECIFICATIONS .............................................................................................................. 2
PACKAGE CONTENTS ................................................................................................... 3
SUPPORTED RESOLUTIONS ........................................................................................... 3
PANEL DESCRIPTION ...................................................................................................... 4
CONNECTION DIAGRAM ................................................................................................ .. 5
LIMITED WARRANTY ........................................................................................................ 6
1
INTRODUCTION
The
ML-11A
provides a cost effective way to convert 3G/HD/SD-SDI signal to HDMI compliant
format. The conversion between SDI and HDMI is pure digital and guarantees no loss transformation for
both audio and video. Plus, with up to 8 channels audio support, 7.1 channel or 5.1 channel audio
becomes available. The ML-11A is designed in the most compact size with the inter-lock power and
wall-mount ears.
FEATURES
● Supported 3G formats(SMPTE 425M):
1080p @50/59.94/60Hz (4:2:2)
● Supported high-definition (HD) formats:
1080i @50/59.94/60Hz
1080p @23.98/24/25/29.97/30Hz
720p @50/59.94/60Hz
● Supported standard-definition (SD) formats:
NTSC @59.94Hz
PAL @50Hz
● Auto 3G/HD/SD-SDI detection
2
SPECIFICATIONS
Model Name
ML-11A
Technical
Role of usage
Digital-to-digital format converter
SDI standards
SD-SDI & HD-SDI & 3G-SDI
Auto HD/SD-SDI detection
Yes
Video bandwidth
2.970Gpbs, 2.970/1.001Gbps
Video support
[3G] 1080p @50/59.94/60Hz (4:2:2)
[HD] 720p @50/59.94/60Hz
1080i@50/59.94/60Hz,1080p @23.98/24/25/29.97/30Hz
[SD] NTSC @59.94Hz, PAL @50Hz
Input signal
[SD-SDI] SMPTE 259M
[HD-SDI] SMPTE 292M, 296M
[3G-SDI] SMPTE 424M/425M
Output signal
HDMI
Audio support
7.1/5.1/Stereo PCM only
Eye pattern characteristics
Extra low alignment jitter 0.05UI at HD
Cable equalization
[3G-SDI] up to 60m (200ft)
[HD-SDI] up to 150m (500ft)
[SD-SDI] up to 300m (1000ft)
Loop-out
N/A
PCB stack-up
6-layer board [impedance control — differential 100Ω; single 50Ω]
Input
1x BNC [SDI]
Output
1x HDMI
BNC connector
3G 75Ω inter-locked socket
HDMI connector
Type A [19-pin female]
Mechanical
Housing
Metal case
Dimensions
[L x W x H]
Model
74 x 74 x 26mm [2.9" x 2.9" x 1.0"]
Package
140 x 200 x 75mm [5.5" x 7.9" x 3"]
Carton
420 x 400 x 300mm [1'5" x 1'4" x 11.8"]
Weight
Model
211g [7.4 oz]
Package
440g [15.4 oz]
Fixedness
USB power supply
Power supply
5V 1A DC
Power consumption
2.5 Watts [max]
Operation temperature
0~40°C [32~104°F]
Storage temperature
-20~60°C [-4~140°F]
Relative humidity
20~90% RH [no condensation]
3
PACKAGE CONTENTS
● 1x ML-11A
● 1x 5V power adapter
SUPPORTED RESOLUTIONS
3G-SDI Input
1080p @ 60/59.94/50Hz
SMPTE 425M (4:2:2)
HD-SDI Input
720p @ 50Hz
SMPTE 296M -3
720p @ 60 / 59.94Hz
SMPTE 296M -1, -2
1080i @ 25Hz
SMPTE 274M -6
1080i @ 30 / 29.97Hz
SMPTE 274M -4, -5
1080p @ 24 / 23.98Hz
SMPTE 274M -10, -11
1080p @ 25Hz
SMPTE 274M -9
1080p @ 30 / 29.97Hz
SMPTE 274M -7, -8
SD-SDI Input
NTSC
PAL B,D,G,H,I
4
PANEL DESCRIPTION
Front Panel Rear Panel
3. +5V DC: Connect to a 5V DC power supply.
4. HDMI OUT: Connect to a HDMI display with a HDMI male-male cable here.
2. SDI IN: 3G/HD/SD-SDI Input
1. Power & Signal: LED indicator
5
CONNECTION DIAGRAM
6
LIMITED WARRANTY
The SELLER warrants the ML-11A 3G/HD/SD-SDI to HDMI Converter to be free from defects in
the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized
dealer. Should this product fail to be in good working order within 1 year warranty period, the SELLER, at
its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster,
abuse or any unauthorized modifications including static discharge and power surge. This warranty is
offered by the SELLER for its BUYER with direct transaction only. This warranty is void if the warranty
seal on the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current price of parts
and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment
to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss
or damage in transit. Under no circumstances will a unit be accepted without a return authorization
number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations, any
other implied warranty or fitness or merchantability for any particular purpose, all of which are expressly
disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible
for shipping charges to and from the SELLER. Cables and power adapters are limited to a 30 day
warranty and must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However, The
SELLER assumes no responsibility for any inaccuracies that may be contained in this manual. The
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting
from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the
technical information contained herein regarding the ML-11A features and specifications is
subject to change without further notice.
