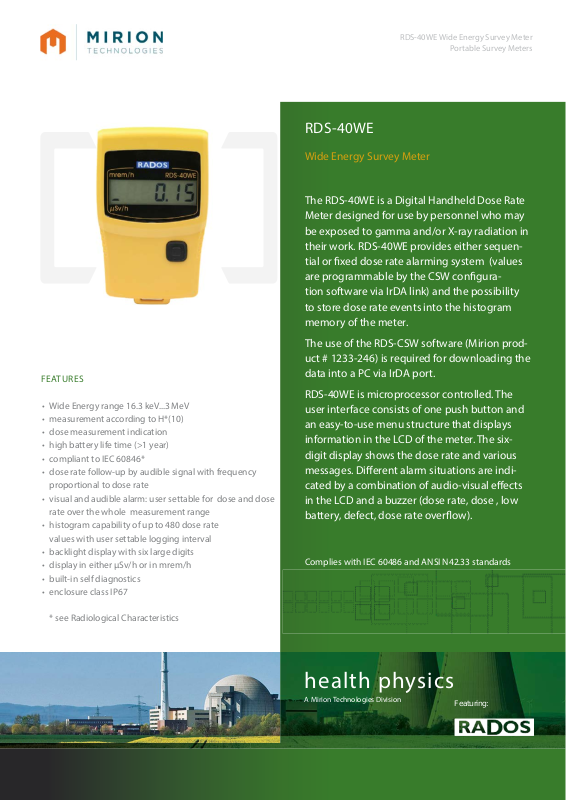

RDS-40WE Wide Energy Survey Meter

Portable Survey Meters

RDS-40WE

Wide Energy Survey Meter

The RDS-40WE is a Digital Handheld Dose Rate
Meter designed for use by personnel who may
be exposed to gamma and/or X-ray radiation in
their work. RDS-40WE provides either sequen­tial or  xed dose rate alarming system (values
are programmable by the CSW con gura­tion software via IrDA link) and the possibility
to store dose rate events into the histogram
memory of the meter.

FEATURES

• Wide Energy range 16.3 keV...3 MeV

• measurement according to H*(10)

• dose measurement indication

• high battery life time (>1 year)

• compliant to IEC 60846*

• dose rate follow-up by audible signal with frequency
proportional to dose rate

• visual and audible alarm: user settable for dose and dose
rate over the whole measurement range

• histogram capability of up to 480 dose rate
values with user settable logging interval

• backlight display with six large digits

• display in either μSv/h or in mrem/h

• built-in self diagnostics

• enclosure class IP67

* see Radiological Characteristics

The use of the RDS-CSW software (Mirion prod­uct # 1233-246) is required for downloading the
data into a PC via IrDA port.

RDS-40WE is microprocessor controlled. The
user interface consists of one push button and
an easy-to-use menu structure that displays
information in the LCD of the meter. The six­digit display shows the dose rate and various
messages. Di erent alarm situations are indi­cated by a combination of audio-visual e ects
in the LCD and a buzzer (dose rate, dose , low
battery, defect, dose rate over ow).

Complies with IEC 60486 and ANSI N42.33 standards

health physics

A Mirion Technologies Division

Featuring:

RDS-40WE Wide Energy Survey Meter

TECHNICAL SPECIFICATIONS:

Radiological Characteristics

• radiation detected: gamma and x-rays, 16.3 keV (±30

• detector: one energy-compensated GM tube. Energy response according to ambient
dose equivalent H*(10)

• measurement range: e ective dose rate 0. 1 μSv/h – 50 mSv/h or 10 μrem/h – 5 rem/h,
dose 0.1 μSv – 1 Sv or 10 μrem – 100 rem

• alarm levels: adjustable alarm levels for dose rate and accumulated dose

• calibration accuracy: ± 5 % of the reading in

137

• dose rate linearity: ±18% in the whole measurement range

• response to radiation energy -29 % to +67 % over the range of 16.3 keV to 3 MeV

Functional Characteristics

• visual and audible alarm: user settable for dose and dose rate

• histogram capability of up to 480 points with user settable logging interval 10s ... 14 400s

• backlit display with six large digits

• built-in self diagnostics

• IrDA link to PC

Electrical Characteristics • power supply: 2 alkaline batteries IEC LR6/AA size (recommended)

• battery life time: at least 1000 hours at normal background with alkaline cells

• battery alarm: two-step alarm for low battery voltage

Mechanical Characteristics

• rugged plastic case

• resistant against RF interferences

• enclosure class: IP67

• dimensions: 78 x 126 x 57 mm

• weight: 294 g without batteries, 342 g with batteries

Environmental Characteristics

Temperature range:

• -25...+55°C operational (-13°F to 131°F)

• -40...+70°C storage (-40... 158°F)

Accessories

• CSW con guration software

• wrist strap

• neck strap

o

) 24keV... 3 MeV±45

Cs exposure, at 3 mSv/h (300 mrem), +20°C (68°F)

Portable Survey Meters

o

Detector under energy  lter
