FEATURES/BENEFITS
Infrared camera uses wavelengths that can •
penetrate ne particulate matter.
Dynamic range can view objects that are too •
cold or dim for visible light cameras.
Super-wide 110° diagonal eld of view lens in •
several lengths.
Small front opening and improved seal reduces •
air usage and keeps lens cleaner.
Sapphire window more durable and scratch •
resistant than other materials.

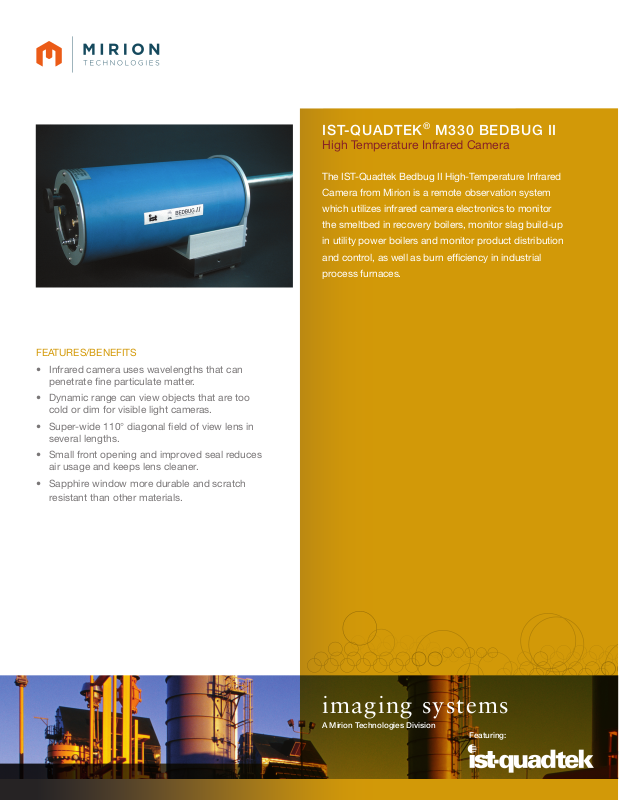

IST-QUADTEK® M330 BEDBUG II
High Temperature Infrared Camera
The IST-Quadtek Bedbug II High-Temperature Infrared
Camera from Mirion is a remote observation system
which utilizes infrared camera electronics to monitor
the smeltbed in recovery boilers, monitor slag build-up
in utility power boilers and monitor product distribution
and control, as well as burn efciency in industrial
process furnaces.
imaging systems
A Mirion Technologies Division
Featuring:
CAMERA
SPECIFICATIONS AND PERFORMANCE
216mm
8.50
209mm
8.23
83,4mm
3.28
450mm
17.7
200mm
7.88
419mm
16.5
'L'
LENS
CAMERA
MECHANICAL
Power Requirements 100/115/230 VAC, 50/60 Hz,24 Watts
Camera Tube 1.0” separate mesh; infrared-sensitive
lead sulde vidicon
Signal to Noise 55 db or higher
Video Output Monochrome EIA Standard RS-
170, 525 lines or CCIR, 625 lines,
composite video output and sync; 1.0
to 1.4V p-p
Environment Vibration: 3g swept sine wave,
15 to 2000 hz; shock: 50 g
Pyrometer Detector /OP option: Solid state 1.6 micron
detector 629 to 1482°C (1165 to
2700°F), multiplexed with video.
Requires M702 processor
Construction Air-cooled 304 stainless steel outer
shroud. Sapphire window for max.
environmental protection
Lengths Standard:
/L48: L = 1118mm (44”)
/L60: L = 1423mm (56”)
Field of View 90° horizontal, 72° vertical,
110° diagonal
Diameter 1.5” (38mm
Optical Filter Particulate-penetrating proprietary
infrared lter
Cooling Requirements Instrument-quality air*, 7-10 dm3 s-1
@ 35-70 kPa (15-20 SCFM
@ 5-10 psig typical)
*Air quality to ISO 8573-1,
Class1•7•2
Construction Corrosion-resistant nylon cover;
anodized aluminum body; NEMA 4,
dust and waterproof
Cooling Type Vortex cooled; instrument-quality air;
13 dm3s-1 @ 690kPa (25 SCFM @ 100
psig typical)
Ambient Environment 0° to 60°C (32° to 140°F) operating
temperature
Focus Adjustment Optical focus adjustment screw located
on back of enclosure
Video Output Jack Female PL-259 “UHF” type
Power Input Jack Removable waterproof miniplug (JOY
type TP, female 3-conductor; mating
power cord provided)
Enclosure Cooling Input 1/4” brass quick-disconnect nipple;
mating coupler (Snaptite BVHC4-4F)
provided
Lens Cooling Input 1/2” brass quick-disconnect nipple;
mating coupler (Snaptite BVHC8-8F)
provided
Weight 12.1 kg (27 lbs)
315 Daniel Zenker Drive
200 IST Center
Horseheads, NY 14845
USA
T +1.607.562.4369
+1.800.432.1478
F +1.607.562.4392
Station Road
Alton, Hampshire
GU34 2PZ, UK
T 01420.541600
F 01420.541700
© Copyright 2009. All rights reserved for trademark and registered trademark
information.
Quadtek® is a registered trademark of Mirion Technologies Corporation.
The above specications may vary according to system conguration.
Mirion Technologies Incorporated reserves the right to amend or change the
information on this sheet without prior warning.
