TX3 Series

Touch Screen

Installation Manual

Page 2

2 (93) TX3 Touch Screen Installation Manual Version 3.4

Page 3

Contents

1 Introduction 7

1.1 TX3 Systems 8

1.2 Features 12

1.3 Touch Screen Sizes and Enclosures 12

1.4 Touch Screen Accessories 13

1.5 Warranty and Special Notices 14

1.6 About This Manual 14

1.7 Contact Us 15

2 Enclosure Installation 17

2.1 Installing the Enclosures and Touch Screen 18

2.2 Installing the 15” Kiosk 19

2.3 Installing the 15” Touch Screen Surface Mount Enclosure 25

2.4 Installing the 15” Touch Screen Flush Mount Enclosure 28

2.5 Installing the 22” Touch Screens 32

2.6 Assembling the TX3-T-KIOSK Stand 38

2.7 Installing the Power Supply Enclosure 46

3 Touch Screen System and Setup 51

3.1 Touch Screen System 52

3.2 Touch Screen Panels 55

3.3 Controller Boards 58

3.4 Grounding the 15” Touch Screen 61

3.5 Grounding the 22” Touch Screen 61

3.6 Connecting to the External Power Supply 62

3.7 Installing the Postal Lock 64

3.8 Installing the Telephone Lines 64

3.9 Installing Optional Components 64

3.10 Verifying Installed Components 66

3.11 Beginning Configuration 67

3.12 Shutting Down the Touch Screen 68

3.13 Installing a Logitech c615 HD Webcam on the 22” Touch Screen 69

3.14 Replacing the 3M™ Multi-Touch Display C2167PW on the 22” Touch Screen 70

3.15 Installing the TX3-P300-HA Card Reader in the 22” Touch Screen 74

3.16 Installing a RB-MD-1093 Two Door Controller Network Board 76

4 Adding Controllers 77

4.1 Adding a Controller 78

5 Appendix 79

5.1 Specifications 80

6 Resident Operating Instructions 83

6.1 NSL Resident Operating Instructions 84

6.2 ADC Resident Operating Instructions 86

Warranty & Warning Information 87

Special Notices 90

Page 4

4 (93) TX3 Touch Screen Installation Manual Version 3.4

Page 5

List of Figures

Figure 1 TX3 devices on an RS-485 network. 9

Figure 2 TX3 devices connected to an ethernet TCP/IP network. Devices connected to

an ethernet network are Master Nodes. 10

Figure 3 TX3 devices connected to a combination ethernet TCP/IP network with RS-485

subnetworks. 11

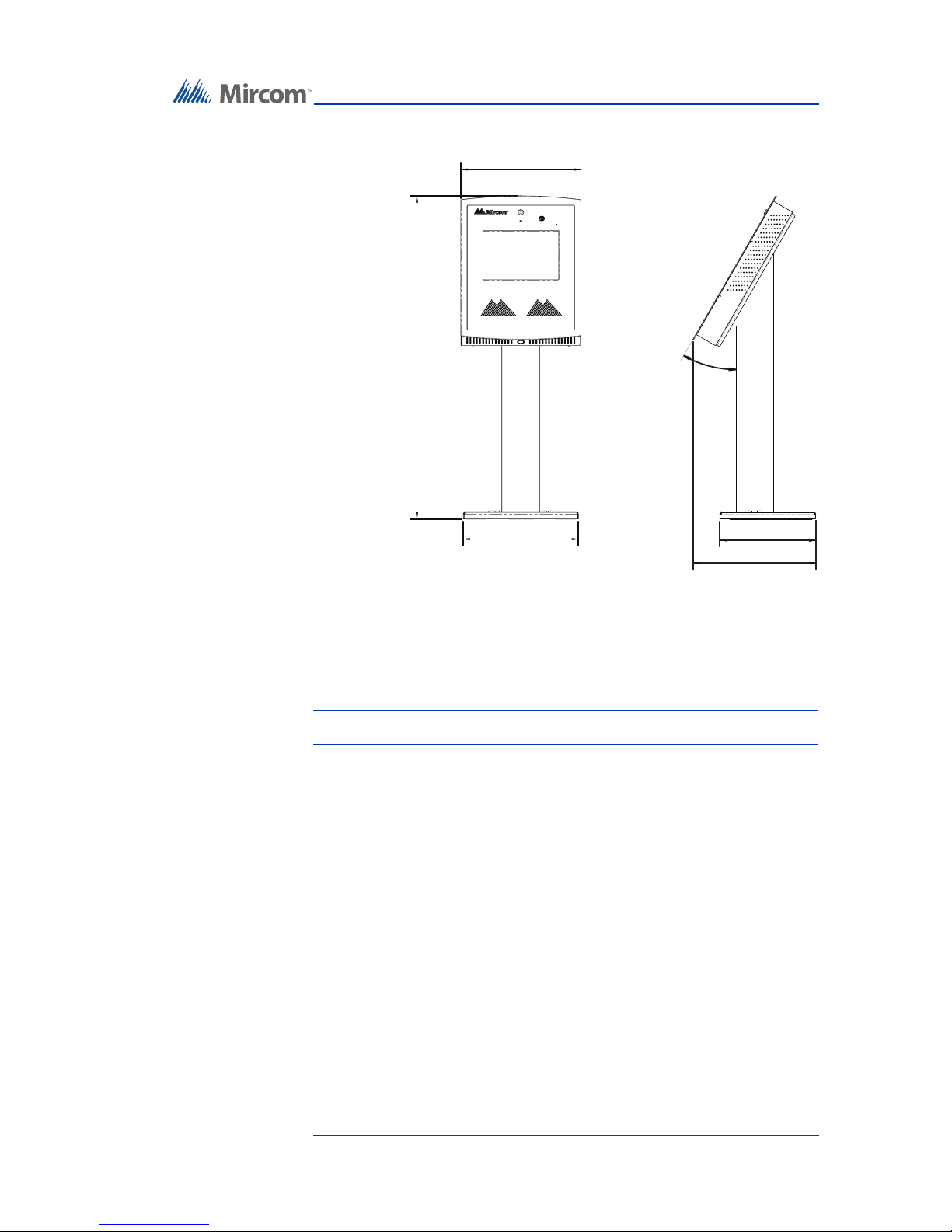

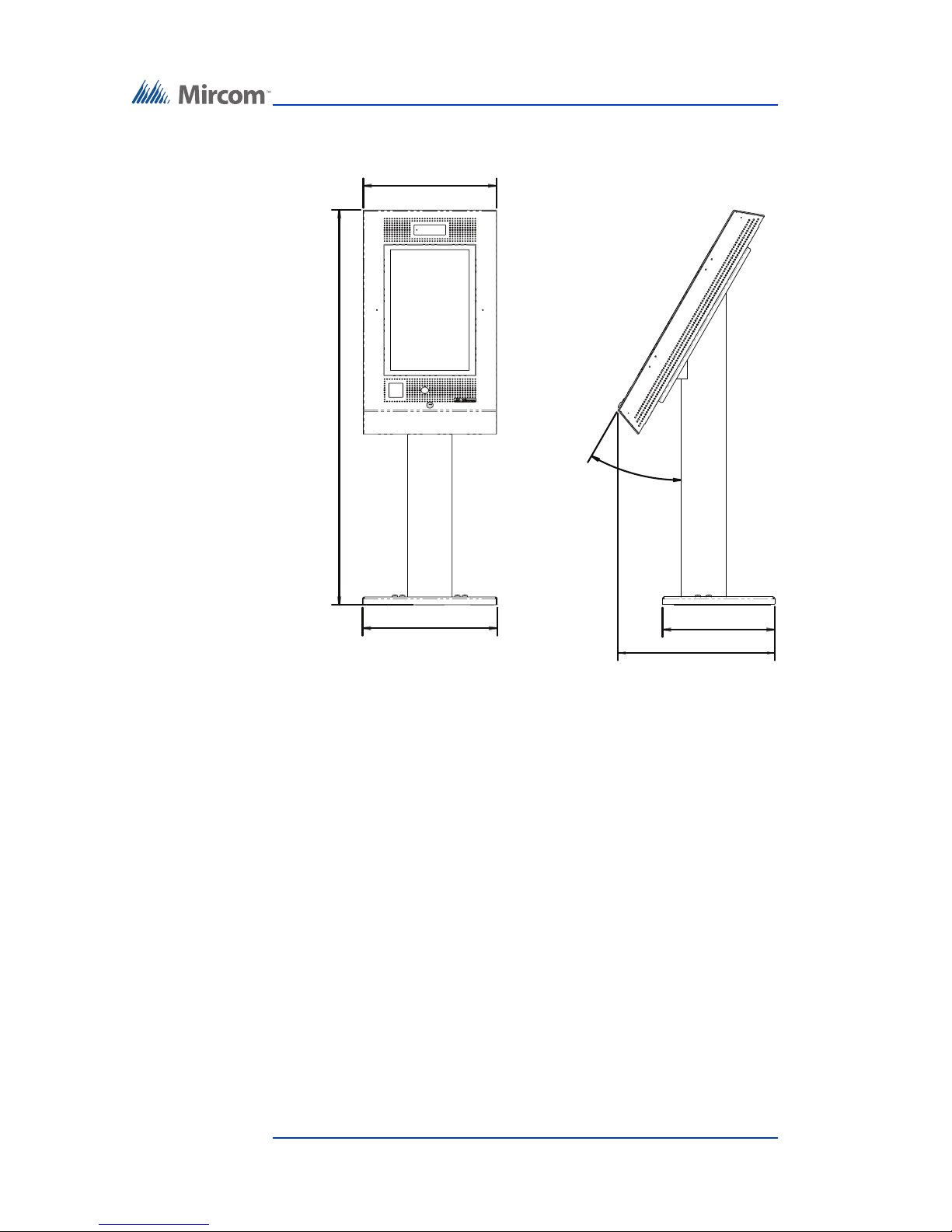

Figure 4 Kiosk Dimensions (inches) 19

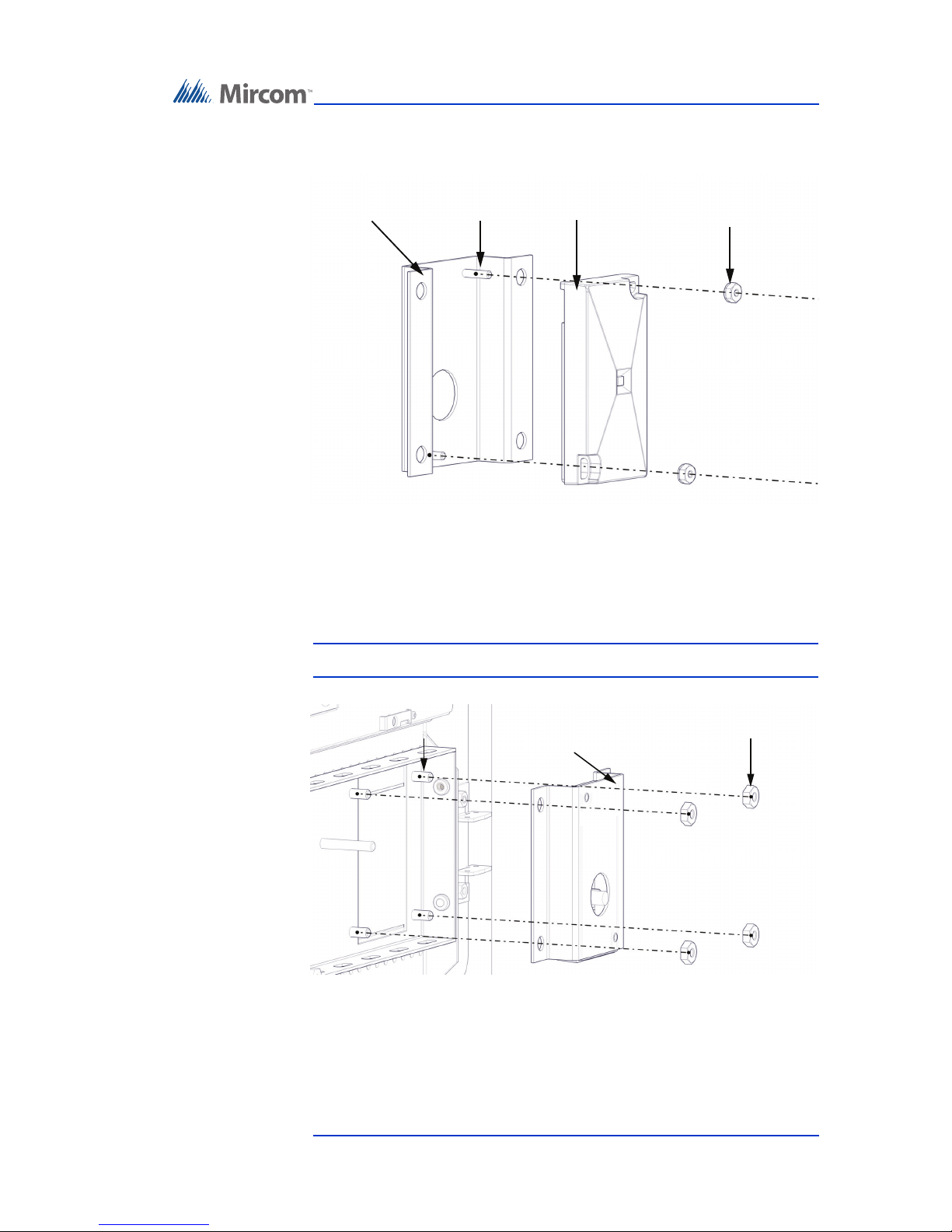

Figure 5 Reinforcement Bracket with bolts 20

Figure 6 Reinforcement Bracket with nuts 21

Figure 7 Kiosk Base Plate with bolts 21

Figure 8 Kiosk Mounting Holes 21

Figure 9 Base Plate Mounting Holes 22

Figure 10 Base Plate Dimensions (inches) 22

Figure 11 Fitting the Kiosk on the Base Plate 23

Figure 12 Fitting the Kiosk on the Base Plate (from below) 23

Figure 13 Attach the Kiosk to the base plate 24

Figure 14 15” Touch Screen Surface Mount Back Dimensions (inches) 25

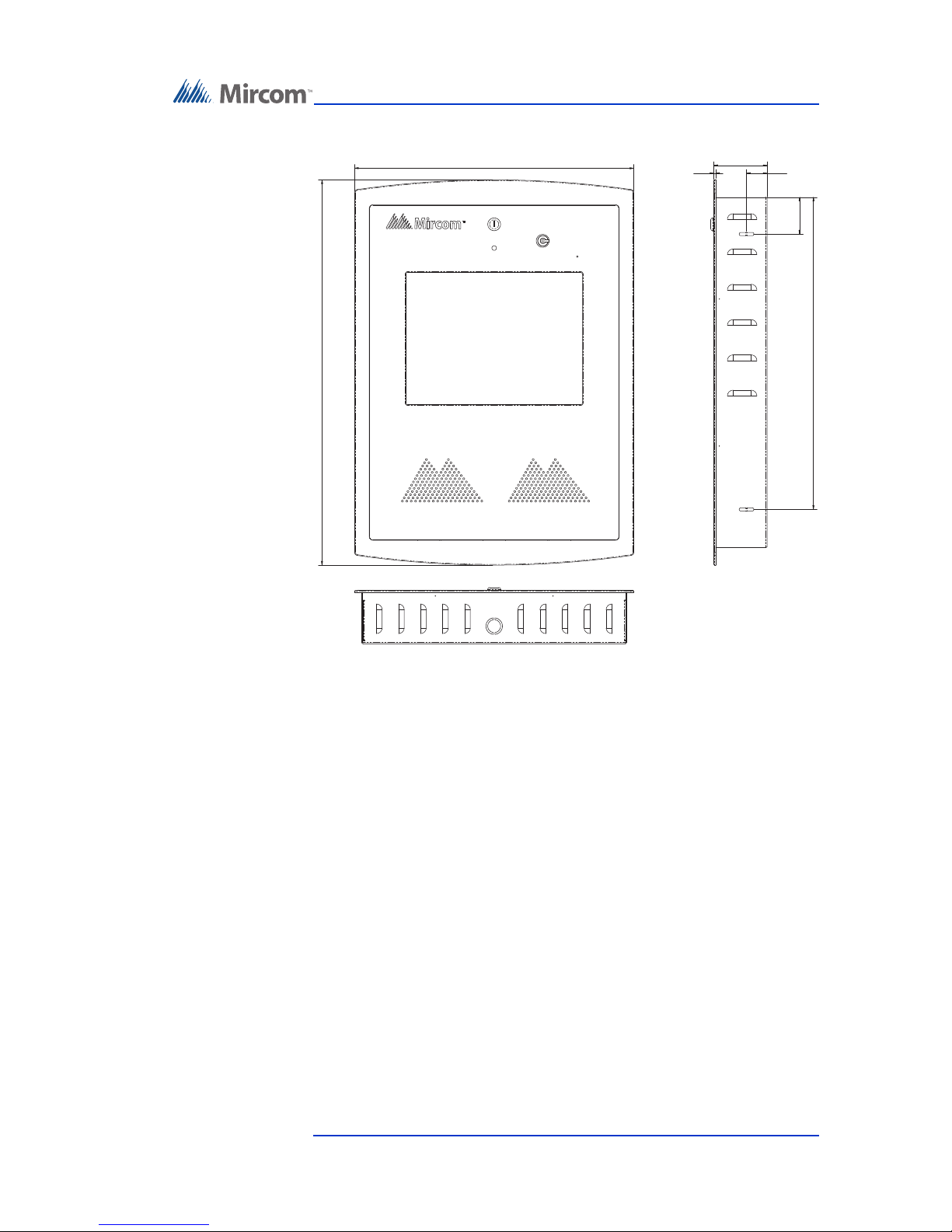

Figure 15 15” Touch Screen Surface Mount Front Dimensions (inches) 26

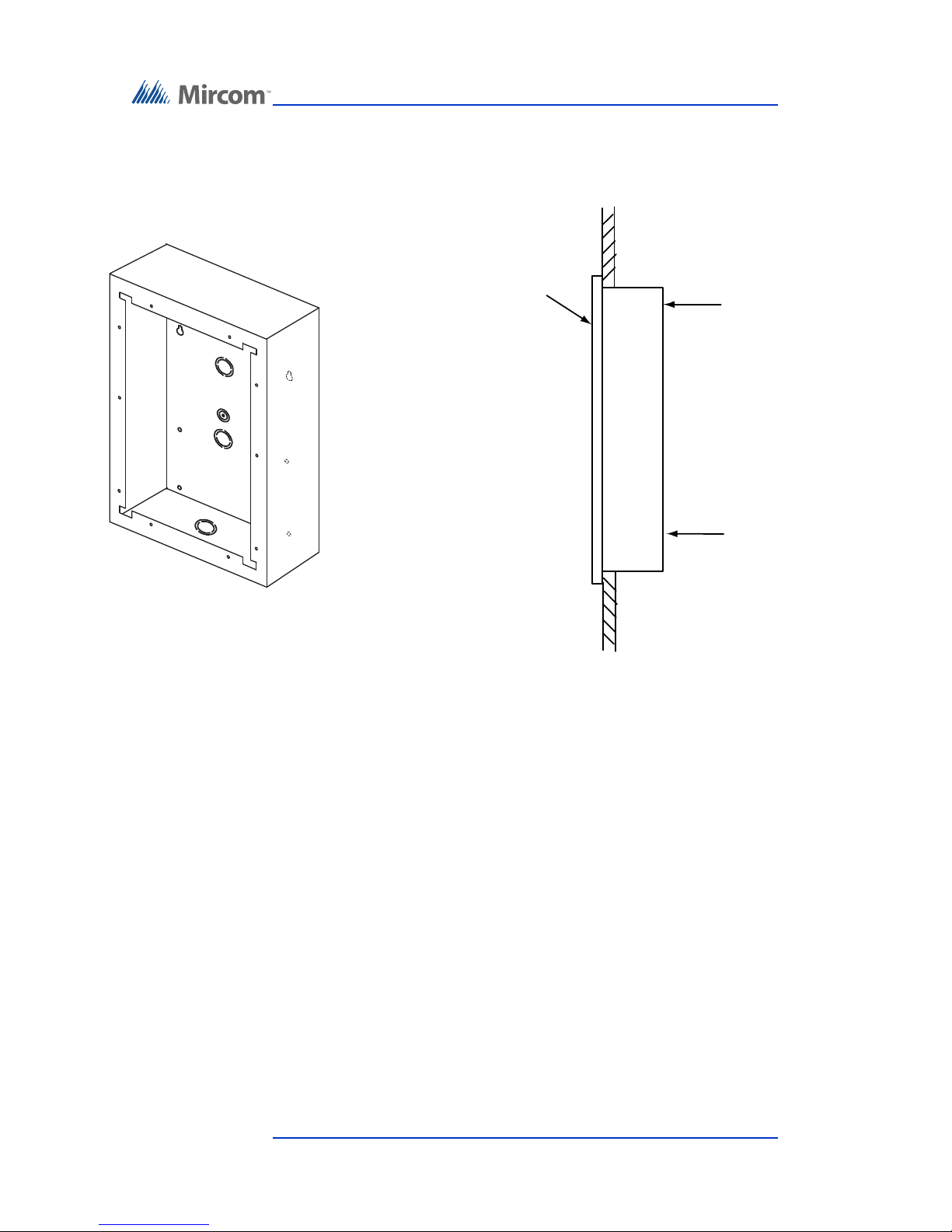

Figure 16 Touch Screen Surface Mount 27

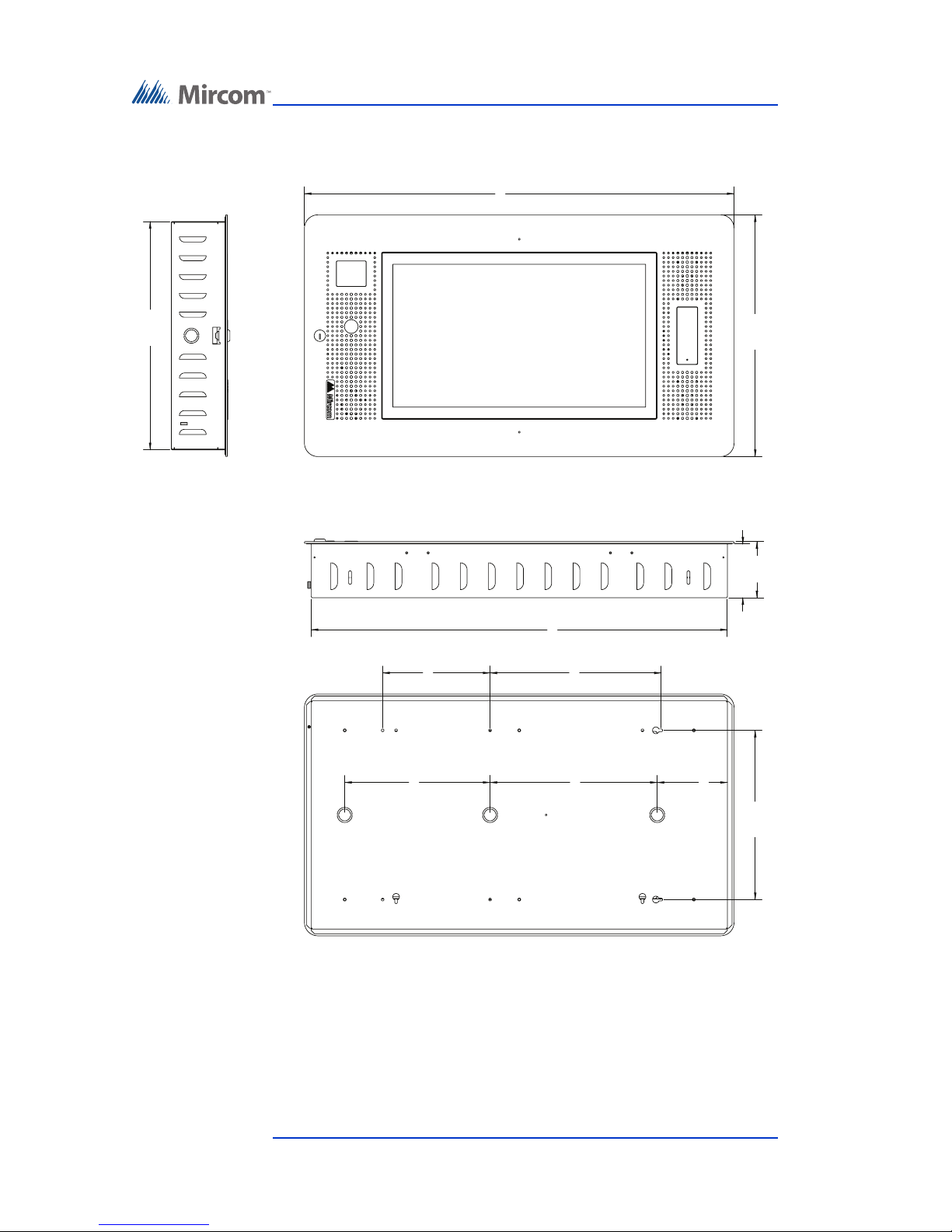

Figure 17 15” Touch Screen Flush Mount Back Dimensions (inches) 28

Figure 18 15” Touch Screen Flush Mount Front Dimensions (inches) 29

Figure 19 Flush Mount Enclosure 30

Figure 20 Surface mounting the enclosure 33

Figure 21 Flush mounting the enclosure 34

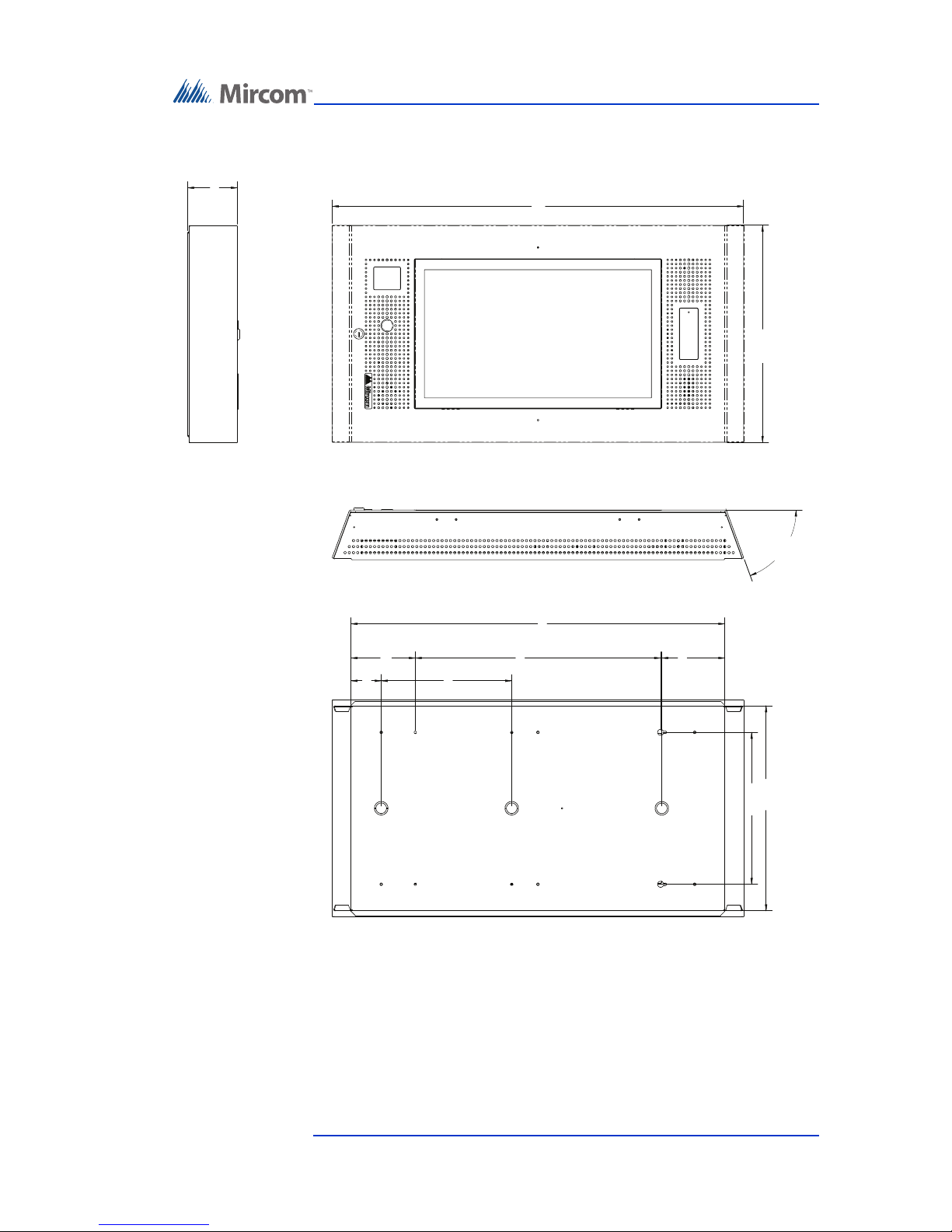

Figure 22 22” Touch Screen Flush Mount Dimensions (inches) 36

Figure 23 22” Touch Screen Surface Mount Dimensions (inches) 37

Figure 24 22” Touch Screen Dimensions (inches) 38

Figure 25 15” Touch Screen Dimensions (inches) 39

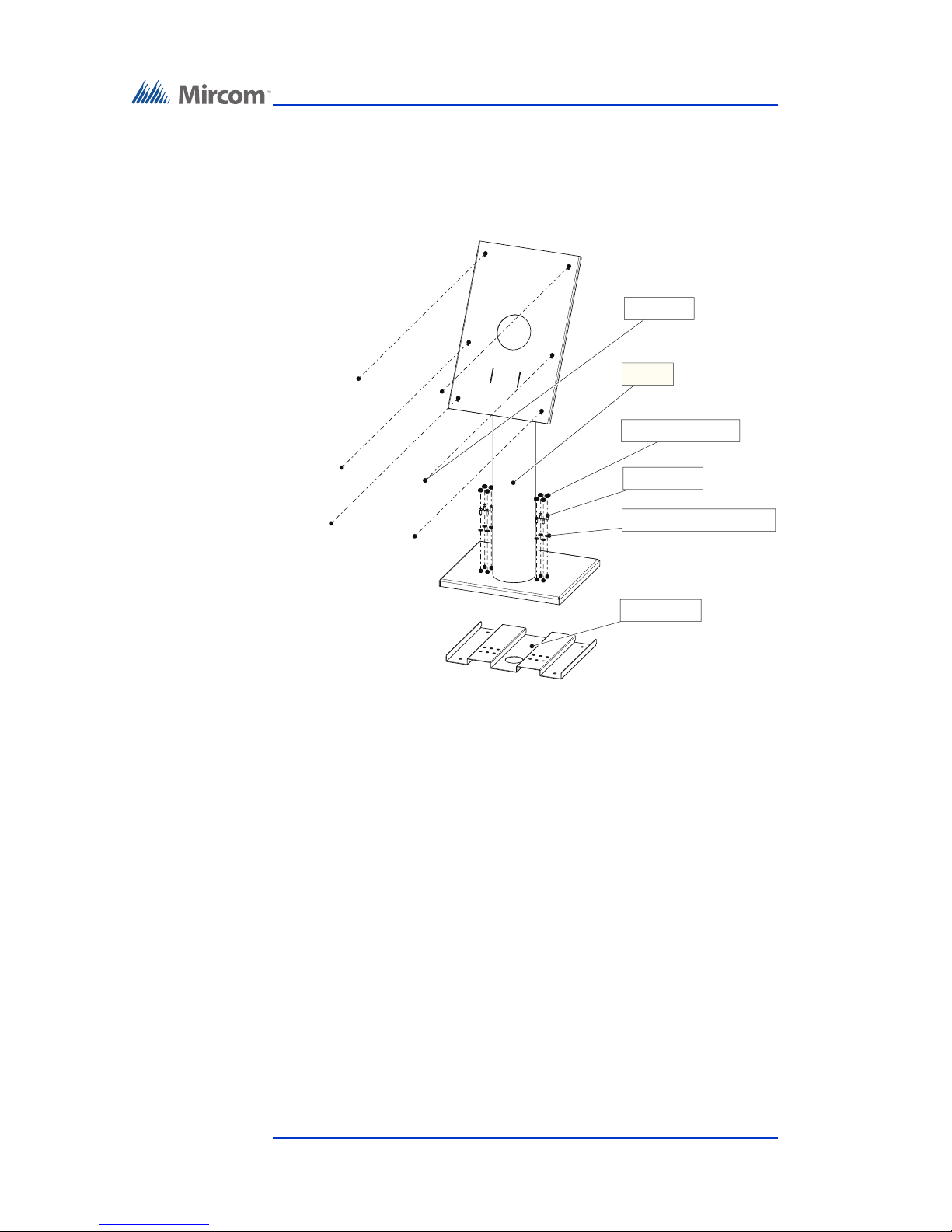

Figure 26 Components of TX3-T-KIOSK 40

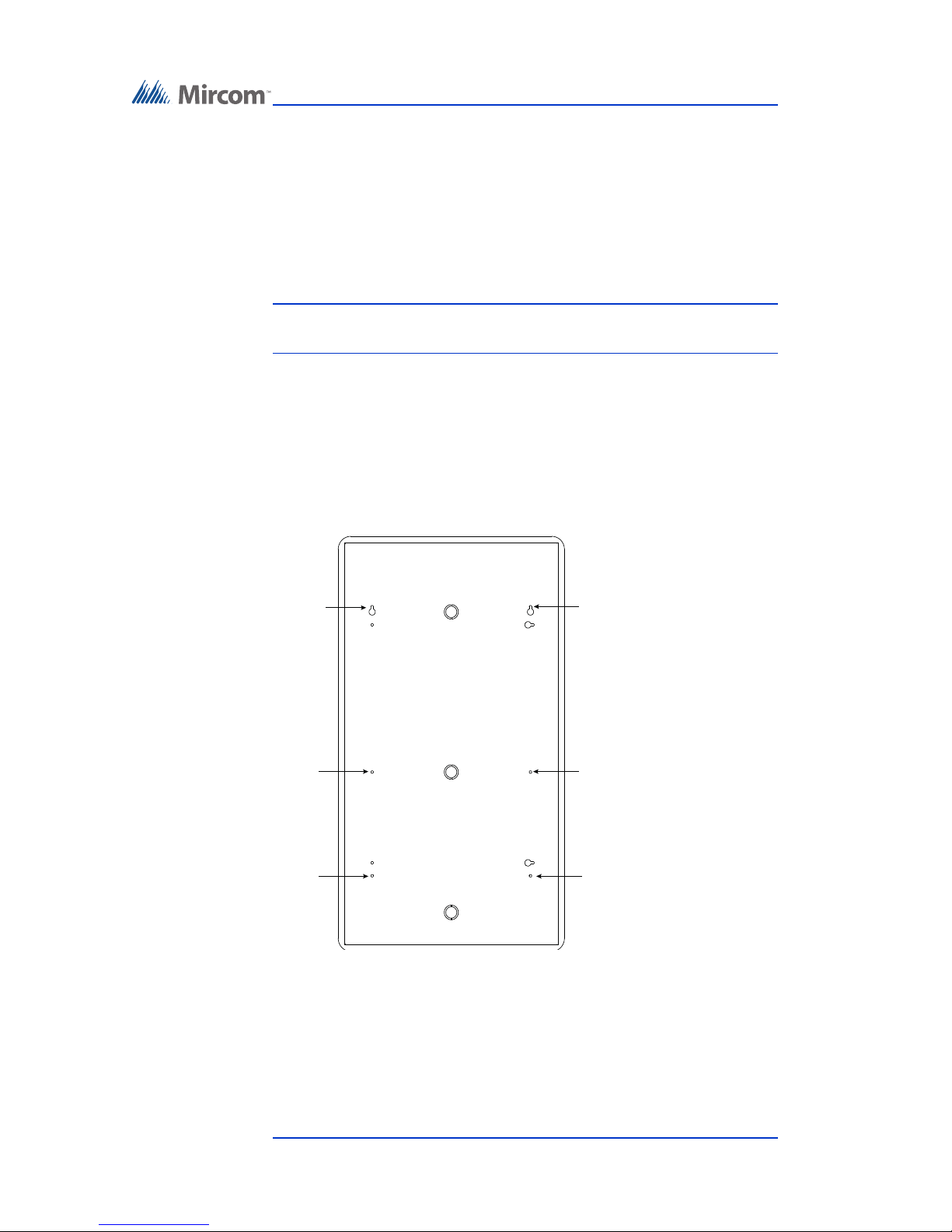

Figure 27 Base Plate Mounting Holes 41

Figure 28 Base Plate Dimensions (inches) 41

Figure 29 Fit the stand on the Base Plate 42

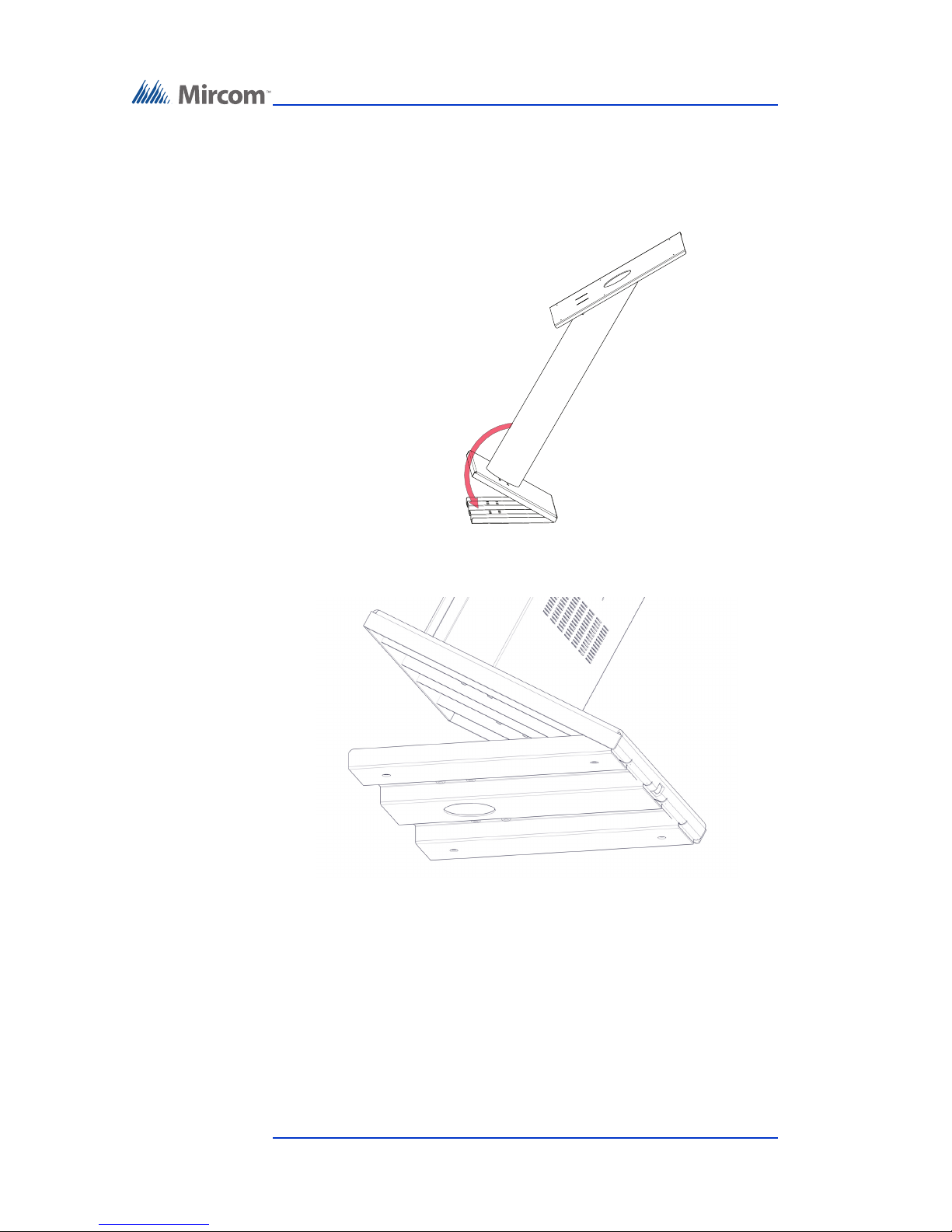

Figure 30 Fit the stand on the Base Plate (from below) 42

Figure 31 Attach the stand to the base plate 43

Page 6

6 (93) TX3 Touch Screen Installation Manual Version 3.4

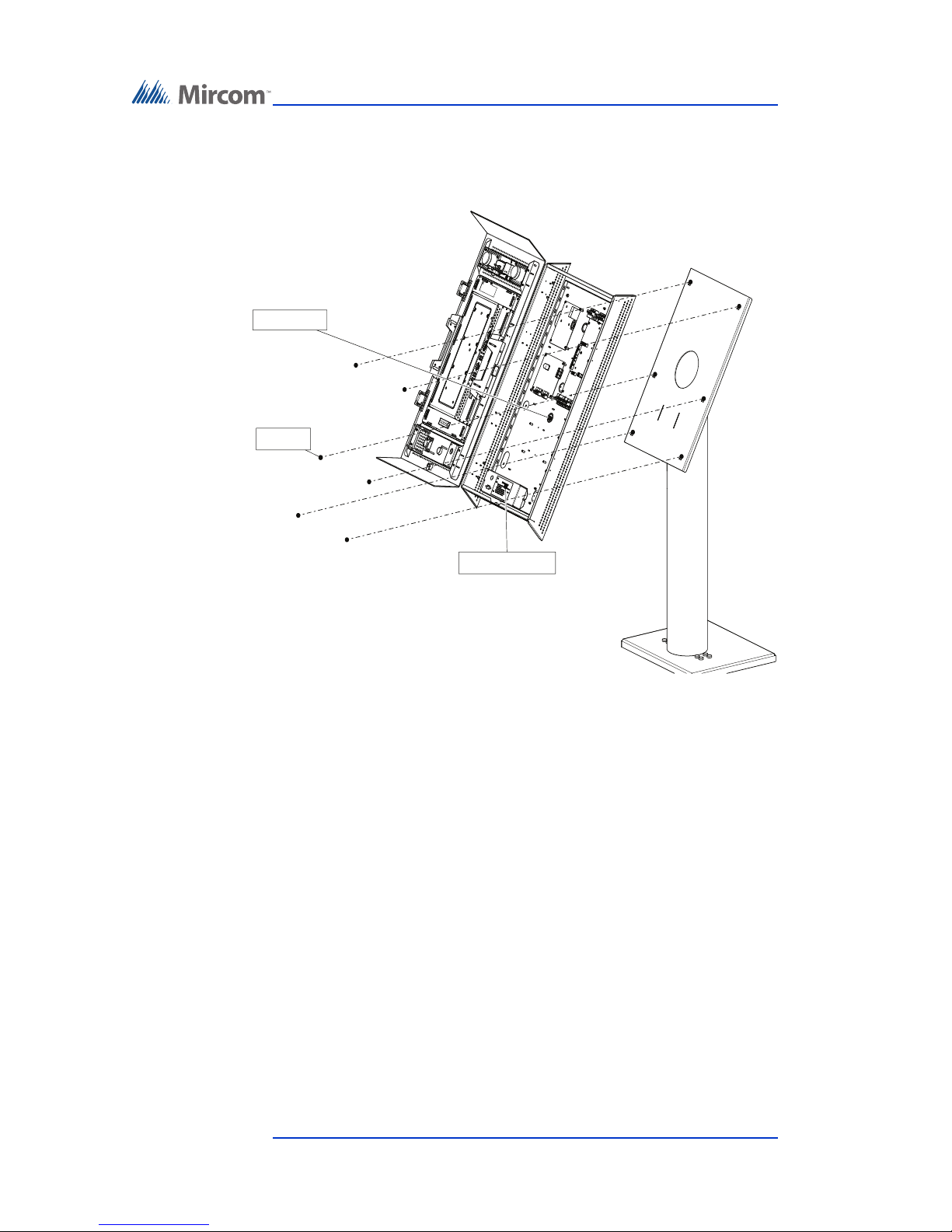

Figure 32 Attach the 22” Touch Screen to the stand 44

Figure 33 Attach the 22” Touch Screen to the stand 45

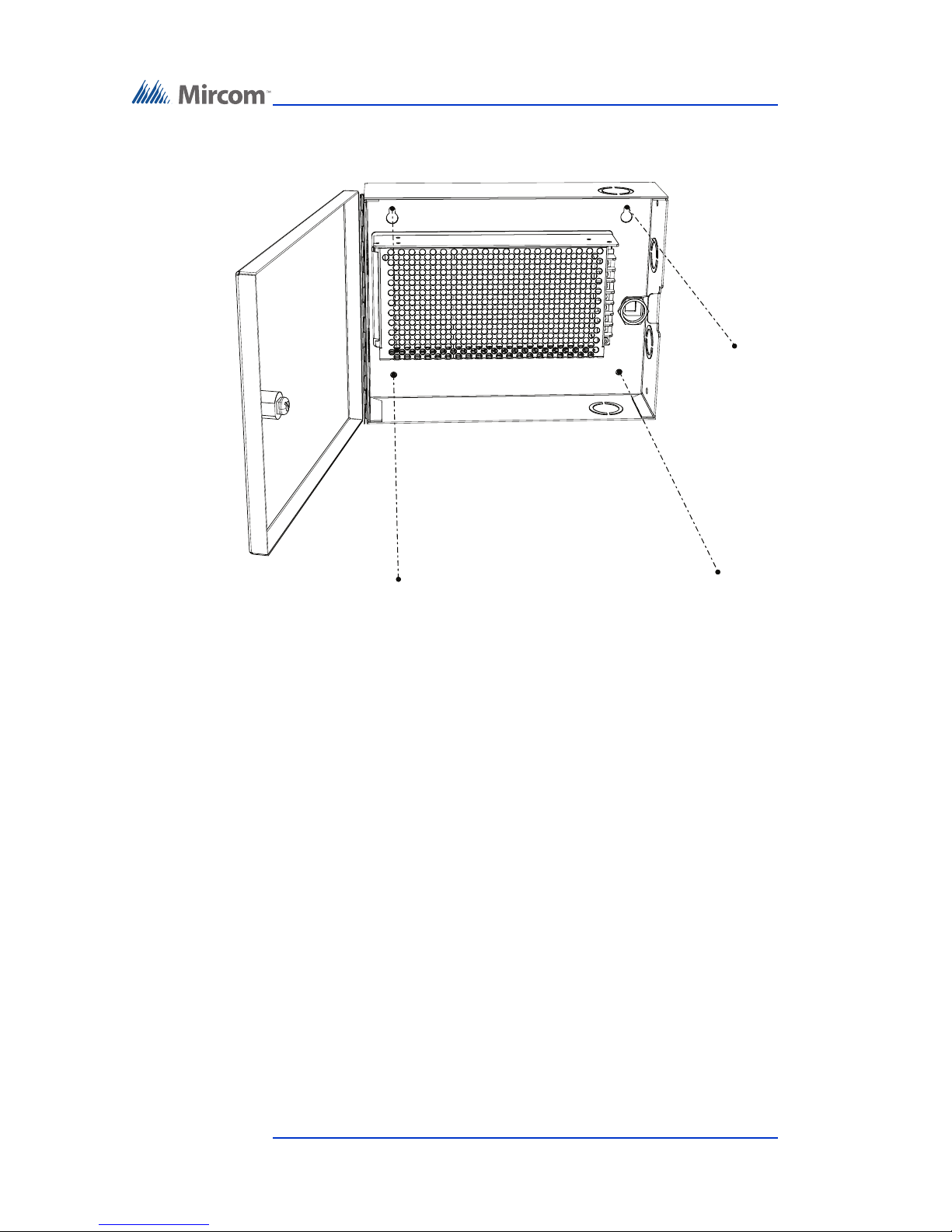

Figure 34 Inside the Switching Power Supply Box 46

Figure 35 Power Supply Voltage Selection Switch 47

Figure 36 Touch Screen Power Supply Enclosure 48

Figure 37 Single Touch Screen 53

Figure 38 Single Touch Screen with ADC and NSL Lines 54

Figure 39 15” Touch Screen Panel Components 55

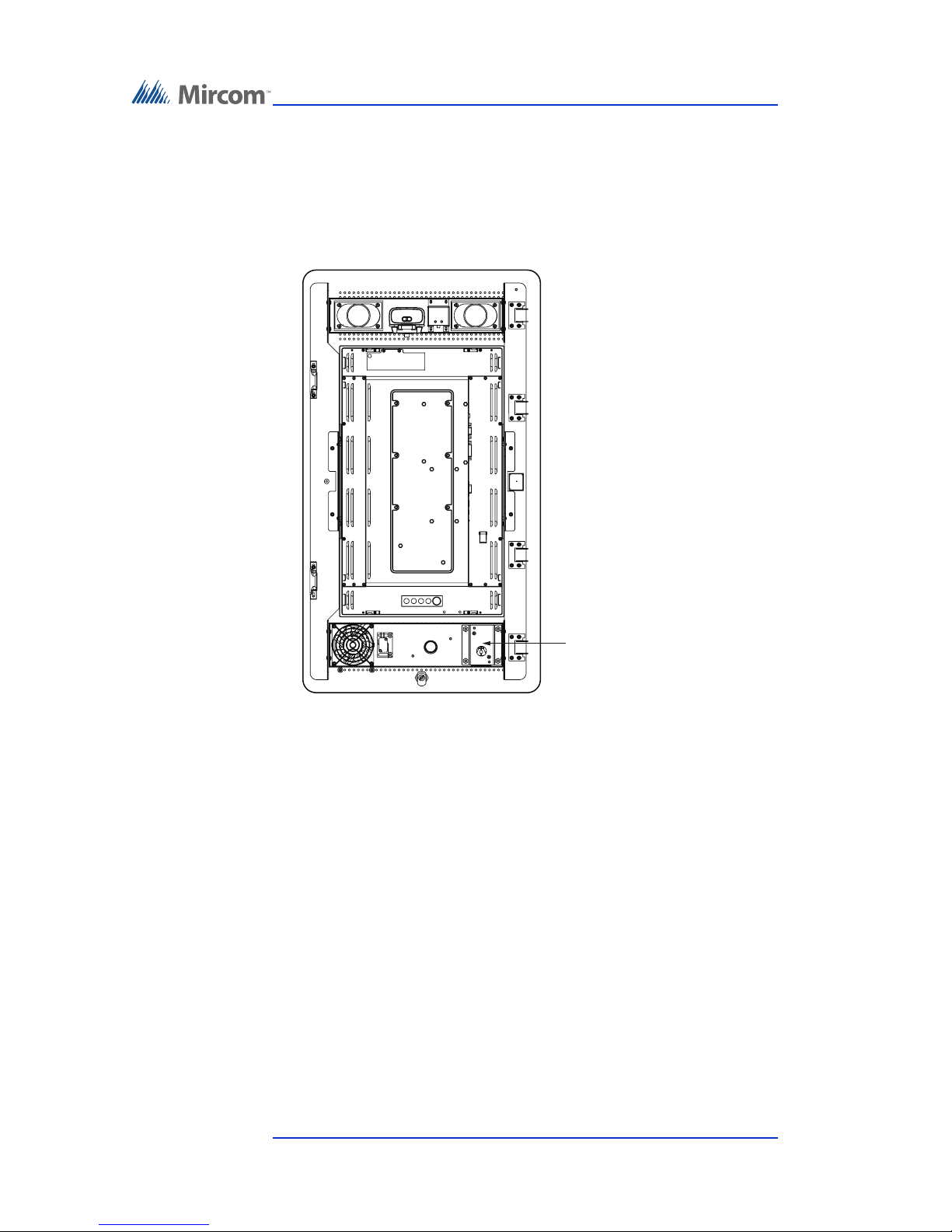

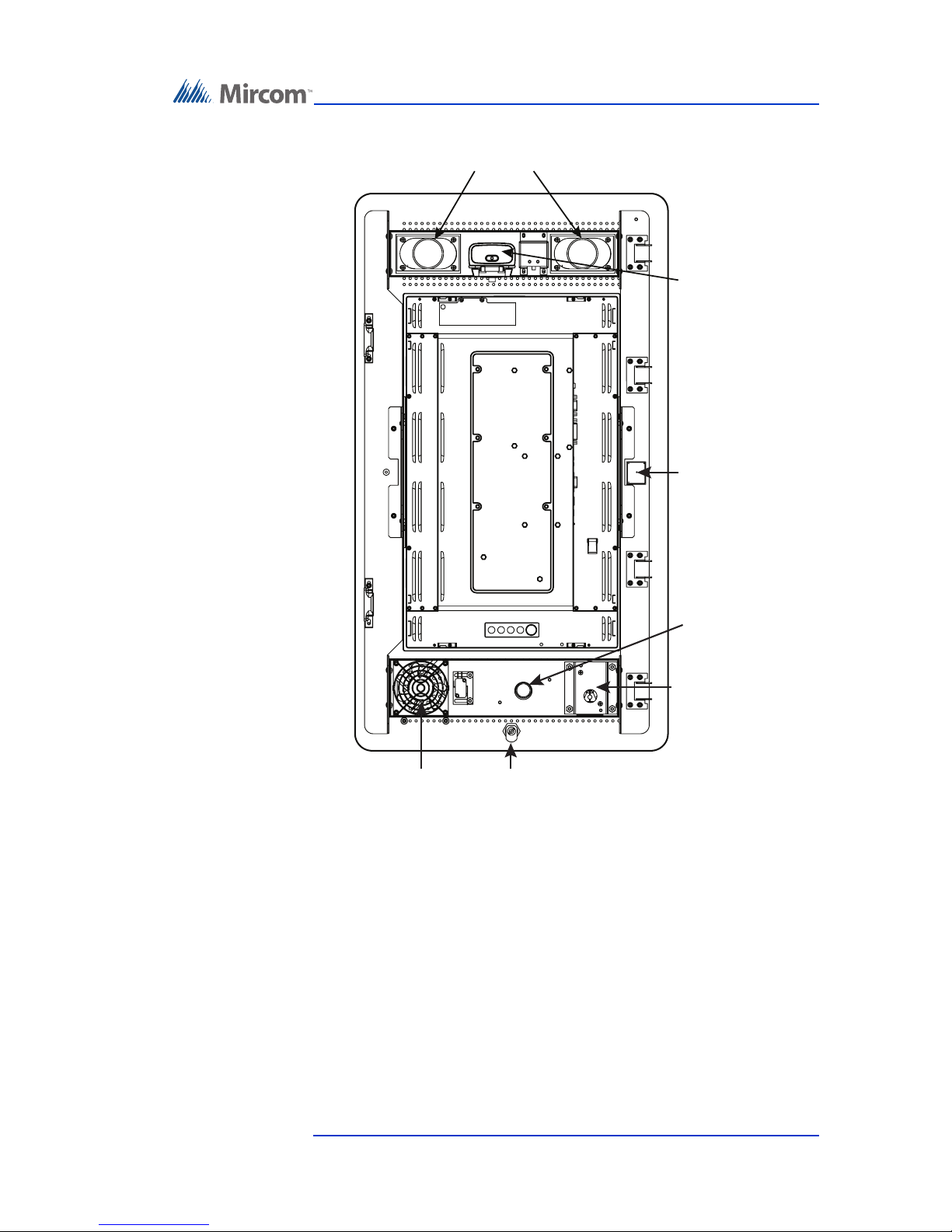

Figure 40 22” Touch Screen Inside Door 57

Figure 41 Controller Board Panel for 15” Touch Screens 58

Figure 42 Controller Board Panel for 22” Touch Screens 59

Figure 43 Controller Board Connectors - Top 60

Figure 44 Controller Board Connectors - Bottom 61

Figure 45 Grounding the 22” Touch Screen 62

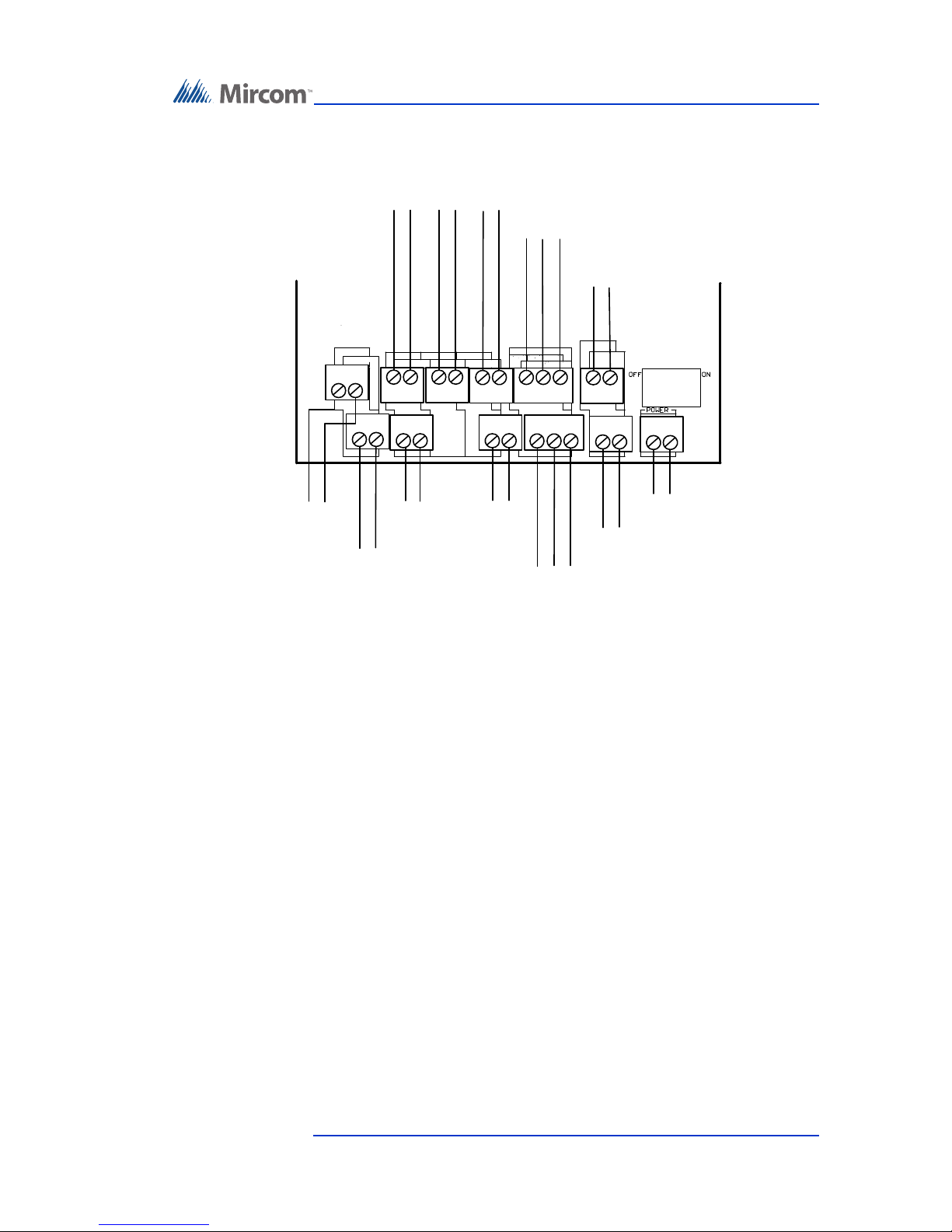

Figure 46 MD-990 Terminal Block Wiring 63

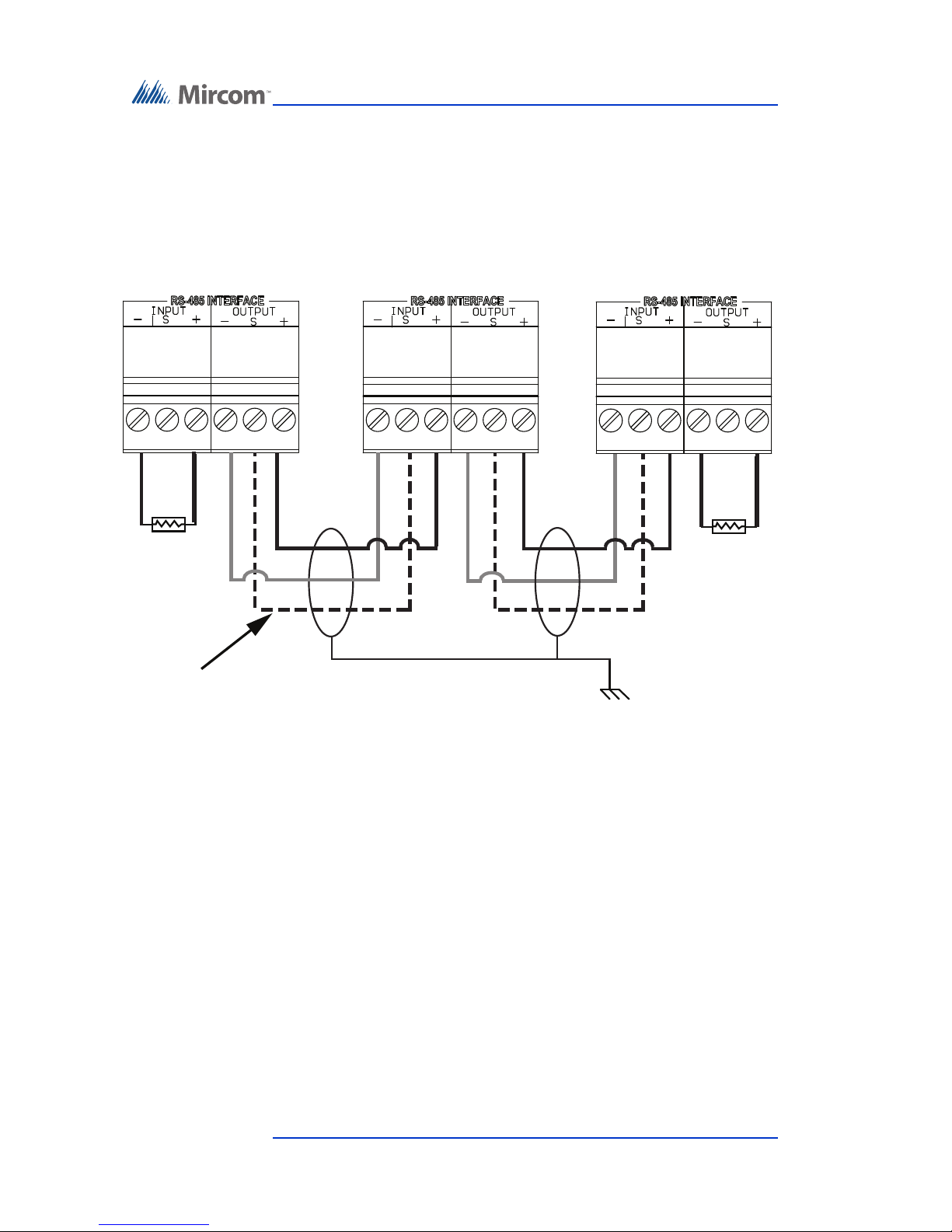

Figure 47 Connecting additional RS-485 Terminal Connector to the First or Last Node of

Network 66

Figure 48 Position of the camera on the 22” Touch Screen door 69

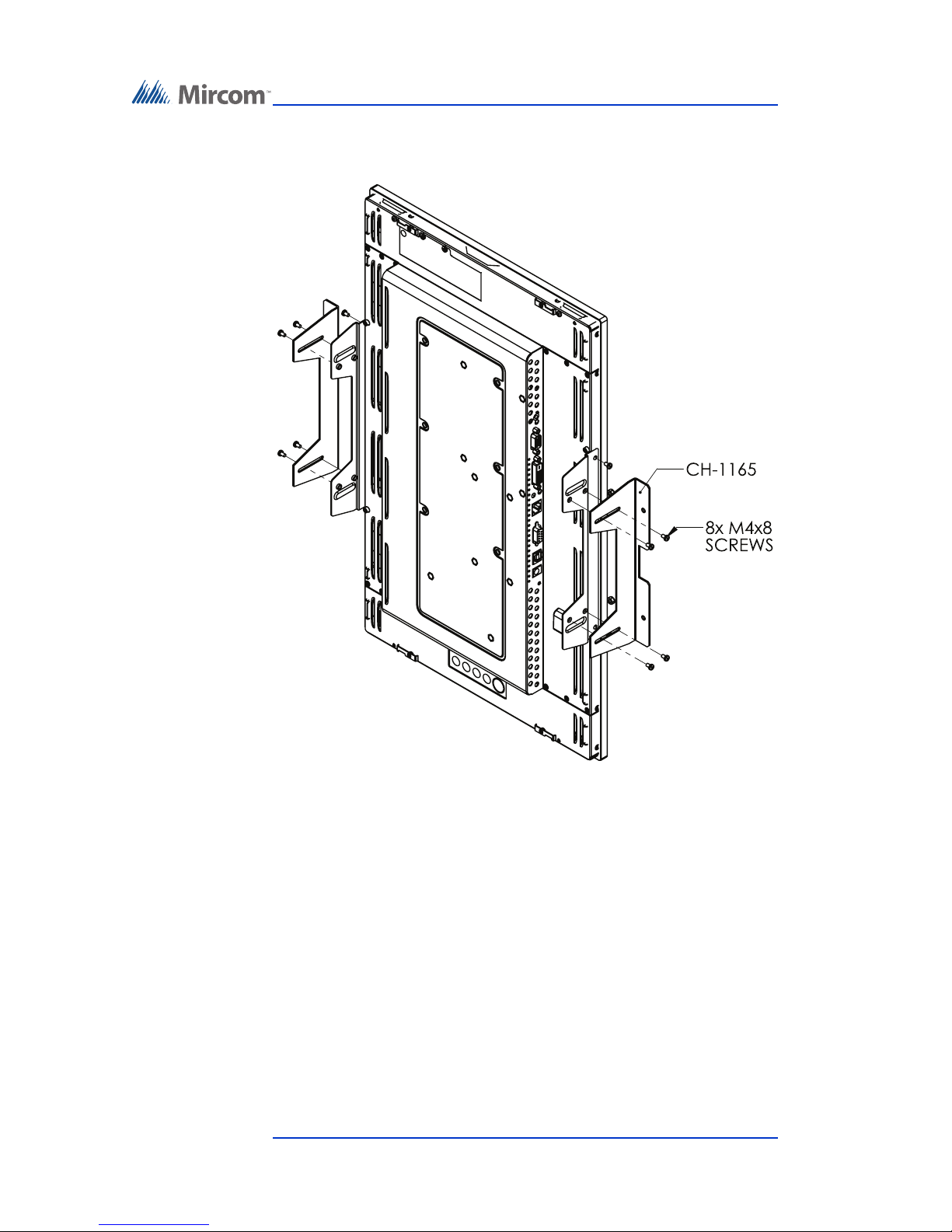

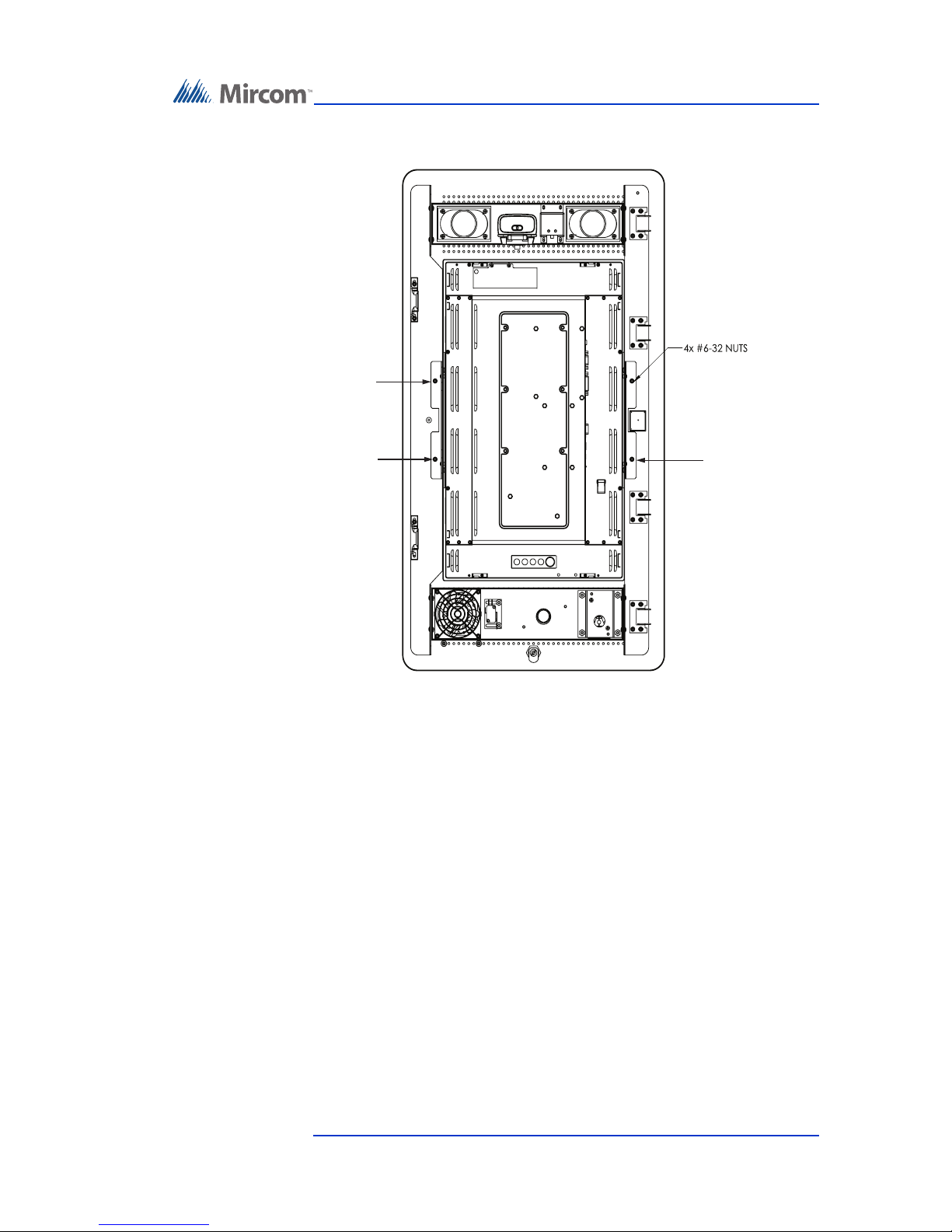

Figure 49 Inside of door showing position of the four #6-32 nuts 71

Figure 50 The two brackets (CH-1165) holding the display 72

Figure 51 Power button 73

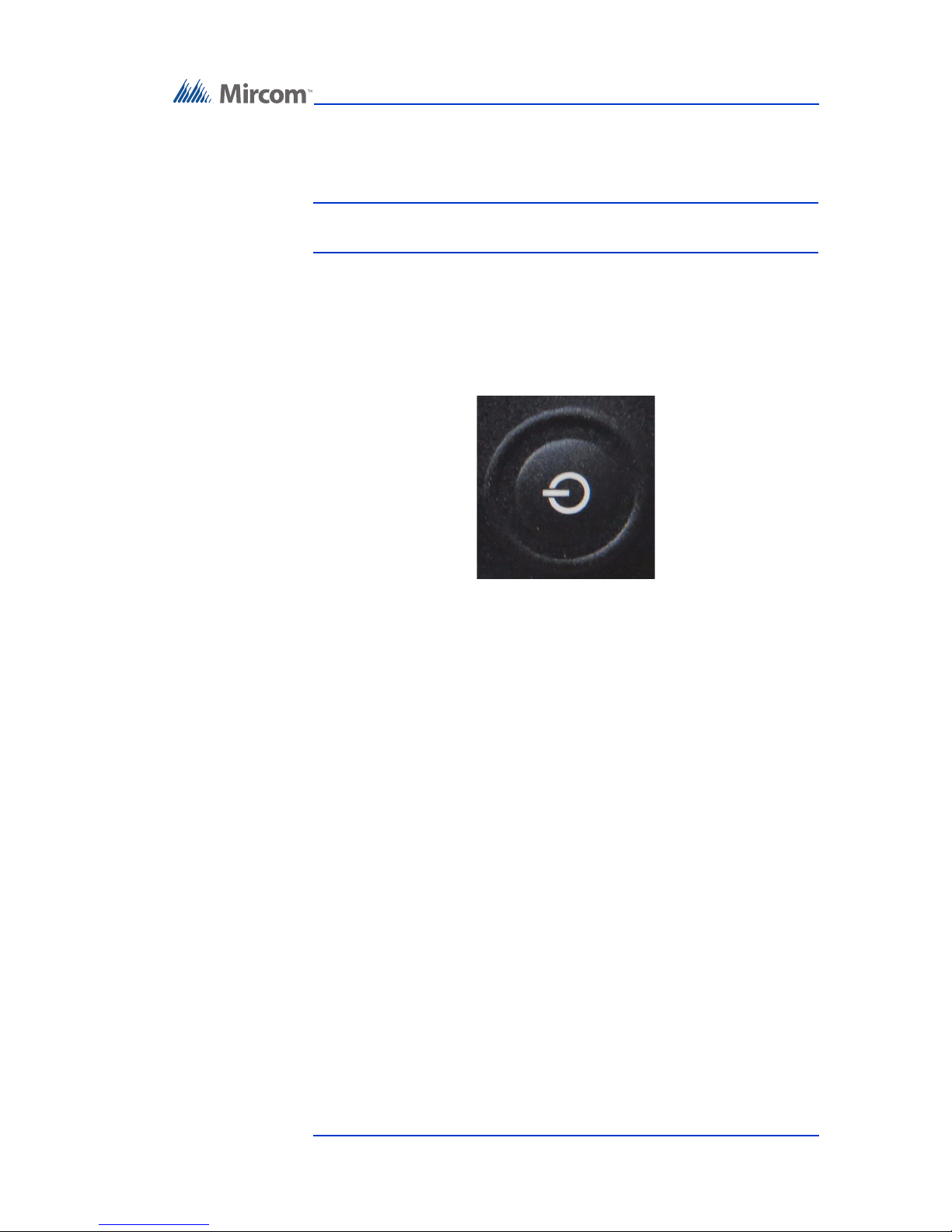

Figure 52 Position of the TX3-P300-HA Card Reader 74

Figure 53 The TX3-P300-HA Card Reader 75

Figure 54 TX3-P300-HA and Bracket 75

Page 7

Introduction

This manual provides information about the installation and operation of the Touch Screen, and must be read in its entirety before beginning any installation work.

Installation must be performed by a qualified technician and must adhere to the standards and special notices set by the local regulatory bodies.

Note: Mircom periodically updates panel firmware and Configurator

Software to add features and correct any minor inconsistencies. For information about the latest firmware or software visit the Mircom website at www.mircom.com.

For warranty and special notices information see the Warranty and Special Notices chapter on page 87.

Warning: The Touch Screen assembly must be grounded by a qualified

electrician. An improperly grounded unit can result in equipment malfunction and electrical shock.

This manual explains

• Touch Screen System

• Installation and Setup

• TX3 Integration

• Resident Operating Instructions

Page 8

8 (93) TX3 Touch Screen Installation Manual Version 3.4

Introduction

1.1 TX3 Systems

The Mircom's TX3 series of Touch Screens provide high quality two-way communication between residents and their visitors in a multi-unit dwelling establishment.

The basic TX3 system consists of the TX3 Touch Screen and depending on the application, may be integrated with a combination of Mircom Telephone Access, Card Access, and Elevator Restriction Units. All access systems may be networked together using a peer-to-peer RS-485 network, an ethernet TCP/IP network, or a combination of a TCP/IP network with RS-485 subnetworks.

A maximum of 63 units are supported on an RS-485 network or subnetwork. Valid network addresses range from 1 to 63. Units with a real time clock, such as Touch Screens and Card Access Units, require the address node to be 1. If you are using an ethernet TCP/IP network or a combination of a TCP/IP network with RS-485 subnetworks you can add much more than 63 devices to your system. For more information, see section 1.1.3, Other Controllers in this chapter.

The TX3 system is capable of providing ADC or NSL type telephone access control from a single panel or from a networked system.

The access system can be configured as an autodialer controller (ADC) or as a no subscriber line (NSL) system. Both system setups can be configured for multiple entrances with independent doors and control devices such as electric door locks, cameras, and garage doors.

1.1.1 ADC and NSL Capability

TX3 supports full ADC and NSL telephone connectivity from a single Touch Screen panel or from a networked system. A single panel supports up to five ADC and/or NSL telephone lines.

1.1.2 Elevator Restriction Units

The TX3-ER-8 Elevator Restriction Unit limits building accessibility by granting visitor access only to the destination floor.

1.1.3 Other Controllers

Mircom devices, such as the Touch Screen and the Lobby Control Unit, can be networked with the TX3 system through a peer-to-peer RS-485 network, an ethernet TCP/IP network, or a combination of an ethernet network with RS-485 subnetworks.

Page 9

Introduction

The TX3 Configurator software can connect to any of these network configurations. How you connect to the network (that is, through TCP/IP, USB, a modem, or the COM port) determines what devices you can configure on the system. The different network configurations are explained in the rest of this section.

Figure 1 shows a configuration with TX3 controllers connected on an RS-485 network. Each controller has to have a unique network address on the RS-485 network. Up to 63 unique network addresses can be assigned. If you connect to any device on the RS-485 network (using USB, a modem, or the COM port), you can also connect to and configure any other device on the RS-485 network using the TX3 Configurator.

Figure 1. TX3 devices on an RS-485 network.

Figure 2 shows a configuration with TX3 devices connected to an ethernet TCP/ IP network. This configuration removes the 63 device limitation that you have on an RS-485 network. The devices connected to an ethernet TCP/IP network are called Master Nodes. If you connect to the TCP/IP network with the TX3 Configurator, you can connect to and configure any of the Master Nodes on the

RS-485 Network

Card Reader B

Card Reader A

Card Access Controller

ouch Screen Unit

Elevator Restriction Unit

Page 10

10 (93) TX3 Touch Screen Installation Manual Version 3.4

Introduction

ethernet TCP/IP network. If you connect directly to one of the Master Nodes using USB, a modem, or a COM port, you will be able to configure that device but not any other device.

Figure 2. TX3 devices connected to an ethernet TCP/IP network. Devices

connected to an ethernet network are Master Nodes.

Notes: In order for a panel to be a Master Node it must satisfy the following

conditions.

• It must be IP capable. Panels that are IP capable are usually denoted by a “-A” at the end of their model names.

• If the panel is not a Touch Screen, it must have a TX3-IP IP Module installed.

Card Reader B

Card Reader A

Card Access Controller

(Master Node)

Ethernet Network

Elevator Restriction Unit

(Master Node)

Touch Screen Unit

(Master Node)

Page 11

Introduction

Figure 3 shows a configuration with TX3 devices connected on both an ethernet TCP/IP network and on RS-485 subnetworks. Devices connected to a Master Node’s RS-485 subnetwork are Slave Nodes to the Master Node. Each RS-485 subnetwork can have up to 63 devices connected to it; you can still have more than 63 Master Nodes connected to the ethernet network.

Figure 3. TX3 devices connected to a combination ethernet TCP/IP

network with RS-485 subnetworks.

If you connect to the ethernet TCP/IP network with the TX3 Configurator, you can configure any of the nodes in this configuration. If you connect directly to a device using USB, a modem, or a COM port, you will only be able to configure devices that are on the same RS-485 subnetwork as that device.

Note: Normally, there can only be one Master Node on an RS-485

subnetwork. That is, you cannot connect one RS-485 subnetwork to another RS-485 subnetwork. However, if you want to connect to a Touch Screen panel remotely over the Internet (for instance, to

RS-485 Subnetwork

Touch Screen

(Slave Node)

Card Reader B

Card Reader A

Card Access Controller

(Slave Node)

Card Reader B

Card Reader A

Card Access Controller

(Slave Node)

RS-485 Subnetwork

Ethernet Network

Lobby Control Unit

(Master Node)

ABC3DEF

JKL

MNO

GHI

TUV9WXYZ

PQRS

Lobby Control Unit

(Master Node)

ABC3DEF

JKL

MNO

GHI

TUV9WXYZ

PQRS

Elevator Restriction Unit

(Slave Node)

Page 12

12 (93) TX3 Touch Screen Installation Manual Version 3.4

Introduction

configure Touch Screen options such as color and themes), the Touch Screen panel must be set as an Master Node even if there is no slave panel connected to it.

1.2 Features

Features of the TX3 series include:

• Stainless steel front panel

• Large touch screen display that eliminates the need for an external directory

• Provisions for postal lock and camera

• Multilingual Display and Voice Greeting (English, French-Canadian and Spanish) that provides instructions on how to use the Touch Screen

• Concierge/Security Desk/Guard Phone capability

• Card Access Interface

• Supports both Auto Dialer (ADC) and NSL (no phone bill)

• Ability to network panels together (peer-to-peer)

• Hands free, full duplex communication

• Flexible one to four digit resident dial codes

• Dials up to 18-digit telephone numbers

• System can be configured locally using the touchscreen or a computer with the TX3 configuration software

• Upload/download configuration files without taking the whole system offline

• Programming from one location

• Records a maximum of 5000 event logs

• Elevator restriction capability

• Schedule-based call restrictions provide more security and flexibility

• Capability of one person testing the NSL controller without using the Touch Screen

• Industry Canada and F.C.C. approved

1.3 Touch Screen Sizes and Enclosures

There are three types of enclosures for the 15 inch Touch Screen: kiosk, surface mount, and flush mount.

Page 13

Introduction

1.3.1 15 Inch Models

The 15 inch Touch Screen models are stand alone, surface or flush mounted.

TX3-TOUCH-K15-A. 15” Touch Screen kiosk, stainless steel finish Touch Screen with speaker, microswitch for postal lock and a PS-4P transformer plug. Designed for indoor use. The TX3-TOUCH-K15-A can be configured as a Master Node on an ethernet network.

TX3-TOUCH-F15-A. 15” Touch Screen flush mount, stainless steel finish Touch Screen with speaker, microswitch for postal lock, flush mounting back box and a PS-4P transformer plug. Designed for indoor use. Can be configured as a Master Node on an ethernet network.

TX3-TOUCH-S15-A. 15” Touch Screen surface mount, stainless steel finish Touch Screen with speaker, microswitch for postal lock, flush mounting back box and a PS-4P transformer plug. Designed for indoor use. Can be configured as a Master Node on an ethernet network.

1.3.2 22 Inch Models

The 22 inch Touch Screen models are surface or flush mounted.

TX3-TOUCH-S22. 22” Touch Screen surface mount, stainless steel finish Touch Screen with speaker, microswitch for postal lock, surface mounting back box and a PS-4P transformer plug. Designed for indoor use. The TX3-TOUCHS22 can be configured as a Master Node on an ethernet network.

TX3-TOUCH-F22. 22” Touch Screen flush mount, stainless steel finish Touch Screen with speaker, microswitch for postal lock, flush mounting back box and a PS-4P transformer plug. Designed for indoor use. The TX3-TOUCH-F22 can be configured as a Master Node on an ethernet network.

1.4 Touch Screen Accessories

The Touch Screen accessories consist of the following items:

• TX3-T-KIOSK: Black free standing mount for TOUCH Series

•CAM-2 TX3 Camera

• TX3-GPM Guard Phone Module

•Postal Lock

• TX3-USB-AD Kit

Page 14

14 (93) TX3 Touch Screen Installation Manual Version 3.4

Introduction

1.5 Warranty and Special Notices

Mircom values your business and always attempts to provide you with the very best service.

Please see the Warranty and Special Notices chapter on page 87 for information about the warranty and special notices about equipment use.

1.6 About This Manual

This manual provides comprehensive information on the installation and configuration of the TX3 Series Touch Screen by the installation technician. Tasks are described in the order that they are likely to be performed.

This manual applies to the following models:

• TX3-TOUCH-K15-A

• TX3-TOUCH-F15-A

• TX3-TOUCH-S15-A

•TX3-TOUCH-S22

•TX3-TOUCH-F22

• TX3-T-KIOSK

1.6.1 Version Control

The version number appears on the front cover and changes whenever there is a major or minor update to any part of the system regarding operation or configuration.

The following convention indicates major or minor changes:

Initial release. Version 1.00.0

Major change. Version 2.00.0

Minor change. Version 2.01.0

Pre-release changes. Version 2.01.1

1.6.2 Additional Documentation

For additional documentation, see the following Mircom literature:

• TX3 Configuration and Administrator Manual LT-995

Page 15

Introduction

• TX3-Telephone Access System Installation and Operation Manual LT-

969

• TX3-CX Card Access System Installation and Operation Manual LT-980

• TX3-CX-A8 Aperio Interface Panel Installation and Operation Manual

LT-1160

• TX3 Two Door Card Access System Kit Catalogue Number 6531

• TX3 Series Elevator Restriction Accessories Catalogue Number 6532

1.7 Contact Us

Mircom fosters a collaborative support process and environment in providing early feedback to meet your specific needs.

You can contact us from Monday to Friday 8:00 A.M. to 5:00 P.M. E.S.T.

1.7.1 General Inquiries

For general inquiries call us at the following numbers:

Toll Free: 1-888-660-4655

Local: 905-660-4655

1.7.2 Customer Service

Customer service is available at the following numbers:

Toll Free: 1-888-MIRCOM5

Local: 905-695-3535

Local Fax: 905-660-4113

Toll-Free Fax: 1-888-660-4113

Page 16

16 (93) TX3 Touch Screen Installation Manual Version 3.4

Introduction

1.7.3 Website

Visit the Mircom website, at www.mircom.com, to find the product information you are looking for and to learn about troubleshooting, training and technical support options.

The website provides avenues for customers to ask questions about new and existing technologies, and receive expert technical support about software and products. Visit www.mircom.com/chat.

1.7.4 Email

As a customer you quickly become informed on how we can help with new products and technologies. Contact Mircom at [email protected].

1.7.5 Technical Support

For technical support contact Mircom’s Technical Support Department between 8 A.M. and 5 P.M. (EST) Monday through Friday, excluding holidays.

Toll Free: 1-888-MIRCOM5

Local: 905-695-3535

Local Phone: 905-660-4655

Toll Free Phone: 1-888-660-4655

Email: [email protected]

Page 17

Enclosure Installation

This chapter provides information on how to install the various enclosures and pre-assembled components.

This chapter explains

• Installing the 15” Kiosk - page 19

• Installing the 15” Touch Screen Surface Mount Enclosure - page 25

• Installing the 15” Touch Screen Flush Mount Enclosure - page 28

• Installing the 22” Touch Screens - page 32

• Assembling the TX3-T-KIOSK Stand - page 38

• Installing the Power Supply Enclosure - page 46

Page 18

18 (93) TX3 Touch Screen Installation Manual Version 3.4

Enclosure Installation

2.1 Installing the Enclosures and Touch Screen

The Touch Screen Kiosk, Surface Mount and Flush Mounts units consist of the following pre-assembled components:

Kiosk. The kiosk is a pedestal mounted Touch Screen TX3-TOUCH-K15-A unit and consists of the following components:

• Touch Screen Base Plate

• Touch Screen Kiosk

• Touch Screen Panel

• Touch Screen Speakers

• Touch Screen Frame

• Touch Screen Door

Surface Mount. The surface mount unit is a TX3-TOUCH-S15-A or TX3TOUCH-S22 unit and consists of the following components:

• Touch Screen Enclosure

• Touch Screen Panel

• Touch Screen Speakers

• Touch Screen Frame

• Touch Screen Door

Flush Mount. The surface mount unit is a TX3-TOUCH-F15-A or TX3TOUCH-F22 unit and consists of the following components:

• Touch Screen Enclosure

• Touch Screen Panel

• Touch Screen Speakers

• Touch Screen Frame

• Touch Screen Door

Page 19

Enclosure Installation

2.2 Installing the 15” Kiosk

Figure 4. Kiosk Dimensions (inches)

The Kiosk mounts to the floor inside the building near the entrance, close to the power source and telephone infrastructure. Access for the power and communication cables is provided through a cutout in the base plate.

To install the Kiosk you must:

• Remove the reinforcement bracket and the base plate.

• Attach the base plate to the floor, and run the wiring through the base plate

opening.

• Attach the Kiosk to the base plate.

• Attach the reinforcement bracket to the Kiosk.

Follow the instructions below to complete these steps.

You will need:

4 bolts to attach the base plate to the floor. The holes in the base plate are 0.406” in diameter.

17.950

50.0

14.187

Page 20

20 (93) TX3 Touch Screen Installation Manual Version 3.4

Enclosure Installation

To install the Touch Screen Kiosk base plate

1. Find a suitable location for the Kiosk next to the building entrance and above the building electrical and communications conduit.

2. Remove the door from the Kiosk.

3. Remove the 4 bolts from the reinforcement bracket, as shown in Figure 5.

Figure 5. Reinforcement Bracket with bolts

4. Remove the 6 nuts on the reinforcement bracket, as show in Figure 6, and then remove the bracket.

Page 21

Enclosure Installation

Figure 6. Reinforcement Bracket with nuts

5. Remove the remaining 8 bolts that attach the Kiosk to the base plate, as

shown in Figure 7.

Figure 7. Kiosk Base Plate with bolts

The 12 Kiosk mounting holes in the base plate are shown in Figure 8.

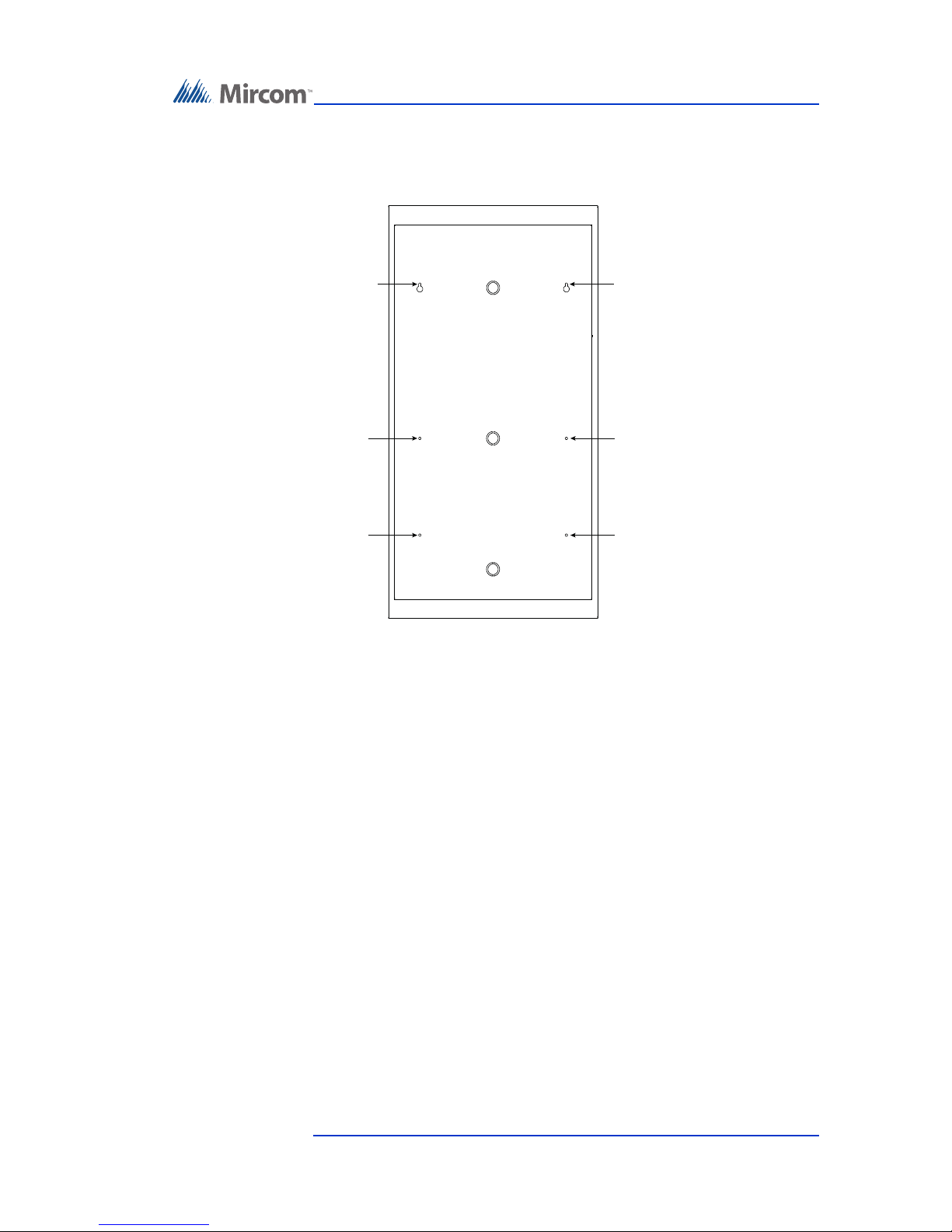

Figure 8. Kiosk Mounting Holes

Page 22

22 (93) TX3 Touch Screen Installation Manual Version 3.4

Enclosure Installation

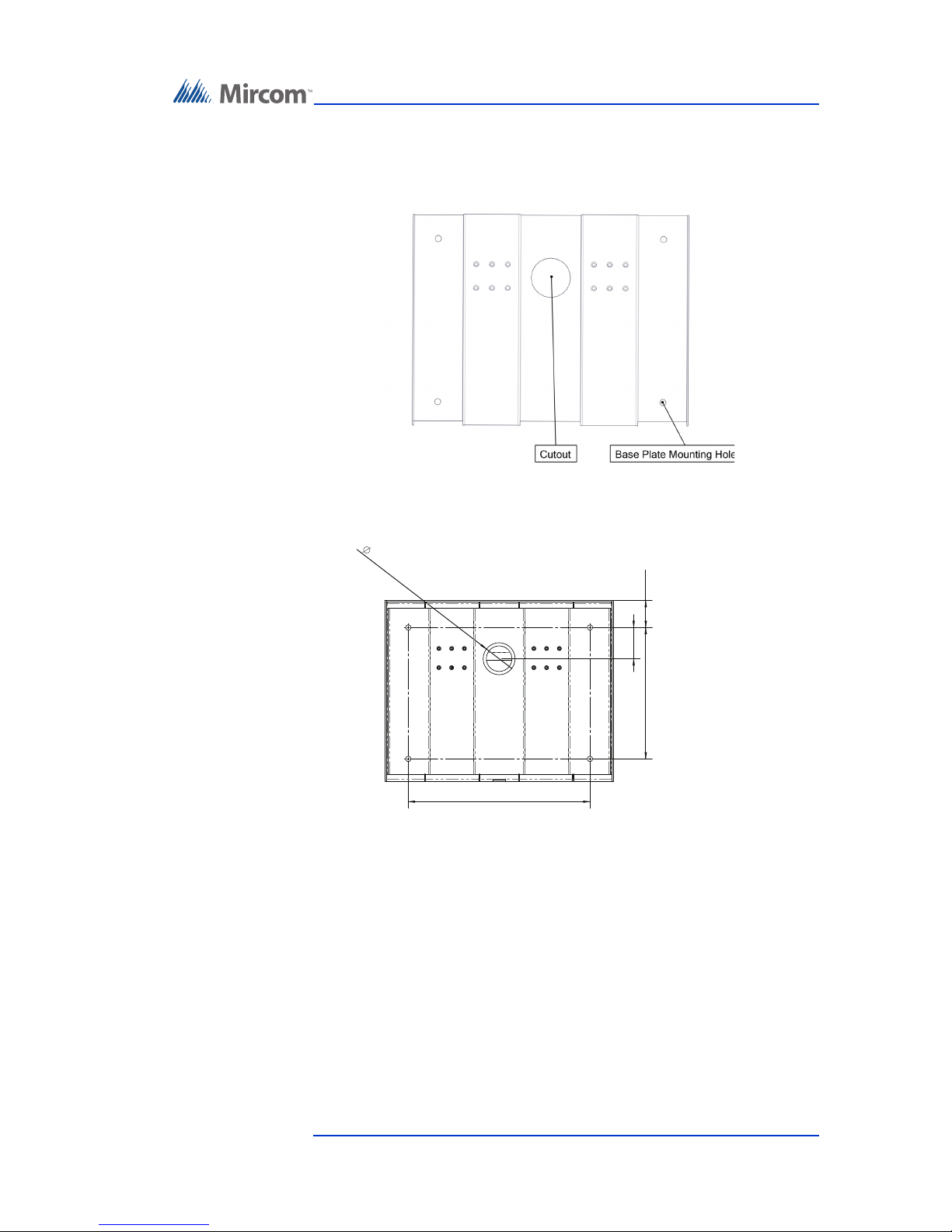

6. Using the Kiosk base plate as a template, trace an opening in the floor for the cutout and mark the 4 base plate mounting hole locations as shown in Figure 9. Ensure that the base plate is aligned with the electrical conduit.

Figure 9. Base Plate Mounting Holes

Figure 10 shows the dimensions of the base plate.

Figure 10. Base Plate Dimensions (inches)

7. Cut an opening in the floor for the electrical and communication cables.

8. Run the wires through the base plate opening.

9. Secure the base plate to the floor using 4 bolts in the base plate mounting holes shown in Figure 9. The holes are 0.406” in diameter.

10.300

14.244

2.500

2.450

2.107

Page 23

Enclosure Installation

To fit the Touch Screen Kiosk on the base plate

1. Fit the back lip of the Kiosk into the notches in the baseplate, and tilt the

Kiosk forwards so that it rests on top of the base plate.

Figure 11. Fitting the Kiosk on the Base Plate

Figure 12. Fitting the Kiosk on the Base Plate (from

below)

Page 24

24 (93) TX3 Touch Screen Installation Manual Version 3.4

Enclosure Installation

2. Secure the Kiosk onto the base plate using the 8 of the 12 base plate bolts in the holes shown in Figure 13.

Figure 13. Attach the Kiosk to the base plate

3. Position the reinforcement bracket over the 6 studs on the inside of the Kiosk, and screw the 6 nuts on to the studs as shown in Figure 6.

4. Secure the reinforcement bracket to the base plate using the remaining 4 base plate bolts in the remaining 4 holes in the base plate.

5. Fit the door to the Kiosk.

6. Proceed with the wiring installation described in Chapter 3.

Attach the Kiosk to the base plate with bolts in these holes rst

Page 25

Enclosure Installation

2.3 Installing the 15” Touch Screen Surface Mount Enclosure

Figure 14. 15” Touch Screen Surface Mount Back

Dimensions (inches)

24.360

12.759

20.759

18.920

12.600

3.093

14.068

0.213

0. 213

3.500

Page 26

26 (93) TX3 Touch Screen Installation Manual Version 3.4

Enclosure Installation

Figure 15. 15” Touch Screen Surface Mount Front

Dimensions (inches)

The surface mount enclosure mounts on the wall. Mount the enclosure right-side up (the Mircom logo on the door is on the bottom).

You need:

• 6 fasteners appropriate for the wall that you are mounting the enclosure on.

26.200

19.000

3.622

0.120

Page 27

Enclosure Installation

Figure 16. Touch Screen Surface Mount

To install the surface mount enclosure

1. Find a suitable location for the enclosure.

2. Using the enclosure as a template, mark the back mounting locations of the two keyholes as shown in Figure 16. Ensure that at least one side is over a wall stud.

3. Remove the enclosure and place the fasteners halfway into the wall into the marked hole locations.

4. Place the enclosure onto the fasteners and lower it so that the fasteners fit in the narrow part of the keyholes.

5. Screw the other four fasteners into the four remaining holes.

6. Tighten all fasteners into place.

Page 28

28 (93) TX3 Touch Screen Installation Manual Version 3.4

Enclosure Installation

2.4 Installing the 15” Touch Screen Flush Mount Enclosure

Figure 17. 15” Touch Screen Flush Mount Back

Dimensions (inches)

12.600

18.000

12.750

20.750

2.825

13.800

0.213

23.825

3.500

2.500

21.225

0.218

1.400

1.200

Page 29

Enclosure Installation

Figure 18. 15” Touch Screen Flush Mount Front

Dimensions (inches)

The flush mount enclosure mounts directly inside the wall to the wall stud or supporting structure as shown in Figure 19. Mount the enclosure flush with the wall and right-side up (the knock out is at the bottom).

You need:

• 6 fasteners appropriate for the wall that you are mounting the enclosure on.

26.200

19.000

3.622

0.120

2.500

21.225

1.400

Page 30

30 (93) TX3 Touch Screen Installation Manual Version 3.4

Enclosure Installation

Figure 19. Flush Mount Enclosure

To install the flush mount enclosure

1. Find a suitable location for the enclosure. You can mount the enclosure using the keyholes on the back, or the knockouts on the side, or both.

2. Using the enclosure as a template, trace an opening in the wall for the cutout with one side aligned with the side of the wall stud.

3. Cut an opening in the wall 0.1 inch larger than the trace ensuring that one side is aligned with the wall stud or supporting structure.

4. Insert the enclosure into the wall cutout and using the side of the enclosure as a template mark the hole mounting locations (either keyholes or knockouts or both).

Wall

Front

Frame

Side View

Enclosure

To p

GROUND SCREW LOCATION

Enclosure

Page 31

Enclosure Installation

5. If you are using the keyholes, remove the enclosure and place 2 fasteners

halfway into the wall into the marked keyhole locations. Then place the enclosure onto the top fasteners and lower it so that the fasteners fit in the narrow part of the keyholes.

6. Screw the other fasteners into the remaining holes or knockouts.

7. Tighten all fasteners into place.

Page 32

32 (93) TX3 Touch Screen Installation Manual Version 3.4

Enclosure Installation

2.5 Installing the 22” Touch Screens

Attention: The 22” Touch Screen enclosure is heavy. Never attempt to lift this

product by yourself. At least two people should lift it together.

2.5.1 Installing the Surface Mount Enclosure

The surface mount enclosure mounts on the wall. Mount the enclosure right-side up (the Mircom logo on the door is on the bottom).

You need:

6 fasteners appropriate for the wall that you are mounting the enclosure on.

To surface mount the enclosure

1. Find a suitable location for the surface mount enclosure over a wall stud.

Attention: To comply with ADA regulations, the bottom of the enclosure must

be no more than 36 inches from the ground.

Page 33

Enclosure Installation

2. Using the surface mount enclosure as a template, mark the back mounting

hole locations of the two keyholes as shown in Figure 20. Ensure that at least one side is over a wall stud.

Figure 20 Surface mounting the enclosure

3. Remove the enclosure and place the top two fasteners halfway into the

marked hole locations and wall stud.

4. Place the enclosure onto the two fasteners and lower it so that the fasteners

fit in the narrow part of the keyholes.

5. Screw the other four fasteners into the four remaining holes.

6. Tighten all six fasteners into place.

7. Close the door until it clips into place.

2.5.2 Installing the Flush Mount Enclosure

The flush mount enclosure mounts directly inside the wall to the wall stud or supporting structure. Mount the enclosure flush with the wall and right-side up (the Mircom logo on the door is on the bottom).

Keyhole Keyhole

screw

Page 34

34 (93) TX3 Touch Screen Installation Manual Version 3.4

Enclosure Installation

You need:

6 fasteners appropriate for the wall that you are mounting the enclosure on.

To flush mount the enclosure

1. Find a suitable location for the flush mount enclosure beside a wall stud.

Attention: To comply with ADA regulations, the bottom of the enclosure must

be no more than 36 inches from the ground.

2. Using the enclosure as a template, trace an opening in the wall for the cut out with one side aligned with the side of the wall stud.

3. Cut an opening in the wall 0.1 inch larger than the trace ensuring that one side is aligned with the wall stud or supporting structure.

4. Insert the enclosure into the wall cutout and using the enclosure as a template, mark the back mounting hole locations of the two keyholes as shown in Figure 21. Ensure that at least one side is beside a wall stud.

Figure 21. Flush mounting the enclosure

Keyhole

screw

Page 35

Enclosure Installation

5. Remove the enclosure and place the fasteners halfway into the wall into

the marked hole locations.

6. Place the enclosure onto the top fasteners and lower it so that the fasteners

fit in the narrow part of the keyholes.

7. Screw the other four fasteners into the four remaining holes.

8. If the enclosure needs extra support, remove the knock-outs on the side

next to the wall stud, and screw additional fasteners into the wall stud.

9. Tighten all fasteners into place.

10. Close the door until it clips into place.

Attention: To comply with ADA regulations, the bottom of the enclosure must

be no more than 36 inches from the ground.

Page 36

36 (93) TX3 Touch Screen Installation Manual Version 3.4

Enclosure Installation

Figure 22. 22” Touch Screen Flush Mount Dimensions

(inches)

32.000

18.000

4.000

4.177

31.000

12.600

12.750

8.000

12.450

10.825

5.225

17.000

Page 37

Enclosure Installation

Figure 23 22” Touch Screen Surface Mount Dimensions

(inches)

34.118

18.000

70.00°

(X2)

17.000

31.000

12.600

20.350

2.500

5.325

10.825

5.225

4.125

Page 38

38 (93) TX3 Touch Screen Installation Manual Version 3.4

Enclosure Installation

2.6 Assembling the TX3-T-KIOSK Stand

Figure 24. 22” Touch Screen Dimensions (inches)

18.20

53.35

18.00

30°

15.19

21.23

Page 39

Enclosure Installation

Figure 25. 15” Touch Screen Dimensions (inches)

The Kiosk mounts to the floor inside the building near the entrance, close to the building power source and telephone infrastructure. Access for the power and communication cables is provided through a cutout in the base plate.

Note: Avoid placing the Touch Screen in direct sunlight.

The kit includes:

• 1 stand

• 1 base plate

• 8 #1/4-20 NC screws for attaching the stand to the base plate

• 8 screw covers

• 8 screw cover bases

• 6 #8-32 nuts for attaching the Touch Screen to the stand

18.20

19.00

51.06

15.19

30°

19.42

Page 40

40 (93) TX3 Touch Screen Installation Manual Version 3.4

Enclosure Installation

You will need:

• 4 bolts to attach the base plate to the floor. The bolts need to fit holes that are 0.406” in diameter.

Figure 26. Components of TX3-T-KIOSK

1. Ensure that the base plate is aligned with the electrical conduit.

Base plate

Screw cover base (x8)

Screw (x8)

Screw cover (x8)

Stand

Nuts (x6)

Page 41

Enclosure Installation

2. Using the base plate as a template, trace an opening on the floor for the

cutout and mark the 4 base plate mounting hole locations as shown in Figure 27.

Figure 27. Base Plate Mounting Holes

Figure 28 shows the dimensions of the base plate.

Figure 28. Base Plate Dimensions (inches)

3. Cut an opening in the floor for the electrical and communication cables.

4. Run the wires through the base plate opening.

5. Secure the base plate to the floor using 4 bolts in the base plate mounting

holes shown in Figure 27. The holes are 0.406” in diameter.

10.300

14.244

2.500

2.450

2.107

Page 42

42 (93) TX3 Touch Screen Installation Manual Version 3.4

Enclosure Installation

To fit the TX3-T-KIOSK stand on the base plate

1. Fit the back lip of the stand into the notches in the baseplate, and tilt the stand forwards so that it rests on top of the base plate.

Figure 29. Fit the stand on the Base Plate

Figure 30. Fit the stand on the Base Plate (from below)

Page 43

Enclosure Installation

2. Secure the stand onto the base plate using the screw cover bases, screws,

and screw covers as show in Figure 31.

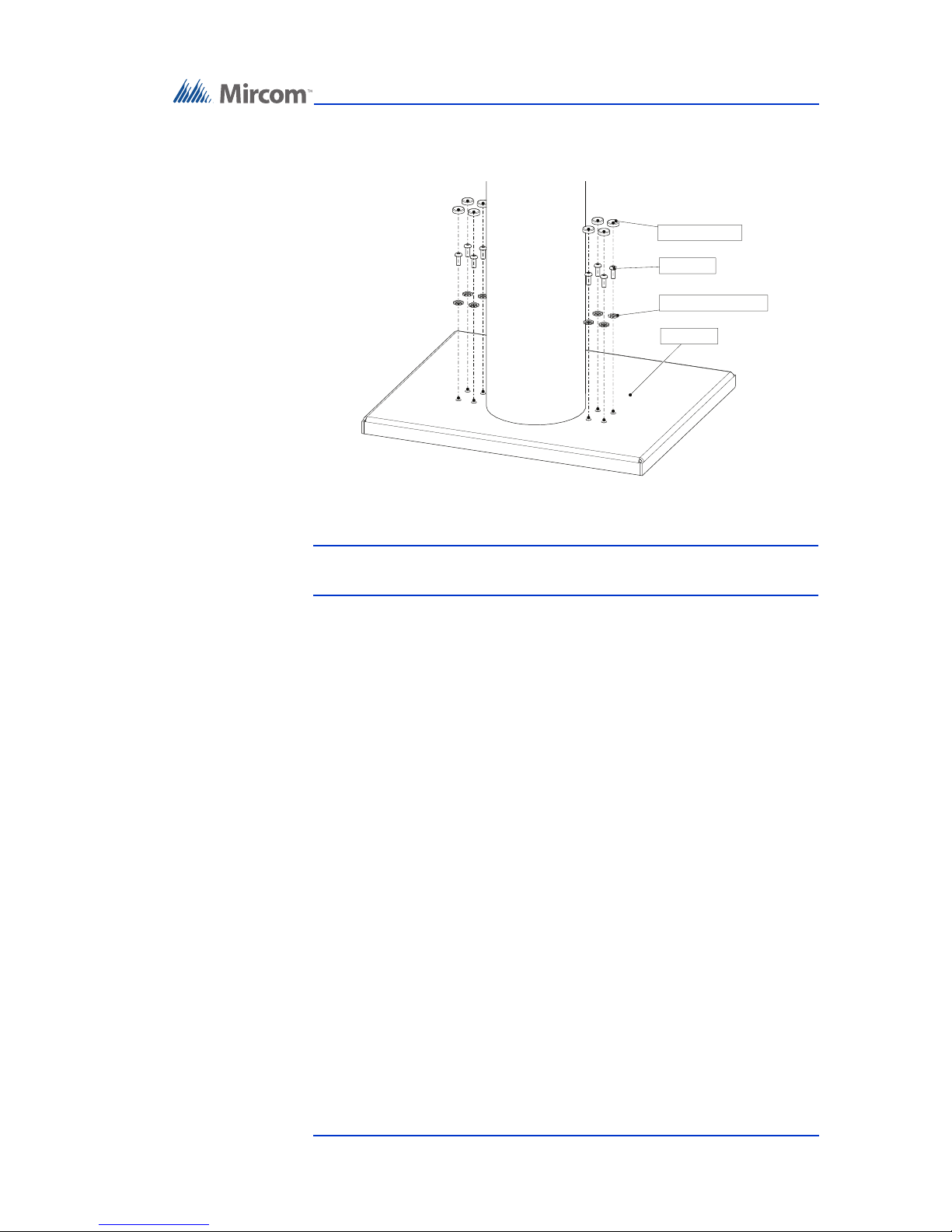

Figure 31. Attach the stand to the base plate

Attention: The 22” Touch Screen enclosure is heavy. Never attempt to lift this

product by yourself. At least two people should lift it together.

3. Fit the Touch Screen on the six posts on the stand.

4. Attach the six included screws to the posts.

Base plate

Screw cover base (x8)

Screw (x8)

Screw cover (x8)

Page 44

44 (93) TX3 Touch Screen Installation Manual Version 3.4

Enclosure Installation

Figure 32. Attach the 22” Touch Screen to the stand

Nuts (x6)

Power and ground

Hole for wiring

Page 45

Enclosure Installation

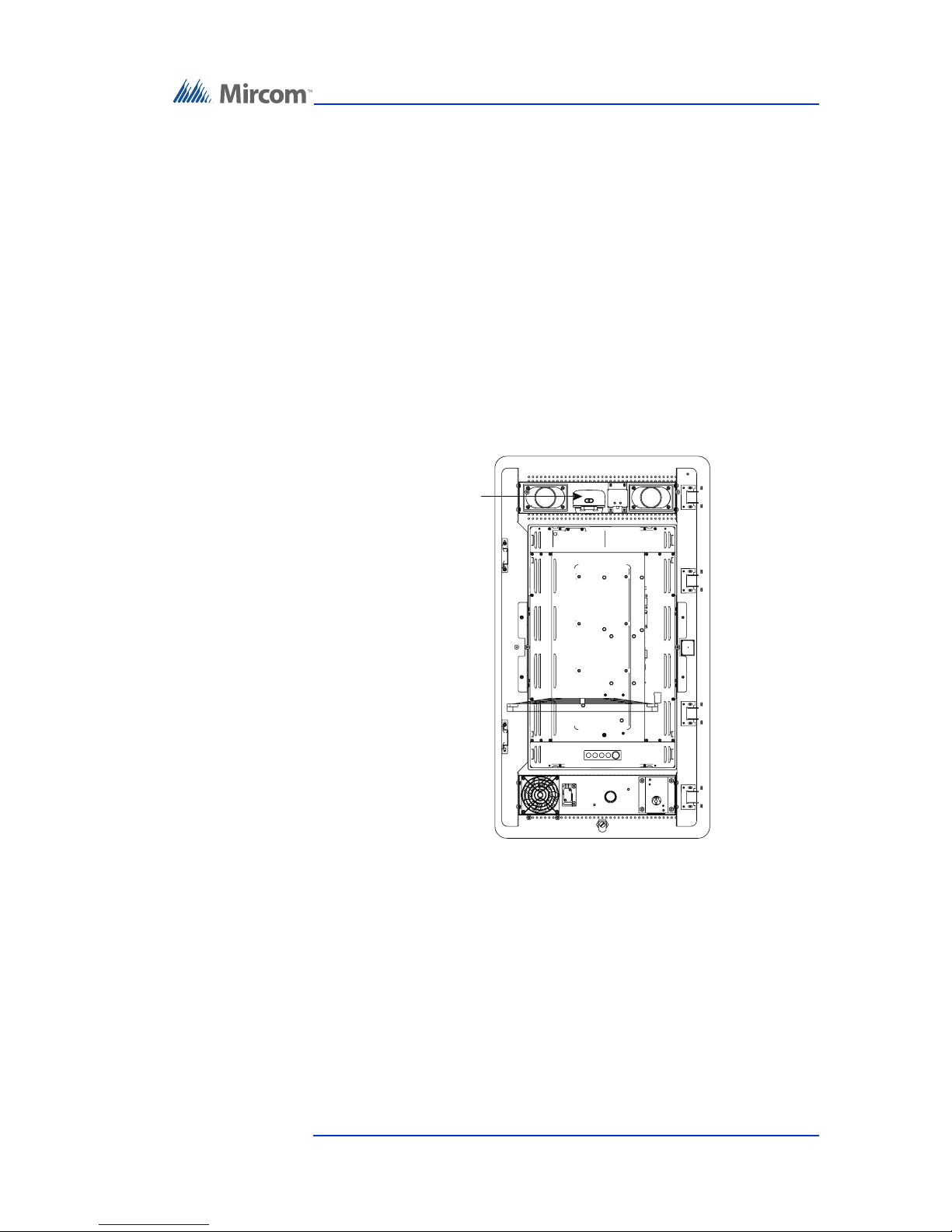

Figure 33. Attach the 22” Touch Screen to the stand

5. Proceed with the wiring installation described in Chapter 3.

Hole for wiring

Power and ground

Nuts (x6)

Page 46

46 (93) TX3 Touch Screen Installation Manual Version 3.4

Enclosure Installation

2.7 Installing the Power Supply Enclosure

The Touch Screen external power supply is an MD-990 156 W, 24 V single output switching power supply encased inside a metal enclosure. A voltage selectable switch is located on the side of the power supply and is factory set to 120V but can be switched to 230V.

To set the voltage on the Switching Power Supply

1. Ensure that the the TX3 unit is off and that all power is disconnected.

Warning: The power must be turned off before the Switching Power

Supply is accessed. Failure to due so may result in damage to the equipment or electric shock that can lead to death.

2. Open the Switching Power Supply box using the key for the TX3 unit. The Switching Power Supply unit is secured inside the box by metal guides and two screws on either side of the terminal block. Unscrew and remove the screws on both sides of the terminal block.

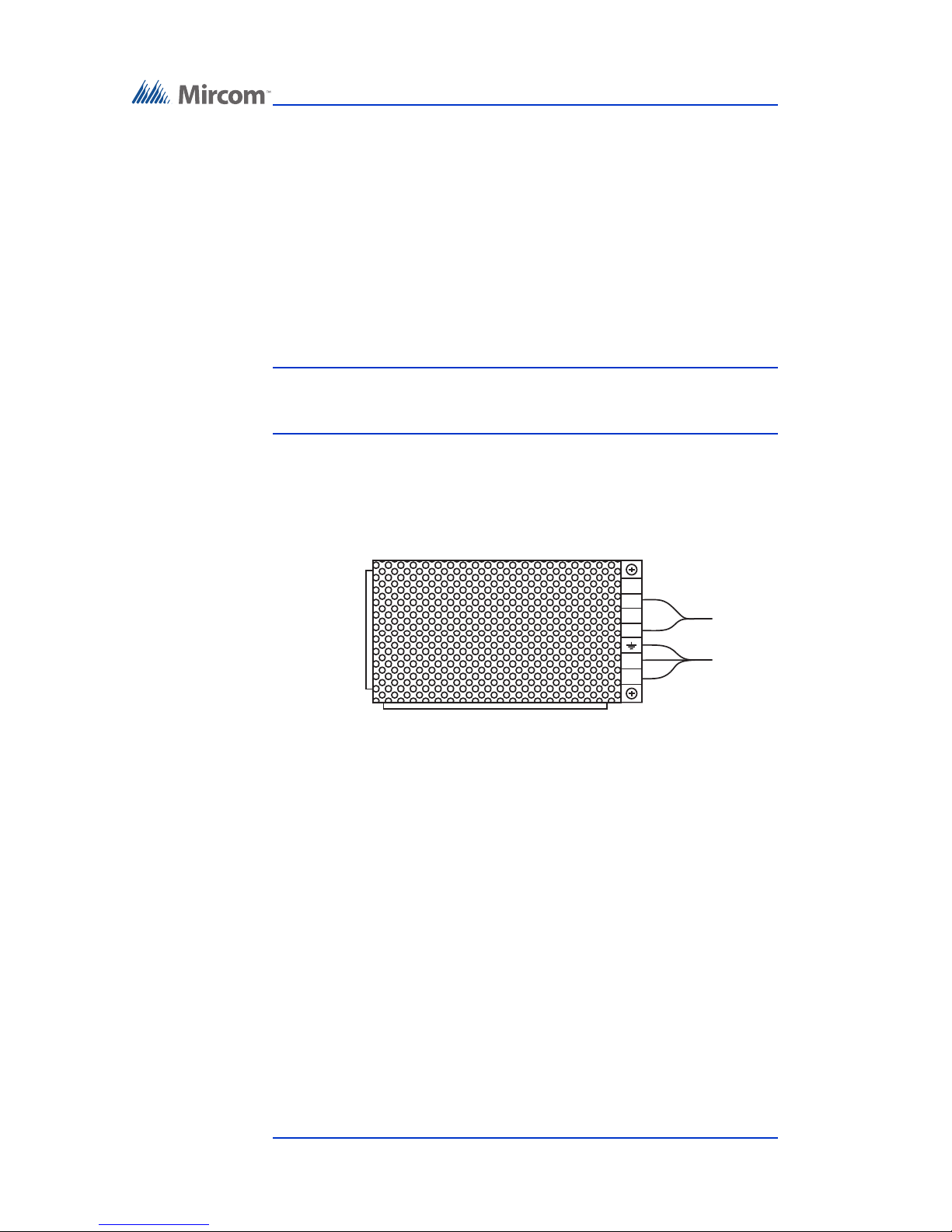

Figure 34. Inside the Switching Power Supply Box

3. Lift the Switching Power Supply unit out of its box to access the red voltage selection switch.

V-

V+

V-

Page 47

Enclosure Installation

4. Switch the voltage selection switch to the required voltage level. Place a

flathead screwdriver in between one of the holes in the chassis to access the switch. By default it is set to 115 Volts.

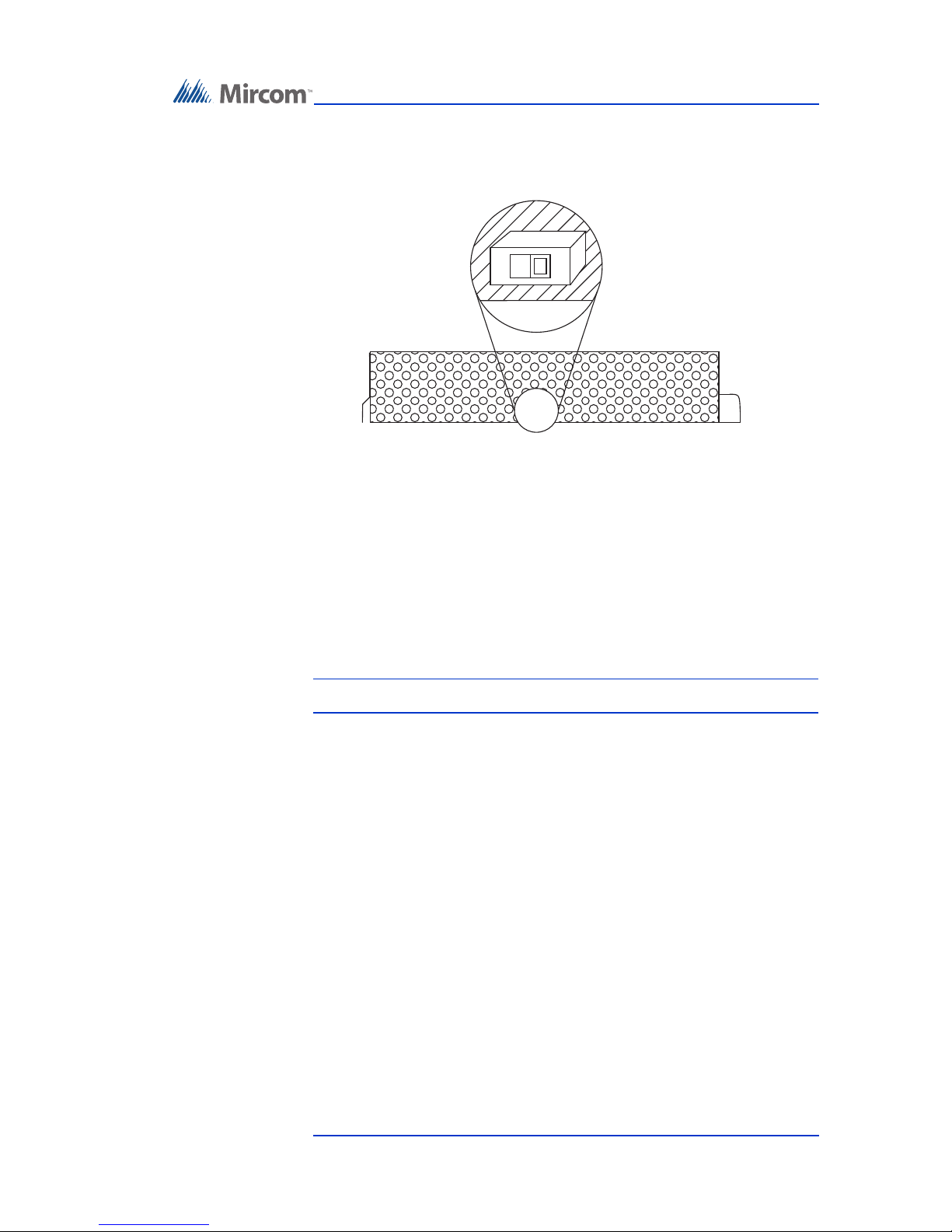

Figure 35. Power Supply Voltage Selection Switch

5. Place the Switching Power Supply back into the box using the metal

guides to position it and then replace the screws on both sides of the terminal block to secure it into the box.

6. Reconnect the power.

The external MD-990 power supply connects to the building power AC power supply. It is recommended that the unit is powered by its own dedicated electrical outlet to protect it from excessive power surges and current fluctuations.

Note: Install the MD-990 outside the Touch Screen enclosure.

The power supply enclosure is shown in Figure 36.

230V

Page 48

48 (93) TX3 Touch Screen Installation Manual Version 3.4

Enclosure Installation

Figure 36. Touch Screen Power Supply Enclosure

Dimensions without lid: Height: 7.500”, Width: 9.500”, Depth: 2.300”

Overall dimensions: Height: 7.720”, Width: 9.830”, Depth: 2.378”

To surface mount the power supply enclosure

1. Find a suitable location for the power supply enclosure, such as over a wall stud.

2. Using the power supply enclosure as a template, mark the back mounting hole locations as indicated in Figure 36. Ensure that at least one side is over a wall stud.

3. Remove the power supply enclosure and place the top two screws halfway into the marked hole locations and wall stud using the supplied screws.

4. Place the power supply enclosure onto the two screws.

5. Screw the two screws of the power supply enclosure halfway into the wall.

Page 49

Enclosure Installation

6. Tighten all four screws into place.

Note: The enclosure can also be mounted directly onto the drywall using

anchors.

Page 50

50 (93) TX3 Touch Screen Installation Manual Version 3.4

Enclosure Installation

Page 51

Touch Screen System and Setup

This chapter describes the basic Touch Screen system, main panel, controller board components and provides information about its operation and setup.

This chapter explains

• Touch Screen System

• Touch Screen Panels

• Controller Boards

• Grounding the 15” Touch Screen

• Grounding the 22” Touch Screen

• Connecting to the External Power Supply

• Installing the Postal Lock

• Installing the Telephone Lines

• Installing Optional Components

• Verifying Installed Components

• Beginning Configuration

• Shutting Down the Touch Screen

• Installing a Logitech c615 HD Webcam on the 22” Touch Screen

• Replacing the 3M™ Multi-Touch Display C2167PW on the 22” Touch

Screen

• Installing the TX3-P300-HA Card Reader in the 22” Touch Screen

• Installing a RB-MD-1093 Two Door Controller Network Board

Page 52

52 (93) TX3 Touch Screen Installation Manual Version 3.4

Touch Screen System and Setup

3.1 Touch Screen System

The TX3 Touch Screen may be networked with a combination of Telephone Access and Card Access Units through a peer-to-peer RS-485 connection.

Touch Screen is capable of providing ADC or NSL telephone access from a single panel or from a networked system. Each outside telephone line requires a separate line to the control panel inside the Touch Screen.

The following figures depict various Touch Screen network scenarios.

Note: Install all transformers and power supplies outside the Touch

Screen enclosure.

All wiring is a maximum length of 1000 ft. The RS-485 wiring maximum length is 4000 ft.

All units use the MD-990 power supply. Refer to section 2.7 Installing the Power Supply Enclosure on page 46 or document LT-1094 Power Supply Voltage Selection. The door strike power supply depends on the door strike power requirements.

Page 53

Touch Screen System and Setup

3.1.1 Single Touch Screen

Figure 37 shows the simplest configuration for an ADC or NSL telephone system.

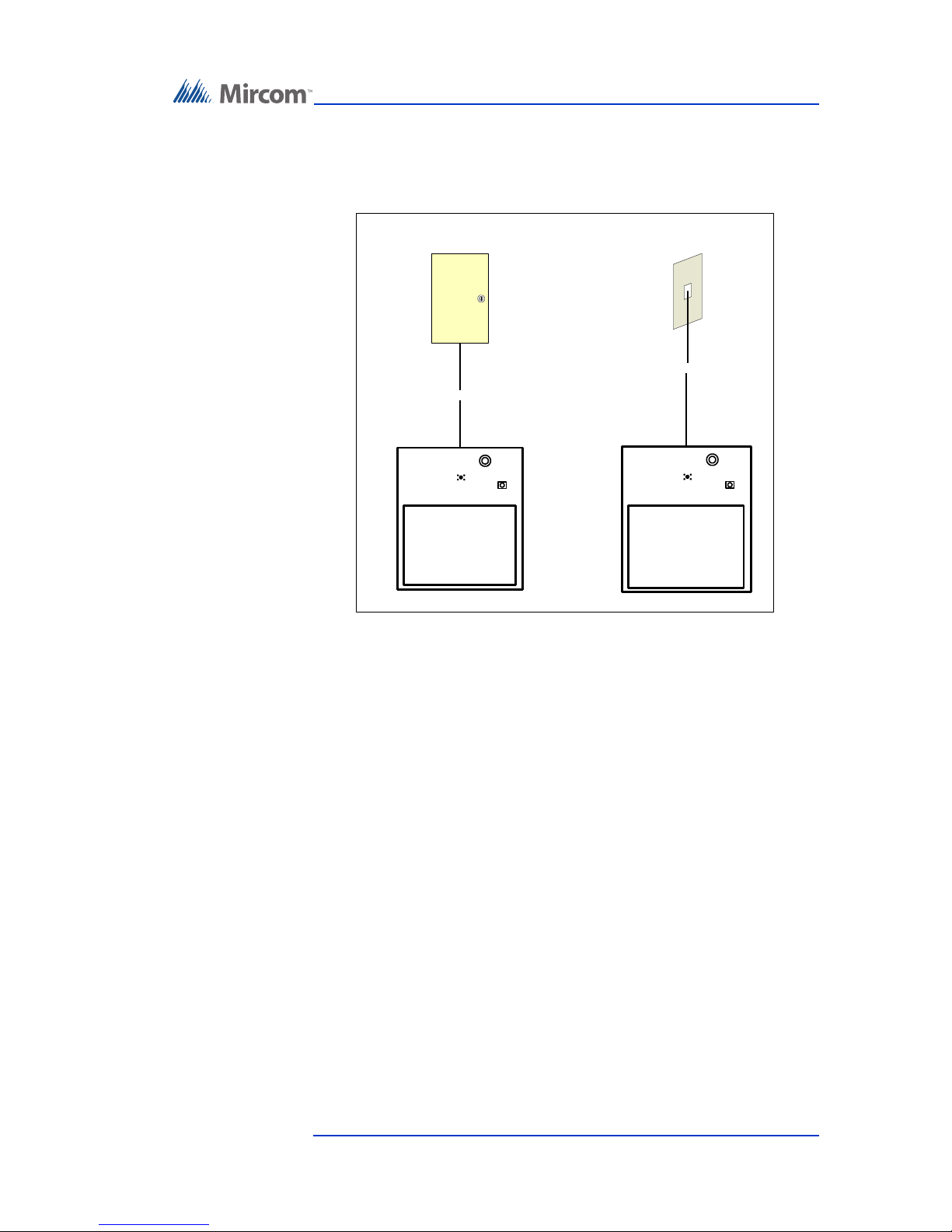

Figure 37. Single Touch Screen

Line1

NSL

Control

Unit

T/R

Line1

Telephone outlet

Central office line

Touch Screen

Page 54

54 (93) TX3 Touch Screen Installation Manual Version 3.4

Touch Screen System and Setup

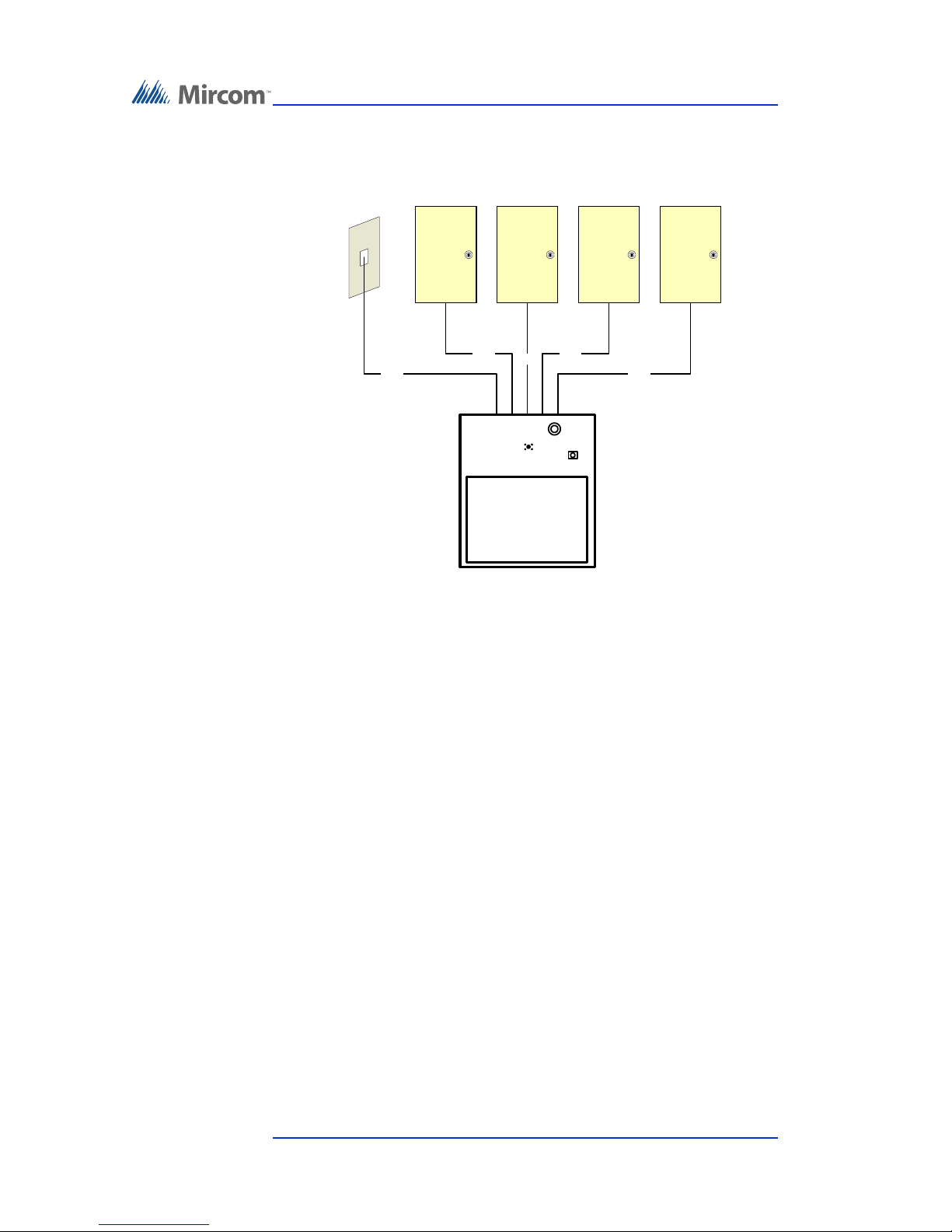

Figure 38 shows a configuration using one Touch Screen connected to one ADC line and four NSL lines.

Figure 38. Single Touch Screen with ADC and NSL Lines

Line2

Line3

Line4

Line5

NSL

Control

Unit

NSL

Control

Unit

NSL

Control

Unit

NSL

Control

Unit

Line1

Telephone outlet

Central office line

T/R

T/R T/R

T/R

Touch Screen

Page 55

Touch Screen System and Setup

3.2 Touch Screen Panels

3.2.1 15” Touch Screen Main Panel

On the Kiosk, the Touch Screen Panel is situated behind the front cover. To access the panel, unlock the Touch Screen and pull open the front cover.

The 15” Touch Screen Panel contains the following main components as shown in Figure 39:

• ON/OFF Switch

•USB Port

• Camera

•Postal Lock (optional)

• Microphone

Figure 39. 15” Touch Screen Panel Components

ON/OFF Switch

USB Port

Camera

Postal Lock

Microphone

Touch Screen

Screw

Page 56

56 (93) TX3 Touch Screen Installation Manual Version 3.4

Touch Screen System and Setup

3.2.2 22” Touch Screen Inside Doors

The 22” Touch Screen inside doors contain the following components as shown in Figure 40:

•Speakers

• Camera

•Postal Lock (optional)

•Fan (optional)

• Microphone

• P300 Card Reader

Page 57

Touch Screen System and Setup

• Keyhole

Figure 40. 22” Touch Screen Inside Door

Speakers

Camera

Microphone

Fan

Postal Lock

P300 Card Reader

Keyhole

Page 58

58 (93) TX3 Touch Screen Installation Manual Version 3.4

Touch Screen System and Setup

3.3 Controller Boards

3.3.1 15” Touch Screen Controller Boards

The following Touch Screen controller boards are situated on a panel behind the 15” Touch Screen Panel as shown in Figure 41:

• Telephone Access Controller

• PC Sub Compact Board

• Power Supply Board

• Audio Mixer Board

To access the panel, remove the two screws and swing open the Touch Screen panel.

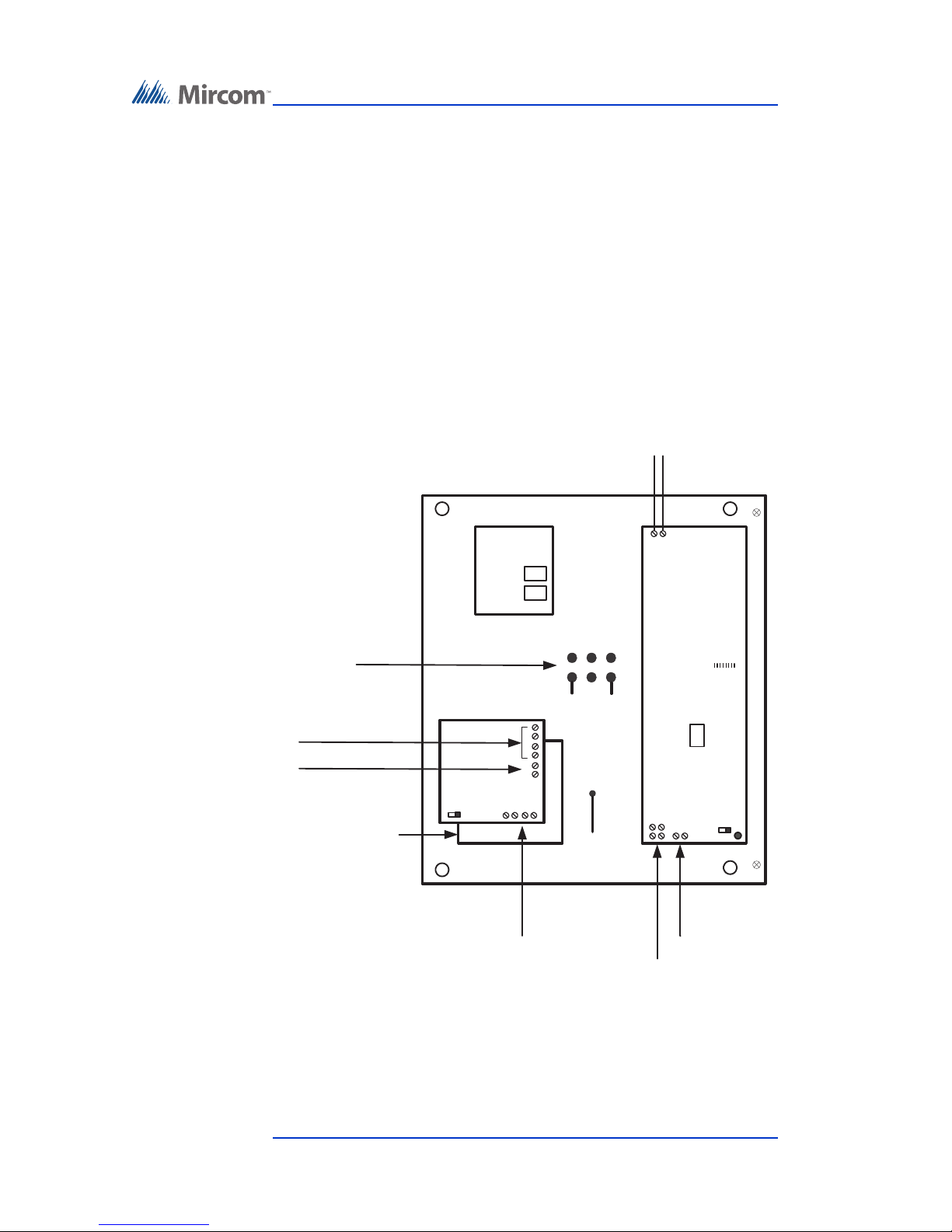

Figure 41. Controller Board Panel for 15” Touch Screens

Power Terminals (not polarity sensitive)

Microphone and Speaker Connections to Audio Mixer

PC Sub Compact Board

Audio Mixer Board

Power Supply Board

USB

Telephone Access Controller

On/Off

Postal Lock Input 1

Chasis GND

Microphone and Speaker Connections from Telephone Access Controller

Microphone Connection from Touch Screen

Blk Wht

Speaker Connections

USB

Intranet

Telephone Line

SW1

Page 59

Touch Screen System and Setup

3.3.2 22” Touch Screen Controller Boards

The 22” Touch Screen Panel contains the following components and controller boards as shown in Figure 42:

•On/Off Switch

•USB Port

• Telephone Access Controller

• PC Sub Compact Board

• Power Supply and Audio Mixer Board

To access the panel, unlock the door and swing it open.

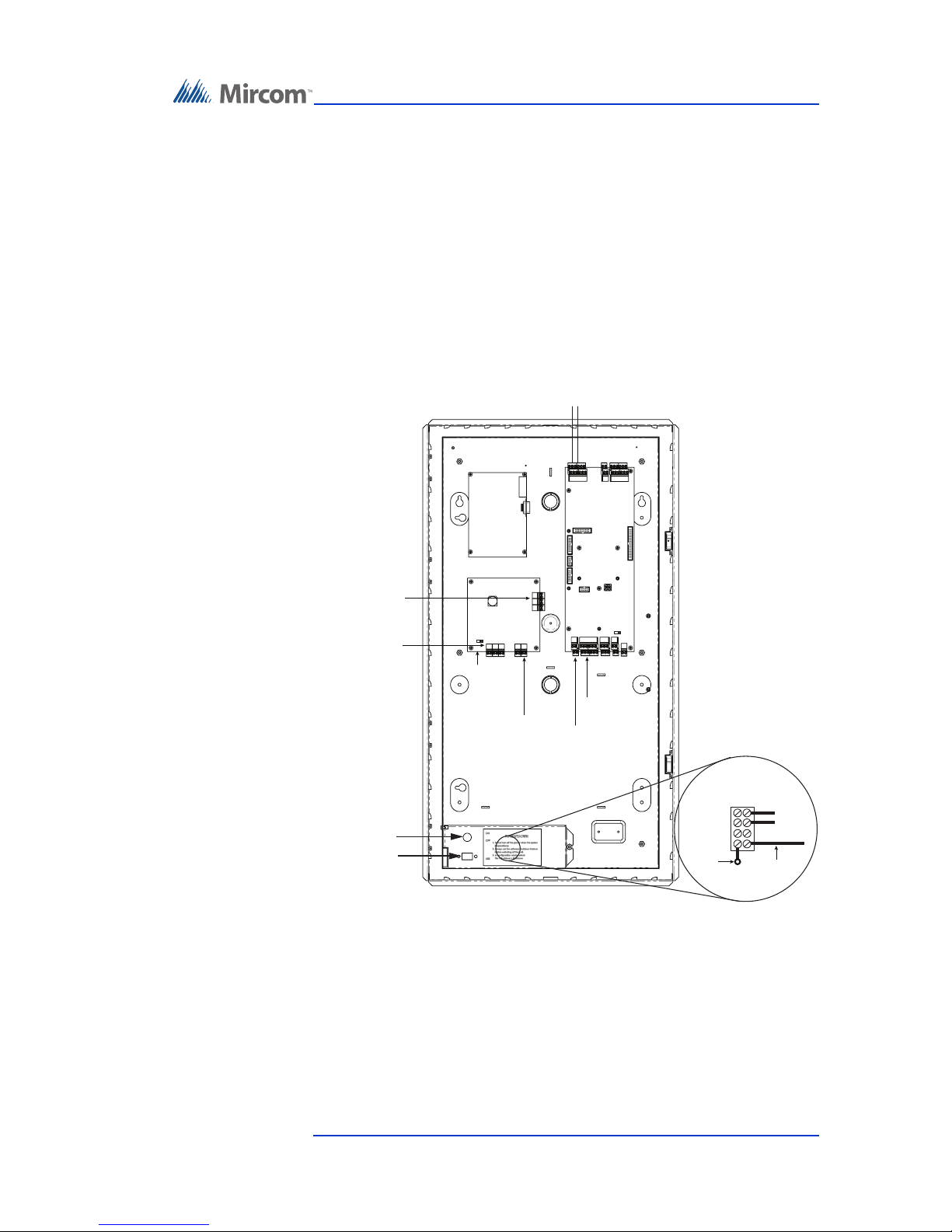

Figure 42. Controller Board Panel for 22” Touch Screens

For detailed information about the Telephone Access Controller installation and setup see LT-969 TX3-Telephone Access System Installation and Operation Manual.

Ground Screw

16 Gauge Wire to Ground

Power Terminals (not polarity sensitive)

USB

On/Off Switch

PC Sub Compact Board

Telephone Access Controller

Telephone Line

USB

Intranet

Power Supply and

Audio Mixer Board Speaker Connections

Fan

Power Supply

Power for Telephone Access Controller

Microphone and Speaker

Connections to Audio Mixer

Postal Lock Input 1

On/Off

USB

Page 60

60 (93) TX3 Touch Screen Installation Manual Version 3.4

Touch Screen System and Setup

Figure 43 shows the connectors at the top of the Telephone Access controller.

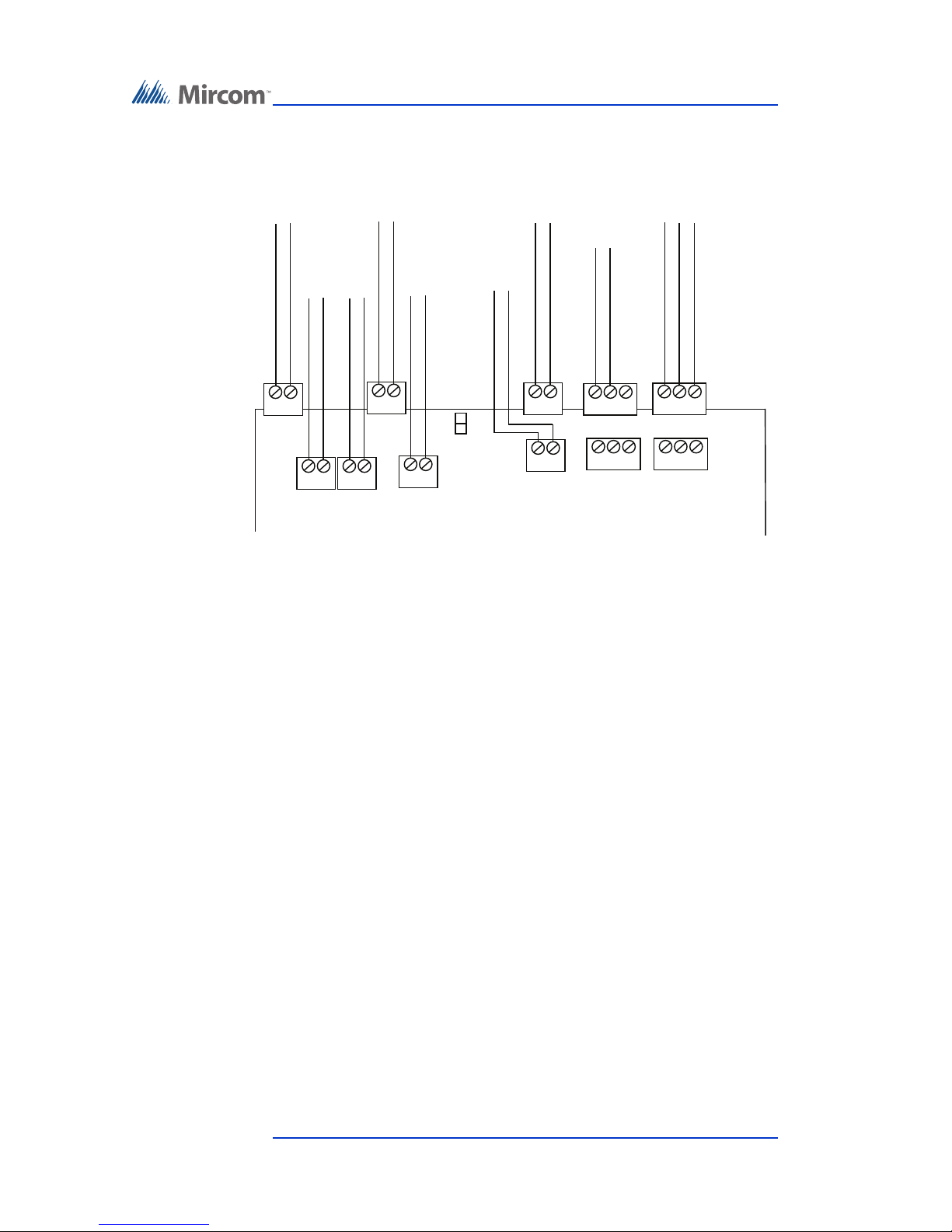

Figure 43. Controller Board Connectors - Top

Telephone Lines 1 to 5

Line 1 T R

Line 2 T R

Line 3 T R

Line 5 T R

Line 4 T R

AC Door Strike

AC or DC Input Door Strike Supply

DC Output 1 Door Strike

Aux. Door Output 2 Relay

General Relay Output 4

NO NC C

General Relay Output 3

JW8

Page 61

Touch Screen System and Setup

Figure 44 shows the connectors at the bottom of the Telephone Access controller.

Figure 44. Controller Board Connectors - Bottom

3.4 Grounding the 15” Touch Screen

Grounding reduces the risk of electrical shock by providing an alternate escape route for the electrical current. Touch Screen is equipped with a 16 gauge electrical wire attached to the panel chassis ground post as shown in Figure 41.

To ground the Touch Screen attach one end of the supplied cable to a suitable grounding wire and connect it to the site ground.

3.5 Grounding the 22” Touch Screen

Grounding reduces the risk of electrical shock by providing an alternate escape route for the electrical current.

On the 22” Touch Screen, the ground terminal is behind the door at the bottom of the chassis.

LED/LAMP Supply

Microphone Connection

Speaker Connection

Input 1

Input 2 Input 3 Input 4

Input 5

Camera Supply

Power Supply for TX3

RS-485 OUT

- +

- s +

RS-485 IN

- s +

- +

+--++-

Page 62

62 (93) TX3 Touch Screen Installation Manual Version 3.4

Touch Screen System and Setup

To ground the 22” Touch Screen

1. Attach the bottom right terminal to a suitable grounding wire and connect it to the site ground, as shown in Figure 45.

Figure 45. Grounding the 22” Touch Screen

3.6 Connecting to the External Power Supply

The power supply terminal block is situated the middle of the 15” Touch Screen Controller board panel as shown in Figure 41 and at the bottom of the 22” Touch Screen Controller board panel as shown in Figure 42. It receives 24 Vdc from the external MD-990 power supply.

The external MD-990 power supply connects to the building power AC power supply. A voltage selectable switch is located on the side of the unit and is factory set to 120 V.

For best operation install the external power supply into its own dedicated electrical outlet to protect it from excessive power surges and current fluctuations.

All Touch Screen controller boards use the MD-990 for their power supply. The door strike power supply depends on the door strike power requirements.

Note: Install the MD-990 outside the Touch Screen enclosure.

3.6.1 22” Touch Screen Power Consumption

0.8 A /120 VAC

16 Gauge Wire 16 Gauge Wire to Groundto Ground

Ground Ground ScrewScrew

Power Terminals (not polarity sensitive)

Page 63

Touch Screen System and Setup

3.6.2 Maximum Power Supply Wire Distances

The distance from the Touch screen to the power supply is a function of the wire gauge and the resistance generated by the cable by the power draw.

Do not exceed the maximum distances from the Touch screen to the power supply as indicated in Table 1.

Table 1: Maximum Power Supply Wire Distances

3.6.3 Wiring the External Power Supply

The power supply terminals are located at the bottom of the MD-990 external power supply as shown in Figure 46.

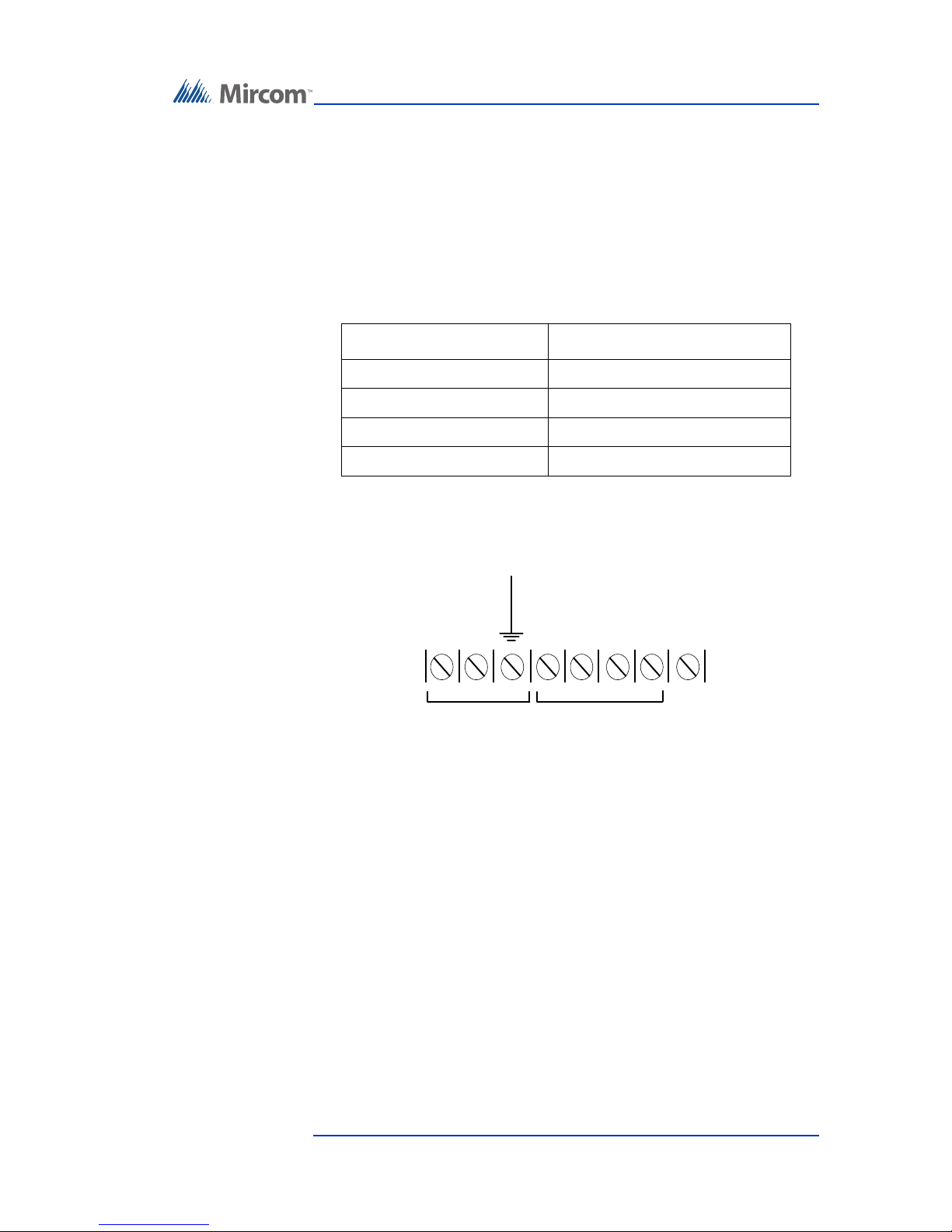

Figure 46. MD-990 Terminal Block Wiring

To connect the power supply

1. Turn the power off from the Touch Screen Panel.

2. Mount the MD-990 power supply separately from the Touch Screen.

3. Ensure the MD-990 voltage selectable switch is set to 120V. See Installing

the Power Supply Enclosure on page 46.

4. Connect the MD-990 load power supply wires to the Touch Screen

Controller board panel terminal screws as shown in Figure 41 for the 15” Touch Screen and Figure 45 for the 22” Touch Screen.

Gauge Distance

16 125 ft (38.1 m)

14 200 ft (60.96 m)

12 320 ft (97.536 m)

10 500 ft (152.4 m)

N+V-V-V +V

ADJ

Line Load

Page 64

64 (93) TX3 Touch Screen Installation Manual Version 3.4

Touch Screen System and Setup

5. Connect the building power supply wires to the MD-990 line terminal screws as shown in Figure 46.

6. Connect the other end of the building power supply wires the line voltage terminals.

7. Turn the power on from the 15” Touch Screen Panel. On the 22” Touch Screen, press the On/Off Switch to turn on the unit.

3.7 Installing the Postal Lock

The system has a built-in micro switch and mounting hardware for a postal lock installation. If postal service is required, contact the Post Office to obtain the lock. Figure 41 shows the micro switch input terminal for the postal lock for the 15” Touch Screen.

Note: When installing the postal lock leave the micro switch tie wrap in

place. Remove the tie wrap after the postal lock is installed.

Input 1 on the Telephone Access Controller connects to the Postal Lock microswitch.

3.8 Installing the Telephone Lines

Telephone lines 1 to 5 are situated at the top left of the main controller board as shown in Figure 43. Both NSL and ADC lines can be connected. Each T/R line is polarity insensitive and can be reversed.

3.9 Installing Optional Components

The optional components consist of the following:

USB keyboard and mouse. The USB connector on the PC Sub Compact Board (on the 15” Touch Screen) or below the On/Off Switch (on the 22” Touch Screen) allows you the use of these controls at the Touch Screen for configuration purposes.

Internet/LAN. The Internet/LAN connector on the PC Sub Compact Board allows you to connect the Touch Screen to the building LAN.

Replacement telephone access controller board. For details on the telephone access controller board, see LT-6073 Telephone Access Quick Reference.

Page 65

Touch Screen System and Setup

Camera. For instructions on installing a Logitech c615 HD Webcam, see 3.13 on page 69.

Replacement 22” display. For instructions on installing a replacement 3M Multi-Touch Display, see 3.14 on page 70.

Fan. For instructions on installing a fan in the 22” Touch Screen, see LT-6074 Installing the Fan in the 22” Touch Screen.

Two door controller network board. For instructions on installing a two door controller network board, see LT-981A Replacement TX3-CX-2-A Controller Board Installation Instructions.

RS-485. An RS-485 terminal lets you easily connect multiple Touch Screen and telephone and card access controllers across a network. The RS-485 terminal consists of + (positive), - (negative), and S (Shield) connections. See Figure 44.

Page 66

66 (93) TX3 Touch Screen Installation Manual Version 3.4

Touch Screen System and Setup

There are two additional RS-485 Terminal Connectors that must be added to the FIRST and LAST node of the network. On the FIRST node of the network attach the connector to the RS-484 IN. One the LAST node of the network attach the terminal connector to the RS-485 OUT. See Figure 47.

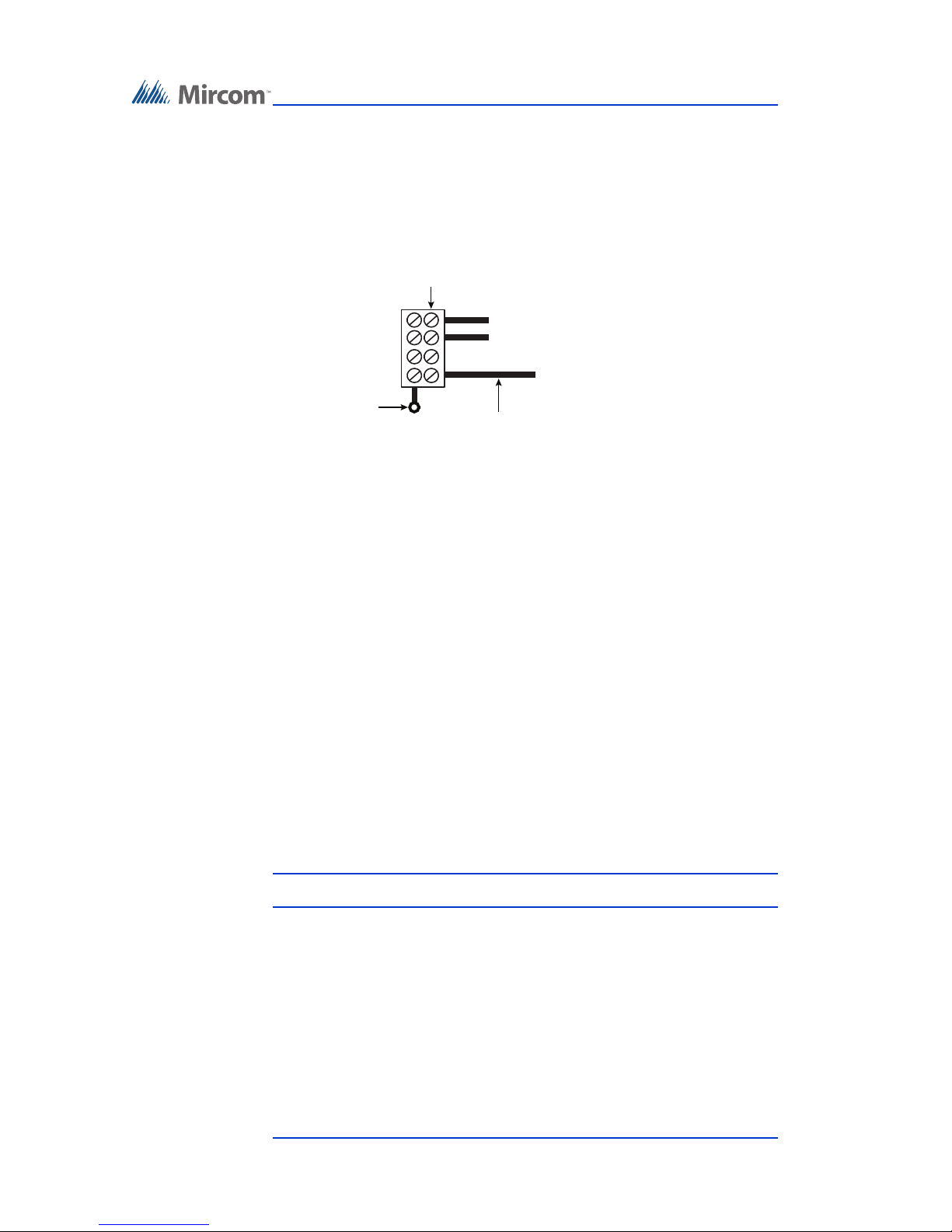

Figure 47. Connecting additional RS-485 Terminal Connector to the First

or Last Node of Network

USB Port. The USB port provides a connection to a PC, for configuring the card access system and down loading any new firmware.

3.10 Verifying Installed Components

The system is shipped already pre-wired. Before turning on the system it is important to verify that the following connections are firmly in place. Refer to Figure 41 for the 15” Touch Screen and Figure 42 for the 22” inch Touch Screen.

Panel 1 First panel on network

Panel 3 Last panel on networ

Panel 2

Optional ground connection if available

Connect shield to chassis ground on one panel only

120 Ω

Page 67

Touch Screen System and Setup

For additional information about the Telephone Access Controller Board Connectors see LT-969 TX3-Telephone Access System Installation and Operation Manual:

Speaker Connections. Audio speakers to Audio Mixer Board.

USB. Telephone Access Controller USB to PC Sub Compact Board USB

Power Supply Connectors. Power connectors from the MD-990 to the power

terminals

Power Connectors.

• Power connectors from power supply board to PC, controller and audio

mixer board.

• Power connectors from the power terminals to the Telephone Access

Controller and Power Supply Board.

• Power connectors from the Power Supply Board/Audio Mixer Board to

the PC Sub Compact Board.

Microphone. Microphone connection to the Audio Mixer Board

Speaker. Speaker connection to the Audio Mixer Board

On/Off Switches.

• The Telephone Access Controller power switch is ON by default.

• The Audio Mixer Board.Power Supply Board power switch is ON by

default.

3.11 Beginning Configuration

Ensure that the Telephone Access Controller ID is setup. This address is set by the SW1 DIP switches on the Telephone Access Controller (Figure 41). The individual switches are numbered 1 to 8 from left to right, and are marked as either ON or OFF. The first six switches (1, 2, 3, 4, 5, and 6) set the address ID.

Every TX3 System controller requires a unique ID. The unit ID settings do not need to be in sequence but it recommended to assign IDs starting from 1, using increments of one (for example, 1, 2, 3, 4, and so on). Unit IDs must not be duplicated on an RS-485 network.

DIP Switch 7 on SW1 must be set to ON for Touch Screens, and OFF for nonTouch Screens.

Page 68

68 (93) TX3 Touch Screen Installation Manual Version 3.4

Touch Screen System and Setup

DIP Switch 8 on SW1 determines how the Telephone Access Controller board gets its IP address (only for for IP-enabled Touch Screen models with the TX3-IP Module installed):

• DIP Switch 8 OFF: The IP address is assigned by a DHCP server.

• DIP Switch 8 ON: The IP address is assigned using the TX3 Configurator software.

The Touch Screen controller is now ready for configuration. For a complete description of the configuration and on how establish a connection to the Touch Screen, see the following documentation:

• LT-995 Configuration and Administration Guide

• LT-973 TX3 Configurator Quick Start

3.12 Shutting Down the Touch Screen

3.12.1 Shutting down the 15” Touch Screen

To shut down the TX3 unit from the touch screen software, perform the following steps.

Note: Never turn off power when the system is operational.

1. At the Touch Screen terminal, enter 9999.

2. Enter your administrator password, and then press OK.

3. Select File > Shut down > Shut down.

Do not disconnect the power until the full shut down process has been completed.

3.12.2 Shutting down the 22” Touch Screen

Note: Never turn off power when the system is operational.

1. At the Touch Screen terminal, enter 9999.

2. Enter your administrator password, and then press OK.

3. Select File > Shut down > Shut down.

Page 69

Touch Screen System and Setup

Do not disconnect the power until the full shut down process has been completed.

3.13 Installing a Logitech c615 HD Webcam on the 22” Touch Screen

You can install a Logitech c615 HD Webcam in the 22” Touch Screen.

To install the Logitech c615 camera

1. Shut down the Touch Screen and disconnect the power.

2. Open the Touch Screen door.

The camera is installed in the top center of the door, as shown in Figure 48.

Figure 48 Position of the camera on the 22” Touch

Screen door

3. Mount the camera on the ledge and secure it with the included tripod screw.

4. Connect the USB cable from the camera to one of the free USB cables inside the Touch Screen.

5. Adjust the camera so that it has the desired field of view.

Logitech c615 HD Webcam

Page 70

70 (93) TX3 Touch Screen Installation Manual Version 3.4

Touch Screen System and Setup

3.14 Replacing the 3M™ Multi-Touch Display C2167PW on the 22” Touch Screen

The 22” Touch Screen incorporates a 3M™ Multi-Touch Display C2167PW (ID: 98000342422). If you need to replace it, follow these instructions.

To remove the old display

1. Shut down the 22” Touch Screen and disconnect the power.

2. Open the 22” Touch Screen door.

3. Unplug the power, USB and DVI cables.

The display is attached to two brackets (CH-1165), which are secured to four posts on the door.

Page 71

Touch Screen System and Setup

4. Remove the four #6 nuts and keep them.

Figure 49. Inside of door showing position of the four #6-32 nuts

5. Remove the display from the four posts.

Page 72

72 (93) TX3 Touch Screen Installation Manual Version 3.4

Touch Screen System and Setup

6. Remove the eight M4x8mm screws and the outside brackets (CH-1165). Keep the brackets and the screws.

Figure 50. The two brackets (CH-1165) holding the display

To attach the new display

1. Attach the supplied 3M brackets to the display using the supplied M4 screws.

2. Attach the two CH-1165 brackets that were removed from the old display using the eight M4x8mm screws. Do not tighten the screws fully yet.

Page 73

Touch Screen System and Setup

3. Slide the display on to the four posts on the door and secure the four #6 nuts

on the posts.

Note: Make sure to install the display the right way up. The four buttons

should be on the bottom.

4. Adjust the screen so that it is flush with the front of the door panel, and then

tighten the 8 M4x8mm screws.

5. Connect the power, USB and DVI cables.

6. Connect the power to the 22” Touch Screen, and then press the power

button on the display.

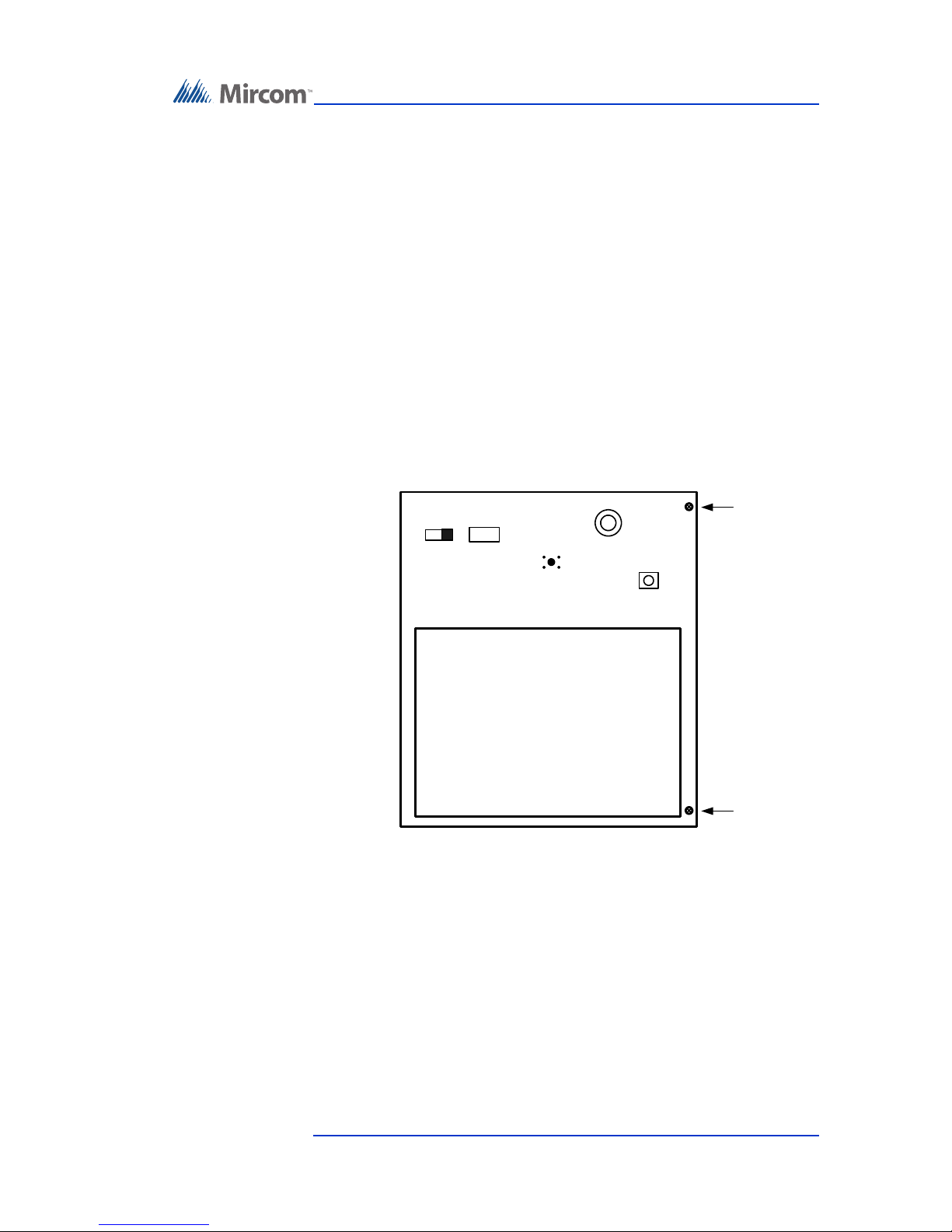

Figure 51. Power button

Page 74

74 (93) TX3 Touch Screen Installation Manual Version 3.4

Touch Screen System and Setup

3.15 Installing the TX3-P300-HA Card Reader in the 22” Touch Screen

1. Open the Touch Screen door.

Install the fan in the lower left corner of the door, as shown in Figure 52.

Figure 52. Position of the TX3-P300-HA Card Reader

TX3-P300-HA Card Reader

Page 75

Touch Screen System and Setup

2. Attach the card reader to the 2 posts on the bracket with the 2 #4-40 nuts as shown in Figure 53.

Figure 53. The TX3-P300-HA Card Reader

3. Slide the bracket on to the 4 posts on the Touch Screen door and secure it with the 4 #8-32 nuts as shown in Figure 54.

Note: Figures 53 and 54 show the card reader from opposite sides.

Figure 54. TX3-P300-HA and Bracket

Posts(x2)Bracket

TX3-P300-HA Card Reader

Nuts (x2)

Posts(x4)

TX3-P300-HA Card Reader and Bracket

Nuts (x4)

Page 76

76 (93) TX3 Touch Screen Installation Manual Version 3.4

Touch Screen System and Setup

3.16 Installing a RB-MD-1093 Two Door Controller Network Board

Refer to the manual LT-981A that came with the two door controller network board for instructions on how to install it.

Page 77

Adding Controllers

This chapter provides information about adding additional controllers on the same network as the Touch Screen.

This chapter explains

• How to add the controller

Page 78

78 (93) TX3 Touch Screen Installation Manual Version 3.4

Adding Controllers

4.1 Adding a Controller

The TX3 Touch Screen may be integrated with other controllers, such as the Telephone and Card Access systems, through a peer-to-peer connection via the RS-485 bus.

Touch has a provision to add the TX3 Card Access controller inside the unit.

Note: Ensure that all network devices each have unique ID addresses.

To integrate another controller

1. Ensure the Touch Screen and the controller are setup and ready for operation.

2. Turn the power OFF for Touch Screen and controller.

3. Connect the controller to the Touch Screen via the RS-485 bus using the RS-485 connectors.

4. Turn the power ON for the Touch Screen and controller.

5. Connect the PC to either the Touch Screen or controller using the USB port.

6. Use the TX3 Configurator Program to add and configure the controller to the network.

Page 79

Appendix

This chapter contains additional information about the TX3 Touch Screen.

This chapter explains

• Touch Screen Specifications

• Touch Screen Kits

Page 80

80 (93) TX3 Touch Screen Installation Manual Version 3.4

Appendix

5.1 Specifications

5.1.1 Operating Temperature

50°C (122°F) to 0°C (32°F).

Do not operate the Touch Screen below 0°C (32°F) at any time.

5.1.2 Telephone Lines

Use only Loop Start telephones (not ground start), check with your local telephone company.

5.1.3 AC Power Supply

88 VAC to 132 VAC.

5.1.4 External Power Supply

MD-990 156 W, 24 V single output switching power supply.

5.1.5 Door Strikes

Select the appropriate door strike as required by your system applications. We recommend using the following Mircom door strikes below and its compatible power transformer.

• Mircom Model M-10. DC (silent) or AC (buzzing) Door Strike. (Use PS3B transformer)

Note: The door strike must have its own separate power transformer. Do

not tap or use the system power transformers. When using a different door strike and door strike transformer, the maximum strike load that may be switched through the control unit is 28 Vac or 3.0 Amp DC.

5.1.6 Post Office Lock

The system has a built-in micro switch and mounting hardware for a postal lock installation. If a postal service is required, contact the Post Office to obtain the lock.

Page 81

Appendix

5.1.7 Tamper Switch

This switch can be connected to any security or monitoring system to supervise the opening of the panel front door. This microswitch is the same type used for the postal lock. This switch is normally open when the panel front door of the TX3 is closed, 28 Vac or 28 Vdc, 1A.

5.1.8 RS-485 TX3-USB-AD Kit

The TX3-USB-AD Kit converts RS-485 signals to USB. The MD-993 Module mounts on the TX3 Telephone or Card Access controller boards. For installation instructions see LT-6027 TX3-USB-AD Installation Instructions.

5.1.9 TX3-GPM Guard Phone Module

The guard phone connects via a telephone cable to the Guard Phone Module on the Touch Screen. The TX3-GPM Guard Phone Module mounts on the TX3 Telephone controller board. For installation instructions see LT-972 TX3-GPM Guard Phone Module Installation Instructions.

Page 82

82 (93) TX3 Touch Screen Installation Manual Version 3.4

Appendix

Page 83

Resident Operating Instructions

This chapter describes the Touch Screen operating instructions for use by the resident.

This chapter explains

• NSL Resident Operating Instructions

• ADC Resident Operating Instructions

Page 84

84 (93) TX3 Touch Screen Installation Manual Version 3.4

Resident Operating Instructions

6.1 NSL Resident Operating Instructions

Mircom's state-of-the-art Touch Screen door entry system provides you and your guest with an increased level of confidence and security.

Touch Screen operates with your existing telephone. Your guest dials your code number or selects your name by scrolling through the visual directory on the Touch Screen unit, causing your telephone to ring.

Note: The telephone keypad numbers described in this chapter may be

different for your system. If the keypad numbers do not perform as described, check with your building administrator to get the correct values.

6.1.1 Granting Access

When you answer your telephone, you will be in communication with your guest.

To unlock the main door

• Press " 9 " on your telephone keypad. If your unit is assigned a specific code for the main door then enter this code followed by the pound (#) key.

To unlock the auxiliary door

• Press " 6 " on your telephone keypad. If your unit is assigned a specific code for the auxiliary door then enter this code followed by the pound (#) key.

To refuse entry

• Hang up or

• Press “4”. If your unit uses a code for door entry, press “4” followed by the pound (#) key.

6.1.2 Keyless Entry Codes

The keyless code is a confidential number assigned to each resident by the building administrator to let you open the front lobby door without using a key.

To unlock the front door

1. Press “0”. The keyless code prompt appears.

2. Enter the keyless code. The front door unlocks.

Page 85

Resident Operating Instructions

6.1.3 Call Waiting Feature

When a guest places a call to you from the Touch Screen while you are engaged in a conversation on your outside telephone line, you will hear a distinct tone.

To answer the call

1. Briefly push the call waiting key to answer the call. This action

automatically places the outside telephone line "on hold".

2. While on-line with your guest, you can open the main door by dialing " 9 ".

If your unit is assigned a specific code for the main door then enter this code followed by the pound (#) key.

3. To refuse entry, press “4”. If your unit uses a code for door entry, press “4”

followed by the pound (#) key. This disconnects the telephone from the Touch Screen.

To continue your conversation press “9”, “6” or “4” automatically reconnects to the previously "on hold" caller.

If your unit uses codes for door entry press either of the codes for allowing entry through the main or auxiliary doors followed by the pound (#) key or press “4” followed by the pound (#) key.

In a similar manner, you can answer an outside call while talking to the guest in the lobby.

Note: You will be disconnected if you attempt to place your guest

"on hold".

Page 86

86 (93) TX3 Touch Screen Installation Manual Version 3.4

Resident Operating Instructions

6.2 ADC Resident Operating Instructions

Mircom's state-of-the-art Touch Screen door entry system provides you and your guest with an increased level of confidence and security.

Note: The telephone keypad numbers described in this chapter may be

different for your system. If the keypad numbers do not perform as described, check with your building administrator to get the correct values.

6.2.1 Granting Access

When you answer your telephone, you will be in communication with your guest.

To unlock the main door

• Press " 9 " on your telephone keypad. If your unit is assigned a specific code for the main door then enter this code followed by the pound (#) key.

To unlock the auxiliary door

• Press " 6 " on your telephone keypad. If your unit is assigned a specific code for the auxiliary door then enter this code followed by the pound (#) key.

To refuse entry

• Hang up or

• Press “4”. If your unit uses a code for door entry, press “4” followed by the pound (#) key.

6.2.2 Keyless Entry Codes

The keyless code is a confidential number assigned to each resident by the building administrator to let you open the front lobby door without using a key.

To unlock the front door

1. Press “0”. The keyless code prompt appears.

2. Enter the keyless code. The front door unlocks.

Page 87

Warranty & Warning Information

Limited Warranty

Mircom Technologies Ltd. together with its subsidiaries and affiliates (collectively, the “Mircom Group of Companies”) warrants the original purchaser that for a period of two years from the date of manufacture, the product shall be free of defects in materials and workmanship under normal use. During the warranty period, Mircom shall, at its option, repair or replace any defective product upon return of the product to its factory, at no charge for labour and materials. Any replacement and/or repaired parts are warranted for the remainder of the original warranty or ninety (90) days, whichever is longer. The original owner must promptly notify Mircom in writing that there is defect in material or workmanship, such written notice to be received in all events prior to expiration of the warranty period.

International Warranty

The warranty for international customers is the same as for any customer within Canada and the United States, with the exception that Mircom shall not be responsible for any customs fees, taxes, or VAT that may be due.

Conditions to Void Warranty

This warranty applies only to defects in parts and workmanship relating to normal use. It does not cover:

• damage incurred in shipping or handling;

• damage caused by disaster such as fire, flood, wind, earthquake or

lightning;

• damage due to causes beyond the control of Mircom such as excessive

voltage, mechanical shock or water damage;

• damage caused by unauthorized attachment, alterations, modifications or

foreign objects;

• damage caused by peripherals (unless such peripherals were supplied by

Mircom);

• defects caused by failure to provide a suitable installation environment for

the products;

• damage caused by use of the products for purposes other than those for

which it was designed;

• damage from improper maintenance;

Page 88

88 (93) TX3 Touch Screen Installation Manual Version 3.4

• damage arising out of any other abuse, mishandling or improper application of the products.

Warranty Procedure

To obtain service under this warranty, please return the item(s) in question to the point of purchase. All authorized distributors and dealers have a warranty program. Anyone returning goods to Mircom must first obtain an authorization number. Mircom will not accept any shipment whatsoever for which prior authorization has not been obtained.

Note: Unless specific pre-authorization in writing is obtained from

Mircom management, no credits will be issued for custom fabricated products or parts or for complete fire alarm system. Mircom will at its sole option, repair or replace parts under warranty. Advance replacements for such items must be purchased.

Note: Mircom’s liability for failure to repair the product under this

warranty after a reasonable number of attempts will be limited to a replacement of the product, as the exclusive remedy for breach of warranty.

Disclaimer of Warranties

This warranty contains the entire warranty and shall be in lieu of any and all other warranties, whether expressed or implied (including all implied warranties of merchantability or fitness for a particular purpose) and of all other obligations or liabilities on the part of Mircom neither assumes nor authorizes any other person purporting to act on its behalf to modify or to change this warranty, nor to assume for it any other warranty or liability concerning this product.

This disclaimer of warranties and limited warranty are governed by the laws of the province of Ontario, Canada.

Out of Warranty Repairs

Mircom will at its option repair or replace out-of-warranty products which are returned to its factory according to the following conditions. Anyone returning goods to Mircom must first obtain an authorization number. Mircom will not accept any shipment whatsoever for which prior authorization has not been obtained.

Page 89

Products which Mircom determines to be repairable will be repaired and returned. A set fee which Mircom has predetermined and which may be revised from time to time, will be charged for each unit repaired.

Products which Mircom determines not to be repairable will be replaced by the nearest equivalent product available at that time. The current market price of the replacement product will be charged for each replacement unit.

WARNING

Mircom recommends that the entire system be completely tested on a regular basis. However, despite frequent testing, and due to, but not limited to, criminal tampering or electrical disruption, it is possible for this product to fail to perform as expected.

NOTE

Under no circumstances shall Mircom be liable for any special, incidental, or consequential damages based upon breach of warranty, breach of contract, negligence, strict liability, or any other legal theory. Such damages include, but are not limited to, loss of profits, loss of the product or any associated equipment, cost of capital, cost of substitute or replacement equipment, facilities or services, down time, purchaser’s time, the claims of third parties, including customers, and injury to property.

MIRCOM MAKES NO WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE WITH RESPECT TO ITS GOODS DELIVERED, NOR IS THERE ANY OTHER WARRANTY, EXPRESSED OR IMPLIED, EXCEPT FOR THE WARRANTY CONTAINED HEREIN.

Page 90

90 (93) TX3 Touch Screen Installation Manual Version 3.4

Special Notices

Product Model Number: TX3

AC REN (U.S.): 0.0B

AC REN (CANADA): 0.0

Complies With

Federal Communications Commission (FCC):

• TIA-968-A Technical requirement for connection of equipment tot he telephone network.

• CFR 47, Part 15, Subpart B, Class B

• Unintentional Radiators

Industry Canada (IC):

• Terminal attachment programme

• CS-03, Issue 8 - Certification Specifications

• ICES-003, ISSUE 4, CLASS B

• Verification Authorization - Digital Apparatus

Registration Numbers

FCC (U.S.): 1M8OT00BTX3

IC (Canada): 1156A-TX3

Industry Canada Notice for all TX3 Products Sold in Canada

The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational, and safety requirements. Industry Canada does not guarantee the equipment will operate to the user's satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunication company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradations of service in some situations.

Page 91

Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alteration made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment. Users should ensure for their own protection that the earth ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This is necessary both for proper operation and for protection.

Caution: Users should not attempt to make such connections themselves, but

should contact the appropriate electric inspection authority, or electrician, as appropriate.

Note: The Ringer Equivalence Number (REN) assigned to each terminal

device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the RENs of all the devices does not exceed five.

FCC Notice for all TX3 Products Sold in the U.S.A.

Type of Service

The TX3 is designed to be used on standard device telephone lines. It connects to the telephone line by means of a standard jack called the USOC RJ-11C (or USOC FJ45S). Connection to telephone company-provided coin service (central office implemented systems) is prohibited. Connection to party lines service is subject to state tariffs.

Telephone Company Procedures

The goal of the telephone company is to provide you with the best service it can. In order to do this, it may occasionally be necessary for them to make changes in their equipment, operations or procedures. If these changes might affect your service or the operation of your equipment, the telephone company will give you notice, in writing, to allow you to make any changes necessary to maintain uninterrupted service.

In certain circumstances, it may be necessary for the telephone company to request information from you concerning the equipment which you have connected to your telephone line. Upon request of the telephone company, provide the FCC registration number and the ringer equivalence number (REN); both of these items are listed on the equipment label. The sum of all of the RENs

Page 92

92 (93) TX3 Touch Screen Installation Manual Version 3.4

on your telephone lines should be less than five in order to assure proper service from the telephone company. In some cases, a sum of five may not be useable on a given line.

Changes to Telephone Service

The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service.

Ringer Equivalence Number

The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company. For products approved after July 23, 2001, the REN for this product is Customer Information 3 July 2003 part of the product identifier that has the format US:AAAEQ##TXXXX. The digits represented by ## are the REN without a decimal point (e.g., 03 is a REN of 0.3). For earlier products, the REN is separately shown on the label.

If Problems Arise

If any of your telephone equipment is not operating properly, you should immediately remove it from your telephone line, as it may cause harm to the telephone network. If the telephone company notes a problem, they may temporarily discontinue service. When practical, they will notify you in advance of this disconnection. If advance notice is not feasible, you will be notified as soon as possible. When you are notified, you will be given the opportunity to correct the problem and informed of your right to file a complaint with the FCC. Contact your telephone company if you have any questions about your telephone line. In the event repairs are ever needed on the Communicator, they should be performed by Mircom or an authorized representative of Mircom. For information contact Mircom at the address and telephone numbers in paragraph 1.7.

If this equipment, TX3 Telephone System, causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.

Page 93

Product Identifier

This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the back of the front panel cover of this equipment is a label that contains, among other information, a product identifier in the format US:AAAEQ##TXXXX. If requested, this number must be provided to the telephone company.

Telephone Connection

A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. You are responsible for installing a compliant telephone cord and modular plug into this product as described in this manual. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details.

Equipment Failure

If trouble is experienced with the TX3 Telephone/Card Access System, for repair or warranty information, please contact Mircom using the numbers paragraph 1.7. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.

Use With Alarm Auto Dialers

If your institution has specially wired alarm equipment connected to the telephone line, ensure the installation of the TX3 Telephone/Card Access System does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer.
