FA-101T Installation and Operation Manual
Introduction
The FA-101T is a supervised sin gle-zone 24V DC Fire Alarm Control Panel. Th e panel provide s the
following features:
• 1 Class B detection zone
• 1 Class B signal zone, 1.7A
• DIP switch selectable signal circuit outputs such as temporal or steady
• Alarm and trouble relay contacts
• Remote trouble and A.C. ON indication
• Zone silence/disconnect switch
• Buzzer silence switch
• LED indicators for zone alarm and trouble, A.C. On, Battery Fault, Ground Fault, Common
Trouble, Signal Trouble and Signal Silenced
Mechanical Installation
The panel can be surface or flush mounted. Refer to Figure 1 on page 5 for dimensions.
Surface Mounting
1. Mark the location of the four mounting holes.
2. Install the top two screws into the wall and place the panel over the screws.
3. Install the bottom screws and tighten down all four screws.
Flush Mounting
1. Make the wall cut-out according to the panel dimensions.
2. Remove the control panel door.
3. Mount the flush mounting trim (model FA-102TR) to the back box using the screws and nuts
provided with the flush mounting kit.
4. Re-install the door on top of the flush trim. The cam lock may require a minor adjustment in
order to compensate for the flush trim.
Function Selection
The following jumpers are available for function selection. Refer to Figure 2 on page 6 for location.
• JW1: Cut for resettable +24V DC supply.
• JW2: Cut to make auxiliary relay disconnectable.
• JW3: Cut for normally open trouble contacts.
• JW4: Cut for normally closed trouble contacts.
1
Wiring
DIP SWITCH DSW1 is used to set the preferred signal zone 1 o utput, the signal silence inhi bit, and
the common trouble flash rate. The default output for the signal zone is temporal code.
not used
ON
DIP switch DSW1
1 2 3 4 5 6 7 8
Signal Zone
ON - steady
OFF - temporal code (default)
ON - 1 minute signal silence inhibit
OFF - normal signal silence (default)
• Temporal Code: 3 rounds of 0.5 second ON, 0.5 second OFF, then 1.5 second pause.
• Steady: Signal on continuously.
Note: Any time the DIP switches in DSW1 are positioned (ON or OFF), the panel must
be reset by holding the Reset button for 5 seconds.
Trouble Buzzer and LED
ON - steady buzzer and LED
OFF - Pulsing Buzzer and LED (default)
Wiring
Detection Zone
The system has one detection zone. Refer to Figure 3 on p age 7 for wiring instruction and to Figure
4 on page 8 for wire size.
Signal Zone
There is one signal zone available for bells and horns providing 1.7A of signal power. Refer to
Figure 3 on page 7 for wiring instruction and to Figure 5 page 8 on for wire size.
Alarm and Trouble Relays
Alarm and trouble relay contacts are pro vided. Refer to Figu re 6 on p age9 for contact location and
designation.
2
FA-101T Installation and Operation Manual
Remote Annunciation
Annunciation outputs are provided for remote trouble indicator and buzzer. Refer to Figure 6 on
page 9 for wiring instructions.
A.C. Power And Batteries
The A.C. power is connected to the terminal block above the transformer.
Use Gel Cell or Sealed Lead-Acid type of batteries only. Connect the batteries after power up. Use
24V 4AH batteries for 24 hours standby and 5 or 30 minutes of alarm. Fo r greater accuracy, use the
battery calculations chart located in Appendix B on page 14.
ELECTRICAL RATING: 120V, 60Hz, 1A / 240V, 50Hz, 0.5A
Trouble Indicators and Controls
Refer to Figure 2 on page 6 for the location of indicators and controls.
Common Trouble LED
The yellow Common Trouble LED will flash and the buzzer will sound for any trouble in the panel
(unless DSW1-8 is ON, then the Common Trouble LED will illuminate steadily and the buzzer will
sound).
Buzzer/Buzzer Silence Switch
The buzzer will sound intermittently for any trouble. The buzzer will sound steadily for any alarm in
the system. Operating the Buzzer Silence switch will silence the buzzer. Turning the Buzzer Silence
switch OFF normal will sound the buzzer steadily.
Zone Trouble LED
The yellow Zone Trouble LED will illuminate steadily for an open loop in the zone.
Battery Fault LED
Battery removal, low voltage and open battery leads will turn on the yellow Battery Fault LED and
the Common Trouble LED.
Ground Fault LED
Any ground fault of 10K ohms or less will turn on the yellow Ground Fault LED steadily, fl ashing the
Common Trouble LED and sounding the Common Trouble buzzer intermittently.
Signal Trouble LED
The yellow Signal Trouble LED will illuminate steadily for any open or short. (The LED is located
behind the display plate.)
3
Sequence of Operation
Sequence of Operation
Refer to Figure 2 on page 6 for the location of indicators and controls.
Normal
All indicators are normally OFF except for the green A.C. ON LED.
Alarm
A red zone alarm LED will illuminate steadily for incoming alarm.
Signal Silence
If the 60 second signal silence inhibit is selected, the signal cannot be silenced for 60 seconds after
an alarm initiation. Once the 60 seconds have expired, pushing the signal silence switch to the right
will silence all the bells and horns. Once the signal has been silenced, the signal silenced LED will
illuminate. If the switch is in the OFF normal position to the right while there is no alarm condition,
the panel will indicate trouble.
Reset/Lamp Test
Operating the reset switch will restore all latched functions in the panel. The smoke detectors will
reset if all products of combustion are cleared from their chambers. Holding the reset switch for five
seconds will cause the panel to preform a lamp test as well as reset the panel.
System Checkout
Before turning the power on,
1. Check all external wiring for opens, shorts or grounds.
2. Check that transformer cables are securely connected.
3. Check the A.C. power wiring for proper connection. To prevent sparking, do not connect
batteries.
4. Check that all switches are in the normal position to the left.
Power up and Troubleshooting
1. After completing all of the system checkout procedures, power up the panel. The A.C. ON LED
should illuminate.The trouble buzzer should sound intermittently, and the Common Trouble
LED should flash, indicating battery fault.
2. Connect the batteries carefully, observing the correct polarity.The Common Trouble LED
should extinguish. If the Common Trouble LED stays on, check the front panel for the
illumination of the following LEDs:
• Battery LED indicates that the battery voltage may be too low (below 20.4V).
• Ground Fault LED indicates a ground on one or more of the extended wires.
• Zone Trouble LED indicates an open loop or a signal silence switch is in the OFF normal
position to the right.
• Signal Trouble LED indicates an open loop or short in the signal zone.
4
”
4
/
3
1
” dia.
/
7
Four
12
”
8
/
7
32
mounting holes
”
4
/
1
1
”
”
4
8
/
/
3
3
13
10
”
16
/
11
”
8
/
7
2
1
Optional flush
mounting trim
(model FA- 102TR)
Figure 1: Backbox and Flush Trim Mounting details
5
F1
2A
BATTERY
-
P4
BATTERY
+
P3
+
24V
ON
A.C.
TRB
REMOTE ANNUNCIATION
TRL
RELAY
TRBL
AUX.
ALARM RELAY
NO C NC
JW4
JW3
SIGNAL
1
+ -
BUZZER SIL.
A.C. ON
ZONE 1 SIL.
JW2
TRBL.
SIG. SIL.
BATT.
RESET
ON
8
1
DSW1 DIP
SWITCHES
SIG.1
GND
DETECTION ZONE
1
+ -
1
+ -
ALARM
ZONE 1
TRBL.
COM
(-)
JW1
Figure 2: Circuit Board Layout
6
F2
TRANSFORMER
A.C.
2A
P1
P2
MD-738

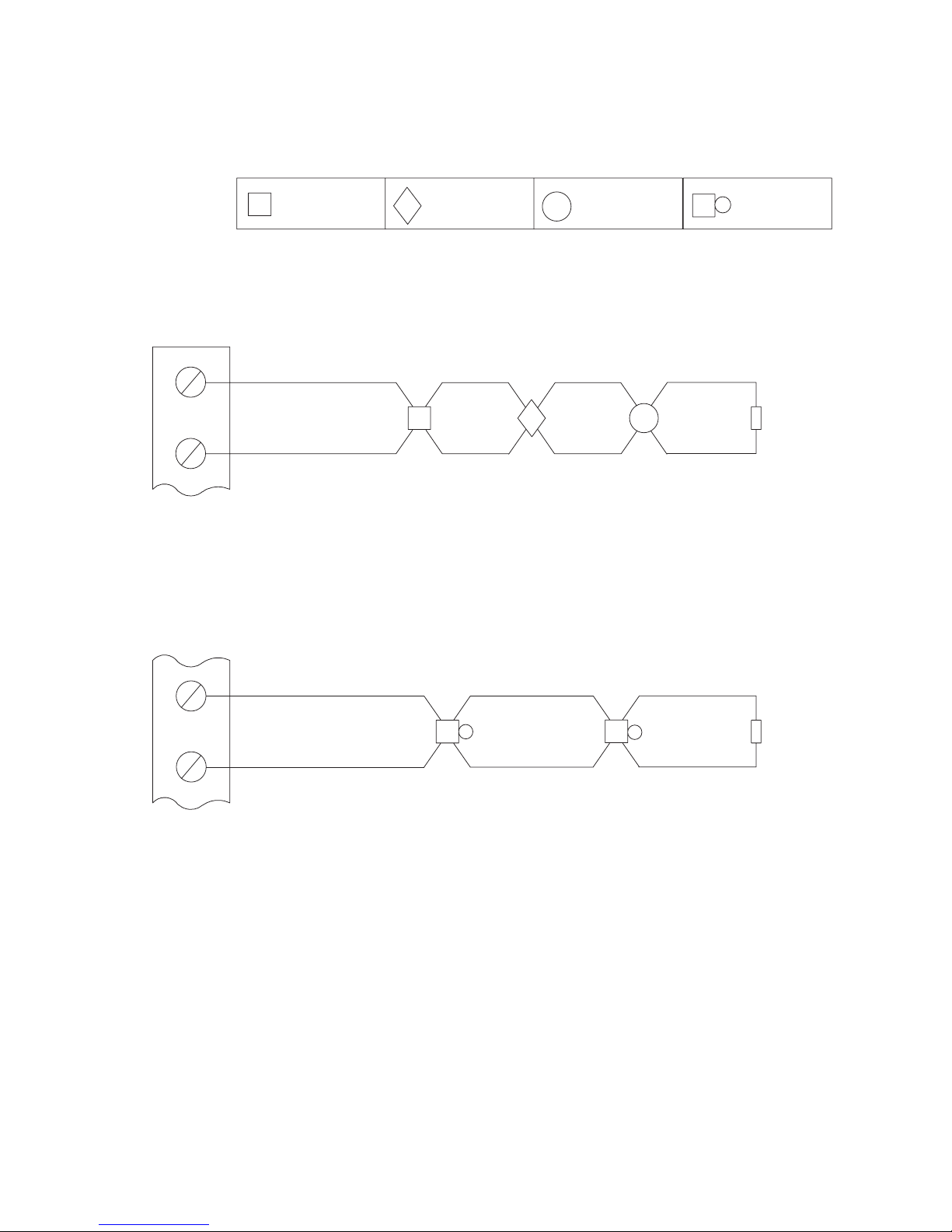

Figure 3: Detection and Signal Wiring
Legend
FA-101T Installation and Operation Manual
TB2
Pull Station
FS
Smoke
Detector
Alarm threshold current is 21 mA.
Maximum loop resistance is 100 ohms.
+
Detection zone
22VDC 3mA STBY
5mV ripple
F
50 mA max. alarm
-
R
Heat
Detector
Bell
F
ELR
S
R
3.9K
1/2W
+
24VDC unfiltered
1.7 A max.
-
F
Signal zone
ELR
F
3.9K
1/2W
7
Wiring Tables and Information
Wiring Tables and Information
Figure 4: Wiring Table for Detection Zone
Wire Gauge Maximum Wiring Run to Last Device (ELR)
(AWG) ft. m
22 2990 910
20 4760 1450
18 7560 2300
16 12000 3600
14 19000 5800
12 30400 9200
Note: Maximum loop resistance should not exceed 100 ohms.
Figure 5: Wiring Table for Bells and Horns
Signal circuit is rated for 1.7 amperes.
Total Signal
Load
18AWG 16AWG 14AWG 12AWG 0hms
Amperes ft. m ft. m ft. m ft. m Ohms
0.06 2350 716 3750 1143 6000 1829 8500 2591 30
0.12 1180 360 1850 567 3000 915 4250 1296 15
0.30 470 143 750 229 1200 366 1900 579 6
0.60 235 71 375 114 600 183 850 259 3
0.90 156 47 250 76 400 122 570 174 2
1.20 118 36 185 56 300 91 425 129 1.5
1.50 94 29 150 46 240 73 343 105 1.2
Maximum Wiring Run to Last Device (ELR)
Max Loop
Resistance
1.7 78 24 125 38 200 61 285 87 1.0
Note: Maximum voltage drop should not exceed 1.8 volts.
8
FA-101T Installation and Operation Manual
Figure 6: Alarm and Trouble Relay Contacts and Remote Annunciation
Wiring Instructions
TS2
N.O.
TRL
C
N.C.
unsupervised
24VDC, 50 mA max.
Auxiliary common
alarm relay contacts
28VDC, 3A (resistive)
Common trouble relay
contacts 28VDC, 3A
(resistive)
1.5K
Cut JW3 for N.O.
Cut JW4 for N.C.
remote trouble
LED (amber)
TRB
A.C. ON
24V+ 24VDC, 250 mA max.
unsupervised
24VDC, 50 mA max.
1.5K
remote trouble
buzzer
remote AC ON
LED (green)
9
Appendix A: Compatible Devices
Appendix A: Compatible Devices
Underwriter’s Laboratories Canada (ULC) Canadian 2-Wire Smoke
Detector Control Panel
Notes:
• Reset time, hold for five seconds minimum.
• Whether mixing different models of compatible smoke detectors, or using the same
model on the same Circuit, total standby current of all detectors must not exceed 3
mA.
Make Model / Base Make Model / Base Make Model / Base
Mircom Cerebrus Pyrotronics Fenwal
MIR-525 D1-2 PSD-7131/70-201000-001
MIR-525T D1-3/DB-3S PSD-7131/70-201000-002
System Sensor
1400-A
2400-A
1451-A/B401B
1451-A/B406B
2451-A/B401B
2451-A/B406B
1451DH/DH400A
2451-A/DH400A
C2W-BA
C2WT-BA
Edwards 73405/73400 PSD-7125/70-201000-001
6249C 73594/73401 PSD-7126/70-201000-002
6250C 73405/73401 PSD-7125/70-201000-003
6264C PSD-7125/70-201000-005
Mirtone PSD-7130/70-201000-001
73471 PSD-7130/70-201000-002
73494 PSD-7130/70-201000-003
73575 PSD-7130/70-201000-005
73495/73486 PSD-7128/70-201000-001
73495/73487 PSD-7126/70-201000-002
73595/73486 PSD-7126/70-201000-003
73595/73497 PSD-7126/70-201000-005
73594/73400 PSD-7129/70-201000-000
PSD-7131/70-201000-003
PSD-7131/70-201000-005
6266C CPD-7021/70-201000-001
6269C Simplex CPD-7021/70-201000-002
6270C 2098-9110 CPD-7021/70-201000-003
6269C-003 CPD-7021/70-201000-005
6270C-003
10
FA-101T Installation and Operation Manual
Underwriter’s Labs Inc. (ULI) United States 2-Wire Smoke Detector
Control Panel Compatibility
Notes:
• Reset time, hold for five seconds minimum.
• Whether mixing different models of compatible smoke detectors, or using the same
model on the same circuit, total standby current of all detectors must not exceed 3
mA.
• The below-listed smoke detectors are compatible with initiating circuits having
Compatibility Identifier "A".
Smoke
Detector
Make Model /
Base
Compatibility
Identifier
Head / Base
Rated
Standby
Current
Smoke Detector
Make Model /
Base
Compatibility
Identifier Head /
Base
Rated Standby
Current
System Sensor Sentrol - ESL
1100 A - N/A 0.12 mA 429C S10A - N/A 0.10 mA
1151/
B110LP
1151/
B116LP
A - A 0.12 mA 429CT S10A - N/A 0.10 mA
A - A 0.12 mA 429CST S11A - N/A 0.10 mA
1400 A - N/A 0.10 mA 429CRT S11A - N/A 0.10 mA
711U/701E,
1451/B401 A - A 0.12 mA
701U, 702E,
S10A - S00 0.10 mA
702U
1451/
B401B
1451/
B406B
A - A 0.12 mA
A - A 0.12 mA
712U / 701E,
701U, 702E,
702U
713-5U / 701E,
701U, 702E,
702U
S10A - S00 0.10 mA
S10A - S00 0.10 mA
1451DH/
DH400
A - A 0.12 mA
2100 A - N/A 0.12 mA
2100T A - N/A 0.12 mA
2151/
B110LP
2151/
B116LP
A - A 0.12 mA
A - A 0.12 mA
713-6U / 701E,
701U, 702E,
702U
721U / 702E,
702U
721UT / 702E,
702U
722U / 702E,
702U
731U / 702E,
702U, 702RE,
702RU
S10A - S00 0.10 mA
S10A - S00 0.10 mA
S10A - S00 0.10 mA
S10A - S00 0.10 mA
S11A - S00 0.10 mA
11
Appendix A: Compatible Devices
Smoke
Detector
Make Model /
Base
Compatibility
Identifier
Head / Base
Rated
Standby
Current
Smoke Detector
Make Model /
Base
Compatibility
Identifier Head /
Base
Rated Standby
Current
System Sensor (cont’d) Sentrol ESL (cont’d)
732U / 702E,
2400 A - N/A 0.12 mA
702U, 702RE,
S11A - S00 0.10 mA
702RU
2400TH A - N/A 0.12 mA
2400AT A - N/A 0.12 mA Detection Systems Inc.
2400AIT A - N/A 0.12 mA DS250 B - N/A 0.10 mA
2451 /
B401B
2451 /
B406B
2451 /
DH400
2451TH /
B401B
A - A 0.12 mA DS250TH B - N/A 0.10 mA
A - A 0.12 mA DS282 B - N/A 0.10 mA
A - N/A 0.12 mA DS282TH B - N/A 0.10 mA
A - A 0.12 mA
2451TH /
B406B
A - A 0.12 mA
2451 / B401 A - A 0.12 mA
2451TH /
B401
4451HT /
B401B
4451HT /
B406B
4451HT /
B401
5451 /
B401B
A - A 0.12 mA
A - A 0.12 mA
A - A 0.12 mA Mircom
A - A 0.12 mA MIR-525U FDT-1 0.10 mA
A - A 0.12 mA MIR-525TU FDT-1 0.10 mA
5451 / B401 A - A 0.12 mA
5451 /
B406B
A - A 0.12 mA
(Continued from previous page)
12
FA-101T Installation and Operation Manual
Underwriter’s Labs Inc. (ULI) United States Signaling Device Control Panel
Compatibility
System Sensor - SpecrAlert
P2415 P2415W P241575 P241575W P2475
P2475W P24110 P24110W S2415 S2415W
S241575 S241575W S2475 S2475W S24110
S24110W H12/24 H12/24W MDL MDLW
Wheelock
AS-2415W-24-FR AS-241575W-FR AS-2430W-FR AS-2475W-FR AS-24110W-FR
AS-2415C-FW AS-2430C-FW AS-2475C-FW AS-24100C-FW AH-24-R
AH-24-WP-R NS-2415W-FR NS-241575W-FR NS-2430W-FR NS-2475W-FR
NS-24110W-FR NS4-2415W-FR NS4-241575W-FR NS4-2430W-FR NS4-2475W-FR
NS4-24110W-FR RS-2415W-FR RSS-241575W-FR RSS-2415W-FR RSS-241575W-FR
RSS-2430W-FR RSS-2475W-FR RSS-24110W-FR RSS-2415C-FW RSS-2430C-FW
RSS-2475C-FW RSS-24100C-FW MT-12/24-ULC
AMT-12/24-RULC
DSM-12/24-R
AMT-24-LS-VFRULC
MB-G6-24-R MB-G10-24-R SM-12/24-R
MT-24-LS-VFRULC
MT-24-WS-VFR-ULC
Gentex
AVP-4-15-1 AVP-4-15/75 AVP-4-30/75 AVP-4-110-1 GXS-4-15-1
GXS-4-15/75-W GXS-4-30/75-W GXS-4-15/75-C GXS-4-110-1 GX90S-4-15-1
GX90S-4-15/75-
W
SHG15/75-W SHG24-30/75-W SHG24-15/75-C SHG24-110-1 GOT24
GOS24-15-1 GOS24-15/75 GOS24-15/75 GOS24-30/75 GOS24-110-1
GMH-24 GMS-24-15-1 GMS-24-15/75-W GMS-24-30/75-W GMS-24-15/75-C
GMS-24-110-1 WGMS-4/75
GX90S-4-30/75W GX90S-4-15/75-C GX90S-4-110-1 SHG24-15-1
Mircom
FH-240R FH-240W FHS-240R FHS-240R/110 FHS-240W
FHS-240W/110 FS-240R FS-240R/110 FS-240W FS-240W/110
SDM-240
13
Appendix B: Battery Calculations (Selection Guide)
Appendix B: Battery Calculations (Selection Guide)
Use the form below to determine the required batteries.
IMPORTANT NOTICE
The main AC branch circuit connection for the fire alarm control unit must provide a dedicated
continuous power without provision of any disconnect devices. Use #12 A WG wire with 600- volt
insulation and proper over-current circuit protection that complies with the local codes.
Power Requirements (All currents are in amperes)
Model Number Description Qty Standby
FA-101T
RTI-1
2-Wire Smoke Detectors X
4-Wire Smoke Detectors X = =
Signal Load (bells, horns, strobes, and
etc.)
Total currents (Add above currents) Standby (A)(B)
Fire Alarm, 1 Det, 1
Sig
Remote Trouble
Indicator
X 0.066 = 0.125 =
X 0.035 = 0.035 =
♦
0.0001
Total
Standby
= * 0.090 = 0.090
Alarm Total Alarm
=
Total Current Requirement
ALARM (B)______ Amps.
Battery Capacity Requirement
(
[STANDBY (A) ______ ] X [(24 or 60 Hours) ________ ]) + ([ALARM (B) ______ ] X [♣Alarm in Hr.] ________) = (C) ________AH
Battery Selection
Multiply (C) by 1.20 to derate battery.
Note: Batteries BA-104 (4.0AH) and BA-1065(6.5AH) fit into the backboxes; all larger
batteries such as BA-110(10AH) and the BA-117(17AH) require an external
battery box.
* Assuming three initiating circuits in alarm.
♣
Use 0.084 for five minutes of alarm or 0.5 for thirty minutes of alarm as a multiplier figure.
♦
Using the MIR-525/U 2-wire smoke detector. See Appendix "A", for other available smoke detectors .
14
FA-101T Installation and Operation Manual
Warranty
Mircom Technologies Ltd., manufactured equipment is guaranteed to be free of defects in material
and workmanship for a period of one (1) year from the date of original shipment. Mircom will repair
or replace, at its option, any equipment which it determines to contain defective material or
workmanship. Said equipment must be shipped to Mircom prepaid. Return freight will be prepaid by
Mircom. We shall not be responsible to repair or replace equipment which has been repaired by
others, abused, improperly installed, altered or otherwise misused or damaged in any way. Unless
previously contracted by Mircom, Mircom will assume no responsibility for determining the
defective or operative status at the point of installation, and will accept no liability beyond the repair
or replacement of the product at our factory authorized service depot.
Head Office
25 Interchange Way
Vaughan, ON Canada
L4K 5W3
Toll-Free Phone: 1-888-660-4655
Toll-Free Fax: 1-888-660-4113
U.S.A. Distribution Centre
60 Industrial Parkway
Cheektowaga, NY USA
14227
www.mircom.com
15
Canada
25 Interchange Way
Vaughan, ON L4K 5W3
Tel: 905-660-4655 Fax: 905-660-4113
Mircom 2006
Printed in Canada
Subject to change without prior notice
www.mircom.com
Advanced Life Safety Solutions Advanced Life Safety Solutions
U.S.A.
60 Industrial Parkway
Cheektowaga, NY 14227
Tel: 1-888-660-4655 Fax: 1-888-660-4113
Loading...
