Miratron T–5 Operating Manual

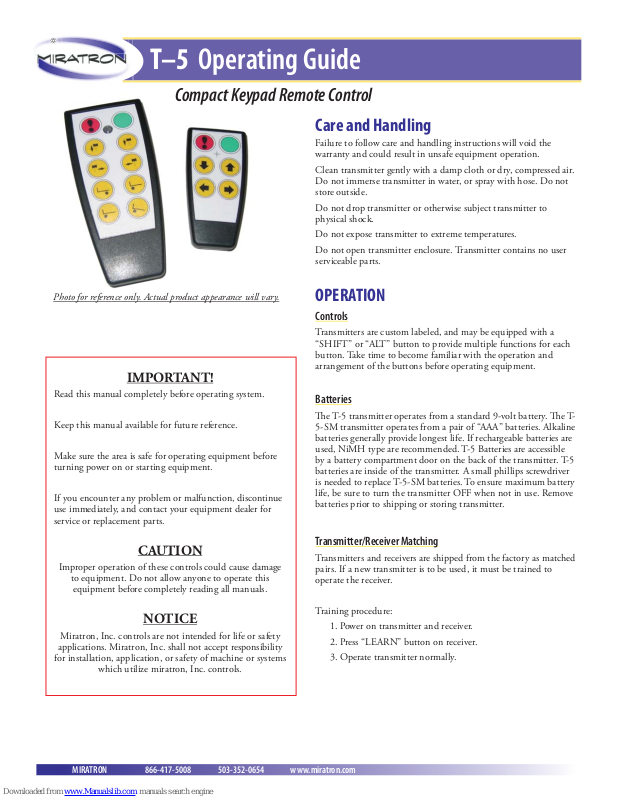

T–5 Operating Guide

Compact Keypad Remote Control

Care and Handling

Failure to follow care and handling instructions will void the
warranty and could result in unsafe equipment operation.

Clean transmitter gently with a damp cloth or dry, compressed air.
Do not immerse transmitter in water, or spray with hose. Do not
store outside.

Do not drop transmitter or otherwise subject transmitter to
physical shock.

Do not expose transmitter to extreme temperatures.

Do not open transmitter enclosure. Transmitter contains no user
serviceable parts.

Photo for reference only. Actual product appearance will vary.

IMPORTANT!

Read this manual completely before operating system.

Keep this manual available for future reference.

Make sure the area is safe for operating equipment before
turning power on or starting equipment.

If you encounter any problem or malfunction, discontinue
use immediately, and contact your equipment dealer for
service or replacement parts.

CAUTION

Improper operation of these controls could cause damage

to equipment. Do not allow anyone to operate this

equipment before completely reading all manuals.

OPERATION

Controls

Transmitters are custom labeled, and may be equipped with a
“SHIFT” or “ALT” button to provide multiple functions for each
button. Take time to become familiar with the operation and
arrangement of the buttons before operating equipment.

Batteries

 e T-5 transmitter operates from a standard 9-volt battery.  e T­5-SM transmitter operates from a pair of “AAA” batteries. Alkaline
batteries generally provide longest life. If rechargeable batteries are
used, NiMH type are recommended. T-5 Batteries are accessible
by a battery compartment door on the back of the transmitter. T-5
batteries are inside of the transmitter. A small phillips screwdriver
is needed to replace T-5-SM batteries. To ensure maximum battery
life, be sure to turn the transmitter OFF when not in use. Remove
batteries prior to shipping or storing transmitter.

Transmitter/Receiver Matching

Transmitters and receivers are shipped from the factory as matched
pairs. If a new transmitter is to be used, it must be trained to
operate the receiver.

NOTICE

Miratron, Inc. controls are not intended for life or safety

applications. Miratron, Inc. shall not accept responsibility

for installation, application, or safety of machine or systems

which utilize miratron, Inc. controls.

MIRATRON 866-417-5008 503-352-0654 www.miratron.com

Training procedure:

1. Power on transmitter and receiver.

2. Press “LEARN” button on receiver.

3. Operate transmitter normally.

SPECIFICATIONS

Transmitter Frequency TZ5: 2.4-2.4835GHz, Unlicensed ISM band

TF5/TF5-SM: 433.92MHz
Range TZ5: 300’ line of sight
TF5/TF5-SM: 100’ line of sight
Battery Type TZ5/TF5: 9-volt alkaline
TF5-SM: 2 “AAA” alkaline
Led Indicator Flashing or Solid (application speci c) = normal

Environmental Storage -40ºC to 85ºC
Operating -10ºC to 60ºC

INSTRUCTION TO THE USER (TF5 AND TF5-SM VERSIONS ONLY)

 is equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules.
 ese limits are designed to provide reasonable protection against harmful interference in a residential installation.  is equipment gen­erates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:

* Reorient or relocate the receiving antenna.

* Increase the separation between the equipment and receiver.

* Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected.

* Consult the dealer or an experienced radio/TV technician for help.

Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception.  e user is
cautioned that changes and modifi cations made to the equipment without the approval of manufacturer could void the user’s authority to
operate this equipment.

Troubleshooting:

ISSUE SOLUTIONS

Transmitter not working. LED not on or blinking. Install new batteries.

Make sure power switch is pressed (if applicable)

Transmitter not working. LED on or blinking. Install new batteries.

Make sure receiver is powered.

Check receiver fuse.

Make sure transmitter is in range of receiver.

Make sure transmitter and receiver are matched.

Poor range. Check receiver antenna and cable for loose connections or damage.

Install new batteries.

Obstructions, interference, and adverse weather can aff ect range.

One or more functions do not operate properly. Verify receiver wiring is correct.

Verify control device is operational (solenoid valve, pump, etc.)

Inspect transmitter, receiver, and cabling for damage. (Do not open.)

Some control systems feature special program logic that can disable
functions under certain conditions. Consult factory for specifi c details.
