Miratron T–2, T-3 Operating Manual

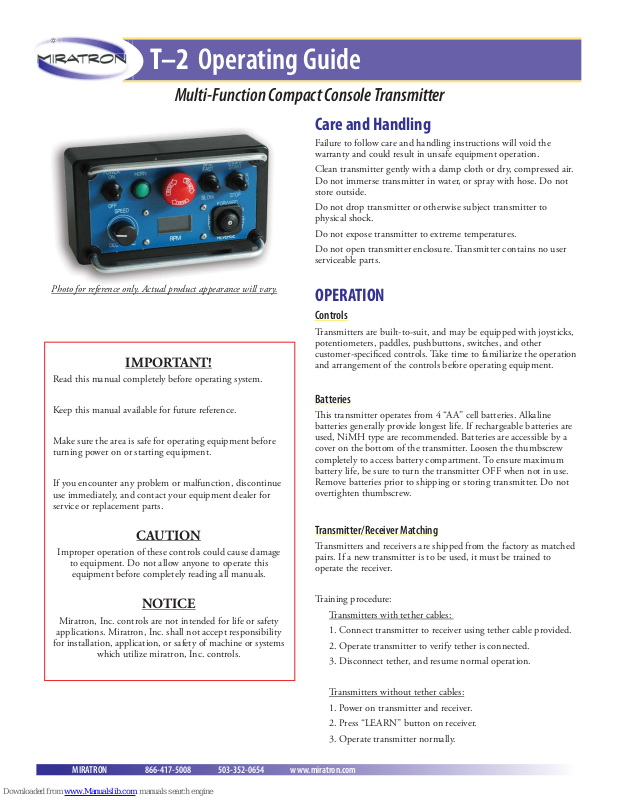

T–2 Operating Guide

Multi-Function Compact Console Transmitter

Care and Handling

Failure to follow care and handling instructions will void the
warranty and could result in unsafe equipment operation.

Clean transmitter gently with a damp cloth or dry, compressed air.
Do not immerse transmitter in water, or spray with hose. Do not
store outside.

Do not drop transmitter or otherwise subject transmitter to
physical shock.

Do not expose transmitter to extreme temperatures.

Do not open transmitter enclosure. Transmitter contains no user
serviceable parts.

Photo for reference only. Actual product appearance will vary.

IMPORTANT!

Read this manual completely before operating system.

Keep this manual available for future reference.

Make sure the area is safe for operating equipment before
turning power on or starting equipment.

If you encounter any problem or malfunction, discontinue
use immediately, and contact your equipment dealer for
service or replacement parts.

CAUTION

Improper operation of these controls could cause damage

to equipment. Do not allow anyone to operate this

equipment before completely reading all manuals.

OPERATION

Controls

Transmitters are built-to-suit, and may be equipped with joysticks,
potentiometers, paddles, pushbuttons, switches, and other
customer-specifi ced controls. Take time to familiarize the operation
and arrangement of the controls before operating equipment.

Batteries

 is transmitter operates from 4 “AA” cell batteries. Alkaline
batteries generally provide longest life. If rechargeable batteries are
used, NiMH type are recommended. Batteries are accessible by a
cover on the bottom of the transmitter. Loosen the thumbscrew
completely to access battery compartment. To ensure maximum
battery life, be sure to turn the transmitter OFF when not in use.
Remove batteries prior to shipping or storing transmitter. Do not
overtighten thumbscrew.

Transmitter/Receiver Matching

Transmitters and receivers are shipped from the factory as matched
pairs. If a new transmitter is to be used, it must be trained to
operate the receiver.

NOTICE

Miratron, Inc. controls are not intended for life or safety

applications. Miratron, Inc. shall not accept responsibility

for installation, application, or safety of machine or systems

which utilize miratron, Inc. controls.

MIRATRON 866-417-5008 503-352-0654 www.miratron.com

Training procedure:

Transmitters with tether cables:

1. Connect transmitter to receiver using tether cable provided.

2. Operate transmitter to verify tether is connected.

3. Disconnect tether, and resume normal operation.

Transmitters without tether cables:

1. Power on transmitter and receiver.

2. Press “LEARN” button on receiver.

3. Operate transmitter normally.

SPECIFICATIONS

Transmitter Frequency 902-928MHz, Unlicensed ISM band standard models

2.4-2.4835GHz, Unlicensed ISM band international option
Type Frequency hopping spread spectrum
Frequency Control Direct FM
FCC id OUR9XCITE: Standard range
OUR9XTREAM: Extended range
OURXBEE: International version
Range (line of sight) Standard range = 500 feet
Extended range = 1500 feet
International = 500 feet
RF Power Output Standard range = 5mW
Extended range = 100mW
International = 60mW (100mW EIRP)
Battery Type 4 “AA” size alkaline or rechargeable
Battery Life (fully charged) Standard range = Standby, 40 hrs; Transmit, 16 hrs
Extended range = Standby, 10 hrs; Transmit, 4 hrs
International = Standby, 8 hrs; Transmit, 3 hrs
Controls User speci ed toggles, potentiometers, mini-joystick/sliders, LCD
Led Indicator Flashing = normal; Double blink = battery low

Enclosure Compact Console High-impact ABS
Approximate size: 7” L x 3-1/2”W x 4-1/4”D including rails
Sealing IP65
Environmental Storage -40ºC to 85ºC
Operating -10ºC to 60ºC

Troubleshooting:

ISSUE SOLUTIONS

Transmitter not working. LED not on or blinking. Install new batteries.

Make sure power switch is on.

Transmitter not working. LED on or blinking. Make sure E-Stop switch is out (if equipped.)

Install new batteries.

Make sure receiver is powered.

Check receiver fuse.

Make sure transmitter is in range of receiver.

Make sure transmitter and receiver are matched.

Poor range. Check receiver antenna and cable for loose connections or damage.

Install new batteries.

Obstructions, interference, and adverse weather can aff ect range.

One or more functions do not operate properly. Verify receiver wiring is correct.

Verify control device is operational (solenoid valve, pump, etc.)

Inspect transmitter, receiver, and cabling for damage. (Do not open.)

Some control systems feature special program logic that can disable
functions under certain conditions. Consult factory for specifi c details.

MIRATRON 866-417-5008 503-352-0654 www.miratron.com
