Mirano NFC, ACR1222L User Manual

www.mirano.ca

MIRANO

Green

Receipt

Dispenser

NFC

User Guide

VERSION 0.1

System Requirements/How It Works

2

NFC

System Requirements

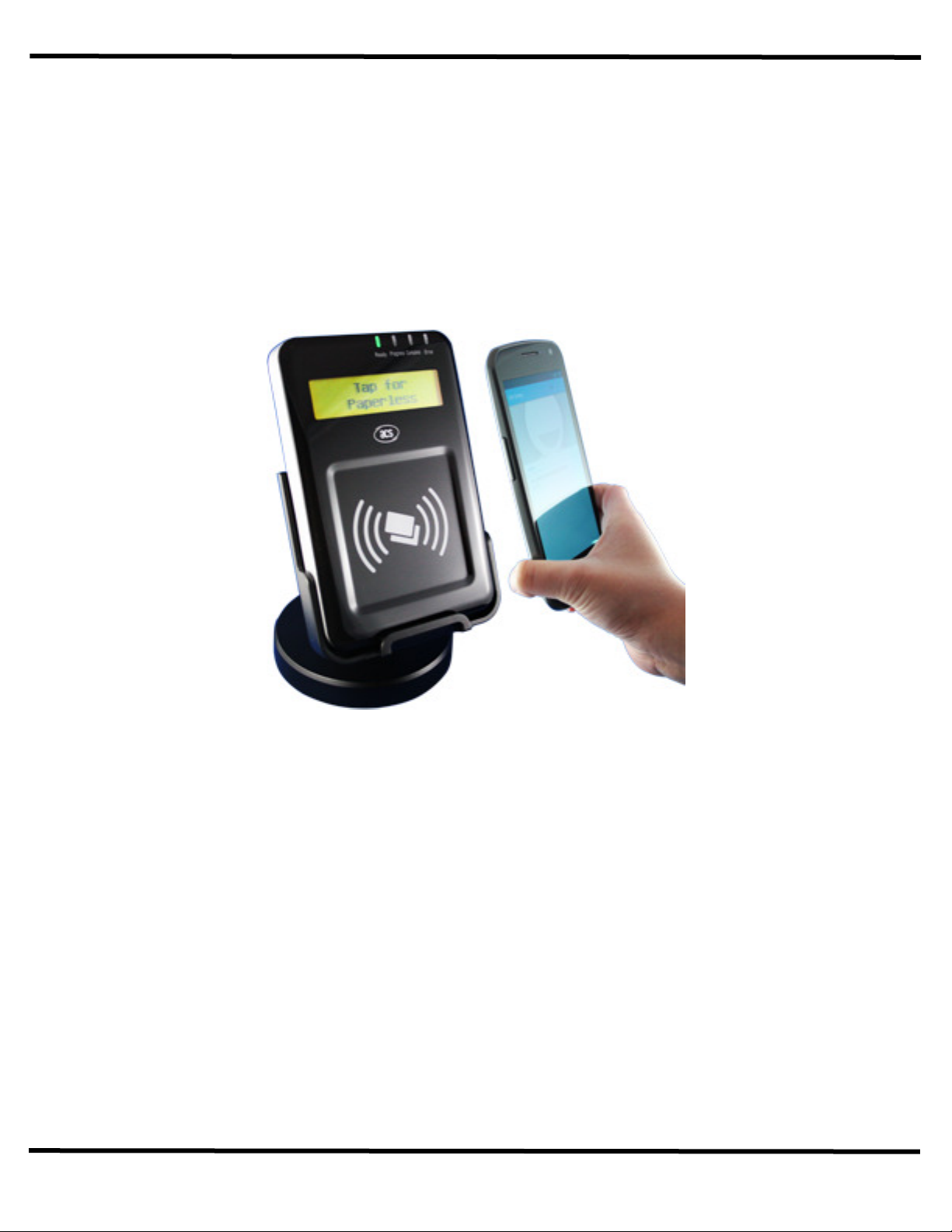

• ACR1222L VisualVantage NFC Reader with LCD.

• ACR1222L Smartcard drivers from Advanced Card Systems Ltd.

Customer Requirements

• NFC Enabled Smartphone, or

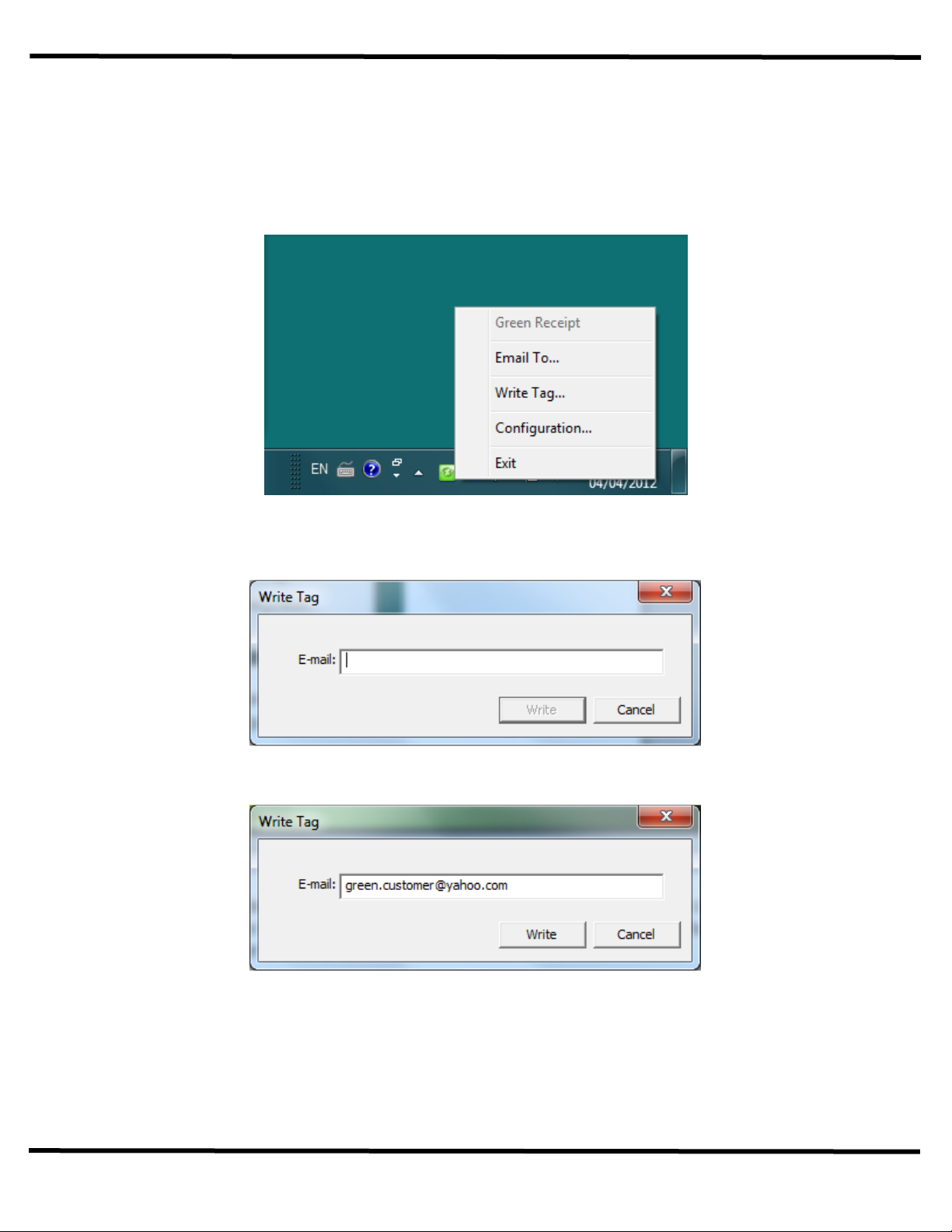

• Pre-programmed MIFARE Classic or MIFARE Ultralight Card/Tag

How It Works

Near Field Communication (NFC) is used to accept customer address from either NFC enabled smartphones or
NFC cards/tags.



Manual Entry

Green

Receipt

Automatic

Reader

NFC Benefits

• Customer experience is greatly increased.

• Cashier does not need to deal with requesting sensitive information from the customer.

• No typing errors or fake entries.

• No additional delays in the checkout process.

• Ease of use.

• No additional requirement for customers with NFC enabled smartphones.

Green Receipt Dispenser NFC User Guide

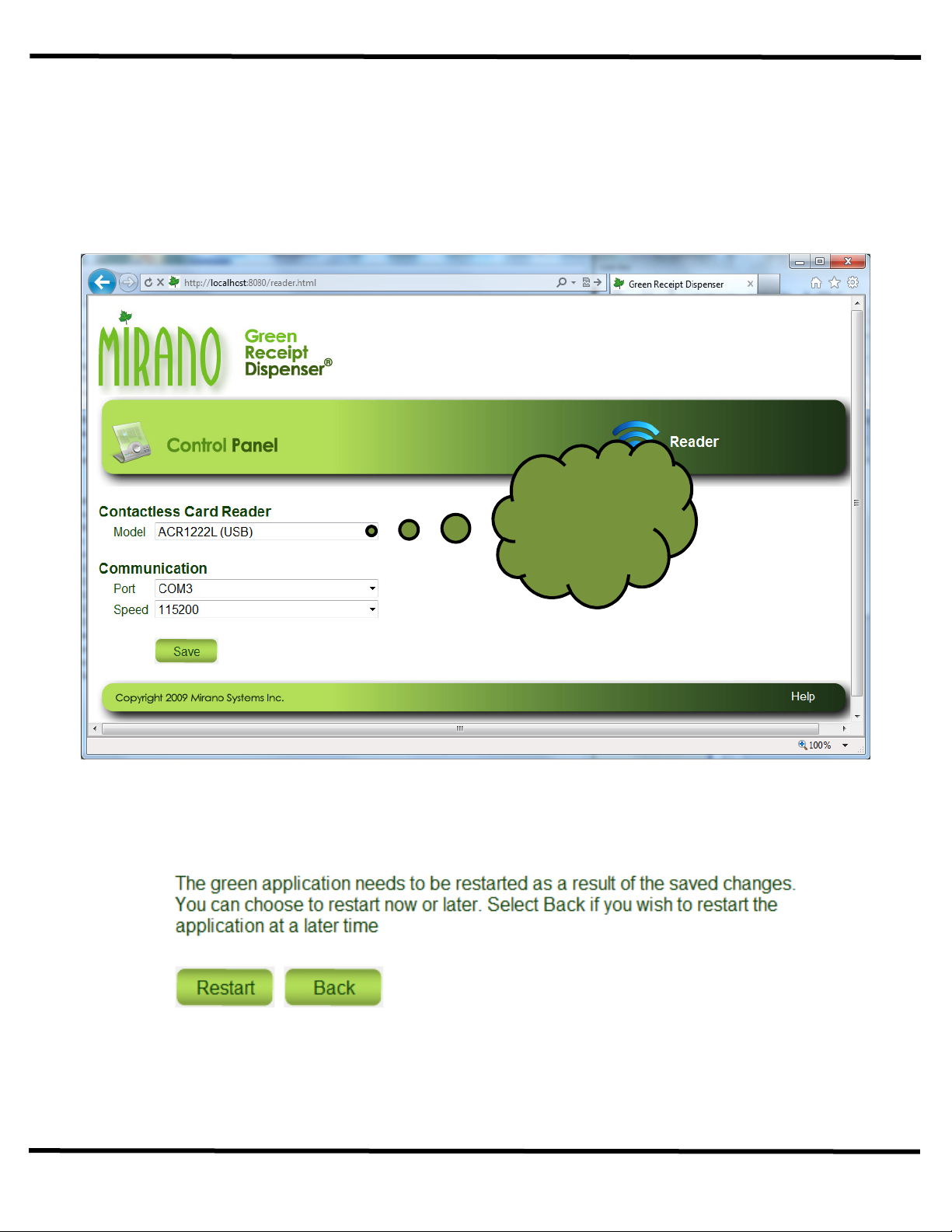

Configuration/Driver Installation

3

NFC Reader Installation

1. The ACR1222L NFC reader requires the correct Smartcard drivers to be installed on the POS computer

for it to operate correctly with the Green Receipt product.

2. Before you begin with the installation process, familiarize yourself with the driver installation steps outlined

in this document.

3. Obtain the ACR1222L Smartcard driver package from Advanced Card Systems Ltd and place the driver

package on the POS computer. The download link for the Smartcard driver package is provided below.

http://www.acs.com.hk/drivers/eng/ACR1222_Driver_Win_1003_P%20(Beta).zip

4. Extract the contents of the above compressed package onto the hard drive of the POS computer.

USB

5. Plug in the USB based NFC reader into a spare USB port

reader obtains it power from the USB port and does not require a separate power adaptor.

6. For Windows Vista and Windows 7 based POS computer, follow the steps outlined in the Windows Vista

and Windows 7 section of this document

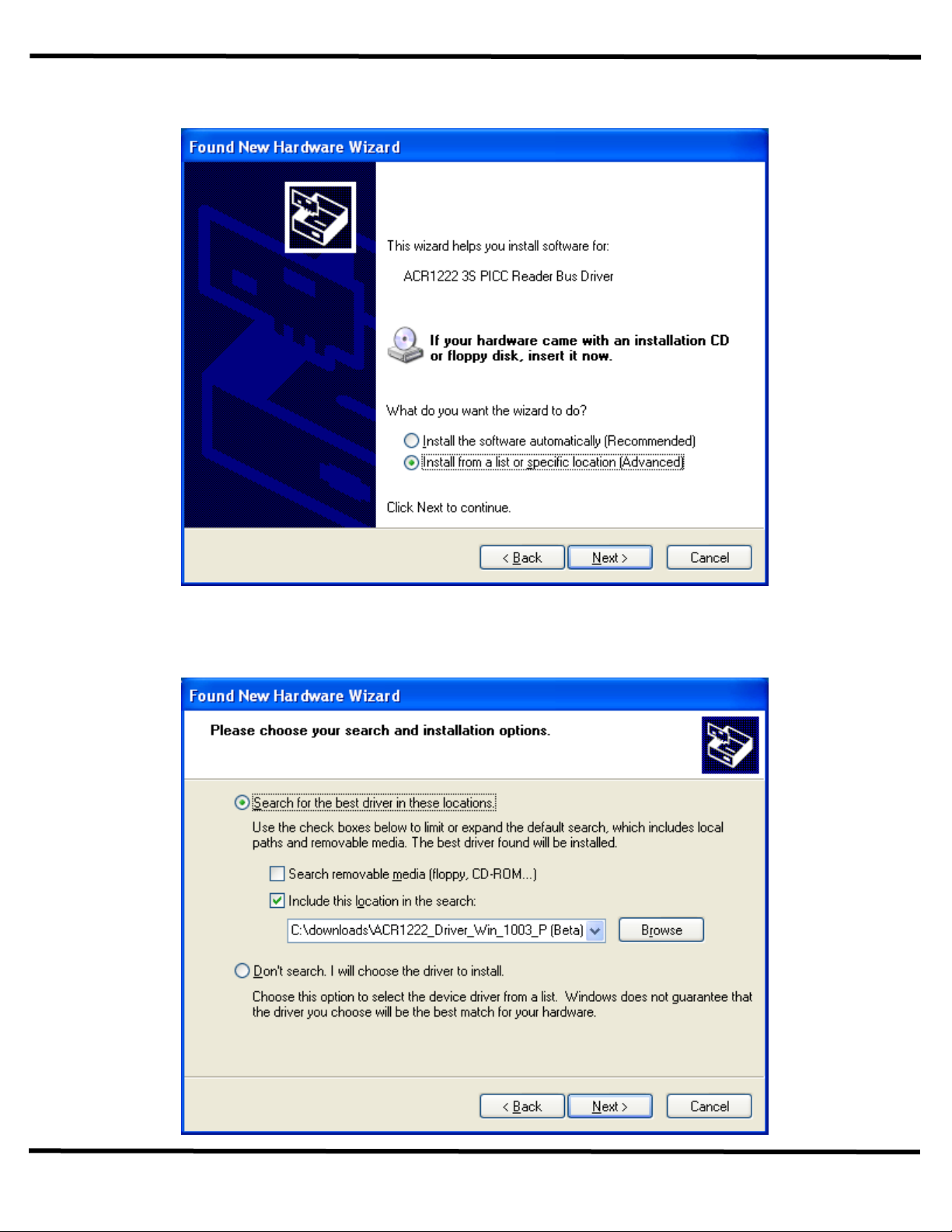

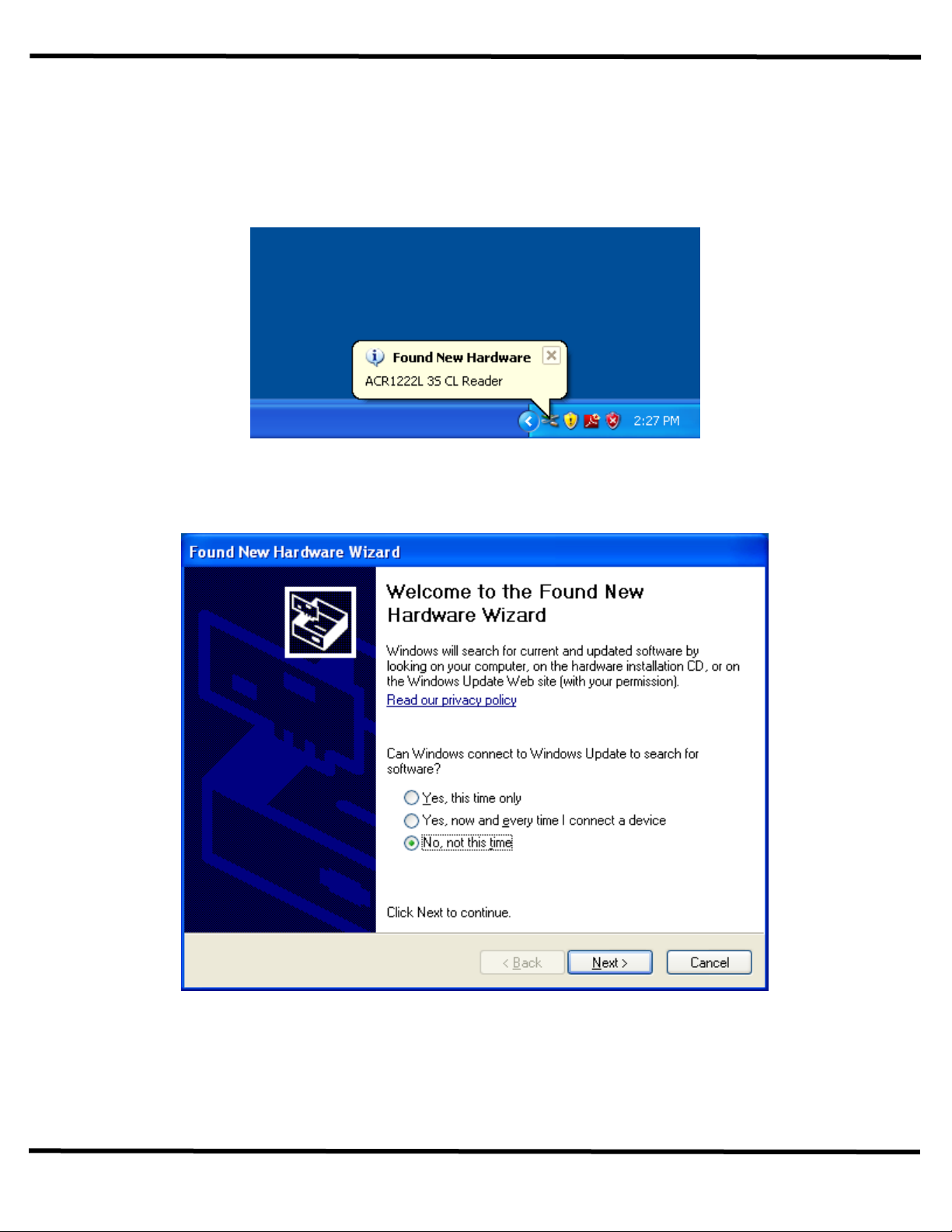

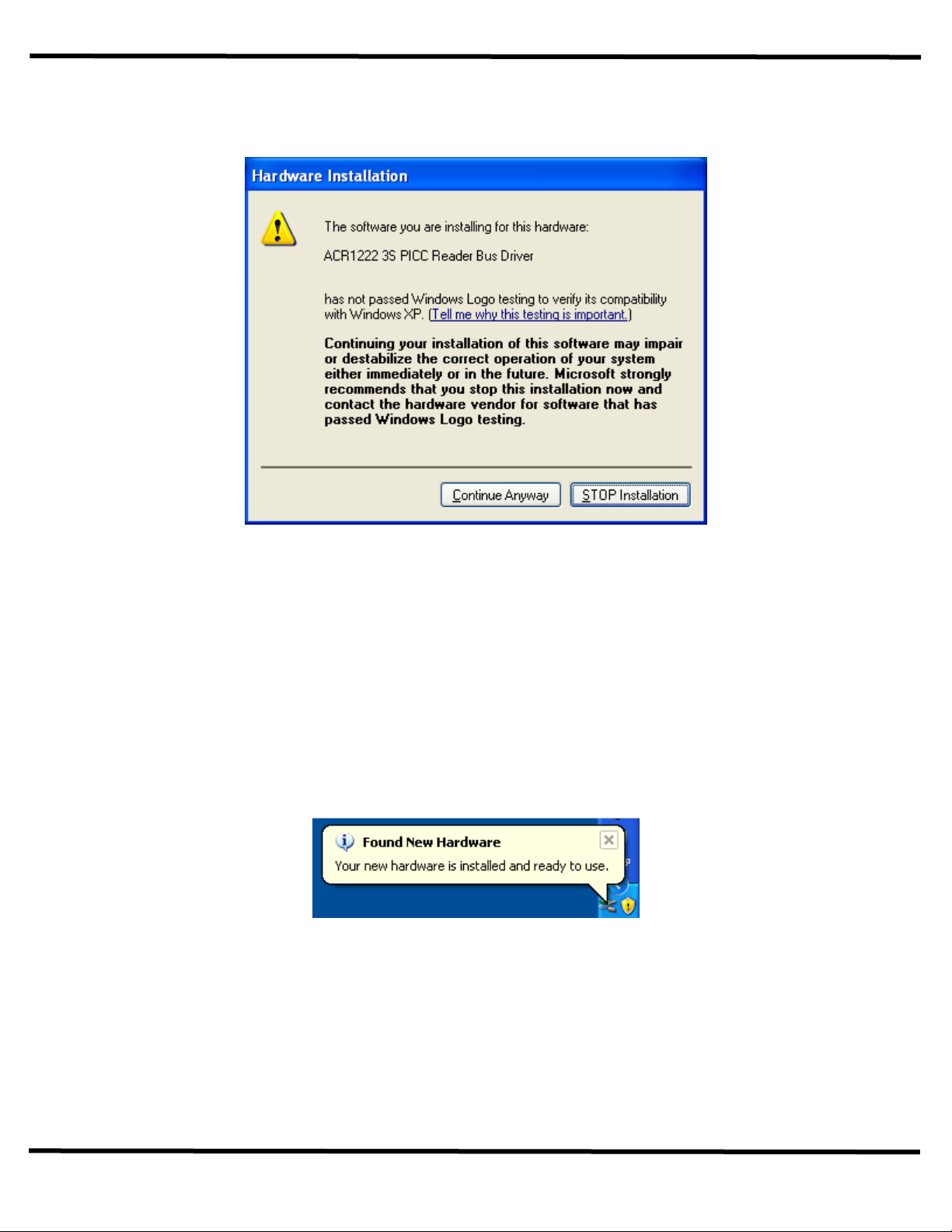

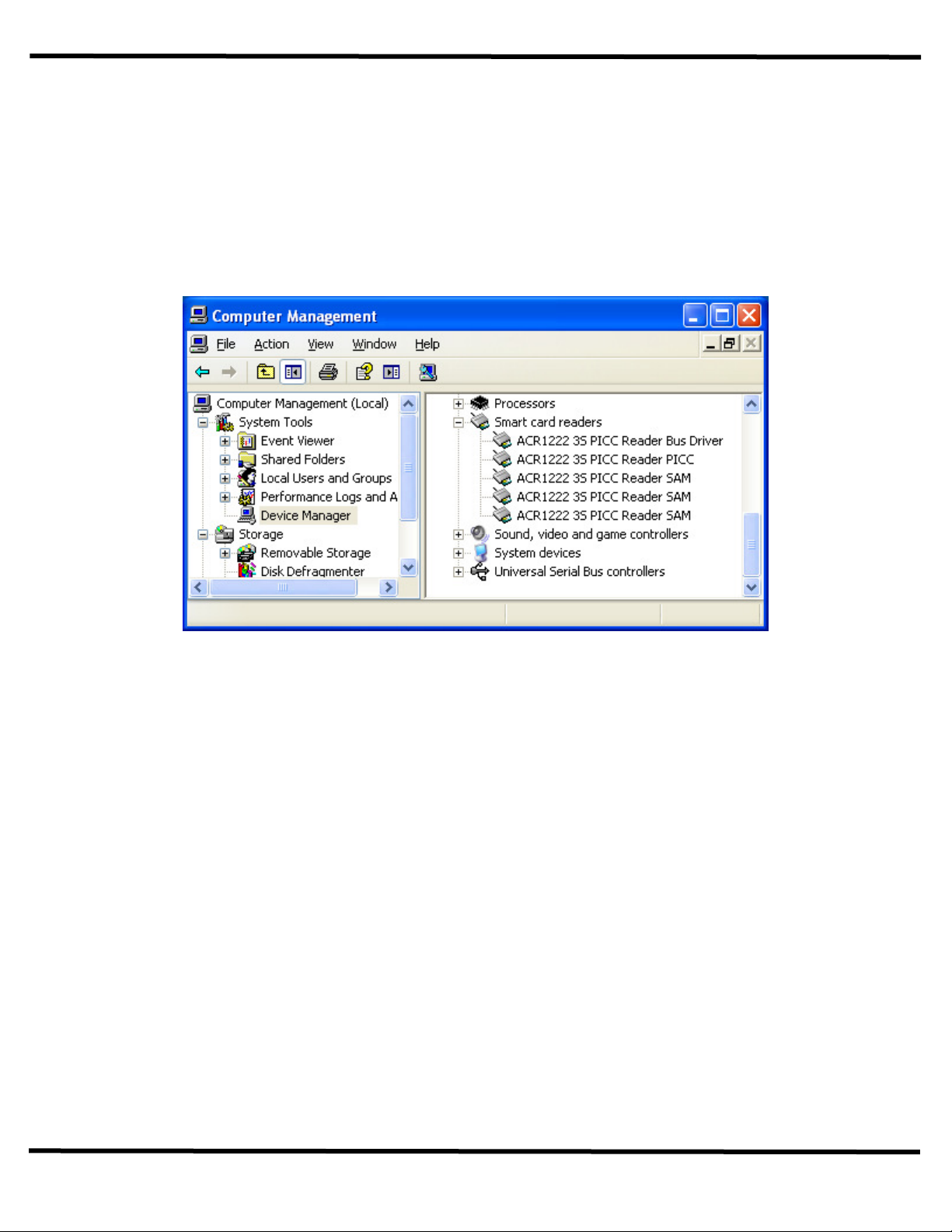

7. For Windows XP based POS computer, follow the steps outlined in the Windows XP section of this

document.

on the POS computer. The NFC

Green Receipt Dispenser NFC User Guide

Configuration/Driver Installation

4

Windows Vista and Windows 7

1. By default, the Microsoft supplied drivers for smartcard reader are automatically installed for the

ACR1222L. These default drivers are not recommended for use with the Green Receipt product. Select
“Manage” by right-clicking on the “Computer” menu.

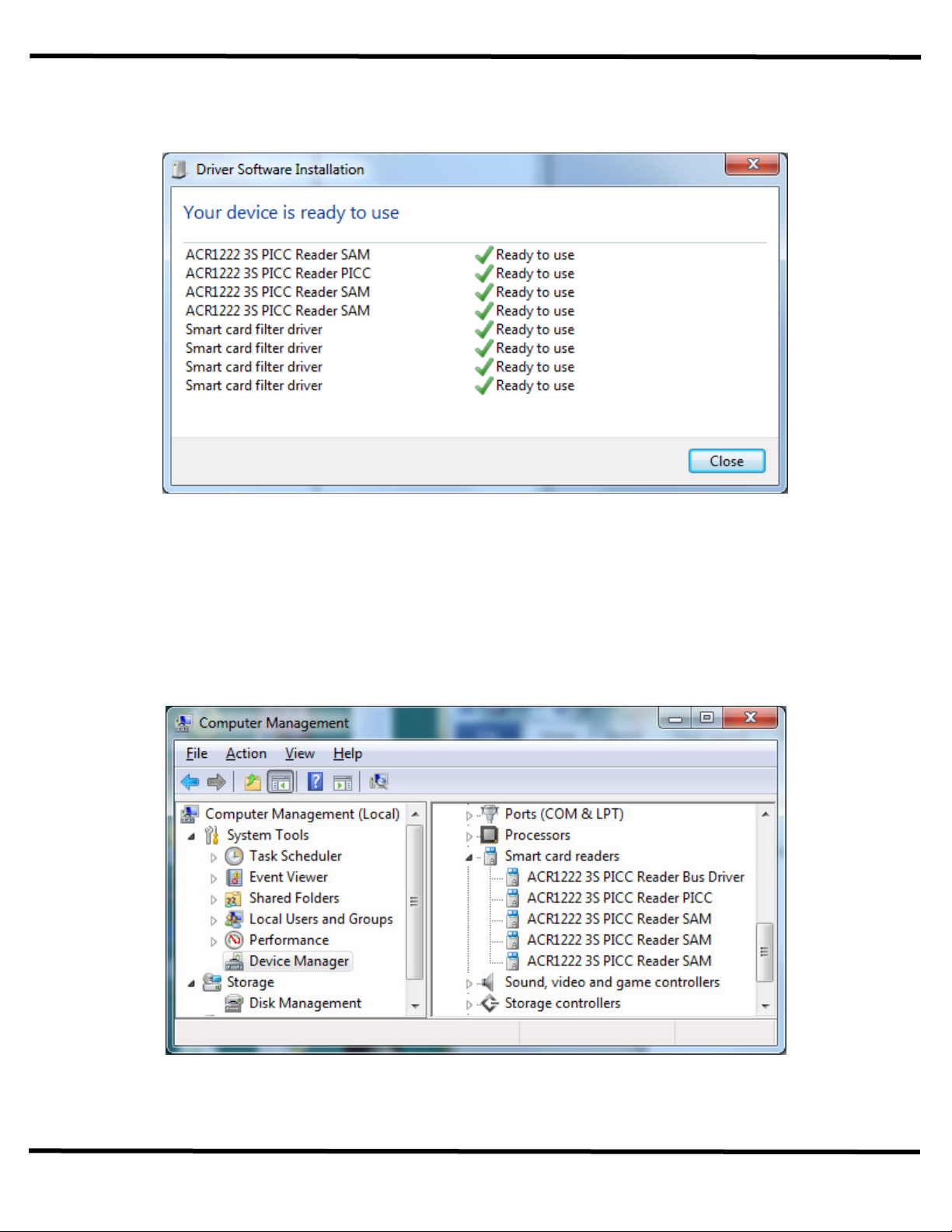

2. Wait for the “Computer Management” application to open up. Click on the “Device Manager” item.

Green Receipt Dispenser NFC User Guide

Configuration/Driver Installation

5

3. On the right panel, expand the “Smart card readers” group. You will see one of the following depending on

how up to date the version of Windows Vista/7 is on the POS computer:

a. No default driver has been installed. Continue to Step 4.

b. The default “Microsoft Usbccid Smartcard Reader (WUDF)” has been selected and installed for the

reader. Continue to Step 4.

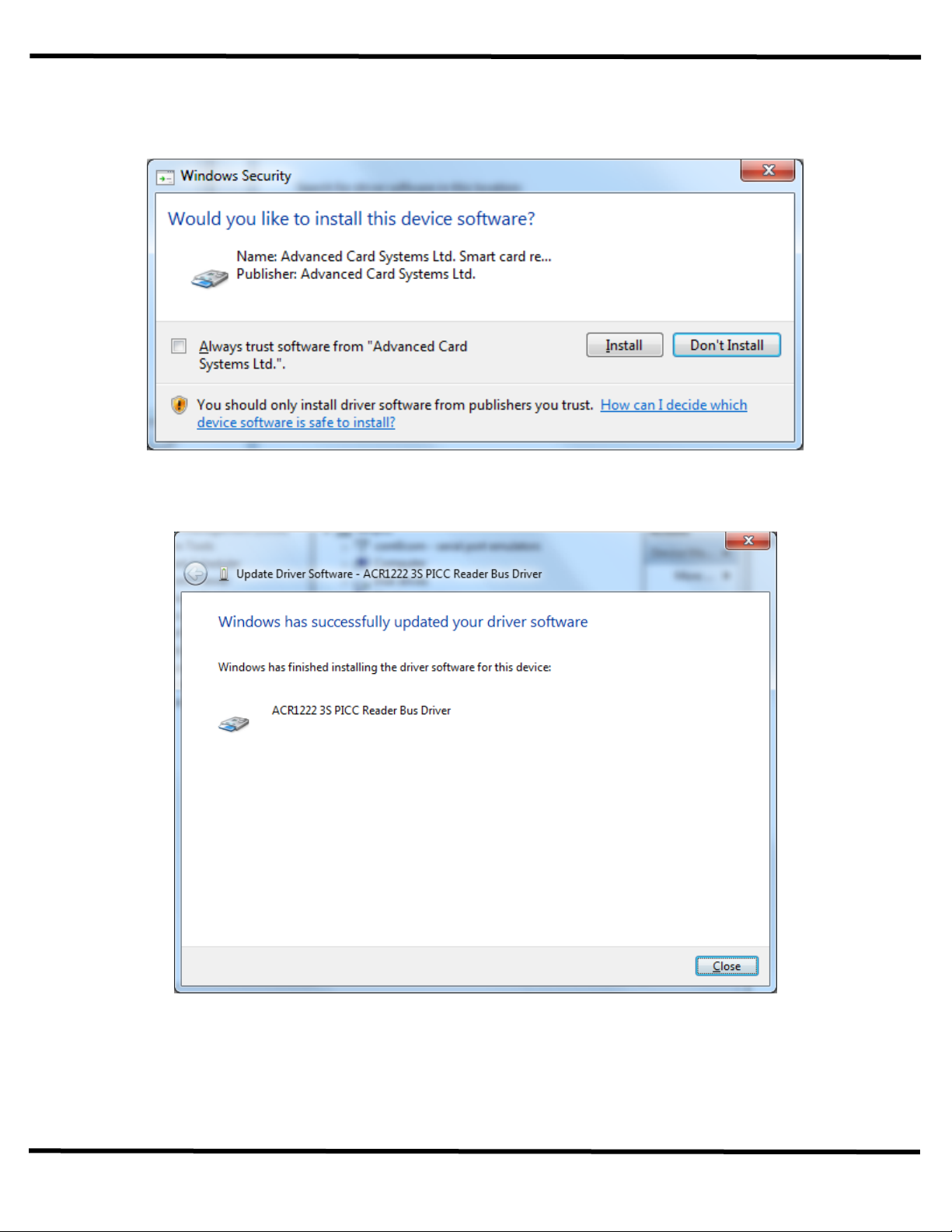

4. Right click on the “Microsoft Usbccid Smartcard Reader (WUDF)” item to select the “Update Driver

Software…” option.

Green Receipt Dispenser NFC User Guide

Configuration/Driver Installation

6

5. Select the second option “Browse my computer for driver software”.

6. Use the “Browse…” button to navigate to where you had previously extracted the driver files to.

Green Receipt Dispenser NFC User Guide
