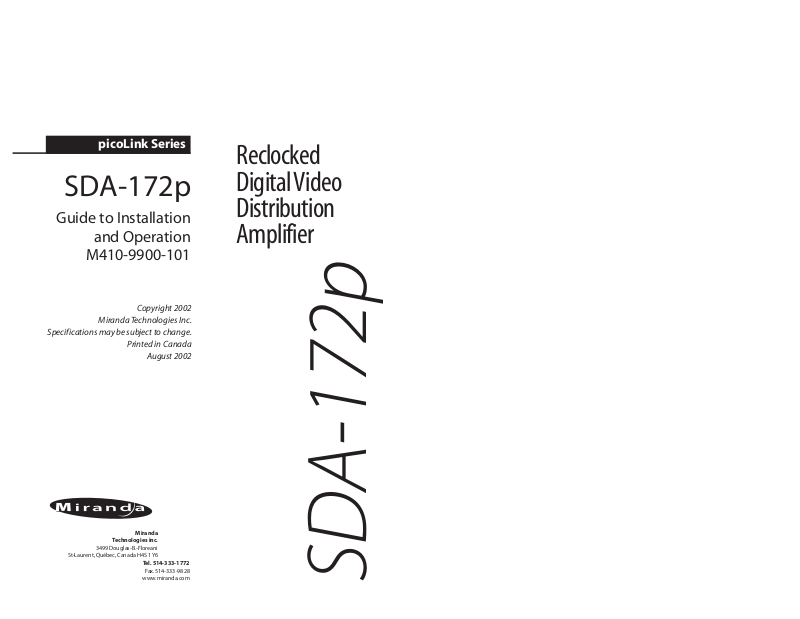

Miranda SDA-172P User manual

picoLink Series

Reclocked

SDA-172p

Guide to Installation

and Operation

M410-9900-101

Copyright 2002

Miranda Technologies Inc.

Specifications may be subject to change.

Printed in Canada

August 2002

Digital Video
Distribution
Amplifier

Miranda

Technologies inc.

3499 Douglas-B.-Floreani

St-Laurent, Québec, Canada H4S 1Y6

Tel. [phone]

Fax. [phone]

www.miranda.com

SDA- 172p

SDA-172p - Guide to Installation and Operation

Warranty Policies

Warranty Statement

Miranda Technologies Inc. warrants that the equipment it manufactures shall be free
from defects in material and workmanship for a period of two (2) years from the date
of shipment from the factory. If equipment fails due to such defects, Miranda
Technologies Inc. will, at its option, repair or provide a replacement for the defective
part or product. Equipment that fails after the warranty period, has been operated or
installed in a manner other than that specified by Miranda, or has been subjected to
abuse or modification, will be repaired for time and material charges at the Buyer's
expense.

All out-of-warranty repairs are warranted for a period of ninety (90) days from the
date of shipment from the factory.

Miranda Technologies Inc. makes no other warranties, expressed or implied, of mer­chantability, fitness for a particular purpose or otherwise. Miranda's liability for any
cause, including breach of contract, breach of warranty, or negligence, with respect
to products sold by it, is limited to repair or replacement by Miranda, at its sole dis­cretion. In no event shall Miranda Technologies Inc. be liable for any incidental or
consequential damages, including loss of profits.

Effective January 1, 2002

Warranty Exchange Policies

Miranda Technologies Inc. warrants that the equipment it manufactures shall be free
from defects in materials and workmanship for a period of two (2) years from the date
of shipment from the factory. If equipment fails due to such defects, Miranda will pro­vide repair of the failed unit under the terms of the Miranda warranty.

If the equipment has been proven to be defective on arrival, Miranda will ship a new
product in exchange, usually within 36 hours of factory notification.

If the equipment to be repaired is essential and the customer so requests, Miranda
will, at its option, provide a service replacement or loaner part or product, usually
within 36 hours of factory notification, weekends and holidays excluded.

All warranty exchange or loaner parts or products shall be shipped to the Buyer with
a packing list clearly describing the items and stating the date of shipment. Repaired
parts or products will be shipped to the Buyer with a similar packing list. In the case
of exchange, the defective products or parts must be returned to Miranda within fif­teen (15) days from receipt by the customer of the exchange product. In the case of
a loaner, the loaned products or parts must be returned to Miranda within fifteen (15)
days from receipt by the customer of the repaired equipment.

If the equipment is not returned within fifteen (15) days, as described for either
exchanges or loans, A Rental Invoice will be generated. Rental terms will be fifteen
(15) percent of the current list price of the products or parts per month or a fraction
thereof. Before returning the equipment to Miranda Technologies Inc., for any rea­son, the Buyer must first obtain a Return Authorization Number from Miranda
Technologies Inc. Miranda Technologies Inc will pay freight and insurance charges

i

SDA-172p - Guide to Installation and Operation

for the delivery of the loaner or exchange products or parts. Freight and insurance
charges for the return of the defective product or part will also be paid by Miranda
Technologies.

Out-Of-Warranty Repair Policy

Miranda will repair equipment which is out of Warranty. The current pricing structure
for this service is available from the Miranda web site at www.miranda.com or from
Miranda Technical Support Services at [phone]. All out-of-warranty repairs
are warranted for a period of 90 days from the date of shipment from the factory.
Before returning the equipment to Miranda Technologies Inc., for any reason, the
Buyer must first obtain a Return Authorization Number from Miranda Technologies
Inc. In the case of a product deemed by Miranda to be beyond repair, the customer
must purchase a new product at current retail prices.

The Buyer will pay freight and insurance charges for the return of the defective prod­uct or part to the manufacturer for repair. Miranda
Technologies will pay freight and insurance charges for the return of the repaired
product or part to the Buyer.

Out-Of Warranty Equipment Updates and Spare Parts Policy

Miranda Technologies' current pricing structure for out-of-warranty equipment
updates, or the sale of spare parts, is available from Miranda Technical Support
Services at [phone].
.

Radio Frequency Interference and Immunity

This unit generates, uses, and can radiate radio frequency energy. If the unit
is not properly installed and used in accordance with this guide, it may cause
interference with radio communications. Operation with non-certified periph­eral devices is likely to result in interference with radio and television recep­tion. This equipment has been tested and complies with the limits in accor­dance with the specifications in:

- FCC Part 15, Subpart B

- CE EN50081-1:1992

- CE EN50082-1:1992.

ii

SDA-172p - Guide to Installation and Operation

How to contact us:

Head Office Miranda Europe

Miranda Technologies Inc. 222, 226 Rue De Rosny
3499 Douglas-B.-Floreani 93100 Montreuil
St. Laurent (Montreal), Que. H4S 1Y6 France
Canada

Tel [phone] [phone]
Fax [phone] [phone]
Toll free: 1-800-224-9828

www.miranda.com

Miranda Asia

Mita Nexus Bldg. 2F
1-3-33 Mita, Minato-Ku
Tokyo, Japan 108-0073

[phone]

[phone]

iii

SDA-172p - Guide to Installation and Operation

iv

SDA-172p - Guide to Installation and Operation

Contents

1

SDA-172p Reclocked Digital Video Distribution Amplifier

1.1 Introduction............................................................... 1

1.2 Features....................................................................1

2 Overall View................................................................... 3

3 Installation...................................................................... 5

3.1 Power Supply............................................................5

3.2 Serial Digital Video Input.......................................... 5

3.3 Serial Digital Video Output....................................... 6

4 Operation........................................................................ 7

4.1 Status LED................................................................8

5 Specifications................................................................ 9

page

....1

6 Schematic Diagrams.................................................. 11

v

SDA-172p - Guide to Installation and Operation

vi

SDA-172p - Guide to Installation and Operation

L

A

O

1

SDA-172p Reclocked Digital Video Distribution Amplifier

1.1 Introduction

The SDA-172p is a miniature, 3-output, 10-bit reclocked serial
digital video distribution amplifier providing automatic equaliza­tion for up to 250 meters of cable and full regeneration of the sig­nal. The SDA-172p supports all serial digital video formats, at
143, 177, 270, 360 and 540 Mbps. The SDA-172p also supports
DVB-ASI compressed bit streams at 270 Mbps.

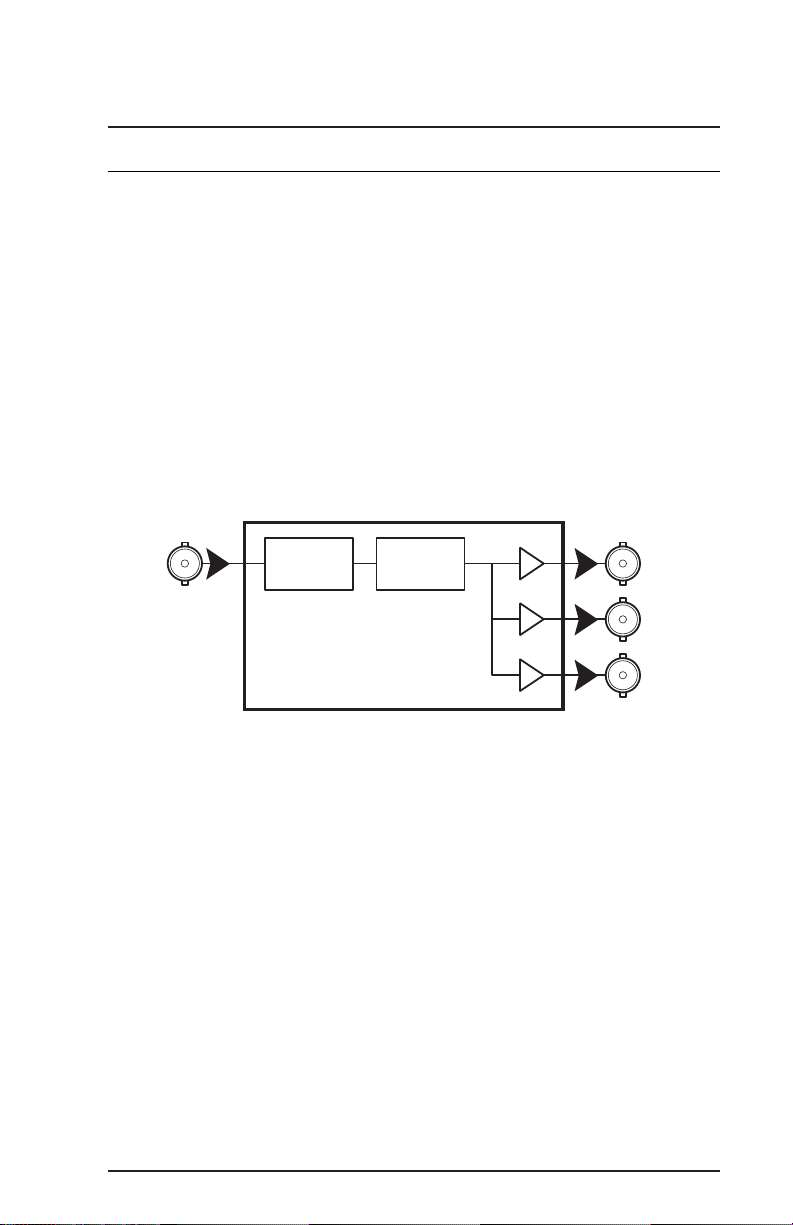

Figure 1 Functional Block Diagram

SERIAL

DIGITAL

VIDEO

IN

Equalizer Reclocker

1

SERIA

2

DIGIT
VIDE
OUT

3

1.2 Features

- Serial 4fsc or 4:2:2 input

- 3 reclocked serial outputs

- Supports 525/625-line formats

- DVB-ASI compatible

- Bit rates up to 540 Mbps

- 200 m automatic cable equalization

1

SDA-172p - Guide to Installation and Operation

2

SDA-172p - Guide to Installation and Operation

2 Overall view

The figures below represents the SDA-172p. The digital video
source is connected to the BNC input connector.

A multicolor LED provides module statuses.

Three reclocked outputs are provided by 3 BNC connectors.

Power supply is connected to a mini-XLR type connector.

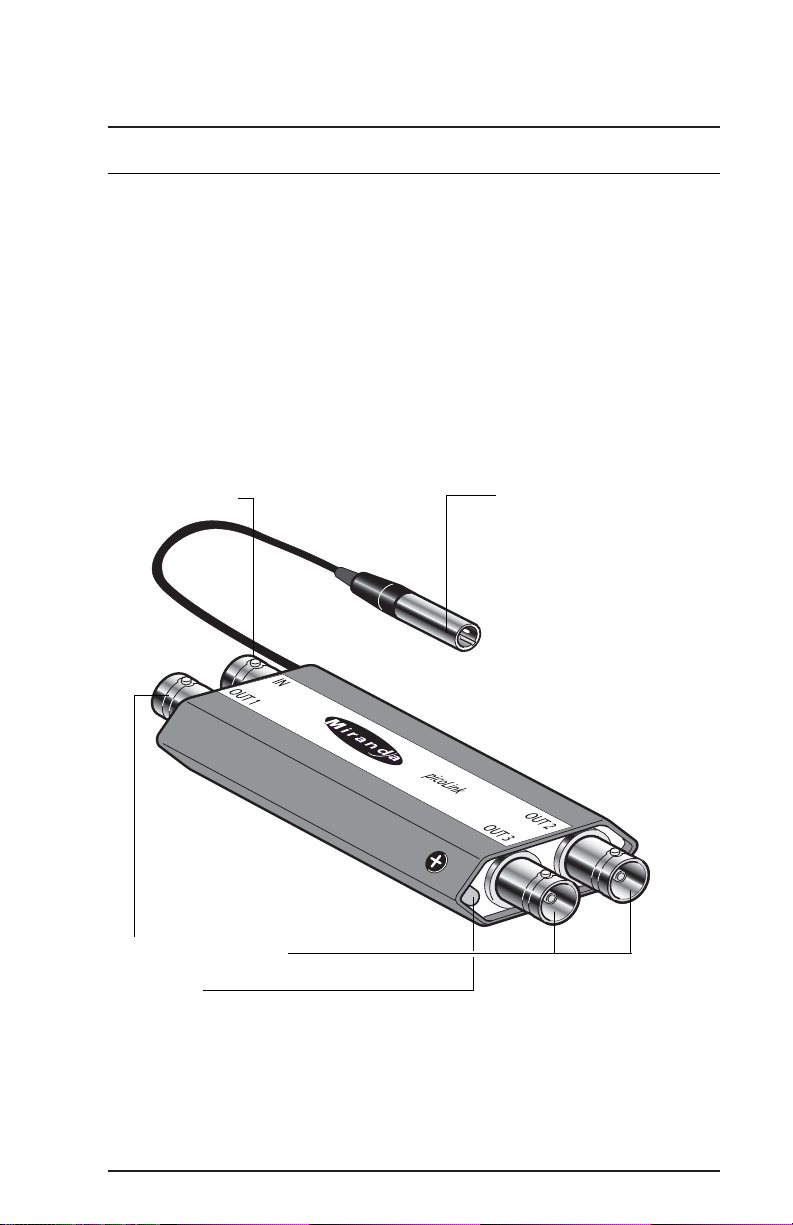

Figure 2.1 SDA-172p Components

Input connector DC power input connector

Output connectors (3)

Status LED

3

SDA-172p - Guide to Installation and Operation

4

SDA-172p - Guide to Installation and Operation

3 Installation

3.1 Power Supply

The power supplies LKS-WSA and LKS-WSE, for 110V and 220V
operation respectively, are used to power the SDA-172p. Each
power supply provides a regulated +5VDC@1A power source.

Plug the power supply into a wall or power bar outlet. The SDA­172p uses a mini XLR-3 connector for its power needs; figure 3.1
provides a detailed pinout of the male connector.

Figure 3.1 Power connector pinout

13

Shield

GND

+5VDC

2

3.2 Serial Digital Video Input

Connect a serial digital signal to the BNC labeled IN. The serial
digital input signal must conform to the SMPTE 259M-ABCD
standard or the proposed EN50 083-9 DVB-ASI (270 Mbps).

Make sure that the input signal cable has a maximum length of
250 m (850’) for a 270 Mbps input signal or 170 m (560’) for a 540
Mbps input signal. Also ensure that all serial digital video equip­ment are connected point-to-point. For instance, there must be a
point-to-point connection between the IN BNC and the source
equipment. If a T-connector is used to connect other equipment,
the maximum specified cable length is no longer valid.

5

SDA-172p - Guide to Installation and Operation

3.3 Serial Digital Video Output

The three serial digital output signals are provided by the BNC
labeled OUT 1, OUT 2 and OUT 3. The serial digital output sig­nal conforms to the SMPTE 259M-ABCD standard or the pro­posed EN50 083-9 DVB-ASI (270 Mbps).

6

SDA-172p - Guide to Installation and Operation

4 Operation

4.1 Status LED

A bicolored LED, located beside the OUT 3 connector, indicates
the status of the module.

Green: The SDA-172p is powered and has detected a

valid audio signal.

Red: Invalid or signal absence on input.

7

SDA-172p - Guide to Installation and Operation

8

SDA-172p - Guide to Installation and Operation

5 Specifications

INPUT

Signal: SMPTE 259M-ABCD

(143, 177, 270, 360 Mbps)
Supports proposed 540 Mbps standard
EN50 083-9 DVB-ASI (270 Mbps)

Cable length: 250 m (850') up to 270 Mbps

170 m (560') at 540 Mbps

(Belden 8281)
Return loss: > 15 dB up to 540 MHz
Connector: 75 Ω BNC

OUTPUT

Signal (3): SMPTE 259M-ABCD

(143, 177, 270, 360 Mbps)

Supports proposed 540 Mbps standard

EN50 083-9 DVB-ASI (270 Mbps)
Return loss: > 15 dB up to 540 MHz
Connector: 75 Ω BNC
JIitter (wideband): < 0.2 UI p-p

PROCESSING PERFORMANCE

Signal path: 10 bits
Processing delay: 20 ns
Power: 2 Watts

9

SDA-172p - Guide to Installation and Operation

10

SDA-172p - Guide to Installation and Operation

6 Schematic Diagrams

11
