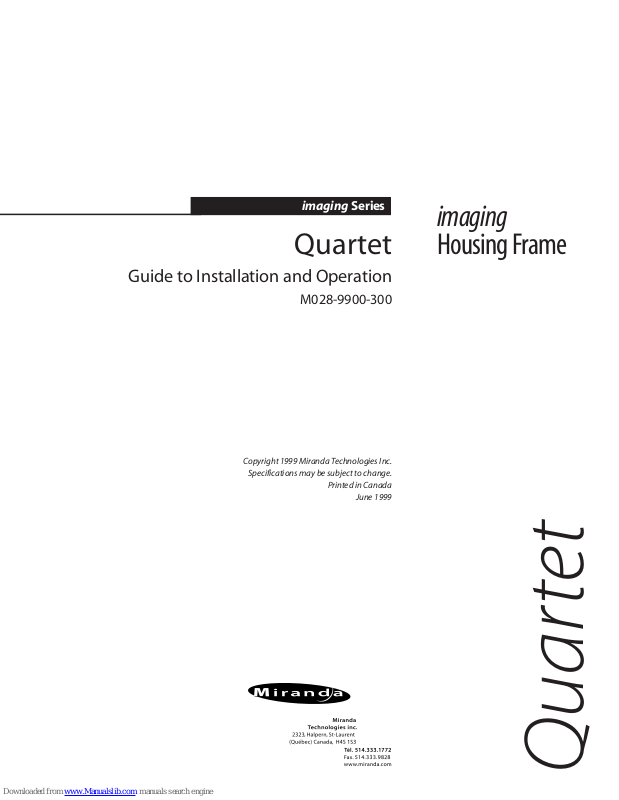

Miranda Quartet Installation Manual

imaging Series

imaging

Quartet

Guide to Installation and Operation

M028-9900-300

Copyright 1999 Miranda Technologies Inc.

Specifications may be subject to change.

Printed in Canada

June 1999

Housing Frame

Quartet

WARRANTY POLICIES

Warranty Statement

Miranda Technologies Inc. warrants that the equipment it manufactures shall be free from defects in material and
workmanship for a period of two (2) years from the date of shipment from the factory. If equipment fails due to
such defects, Miranda Technologies Inc. will, at its option, repair or provide a replacement for the defective part or
product.

Equipment that fails after the warranty period, has been operated or installed in a manner other than that
specified by Miranda, or has been subjected to abuse or modification, will be repaired for time and material
charges at the Buyer’s expense.

All out-of-warranty repairs are warranted for a period of ninety (90) days from the date of shipment from the
factory.

Miranda Technologies Inc. makes no other warranties, expressed or implied, of merchantability, fitness for a
particular purpose or otherwise. Miranda’s liability for any cause, including breach of contract, breach of warranty,
or negligence, with respect to products sold by it, is limited to repair or replacement by Miranda, at its sole
discretion.

In no event shall Miranda Technologies Inc. be liable for any incidental or consequential damages, including loss
of profits.

Effective January 1, 1999

Warranty Exchange Policies

Miranda Technologies Inc. warrants that the equipment it manufactures shall be free from defects in materials
and workmanship for a period of two (2) years from the date of shipment from the factory. If equipment fails due
to such defects, Miranda will provide repair of the failed unit under the terms of the Miranda warranty.

If the equipment has been proven to be defective on arrival, Miranda will ship a new product in exchange, usually
within 36 hours of factory notification.

If the equipment to be repaired is essential and the customer so requests, Miranda will, at its option, provide a
service replacement or loaner part or product, usually within 36 hours of factory notification, weekends and
holidays excluded.

All warranty exchange or loaner parts or products shall be shipped to the Buyer with a packing list clearly
describing the items and stating the date of shipment. Repaired parts or products will be shipped to the Buyer
with a similar packing list.

In the case of exchange, the defective products or parts must be returned to Miranda within fifteen (15) days from
receipt by the customer of the exchange product.

In the case of a loaner, the loaned products or parts must be returned to Miranda within fifteen (15) days from
receipt by the customer of the repaired equipment.

If the equipment is not returned within fifteen (15) days, as described for either exchanges or loans, A Rental
Invoice will be generated. Rental terms will be fifteen (15) percent of the current list price of the products or parts
per month or a fraction thereof.

Before returning the equipment to Miranda Technologies Inc., for any reason, the Buyer must first obtain a Return
Authorization Number from Miranda Technologies Inc.

Miranda Technologies Inc will pay freight and insurance charges for the delivery of the loaner or exchange
products or parts. Freight and insurance charges for the return of the defective product or part will also be paid by
Miranda Technologies.

Out-Of-Warranty Repair Policy

Miranda will service out-of-warranty repairs using the following model:

Miranda will charge 10% of the current list price of the product, with a minimum charge of $100.
Products whose list price is under $100 will be replaced at a charge equal to current list prices.
In the case of obsolete products, the last published list price for the products will apply.

In the case of a product deemed beyond repair, the customer must purchase a new product at current retail
prices.

All out-of-warranty repairs are warranted for a period of 90 days from the date of shipment from the factory.

Before returning the equipment to Miranda Technologies Inc., for any reason, the Buyer must first obtain a Return
Authorization Number from Miranda Technologies Inc.

The Buyer will pay freight and insurance charges for the return of the defective product or part to the
manufacturer for repair. Miranda Technologies will pay freight and insurance charges for the return of the repaired
product or part to the Buyer.

Out-Of Warranty Equipment Updates and Spare Parts Policy

Miranda Technologies will charge cost plus 20% of the parts costs and $40.00 shipping and handling for out-of­warranty equipment updates, or the sales of spare parts.

SAFETY COMPLIANCE

This equipment complies with:

- CSA C22.2 No. 1-94 / Standard for audio, video, and similar electronic equipment.

- UL No. 1419 / Standard for professional video and audio equipment.

An appropriately listed mains supply power cord with following characteristics must be used
for the connection of the equipment.

- Listed 3 pin grounding type

- 18/3 AWG, type SVT or SJT

- EN60065: 1993 (EN60065-1:1985/ A2:1989/ A3:1992) Part 1 /European Standard - Safety
requirements for mains operated and related apparatus for household and similar general use.

ELECTROMAGNETIC COMPATIBILITY

- This equipment has been tested for verification of compliance with FCC Part 15, Subpart
B, class A requirements for Digital Devices.

- This equipment complies with the requirements of EN55022 Class A, Electromagnetic
Emissions, En 60555-2 & -3, Disturbance in Supply Systems and EN50082-1,
Electromagnetic Immunity.

How to contact us:

Head Office Europe

Miranda Technologies Inc. Miranda S.A.
2323, Halpern BP 87
St-Laurent (Quebec) 93511 Montreuil Cedex
Canada H4S 1S3 France

Tel.: [phone] Tel.: [phone]
Fax.: [phone] Fax.: [phone]

Toll free: 1-800-224-9828

www.miranda.com

2

CONTENTS

page

1 imaging Quartet Housing frames........................................ 5

1.1 Introduction..................................................................………........... 5

1.2 Features....................................................................……….............. 5

2 Overview ........................................................…….............. 7

2.1 Front Panel..........................................................………................... 7

2.2 Rear Panel................................................................……….............. 8

2.2.1 Quartet........................................................……….............. 8

2.2.2 Quartet-C.......................................................………............ 8

2.2.3 Quartet-M......................................................………............. 9

2.2.4 Quartet-A-75.................................................………............. 9

2.2.5 Quartet-A-110....................................................………........ 10

2.2.6 Quartet-M-A-75..............................................………............ 10

2.2.7 Quartet-M-A-110........................................………................ 11

3 Installation......................................................….…....……. 13

3.1 Rack Mount Installation................................................………........... 13

3.2 DC Power Redundancy…………………............................................ 13

3.3 Power Supply Removal and Installation.............................……….....14

3.4 RS-422 Serial Connection..............................................……….........16

3.5 RS-422 Serial ID Assignment.......................................……….......... 17

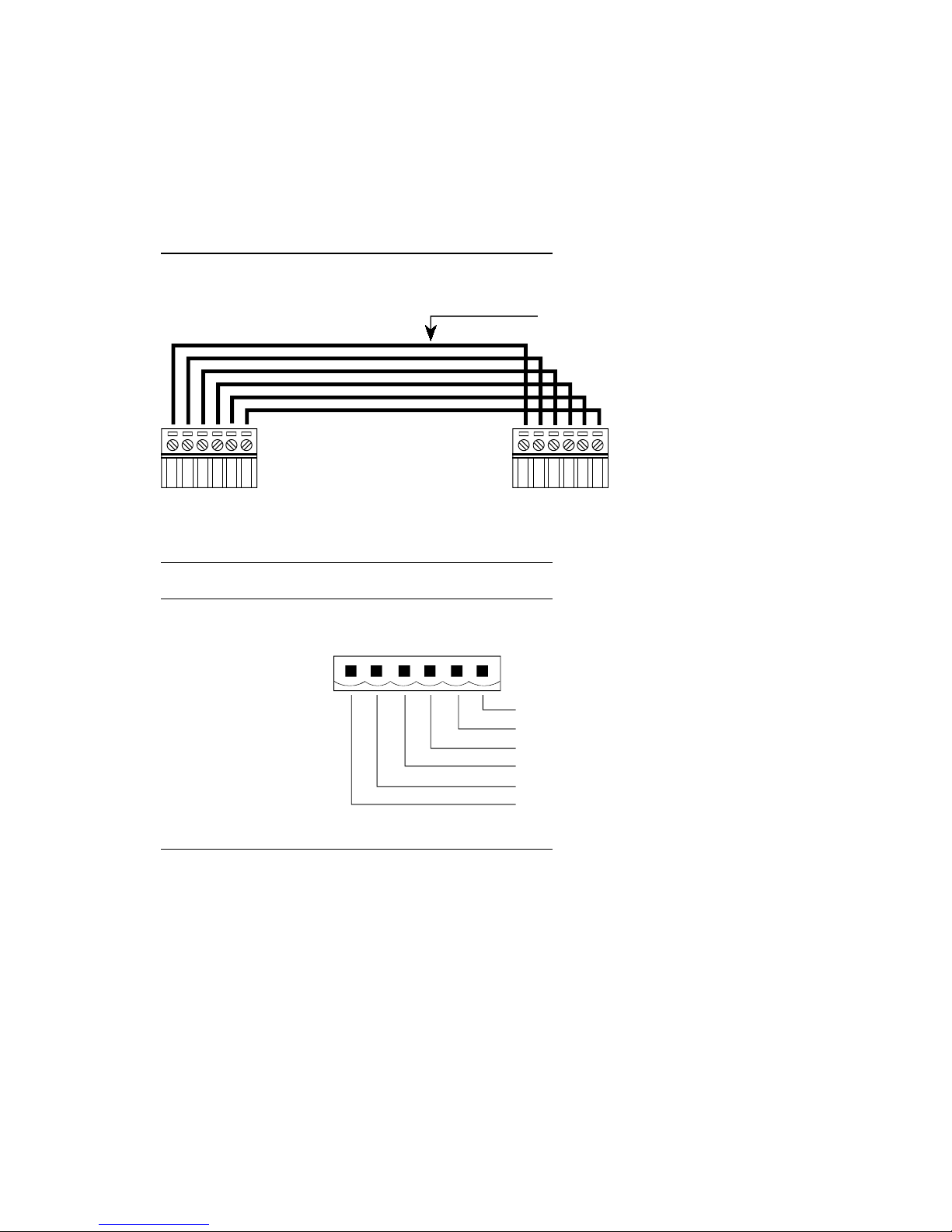

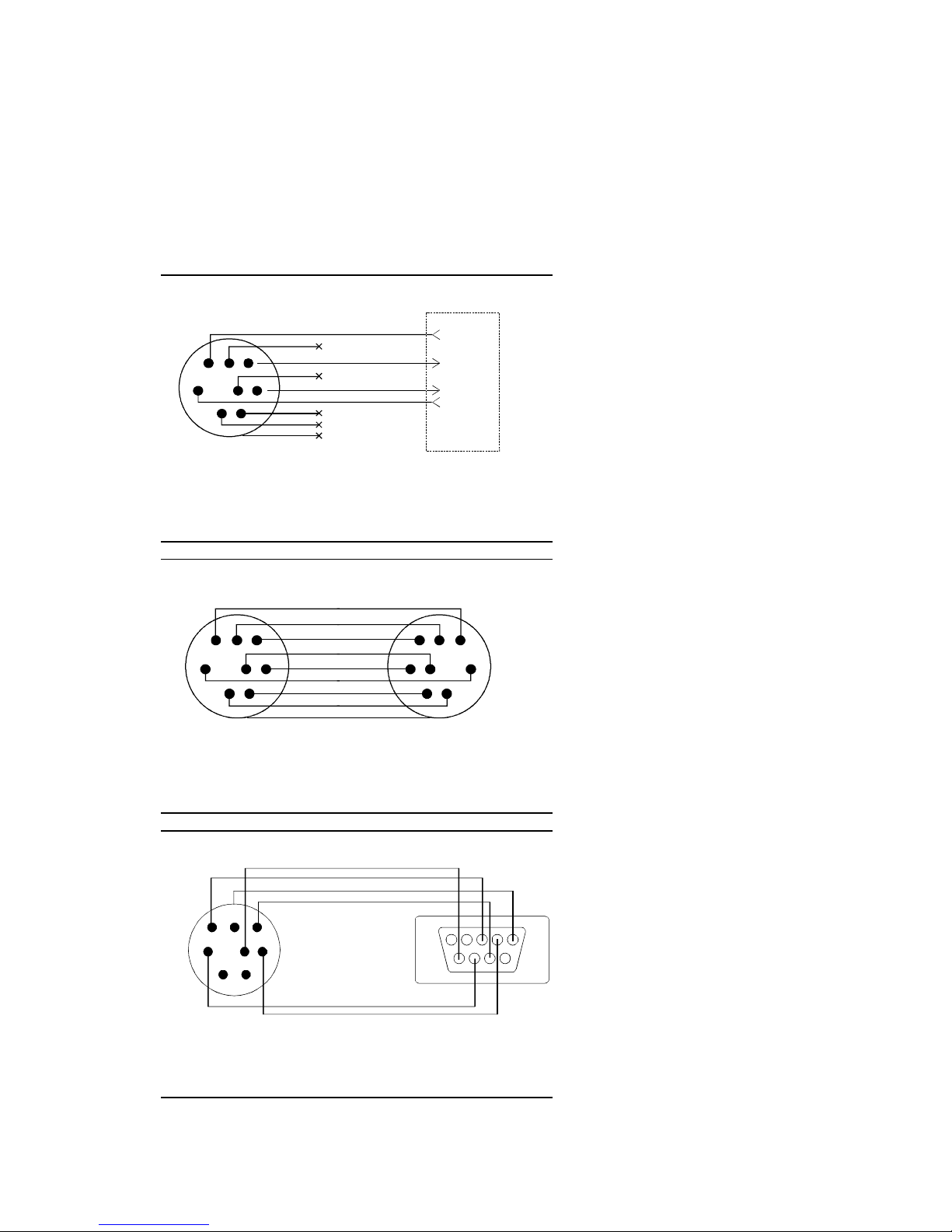

3.6 RS-422 Cable Construction.........................................………........... 19

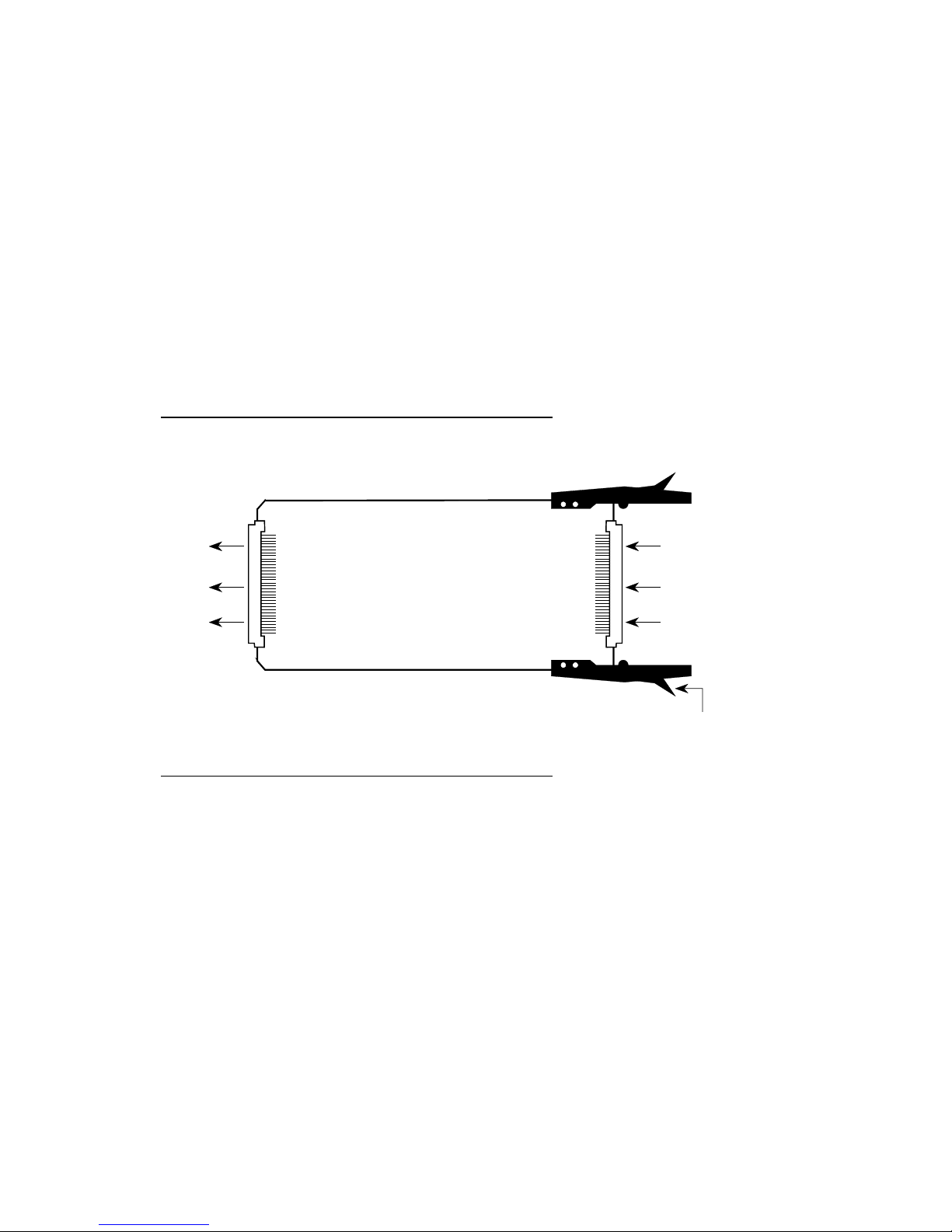

3.7 Installing an imaging Series Module.........................……….............. 20

3.8 Removing an imaging Series Module.........................………............ 20

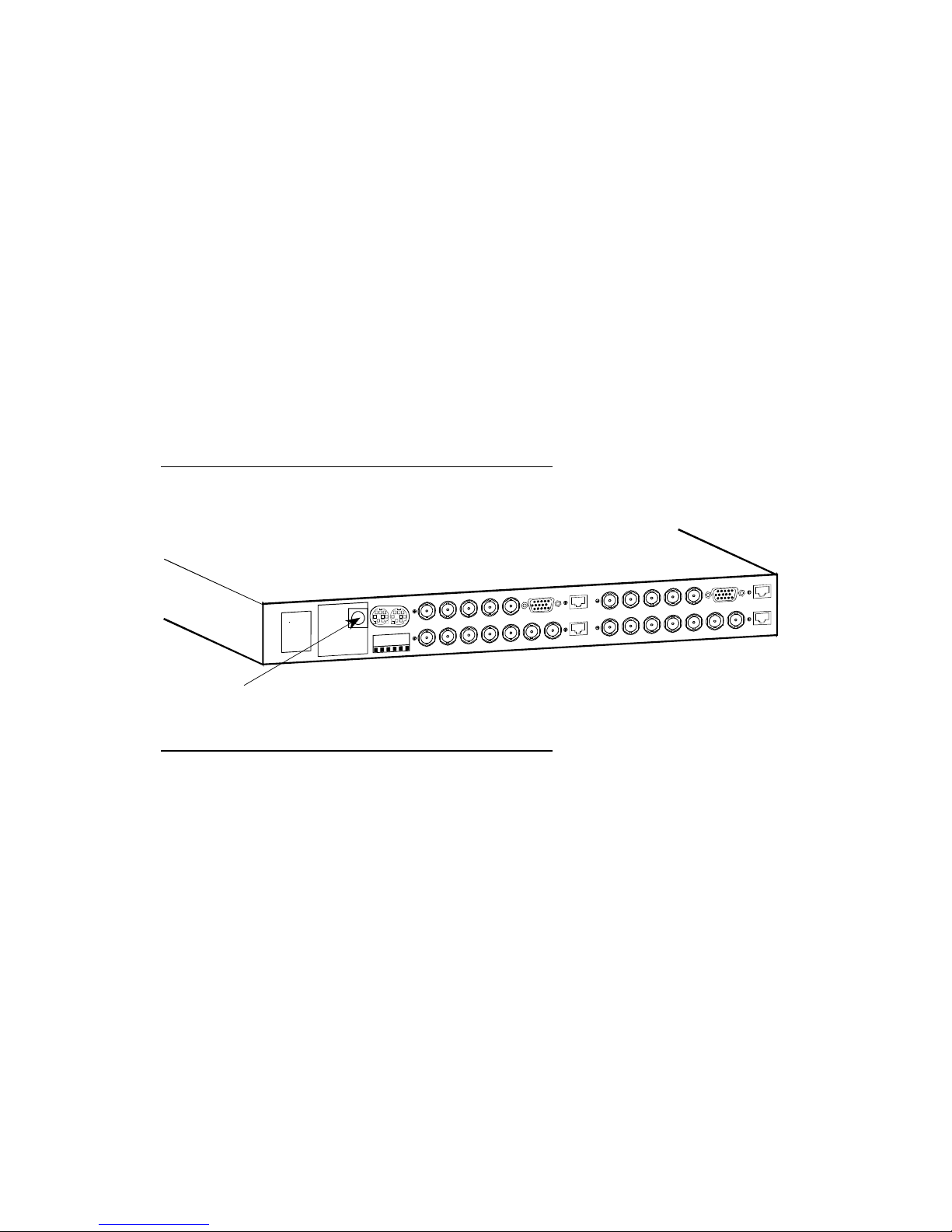

3.9 Rear Panel Label.......................................................………............. 21

3.10 Air Filter Removal and Cleaning...............................……….............. 22

3.11 imaging Extender Module.........................................……….............. 23

4 Power Supply.....................…………………………….……....25

4.1 Powering Up and Local Power Monitoring.............................…….... 25

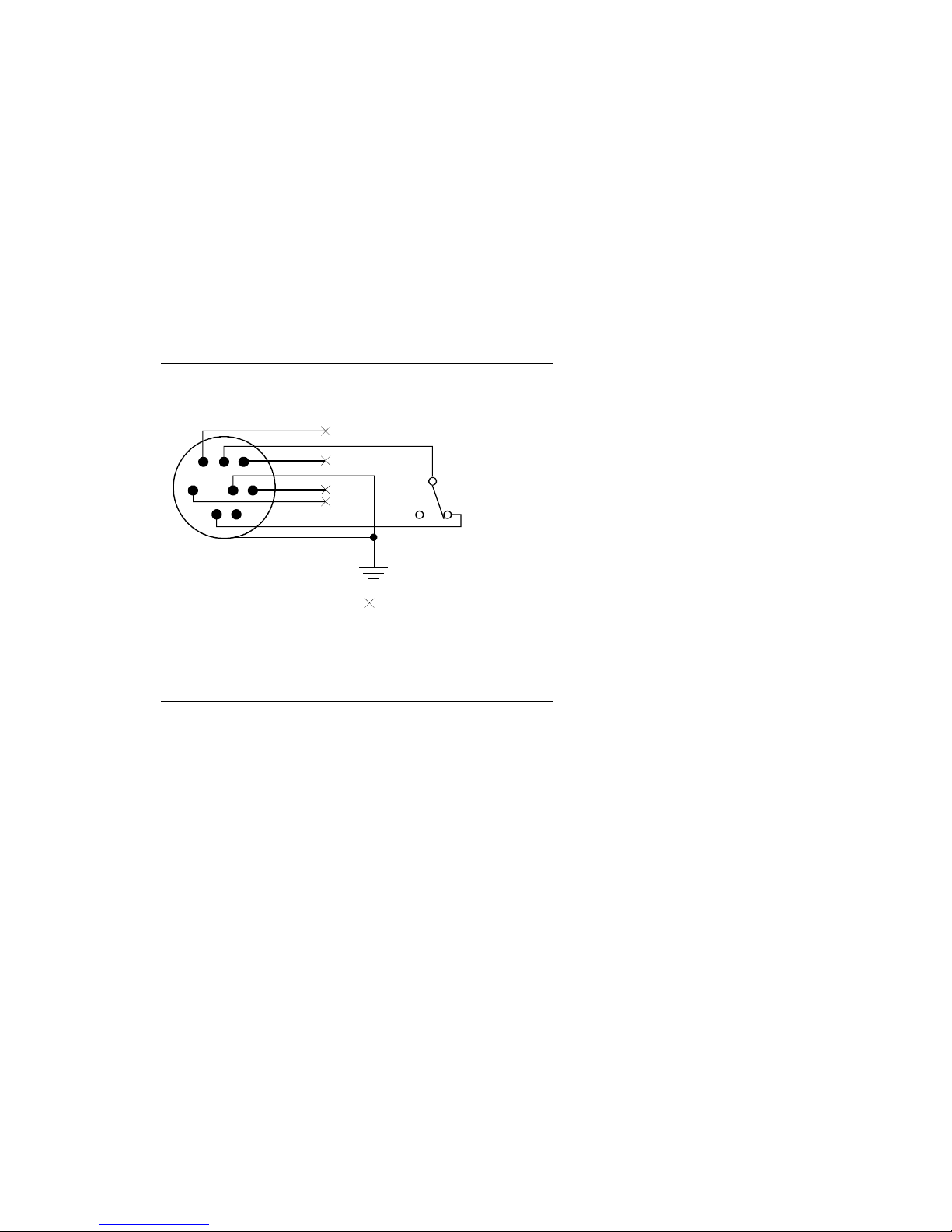

4.2 Remote Power Supply Alarm and Cable Construction (optional)…...26

5 Specifications......................................................……….......27

3

4

1 imaging Quartet Housing Frames

1.1 Introduction

The imaging Quartet housing frame family support and provide power to a
maximum of 4 imaging series modules in the same single rack unit housing frame.
A Quartet, Quartet-C or Quartet-M housing frame can accommodate any
combination of imaging series video modules; a Quartet-A-75, -A-110, -M-A-75 or
–M-A-110 housing frame can accommodate any combination of imaging audio
modules (combination of video and audio modules are not possible within the same
housing frame).

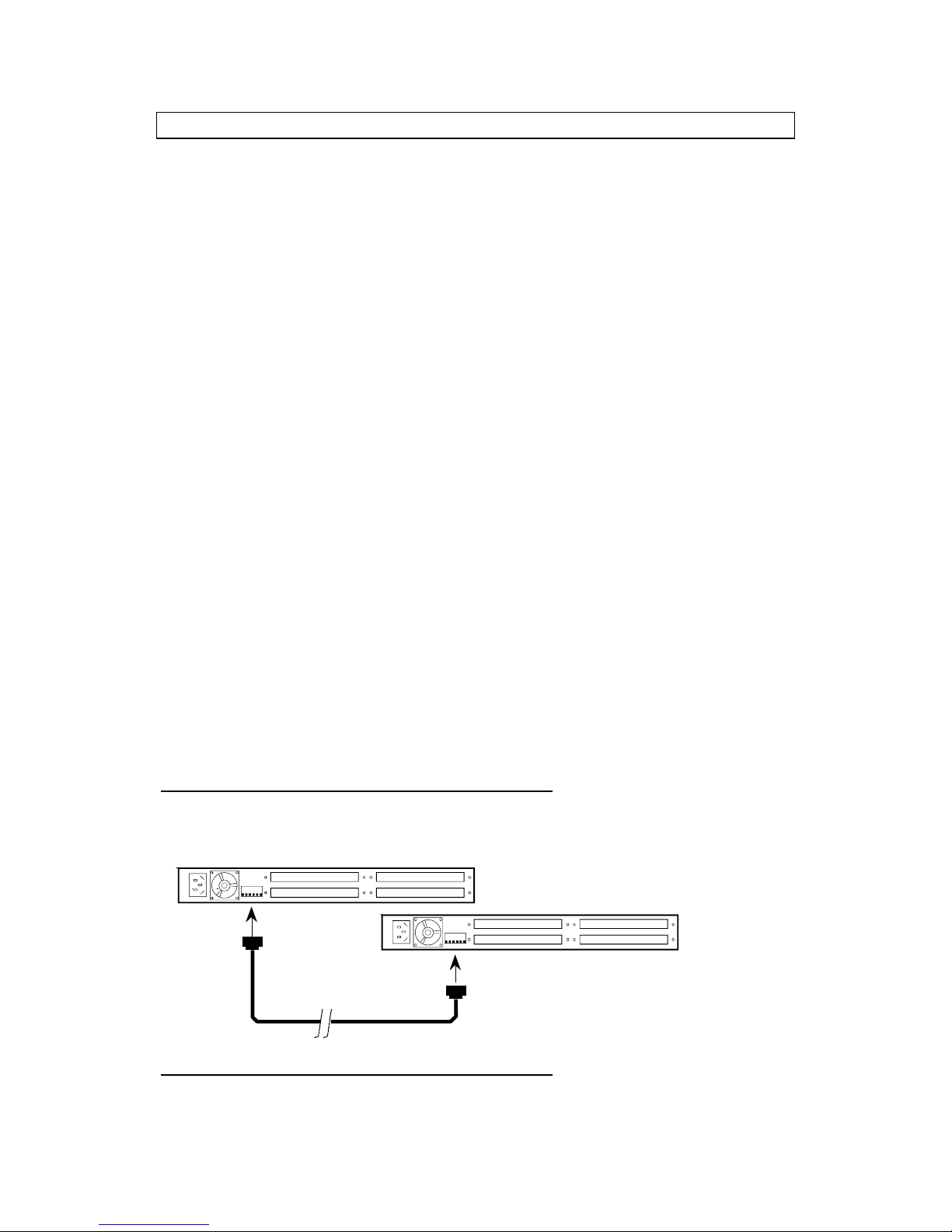

Two imaging Quartet housing frames can be interconnected via a rear panel
connector in order to provide power redundancy. In a redundant dual housing frame
installation, the power supply installed in the second frame is in back-up mode,
which maintains DC power levels in case of a local power supply failure. Refer to
section 3.2, DC Power Redundancy for more details.

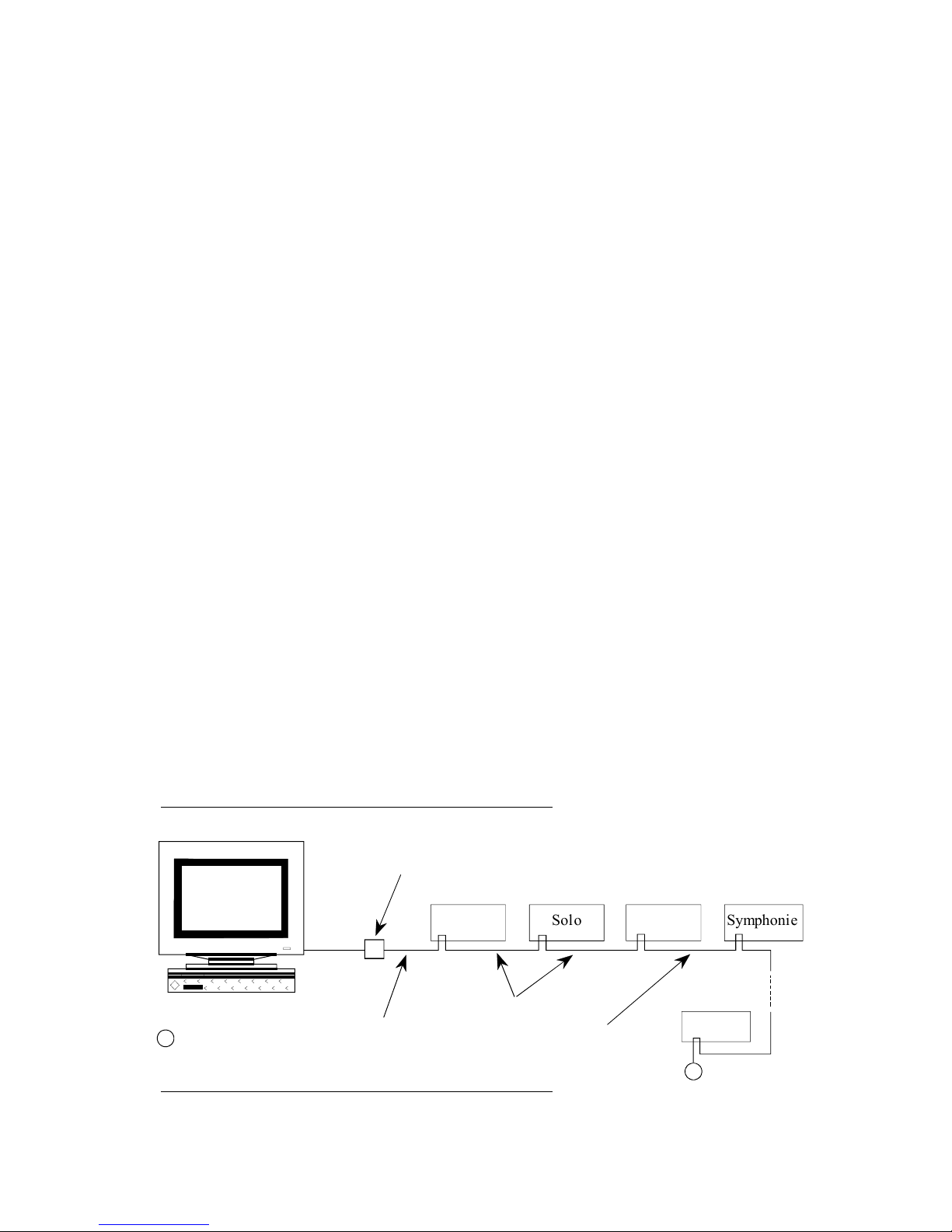

Some Quartet housing frames are equipped with an RS-422 serial interface
providing remote configuration of imaging modules using Miranda's ICP-S
application. An RS-422 loop-through allows Quartet housing frames to be daisy
chained together and controlled by a host computer.

Audio modules can now be installed in Quartet housing frame supporting 75 ohm or
110 ohm I/O connections.

1.2 Features

The following features are common to all Quartet housing frames.

• Houses and powers up to 4 imaging series modules

• Universal power supply

• Front panel status LEDs

• 1 RU construction

Table 1.1 indicates the Quartet housing frames which support the following
features.

• ICP-S interface to remote station, allowing up to 16 Quartet, 16 Symphonie,

and 16 Solo housing frames to be linked on a single daisy chain providing
access to up to 336 imaging modules.

• DC power redundancy

• Multi-purpose RJ-45 I/O connector

• 75 ohm I/O connector

• 110 ohm I/O connector

• Power supply remote monitoring

5

Table 1.1 imaging Quartet features

Quartet *
Quartet-C
Quartet-M
Quartet-A-75
Quartet-A-110
Quartet-M-A-75
Quartet-M-A-110

ICP-

S

ü
üü ü ü
üü ü üü
üü ü üüü
üü ü üü
üü ü üüü

Power

redundancy

ü

Power Supply

Remote Monitoring

RJ-45

I/O

75 ohm

I/O

110 ohm

* In this table and in section 2.2.1, the name Quartet designates a basic frame. Frames
with more features are designated by their suffixes such as –C, -M, etc.
In this manual, the term Quartet generally refers to all models when installation, power
supply, module installation and similar subjects are concerned.

I/O

6

2 Overview

2.1 Front Panel

The front panel consists of 4 mounting holes for rack mount installation, 2 handles,
2 thumb screws, and a set of air vents. Make sure the air vents are never blocked.
This may cause the housing frame to overheat and possibly breakdown.

To remove the front panel, rotate the thumb screws counter clockwise and pull on
the handles. Referring to Figure 2.1, Quartet houses up to 4 imaging series
modules and a power supply. Each module includes a module ejector for easy
module removal. For proper cooling, do not leave the front panel removed for a
long period of time when power is on.

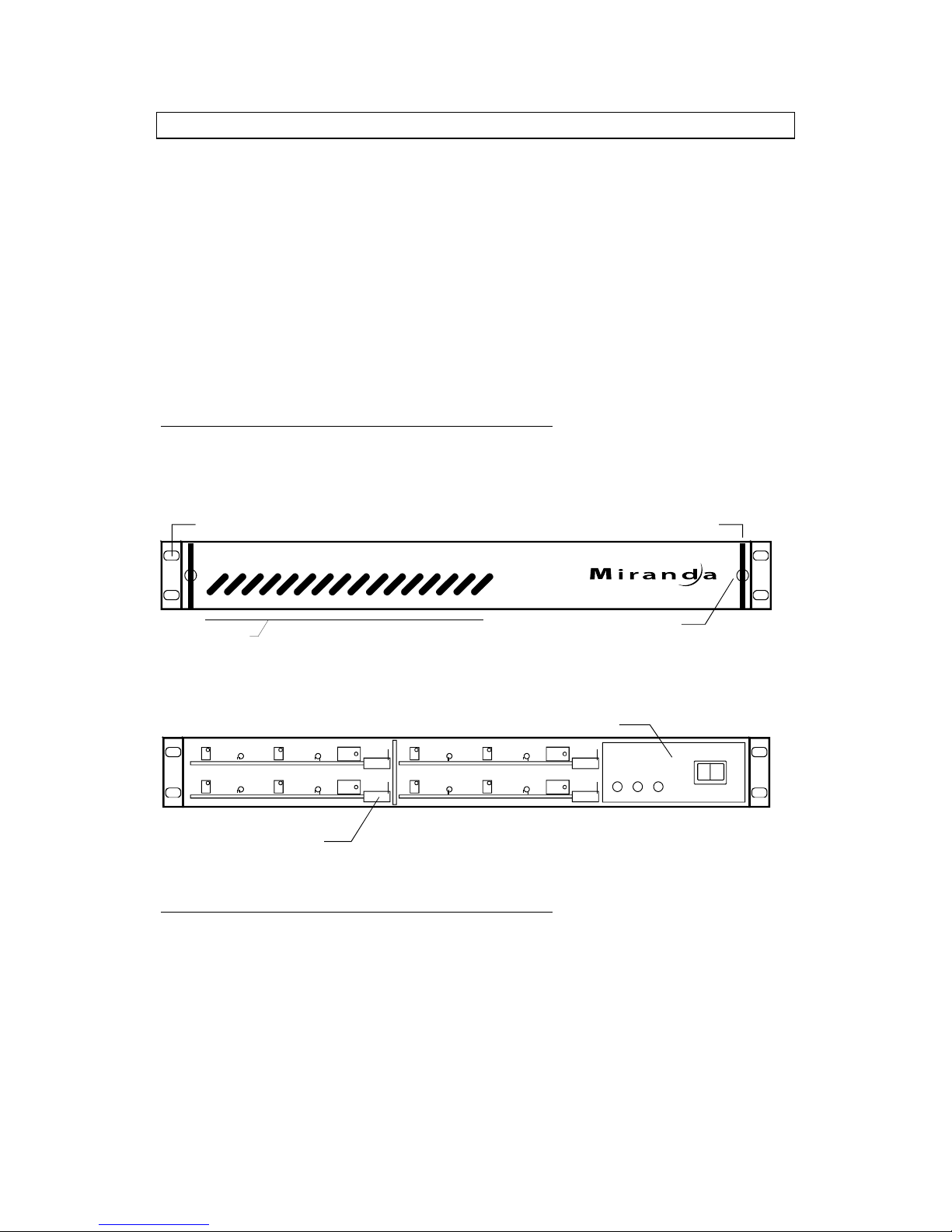

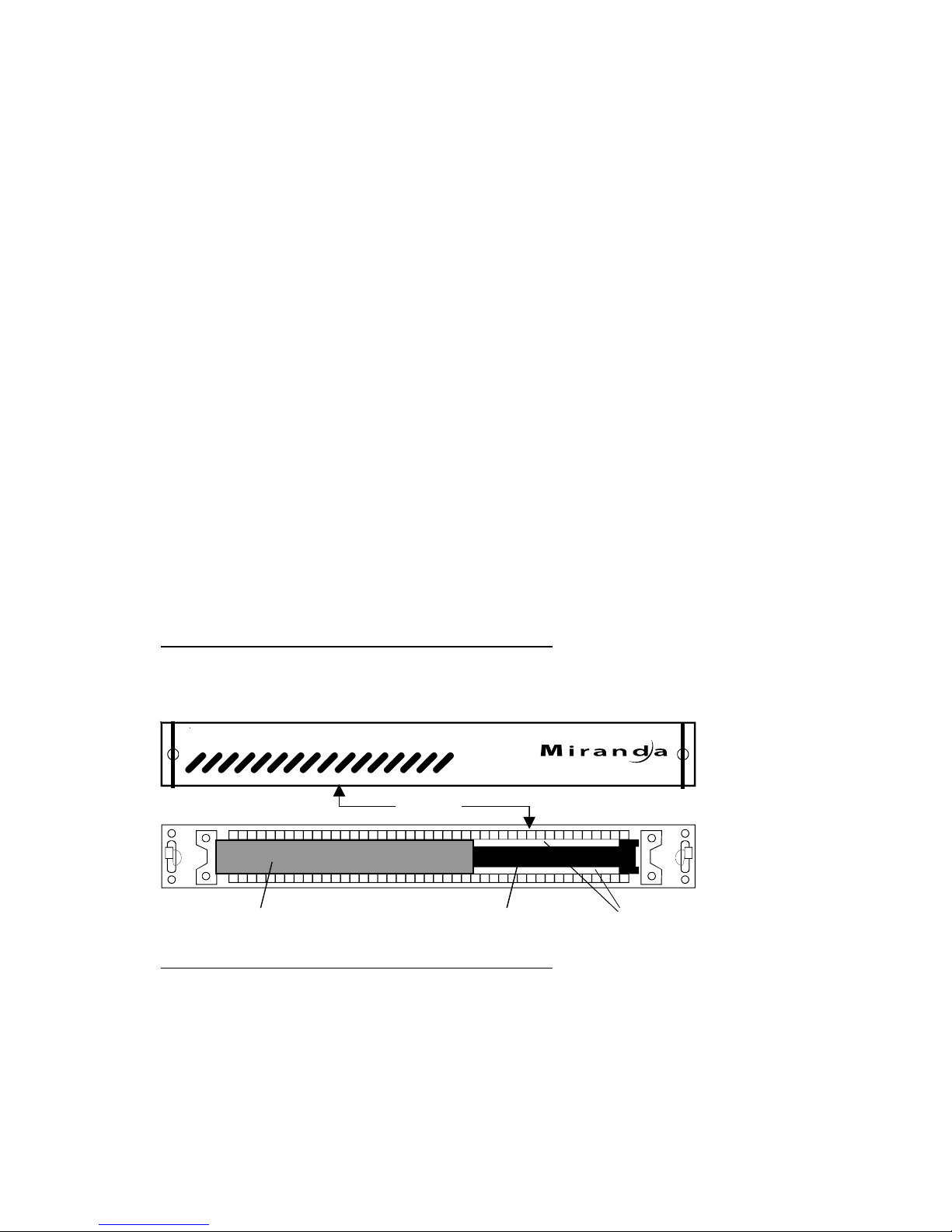

Figure 2.1 imaging Quartet front panel

Front Panel - Exterior

Mounting hole

Imaging Quartet

Air vents

Front Panel - Interior

Module #1

Module #3

Module #2

Module #4

Power supply

Module ejector

Handle

Thumb screw

7

2.2 Rear Panel

r

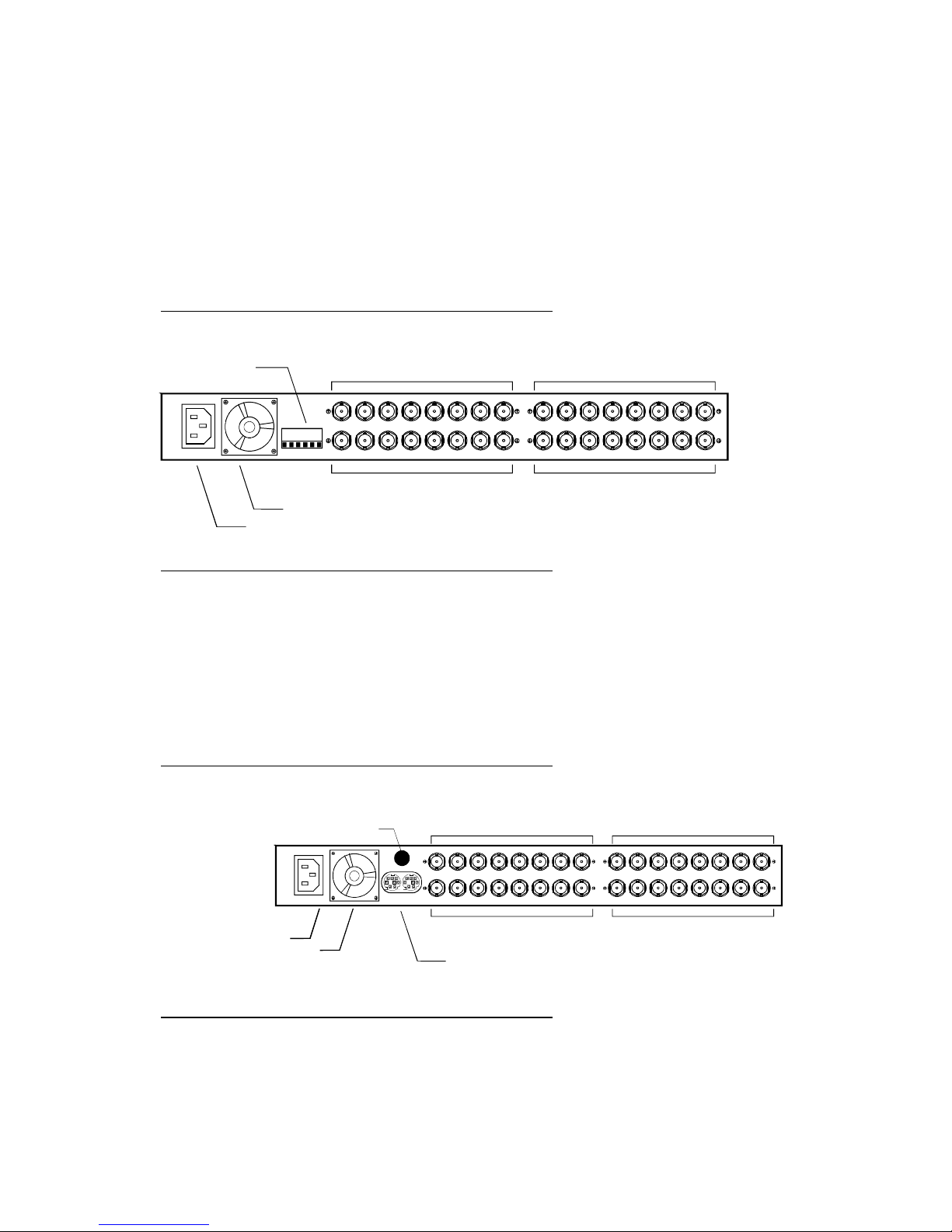

2.2.1 Quartet

The Quartet rear panel is composed of an AC receptacle, a fan assembly, a DC
power connector for power redundancy, and 32 BNC connectors. The BNC
connectors are combined to form groups of 8. Each group belongs to one of the
housing frame's internal modules. Refer to Figure 2.2 for module and BNC
referencing.

Figure 2.2 Quartet rear panel

DC power
connector

Module #4 connectors Module #3 connectors

Fan assembly

AC power connecto

Module #1 connectorsModule #2 connectors

2.2.2 Quartet-C

The Quartet-C rear panel is very much similar to that of Quartet's. It is composed of
an AC receptacle, a fan assembly, an ICP-S (RS-422) interface port with loop­through, a rotary switch required for ICP-S serial ID assignments in a daisy chain
installation, and 32 BNC connectors. The BNC connectors are combined to form
groups of 8. Each group belongs to one of the housing frame's internal modules.
Refer to Figure 2.3 for module and BNC referencing.

Figure 2.3 Quartet-C rear panel

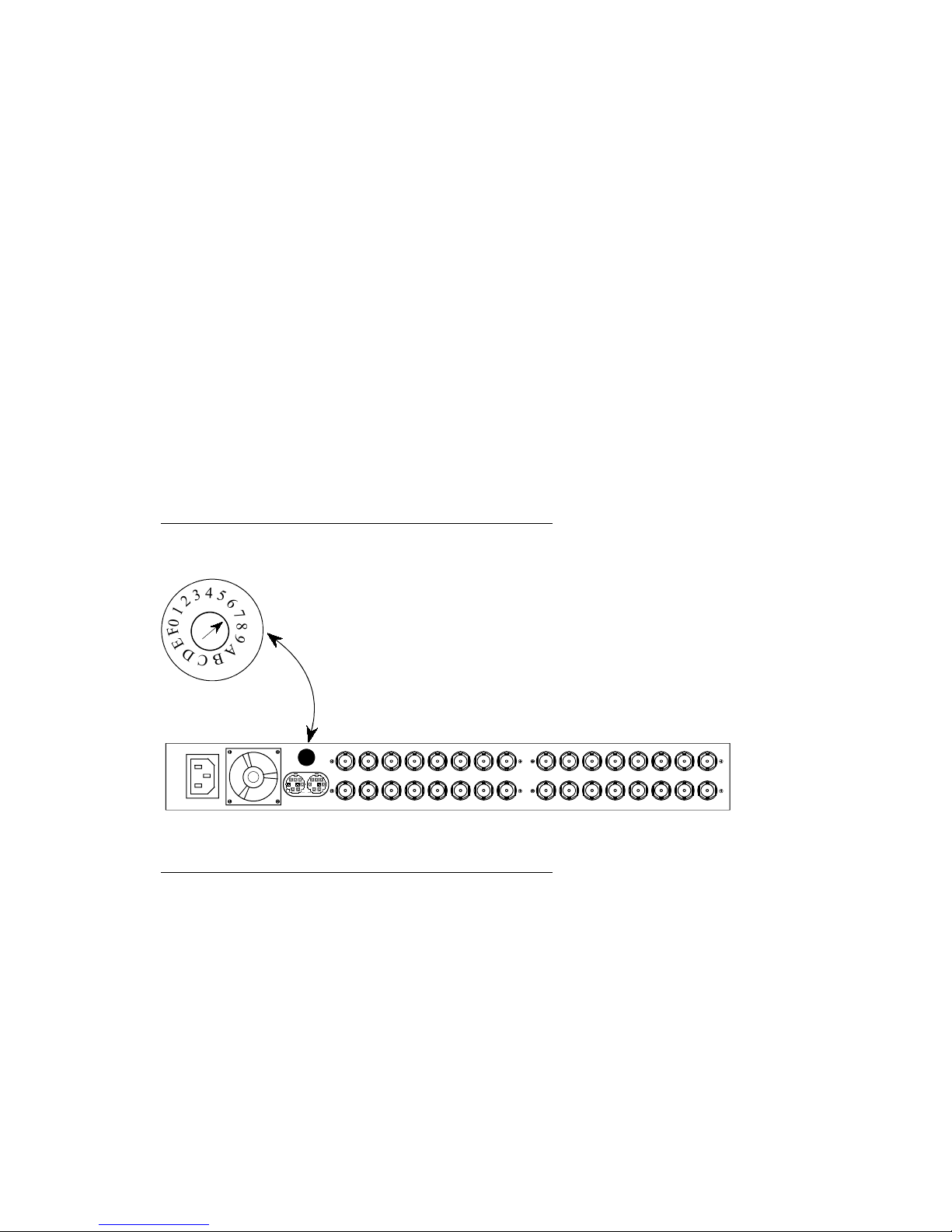

RS-422 serial ID assignment
rotary switch

RS-422

AC power connector

Fan assembly

Module #4 connectors Module #3 connectors

RS-422 interface port
with loop-through

Module #1 connectorsModule #2 connectors

8

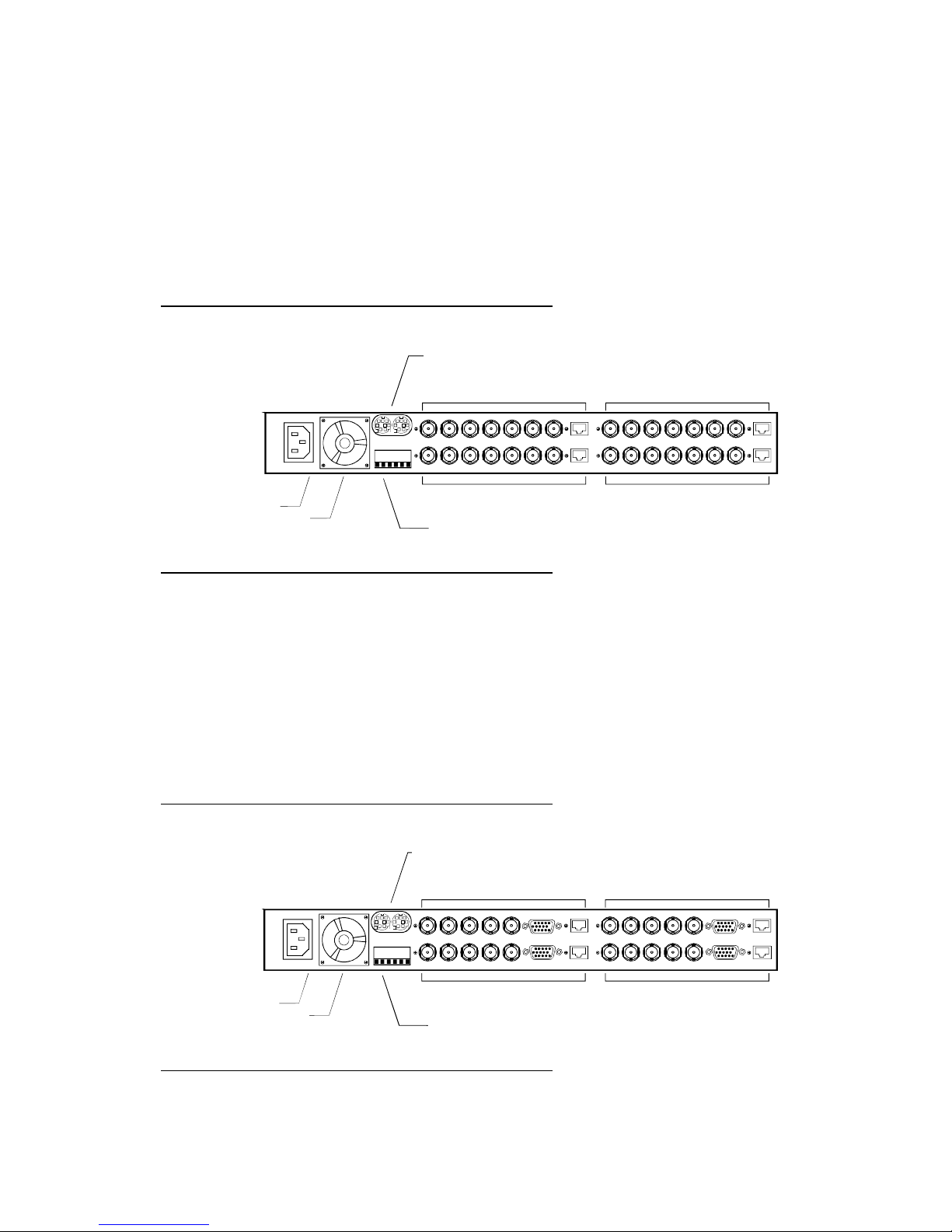

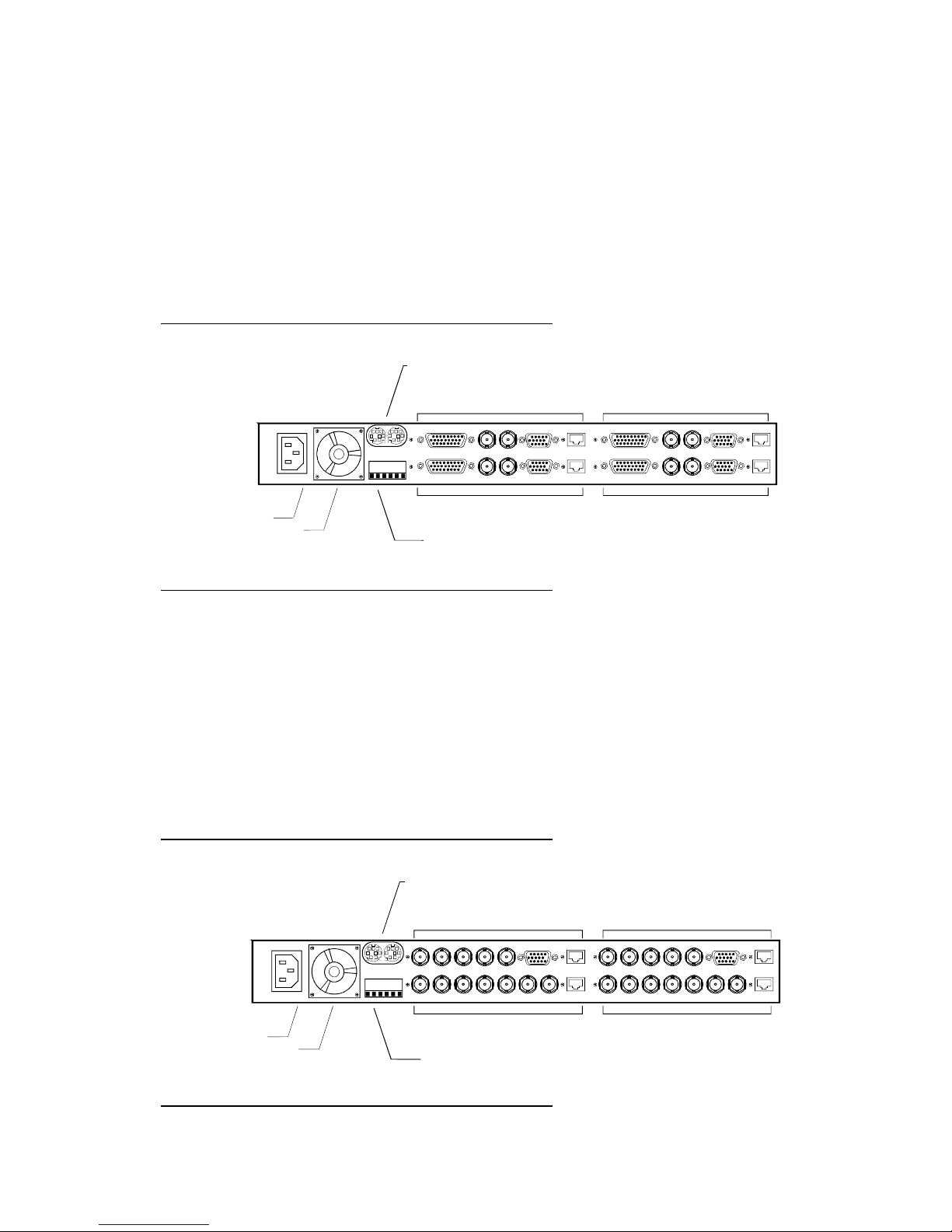

2.2.3 Quartet-M

The Quartet-M rear panel is composed of an AC receptacle, a fan assembly, a DC
power connector for power redundancy, an ICP-S (RS-422) interface port with loop­through, and 4 groups of 7 BNC/1 RJ-45 connectors. Each group belongs to one of
the housing frame's internal modules. Refer to Figure 2.4 for module and BNC
referencing.

For a pin-out of the RJ-45 connector, refer to the module's user manual.

Figure 2.4 Quartet-M rear panel

RS-422 interface port with loop-through
(ID assignment rotary switch behind RS-422 port; see section 3.5)

RS- 422

Module #1 connectorsModule #2 connect ors

AC po wer connect or

Fan assembly

Module #4 connectors Module #3 connectors

DC power
connector

2.2.4 Quartet-A-75

The Quartet-A-75 rear panel is composed of an AC receptacle, a fan assembly, a
DC power connector for power redundancy, an ICP-S (RS-422) interface port with
loop-through, and 4 groups of 5 BNC/1 HD-15/1 RJ-45 connectors. Each group
belongs to one of the housing frame's internal modules. Refer to Figure 2.5 for
module and BNC referencing.

For a pin-out of the RJ-45 and HD-15 connectors, refer to the module's user
manual.

Figure 2.5 Quartet-A-75 rear panel

RS-422 interface port with loop-through
(ID assignment rotary switch behind RS-422 port; see section 3.5)

RS-42 2

Module #1 connectorsModule #2 connectors

AC power connector

Fan assembly

Module #4 connectors Module #3 connectors

DC p ower
connector

9

2.2.5 Quartet-A-110

The Quartet-A-110 rear panel is composed of an AC receptacle, a fan assembly, a
DC power connector for power redundancy, an ICP-S (RS-422) interface port with
loop-through, and 4 groups of 2 BNC/1 HD-26/1 HD-15/1 RJ-45 connectors. Each
group belongs to one of the housing frame's internal modules. Refer to Figure 2.6
for module and BNC referencing.

For a pin-out of the RJ-45, HD-15, and HD-26 connectors, refer to the module's
user manual.

Figure 2.6 Quartet-A-110 rear panel

RS-422 interface port with loop-through
(ID assignment rotary switch behind RS-422 port; see section 3.5)

RS-4 22

Module #1 connectorsModule #2 connectors

AC power connector

Fan assembly

Module #4 connectors Module #3 connectors

DC power
connector

2.2.6 Quartet-M-A-75

The Quartet-M-A-75 rear panel is composed of an AC receptacle, a fan assembly,
a DC power connector for power redundancy, an ICP-S (RS-422) interface port with
loop-through, 2 groups of 5 BNC/1 HD-15/1 RJ-45 connectors as in the Quartet-A­75, and 2 groups of 7 BNC/1 RJ-45 connectors as in the Quartet-M. Each group
belongs to one of the housing frame's internal modules. Refer to Figure 2.7 for
module and BNC referencing.

For a pin-out of the RJ-45, and HD-15 connectors, refer to the module's user
manual.

Figure 2.7 Quartet-M-A-75 rear panel

RS-422 interface port with loop-through
(ID assignment rotary switch behind RS-422 port; see section 3.5)

Module #1 connectorsModule #2 connectors

AC power connector

Fan assembly

RS- 422

Module #4 connectors Module #3 connectors

DC power
connector

10

2.2.7 Quartet-M-A-110

The Quartet-M-A-110 rear panel is composed of an AC receptacle, a fan assembly,
a DC power connector for power redundancy, an ICP-S (RS-422) interface port with
loop-through, 2 groups of 2 BNC/1 HD-26/1 HD-15/1 RJ-45 connectors as in the
Quartet-A-110, and 2 groups of 7 BNC/1 RJ-45 connectors as in the Quartet-M.
Each group belongs to one of the housing frame's internal modules. Refer to Figure

2.8 for module and BNC referencing.

For a pin-out of the RJ-45, HD-15, and HD-26 connectors, refer to the module's
user manual.

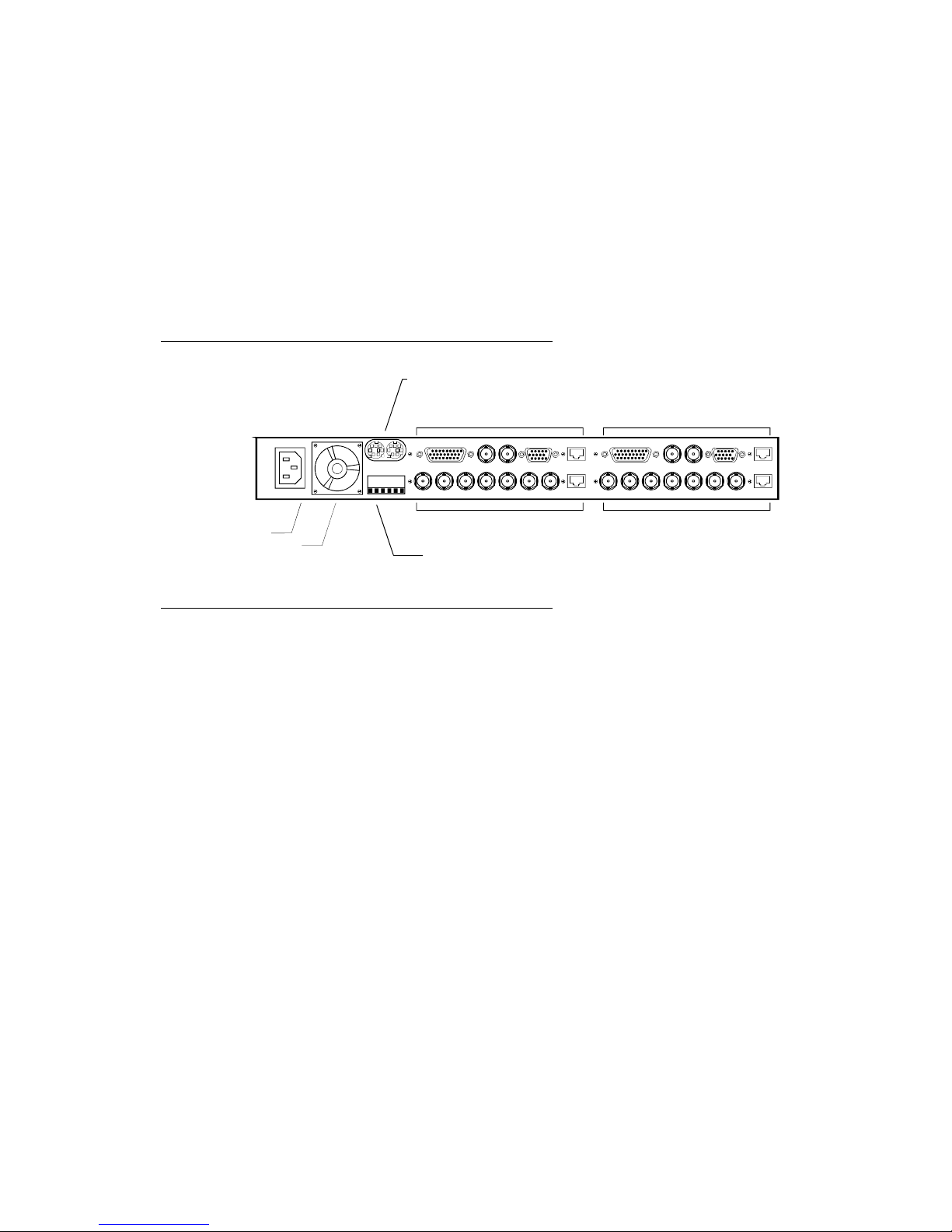

Figure 2.8 Quartet-M-A-110 rear panel

RS-422 interface port with loop-through
(ID assignment rotary switch behind RS-422 port; see section 3.5)

RS-422

Module #1 connectorsModule #2 connectors

AC power connector

Fan assembly

Module #4 connectors Module #3 connect ors

DC p ower
connector

11

12

3 Installation

3.1 Rack Mount Installation

Quartet housing frames can be mounted in a standard 19" rack. The unit's front
panel is secured to the rack by installing the appropriate rack screws and nylon
washers. The front panel's paint finish may be damaged if nylon washers are not
used.

For proper ventilation, make sure that the front panel is installed and that the front
panel air vents and rear panel fan assembly are not blocked when power is on.

3.2 DC Power Redundancy

For those Quartet housing frames supporting DC power redundancy, the external
DC power supply connector may be used to get DC power from a second Quartet
housing frame or a Quartet-RPS frame. Interconnecting two Quartet frames
equipped with a DC connector is possible if the total power consumption for all
imaging modules installed into the two housing frames (for a maximum of 8) does
not surpass the current capacity of one power supply. To find out how much
current is required for the installed modules, refer to the Specifications section of
the module’s Guide to Installation and Operation. If the total consumption
surpasses the current capacity, a dedicated redundant power supply may be
installed in a Quartet-RPS frame which may hold up to three power suplies for
redundancy purpose. In both cases, during normal operation both power supplies
are active. If a power supply fails, the other power supply instantaneously provides
power to all modules. The FAIL LED will be switched on in the defective unit to
indicate its malfunction. In Quartet-RPS and Quartet frames listed in Table 1.1, a
dry contact may be wired to a remote monitoring system to indicate the power
supply failure. Refer to section 4 Power Supply for more details.

Figure 3.1 indicates how to interconnect two imaging Quartet housing frames. Refer
to figures 3.2 and 3.3 for cable construction.

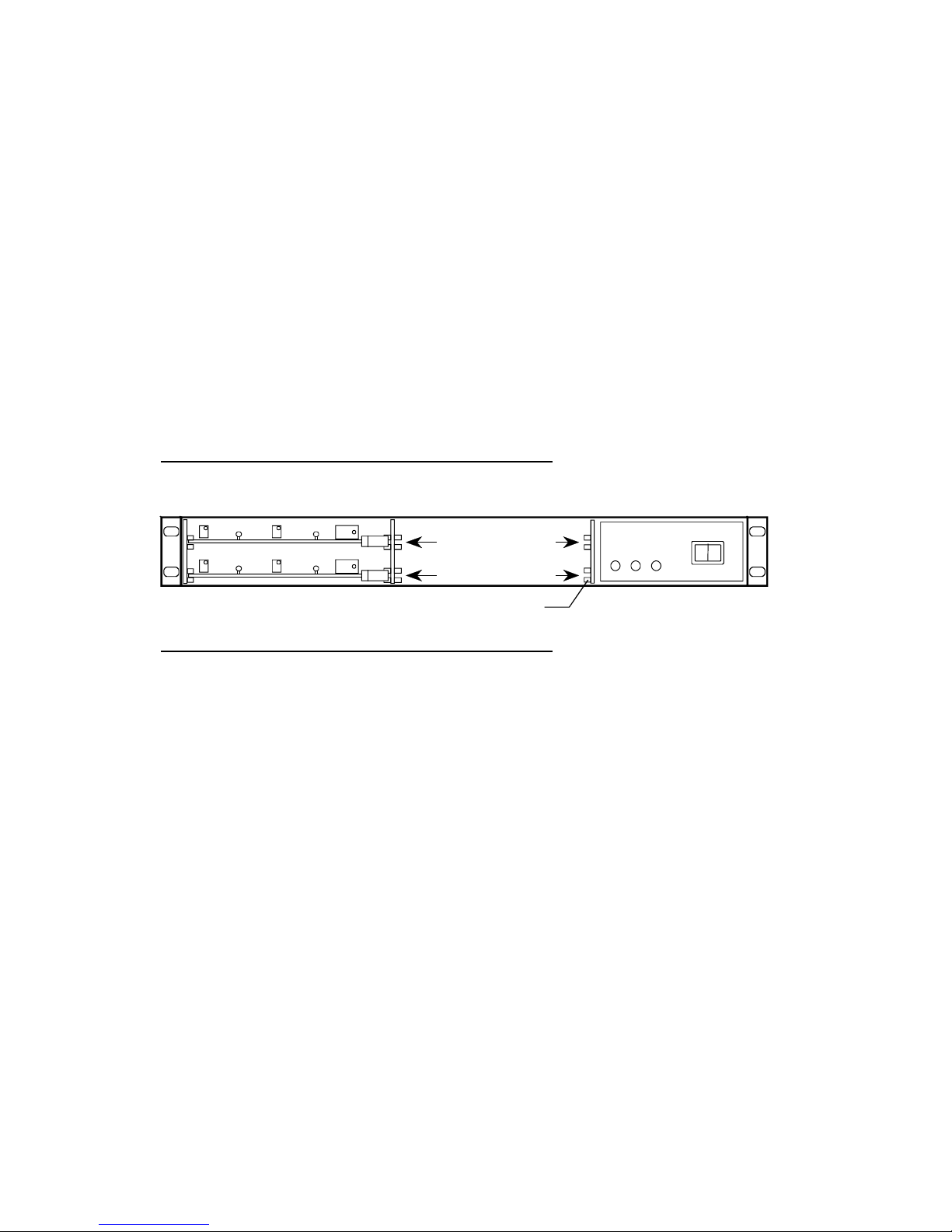

Figure 3.1 Dual Quartet Frame Interconnection

imaging Quartet Tray

imaging Quartet Tray

13

Figure 3.2 describes the cable required to interconnect the Quartet frames. As

(top

)

(top

)

shown in this diagram, #18 AWG wires are connected between the two terminal
strips (shipped with the frames) in a pin-to-pin fashion. Make sure the terminal
screws are secured tightly. Figure 3.3 provides the DC connector’s pinout viewed
from the rear panel of a Quartet frame.

Figure 3.2 DC cable construction

#18 AWG

Terminal strip

view

Figure 3.3 DC connector pinout

External DC connector
(Quartet and Quartet RPS
rear panels)

Terminal strip

-8V
+6V
GND
GND

-15V
+15V

3.3 Power Supply Removal and Installation

view

Follow these steps in order to remove the Quartet power supply.

1. Remove the front panel by rotating the thumb screws counter clockwise. Pull on
the handles.

2. Turn off the power supply by placing the Power switch in the "0" position.

3. Remove the AC power cord from the rear panel.

14

4. Using a flat-edge screwdriver, detach the power supply from the housing frame
by unscrewing the power supply retaining screw. The retaining screw is spring­loaded and remains at all times fastened to the power supply.

5. Pull gently on the power supply handle.

Follow these steps in order to install a power supply within a Quartet housing frame.

1. Remove the front panel by rotating the thumb screws counter clockwise. Pull on
the handles.

2. Insert the power supply in its assigned slot and gently push the power supply
towards the rear of the housing frame. Firmly push the power supply in order to
attach it to the back plane.

3. Using a flat-edge screwdriver, secure the power supply to the housing frame by
screwing the power supply retaining screw.

4. Install the AC power cord to the rear panel.

15

3.4 RS-422 Serial Connection

y

For those Quartet housing frames supporting ICP-S, the rear panel includes 2
identical RS-422 ports which may be used interchangeably as the source or daisy
chain loop-through. This port directs communication between a series of housing
frames and a remote Windows NT workstation. A module's configuration may be
modified from this workstation without the need to push buttons or position jumpers.
Refer to the following steps for a single Quartet or multi-Quartet to remote Windows
NT workstation installation.

Single Quartet Installation:

1. Connect the RS-422 cable of Figure 3.7 between the PC/RS-422 converter and
one of the RS-422 ports situated on Quartet's rear panel.

2. Connect the Windows NT workstation and the PC/RS-422 converter with a
proper cable. Refer to the converter vendor documentation.

3. The final step in a single Quartet installation is the serial identification
assignment required for the housing frame. Refer to section 3.5 RS-422 Serial
ID Assignment.

Multi-Quartet Installation:

1. Connect the RS-422 cable of Figure 3.7 between the PC/RS-422 converter and
one of the RS-422 ports situated on the first housing frame in the daisy chain.

2. Connect the Windows NT workstation and the PC/RS-422 converter with a
proper cable. Refer to the converter vendor documentation.

3. A maximum of 16 Quartets, a maximum of 16 Symphonies, and a maximum of
16 Solos can be daisy chained together. Therefore, interconnect the housing
frames as shown in Figure 3.4 using appropriate cables (refer to section 3.6).
The final housing frame requires the supplied termination.

4. The final step in a multi-housing frame installation is the serial identification
assignment required for each individual housing frame. Refer to section 3.5
RS-422 Serial ID Assignment.

Figure 3.4 Daisy chain installation

PC/RS-422
Converter

ID = 0 ID = 0

Wo r k s t a t i o n

=Termination

T

SeeFigure3.7

SeeFigure3.8

ID = 1 ID =0

SeeFigure3.9

ID = n

Quartet-C

S

mphonieQuartet-CSoloQuartet-C

T

16

3.5 RS-422 Serial ID Assignment

In a multi-housing frame installation, each frame must be recognized by the
workstation. The only way to accomplish this is to assign an identification code to
each member of the daisy chain. This is similar to assigning different addresses to
buildings on a street. Follow these steps in order to identify each housing frame in
the daisy chain.

Assigning the RS-422 Serial ID on Quartet-C

1. Locate the ID rotary switch on Quartet-C's rear panel. Refer to Figure 3.5.

2. Using a small flat-edge screwdriver, identify each housing frame by setting a
unique address to each. The available addresses are 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,
A, B, C, D, E, and F producing a total of 16 ID assignments. Two Quartet
housing frames cannot have the same address. However, a Quartet housing
frame, a Symphonie housing frame and a Solo housing frame can have the
same address.

3. Configure the workstation software to reflect the ID assignments of step 2.

Figure 3.5 Serial ID rotary switch location

4

5

3

6

2

1

0

F

7

8

9

A

E

B

D

C

RS-422 serial ID assignment
rotary switch

RS-422

Quartet-C rear panel

17

Assigning the RS-422 Serial ID on Quartet-M, Quartet-A-75, Quartet-A-110,

gnmentr

r

y

h

Quartet-M-A-75, and Quartet-M-A-110

1. Remove the power supply from the housing frame. To do so, refer to section

3.3, Power Supply Removal and Installation.

2. Use Figure 3.6 to locate the ID rotary switch behind the RS-422 ports.

3. Using a small flat-edge screwdriver, identify each frame by setting a unique
address to each. The available addresses are 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C,
D, E, and F producing a total of 16 ID assignments. Two Quartet housing
frames cannot have the same address. However, a Quartet frame, a
Symphonie housing frame and a Solo frame can have the same address.

4. Reinstall the power supply. To do so, refer to section 3.3, Power Supply
Removal and Installation.

5. Configure the workstation software to reflect the ID assignments of step 3.

Figure 3.6 Serial ID rotary switch location (Quartet-M,
Quartet-A-75, Quartet-A-110, Quartet-M-A-75, and
Quartet-M-A-110)

RS- 422 serial ID assi

ota

switc

18

3.6 RS-422 Cable Construction

(

)

(

t

)

Figure 3.7 describes the cable required between a Quartet housing frame and the
PC/RS-422 converter. The mini-DIN8 connector is viewed from the back where the
actual wire connections are to be made. The cable construction required between
Quartet housing frames is described in Figure 3.8. There is a direct pin-to-pin
connection between mini-DIN8 connectors. Use Figure 3.9 to construct a cable for
connection between Quartet and Symphonie housing frames.

Figure 3.7 Cable between Quartet-C and PC/RS-422 converter

RX+

8
7

TX+

6
4

TX-

3

RX-

5

1

2

0

TX+

RX+

RX­TX-

Mal e Mi n i - DI N8

PC/RS-422 Converter

(viewed from back)

Figure 3.8 Cable between Quartet-C/Solo housing frames

8
7
6
4
3
5

1

2
0

Male Mini-DIN8

viewed from back

Figure 3.9 Cable between Quartet-C/Solo and Symphonie housing frames

S

7

86

4 35

21

S=Shield

Male Mini-DIN8

viewed from fron

5

9

1

6

Mini-Din 8

(back of connector)

Male DE-9

(back of connector)

19

3.7 Installing an imaging Series Module

It is not necessary to switch off the power when installing a module into a housing
frame. To install a module, follow these steps.

1. Remove the front panel by rotating the thumb screws counter clockwise. Pull on
the handles.

2. Select an empty slot.

3. Carefully place the module between the module guides (refer to Figure 3.10)
and slowly push the module towards the rear of the housing frame until the
module's edge connector is secured to the backplane. Pull lightly on the module
verifying that it does not move.

4. Replace the front panel. Make sure to rotate the thumb screws clockwise in
order to secure the front panel to the chassis.

Figure 3.10 Module guide location

Place module here

Place module here

Module guides

3.8 Removing an imaging Series Module

It is not necessary to switch off the power when removing a module from a housing
frame. To remove a module, follow these steps.

1. Remove the front panel by rotating the thumb screws counter clockwise. Pull on
the handles.

2. Locate the module you wish to remove.

3. Carefully pull the module ejector until the module is detached from the internal
PCB edge connector. Slowly pull out the module.

4. Replace the front panel. Make sure to rotate the thumb screws clockwise in
order to secure the front panel to the chassis.

20

3.9 Rear Panel Label

A connector label is shipped with every imaging series module. This label is to be
installed on Quartet's rear panel in order to identify the module's external
connectors. To install the label, follow these steps.

1. On the housing frame's rear panel, locate the appropriate connectors for the
front slot where the imaging module has been installed as specified in section

3.7.

2. Remove the screws as shown in Figure 3.11.

3. Carefully apply the label to the connectors.

4. Replace the screws making sure not to damage the label.

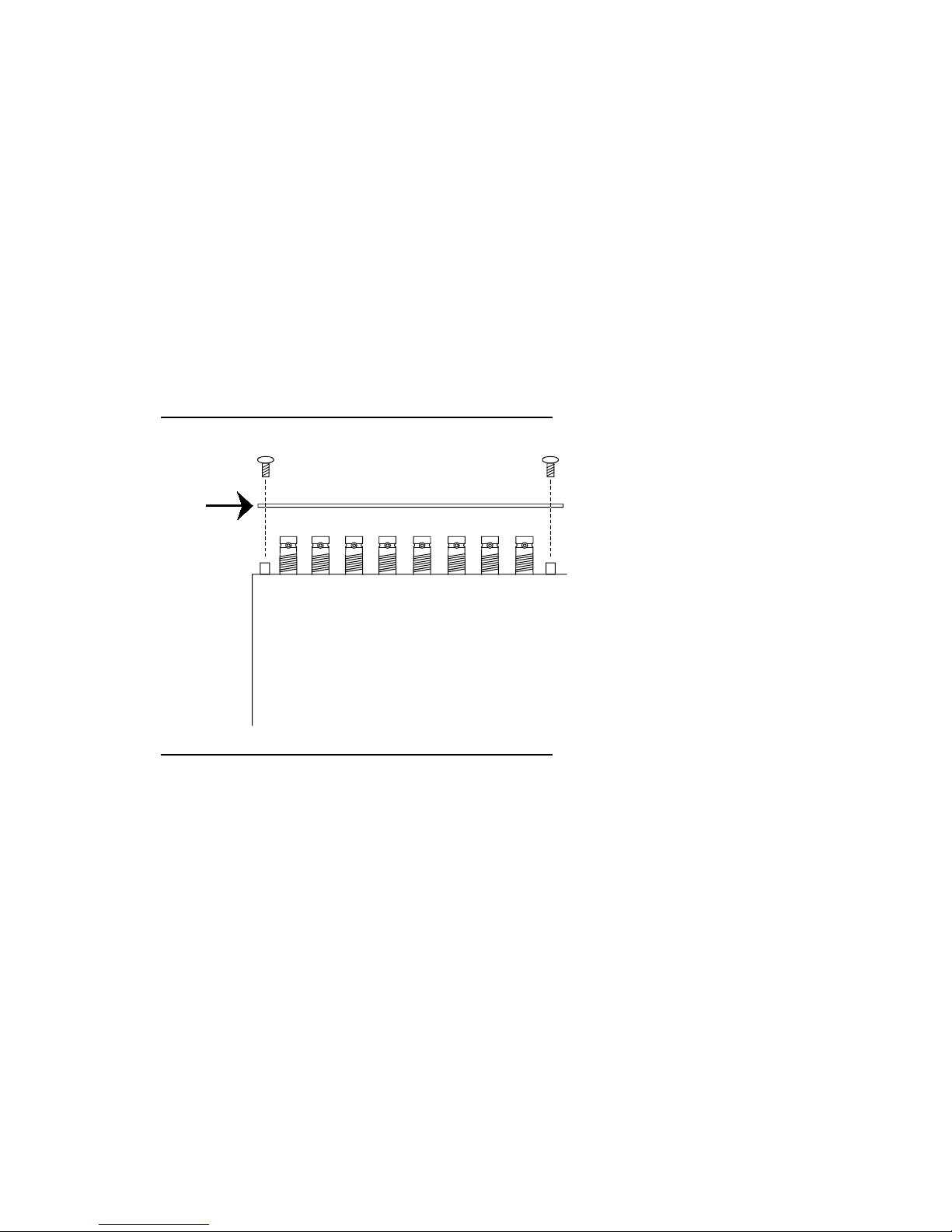

Figure 3.11 Rear panel label installation

Label

imaging Quartet

(top view)

21

3.10 Air Filter Removal and Cleaning

The imaging housing frame contains a DC powered cooling fan located at the rear.
The cooling fan sucks in air via the front panel air vents. Behind the front panel air
vents, an air filter prevents dust and air particles from penetrating into the housing
frame.

Occasionally, this air filter may have to be removed and properly cleaned in order to
maintain proper ventilation within the housing frame. To remove and clean the air
filter, refer to Figure 3.12 and follow these directions:

1. Remove the front panel by rotating the thumb screws counter clockwise. Pull on
the handles.

2. Carefully remove the lexan membrane and the air filter behind the front panel.

3. Use running water to clean the air filter. Make sure to dry off the air filter before
attempting to replace it back into its original location.

4. When replacing the air filter, make sure to tuck it back into place behind the
metal rails. Reinstall the lexan membrane to block 2/3 of the air filter, as shown
on figure 3.12 below.

5. Replace the front panel. Make sure to rotate the thumb screws clockwise in
order to secure the front panel to the chassis.

N.B.: For proper cooling of the imaging modules do not leave the front door
removed for a long period of time when power is on.

Figure 3.12 Air filter location

Front panel (removed from housing)

Imaging Quartet

Back side of front panel

Lexan membrane

Slot Area

Air filter

Metal rails

22

3.11 imaging Extender Module

(

)

The optional imaging extender module allows easy access to any imaging series modules
requiring testing, repairs, or calibration. In order to install the extender module, remove the
imaging module under test from the housing frame. Replace it with the extender module.
Insert the module under test in the extender module making sure it is firmly installed. Refer
to the Figure 3.13.

To remove the module under test, simply push on the ejectors situated at the front of the
extender module and pull out the module under test. To remove the extender module,
carefully pull on it in order to detach it from the housing frame's rear motherboard.

For complete instructions on module installation and module removal, refer to sections 3.7
and 3.8 respectively.

Figure 3.13 imaging extender module setup

imaging Extender Module

To
imaging
Quartet
Tray

Install
module under
test here

Ejector used to remove module under test

To remove module, push ejector in direction of arrow.

23

24

4 Power Supply

4.1 Powering Up and Local Power Monitoring

To turn on power in a Quartet frame, remove the front panel and place the power switch in
the '1' position. The PWR indicator will light up. The following indicators provide information
on the power supply's status.

• PWR

The PWR LED turns on to indicate the housing frame is powered.

• FAIL

The FAIL LED turns on to indicate that at least one power supply voltage level has
failed. This may also occur after a thermal shutdown by the power supply. A thermal

shutdown occurs at a temperature of 70°C (158°F) setting all output voltage levels to 0.
The power supply will restart only when its temperature has dropped to at least 50°C
(122°F).

• O/L

This LED lights up to indicate a current overload has been detected on one of the DC
power lines. This indicates a problem with either the power supply or one of the housing
frame's modules.

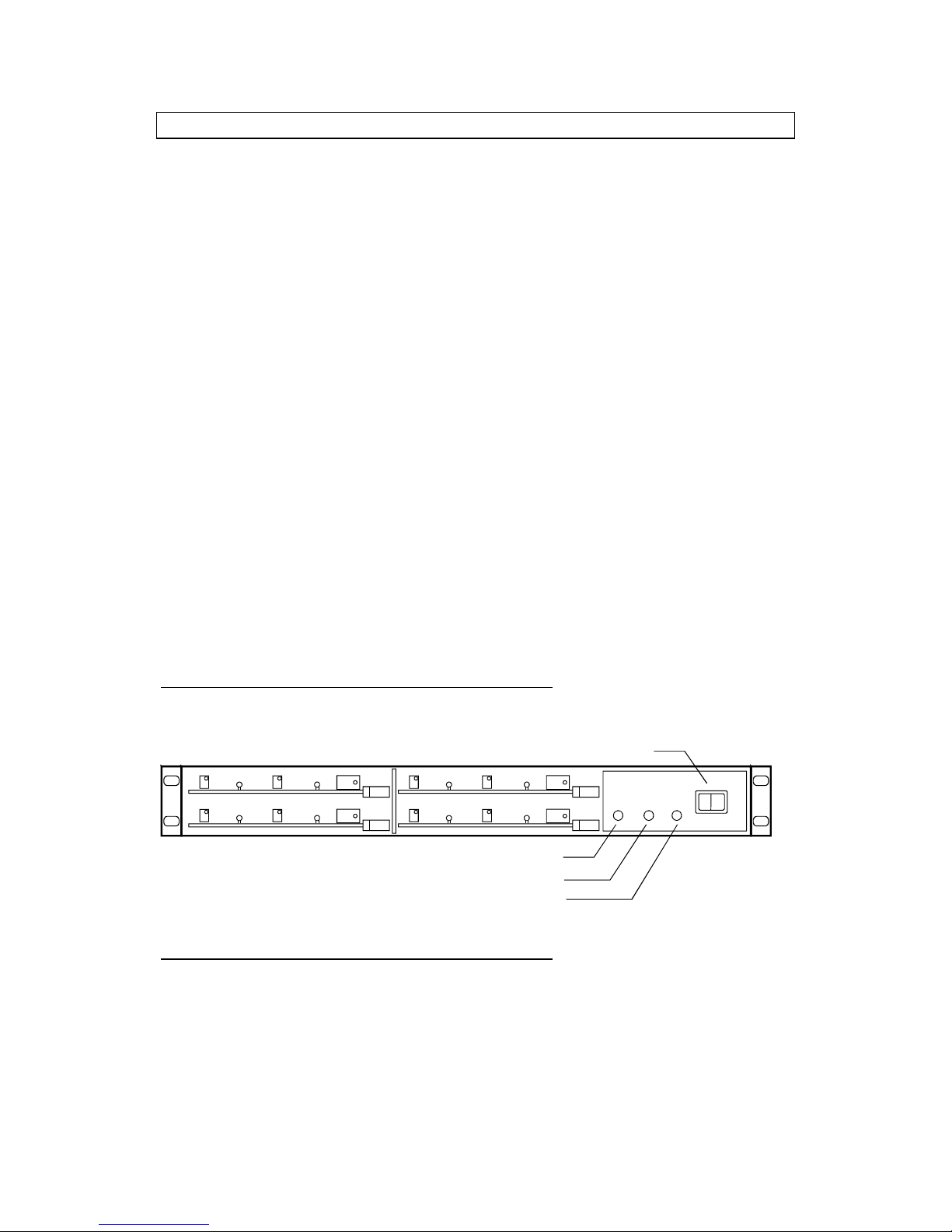

Figure 4.1 Power supply monitoring

Power switch

PWR FAIL O/L

10

Power

Fail

Overload

25

4.2 Remote Power Failure Alarm and Cable Construction (optional)

)

The power supply remote monitoring feature in Quartet frames detailed in Table 1.1 informs
the user of a power supply problem. A power failure alarm is provided by the dry contacts
of the rear panel mini-Din 8 connector.

Figure 4.2 describes the pinout of the rear panel mini-Din 8 connector. The mini-Din 8
connector is viewed from the back where the actual wire connections are to be made. The
mini-Din 8 rear panel connector provides a normally closed contact and a normally open
contact. During normal operation, there is a closed contact between pins 1 and 7 and an
open contact between pins 2 and 7. If the power supply fails or experiences a current
overload, contact between pins 1 and 7 opens and contact between pins 2 and 7 closes.

Figure 4.2 Mini-Din 8 connector pinout (alarm condition)

8

7

6

4

3
5

1
2
0

Male Min-Din 8

(viewed from back)

Ground

=Used for RS-422
communication (refer
to section 3.6

26

5 Specifications

Quartet

I/O connectors: 75 ohm BNC (32)
DC power: Terminal strip 6: -8V, +6V, GND, GND, -15V, +15V

Quartet-C

I/O connectors: 75 ohm BNC (32)
Serial port: RS-422 on mini-DIN 8 (2)

Quartet-M

I/O connectors: 75 ohm BNC (28)

RJ-45 (4)
DC power: Terminal strip 6: -8V, +6V, GND, GND, -15V, +15V
Serial port: RS-422 on mini-DIN 8 (2)
Power failure alarm: NC contacts on mini-Din 8 (2)

Quartet-A-75

I/O connectors: 75 ohm BNC (20)

HD-15 (4)

RJ-45 (4)
DC power: Terminal strip 6: -8V, +6V, GND, GND, -15V, +15V
Serial port: RS-422 on mini-DIN 8 (2)
Power failure alarm: NC contacts on mini-Din 8 (2)

Quartet-A-110

I/O connectors: 75 ohm BNC (8)

HD-15 (4)

HD-26 (4)

RJ-45 (4)
DC power: Terminal strip 6: -8V, +6V, GND, GND, -15V, +15V
Serial port: RS-422 on mini-DIN 8 (2)
Power failure alarm: NC contacts on mini-Din 8 (2)

Quartet-M-A-75

I/O connectors: 75 ohm BNC (24)

HD-15 (2)

RJ-45 (4)
DC power: Terminal strip 6: -8V, +6V, GND, GND, -15V, +15V
Serial port: RS-422 on mini-DIN 8 (2)
Power failure alarm: NC contacts on mini-Din 8 (2)

Quartet-M-A-110

I/O connectors: 75 ohm BNC (18)

HD-15 (2)

HD-26 (2)

27

RJ-45 (4)
DC power: Terminal strip 6: -8V, +6V, GND, GND, -15V, +15V
Serial port: RS-422 on mini-DIN 8 (2)
Power failure alarm: NC contacts on mini-Din 8 (2)

All Quartets

Power input: 100-264 VAC / 50-60 Hz, 225 W
Maximum DC power capacity:

130 W

5V / 10 A

-8V / 5A

±15V / 1A

(Re. section 3.2: when calculating total module load, it should

never exceed 80% of the maximum value specified)
Dimensions: 1 RU x 327 mm deep (12.9")
Weight: 3.6 Kg (7.9 lbs)
Temperature: 0°C to 40°C

28
