Miranda IRD-3111 Installation Manual

DENSITÉ series

IRD-3111

SD MPEG Receiver/Decoder

with ASI and RF Inputs

Guide to Installation and Operation

M907-9600-102

27 Aug 2013

Miranda Technologies

3499 Douglas-B.-Floreani

St-Laurent, Québec, Canada H4S 2C6

Tel. [phone]

Fax. [phone]

www.miranda.com

© 2013 Miranda Technologies

GUIDE TO INSTALLATION AND OPERATION

Electromagnetic Compatibility

This equipment has been tested for verification of compliance with FCC Part 15, Subpart B requirements for
Class A digital devices.

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.

This equipment has been tested and found to comply with the requirements of the EMC directive
2004/108/CE:

• EN 55022 Class A radiated and conducted emissions

• EN 61000-3-2 Harmonic current injection

• EN 61000-3-3 Limitation of voltage changes, voltage fluctuations and flicker

• EN 61000-4-2 Electrostatic disc harge immunity

• EN 61000-4-3 Radiated electromagnetic field immunity – radio frequencies

How to contact us:

For technical assistance, pleas e contact the Miranda Technical Support centre nearest you:

Americas

9:00 am – 9:00 pm EST
Tel: [phone]
Fax: [phone]

[e-mail]

Asia

9:30 am – 6:00 pm GMT+8
Tel: [phone]
Fax: [phone]

[e-mail]

Europe, UK, Middle East, Africa

9:00 am – 6:00 pm GMT
Tel: [phone]
Fax: [phone]

[e-mail]

Emergency After Hours

(worldwide)

Tel: [phone]

-or­Tel: [phone]

and choose menu
option 2

France

9:00 am – 5:00 pm GMT+1
Tel: [phone]
Fax: [phone]

[e-mail]

China

9:30 am – 6:00 pm GMT+8
Tel: [phone]

[e-mail]

(Playout Automation Only)

9:00 am – 5:30 pm GMT
Tel: [phone]
Fax: [phone]

[e-mail]

Visit our web site at www.miranda.com

IRD-3111

GUIDE TO INSTALLATION AND OPERATION

Table of Contents

1 IRD-3111 SD MPEG Decoder with ASI and RF inputs ............................................................ 1

1.1 Using this Manual................................................................................................................................ 1

1.2 Introduction ......................................................................................................................................... 1

1.3 Features .............................................................................................................................................. 1

1.4 Applications ......................................................................................................................................... 3

1.5 Block Diagrams ................................................................................................................................... 4

1.6 Front Card-edge Interface ................................................................................................................... 5

1.7 Physical Layout – IRD-3111 with Tuner and CAM modules ............................................................... 5

2 Installation ................................................................................................................................ 6

2.1 Installation in the Densité frame .......................................................................................................... 6

2.2 Rear Panels ........................................................................................................................................ 6

2.3 Connections ........................................................................................................................................ 6

2.4 Installation of the Conditional Access Module (CAM) ......................................................................... 7

3 Operation .................................................................................................................................. 8

3.1 Control options .................................................................................................................................... 8

3.2 Card-Edge Status LED ....................................................................................................................... 8

3.3 Local control using the Densité frame control panel ........................................................................... 9

3.3.1 Overview ................................................................................................................................ 9

3.3.2 Menu for local control ............................................................................................................. 9

3.4 Remote control using iControl ........................................................................................................... 10

3.4.1 The iControl graphic interface window ................................................................................. 10

3.4.2 The Input panel .................................................................................................................... 14

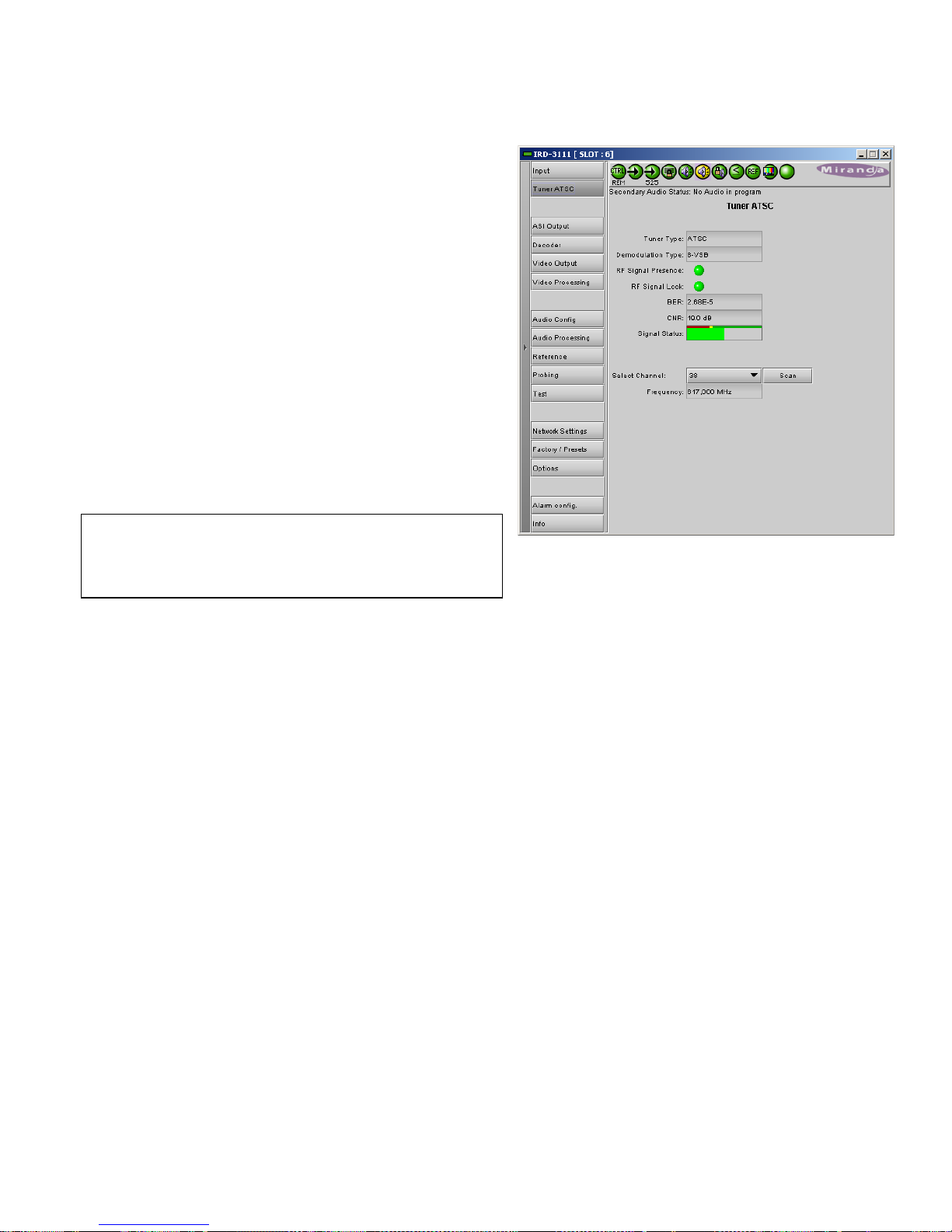

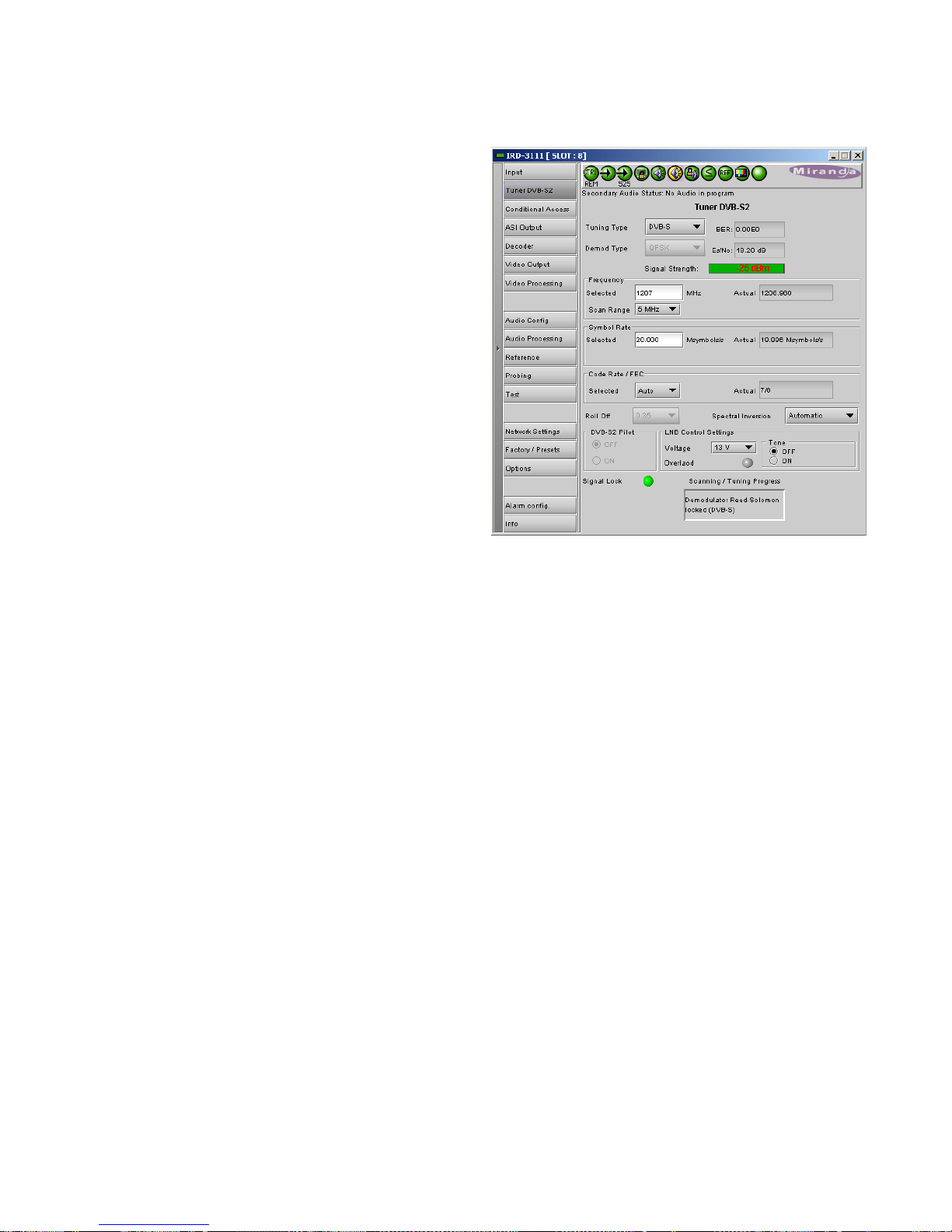

3.4.3 Tuner panels ........................................................................................................................ 15

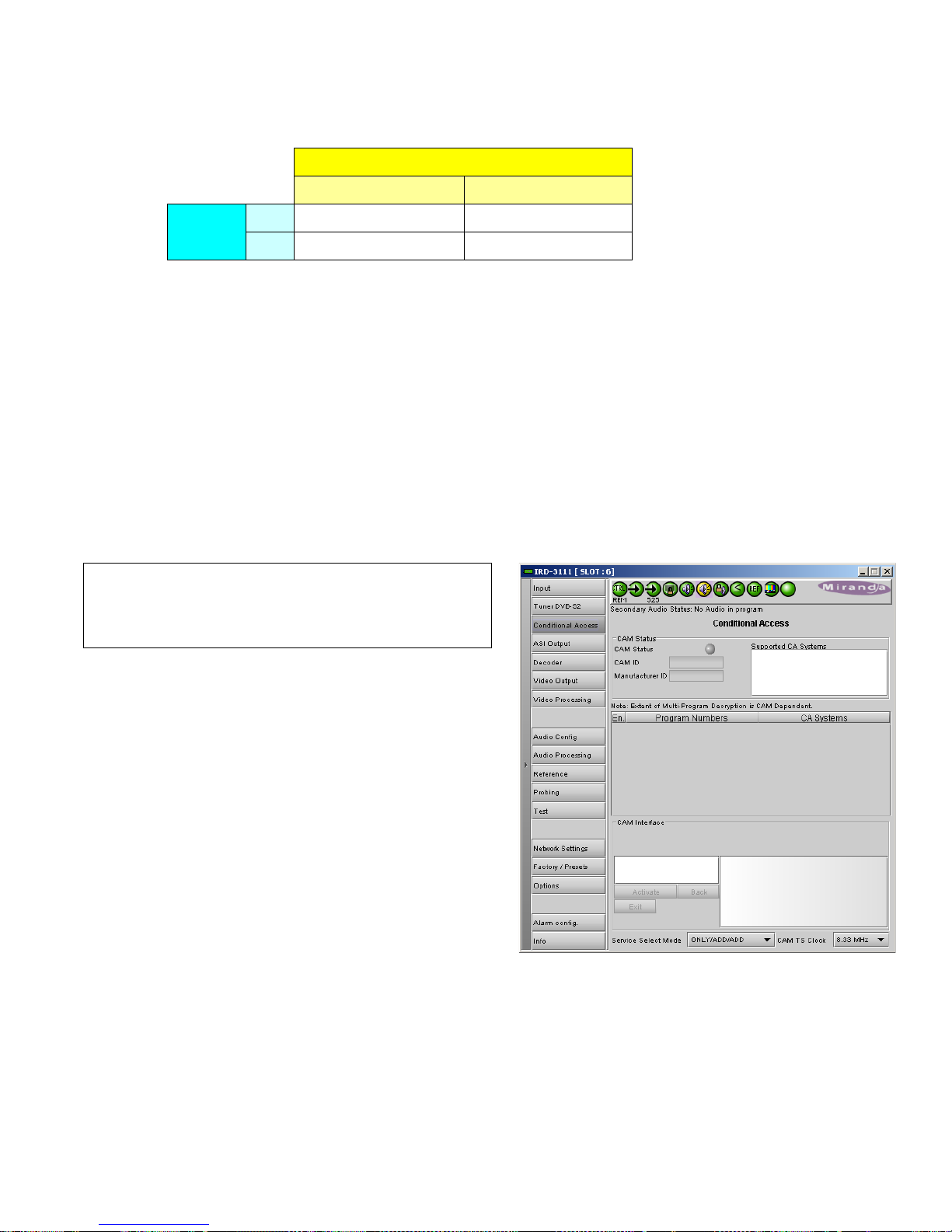

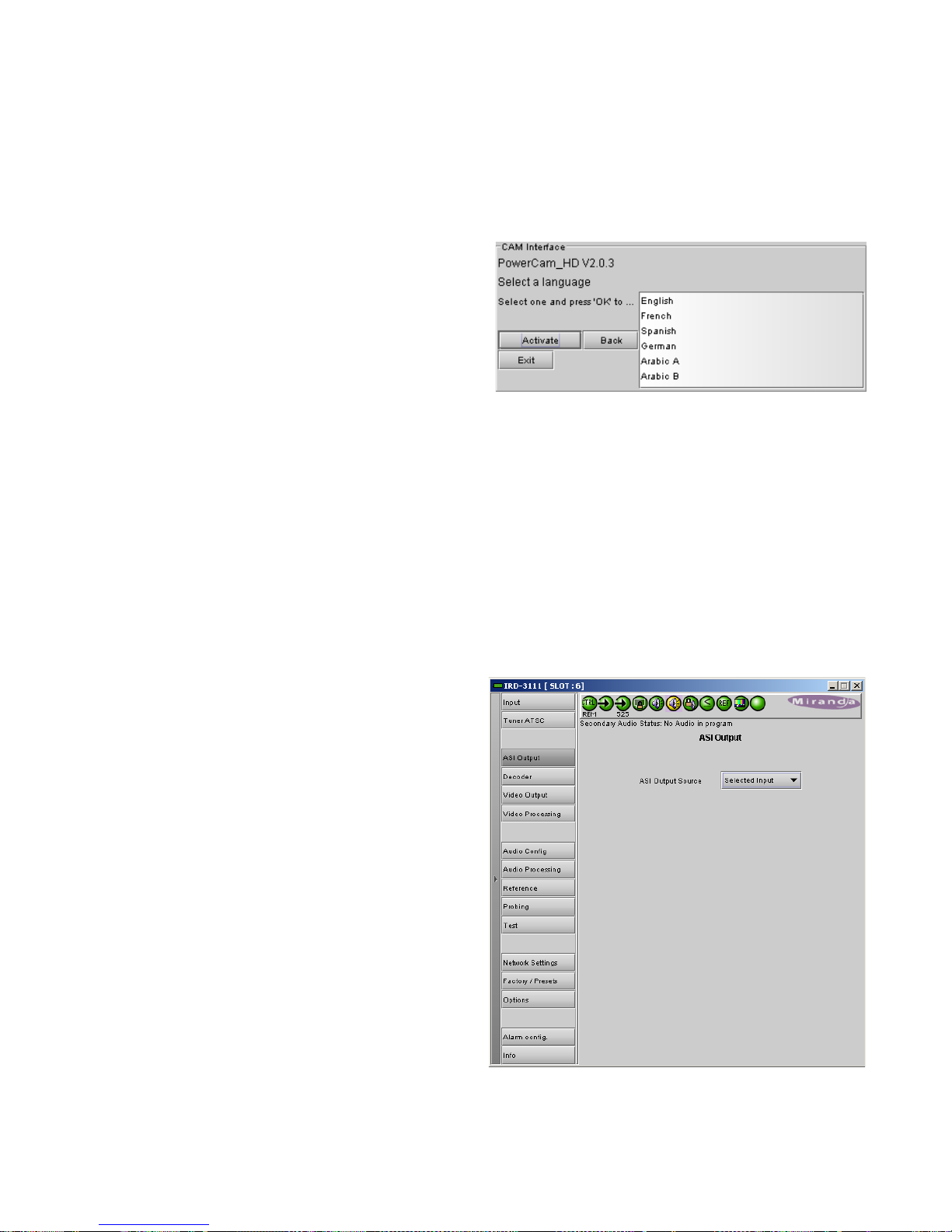

3.4.4 The Conditional Access panel ............................................................................................. 17

3.4.5 The ASI Output panel .......................................................................................................... 18

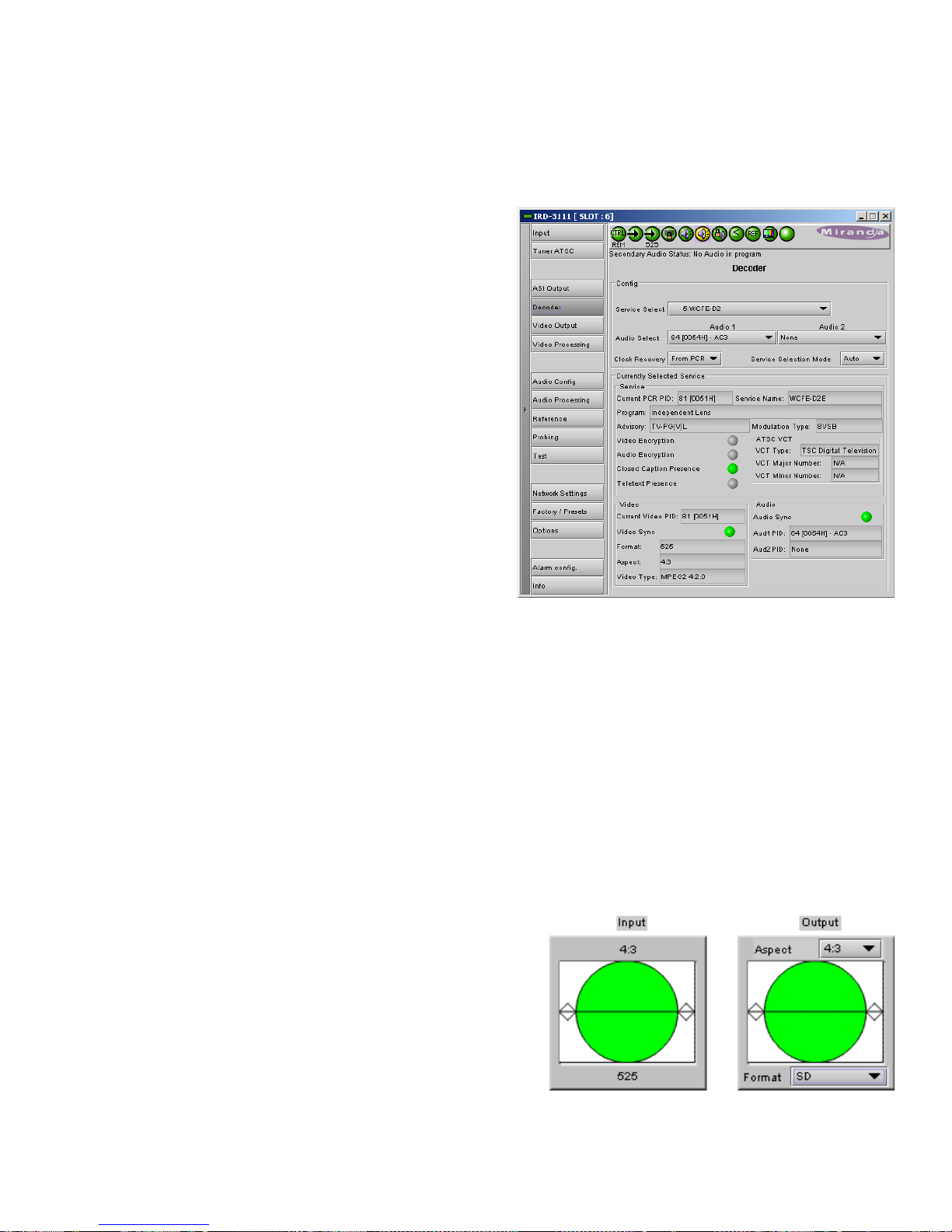

3.4.6 The Decoder panel .............................................................................................................. 19

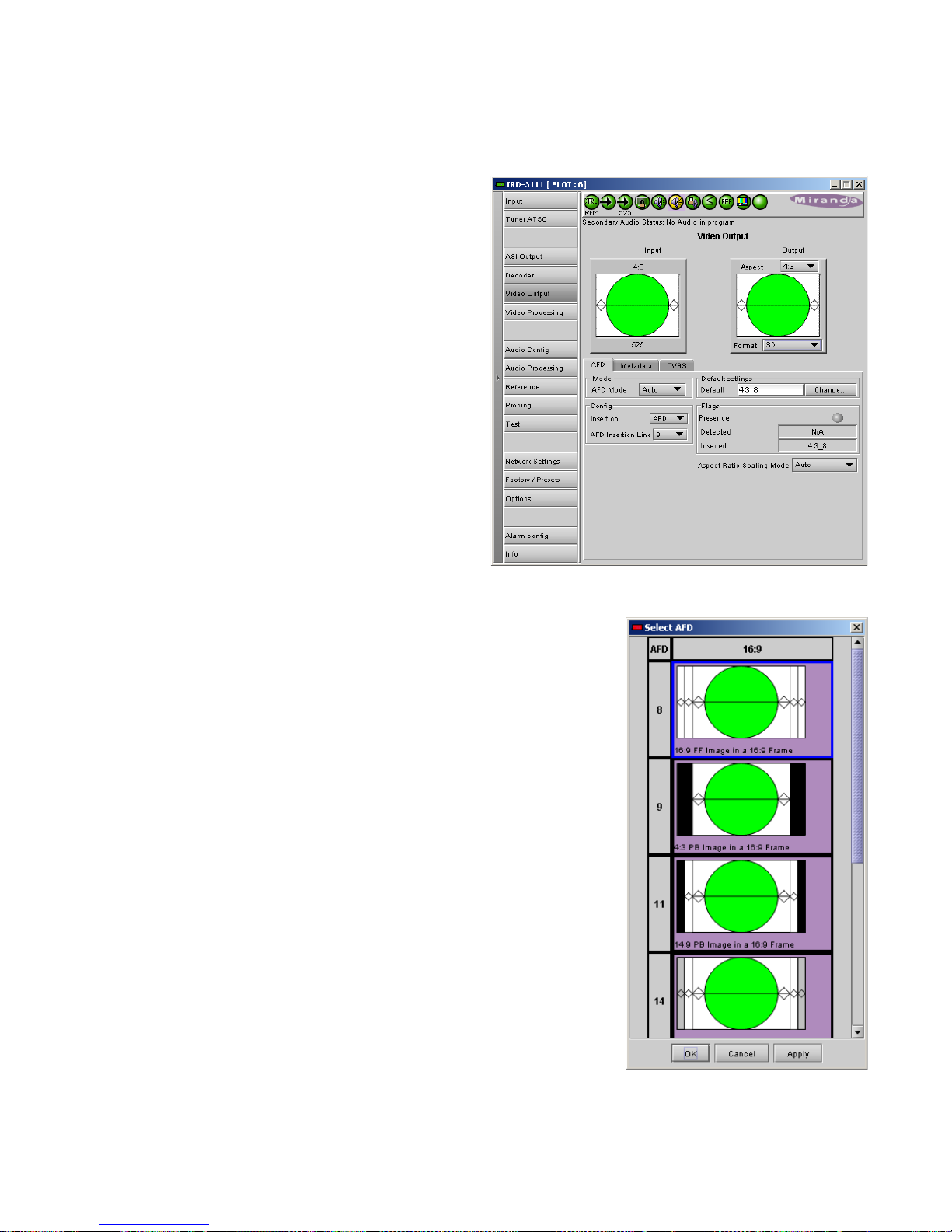

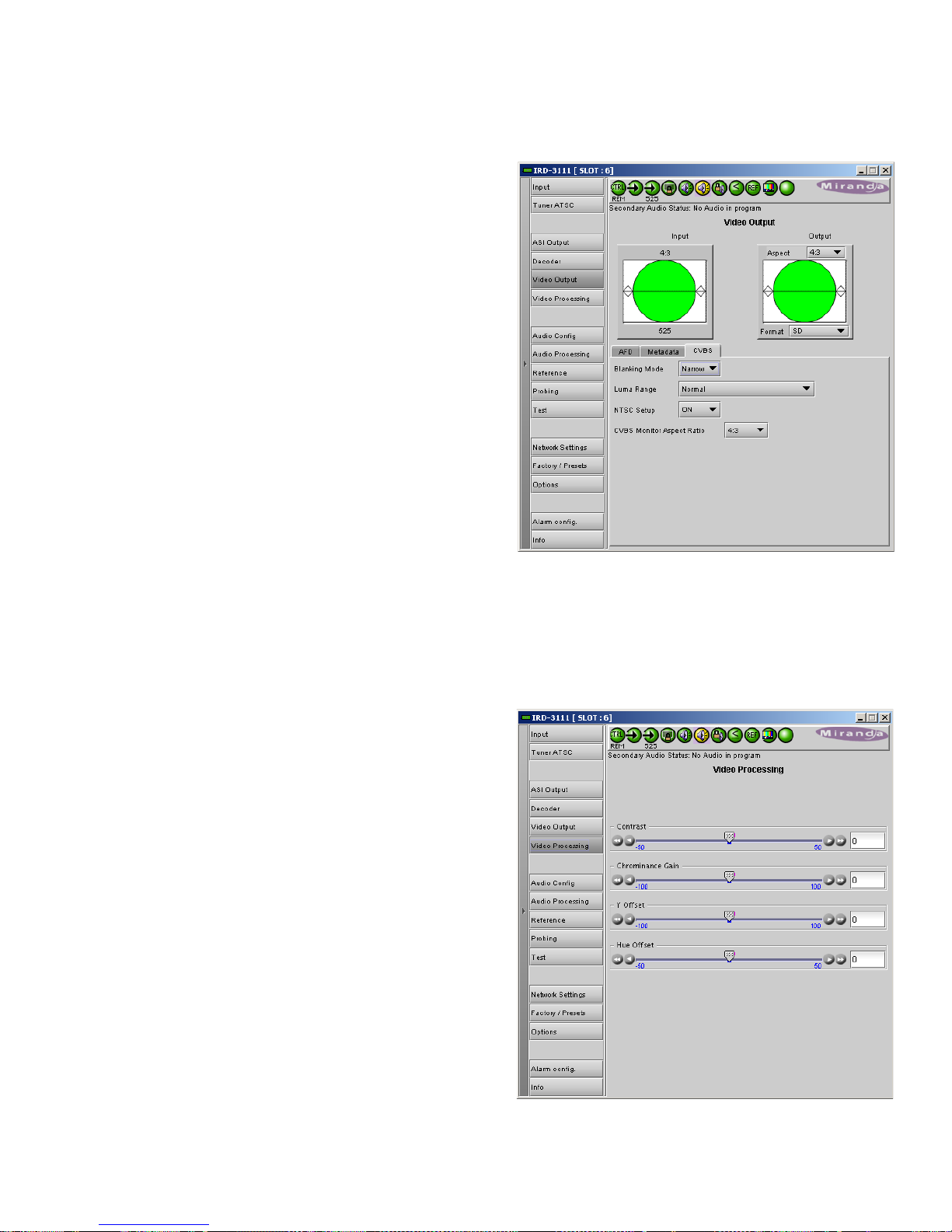

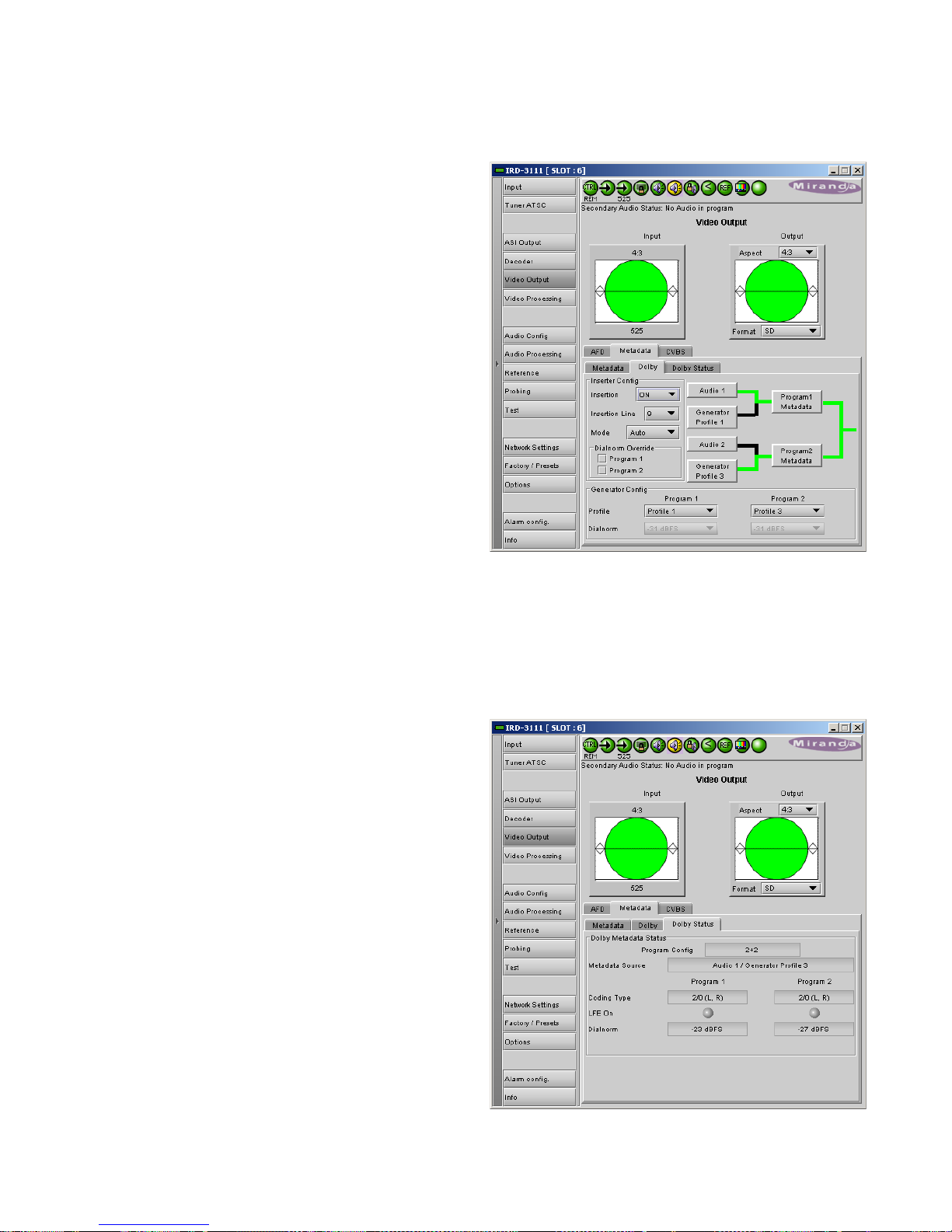

3.4.7 The Video Output panel ....................................................................................................... 19

3.4.8 The Video Processing panel ................................................................................................ 23

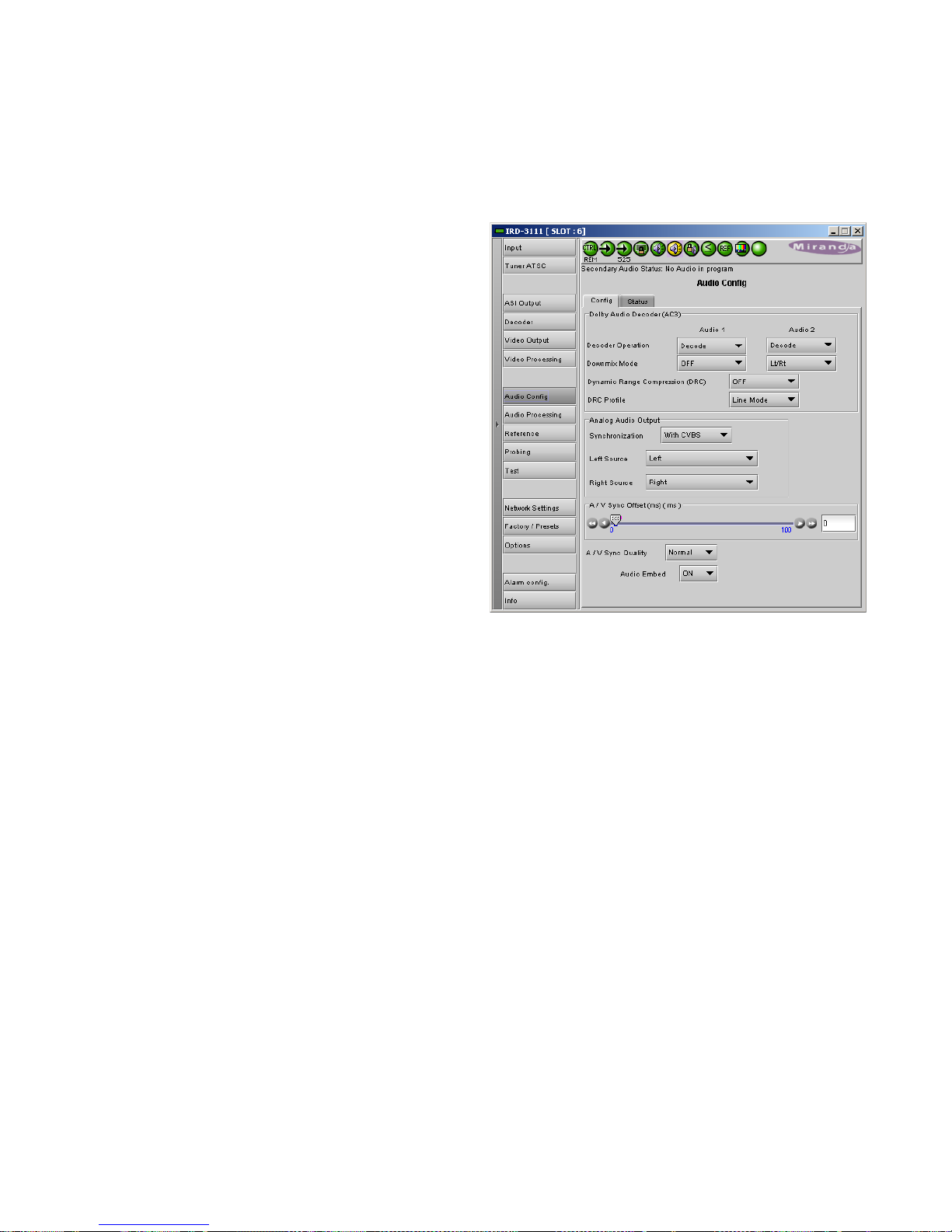

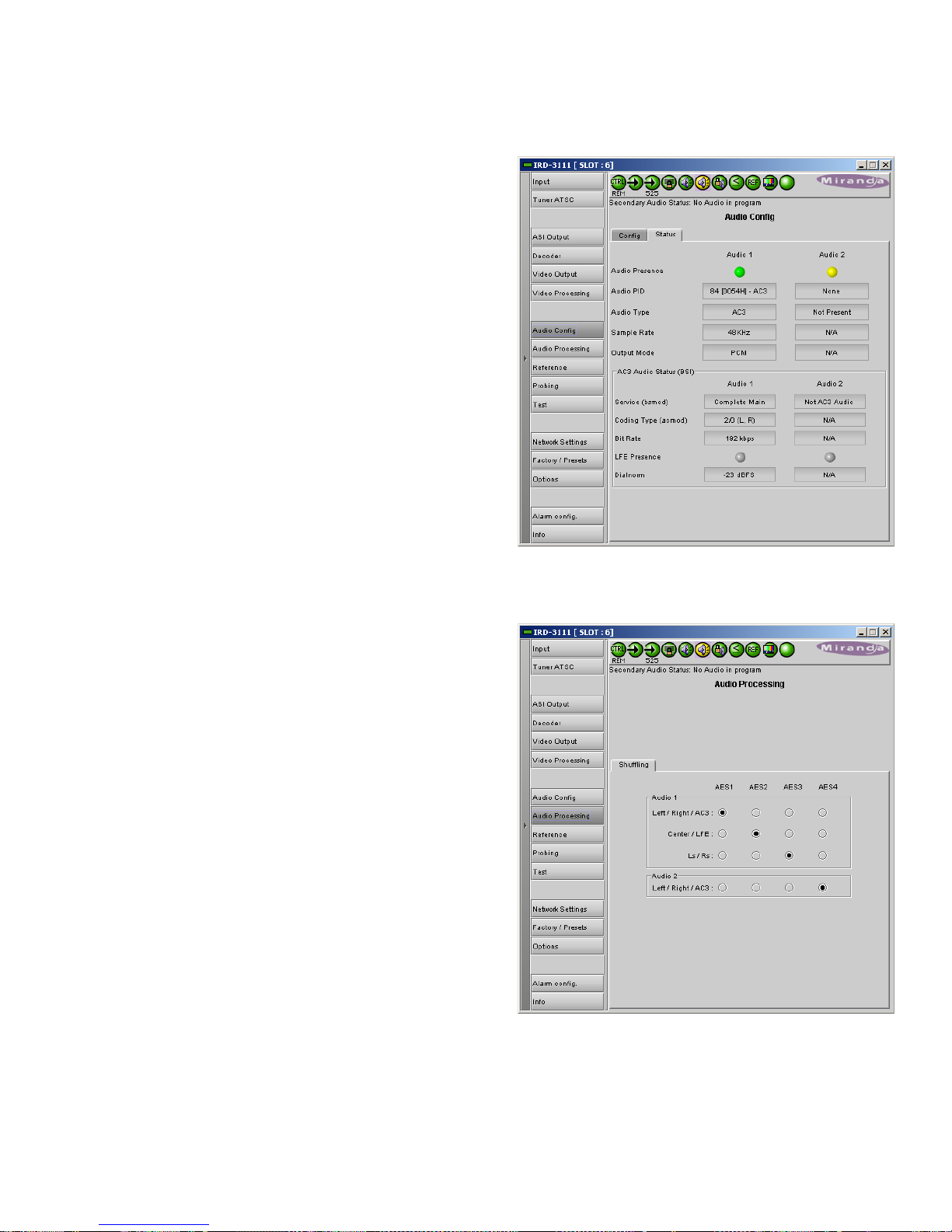

3.4.9 The Audio Config panel ....................................................................................................... 24

3.4.10 The Audio Processing panel ................................................................................................ 25

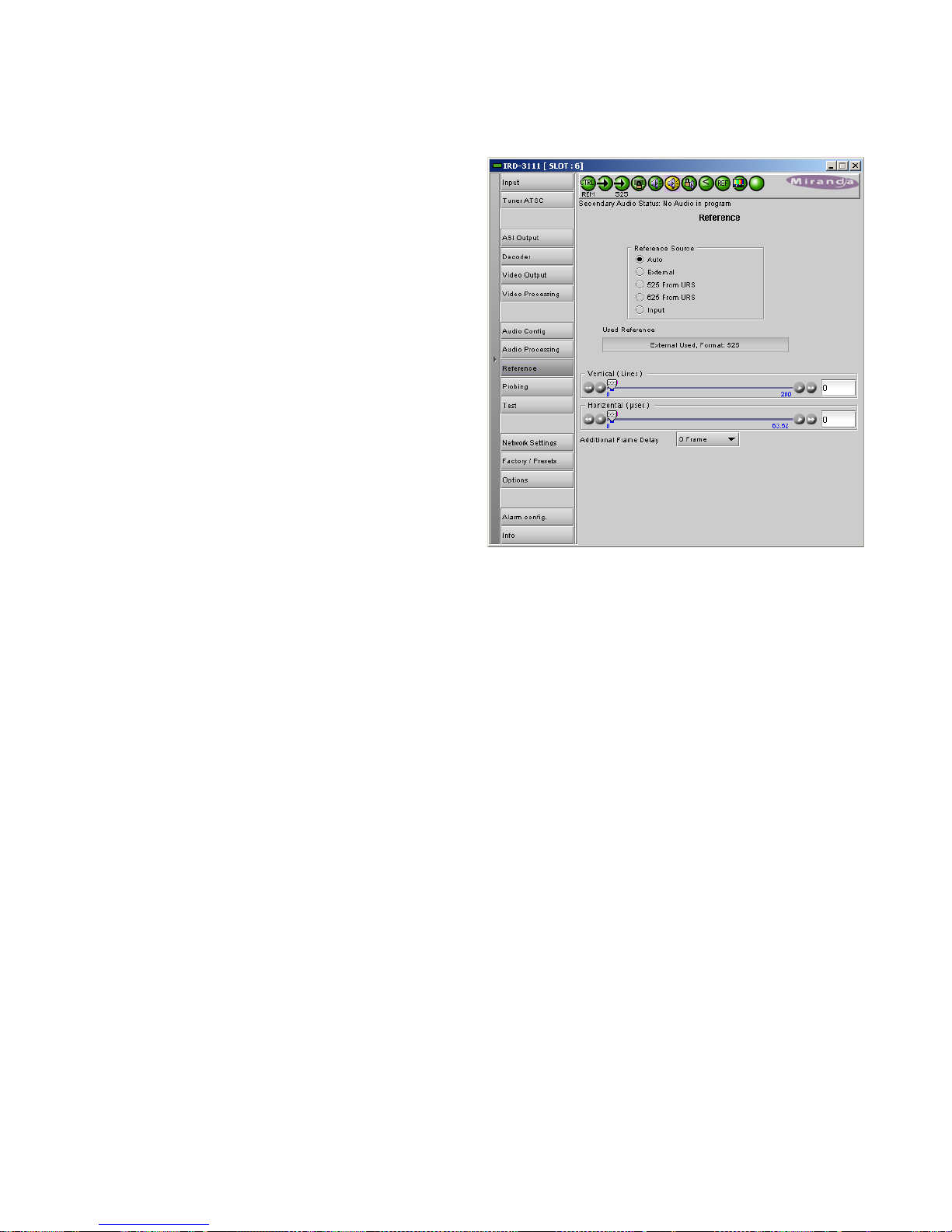

3.4.11 The Reference panel ........................................................................................................... 26

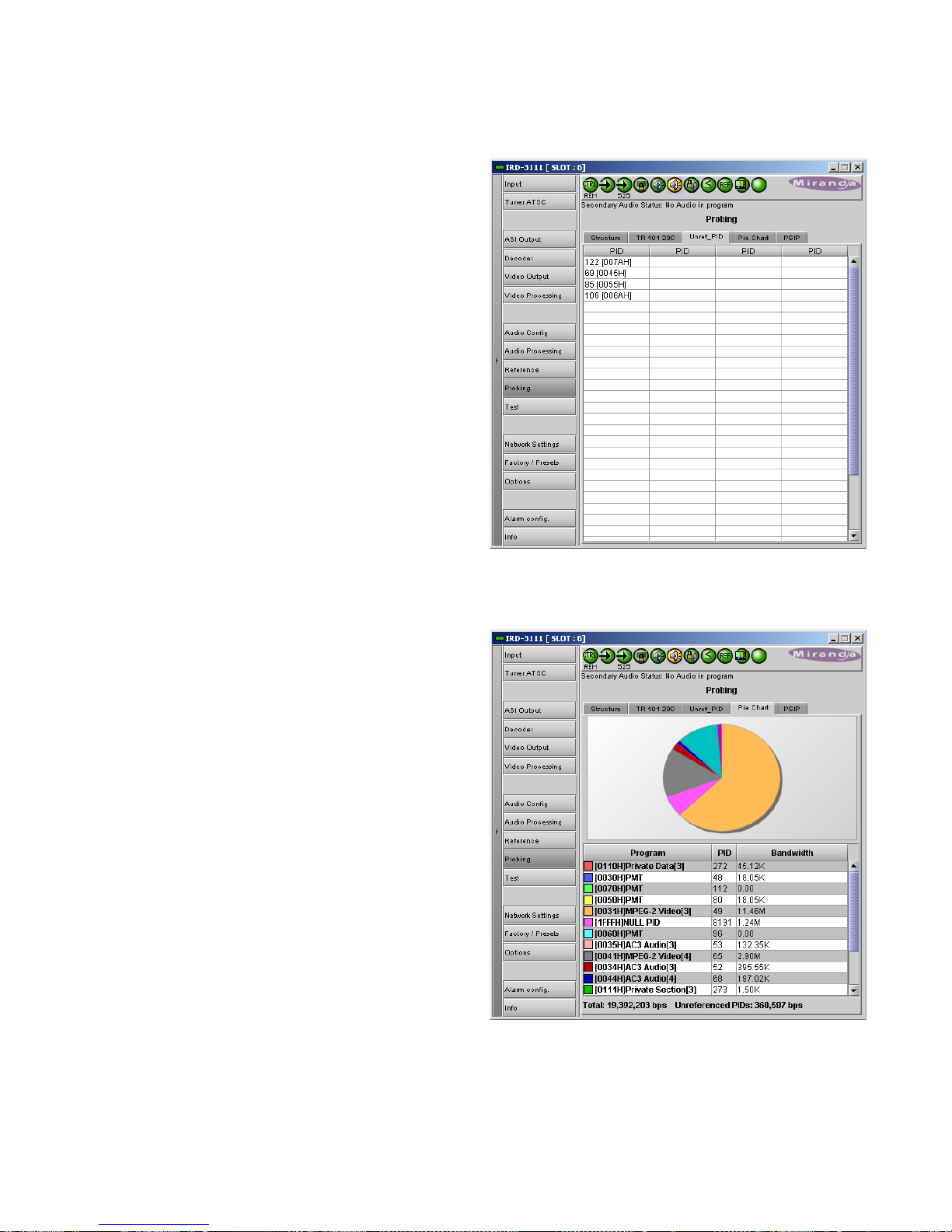

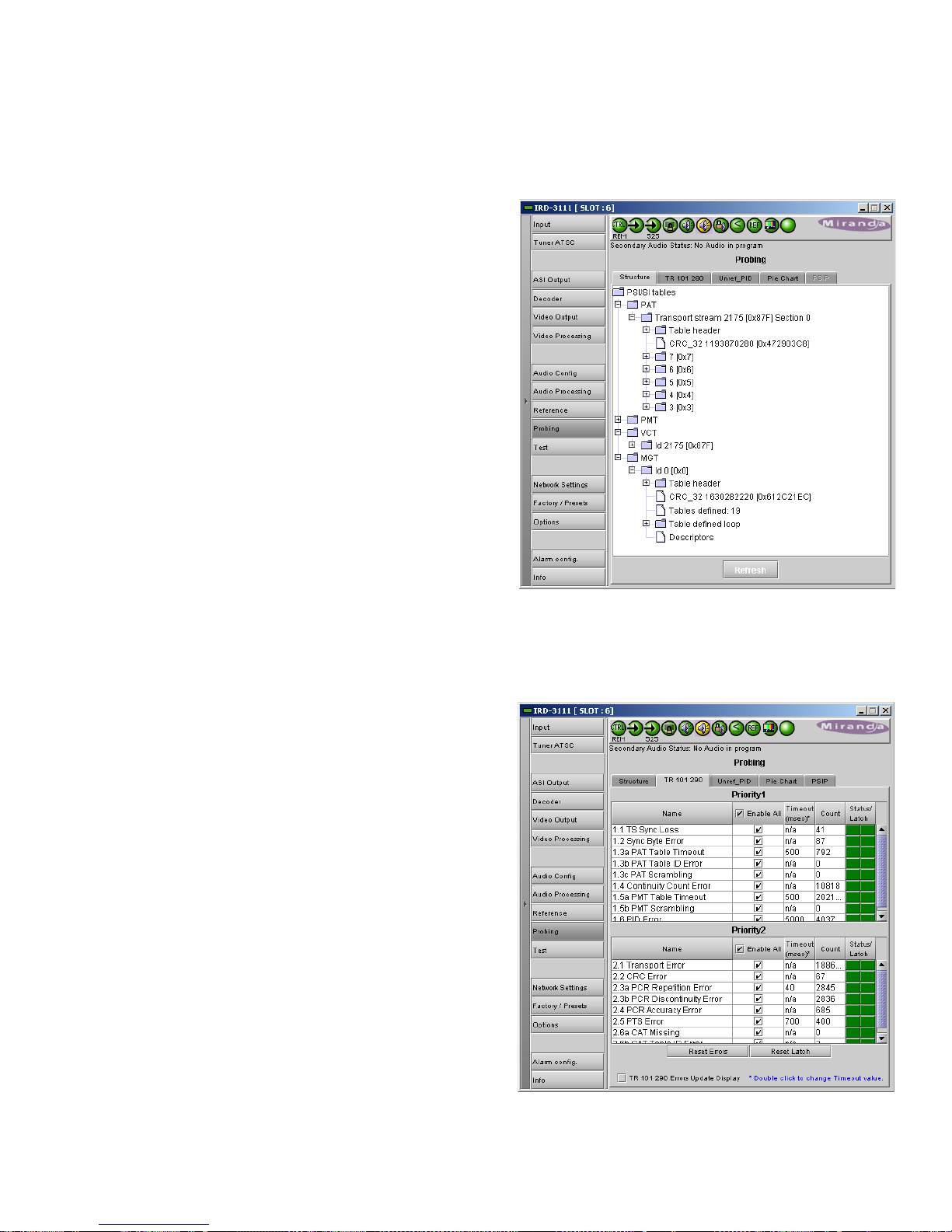

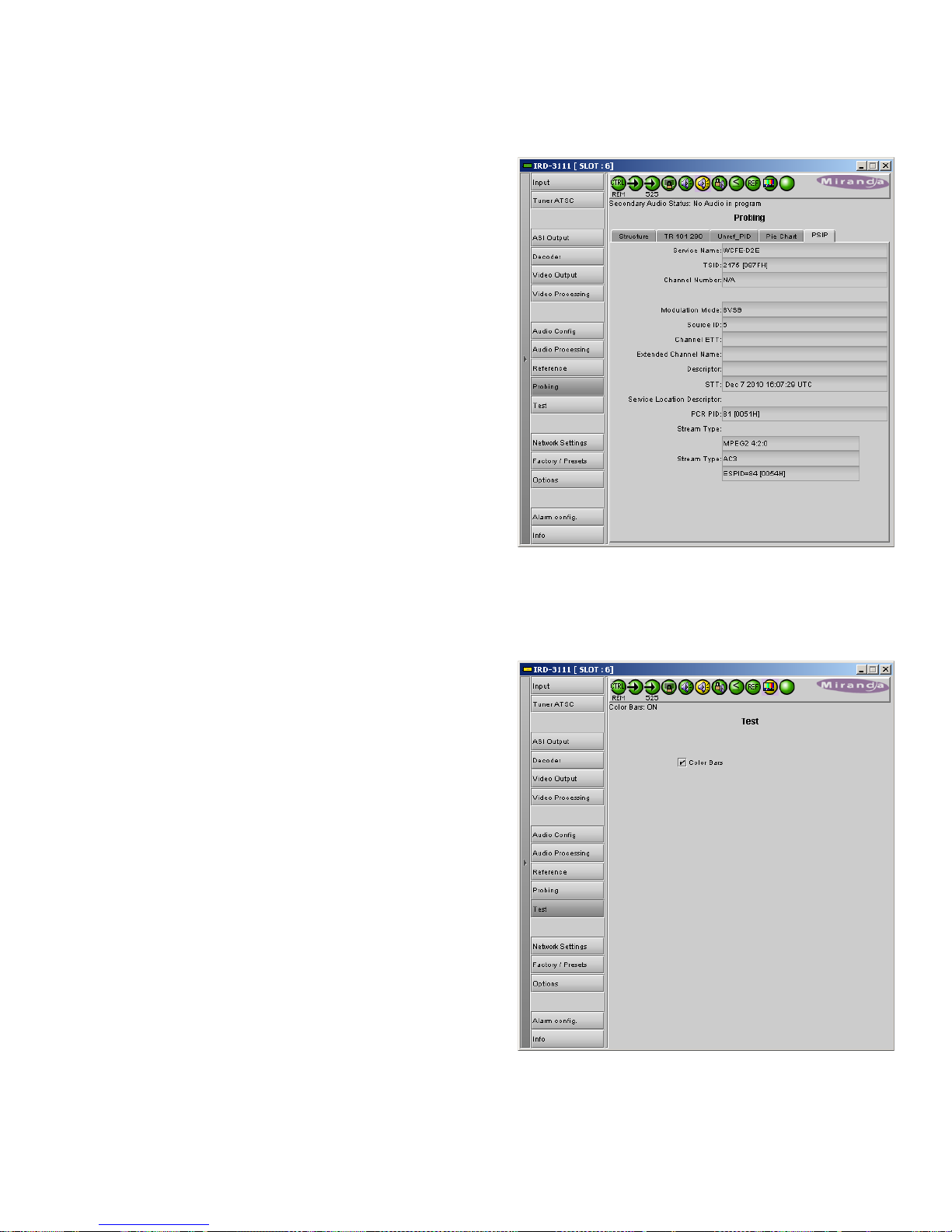

3.4.12 The Probing panel ................................................................................................................ 27

3.4.13 The Test panel ..................................................................................................................... 29

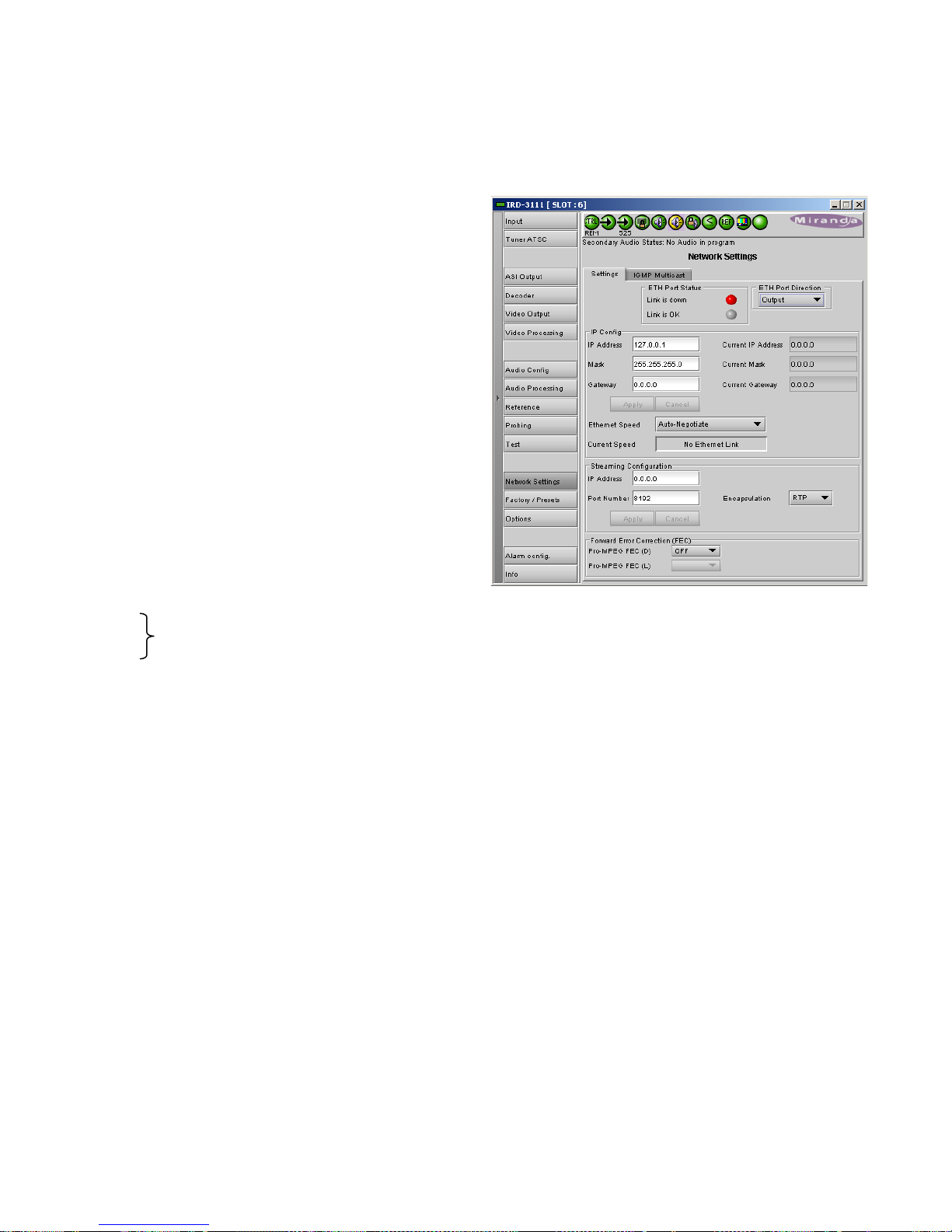

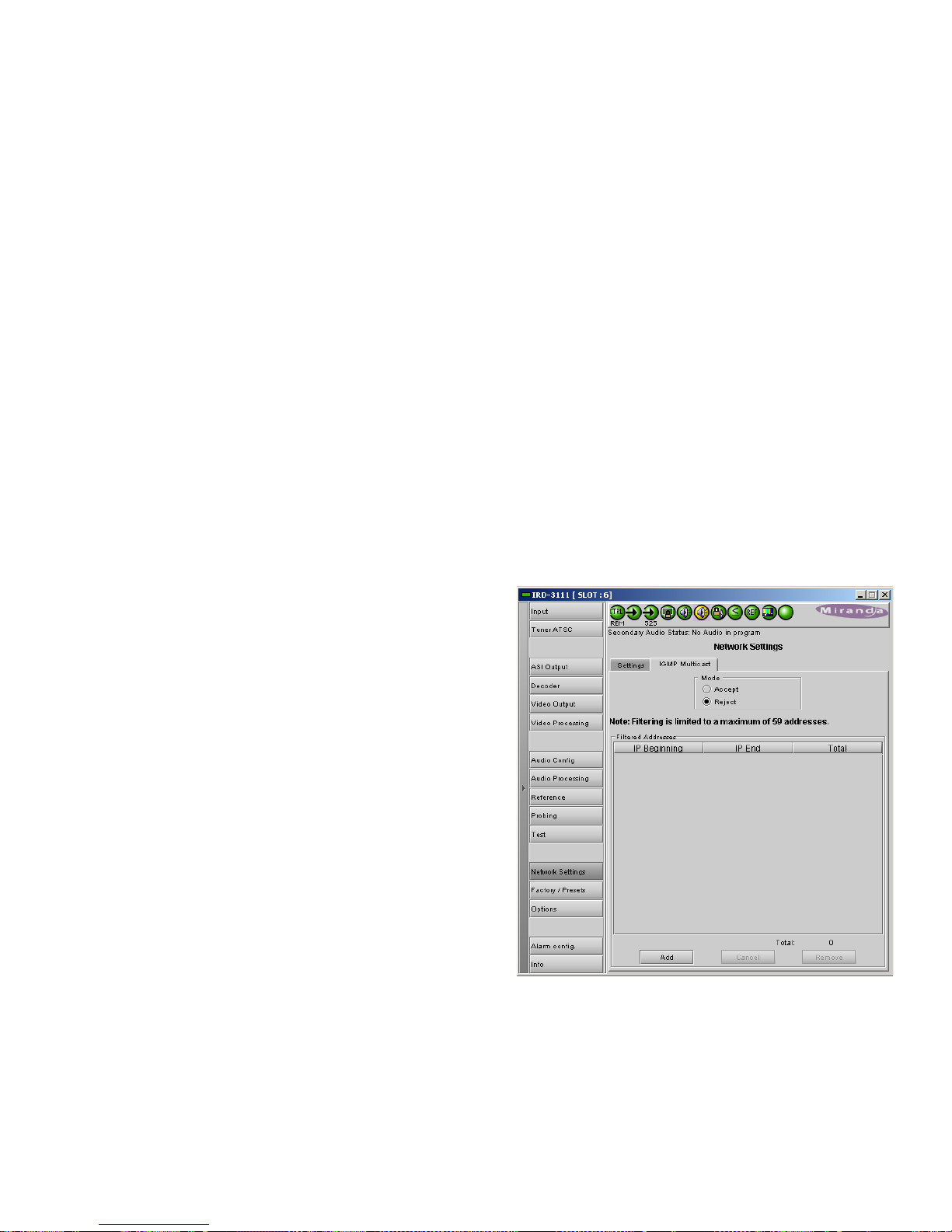

3.4.14 The Network Settings panel ................................................................................................. 30

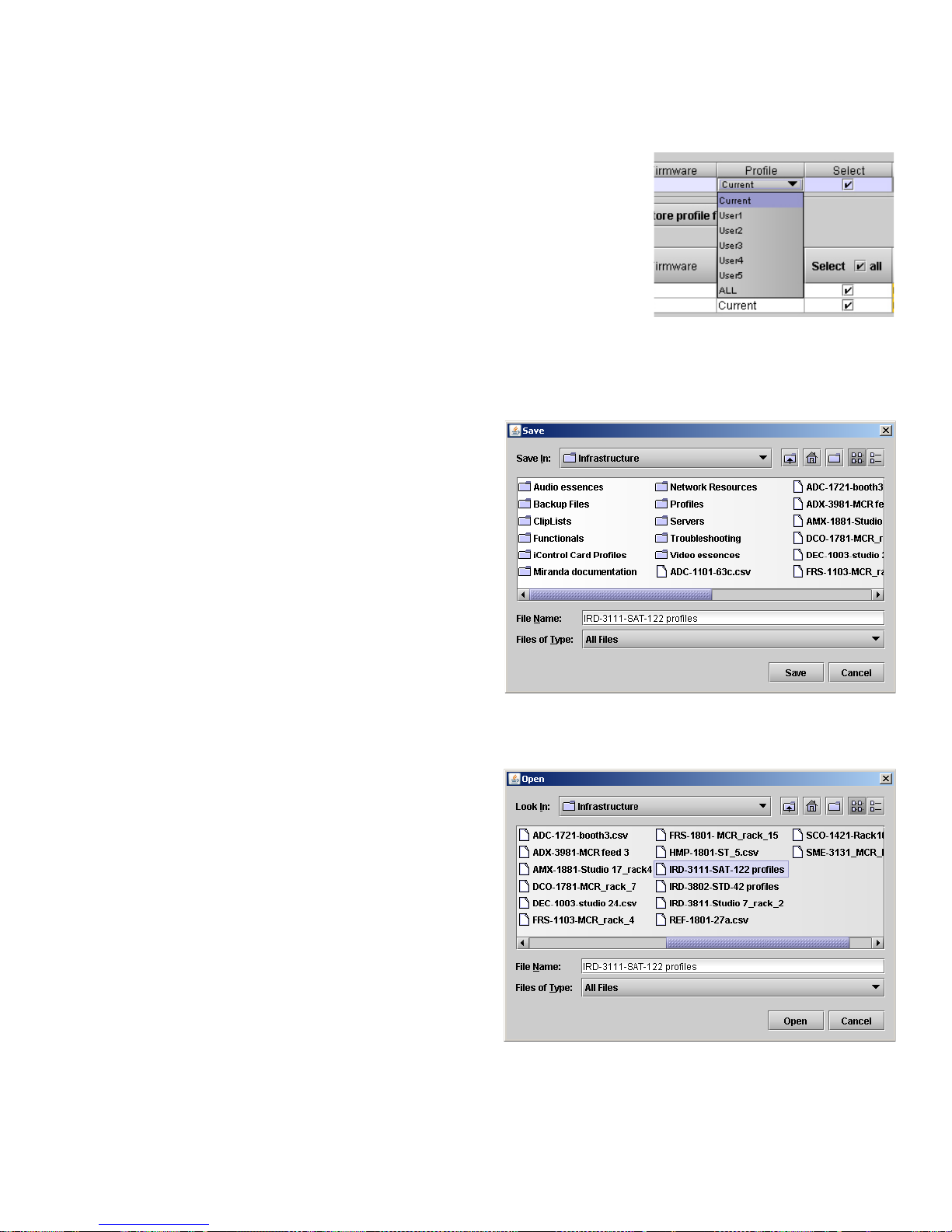

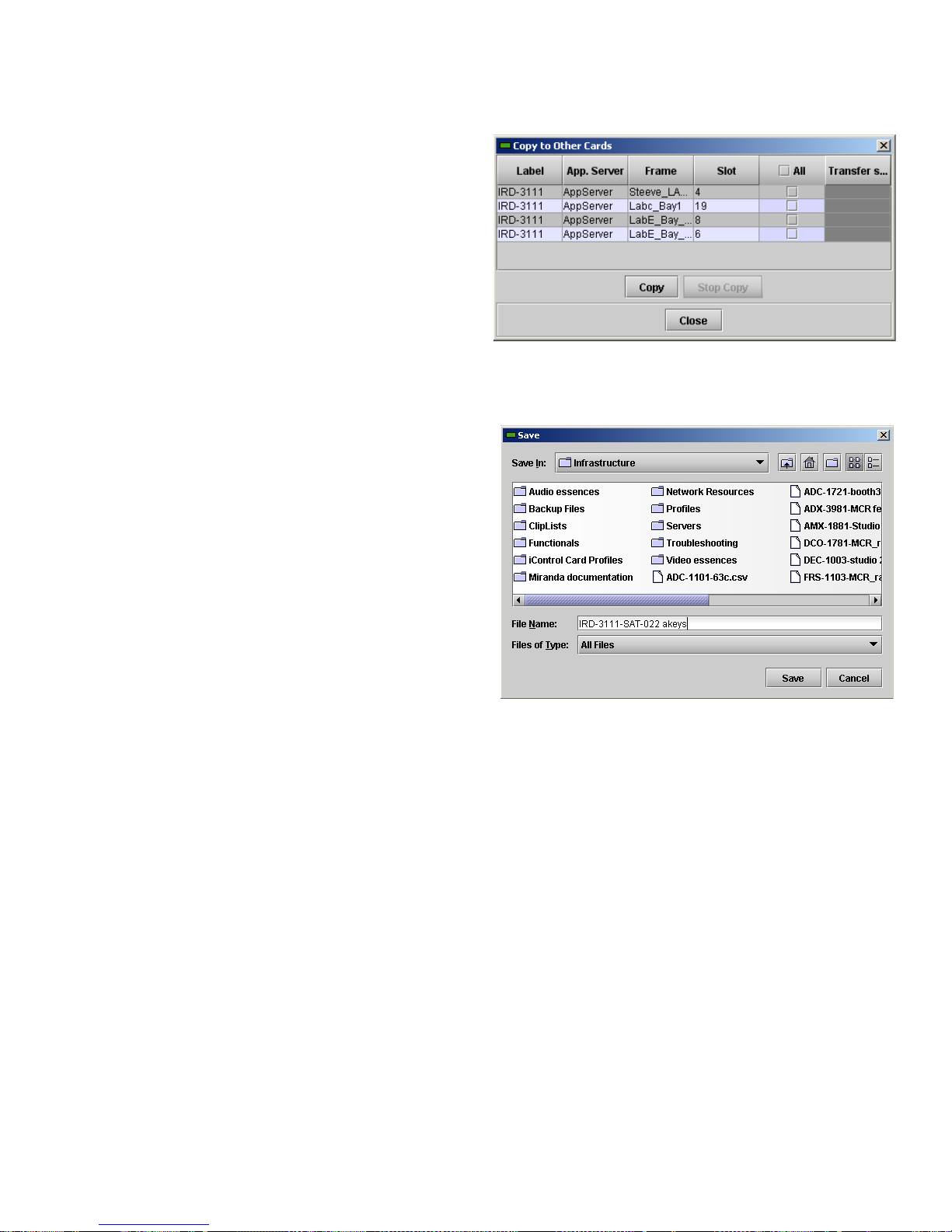

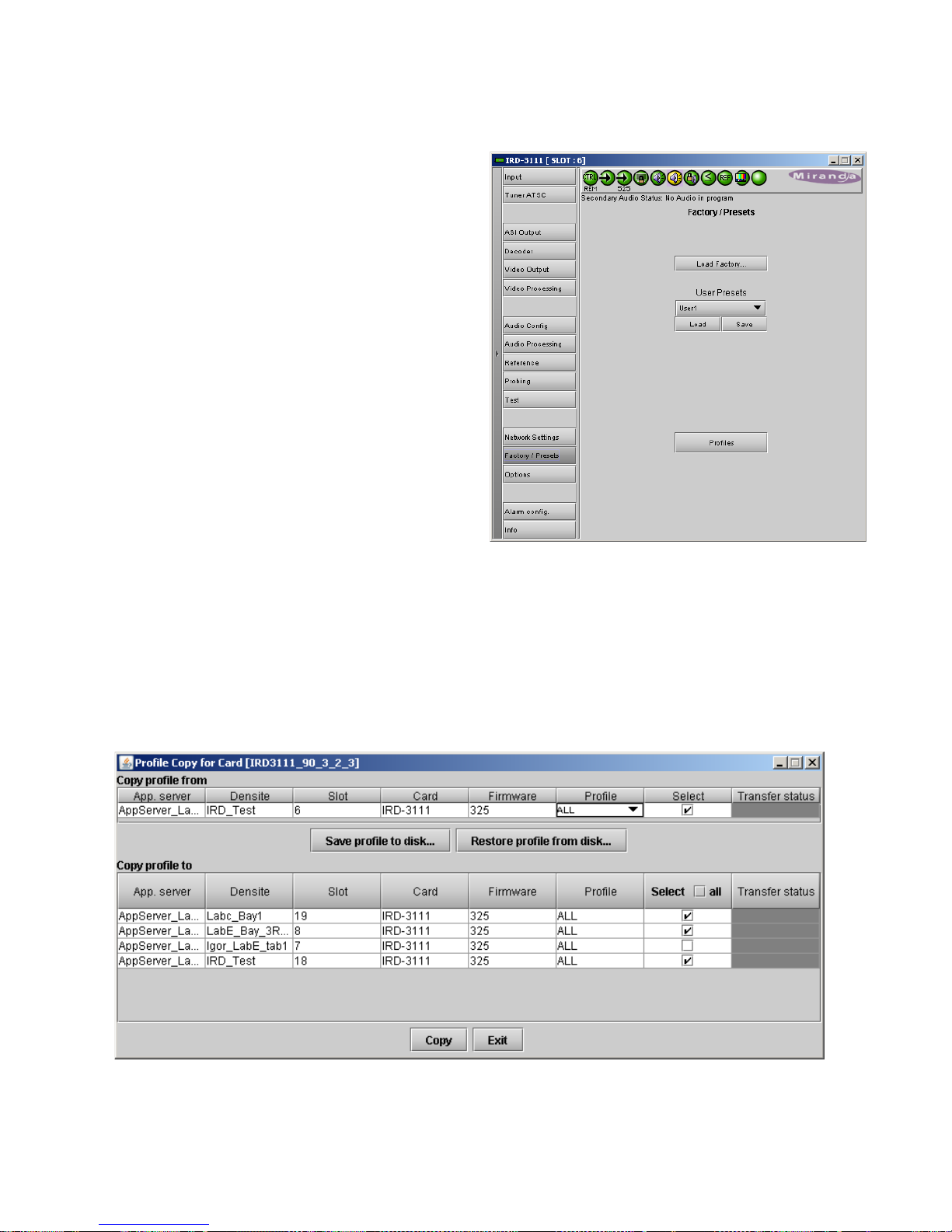

3.4.15 The Factory/Presets panel ................................................................................................... 32

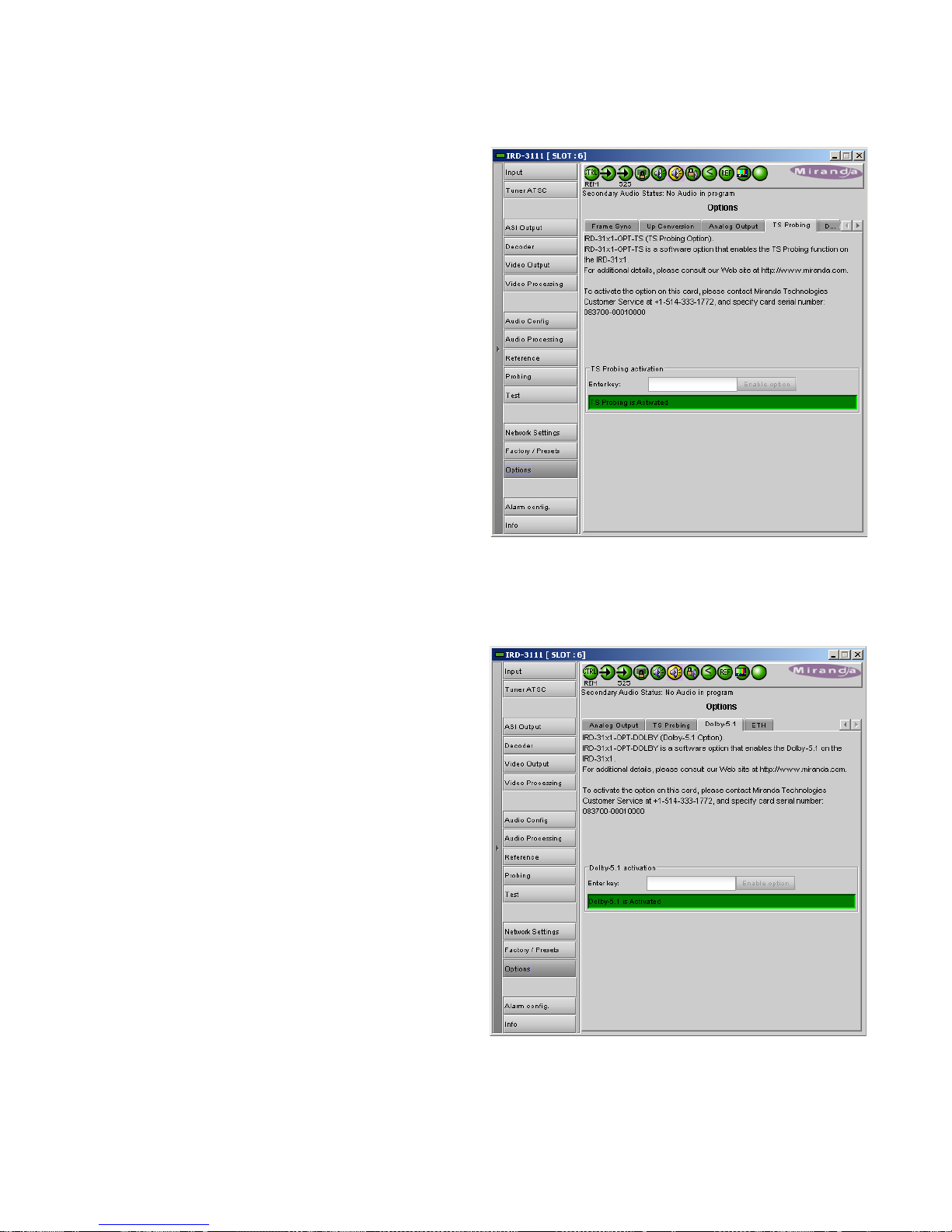

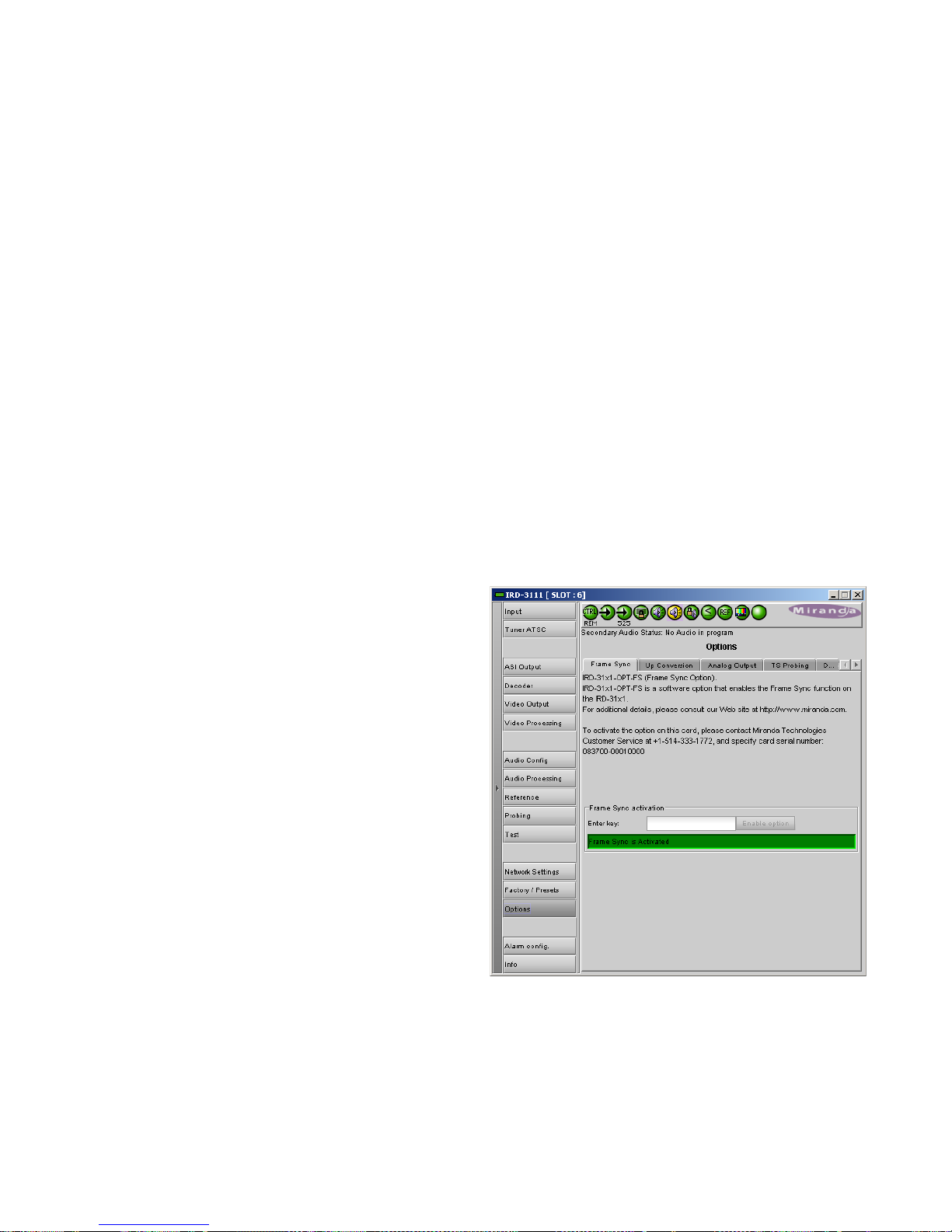

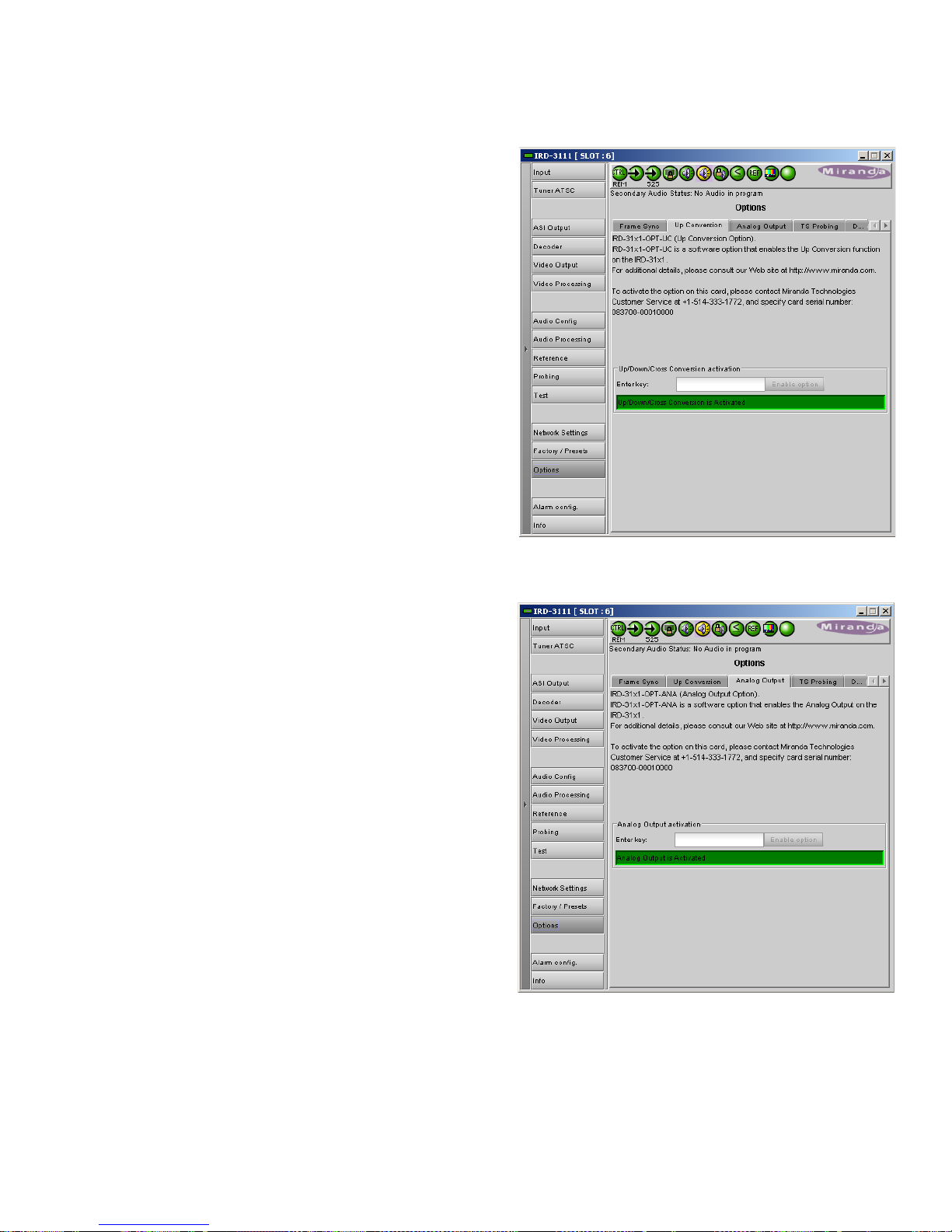

3.4.16 The Options panel ................................................................................................................ 34

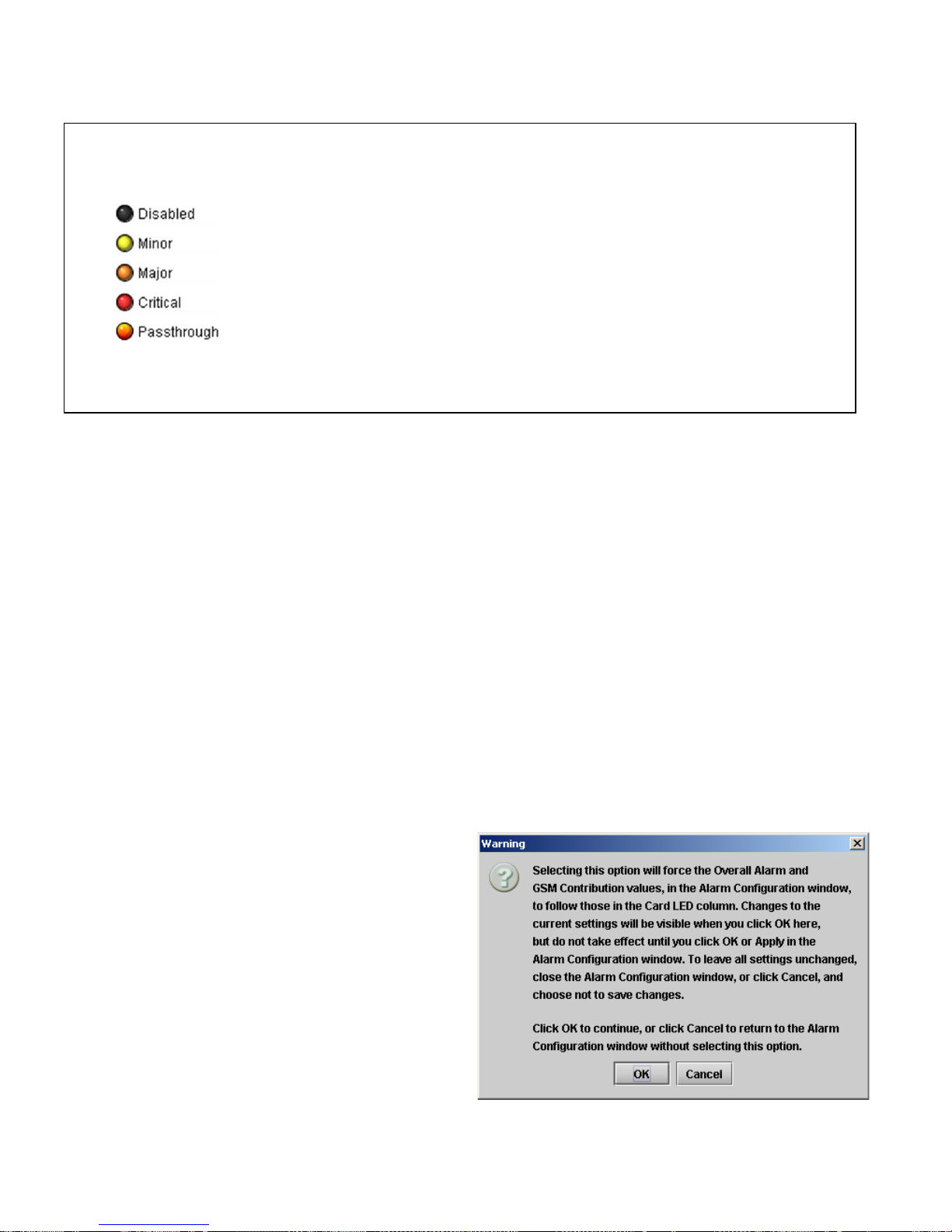

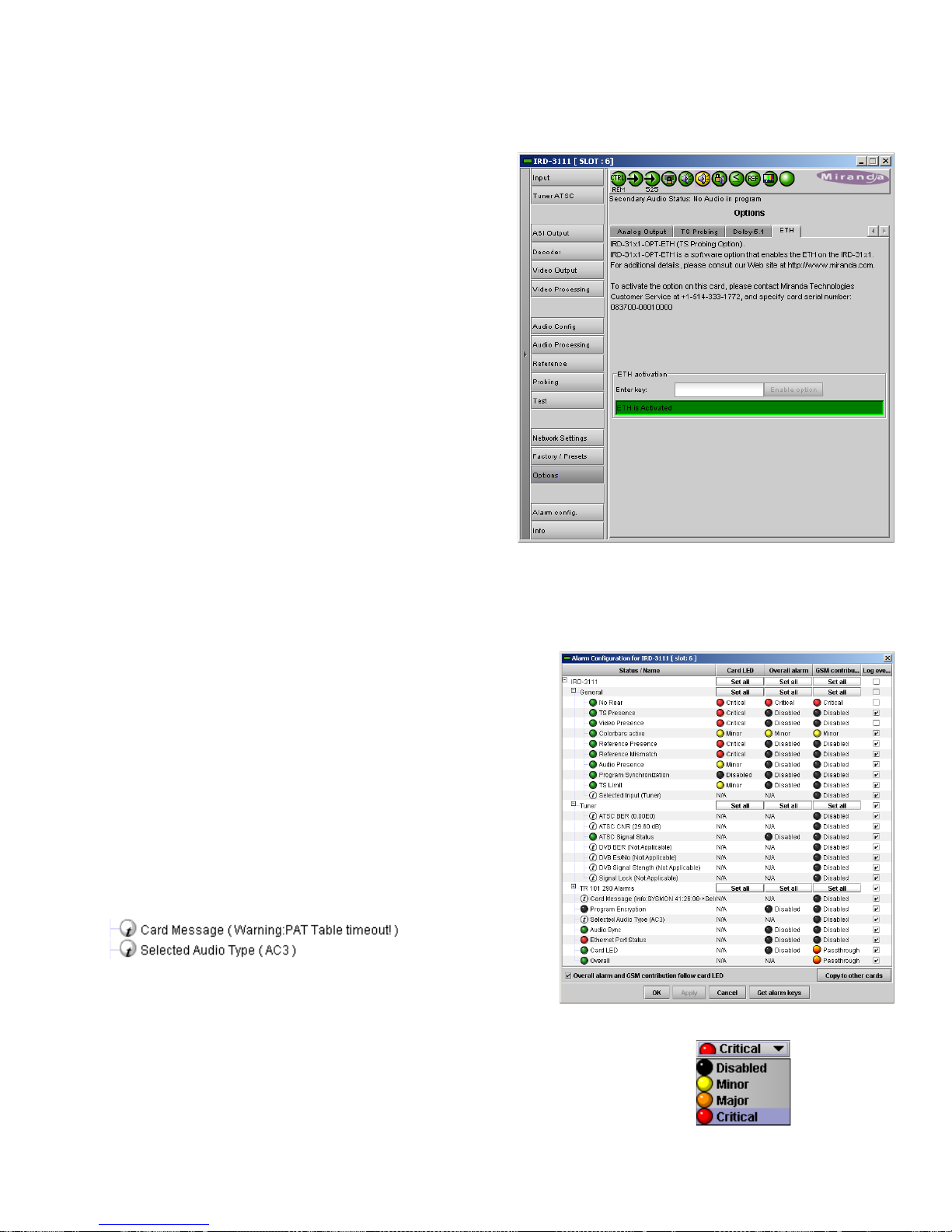

3.4.17 The Alarm Config panel ....................................................................................................... 37

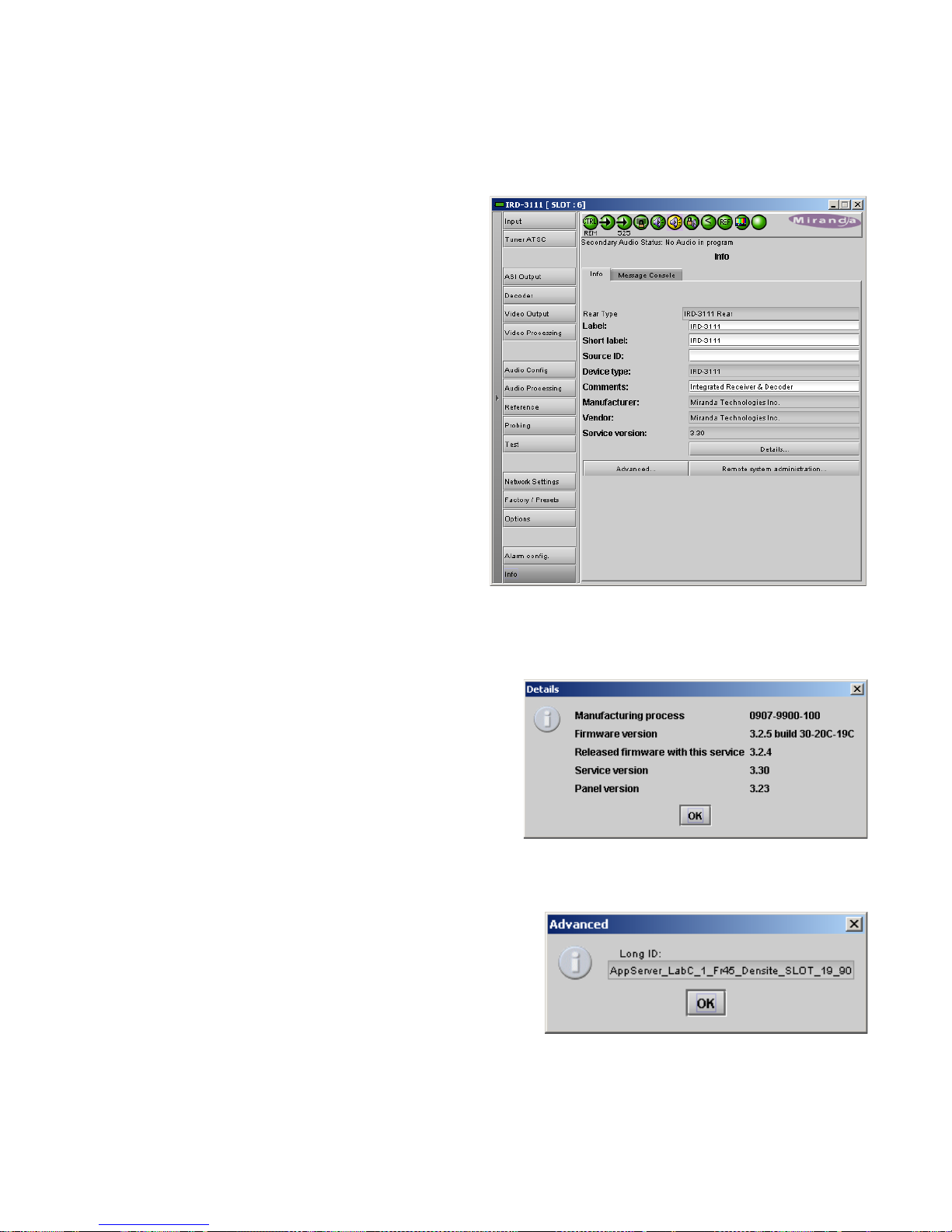

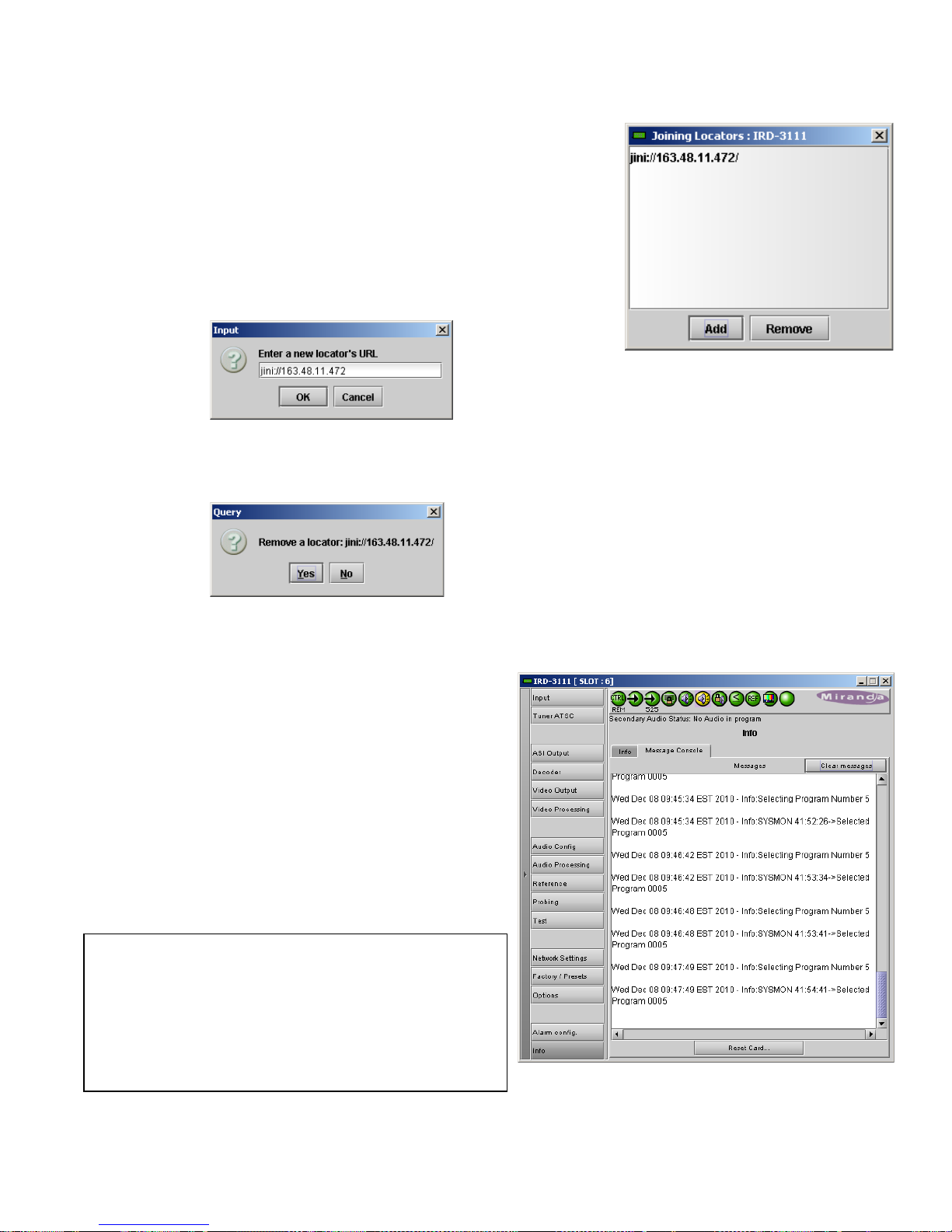

3.4.18 The Info panel ...................................................................................................................... 40

4 User Reference Guide ............................................................................................................ 43

4.1 Decoding MPEG Transport Streams ................................................................................................ 43

4.2 Decoding Audio ................................................................................................................................. 43

4.3 MPEG AV Synchronization ............................................................................................................... 44

4.4 About V-CHIP & Rating Information.................................................................................................. 44

IRD-3111

GUIDE TO INSTALLATION AND OPERATION

4.5

Using the Up Conversion Option ....................................................................................................... 45

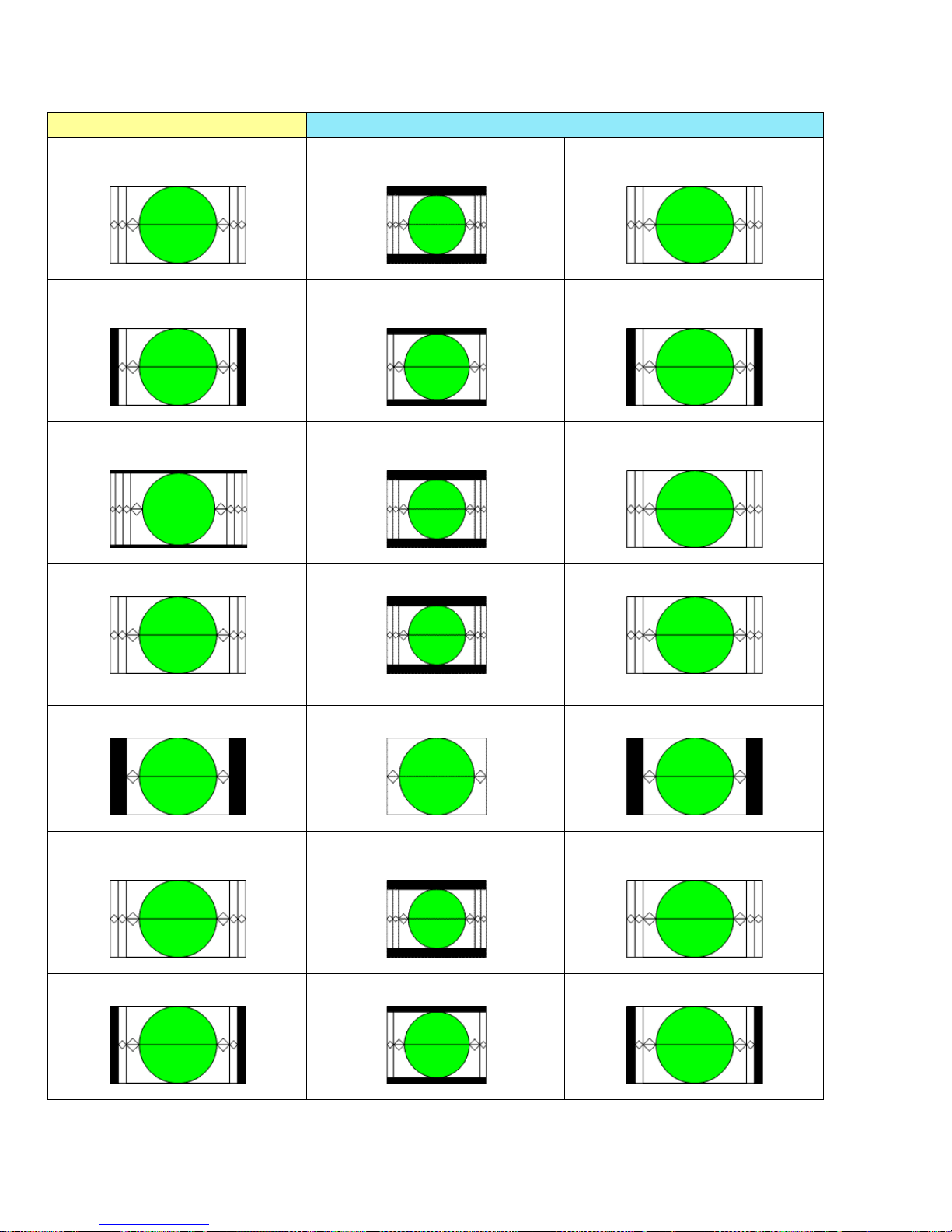

4.6 About AFD processing ....................................................................................................................... 45

4.7 Using the TS Probing Option ............................................................................................................. 49

5 Specifications ........................................................................................................................ 50

ANNEX 1 – Local Control Panel User Interface ......................................................................... 52

ANNEX 2 – Dolby Metadata Profiles ........................................................................................... 56

IRD-3111

GUIDE TO INSTALLATION AND OPERATION

1 IRD-3111 SD MPEG Decoder with ASI and RF inputs

1.1 Using this Manual

The IRD-3111 comes in three versions:
IRD-3111-VQ ATSC Tuner

IRD-3111-DVB-S2 DVB-S2 Tuner
IRD-3111-DVB-S2-CI DVB-S2 Tuner with Conditional Access Module

All three are described in this manual. For convenience, any description that applies to all three variants will use the
term IRD-3111. Descriptions that apply exclusively to specific versions will use the more detailed version name as
given above.

THIS MANUAL DESCRIBES FEATURES ASSOCIATED WITH IRD-3111 FIRMWARE VERSION 3.25

1.2 Introduction

The IRD-3111 combines RF demodulation and MPEG-2 decoding of ASI transport streams to SD video. It also offers
processing of key video and audio parameters, and signal probing functions for feed aggregation, distribution, and
monitoring applications b y broadcasters and TV service providers.

DVB-ASI, ATSC off-air or DVBS/S2 satellite signals fed to the IRD-3111 can be demodulated and decoded to pr ov ide
SD video with embedded multi-channel audio, in all leading formats, as well as composite video and stereo analog
audio for monitoring. The IRD is also available with a DVB-CI slot, supporting leading Conditional Access Systems,
and allowing descrambling of multiple encrypted services. With its optional Gigabit Ethernet port, the IRD-3111 can
also act as a gateway, by performing IP encapsulation of the input transport stream in either RTP or UDP mode.

The IRD also provides optional video signal processing with frame synchronization and selectable delay as well as
proc-amp, up conversion and aspect ratio conversion. The IRD can decode an extensive range of Metadata, such as
CEA-608 compliant Closed captioning, Teletext, AFD, V-chip and DVITC Time Code, which can be embedded in the
decoded SDI signal. Transport Stream Metadata, such as PSIP can also be analyzed.

The audio processing capabilities of the IRD-3111 are also extensive, with dual audio decoding and selectable stereo
downmix modes of decoded MPEG-1 and Dolby Digit al (AC-3) 2.0 audio. Optionally, the IRD-3111 als o performs
embedding of decoded of Dolby Digital (AC-3) 5.1 audio, with discrete 8-channel output.

In addition, the IRD-3111 performs a wide range of signal quality probing, with user-defined alarm settings on an
extensive range of transport stream parameters, including TR 101290 alarms, transport stream structure analysis and
individual program statistics.

1.3 Features

Input/Output Versatility

• Single ATSC 8VSB or DVB-S/S2 RF input

• Single ASI transport stream input

• Single ASI transport stream output for signal monitoring or retransmission

• Optional IP transport stream output: an ASI signal can be re-transmitted as IP

• IRD acts as IP video gateway with forward error correction (FEC) for improved quality

• Dual SD SDI outputs (HD/SD SDI with up-co nv er sion o ptio n)

• Composite video and stereo analog audio monitori ng outp uts

IRD-3111 | 1

GUIDE TO INSTALLATION AND OPERATION

Conditional Access

• DVB-CI common interface slot allow insertion of CAM card

• Allow descrambling of multiple programs encrypted by leading DVB Conditional Access Systems

• Supports BISS-1 with user-supplied CAM card

RF Input Monitoring

• Automatic detection of RF loss

• Convenient auto-scan mode for detection of valid signals

• Monitoring of input signal strength, bit error rate (BER) and carrier to noise ratio (CNR)

Easy Input and Program Selection

• Manual or automatic input selection mode

• Automatic mode allows switching to backup input upon loss of signal on active input, with adjustable duration

• Program selection using local control or iControl

• Extensive transport stream structure is displayed allowing easy identification of individual programs in an MPTS

• MPTS automatic program selection mode and recovery

Optional Video Up-Conversion

• The IRD-3111 can decode and output SD signals. With the up-conversion option activated, HD output formats
are available and include:

o 1920x1080i 59.94
o 1920x1080i 50
o 1280x720p 59.94
o 1280x720p 50
o 720x486i 59.94
o 720x576i 50

Comprehensive Audio Decoding

• Decoding of MPEG-1 Layer 2 stereo audio

• Support of Dolby Digital (AC-3) 2.0 audio

• Optional decoding and embedding of Dolby Digital (AC-3) 5.1 audio to SDI with support of main and associated

audio services for up to discrete 8-channel output

• Selectable passthrough of Dolby Digital stream to SDI

• Decoding of AAC Audio for 2/0 and 1/0 coding modes

Frame Synchronizer/Delay and Reference Input

• Supports timing, full phasing and freeze modes

• Reference can be external via BNC connection, internal using Densité REF-1801 module or directly from the

decoded signal with selectable genlock modes

• Video proc amp functions including, brightness, saturation, hue and contrast

Decoded Video Format Identification

• Convenient identificati on of k e y video parameter s

o Aspect ratio identification: 16:9 or 4:3
o Video resolution

Audio Processing and Format Identificati on

• Provides down mix of 5.1 channel to Lt/Rt or Lo/Ro modes

• Extensive Dolby Digital Status reporting, including:

o Service and Source Channel ID
o Low Frequency Effect (LFE) presence detection

2 | IRD-3111

GUIDE TO INSTALLATION AND OPERATION

o Sample rate detection
o Bit rate reporting

• Support for Secondary Audio Program (SAP)

• Configurable Dolby Digital dynamic range and compression

• Dolby Metadata embedding on SDI

Metadata Extraction, Display and Embed ding

 The following can be extracted from the TS and embedded in the HD/SD-SDI signal:

o EIA-608 and EIA-708 closed captioning
o WST teletext
o SMPTE 12M Time code

 SMPTE 2016 AFD flag
 Extensive PSIP data extraction, including:

o Time and date and other STT data
o Channel number and other VCT parameters
o Event description and EIT Event Information Table
o Rating and other RRT data
o Dolby metadata
o TSID

Transport Stream Probing and Alarming

• Transport Stream (TS) monitoring, alarming and settings:

o TR 101 290 Priority 1 and Priority 2 alarming on key parameters
o TS Bit rate
o TS ID and number of programs as identified in PAT
o Network ID and name as identified in NIT
o Logging of alarms using iControl

• Detailed TS structure reporting using graphical and hierarchical views

• Individual program data statistics, including individual program bit rate, content and PMT data

1.4 Applications

• Decoding of MPEG-2 multi-program or single-program ASI transport streams

• IP encapsulation of ASI transport streams

• Program aggregation in TV service-provider headends

IRD-3111 | 3

GUIDE TO INSTALLATION AND OPERATION

1.5 Block Diagrams

The following block diagrams show the functionality of the IRD-3111.

Figure 1.1 Functional block diagram of the IRD-3111

4 | IRD-3111

GUIDE TO INSTALLATION AND OPERATION

1.6 Front Card-edge Interface

The front card-edge of the IRD-3111 incorporates two elements:

• Status LED (see section 3.2)

• Select Button (see section 3.3)

The CAM module and tuner are not shown in this view.

Figure 1.2 Front card-edge layout

1.7 Physical Layout – IRD-3111 with Tuner and CAM modules

The IRD-3111 consists of a base IRD­3111 card with a tuner module (either
ATSC or DVB-S2) and, optionally, a
conditional access module (CAM).

• The tuner is installed at the rear of

the card, with its RF input
available on the rear pan el of the
Densité frame.

• The CAM is installed at the front of

the card, so that the smart card
can be inserted from the front of
the Densité frame.

Figure 1.3 IRD-3111 physical layout

Select Button

IRD-3111

Status LED

Status

Se

lec

t

CAM module

(optional)

Base IRD-3111 card

Tuner module

IRD-3111 | 5

GUIDE TO INSTALLATION AND OPERATION

2 Installation

2.1 Installation in the Densité frame

The IRD-3111 and its associated rear connector rear panel must be mounted in a Densité3 frame. It is not necessary
to switch off the frame’s power when installing or removing the card. See the Densité

3

Frame manual for detailed

instructions for installing cards and their associated rear panels.

2.2 Rear Panels

The IRD-3111 has multiple inputs and outputs, and making space for all the necessary connectors at the rear of the
frame requires a double-width rear panel.

With the double-width rear panel installed, the IRD-3111 must be installed in the right-most of the two slots covered
by the panel in order to mate with the panel’s connectors.

NOTE: attempting to install the card in the wrong slot could result in damage to the edge connector of the
rear panel. BE CAREFUL

Figure 2.1 IRD-3111-3DRP Rear Panel for the IRD-3111

2.3 Connections

The rear panel connections are as follows:

• REF IN – External reference input
For external synchronization, connect a black studio reference signal to the BNC labeled REF IN.

The reference input must conform to SMPTE
170M/SMPTE 318M/ITU 624-4/BUT 470-6 for standard
definition signals and SMPTE 274M / SMPTE 296M for
high definition signals and is used to phase the SD SDI
outputs to the studio.

The table shows the reference signals appropriate for the
supported input formats. In essence, the input and the reference must have the same frame rate.

 A reference mismatch will occur if there is a difference between the input video format’s frame rate and the

reference format’s frame rate.

 When a mismatch occurs, an input error will be flagged and the card-edge Status LED will turn red to indicate

the mismatch.

• ASI IN – Connect a DVB-ASI signal conforming to EN 50083-9.

• ASI OUT – Outputs the selected input, tuner or DVB-CI

Supported input signals

Reference

525 (SMPTE-259M-C) NTSC (SMPTE-

170M)
625 (SMPTE-259M-C) PAL (ITU 624-4)
ASI (EN50083-9) -------

6 | IRD-3111

GUIDE TO INSTALLATION AND OPERATION

• HD/SD OUT 1 & 2 – HD/SD-SDI output
The IRD-3111 provides two identical HD/SD SDI video outputs on BNC connectors. The SDI video signals conform

to the SMPTE 292M and SMPTE 259M-C standards. HD signals are only available when the Up Conversion option
is activated.

• COMP OUT – down-converted and encoded composite output (requires Analog Output option)
This output is intended for monitoring only – it is not frame-synchronized, and the video has not been processed

through the post-processing blocks of the IRD-3111.

• Audio OUT (L & R) – analog audio extracted from the input signal (requires Analog Output option)
This audio is also embedded in the output video stream. If the input audio is 5.1, the user must select the two

source channels to monitor; otherwise, a downmix will be monitored. The analog audio output level is not adapted to
broadcast standard and is intended for monitoring of the signal only. Use the embedded audio or a level adapter for
broadcast applications

• ETH – Gigabit Ethernet – configurable as input or output

• RF IN – connect an RF input appropriate for the installed tuner:

 ATSC if the ATSC tuner is installed
 DVB-S/S2 RF if the DVB-S2 tuner is installed

2.4 Installation of the Conditional Access Module (CAM)

The Conditional Access Module (CAM) is installed into the IRD-3111 via the front panel.
Depending on the conditional access system in use, the CAM may be in the form of a proprietary module, or in the

form of a carrier plus a smart card.
Both formats plug into the same receptacle on the IRD-3111.

IRD-3111 | 7

GUIDE TO INSTALLATION AND OPERATION

3 Operation

3.1 Control options

The IRD-3111 can be controlled in two different ways:

• The local control panel and its push-buttons can be used to move through a menu of parameters and to adjust
parameter values (see section 3.3).

• Miranda’s iControl system can be used to access the card’s operating parameters from a remote computer, using
a convenient graphical user interface (GUI). (see section 3.4)

3.2 Card-Edge Status LED

The status monitor LED is located on the front card-edge of the IRD-3111, and is visible through the front access door
of the DENSITÉ frame. The chart shows how the various error conditions that can be flagged on the IRD-3111 affect
the LED status.

• If a cell in the chart is gray, the error condition cannot cause the LED to assume that status

• If more than one LED status is possible for a particular error condition, the status is configurable.

See Section 3.4.17 for details.

• The factory default status is shown by a , and forced status by an X

The LED will always show the most severe detected error status that it is configured to display, and in the chart error
severity increases from left to right, with green representing no error/disabled, and flashing red the most severe error.

Alarm Name/Error Report

Led Color

Description

Green Yellow Red

Flashing

Red

Card booting

X

After power-up, the led becomes yellow until Linux
is properly booted (takes about 40s)

Hardware/System Failure

X

Major hardware or system failure. In some cases,
the error log will show the reason

No Rear Detect

X

As per densité

No TS Input Signal



No MPEG TS input detected

TS Limit



TS has more than 128 PIDs or more than 64
programs or more than 1024 tables

No Video Signal



The MPEG TS input might be present, but no video
signal is available for dec ode

No Audio Signal



The video may be present, but no audio stream is
valid for decode

No Reference Signal



No reference signal is detected

Reference Mismatch



A reference mismatch is detected

Program not synchronized



The decoded video is not synced on PCRs

Test Bars ON

X

The card is in test mode with color bar activated

If the LED is Flashing Yellow, it means that the card is selected for local control using the Densité frame’s control
panel. See Section 3.3 for details.

8 | IRD-3111

GUIDE TO INSTALLATION AND OPERATION

3.3 Local control using the Densité frame control panel

3.3.1 Overview

Push the SELECT button on the IRD-3111 card edge (Section 1.6) to assign the local control panel to operate the
IRD-3111. Use the control panel buttons to navigate through the menu, as described below.

All of the cards installed in a Densité frame are connected to the frame’s controller card, which handles all interaction
between the cards and the outside world. There are no operating controls located on the cards themselves. The
controller supports remote operation via its Ethernet ports, and local operation using its integrated control panel.

The local control panel is fastened to the controller card by a
hinged connector, and when installed is located in the front
center of the frame, positioned in front of the power supplies.
The panel consists of a display unit capable of displaying two
lines of text, each 16 characters in length, and five pushbuttons.

The panel is assigned to operate any card in the frame by
pushing the SELECT button on the front edge of that card.

• Pushing the CONTROLLER button on the control panel
selects the Controller card itself.

• The STATUS LED on the selected card flashes yellow.

The local control panel displays a menu that can be navigated
using the four pushbuttons located beneath the display. The functionality of the pushbuttons is as follows:

[+] [–] Used for menu navigation and value modification
[SELECT] Gives access to the next menu level. When a parameter value is shown, pushing this button once

enables modification of the value using the [+] and [–] buttons; a second push confirms the new value

[ESC] Cancels the effect of parameter value changes that have not been confirmed; pushing [ESC] causes the

parameter to revert to its former value.

Pushing [ESC] moves the user back up to the previous menu level. At the main menu, [ESC] does not

exit the menu system. To exit, re-push the [SELECT] button for the card being controlled.

If no controls are operated for 30 seconds, the controller reverts to its normal standby status, and the selected card’s
STATUS LED reverts to its normal operating mode.

3.3.2 Menu for local control

The IRD-3111 has operating parameters that may be adjusted locally at the controller card interface.

• Press the SELECT button on the IRD-3111 front card edge to assign the Densité frame’s local control panel
to the IRD-3111

• Use the keys on the local control panel to step through the displayed menu to configure and adjust the IRD-

3111.

The complete menu structure is shown in the Annex 1 to this document, beginning on page 52.

Figure

3.1 Densité Fr ame l ocal con tr ol panel

IRD-3111 | 9

GUIDE TO INSTALLATION AND OPERATION

3.4 Remote control using iControl

The operation of the IRD-3111 may be controlled using Miranda’s iControl system.

• This manual describes the control pan els assoc iat ed with the IRD-3111 and their use.

• Please consult the iControl User’s Guide for information about setting up and operating iControl.

In iControl Navigator or iControl Websites, double-click on the IRD-3111 icon to open the control panel.

3.4.1 The iControl graphic interface window

The basic window structure for the IRD-3111 is shown in figure 3.2. The window identification line across the top gives
the card type (IRD-3111) and the slot number where the card installed in its Densité frame.

There are three main sections in the window, identified in figure 3.2:
Section 1. The Status Icon area shows a series of eleven icons that report the status of some card parameters. The

table shows the various forms that may appear (icons are numbered left to right):

Icon #1 – Manual Card Configuration

(green)

Remote card control activated. The iControl interface can be used to operate the card

(yellow)

Local card control active, The card is being controlled using the Densité frame control
panel, as described in section 3.3. Any changes m ade us ing the iCo ntr o l interface will have
no effect on the card.

Figure 3.2 IRD-3111 iControl graphic interface window

1

2

3

10 | IRD-3111

GUIDE TO INSTALLATION AND OPERATION

Icon #2 – TS Input status

(green)

Transport Stream detected and OK.

(yellow)

Errors in TS
No lock

(red)

No Transport Stream at stream demux
No rear

Icon #3 – Decoded Video status

(green)

Signal detected and valid

• The format (SD) will be indicated beneath the icon

(red)

No signal
Unsupported format
No rear
Reference mismatch
Format mismatch with output format (Key/Fill mode)
Video/TRS error

(gray)

No transport stream

Icon #4 – Video Sync Status

(green)

OK; Locked on incoming PCR

(yellow)

Free run

(gray)

No signal

Icon #5 – Primary Audio status

(green)

OK.

(yellow)

No audio in program

IRD-3111 | 11

GUIDE TO INSTALLATION AND OPERATION

(gray)

No signal

Icon #6 – Secondary Audio status

(green)

OK

(yellow)

No audio in program

(gray)

No signal

Icon #7 – Audio Sync

(green)

Locked with Video

(yellow)

Free run

(gray)

N/A

Icon #8 – TS Limit

(green)

No errors

(red)

Errors detected

(gray)

No transport stream

Icon #9 – Reference

(green)

Locked to external reference

• Mouse-over the icon to see a description of the reference in use

(red)

Reference missing

12 | IRD-3111

GUIDE TO INSTALLATION AND OPERATION

(gray)

Frame sync option disabled

Icon #10 – Color Bars

(green)

Color bars OFF

(yellow)

Color bars ON

Icon #11 – Metadata Insertion

(green)

No AFD / Dolby / Timecode / Teletext insertion conflicts

(yellow)

AFD / Dolby / Timecode / Teletext insertion conflicts

Move the mouse over an icon and a status message appears below the icon providing additional information. If
there is an error, the error status message appears in the message area without mouse-over.

• If there are multiple errors, the error messages cycle so all can be seen

• The icon whose status or error message is shown is highlighted with a mauve background

Section 2. The left-hand side of the panel contains a series of buttons that control the contents of the main window
(section 3). Click on one to access the indicated controls. The selected button is highlighted (darker) and the main
panel heading matches the button name.

• Some of the buttons will be different depending on which model of the IRD-3111 is in use

• This section can be hidden or revealed by clicking the arrow icon at the center of the left side border.

Section 3. This section contains the main operating controls and displays for managing the IRD-3111’s feature set.
The contents are selected by clicking a button in section 2 on the left-hand side of the screen.

Each of the panels associated with the groups ac cessed from the buttons in s ection 2, and shown in sec tion 3, is
described individually in the following sections.

IRD-3111 | 13

GUIDE TO INSTALLATION AND OPERATION

3.4.2 The Input panel

This panel provides resources for input configuration and
monitoring.

Input section

Use the Desired radio buttons to select the input. Available
options are:

• ASI1 – ASI input

• Tuner – The built-in ATSC or DVB-S/S2 tuner

• Ethernet – the data stream arriving on the rear-panel

Ethernet port (only available when it is in Input mode)

• AUTO – select the first valid input, prioritized as listed
here (i.e. ASI1, Tuner, Ethernet)

The Selected and Presence icons sho w which inp ut is
currently selected, and which ones are currently available.

Auto Switch Delay

Use the slider, or type a value directly into the data box, to
set the time the card will wait before switching automatically
to another valid input if the current TS signal fails.

Output on Error

Use the radio buttons to set the behavior of this IRD-3111 in the event of an input signal error.

• Black – switch the output to black

• Freeze – freeze the output on the last valid frame

TS Input Type – this box reports the transport stream type.
TS Limit Errors – the box lists any limit errors detected in the transport stream

Figure 3.3 The Input panel

14 | IRD-3111

GUIDE TO INSTALLATION AND OPERATION

3.4.3 Tuner panels

The Tuner panel that appears will match the tuner type
installed in the IRD-3111.

3.4.3.1 The Tuner ATSC panel

(IRD-3111-VQ models only)

This panel identifies the tuner type and demodulation type,
and provides status icons for RF Signal Presence and RF
Signal Lock.

Incoming signal quality is measured using two parameters:

• BER (bit error rate)

• CNR (carrier-to-noise ratio)

The signal status is indicated by a color-coded bar graph.

• Green = satisfactory

• Yellow = marginal

• Red = poor

Note that this is NOT a signal level meter. An overloaded
input will result in errors that reduce the quality, and the
graph will show the signal status as Poor, with the bar red
and on the left side of the display.

Use the Select Channel pulldown to select a channel from those available in the signal, or use the Scan button to
scan through the channels to find a program stream.

The Frequency data box shows the frequency of the currently-selected channel.

3.4.3.2 The Tuner DVB-S2 panel

(IRD-3111 DVB-S2 models only)

Tuning Type

Options: DVB-S, DVB-S2
The proper FEC detection settings are dynamically assigned

BER: shows the Bit Error Rate
Demod Type: QPSK for DVB-S tuning

Selectable for DVB-S2 tuning:

Options: QPSK, 8PSK

Es/No: shows the mean symbol energy to noise ratio of the tuned signal
Signal Strength: the colored bar graph and superimposed measured value indicate the strength of the incoming

signal for demodulation.

• Green: In spec

• Red: Out of spec

Figure

3.4 Tuner ATSC panel

IRD-3111 | 15

GUIDE TO INSTALLATION AND OPERATION

Frequency

Selected: Nominal frequency for the channel. This
value is calculated from the carrier’s published
frequency for the desired service on the satellite, and
the conversion factor for the LNB (Low Noise Block)
downconverter that is in use, and entered into this panel
manually (NB. see section on Presets below).

Actual: This window shows the actual frequency
detected by the tuner

Scan Range: Use the pulldown to select a scan range
around the selected value
Options: 1 MHz, 2 MHz, 3 MHz, …., 9 MHz, 10 MHz.

Symbol Rate

Selected: enter the data provided by the carrier
Actual: measured value at the IRD-3111

Code Rate / FEC

It is necessary to specify the overhead dedicated to
forward error correction.

Selected: Use the pulldown to manually enter the value
specified by the satellite signal provider. In the case of
DVB-S, the value can be recovered from the signal, so an Auto detect mode is provided.

• In DVB-S mode: [Auto, 1/2, 2/3, 3/4., 5/6, 7/8]

• In DVB-S2 mode: [1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10]

Actual: DVB-S mode only – shows the current value; useful in Auto mode.

Roll Off: spectral band shaping characteristics. Bandwidth = (1 + Roll-off factor) * symbol rate

DVB-S mode: 0.35
DVB-S2 mode: [0.20, 0.25, 0.35]

Spectral Inversion: If the L.O. of the LNB downconverter is higher than the satellite downlink frequency, the
downconverted spectrum will be inverted, and must be re-inverted in the tuner.
[Not Inverted, Inverted, Automatic]

DVB-S2 Pilot: The pilot tone may be included in the DVB-S2 signal, and detecting it may be required for locking on to
the signal. Not available in DVB-S mode. Use the radio buttons to turn pilot detection ON or OFF.

LNB Control Settings:

The Low Noise Block downconverter can output four different bands of signals extracted from the incoming
satellite signal. Only one can occupy the bandwidth available on a coaxial cable, so a selection process is
required. The selection mechanism employed can be used to switch the output of an LNB equipped with a single
output among the four possible bands, or select among the four available outputs of a 4-output LNB to choose the
input to the IRD-3111’s tuner using an outboard switching arrangement. The switching signal uses two methods:

• DC voltage applied to the tuner end of the cable (13 V or 18V) – selects the polarization
Note: the IRD-3111 may not supply enough power to operate an LNB directly – the LNB supply current is

limited to 80 mA – which case the voltage from the IRD-3111 should be used to trigger an external driver that
switches the LNB.

• A 22 KHz tone sent to the LNB from the IRD-3111 – selects the frequency band.

Figure 3.5 Tuner DVB-S2 panel

16 | IRD-3111

GUIDE TO INSTALLATION AND OPERATION

The chart shows what combination of signals results in the application of which input channel to the IRD-3111
inputs:

Applied DC voltage

13 V 18V

Tone

OFF

9.75 MHz / vertical 9.75 MHz / horizontal

ON

10.6 MHz / vertical 10.6 MHz / horizontal

Voltage: use the pulldown to select the voltage: [OFF, 13V, 18V]
Overload: the icon is red when overload exists.

Tone: Use the radio buttons to turn the tone ON or OFF.
Scanning / Tuning Progress

A text message may appear in the window, showing the current or most recent status of the scanning/tuning process.
The Signal Lock status icon will turn green when the tuner has locked onto the signal.

3.4.4 The Conditional Access panel

Conditional Access is only available when a DVB-S2
tuner and a conditional access module are installed.
This panel and its access button will not appear for
IRD-3111s with an ATSC tuner.

CAM status: The icon is green when a valid CAM card is
detected in the card reader

CAM ID: CAM card identifier
Manufacturer ID: Identifies the manufacturer of the CAM

card currently installed
Supported CA Systems: a list of all the encryption systems

supported by the installed CAM card.

Table:

The table at the center of the panel lists all the programs in
the current channel that are decodable using the installed
CAM card.

Note that programs may or may not be decryptable by the
current CAM, depending on the rights obtained with the
smart card or your contract with the CA or program provider

En: Click in the box to enable decryption of the selected program.
The current video decoder selection is always selected (sho wn in blue)
Program Numbers: Program identification number along with some descriptive text

Figure 3.6 Conditional Access panel

IRD-3111 | 17

GUIDE TO INSTALLATION AND OPERATION

CA Systems: The CA system that is used with the associated program

CAM Interface:

The section of the panel allows the user to query the CAM card and set up its operation
Click Activate to start the process, and then follow the

instructions that appear in the panel.

• Note that this portion of the interface is provided by the
CAM itself and is therefore dependant on the type of
CAM used

Service Select Mode:

[ONLY/ADD/ADD], [FIRST/MORE/LAST]

CAM TS Clock:

[10 MHz, 9 MHz, 8.33 MHz, 6.25 MHz, 5 MHz, 4.16 MHz]
The Common Interface standard calls for a 9 MHz maximum clock speed, and most CAMs will operate properly with

an 8.33 MHz clock.

• Some older CAMs don’t quite meet the Common Interface standard, and will only operate at lower clock
speeds.

• Some professional CAMs, because of the higher bit rate, will require a faster clock. Remember that the
maximum bit rate that can be processed by the CAM is eight times the clock frequency.

3.4.5 The ASI Output panel

This panel allows selection of the source of signal for the
ASI output.

Use the pulldown to select between:

• Selected Input (on Input panel)

• Tuner – from the on-board tuner

• DVB-CI (only if DVB-S2 tuner and conditional access

module are installed)

Figure 3.7 ASI Output panel

18 | IRD-3111

GUIDE TO INSTALLATION AND OPERATION

3.4.6 The Decoder panel

The decoder panel gives the user the resources to select the program that will be decoded by the IRD-3111.

Config section:

Service Select – use the pulldown to select the service from
among those in the transport stream
A small lock icon to the left of the service number indicates
that the signal is encrypted.

Audio1 & Audio 2 – Use the pulldowns to select the audio 1
and 2 PIDs from the available channels.

NOTE that you can’t select the same PID for both audios
Clock Recovery – use the pulldown to configure clock

recovery. Options are:

• OFF – user the local clock. Preferred if there are many

errors in the stream or the IRD cannot lock easily

• From PCR - recover the clock from the PCR packet

Service Selection Mode – use the pulldown to choose how
the service to be decoded is selected:

• Manual – decode the service selected in the Service

Select pulldown. If the service is not present in the TS,

nothing is decoded

• Auto – if the service selected in the Service Select

pulldown does not exist or if none is specified, the
card decodes the first service found

Currently Selected Service / Video / Audio

The data windows and status icons in this area report on various aspects of the currently-selected service, video and
audio

This area provides information only – no controls are available

3.4.7 The Video Output panel

Input and Output Screens

The two screens at the top of the panel indicate the aspect ratio
of the input and output video. The pulldowns for Aspect and
Format on the output screen allow the output signal to be
formatted.

• Note: the Up Conversion option must be enabled before

these controls become active.

Figure 3.8 Decoder panel

IRD-3111 | 19

GUIDE TO INSTALLATION AND OPERATION

3.4.7.1 AFD tab

Mode

Use the AFD Mode pulldown to select the operating mode

• Auto

• Manual

Config

Use the Insertion pul ld o wn to select whe ther AF D
information will be inserted in the outp ut.

• OFF

• AFD

Insertion Line: The Insertion line is used to select on which
line in the VANC the AFD packet (SMPTE 2016) will be
inserted. It is not necessary to specify the detection line
since the card will automatically detect the incoming packet.

Default settings

The Default data box shows the default AFD code to be
used if no valid AFD code is detected at the input (AUTO), or
the AFD that is always used (MANUAL)

Change: Click the Change… button to open the Select AFD
panel showing the available AFD codes that could be used
as the default. Click on one to select it, then click Apply or
OK at the bottom of the panel.

Flags

This section gives information about AFD flag management.
Presence – the status icon is green if AFD flags are detected in the input data

stream
Detected – the data box shows the AFD code for the detected flags
Inserted – the data box shows the code of the AFD inserted in the output data

stream

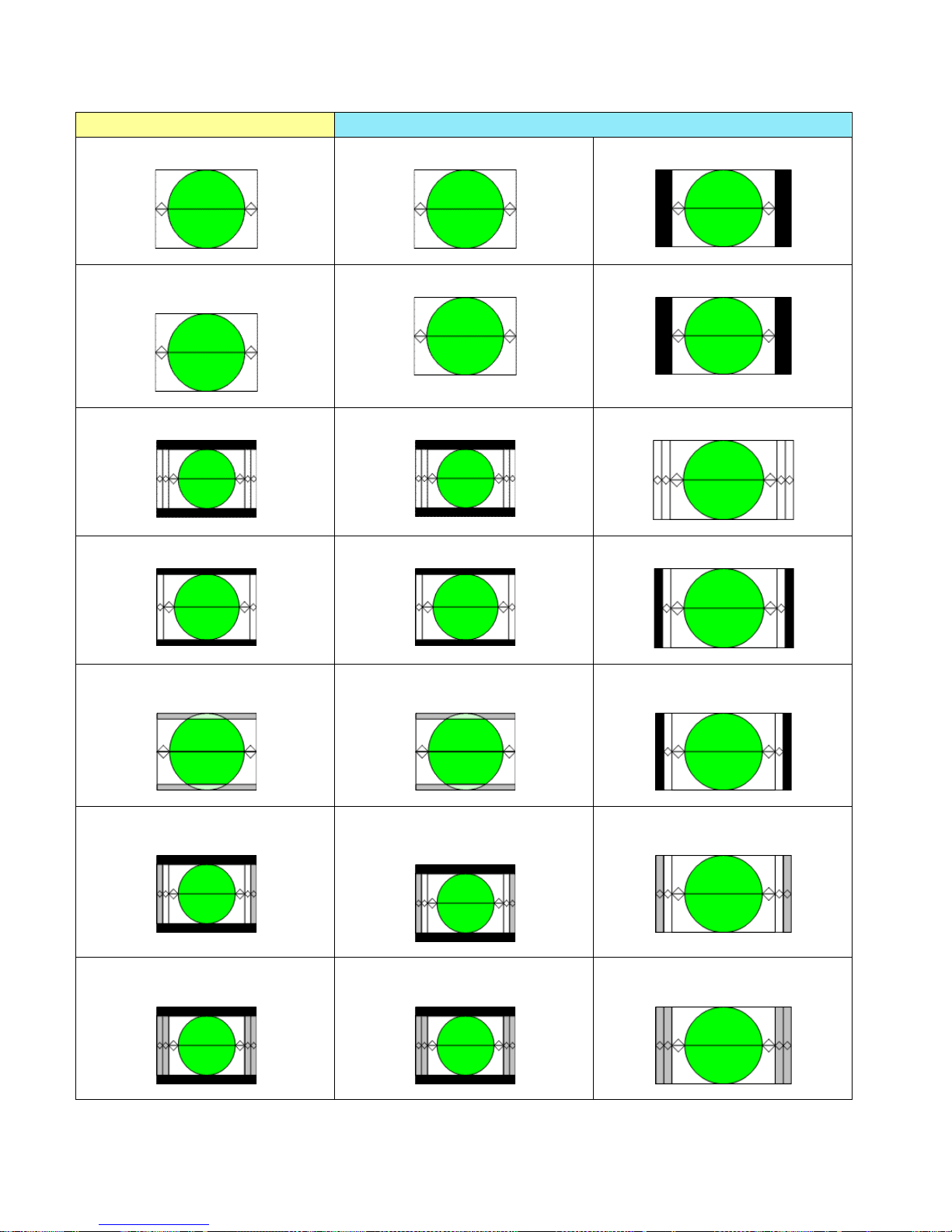

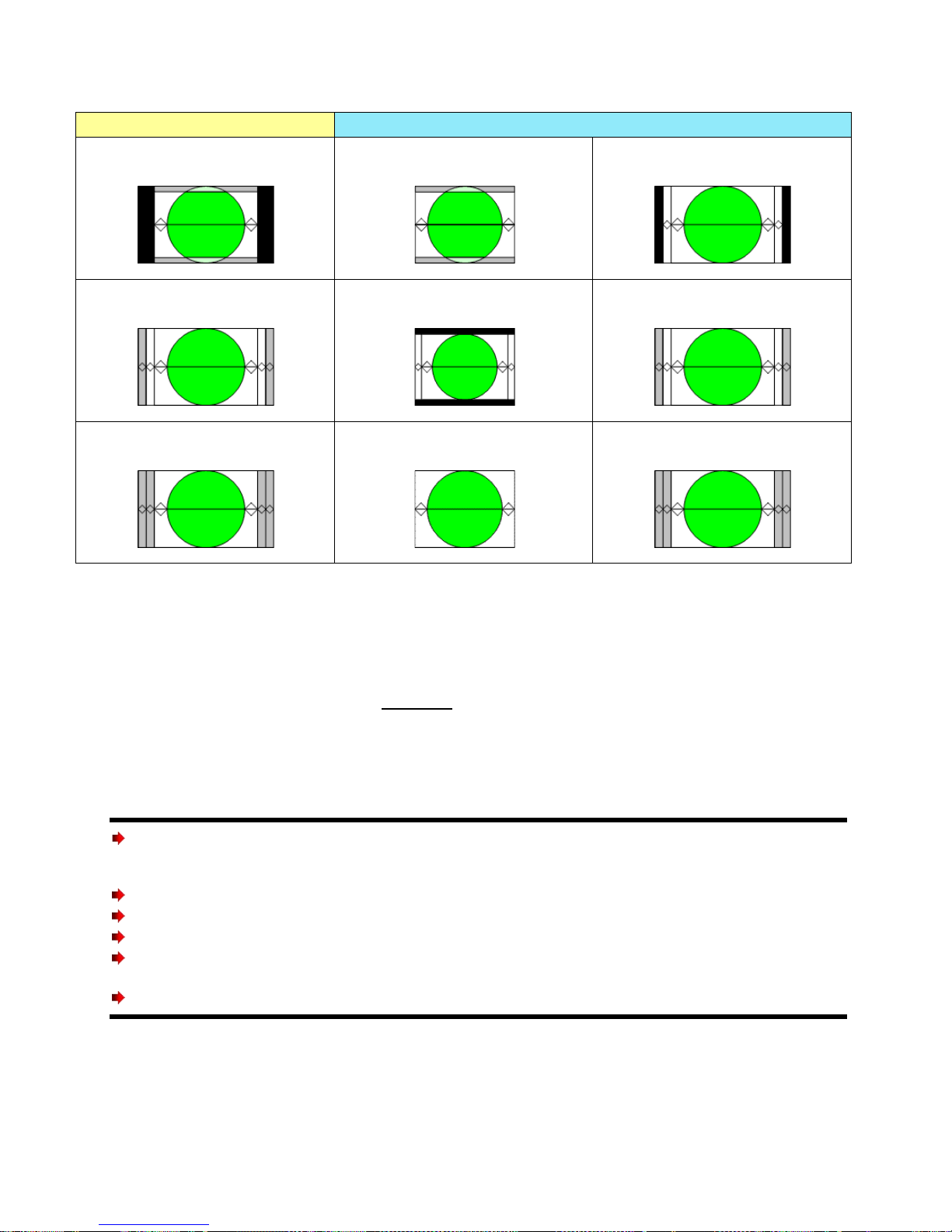

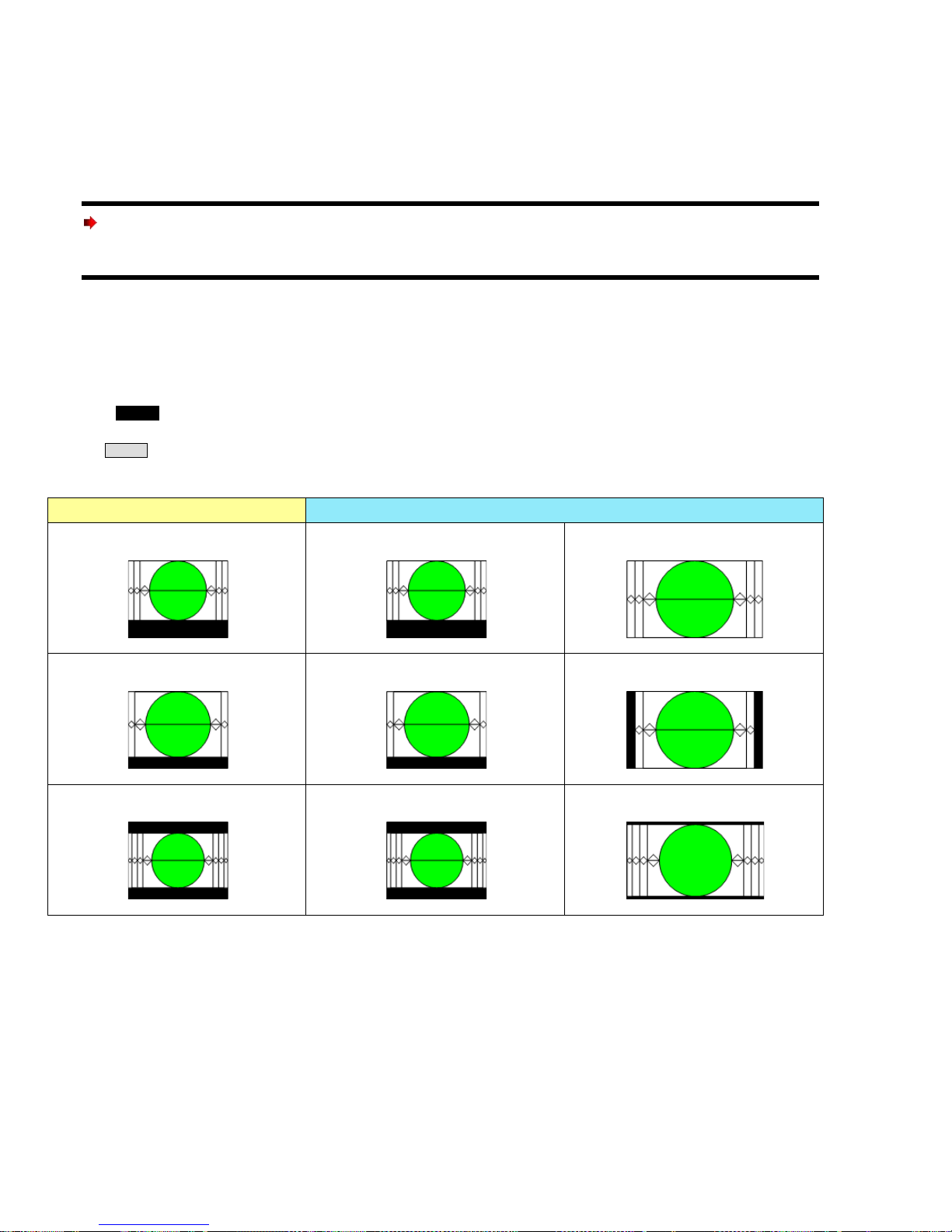

Aspect Ratio Scaling Mode

Use the pulldown to select the aspect ratio scaling mode that will be used.
These options are available:

• OFF

• Auto

• Stretch

• Center Cut

• Letter box

• Pillar box

Figure 3.10 Select AFD panel

Figure 3.9 Video Output panel – AFD tab

20 | IRD-3111

GUIDE TO INSTALLATION AND OPERATION

3.4.7.2 Metadata / Metadata tab

This panel provides the resources to configure metadata processing on this IRD-3111.

Closed Caption Section:

Closed Caption

• ON

• OFF

Note: for CVBS output, CC is always on, and not affected
by this control

V-Chip Mode

Use the pulldown to select how V-Chip data wi ll be
processed in the IRD-3111:

• Replace: Will use the PSIP information to replace

any existing XDS data. Use this option if
you know you want to use the PSIP
advisory.

• Pass: If XDS data is already present, it is left

untouched. In this mode, no V-CHIP is
generated if no XDS data is present.

Time Code Section:

Insertion

• ON

• OFF

VITC Insertion line – select the line to insert VITC time code (for SD output only):

• 525 – between 10 and 20

• 625 – between 7 and 22

Duplicate – inserts a copy of the VITC time code 2 lines following the selected ins ertion li ne unles s it would be
outside the allowable range. (for SD output only)

• OFF

• ON

Time Code Offset –
Useful to compensate for delays in downstream equipment. Simply adds or removes frames from the original time
code

• Range: -10 to +10

Teletext

Insertion – select the teletext insertion mode:

• OFF – no teletext insertion

• AUTO – teletext is inserted if detecte d at the input.

Figure 3.11 Video Output panel – metadata/metadata

IRD-3111 | 21

GUIDE TO INSTALLATION AND OPERATION

3.4.7.3 Metadata / Dolby tab

This tab provides resources for configuring Dolby metadata
insertion in the outp ut SDI data stream.

Inserter Config

Insertion – use the pulldown to turn Dolby metadata
insertion ON or OFF

Insertion Line – use the pulldown to select the insertion
line. The range of values varies with the video format

Mode – use the pulldown to s elec t bet ween :

• Auto – insert the Dolby metadata from the input
stream if available; otherwise insert the out-put of the
IRD-3111’s internal generator.

• Generator – insert Dolby metadata from the internal
generator at all times when insertion is ON.

Dialnorm Override – select the checkbox to override the
dialnorm value included in the metadata, and use the
pulldowns in the Generator Config section to set new values.

Generator Config

Profile – use the pulldowns to select the generator profiles for programs 1 and 2. Profiles 1, 2, 3 and 4 are the
available choices.

• See Annex 2 on page 56 for a listing of the parameter values in the four profiles

Dialnorm – Use these pulldowns to manually set a dialnorm value for the two audio programs, overriding the current
value. These pulldowns are only active when the Dialnorm Override box is checked

3.4.7.4 Metadata / Dolby Status tab

This panel reports the status of Dolby metadata associated
with the two audio programs

Figure

3.12 Video Output panel – Metadata/Dolby

Figure

3.13 Video Output – Metadata/Dolby Status

22 | IRD-3111

GUIDE TO INSTALLATION AND OPERATION

3.4.7.5 CVBS tab

This tab contains controls to configure the analog video
output signal.

Blanking Mode

Use the pulldown to select whether the blanking on the
output signal will be narrow or wide

Luma Range

Use the pulldown to choose whether to restrict the Luma
signal range to normal limits, or to allow super whites and
blacks (i.e. a much expanded range).

• Normal

• Allow Super Whites and Blacks

NTSC Setup

Use the pulldown to select whether setup will be added to
the composite video output.

• OFF

• ON

CVBS Monitor Aspect Ratio

Select the aspect ratio of the monitor attached to the analog
output:

• 4:3

• 16:9

•

3.4.8 The Video Processing panel

The IRD-3111 includes basic proc amp functions for the
analog output.

Figure 3.14 Video Output panel – CVBS tab

Figure

3.15 Video Processing panel

IRD-3111 | 23

GUIDE TO INSTALLATION AND OPERATION

3.4.9 The Audio Config panel

This panel provides controls for configuring the Dolby AC3 decoder and analog audio outputs, and for monitoring
some audio parameters

3.4.9.1 Config tab

Dolby Audio Decoder (AC3)

Decoder Operation

Audio 1 and Audio 2 can each be set to:

• Decode

• Pass-through, bypassing the decoder and audio

processing functions

Downmix mode – select the downmix mode individually for
Audio 1 and Audio 2:

• Lt/Rt – Dolby “unofficial” pro-logic compatible

• Lo/Ro – normal stereo

Dynamic Range Compression (DRC) – Use the pulldown to
set DRC ON or OFF

DRC Profile – Use the pulldown to set the DRC profile to
Line mode or RF mode.

Analog Audio Output

• The Analog Output option must be activated in order to use these controls

Synchronization – Use the pulldown to sel ec t whether the ana log aud io out put wi ll be synchron i zed with CBV S (wh ich
is not frame synced) or SDI

Left Source, Right Source – Use the pulldowns to select the source of audio for the two output channels. The
available choices are the same for both:

• Left

• Right

• Center

• LFE

• Left Surround

• Right Surround

• Auxiliar y Audio Lef t

• Auxiliar y Audio Rig ht

A / V Sync Offset – Use the slider or type into the data box to set the audio./video sync offset to a value between 0
and 100 msec.

A / V Sync quality – use the pulldown to select between Normal and Best. See section 4.3 for more details.
Audio Embed – use the pulldown to set audio embedding ON or OFF

Figure 3.16 Audio panel – Config tab

24 | IRD-3111

GUIDE TO INSTALLATION AND OPERATION

3.4.9.2 Status tab

This tab contains text boxes and status icons that indicate
the current status of the IRD-3111’s audio processing. Audio
1 and Audio 2 are shown in separate columns

• Audio presence (status icon)

• Audio PID

• Audio Type

• Sample Rate

• Output Mode

AC3 Audio Status (BSI)

• Service (bsmod)

• Coding Type (acmod)

• Bit Rate

• LFE presence (status icon)

• Dialnorm

3.4.10 The Audio Processing panel

The audio program inputs to the IRD-3111 are placed into
the four AES channels embedded in the IRD-3111 ASI
output.

Decode mode:

If the input audio programs have passed through the
decoder:

 the decoded outputs from Audio 1 (5.1 program which

is decoded to six discrete channels), are grouped into
three pairs of two channels (Left/Right; Center/LFE,
and Ls/Rs) and each pair is assigned to one AES.

 The decoded outputs from Audio 2 (stereo program )

are grouped as a pair (Left/Right) which is assigned to
one AES

Bypass Mode:

If the decoder has been bypassed (Decoder Operation
pulldown set to Pass-Through in the Audio Configuration
panel) for either of the programs:

 The non-decoded audio (AC3) will be inserte d into

one of the output AES channels

 Only the AC3 element is available in this case; the

decoded program element pairs shown in the figure
do not exist

The default assignment is as shown in figure 3.18.

 Click the radio buttons to change the assignment
 A program element pair or AC3 program can be assigned to more than one AES if desired.

Figure 3.17 Audio panel – Status tab

Figure 3.18 Audio Processing - Shuffling

IRD-3111 | 25

GUIDE TO INSTALLATION AND OPERATION

3.4.11 The Reference panel

NOTE: The OPT-FS option must be purchased in order to
enable this panel. Otherwise the reference is always taken
from the input signal.

The IRD-3111 output signals should always be genlocked to
some reference source. The genlock source is selected in
the Reference control panel. Use the radio buttons in the
Reference Source area to select from the following options:

• Auto – this mode selects the first source detected in this
order of priority:

o External
o URS
o Selected Input signal

• External – selects the signal connected to the rear­panel REF IN connector

• 525 from URS (Universal Reference Signal) – selects
the internal reference (525) from the backplane

• 625 from URS (Universal Reference Signal) – selects
the internal reference (625) from the backplane

• Input – uses the currently-selected input signal.

The Used Reference box shows the reference currently in
use, which is helpful in Auto mode

Vertical (lines)

With this adjustment, a value ranging from 0 to +200 lines, compared to the reference or the processing delay, may
be set. This adjustment can be used in conjunction with the horizontal timing adjustment.

Horizontal (µsec)

With this adjustment, a value ranging from zero to the equivalent of 1 horizontal line in the current operating format
(e.g. ranging from 0 to 63.46 µs for 525-l ine oper ati on; 0 to 64.00 µs for 625-line operation; etc) compared to the
reference or the frame boundary, may be set.

Additional Frame Delay

Use the pulldown to select an extra frame delay to be added to the output.

• Choices: 0, 1, 2 or 3 frames

NOTE: if the output format is interlaced, only 1 frame can be added. In progressive 720p, up to 3 frames are allowed.

Figure 3.19 Reference Panel

26 | IRD-3111

GUIDE TO INSTALLATION AND OPERATION

3.4.12 The Probing panel

3.4.12.1 Structure tab

Shows the structure of the transport stream
Click on the nodes in the tree to expand it to examine areas

of interest,

3.4.12.2 TR 101 290 tab

This tab shows the results of the tests against the TR 101
290 standard.

Click in the checkbox at the bottom to enable or disable
display updating (about once per second).

The time-out value for each of the probed values can be set
by the user.

• Double-click on the current value to open the data

box, and enter a new value.

Figure 3.21 TR 101 290 tab

Figure 3.20 Probing panel – Structure tab

IRD-3111 | 27

GUIDE TO INSTALLATION AND OPERATION

3.4.12.3 Unref_PID tab

This tab provides a list of all unreferenced PIDs found in the
incoming service.

3.4.12.4 Pie Chart tab

This tab displays the incoming service in the form of a pie
chart, with color-coded segments representing
the various elements in the service.

• This representation illustrates the bandwidth
distribution within the servic e.

The table below the chart shows all of the elements,
identifying each by name, PID and band width.

Click on a name in the table, and the corresponding slice of
the pie will slide out from the chart

Mouse-over a slice and the associated Program Name will
pop up.

Figure 3.22 Probing panel – Unref_PID tab

Figure 3.23 Probing panel – Pie Chart tab

28 | IRD-3111

GUIDE TO INSTALLATION AND OPERATION

3.4.12.5 PSIP tab

This tab is an information-only tab that documents various
aspects of the incoming service

(Shown for ATSC input via the ASI input only; tab will not be
available when DVB-S2 from the tuner input is selected)

3.4.13 The Test panel

Use the Color Bars checkbox to turn the Test function ON or
OFF

• When checked, the output signal is replaced by Color

Bars.

• When unchecked, the normal program signal is

present at the output.

• The icon at the top of the window (second from the

right) shows the status of the color bars.

Figure 3.24 Probing panel – PSIP tab

Figure 3.25 The Test panel

IRD-3111 | 29

GUIDE TO INSTALLATION AND OPERATION

3.4.14 The Network Settings panel

Settings tab

ETH Port Status

The status of the ethernet link is shown by the icons:

• Link is down (red)

• Link is OK (green)

NOTE: This is the equivalent to the green LED on the rear­panel ETH connector.

ETH Port Direction

Use the pulldown to select the Ethernet port functionality.
Options are:

• Disabled – not functional

• Input – receives a transport stream

• Output – sends transport stream

IP Config

This section displays the current IP settings on the right, and
provides data boxes to enter new values on the left.

IP Address
Mask static network parameters
Gateway
Enter the new values directly into the data boxes. The changed data will show in red.

• Press Apply to apply the new values, or Cancel to leave the current values unchanged.

Current IP Address / Current Mask / Current Gateway – these are the current values for this card.
Ethernet Speed: use the pulldown to select the ethernet speed. Options are:

• Auto-Negotiate

•

10 Half Duplex (10 Mbps )

•

10 Full Duplex (10 Mbps )

•

100 Half Duplex (100 Mbps)

•

100 Full Duplex (100 Mbps)

Note that the IEEE standard does not permit forcing to 1000Mbps.

Current Speed – the data box reports the current speed

Streaming Configuration

IP Address

This is the unicast or multicast address for the source or destination.

Port Number

Figure 3.26 Network Settings panel – Settings tab

30 | IRD-3111

GUIDE TO INSTALLATION AND OPERATION

This is the port on which the signal is present. This is valid for either transmitting or receiving. If this port does not
correspond to the source, no signal will be received.

Enter the new values directly into the data boxes. The changed data will show in red.

• Press Apply to apply the new values, or Cancel to leave the current values unchanged.

Encapsulation

Select the IP protocol to use to stream packets.

• RTP

• UDP

Forward Error Correction (FEC)

Forward Error Correction (FEC) is only available in RTP mode. This setting will allow inserting FEC codes into the
stream when the port is sending data. On reception, FEC is automatic.

Pro-MPEG FEC (D) pulldown: [OFF, 4, 5, 6,…., 19, 20]
Pro-MPEG FEC (L) pulldown: (not active when OFF is selected in the FEC (D) pulldown)

IGMP Multicas t ta b

The Internet Group Management Protocol (IGMP) at v3 supports the filtering of up to 59 defined IP addresses,
allowing them to limit the range of sources that the receiving device can access, either by excluding all other
addresses (Accept mode) or by excluding the listed addresses and accepting all others (Reject mode).

The list of addresses is entered manually in this window:

• Click ADD to open a new blank line in the panel, or click

on an existing line to edit it
 The ADD button then changes to a SAVE button

• Manually type the beginning and ending addresses of a

block of source IP addresses in the IP Beginning and IP
End data boxes

 If the address is not legal, a pop-up warnin g w il l

appear and the input will not be accepted

• The total number of addresses in the block is calculated

and appears on the right of the line

• Multiple blocks can be defined, but the total number of

addresses in them cannot be greater than 59. The
overall total is shown at the bottom right of the window.

• Click SAVE to store the line, or CANCEL to terminate

the session without making changes

• To delete a line in the window, click on one of its data

boxes and click REMOVE

Figure 3-27 Network Settings - IGMP Multicas t tab

IRD-3111 | 31

GUIDE TO INSTALLATION AND OPERATION

3.4.15 The Factory/Presets panel

This panel provides resources for saving, restoring and
transferring the configuration settings of this IRD-3111.

Load Factory

The IRD-3111 maintains a “Factory Default” alignment in its
memory, to which it can be restored at any time.

• Click the Load Factory button to restore the card to its
Factory default alignment.

User Presets

The User Preset controls allow the user to save and recover
all configuration settings on the card.

Select any one of the five presets using the pulldown list.
The name of the currently-selected User Preset is shown on
the on the pulldown icon (e.g. User1, User2,… User5)

• Click Load to load the contents of the selected User
Preset into the IRD-3111. All parameter settings and
values will be replaced by the contents of the selected
User Preset.

• Click Save to store the current parameter settings and
values from the IRD-3111 into the selected User
Preset. The existing contents of the preset will be overwritten.

Profiles

This section provides resources to save and recover the entire card configuration (including user presets if desired) on
an external disk, or to copy it to another IRD-3111 card.

Click on Profiles to open the Profile Copy window.

Figure 3.28 Factory / Presets Panel

Figure 3.29 Profile Copy window

32 | IRD-3111

GUIDE TO INSTALLATION AND OPERATION

Copy Profile From:

This section shows this IRD-3111 card, and identifies it by App server, Densité
frame and slot number, card type and firmware version.

The Profile column has a pulldown that allows you to select which profiles you
will work with, and gives these choices:

• Current, User1, User2, User3, User4, User5, ALL

The Select column includes a checkbox, preselected as checked, to confirm that
you want to work with the current card

Save Profile to Disk…

Click this button to open a Save dialog allowing you to
specify a file name and location to which the selected
profiles for this card will be saved.

Hint - It is a good idea to create a folder for these files,
because they are not explicitly identified as IRD-3111
profiles, and will be difficult to find and identify if not clearly
named and conveniently located.

• Click the save button once the name and location

have been identified in the Save box

• If the file is saved correctly, the Transfer Status box

on the right of the Copy profile from l ine w i ll in d ic at e
Succeeded against a green background

• If the file was not saved for some reason, the

Transfer Status box to the right of the Copy profile
from line will indicate Failed against a red

background

Restore profile from disk…

Click this button to open an Open dialog box with in whi c h
you can locate and select a valid IRD-3111 profile file.

• Click Open to read the contents of the file and to

reconfigure this IRD-3111’s profiles according to its
contents

• While the reconfiguration is in progress, the Transfer

Status box on the right of the Copy profi le from line
will indicate Working agains t a yellow background

• When the reconfiguration is complete, the Transfer

Status box on the right of the Copy profile from line
will indicate Succeeded against a green background

Note: There is no need to select a profile using the Profile
pulldown (e.g. current, User1, etc.) when restoring a

profile from disk, because the profile selection is stored
within the file.

Figure 3.31 Save Profile to disk

Fig 3.32 Restore profile from disk

Figure 3.30 Select profile to copy

IRD-3111 | 33

GUIDE TO INSTALLATION AND OPERATION

Copy profile to section

This line shows other IRD-3111 cards that are available on the iControl network, each identified by App server,
Densité frame and slot number, card type and firmware version.

The Profile column shows the same information as is shown for the current card in the Copy profile from line, i.e.

• Current, User1, User2, User3, User4, User5

The Select column includes a checkbox to identify which IRD-3111 cards you wish to copy profiles into from the
current card.

• For convenience, a Select all checkbox is provided in the column header

Click Copy to copy the selected profiles from this card into the selected other IRD-3111 cards

• While the profile copy operation is in progress, the Transfer Status box on the right of the Copy profile to line will
indicate Working against a yellow background

• When the profile copy operation is complete, the Transfer Status box on the right of the Copy profile to li ne wil l
indicate Succeeded against a green background

3.4.16 The Options panel

This panel provides an entry point for activating the six options available for the IRD-3111. Each option is accessed
on a separate tab.

Frame Sync option

This option provides frame synchronization of the decoded
signal to the external signal connected to the REF IN
connector on the rear panel.

To activate this option, you must:

• Obtain a licence key from Miranda Technologies Inc.

• Type the licence key in the box

• Click on ENABLE OPTION to enable the option’s

features.

The information window beneath the key entry box indicates
whether the option is activated (green) or not (gray).

Figure 3.33 Options panel – Frame Sync

34 | IRD-3111

GUIDE TO INSTALLATION AND OPERATION

Up Conversion option

This option enables up-conversion (SD-to-HD) functionality
on the IRD-3111.

To activate this option, you must:

• Obtain a licence key from Miranda Technologies Inc.

• Type the licence key in the box

• Click on ENABLE OPTION to enable the option’s

features.

The information window beneath the key entry box indicates
whether the option is activated (green) or not (gray).

Analog Output option

This option activates the analog composite video and analog
audio outputs of the IRD-3111.

To activate this option, you must:

• Obtain a licence key from Miranda Technologies Inc.

• Type the licence key in the box

• Click on ENABLE OPTION to enable the option’s

features.

The information window beneath the key entry box indicates
whether the option is activated (green) or not (gray).

Figure 3.34 Options panel – Up Conversion

Figure 3.35 Options panel – Analog Output

IRD-3111 | 35

GUIDE TO INSTALLATION AND OPERATION

TS Probing option

This option activates the Transport Stream probing functions
of the IRD-3111.

To activate this option, you must:

• Obtain a licence key from Miranda Technologies Inc.

• Type the licence key in the box

• Click on ENABLE OPTION to enable the option’s

features.

The information window beneath the key entry box indicates
whether the option is activated (green) or not (gray).

Dolby 5.1 option

This option enables the Dolby 5.1 output on 6 discrete
channels

Note – Dolby 5.1 decoding is always enabled

To activate this option, you must:

• Obtain a licence key from Miranda Technologies Inc.

• Type the licence key in the box

• Click on ENABLE OPTION to enable the option’s

features.

The information window beneath the key entry box indicates
whether the option is activated (green) or not (gray).

Figure 3.37 Options panel – Dolby 5.1

Figure 3.36 Options panel – TS Pro b in g

36 | IRD-3111

GUIDE TO INSTALLATION AND OPERATION

ETH option

This option enables the ethernet port on the rear panel of
the IRD-3111.

To activate this option, you must:

• Obtain a licence key from Miranda Technologies Inc.

• Type the licence key in the box

• Click on ENABLE OPTION to enable the option’s

features.

The information window beneath the key entry box indicates
whether the option is activated (green) or not (gray).

3.4.17 The Alarm Config panel

This panel allows the alarm reporting of the IRD-3111 to be
configured. The panel opens in a new window whe n the button is
clicked, and can be resized if needed.

The panel is organized in columns.

Status/Name

This contains an expandable tree listing all the alarms reported by
this IRD-3111 card.

• Each alarm name includes an icon that shows its current

status

• Some alarms may be text-only and the alarm status is shown

in the name and not by a status icon,
e.g.

The Card LED, Overall alarm and GSM contribution columns
contain pulldown lists that allow the level of contribution of each
individual alarm to the alarm named in the column heading to be set.

 Click on the alarm icon to see the available levels; then click on one to select it

Figure 3.38 Options panel - ETH
Figure 3.39 Alarm Configuration Panel

IRD-3111 | 37

GUIDE TO INSTALLATION AND OPERATION

Levels associated with these alarms:

The pulldown lists may contain some or all of the following options:

The alarm makes no contribution (black icon)
The alarm is of minor importance (yellow icon)
The alarm is of major importance (orange icon)
The alarm is of critical importance (red icon)
The alarm exists but has no effect (used for text and composite alarms)

Shortcut: if you click in one of the Set All boxes beside a section heading, you will open a pulldown that lets you
assign a level to all alarms in that section of the column simultaneously.

• Card LED
This column allows configuration of the contribution of each individual alarm to the state of the Status LED located
on the front panel this card.

• Overall Alarm
This column allows configuration of the contribution of each individual alarm to the Overall Alarm associated with
this card. The Overall Alarm is shown in the upper left corner of the iControl panel, and also appears at the bottom
of the Status/Name column.

• GSM Contribution
This column allows configuration of the contribution of each individual alarm to the GSM Alarm Status associated
with this card. GSM is a dynamic register of all iControl system alarms, and is also an alarm provider for external
applications. The possible values for this contribution are related to the Overall alarm contribution:

• If the Overall alarm contribution is selected as Disabled, the GSM alarm contribution can be set to any available
value

• If the Overall alarm contribution is selected as any level other than disabled, the GSM contribution is forced to
follow the Overall Alarm.

Log Events

iControl maintains a log of alarm events associated with the card. The log is useful for troubleshooting and identifying
event sequences. Click in the checkbox to enable logging of alarm events for each individual alarm.

At the bottom of the window are several other controls:

Overall alarm and GSM contribution follow card LED

Click in the checkbox to force the Overall alarm and GSM
contribution to be identical to the Card LED status

• All Overall alarms for which there is a Card LED
alarm will be forced to match the Card LED alarm

• All Overall Alarms for which there is no Card LED
alarm will be forced to Disabled

A warning box will open allowing you to confirm the action,
since it will result in changes to the configuration and there
is no undo function.

Figure

3.40 Warning for Follow LED change

38 | IRD-3111

GUIDE TO INSTALLATION AND OPERATION

Copy to other cards

Click this button to open a panel that allows the alarm
configuration set for this card to be copied into another
IRD-3111 card.

• Select one or more destination cards from the list

in the window by clicking in the checkboxes, or all
of them by clicking in the All checkbox

• Note that when you do a Copy Profile for this card

(see Sect.3.4.15), the alarm configuration is
copied along with all the other settings.

Get alarm keys

Click this button to open a save dialog where you can
save a file containing a list of all alarms on this card and
their current values, along with an Alarm Key for each.
The alarm keys are useful for system integration and
troubleshooting.

• The file is saved in Excel.csv format

OK, Apply, Cancel

• OK accepts the settings and closes the window once the card confirms that there are no errors.

• Apply accepts the settings, but leaves the window open

• Cancel closes the window without applying any changes, and leaves the previous settings intact.

Figure 3.41 Copy to other cards

Figure 3.42 Get alarm keys save dialogue

IRD-3111 | 39

GUIDE TO INSTALLATION AND OPERATION

3.4.18 The Info panel

3.4.18.1 Info tab

When the IRD-3111 is included in an iControl enviro nm ent,
certain information about the card should be available to the
iControl system. The user can enter labels and comments
that will make this card easy to identify in a complex setup.
This information is entered via the Info control panel. This
panel also shows other information about the card.

Label: type the label that appear for this IRD-3111

when it appears in iControl applicat ions

Short Label type the short-form label that iControl uses in

some cases (8 characters)

Source ID type a descriptive name for this IRD-3111
Comments: type any desired text

The remaining data boxes show manufacturing information about this card.

• Details…: Reports the Firmware version, service version,

and panel version for this card

• Advanced…: Shows the Miranda LongID for this card. The

Miranda LongID is the address of this IRD-3111 in the iControl
network.

Figure 3.45 Advanced window

Figure 3.44 Details window

Figure 3.43 Info Panel

40 | IRD-3111

GUIDE TO INSTALLATION AND OPERATION

• Remote System Administration – opens the Joining Locators data box,

which lists remote lookup services to which this IRD-3111 is registered.

Add: Force the iControl service for this IRD-3111 to register itself on
a user-specified Jini lookup service, using the following syntax in the
data box:

jini://<ip_address>
where <ïp_address> is the ip address of the server running the

lookup service, e.g.:

Remove: select one of the services listed in the window by clicking on it, and click Remove to open a query
box allowing you to delete it from the window.

3.4.18.2 Message Console tab

The Message Console provides a log of various status
messages generated on-board the card.

• Newest messages appear at the bottom of the list

• Use the scroll bar to view the entire list

Click the Clear Mess ages button to empty the message
window.

This panel is primarily provided for diagnosis purposes.
Hardware and transport stream error messages are sent to
this panel, along with card activity status reports.

Reset Card…: Use this button to reset the card.

For various reasons, some CAM cards may stop
decrypting, stop passing the stream or even freeze. When
that happens, the only way to recover is to reset the
CAM. This involves putting it through a power off/power
on cycle. This can be done by physically removing it from
its slot and then reinserting it. Alternatively, resetting the
IRD-3111 will also reset the CAM, and this can be done
remotely via this iControl panel

Figure 3.46 Joining Locators

Figure 3.47 Message Console

IRD-3111 | 41

GUIDE TO INSTALLATION AND OPERATION

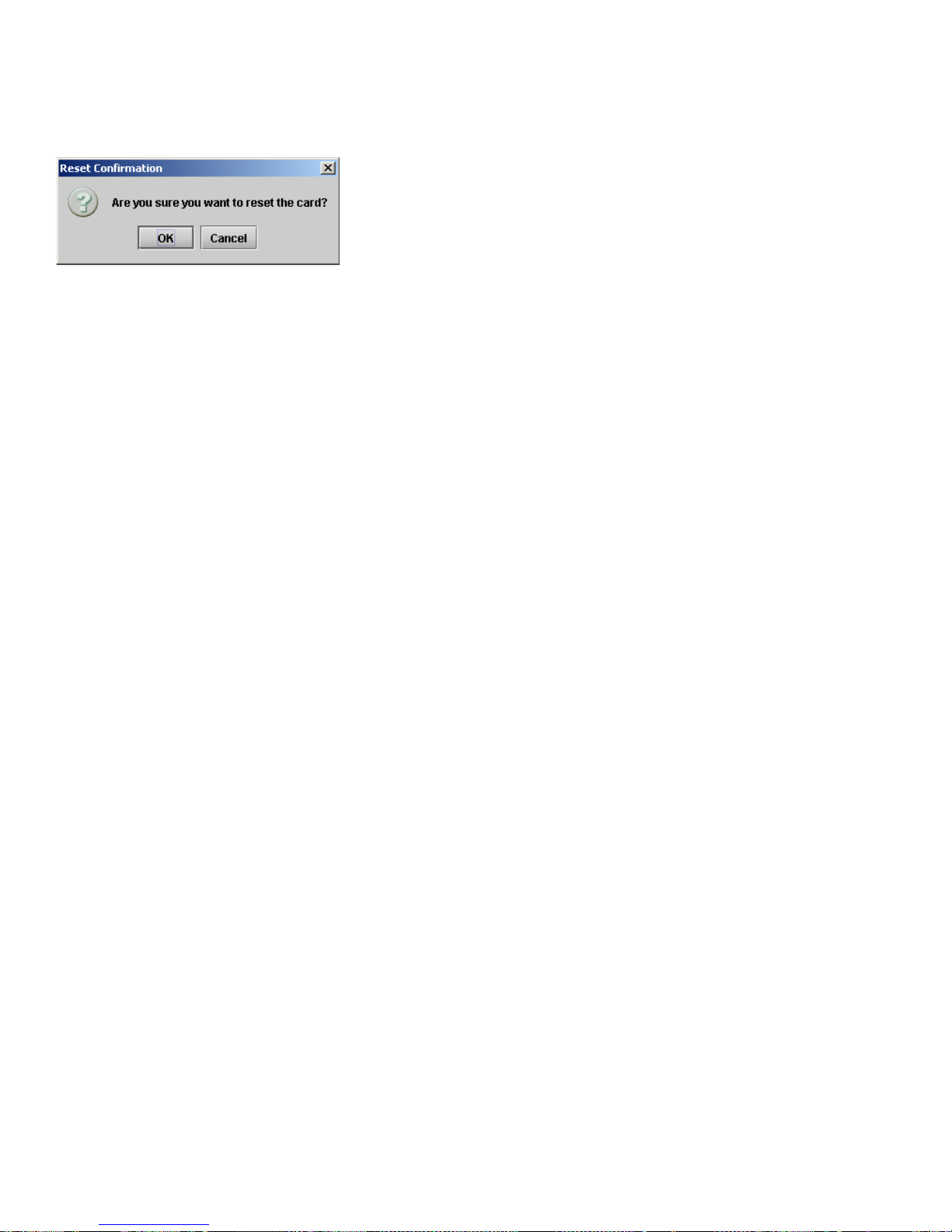

When you click the button, you will be presented with a dialog allowing you to confirm your decision to reset, or to
cancel the reset.

42 | IRD-3111

GUIDE TO INSTALLATION AND OPERATION

4 User Reference Guide

4.1 Decoding MPEG Transport Streams

The user can input DVB-ASI signals up to 80Mbps on either ASI input connector. Alternatively, the Ethernet can be
configured to receive an IP stream (see section 3.4.14).

To select an input, go to the Input Menu into Input Selection.

Once a valid transport stream signal enters the decoder, the first valid service found is decoded automatically if no
selection was previously made. If the previously-selected service does not exist in the stream, the IRD picks the first
found in the PAT. The secondary audio will be set to NONE by default while the first-found audio stream will be
selected.

In order for a service to be decoded, the following conditions must be met:

a) The transport stream must be ISO 13818-1 compatible
b) The video stream must be MPEG2 in the 4:2:0 color profile
c) The audio stream can be MPEG1 layer 2, MPEG2, or AC3
d) The video bit rate is not more than 26Mbps
e) The transport stream bit rate is below 80Mbps

To select a service within the transport stream, go to the Input Menu into Service Select. For iControl, please

refer to section 3.4.6. The name of the service will be displayed when available (the name is as per ATSC VCT
and is unavailable for non-ATSC streams). When the service name is not available, the card displays the
service number as per PAT.

Audio-only services can be decoded; the output display will be blacked.
4:2:2 video will not generate any errors but the display will be fuzzy
The IRD has a maximum parsing capability of 64 services per transport stream. An error is generated

if the stream has more services, and only the first 64 entries of the PAT will be selectable.

Whenever the input signal contains erratic data, the audio decoders are stopped until the situation is

resolved. This prevents invalid data from entering the decoder and corrupting the audio. The audio
is then muted for a period of about 6 seconds.

Whenever the stream cannot be decoded, the outputs are set to freeze or black according on user

selection.

Any change in PAT or PMT will trigger the service selection system. This makes it possible to use in

an ASI hot-switch context.

4.2 Decoding Audio

The IRD-3111 can decode 2 audio streams simultaneously.
If no audio PID was previously selected or if the selected PID does not exist, the IRD automatically selects the first

found audio in the corresponding PMT.

IRD-3111 | 43

GUIDE TO INSTALLATION AND OPERATION

The following audio coding formats are currently supported:

• AC3 audio up to 5.1 channels

• MPEG1 Layer II

• MPEG2 Audio

• AAC audio (2 CH only)

The first audio can be embedded as 5.1 discrete channels (the Dolby option is required to get discreet channels;
otherwise you get 2 down-mixed channels) while the second audio is always output as 2 channels. Downmix mode
can be selected between Lt/Rt or Lo/Ro modes independently for both audios.

The secondary audio can be set in pass-through mode for AC3 data stream. This allows embedding raw AC3
streams on channel 7 and 8 of the SDI signal.

Audio only services can be decoded
Audio PIDs not belonging to the current service cannot be selected
Only supported audio streams will be available to the user for selection
Audio 1 is embedded on AES channels 1 to 6, Audio 2 is on channels 7-8
The Dolby option must be activated to get 6 discrete AC3 channels on the SDI

4.3 MPEG AV Synchronization

MPEG transport streams normally contain information about the encoder clock system in order to genlock the decoder
to the incoming signal and avoid buffer underrun or overflows. Moreover, the audio and video streams contain time
stamps (PTS) in order to re-synchronize the stream at the output.

Should synchronization be a problem (PCR jitter, bad PTS), the MPEG clock recover system can be manually forced
to OFF. In such case, the system decoder clock is free run and frames are repeated or dropped to cope with buffer
overflows or underflows (frame buffer mode).

Setting the clock recovery in the OFF mode is particularly useful when network jitter is important and the video sync or
audio sync status of the IRD keeps blinking.

To change the clock recovery mode, go to the card menu into Input Menu, CLOCK RECOVERY
Refer to section 3.4.6 for iControl.

The audio video synchronization can be further improved with firmware revision 301 and up. A new setting called AV
sync quality allow the user to achieve better AV sync when set to BEST. The BEST setting will deliver AV sync within
1ms but requires the input TS to be completely free of errors. If errors are present in the TS, the video and audio may
become out of sync. The synchro system will then restart the audio decoder to reach sync and this will cause a mute
in the audio. This feature must be used only in error free environments.

4.4 About V-CHIP & Rating Information

The IRD can translate ATSC PSIP Advisories from the EPG to standard V-CHIP inserted in the XDS of compliant IEA­608 closed captioning data.

Because the video stream may already contain XDS advisory data, the IRD provides two modes of operation:

44 | IRD-3111

GUIDE TO INSTALLATION AND OPERATION

Replace: Will use the PSIP information to replace any existing XDS data. Use this option if you know

you want to use the PSIP advisory.

Pass: If XDS data is already present, it is left untouched. In this mode, no V-CHIP is generated if no

XDS data is present.

Note that the PSIP RTT tables are not extracted. The rating information comes from the standard

MPAA and other North American rating systems.

Closed captioning data must be present in the MPEG video stream or XDS data will not be inserted at

the output

4.5 Using the Up Conversion Option

The Up Conversion Option allows the user to upscale the input signal from 525 or 625 to 720 or 1080i keeping same
frame rate.

In addition to resolution conversion, the option allows aspect ratio conversion to occur. The user can either manually
select the desired conversion method or use the AFD from the source to automatically resize the picture. In manual
mode, the following scaling options are available:

• NONE: No aspect ratio conversion done.

• AUTO: The scaling method is selected automatically. In this mode, the AFD flag is used along

with the aspect ratio of the output to select the best method. If no AFD is present, the
default AFD flag is used.

• STRETCH: Use this mode to stretch the picture vertically. This mode is useful when the input
picture has the wrong aspect ratio.

• CENTER CUT: When converting from 16:9 to 4:3, use this to crop both sides of the picture and fill the
entire screen while keeping the aspect ratio.

• LETTER BOX: Adds black curtains to the 16:9 picture for 4:3 monitors

• PILLAR BOX: Adds black bars to the 16:9 picture to properly display 4:3 images on 16:9 monitors.

Some modes may not apply depending on the input signal and desired output format.
If the selected mode is not possible the result will be the same as if NONE was selected.

The AUTO mode will use the input AFD to automatically choose the best rescaling method. The decisions follow the
CEA-CEB16 recommendation for receivers/decoders.

4.6 About AFD processing

According to ATSC A/53 part 4, AFD and BAR data can be carried in MPEG signals. The AFD information and BAR
data are extracted from the MPEG signal if present.

The user can configure the IRD to trigger on the AFD flags to automatically rescale the picture so that it is optimally
displayed. Alternatively, the user can set the scaling mode to OFF and simply carry the AFD flags to the outputs for
further processing. A card like the XVP-38xx from Miranda could then use the flag to rescale the picture properly.

IRD-3111 | 45

GUIDE TO INSTALLATION AND OPERATION

In any case, the embedded AFD flag at the output follows any transformation that might have occurred. Therefore
should the picture be rescaled, the embedded AFD reflects the actual status of the picture at the output. For example,
an MPEG signal in full 16:9 (AFD code 8) down converted to SD 4:3 in letterbox will have the AFD flag 10 inserted to
signal letterbox.

Some restrictions apply to firmware revisions less than 211. The BAR data are not used and AFD

flags 4:3_4, 4:3_13, 4:3_14, 4:3_15 and the same in 16:9 are not supported. They currently map to
the default mode 8.

Alternatively to AFD, the user can select VLI or WSS (PAL only).
The charts below show the conversions that will be performed by the IRD-3111 when Active Format Descriptor (AFD)

processing is activated by select ing AUT O using the As pec t Ratio Scal ing Mode pulldown on the AFD tab of the Video
Output panel. In the images shown in the chart:

BLACK Indicates that this portion of the transmitted image will be black
GREY indicates Protected Area, consisting of picture content which may be cropped for optimum display on

screens with a different aspect ratio.

Input signal 4:3 Output signal 16:9

16:9 Letterbox (top) image in a 4:3
frame

(4:3_2)

16:9 Letterbox (top) image in a 4:3
frame

(4:3_2)

16:9 Full frame image in a 16:9 frame

(16:9_8)

14:9 Letterbox (top) image in a 4:3
frame

(4:3_3)

14:9 Letterbox (top) image in a 4:3
frame

(4:3_3)

14:9 Pillar-box image in a 16:9 frame

(16:9_11)

> 16:9 Letterbox (center) image in a
4:3 frame

(4:3_4)

> 16:9 Letterbox (center) image in a
4:3 frame

(4:3_4)

> 16:9 Letterbox (center) image in a
16:9 frame

(16:9_4)

46 | IRD-3111

GUIDE TO INSTALLATION AND OPERATION

Input signal

4:3 Output signal 16:9

4:3 Full frame image in a 4:3 frame

(4:3_8)

4:3 Full frame image in a 4:3 frame

(4:3_8)

4:3 Pillar-box image in 16:9 frame

(16:9_9)

4:3 Full frame image in a 4:3 frame

(use preferred 4:3_8 code instead)

(4:3_9)

4:3 Full frame image in a 4:3 frame

(4:3_9)

4:3 Pillar-box image in 16:9 frame

(16:9_9)

16:9 Letterbox image in 4:3 frame

(4:3_10)

16:9 Letterbox image in 4:3 frame

(4:3_10)

16:9 Full frame image in a 16:9 frame

(16:9_8)

14:9 Letterbox image in a 4:3 frame

(4:3_11)

14:9 Letterbox image in a 4:3 frame

(4:3_11)

14:9 Pillar-box image in a 16:9 frame

(16:9_11)

4:3 Image shoot and protect 14:9 in a

4:3 frame

(4:3_13)

4:3 Image shoot and protect 14:9 in a

4:3 frame

(4:3_13)

14:9 Pillar-box image in a 16:9 frame

( 16:9_11)

16:9 Letterbox image shoot and

protect 14:9 in a 4:3 frame

(4:3_14)

16:9 Letterbox image shoot and

protect 14:9 in a 4:3 frame

(4:3_14)

16:9 Image shoot and protect 14:9 in a

16:9 frame

(16:9_14)

16:9 Letterbox image shoot and

protect 16:9 in a 4:3 frame

(4:3_15)

16:9 Letterbox image shoot and

protect 16:9 in a 4:3 frame

(4:3_15)

16:9 Image shoot and protect 14:9 in a

16:9 frame

(16:9_15)

IRD-3111 | 47

GUIDE TO INSTALLATION AND OPERATION

Input signal

4:3 Output signal 16:9

16:9 Full frame image in a 16:9 frame

(use preferred 16:9_8 flag instead)

(16:9_2)

16:9 Letterbox image in 4:3 frame

(4:3_10)

16:9 Full frame image in a 16:9 frame

(16:9_2)

14:9 Pillar-box image in a 16:9 frame

(use preferred 16:9_11 flag instead)

(16:9_3)

14:9 Letterbox image in a 4:3 frame

(4:3_11)

14:9 Pillar-box image in a 16:9 frame

(16:9_3)

> 16:9 Letterbox (center) image in a

16:9 frame

(16:9_4)

16:9 Letterbox image in 4:3 frame

(4:3_4)

16:9 Protected Full frame image in a

16:9 frame

(16:9_4

16:9 Full frame image in a 16:9 frame

(16:9_8)

16:9 Letterbox image in 4:3 frame

(4:3_10) as shown here,

or (4:3_8) as in box below

16:9 Full frame image in a 16:9 frame

(16:9_8)

4:3 Pillar-box image in 16:9 frame

(16:9_9)

4:3 Full frame image in a 4:3 frame

(4:3_8)

4:3 Pillar-box image in 16:9 frame

(16:9_9)

16:9 Protected Full frame image in a

16:9 frame

(16:9_10)

16:9 Letterbox image in 4:3 frame

(4:3_10)

16:9 Protected Full frame image in a

16:9 frame

(16:9_10)

14:9 Pillar-box image in a 16:9 frame

(16:9_11)

14:9 Letterbox image in a 4:3 frame

(4:3_11)

14:9 Pillar-box image in a 16:9 frame

(16:9_11)

48 | IRD-3111

GUIDE TO INSTALLATION AND OPERATION

Input signal

4:3 Output signal 16:9

4:3 Pillar-box image Shoot and protect

14:9 in a 16:9 frame

(16:9_13)

4:3 Image shoot and protect 14:9 in a

4:3 frame

(4:3_13)

14:9 Pillar-box image in a 16:9 frame

(16:9_11)

16:9 Image shoot and protect 14:9 in a

16:9 frame

(16:9_14)

14:9 Letterbox image in a 4:3 frame

(4:3_11)

16:9 Image shoot and protect 14:9 in a

16:9 frame

(16:9_14)

16:9 Image shoot and protect 4:3 in a

16:9 frame

(16:9_15)

4:3 Full frame image in a 4:3 frame

(4:3_8)

16:9 Image shoot and protect 4:3 in a

16:9 frame

(16:9_15)

4.7 Using the TS Probing Option

Transport Stream (TS) probing is an option that can be purchased. The probing follows the TR 101 290 specifications
with some exceptions. Note that iControl is necessary in order to visualize the errors. No probing report is available
on the card’s menu.

There are no special settings other than activating the display of errors on iControl. The probing is performed on the
selected input only and PCR measurements are restricted to the selected program only.

Whenever the incoming TS bitrate fluctuates, PCR accuracy errors might be generated. This is

because the PCR accuracy measurement requires a constant bitrate to be valid. This does not

mean, however, that the stream is non-decodable.
The probing is performed only on the first 128 PIDs
PCR measurements are only done on selected program
Only ATSC EIT -0 to 3 are probed
The Unreferenced PID list is updated every 10s. Therefore, a PID that is no longer present in the

stream will disappear from the list after 10s.
PSIP probing is done on ATSC signals only

IRD-3111 | 49

GUIDE TO INSTALLATION AND OPERATION

5 Specifications

8VSB/QAM INPUT (IRD-3111-VQ only)

Quantity/connector: One input with F-type connector, 75 ohm
Tuning range: 51 MHz-858 MHz
Input level: -27 dBmV to +33 dBmV

QPSK/8PSK INPUT (IRD-3111-DVB-S2 only)
Quantity/connector: One input with F-type connector, 75 ohm

Demodulation: DVB-S (QPSK) ETSI EN 300 421
DVB-S2 (QPSK/8PSK) ETSI EN 302 307
Tuning range: 940 to 2150 MHz (in 0.5 MHz steps)
Symbol rate range: DVB-S: 2 to 45 MSymbols/s
DVB-S2: 10 to 30 MSymbols/s
Input level: -25 dBm to -65 dBm

ASI INPUT
Quantity/connector: One input with BNC connector

Standards: EN50083-9 (V2:3/98) DVB ASI
Data bit rate: DVB ASI: Up to 80 Mbps
Mode: Burst and byte supported
TS packet length: 188/204 byte packets
Return loss: >15 dB up to 270 MHz

ASI OUTPUT
Quantity/connector: One output with BNC connector

IP OUTPUT
Quantity/connector: One Gigabit Ethernet with RJ45 connector IEEE 802.3

Standards: Pro-MPEG Code of Practice 3 (CoP3)
Stream protocols: IP/UDP, RTP and IGMPV3

VIDEO DECODER
Compatibility standard: MPEG-2 compatible MP@ML

4:2:0, resolution up to 720x480i59.97, 720x5 76 i50
ATSC A/53
Dual Dolby Digital passthrough
Bit rate: Up to 25 Mbps

AUDIO DECODER
Standard: MPEG-1 layer-II

Dolby Digital (AC-3) audio 2.0
Optional Dolby Digital (AC-3) audio 5.1
AAC audio 2/0 and 1/0
Service/channels: As per ATSC A/54A

VIDEO OUTPUTS
SDI outputs: Two outputs with BNC connectors

Supported formats SMPTE-259-C (270 Mbps)
SD: 480i59.94, 576i50

50 | IRD-3111

GUIDE TO INSTALLATION AND OPERATION

With optional up-conversion: SMPTE 292M (1.4 85, 1.485/1.001 Gbps)
HD: SMPTE 274M: 1080i59.94, 1080i50
HD: SMPTE 296M: 720p59.94, 720p50

Embedded audio: SMPTE-299M, SMPTE-272M
Return loss: >15 dB up to 1.5 GHz
Jitter: <0.2 UI as per SMPTE-259M-C for SD output
<0.2 UI as per SMPTE-292M for HD output

MONITORING OUTPUTS
Analog video: NTSC 525/60, PAL (625/50) with one BNC connector

Analog audio: Unbalanced analog audio with two RCA connectors
VIDEO AND TS METADATA

CC data extraction: NTSC CC1 and CC2 as per EIA-608B
DTV CC: EIA-608B compliant bytes of EIA-708B
CC embedding: CC Embedding as per SMPTE-334M
Teletext: WST/EIA 300 706
Time Code: SMPTE 12M
PSIP: ATSC PSIP Standard A/65

REFERENCE INPUT
Reference input: One input with BNC connector

Signal: SMPTE 170M/SMPTE 318M/ITU 624-4/BUT 470-6 black burst
SMPTE 274M/SMPTE 296M tri-level synch (black)
Return loss: >35 dB up to 5.75 MHz

ELECTRICAL
Power: 25 W

IRD-3111 | 51

GUIDE TO INSTALLATION AND OPERATION

ANNEX 1 – Local Control Panel User Interface
IRD-3111

LEV 1 LEV 2 LEV 3 LEV 4 Settings

CARD STATUS DEVICE STATUS

NO REAR, WRONG REAR, SYS OK

(the items in this
part of the menu are
for information only,
and will cycle
through the display if
the user does not
use the control
panel buttons)

SELECTED INPUT

DVB-ASI1, DVB-ASI2*, ETHERNET*, TUNER*

TUNER STATUS

SIGNAL

CHANNEL:
FREQ: xxxxMHz
MOD: 8-VSB, e.g.
BER: X.XXE+XX
CHR: xxx dB

TS TYPE

NO SIGNAL, SIGNAL ERR, ATSC, DVB,
ISO13818-1

OUTPUT FORMAT

<format> (<aspect ratio>)

REFERENCE

STATUS*

REF MISMATCH

INTERNAL, EXTERNAL, URS
525, 625

SELECTED SERVICE

NUM xxxx(xxxxH)
Name Unknown, <SERVICE Name>
Video PID xxxxH
Video MPEG2/H.26 4
Aud1 PID xxxxH
Aud2 PID xxxxH

SERVICE FORMAT

Encrypted, <video format> (<aspect ratio>)

CLOSED CAPTION

DTVCC, DTVCC & NTSC, NOT PRESENT

MAIN AUDIO

NOT PRESENT, (UNSUPP.) <type> (xxCH)

SECONDARY AUDIO

NOT PRESENT, (UNSUPP.) <type> (xxCH)

CARD IP ADDR

xxx.xxx.xxx.xxx

ATSC PSIP
STATUS

(for cards with ATSC
tuner only)

(the items in this
part of the menu are
for information only,
and will cycle
through the display if
the user does not
use the control
panel buttons)

PSIP STATUS
CHANNEL NAME
CHANNEL NUMBER
MODULATION MODE
SERVICE TYPE
PSIP TSID
ATSC DATE
ATSC TIME

DVB SI STATUS
(for cards with DVB

S2 tuner only)
(the items in this

part of the menu are
for information only,

READY
CHANNEL NAME

CHANNEL NUMBER

MODULATION MODE

52 | IRD-3111

GUIDE TO INSTALLATION AND OPERATION

and will cycle

through the display if
the user does not
use the control
panel buttons)

SERVICE TYPE

USER PRESET

LOAD USER 1 ,USER 2, USER 3, USER 4, USER 5
SAVE USER 1 ,USER 2, USER 3, USER 4, USER 5

INPUT MENU

INPUT SELECTION

ASI/SSI1, ASI/SSI2, ETHERNET, AUTO
SELECT

AUTO SWITCH DEL.

0, 1, 2, 3,4, 5, … 15 sec

SERV SELECT MODE

MANUAL, AUTO
SERVICE SELECT <service name> (PGM xxxxx)
CLOCK RECOVERY

OFF, FROM PCR

RF MENU

SELECT CHANNEL
AVAIL. CHANNELS
AUTO-SCAN CHAN

ETHERNET MENU

NETWORK SETTINGS DEFAULT IP ADDR

xxx.xxx.xxx.xxx
DEFAULT MASK

xxx.xxx.xxx.xxx
DEFAULT GATEWAY

xxx.xxx.xxx.xxx
PORT DIRECTION

DISABLED, INPUT*, OUTPUT
STREAM IP ADDR xxx.xxx.xxx.xxx
PORT NUMBER xxxx
ENCAPSULATION

RTP, UDP
FEC

OFF, D=x L=x

VIDEO MENU

OUTPUT ON ERROR

Freeze, Black
OUTPUT FORMAT

SD,1080i, 720p
(HD with optional up-c onv ers i on activated)

AFD MODE

AUTO, FORCED

DEFAULT AFD CODE numbers from 8 to 15

ASP. RATIO MODE

NONE, AUTO, STRETCH, CENTER CUT,

LETTERBOX, PILLAR BOX
DISP. ASP. RATIO 4:3, 16:9

VIDEO PROC Y OFFSET

CONTRAST
CHROMA GAIN
HUE OFFSET

AUDIO MENU

PRIMARY AUDIO SOURCE PID List of avail PID in hexadecimal & decimal

MODE DECODE, PASSTHROUGH

DOWNMIX MODE OFF*, LTRT, LORO
SECONDARY AUDIO SOURCE PID List of avail PID in hexadecimal & decimal

MODE DECODE, PASSTHROUGH

DOWNMIX MODE LTRT, LORO
DOLBY METADATA INSERTION OFF, ON
INSERTION LINE 9, 10, 11, …., 20

IRD-3111 | 53

GUIDE TO INSTALLATION AND OPERATION

MODE AUTO, GENERATION
DIALNORM OVERRIDE, PROGRAM 1, PROGRAM 2
GENERATOR PROGRAM 1, PROGRAM 2
EMBEDDING ACTIVATION ON, OFF
AES 1 Source L1/R1/AC3 1, C1/Lfe1, Ls1/Rs1, L2/R2
AES 2 Source L1/R1/AC3 1, C1/Lfe1, Ls1/Rs1, L2/R2
AES 3 Source L1/R1/AC3 1, C1/Lfe1, Ls1/Rs1, L2/R2
AES 4 Source L1/R1/AC3 1, C1/ Lfe 1, Ls1/Rs1, L2/R2
AV SYNC QUALITY NORMAL, BEST
AV SYNC OFFSET 0, 1, 2, 3, ……, 100 ms
AC3 COMPRESSION LINE MODE, RF MODE
AC3 DRC OFF, ON

ANALOG AUDIO SRC REFERENCE SYNC WITH CVBS, SYNC WITH SDI

LEFT CHANNEL

LEFT, RIGHT, CENTER, LFE, SURR LEFT,
SURR RIGHT, AUX LEFT, AUX RIGHT

RIGHT CHANNEL

LEFT, RIGHT, CENTER, LFE, SURR LEFT,
SURR RIGHT, AUX LEFT, AUX RIGHT

OUTPUT MENU

SD SDI OUTPUT

CLOSED CAP EMBED OFF, ON
TELETEXT OFF, AUTO
TIMECODE INSERTION OFF, ON

DVITC LINE 10,11, …, 14, ….,, 20

6,7, 8 …, 14, ….,, 21

DVITC
DUPLICATE

OFF, ON

OFFSET -10, -9,….. 0, …. 9, 10 frames
VCHIP MODE PASS, REPLACE

AFD/VLI/WSS INS. OFF, AFD, VLI/WSS

AFD LINE 9, …., 20
CVBS OUTPUT NTSC SETUP OFF, ON
CVBS BLANKING

NARROW, WIDE
CVBS LUMA RANGE NORMAL, SUPER B&W
CVBS ASP. RATIO 4:3, 16:9

REFERENCE
MENU*

SOURCE

INPUT,EXTERNAL,URS-525,URS-

625,AUTO_SEL
DELAY FRAME

0, 1, 2, 3

VERTICAL

0, …200
HORIZONTAL specified in ns or us up to one complete line

PROXY CONFIG

PROXY SIZE S MA LL, ME DIUM
PROXY AUDIO CTRL ON, OFF

PROXY AUDIO L CH

LEFT, RIGHT, CENTER, LFE, SURR LEFT,

SURR RIGHT, AUX LEFT, AUX RIGHT

PROXY AUDIO R CH

LEFT, RIGHT, CENTER, LFE, SURR LEFT,

SURR RIGHT, AUX LEFT, AUX RIGHT

54 | IRD-3111

GUIDE TO INSTALLATION AND OPERATION

TEST

OFF, ON

ALARM MENU

NO TS INPUT ALARM LEVEL

OFF, YELLOW, RED, FLASH RED

ALARM REPORT

NONE, GPI

NO VIDEO SIGNAL ALARM LEVEL

OFF, YELLOW, RED, FLASH RED

ALARM REPORT

NONE, GPI

NO AUDIO SIGNAL ALARM LEVEL

OFF, YELLOW, RED, FLASH RED

ALARM REPORT

NONE, GPI

NO REFERENCE ALARM LEVEL

OFF, YELLOW, RED, FLASH RED

ALARM REPORT

NONE, GPI

REF MISMATCH ALARM LEVEL

OFF, YELLOW, RED, FLASH RED

ALARM REPORT

NONE, GPI

PROGRAM
SYNCHRO

ALARM LEVEL OFF, YELLOW, RED, FLASH RED

ALARM REPORT

NONE, GPI
TS LIMITS ALARM LEVEL OFF, YELLOW, RED, FLASH RED
ALARM REPORT NONE, GPI

VERSION

IRD-31x1: xxxB;xxx

First number is firmware, second is PCB. B =

BETA

SERIAL NUMBER

Gives the serial num b er of the car d

OPTIONS

FRAME SYNC ON (status ON or OFF is shown beside option name)
UP/DN./CROSS ON (status ON or OFF is shown beside option name)
ANALOG MON ON (status ON or OFF is shown beside option name)
TS PROBE ON (status ON or OFF is shown beside option name)
ETHERNET ON (status ON or OFF is shown beside option name)
DOLBY 5.1 ON (status ON or OFF is shown beside option name)

FACTORY
DEFAULT

RESTORE

IRD-3111 | 55

GUIDE TO INSTALLATION AND OPERATION

ANNEX 2 – Dolby Metadata Profiles

The chart shows the metadata parameter values that are available as Profiles 1 through 4 in the Generator
Configuration section of the Metadata / Dolby tab in the Video Output iControl panel. See page 22.

Metadata Parameter

Profiles

1 2 3

4

Dialogue Level -27 -27 -27 -27
Channel Mode 3/2 3/1 2/0 1/0
LFE Channel On Off Off Off
DC Highpass Filter On On On On
Lowpass Filter On On On On
LFE Filter On Off Off Off
Surround Phase Shift On On Off Off
Surround 3 dB Attenuation On On Off Off
Line Mode Compression Film Light Film Light Film Standard Film Standard
RF Mode Compression Film Standard Film Standard Film Standard Speech
RF Overmodulation Protection Off Off Off On
Bitstream Mode Complete Main Complete Main Complete Main Complete Main
Center Mix Level -3 -3 -3 N/A
Surround Mix Level -3 -3 -3 N/A
Dolby Surround Mode Off Off On N/A
Copyright Bit Yes Yes Yes Yes
Original Bitstream Yes Yes Yes Yes
Audio Production Info No No No No
Mix Level 85 dB SPL 85 dB SPL 85 dB SPL 85 dB SPL
Room Type Not Indicated Not Indicated Not Indicated Not Indicated
Preferred Stereo Downmix Lt/Rt Lt/Rt Not Indicated Not Indicated
Lt/Rt Center Mix Level -3 -3 -3 -3
Lt/Rt Surround Mix Level -3 -3 -3 -3
Lo/Ro Center Mix Level -3 -3 -3 -3
Lo/Ro Surround Mix Level -3 -3 -3 -3
Dolby Surround EX Mode Not Indicated N/A -3 -3
Converter Type Standard Standard Standard Standard
Data Rate Not Indicated Not Indicated Not Indicated Not Indicated

56 | IRD-3111
