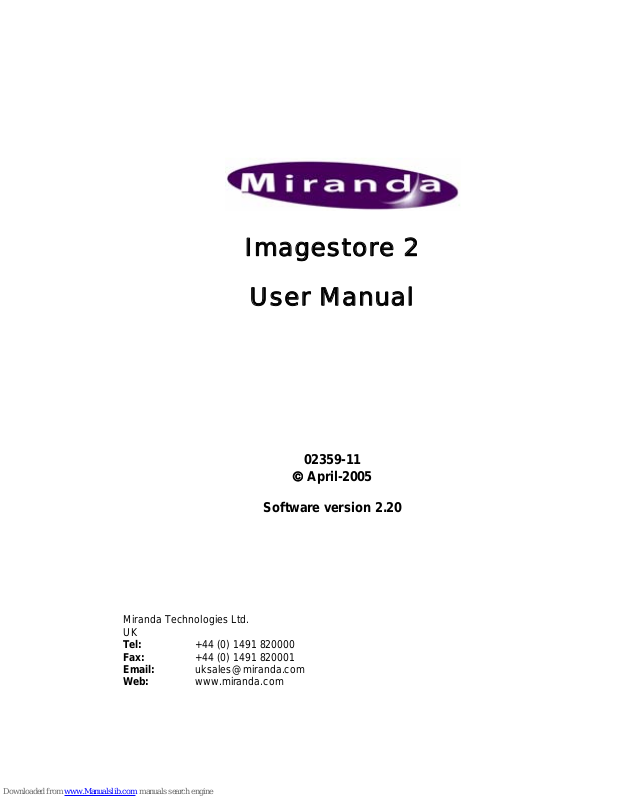

Miranda Imagestore 2 User Manual

Imagestore 2

User Manual

02359-11

© April-2005

Software version 2.20

Miranda Technologies Ltd.
UK

Tel: [phone]
Fax: [phone]
Email: [e-mail]
Web: www.miranda.com

Preface Imagestore User Manual

Page 2 Miranda Technologies Ltd

Copyright © 1999 - 2005 Miranda Tec hn olo gi es Ltd . Al l ri ght s are reserved
and, under the copyright laws, this manual may not be reproduced in any
form, in whole or in part, without the prior written consent of Miranda
Technologies Ltd.

Printed in the UK.

Imagestore User Manual Preface

Miranda Technologies Ltd Page 3

Preface

Warranty

Miranda Technologies Ltd offer a 24 months free parts and labour warranty
on Oxtel Series equipment from the date of the initial invoice, providing
there is no evidence of negligence, abuse or failure to reasonably follow
instructions given by the Company for its proper use.

During the warranty period, Miranda Technologies Ltd will replace or repair
at its cost, Oxtel Series equipment returned to the factory, carriage and duty
paid and insured by the sender.

Before returning any item for warranty repair, a valid returns authorisation
must be granted by Miranda Technologies Ltd.

All repaired goods will be delivered (as instructed) carriage and duty paid
and insured by the sender.

Any warranty, over and above that offered here, is the responsibility of the
local Miranda Sales Office or appointed Distributor.

Contact Information

For service, repair and warranty information and for returns au thorisation
contact:

[e-mail]

Preface Imagestore User Manual

Page 4 Miranda Technologies Ltd

Important Safety Notices

Injury Precautions

1. Use a proper power cable.

To avoid fire hazard, use only an appropriate power cable which

complies with the following:

For mains connection use only a 10amp IEC inlet lead
meeting EN60320 or equivalent.

Connection to the mains supply should be via a circuit
breaker or by a mains plug which meets the relevant local standards in
the country of installation.

2. Avoid electrical overload.

To avoid electric shock or fire hazard, do not apply a voltage to a
terminal that is outside the range specified for that terminal.

3. Ground the product.

Imagestore is grounded through the grounding conductor of the power
cable. To avoid electrical shock, the grounding conductor must be
connected to earth ground. Before making connection s to the input or
output terminals of Imagestore, ensure that the product is properly
grounded.

4. Do not operate without the covers.

To avoid electrical shock or fire hazard, do not operate Imagestore with
its covers removed.

5. Use an appropriate fuse.

To avoid fire hazard, use only the fuse type and rating specified for
Imagestore.

6. Do not operate in wet/damp conditions.

To avoid electrical shock, do not operate Imagestore in wet or damp
conditions.

Imagestore User Manual Preface

Miranda Technologies Ltd Page 5

7. Do not operate in an explosive atmosphere.

To avoid injury or fire hazard, do not operate Imagestore in an explosive
atmosphere.

Product Damage Precautions

8. Provide proper ventilation.

To prevent Imagestore overheating, provide proper ventilation.

9. Do not operate with suspected failures.

If you suspect there is damage to Imagestore, have it inspected by
qualified service personnel.

Certifications and Compliances

Imagestore has CE approval and complies with the standards detailed in
EN50082-1:1992 and BS EN 60950:1992 Amd 3.

Imagestore is fully Year 2000 millennium compliant.

Preface Imagestore User Manual

Page 6 Miranda Technologies Ltd

Scope of the Manual

The manual includes all the information required to install, configure and
operate Imagestore. Details are provided of the operation of the unit using the
front panel and the Oxtel RCP remote control panel.

Serial automation control prot ocol used by Miranda Technologies Ltd
mixers, keyers and still-store products is outside the scope of this manual.
Details of this protocol and other related issues are found in the appropriate
documents shown in the following list.

Associated Publications

Easysound User Manual Part No. 01005
Media Conversion Softwa re Part No. 01033
Intelligent Panel Router User Manual Part No. 01034
Oxtel Series Automation Protocol Part No. 01035
Imagestore 3 / 2U User Manual Part No. 02954
Easysound Standalone User Manual Part No. 02349
Intuition User Manual Part No. 03457
Intuition Builder User Manual Part No. 03454

Electronic copies of the manuals are available from the Miranda website at:

http://www.miranda.com/library.en/Automation%20Protocol/

and

http://www.miranda.com/software.php

Imagestore User Manual Preface

Miranda Technologies Ltd Page 7

Symbols and Conventions

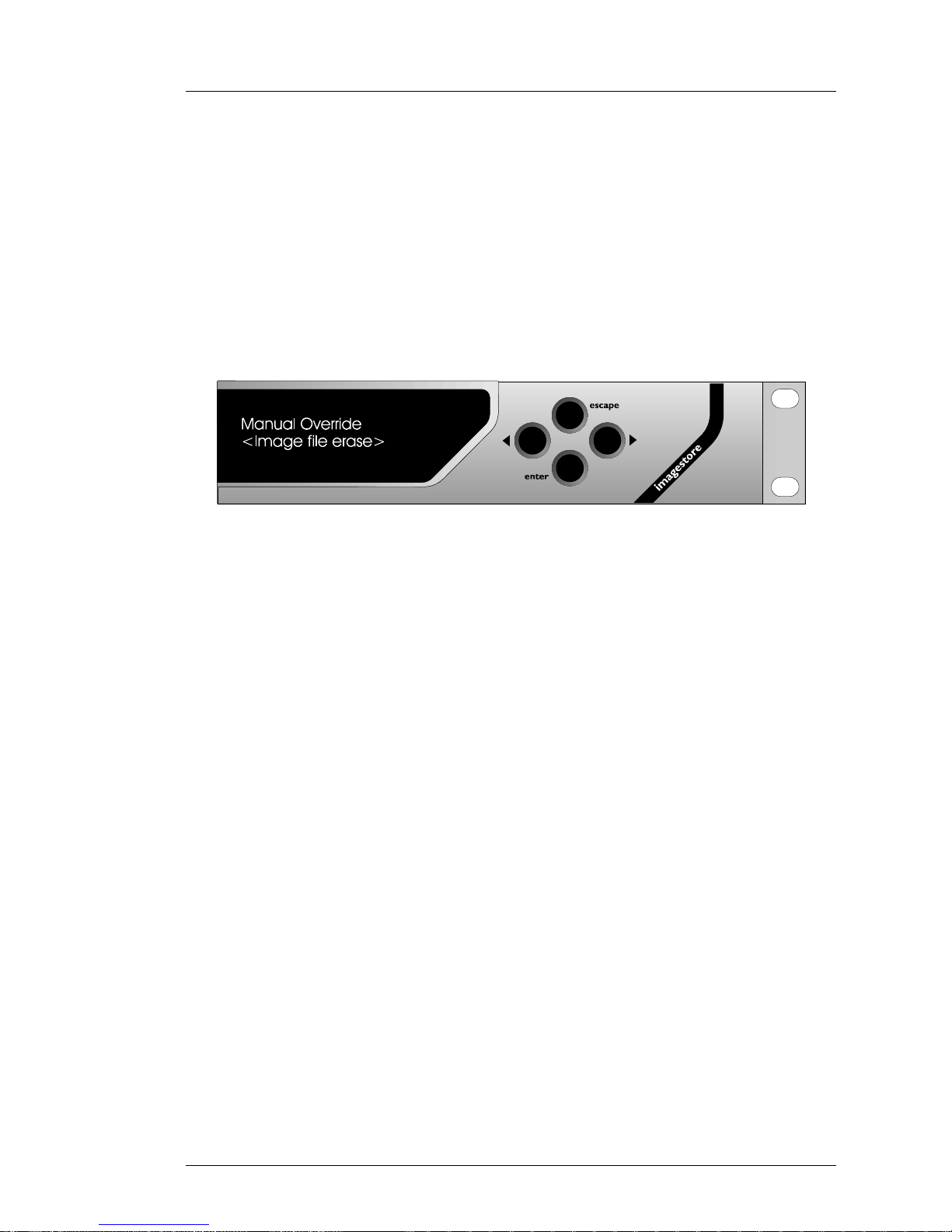

Front panel control of Imagestore is achieved using four keys in conjunction
with prompts from the display.

Where reference is made to a key the legend of the key will be shown in
lowercase italics (escape or enter) or by the icons W and X.

The two-line display provides a range of prompts in response to key presses.
Where reference is made to an actual display prompt this will be shown
italicised, e.g. Manual Override or image file erase.

Preface Imagestore User Manual

Page 8 Miranda Technologies Ltd

Contacts

For technical assistance, please contact your nearest Miranda Technical
Support centre:

Americas
Telephone (9:00am - 9:00pm EST)
[phone]
[e-mail]

Asia
Telephone (9:30am - 5:30pm JST)
[phone]
[e-mail]

Europe, Middle East, Africa, UK
Telephone (10:00am - 7:00pm CET)
[phone]
[e-mail]

France (only)
Telephone (9:00am - 6:00pm CET)
Telephone: [phone]
[e-mail]

www.miranda.com

Imagestore User Manual Preface

Miranda Technologies Ltd Page 9

Manual Structure

Overview

The overview provides an introduction to the Miranda Technologies Ltd
Imagestore for new users and describes the functio ns and features offered by
the product. It includes a simple technical concept of the unit and details the
optional modules that are available to enhance the un it's capabilities.

Front Panel Operations

This section describes how to operate Imagestore using the front-panel
controls of the Imagestore unit. Each manual function, feature and parameter
is fully described.

Oxtel Remote Control Panel Operations

This section provides an introduction to Miranda Technologies Ltd's
Oxtel-RCP for new users. It identifies the user controls and explains how
they are used. It describes the way the panel may be used to control more
than one Miranda Technologies Ltd unit through an Intelligent Panel Router
(IPR). The full range of remote control panel functions available, when used
with Imagestore, are detailed and a description is given of each feature.

AB Mixer

This section describes the AB Mixer integral AB video switcher which
provides cut and fade transitions with variable fade rates.

Squeezy DVE

This section describes Squeezy DVE which you can use to perform a range
of squeezes, pans, wipes and similar effects on full-motion SDI video in real
time.

Preface Imagestore User Manual

Page 10 Miranda Technologies Ltd

Easysound Audio

This section describes how to configure and operate the Easysound digital
audio mixer within Imagestore.

Emergency Alert System

This section describes the EAS functions.

Imagestore Intuition

This section describes how Imagestore is used in conjunction with Intuition.

Configuration

This section describes the setting up proce du res fo r Imagestore using the
front panel controls. It identifies the procedure for saving these settings to
floppy disk and recovering the setting from that disk.

Installation and Integration

This section contains details of the unit interconnections and interfaces. It
describes all the set-up procedures required for a successful installation
including reference source selection, internal timing and synchronisation set­up.

Support

The support section describes the procedures for using the return-to-base
warranty. It explains how to contact the Miranda Technologies Ltd technical
support team and outlines a series of preliminary unit checks that should be
made prior to calling.

Imagestore User Manual Preface

Miranda Technologies Ltd Page 11

Appendix 1 Product Specification

This appendix provides a summary of the specifications of Imagestore.

Appendix 2 Glossary

This appendix contains a guide to the terms and abbreviations found within
this user guide.

Appendix 3 Menu Trees

This appendix contains a series of diagrams representing the front panel
operation and configuratio n menu trees.

Appendix 4 Custom Configuration Notes

This appendix provides blank pages that may be used to record useful unit
configuration data.

Preface Imagestore User Manual

Page 12 Miranda Technologies Ltd

Imagestore User Manual Table of Contents

Miranda Technologies Ltd Page 13

Table of Contents

Preface 3

Warranty--------------------------------------------------------------------------- 3
Important Safety Notices ------------------------------------------------------ 4

Injury Precautions------------------------------------------------------------- 4
Product Damage Precautions---------------------------------------------- 5
Certifications and Compliances-------------------------------------------- 5

Scope of the Manual------------------------------------------------------------ 6

Associated Publications ----------------------------------------------------- 6

Symbols and Conventions ---------------------------------------------------- 7
Contacts --------------------------------------------------------------------------- 8
Manual Structure ---------------------------------------------------------------- 9

Overview ------------------------------------------------------------------------ 9
Front Panel Operations------------------------------------------------------ 9
Oxtel Remote Control Panel Operations -------------------------------- 9
AB Mixer------------------------------------------------------------------------- 9
Squeezy DVE ------------------------------------------------------------------ 9
Easysound Audio-------------------------------------------------------------10
Emergency Alert System---------------------------------------------------10
Imagestore Intuition----------------------------------------------------------10
Configuration------------------------------------------------------------------10
Installation and Integration------------------------------------------------- 10
Support -------------------------------------------------------------------------10
Appendix 1 Product Specification----------------------------------------11
Appendix 2 Glossary --------------------------------------------------------11
Appendix 3 Menu Trees----------------------------------------------------11
Appendix 4 Custom Configuration Notes-------------------------------11

Table of Contents 13

Table of Contents Imagestore User Manual

Page 14 Miranda Technologies Ltd

Overview 25

Introduction---------------------------------------------------------------------- 25
Applications----------------------------------------------------------------------25
Concept---------------------------------------------------------------------------26
Imagestore Solo----------------------------------------------------------------26

Swap-Preview Mode (IS2 - Solo) ---------------------------------------- 27
Cascade Mode (IS2 only)--------------------------------------------------28

Getting Started------------------------------------------------------------------ 29

Applying Power--------------------------------------------------------------- 29
Boot-Up Sequence ---------------------------------------------------------- 29

Facilities and Features-------------------------------------------------------- 30

Image Loading and Distribution ------------------------------------------30
Image Editing ----------------------------------------------------------------- 30

Transmission--------------------------------------------------------------------31

Animated Images ------------------------------------------------------------31
Polyphoto, Playlist and Image Clean-Up-------------------------------31
Clock Insertion----------------------------------------------------------------32
Squeezy Digital Video Effect (DVE)-------------------------------------32
AB Mixer ----------------------------------------------------------------------- 33
Embedded Digital Audio Mixer ------------------------------------------- 33
Digital Audio Storage--------------------------------------------------------33
Timing, Control and Automation------------------------------------------ 33
Remote Control Panels-----------------------------------------------------34
Mechanical Bypass----------------------------------------------------------34
Options -------------------------------------------------------------------------34

Checking Installed Options ---------------------------------------------35

Front Panel Operations 37

Controls---------------------------------------------------------------------------37

VFD Display-------------------------------------------------------------------37

VFD tallies (mixer/keyer states) --------------------------------------- 38
Escape and Enter Keys ----------------------------------------------------38
Left and Right Arrow Keys (W X)----------------------------------------38

Imagestore User Manual Table of Contents

Miranda Technologies Ltd Page 15

Common Mode Operations--------------------------------------------------38

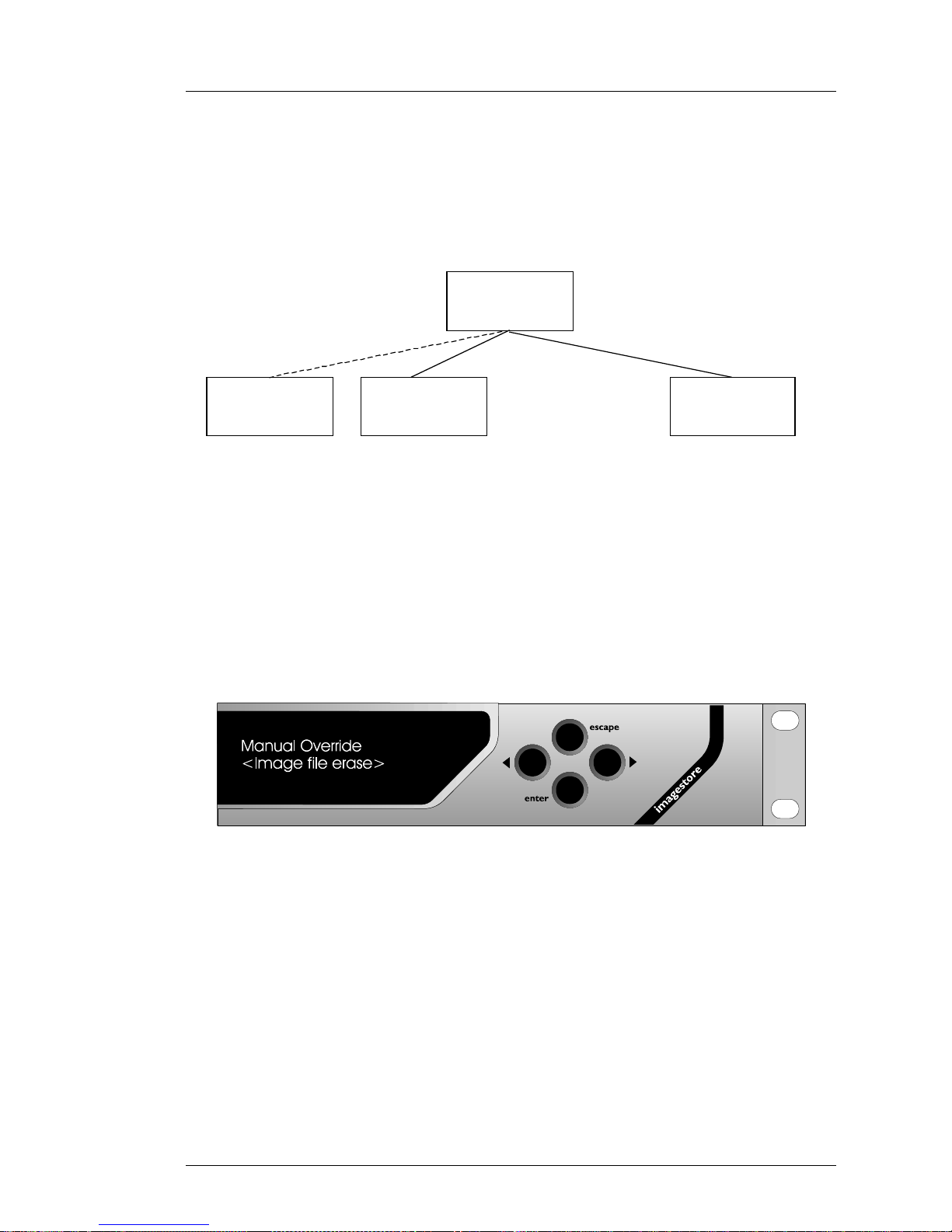

Erasing Image Files ---------------------------------------------------------39
Setting A/Bgnd, Fill and Key Inputs--------------------------------------40
Emergency to Air-------------------------------------------------------------41

Operating Modes---------------------------------------------------------------42
Swap/Preview Mode (IS2 - Solo)-------------------------------------------43
Program Operations-----------------------------------------------------------43

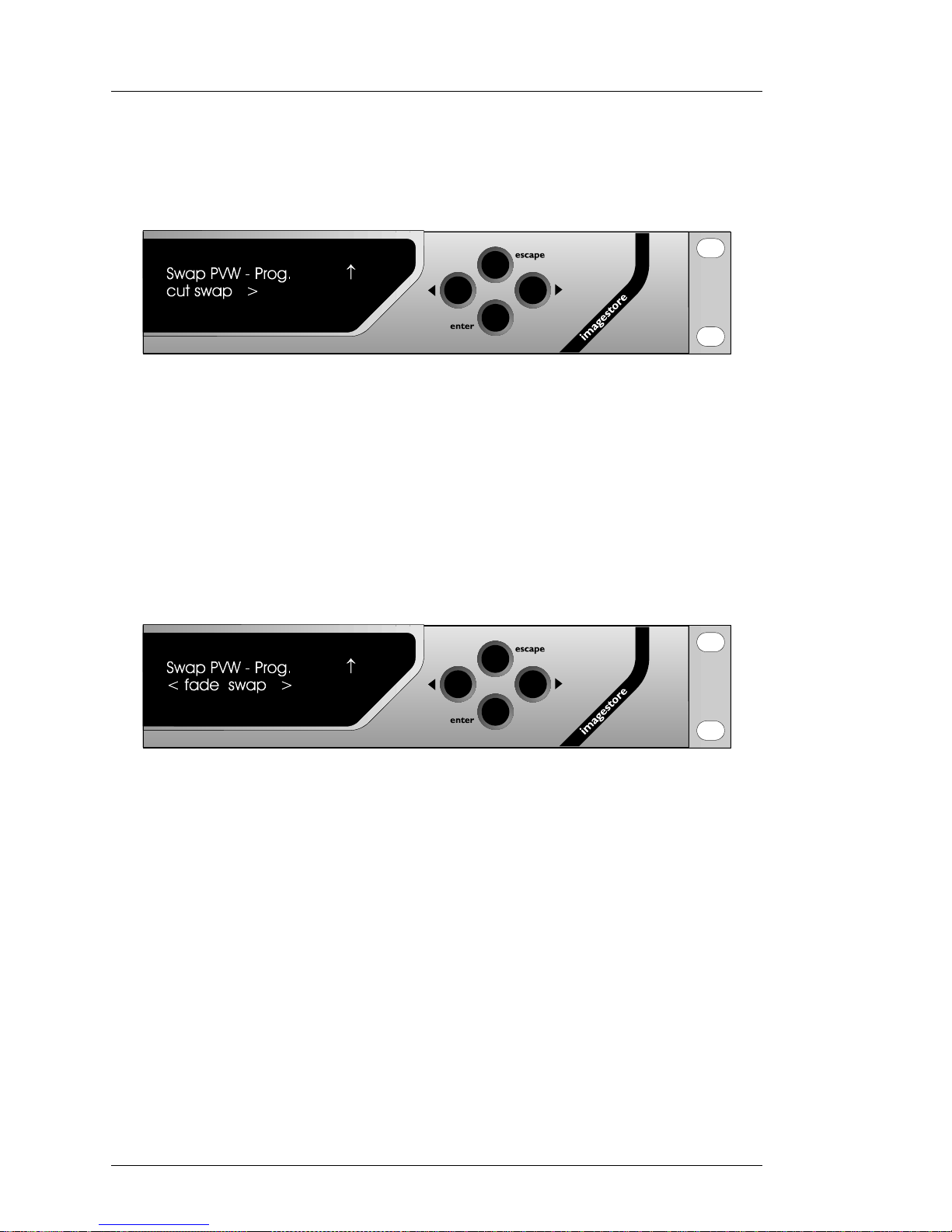

Cut Swapping Images-------------------------------------------------------43
Fade Swapping Images-----------------------------------------------------44
Cut Up/Down------------------------------------------------------------------44
Fade Up/Down----------------------------------------------------------------45

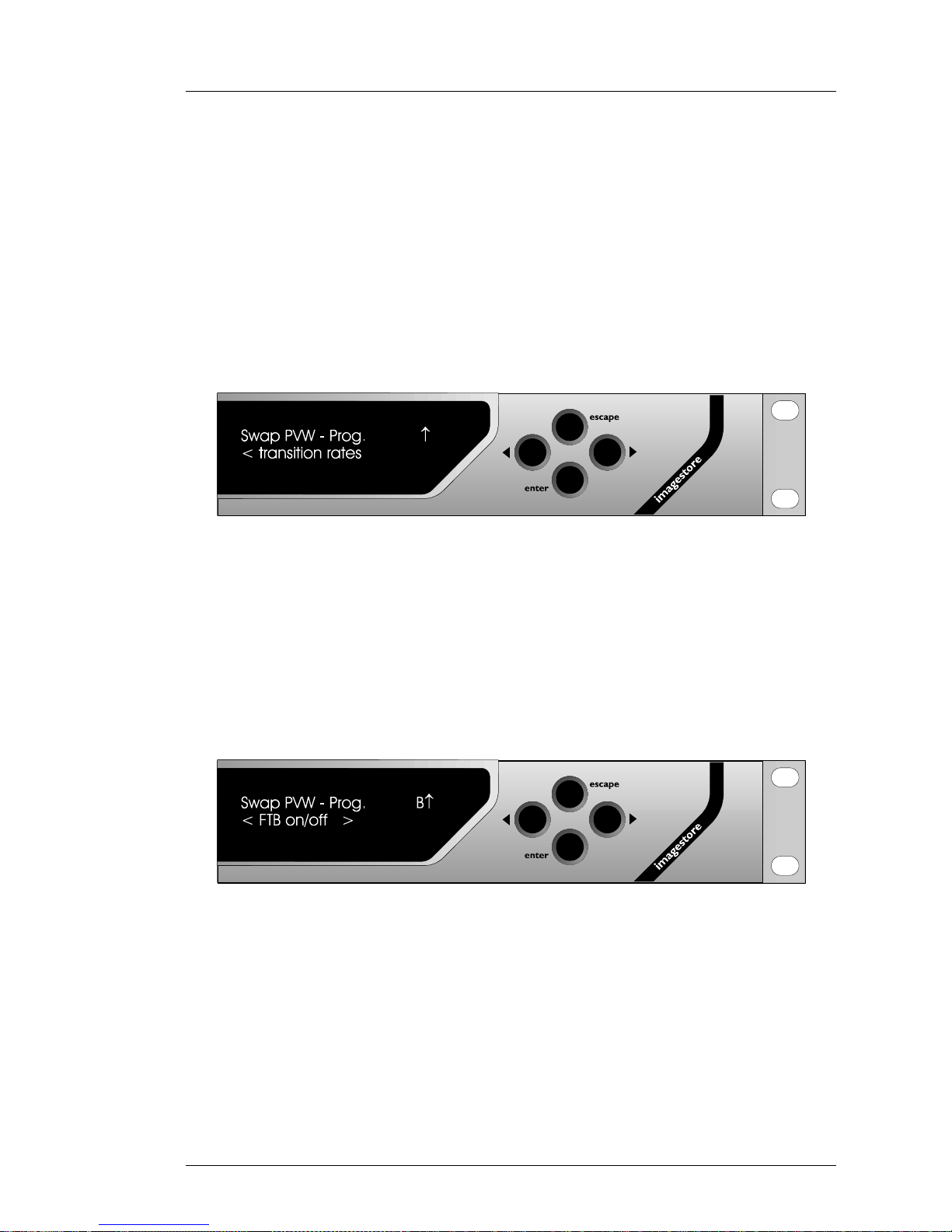

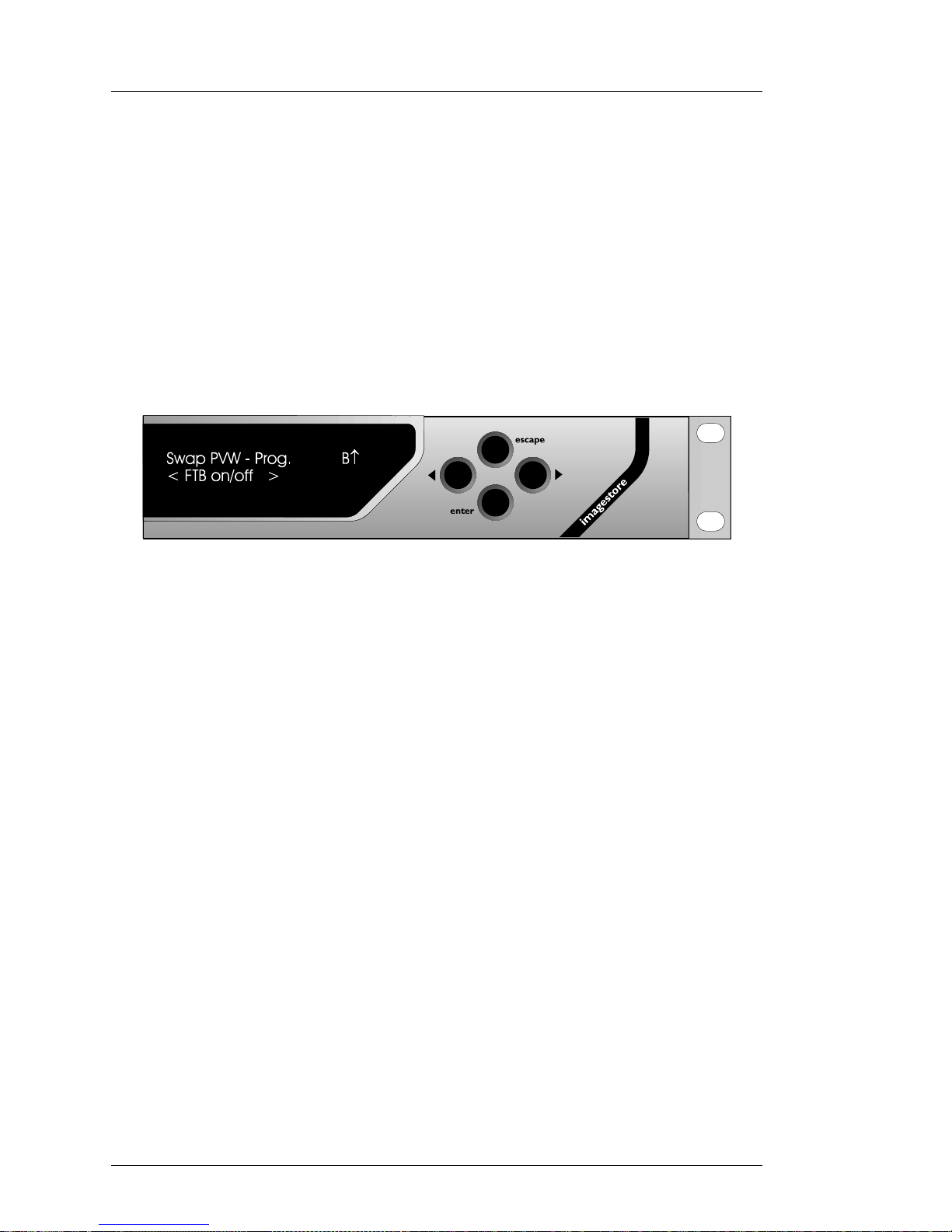

Fade to Black On/Off--------------------------------------------------------46
Fade Transition Rates-------------------------------------------------------47

Preview Operations------------------------------------------------------------48

Loading Images---------------------------------------------------------------48

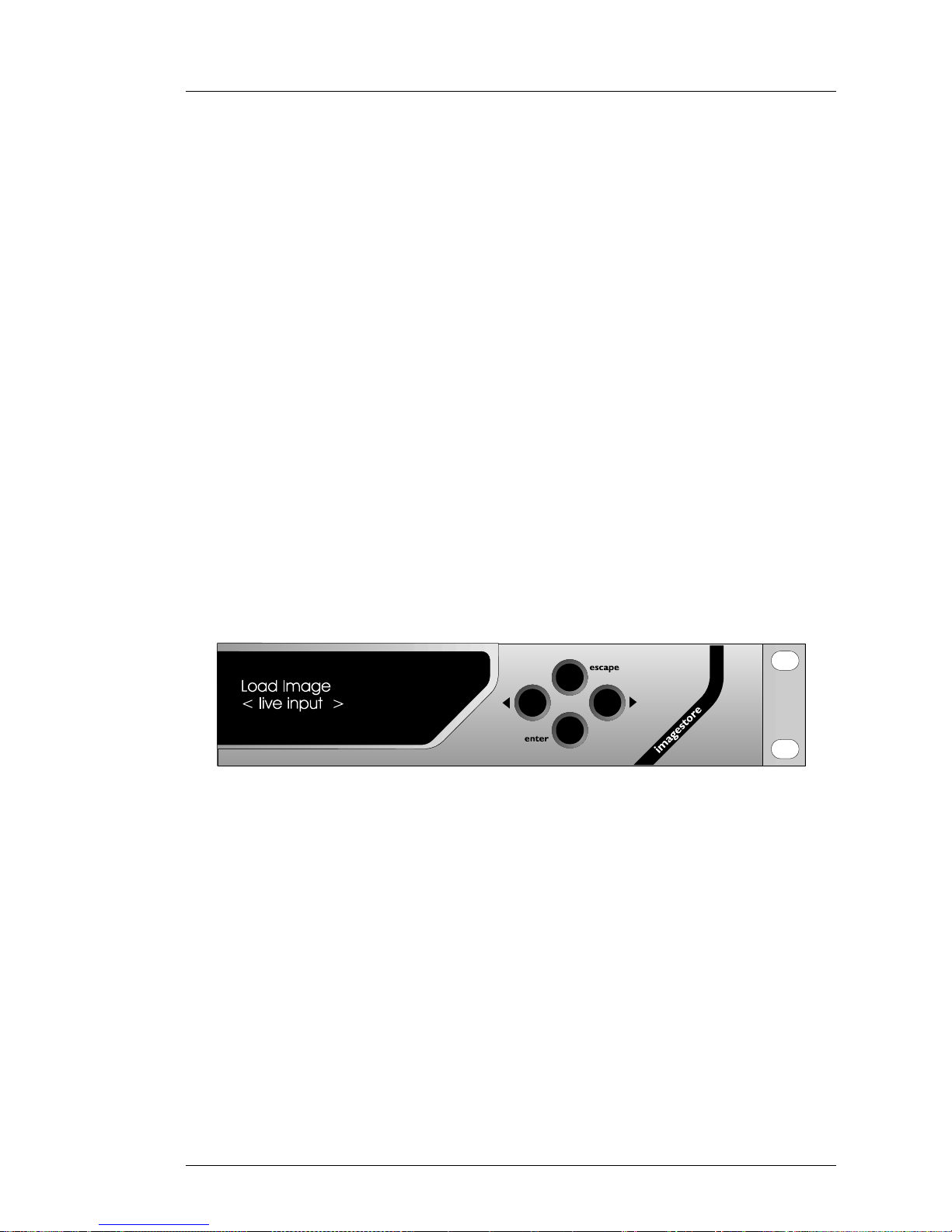

Live Input--------------------------------------------------------------------49
Loading from FDD---------------------------------------------------------49
Library Images -------------------------------------------------------------51

Image Load Mode------------------------------------------------------------51

Wipe Load-------------------------------------------------------------------51
Clean Load------------------------------------------------------------------51

Cut Load---------------------------------------------------------------------51

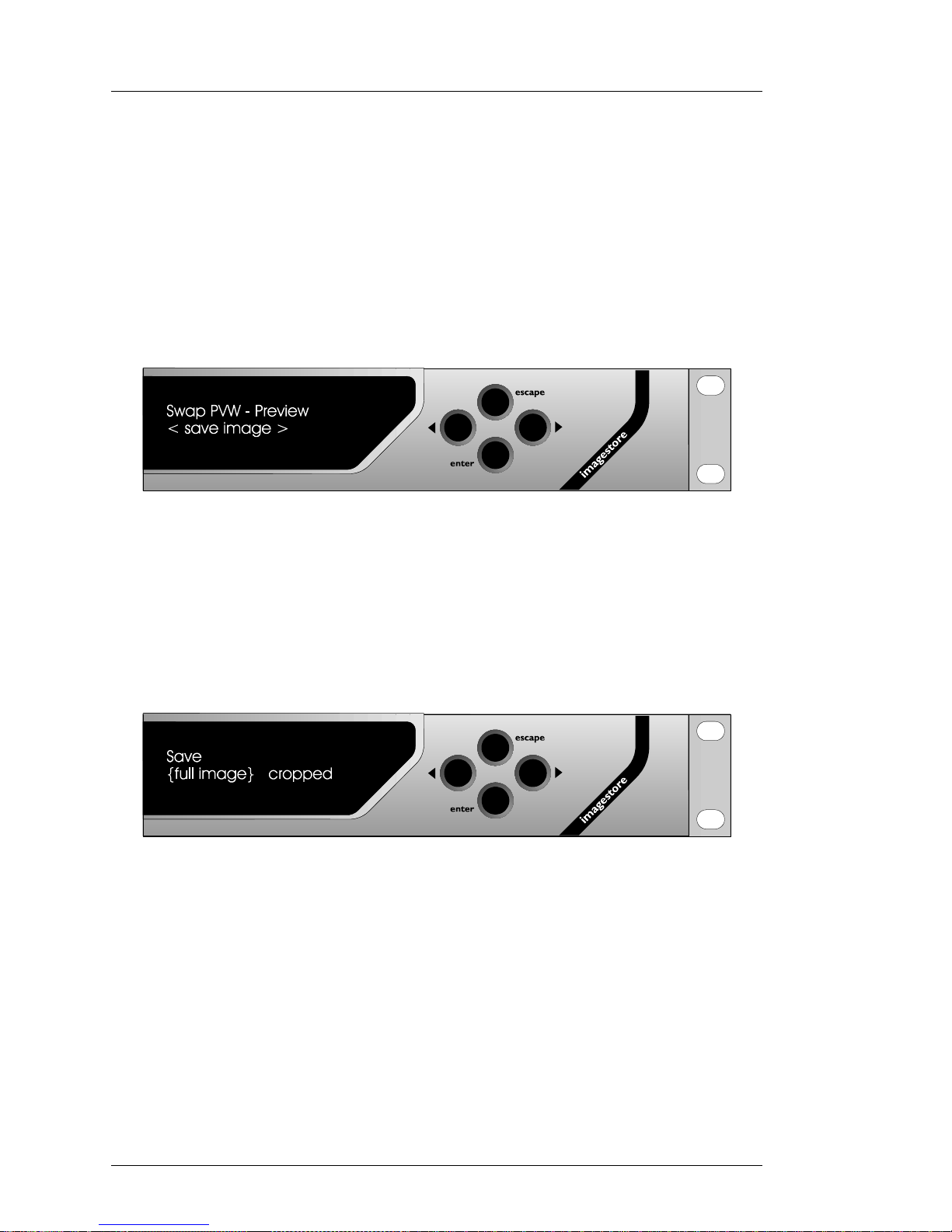

Saving Images----------------------------------------------------------------52

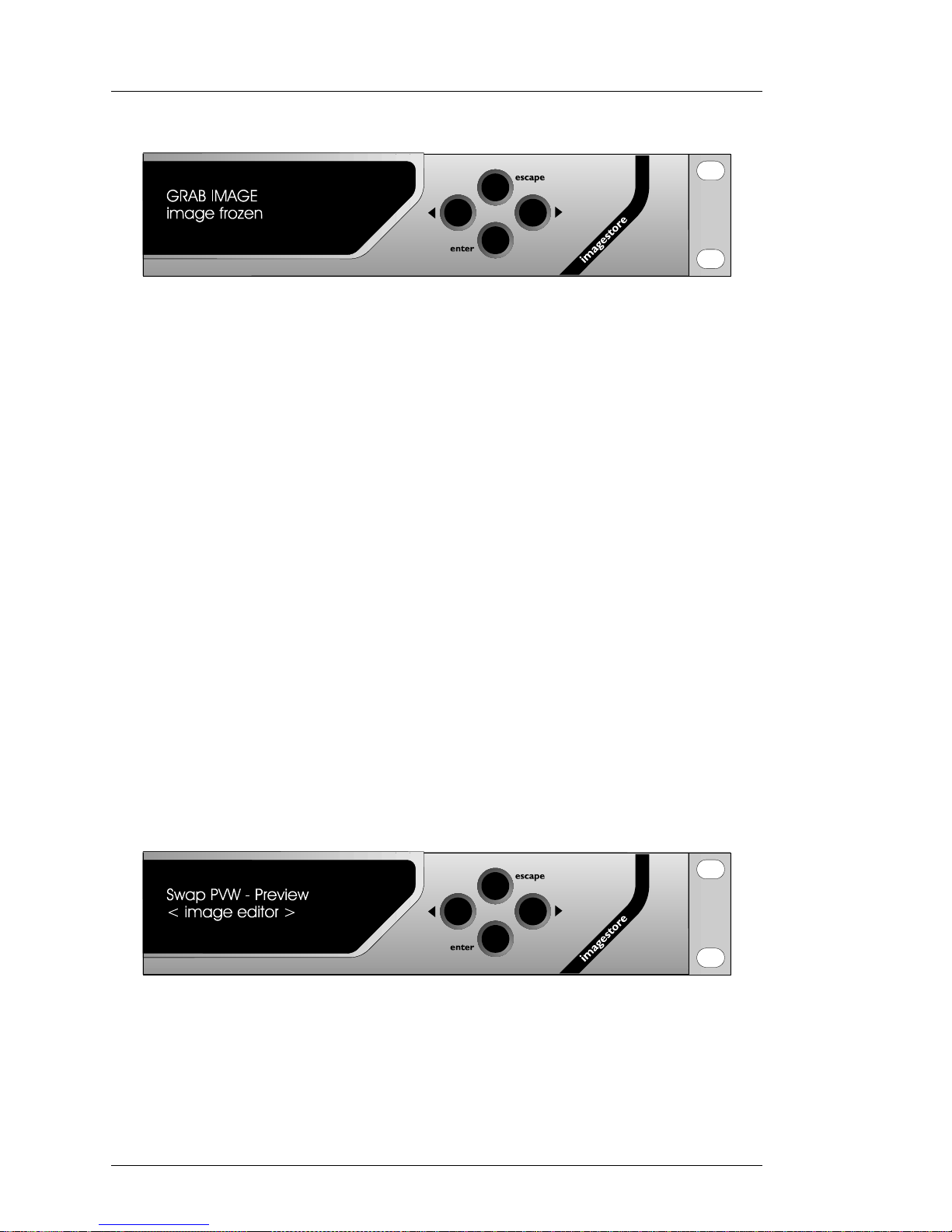

Grabbing Images-------------------------------------------------------------53
Editing Images----------------------------------------------------------------54

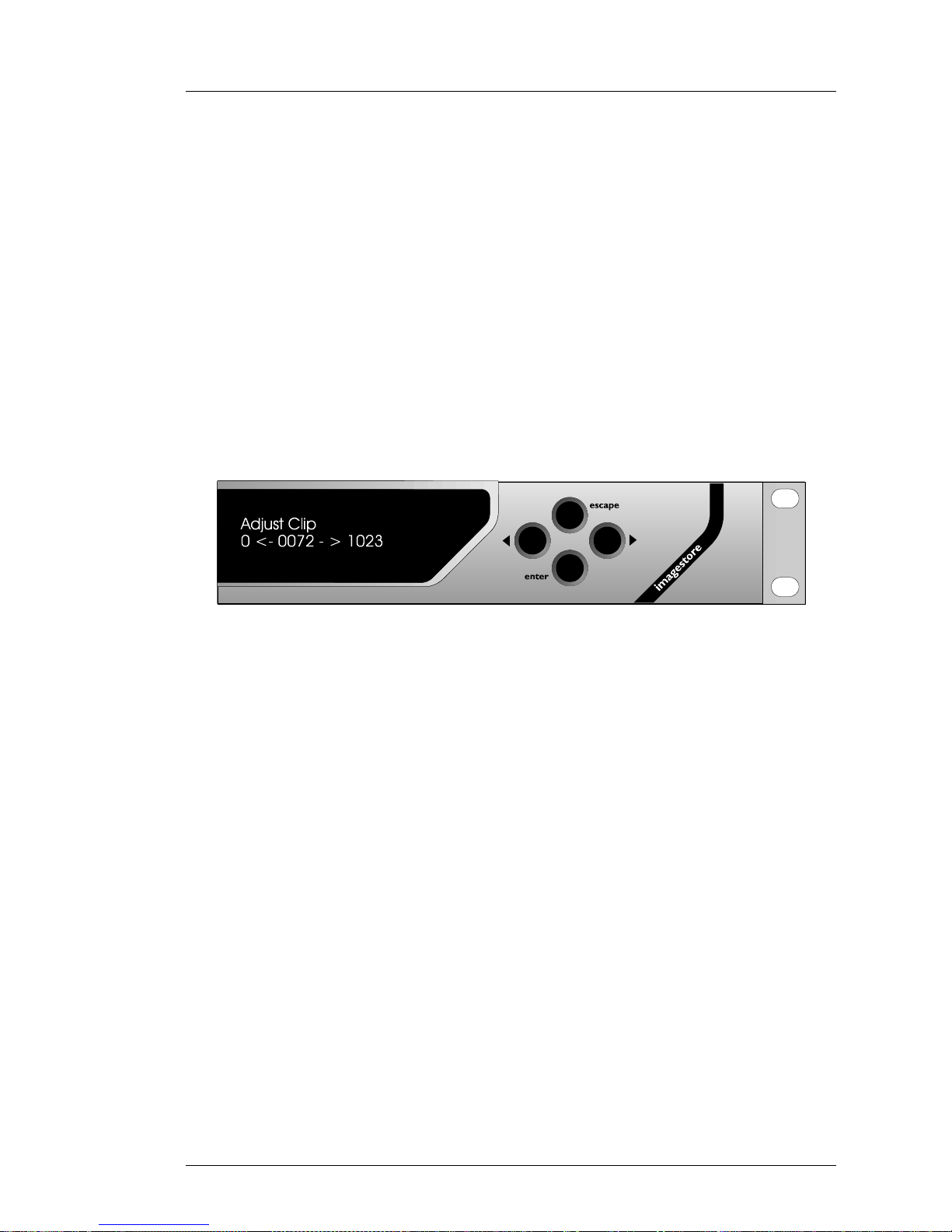

Adjusting Clip, Gain and Transparency------------------------------55

Set Position-----------------------------------------------------------------56

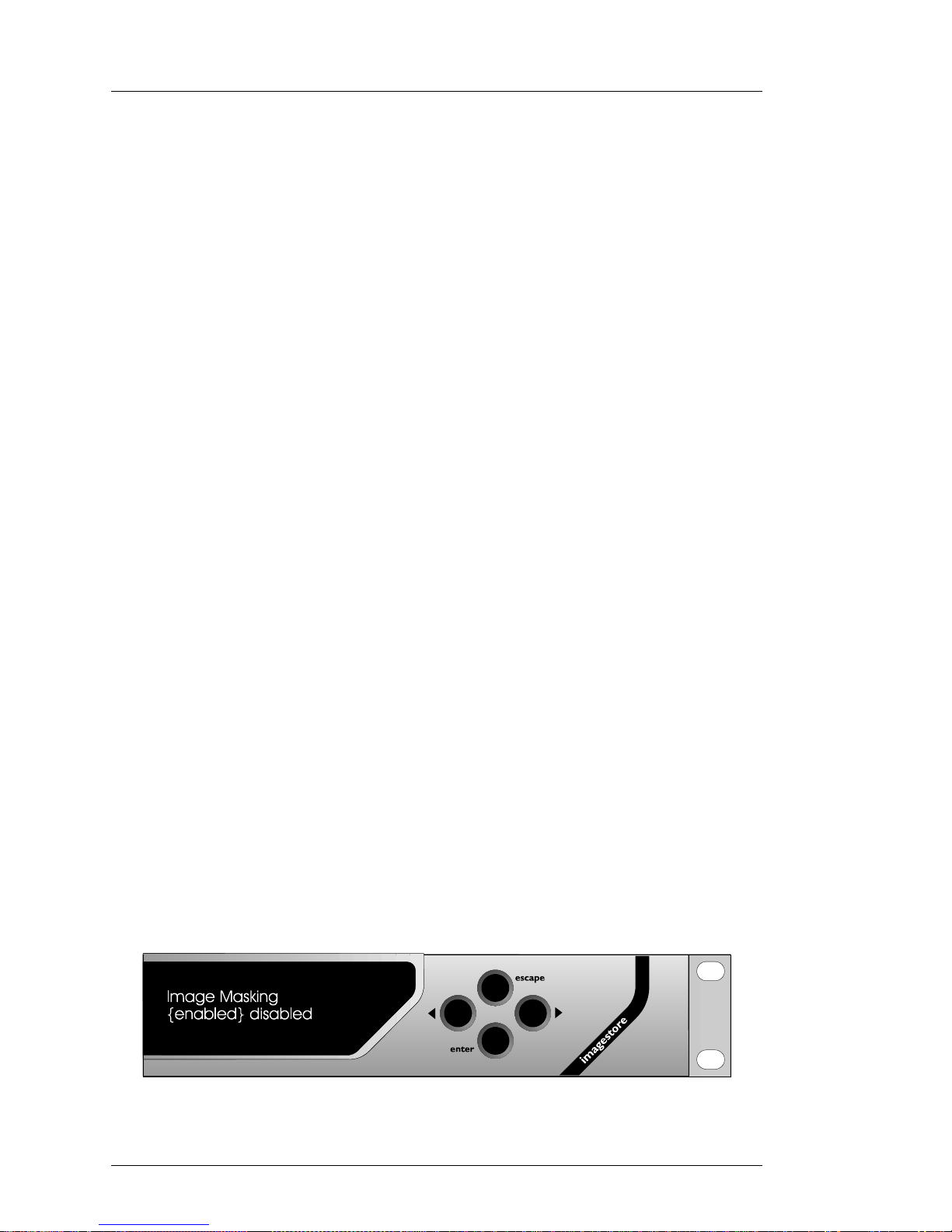

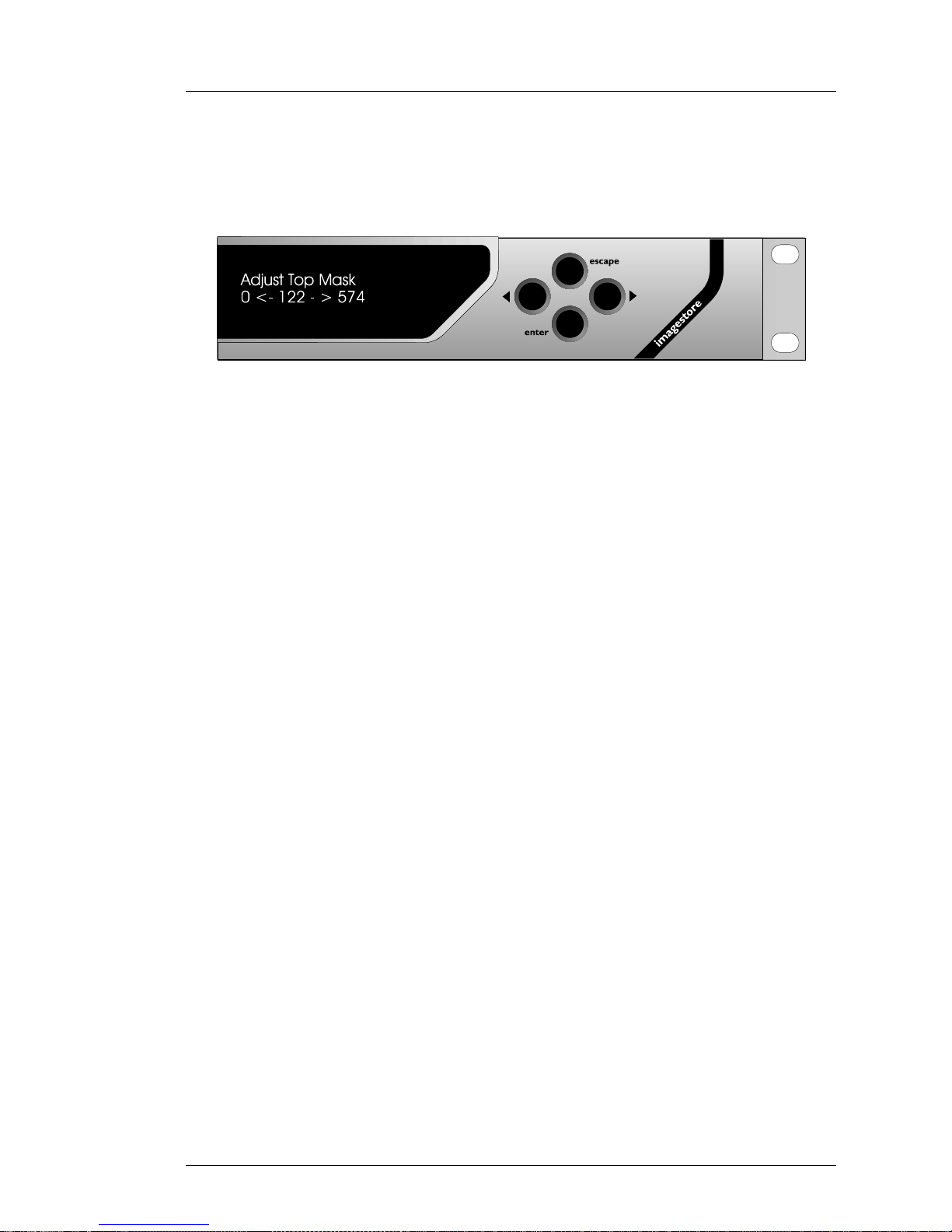

Masking Images -----------------------------------------------------------56

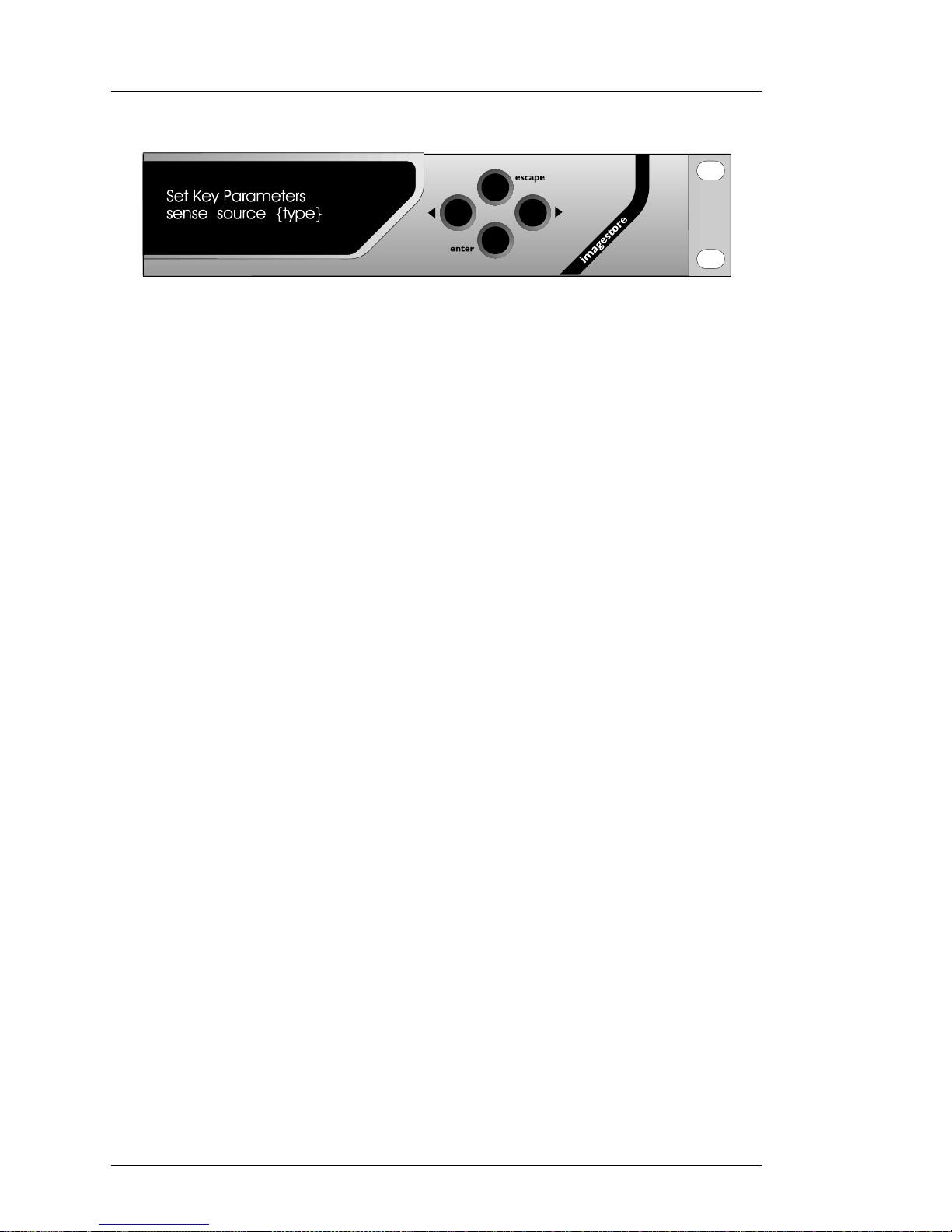

Key Parameters------------------------------------------------------------57
Setting the Preview Output ------------------------------------------------59

Cascade Mode Operations (IS2 Only) ------------------------------------61

Midground and Foreground Programme Operations----------------62

Cut Up/Down and Fade UP/Down ------------------------------------62

Cut Up/Down and Fade UP/Down ------------------------------------63

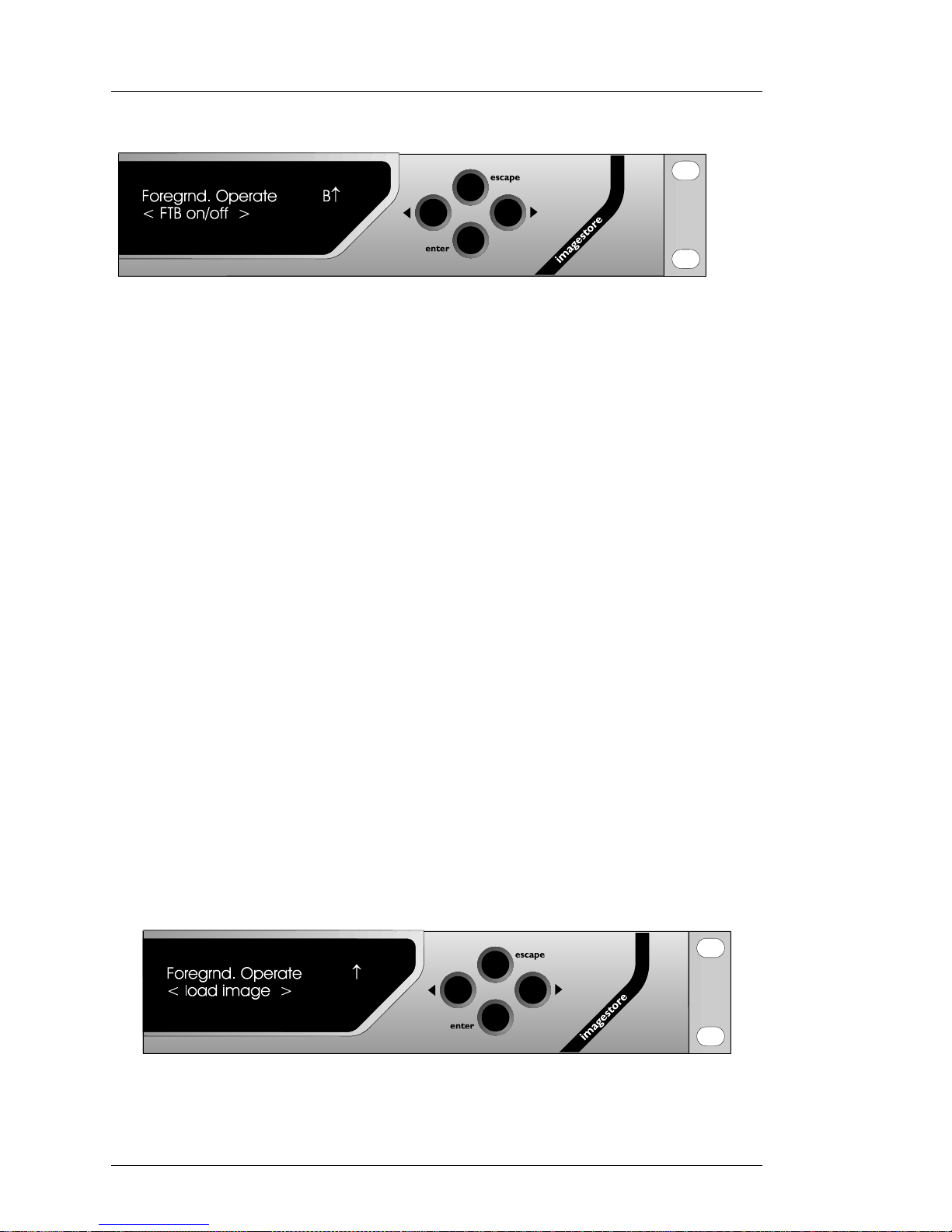

Switching Fade to Black On and Off----------------------------------63

Loading Images------------------------------------------------------------64

Table of Contents Imagestore User Manual

Page 16 Miranda Technologies Ltd

Image Load Mode--------------------------------------------------------- 66

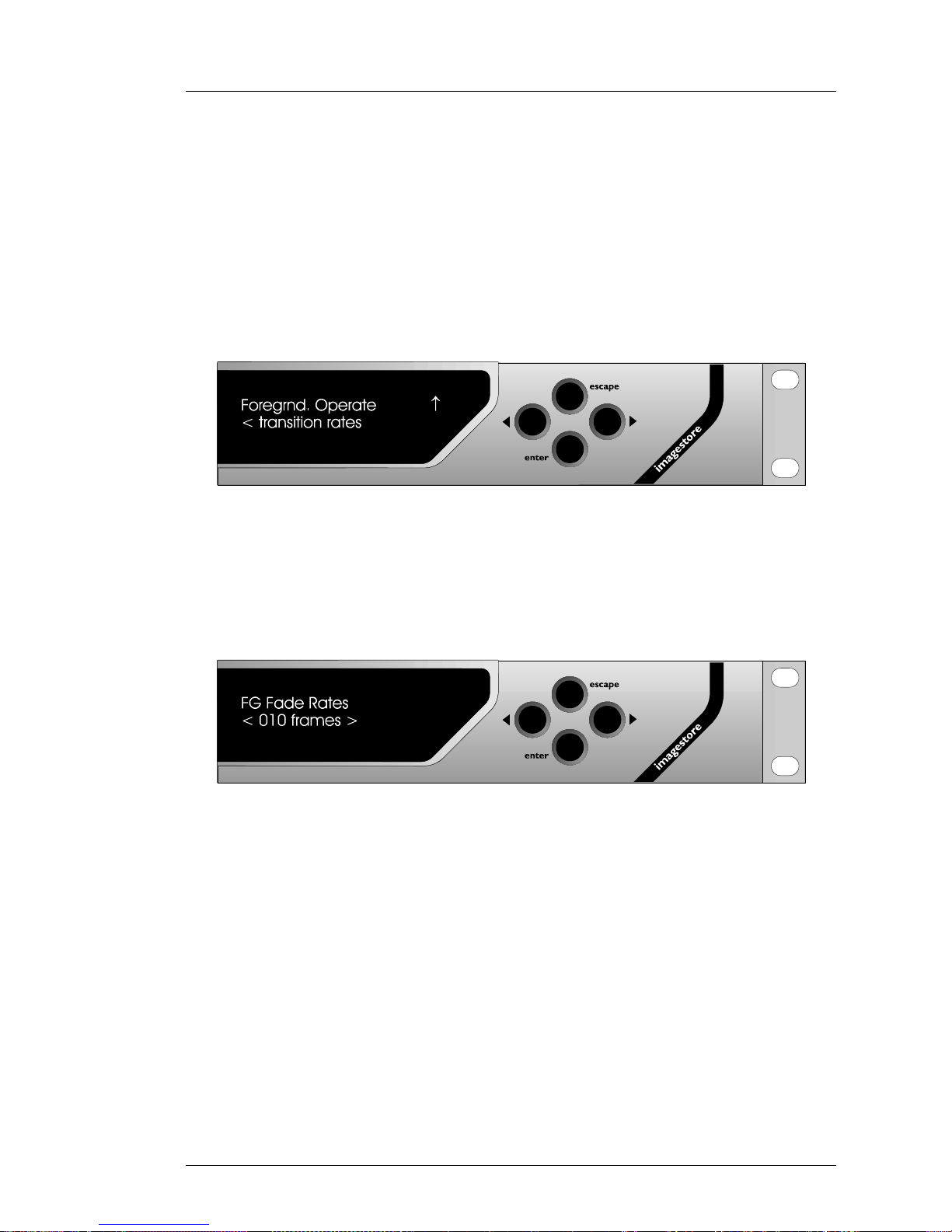

Setting Transition Rates-------------------------------------------------67

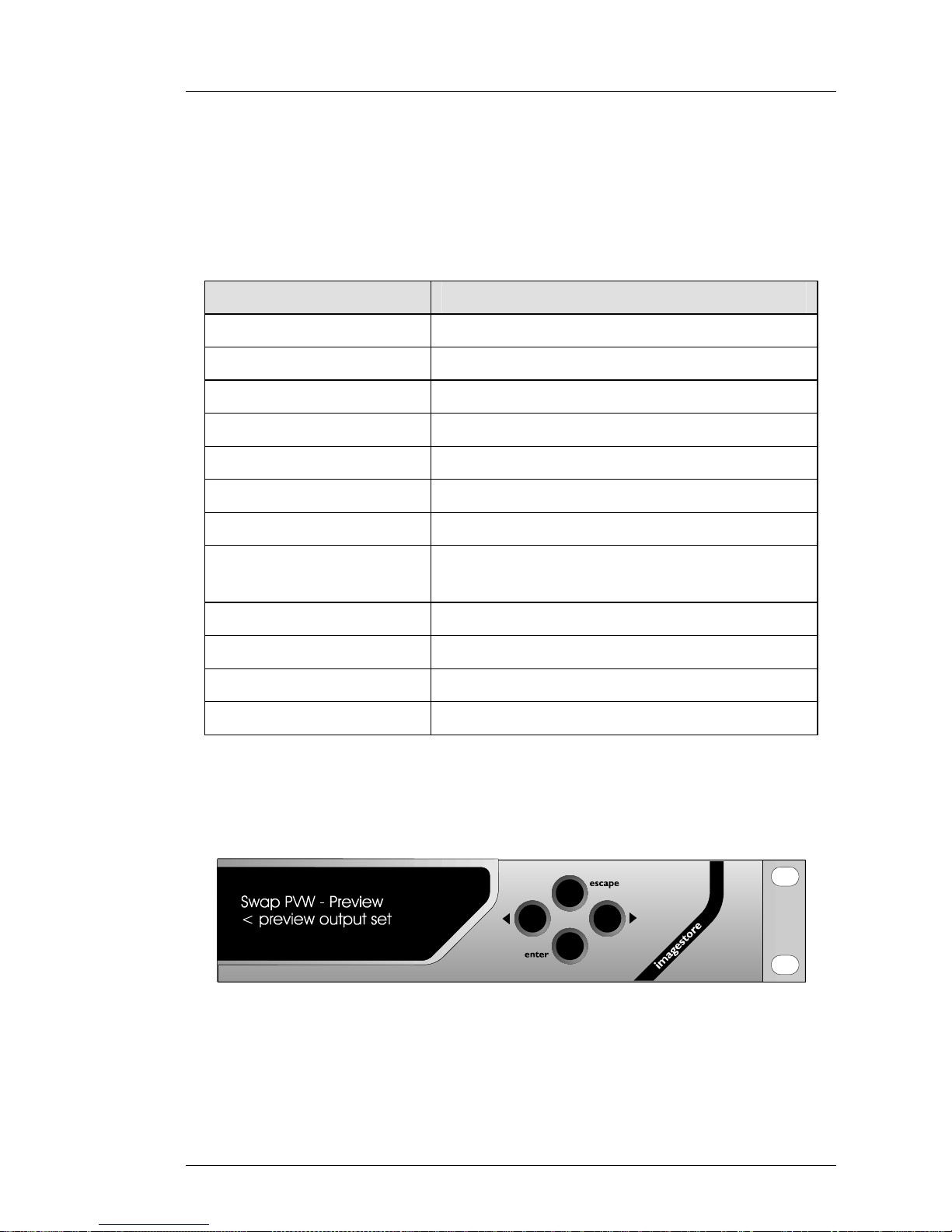

Setting the Preview Output ---------------------------------------------67
Editing Images-------------------------------------------------------------69

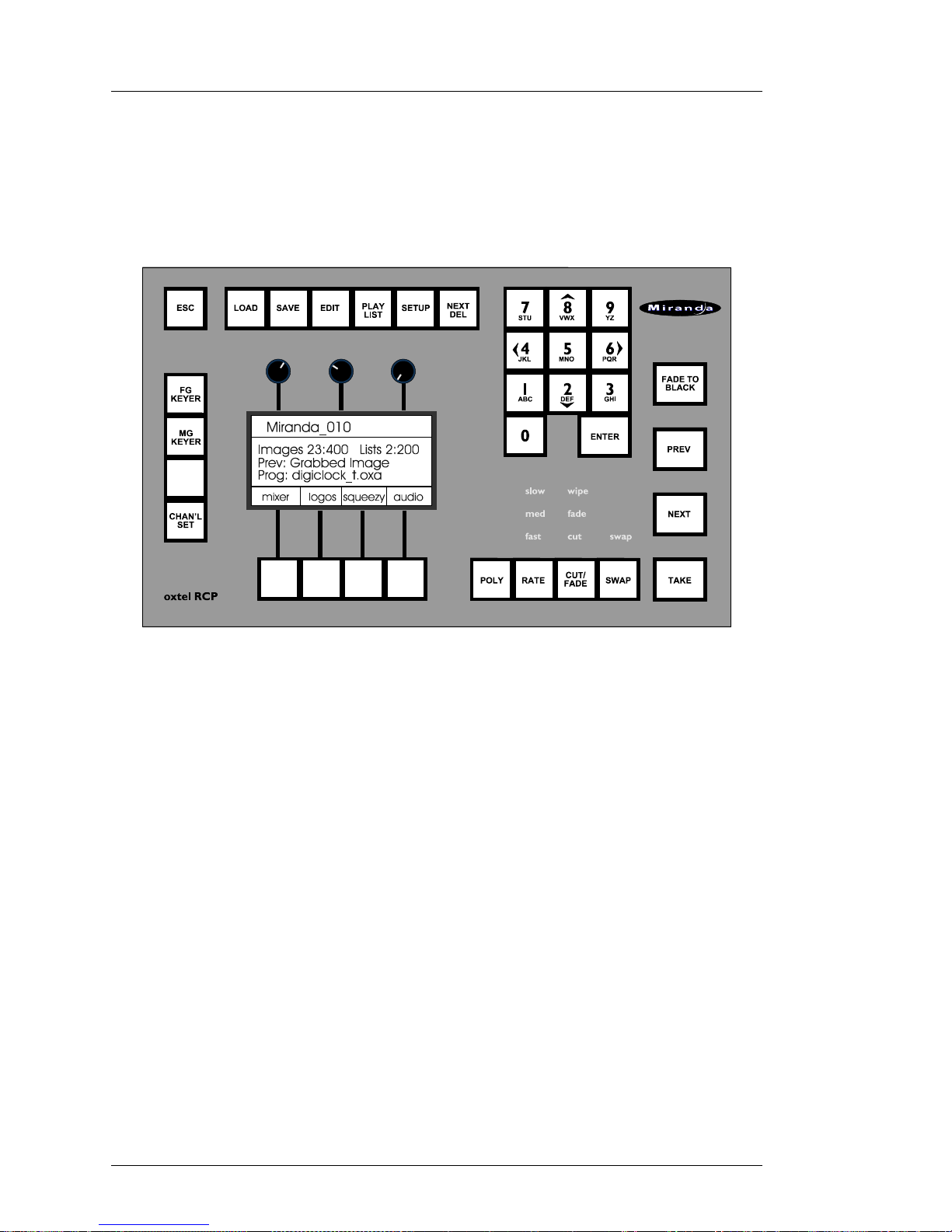

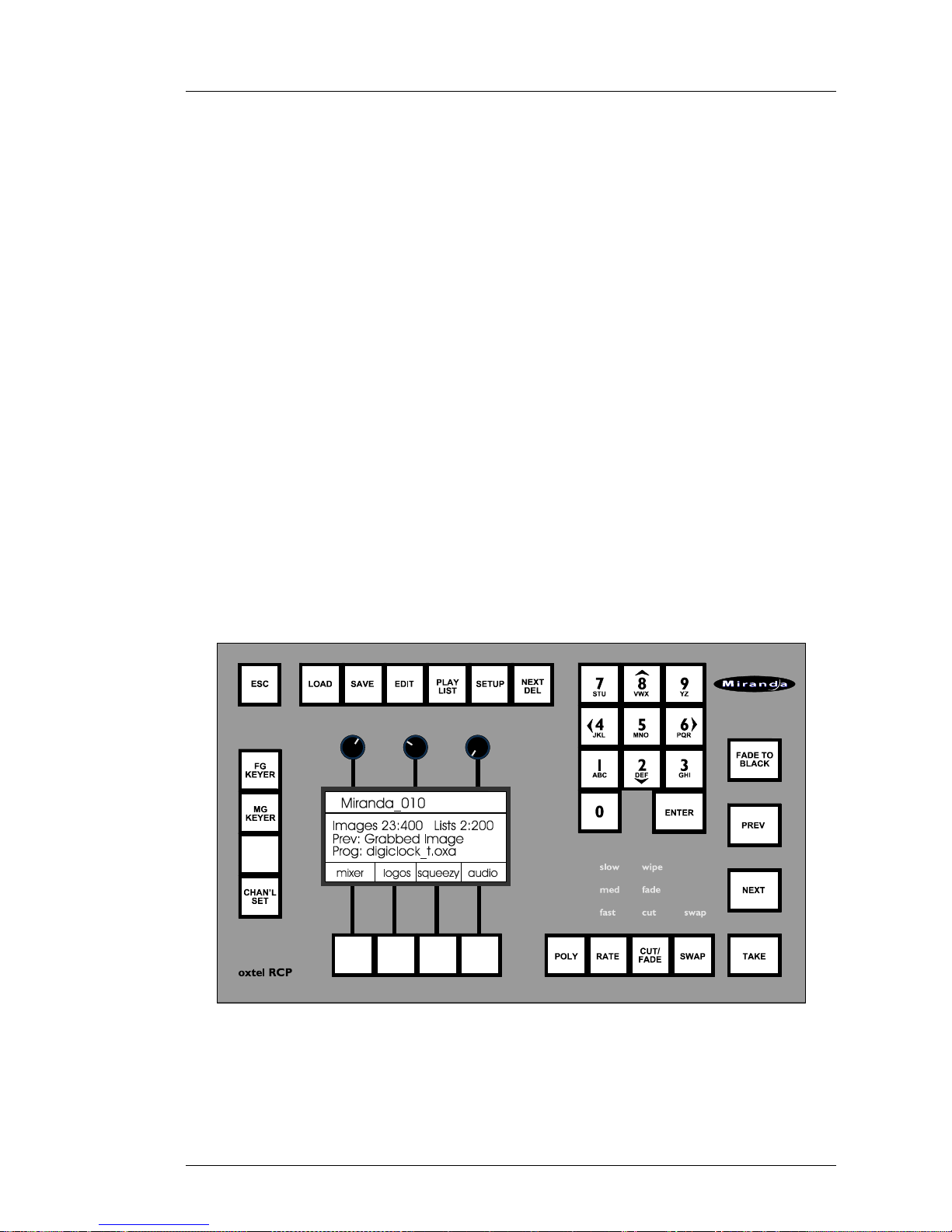

Oxtel RCP Operations 71

Introduction---------------------------------------------------------------------- 71

Controls ------------------------------------------------------------------------72
Display--------------------------------------------------------------------------72
Push Button Switches-------------------------------------------------------72

ESC Key---------------------------------------------------------------------73
Menu Keys------------------------------------------------------------------73
Load--------------------------------------------------------------------------73
Save--------------------------------------------------------------------------73
Edit----------------------------------------------------------------------------73
Play List ---------------------------------------------------------------------73
Setup-------------------------------------------------------------------------74
Next Del ---------------------------------------------------------------------74
Alphanumeric Keypad----------------------------------------------------74
Fade to Black -------------------------------------------------------------- 74
Previous (Prev)------------------------------------------------------------ 75
Next---------------------------------------------------------------------------75
Take and Swap------------------------------------------------------------75
Cut/Fade --------------------------------------------------------------------76
Rate --------------------------------------------------------------------------76
FG Keyer and MG Keyer------------------------------------------------76
Channel Set ----------------------------------------------------------------76
Soft-Keys--------------------------------------------------------------------76
Rotary Controls------------------------------------------------------------76

Swap/Preview Mode Operations------------------------------------------- 77

Transmission Control ------------------------------------------------------- 77

Program Fade to Black --------------------------------------------------77
Program Image "On Air/Off Air"----------------------------------------78
Exchanging Program and Preview Images------------------------- 78
Selecting Transition Speed---------------------------------------------78
Cut or Fade Selection----------------------------------------------------78

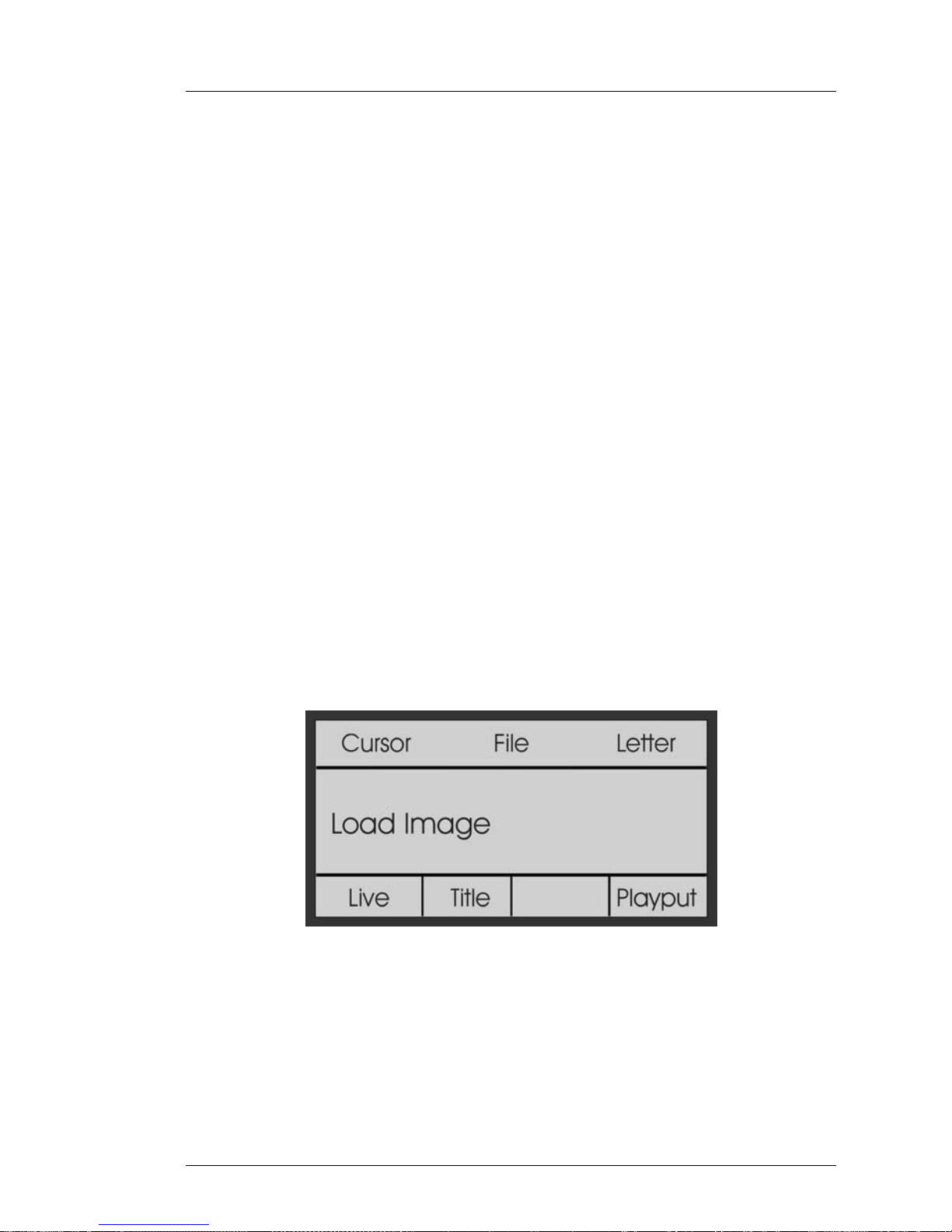

Loading Images -------------------------------------------------------------- 79

Imagestore User Manual Table of Contents

Miranda Technologies Ltd Page 17

Loading from the Image Library----------------------------------------79

Loading a Live Image ----------------------------------------------------80

Grabbing an Image -------------------------------------------------------80
Saving Images----------------------------------------------------------------81

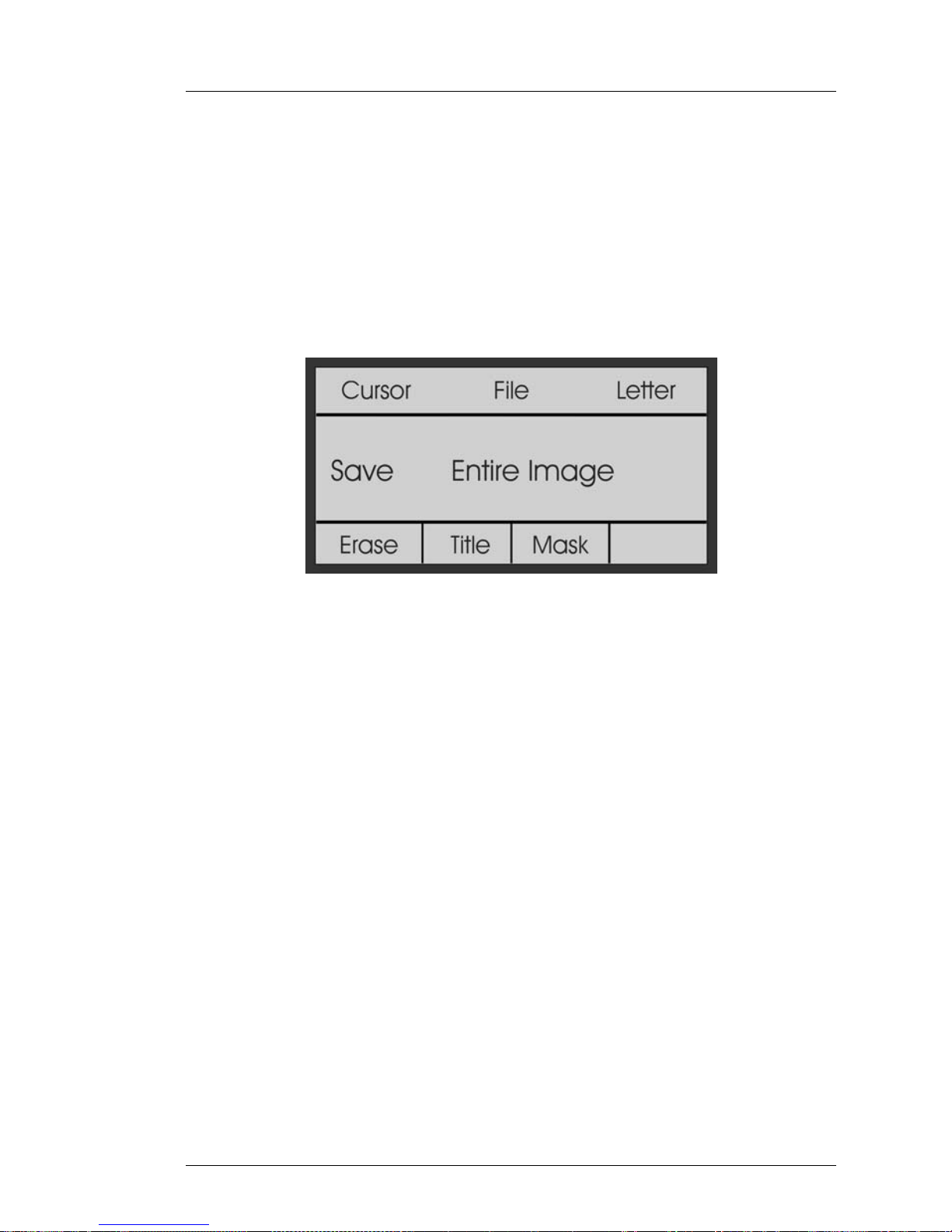

Saving Entire or Masked Images--------------------------------------81

Erasing a Library Image -------------------------------------------------81

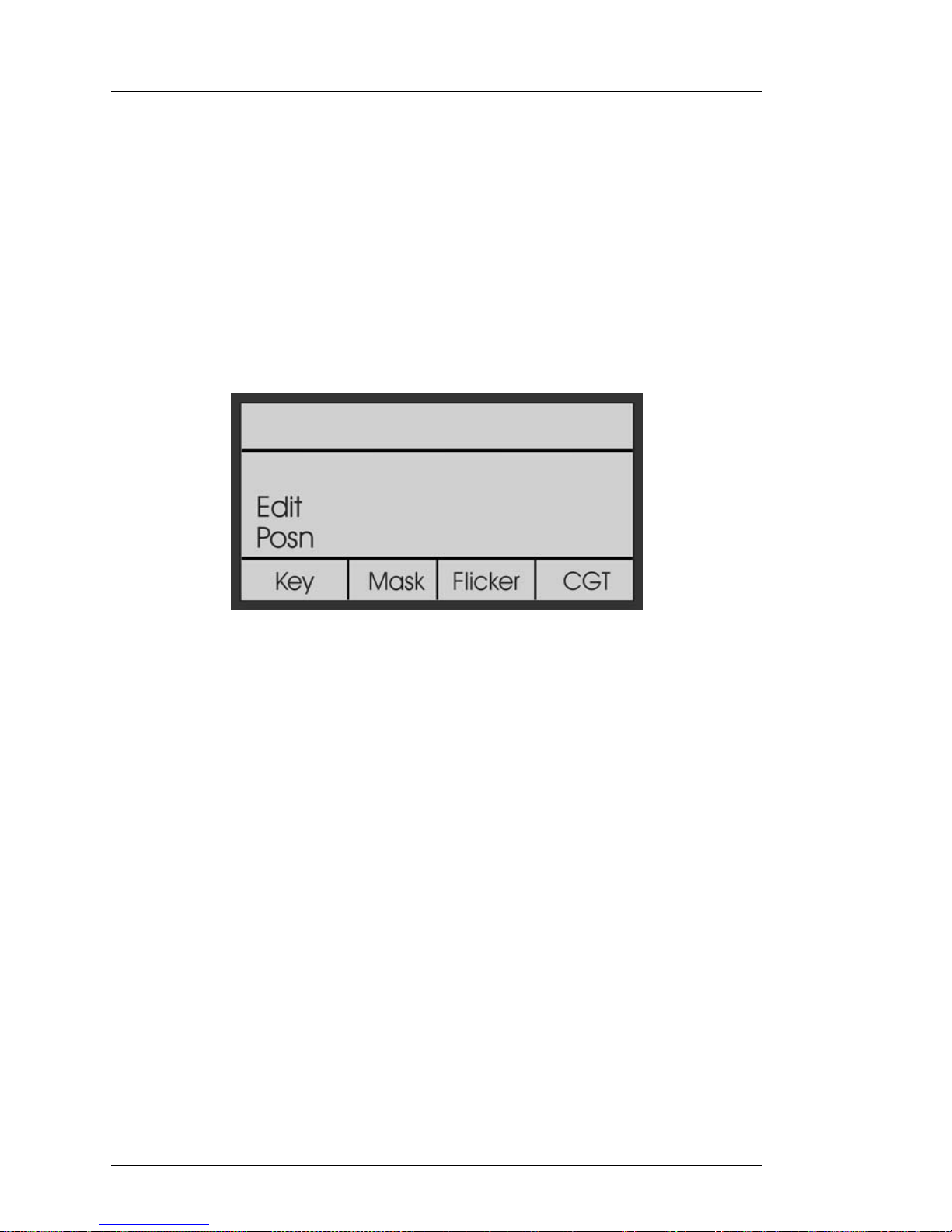

Editing Images----------------------------------------------------------------82

Editing Position or Key---------------------------------------------------82

Masking----------------------------------------------------------------------83

Flicker (optional)-----------------------------------------------------------83

Clip, Gain and Transparency-------------------------------------------84
Polyphoto-----------------------------------------------------------------------84
Add to Current Playlist ------------------------------------------------------84
Playlist --------------------------------------------------------------------------85
Set Up---------------------------------------------------------------------------86

RCP Parameters ----------------------------------------------------------86

Transition Rates -----------------------------------------------------------87

Preview Output Set -------------------------------------------------------87

Cascade Mode Operations---------------------------------------------------88

Transmission Controls------------------------------------------------------88

Program Fade to Black --------------------------------------------------88

Foreground/Midground Images "On Air"-----------------------------88

Selecting Transition Speed ---------------------------------------------89

Cut/Fade Selection--------------------------------------------------------89
Loading Images to Foreground and Midground ----------------------89

Load from the Image Library--------------------------------------------89

Loading a Live Image ----------------------------------------------------90
Saving Images----------------------------------------------------------------90
Editing Images----------------------------------------------------------------90
Set-Up---------------------------------------------------------------------------91

Connecting through an IPR--------------------------------------------------91

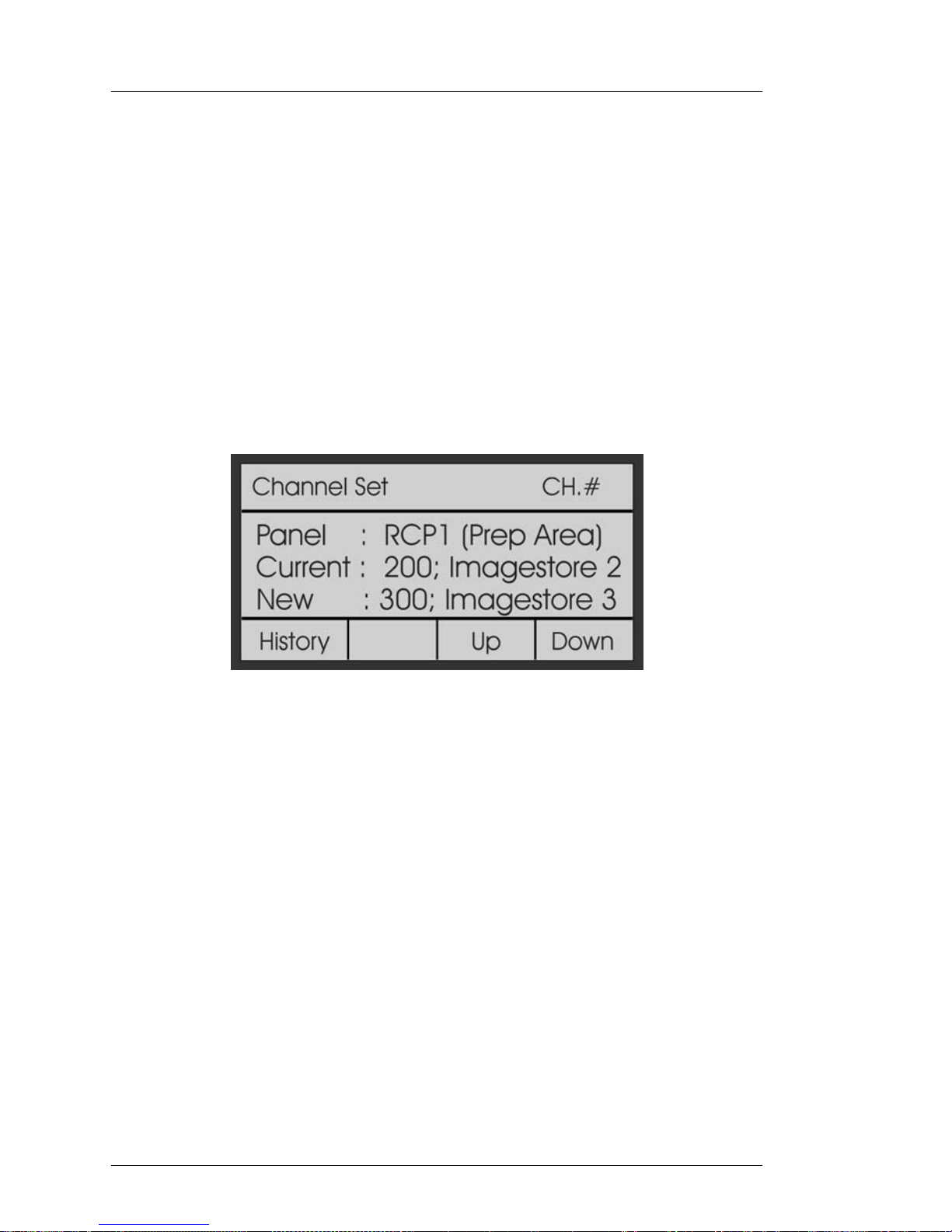

Channel Set Display---------------------------------------------------------91
Panel ----------------------------------------------------------------------------92
Current--------------------------------------------------------------------------92
New------------------------------------------------------------------------------92
Selecting a New Channel --------------------------------------------------93

Rotary------------------------------------------------------------------------93

Up and Down---------------------------------------------------------------93

Table of Contents Imagestore User Manual

Page 18 Miranda Technologies Ltd

History -----------------------------------------------------------------------93
Numeric Keypad-----------------------------------------------------------93

Applying a New Channel---------------------------------------------------94

AB Mixer (MIX-2000) 95

Controlling the video switcher-----------------------------------------------95
Using AB Mixer with the Oxtel RCP---------------------------------------96
Imagestore front panel--------------------------------------------------------97

Cut A/B ------------------------------------------------------------------------- 97

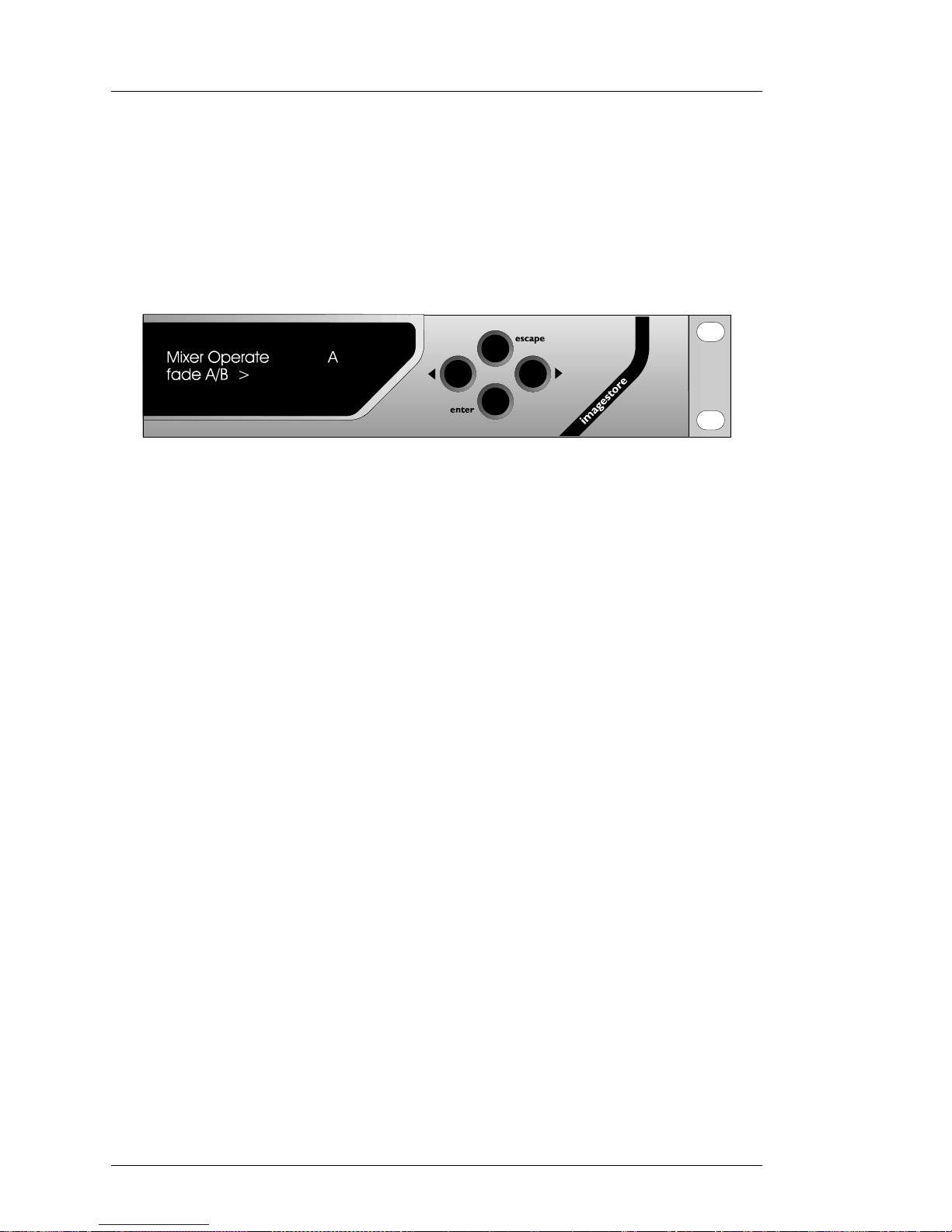

Fade A/B-----------------------------------------------------------------------98

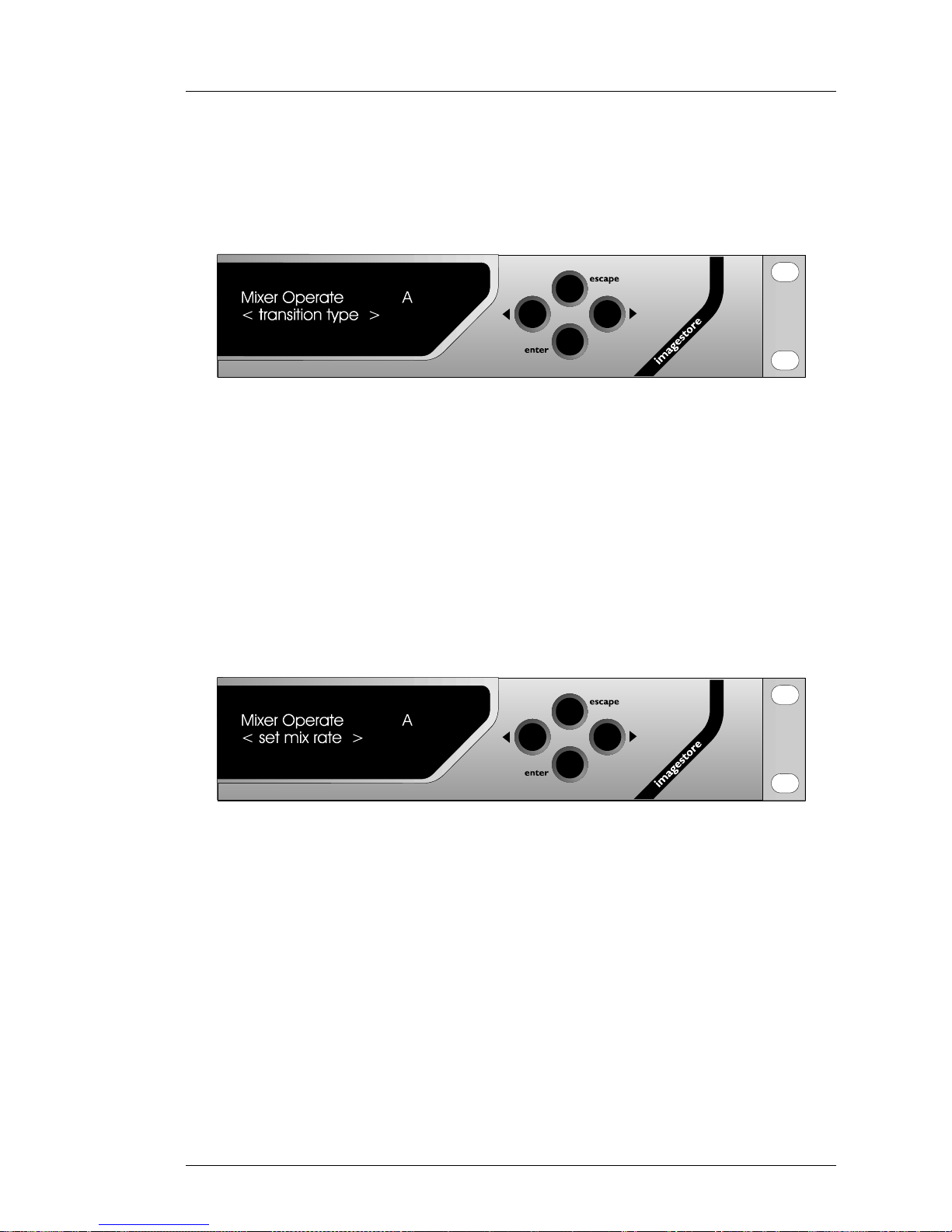

Transition Type---------------------------------------------------------------98
Set mix rate-------------------------------------------------------------------- 99

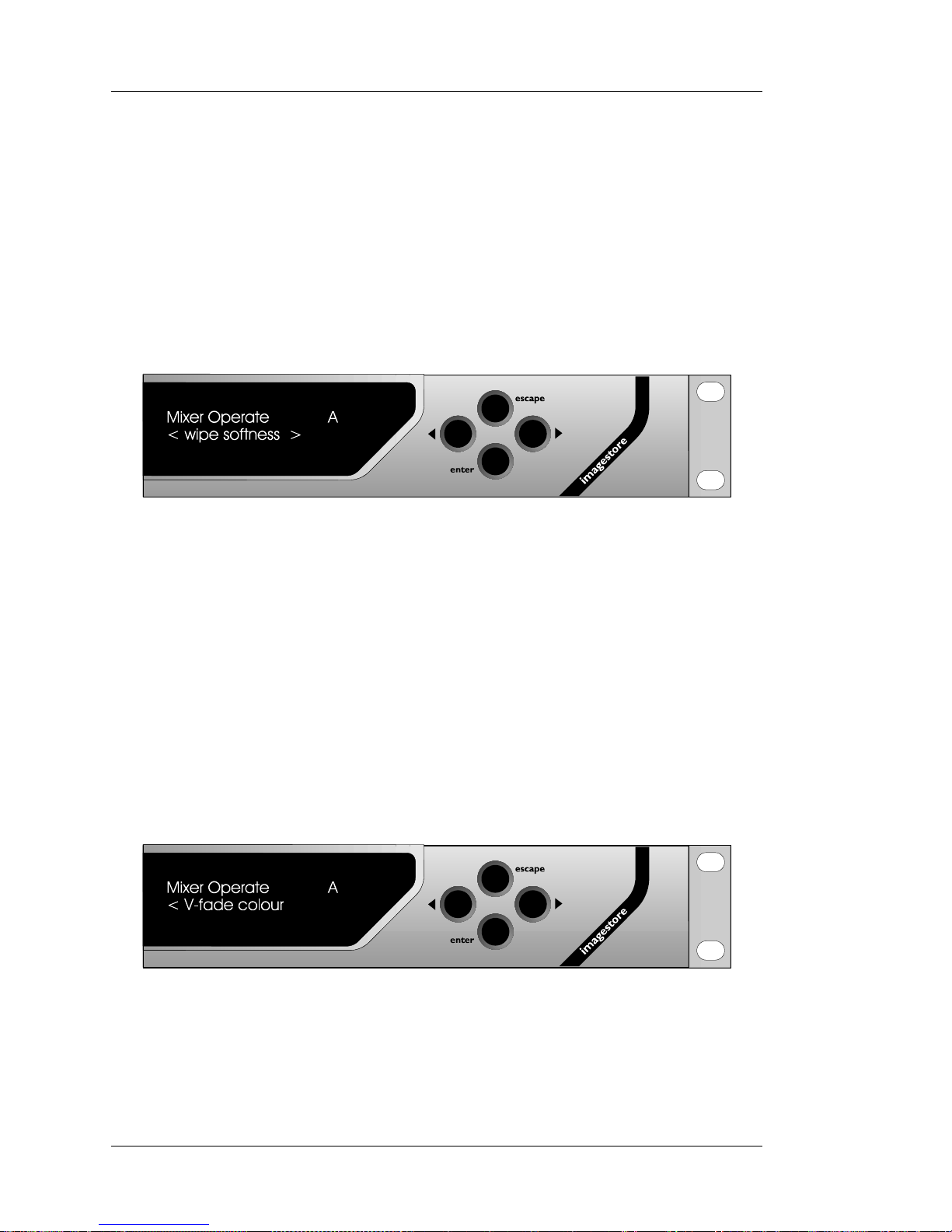

Wipe softness--------------------------------------------------------------- 100
Colour V fade --------------------------------------------------------------- 100

GPIs----------------------------------------------------------------------------- 101

GPI inputs-------------------------------------------------------------------- 101
GPI outputs------------------------------------------------------------------ 101

RS422 and RS232 automation interfaces------------------------------ 101
Analogue faders-------------------------------------------------------------- 102

Squeezy DVE 105

Squeeze modes-------------------------------------------------------------- 105
Squeeze presets ------------------------------------------------------------- 108
Controlling Squeezy DVE-------------------------------------------------- 108
Using Squeezy with the Oxtel RCP-------------------------------------- 109
Imagestore front panel------------------------------------------------------ 110
GPIs----------------------------------------------------------------------------- 111
Automation control system------------------------------------------------- 112
Analogue faders-------------------------------------------------------------- 113

Imagestore User Manual Table of Contents

Miranda Technologies Ltd Page 19

Easysound Audio 115

What is Easysound?--------------------------------------------------------- 115
Easysound Inputs ------------------------------------------------------------ 115

Audio Mixer Matrix---------------------------------------------------------116
Output Selection------------------------------------------------------------ 116
Easyplay----------------------------------------------------------------------116
Audio playout----------------------------------------------------------------117
Audio Files------------------------------------------------------------------- 117

Controlling Easysound------------------------------------------------------ 118
Model mode--------------------------------------------------------------------119
Model mode configuration-------------------------------------------------- 120

Mode --------------------------------------------------------------------------120
Audio Follow Video -------------------------------------------------------- 121
A Input/B Input--------------------------------------------------------------121
VO1 Input/VO2 Input------------------------------------------------------122
VO1 Settings/VO2 Settings----------------------------------------------123
Embed OP Settings-------------------------------------------------------- 125
Effects Send-----------------------------------------------------------------125

AB Mix and VO mode -------------------------------------------------- 126

Two Voice Overs mode------------------------------------------------127
Data----------------------------------------------------------------------------127

AB Mix and VO mode -------------------------------------------------- 128

Two Voice Overs mode------------------------------------------------128

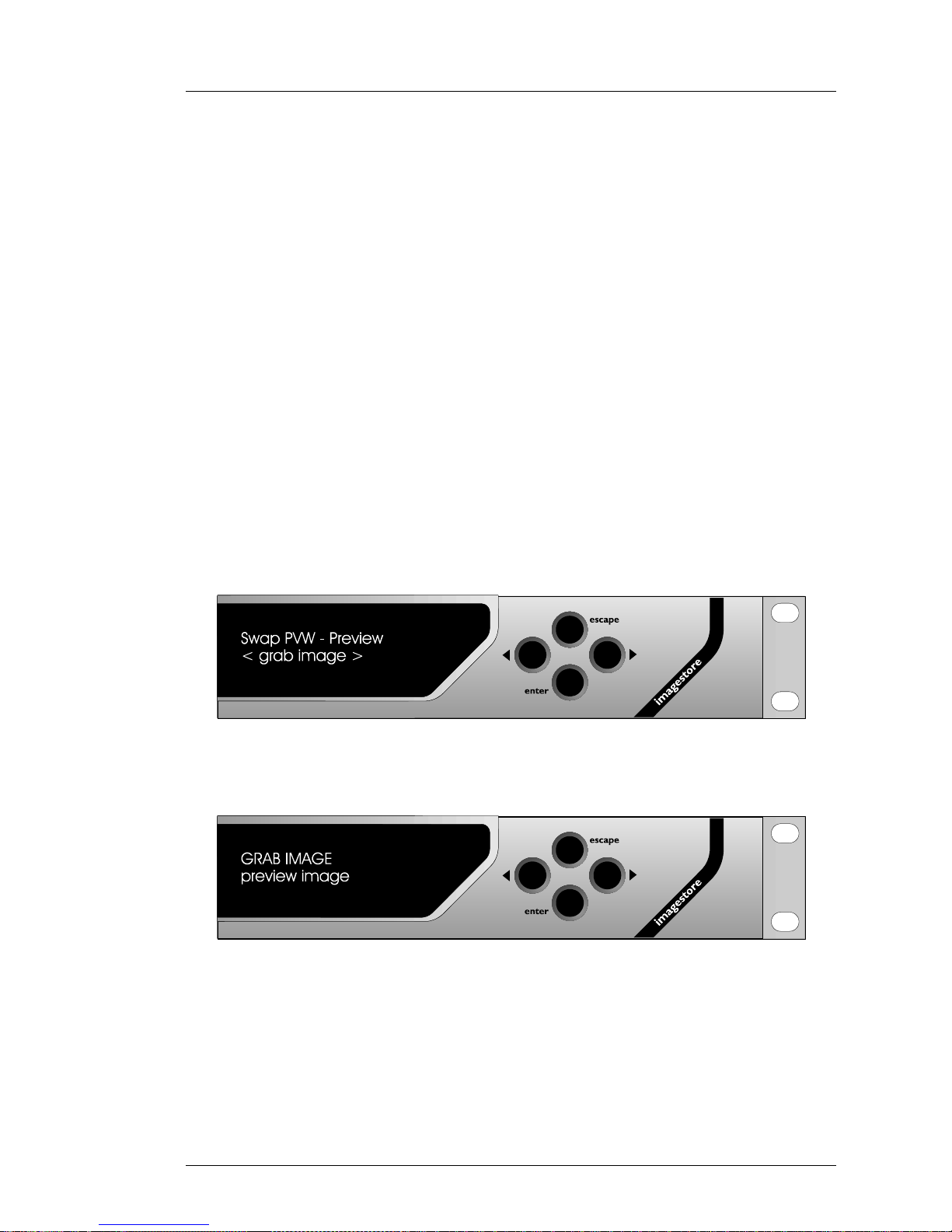

Front Panel Control----------------------------------------------------------129

Programme ------------------------------------------------------------------ 129

Front panel audio metering -------------------------------------------130
Preview -----------------------------------------------------------------------130

Audio model mode with the Oxtel RCP---------------------------------131

AB Mix and Voice Over Mode------------------------------------------- 131
I/P ------------------------------------------------------------------------------132
A/B----------------------------------------------------------------------------- 132
VO -----------------------------------------------------------------------------133
O/P----------------------------------------------------------------------------- 133
Two Voice Over Mode ---------------------------------------------------- 133

Table of Contents Imagestore User Manual

Page 20 Miranda Technologies Ltd

I/P------------------------------------------------------------------------------ 134
VO1 and VO2--------------------------------------------------------------- 134
O/P ---------------------------------------------------------------------------- 135

Automation control system------------------------------------------------- 135
GPI File mode----------------------------------------------------------------- 136

GPI inputs-------------------------------------------------------------------- 136
GPI outputs------------------------------------------------------------------ 136

Analogue faders-------------------------------------------------------------- 137
Easysound and Easyplay external interfaces------------------------- 138

Configuration---------------------------------------------------------------- 138
Rear panel connections -------------------------------------------------- 139

AES input ----------------------------------------------------------------- 139

AES output---------------------------------------------------------------- 141
AES GPI control------------------------------------------------------------ 141
Cross-connecting GPIs--------------------------------------------------- 143

Caution -------------------------------------------------------------------- 143

Connection of external analogue faders--------------------------- 143

Input to GPI--------------------------------------------------------------- 143
Output from GPI------------------------------------------------------------ 144
GPI Control of Audio Model Shuffle ----------------------------------- 144

Example: ------------------------------------------------------------------ 146

Installing Easysound -------------------------------------------------------- 147

Emergency Alert System 149

EAS Receivers ------------------------------------------------------------- 149
Baud Rates------------------------------------------------------------------ 150
Load EAS (EAS On)------------------------------------------------------- 150
Unload EAS (EAS Off)---------------------------------------------------- 150
EAS logs --------------------------------------------------------------------- 150

Imagestore Intuition 151

Imagestore Intuition Control----------------------------------------------- 153
Control-------------------------------------------------------------------------- 154

Imagestore User Manual Table of Contents

Miranda Technologies Ltd Page 21

Automatic Keyer Management--------------------------------------------154

Front Panel Menu----------------------------------------------------------155

Default Keyer Assign---------------------------------------------------155
Keyer Release Mode--------------------------------------------------- 156
Keyer Status--------------------------------------------------------------156

Keyer Management example-------------------------------------------- 157

Pitfalls ----------------------------------------------------------------------157

Configuration and Set Up 159

Ventilation---------------------------------------------------------------------- 159
Power Requirements-------------------------------------------------------- 159
Environment -------------------------------------------------------------------159
Rear Panel Connections---------------------------------------------------- 159
Serial Remote Control------------------------------------------------------- 161

Oxtel RCP-----------------------------------------------------------------161
RS232---------------------------------------------------------------------- 161
RS422---------------------------------------------------------------------- 162

SDI Control Port -------------------------------------------------------------- 162

Pinout Functions------------------------------------------------------------ 163
Connection of Analogue Faders----------------------------------------164
Connection of General Purpose Interfaces (GPIs)-----------------164

Input to GPI--------------------------------------------------------------- 164
Output from GPI --------------------------------------------------------- 165

Connection of LTC---------------------------------------------------------165

KYBD and VGA Connections----------------------------------------------165
Set Up Procedures----------------------------------------------------------- 165
GPI Setup (Commands and Macros)------------------------------------166

GPI Inputs Assign----------------------------------------------------------166
Assigning GPI Inputs------------------------------------------------------178

Create or Edit an Input Macro----------------------------------------178
List a Macro---------------------------------------------------------------179
Create a Macro ---------------------------------------------------------- 179
Edit a Macro -------------------------------------------------------------- 179

Table of Contents Imagestore User Manual

Page 22 Miranda Technologies Ltd

GPI Outputs Assign ------------------------------------------------------- 180

GPI outputs in Swap Preview mode-------------------------------- 180

GPI outputs in Cascade mode--------------------------------------- 181

GPI outputs available with the audio model---------------------- 182
Assigning GPI Outputs --------------------------------------------------- 183

View or Change an Output Assignment--------------------------- 183

Clearing Output Assignments---------------------------------------- 184

Assigning Outputs and Inputs to the Same GPI----------------- 184
Show GPI Status----------------------------------------------------------- 184

Fader Setup (Commands and Menus)---------------------------------- 185

Faders Enable/Disable --------------------------------------------------- 185
Faders Setup---------------------------------------------------------------- 186

Faders --------------------------------------------------------------------- 187
Show Fader Status -------------------------------------------------------- 188

File Facilities ------------------------------------------------------------------ 188

Configuration Save-------------------------------------------------------- 188
Configuration Load -------------------------------------------------------- 189
Diagnostic Save------------------------------------------------------------ 189
Load System Codes------------------------------------------------------- 190

Installing system codes------------------------------------------------ 190

What are licence codes?---------------------------------------------- 191

System Information---------------------------------------------------------- 192

On-Screen Information (Swap Preview Mode) --------------------- 192

System Status ----------------------------------------------------------- 193

Licences------------------------------------------------------------------- 193

Error Log ------------------------------------------------------------------ 193

View Licence------------------------------------------------------------------ 194
Set Time of Day -------------------------------------------------------------- 194

625/525 Lines--------------------------------------------------------------- 195
Audio Control --------------------------------------------------------------- 195
Swap-Preview or Cascade Mode-------------------------------------- 195
Reference Source Selection -------------------------------------------- 196
Serial Comms Set-up ----------------------------------------------------- 196
Aspect Ratio----------------------------------------------------------------- 196
EAS Msg Protect----------------------------------------------------------- 197
Timecode Options --------------------------------------------------------- 197

Imagestore User Manual Table of Contents

Miranda Technologies Ltd Page 23

Timecode mode----------------------------------------------------------197
Timecode Source-------------------------------------------------------- 198
Aspect Ratio-------------------------------------------------------------- 198

Clock Offset---------------------------------------------------------------199
RCP Mirror-------------------------------------------------------------------199
Presmaster Setup----------------------------------------------------------199
PAL Filter (Text Chroma Filter) ----------------------------------------- 199
Restart System ------------------------------------------------------------- 200
Clean Restart----------------------------------------------------------------200

System Timing ---------------------------------------------------------------- 200

Overview ---------------------------------------------------------------------201

Timing Adjustment ----------------------------------------------------------- 201

Measurement and Test Equipment------------------------------------ 202
SDI BGnd/A Reference--------------------------------------------------- 202
Analogue Reference (Black and Burst)-------------------------------203

Support 205

Product Support -------------------------------------------------------------- 205

Warranty and Non-Warranty Repairs----------------------------------205
Obsolescence---------------------------------------------------------------206
Upgrades---------------------------------------------------------------------206
Service Visits----------------------------------------------------------------206
Equipment Loans----------------------------------------------------------- 206
Training----------------------------------------------------------------------- 206
Web Page--------------------------------------------------------------------207

Returns Procedure-----------------------------------------------------------207

Transit Packaging----------------------------------------------------------207

Appendix 1 209

Imagestore specifications --------------------------------------------------209

SDI Inputs and Outputs--------------------------------------------------- 209
Analogue Reference Video Input---------------------------------------209
Analogue Preview Video Output----------------------------------------209
Power Requirements------------------------------------------------------210
Interfaces---------------------------------------------------------------------210

Table of Contents Imagestore User Manual

Page 24 Miranda Technologies Ltd

Mechanical ------------------------------------------------------------------ 210
Environmental -------------------------------------------------------------- 211

Oxtel RCP---------------------------------------------------------------------- 211

Mechanical ------------------------------------------------------------------ 211
Environmental -------------------------------------------------------------- 211
Power Requirements------------------------------------------------------ 211

Appendix 2 213

Glossary------------------------------------------------------------------------ 213

Appendix 3 215

Menu Trees-------------------------------------------------------------------- 215

Swap Preview Mode menu tree---------------------------------------- 215
Cascade Mode menu tree ----------------------------------------------- 216
Set Up Menu Tree --------------------------------------------------------- 216
System Set Up Sub-Menu Tree---------------------------------------- 217

Appendix 4 219

Custom Configuration Notes ---------------------------------------------- 219

Imagestore User Manual Overview

Miranda Technologies Ltd Page 25

Overview

Introduction

This introduction provides a basic overview of the concept of the unit and
includes instructions for getting started.

An extensive range of options and upgrades are available for Imagestore and
this section describes the purpose and features of each enhancement.

More detailed and specific information regarding operation, configuration,
installation and support are provided in later sections.

Imagestore (Product code IS2) is part of Miranda Technologies Ltd's
professional broadcast equipment range of products and its primary use is to
insert logos and audio into a SDI digital video signal. The capabilities of this
compact unit extend well beyond simple logo insertion and, in addition to
still, animated and clock image insertion, its capabilities may be extended to
include digital audio mixing, storage and play-out.

Applications

Imagestore is typically used to insert a still or animated logo, a channel
identification, a programme schedule, an advertisement, an on-screen clock,
an emergency image, or a combination of any two of those. Each of these
resources may be brought on-air from Imagestore's 400-image memory
(optionally 2000 or 4000 image). Alternatively, external 'live' fill and key
signals from a character generator, or a still/animation store, can be directly
inserted into the SDI signal.

A dedicated remote control panel is available and one or more remote
controllers can operate multiple Miranda Technologies Ltd products when
used with the optional Intelligent Pane l Router.

Dual stereo pair voice-overs can be performed using the Easysound optional
digital audio mixer. The Easyplay upgrade to Easysound provides for the
play-out of library audio with images. Full details of the Easysound and
Easyplay options are given in a the Easysound Audio section of this manual.

Overview Imagestore User Manual

Page 26 Miranda Technologies Ltd

Concept

Imagestore may be set up for operation in one of two modes, Swap Preview
and Cascade. These two modes use the internal keyers in a different
configuration and provide differ ent operational characteristics.

In either mode a fail-safe mechanical by-pass option is available that directly
connects the background video to the programme output in the event of a
power supply problem.

Still, animated and clock images are typically stored in the unit's hard disk
library. Images may be added to the library using the floppy disk drive but
the files must be in an appropriate format. Miranda Technologies Ltd's Media
Conversion Software (MCS), designed for this purpose, is supplied with
Imagestore.

An Ethernet interface provides for the rapid loading of images and
animations over either a co-axial or twisted pair network using MCS. This
interface also enables the transference of images between a PC workstation
and Imagestore using Miranda Technologies Ltd's MS Windows NT™ based
Media Distribution System (MDS). The MDS software provides for transfer
and management of still-images, animations and clocks.

Imagestore Solo

Imagestore Solo is an entry-level product, software limited to a single keying
layer and permanently set in Swap/Preview Mode. The keyer can be
previewed on the Preview monitor, which is also used to view the Edit Pack
options of Polyphoto, Playlist and Image Clean-up.

Imagestore Solo is NOT Presmaster compatible but does support all other
standard Imagestore sales options including the A/B Mixer, Squeezy
Easyplay, Oxtel RCP etc.

Imagestore Solo can be upgraded to an Imagestore 2. For full details on how
to upgrade please consult your local Miranda Technologies representative.

Imagestore User Manual Overview

Miranda Technologies Ltd Page 27

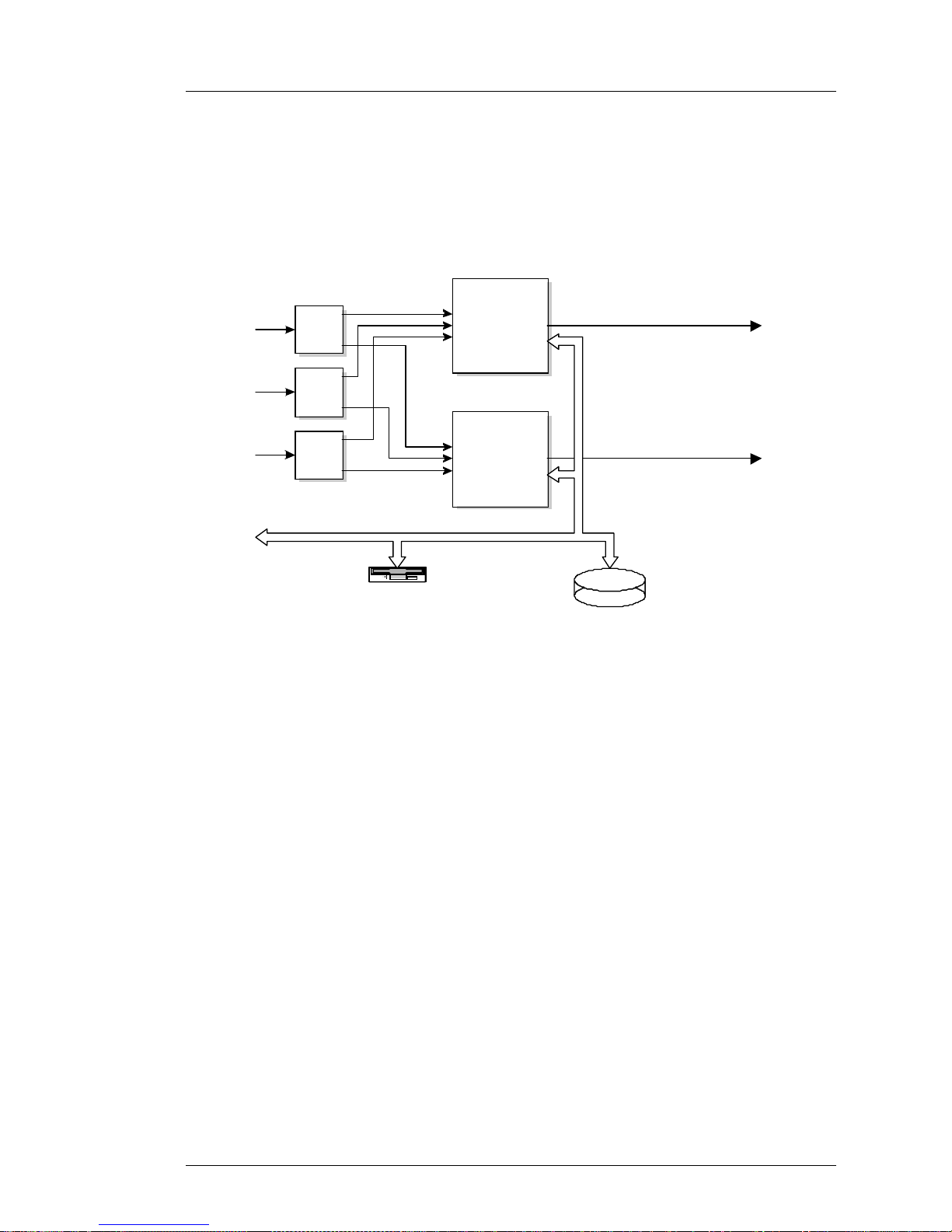

Swap-Preview Mode (IS2 - Solo)

Swap-Preview Mode Concept

In Swap-Preview mode, the two keyers work in parallel, as shown above.
One keyer operates exclusively as a dedicated preview and image edit device
within a preview channel while the main keyer provides programme output.

This configuration of keyers allows any of the images in the hard disk image
library to be previewed and edited without affecting the programme output.
The standard SDI preview output may be replaced with an optional analogue
PAL/NTSC output although this option uses an 8-bit DAC and is intended for
monitoring purposes only.

The preview output may also be used to view system information and, where
the Edit Pack option is installed, thumbnails of the library images.

Programme

Keyer

Floppy Disk Drive

Hard Di sk

Image L ibr ar y

Background

Video

Programme

Video

Preview

Video

Key

Video

Fill

Video

Ethernet

Preview

Keyer

Overview Imagestore User Manual

Page 28 Miranda Technologies Ltd

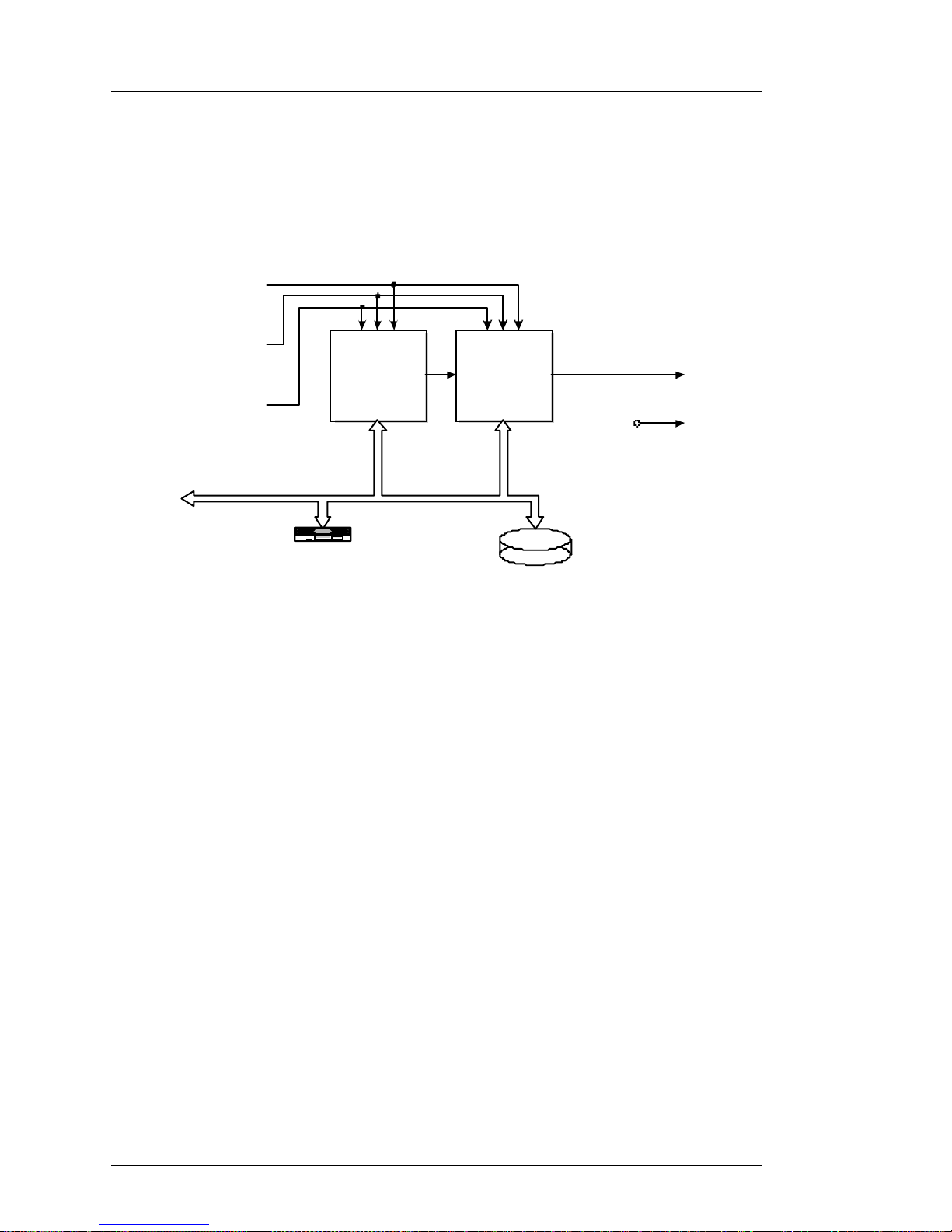

Cascade Mode (IS2 only)

Midground

Keyer

Layer

Foreground

Keyer

Layer

Floppy Disk Drive

Hard Disk

Im age Li br ar y

Background

Video

Programme

Video

Preview

Video

Key

Video

Fill

Video

Ether net

Cascade Mode Concept

In Cascade mode the two keyers are arranged in series as shown above. This
configuration allows two images to be keyed simultaneously, but
independently, over the background video. Cascade Mode provides a more
restricted preview capability whilst still providing the ability to view images
prior to transmission.

Imagestore User Manual Overview

Miranda Technologies Ltd Page 29

Getting Started

Applying Power

Before applying power, ensure that the floppy disk drive does not contain a
disk.

Imagestore does not have a power on/off switch and power is applied
immediately when the IEC plug is connected to mains power. The product
should be connected to the mains via an appropriate circuit breaker.

Boot-Up Sequence

Once power is applied Imagestore boots automatically and the complete
process takes about 50 seconds. The unit first checks to see if there is a disk
in the floppy drive and, if it finds one, it will attempt to boot from that disk.
Miranda Technologies Ltd issues specialised floppy disks for use as part of
the boot-up sequence when software upgrades are being implemented. No
other disk should ever be present in the floppy disk drive during the boot

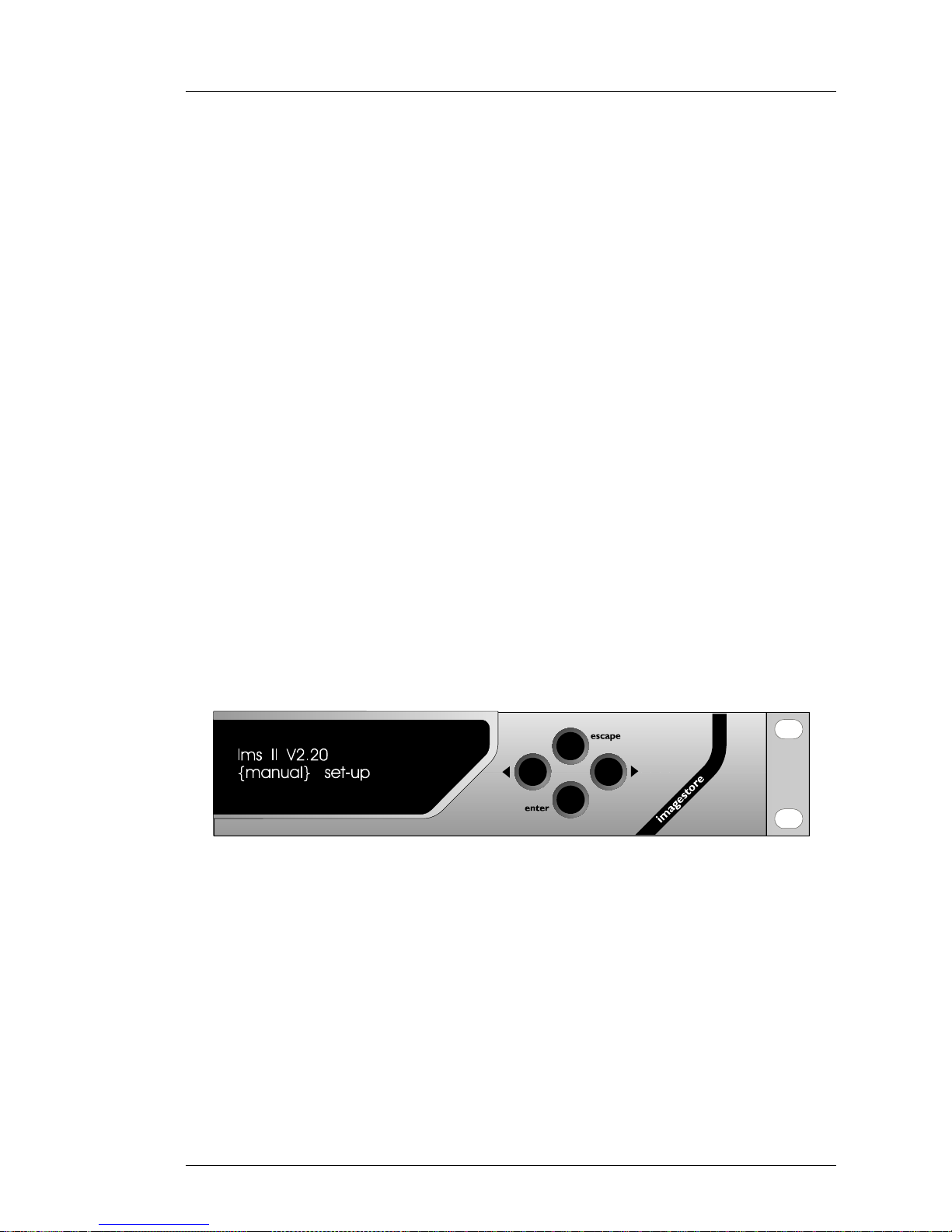

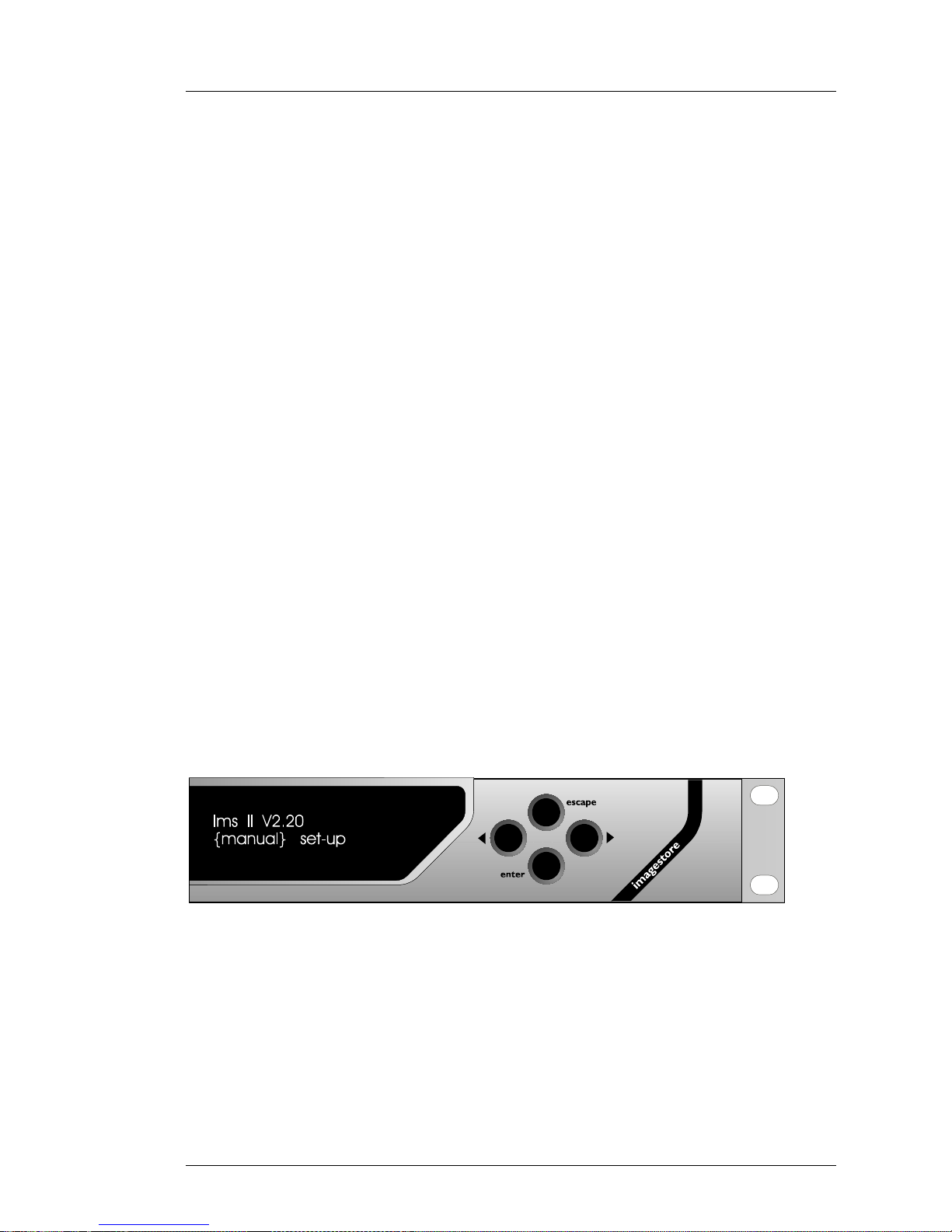

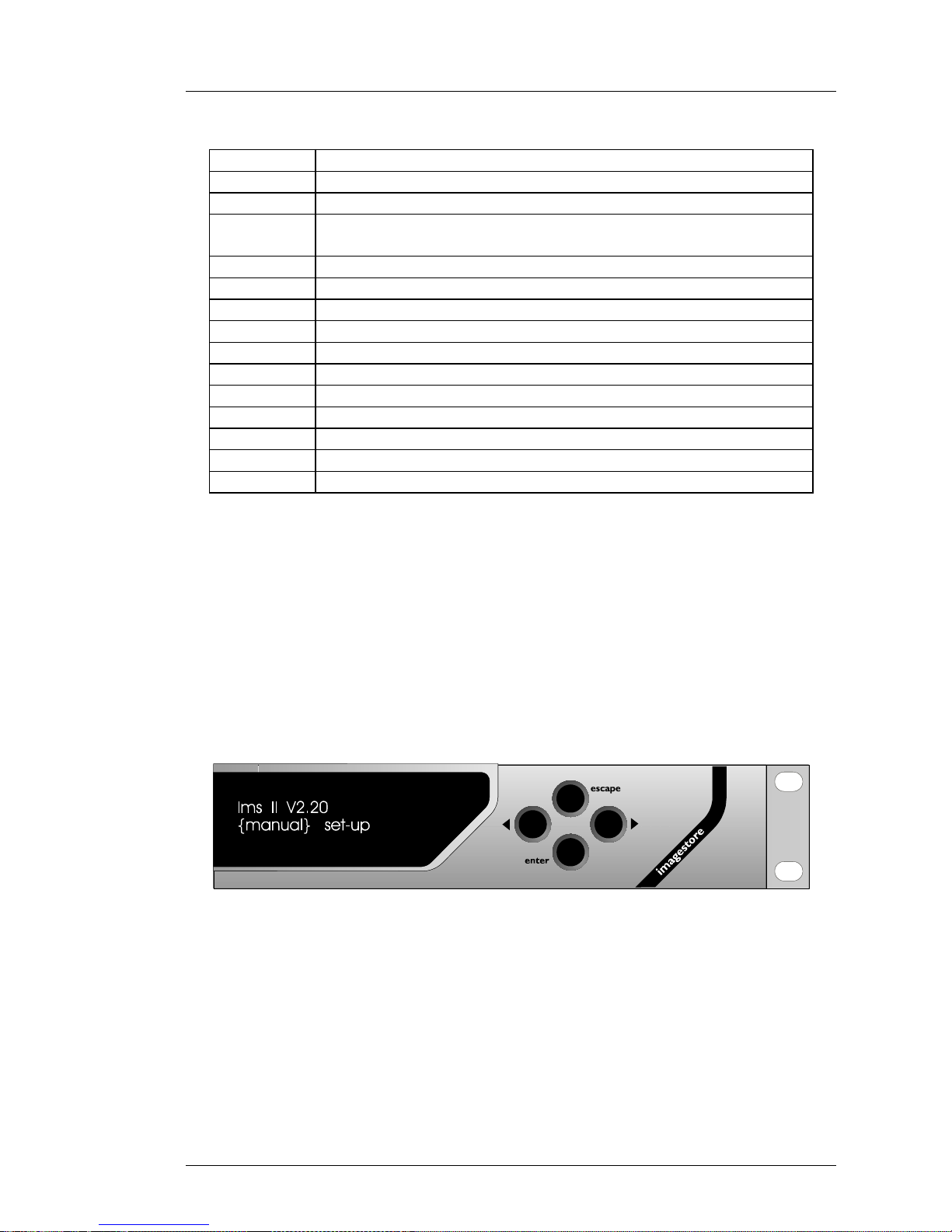

sequence. The boot sequence is complete when the following top level "boot­up" menu appears on the front panel VFD display.

Overview Imagestore User Manual

Page 30 Miranda Technologies Ltd

Facilities and Features

Image Loading and Distribution

Entry-level Imagestore provides storage for up to forty full-screen images
with their associated keys and this can currently be upgraded to 400, 1000,
2000 or 4000 frames. Each animated clip is counted as one single image
stored in the library. With large or long duration animations (where the total
pixel count of the animation exceeds one full-screen frame) the total number
of full screen frames used counts towards the permitted maximum of full­screen images in the library.

Imagestore can import TARGA and JPEG images directly from DOS­formatted floppy disks. The imported images are copied directly to the
preview channel and also saved within the internal image library.

Images, animations, clocks and audio files saved to floppies from Miranda
Technologies Ltd's Media Conversion Software - (or other Miranda
Technologies Ltd units) can be loaded in the same way. The Media
Conversion software allows large animations and images to be saved across
multiple floppy disks, using loss-less compression to reduce the number of
disks required.

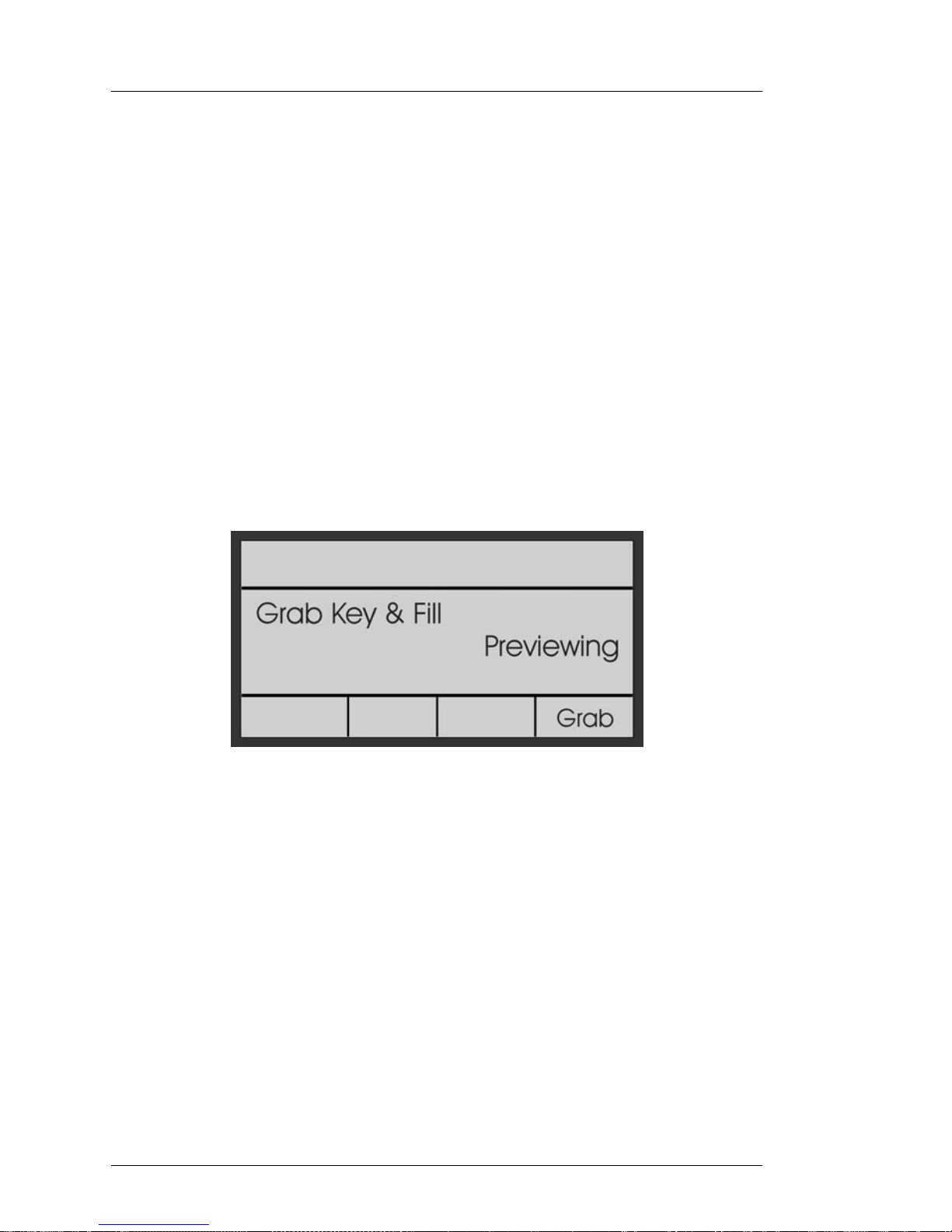

Frames may be grabbed from SDI video using the Fill and Key ports. An
image clean-up feature to remove inter-field flicker forms part of the "Edit
Pack" option.

Miranda Technologies Ltd also provides an image transfer and management
system for Imagestore. The Media Distribution System (MDS) is based on a
pre-loaded and pre-configured PC workstation. A local area network can
connect the workstation to a number of Miranda Technologies Ltd's image
and audio insertion products. Details of MDS are contained in a separate
manual user guide.

Image Editing

The image editor permits an operator to position an image/animation (both
horizontally and vertically), mask the image/animation and adjust the clip,
gain and transparency levels prior to transmission.

Imagestore User Manual Overview

Miranda Technologies Ltd Page 31

Transmission

Once prepared, an image/animation can be saved in the image library and
sent to air using cut and fade transitions.

Animated Images

Imagestore provides image animation, for applications such as moving logos,
messages and emergency images. The image motion system provides storage
and live playout for up to 40, (optionally 400,1000, 2000 or 4000) full, or
part-screen images of variable duration.

The maximum animation length is dependent upon both the screen-size of the
images and the playout memory installed in the Imagestore. With 128MB of
playout memory, a logo of ¹/

64

screen size can be animated for up to 3
minutes. Larger screen sizes or smaller playout memory sizes affect the
maximum animation time pro rata.

Moving images are constructed from component images using the animation
builder software provided as part of the Media Conversion Software package
supplied with Imagestore.

Component images are imported into the animation builder utility from 32-bit
Targa image files thus allowing components to originate from almost any
computer graphics system.

Polyphoto, Playlist and Image Clean-Up

The Edit Pack option provides the additional features of polyphoto, playlist
and image clean-up.

Polyphoto provides for the viewing of image library thumbnails at the
preview output whilst Playlist enables an ed itable sequence of images to be
created. Image clean-up provides interpolated and algorithmic image clean­up functions used to remove inter-field flicker caused by grabbing images.

In order to view polyphoto images a monitor must be connected to the PVW
(preview) output of the Imagestore. The preview output may either provide a
digital or analogue output signal and the monitor attached must be
appropriate. The polyphoto feature may only be used when Imagestore is
configured for Swap-Previ ew mode and is not available in Cascade mode.

Overview Imagestore User Manual

Page 32 Miranda Technologies Ltd

Control of Polyphoto, Playlist and Image clean-up features may only be
achieved using a Miranda Technologies Ltd remote controller, Oxtel RCP.

Clock Insertion

The Bugclock option allows Imagestore to insert customised in-vision clocks.
A wide range of clocks and timers can be generated, with hour, minute and
second indications. Fully customised clocks can be produced offline using
the Clock Builder (part of the MCS Media Conversion software package).
Bugclock can be locked to station LTC or VITC timecode. Clocks are loaded,
previewed, positioned and keyed in the same way as animations and static
logos.

Bugclock images behave like all other images with respect to positioning,
transparency and masking controls. Previewing behaviour is the same as with
other clips and images and will show the clock running where appropriate

All existing GPI and automation commands, that apply to still images and
animations, function identically for clocks.

A Bugclock image uses a single layer of the system it runs on. This means
that a clock can be previewed while a different clock is shown on
programme. In Cascade mode, two different clocks can be displayed
simultaneously.

Squeezy Digital Video Effect (DVE)

Squeezy DVE is a single-channel 2D DVE. It is designed for picture-in­picture applications such as over the shoulder news transitions, as well as
squeezes for credits, news flashes, sports results and schedules.

Imagestore User Manual Overview

Miranda Technologies Ltd Page 33

AB Mixer

The AB Mixer integral AB video switcher is designed to be fed by an
external router under automation control. The switcher provides cuts, wipes
and fade transitions with variable fade rates.

Embedded Digital Audio Mixer

The optional Easysound digital audio mixer can be fitted within Imagestore
and is designed to add voice-overs, jingles and other audio inserts over a
programme soundtrack at transmission. Easysound can accept audio from
AES/EBU sources, as well as embedded audio from the Imagestore's
background video input. The four mixes are available on AES/EBU outputs
and can also be re-embedded into the SDI programme output.

Digital Audio Storage

Easyplay is the digital audio storage and playout option for Imagestore. With
Easyplay, broadcasters can associate sounds to image files, creating a whole
new range of possibilities for musical logos and sound enhanced captions.
Easyplay requires the Easysound option to be fitted to Imagestore and the
system may be networked with the Media Distribution System.

Timing, Control and Automation

Imagestore is designed to be easy to install. One line FIFO's are provided on
each 270Mb/s SDI input for simplified system timing. An external system
reference may be used to provide high stability system timing and system
integrity.

Other valuable set-up and control features include a menu-driven front panel
VFD display, a General Purpose Interface (GPI) macro editor and a facility to
load configuration settings from, and save system configurations to, a floppy
disk.

Imagestore is highly suited to automated broadcast environments and remote
control options include RS422/RS232, as well as GPI and analogue fader
inputs.

Overview Imagestore User Manual

Page 34 Miranda Technologies Ltd

Remote Control Panels

Miranda Technologies Ltd offers a versatile remote control panel for use with
Imagestore which include alphanumeric displays, menu driven soft-keys and
multiple dedicated keys.

The Oxtel RCP can provide for control of all Imagestore's functions. Each
key can be individually disabled so that, for example, accidental "fade-to­black" could be prevented. Contact the Miranda Technologies Ltd helpdesk
for full details.

Remote control panels can be built into a desk or mounted into a 19" rack­mount frame using the RMF-001 option, which holds up to two panels. A
blanking panel, RMF-001-BP, is required where only one co ntrol panel is to
be mounted in the RMF-001 frame.

To save space and simplify control, the remote control panels can control
more than one Imagestore when used with the Intelligent Panel Router (IPR).
The IPR also allows a single Imagestore to be controlled by multiple remote
control panels in different l ocations.

Mechanical Bypass

In the event of power loss to the Imagestore, or failure of an internal power
supply, the mechanical bypass option routes the serial digital "background
signal" directly to the programme output. This feature is an emergency
failsafe and is completely non-synchronous in operation. During boot-up, the
bypass is maintained until Imagestore is fully operational.

Options

Status information regarding the options included with each Imagestore can
be accessed from the front panel display, using the panel control keys as
described later in this guide.

The following table lists the options with their identifying codes and briefly
describes the purpose.

Imagestore User Manual Overview

Miranda Technologies Ltd Page 35

Option Description

MEM-400V Image Library expansion to 400 frames with 2 x 64MB playout memory.
MEM-1000V Image Library expansion to 1000 frames with 2 x 128MB playout memory.

MEM-2000V

MEM-4000V

Image Library expansion to 2000 frames with 2 x 128MB playout memory.

Image Library expansion to 4000 frames with 2 x 256MB playout memory
IS-EDIT Edit Pack for poly-photo, playlists and image "clean-up".
CPV-001 Analogue Composite Preview. (Option replaces standard SDI preview output)
MPB-001 Mechanical by-pass.
MDS-001 Media Distribution System (requires NET-002 Option).
BugClock In-vision analogue/digital "breakfast TV" style clock
ES2 Easysound digital audio mixer.
EP1 Easyplay digital audio storage and playout system.
MEM-200A Audio storage expansion to 200 minutes (Not with MEM-4000).

Imagestore Imagestore 2 licence
Solo Imagestore 2 SOLO licence
EAS1 Emergency Alert System

Checking Installed Options

The Imagestore can display the internal options installed using either its front
panel display or on a monitor connected to its rear panel PVW output.

Front Panel Display

Confirm that the front panel display is showing the boot menu (shown below)
and if not, press the escape key repeatedly until it is.

Pressing the right arrow key X will move the enclosing brackets from

manual to set-up. With set-up selected, press the enter key to display the Set­up menu.

Press the right arrow key Xuntil the words, system information appear on the
second line of the display. Repeatedly pressing the enter key will now cycle
the display through a list of the fitted options and a few system statistics.

Overview Imagestore User Manual

Page 36 Miranda Technologies Ltd

When completed, press the escape key a few times until the boot-up menu
reappears.

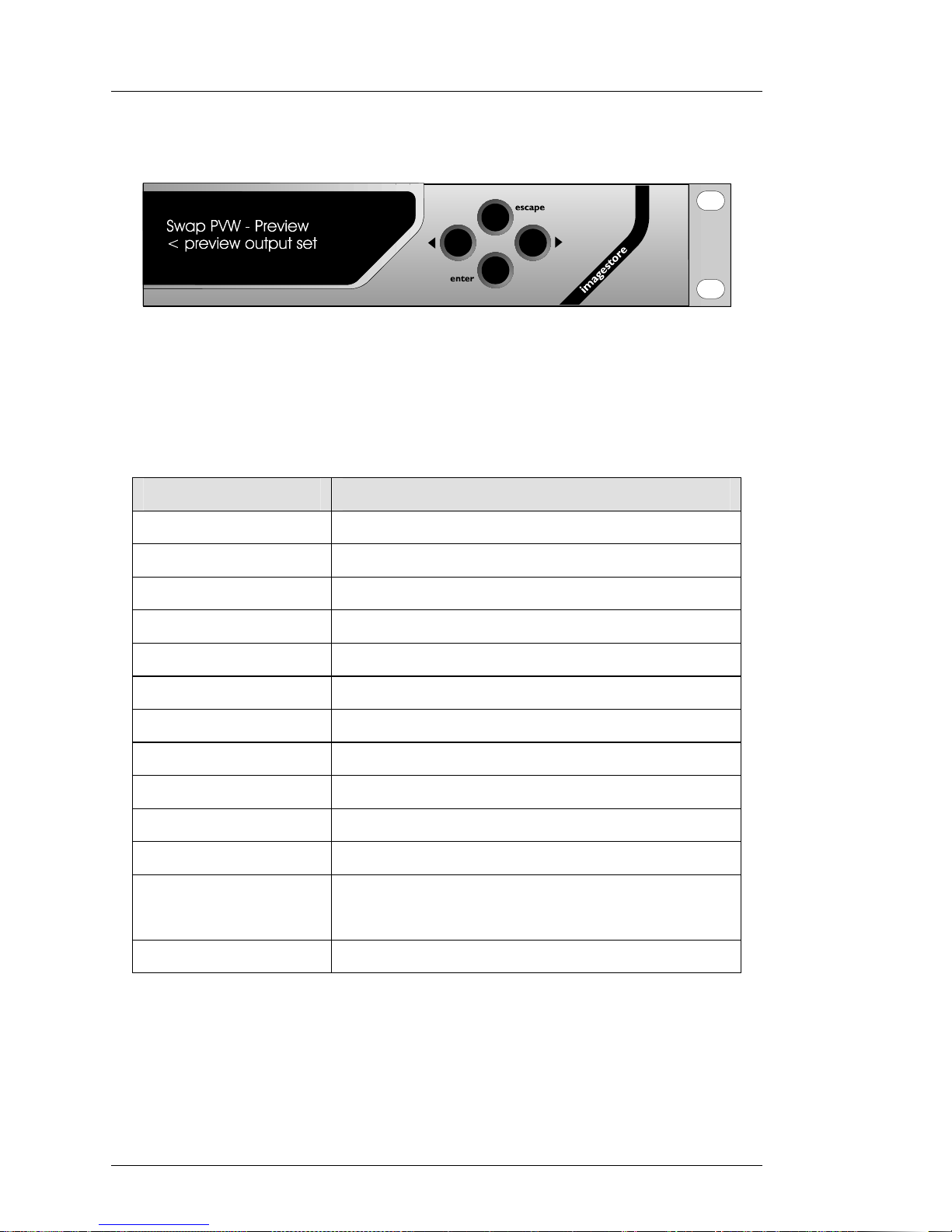

Preview Output

On-screen summaries are only available when Im agestore is configured in
Swap-Preview mode. From the boot up menu, press the right arrow keyX to
move the brackets from manual to set-up. With set-up selected, press the
enter key to display the set-up menu. Press the right arrow key X until that
the words on-screen info appears on the second line of the display.

Press the enter key once and if a monitor is connected to the preview output
it will display an on-screen summary of the options, together with power
supply information for the unit.

Imagestore User Manual Front Panel Operation

Miranda Technologies Ltd Page 37

Front Panel Operations

This section of the manual explains, on a task-by-task basis, the operation of
the Imagestore using only the front panel controls. Each task is fully de tailed,
making reference to other sections unnecessary.

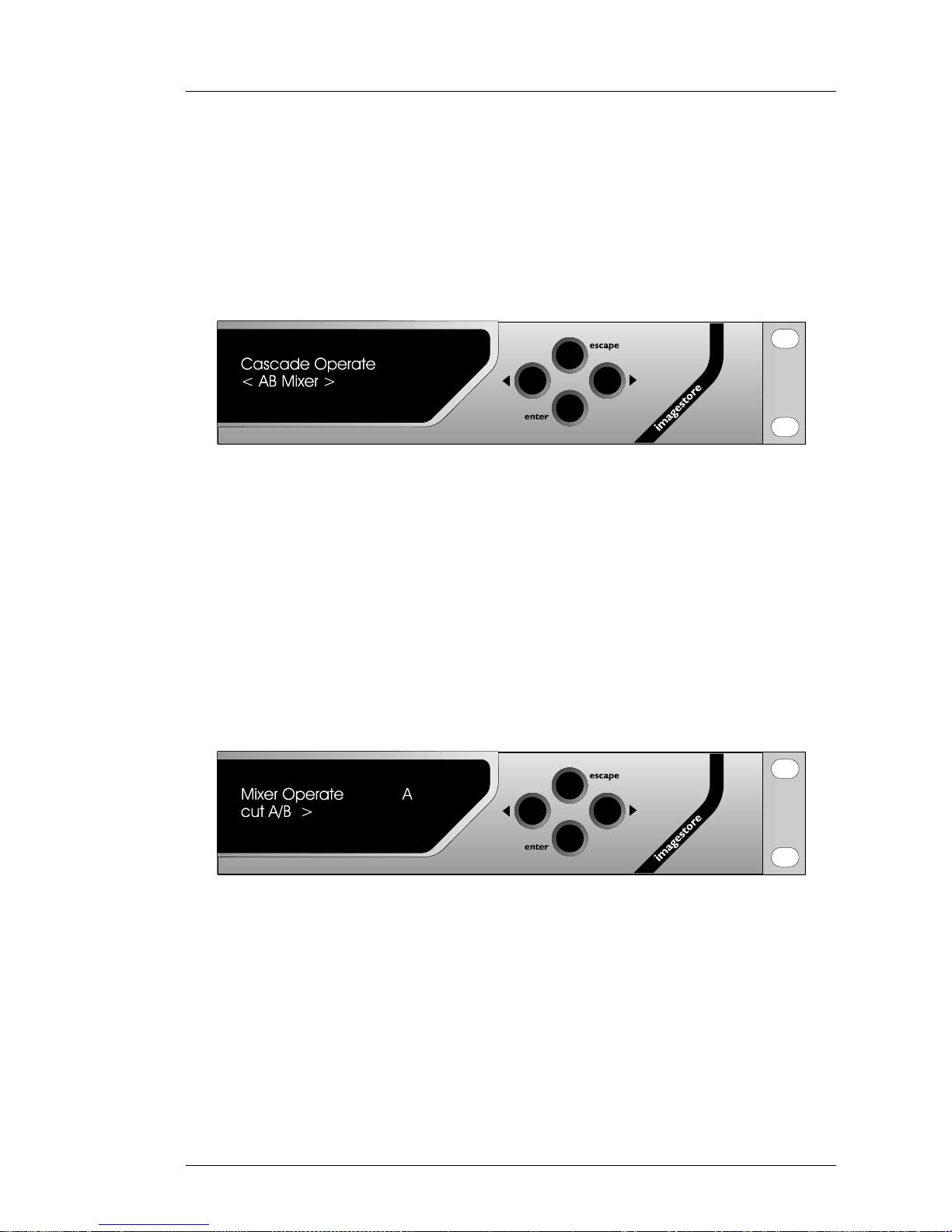

Controls

All of Imagestore's operational and configuration features can be monit ored
and controlled from the front panel of the unit using the pushbuttons and
display. A simple menu-driven procedure provides access to the operational,
configuration and set-up options.

The front panel of Imagestore contains a 3½ floppy disk drive, four push­button control keys and a vacuum fluorescent display (VFD). Local control
of the unit is "menu driven" using a combination of the push-button keys
together with options displa y ed on the VF D. The upper key of the group is
identified on the panel as the escape key and the botto m key is identified as
the enter key. Left and right keys W X are used to move a cursor left and
right accordingly to select menu options.

VFD Display

The alphanumeric VFD display is divided into two separate lines. The upper
row of characters indicating the function and the lower row indicating the
current selection and any optional configuration changes that are available.

Where there are more options available than there is room for on the display,
the symbols < and > are used to indicate that other options exist to the left

Front Panel Operation Imagestore User Manual

Page 38 Miranda Technologies Ltd

and right respectively. Using the appropriate arrow key will reveal those
options.

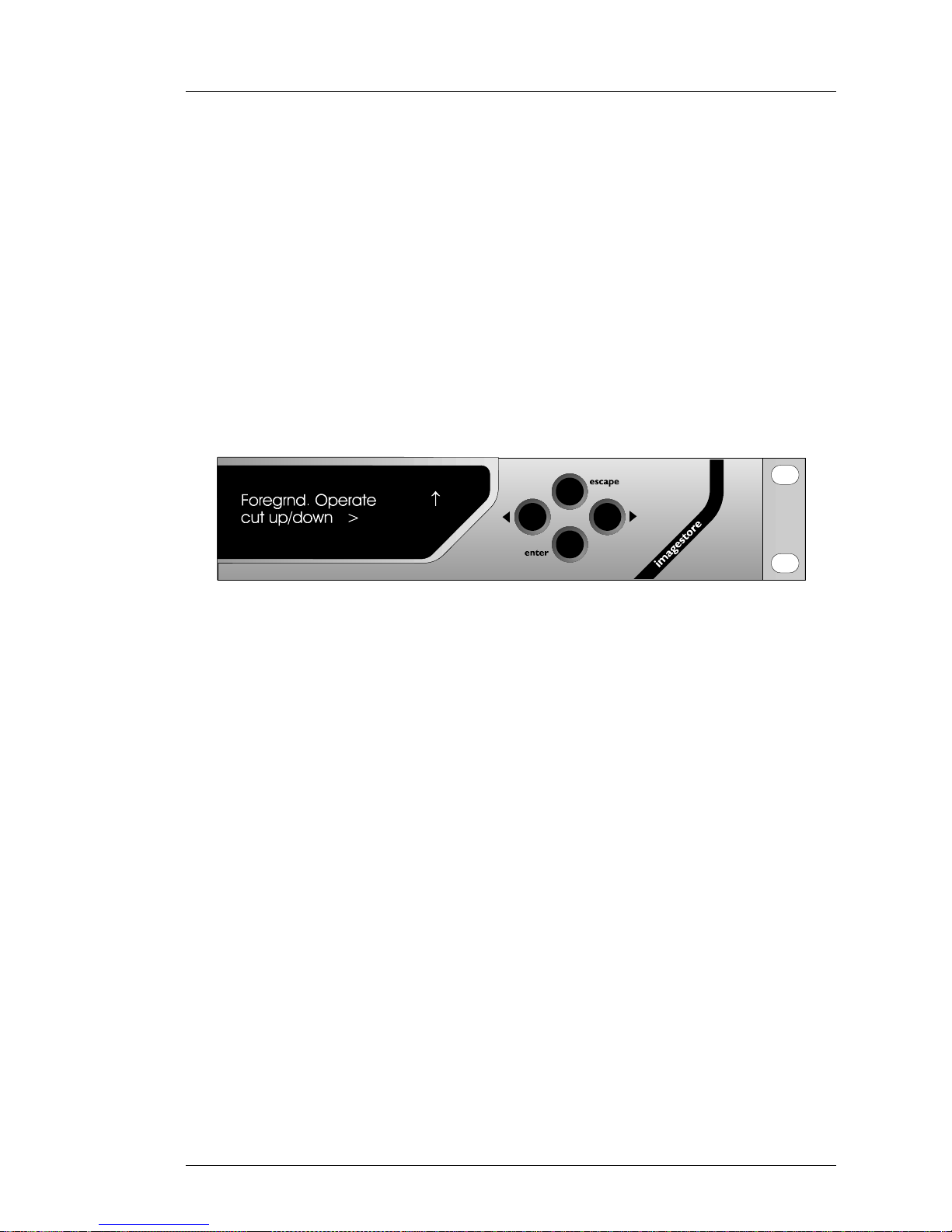

VFD tallies (mixer/keyer states)

To highlight the state of either the mixer or the keyer, additional symbols are
shown on the top line of the VFD display at the right hand edge. These
symbols represent:

A source A
B source B

- intermediate state, transition being processed.
↑ image keyed up (to air)
↓ image keyed down (from air)

B Fade to Black

Escape and Enter Keys

The escape key is used to proceed to a menu option closer to the boot-up
menu. Successive pressing of the key will bring the display to the start-up
menu. The enter key is used to accept the menu item currently shown as
selected by being enclosed in brackets.

Left and Right Arrow Keys (W X)

Left and right arrow keys W X may be used to cursor left and right
respectively along a displayed menu branch to select a function. When a
selection of parameters is offered, these keys may be used to select a
variable. Where a single value is displayed the left arrow key may be used to
reduce the displayed value and the right key may be used to increase it.

Common Mode Operations

Imagestore's top-level menu provides the option to choose either manual
(operations) or set-up (configuration). When manual is selected the Manual
Override menu is revealed. Sub-menus accessed through the operate option

Imagestore User Manual Front Panel Operation

Miranda Technologies Ltd Page 39

will be dependant on the operational mode of Imagestore (swap-preview or
cascade).

The Manual Override sub-menu provides access to three simp le operations in
addition to accessing the appropriate operational mode menu.

select manual

operate

select

image file erase

select

emergency to air

Erasing Image Files

Any image stored within the image library may be erased using the image file
erase option.

To erase an image, select the Manual option from the boot-up menu and,
using the arrow keys W X, display the image file erase option shown below.

Press enter and use the left and right arrow keys W X to step through the
valid file names. Once the appropriate image name is displayed and the enter
key is pressed, the user is required to confirm or cancel the decision before
erasure occurs. When confirmed, the display acknowledges the operation
selected and returns to the Manual Override menu.

Front Panel Operation Imagestore User Manual

Page 40 Miranda Technologies Ltd

Setting A/Bgnd, Fill and Key Inputs

Imagestore has three digital video input signals, identified as A/Background,
Fill and Key. The user has the option to set each of these inputs so that it
either accepts external SDI video signals or an internally generated test
colour field is inserted at that input.

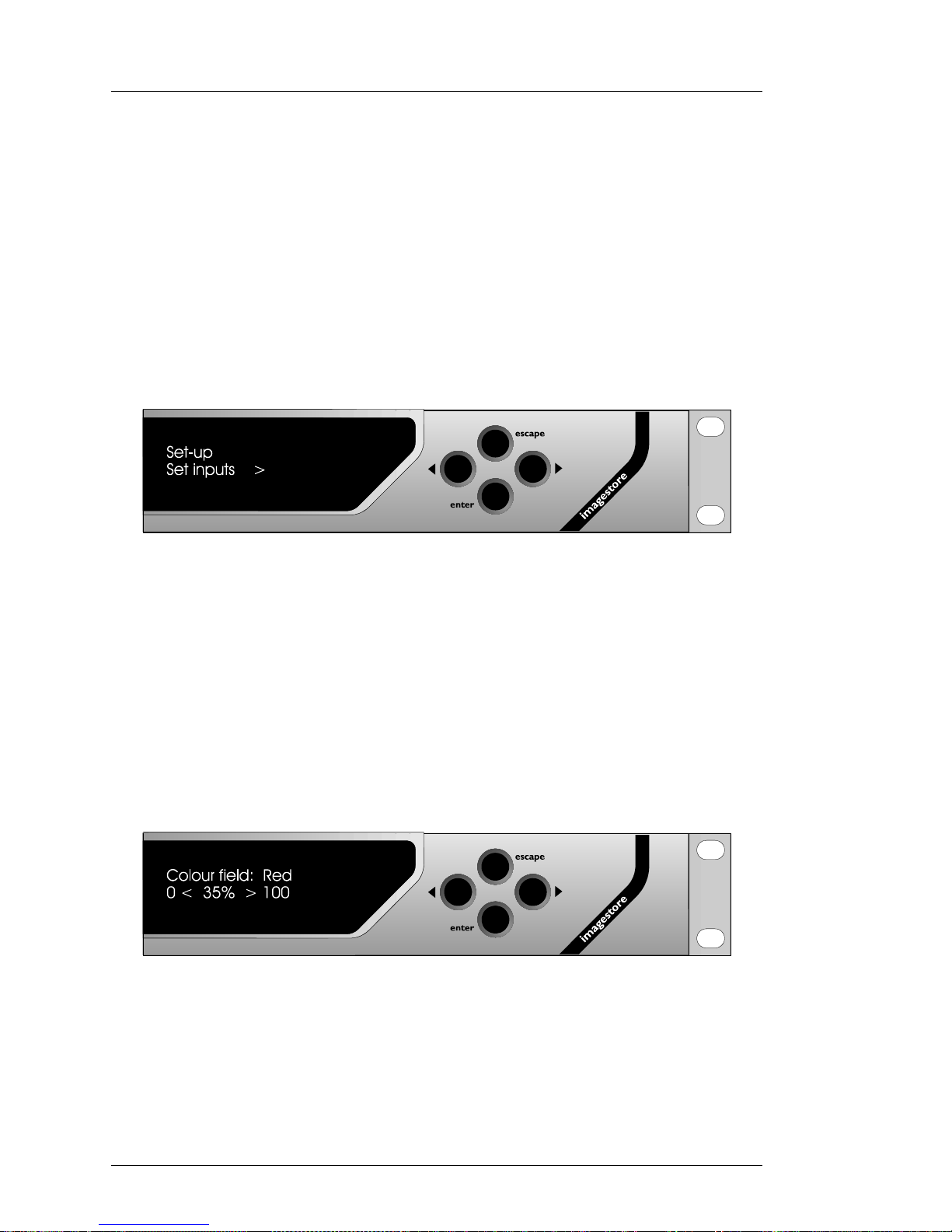

To check the status of the input settings or to change any settings, select the
set-up option from the boot-up menu and, using the arrow keys W X, displa y
the set inputs option. Press the enter key to apply that selection.

Three options are made available, A/Background, Fill and Key. Use the arrow
keys W X to select the appropriate input and then press the enter key to
apply that selection. In each case the display will indicate whether SDI video
or colour is currently selected.

To change the current setting, use the arrow keys W X to select the choice
and press the enter key to apply the selection.

If the SDI video option is selected but no signal is present at that input, the
input defaults to colour field with a value determined by the colour field
settings.

When the Colour option is applied, the user is presented with three
adjustments in turn, which together set the colour of the field to be inserted.
The first adjustment only affects the red component of the field.

Imagestore User Manual Front Panel Operation

Miranda Technologies Ltd Page 41

Using the left and right arrow keys W X the percentage value may be
changed. Pressing the enter key will apply that setting and bring up a similar
adjustment for the green colour field. Having set the percentage of green,
pressing the enter key will bring up a similar adjustment for the blue colour
field. Pressing the enter key from the blue field adjustment completes the set­up and the menu is returned to the Input Signal Set menu.

Emergency to Air

Imagestore has an emergency image facility, which, in the event of a
background video failure, enables an operator to rapidly get a preset
emergency image to air. The emergency image is stored in the image library
under the name "V000.oxt" and it replaces any other foreground image that is
currently being displayed.

Having selected manual from the boot-up menu, use the arrow keys W X to
display the emergency to air option and select it by pressing the enter key.

Having selected emergency to air, confirm the intention by pressing the X
arrow key to select Yes then pressing the enter key. This action will fade
down any images that are currently on air before fading up the emergency
image.

Once in the Emergency to Air mode, Imagestore may be reset to its original
state by pressing the escape key as prompted.

As an alternative to using the front panel, the emergency image may be
brought to air using an external button. This is achiev ed by allocating the
emergency to air command to one of Imagestore's GPI inputs. The procedure
for allocating GPI commands is described in the installation and integration
section of this guide.

Front Panel Operation Imagestore User Manual

Page 42 Miranda Technologies Ltd

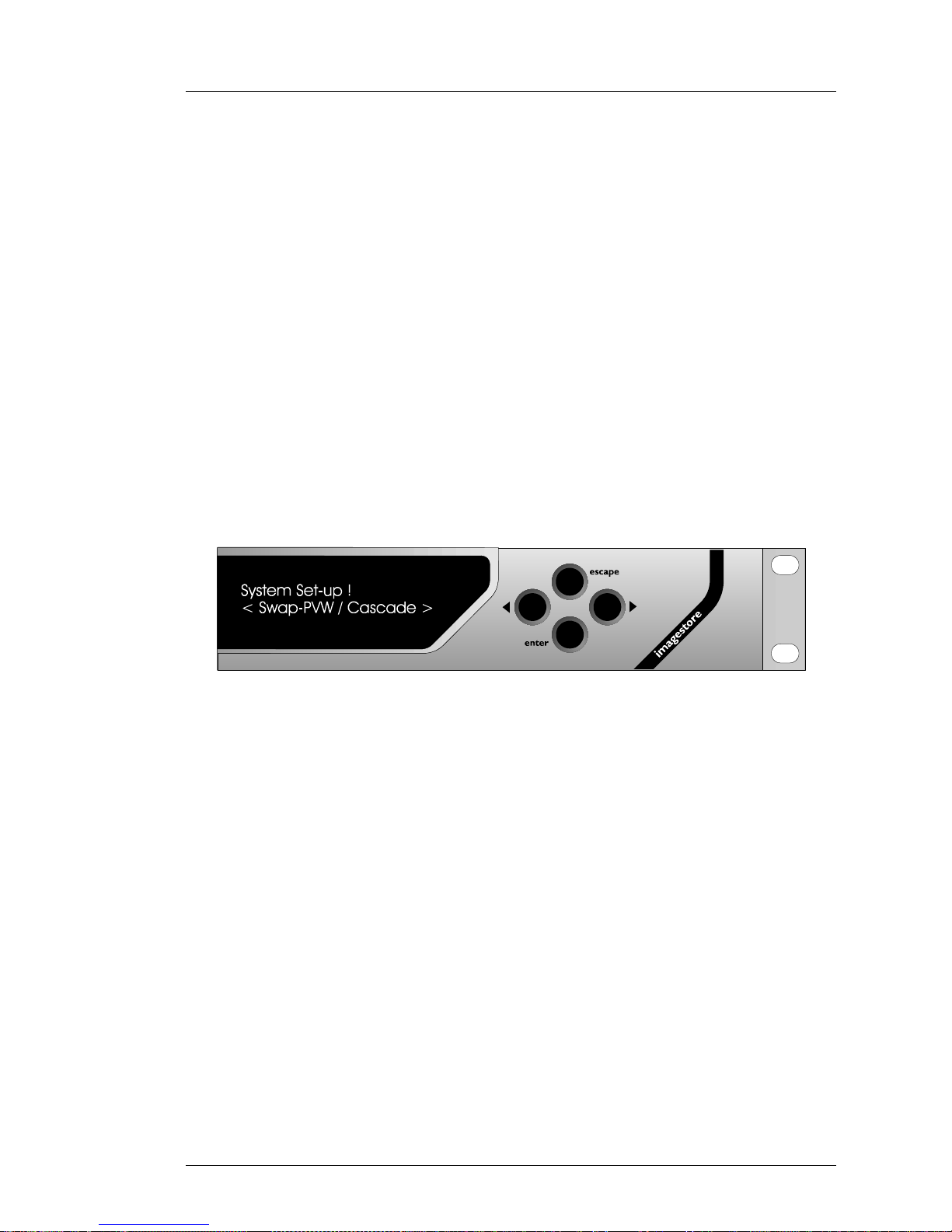

Operating Modes

The operation of Imagestore is dependent on its operating mode
configuration. Features available in one mode may not be relevant in the
alternate mode. The modes are identified as Swap-Preview (IS2 and Solo)
and Cascade (IS2 only). Changing Imagestore's mode is described in the Set
Up section of this manual.

To check the mode of Imagestore, select manual/operate from the boot-up
menu. With operate displayed, press the enter key. The first line of the
display will now indicate Imagestore's current mode by showing either Swap-
preview Operate or Cascade Operate.

Imagestore User Manual Front Panel Operation

Miranda Technologies Ltd Page 43

Swap/Preview Mode (IS2 - Solo)

Program Operations

Five programme channel operations and an associated set-up are accessed via
the Swap PVW-Programme menu. From the boot-up menu select
manual/operate/programme. Use the arrow keys W X to step through the
options.

{manua l} set-up

operate >

programme >

cut-swap fade swap cut up-down fade up/down FTB on/off

transition

rates

Cut Swapping Images

The cut swap feature causes the image loaded on the programme channel to
be exchanged with the image from the preview channel. The action is
instantaneous.

Select manual/operate/programme/cut swap from the boot-up menu to locate
the feature.

Press the enter key to action a cut-swap. When the operation takes place, the
arrow may change from ↓ to ↑ otherwise no change can be detected on the

Front Panel Operation Imagestore User Manual

Page 44 Miranda Technologies Ltd

VFD display, which rem ai ns showi n g t he same menu selection for further cut
swap operations.

Fade Swapping Images

The Fade-Swap feature causes the image on air to be replaced with the image
in the preview store, and vice versa at a rate determined by the transition rate
setting described later. The on air image is faded down, swapped and then
faded back up with the new image.

Select manual/operate/pr o gr amme/fade swap from the boot-up menu to
locate the feature.

Press the enter key to action a fade-swap. When the operation takes place,
the arrow may change from ↓ to ↑. During the transition the arrow is
replaced by the intermediate state symbol – acknowledging the fade is taking

place. No other change can be detected on the VFD display, which remains
showing the same menu selection for further fade swap operations.

Cut Up/Down

If an image is on air, the cut up/down feature can cause the current image to
be taken from air, and when cleared, a subsequent comman d will take the
image to air. The cutting action is instantaneous.

Imagestore User Manual Front Panel Operation

Miranda Technologies Ltd Page 45

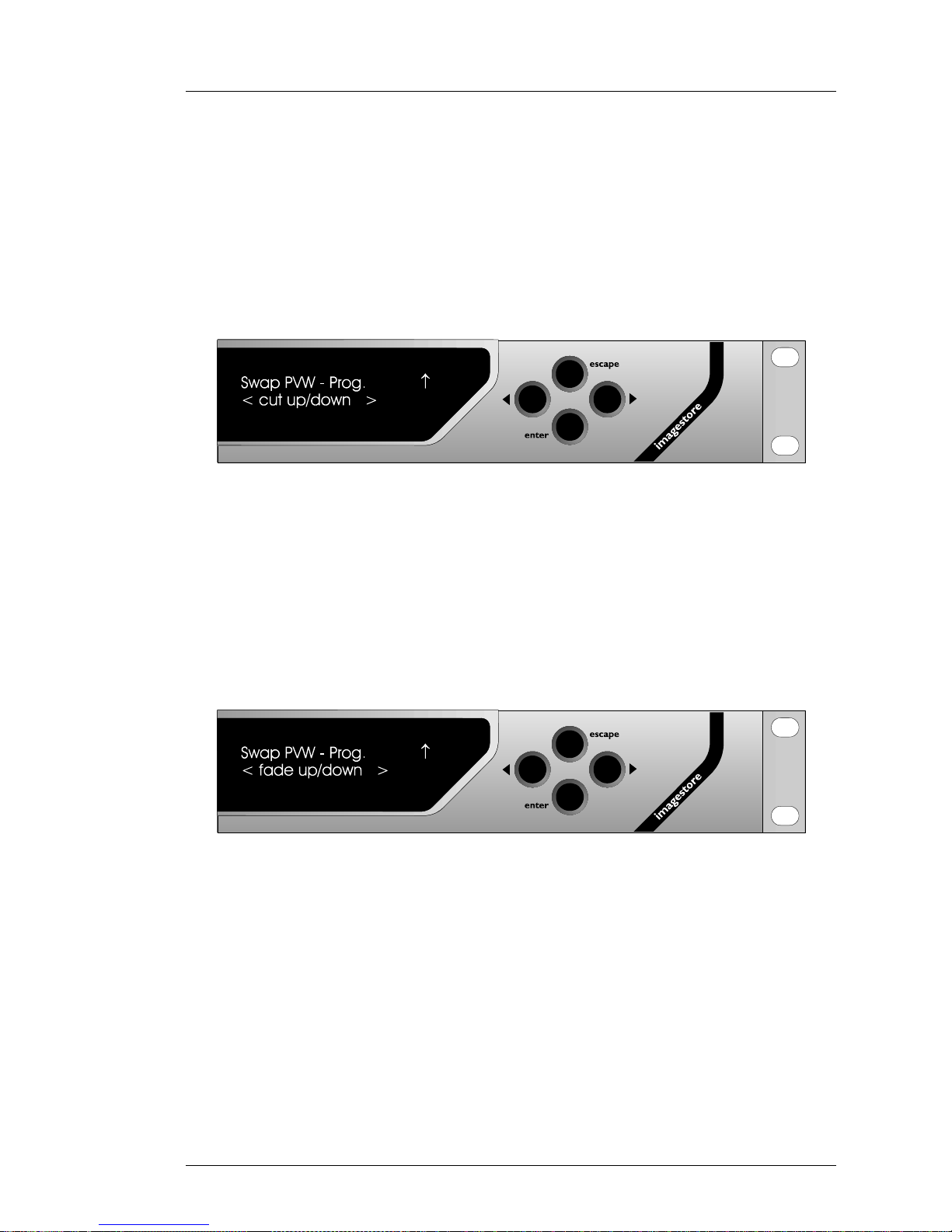

Select manual/operate/programme/cut up/down from the boot-up menu to
locate the feature.

Press the enter key to action a cut down, or a cut up. When the operation
takes place the arrow symbol will change from ↑ (cut up) to ↓ (cut down).

No other changes can be detected on the VFD displa y , w hic h remains
showing the same menu selection for further cut up/down operations.

Fade Up/Down

The fade up/down feature causes the current image to be faded from air and,
when there is no on air image, a subsequent command will fade the image to
air.

Select manual/operate/pr o gramme/fade up/down from the boot-up menu to
locate the feature.

Press the enter key to action a fade up or a fade down. When the operation
takes place the arrow symbol will change from ↑ (fade up) to ↓ (fade down).

During the transition the arrow is replaced by the intermediate state symbol –
acknowledging the fade is taking place. No other change can be detected on
the VFD display, which remains showing the same menu selection for further
fade up/down operations.

Front Panel Operation Imagestore User Manual

Page 46 Miranda Technologies Ltd

Fade to Black On/Off

The FTB on/off feature causes the current programme output on air to fade to
full-screen black. When the output is already faded to black, selection causes
the programme output on air to fade from a full-screen black image to the
previously displayed image. The replacement rate is determined by the
setting under transition rates (see below).

Select manual/operate/pr o gramme/FTB on/off from the boot-up menu to
locate the feature.

Press the enter key to action a FTB on/off. When FTB is on the B symbol
will appear next to the up arrow ↑. When FTB is off no B symbol is

displayed. During the FTB transition the intermediate state symbol – appears
next to the arrow acknowledging FTB is taking place. No other changes can
be detected on the VFD display, which remains showing the same menu for
further FTB on/off operations.

Imagestore User Manual Front Panel Operation

Miranda Technologies Ltd Page 47

Fade Transition Rates

The number of frames that it takes for a keyer fade or a fade to black
operation to complete is controlled by the setting of a transition rate for each
type of operation.

Select manual/operate/pr o gramme/FTB on/off from the boot-up menu to
locate the feature.

When transition rates is selected and applied, two further options become
available from the Adjust Rates menu:

♦ the Fade rate
♦ the Fade-to-Black (FTB) rate

Select the appropriate option using the arrow keys W X and apply the
selection using the enter key.

The current setting will be shown and pressing the escape key will exit the
set-up leaving the value unchanged. To change the current setting, use the left
and right arrow keys W X to adjust the appropriate frame rate up or down.
Pressing the enter key will apply the new setting.

Front Panel Operation Imagestore User Manual

Page 48 Miranda Technologies Ltd

Preview Operations

Preview channel operations are accessed via the Swap PVW - Preview menu.
From the boot-up menu select manual/operate/preview and use the arrow
keys W X to step through the options.

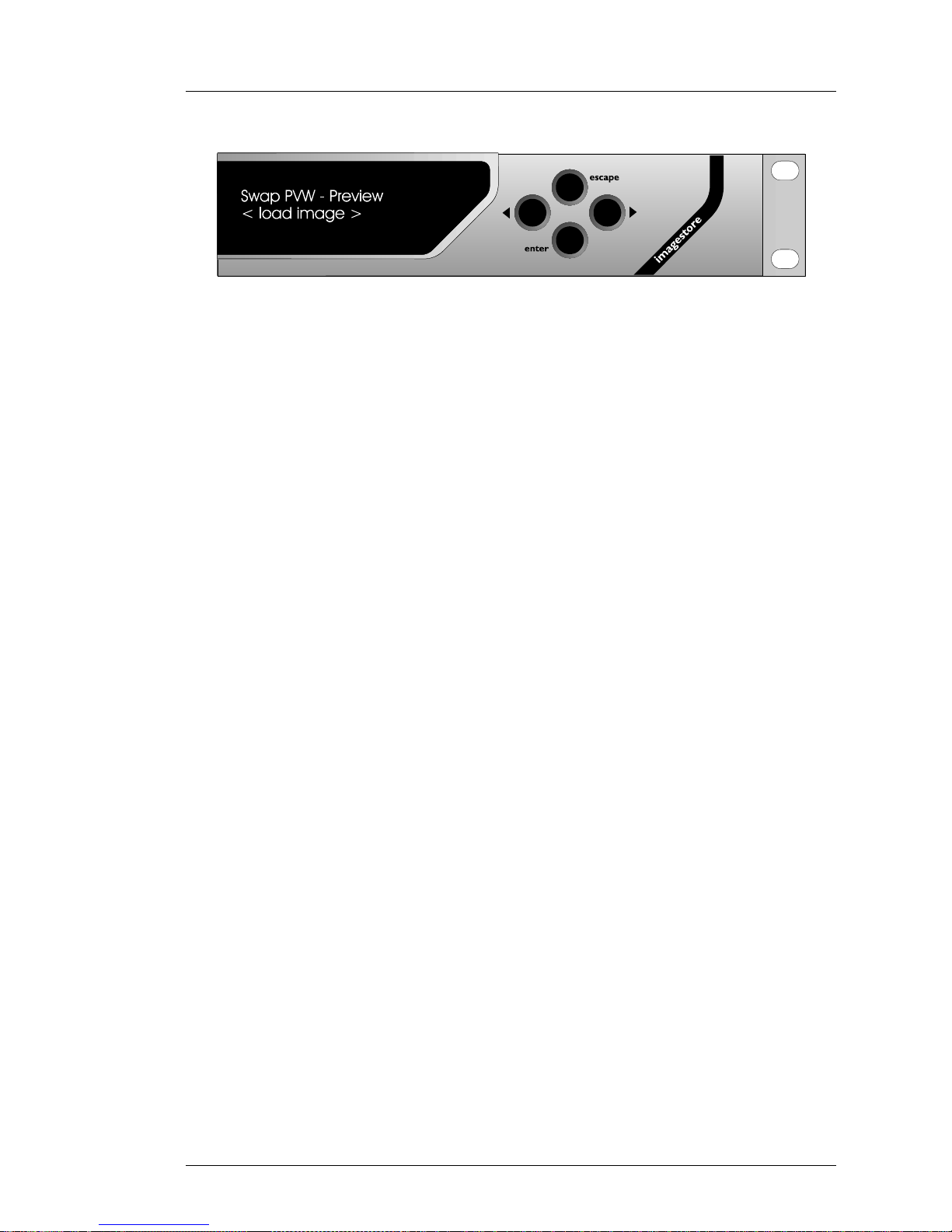

Loading Images

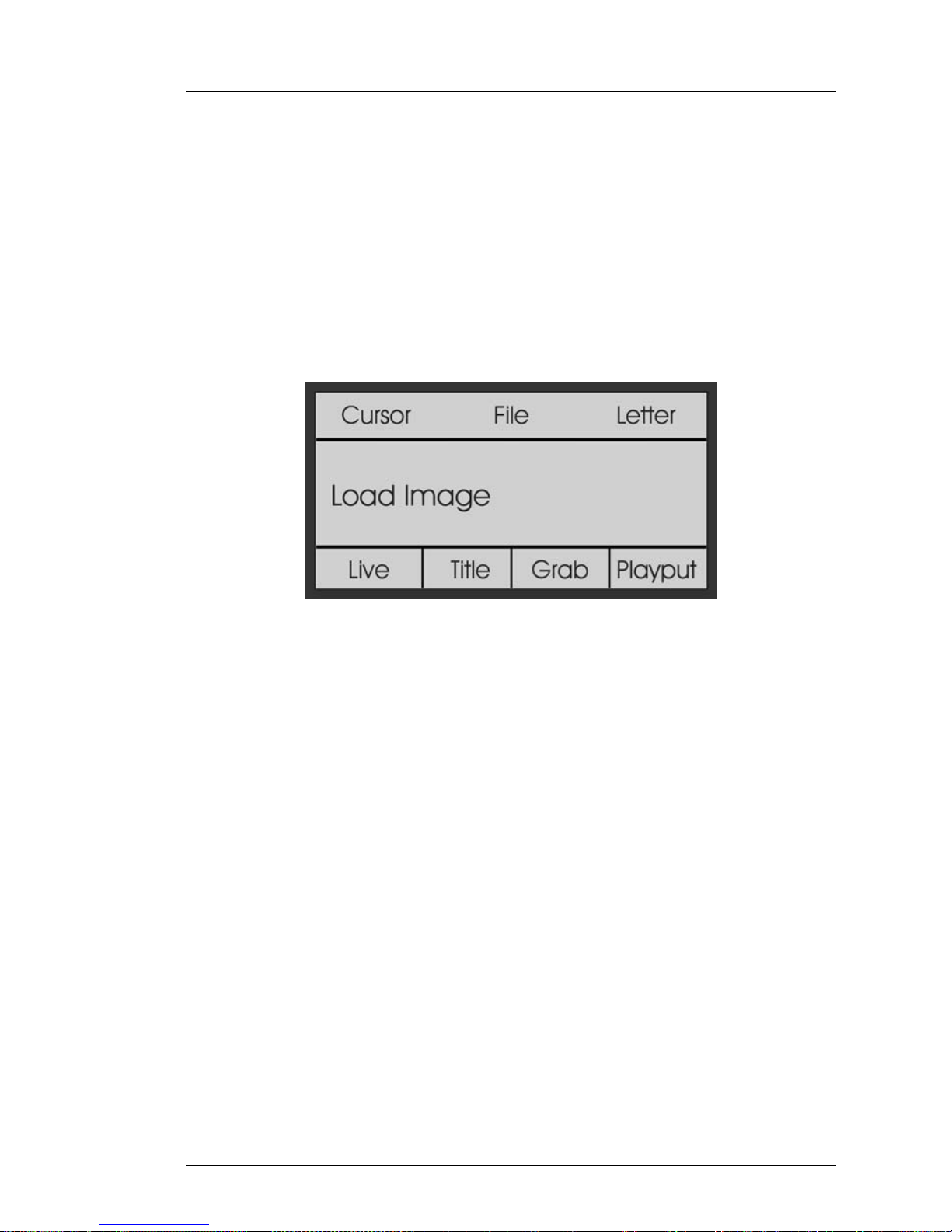

The "load image" feature enables the user to load the preview store with an

image from Imagestore's library, from a floppy disk in the 3½" disk drive, or
a live image from the Fill and Key SDI inputs. Images loaded from the
library or FDD may be used immediately, or edited and saved.

Select manual/operate/preview/load image from the boot-up menu to locate
the feature.

{manual} set-up

operate >

programme {prev iew}

load image

sub-menu

save image

sub-menu

grab image

sub-menu

image editor

sub-menu

preview output

set

Imagestore User Manual Front Panel Operation

Miranda Technologies Ltd Page 49

Live Input

This option is used to load images or patterns (shown in real time on the SDI
Fill and SDI Key inputs) and take them directly to the preview store. This

option is particularly useful for keying external video signals, such as moving
images from a character generator.

With the live input prompt is displayed, press the enter key to load the image
into the preview store.

To cancel a live input condition, load a lib rary image in to the preview store
and the loading action resets the condition.

Loading from FDD

Imagestore requires the 3½" floppy disks to be DOS-formatted (1.44MB) and
the files to be in a format shown in the following table. In each case the
image file extension must match the image format.

When the load from FDD prompt displayed, and a disk is in the drive, press
the enter key to load the file.

As the disk is read, each file on the disk is examined in turn and each image
file found is copied into the image library and loaded onto the prev iew
output. The display will acknowledge a successful or failed load.

The last image loaded from the FDD will remain in the preview store. This
allows a single image file to be easily imported and then taken immediatel y
to air.

The filenames of the original file forms are used to form the file name within
the image library so that FRED.JPG will be saved in Imagestore's library as
FRED.OXT.

Image File Types

Front Panel Operation Imagestore User Manual

Page 50 Miranda Technologies Ltd

File Type Description

TARGA (*.TGA)

8-bit (Greyscale), 24-bit (RGB) and 32-bit (RGB + Key)
TARGA files in both compressed and uncompressed variants.

JPEG (*.JPG)

'Lossy' compressed images. This format does not support key
information.

Miranda OXT (*.OXT)

Miranda Technologies Ltd still images and logos. 4:2:2:4 format,
10 bits per pixel.

Miranda OXA (*.OXA)

Miranda Technologies Ltd animations and clocks. 4:2:2:4 format
10 bits per pixel

Images On More Than One Disk

Various techniques are available to deal with large images and animations
that cannot normally be placed on a single floppy disk.

The Media Conversion Software (MCS) image, animation and clock build ing
tools supplied with Imagestore can all generate disk sets, where a single large
file is split over multiple floppies (called disk spanning)'. When this
technique is used, the MCS tools also apply loss-less compression to the file
to reduce the number of disks required.

To load an image or animation held on multiple floppies put the first disk in
the drive, select the load from FDD option and press enter. Imagestore will
prompt you for the each subsequent disk as it is required.

The floppies can be presented in any order. Imagestore will automatically
combine and decompress the resulting file. Each component file of a multi­disk set has the special name SPANFILE.OXM.

Special File Types

Any file named KEY.TGA is given special treatment as it is taken to be the
key image for the most recently loaded file. This process allows 'fill' and 'key'
Targa files to be combined internally to give the equivalent of a 32-bit

RGB+Key Targa file, by loading two files called, for example
MYPICTURE.TGA and KEY.TGA.

Any file called IMAG.KEY is also treated specially as a key image in .OXT
format. When an image saved by Imagestore cannot fit on a single disk, two
disks are written. The first disk holds a file called IMAG.OXT and the second
disk holds IMAG.KEY.

Imagestore User Manual Front Panel Operation

Miranda Technologies Ltd Page 51

Library Images

From the Load Image menu use the arrow keys W X to step through the
library images until the name of the image of interest is shown in line two of
the display. The files are shown in alphabetic order and the right and left
arrow keys W X move the filename forward and back respectively. Pressing
the enter key will cause the displayed file to load from the library.

Image Load Mode

This option defines how an image is loaded into the preview store.
Select set-up/image load mode from the boot-up menu then press enter.
Using the left and right arrow keys W X select one of the following options,
pressing the enter key to accept the choice

Wipe Load

As the image/animation is loaded into the preview store it is also disp layed
via the preview output. Larger files may be displayed gradually until th e
image is complete. Animations will be displayed frame by frame until the
entire sequence is loaded.

Clean Load

Clean load removes the existing image from the preview store before loading
the new file. The image/animation will NOT be displayed until it is fully
loaded.

Cut Load

Cut load is similar to clean load but the existing image remains active until
the new file is loaded. A cut transition then replaces the new image for the
old one.

Front Panel Operation Imagestore User Manual

Page 52 Miranda Technologies Ltd

Saving Images

The "Save Image" feature enables the user to save the image currently in the
preview key and fill stores, to the image library, or to floppy disks in the 3½"
disk drive. "Live" images cannot be saved.

Select manual/operate/preview/save image from the boot up menu to locate
this feature.

Images may be saved as Full Image or Cropped. When the image editor has
been used to create a mask for an image, the full image may be saved
together with its mask allowing the option for the mask to be subsequently
enabled, disabled or modifi ed. Where Cropped is selected only the image
within the masking area will be saved thus creating a smaller file but
permanently restricting the image to the boundaries of the mask.

The resultant prompts from the Full Image and Cropped options are identical.
In each case a choice is offered between the floppy disk drive (FDD) and a
numbered location within the image library.

When a save is to be made to the image library, the arrow keys W X are used
to increment and decrement the image number for the save. Where a filename
is already in use an asterisk will appear following the displayed name.

Imagestore User Manual Front Panel Operation

Miranda Technologies Ltd Page 53

If an image is being saved to floppy disk, two disks may be required. If the
image is large, one disk is used to save the Fill store and, if insufficient sp ace
remains on the disk, a second disk is used to save the Key.

Animations and clocks cannot currently be saved to floppy disk. Images are
saved in the Miranda Technologies Ltd format (.OXT).

When the process has started, the display provides full dialogue and prompt s
for floppy disk changes. Upon completion of the process, the display returns
to the Save Image menu.

Grabbing Images

The Grab Image feature enables the user to load the preview store directly
from the external "SDI Fill" and "SDI Key" inputs. Once loaded, the image
can be edited and stored, or used immediately without change.

Select manual/operate/preview/grab image from the boot-up menu to locate
the feature.

Press the enter key and Imagestore will display the SDI "Fill" input at the
"Preview" output and the display will change to show the following prompt.

When the enter key is pressed, Imagestore will grab the image at the instant
of the key being pressed and the display will change to show the following
prompt.

Front Panel Operation Imagestore User Manual

Page 54 Miranda Technologies Ltd

To grab another image, press the enter key and Imagestore will return to the
preview image state. Repeat grabs can now be made until the required image
is obtained. Once the desired image has been grabbed, the user may exit the
Grab Image mode by pressing the escape key. The grabbed image will
remain held in the preview store.

Editing Images

The image editor enables the user to adjust a number of parameters, all of
which affect the visual appearance of an image.

Once changed, the image ma y be used immediately, or saved for later use.
The following four groups of parameter may be changed:

♦ Clip, Gain and Transparency
♦ Set Position
♦ Masking
♦ Key Parameters

Select manual/operate/preview/image editor from the boot-up menu to locate
the feature.

Imagestore User Manual Front Panel Operation

Miranda Technologies Ltd Page 55

Adjusting Clip, Gain and Transparency

If external faders are being employed for control of clip, gain and
transparency, Imagestore will not offer front panel level setting and will
instruct the user to use the faders. Enabling and disabling external faders is
described in the configuration and set-up section of this manual.

When the clip, gain and tra nsparency option is applied, the user is first
offered an opportunity to adjust the current clip level. The minimum and
maximum levels are shown to the left- and right-hand sides of line two of the
display, with the currently selected level shown in the middle. The right and
left arrow keys W X are used to increase and decrease the setting
respectively.

The setting is applied by pressing the enter key. Once set, the display moves
on to the next parameter Adjust Gain. The adjustment is made in exactly the
same way as for Clip.

Once Gain is set the display moves on to the final adjustment (Adjust
Transparency), which is set in the same way as Clip and Gain.

Clip Level

Clip is the level under which the key signal will be forced to black. In a
keying process this will result in a total absence of fill video in areas where
the incoming key signal is less than the clip level.

Gain Level

The gain level amplifies the key signal, forcing grey levels towards, and up
to, white level. In a keying process this will result in the fill signal being less
transparent than it otherwise would be in areas with a grey key signal.

Front Panel Operation Imagestore User Manual

Page 56 Miranda Technologies Ltd

Transparency Level

The transparency level controls the amount of background video, across the
whole picture that will 'seep' through the keyed image. This function is
achieved by attenuating th e key signal.

Set Position

The Set Position sub menu offers a choice between horizontal and vertical.
Use the arrow keys W X to select between options as indicated by the
brackets enclosing that option. Press the enter key to apply the selection.

Images may be repositioned horizontally (left and right) and vertically (up
and down) in increments of two pixels. The settings, accessed through the set
position sub-menu, define the relative position between the top left corner of
the visible background and the top left corner of the image.

For a horizontal adjustment, the setting is the number of pixels that the image
is to the right of the top left visible corner of the screen. Negative values are
displayed if the image is moved to the left of that top corner reference where
part of the image would be outside of the visible screen area.

For a vertical adjustment, the setting is the number of pixels that the image is
below the top left visible corner of the screen. Negative values are displayed
if the image is moved above the top corner reference where part of the image
would be outside of the visible screen area.

Masking Images

Images may be masked by restricting the margins and confining an image to
less than full screen. Before any image can be masked the feature must be
turned to enabled. An option within the Set Masking sub menu provides the
enable/disable switching.

Imagestore User Manual Front Panel Operation

Miranda Technologies Ltd Page 57

Images may be masked from the left, right, top or bottom. In each case the
arrow keys W X are used to control the masking.

The minimum a nd maximum levels are shown to the left and right sides of
line two, with the currently selected level shown in the middle. The right an d
left arrow keys W X are used to increase and decrease the setting
respectively and the enter key applies the setting.

Key Parameters

The following three key signal parameters can be set:

♦ Sense (this allows the key signal to be used either normally or inverted)
♦ Source (selects between using no keying, a separately stored key signal,

or an internal key signal derived from the stored picture image)

♦ Type (selects between full or linear keying modes)

For Type, the mode Full Key sums the background (with the key signal
removed) to the foreground. The foreground is only passed where the key
signal is present. This mode is used with self-luma keys. With Linear Key the
mode sums the background (with the key signal removed) to the foreground.
The foreground remains unaf fected by the key .

When the Key Parameters option is selected, the parameters are displayed for
selection as shown below. Use the arrow keys W X to move the brackets to
enclose the parameter to be changed and press the enter key to view the
appropriate sub-menu.

Front Panel Operation Imagestore User Manual

Page 58 Miranda Technologies Ltd

When sense has been selected, the arrow k eys W X are used to choose
between normal and invert. Pressing the enter key applies the selection.

When source has been selected, the arrow keys W X are used to choose
between separate, self and none. Pressing the enter key applies the selection.

When type has been selected, the arrow keys W X are used to choose
between full and linear. Pressing the enter key applies the selection.

Sense

When the sense option is set to normal, a black-level key signal will cause
the "Fill" image to be fully transparent and not appear over a background. A
white-level key signal will cause the "Fill" image to be opaque with no
background appearing through. Intermediate keying leve ls will prod uce a
pro-rata transparency effect.

Setting the sense option to invert reverses this effect and white-level key
signals now create a fully transparent "Fill" image with black-level signals
producing an opaque "Fill" image.

Source

When the source option is set to separate, the key data is derived from the
luminance content of the separate "Key" image. When the source option is
set to self, the key data is derived from the luminance content of the "Fill"
signal itself. When the source option is set to none the key for an image is set
to white so that there is no image transparency.

Type

With Full Key the foreground image is passed only where the key signal is
present. Alternatively, with Linear Key the background and foreground are
summed and the foreground is unaffected by the key.

Imagestore User Manual Front Panel Operation

Miranda Technologies Ltd Page 59

Setting the Preview Output

In Swap-Preview mode, the Preview output may be attached to any one of
following monitor points around the unit.

Preview Output Set Monitor Point

Program Fill Programme Channel "fill" image"
Program Key Programme Channel "key" image
Preview Fill Preview Channel "fill" image
Preview Key Preview Channel "key" image
Fill Fill input
Key Key input
Program Output Programme SDI Output
Program Preview Preview SDI/Analogue Output (Normal

Setting)
A/Background Background input
Presmaster Preview IS2 only
B Input B input (AB Mixer only)
AB Mix AB mixer output (AB Mixer only)

Select manual/operate/preview/preview output set from the boot-up menu to
locate the feature.

Front Panel Operation Imagestore User Manual

Page 60 Miranda Technologies Ltd

When Preview Output Set has been selected, the left and right arrow keys
W X are used to display each of the nine options for the preview output.
When the appropriate selection is displayed press the enter key to apply that
choice.

The output setting should be returned to Program Preview once monitoring is
complete to ensure operation of the Polyphoto feature.

Imagestore User Manual Front Panel Operation

Miranda Technologies Ltd Page 61

Cascade Mode Operations (IS2 Only)

Cascade mode operates with the two keyers arranged in series to allow two
images to be keyed simultaneously, but independently, over the background
video. This mode provides a more restricted preview capability, whilst still
providing the some ability to view an image prior to transmission.

The two keyers are identified as the "midground" (MG) keyer and the
"foreground" (FG) keyer. Both layers operate identically, but the "image
editor" feature cannot be used whilst the MG layer is "on-air". If the MG
layer is in use when a user requires the "image editor" feature, the MG layer
would have to be taken "off-air" first.

To change between Swap Preview or Cascade mode select
Set-up/system/Swap-PVW / Cascade.

Press the enter key then use the arrow key W X to select the new mode. Once
selected press enter key.

Front Panel Operation Imagestore User Manual

Page 62 Miranda Technologies Ltd

Midground and Foreground Programme
Operations

MG and FG programme operations are performed identically and a single
description is given.

operate >

select

midground

select

foreground

select

previe w output set

select

image editor

{manual} set-up

Note! AB Mixer and Audio selection may appear depending on licences

installed.

Having selected the midground or foreground keyer the sub-menus are as
follows.

select midgr ound or

foreground

cut u p /d own

fade up/down

load image

transition rates

FTB on/off

Imagestore User Manual Front Panel Operation

Miranda Technologies Ltd Page 63

Cut Up/Down and Fade UP/Down

The cut up/down and fade up/down features affect the MG or FG image that
is present at the programme output. "cut up" and "fade up" take the MG or
FG image "on-air" over a background using a cut or fade transition. "cut
down" and "fade down" take the MG or FG image "off-air" from a
background using a cut or fade transition.

To find the cut up/down and fade up/down features from the "boot-up" menu,
select manual/operate and then choose either midground or foreground from
the Cascade Operate menu. Use the arrow keys W X to locate the cut-
up/down and fade up/down features.

Press the enter key to action a cut (fade) up, or a cut (fade) down. When the
operation takes place the arrow symbol will change from ↑ (cut fade up) to ↓

(cut fade down). No other changes can be detected on the VFD display,
which remains showing the same menu selection for further cut (fade)
up/down operati ons.

Switching Fade to Black On and Off

The FTB on/off feature causes the appropriate keying layer output on-air to
fade to full-screen black. When the output is already faded to black, selection
causes the same layer output on-air to fade from a full-screen black image to
the previously displayed image. The replacement rate is determined by the
setting under transition rates.

Select manual/operate/midground or foreground/FTB on/off from the boot-
up menu to locate the feature.

Front Panel Operation Imagestore User Manual

Page 64 Miranda Technologies Ltd

Press the enter key to action a FTB on/off. When FTB is on the B symbol
will appear next to the arrow (↑ or ↓). When FTB is off no B symbol is

displayed. During the FTB transition the intermediate state symbol – appears
next to the arrow acknowledging FTB is taking place. No other changes can
be detected on the VFD display, which remains showing the same menu for
further FTB on/off operations.

Turning the foreground "fade to black" (FTB) to ON will force the
programme output of the Imagestore to black. With the midground FTB ON,
any foreground image that is currently "on-air" will still be seen over the
black output of the midground keyer.

Loading Images

The load image feature is used to load images from following the floppy
disk, the image library, or "live" from the fill and key input ports.

The arrow keys W X are used to select the source and identity of the file for
loading.

Once loaded the image may be taken on air using the cut-up or fade-up
operations.

Select "manual/operate/midground or foreground/load image from the boot-
up menu to locate the feature.

Imagestore User Manual Front Panel Operation

Miranda Technologies Ltd Page 65

Press the enter key to view the load image menu. When the load image menu
is displayed, use the left and right arrow keys W X to determine the source of
the image to be loaded. The three options available are live input, load from
FDD and filename.

Live Input

This option is used to load images or patterns being presented, in real time,
on the "SDI Fill" and "SDI Key" inputs. The option is particularly useful for
keying external video signals, such as moving images from a character
generator.

If live input is selected for either the MG or FG stores, the grab facility will
be suspended from use (this applies even if the image is not on air). To regain
the "grab" facility, a new image must be loaded into the channel that has live
image selected.

Although the live input function is normally independent of the Background
SDI signal, it should be noted that, if the Imagestore is using the SDI digital
signal as a clocking source, that signal must be present.

Press the enter key and the Imagestore will begin to load the image. If no
signal is present at the Fill input, the operation will terminate.

Load from FDD

Imagestore requires the 3½" floppy disks used to be DOS-formatted
(1.44MB) and that the files be in a format shown in the following table. In
each case the image file extension must match the image format.

With the load fro m FDD prompt displayed, and with a disk in the drive, press
the enter key to load the file.

Full details of FDD image loading are found under Swap-Preview mode.

Front Panel Operation Imagestore User Manual

Page 66 Miranda Technologies Ltd

The filenames of the original file forms are used to form the file name within
the image library so that "FRED.JPG" will be saved in Imagestore's library as
"FRED.OXT".

Images by name

From the Load Image menu use the arrow keys W X to step through the
HDD library files until the name of the image of interest is shown in line two
of the display. The files are shown in alphabetic order and the right and left
arrow keys W X move the filename forward and back respectively. Pressing
the enter key will cause the displayed file to load from the library.

Image Load Mode

This option defines how an image is loaded into the midground or foreground
store. Select set-up/image load mode from the boot-up menu then press enter.
Using the left and right arrow keys W X select one of the following options,
pressing the enter key to accept the choice

Wipe Load

As the image/animation is loaded into the midground or foreground store it is
also displayed via the appropriate output. Larger files may be displayed
gradually until the image is complete.

Note: Animations loaded this way will be displayed frame by frame until

the entire sequence is loaded.

Clean Load

Clean load removes the existing image from the midground or foreground
store before loading the new file. The image/animation will NOT be
displayed until it is fully loaded.

Cut Load

Cut load is similar to clean load but the existing image remains active until
the new file is loaded. A cut transition then replaces the new image for the
old one.

Imagestore User Manual Front Panel Operation

Miranda Technologies Ltd Page 67

Setting Transition Rates

The "transition rates" feature is used to set the number of frames that it will
take to complete a "fade" action or the number of frames that it will take to
complete a "FTB on/off" action.

Select manual/operate/midground or foreground/transition rates from the
boot-up menu to locate the feature.

When transition rates is selected and applied, two further options become
available from the Adjust MG Rates or Adjust FG Rates menus; these are the
fade rate and the FTB rate. Select the appropriate option using the arrow keys
W X and apply the selection using the enter key.

Change the current setting using the left and right arrow keys W X to adjust
the appropriate frame rate up or down. Press the enter key to apply the new
setting. Pressing the escape key will exit the menu leaving the original value
unchanged.

Setting the Preview Output

In Cascade mode, the Preview output may be "attached" to any one of ten
monitor points around the unit.

Select manual/operate/preview output set from the boot-up menu to locate
the feature.

Front Panel Operation Imagestore User Manual

Page 68 Miranda Technologies Ltd

When preview output set has been selected, use the left and right arrow keys
W X to display each of the ten options for the preview output. When the
appropriate selection is displayed press the enter key to apply that choice.

Preview Output Set Monitor Point

Midground Midground keyer image
A/Background Background input
Foreground Fill Foreground “fill” image
Foreground Key Foreground “key” image
Midground Fill Midground “fill” image
Midground Key Midground “key” image
Fill Fill input
Key Key input
Input B Input B (AB Mixer only)
AB Mixer AB Mixer output (AB Mixer only)
Program Output Programme SDI Output
Program Preview

Preview SDI/Analogue Output (normal
setting)

Presmaster Preview

After the preview output has been used for monitoring it is good practice to
return the setting to Program Preview. Only when attached to this setting will
images being edited be seen at the PVW output.

Imagestore User Manual Front Panel Operation

Miranda Technologies Ltd Page 69

Editing Images

Images can only be edited in Cascade mode when the midground keyer is not
"on-air". Ensure that there will be no requirement for the midground image to
be taken "on-air" during an editing session.

When using the Cascade mode editing features refer to the "editing images"
section of Swap-PVW Mode, Preview Operations, given in earlier paragraphs
of this guide.

Front Panel Operation Imagestore User Manual

Page 70 Miranda Technologies Ltd

Imagestore User Manual Oxtel RCP Operation

Miranda Technologies Ltd Page 71

Oxtel RCP Operations

Introduction

This section provides a basic in troduction to Miranda Technologies Ltd's
Oxtel Remote Control Panel and describes the features and facilities provided
by the unit. Each of the RCP’s buttons may be disabled at the time of
installation to avoid accidental operation but this manual describes all the
potential features. Further information and support on the Unit is available
from the Miranda Technologies Ltd Support Desk at the phone number on
the cover of this manual.

Miranda Technologies Ltd's Intelligent Panel Router (IPR) enables one or
more Oxtel RCP’s to operate multiple Imagestore, Logostore or Playstore
products. The RCP is capable of controlling up to 127 pieces of equipment.
Full details are provided in the IPR user manual.

Oxtel RCP Operation Imagestore User Manual

Page 72 Miranda Technologies Ltd

Controls

The RCP’s front panel comprises a backlit LCD display, dedicated push­button switches with legends, menu driven soft-keys and potentiometers.

The RCP also includes the following option buttons on the top-level menu
which you use to select the sub-system you want to control (note that the list
of options available to you will depend on which options have been fitted to
your version of Imagestore):

♦ Mixer (opt i o nal feature)
♦ Logos (standard feature included with all Imagetsore systems)
♦ Squeezy (optional feature)
♦ Audio (optional feature)

(see Soft Keys below for details about how to choose these options)
During the power-up self-test sequence the integral lamp within each push-

button switch will illuminate in turn. The following paragraphs describe the
use of the controls for new users.

Display

The LCD display provides interactive access to the control menus of the
connected equipment. The basic display of the RCP is always provided
shortly after power is first supplied and can be reached at any ti me by
repeatedly pressing the "ESC" key.

The brightness and contrast of the display may be adjusted to suit the user by
pressing the "Setup" key followed by the left-hand soft key (identified on­screen as RCP). These actions will bring up the "Set LCD & Keys" menu and
the left and right rotary potentiometers may be used to make adjustments.
Lamp brightness can also be adjusted to suit ambient conditions.

Push Button Switches

The RCP has thirty dedicated pushbuttons of which eleven comprise an
alphanumeric keypad ("0" to "9YZ" plus ENTER). The following paragraphs
describe the use of each button in turn.

Imagestore User Manual Oxtel RCP Operation

Miranda Technologies Ltd Page 73

ESC Key

The ESC key is used to return to the basic display. When the basic display is
being presented the key is not illuminated. Once a control menu is selected
the button becomes illuminated indicating that th e button is now providing a
function. To return to the basic display press the button repeatedly until it is
extinguished.

Menu Keys

The six keys to the right of the ESC key are the menu keys. Keys that are
illuminated are available for use. Any key that is not illuminated is
unavailable either because the feature is not currently appropriate or the unit
connected does not support that feature.

Pressing any available (illuminated) menu key results in the appearance of an
operational display. Use of these features is described in the section relating
to the product connected to the remote control panel.

Load

The LOAD key provides access to the image loading, grabbing and "live"
loading options.

Save

The SAVE key provides access to the image saving and image erasure
options.

Edit

The EDIT key provides access to any image editing options that are available
on the controlled equipment.

Play List

The PLAY LIST key provides access to the options for creating, loading,
unloading and editing a Playlist.

Oxtel RCP Operation Imagestore User Manual

Page 74 Miranda Technologies Ltd

Setup

The SETUP key provides access to provision for setting the LCD
parameters, accessing the polyphoto display, setting fade transition rates and
for configuring the sampling point of the controlled equipment preview
output.

Next Del

The NEXT DEL key is used to delete characters of names that have been
entered on the alpha numeric keypad. For e x ample, if a file were to be named
"MIRANDA" and was incorrectly entered as "MIRANAD", the NEXT DEL
key could be used to delete the final "D" and "A" allowing a correction to be
made.

Alphanumeric Keypad

The alphanumeric keypad comprises keys "0" to "9YZ_" and the ENTER
key. These keys are not normally illuminated and become illu minated only
when a procedure is selected which might require their use.

When using the keypad to enter a file name, use the set-up RCP feature to
select the buttons for "alpha" or "numeric" mode. Where "alpha" is selected,
press the key once for the first character, twice for the second alphabetic
character and so on.

When the appropriate character is displayed, pressing a different
alphanumeric key will automatically move the entry cursor. Where the same
key is to be re-used, move the cursor manually using the left-hand rotary
control.

If a keying error is made, pressing the "ESC" key will cancel the complete
entry and "NEXT DEL" key will delete the last character entered. When all
the appropriate characters have been entered pressing the ENTER key will
apply the entry.

Fade to Black

The operation of the "FADE TO BLACK" key differs from the other keys in
that its illumination is not intended as an indication of its availability. When
the "FADE TO BLACK" key is illuminated it indicates that a Fade to Black
status is in effect and that the output is currently faded to black. Should

Imagestore User Manual Oxtel RCP Operation

Miranda Technologies Ltd Page 75

pressing the "FADE TO BLACK" key fail to result in the button illuminating
or the programme output fading, wait to see if a long fade rate has been set
before concluding that this feature has bee n disabl ed.

Previous (Prev)

When a play-list is not loaded, and an image is being monitored at the PVW
output, pressing "PREV" (previous) will load the preview keyer with the
preceding image from the image library. In play-list mode the image loaded
will be the preceding image in the play-list.

In polyphoto mode the "PREV" key will move the cursor (flashing yellow
dot) to the previous thumbnail image.

Next

When a play-list is not loaded, and an image is being monitored at the PVW
output, pressing "NEXT" will load the preview keyer with the following
image from the image library. In play-list mode the image loaded will be the
following image in the play-list.

In polyphoto mode the "NEXT" key will move the cursor (flashing yellow
dot) to the following thumbnail image.

Take and Swap

The “TAKE” light is lit when the image selected on the programme output is
“on-air”. The light is out when the programme image is cut or faded down.

The "TAKE" key can be used to take logos/images to and from air over the
background signal or to exchange the contents of the preview and programme
keyers. The effect of this key depends on the status of the "SWAP" key.
Pressing the "SWAP" key selects and deselects the swap condition and
determines the action of the "TAKE" button and the illumination of the swap
legend is toggled.

With the swap legend illuminated the "TAKE" button exchanges the
logo/image on air with the preview logo/image using the selected cut or fade
effect. With the swap legend not illuminated successively pressing the
"TAKE" button simply takes the programme logo/image on and off air.

Oxtel RCP Operation Imagestore User Manual

Page 76 Miranda Technologies Ltd

Cut/Fade

The "CUT/FADE" key is used to toggle between the two options controlling
the type of transition to and from air of the programme keyer. The current
selection is indicated by the illumination of the legend above the button. This
setting only affects keyer fade transitions and does not affect the programme
"fade to black" transition or the keyer "cut" transition.

Rate

The "RATE" key is used to switch between the speed options for keyer fade
transitions. The current selection is indicated by the illumination of the
legend above the button and only the op tion currently selected is illuminated.
Rates are set using the "Set-Up" feature.

FG Keyer and MG Keyer

These two keys are only effective when the RCP is connected to an
Imagestore that is operating in the "Cascade" mode. FG is an abbreviation of
foreground and MG is an abbreviation of midground. The keys are used to
determine the keyer affected by current operations.

Channel Set

The "CHAN'L SET" key is only effective when the RCP is used via an
Miranda Technologies Ltd Intelligent Panel Router. Pressing the "CHAN'L
SET" key will provide access to the "Channel Set" menu.

Soft-Keys

The remote control panel features four soft-keys which are positioned from
left to right under the LCD. These keys have no dedicated purpose and are
allocated by the different menus as is appropriate for a particular purpose.
When a purpose is to be allocated to any soft key a legend will appear on the
LCD directly above the key indicating its temporary purpose.

Rotary Controls

The remote control panel features three rotary controls which are positioned
from left to right above the LCD. These "pots" have no dedicated purpose
and are allocated by the different menus as is appropriate for a particular

Imagestore User Manual Oxtel RCP Operation

Miranda Technologies Ltd Page 77

purpose. When a purpose is to be allocated to any "pot" a legend will appear
on the LCD directly below the "pot" indicating its current purpose.

Swap/Preview Mode Operations

The RCP can be used in either of the two operational modes to co ntrol image
loading, image editing, image previewing, image saving and image
transmission. The features and facilities available differ significantly
dependent on the operational mode. This user guide describes both modes
separately and some duplication may occur.

In all circumstances pressing the ESC button repeatedly until it is no longer
illuminated returns the controller to its start up display.

Transmission Control

The group of buttons in the bottom, right-hand corner of the controller is used
to take images on and off air and to exchange images between the program
and preview keyers. The use of these buttons does not involve any prompts
on the controller LCD.

Note The SWAP button is used to determine the action of the TAKE

button and pressing it will cause the legend above the SWAP button
to either illuminate or extinguish.

Program Fade to Black

Pressing the "Fade to Black" button will cause the programme output to fade
to black over the number of frames set for that transition.

When the output has been faded to black the button becomes illuminated.
Pressing the button again will cause the normal program output to reappear
over the same number of frames and the button light will go out.

The FTB option may be disabled where appropriate and the Miranda
Technologies Ltd helpdesk will provide details on request.

Oxtel RCP Operation Imagestore User Manual

Page 78 Miranda Technologies Ltd

Program Image "On Air/Off Air"

When taking a foreground image "on-air" or off-air", the condition of the
SWAP button is crucial. Ensure that the legend marked SWAP above the
swap button is extinguished. If it is illuminated, press the SWAP button to
extinguish the legend. With the SWAP legend extinguished, pressing the
TAKE button takes the foreground image "on air" over the background.
When the foreground image is "on air", pressing the TAKE button will
remove it "off air".

Exchanging Program and Preview Images

When exchanging the cont ents the Program and Preview Images stores, the
condition of the SWAP button is crucial. Ensure that the legend marked
SWAP above the swap button is illuminated. If it is not illuminated, press the
SWAP button to illuminate the legend. With the SWAP legend illuminated,
pressing the TAKE button exchanges the Program and Preview images.

Selecting Transition Speed

Each time the "Rate" button is pressed the rate selection will step through its
options. The currently selected option is indicated by which of the settings
("Slow", "Med" and "Fast") is illuminated. This determines the rate at which
the images will come to air when selected. The actual transition rate values
may be preset (in fields) using the "Set-Up" menu.

Cut or Fade Selection

When the "Cut/Fade" button is pressed, the type of keyer transition toggles
between cut and fade. The current setting is shown illuminated above the
button.

Imagestore User Manual Oxtel RCP Operation

Miranda Technologies Ltd Page 79

Loading Images

Pressing the 'LOAD' button brings the load image display to screen. "Load"
provides access to three types of image loading. These allow loading of
images, animations and clocks from the Imagestore library, capturing and
storing frames of video input (Grab), or allowing live video from the Fill and
Key inputs to be keyed over the background video (Live).

Loading from the Image Library

Images can be loaded by numeric entry, filename, and title. The 2

nd

from left
soft-key toggles between "File" and "Title" to determine which of those
methods is to be used for searching.

Images using numeric filenames (example V123.OXT) may be loaded by
simply entering the 3-digit value (example 123) at the keypad and pressing
ENTER.

The rotary control associated with "Letter" is a coarse control quickly
scrolling through the library images displaying the first file, or title, starting
with each alphanumeric character. Once the starting character has been
located the rotary control under "File" may be used as a fine control to step
forwards or backwards through each file or title from that point.

The rotary control associated with "Cursor" may be used to move the cursor
through a file name or title. The keypad may be used to amend any character.

Once the required image is indicated on the di spl ay , pressing the ENTER key
will cause it to load into the preview store.

Oxtel RCP Operation Imagestore User Manual

Page 80 Miranda Technologies Ltd

Loading a Live Image

To load the image at the Fill and Key video inputs, press the left-hand soft­key, identified on the display as "Live". The "Live" image loads into the
preview channel and may be cut swapped, fade swapped, cut up and down,
faded up and down, as with any o th e r image.

To cancel or override the "live load" condition, ensure that the live image is
in the preview channel before selecting an image from the image library and
loading it. The action of loading an image to the preview store will cancel the
"live" condition.

Grabbing an Image

To grab an image press the right-hand soft-key, identified on the display as
"Grab". This will result in a new display being presented.

Pressing the "Grab" soft-key will freeze the frame and the frozen image will
be displayed at the preview output. The "Previewing" prompt will be
replaced by a "Grabbed" prompt.

If the image is not quite right, pressing the "Preview" soft-key will return the
preview display to the images at the Fill and "Key" video inputs. Press the
"Capture" soft key to freeze the image as before.

Once the desired image is captured it remains held in the preview store and
can be subsequently saved, edited or transmitted. To return to the RCP basic
display press the "ESC" key.

Imagestore User Manual Oxtel RCP Operation

Miranda Technologies Ltd Page 81

Saving Images

Pressing the 'SAVE' button brings the save display to screen. "Save" provides
the capability of saving images from the preview store to the image library.
Before a save is made, the user can choose to save either an entire image or
an image within a mask. Library images can also be erased using the "Save"
feature.

Saving Entire or Masked Images

The right-hand key of the three illuminated soft-keys is used to select
between an entire or masked save. Pressing the button selects the option
displayed above it on the LCD

The "Letter" and "File" rotary controls are used for coarse and fine scrolling
through the existing image library. If an existing image is to be overwritten
then press ENTER with the name displayed. The display will request
confirmation of the save and add the words "Cancel" or "Overwrite ?".

Use the keypad to enter a new file name and press the "Title" soft key to
move the cursor to the line for title entry. Press the ENTER key to apply the
saved name and title and press the appropriate soft-key beneath the "Yes" or
"No" prompts on the screen to confirm the action.

Erasing a Library Image

Use the "Letter" and "File" rotary controls so that the name and title of the
file to be erased are displayed on screen. Press the "Erase" soft key and

Oxtel RCP Operation Imagestore User Manual

Page 82 Miranda Technologies Ltd

confirm the erase by pressing the "Yes" soft key. The display will indicate
that the file has been erased. Press "ESC" to return to the earlier menu.

Editing Images

Pressing the 'EDIT' button brings the edit display to screen. "Edit" provides
the capability of adjusting the position and key parameters, the image mask,
the clip/gain/transparency and, when Imagestore is fitted with the Edit Pack"
option, a selection of image clean up options.

Editing Position or Key

Press the appropriate soft key beneath the Key/Posn on-screen prompt and
the Edit Position display will appear. The horizontal and vertical position of
the image may now be adjusted using the rotary controls positioned above the
on-screen Horiz and Vert prompts. A numeric display directly underneath the
positional prompts indicates the settings so that normal settings may be
swiftly repeated.

With the Ed it Position menu displayed, the left-hand soft key may now be
used to select the Set Key Type menu. There are three key settings that may
be changed, Sense, Source and Type. The three settings appear on the display
beneath the three rotary controls. Turning the Sense rotary control clockwise
will select "Normal" and counter-clockwise will select "Invert". The Source
control tuned clockwise will select Separate and anti-clockwise will select
Self. The Type control selects "Full" (clockwise) and "Linear" (anti­clockwise).

Imagestore User Manual Oxtel RCP Operation

Miranda Technologies Ltd Page 83

Masking

Press the soft key beneath the "Mask" prompt to display the "Masking"
menu. Masking can be used to crop unwanted areas of an image. When
saving a masked image, choosing a "cropped" save will save only the area
within the mask, speeding up load times and using less library space.

Images may be masked by restricting the top, bottom, left and right margins
to create a display area less than the whole. Five options for masking are
provided; left, right, top, bottom and enable.

The middle rotary control is used to select between "enabled" and "disabled".
Turning the control clockwise selects disabled and turning it anti-clockwise
selects enabled.

Press the soft key beneath the "Top/Bottom" on-screen prompt and the "Set
T/B Mask" display will appear. The "Top" and "Bottom" masks may now be
adjusted using the rotary controls positioned above the appropriate on-screen
prompt. Numeric displays directly underneath the display prompts indicate
the current mask settings.

Press the soft key beneath the "Left/Right" on-screen prompt and the "Set
L/R Mask" display will appear. The "Left" and "Right" masks may now be
adjusted using the rotary controls positioned above the appropriate on-screen
prompt. Numeric displays directly underneath the display prompts indicate
the current mask settings.

Flicker (optional)

Press the soft-key beneath the "Flicker" prompt to display the "Image
Cleanup" menu. This feature is specifically provided to improve the quality
of images that have been "grabbed" from the "Fill" and "Key" ports. "Image
Cleanup" is only available with Imagestores that have the "edit pack" option.

A grabbed image comprises two fields acquired sequentially and the resulting
composite still frame may contain an element of flicker when viewed. The
two digital interpolation options and the two enhancement algorithms favour
alternate sub-frames. The effect of each process may be tried to see which
has the most beneficial effect.

Oxtel RCP Operation Imagestore User Manual

Page 84 Miranda Technologies Ltd

Clip, Gain and Transparency

Press the soft key beneath the "CGT" on-screen prompt and the "Edit CGT"
display will appear. The "Clip", "Gain" and "Transparency" settings may now
be adjusted using the rotary controls positione d above the appropriate on­screen prompt. Numeric displays directly underneath the display prompts
indicate the current settings.

Polyphoto

In order to use the polyphoto features the "Edit Pack" option must have been
installed and a monitor must be connected to the PVW (preview) output. The
preview output may either provide a digital or analogue output signal and the
monitor attached must be appropriate. The polyphoto feature may only be
used when the Imagestore is configured in Swap-Preview mode. The feature
is not available in Cascade mode. The feature may only be selected and
controlled using an Oxtel RCP remote controller.

On the RCP press the ESC button repeatedly to ensure that the ESC button
illumination is extinguished.

To view the polyphoto display press the POLY button on the RCP and the
display will appear on the preview monitor. Adjusting the options presented
after pressing the SETUP button can change the polyphoto layout and
background (see the SETUP description).

A red dot appearing on an image indicates that this image is currently loaded
in the PGM channel. The polyphoto cursor is represented by a flashing
yellow dot on screen and the four illuminated keypad buttons on the RCP
may be used to navigate this cursor through the po lyphoto display.

When the cursor is indicating an image or animation that is to be loaded into
the preview keyer, press the ENTER button on the RCP to load that image
and exit the polyphoto mode. To exit without making any changes simply
press the ESC button.

Add to Current Playlist

Files identified under the load procedure may be added or appended to the
current playlist by selecting the soft key above the "Playput" prompt.

Imagestore User Manual Oxtel RCP Operation

Miranda Technologies Ltd Page 85

Inserting the image will place the image in the current playlist location whilst
appending the image will add it to the end of the playlist.

Playlist

The "Playlist" feature is only available when the Imagestore being controlled
has had the "edit pack" option installed. Pressing the "Playlist" button will
display the "Playlist" menu.

To load a playlist press the soft key below the load prompt. As with files a
playlist may have a file name and a title. Use the "Letter" (coarse) and "File"
(fine) to display the file name and title.

The keypad and cursor control may be used to edit the name or title. Press
ENTER to load the appropriate file.

When a playlist is loaded, the "NEXT" and "PREV" keys may be used to step
through each of the images in turn or the "POLY" button may be pressed to
reveal a screen of "thumbnail" images of files in the playlist. With thumbnails
displayed, the "NEXT" and "PREV" keys may be used to move the cursor
(flashing yellow dot) from image to image.

The cursor may also be moved using the illuminated keypad keys that move
the cursor in the direction indicated by the arrows on the key legend. Pressing
the ENTER key exits the polyphoto mode and provides the cursor thumbnail
image to full screen.

Successive pressing of the "TAKE" key increments the playlist through its
images and displays each at the PVW output.

Oxtel RCP Operation Imagestore User Manual

Page 86 Miranda Technologies Ltd

Create a new playlist by selecting the soft key beneath the "Create" prompt.
A name must be given to the playlist and this may be entered character by
character or an old name may be brought to screen and then edited. When the
appropriate name has been given, pressing enter will reveal the "Build
Playlist" menu.

Images may be added to a playlist either by grabbing images from the "Fill"
and "Key" ports or by picking them from the image library. To grab, press
the soft key below the "Grab it" prompt. This will preview the Fill and Key
port image at the PVW output and when appropriate press the soft-key
beneath "grab" to capture the frame and automatically add it to the playlist.

To add an image or images from the library press the "POLY" button and
display thumbnails of the images in the library, then navigate around the
library with the keypad arrow keys. To add an image to the playlist, press the
soft key beneath the "Add" screen prompt.

Set Up

The "Set Up" button is used to provide access to the "Setup" menu that
controls a range of RCP parameters (RCP), the Polyphoto display (Poly), the
keyer fade and programme fade to black rates (Rate) and the preview output
set (Preview).

RCP Parameters

To adjust the RCP parameter settings by press the soft key below the "RCP"
prompt. The LCD brightness and contrast may now be adjusted using the
outer rotary controls. The centre rotary control is used to adjust lamp
brightness. Changes are effected in real time and are immediately apparent. If
the display is unreadable press the left-hand soft key to reinstate the default
settings.

Mirror Mode

From within the "Set LCD and Keys" menu, it is possible to enter "RCP
mirror mode" if Imagestore has RCP mirror mode enabled. Details of the
enabling configuration are contained later in this guide under the heading of
"System Set-up". When enabled, pressing the soft key under the "Mirror"
prompt will bring a front panel emulation display to the LCD. Four keys on
the RCP keypad will illuminate and these keys emulate the four front panel

Imagestore User Manual Oxtel RCP Operation

Miranda Technologies Ltd Page 87

keys. Using these keys it is possible to carry out any front panel operation or
configuration. When complete, press the "ESC" key to exit the display.

Alpha/Numeric Keypad

From within the "Set LCD and Keys" menu, pressing the right-hand soft key
toggles the keypad between alphabetic and numeric modes.

In numeric mode pressing a keypad button will produce a number at the
current cursor position and advance the cursor to the next entry position.
Subsequent presses of that same button would produce repeats of that
sequence.

In alpha mode, pressing a keypad button will produce a number at the current
cursor position but the cursor does not advance. A subsequent press of the
same button changes the entry to the first alphabetic character associated with
that key. Further button presses cycle the entry through its options without
advancing the cursor. When the desired character is displayed, pressing a
subsequent button will advance the cursor. If the same button is to be used
for the following character then press the "NEXT" button to advance the
cursor. Press the ENTER button to conclude the entry.

Transition Rates

Within the "Set-Up" menu, the keyer fade rate and the FTB fade rate may be
set by pressing the soft key beneath the "Rate" prompt. Use the appropriate
soft key to select between setting up the keyer fade (Transition) and program
FTB. "Transition" allows the setting of the number of fields for the preset
"slow", "medium" and "fast" fades for the keyers. FTB rate is a single setting
in fields.

Preview Output Set

To set the preview output to monitor a different sample point within
Imagestore, press the soft key beneath the "Preview" prompt.

The left- and right-hand soft-keys are now used to step through the on screen
options and changes are immediately effective. For normal usage the preview
output must be left set to "Program Preview".

Oxtel RCP Operation Imagestore User Manual

Page 88 Miranda Technologies Ltd

Cascade Mode Operations

Cascade mode offers two-layer keying (midground and foreground). For
example, both a logo and a caption may be simultaneously, but independently
inserted over a background signal. Image editing and image saving are not
available in Cascade mode.

To control the foreground layer, press the "FG KEYER" button. To control
the midground layer, press the "MG KEYER" button.

Transmission Controls

The buttons grouped in the bottom, right-hand corner of the controller are
used to change the program output and to take images "on air" and "off air".
The use of these controls does not involve prompts or displays on the
controller LCD.

Program Fade to Black

Pressing the "Fade to Black" button causes the appropriate keying layer
output on-air to fade to full-screen black. When the output is already faded to
black, selection causes the same layer output on-air to fade from a full-screen
black image to the previously displayed image. The replacement rate is
determined by the "Rate" setting.

Turning the foreground "fade to black" (FTB) to "ON" will force the
programme output of the Imagestore to black. With the midground FTB
"ON", any foreground image that is currently "on-air" will still b e seen over
the black output of the midground keyer.

Foreground/Midground Images "On Air"

To take either a midground or foregroun d image "on air", first press the
appropriate FG or MG button which will illuminate accordingly. If the TAKE
button is illuminated the image for that layer is already on air and vice versa.
Pressing the TAKE button will either take the image on-air (button
illuminated) or off air (button extinguished).

Imagestore User Manual Oxtel RCP Operation

Miranda Technologies Ltd Page 89

Selecting Transition Speed

Each time the "Rate" button is pressed the rate selection will step through its
options. The currently selected option is indicated by which of the settings
("Slow", "Med" and "Fast") is illuminated. This determines the rate at which
the keyer logo/images will come to air when selected.

Cut/Fade Selection

When the "Cut/Fade" button is pressed the type of keyer transition toggles
between cut and fade. The current setting is shown illuminated above the
button. This determines the effect that is used to bring images to air.

Loading Images to Foreground and Midground

Once the "MG KEYER" or "FG KEYER" button has been selected the
procedure for loading images is identical and the following description is
equally valid for both.

Press the appropriate keyer button ("FG KEY E R" for foreground or "MG
KEYER" for midground). Press the "LOAD" button to display the "Load
Image" menu that provides access to two types of image loading; library
image or "live" from the "Fill" and "Key" ports.

Load from the Image Library

In order to load an image from the Imagestore library the image to be loaded
must be identified. Locating an image for loading can be achieved using the

Oxtel RCP Operation Imagestore User Manual

Page 90 Miranda Technologies Ltd

either the file name or the image title. The 2nd from left soft key toggles
between "File" and "Title" to determine which is to be used for searching.

The rotary control associated with "Letter" is a coarse control quickly
scrolling through the library images displaying the first file, or title, starting
with each alphanumeric character. Once the starting character has been
located the rotary control under "File" may be used as a fine control to step
forwards or backwards through each file or title from that point. The rotary
control associated with "Cursor" may be used to move the cursor through a
file name or title and the keypad may be used to amend any character.

Once the required image is indicated on the di spl ay , pressing the ENTER key
will cause it to load into the preview keyer.

Loading a Live Image

To load the layer image at the Fill and Key video inputs directly to the
programme output, press the left-hand soft key, identified on the display as
"Live". The video input will then be passed directly to the either the FG or
MG keyer and appear on the PGM output. The display will indicate "Live
Loaded".

To cancel or override the "live load" condition, select an image from the
Imagestore library and load it. The action of loading a new image to the
keyer will cancel the "live" condition.

Saving Images

The procedure for saving images from either the foreground or midground
stores in Cascade mode is identical to that for Swap-PVW mode and
reference should be made to that description.

Editing Images

Images can only be edited in Cascade mode when the midground keyer is not
"on-air". Ensure that there will be no requirement for the midground image to
be taken "on-air" during an editing session.

When using the Cascade mode editing features refer to the "editing images"
section of RCP Swap-PVW Mode given in earlier paragraphs of this guide.

Imagestore User Manual Oxtel RCP Operation

Miranda Technologies Ltd Page 91

Set-Up

With the exception of "Preview", the parameters of "Setup" are common
irrespective of configuration mode or layer. The descriptions given for Swap­Preview mode are also applicable for both the MG and FG layers of Cascade
mode.

In Cascade mode, the preview output from an Imagestore can be configured
to monitor the video signal at ten sample points around the internal circuitry.
This facility is useful for determining the precise state of the internal stores.
The preview sample points are given overleaf.

Programme Output Midground Fill
Programme Preview Midground Key
Background Midground
Foreground Fill Fill
Foreground Key
Presmaster PVW

Key

Pressing the 'SETUP' button followed by the soft key beneath the "Preview"
prompt displays the current setting. Pressing the left or right soft key
increments the "Preview" setting through its options and the settings are
applied immediately in real time.

Connecting through an IPR

The Intelligent Panel Router (IPR) enables an individual RCP to connect to a
predefined set of slave devices on the system under the RCP user’s control.
The remote control panel achieves channel selecti on usi n g a special di splay
that can only be accessed when a connection is made between the RCP and
IPR.

Channel Set Display

Pressing the "CHAN'L SET" key reveals the "Channel Set" display.

Oxtel RCP Operation Imagestore User Manual

Page 92 Miranda Technologies Ltd

The above display provides a list of three status conditions, "Panel",
"Current" and "New". "Panel" reveals the identity of the RCP. "Current"
indicates which slave device the RCP is currently connected to and "New"
shows the current selection for a new slave to connect to.

Panel

More than one remote control panel may be attached to a single Intelligent
Panel Router (IPR). The IPR allocates each Oxtel RCP with an identifying
name. In the example above the identifier is comprised of a number, "RCP1"
and a given name "Prep Area".

Current

The "Current" field shows the unique number and given name for the channel
currently connected to the RCP. In the example above the channel number
shown is "200" and the given name is "Imagestore 2".

New

The "New" display shows the unique number and given name for the channel
that will become selected when a channel change is applied. In the example
above the channel number shown is "300" and the given name is "Imagestore
3".

Imagestore User Manual Oxtel RCP Operation

Miranda Technologies Ltd Page 93

Selecting a New Channel

Channels may be selected by four different methods. Once the correct
identifier is shown on-screen as the "New" channel, pressing the ENTER key
on the numeric keypad will select that channel as the current channel.

Rotary

Turning the right-hand rotary control that is above the on-screen "CH #"
legend will cause the "New" selection to scroll through the list of channels
that the RCP may connect to. When the rotary control is tuned anti-clockwise
the channels are scrolled backwards through the list and when turned
clockwise they scroll forwards.

Up and Down

Pressing the right-hand soft-keys positioned beneath the "Up" and "Down"
on-screen legends causes the "New" selection to move correspondingly
through the list of available connections.

History

Pressing the left-hand soft-key positioned beneath the "History" on-screen
legend causes the "New" selection to step through that last ten connections
made by the user, excluding duplicates of the current position.

Numeric Keypad

The numeric keypad may be used to enter the required channel number. The
channel number is allocated to a channel at system installation. Channel
numbers may be in the range from 0 to 999 inclusive although it is co mmon
for simple channel numb ers such as 1 to 16 to be used. As each numeric key
is pressed the number appears directly in the "New" line and, when the
correct number has been typed, ENTER is pressed to apply the selection.

When the ENTER key is pressed the system will check to see that the channel
number pressed is valid and if so the full textual name and channel number
are displayed, and if not, the "New" selection reverts to its previous value. At
any point when entering a channel number the pro cess may be exited by
pressing the ESC key.

Oxtel RCP Operation Imagestore User Manual

Page 94 Miranda Technologies Ltd

Applying a New Channel

When the correct entry is displayed in the "New" on-screen field pressing the
ENTER key causes the system to attempt a connection. If the channel is not
already connected to another RCP the connection will be made and the
channel will appear on screen as the "Current" channel.

If another Oxtel RCP already has a connection to this channel, the user will
be informed of this with a message indicating which other RCP is currently
connected and given the choice as to whether the current connection should
be broken. The appropriate soft-key beneath the prompt legends should be
pressed. The user who has had his connection broken will have a message
displayed on his RCP advising the identity of the controller breaking the
connection.

Please refer to the IPR User Manual for mo re detailed information.

Imagestore User Manual AB Mixer

Miranda Technologies Ltd Page 95

AB Mixer (MIX-2000)

Imagestore includes an integral AB video switcher option (MIX-2000) which
is designed to be fed by an external router under automation control. The
switcher provides cut and fade transitions with variable fade rates.

Controlling the video switcher

You can control the video switcher (cuts and x-fades from 1 to 999 fields)
using:

♦ the Oxtel RCP remote control panel
♦ the Imagestore front panel
♦ programmable GPIs
♦ the RS422 and RS232 automation interfaces

 analogue faders

AB Mixer Imagestore User Manual

Page 96 Miranda Technologies Ltd

Using AB Mixer with the Oxtel RCP

To use the MIX-2000 AB Mixer from the RCP, choose Mixer (press the
appropriate soft key) from the top-level menu (see above). You can now
press TAKE to switch (toggle) between the A and B inputs according to the
transition type (fade/cut) and rate. When you choose wipe, the V-fade
transition is enabled.

Imagestore User Manual AB Mixer

Miranda Technologies Ltd Page 97

Imagestore front panel

You can use the MIX-2000 AB Mixer fro m the front-panel menu (go to
Manual/Operate/AB Mixer).

When you choose AB Mixer, the AB Mix menu is displayed with the
following options:

Cut A/B

Cut A/B will toggle between the A input and B input going on air. The
cutting action is instantaneous.

Select manual/operate/AB Mixer/cut A/B from the boot-up menu to locate the
feature.

Press the enter key to action a cut between the A and B source. When the
operation takes place an A or a B symbol will appear on the top line of the
VFD display showing the active source. No other changes can be detected on
the VFD display, which remains showing the same menu selection for further
cut A/B operations.

AB Mixer Imagestore User Manual

Page 98 Miranda Technologies Ltd

Fade A/B

Fade A/B will fade between the A input and B input going on air. The type of
fade is dependant on the transition type set, see transition types in the next
section.

Select manual/operate/AB Mixer/fade A/B from the boot-up menu to locate
the feature.

Press the enter key to action a fade between the A and B source. When the
operation is complete an A or a B symbol will appear on the top line of the
VFD display depending on the active source. During the transition the
intermediate state symbol – is displayed acknowledging the fade is taking
place. No other change can be detected on the VFD display, which remains
showing the same menu selection for further fade A/B operations.

Transition Type

This option allow the user to select the following range of transition types:

♦ Cut
♦ X-fade
♦ V-fade
♦ Wipe L to R
♦ Wipe R to L
♦ Wipe T to B
♦ Wipe B to T

Imagestore User Manual AB Mixer

Miranda Technologies Ltd Page 99

Select manual/operate/AB Mixer/transition type from the boot-up menu to
locate the feature.

Use the arrow keys W X to scroll through the list of entries. To select an
entry, press enter. To go back a level press escape.

Set mix rate

Sets the mix rate i.e. the duration of the mix between 1 and 999 frames.

Select manual/operate/AB Mixer/set mix rate from the boot-up menu to
locate the feature.

Press the enter key then use the arrow keys W X to increase or decrease the
value. To select the value, press enter. To go back a level press escape.

AB Mixer Imagestore User Manual

Page 100
Miranda Technologies Ltd

Wipe softness

Defines the edge profile of the wipe from a hard edge (1) to a soft, fuzzy
edge (128).

Select manual/operate/AB Mixer/wipe softness from the boot-up menu to
locate the feature.

Press the enter key then use the arrow keys W X to increase or decrease the
value. To select the value, press enter. To go back a level press escape.

Colour V fade

This option allows the user to change the V fade colour from the default
factory setting of black to any colour of their choice by adjusting the RGB
values.

Select manual/operate/AB Mixer/V-f a de colour from the boot-up menu to
locate the feature.

Press the enter key then use the arrow keys W X to increase or decrease the
colour field value. Pressing the enter key after adjusting the Red value will
change to the next colour field i.e. Green. Pressing the enter key after
