Miranda EC9535 User Manual

EC9535

GSC Node Bus Converter

User’s Guide

Miranda Technologies Inc.

3499 Douglas B. Floreani

Montreal, Quebec

Canada H4S 2C6

EC9535 User’s Guide

• Revision: 1.0

• Software Version: -na-

• Part Number: UG0050-00

• Copyright: © 2009 Miranda Technologies, Inc. All rights reserved.

• No part of this manual may be reproduced in any form by photocopy, microfilm, xerography or
any other means, or incorporated into any information retrieval system, electronic or mechani­cal, without the written permission of Miranda Technologies, Inc.

• The information contained in this manual is subject to change without notice or obligation.

• All title and copyrights as well as trade secret, patent and other proprietary rights in and to the
Software Product (including but not limited to any images, photographs, animations, video,
audio, music, test, and “applets” incorporated into the Software Product), the accompanying
printed materials, and any copies of the Software Product, are owned by Miranda Technologies,
Inc. The Software Product is protected by copyright laws and international treaty provisions.
Customer shall not copy the printed materials accompanying the software product.

Notice

The software contains proprietary information of Miranda Technologies, Inc. It is provided under a
license agreement containing restrictions on use and disclosure and is also protected by copyright
law. Reverse engineering of the software is prohibited.

Due to continued product development, the accuracy of the information in this document may
change without notice. The information and intellectual property contained herein is confidential
between Miranda and the client and remains the exclusive property of Miranda. If you find any
problems in the documentation, please report them to us in writing. Miranda does not warrant that
this document is error-free.

FCC Statement

This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.

Declaration of Conformance (CE)

All of the equipment described in this manual has been designed to conform with the required
safety and emissions standards of the European Community. Products tested and verified to meet
these standards are marked as required by law with the CE mark. (See Symbols and Their Mean-

ings on page v.)

ii Rev 1.0 • 14 Dec 09

When shipped into member countries of the European Community, this equipment is accompanied
by authentic copies of original Declarations of Conformance on file in Miranda offices in Grass
Valley, California USA.

Trademarks

Miranda is a registered trademark of Miranda Technologies, Inc.

Brand and product names mentioned in this manual may be trademarks, registered trademarks or
copyrights of their respective holders. All brand and product names mentioned in this manual serve
as comments or examples and are not to be understood as advertising for the products or their man­ufactures.

Software License Agreement and Warranty Information

Contact Miranda for details on the software license agreement and product warranty.

Technical Support Contact Information

Miranda has made every effort to ensure that the equipment you receive is in perfect working order
and that the equipment fits your needs. In the event that problems arise that you cannot resolve, or
if there are any questions regarding this equipment or information about other products manufac­tured by Miranda, please contact your local representative or contact Miranda directly through one
of the appropriate means listed here.

• Main telephone: [phone] (9 am to 9 pm PST)
Fax: [phone]

In the Americas, call toll-free: [phone] (9 am to 9 pm EST)
In Europe, the Middle East, African or the UK, call [phone] (9 am to 6 pm, GMT)
In France, call [phone] (9 am to 5 pm, GMT + 1)
In Asia, call [phone] (9 am to 5 pm, GMT + 8)
In China, call [phone]

• Emergency after hours: toll-free: [phone]
Tel: [phone]

•E-Mail:

In the Americas, [e-mail]
In Europe, the Middle East, African or the UK, [e-mail]
In France, [e-mail]
In Asia, [e-mail]
In China, [e-mail]

• Website: http://www.miranda.com

• Mail Shipping

Miranda GVD Miranda GVD
P.O. Box 1658 125 Crown Point Court
Nevada City, CA 95959, USA Grass Valley, CA 95945, USA

Note Return Material Authorization (RMA) required for all returns.

EC9535 GSC Node Bus Converter • User’s Guide iii

Change History

The table below lists the changes to the EC9535 GSC Node Bus Converter User’s Guide.

• User’s Guide Part # UG0050-00

• Software version: -na-

Rev Date ECO Description Approved By

1.0 14 Dec 09 16272 Initial release DEM

•

Restriction on Hazardous Substances (RoHS)

Miranda is in compliance with EU Directive RoHS 2002/95/EC governing the restricted use of cer­tain hazardous substances and materials in products and in our manufacturing processes.

Miranda has a substantial program in place for RoHS compliance that includes significant invest­ment in our manufacturing process, and a migration of Miranda product electronic components and
structural materials to RoHS compliance.

It is our objective at NV to maintain compliance with all relevant environmental and product regu­latory requirements. Detailed information on specific products or on the RoHS program at Miranda
is available from Miranda Customer Support at

1-800-719-1900 (toll-free) or
1-530-265-1000 (outside the U.S.).

iv Rev 1.0 • 14 Dec 09

Important Safeguards and Notices

This section provides important safety guidelines for operators and service personnel. Specific
warnings and cautions appear throughout the manual where they apply. Please read and follow this
important information, especially those instructions related to the risk of electric shock or injury to
persons.

Warning

Any instructions in this manual that require opening the equipment cover or
enclosure are for use by qualified service personnel only. To reduce the risk of
electric shock, do not perform any service other than that contained in the operat­ing instructions unless you are qualified to do so.

Symbols and Their Meanings

The lightning flash with arrowhead symbol within an equilateral triangle alerts the user to the pres­ence of dangerous voltages within the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle alerts the user to the presence of important
operating and maintenance/service instructions.

The Ground symbol represents a protective grounding terminal. Such a terminal must be connected
to earth ground prior to making any other connections to the equipment.

The fuse symbol indicates that the fuse referenced in the text must be replaced with one having the
ratings indicated.

The presence of this symbol in or on Miranda equipment means that it has been designed, tested
and certified as complying with applicable Underwriter’s Laboratory (USA) regulations and rec­ommendations.

The presence of this symbol in or on Miranda equipment means that it has been designed, tested
and certified as essentially complying with all applicable European Union (CE) regulations and
recommendations.

EC9535 GSC Node Bus Converter • User’s Guide v

General Warnings

A warning indicates a possible hazard to personnel which may cause injury or death. Observe the
following general warnings when using or working on this equipment:

• Heed all warnings on the unit and in the operating instructions.

• Do not use this equipment in or near water.

• This equipment is grounded through the grounding conductor of the power cord. To avoid elec­trical shock, plug the power cord into a properly wired receptacle before connecting the equip­ment inputs or outputs.

• Route power cords and other cables so they are not likely to be damaged.

• Disconnect power before cleaning the equipment. Do not use liquid or aerosol cleaners; use
only a damp cloth.

• Dangerous voltages may exist at several points in this equipment. To avoid injury, do not touch
exposed connections and components while power is on.

• Do not wear rings or wristwatches when troubleshooting high current circuits such as the power
supplies.

• To avoid fire hazard, use only the specified fuse(s) with the correct type number, voltage and
current ratings as referenced in the appropriate locations in the service instructions or on the
equipment. Always refer fuse replacements to qualified service personnel.

• To avoid explosion, do not operate this equipment in an explosive atmosphere.

• Have qualified service personnel perform safety checks after any service.

General Cautions

A caution indicates a possible hazard to equipment that could result in equipment damage. Observe
the following cautions when operating or working on this equipment:

• When installing this equipment, do not attach the power cord to building surfaces.

• To prevent damage to equipment when replacing fuses, locate and correct the problem that
caused the fuse to blow before re-applying power.

• Use only the specified replacement parts.

• Follow static precautions at all times when handling this equipment.

• This product should only be powered as described in the manual. To prevent equipment dam­age, select the proper line voltage on the power supply(ies) as described in the installation doc­umentation.

• To prevent damage to the equipment, read the instructions in the equipment manual for proper
input voltage range selection.

• Some products include a backup battery. There is a risk of explosion if the battery is replaced by
a battery of an incorrect type. Dispose of batteries according to instructions.

• Products that have (1) no on/off switch and (2) use an external power supply must be installed
in proximity to a main power output that is easily accessible.

vi Rev 1.0 • 14 Dec 09

Table of Contents

Chapter 1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Product Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Fuses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Cooling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Frame Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Control Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Rear Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

GSC Node Bus Control Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Serial Control Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Diagnostic Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Ethernet Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

AES Reference Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Video Reference. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Time Code Reference Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

System Alarm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Chapter 2 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Preparing for Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Rack Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

How to Rack Mount the EC9535 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Installing Control Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

How to install control cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Making System Controller Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

How to Make SMS7000 System Controller Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Making Router Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

How to Make Router Control Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Making Diagnostic Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Control Card Diagnostic Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

How to Make Control Card Diagnostic Connections . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Frame Diagnostic Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

How to Make Frame Diagnostic Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Making System Alarm Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

How to Make Alarm Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Alarm Indicator Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Connecting to Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

How to Connect to Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Chapter 3 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Chapter 4 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Indicator LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Battery Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Air Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Obtaining Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

EC9535 GSC Node Bus Converter • User’s Guide vii

Table of Contents

Chapter 5 Technical Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Chapter 6 Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Appendix A Part Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

viii Rev 1.0 • 14 Dec 09

1. Introduction

The EC9535 GSC Node Bus Converter is a communications protocol converter designed to enable
Miranda’s NV8288, NV8288-Plus or NV8500 Family (NV8144, NV8280 or NV8576) routers to
communicate with a SMS7000 system controller. A system controller is a hardware system that
runs a router control system application. The router control system sends commands to a router’s
control cards (i.e., circuit boards), telling them what switching tasks to perform.

The SMS7000 system controller requires a GSC Node Bus connection in order to connect and com­municate with the router. All of Miranda’s routers have a GSC Node Bus connection, except for the
NV8288, NV8288-Plus or NV8500 Family. The EC9535 solves this problem by providing an inter­face with a GSC Node Bus. The SMS7000 connects to the EC9535, which in turn, is connected to
the NV8288, NV8288-Plus or NV8500 Family router.

Product Overview

The EC9535 GSC Node Bus Converter is used as an interface between a SMS7000 system control­ler and a specific Miranda router. Unlike a router, the EC9535 does not actively manage signals.
Instead the EC9535 provides a GSC Node Bus to serial interface that enables a SMS7000 system
controller to communicate with Miranda routers that feature only serial system controller connec­tions. In addition, the EC9535 provides high reliability through redundant power supplies and
redundant control cards, as well as deterministic communications processing.

Mounting

The EC9535 GSC Node Bus Converter mounts in a rack with minimum dimensions of 2RU high
(3.47 inches, 88.1 mm), and 16.0 inches (406 mm) deep. When placing the rack in your facility, be
sure to leave enough space for air flow through the front and rear of the EC9535 and within easy
access of an AC power source. For mounting instructions, see Rack Mount

on page 10.

Fuses

The EC9535 GSC Node Bus Converter has no user-serviceable fuses.

Cooling

The EC9535 GSC Node Bus Converter has one fan providing forced air cooling. The fan is
accessed from the front of the frame. The fan draws cooling air from the front of the frame, through
the door, and exhausts it through a grill in the rear door. The EC9535 must have the door correctly
installed and closed for proper airflow through the chassis.

Caution If airflow is impeded, overheating may occur.

EC9535 GSC Node Bus Converter • User’s Guide 1

1. Introduction

Frame Front

Power Supply

Power for the EC9535 is supplied through the Miranda PS0007 power supply module. The PS0007
power supply module accepts a wide range of AC input voltages and produces +48 VDC outputs.
The power supply automatically senses the AC input voltage range (90–130 and 180–250 VAC)
and adjusts to maintain a relatively constant DC output; no voltage selection is required.

Frame Front

The front of the EC9535 GSC Node Bus Converter features a single door. When facing the front of
the frame the right-hand side features an open grill through which a fan draws cooling air. A handle
is provided on the left-hand side. The door is hinged on the right-hand side and swings open from
left to right. By opening the door, you can access the control cards.

Figure 1-1 shows the front of the EC9535 with the door closed. Figure 1-1 shows the EC9535 with
the door removed. The card guides that house the control cards are visible.

EC9535

GSC Node Bus Converter

Figure 1-1. Front of EC9535 with Door Closed

Figure 1-2. Front of EC9535 with Door Removed

Control Cards

The EC9535 has two control cards (EM0374), one primary and one secondary. The secondary card
is optional and used as a redundant, or stand-by, controller. Each control card is equipped with a
special mezzanine (SM0220) that facilitates communication between the control cards and the
SMS7000 system controller. Each card receives commands from a router control system, and in
turn, sends commands to the connected router’s control cards. Only the active control card sends
commands. The active control card updates the stand-by control card.

Both the primary control card and the secondary control card receive commands from the router
control system, but only the active control card responds. Because both cards receive router control
system commands, if the active control card fails, the stand-by control card automatically takes
over processing without interruption. In addition, the primary control card and secondary control
card communicate with each other. Should either control card fail, the newly active control card
communicates the failure to the router control system.

2 Rev 1.0 • 14 Dec 09

Four LEDs on the front of the control card indicate the card’s status: low battery (red), alarm (red),
active (amber), and operating normally (green). For more information, see Indicator LEDs

21.

Rear Connections

The rear of the EC9535 frame features a back plate containing several connections for managing
system functions and two power connections:

1. Introduction

Rear Connections

on page

DIAG

CTRL1 CTRL 2

CTRL1 CTRL 2

SEC

PRI

AES

DIAG

DIAG

AES

REF 1

REF 2

CTRL

10 B 2

10/100BT

LOOP
THRU

CTRL

10 B 2

10/100BT

VIDEO
REF 1

LOOP LOOP LOOP

VIDEO
REF 2

E146905

ALARMS

TIME
CODE

Figure 1-3. EC9535 (Rear View)

These connections enable you to connect to a system controller, reference signals, power sources
and system alarms. When facing the rear of the frame, the far right-hand side has a grill behind
which is located the fan for frame cooling. All system and power connections are located to the left
of the fan.

GSC Node Bus Control Connections

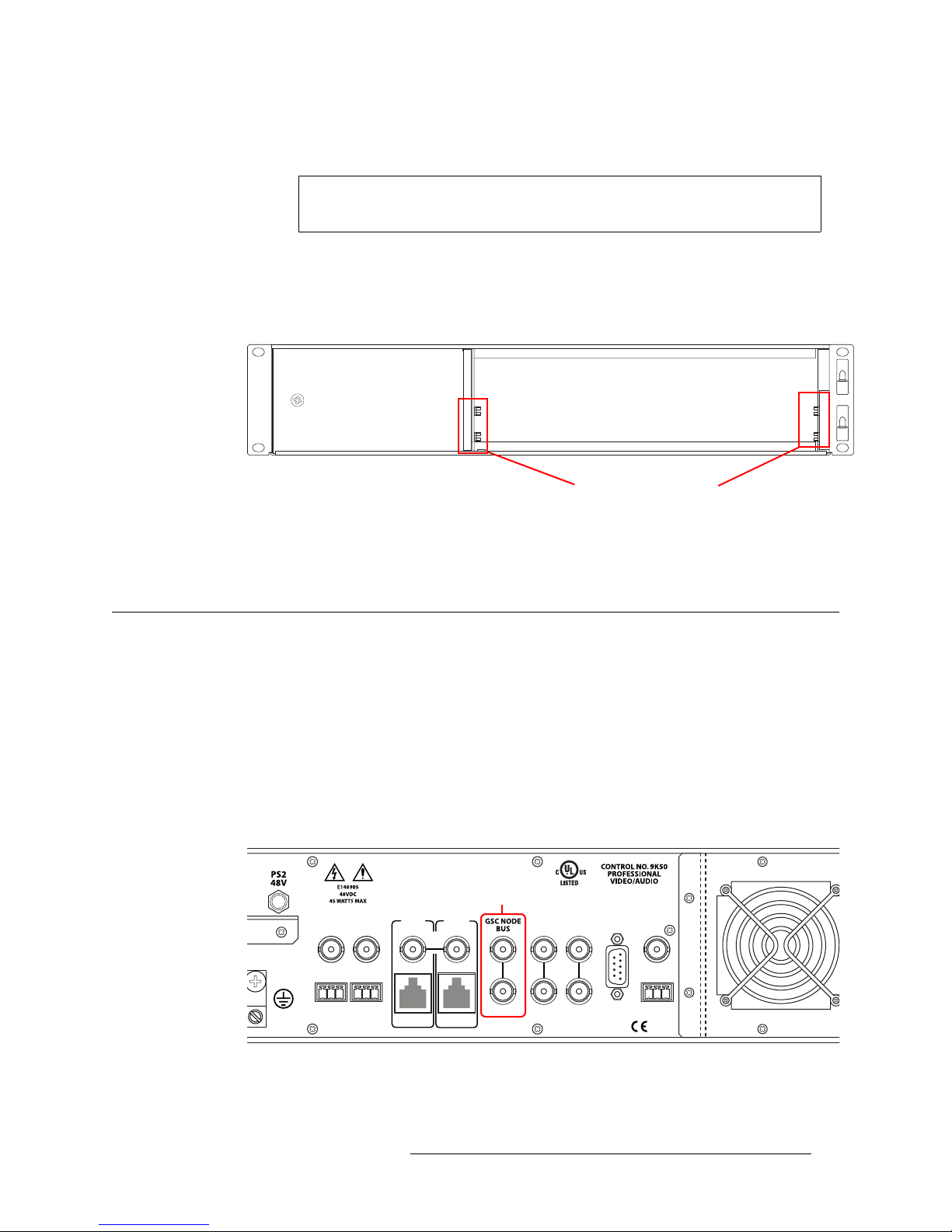

The EC9535 GSC Node Bus Converter has one port labeled ‘GSC NODE BUS’, as shown in
Figure 1-4. This connection is used to connect a SMS7000 system controller to the EC9535. In
turn, the EC9535 is connected to a NV8288, NV8288-Plus or NV8500 Family router. Through the
GSC Node Bus connection, the SMS7000 router control system sends commands to both the
EC9535’s primary and secondary control cards. In turn, the control cards forward the commands to
the attached router through serial connections. (See Serial Control Connections
installation instructions, see Making System Controller Connections

GSC Node Bus

Connector

SEC

AES

REF 1

AES

REF 2

PRI

CTRL

10 B 2

LOOP
THRU

CTRL

10 B 2

VIDEO
REF 1

VIDEO

REF 2

ALARMS

on page 11.

TIME

CODE

on page 3.) For

DIAG

Figure 1-4. GSC Node Bus Control Connection (Rear View)

Serial Control Connections

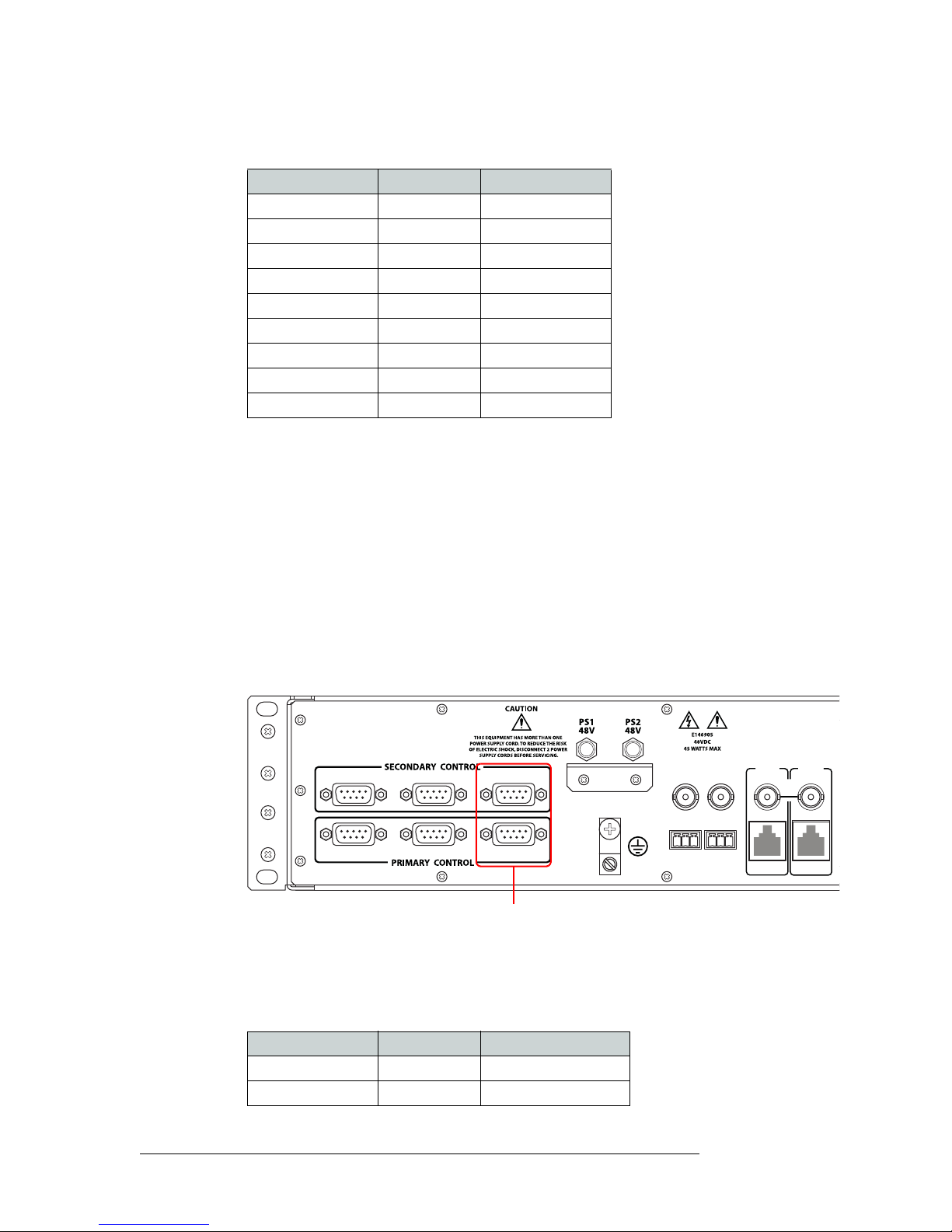

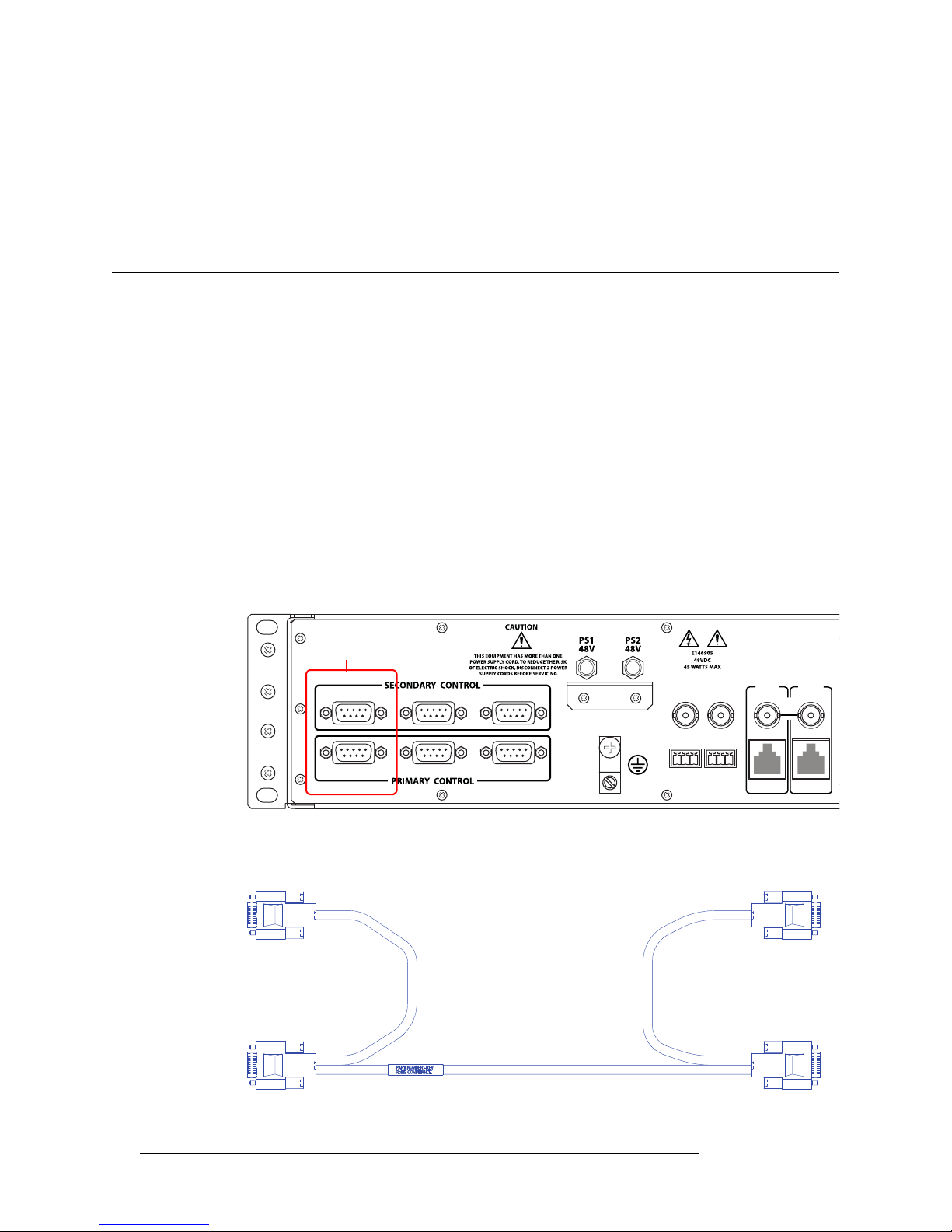

Figure 1-5 shows the serial control connections to the router. The ports are divided into two sets,
one primary control and one secondary control. Primary control is the connection to a router’s pri­mary control card. Secondary control is the connection to a router’s secondary control card (which

EC9535 GSC Node Bus Converter • User’s Guide 3

10/100 BT

10/100 BT

LOOP LOOP LOOP

E146905

1. Introduction

Rear Connections

is optional for redundancy). Each set is further divided into connections that correspond to router
control systems: ‘CTRL 1’ corresponds to the primary control system and ‘CTRL 2’ corresponds to
an alternate control system. Only ‘CTRL 1’ is used. ‘CTRL 2’ is not used because there is no alter­nate control system (i.e., backup system) for the SMS7000 system controller. However, the connec­tion is provided for future flexibility. For installation instructions, see Making Router Connections
on page 12.

Serial Connections
to Control System

CTRL 1 CTRL 2

DIAG

AES

REF 1

AES

REF 2

PRI

CTRL

10 B 2

LOOP
THRU

SEC

CTRL

10 B 2

CTRL 1 CTRL 2

DIAG

10/100 BT

10/100 BT

LOO

Figure 1-5. Serial Control Connections (Rear View)

Diagnostic Connections

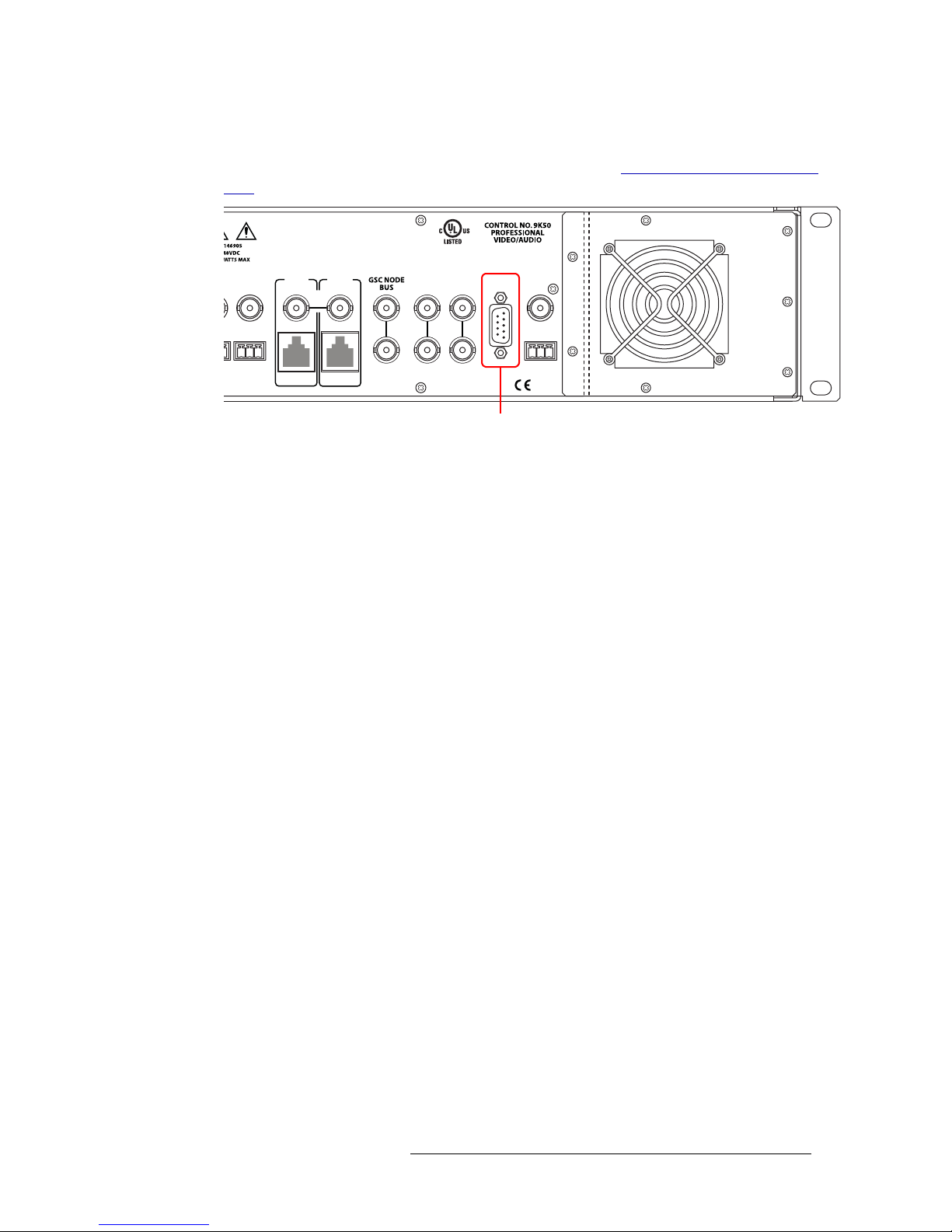

The diagnostic connections enable the EC9535 to communicate with the UniConfig application.
UniConfig runs on a PC separate from the EC9535 and is used to perform system setup tasks, and
configure and monitor EC9535. (See Configuration
Guide.

Diagnostic connections connect the EC9535 to the computer (PC) running the UniConfig applica­tion. Two diagnostic connections are located on the rear of the EC9535, labeled ‘DIAG’. The ports
are divided into two sets: one primary and one secondary, as shown in Figure 1-6 on page 4. The
primary control connects to EC9535’s primary control card. The secondary control connects to
EC9535’s secondary (optional for redundancy) control card. For instructions, see Making Diagnos-

tic Connections on page 13.

CTRL 1 CTRL 2

DIAG

on page 19.) See also the UniConfig User’s

SEC

AES

REF 1

AES

REF 2

PRI

CTRL

10 B 2

LOOP
THRU

CTRL

10 B 2

CTRL 1 CTRL 2

Figure 1-6. Diagnostic Connections (Rear View)

Ethernet Connections

The EC9535 has two Ethernet ports, labeled ‘10/100BT’, as shown in Figure 1-7. These ports are
divided into two sets, one primary (‘PRI CTRL’) and one secondary (‘SEC CTRL’). These connec-

4 Rev 1.0 • 14 Dec 09

DIAG

Diagnostic Connections

10/100 BT

10/100 BT

LOO

DIAG

1. Introduction

Rear Connections

tions can be used to connect to a PC running UniConfig. However, in general these connections are
not used at this time and provided for future network use.

Ethernet Connections

AES

REF 1

AES

REF 2

PRI

CTRL

10 B 2

LOOP
THRU

SEC

CTRL

10 B 2

VIDEO

REF 1

VIDEO

REF 2

ALARMS

TIME

CODE

DIAG

10/100 BT

10/100 BT

LOOP LOOP LOOP

E146905

Figure 1-7. Ethernet Control Connections (Rear View)

In order for EC9535 to communicate with UniConfig through an Ethernet connection, you must
configure an IP address for each of EC9535’s control cards. The IP address is set using UniConfig.
However, UniConfig runs on a PC and cannot communicate with EC9535 until an IP address has
been entered. Therefore, you must use a serial connection

— the ‘DIAG’ port(s) — to communicate

with the computer (PC) running UniConfig to define the IP address(es). See Making Diagnostic

Connections on page 13.

Note If using an Ethernet connection, 50ohm terminators must be installed on the

‘10 B 2’ connectors.

AES Reference Connections

The AES reference is used for clock generation, which provides a timing reference for AES syn­chronous signals and for timing circuits on the EC9535 control card. This reference is not currently
used, but provided for future flexibility. For more information, contact Technical Support. (See

Technical Support Contact Information

on page iii.)

DIAG

DIAG

Figure 1-8. Connections to AES References (Rear View)

EC9535 GSC Node Bus Converter • User’s Guide 5

AES

AES

REF 1

REF 2

AES Reference

Connectors

PRI

CTRL

10 B 2

10/100 BT

LOOP
THRU

SEC

CTRL

10 B 2

10/100 BT

VIDEO

VIDEO

REF 2

REF 1

LOOP LOOP LOOP

E146905

ALARMS

TIME

CODE

1. Introduction

Rear Connections

Video Reference

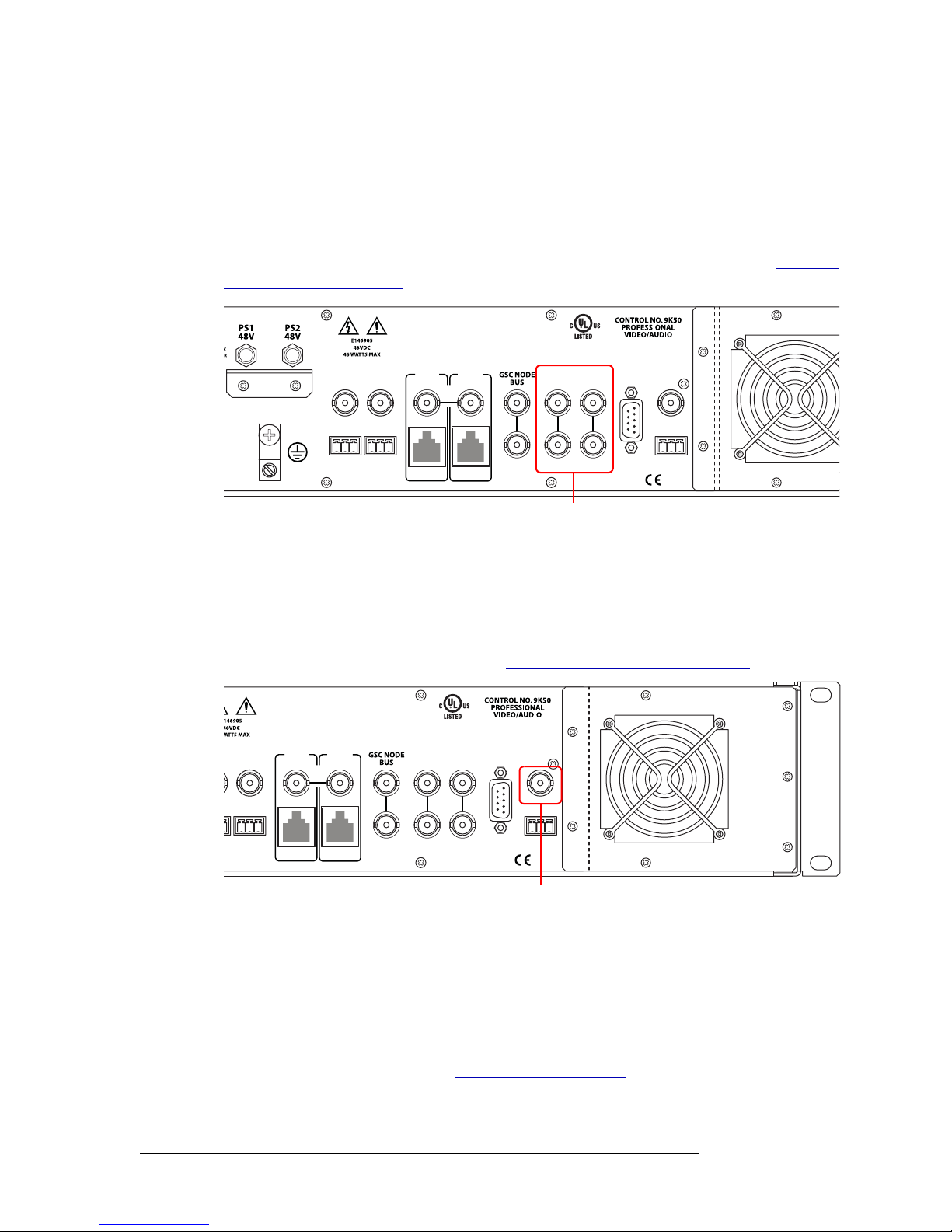

The EC9535 provides timing reference connections for video signals, labeled ‘VIDEO REF 1’ and
‘VIDEO REF 2’, as shown in Figure 1-9. Located on the rear of the frame, these connections pro­vide a reference input for determining the video frame switch point. The video reference connec­tions require a stable source of PAL, NTSC or Tri-level sync. This reference is not currently used,
but provided for future flexibility. For more information, contact Technical Support. (See Technical

Support Contact Information on page iii.)

DIAG

DIAG

AES

REF 1

AES

REF 2

PRI

CTRL

10 B 2

10/100 BT

LOOP
THRU

SEC

CTRL

10 B 2

10/100 BT

VIDEO

VIDEO

REF 2

REF 1

LOOP LOOP LOOP

E146905

ALARMS

TIME

CODE

Video Reference

Connectors

Figure 1-9. Connections to Video References (Rear View)

Time Code Reference Connection

There is a single Time Code reference connection labeled ‘TIME CODE’, as shown in Figure 1-10.
This reference is not currently used in the EC9535, but provided for future flexibility. For more
information, contact Technical Support. (See Technical Support Contact Information

AES

REF 1

AES

REF 2

PRI

CTRL

10 B 2

LOOP
THRU

SEC

CTRL

10 B 2

VIDEO

REF 1

VIDEO

REF 2

ALARMS

TIME

CODE

on page iii.)

10/100 BT

Figure 1-10. Time Code Reference Connection (Rear View)

System Alarm

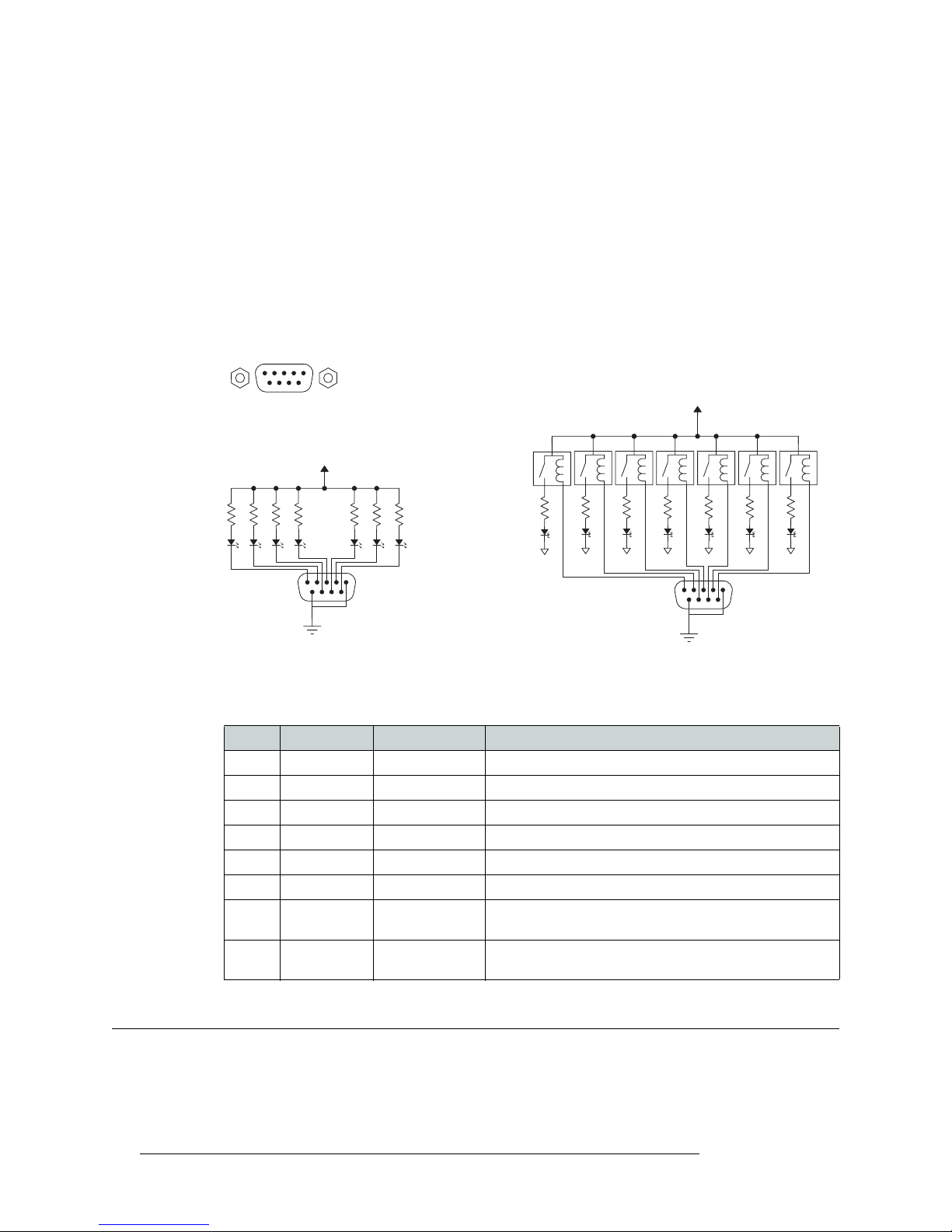

The EC9535 has a system alarm that sends notification of a malfunction, such as when a fan or
power supply is not functioning properly. The alarm connection can be connected to external equip­ment that display visual signals when an alarm is activated. Creation of an external alarm indicator
is outside the scope of this manual, however basic instructions on wiring the alarm connection for
external monitoring is provided. See Alarm Indicator Equipment

6 Rev 1.0 • 14 Dec 09

10/100 BT

LOOP LOOP LOOP

E146905

Time Code Connector

on page 16.

1. Introduction

Rear Connections

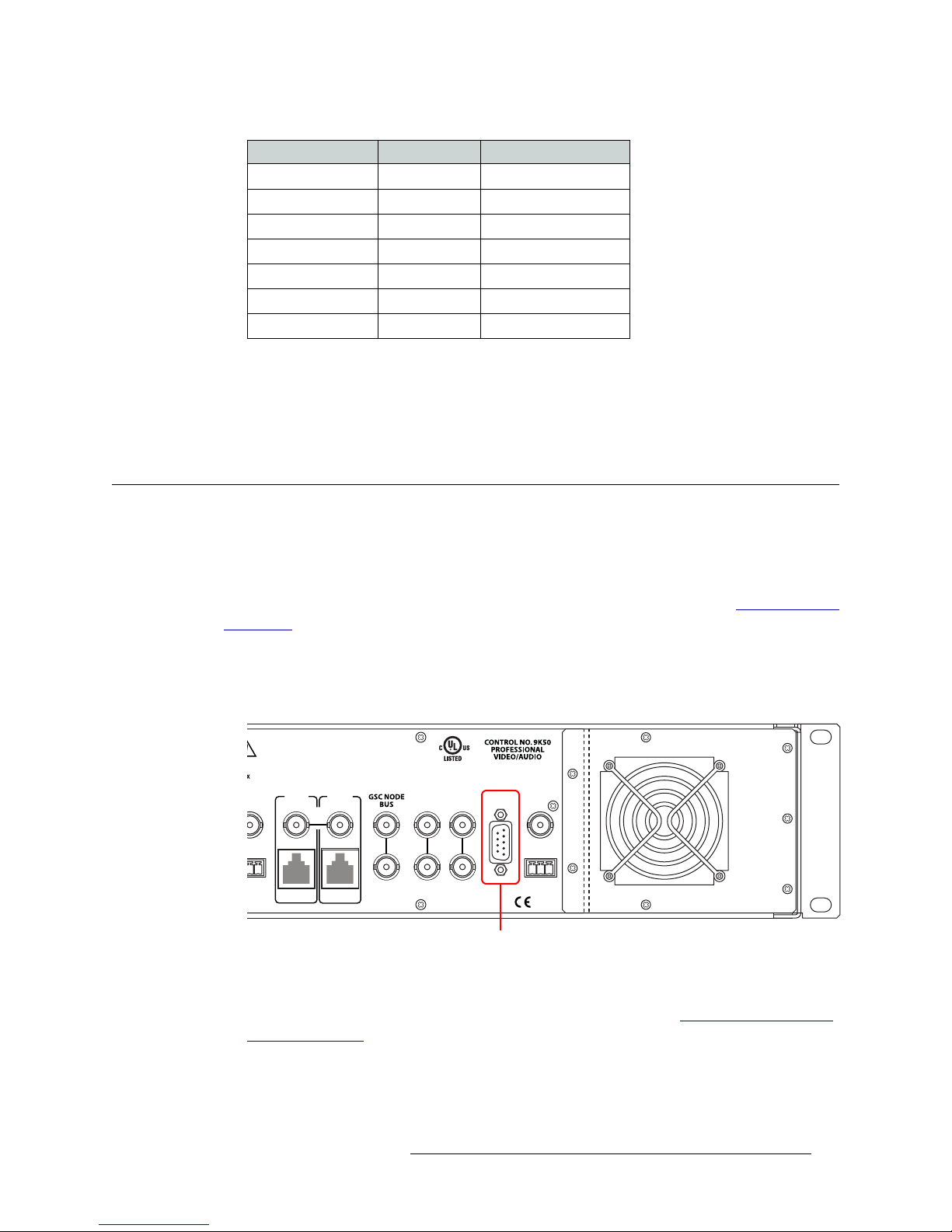

The alarm connection is labeled ‘ALARMS’ and is located on the rear of the EC9535, as shown in
Figure 1-11. For instructions on making alarm connections, see Making System Alarm Connec-

tions on page 15.

AES

REF 1

AES

REF 2

PRI

CTRL

10 B 2

10/100 BT

LOOP
THRU

CTRL

10 B 2

10/100 BT

VIDEO

REF 1

LOOP LOOP LOOP

SEC

Figure 1-11. System Alarm Connection (Rear View)

ALARMS

TIME

CODE

VIDEO

REF 2

E146905

System Alarm Connector

EC9535 GSC Node Bus Converter • User’s Guide 7

1. Introduction

Rear Connections

8 Rev 1.0 • 14 Dec 09

2. Installation

When setting up an EC9535 GSC Node Bus Converter for the first time, or reconfiguring an exist­ing configuration, there are certain steps that must be performed. It is recommended that initial
installation and later reconfiguration tasks be performed in a specific order to avoid possible com­plications.

Perform installation and reconfiguration tasks in the following order. If you are reconfiguring, only
perform the step related to the configuration you are changing:

1 Mount the EC9535 in a rack. See Rack Mount

2 Make connections between the EC9535 and the SMS7000 system controller. See Making Sys-

tem Controller Connections on page 11.

3 Make connections between the EC9535 and the router. See Making Router Connections

page 12.

4 Make diagnostic connections. Diagnostic connections enable the router and UniConfig to com-

municate. This is important when initially configuring the router and any time the router is
reconfigured. See Making Diagnostic Connections

5 Connect the alarm connection on the router to an external indicator. See Making System Alarm

Connections on page 15.

6 Connect power. See Connecting to Power

7 Install UniConfig. If reconfiguring, UniConfig does not need to be reinstalled. See the UniCon-

fig User’s Guide.

Package Contents

When your EC9535 products from Miranda arrive, immediately inspect the shipping container for
any obvious damage. If the container is damaged, unpack and inspect the contents. If the contents
are damaged, notify the carrier immediately.

on page 10.

on

on page 13.

on page 16.

When unpacking the shipping container, look for the packing slip and compare it against the con­tents to verify that everything ordered was received. If anything is missing (or if equipment is dam­aged unrelated to shipping), please contact Miranda. For contact information, see Technical

Support Contact Information on page iii.

The package does not contain a mounting rack, network cables, mounting screws, or grounding
wire.

EC9535 GSC Node Bus Converter • User’s Guide 9

2. Installation

Preparing for Installation

Preparing for Installation

You will need the following items before getting started:

Rack Mount

A PC running Windows
required for system configuration.

PC hardware requirements:

CD drive.

EIA-232 serial COM port (DE9) capable of operating at 38.4kbps.

10BaseT or 10/100BaseT (preferred) Ethernet port.

Ethernet cables (category 5) with RJ-45 connectors. (optional)

EIA-232 serial cable with DE9 connectors, wired straight-through, male to female.

75

Ω BNC connector and coaxial cable.

Frame rack suitable for mounting EC9535.

The EC9535 is designed to mount in a 19″ (482.6 mm) EIA rack.

®

2000 or higher, or Windows XP Professional.® This PC is

How to Rack Mount the EC9535

1 Determine the placement of the EC9535 and the rack in the facility. When placing the frame

and rack, be sure to locate the rack near an accessible AC source power outlet. The AC source
is used to power the frame.

2 Lift the frame into position and attach it to the front of the rack with the appropriate screws. Be

sure to place screws in all frame mounting screw holes.

3 If open, close the front door. This ensures proper airflow for frame cooling.

Installing Control Cards

The EC9535 comes with two control cards (EM0374) already installed. Each control card has a
mezzanine (SM0220) designed to communicate with the SMS7000 control system. The following
are instructions for installing control cards, should the need arise.

Cards are inserted by sliding them into card guides through the front of the frame.

10 Rev 1.0 • 14 Dec 09

2. Installation

Making System Controller Connections

How to install control cards

Caution Do not drop, roughly handle, or stack circuit boards. If you cannot easily insert or

remove a board, stop and contact Miranda Technical Support.

1 Open the door at the front of the frame. The door is hinged on the right-hand side and swings

from left to right. Use the handle on the left-hand side to gently pull the door open.

2 There are two control card guides, as shown in Figure 2-1. Insert each control card horizontally

into each set of guides. The cards should slide in easily; do not force them.

Control Card Guides

Figure 2-1. Front of EC9535 with Door Removed

3 For each card, press the lever(s) inward, making sure each card is fully seated in its slot.

4 Close the frame door. The door must be closed for the router cooling system to work properly.

Making System Controller Connections

In order for a SMS7000 system controller and a NV8288, NV8288-Plus or NV8500 Family router
to communicate, the system controller must be connected to an EC9535. The SMS7000 system
controller is connected using the ‘GSC NODE BUS’ connection located on the rear of the EC9535

DIAG

frame. The connection uses a 75

How to Make SMS7000 System Controller Connections

1 Locate the GSC Node Bus connections on the rear of the router, as shown in Figure 2-2. System

controller connections are labeled ‘GSC NODE BUS’.

AES

AES

REF 1

REF 2

Ω BNC connector and coaxial cable.

GSC Node Bus

Connector

SEC

PRI

CTRL

CTRL

LOOP
THRU

10 B 2

10 B 2

VIDEO

REF 1

VIDEO

REF 2

ALARMS

TIME

CODE

DIAG

Figure 2-2. GSC Node Bus Control Connection (Rear View)

2 Connect to the ‘GSC NODE BUS’ connection using a 75 Ω BNC connector and coaxial cable.

EC9535 GSC Node Bus Converter • User’s Guide 11

10/100 BT

10/100 BT

LOOP LOOP LOOP

E146905

2. Installation

Making Router Connections

3 Connect the other end of the cable to the SMS7000 system controller. For detailed instructions,

refer to the SMS7000 documentation.

4 On the unused GSC Node Bus connection, terminate the loop-through by installing a 75

terminator.

Making Router Connections

In order for a NV8288, NV8288-Plus or NV8500 Family router to communicate with a SMS7000
system controller, the router must be connected to an EC9535. The router is connected using the
serial control system connections, located on the rear of the EC9535, and a cable provided by
Miranda (WC0152). The proprietary cable is 20 feet (6.096 meters) long with two DB9 connectors
on each end for a total of four DB9 connectors.

The serial control ports are divided into two sets that enable the primary control card or the second­ary control card in the EC9535 frame to communicate with the corresponding control card in the
router frame.

How to Make Router Control Connections

1 Locate the serial control connections on the rear of the router, as shown in Figure 2-3. Serial

control connections are labeled ‘PRIMARY CONTROL’ for the primary control card and
‘SECONDARY CONTROL’ for the secondary control card.

Serial Connections
to Control System

Ω BNC

CTRL 1 CTRL 2

CTRL 1 CTRL 2

Figure 2-3. Serial Control Connections (Rear View)

DIAG

DIAG

AES

REF 1

REF 2

AES

PRI

CTRL

10 B 2

10/100 BT

LOOP
THRU

CTRL

10 B 2

10/100 BT

SEC

2 Locate the cable WC0152 provided with the EC9535. The cable has four DE9 connectors as

shown:

P1

P2 P4

Figure 2-4. WC152 Cable for connecting to router

P3

12 Rev 1.0 • 14 Dec 09

2. Installation

Making Diagnostic Connections

3 Facing the rear of the EC9535 frame, make connections as follows:

a Connect the DB9 connector labeled ‘P1’ to the ‘CTRL 1’ connection in the ‘PRIMARY

CONTROL’ section.

b Connect the DB9 connector labeled ‘P2’ to the ‘CTRL 1’ connection in the ‘SECONDARY

CONTROL’ section.

4 Facing the rear of the router, locate the router control serial connections:

• On the NV8288 and NV8288-Plus, the section is labeled ‘PRI CTRL’ and ‘SEC CTRL’

• On the NV8500 Family routers (NV8144, NV8280 or NV8576) the section is labeled ‘PRI’
and ‘SEC’.

5 Make connections as follows:

a Connect the DB9 connector labeled ‘P3’ to the ‘CTRL 1’ connection in the ‘PRI CTRL’ or

‘PRI’ section, depending on the router.

b Connect the DB9 connector labeled ‘P4’ to the ‘CTRL 1’ connection in the ‘SEC CTRL’ or

‘SEC’ section, depending on the router.

Making Diagnostic Connections

The diagnostic connections enable the EC9535 to communicate with the UniConfig application.
UniConfig is installed on a unit, separate from the router (e.g., PC), and is used to perform system
setup tasks, and configure and monitor the EC9535. For information about using UniConfig, see
the UniConfig User’s Guide.

There are two sets of diagnostic connections: one set is located on the front of the control cards and
one set is located on the rear of the EC9535, labeled ‘DIAG’. Which is used is entirely up to you
and your facility needs. Usually the control card connection is used when the diagnostic connection
to UniConfig is temporary. The diagnostic connections on the rear of the EC9535 frame are most
often used to make a permanent connection to UniConfig. For a detailed description of the serial
connections, see Diagnostic Connections

Control Card Diagnostic Connections

A temporary diagnostic connection can be created using the DE9 port located on the front of the
primary control card. The baud rate for this port is locked to 9600.

How to Make Control Card Diagnostic Connections

1 Facing the front of the EC9535, open the door and locate the primary control card slot. The pri-

mary control card is located on top (above) and the secondary control card is located below.
(See Figure 2-1 on page 11.)

on page 4.

2 On the front of the control card is a single serial port. Connect to the serial port using a DE9

connector and a serial cable.

EC9535 GSC Node Bus Converter • User’s Guide 13

2. Installation

Making Diagnostic Connections

The following lists the DE9 pin connectors for RS-232:

PC End (DCE) Pin Router End (DTE)

DCD 1 Ground

RXD 2 TXD

TXD 3 RXD

DTR 4 DSR

Signal Ground 5 Signal Ground

DSR 6 DTR

RTS 7 C TS

CTS 8 RTS

Ground 9 Ground

3 Connect the other end of the cable to the PC running the UniConfig application using a DE9

connector.

4 When done configuring, remove the temporary connection.

Frame Diagnostic Connections

There are two diagnostic ports located on the rear of the EC9535, labeled ‘DIAG’. The diagnostic
ports are fixed at 38400 baud, RS-232. For more information, see the UniConfig User’s Guide.

How to Make Frame Diagnostic Connections

1 Locate the diagnostic connections on the rear of the EC9535, as shown in Figure 2-5. The diag-

nostic connections are labeled ‘DIAG’.

SEC

AES

PRI

CTRL

10 B 2

10/100 BT

LOOP
THRU

CTRL

10 B 2

10/100 BT

CTRL 1 CTRL 2

CTRL 1 CTRL 2

DIAG

DIAG

AES

REF 1

REF 2

Diagnostic Connections

Figure 2-5. Diagnostic Connections (Rear View)

2 Connect to the ‘DIAG’ connection in the ‘PRI’ section using a DE9 connector and a serial

cable. The ports are set for RS-232:

The following lists the DE9 pin connectors for RS-232:

PC End (DCE) Pin Router End (DTE)

DCD 1 Ground

RXD 2 TXD

14 Rev 1.0 • 14 Dec 09

PC End (DCE) Pin Router End (DTE)

TXD 3 RXD

DTR 4 DSR

Signal Ground 5 Signal Ground

DSR 6 DTR

RTS 7 C TS

CTS 8 RTS

Ground 9 Ground

3 Connect the other end of the cable to the PC running the UniConfig application.

4 If a secondary (optional for redundancy) control card is installed, connect to the ‘DIAG’ con-

nection in the ‘SEC’ section using a DE9 connector and a serial cable as described in step 2 and
step 3.

Making System Alarm Connections

2. Installation

Making System Alarm Connections

The EC9535 provides a system alarm that notifies you of a malfunction, such as when a fan or
power supply is not functioning properly. And alarm can be connected to an external alarm indica­tor that displays visual cues when the alarm is activated. Miranda does not provide external indica­tor equipment, but does provide instructions on wiring the alarm connections. See Alarm Indicator

Equipment on page 16.

How to Make Alarm Connections

1 On the rear of the router, locate the ‘ALARMS’ connector:

AES

REF 1

AES

REF 2

PRI

CTRL

10 B 2

10/100 BT

LOOP
THRU

CTRL

10 B 2

10/100 BT

LOOP LOOP LOOP

VIDEO

REF 1

VIDEO

REF 2

E146905

SEC

System Alarm Connector

Figure 2-6. System Alarm Connection (Rear View)

2 Connect to the ‘ALARMS’ connection using a DE9 connector and cable.

ALARMS

TIME

CODE

3 Connect the other end of the cable to an external alarm indicator. See “

ment” on this page for information on wiring the DE9 connector.

EC9535 GSC Node Bus Converter • User’s Guide 15

Alarm Indicator Equip-

2. Installation

Connecting to Power

Alarm Indicator Equipment

An external alarm indicator can be created to display visual cues when a failure has occurred on the
EC9535 frame. LEDs can be wired to specific pins on a DE9 connector such that each LED indi­cates what specific router module has failed.

The ‘ALARM’ connection on the rear of the EC9535 uses a DE9 connector. An “alarm” or ON
condition occurs when the connection between an alarm pin and Alarm_COM (common) opens.
The alarm turns OFF when the connection between Alarm_COM and the alarm pin closes again.

To create an indicator box, connect to the ‘ALARM’ connection using a DE9 female connector,
wiring as shown in Figure 2-7. Each pin monitors a specific function and activates a specific alarm.

12345

6789

Typical Circuit 1

Normally ON, the LEDs turn off to indicate failure

1

Alarm COM

2

Alarm 1

3

Alarm 2

4

Alarm 3

5

Alarm 4

8
7
8
9

Alarm 5
Alarm 6
Alarm 7
Alarm COM

Typical Circuit 2

Normally OFF, the LEDs turn on to indicate failure

Customer-supplied relay
contacts NC, (but open during
alarm condition)

External Power,
30VDC max, 150 mA max

External Power

1

COM

30VDC max, 150 mA max

1

COM

Figure 2-7. Alarm Connections and On/Off Switches

The following lists each DE9 pin and the associated alarm. The pin number listed corresponds to
the pin numbers in Figure 2-7 on page 16:

PIN Signal Description Possible Conditions Causing the Alarm

1, 9 Alarm_COM Common Common connection for all alarm pins.

2 Alarm_1 Major Alarm Indicates missing reference inputs, or missing power supplies.

3 Alarm_2 Minor Alarm Alarm_3, or Alarm_4, or Alarm_5, or Alarm_6

4 Alarm_3 Power Supply Missing power supply module.

5 Alarm_4 Video Ref Missing Video Ref 1 or Video Ref 2.

6 Alarm_5 AES Ref Not used in EC9535.

7 Alarm_6 Fans or

Temperature

8 Alarm_7 Control Module

Health

Indicates a fan failure or module over temperature.

Any control module not “healthy.”

Connecting to Power

The EC9535 uses a proprietary power supply (PS0007) to connect to an AC power source (90–230
VAC, 50–60 Hz).

16 Rev 1.0 • 14 Dec 09

How to Connect to Power

1 Locate the power connections on the rear of the EC9535. The connections are labeled ‘PS1

48V’ and ‘PS2 48V, as shown in Figure 2-8.

CTRL 1 CTRL 2

DIAG

Power Connections

AES

REF 1

AES

REF 2

PRI

CTRL

10 B 2

LOOP
THRU

SEC

CTRL

10 B 2

2. Installation

Connecting to Power

VIDEO

VIDEO

REF 1

REF 2

ALARMS

CTRL 1 CTRL 2

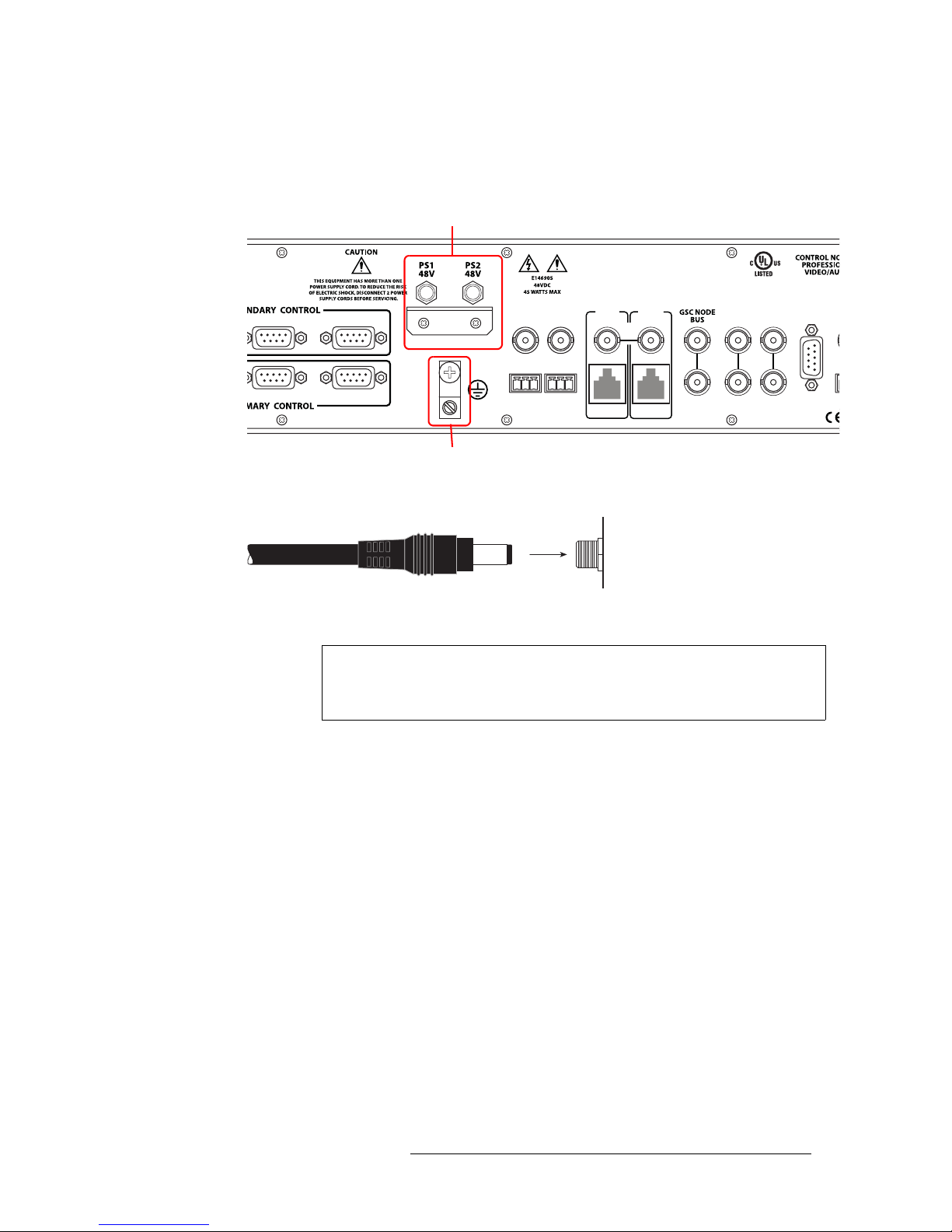

Figure 2-8. Power Connections and Ground Lug (Rear View)

2 Connect one cable (PS0007) to ‘PS1’. Figure 2-9 is an example of the PS0007 DC power cord.

Figure 2-9. PS0007 DC Power Cord

3 Connect the other end of the cable to a source of AC power.

Note To protect against accidentally disconnecting the cable from the power source,

4 Repeat step 2 and step 3 for the ‘PS2 48V’ connection.

5 Connect the EC9535’s ground lug to earth ground using a copper wire from 14 to 6 AWG. The

ground lug is located in the lower right corner of the frame, as shown in Figure 2-8 on page 17.

DIAG

10/100 BT

10/100 BT

LOOP LOOP LOOP

E146905

Ground Lug

loop a ty-wrap or similar restraining item around the cable and through the
retention plate.

EC9535 GSC Node Bus Converter • User’s Guide 17

2. Installation

Connecting to Power

18 Rev 1.0 • 14 Dec 09

3. Configuration

Before being placed into service, the EC9535 must be configured for your particular router control
system and settings. Configuration is managed through UniConfig, which resides on a PC and is
separate from the router. For information on using UniConfig, see the UniConfig User’s Guide. For
instructions on configuring EC9535, see the section “Configuring EC9535” within the UniConfig

User’s Guide.

When configuring the EC9535, the EC9535’s ‘CTRL 1’ serial port must be set to the same baud
rate as the controlled router’s ‘CTRL 1’ serial port rate. (See Serial Control Connections

3.) By default, the NV8288, NV8288-Plus and NV8500 Family routers have the ‘CTRL 1’ ports set
to 38,400 baud. However, the number of destinations that can be switched per frame in a system
using a SMS7000 system controller, an EC9535, and a NV8288, NV8288-Plus or NV8500 Family
router is determined by the EC9535 and the router serial port baud rates. Because higher rates may
be used, you may want to set the serial ports at the highest available rate (115,200 baud) unless
doing so results in communication errors. For information on setting the serial port baud rates for
routers, see the “Setting Up Communication” section within the UniConfig User’s Guide.

on page

EC9535 GSC Node Bus Converter • User’s Guide 19

3. Configuration

20 Rev 1.0 • 14 Dec 09

4. Maintenance

The EC9535 does not require any periodic electrical or physical maintenance. However, it is rec­ommended that the system’s indicator LEDs be checked on a regular basis to ensure that the system
is operating properly. (See Indicator LEDs
cooling air flow to the power supply fans is unobstructed.

Note Only qualified service personnel should perform procedures in this section. There

are no user-serviceable fuses.

Indicator LEDs

Indicator LEDs indicate whether DC power is present and if a card is operating normally. LEDs are
visible when the router front door is closed.

LEDs are listed in the order they appear on the card, from right to left. The meanings of the LED
indicators are as follows:

LED Indicator Fu nctio n

Red (low battery) Normally OFF. If lit, indicates that the battery needs replacing. See Battery

Red (alarm) Normally OFF. If lit, indicates a problem or fault. Check the external reference

Yellow (active card) Normally ON. Indicates the card is the active control card. On the standby control

Green (health,
power)

on page 21.) It is also a good idea to regularly make sure

Replacement on page 21.

signals. If that does not resolve the problem, refer to the system status window in
UniConfig for additional information. If you cannot resolve the problem, call
Miranda Technical Support. For contact information, see Technical Support Contact

Information on page iii.

card, this LED should be OFF.

Normally ON. Indicates the card has power and is operating normally.

Battery Replacement

If the red Low Battery LED indicator on the control card is lit, the battery located on the front edge
of the card needs replacing. Grasp the exposed edge of the battery with your fingers and pull it
towards you to remove it.

Important Do not use a metallic tool to remove the battery.

Call

Miranda for replacement battery information. For contact information, see Technical Support

Contact Information on page iii.

EC9535 GSC Node Bus Converter • User’s Guide 21

4. Maintenance

Air Flow

When you insert the new battery, be careful to observe the correct polarity.

Caution To prevent explosion of the battery and possible equipment damage or harm to

Air Flow

A fan in the EC9535 frame draws cooling air from the front of the frame, through the door, and
exhausts heated air through the rear. The EC9535 must have the door correctly installed and closed
for proper airflow through the chassis. For maximum air flow, regularly inspect the fan. If the fan
becomes dusty, gently vacuum the fan and grills.

Caution If airflow is impeded overheating may occur.

personnel, be sure the battery is oriented with the correct polarity. Polarity mark­ings are visible on the card’s battery housing.

Obtaining Service

For service advice, warranty exchange, warranty repair, or out-of-warranty repair:

• Call Miranda Technical Support. (See
vice Personnel will help you resolve any service issues.

• If you need an exchange or repair,
(RMA) number. Do not return equipment without first receiving an RMA number.
uses the RMA to track receipt of the equipment and to record repair or replacement informa­tion.

• For out-of-warranty equipment, the
repair when you call and requests a purchase order payable to

• If repair or exchange is required, package the assembly in an antistatic bag and place it in a
shipping box with plenty of padding to prevent damage.

• Address the package using the Shipping Address listed in the front of this manual under

cal Support Contact Information on page iii, and ship the equipment to Miranda at your company’s

expense.

• When repair or replacement of in-warranty equipment is complete, Miranda return ships the
items at our expense. For out-of-warranty equipment Miranda charges a shipping and handling
fee. The standard shipping method is second day.

• For out-of-warranty service,
replacement.

Technical Support Contact Information on page iii.) Our Ser-

Miranda will assign you a Return Material Authorization

Miranda

Miranda Technical Support Engineer estimates the cost of

Miranda.

Techni-

Miranda will send your company an invoice following the repair or

22 Rev 1.0 • 14 Dec 09

5. Technical Details

This section provides technical specifications for the of routers and the EC9535.

Power Specifications

Typ e Parameters

AC input 90–130/180–250 VAC, 50/60 Hz, auto-ranging

AC fuses No user serviceable fuses

AC connectors 2, PS0007

AC power usage 40 Watts, maximum

Mechanical Specifications

Typ e Parameter

Dimensions 2RU (3.47 inches, 88.1 mm) high

Weight 22 lbs, 9.97 kilograms

Mounting EIA 310-C, 19.0 inches (483 mm)

Grounding
terminal

Modules and
module slots

Diagnostic Type Serial port

Serial control Type Serial port (2 per control card)

Ethernet Type 10/100baseT

GSC node bus Type Serial

19.0 inches (483 mm) wide

16.0 inches (406 mm) deep

Copper, accepts 14-6 AWG

2 Control cards (1 primary, 1 optional secondary)

Standard SMPTE 207M, EIA-422/EIA-232, configurable

Connector 2, DE9

Standard SMPTE 207M, EIA-422

Connector 4, DE9

Standard IEEE 802.3

Protocol NVISION Ethernet protocol

Connector 2, RJ-45

Standard Proprietary

Connector 2, BNC, loop-thru, non-terminating pair

Impedance 75 Ω

EC9535 GSC Node Bus Converter • User’s Guide 23

5. Technical Details

Environmental Specifications

Typ e Parameter

Operating temperature 0 to 40° Centigrade

Relative humidity 0 to 90%, non-condensing

Audio Specifications

Typ e Parameter

Audio Reference Input Type Serial digital audio

Standard AES3id

Sample Rate 48 kHz

Connector 2, BNC (redundant)

Impedance 75 Ω

Input Level 0.5V pp to 2.0 V pp

Video Specifications

Typ e Parameters

Video Reference Input Type Analog video reference

Standard PAL, NTSC or tri-level sync

Connector Loop-through, BNC

Impedance 75 Ω or Hi-Z (>20,000 Ω), not selectable

Input Level 0.5V pp to 2.0 V pp

Input Return Loss >30dB to 5 MHz

Time Code Specifications

Typ e Parameter

Time Code Reference
Input

Type 1 BNC

Standard SMPTE 12M

Connector BNC terminating

Data Rates 1/30th to 80 times normal

Impedance 75 Ω

24 Rev 1.0 • 14 Dec 09

6. Glossary

Active Cards See Modules.

AES Audio Engineering Society, Inc., New York, www.aes.org.

AES/EBU (Audio Engineering Society/European Broadcasting Union) a professional serial interface for

transferring digital audio from CD and DVD players to amplifiers and TVs. AES/EBU is typically
used to transmit PCM and Dolby Digital 5.1, but is not tied to any sampling rate or audio standard.

AES3,
AES3id

Analog Audio A signal where the instantaneous voltage is proportional to the diaphragm velocity at the micro-

Async AES,
Sync AES

AVC “Analog Video Conversion.” NVISION uses this abbreviation to describe a simple conversion

Baud Rate Refers to the symbols per second or pulses per second. It is the unit of symbol rate, also known as

DC Direct Current

dBu Unit of audio level where 0dBu is 0.775

The AES routers support AES3id and provide 75Ω BNC connectors. AES3id is specified for 75Ω
coaxial cable up to 1000 meters. (AES3 uses 110Ω shielded twisted pair (STP) cable with XLR
connectors up to a distance of 100 meters.)

phone.

The term “Async AES” refers to an asynchronous AES-compliant audio signal, whereas “Sync
AES” refers to a synchronous AES signal with a data rate of 48kbps. A system where various sig­nals are unlocked (not synchronized). Switching between signals leads to unpredictable results.

technique used to create an SD digital output signal from a composite analog video input, or to
describe the means by which SD signal is coded into an analog composite video output signal. Path
delay and subcarrier phase may not be precisely maintained in an AVC conversion path within an
NV5128 frame. AVC coding provides a cost-effective method to provide feeds to picture monitors
without requiring an external conversion device. AVC modules are not a substitute for professional­grade format converters.”

baud rate or modulation rate; the number of distinct symbol changes (signaling events) made to the
transmission medium per second in a digitally modulated signal or a line code.

Vrm s.

DB25 A DB25 connector is the common 25-pin subminiature D connector. Most modern PCs use a

female DB25 connector for the printer parallel port connector.

DE9 Sometimes mistakenly referred to as a DE9 connector, a DE9 connector is the common 9-pin sub-

miniature D connector. The serial port of modern PCs employ a male DE9 connector.

Device As the term is used in a NV9000 system, a device is a grouping of input and output ports that define

a logical entity. (The logical entity does not have to be a real entity.) For example, a system might
have 3 levels: video, AES, and time code. A hypothetical device in this system is Camera 1, which
consists of video on input port 1 of the video router, AES on input port 5 of the AES router, and
time code on input port 8 of the time code router. (The EC9535 does presently include time-code
routers.).

EIA Electronic Industries Alliance. The EIA (until 1997 Electronic Industries Association) is a trade

organization for electronics manufacturers in the United States. EIA is accredited by the American

EC9535 GSC Node Bus Converter • User’s Guide 25

6. Glossary

National Standards Institute (ANSI) to help develop standards on electronic components, consumer
electronics, electronic information, telecommunications, and Internet security.

ESD Electrostatic discharge

HD HD and HD-SDI are equivalent in Miranda terminology. An HD signal is a high definition, serial

digital interface video format that conforms to the SMPTE 292M standard.

I/O Inputs and outputs are the physical connections (e.g., BNCs) on the back of the routing switcher.

The term “input port” is used interchangeably with “input” and the term “output port” is used inter­changeably with “output.”

Matrix 1. The rack-mounted EC9535 chassis or frame which contains the subassemblies (modules, back-

planes, power supplies, etc.) which comprise the EC9535.

2. An X-Y array of crosspoint switches, a crosspoint matrix.

Module 1. In the EC9535, modules are electronic assemblies that plug into the matrix. Modules include but

are not limited to input, output and controller printed circuit boards also called active cards.

2. Any removable subassembly may be referred to as a module. Router backplanes may occasion­ally be referred to as modules.

Operator The term operator usually refers to users other than the system administrator. An operator is respon-

sible for making most of the routes.

Physical Level In a GSC Node Bus Converter system, a physical level is the same thing as a router. The idea is that

multiple routers provide different “levels” on which to switch the signals of devices. Any particular
device might send or receive HD, SD, AES, time-code, or machine-code signals. A GSC Node Bus
Converter switches one type, or level, of a device’s signal set.

Physically
Contiguous

Port A port is the physical connection on a router. In a configuration application system, a port can only

Reference
Signal

RAM Random Access Memory

RJ45, RJ-45 Registered Jack, type 45 as defined in the United States Code of Federal Regulations. A common 8-

RS-422 Sometimes referred to as RS-422 or TIA/RS-422-B and other similar variations. A bidirectional

Matrix modules are said to be in physically contiguous slots in a EC9535 frame when both the
inputs and outputs associated with those slots are in numerical sequence. For example, input slots 5
and 6 are physically contiguous because inputs 1-16 and 17-32 are in numerical sequence. In the
same way, output slots 4 and 16 are contiguous because outputs 49-64 (slot 4) and 65-80 (slot 16)
are in numerical sequence.

be an input port or an output port.

A timing signal used to synchronize events such as the switching of video signals during a specific
portion of the vertical interval. Reference signals are externally applied. In their absence, internally
generated signals are used to sustain operation.

pin modular plug and/or jack used in the telecommunications and broadcast industry to transport
Ethernet or machine control signals.

communications standard. The use of this term implies that NVISION intends to refer to the latest
standard in effect at the time the product was developed.

RU Rack Units. A standard measure or size for frames (1.75 inches).

SD SD and SDI are equivalent terms in NVISION documents. An SD signal is a standard definition,

serial digital interface video format that conforms to the SMPTE 259M standard.

26 Rev 1.0 • 14 Dec 09

6. Glossary

Source/Desti­nation

The term “source device” is used interchangeably with “source” and the term “destination device”
is used interchangeably with “destination.” A source is a device that is connected to one or more
input ports. A destination is a device that is connected to one or more output ports. An example of
such a device would be a monitor.

A device can be both a source and destination. An example of such a device is a VTR.

SWB (Super Wide Band). A term originated by Miranda that refers to the ability of a router to pass a

wide range of digital bit rates and formats. Miranda’s SWB supports data rates from about
15

Mb/s to 1.5 GB/s.

Input signals must be nominally 800mV p-p and bi-level or tri-level in nature. The EC9535 video
routers bypasses re-clocking for non-video rates. Rates that are re-clocked include common SD

Sync AES,
Async AES

System admin­istrator

data rates of 143 and 270
inally 1.485

Gb/s. SWB accepts SD at 177 Mb/s, but does not reclock it.

The term “Async AES” refers to an asynchronous AES-compliant audio signal, whereas “Sync
AES” refers to a synchronous AES signal with a data rate of 48

The system administrator is the person responsible for installing, configuring, and maintaining a
router control system.

Mb/s (SMPTE 259M-A and -C, but not B or D) and HD data rates at nom-

kb/s.

Time Code A linear time code signal complying with SMPTE 12M or the corresponding EBU standard.

UniConfig A Windows-based application (Universal Configuration) used to configure NVISION products

using a serial or Ethernet connection. UniConfig uses an easy-to-learn GUI (Graphical User Inter­face) to simplify the configuration process.

EC9535 GSC Node Bus Converter • User’s Guide 27

6. Glossary

28 Rev 1.0 • 14 Dec 09

7. Part Numbers

This appendix provides a list of parts provided by Miranda for the EC9535.

Part Number Description

PS0007 AC to 48V DC Power supply

EM0374 Control card

SM0220 Mezzanine on control card for SMS7000 system controllers

WC0152 Proprietary router control system cable with 4 DB9 connectors.

FR0061 EC9535 frame

EC9535 GSC Node Bus Converter • User’s Guide 29

7. Part Numbers

30 Rev 1.0 • 14 Dec 09

Index

A

AC power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2, 16

Active cards, defined . . . . . . . . . . . . . . . . . . . . . . . . .25

Address

mailing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii

shipping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii

AES Reference connection . . . . . . . . . . . . . . . . . . . . . .5

AES, defined . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

AES/EBU, defined . . . . . . . . . . . . . . . . . . . . . . . . . .25

AES3, defined . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

AES3id . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Air flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1, 22

Alarm connection, diagram . . . . . . . . . . . . . . . . . . . .16

Alarm connections . . . . . . . . . . . . . . . . . . . . . . . . . .15

Analog audio, defined . . . . . . . . . . . . . . . . . . . . . . . .25

Asynchronous AES3, defined . . . . . . . . . . . . . . . . . . .25

Audio Engineering Society . . . . . . . . . . . . . . . . . . . . .25

AVC, defined . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

B

Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . .21

Baud rate, defined . . . . . . . . . . . . . . . . . . . . . . . . . . .25

BNC connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

C

Cable

Ethernet

RS-232 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

CE declaration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ii

Cleaning fans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

COM port, PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Configuration, required PC . . . . . . . . . . . . . . . . . . . .10

Configuring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Connecting power . . . . . . . . . . . . . . . . . . . . . . . . .2, 16

Connectors

AES reference

BNC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

DB25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

DE9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10, 25

Diagnostic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

. . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

GSC Node Bus . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

RJ-45 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 26

Serial control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

System Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Time Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Video reference . . . . . . . . . . . . . . . . . . . . . . . . . . 6

XLR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Contact information

technical support

Contiguous, defined . . . . . . . . . . . . . . . . . . . . . . . . . 26

Control card, part number . . . . . . . . . . . . . . . . . . . . . 29

Control cards, about . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Control cards, installing . . . . . . . . . . . . . . . . . . . . . . 10

Control system connection . . . . . . . . . . . . . . . . . . . . . 3

Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Cooling, frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Copyright notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii

Customer support . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

. . . . . . . . . . . . . . . . . . . . . . . . .iii

D

DB9 connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

dBu, defined . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

DC, defined . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Declaration of conformance (CE) . . . . . . . . . . . . . . . . ii

Destination, defined . . . . . . . . . . . . . . . . . . . . . . . . . 27

Device, defined . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Diagnostic connections . . . . . . . . . . . . . . . . . . . . . 4, 13

control cards . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Document

part number

revision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii

Dolby Digital 5.1 . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii

E

EIA, defined . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Email address

tech support

ESD, defined . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii

EC9535 GSC Node Bus Converter • User’s Guide 31

Index

Ethernet connection . . . . . . . . . . . . . . . . . . . . . . . . . . .4

European Broadcasting Union . . . . . . . . . . . . . . . . . .25

F

Fans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

FCC statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ii

Frame cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Frame front, about . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Frame mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Frame, part number . . . . . . . . . . . . . . . . . . . . . . . . . .29

Frame, rear connections . . . . . . . . . . . . . . . . . . . . . . . .3

Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

G

Grounding terminal . . . . . . . . . . . . . . . . . . . . . . . . . .17

GSC Node Bus control connections . . . . . . . . . . . . . . .3

H

HD, defined . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Miranda

email, tech support . . . . . . . . . . . . . . . . . . . . . . . .iii

mailing address . . . . . . . . . . . . . . . . . . . . . . . . . .iii

main number . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii

sales number . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii

shipping address . . . . . . . . . . . . . . . . . . . . . . . . .iii

technical support . . . . . . . . . . . . . . . . . . . . . . . . .iii

website address . . . . . . . . . . . . . . . . . . . . . . . . . .iii

Module, defined . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Mounting the frame . . . . . . . . . . . . . . . . . . . . . . . . . 10

N

NV9000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

O

Obtaining service . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Operator, defined . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

P

I

Indicator boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Indicator LEDs

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

About

Installation

Control cards . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Receiving and unpacking . . . . . . . . . . . . . . . . . . . .9

Installation steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Installation, preparing for . . . . . . . . . . . . . . . . . . . . . .10

IP address, about . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

L

LEDs, About . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Level, physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

M

Mailing address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Matrix, defined . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

MCPM RS-232 port . . . . . . . . . . . . . . . . . . . . . . . . .10

Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Part number, document . . . . . . . . . . . . . . . . . . . . . . . . ii

Part Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

PC configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

PC COM port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

PCM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Physical level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Port RS-232, MCPM . . . . . . . . . . . . . . . . . . . . . . . . 10

Port, COM PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Port, defined . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Power connection . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Power supply

About . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Power supply cable, part number . . . . . . . . . . . . . . . . 29

Preparing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

R

Rack mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

RAM, defined . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Receiving and unpacking shipments . . . . . . . . . . . . . . 9

Reconfiguration steps . . . . . . . . . . . . . . . . . . . . . . . . . 9

Reference signals, defined . . . . . . . . . . . . . . . . . . . . 26

Replacing battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

32 Rev 1.0 • 14 Dec 09

Index

Replacing fans . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Return Material Authorization (RMA) . . . . . . . . . . . . iii

Revision, document . . . . . . . . . . . . . . . . . . . . . . . . . . .ii

RJ-45 connector . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

RMA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii

Router control system cable, part number . . . . . . . . . .29

Router control system connection . . . . . . . . . . . . . . . . .3

Router control system, NV9000 . . . . . . . . . . . . . . . . .25

Router, package contents . . . . . . . . . . . . . . . . . . . . . . .9

RS-232 port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

RU, defined . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

S

Sales number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii

Serial control system connection . . . . . . . . . . . . . . . . . .3

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Shipping address . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii

Shipping, received . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

SMS7000 control card mezzanine, part number . . . . . .29

SMS7000 system controller connections . . . . . . . . . . . .3

Software version . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ii

Source, defined . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Specifications, power supply . . . . . . . . . . . . . . . . . . .23

Specifications, router . . . . . . . . . . . . . . . . . . . . . . . . .23

Steps for installation . . . . . . . . . . . . . . . . . . . . . . . . . .9

Steps for reconfiguration . . . . . . . . . . . . . . . . . . . . . . .9

SWB, defined . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Synchronous AES3, defined . . . . . . . . . . . . . . . . . . . .25

System administrator, defined . . . . . . . . . . . . . . . . . .27

System alarm connections . . . . . . . . . . . . . . . . . . .6, 16

System alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

System requirements . . . . . . . . . . . . . . . . . . . . . . . . .10

T

Technical details . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Technical support . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii

Telephone number

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii

main

sales . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii

technical support . . . . . . . . . . . . . . . . . . . . . . . . .iii

Time Code connections . . . . . . . . . . . . . . . . . . . . . . . 6

Time code, defined . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii

U

UniConfig connections . . . . . . . . . . . . . . . . . . . . . . . . 4

UniConfig, defined . . . . . . . . . . . . . . . . . . . . . . . . . 27

V

Version, software . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii

Video reference connections . . . . . . . . . . . . . . . . . . . . 6

W

Website, Miranda . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii

Windows, XP Professional . . . . . . . . . . . . . . . . . . . . 10

X-Y-Z

XLR connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

XP, Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

EC9535 GSC Node Bus Converter • User’s Guide 33
