Mirage smartSTREAM - BOX2IP User Manual

Download

Introduction

Dear customer,

Thank you for buying a mirage HDTV satellite receiver.

This user manual provides information on

• placement

• installation,

• adjustment

• operation,

• cleaning and disposal of the receiver.

Please carefully read the user manual before operating the receiver.

We hope you enjoy your mirage receiver.

smart electronic GmbH

Industriestraße 29 78112 St. Georgen Germany

Table of Content

1 User Information ....................................... 3

1.1 Use of this Manual ......................... 3

1.2 Signs, Symbols, Layout ................. 3

2 Product Description ................................. 4

2.1 Scope of Delivery ........................... 4

2.2 Receiver ......................................... 4

2.3 Remote Control .............................. 5

2.4 Save Energy .................................. 5

2.5 Guarantee ...................................... 6

3 Safety Instructions ................................... 6

3.1 Intended Use.................................. 6

3.2 Risks in Case of Intended Use ...... 6

3.3 Grounding ...................................... 6

3.4 Location ......................................... 6

3.5 Handling of Batteries ..................... 7

3.6 Notes on Product Liability .............. 7

4 Installation of the Receiver ...................... 7

4.1 Connection Scheme....................... 7

4.2 Connecting Satellite Antenna ........ 7

4.3 Connecting TV Set ......................... 7

4.4 Connecting a Home Cinema

System ........................................... 8

4.5 Connecting Data Storage .............. 8

4.6 Connecting a Home Network ......... 8

4.7 Inserting the Batteries of the

RCU ............................................... 8

5 Basic Operation ........................................ 9

5.1 Switching on Receiver ................... 9

5.2 Software Update ............................ 9

5.3 Commissioning ............................ 10

5.4 Language .................................... 10

5.5 RAPS Parameters ....................... 11

5.6 Satellite List ................................. 11

5.7 Select Operation Mode ................ 12

5.8 Call/Leave Menu ......................... 13

5.9 Menu Navigation ......................... 13

5.10 Parental Lock .............................. 13

5.11 Set Time ...................................... 13

5.12 TV ................................................ 14

6 Media Player ........................................... 22

6.1 Music ........................................... 22

6.2 Images ......................................... 23

6.3 Video ........................................... 24

7 IP Functions ............................................ 24

7.1 YouTube ...................................... 24

7.2 Web Radio ................................... 24

7.3 Web News ................................... 24

7.4 Weather Forecast ........................ 24

8 smartSTREAM ........................................ 25

All rights, technical changes, errors as well as printing mistakes reserved. Any reproducing or copying of the contents requires prior written permission from smart.

Table of Content

8.1 Receiver Settings ........................ 25

8.2 BOX2IP ........................................ 26

8.3 Small2Big .................................... 26

9 Extended Settings and Functions ........ 27

9.1 Installation ................................... 27

9.2 TV Channel List / Radio

Channel List ................................. 31

9.3 Rename Favorite Lists................. 33

9.4 Timer ........................................... 34

9.5 OSD Setting ................................. 34

9.6 Automatic Standby Function........ 35

9.7 Display Setting ............................. 35

9.8 Format of the Video Signal at

the SCART Output ....................... 35

9.9 Digital Audio Out .......................... 35

9.10 Simultaneous Playback of

Picture and Sound ....................... 35

9.11 LNB IN / OUT Loop Through

(Loop Standby) ............................ 36

9.12 SmartLink (CEC) ......................... 36

9.13 Software Version ......................... 36

9.14 Factory Settings .......................... 36

10 Operation in a Unicable System ........... 37

10.1 About Unicable ............................ 37

10.2 Allocation of IF channels and

frequencies ................................. 37

10.3 Installation ................................... 37

11 Cleaning .................................................. 38

12 Transport and Decommissioning ......... 38

13 Troubleshooting .................................... 39

14 Disposal .................................................. 40

15 Technical Data ....................................... 41

15.1 General Information .................... 41

15.2 Remote Control ........................... 41

15.3 Mains Adapter ............................. 41

15.4 Connections ................................ 41

15.5 Temperature ............................... 41

15.6 Dimensions and Weight .............. 41

Index .............................................................. 42

1 User Information

1.1 Use of this Manual

• Please carefully read this user manual

before operating the device for the first time.

• Please note all warnings and notes includ-

ed in this user manual.

• Consider this user manual to be an integral

part of the product, and store it at a well accessible location.

• This user manual should also be enclosed

when handing over the device to a third party.

• In case of loss, the current version of the

user manual can be downloaded at the support center on our website www.smartelectronic.de.

• The software is still being further devel-

oped even after your purchase of the device. Thus, it may be possible that certain operation steps do not fully correspond to the user manual.

1.2 Signs, Symbols, Layout

Symbol/layout

Meaning

WARNING

Danger due to electric shock with possible severe bodily injury

CAUTION

Warning of possible physical damage



NOTE

Useful information and hints



You are requested to perform an action.

Perform these steps in the stated order.



List

Italics

The various possibilities of

settings as well as image captions are stated in

Ital-

ics

Product Description

Symbol/layout

Meaning

bold

Menu windows and menu

items (that often include further hidden menu items or direct settings) as well as the designations of keys

are printed in bold letters.

2 Product Description

2.1 Scope of Delivery

• HDTV satellite receiver

• remote control

• 2 batteries (AAA) for remote control

• user manual

2.2 Receiver

2.2.1 Front Panel

No.

Description

Display

4-digit display

LED red

Indicates, that the receiver is in Standby mode.

STANDBY

Switch between standby /

normal operation

PR-

Channel down / downnavigation in menu

PR+

Channel up / up-navigation in menu

LED green

Indicates that a valid video

signal is routed to the TV

set.

2.2.2 Rear Panel

No.

Description

AUDIO OUT (R)

Analog audio signal right

AUDIO

OUT (L)

Analog audio signal left

DIGITAL AUDIO

Digital RCA audio out (SPDIF)

USB

First connection for external

USB data storage

ETHERNET

Network connection

LNB IN

Connection for LNB (DVB-S)

HDMI

Digital audio and video out

SCART connection for TV device (analog)

USB

Second connection for external USB data storage

POWER

Power switch (On/Off)

Product Description

2.3 Remote Control

No.

Key

Description

V-MODE

Switch aspect mode

Switch between operational and standby mode.

AUDIO

Selection of audio format

IPTV

Not Used

1 - 9

Direct channel selection

Select playback format of media player

FIND

Call of channel search function

PR+

Channel + or up-navigation in menu

PR-

Channel - or down-navigation in menu

Volume + or menu navigation to the right

Volume - or menu navigation to the left

No.

Key

Description

OK/LIST

Display channel list / confirm menu item

EPG

Call of EPG (Electronic Program Guide)

INFO

Display information on current channel

Not used

Play (media player)

13 Fast rewinding

Fast forwarding

Red function key

Green function key

Mute

BOX2IP

Calls for BOX2IP mode

TV/RADIO

Switch between TV and radio mode

PAGE+

10 entries up in menu / channel list

PAGE-

10 entries down in menu / channel list

PR

Switch of previously selected channels

FAV

Call list of favorites

Call main menu

EXIT

Exit menu or menu item

TXT

Display / hide teletext

27 Stop playback

28 Pause playback

Slow forwarding – slow motion

Slow rewinding

Blue function key

Yellow function key

2.4 Save Energy

The receiver is equipped with particularly energy-saving electric and electronic components. Furthermore, a sophisticated energy management helps to save energy:

Safety Instructions

Thus, energy consumption during Save Energy Standby Mode is reduced to less than

0.5 Watt!

2.5 Guarantee

The warranty of the mirage HDTV satellite receiver corresponds to the legal regulations at the time of purchase.

3 Safety Instructions

3.1 Intended Use

The HDTV satellite receiver is intended for private receiving of digital satellite television (DVB-S/S2). It is exclusively intended for such purpose and must be used exclusively for such purpose.

Any other use is deemed to be unintended use.

3.2 Risks in Case of Intended Use

CAUTION!

Humidity, wrong mains volt-

age and/or wrong mains frequency, lightning stroke or mechanical overload may cause malfunction of or damage to the device.

 Ensure that the receiver

(in particular the mains plug) and the remote control are not exposed to any humidity. Example: Do not place filled flower vases or similar onto the receiver.

 Only connect the receiver

to 175…250 V ~, 50/60 Hz.

 Disconnect mains plug in

case of thunderstorms or malfunction.

 Do not place heavy items

onto the receiver.

 Do not bend or squeeze

the cable.

WARNING!

Risk of electric shock when

contacting mains voltage.

Damage to housing, mains cable or improper repair may result in contact to mains voltage.

 Do not place heavy items

onto the receiver.

 Do not bend or squeeze

the cable.

 Repairs of plug, cable or

receiver should only be performed by qualified specialists.

3.3 Grounding

The satellite antenna must be grounded properly. Note the relevant VDE

regulations1F2.



We recommend that the outdoor unit of the satellite system should be installed by a professional!

3.4 Location

 Place the receiver onto a solid and level

surface.

 Protect the receiver from humidity, heat,

dust and dirt.

 Do not place items filled with liquid, e.g.

flower vases, onto the receiver.

 Protect the receiver from dripping and

splash water.

 Do not place burning items, e.g. burning

candles, onto the receiver.

 Ensure sufficient ventilation (ventilation

slots must not be blocked): the receiver should have a distance of at least five cen-

VDE = Verband der Elektrotechnik, Elektronik, Informationstechnik (German) = Association for Electrical, Electronic & Information Technologies

DIN EN 60728-11 VDE 0855-1:2011-06: Cable networks for television signals, sound signals and interactive services, Part 11: Safety

Installation of the Receiver

timeters to its surrounding elements on all sides.

 Ensure that the ventilation openings are

not covered by objects such as newspapers, table cloths, curtains etc.

 Only operate the receiver in moderate

climate (not in tropical climate).

 Place the receiver so that the mains plug

can be disconnected at any time, correspondingly disconnecting the device from the mains.



If the device is transported from cold to hot environment, then condensing humidity may build up in the device.

 Do not connect the device, but

leave it switched-off for some hours.

3.5 Handling of Batteries

• Batteries should always be out of chil-

dren's reach.

• Leaking batteries cause damage to the

environment and the remote control.

• Batteries should not be exposed to ex-

treme heat, e.g. sunlight, fire etc.

 Dispose of the batteries in accordance with

the applicable legal regulations (see chapter Disposal, page 40).

3.6 Notes on Product Liability

In the following cases, the intended protection of the device may be limited. Then, liability regarding function of the device correspondingly passes over to the operator:

• The device is not used in accordance with

the user manual.

• The device is used out of the field of appli-

cation as described above.

• The operator performs unauthorized

changes of the device.

4 Installation of the Receiver

CAUTION!

 First connect the receiver

to the satellite antenna and any other devices before connecting the mains plug to the power outlet.

 Please also note the user

manuals of the other devices.

4.1 Connection Scheme

default connection

optional connection

4.2 Connecting Satellite Antenna

 Connect the antenna cable to the receiver

connection LNB IN.

4.3 Connecting TV Set

As stated in the connection scheme, the receiver offers various possibilities to connect TV set and receiver. The possibilities applicable to you depend on the connection possibilities of your TV set.

The TV set provides of an HDMI connection:

 Connect TV set and receiver by using an

HDMI cable.

The TV set does not provide of an HDMI connection:

 Connect TV set and receiver by using a

SCART cable.

Home network

Installation of the Receiver



 If your TV set offers both possi-

bilities then always choose connection via HDMI cable.

This ensures best possible audio and video quality with digital signals.

4.4 Connecting a Home Cinema Sys-

tem

To improve audio playback, you can connect to the receiver - additionally to the TV set - also a multichannel home cinema system or a hi-fi system. There are various possibilities for connection. Your type of connection depends on the connection possibilities of your home cinema system.

Your home cinema system is able to loop

through an HDMI signal, i.e. HDMI connection for receiver and HDMI connection for TV set.

 Connect the home cinema system and

the receiver by using an HDMI cable as well as home cinema system and TV set by using an HDMI cable.

Your home cinema system can process

digital audio data – connection for digital data is present.

 Connect the home cinema system and

the receiver by using a RCA cable.

Your home cinema system cannot process digital audio data –

no connections

for digital data present

 Connect the home cinema system and

the receiver by using a 2-pole RCA cable (stereo).



 If your home cinema system (hi-

fi system) supports HDMI connection, then use such connection.

This ensures best possible audio and video quality with digital signals.

4.5 Connecting Data Storage

 Connect a data storage (USB stick or hard

drive with USB connection) at the USB connector to be able to access MPEG, MP3, JPG or other media data files.

4.6 Connecting a Home Network

 In order to connect the receiver to the

internet (www) or to a home network, connect the receiver’s ETHERNET socket with a network cable to the appropriate interface of your home network.



 See section 8.1.1.1 on page 25

to learn how to configure a wired LAN.

4.7 Inserting the Batteries of the RCU

This is the procedure to insert new RCU batteries or to replace empty batteries:

 Open the battery cover at the bottom of

the RCU.

 Insert two batteries 1.5 V (Type: AAA). Take

care of the right polarity!

Basic Operation



 Replace batteries when the

range of the remote control is decreasing or when the receiver no longer reacts to all commands.

 When not used for prolonged

periods of time, batteries may leak. Remove batteries from the remote control if it is not used for long periods of time (> 1.5 years).

 When replacing batteries, al-

ways replace all batteries.

5 Basic Operation

This chapter describes the necessary steps to use easily the radio and television programs broadcasted via satellite.

5.1 Switching on Receiver

1. Switch on all connected devices.

2. Ensure that the correct AV input is selected at the TV set (i.e. that the signals from the receiver are displayed).

3. Connect the mains plug to the power outlet to switch on the receiver or Switch on the receiver by using the power switch (on the rear panel of housing) (I, ON)

5.2 Software Update



Once you have put your receiver into

operation, you

should first update the operating software of your receiver!

5.2.1 Update via USB

If you have Internet access, you should update your receiver via the USB interface.

Depends on your receiver type.

1. Search for the upgrade file on the internet page www.avanit.tv (menu item Support).

2. If the version number of the update file matches with the version number of the software of the receiver, which is displayed in the submenu Information of the menu Tools, you do not need to do anything else. Your receiver is up to date. Otherwise continue with step 3.

3. Save the update file to a USB data storage.

4. Unpack the file with the ending .abs.



Please note that the upgrade file (*.abs) is copied directly to the root directory of the USB data storage (no subdirectory)!

5. Connect the data storage to your receiver.

6. In the menu Tools, select the sub-menu Upgrade by USB and press the OK key.

7. At Upgrade Mode, select the upgrade

mode Allcode by using the keys und

8. At Upgrade File, select the file copied in step 2.

9. Select the Start button and confirm by pressing OK. A message saying that you will lose all personal settings will be displayed.

The upgrade will be performed after selecting

Yes

by using the keys und and pressing OK. Then, the receiver will automatically perform new start.

5.2.2 Software Update via Satellite

smart can also upload the update file on the satellite Astra 19.2° E. You can then perform a so-called OTA

update:

1. In the menu Tools, select the submenu

OTA Upgrade.

2. Leave all settings unchanged (factory

settings).

OTA = Over The Air = via Satellite

Basic Operation



The option of software update via satellite is only possible via Astra

19.2°E. Correspondingly, all settings should be left unchanged in the status as preset:

Line Target value

Satellite

Astra 19.2°E

Transponder

12604 H 22000

Frequency

12604

Symbol rate

22000

Polarization

Download PID

343

3. Mark the button Start by using the keys

PR+ and PR-, and confirm by pressing the OK key.

Now it is being checked if the software currently installed on the receiver is up-todate. If it is not up-to-date, then the current software version will be downloaded via satellite and installed onto the receiver. After end of installation you will be asked if the update should be saved.

4. Select the option

Yes

to accept the update. The satellite update may take up to one hour. Do not switch off the receiver during such period!

5.3 Commissioning

After first switching-on or after resetting the receivers, various windows will open:

5.4 Language

By default, the language is preset to

Deutsch

[German].

 Please ensure that the setting is correct;

you may change your settings by correspondingly pressing the keys PR+ and PR- .

 Confirm by pressing OK to go to the next

window.



The submenu Language can be accessed anytime via the menu

System Setup.

5.4.1 RAPS Start

Your receiver is equipped with RAPS. RAPS means Receiver Automatic Programming System. RAPS can automatically update the channel lists of your receiver.

What is RAPS?

Currently, the satellites Astra 19.2° and 23.5°, Eutelsat Hot Bird 13° East, Eurobird 9° and Turksat 42° offer a four-digit number of digital TV and radio channels.

At delivery, state-of-the-art satellite receivers have all important channels already stored. But what happens after that? New and interesting channels are added almost weekly, and there are channel changes time and again.

Updating the channel list with a present receiver is not quite easy for most users. When performing a channel search, invalid data are not deleted, and usually the new channels are just added at the end of the list; this requires time-consuming reprogramming of the channel list.

The RAPS system of your receiver automatically performs such programming work.

The window RAPS Automatic Installation is the second window of the installation process.

Every time you switch off your receiver, RAPS checks whether there are any changes with the channel lists (RAPS scan). This only takes a few seconds.

In case of changes, the new data are automatically included into the new channel list (RAPS download) and displayed in a table. If a chan-

Basic Operation

nel changes the receive parameters, then this is automatically updated by RAPS. In case of new channels, such channels are added. If channels are permanently discontinued, then the corresponding channel number is deleted.

However, new channels are not only added, but allocated to logic blocks, correspondingly enabling easier finding. That is why certain areas may remain free. Example: For Germany, there is the basic list as well as the areas Third Channels, Info + Sports, Special Interest, Local TV, as well as News starting at channel number 100 and many Music Channels starting at channel number 123.

You can cancel RAPS installation by pressing the key EXIT whilst the countdown of RAPS installation is running (and also at a later point in time during installation).

The then displayed channel list is a preprogrammed factory list. However, such list is not updated via satellite due to cancelled RAPS installation!

The respective up-to-date RAPS lists are available via the satellite Astra 19.2°. Correspondingly, RAPS can only be used within the footprint of the satellite Astra 19.2°; furthermore, your system should be suitable for digital Astra receiving.

5.5 RAPS Parameters

During installation, the third installation window Automatic Programming displays various parameters:

Meaning

Date of the RAPS file stored in the receiver

Date of the RAPS file currently available on the satellite

Number of available RAPS lists

Number of satellites included in the RAPS

file: Astra 19.2° East4F5 Hotbird 13° East Turksat 42° East Astra 23.5° East

Eurobird 9A 9° East

Number of transponders included in the RAPS file

Number of all channels in the RAPS lists

Progress bar: informs on progress of download of the RAPS file

5.6 Satellite List

After completion of RAPS download and completed satellite scan (RAPS DiSEqC

scan), the

window Satellite List will be opened.

East, often abbreviated "E"

DiSEqC = Digital Satellite Equipment Control, a digital control signal technology with satellite receiving systems

Basic Operation

 The window displays the satellites included

in the RAPS file. As the RAPS lists are available via the satellite Astra 19.2°, Astra

19.2° is already marked (and cannot be deselected!).

 Select a satellite by pressing the keys PR+

and PR-.

 Press OK to select a non-marked satellite.  Press OK to deselect a marked satellite.

 Press to go to the next window

RAPS select raps file.

Examples:

• Your antenna system is designed for re-

ceiving Astra 19.2°E and Hotbird 13°E. These satellites are found and marked in the list. You are planning to soon extend your antenna system for receiving of Eurobird 9A 9°E. You can additionally mark Eurobird 9A 9°E already now to avoid repeated installation in the future.

• Your antenna system is designed for re-

ceiving Astra 19.2°E and Türksat 42°E. However, the receiver in the children's room should only receive the German channels. For this, manually deselect Türksat 42°E (found by RAPS-DiSEqC scan).

5.6.1 Country

 Select the country in which you want to

use the receiver - and correspondingly also the RAPS list - by pressing the keys PR+ and PR-. The selectable countries are based on your satellite selection as per section “Satellite List”.

 Press OK to go to the next window Your

regional channel.

5.6.2 Regional Channel

 Select your preferred regional channel

(which will be stored at number three in the channel list) by pressing the keys PR+ and PR-.

 Press OK to go to the next window Chan-

nel-Filter; here you can select if you want

to include erotic channels and call TV (channels that may incur quite high telephone costs due to telephone calls to the channel) into the channel list.

5.6.3 Channel Filter

 Select Erotic and/or Call TV by pressing

the keys PR+ and PR-, and select the option (

Yes

) to include such channels into the

channel list or (

) to not include such

channels by respectively pressing /

 Press OK to store your settings and to

finish installation of the RAPS channel list. After this, TV operation will automatically start.

5.7 Select Operation Mode



TV is the operation mode after first switching-on of the receiver (or after restoration of factory settings).

Basic Operation

You can select between the operation modes TV (TV channels) and RADIO (radio channels) as follows:

 Press the key TV/RADIO on the remote

control.

 Press again the key TV/RADIO to return to

the previous operation mode.

5.8 Call/Leave Menu

 To call the menu, press the key MENU (of

the remote control or at the receiver). The menu is called.

The following is displayed in the headline of the various menu windows:

1. Name of menu window

2. Current date

3. Current time

 Press the EXIT key to leave the menu or to

go back one step.



It could be possible that you have to press EXIT several times to go back to TV mode.

5.9 Menu Navigation

The menu items with the settings for TV and radio can be respectively accessed in the two operation modes TV and Radio.

 Press PR+ to select the menu item above.  Press PR- to select the menu item below.

 Press to change resp. increase the

selected value.

 Press to change resp. decrease the

selected value.



Instead of changing a value by us-

ing the keys / , with many menu items you can also press the OK key, select a new value from the list, and confirm such value by again pressing the OK key.

Active menu items are color-marked.

Although most settings for TV operation are made, you can also make some further settings via the menu.

5.10 Parental Lock

In the sub-menu Parental Lock you can lock access to certain menus by using a PIN (e.g. for protection of your settings) or block selection of certain channels by using a PIN.

Access the sub-menu Parental Lock as follows:

1. Press the MENU key.

2. Select the menu System Setup.

3. Select Parental Lock and confirm by

pressing OK.

After entry of password, you may

− set if access to the sub-menus is pro-

tected by password, by selecting the Menu Lock and selecting

Off

or On by using the keys

/ ;

− set if certain channels are to be locked

by a PIN, by selecting PIN and selecting

Off

by using the keys / ; or

− change the password:

 Select the field New Password.  Enter a new password.  Go to the field Confirm Password.  Again enter the new password.

4. Press OK to save your changes and to

leave the sub-menu.

5.11 Set Time

Reasonable operation of the receiver requires setting of system time. By default, the receiver

Basic Operation

is set to GMT6F7 Usage, i. e. date and time are taken from the received signal. Time zone is set to GMT + 1 hour (+ 1:00) by default. Required changes can be made in the sub-menu Time:

1. Select the menu System Setup (see above).

2. Select the sub-menu Time and confirm by pressing OK.

3. Select the item GMT Usage and switch on or off GMT Usage by using the keys

/ .

= automatic time setting via satellite

signal is activated.

Off

= automatic time setting via satellite

signal is deactivated.



It’s recommended to keep the presetting (GMT Usage On).

4. Select the item GMT and select your time

zone by using the keys / ; for example, the time zone of Germany, Austria and Switzerland is

GMT +1:00

5. Select the item Summer Time and switch Summer Time

Off

or On by using the keys

/ .



 Please verify the presetting and

correct them, if required. Please also consider corresponding change of those settings.

6. If automatic time setting (GMT Usage) is switched off, then date and time should be manually entered: For this, select the item Date, select the position to be changed by using the keys

/ , and enter the current date by using the numeric keys. Then, select the item Time, select the position to be

changed by using the keys / , and enter the current time by using the numeric keys.

GMT = Greenwich Mean Time

7. Leave the menu by pressing EXIT until the screen shows the TV picture.

5.12 TV

You have several possibilities to select a channel:

• Direct channel selection;

• Channel selection via selection window;

and

• Channel selection via search function;

as explained in the following sections.

5.12.1 Direct Channel Selection

 Select the desired channel by using the

keys PR+ and PR-.

With each change of channel, an information window with information on the current channel will be displayed:

No.

Description

Channel number of current channel in current channel list

Channel name of current channel

Date

Time

Name of next program

Name of current program



 Press the INFO key to call this

window at any time.

 Set display time at OSD

Timeout (see section 9.5.1,

page 34).

 Press EXIT two times to close

the information window.

Basic Operation

5.12.2 Channel Selection via Selection

Window

1. Press the OK key to display a selection window with all available channels.

2. Select the channel list with the desired

channel by using the keys or or Press the FAV key to select from your favorite lists (see p. 31).

3. Select the channel to be displayed by using the keys PR+ and PR- for single steps or P+ and P- for steps of ten, and confirm your selection by pressing OK. The channel will be correspondingly switched.

4. Press OK or EXIT to close the selection window.

Channel selection window:

No.

Description

Display of current channel list

Marked channel

Channels included in the current channel list

Frequency of current channel (example: 33800 is 338.00 MHz)

Symbol rate of current channel (in megasymbols/second)

Polarization of current channel

Scroll bar – shows position of current channel in channel list

5.12.3 Channel Selection via Search Function

The channel lists can be quite comprehensive; correspondingly, the receiver offers various possibilities to filter the list, search for channels in the list, or sort the list:

 Press the FIND key to open the window

Find.

 Select one of the offered options by using

the keys PR+ and PR-, and confirm by pressing OK.

5.12.3.1 HDTV Filter

 Select

HDTV

to only show HDTV channels

in the channel selection window.

 Use the steps as described in 5.12.2 to

select a channel.

5.12.3.2 Genre Filter

Select

GENRE

to show the genre selection

window

(1).

 Select the desired genre by using the keys

PR+ and PR-, and confirm by pressing OK. The channel selection window will

open as second window; this window only shows channels with the selected genre.

Basic Operation

 Press EXIT to close the channel selection

window. Now you can choose another genre.

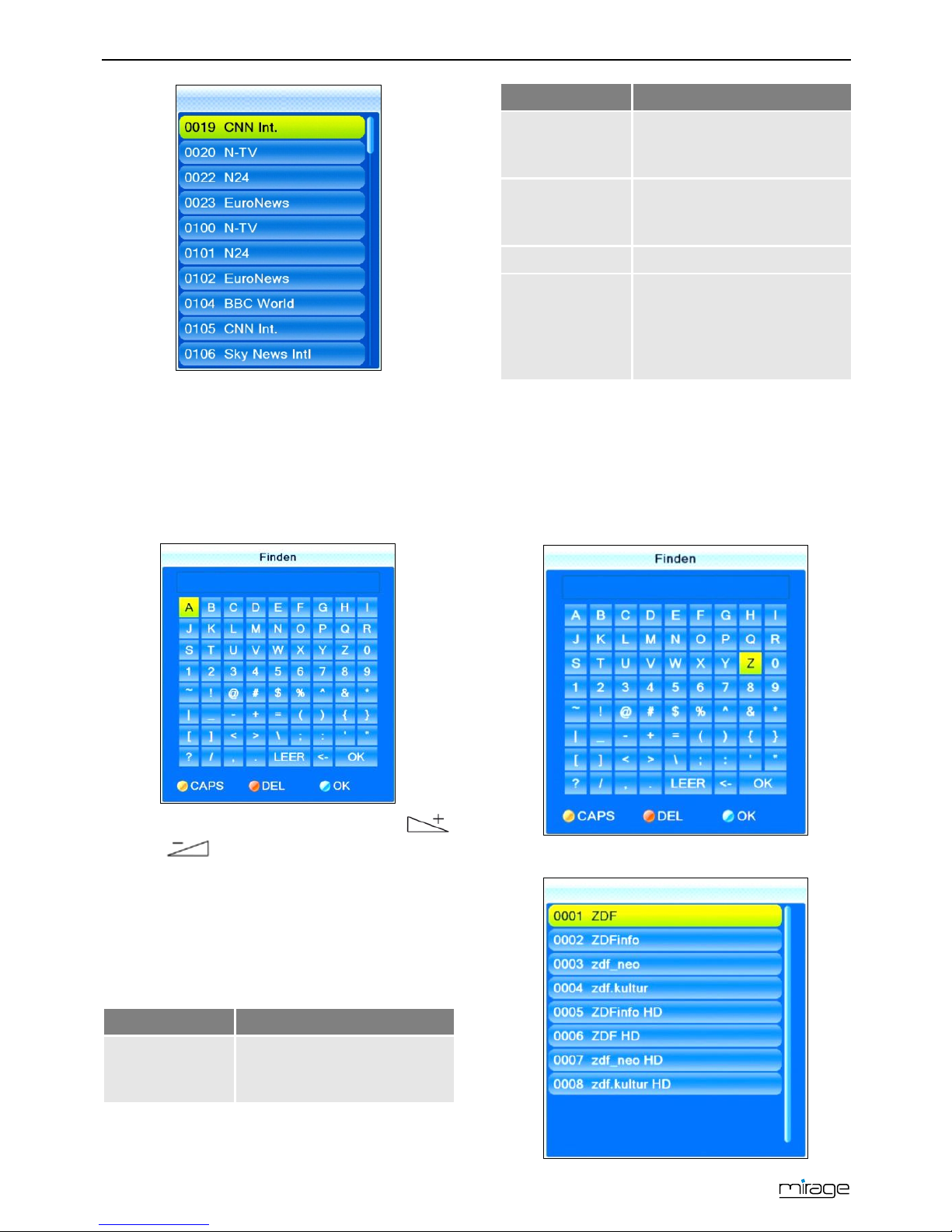

5.12.3.3 Find Channels (by Alphabet)

1. Press the FIND key, to open the window Find.

2. Select a character by using the keys

and as well as PR+ and PR- and respectively confirm by pressing OK to accept such character in the field for the name or part of the name of the desired channel.

Additionally to letters and numbers, there are also special buttons:

Button

Meaning

CAPS

(yellow func-

tion key)

Changes between upper-

case and lower case

(only effective with letters).

Button

Meaning

DEL

(red function

key) or <-

Deletes the last entered

character.

(blue function

key)

Closes the windows.

Enters a space character.

The question mark as first character has a wildcard function. Example: "?R"

sear

ches for all channel

names that include an "R".

As soon as the first selected character has been confirmed by pressing OK, a second window will open, showing all channels starting with this character (in most cases, the first character is a letter).

Basic Operation

 Press EXIT to close window 1, provided

that selection is sufficiently arranged for your purposes. Now, you can select the desired channel in window 2 by using the keys PR+ and PR-, and confirm by pressing OK.

 Return to entry of characters (see above) to

further limit channel selection.

5.12.3.4 Sort Channel List (by Alphabet)

 Select

Sort (A-Z)

Sort (Z-A)

to sort the displayed channels in ascending or descending alphabetical order in the channel selection window.



With all of the functions as described in 5.12.3, the made selection or sorting is deleted as soon as a channel is selected by pressing

OK, i.e. if you are then pressing the OK key to show the channel selec-

tion window, the channel selection list is displayed in its previous original state.

5.12.4 Channel Information

 Press the INFO key twice. The window

below will be displayed:

No.

Description

Genre

Start time and end time of current program

Name of current channel

Name of current program

No.

Description

Language of current program

Detailed information on current program

Frequency, Polarization (H = horizontal, V = vertical), Symbol rate

Signal strength

Signal quality

DVB PIDs for video, audio, PCR

5.12.5 EPG

The Electronic Program Guide is a comfortable tool, replacing a printed TV guide.

5.12.5.1 Single EPG

 Press the EPG key of the remote control.

The window Single EPG (information on one channel) will open.

PID = Packet IDentifier, each table or each elementary stream in a transport stream is identified by a 13bit PID. PCR = Program Clock Reference; required to enable the decoder to perform correct presentation regarding time and speed.

Basic Operation

No.

Description

All programs during a day, with start

and end time; the selected program is color-marked.

Date of day to which display applies.

Duration of current program (start time ~ end time).

Name of current program.

Illustration of the colored function keys and their functions.

Detailed information on the current program.

 Press the keys PR+ and PR- to display a

later or earlier program (1).

 Press the keys and to page

forward/back respectively one day (2).

 Press the yellow function key to scroll

down in the information section (6).

 Press the red function key to scroll up in

the function area (6).

 Press the green function key to include

channel, date, switch-on time and duration of the marked program into a timer. The Timer Mode is set to

Once

by default;

Timer Service is set to

Channel

. You may

change the settings.

 Press the blue function key to go to the

window EPG.

 Press the EXIT key to close the window

Single EPG and return to TV operation.

5.12.5.2 EPG

After pressing the blue function key in the window Single EPG you will access the window EPG with the following display:

The current program is marked with .

No.

Description

Thumbnail of selected channel.

Channel number of selected channel.

Name of selected channel.

Name of selected program.

Start time and end time of selected program.

Current and next program with a

timeframe of approx. 1.5 hours for the

marked channel.

Illustration of the colored function keys and their functions.

All channels included in the current channel list.

Day to which the displayed data apply.

 Press OK to open a window with detailed

information on the selected program. Press the OK key, the red function key or the EXIT key to close such window.

 Press the keys PR+ and PR- to flip through

all available channels.

 Press the keys and to page

back and forward respectively one program within a channel.

 Press the red function key to access the

window Time:

Basic Operation

 Here, select the function on the bottom by

using the keys and :

 Press OK when is selected to go to

the current program. The current program is marked with .

 Press OK when is selected to

go one program forward or back.

 Press OK when is selected to

go two hours forward or back.

 Press OK when is selected to

go one day forward or back.

 Press OK when is selected or press

EXIT to close the window Time and to

return to the EPG window.

 Press the green function key to include

channel, date, switch-on time and duration of the marked program into a timer. The Timer Mode is set to

Once

by default;

Timer Service is set to

Channel

. You may

change the settings.

 Press the blue function key to leave the

EPG window and return to the window Single EPG.

 Press the EXIT key to leave the EPG win-

dow and return to the TV program.

5.12.6 Audio Settings

1. Press the key AUDIO.

2. Select the audio mode by using the keys

and . Depending on the selected channel and the current program, the following modes are available:

Left - Right - Stereo - Mono.

3. Press the keys PR+ or PR- to select an- other language or Dolby AC3 (Dolby Digital) as far as provided by the TV station.

4. After selecting the desired audio mode, leave the menu by pressing the EXIT key.

5.12.7 Teletext

Teletext is an information system displayed on your TV set. Teletext is only possible if the selected channel supports such function. The information is organized in the main pages and subpages.

5.12.7.1 Switching 0n Teletext

 Press the key TXT.

If subtitles are offered for the program in the selected channel, a selection window appears.

 Press the keys and to select

Teletext

 Press OK to switch on teletext. The first

teletext page no. 100 is displayed.



If subtitles are offered for the program in the selected channel, immediately after pressing TXT the first teletext page no. 100 is displayed.

5.12.7.2 Navigating inside Teletext

To navigate inside teletext proceed as follows:

key

function

Keys 0 ... 9 of the remote control

Direct input of a page number

Next main page

Previous main page

(if there are sub-

pages)

Next sub page

(if there are sub-

pages)

Previous subpage or

AUTO

: automatic

switch from one

subpage to another

5.12.7.3 Setting the Transparency During Teletext-

View

 Drücken Sie mehrmals OK, um die Trans-

parenz der Videotextdarstellung in vier Stufen (von

nicht transparent

bis

vollständig

transparent

) einzustellen.

Basic Operation

5.12.7.4 Switching Off Teletext

 Press the EXIT or TXT key to deactivate

teletext.

5.12.8 Subtitles

If subtitles are offered for the program in the selected channel, these can be activated as follows:

1. Press the keys TXT to open the selection window Subtitles/Teletext.

2. Press the keys and to select

Subtitle

and confirm with OK. Another

window Subtitle Language appears.

3. With the keys PR+ or PR- select a line

Subtitle language

and confirm your selection with OK to activate subtitles. Only if several subtitle languages are being sent there will appear several lines

Subtitle lan-

guage

. If for example only German subti-

tles are sent,

deu(D)

is preset as subtitle

language.

To switch off the subtitles proceed as follows:

1. Press the key TXT to open the selection window Subtitles/Teletext.

2. Press the keys and to select

Subtitle

and confirm with OK. Another

window Subtitle Language appears.

3. With the keys PR+ or PR- select the line

SUB OFF

and confirm your selection with

OK to deactivate the subtitles.

5.12.9 Aspect Mode

5.12.9.1 Setting the Aspect Mode with the V-MODE

key

 Press the V-MODE key several times to set

the aspect ratio. Possible values:

Auto, 4:3PS, 4:3LB, 16:9LB

(see below ta-

ble).

5.12.9.2 Setting the Aspect Mode via the Menu

Select Aspect Mode to set the aspect ratio by

using the keys and .

Value Meaning

Auto

Default setting: the receiver selects

optimum value

4:3PS

For playback with a 4:3 screen, PS

= Pan & Scan:

• 4:3 program: picture is opti-

mally displayed.

• 16:9 program: picture height is

adjusted to screen; picture information on the right and left are missing.

4:3LB

For playback with a 4:3 screen, LB = Letterbox

• 4:3 program: picture is opti-

mally displayed.

• 16:9 program: picture width is

adjusted to screen; lacking height is filled up by black bars.

16:9

For playback with a 16:9 TV set

5.12.10 Video Resolution

5.12.10.1 Switching the Video Resolution via the

 In the menu System Setup, select the

submenu TV System and confirm by pressing OK.

1. Select the Video Resolution.

2. Press OK to display a list with the selectable values.

3. Select the value appropriate to your TV set by using the keys PR+ and PR-. Example: If your TV set is capable of displaying a resolution of 720p

then you should also set 720p at the receiver (720p is the factory setting).

p = progressive scan: progressive scan images are transmitted, e.g. 720p means that 50 progressive scan images with a resolution of 1280 pixel/line and 720 lines/image are transmitted per second. i = interlaced video: odd and even lines are transmitted alternatingly.

Basic Operation



If receiver and your TV set are connected via a SCART cable, then max. resolution is 576i (PAL format).

5.12.10.2 Switching the Video Resolution via the

green function key

 Drücken Sie die grüne Funktionstaste,

um sich die aktuelle Videoauflösung anzeigen zu lassen.

 Drücken Sie (solange die Videoauflösung

angezeigt wird) erneut die grüne Funkti- onstaste, um die Videoauflösung auf den nächsten Wert umzuschalten. Sie haben die Wahl zwischen

576i, 576p, 720p, 1080i

und

1080p

5.12.11 Recall

 Press the PR key to go to the last viewed

channel.

5.12.12 Sleep Timer

The receiver comprises of a Sleep-Timer that enables an automatic change of the device from the operating mode to the standby mode:

1. Select the submenu Local Time Setting in the menu System and press OK.

2. Using the buttons PR+ and PR- select the menu item Sleep-Timer.

3. Press the buttons und to activate the Sleep Timer and define a time between 10 and 120 minutes after which the receiver automatically switches over to the standby mode.

4. Press two times EXIT to return to the TV program.

Media Player

6 Media Player

The Media Player can be used to play MPEG, MP3 and JPG files available on the data storage.

1. Open the Media Player by selecting the item Media Player in the menu Media and confirming by pressing OK

by pressing the yellow function key.

2. Press the key 0 until the upper line states the desired file on the very left. The folder structure now only displays the files corresponding to the desired file type.



Only after selecting e.g. music, this will display available music files.

3. Press PR- to select the connected data storage, and confirm by pressing OK. The present directories (and files as far as they correspond to the selected file type) will be displayed.

4. Select the file to be played (press OK to open a directory).

5. Press OK to start playback (or press the

key ).

6. Use the keys , , , , and to control playback.

The buttons on the bottom edge of the Media Player window provide further functions. Such functions depend on the selected file type (music, images, videos).

6.1 Music

6.1.1 Playback

1. Select the track to be played by using the keys PR+ und PR-.

2. Press OK to start playback.

3. Use the keys , , and to control playback.

6.1.2 Playlist

6.1.2.1 Creating a Playlist

 Select a track by using the keys PR+ and

PR- and press the green function key to

add this to the playlist (favorite list). The respective track is marked with a heart symbol. You can repeat this procedure for all tracks to be added to the playlist.

 Press the yellow function key to add all

tracks from the current directory to the playlist. If pressing the yellow function key again, the playlist will be completely deleted.

 Press the red function key (SHIFT) to

display the favorite list (playlist). A new window Show Playlist will be displayed. Now you can move or remove files in/from the list.

6.1.2.2 Moving files within the Playlist

1. Select a track to be moved by using the keys PR+ and PR-.

2. Press the red function key (SHIFT) to

mark the selected track for moving .

3. Select the new position of the selected track by using the keys PR+ and PR-.

4. Leave the Move function by pressing the red function key (SHIFT) again.

Now you can close the window Show Playlist by pressing EXIT, or move another track by starting again with step 1, or you may use the

Media Player

6.1.2.3 Delete files from the Playlist

1. Select a track to be deleted by using the keys PR+ and PR-.

2. Press the green function key to remove the selected track from the playlist.

3. Press EXIT to end deletion, or go back to step 1 to remove further tracks from the playlist.

6.1.2.4 Delete all files from the Playlist:

1. Press the yellow function key to remove all tracks from the playlist. You will be asked if you really want to delete all entries.

2. Select

Yes

or No by using the keys

and , and confirm by pressing OK. When stating

, you will be directed back

to the play list. When stating

Yes

, the play list will be completely deleted and you will be directed to the start window of the Media Player.

6.1.3 Edit Audio Files

 Press the blue function key to go to the

Edit mode. Here you can

− rename tracks by pressing the red

function key;

− copy tracks by pressing the green

function key;

− and delete tracks by pressing the yel-

low function key;

− as well as create new folders by press-

ing the blue function key.

 Press the EXIT key twice to leave the Edit

mode. You will be directed back to the initial window of the Media Player.

6.1.4 Sort Audio Files

 Press key 1 to sort the displayed tracks by

name, play time, file size or favorites. Favorites are the tracks that are included in the current play list.

6.1.5 Playback Mode

 Press key 2 to change the playback mode:

Symbol in Media

Player-window

Meaning

Single track is played and repeated.

All tracks in the current

directory are played and repeated in the

displayed order.

All tracks in the current directory are played in random order and are

then repeated.

 Press the EXIT key to close the Media

Player and to return to the menu Media.

6.2 Images

The basic steps with image files only slightly differ from the steps with music files (automatic playback of a number of images). The differences are included in the functions available by pressing the keys 2 and 3.

6.2.1 Configure a Slide Show

 Press the key 2 to configure a slide show

1. Select Slide Show Time by using the keys PR+ and PR-.

2. Using the keys and , select the time period between displaying of two subsequent images (1 to 9 seconds). When selecting

Off

, the first selected image will

be continuously displayed on the screen.

3. Select Slide Show Repeat by using the keys PR+ and PR- to determine by using

the keys and if the slide show should start again from the beginning after displaying the last image.

4. Select the line Save – Cancel by using the keys PR+ and PR-, and then use the keys

and to determine if the settings should be saved or discarded, and confirm by pressing OK. You will be directed back to the image list.

IP Functions

6.2.2 Showing all Images in the Current

Directory

 Press key 3 to display all images in the

current directory.



You can also have images being displayed whilst music is being played, e.g. by changing the file type during playback of music (using key 0) and then starting a slide show.

6.3 Video

6.3.1 Playback Video

1. Select the file to be played using the keys PR+ und PR-. In left half of the screen you see a thumbnail and you can watch the

video in preview mode. Use the keys ,

, and to control playback.

2. Press OK to start playback in full screen mode.

3. Use the keys , , , , , and

to control playback.

6.3.2 Edit Video Files

 Press the blue function key to go to the

Edit mode. Here you can

− rename tracks by pressing the red

function key;

− copy tracks by pressing the green

function key;

− and delete tracks by pressing the yel-

low function key;

− as well as create new folders by press-

ing the blue function key.

 Press the EXIT key twice to leave the Edit

mode. You will be directed back to the initial window of the Media Player.

6.3.3 Sorting Videos

 Press key 1 to sort the displayed videos by

name, play time or file size.

7 IP Functions

In the menu Media there are several menu items, you can call, if the receiver is connected to the internet.

7.1 YouTube

 Select the menu item YouTube and press

OK to access directly selected clips of the

internet video portal YouTube.

7.2 Web Radio

 Select the menu item Web Radio and

press OK to access selected web radio channels.

7.3 Web News

 Select the menu item Web News and

press OK to access selected web news services.

7.4 Weather Forecast

 Select the menu item Weather Forecast

and press OK, to access web weather forecast services.

smartSTREAM

8 smartSTREAM

Is the ability of the receiver to transfer the TV from the receiver to the router and from there to a maximum of four network devices, e. g. smartphones, tablets or PCs. After the installation of an app on the respective device, you can enjoy the TV program not only in your living room but at any place in the house or garden, which is reachable via LAN or WLAN (BOX2IP).

With the current smartSTREAM-function the other way around is also possible. Stream e. g. a video clip that is currently running on the smartphone via an app through the receiver to your TV (Small2Big).

No.

Description

No.

Description

TV set

WLAN-Router

HDMI cable connection

WLAN connection

Mirage receiver

Up to 4 network devices, e. g. PC, smartphone or tablet PC

Wired LAN or

wireless WLAN

connection



Due to the high volume of data with HDTV programs, depending on network usage, disturbances may occur during streaming. Therefore, the streaming of HDTV programs is disabled by default. How you can activate HDTV streaming again, is described in section 0.

8.1 Receiver Settings

8.1.1 Connecting with the Home Network

8.1.1.1 Wired Network - LAN

1. Connect the receiver (socket ETHERNET) and your router with an Ethernet cable (wired LAN connection).

2. Go in the menu Tools to the menu item Network Setting and press OK. The window Network Setting opens.

3. Select

DHCP

to set automatically via DHCP (auto-

matic LAN configuration) or

Off

to set that the network must be config-

ured manually (manual LAN configuration).

Automatic LAN configuration

 Go in the window Network Setting to the

button Apply and press OK to connect the receiver to the network.

Manual LAN configuration

1. Insert in the window Network Setting the network parameters:

IP-Address, Subnet Mask, Gateway, DNS preferred and DNS alternate by se-

lecting each parameter, inserting the right value with the numeric keys and pressing OK.

2. Go to the button Apply and press OK to connect the receiver to the network.

8.1.1.2 Wireless Network – WLAN

1. Connect via one of the receiver’s USB sockets the smartPORTAL-Stick PX1 (WLAN stick) which is available as accessory.

2. Go in the menu Tools to the menu item

WiFi Manager and press OK. The window WiFi Manager opens.

3. Select with the keys PR+ and PR- the WLAN to which you want to connect your

DHCP = Dynamic Host Configuration Protocol, a server (DHCP server included in the router) allocates a network configuration to the clients (e. g. receiver).

smartSTREAM

receiver. A window with the WLAN data opens.

4. Enter the

password

(the other data will be taken from the selected network), go to the button

Connect

and press OK. The con-

nection will be established.

8.1.2 Setting up the BOX2IP Server

1. Go in the menu Installation to the menu item BOX2IP and press OK. The window

BOX2IP server setting

opens.

2. Set under

Satellite 1, Satellite 2, Satellite 3 and Satellite 4 the satellites broadcasting the

channels which should be available for the transfer to a mobile device.



To use the BOX2IP function, it is absolutely necessary to make these settings.

8.2 BOX2IP

1. Connect your mobile device via WLAN with the router in your home network. For this, pay attention to the respective notes in the manual of the mobile device.

2. Install on your mobile device a SAT>IP app, e. g. the Elgato SAT>IP app:

- for the operating system iOS from the Apple App Store and

- for the operating system Android from the Google Play Store.

3. Run the SAT>IP app. Receiver and PC / mobile device will be connected with each other via LAN / WLAN. If the connections are ok, you will see the receiver as Sat>IP server in the app menu.

4. If you do not see it, check the LAN / WLAN connections. If there are several reachable Sat>IP servers, they are shown respectively. Select the desired device.

8.2.1 Live-TV on your TV Set

Simultaneously with the start of the Sat>IP app the receiver channel list will be reduced. It now contains only those channels broadcasted via the same transponder as the current TV channel.

 In between this channel list you can switch

channels with the remote control of your receiver.

8.2.2 BOX2IP Mode

 Press the key BOX2IP or go in the menu

Media to the menu item

BOX2IP

an press

OK, to set the receiver into smartSTREAM

mode. On the TV screen you see now the "BOX2IP" OSD screen instead of the TV image.

On your mobile device you have now a complete channel list, containing all channels which are broadcasted via the satellites you set in section 8.1.2.

 Switch the channel directly on your mobile

device.



During BOX2IP mode you can switch off your TV set.

8.2.3 HDTV Streaming

Streaming of HDTV programs is disabled by default (see note on page

Fehler! Textmarke nicht definiert.). Proceed as follows to acti- vate HDTV streaming:

1. Navigate to the sub menu

Other

in the

System setup

and press OK.

2. Select the menu item

HDTV Streaming

and select

HDTV Streaming On

by using

the keys and .

8.3 Small2Big

1. If your PC or mobile devices are not yet

connected to the router in your home network, establish this connection (see above). Please refer to the relevant instructions in the manual of the network terminal.

2. Install on the network device an app that

can detect a Digital Media Renderer (DLNA DMR) and can use it as a playback device, such as "Media Connect", "BubbleUPnP" ...

Extended Settings and Functions



Newer Windows systems are DLNA compatible by default, and therefore DMR compatible (regarding playback on a media renderer...).

3. Navigate to the menu Media, navigate to Small2Big and press OK. On the TV screen "Small2Big standby" appears. The receiver waits to receive an AV stream.

4. Start the app which can connect to the DMR and check in the app settings, whether the receiver is selected as renderer.



If there occur questions regarding the operation or troubleshooting of the apps which are used for BOX2IP and Small2Big, contact the appropriate app’s supplier support.

5. In the app, select the files which should be played via the receiver’s renderer and the TV set. Possible formats: JPG, BMP, MP3, MPEG2, MPEG4 (AVC/ H.264) The receiver indicates, that it receives data and plays it on your TV screen.

9 Extended Settings and Func-

tions

9.1 Installation

The default settings apply to a standard satellite system. Any further system functions (e.g. unicable system or motor antenna) should be manually set in the menu Installation:

CAUTION!

 In case of doubt, have

those settings being made by an expert. Usually, there are no required settings within scope of normal use of the system.

9.1.1 Antenna Connection

1. In the menu Installation, select the submenu Antenna Connection and confirm by pressing OK.

2. Select by using the keys and if a

Fixed Antenna

or a

Motor Antenna

connected to the receiver.

3. Press EXIT to leave the submenu Antenna Connection.

4. Press EXIT again to leave the menu Instal- lation and to return to TV operation, or go to another submenu



If you selected a

Motor Antenna

, then such antenna should be further configured at the menu item Anten- na Setup.

9.1.2 Satellite List

The submenu Satellite List states a preset list of possible satellites. Depending on your antenna system you can select the satellites used for receiving channels:

1. In the menu Installation, select the submenu Satellite List and confirm by pressing OK

2. Select the satellite you want to receive by pressing the keys PR+ and PR-, and con- firm by pressing OK. The selected satellite will be correspondingly marked ( ).



You may also edit the satellite list by selecting one of the buttons on the right edge of the menu window.

To change an entry:

1. Press the red function key (SHIFT).

2. Select by pressing the keys PR+ and PR- if you want to change name or longitude (position).

Extended Settings and Functions

3. Select the text position to be changed by

pressing the keys and :

− Enter the numbers and letters using the

numeric keys of the remote control.

− Press the red function key (SHIFT) to

switch between upper case and lower case.

− Press the green function key to delete

the currently selected position.

− Press the yellow function key to con-

firm your changes and to return to the satellite list.

− Press the blue function key (L/R) to

cancel changes and to return to the satellite list.

To add an entry:

1. Press the green function key.

2. Enter name and longitude (entering of text as described in the section Change).

To delete an entry:

1. Select the satellite to be deleted by using the keys PR+ and PR-.

2. Press the blue function key (L/R). A window will open, stating the question if you really want to delete the entry.

3. Select

or No by using the keys

and , and confirm your selection by pressing OK. You will be directed back to the satellite list.

 Press EXIT to leave the submenu Satellite

List.

 Press EXIT to leave the menu Installation

and to return to TV operation.

9.1.3 Antenna Setup

The submenu Antenna Setup states several entries depending on your selection at Anten- na Connection.

Fixed Antenna

Motor Antenna

9.1.3.1 Fixed Antenna

 At Satellite, select the satellite to which

the following settings should apply.



The options are limited to such satellites that are marked in the Satellite List as such satellites from which you want to receive channels.

 At LNB Freq, select the value correspond-

ing to the used LNB. Alternatively, press OK, select the corresponding value from the list, and confirm by pressing OK.

Possible values LNB frequency (MHz)

5150 10600

Universal (9750 - 10550)

5750 10700

Universal (9750 - 10600)

5950 10750

Universal (9750 - 10700)

9750 11250

Universal (9750 - 10750)

10000 11300

Universal (9750 - 10600)

10050 5150 - 5750

Unicable (9750 - 10600)

10450

5750 - 5150

Unicable (10200)

A universal LNB with 9750 - 10600 MHz is the default value.

Extended Settings and Functions

You can set signal strength and signal quality for receiving of a certain transponder:

 At Transponder, select the transponder

for which signal strength and signal quality should be displayed at the lower window

edge by using the keys and (or select Transponder, press OK, select the desired transponder from the list und confirm by pressing OK).

No.

Meaning

Sequential number of selected transponder

Total number of receivable transponders

Frequency (MHz)

Polarization, H = horizontal, V = vertical

Symbol rate (MS/s)



Orientation of your antenna is optimal with maximum signal strength.

 When using a multi-feed antenna, select

the port for the respectively selected satellite at DiSEqC

10F

1.011F12.

 If you want to receive signals from more

than four satellites, select the port for the respectively selected satellite at DiS-

EqC1.1

12F

. This is set to

Disable

by default.

 Select the menu item 22K to permanently

switch on or off the 22 kHz control voltage for high-low band switching (this is re-

DiSEqC = Digital Satellite Equipment Control, a digital control signal technology with satellite receiving systems

DiSEqC1.0 supports four satellite positions

DiSEqC1.1 supports 16 satellite positions

quired e.g. for certain antenna systems or to avoid disturbances). In most cases,

Auto

is to be selected (factory setting).

 At Polarity, select the correct value for the

selected channel. Possible settings are

(horizontal),

(vertical) and

Auto

. Factory

setting is made to

Auto

9.1.3.2 Motor Antenna

 At LNB Freq, select the value correspond-

ing to the used LNB. Default value is a universal LNB with 9750 - 10600 MHz.

 At Motor Type, select the used control

signal technology. Select between

DiSEqC

1.2

and

USALS

13F

(depending on the used motor). The submenu item Motor Setting states different settings depending on your previous selection.

9.1.3.2.1 DiSEqC 1.2

 Select Delete All to delete all previously

set satellite positions.

 Select Motor Setting and press OK to

open the submenu Motor Setting:

To set various antenna positions:

1. Select Satellite to select the satellite to which the following settings should apply.

2. Select Transponder to select the transponder that should be decisive for the antenna position (usually the transponder that is used to send your preferred channel).

As compared to 1.0 and 1.1, DiSEqC1.2 offers the additional possibility of rotor control, USALS = Universal Satellites Automatic Location System (particularly simple motor antenna control)

Extended Settings and Functions

3. Select Pos No. & Save to determine a position number at which the respective satellite (i.e. the respective antenna position) should be saved.

4. Select Go to X to call a position from which you want to make the selection (the value

Reference

is the zero position).

5. Select Save and turn the antenna to the

west or east by using the keys and

. Search for maximum values of signal strength and signal quality (are displayed at the lower screen edge).

6. Then press OK to save the found position. A query will be displayed.

7. Confirm change of position by pressing

Yes or discard such change by pressing No.

8. Repeat the steps 1 to 6 for any further satellites/transponders, if applicable.

 Select Recalculation and press OK to

discard any previous settings and to again determine antenna position.

 Press EXIT to return to the submenu An-

tenna Setup.

Select Limit setup and press OK to open the window Limit setup.

1. Select Limit setup to switch between

Disable Limit, West Limit

and

East Limit

2. Mark the button Limit setup and move the limit - as defined in the previous step - to

the east or west by using the keys

and .

3. Mark the button Go to Reference and then press OK to move the motor antenna to its starting position.

4. Press EXIT to return to the submenu An- tenna Setup.

9.1.3.2.2 USALS

A satellite position is defined as reference, and the data provided for latitude and longitude are then used together with such basic values to calculate the rotary movement for all remaining satellites.

 Select Local Longitude to enter the longi-

tude of the position of your antenna by using the numeric keys of your remote control.

 Select Local Latitude to enter the latitude

of the position of your antenna by using the numeric keys of your remote control.

 Select Motor Setting and press OK to

open the submenu Motor Setting.

1. Select Satellite to select the satellite that should be used as reference for USALS control of the antenna.

2. Select Transponder to select the transponder that should be decisive for the antenna position (usually the transponder that is used to send your preferred channel).

3. Align your motor antenna so that signal strength and signal quality (are displayed at the lower screen edge) reach maximum values.

4. Press EXIT to return to the submenu An- tenna Setup.

 In the submenu Antenna Setup, select the

item Limit Setup and press OK to open the window Limit Setup. Proceed as described above.

Extended Settings and Functions

9.1.4 Single Satellite

Here you can scan individual satellites for receivable channels.

 At Satellite, select the satellite for which

the scan should be performed.



Also here, options are limited to the satellites that are marked in the Satellite List as such satellites from which you want to receive channels.

 Select Only FTA14F

to determine if scan should be made only for FTA channels or for all channels.

 At Scan Channel, select if you want to

perform scan only for TV channels, only for radio channels or for TV + radio channels.

 At Network Search, select if you want to

search for an individual channel (

) or all

channels of a channel network (

Yes

), e.g. PRO7, SAT1, KABEL1, SIXX. The item Network Search will only be active after selecting the scan mode Preset Scan (i.e. Standard Scan).

 At Scan Mode, select the scan mode:

− Preset Scan (Standard Scan): In such

mode, only the frequencies included in the TP list are regarded.

− Auto Scan (Blind Scan): Here, all fre-

quencies are scanned, whether they are included in the TP list or not.

 At Tuner, select the LNB to process the

signals (if only one LNB is present, then this item will not be active).

 Start channel search by selecting Search

and confirm by pressing OK.

9.1.5 Multi Satellite

Multi Satellite differs from Single Satellite by the fact that all satellites marked in the satellite list are scanned for receivable channels.

FTA = Free To Air = unencrypted channels

9.2 TV Channel List / Radio Channel

List

You can individually customize the channel lists. There are various available possibilities for editing. For reasons of simplification, only editing of TV lists will be explained in the following. Editing of radio channel lists will be performed corresponding to editing of TV channel lists.

1. In the menu Edit Channel, go to the submenu TV Channel List.

2. Press OK to open the window TV Channel List.

With the editing processes described in the following you will be respectively asked - when leaving the Edit Channel menu (or when changing the channel list or when selecting another function) - if you want to

overwrite the factory-set channel program list, i.e. you may accept the performed changes (

- then the channel list will be correspond-

ingly changed) or discard them (

- then the

original channel list will not be changed).

9.2.1 Add a Channel to Favorites

1. Mark the corresponding channel by using the keys PR+ and PR-.

2. Press the key FAV and confirm by pressing OK.

Extended Settings and Functions

A selection window with the eight available favorite lists will open.

3. Select the favorite list to which the channel is to be allocated by using the keys PR+ and PR-, and confirm by pressing OK. The respective favorite list is correspondingly marked

( ).

4. The channels allocated to a group of favorites will be marked in the channel lists

5. Press the key FAV once again or the key EXIT to leave the function Favorite.

9.2.2 Provide Channels with Password Pro-

tection (Lock Against Unauthorized Access)

1. Mark the corresponding channel by using the keys PR+ and PR-.

2. Press the red function key (SHIFT).

3. Confirm by pressing OK. You will be requested to enter a password.

4. Enter a password. Locked channels are

marked in the channel lists .

5. Again press the red function key (SHIFT) to leave the function Lock.



From now on, first the password has to be entered to be able to watch such a locked channel.

9.2.3 Skipping Channels when Switching

from Channel to Channel (Zapping)

1. Mark the corresponding channel by using the keys PR+ and PR-.

2. Press the green function key.

3. Confirm by pressing OK. Channels to be skipped are marked in the channel lists.

4. Again press the green function key to leave the function Lock.



From now on, the channel is skipped when switching from one channel to the next (zapping).

9.2.4 Move Channels to Another Channel

Position

1. Press the yellow function key to activate the function Move.

2. Mark the channel to be moved by using the keys PR+ and PR-, and confirm by pressing OK. The channel to be moved is marked in the channel list

. If you want to move more than one channel, then mark further channels by using the keys PR+ and PR-, and respectively confirm by pressing OK. The channels to be moved should not be necessarily in an uninterrupted sequence.

Example:

Before moving – three channels are marked:

After moving:

3. Select the channel number to which the channel/channels are to be moved to by using the keys PR+ and PR-, and again press the yellow function key.

4. Press the EXIT key to leave the function Move.

9.2.5 Rename Channels

1. In the sub-menu Edit Channel – TV Channel List, press the blue function key (L/R).

Extended Settings and Functions

2. Press the green function key to activate the renaming process.

3. Mark the channel to be renamed by using the keys PR+ and PR-, and confirm by pressing OK.

4. The window Rename will be displayed.

 Select the character to be changed by

using the keys and .

− Enter the new character respectively

by using the numeric keys of the remote control.

− Press the red function key (CAPS) to

switch between upper case and lower case.

− Press the green function key (DEL) to

delete the respectively selected character.

− Press the yellow function key (OK) to

accept the changes made so far and to close the window Rename.

− Press the blue function key (CAN-

CEL) to discard the changes made so

far and to close the window Rename.

5. Press the green function key to leave the rename mode.

9.2.6 Delete Individual Channels from Chan-

nel List

1. In the sub-menu Edit Channel – TV Channel List, press the blue function key (Edit).

2. Again press the blue function key (Delete) to access the delete mode.

3. Mark the channel to be deleted by using the keys PR+ and PR-, and confirm by pressing OK. The respective channel is correspondingly marked

Repeat step 3 as long as all channels to be deleted are marked.

4. Again press the blue function key (Delete) or the EXIT key to leave the Delete mode.

5. If you agree to overwrite the factory-set channel list when leaving the menu (see above), the marked channels will be deleted.

9.2.7 Delete All

To delete all channels

1. Select Delete All in the menu Edit Channel.

2. Press OK. You will be asked if you want to delete all channels.

3. Select the answer

Yes

or No by using the

keys and , and confirm by pressing OK.



After deletion of all channels, all channel lists will be empty and should be newly created!

9.3 Rename Favorite Lists

In the submenu Favorite of the menu Edit Channel you can rename favorite lists.

1. Select the favorite list to be edited by using the keys PR+ and PR-, and confirm by pressing OK.

2. An on-screen keyboard will be displayed.

3. Select letters/numbers by using the keys

PR+ and PR- as well as the keys

and , and confirm by pressing OK.



Switch between upper case and lower case by pressing the yellow function key.

Delete individual letters/numbers by pressing the red function key (SHIFT).

 Repeat this until the desired favorite name

is entered.

Extended Settings and Functions

 Press the blue L/R key to return to the

sub-menu Favorite and press EXIT to leave the sub-menu.

9.4 Timer

In the sub-menu Timer of the receiver you can program, edit and delete up to eight different events (channel switch).

1. In the sub-menu Timer Setting, mark a timer by using the keys PR+ and PR-.

2. Press the OK key to open the timer.

3. Mark the line Timer Mode by using the keys PR+ and PR-.

4. You can select from the following possibili-

ties by using the keys and :

Value

Meaning

Off

The timer is deactivated.

Once

Single event (only once).

Daily

Event occurs every day at the

same time (e.g. the news program

every day)

Weekly

Event always at the same week-

day

Monthly

Event occurs every month at the

same day (e.g. every 20th)

Monday

to Friday

Event Monday to Friday at the

same time.

5. In line Timer Service the option

Channel

is selected. There is not any possibility to change this.

6. Mark the line Wakeup Channel by using the keys PR+ and PR-, and select the channel to be displayed by using the keys

and .

7. Mark the line Wakeup Date by using the keys PR+ and PR-, and enter the date by using the numeric keys.

8. Mark the line On Time by using the keys PR+ and PR-, and enter the on time by using the numeric keys.

9. Mark the line Duration by using the keys PR+ and PR-, and enter duration of the program by using the numeric keys.



You can go from letter to letter (position to position) in the date and time fields by pressing the keys

and .

10. Mark the key Save by using the keys PR+ and PR-, and confirm by pressing OK (or select Cancel and confirm by pressing OK if you want to cancel programming – then you will return to the sub-menu Timer Set- ting).



You can directly add programs marked in EPG to the timers. This significantly facilitates programming as you do not have to make settings for channel, date and time.

9.5 OSD Setting

 Select in the menu System Setup the

submenu OSD

15F

Setting and press OK.

9.5.1 Hide OSD

 Using the keys and , set the

number of seconds after which the OSD should be hidden. You may set values from

1 to 10 seconds

Default value is

s (factory setting).

9.5.2 OSD Transparency

 Select transparency of the on-screen menu

by using the keys

and .

You may set values from

0% (OFF)

(no

transparency) to

40%

(almost transparent).

Default value is

OFF

OSD = On Screen Display

Extended Settings and Functions

9.6 Automatic Standby Function



Based on current EC regulations, this receiver is equipped with an energy saving system. After three hours, the receiver will automatically switch to energy save mode (energy consumption of less than 0.5 W) unless a function is triggered via remote control during such period (e.g. volume change or switching of channels). You can deactivate the automatic standby function via the menu.

1. Select in the menu System Setup the submenu Other and press OK.

2. Select Auto Standby to switch on or switch off the automatic standby function,

using the keys and (factory setting is Auto Standby

9.7 Display Setting

Select in the menu Tools the submenu Display setting and press OK to edit various display

settings:

 Select Brightness to change the bright-

ness value from 0 to 100 (default value is

50) by using the keys and .

 Select Contrast to change the contrast

value from 0 to 100 (default value is 50) by

using the keys and .

 Select Saturation to change the saturation

value from 0 to 100 (default value is 50) by

using the keys and .

 Select Hue to change the hue value from 0

to 100 (default value is 50) by using the

keys and .

 Select Sharpness to change the sharp-

ness value from 0 to 10 (default value is 5)

by using the keys and .

9.8 Format of the Video Signal at the

SCART Output

1. In the window TV system move highlight on Scart Out item and press OK.

2. Press the keys PR+/PR- to select from the list the format of the video signal at the SCART output and press OK. Possible val- ues are

YUV

and

RGB

. Default is

YUV



Due to the internal signal processing

it’s not anymore possible to select higher resolutions than 576i even at the HDMI if RGB is selected

9.9 Digital Audio Out

 Select in the menu System Setup the

submenu TV System and press OK.

 Select Digital Audio Out to set the format

of the digital audio signal by using the keys

and :

PCM

– Pulse Code Modulation (default),

– Dolby Digital (multi-channel audio).



For programs broadcasted in DD format, select DD if you have a connected DD-compatible multichannel amplifier or a DDcompatible home cinema system, or if your TV set is capable of processing DD signals.

9.10 Simultaneous Playback of Picture

and Sound

Asynchrony between the image and the sound signals might for example occur in your home cinema system due to the use of long cables. Your receiver offers the possibility to balance this by slightly shifting the audio against the video signal.

1. Select in the menu System Setup the submenu Other and press OK.

2. Select AV Sync Value and set a value of shift between

-500ms

and

+500ms

using

the keys und (factory default is AV Sync Value

0 ms

Extended Settings and Functions

9.11 LNB IN / OUT Loop Through (Loop

Standby)

(only with version II, see section “Receiver”, page 4)

Basically, after turning off the receiver it switches to power saving mode ("Deep Standby", red LED lights up). At the LNB OUT terminal there is no or only a highly attenuated signal. If you want to use LNB OUT anyway, you can set that in the submenu Other of the System Setup menu:

 Select Loop Standby to switch on and off

the possibility of looping through the satel-

lite signal, using the buttons und

(factory default is Loop Standby

off

CAUTION!

If you select Loop Standby

, the receiver goes into standby mode after switching off, but not into the power saving mode. The display shows the current time.

9.12 SmartLink (CEC)

If you have a CEC16F17-compatible TV set, and receiver and TV set are connected via HDMI you can switch on and off (standby mode) both sets with the remote control of your receiver:

1. Select in the menu System the submenu TV System and press OK.

2. Select SmartLink and use the keys

und to switch the SmartLink function on and off.

CEC = Consumer Electronics Control = HDMI feature for entertainment units, provides via HDMI various control functions, e. g. "one touch recording" or "system standby". The TV set is the control center and the TV remote control becomes the remote control of the whole system.

9.13 Software Version

The submenu Information of the menu Tools displays the current version number of the receiver software.

9.14 Factory Settings

If you erroneously saved wrong settings or if you want to pass on the receiver without your settings, then you can reset the receiver to the factory settings (reset):

To reset the receiver:

1. In the menu Tools, select the submenu Factory Settings.

2. Press the OK key. You will be asked if you want to reset the receiver and delete individual settings.

3. Select Yes or No by using the keys

und , and then press OK. After resetting your receiver, the language selection menu will be displayed.

Operation in a Unicable System

10 Operation in a Unicable Sys-

tem

10.1 About Unicable

The HDTV receiver allows for changing the receiving mode to the unicable standard. This makes it possible to connect several independent receivers (up to 12 - depending on the used system) to only one main line.

For this, an own IF channel and a corresponding frequency should be set for each receiver via the settings menu.

Allocation of channels and frequencies depends on the used LNBs and/or multiswitches.

The data sheet and the technical documentation of your LNB and/or multi-switch include an allocation table similar to the following table.

10.2 Allocation of IF channels and

frequencies

Receiver

IF channel

Exemp.

frequency

(MHz)

Frequency

(MHz)

Receiver 1 1 1284

Receiver 2 2 1400

Receiver 3 3 1516

Receiver 4 4 1632

Receiver 5 5 1748

Receiver 6 6 1864

Receiver 7 7 1980

Receiver 8 8 2096



 Enter the frequencies of your

receiving system into the last column of the table so that all relevant information is quickly available. Rule of thumb: highest frequency  shortest cable path.

10.3 Installation

If the receiver is connected to a unicable system, then RAPS installation will automatically cancel. The window to the right will open.

1. Press the red function key (SHIFT) to open the submenu Antenna Setup.

2. Select the menu item LNB Freq to set

Unicable(9750-10600)

3. Press the green function key to open the window Antenna Setup Unicable Setting.

4. Select the menu item IF Channel and set the IF channels (start with channel 1; respectively allocate one of the IF channels in ascending order - to the connected receivers).

Cleaning

5. Select the menu item Center Freq to set the frequency corresponding to the IF channel (see allocation table).

6. Select the menu item Sat Position to set the respective satellite position.

7. Mark the button Save and press OK to save your entries and to return to the first window Antenna Setup or mark the button Cancel and press OK to discard any previous entries in this window and to return to the first window Antenna Setup without saving.

8. Press the red function key to open the window Antenna Setup Center Freq.

9. Select the channels using the keys PR+ and PR- (up to 12, depending on your system) and insert for each the frequency (according to the table above) using the keys

or or numeric keys of the re-

mote control.

10. Mark the button Save and press OK to save your entries and to return to the first window Antenna Setup or mark the button Cancel and press OK to discard any previous entries in this window and to return to the first window Antenna Setup without saving.

11. Leave the menu by pressing EXIT (settings will be saved). RAPS installation will be continued automatically.

11 Cleaning

WARNING!

There is the risk of electric

shock when cleaning the receiver!

 Always disconnect mains

plug from power outlet before cleaning.

 Never clean the receiver

using a damp cloth.

 Always ensure that no

liquid enters the receiver.

CAUTION!

There is the risk of damag-

ing the receiver when cleaning the receiver!

 Do not use solvent-

containing cleaning agents like petroleum ether or thinner.

 Clean the housing of the

receiver using a dry cloth.

12 Transport and Decommission-

ing

Proceed as follows if you want to transport the receiver of if you do not want to use the receiver any more:

1. Disconnect the receiver and all connected devices from power supply.

2. Disconnect any cables connected to the receiver.

3. Remove the batteries from the remote control.

4. Put receiver, cables and remote control into the original packaging.

5. Store the receiver and the accessory parts at a dry and dust-free location.

6. Protect the receiver from freeze.

Troubleshooting

13 Troubleshooting

This section includes a list of general errors that could occur with operation of the receiver. Each error states a possible cause and solutions.

Symptom:

• The display does not light.

Possible cause(s):

• The power cord is not connected.

• The power switch is not switched on.

Solution:

• Connect the power cord to the power

outlet.

•

Switch on the power switch.

Symptom:

• No audio or video; the receiver states

"OFF" and the red LED lights up.

Possible cause(s):

• The receiver is in standby mode.

Solution:

• Press the POWER key to switch on the

receiver.

Symptom:

• No audio or video.

Possible cause(s):

• No signal or only weak signal.

Solution:

• Check the cable connections to the

receiver and from the receiver to the connected devices; fasten cables, if required.

Symptom:

• The TV set does not show a picture.

Possible cause(s):

• The system is not correctly connected.

Solution:

• Verify connection of cable and fasten

cable, if required.

Symptom:

• Picture only in black and white and/or

incorrect synchronization.

Possible cause(s):

• The video format of your receiver is not

correctly set.

Solution:

• Adapt broadcast television system of

the receiver to the broadcast television system of the TV set.

Symptom:

• The remote control does not operate.

Possible cause(s):

• The batteries are empty.

• The remote control shows into wrong

direction.

Solution(s):

• Replace empty batteries with new

batteries.

• Direct the remote control towards the

front panel of the receiver.

Symptom:

• Display flashes

Possible cause(s):

• Short circuit at LNB IN.

Solution(s):

• Pull off antenna plug from LNB IN and

check the same.

• Verify that your cable installation is

properly installed.

Symptom:

• Receiver switches on and off continu-

ously or

• Display: „LNBP“ and screen message:

"Attention, LNB short-cut!", no TV image.

Possible cause(s):

• Short-cut at the connection from the

LNB to the receiver or the LNB itself.

Solution(s):

• Disconnect the connection LNB - Re-

ceiver.

• Check the LNB cable, the plug and / or

the LNB on any short-cut (e.g. water in the LNB) and remove them.

•

Reconnect the units

Disposal

New operating software for the receiver will be published, if required. This can be easily downloaded at the website www.smartelectronic.de.

If the malfunction still cannot be remedied, then please contact your specialist dealer.

Service Hotline

In case of technical problems, connection problems or general questions on settings:

Service Hotline: +49 (0) 7724 9478-555 Fax: +49 (0) 7724 9478-333 E-mail: service@smartelectronic.de

14 Disposal

CAUTION!

 Do not dispose of the re-

ceiver and the batteries in normal household refuse!



 Please ask your municipal

administration on possibilities for environmentally friendly and proper disposal of the receiver.

 Please take the batteries

to a collecting point.

The WEEE17F18 symbol on the product and its packaging states that this product is an electrics or electronic device. Do not dispose of such device in the household refuse, but take it to your local municipal collecting point (collection station).

WEEE = Waste Electrical and Electronic Equipment. The WEEE directive is the EC directive 2002/96/EC on reduction of the increasing amount of waste from electrical and electronic equipment not used any more. Its objective is prevention, reduction and environmentally friendly disposal of the increasing amounts of electronic waste.

Technical Data

15 Technical Data

15.1

General Information

• HDTV 1080p

• Standby Save

Energy mode

• Channel sorting:

Alpha / Num. / Genre / HDTV / Sat

• Unicable compat-

ible

• RAPS

• Favorite lists

• EPG

• JPEG and MP3

playback

Input frequency range

950 ~ 2150 MHz

Input impedance

75Ω

Input level

-25 ~ -65 dBm

15.2

Remote Control

Range

up to 7 m

Batteries

2 x type AAA

15.3

Mains Adapter

Power consumption

in standby

less than 0.5 W

Mains voltage

175 - 250

V ~,

50/60 Hz

15.4 3BConnection

Data storage interface

USB 2.0

LNB in

F-socket

Service

RS232

Audio out

1 x RCA digital audio

Audio / Video out

1 x HDMI

1 x SCART connector (EURO AV)

15.5

Temperature

Operating temperature

+5° C to +40° C

Storage temperature

-40° C to +65° C

15.6

Dimensions and Weight

Width

220 mm

Height

40 mm

Depth

155 mm

Weight

approx. 0.8 kg

Index

Add a Channel to Favorites ........................ 31

Antenna Setup ............................................ 28

Antenna type ............................................... 27

Aspect Mode ............................................... 20

Asynchrony ................................................. 35

Automatic Standby Function ...................... 35

Batteries ........................................................ 7

BOX2IP ....................................................... 26

CEC ............................................................. 36

Channel Lists .............................................. 31

Cleaning ...................................................... 38

Connecting

Data Storage ............................................. 8

Home Cinema System .............................. 8

Home Network .......................................... 8

Satellite Antenna ....................................... 7

TV Set ........................................................ 7

Connection Scheme ..................................... 7

Decommissioning ....................................... 38

Delete All Channels ..................................... 33

Delete Individual Channels from Channel

List ........................................................... 33

Delivery ......................................................... 4

Digital Audio Out ......................................... 35

DiSEqC 1.2 ................................................. 29

Display Setting ............................................ 35

Disposal ...................................................... 40

Editing Channel Lists .................................. 31

Add a Channel to Favorites ..................... 31

Delete All Channels ................................. 33

Delete Individual Channels ...................... 33

Move Channels........................................ 32

Provide Channels with Password

Protection ............................................ 32

Rename Channels ................................... 32

Skipping Channels .................................. 32

Energy-saving ............................................... 5

Factory Settings .......................................... 36

Favorite Lists

Add a Channel .........................................31

Rename ....................................................33

Fixed Antenna .............................................28

Format of the Video Signal ..........................35

Front Panel ....................................................4

Grounding ......................................................6

Guarantee ......................................................6

Handling of Batteries .....................................7

HDTV Streaming ..........................................26

Home Network ..............................................8

Inserting the Batteries of the RCU ................8

Installation .............................................. 7, 27

Antenna Setup .........................................28

DiSEqC 1.2 ..............................................29

Fixed Antenna ..........................................28

Motor Antenna .........................................29

Multi Satellite ...........................................31

Satellite List .............................................27

Single Satellite .........................................31

USALS .....................................................30

Intended Use .................................................6

Internet ................................

..........................8

IP functions..................................................24

LAN ................................................................8

Last viewed channel ....................................21

Liability ..........................................................7

LNB IN / OUT Loop Through .......................36

LNB OUT terminal .......................................36

Location .........................................................6

Loop Standby ..............................................36

Media Player ................................................22

Motor Antenna .............................................29

Move Channels to Another Channel

Position ....................................................32

Multi Satellite ...............................................31

Network .........................................................8

Operation in a Unicable System ..................37

Index

OSD Setting ................................................ 34

Product Description ...................................... 4

Product Liability ............................................ 7

Provide Channels with Password

Protection ................................................ 32

RCU Batteries ............................................... 8

Rear Panel .................................................... 4

Recall .......................................................... 21

Receiver ........................................................ 4

Remote Control ............................................ 5

Rename Channels ...................................... 32

Rename Favorite Lists ................................ 33

Risks ............................................................. 6

Safety Instructions ........................................ 6

Satellite List

Installation ............................................... 27

Save Energy.................................................. 5

Scanning all Satellites

Multi Satellite .......................................... 31

Scanning Individual Satellites ..................... 31

Scope of Delivery ......................................... 4

Selecting antenna type ............................... 27

Service Hotline ........................................... 40

Setting the Aspect Mode ............................ 20

Signs, Symbols, Layout ................................ 3

Simultaneous Playback .............................. 35

Single Satellite ............................................ 31

Skipping Channels...................................... 32

Sleep Timer................................................. 21

Small2Big .................................................... 26

SmartLink .................................................... 36

smartSTREAM............................................. 25

Software Version ......................................... 36

Standby ....................................................... 35

Switching the Video Resolution .................. 20

Switching to the last viewed channel.......... 21

Technical Data ............................................ 41

Teletext ....................................................... 19

Terminal LNB OUT ...................................... 36

Timer ........................................................... 34

Transport ..................................................... 38

Troubleshooting .......................................... 39

Unicable ...................................................... 37

USALS ......................................................... 30

Use of the Device .......................................... 6

Use of this Manual ........................................ 3

User Information ........................................... 3

Video Resolution ......................................... 20

Video Signal at the SCART Output ............. 35

Weather Forecast ........................................ 24

Web News ................................................... 24

Web Radio .................................................. 24

YouTube ...................................................... 24

Doc-ID: 14022001

Mirage smartSTREAM - BOX2IP User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
