MIRACO MiraFount 3465-E Specifications

INSTALLATION INSTRUCTIONS AND

SPECIFICATIONS FOR MODEL 3465-E

READ CAREFULLY

MIRACO

A DIVISION OF

AHRENS AGRICULTURAL INDUSTRIES, INC.

BOX 686

GRINNELL, IOWA 50112

PHONE [phone]

TOLL FREE 1-800-541-7866

FAX [phone]

Website: www.miraco.com

It also prevents tongue injuries

from contact with frigid steel.

Model # Capacity Gallons Description Dimensions Weight

3465-E

* 100 hd. beef 20 2-91/4" openings 24" x 36" x 18" 84#

* 40 hd. dairy ball closures

#834 insulated tube

COMMON SENSE MANAGEMENT TIPS TO CONSIDER WHEN BUYING AN ENERGY FREE WATERER:

#1 A minimum of 20 head of livestock need to be using the waterer dur-

ing subzero weather.

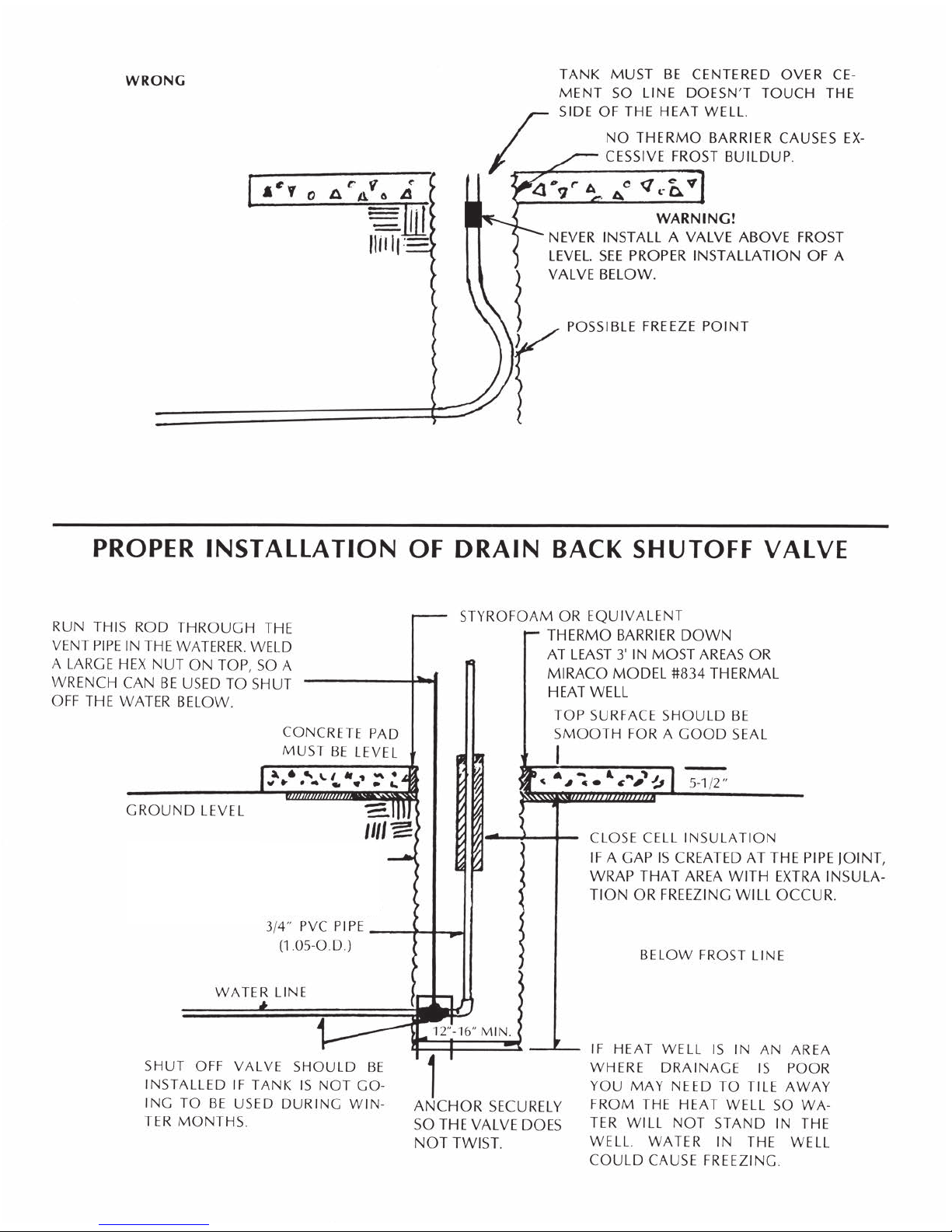

#2 Water lines must be buried well below the frost line so incoming

water is at least 42

#3 You must use an insulated heat well or supply a low wattage heat

tape on the water line in areas where frost goes below 21" deep.
The heat well must be free of water above the frost line.

°.

#4 The MiraFount must be the primary source and livestock should

have access to the waterer at all times.

#5 If less than 20 head of livestock are going to use this tank and your

weather gets below zero for extended periods, then the E-fount
should be your choice.

MIRAFOUNT #3465-E

INSTALLATION INSTRUCTIONS

Screw the valve into the “T” fitting so the valve is tight. In
most cases, hand tight is sufficient. If wrenches are
required, be careful not to over tighten. Valve should be
straight up and down when tightened. Valve should be
back tight against the 4"1185 riser pipe.

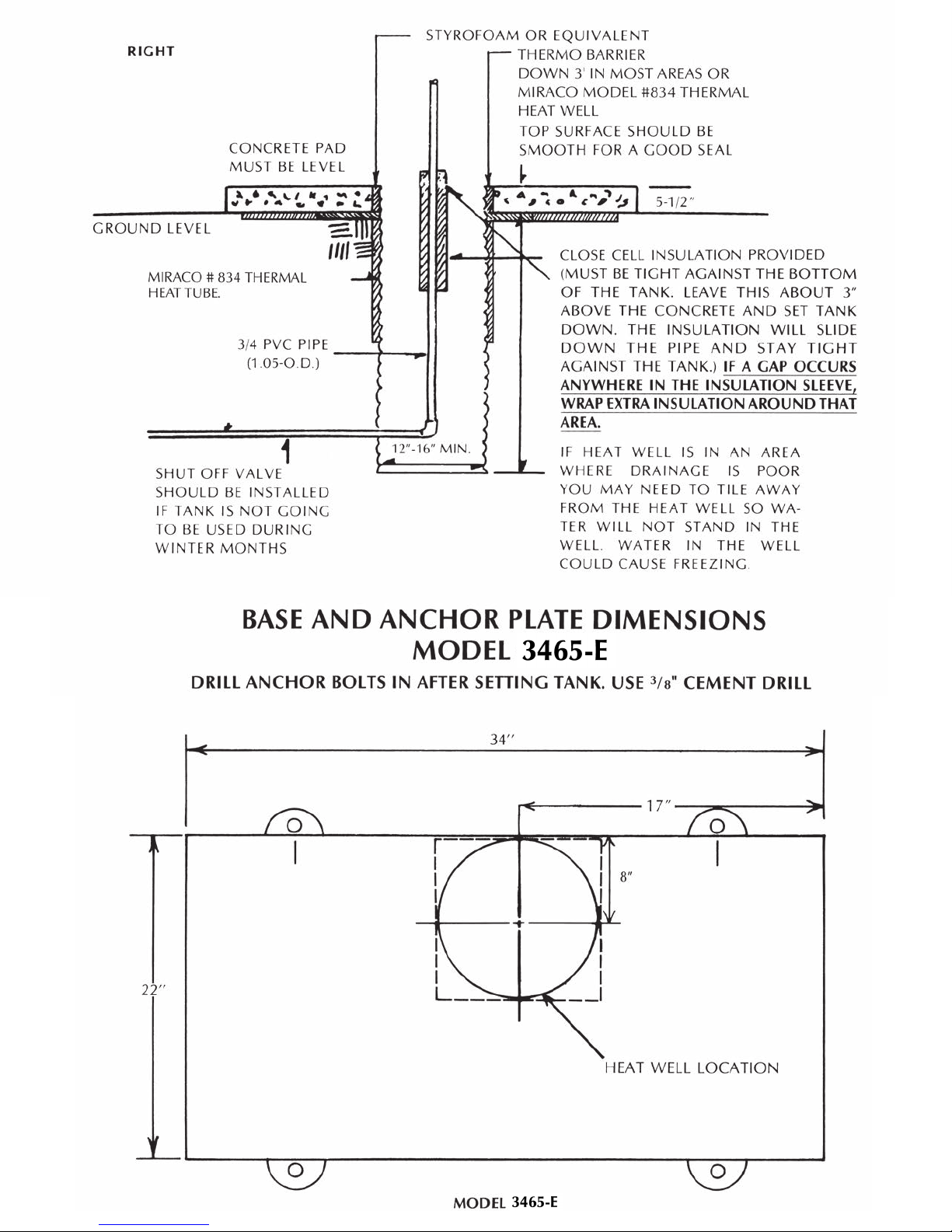

# 834 MIRACO

INSULATED TUBE

Black

75W

Black

Black

Miraco Livestock waterers Express warranty and

Waiver of implied warranties and consequential damages

Express Warranty

Ahrens Agricultural Industries Co. , dba Miraco, expressly warrants that the Miraco

waterers (excluding valve and valve parts) will be free of defects in materials and

workmanship for a period of five (5) years from delivery. The Miraco valve and valve

parts are warranted to be free of defects in materials and workmanship for a period of one

(1) year from delivery. Such warranty does not apply to any Miraco unit that has been

subjected to misuse, or material failure to install, operate or maintain in accordance with

Miraco’s written instructions, or other events acts or omission, including but not limited

to acts of nature, which affect the Miraco unit materially and adversely and are not

attributable to Miraco.

This warranty is limited to the repair or replacement of the defective part, at the option of

Miraco. Such repair or replacement part is warranted only for the unexpired portion of

the original warranty period. Buyers with warranty claims should contact their local

dealer immediately.

Heaters in all electrically heated units are warranted for a period of one (1) year.

Waiver of implied warranties and

Consequential damages

Except for the above express warranty, this product is sold as is. Implied warranties of

merchantability and fitness for a particular purpose, as well as special, indirect or

consequential damages, are all waived by the buyer.

MODEL #3465-E

MANAGEMENT TIPS

A 1/4" bolt is to be used to hold the balls back for training livestock. The 1/4" bolt is inserted into a threaded insert

1.
in the baffled portion of the lid. This holds the balls back for training.

For short periods of time when you’re not using the MiraFount in winter, you can dip 3-5 gallons of water out every

2.
day and the tank will sustain itself until livestock are using it again. If you plan on not using it for a long time,
merely drain it and shut off the water. This is where the shut off valve comes in handy.

Water level is very important. If the water is too high the balls will stick shut in the winter time and the tank will appear

3.
frozen. A kick or small amount of hot water on the balls will fix the problem. Then lower the water level so this won’t
happen again. However, never lower water below the baffle or cold air could go under and freeze your valve.

In case of power failure, merely keep the livestock away from the waterer so they can’t drink it down. If this has already

4.
happened, then a small amount of hot water is all you need. NEVER USE AN OPEN FLAME TO THAW ICE!

5.

Management is necessary in any operation and this includes checking your waterer daily. Water is very important
and any malfunction should be attended to immediately. This is good practice for any make of waterers.

6.

MiraFounts must be installed level, otherwise one ball will be higher than the others.

7.

The MiraFount should be cleaned periodically, especially the ones being used for hogs. Mud can hamper the
proper operation of the MiraFount since the balls have to move freely in order to have proper operation.

8.

If your valve is seeping, check the valve for foreign materials first. This is the biggest cause of seeping valves.
If you have extremely rusty water or dirty water, your valve should be cleaned periodically.

9.

If you have any questions give us a call at 641-236-5822.

10.

If valve persists on leaking, use an allen wrench to tighten the orifice under the plunger. Turn clockwise to tighten.

11.

Drain plugs are to be placed inside the tank to plug the drain hole.

* 12.

Capacities are based on confined cattle. If pasture animals are using this product and have a tendency to
come to water all at the same time, extra water space may be needed.
