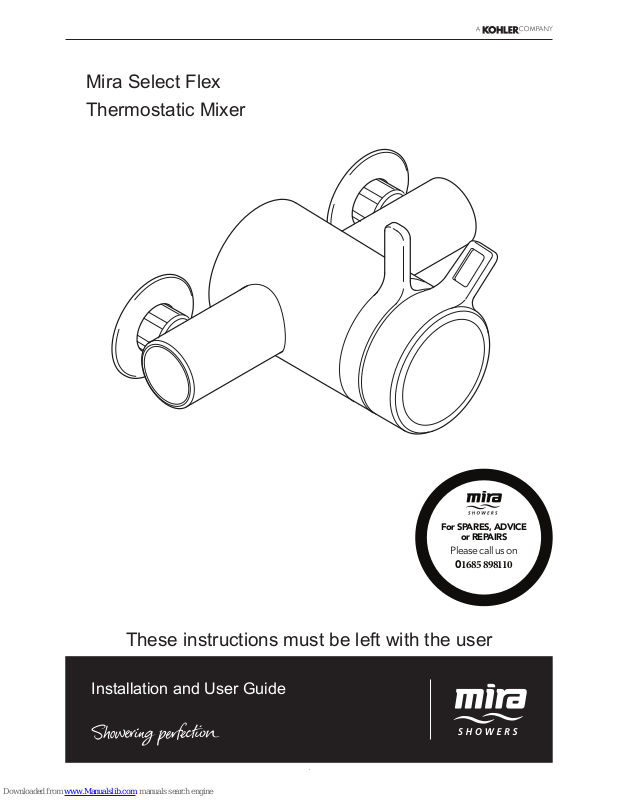

Page 1
1
For SPARES, ADVICE
or REPAIRS
Please call us on
01685 898110
These instructions must be left with the user
Installation and User Guide
Mira Select Flex
Thermostatic Mixer
Page 2
2
If you experience any difculty with the installation or operation of your new thermostatic
mixer, please refer to ‘Fault Diagnosis’, before contacting Kohler Mira Ltd. Our contact
details can be found on the back cover of this guide.
INTRODUCTION
Important! The tting of any ow regulator will invalidate TMV2 or TMV3 compliance due
to the minimum ow rate requirements. Do not t ow regulators in TMV2 applications.
For Type 2 or Type 3 Valves refer to the TMV2 or TMV3 Requirements Manual.
Thank you for purchasing a quality Mira product. To enjoy the full potential of your new
product, please take time to read this guide thoroughly. Having done so, keep it handy for
future reference.
The Mira Select Flex is a thermostatic mixer with separate ow and temperature controls.
The lever controls have been designed to be easily operated by users with restricted hand
movement.
The thermostatic mixer incorporates a wax capsule temperature sensing unit, which provides
an almost immediate response to changes of temperature of the incoming water supplies to
maintain the selected showering temperature. An adjustable temperature stop is provided
which limits the maximum temperature to a safe level. Inlet lters are tted to protect the
thermostatic cartridge.
On exposed models the thermostatic mixer has adjustable inlets to t pipework centres between
139 mm and 153 mm and is designed for connection to rising, falling or rear entry pipework.
The Mira Select Flex has been certied for use in UK Healthcare premises as a Type 3 valve
under the BUILDCERT TMV3 scheme. The Mira Select Flex has also been certied as a
Type 2 valve under the BUILDCERT TMV2 scheme. For Healthcare* installations refer to
the TMV3 requirements manual. This product also complies with the Water Supply (water
ttings) Regulations 1999.
*Healthcare applications are hospitals, aged person facilities, residential care homes, etc.
and any other application where the user is similarly at risk.
The approved designations for Type 2 and Type 3 products are as follows:
Model Designation
Mira Select Flex LP-S, HP-S
Page 3
3
Application
Valve
Only
Valve with
Fittings
Domestic
ü ü
Light Commercial
ü ü
Heavy Commercial
ü û
Healthcare
ü û
Note! Heavy duty shower ttings are available separately for use in Healthcare and Heavy
Commercial applications, for details contact Customer Services.
For domestic installations, Mira Showers guarantee the Mira Select Flex against any defect
in materials or workmanship for a period of ve years from the date of purchase (shower
ttings for one year).
For non-domestic installations, Mira Showers guarantee the Mira Select Flex against any
defect in materials or workmanship for a period of one year from the date of purchase.
For terms and conditions refer to the back cover of this guide.
GUARANTEE
RECOMMENDED USAGE
Patents:
GB: 2 291 693, 2 392 225, 2 421 297
US: 7 240 850
Euro: 1 672 257 DE, FR, GB, IT, NL, SE
Patent Applications:
GB: 2 435 077, 0712546.1
US US-2006-0124758
US-2007-0221740
Euro: 03254070.0
Design Registration:
000834007/01, 000834007/02,000578463-0006
PATENTS AND DESIGN REGISTRATION
Page 4
4
5. Make sure that you fully understand how to operate this shower before use, read all
operating instructions and retain this guide for future reference.
6. This product is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning the use of the product by a person
responsible for their safety.
7.
Children should be supervised to ensure that they do not play with the product.
8. DO NOT perform any unspecied modications to the shower or its accessories. When
servicing only use genuine Kohler Mira replacement parts.
9. DO NOT t any form of outlet ow control. Only Mira recommended outlet ttings should
be used.
10. DO NOT operate the temperature control rapidly, allow 10 – 15 seconds for the
temperature to stabilise before use.
11.
Care is required when adjusting ow or temperature, make sure that the temperature
has stabilised.
12.
Care is required if the product is turned off and back on during showering as this may
result in unstable temperature. Ensure temperature has stabilised before re-using product.
13. Sunburn or skin conditions can increase your sensitivity to hot water. Make sure that you
set the shower to a cooler temperature.
14. The water supplies to this product must be isolated if the product is not to be used for
a long period of time. If the product or pipework is at risk of freezing during this period
they should also be drained of water.
15.
When this product has reached the end of its serviceable life, it should be disposed of
in a safe manner, in accordance with current local authority recycling, or waste disposal
policy.
SAFETY WARNINGS
WARNING - This product can deliver scalding temperatures if not operated, installed
or maintained in accordance with the instructions, warnings and cautions contained
in this guide.
The function of a thermostatic mixing valve is to deliver water consistently at a safe temperature.
In keeping with every other mechanism, it cannot be considered as functionally infallible and
as such, cannot totally replace a supervisor’s vigilance where that is necessary. Provided it is
installed, commissioned, operated and maintained within manufacturers recommendations,
the risk of failure, if not eliminated, is reduced to the minimum achievable.
Caution!
1.
Read all of these instructions and retain this guide for later use.
2. Installation must be carried out in accordance with these instructions, and must be
conducted by designated, qualied and competent personnel.
3.
Pass on this guide in the event of change of ownership of the installation site.
4. Follow all warnings, cautions and instructions contained in this guide.
Page 5
5
Tick the appropriate boxes to familiarise yourself with the part names and to conrm that the
parts are included.
q 1 x Mira Select Flex
Exposed Shower Control
q 1 x ‘O’ Key
q 2 x Olives
q 2 x Compression Nuts
q 2 x Concealing Plates
q 1 x Hexagon Key, 2.5 mm
q 2 x Screws, No 8 x 1 ¼”
q 2 x Wall Plugs
q 2 x Securing Clips
q 2 x Concealing Caps
q 1 x 12 L/Min Flow
Regulator
Documentation
q 1 x Installation Template
q 1 x TMV2 Requirements Manual
q 1 x TMV3 Requirements Manual
PACK CONTENTS
Page 6
6
For Type 2 and Type 3 Valves, the supply conditions specied in the TMV2 and TMV3
Requirements Manual take precedence over the operating parameters which follow.
Pressures
• Max Static Pressure: 10 Bar.
• Max Maintained Pressure: 5 Bar.
• Min Maintained Pressure (Gravity System): 0.1 Bar (0.1 bar = 1 Metre head from cold tank
base to showerhead outlet).
Note! For gravity fed or other low pressure systems (0.5 bar or below) do not t the outlet
ow regulator (where applicable).
• For optimum performance supplies should be nominally equal.
Note! For combination type boilers it may be necessary to t the ow regulator (supplied) to
restrict the ow through the boiler to ensure it produces a sufciently hot water temperature.
Temperatures
• Factory Pre-set (Blend) Shower: 41°C.
• Optimum Thermostatic Control Range: 35°C to 43°C (achieved with supplies of 15°C cold,
65°C hot and nominally equal pressures).
• Recommended Hot Supply: 60°C to 65°C Note! The mixing valve can operate at higher
temperatures for short periods without damage, however this could detrimentally affect
thermostatic performance. For safety and performance reasons it is recommended that
the maximum hot water temperature is limited to 65°C.
• Cold Water Range: up to 25°C.
• Minimum Recommended Differential between Hot Supply and Outlet Temperature: 12°C
at desired ow rate.
Thermostatic Shut-down
• For safety and comfort the thermostat will shut off the mixing valve within 2 Seconds if
either supply fails (achieved only if the blend temperature has a minimum differential of
12°C from either supply temperature).
Connections
• Inlets: 15 mm Compression.
• Outlet: ½” BSP Flat Face (Exposed models), 15 mm Compression (Built-in models)
• Standard connections are: hot - left, cold - right, outlet - bottom (Exposed models),
top (Built-in models).
Flow Regulator Installation
Flow regulators are supplied with this product and should be tted in High Pressure systems to either;
1. Reduce Excessive Force & Flow Rate
2.
Reduce Noise through the mixer due to high or unequal pressures
3. Stabilise incoming supply temperatures
Important! The tting of ow regulators will invalidate any TMV2/3 compliance due to the
minimum ow rate requirements. Do not t the ow regulator in TMV2/3 applications.
SPECIFICATIONS
Page 7
7
139 - 153
Ø56
114
All dimensions are in mm.
Flow Rates
Typical Flow Rates on Low Pressure Systems, Mira Select Flex with Mira Select Flex Shower
Fittings:
0.2
00.4
0.60.8 1
Supply Pressure (bar)
25
20
15
10
5
0
Flow Rate (l/min)
Typical Flow Rates on High Pressure Systems (with 12 Litre/Min ow regulator tted in shower
control outlet), Mira Select Flex with Mira Select Flex Shower Fittings:
0.511.522.5
Supply Pressure (bar)
33.5 4
14
12
10
8
6
4
Flow Rate (l/min)
DIMENSIONS
134
Ø71
35
Page 8
8
INSTALLATION
Suitable Plumbing Systems
Gravity Fed:
The thermostatic mixer must be fed from a cold water cistern (usually tted in the loft space) and
a hot water cylinder (usually tted in the airing cupboard) providing nominally equal pressures.
Gas Heated System:
The thermostatic mixer can be installed with a combination boiler.
Unvented Mains Pressure System:
The thermostatic mixer can be installed with an unvented, stored hot water system.
Mains Pressurised Instantaneous Hot Water System:
The thermostatic mixer can be installed with systems of this type with balanced pressures.
Pumped System:
The thermostatic mixer can be installed with an inlet pump (twin impeller). The pump must
be installed on the oor next to the hot water cylinder.
General
Installation must be carried out in accordance with these instructions, and must be conducted
by designated, qualied and competent personnel.
The installation must comply with the “Water Supply Regulations 1999 (Water Fittings)” or any
particular regulations and practices, specied by the local water company or water undertakers.
Note! Make sure that all site requirements correspond to the information given in section:
‘Specications’. For Type 2 and Type 3 Valves see also supply conditions in the TMV2 and
TMV3 Requirements Manual
1. The product must not be installed in an area where it may freeze. Pipework to the product
that could become frozen must be properly insulated.
2.
Do not install the product in a position in which service access is restricted.
3.
For stud partitions alternative xings may be required.
4. Isolating valves must be installed close to the product for ease of maintenance.
5. Pipework must be rigidly supported and avoid any strain on the connections.
6. Pipework dead-legs should be kept to a minimum.
7. If pipework enters the product from the rear through a hole in the wall, provision must be
made to prevent water ingress back into the wall structure.
8.
The position of the shower and shower ttings must provide a minimum gap of 25 mm
between the showerhead and the spill over level of any bath, shower tray or basin and
a minimum gap of 30 mm between the showerhead and the spill over level of any toilet,
bidet or other appliance with a Fluid Category 5 backow risk (see diagram).
Note! There will be occasions when the hose retaining ring will not provide a suitable solution
for Fluid Category 3 installations, in these instances an outlet double checkvalve must be
tted, this will increase the required supply pressure typically by 10kPa (0.1 bar). Double
checkvalves tted in the inlet supply to the appliance cause a pressure build up, which affect
the maximum static inlet pressure for the appliance and must not be tted. For Fluid category
5 double checkvalves are not suitable.
Page 9
9
12. DO NOT overtighten connections, screws or grubscrews as product damage may occur.
13. Upon completion of installation, or if the product is dismantled during installation or
servicing, then the product must be inspected to ensure that there are no leaks.
14.
Having completed the installation, make sure that the user is familiar with the operation
of the product.
9. The showerhead should be positioned so that it discharges down the centre line of the
bath or across the opening of a shower cubicle.
10. Only use the inlet connections supplied with the product. DO NOT use any other type of
ttings.
11. All pipework must be checked for leaks before the product installation is completed. The
product should be pressurised & the inlet & outlet connections inspected.
Zone of
Backow Risk
30 mm
Minimum
Toilet or Bidet
FC5
Hand Basin
FC3
Bath or Shower
Tray FC3
Mixer
Shower
25 mm
Minimum
25 mm Minimum
Exposed Thermostatic Mixers
Installing the Thermostatic Mixer
1. The thermostatic mixer can be installed with
rear, rising or falling supply inlets. Decide
on the most appropriate method for your
installation, and if necessary, loosen the
grubscrews and rotate the inlet elbows to suit.
Important! Make sure that the elbows are
pushed fully onto the mixer before tightening
the grubscrews, do not overtighten.
Page 10
10
35 mm
Allow a minimum of
150 mm either side
of mixer to wall
2. Use the installation template to mark the
positions of the holes for the backplate and
the pipe centres.
For rising or falling supplies the pipe
positions should be set 35 mm from the
centre of pipe to the nished wall at 153
mm centres.
Note! Allow a minimum of 150 mm either
side of the mixer to allow servicing of the
hot and cold inlet lters.
Note! The thermostatic mixer has
adjustable inlets to t existing pipework
centres between 139 mm and 153 mm.
6 mm Drill
Wall Plug
10 mm
minimum
between elbow
and nished
wall surface
Ø32 mm
13 mm from nished wall
surface
Elbow
Recess Ø32 mm
x 10 mm deep
13 mm
153 mm
HOT
COLD
Screw
Backplate
3. For solid walls drill the holes for the
backplate with a 6 mm drill and insert the
wall plugs. For other types of wall structure
alternative xings may be required (not
supplied).
4. For Rear Entry Supplies Only:
a) Drill the holes for the supply pipes at
153 mm centres.
b) Recess the inlet holes Ø32 mm x 10 mm
deep to allow for the concealing plates.
Note! Depth must be sufficient to
prevent the concealing plates fouling
on the plumbing elbows.
5.
Fit the supply pipework: Hot - Left, Cold
- Right. The inlet pipework should extend
13 mm from the nished wall surface.
Note! If it is not possible to install the mixer
with this pipework conguration complete
the installation then refer to section:
‘Reversed Inlet Supplies’.
6.
Remove the backplate from the mixer by
loosening the grubscrew with a 2.5 mm
hexagonal key.
7.
Secure the backplate to the wall using the
screws.
Page 11
11
8. For Rear Entry Supplies Only:
a) Fit the concealing plates over the inlet
pipes.
Note! Apply silicone sealant to the back
face of the ange.
Apply Silicone
Sealant
Concealing Plate
9. Caution! It is essential at this point
that the supply pipework is thoroughly
ushed through before connection to
the mixer. Failure to do so may result
in product malfunction and will not be
covered under the guarantee.
10.
Fit the compression nuts and olives onto
the pipework.
11.
Align the mixer with the pipework and t
onto the backplate. Minor misalignment of
the pipework can be accommodated by the
inlets, which are adjustable between 139
and 153 mm centres.
Important! Make sure that the hot and
cold inlets on the mixer correspond with
the hot and cold inlet supplies.
12. Using a suitable tool, tighten the waterway
securing ring until it abuts the adjustable
inlet preventing outward movement.
13.
Assemble the concealing caps and
securing clips and push into the elbow.
14.
Tighten the compression nuts onto the
mixer with a suitable spanner.
Caution! Take care not to damage the
chrome surfaces.
15.
Tighten the grubscrew to secure the mixer
to the backplate.
16.
Fit the shower ttings, refer to your shower
fittings installation and user guide for
instructions.
Note! For high pressure systems (above
0.5 bar) make sure that the ow regulator
(supplied) is tted inside the outlet nipple
(refer to illustration).
Important! The tting of this ow regulator
will invalidate any TMV2 or TMV3
compliance due to the minimum ow rate
requirements. Do not t the ow regulator
in TMV2 and TMV3 applications.
17.
Turn on the hot and cold water supplies
and check for leaks.
18.
Before using the shower, refer to section:
‘Commissioning’.
Concealing
Cap
(assembled)
Waterway
Securing
Ring
Securing
Clip
Concealing
Cap
Flow
Regulator
Page 12
12
REVERSED INLET SUPPLIES
The Mira Select Flex thermostatic mixer is supplied with inlet connections Hot - Left, Cold Right and Outlet - Bottom (exposed models), Outlet - Top (built-in models) as standard. If
the hot and cold water supply pipes have been reversed during installation, the thermostatic
cartridge must be removed and rotated 180°.
Exposed Models
1. Isolate the hot and cold water supplies and operate the ow control lever to relieve
pressure and drain any residual water.
2.
Unscrew the grubscrew with a 2.5 mm hexagonal key and pull off the temperature control
and ow control levers.
3.
Pull off the bearing.
4. Rotate the white section of the control lever interface 90° clockwise and pull off.
5. Pull off the ow lever adaptor.
6. Locate the ‘O’ key (supplied) onto the cartridge nut and turn anticlockwise. Unscrew fully
and pull the cartridge from the mixer body.
7. Rotate the cartridge 180°.
8
. Make sure that the two inlet seals are tted and carefully push the cartridge back into
the mixer body, aligning the lugs into the slots.
Note! Check that the cartridge lug stamped ‘H’ is aligned with the hot inlet supply.
Important! Take care when tting the cartridge. Damage to the cartridge inlet seals may
result in dripping from the showerhead.
9.
Tighten the nut by turning the ‘O’ key clockwise.
10. Refit the controls in reverse order. Before using the shower, refer to section:
‘Commissioning’.
‘O’ Key
Cartridge
Seal
Bearing
Temperature
Control Lever
Flow Control Lever
Flow Lever
Adaptor
Control Lever
Interface
Page 13
13
OFF
Turn the Temperature Control
Lever clockwise to decrease the
temperature and anticlockwise to
the preset maximum temperature
Turn the Flow Control
Lever anticlockwise to
the preset maximum ow
ON
Warmer
Cooler
OPERATION
The Mira Select Flex is a thermostatic mixer with separate control levers for on/off and
temperature.
COMMISSIONING
Commissioning must be carried out in accordance with these instructions, and must be
conducted by designated, qualied and competent personnel.
Exercising the Thermostat
Thermostatic mixing valves with wax thermostats are inclined to lose their responsiveness if
not used. Valves which have been in storage, installed but not commissioned, or simply not
used for some time should be exercised before setting the maximum temperature or carrying
out any tests.
A simple way to provide this exercise is:
(a)
Make sure that the hot and cold water are available at the valve inlets, and the outlet
is open.
(b)
Move the temperature control rapidly from cold to hot and hot back to cold several
times, pausing at each extreme.
Page 14
14
Maximum Temperature Setting
Before using the shower, the maximum temperature level must be checked to make sure that
it is safe. It has been preset to approximately 41°C at the factory, but due to variations in site
conditions the maximum temperature may need adjustment.
Note! Make sure that the hot water temperature is at least 55°C and that there is a sufcient
supply.
1.
Turn on the shower to maximum ow and temperature (i.e. both controls fully anticlockwise)
and allow the temperature to stabilise.
If the temperature is too hot or too cold adjust as follows:
2. Using a 2.5 mm Hexagon Key (supplied), unscrew and remove the Temperature Control
Lever.
3.
Insert the 2.5 mm Hexagon Key into the centre of the Green Hub and engage with the
hidden Temperature Adjust Screw.
4. Turn the Hexagon Key until the required maximum showering temperature is obtained.
Turn anticlockwise to increase or clockwise to decrease the temperature (¼ turn =
approximately 1°C).
Temperature
Control Lever
5. Once the desired maximum blend temperature has been achieved, turn off the shower.
6. Ret the Temperature Control Lever.
7. Check that the showering temperature is correct.
Maximum Temperature
Note! For Type 2 and Type 3 valves in healthcare installations the maximum blend temperature
is determined by the application, refer to the TMV2 or TMV3 Requirements Manual.
The maximum blend temperature obtainable by the user should be limited, to prevent accidental
selection of a temperature that is too hot.
All Mira Thermostatic mixing valves are fully performance tested and the maximum temperature
is preset to approximately 41°C under ideal installation conditions at the factory.
Site conditions and personal preference may dictate that the maximum temperature has to
be reset following installation.
Temperatures should always be recorded using a thermometer with proven accuracy.
Page 15
15
Fault Diagnosis
Symptom:
• Onlyhotorcoldwaterfromthemixeroutlet.
• Outlettemperaturetoohot/toocold.
Cause Rectication:
• Inletsreversed(hotsupplytocoldsupply).Refertosection:‘Reversed Inlet Supplies’.
• Nohotwaterreachingmixer.
• Checktheltersforanyblockagerefertosection‘Maintenance’.
• Installationconditionsoutsideoperatingparameters, refer tosections:‘Specications’
and‘Commissioning’.
• If the temperature is too cold and you have a combination type boiler it may not be
producing sufciently hot water at desired ow rate (refer to ‘Specications’). Fit
ow regulator (supplied) to shower valve outlet. For more information contact Mira
Showers or visit the website.
—————————————
Symptom:
• Fluctuatingorreducedowrate.
Cause Rectication:
• Checktheshowerhead,hoseandltersforanyblockage.
• Makesurethatthemaintainedinletpressuresarenominallybalancedandsufcient,refer
tosection:‘Specications’.
• Make sure that the inlet temperature differentials are sufficient, refer to section:
‘Specications’.
• Airlockorpartialblockageinthepipework.
• Flowregulatorttedincorrectly.
—————————————
Symptom:
• Waterleakingfromtheshowerhead.
Cause Rectication:
• Normalforashortperiodaftershutoff.
• Checkthatthepressuresarenotinexcessofthespecicationsfortheproduct.
• Renewthethermostaticcartridge.
FAULT DIAGNOSIS
Page 16
16
Inlet Filters
The inlet lters should be checked and cleaned as necessary every 12 months.
Note! The inlet lters must not be removed except for cleaning. If the thermostatic mixer is
operated without the inlet lters tted the warranty on the product will be void.
1.
Isolate the hot and cold water supplies and operate the ow control lever to drain any
residual water.
2.
Carefully remove the concealing caps and unscrew the lter plugs with a 5 mm hexagonal
wrench. Remove the lters.
MAINTENANCE
General
This Product is precision engineered and should give continued safe and controlled
performance, provided:
1. It is installed, commissioned, operated and maintained in accordance with manufacturers
recommendations.
2. Periodic attention is given, when necessary, to maintain the product in good functional
order.
The Mira Select Flex Thermostatic Mixer is designed for the minimum of maintenance in
normal use. The only serviceable parts are the inlet lters which should be checked and
cleaned every 12 months. If a malfunction occurs with the Thermostatic Cartridge then this
will necessitate a complete cartridge replacement.
Note! The cartridge contains no internally serviceable parts.
If you require a Rada trained engineer or agent, refer to section: ‘Customer Service’.
Planned Maintenance
Important! For Type 3 Valves use the In-Service Tests given in the TMV3 Requirements
Manual. In the absence of any other instruction or guidance on the means of determining the
appropriate frequency of in-service testing, the procedure contained within this guide (taken
from Annex F of D08) should be used. For Type 2 Valves use the In-Service Tests given in
the TMV2 Requirements Manual.
For other commercial installations it is recommended that the correct blend setting is checked
every 6 months and that the In-Service Test procedure is followed every 12 months.
Lubricants
Silicone based lubricants must only be used on the rubber seals.
Caution! Oil based or other lubricant types may cause rapid deterioration of seals.
Cleaning
The chrome plated parts should be cleaned using a mild washing up detergent or soap solution,
rinsed and then wiped dry with a soft cloth.
Warning! Many household cleaners contain abrasive and chemical substances, and should
not be used for cleaning plated or plastic ttings.
Do not use descalents on this product.
Page 17
17
Concealing Cap
Filter Plug
Filter
‘O’ Seal
3. Clean the lters under a jet of water to remove any lodged particles.
4. Ret the lters and tighten the lter plugs.
Note! Make sure that the ‘O’ seal is tted correctly and undamaged.
5.
Turn on the hot and cold water supplies and check for leaks.
6. Ret the concealing caps.
Page 18
18
Note! All spare parts supplied individually
unless stated otherwise.
Exposed Models
1595.067 Screw Pack (identied ‘A’)
1679.044 Seal Pack (identied ‘B’)
1062477 (2 off)
Filter Pack
1062479
Outlet Connector
1663.265
Flow Regulator
Pack
B
1595.231
‘O’ Key
A
A
1592.081
Handle Adaptor
Pack
1062476
Backplate
1679.041 (2 off)
Concealing Cap
B
B
1595.036
Temperature
Hub
Assembly
B
090.95 (2 off)
Pipe Concealing
Plate
A
1595.039
Thermostatic
Cartridge
1679.040
Handle
Pack
1679.043
Adjustable
Inlet
Connector
B
A
1679.042 (also includes
1679.043)
Elbow Assembly
SPARE PARTS
Page 19
19
NOTES
Page 20
20
1088609-W2-E (1679) (B92J/K) © Kohler Mira Limited, August 2013
Mira is a registered trade mark of
Kohler Mira Limited.
The company reserves the right to alter
product specifi cations without notice.
FM 14648
Guarantee
Your product has the benefit of our manufacturer’s
guarantee which starts from the date of purchase.
To activate this guarantee, please return your completed
registration card, visit our website or free phone 0800
0731248 within 30 days of purchase (UK only).
Within the guarantee period we will resolve defects in
materials or workmanship, free of charge, by repairing or
replacing parts or product as we may choose.
This guarantee is in addition to your statutory rights
and is subject to the following conditions:
● The guarantee applies solely to the original installation
under normal use and to the original purchaser only.
The product must be installed and maintained in
accordance with the instructions given in this user
guide.
● Servicing must only be undertaken by us or our
appointed representative. Note! if a service visit
is required the product must be fully installed and
connected to services.
● Repair under this guarantee does not extend the original
expiry date. The guarantee on any replacement
parts or product ends at the original expiry date.
● For shower fi ttings or consumable items we reserve
the right to supply replacement parts only.
The guarantee does not cover:
● Call out charges for non product faults (such as
damage or performance issues arising from incorrect
installation, improper use, inappropriate cleaning,
lack of maintenance, build up of limescale, frost
damage, corrosion, system debris or blocked fi lters)
or where no fault has been found with the product.
● Water or electrical supply, waste and isolation issues.
● Compensation for loss of use of the product or
consequential loss of any kind.
● Damage or defects caused if the product is repaired
or modifi ed by persons not authorised by us or our
appointed representative.
● Routine maintenance or replacement parts to
comply with the requirements of the TMV 2 or TMV
3 healthcare schemes.
● Accidental or wilful damage.
● Products purchased ex-showroom display.
What to do if something goes wrong
If your product does not work correctly refer to this
manual for fault diagnosis and check that it is installed
and commissioned in accordance with our instructions.
If this does not resolve the issue, contact us for help
and advice.
Extended Guarantees
A selection of protection plans are available that
enable you to cover repair bills (excludes Eire). Ring
01922 471763 for more details.
Helpdesk Service - Ring our Customer
Services Team for product advice, to purchase
spare parts or accessories or to set up service
visit. Yo u can contact us via phone or e-mail,
details below. Please provide your model
name, power rating (if applicable) and date
of purchase.
Mira Showers Website (www.mirashowers.
co.uk)
Visit our website to register your guarantee,
download user guides, diagnose faults,
purchase our full range of accessories and
popular spares, or request a service visit.
Spares and Accessories - We hold the largest
stocks of genuine Mira spares and accessories.
Contact us for a price or visit our website to
purchase items from our accessory range and
popular spares
.
Service/Repairs - No one knows our products
better than our nationwide team of Service
Technicians. We c an carry out service or repair
work to your product both during and after the
guarantee period. Ask about our fi xed price
service repairs.
To Contact Us:
CUSTOMER SERVICE
01685 898110
E-mail: sales@wetroomsdirect.net
Visit: www.wetroomsdirect.net
Loading...
