Page 1

Mira Orbis

9.0, 9.8 & 10.8 kW

These instructions must be left with the user

Installation and User Guide

For SPARES, ADVICE

or REPAIRS

Please call us on

0844 571 5000

(UK Only)

Page 2

INTRODUCTION

Thank you for purchasing a quality Mira Orbis Thermostatic Electric Shower. To enjoy the full potential of your new shower, please take time to read this guide thoroughly, and keep it handy for future reference.

Products manufactured by Kohler Mira Ltd are designed to be safe provided, that they are installed used and maintained in good working order, in accordance with our instructions and recommendations.

Follow all warnings, cautions and instructions contained in this guide, and on or inside the shower.

Mira Orbis Thermostatic electric showers have separate controls for power

selection and for temperature/ow adjustment. A unique ow regulator stabilises any temperature changes caused by water pressure uctuations, which can result from taps being turned on or off or toilets being ushed.

When this shower has reached the end of its serviceable life, it should be disposed of in a safe manner, in accordance with current local authority recycling, or waste disposal policy.

Mira Orbis models covered by this guide:

Product Model Number Colour

Orbis 9.0 J01A White/Chrome

Orbis 9.8 J01B White/Chrome

Orbis 10.8 J01C White/Chrome

Orbis 9.8 (Black) J01D Black/Chrome

Guarantee

For domestic installations, Mira Showers guarantee the Mira Orbis against any defect in materials or workmanship for a period of two years from the date of purchase

(shower ttings for one year).

For non-domestic installations, Mira Showers guarantee the Mira Orbis against any defect in materials or workmanship for a period of one year from the date of purchase.

Recommended Usage

Domestic

Light Commercial

Heavy Commercial

Healthcare

Patents and Design Registration

Design Registration: 000738141-0002

Patents: GB: 2 341 667, 2 404 000, 2 428 286, 2 427 460

Eire: 82835, 85128, 85163, 85912

Page 3

IMPORTANT SAFETY INFORMATION

WARNING - This shower can deliver scalding temperatures if not operated, installed or maintained in accordance with the instructions, warnings and cautions contained in this guide and on or inside the appliance.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

1. Installation of this shower must be carried out in accordance with these

instructions by qualied, competent personnel.

2. Isolate the electrical and water supplies before commencing installation. The electricity must be isolated at the consumer unit and the appropriate circuit fuse removed, if applicable. Mains connections are exposed when the cover is removed.

3. DO NOT install the shower in areas with high humidity and temperature (i.e. Steam rooms and saunas).

4. DO NOT install the shower where it may be exposed to freezing conditions. Ensure that any pipework that could become frozen is properly insulated.

5. DO NOT switch the shower on if there is a possibility that the water in the shower is frozen.

6. DO NOT switch the shower on if water starts leaking from the shower case. Isolate the electrical supply to the shower immediately.

7. DO NOT connect the outlet of the shower to any tap, control valve, trigger

handset or showerhead other than those specied for use with this shower -

scalding water temperatures and product damage may occur. Only Kohler Mira recommended accessories should be used.

8. The water supplies to this product must be isolated if the product is not to be used for a long period of time. If the product or pipework is at risk of freezing during this period they should also be drained of water.

9. DO NOT perform any unspecied modications to the shower or its accessories. When servicing only use genuine Kohler Mira replacement parts.

10. If the shower is dismantled during installation or servicing then upon completion the product must be inspected to ensure all electrical connections are tight and that there are no leaks.

11. Read all installation instructions before installing this shower.

12. Upon completion of the installation, make sure that the user is familiar with the operation of the shower, and leave this guide and the user guide with the owner.

If you experience any difculty with the installation of your new shower, then please

refer to “Fault Diagnosis”, before contacting Kohler Mira Limited. Our telephone and fax numbers can be found on the back cover of this guide.

Page 4

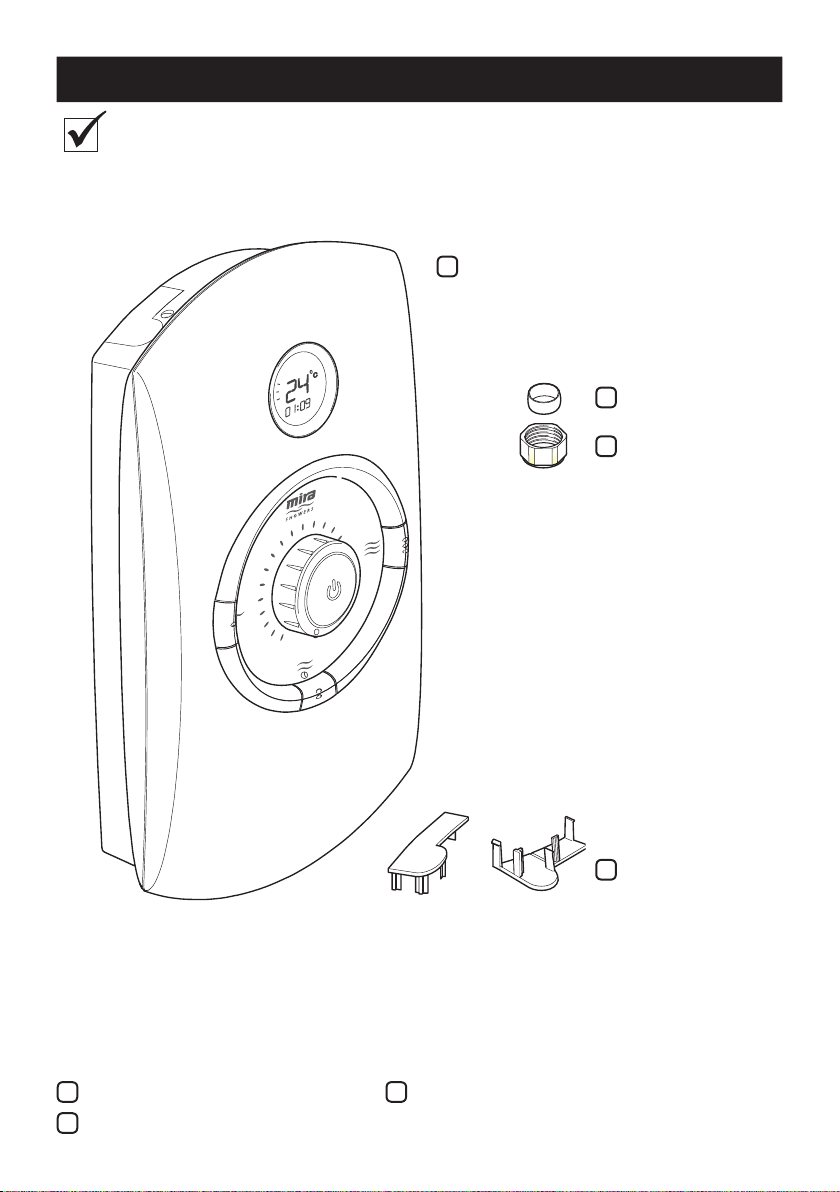

PACK CONTENTS

Tick the appropriate boxes to familiarise yourself with the part names and to

conrm that the parts are included.

1 x Mira Orbis Electric Shower

1 x Olive

1 x Compression Nut

Documentation

1 x Installation and User Guide 1 x Guarantee Registration Document

1 x Installation Template

2 x Case Inserts

Page 5

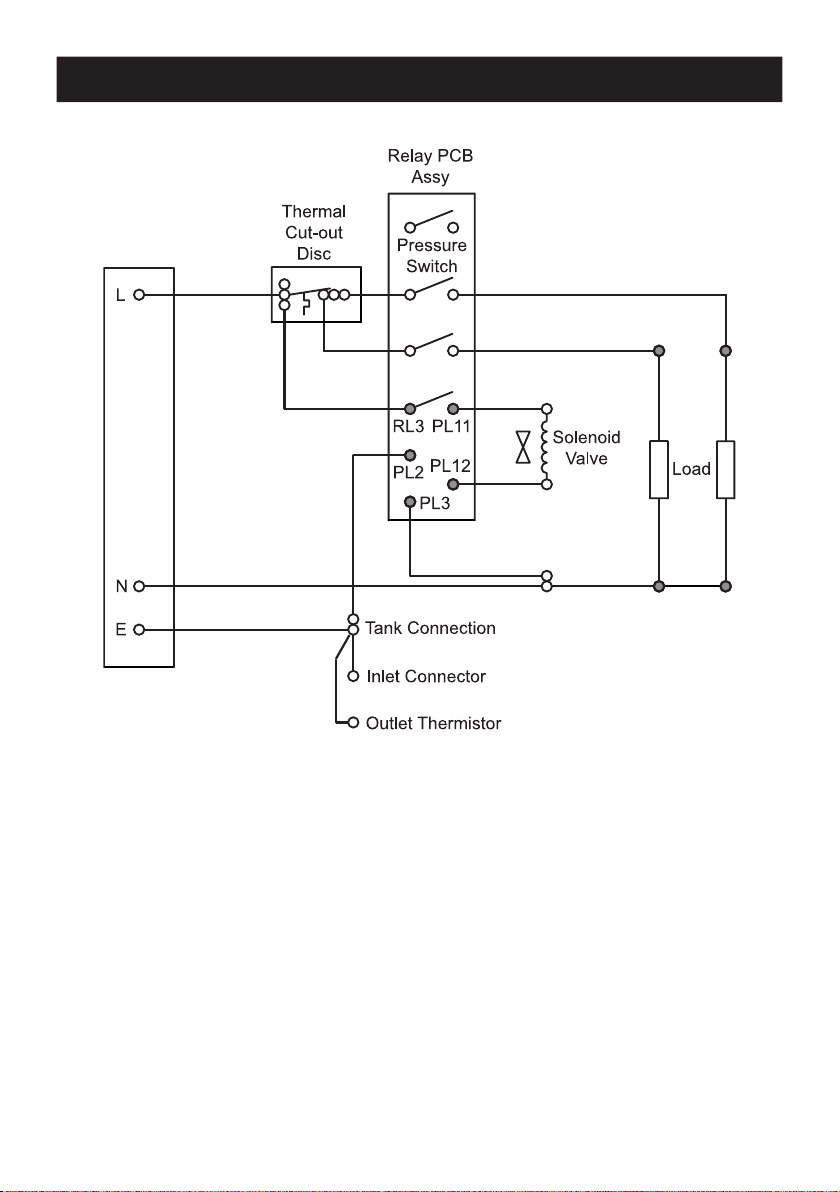

WIRING DIAGRAM

BROWN

GREEN

BROWN

GREEN

BROWN

GREEN

BROWN

BLACKBLUE

RED

BROWN

BLACK

RED

BLUE

Page 6

SPECIFICATIONS

European Conformity Information

The Mira Orbis shower complies with the following European directives: 2006/95/EC Low Voltage Directive, 2004/108/EC EMC Directive. The Mira Orbis shower is a high power appliance and is subject to conditional

connection. If the main electrical supply fuse is rated less than 80 Amps, the local electricity supply company must be contacted to conrm if the electrical supply is

adequate. The Mira Orbis shower complies with the requirements of the UK’s water regulations.

Plumbing

Minimum Dynamic Pressure 70 kPa (0.7 bar) 70 kPa (0.7 bar) 100 kPa (1.0 bar)

Maximum Dynamic Pressure 500 kPa (5 bar)

Maximum Static Pressure 1000 kPa (10 bar)

Minimum Static Pressure 20 kPa (0.2 bar)

Maximum Inlet Temperature 30°C

Minimum Inlet Temperature 2°C

Inlet Connection 1/2” BSP Male / 15 mm Compression Fitting

Maximum Water Hardness 200 ppm CaCO

Outlet Connection 1/2” BSP Male

Electrical

Nominal Power at 230 V ac 8.3 kW 9.0 kW 9.9 kW

Nominal Power at 240 V ac 9.0 kW 9.8 kW 10.8 kW

Recommended MCB Rating 40 A 45 A 45 A

Maximum Supply Cable Size 16 mm²

Recommended RCD Rating 30 mA tripping current

Recommended Isolator Switch 45 A double-pole with 3 mm contact separation

Appliance Sealing Rating IP X4 - Suitable for installation in Zone 1

Maximum Ambient Temperature 30°C

Minimum Ambient Temperature 2°C

Orbis 9.0 Orbis 9.8 Orbis 10.8

Variant

Dimensions

Height 388 mm

Width 212 mm

Depth 88 mm

Page 7

INSTALLATION REQUIREMENTS

Please read the Important Safety Information and specications sections at

the front of this guide, and the requirements detailed in this section before installing the shower.

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

Plumbing

1. The plumbing installation must comply with all national or local water regulations and all relevant building regulations, or any particular regulation or practice

specied by the local water supply company.

2. Do not install the product in a position in which service access is limited.

3. Decide on a suitable position for the shower (minimum distance of 200 mm from

the ceiling to allow for cover t and removal).

4. The position of the shower and shower ttings must provide a minimum gap of 25 mm between the showerhead and the spill over level of any bath, shower tray or basin and a minimum gap of 30 mm between the showerhead and the spill over level of any toilet, bidet or other appliance with a Fluid Category 5

backow risk (see diagram on page 8).

5. The shower is suitable for installation within the shower area and is tted with a pressure relief valve. It must be positioned over a water catchment area with the controls at a convenient height for the user.

6. The shower must be tted to a waterproof at and even wall surface.

7. DO NOT t the shower to the wall and tile up to the case.

8. DO NOT seal the gap between the shower and the wall surface.

9. The showerhead should be positioned so that it discharges down the centre line of the bath or across the opening of a shower cubicle.

10. The showerhead must be directed away from the shower unit, during normal use the showerhead must not spray directly on to the shower unit.

11. DO NOT apply excessive force to plumbing connections; always provide

mechanical support when making plumbing connections. Any soldered joints

should be made before connecting the shower.

12. This shower is not designed to be plumbed directly from the rear. For rear-entry supply, add an elbow to the supply pipe and connect as a rising or a falling supply.

13. If pipework and/or electrical cables enter the shower from the rear through a hole in the wall provision must be made to prevent water ingress back into the wall structure.

14. Only use the inlet connector supplied with the shower. DO NOT use any other

type of tting.

Page 8

15. A full bore/non restrictive servicing valve must be tted in a readily accessible position adjacent to the shower to facilitate maintenance of the shower. DO NOT use a valve with a loose washer plate (jumper) as this can lead to a build up of static pressure.

16. A water treatment device should be installed where the water hardness may exceed 200 ppm. Malfunctions caused by excessive limescale formation are not covered by this shower’s guarantee (see back page for details).

17. The installation must not cause the hose to be sharply kinked during normal use.

18. DO NOT perform the electrical installation until the plumbing has been completed and checked for leaks.

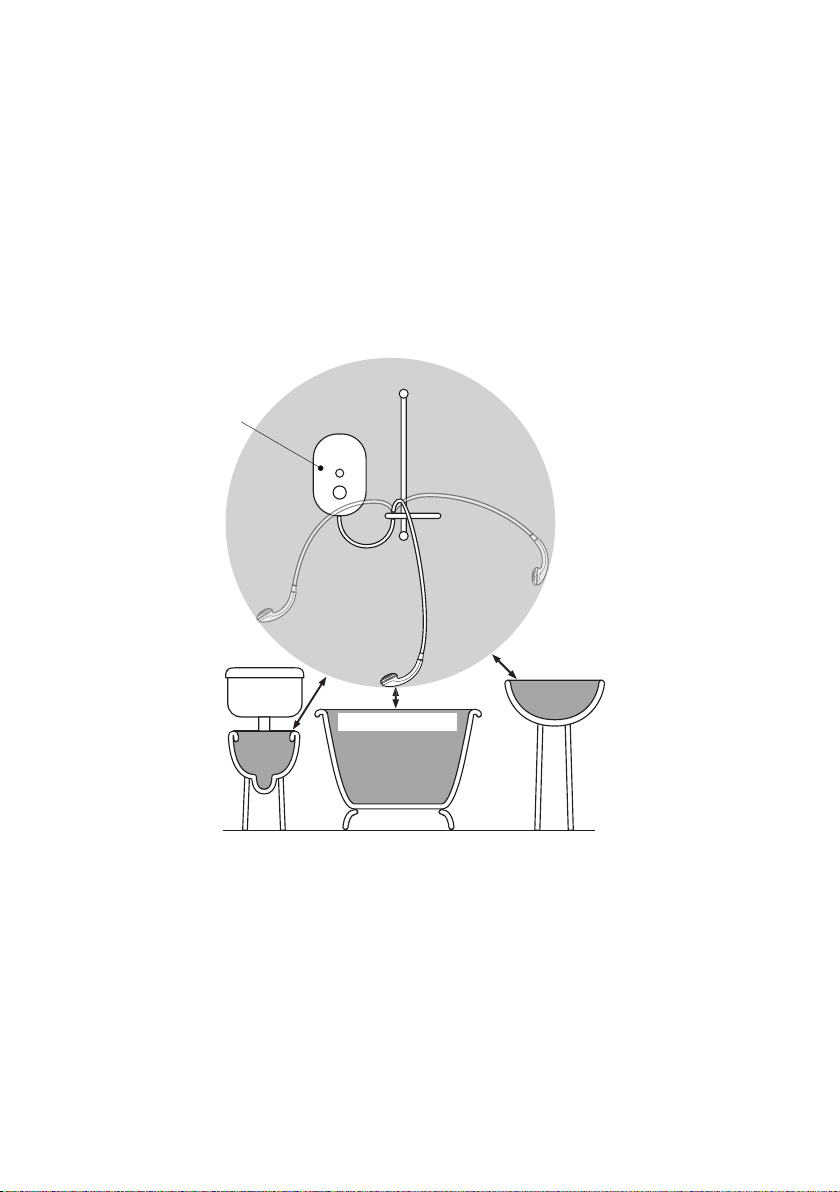

Electric Shower

Zone of

Backow Risk

25 mm

Minimum

30 mm

Minimum

25 mm Minimum

Toilet or Bidet

FC5

Bath or Shower

Tray FC3

Hand Basin

FC3

Hose Retaining Ring tted and shower ttings xed at a suitable height preventing dirty water backow.

Note! There will be occasions when the hose retaining ring will not provide a suitable solution for Fluid Category 3 installations, in these instances an outlet double

checkvalve must be tted, this will increase the required supply pressure typically by 10kPa (0.1 bar). Double checkvalves tted in the inlet supply to the appliance cause

a pressure build up, which affect the maximum static inlet pressure for the appliance

and must not be tted. For Fluid category 5 double checkvalves are not suitable.

Page 9

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

Electrical

1. The electrical installation must comply with BS 7671 (commonly referred to as the IEE Wiring Regulations) and all relevant building regulations, or any particular

regulation or practice specied by the local electricity supply company.

2. Ensure that all circuit protection devices, switches and cabling are adequate for the rated current of the shower and that the rating of the electricity supply company fuse and the consumer unit is adequate for the additional demand.

3. The shower must be earthed. Ensure any supplementary bonding complies with the relevant regulations.

4. This shower is intended to be permanently connected to the xed electrical wiring of the mains system. A separate supply must be provided from the consumer unit to the shower.

5. DO NOT supply any other electrical equipment including extractor fans or pumps via this product.

6. This shower must be provided with means for local disconnection that is

incorporated into the xed wiring in accordance with the relevant local wiring

regulations. This must be a double pole switch, which has at least 3 mm contact separation in each pole. The switch can be a ceiling mounted pull-cord type within

the shower room or a wall mounted switch tted in the applicable zone area.

7. A 30mA Residual Current Device (RCD) must be incorporated into the electrical supply to this shower in accordance with wiring regulations.

8. DO NOT apply excessive force to the terminal block.

9. All electrical connections should be checked for tightness to prevent overheating before switching on the electrical supply.

10. DO NOT switch on the electrical supply until the plumbing has been completed and checked for leaks.

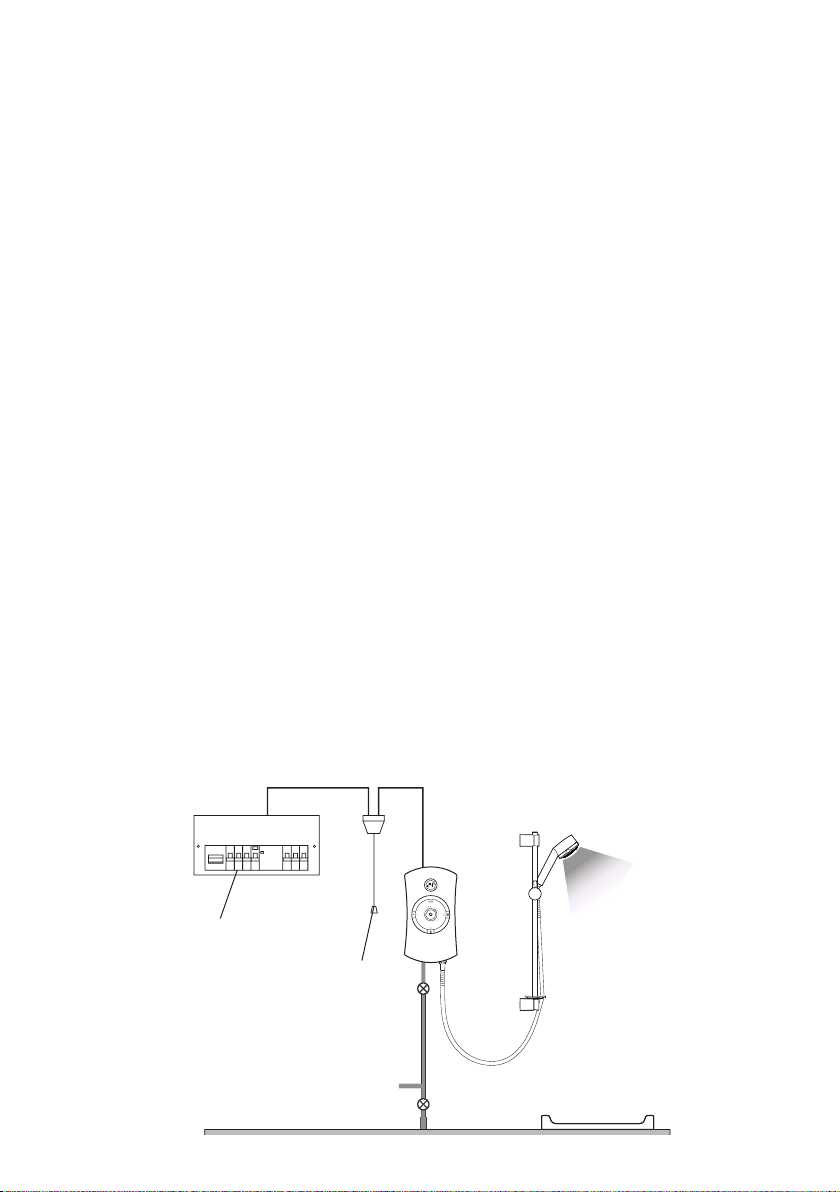

Consumer Unit

Double-pole Isolating Switch

Page 10

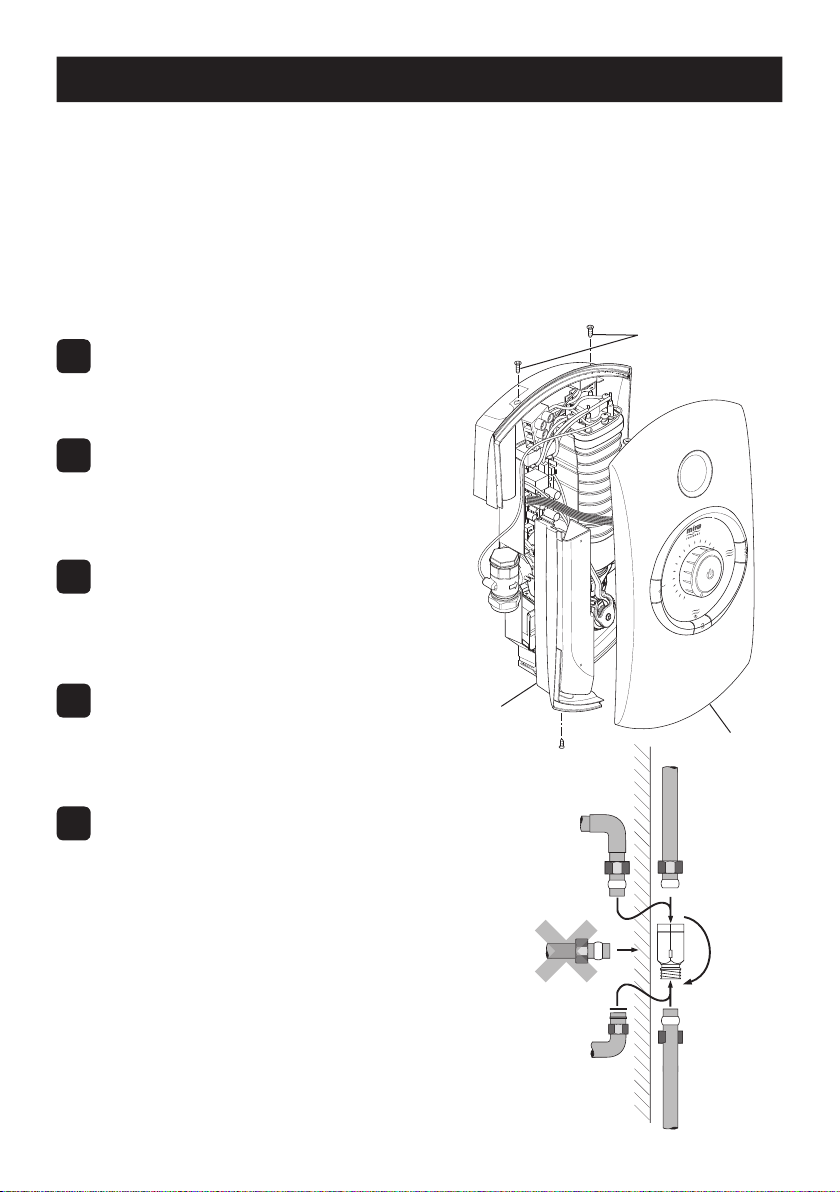

INSTALLATION

Warning! Isolate the electrical and water supplies before installing the shower. The

electricity must be turned off at the mains and the appropriate circuit fuse removed, if applicable.

Note! An installation template is supplied to help you install the Mira Orbis.

Wall xings are not supplied. For solid wall structures a red rawl plug and a no. 8

x 1½” countersunk brass or stainless steel screw should be used. For other wall

structures such as panels alternative xings may be required. A minimum of 3 xing

screws should be used.

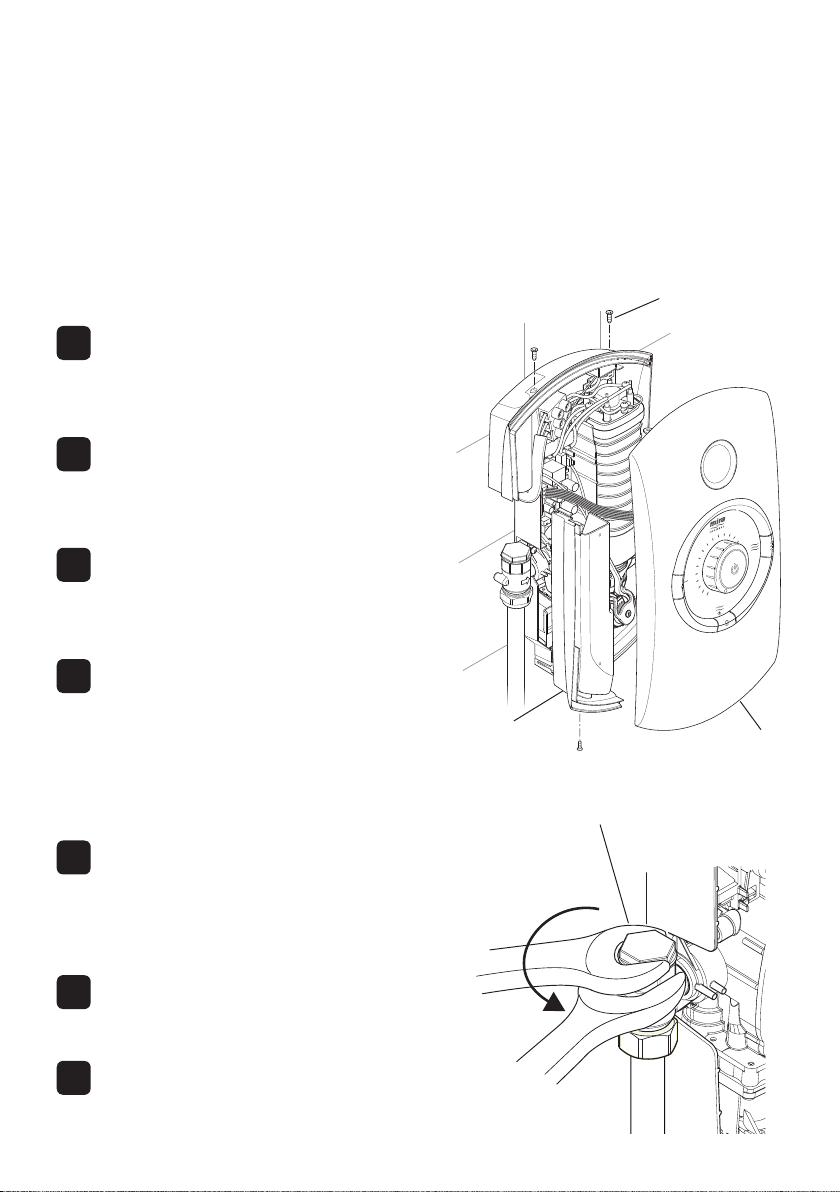

Cover Retaining

Remove the three cover retaining

screws.

Carefully remove the cover, making sure that you do not strain the multi-connector.

Carefully remove the multiconnector from the socket on the control PCB in the case

Screws

Remove the service tunnel.

Determine the direction and route of the incoming water supply: falling (entering the shower from the top), or rising (entering the shower from the bottom).

Note! - DO NOT use an incoming supply entering the shower

directly from the back. Add an

elbow to the supply pipe and connect it as a rising or falling supply.

Service Tunnel

Cover

Page 11

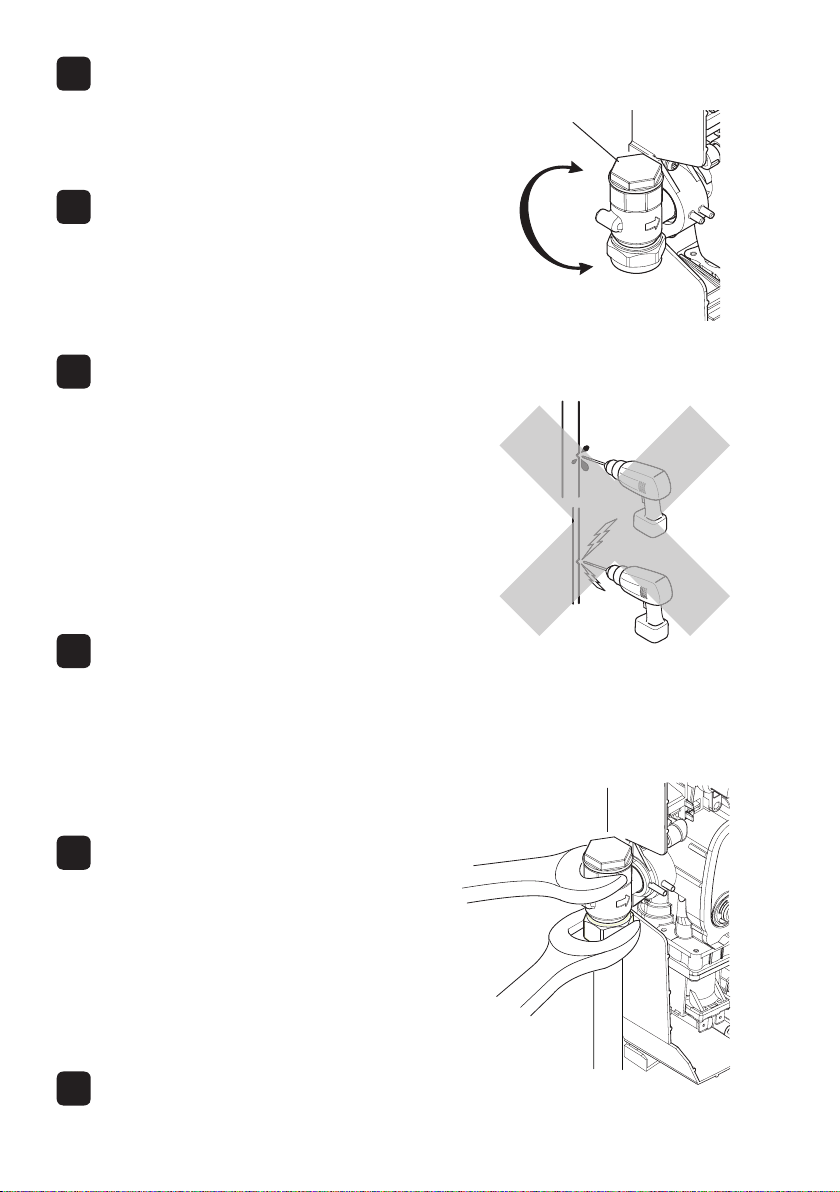

Rotate the inlet connector to suit the direction of the incoming water supply.

Upper and lower case inserts are

supplied and should be tted. Trim the inserts to t incoming

electrical or water supplies

before tting.

Thoroughly ush the mains-

fed cold water supply pipe. The supply must be clean and free from debris BEFORE connecting the Mira Orbis.

To ush the pipework, turn on

the water supply and drain a minimum of 10 litres (2 gallons) of water into a bucket or catchment area. Turn off the water supply.

Using the installation template supplied,mark the positions of the three xing holes. Note! Ensure that there are

sufcient lengths of supply pipe

and electrical cable to reach the connection points.

Inlet Connector

Caution! Do not drill into buried cables or pipes.

Drill and plug the top two xing

holes. Secure the shower to the wall with appropriate screws

provided. Drill the bottom xing

hole with the product in place.

Alternative xings (not supplied)

may be necessary for some wall

structures. Avoid drilling into any

supply cable/pipe.

Install the mains-fed cold water supply pipe. Do not overtighten.

Page 12

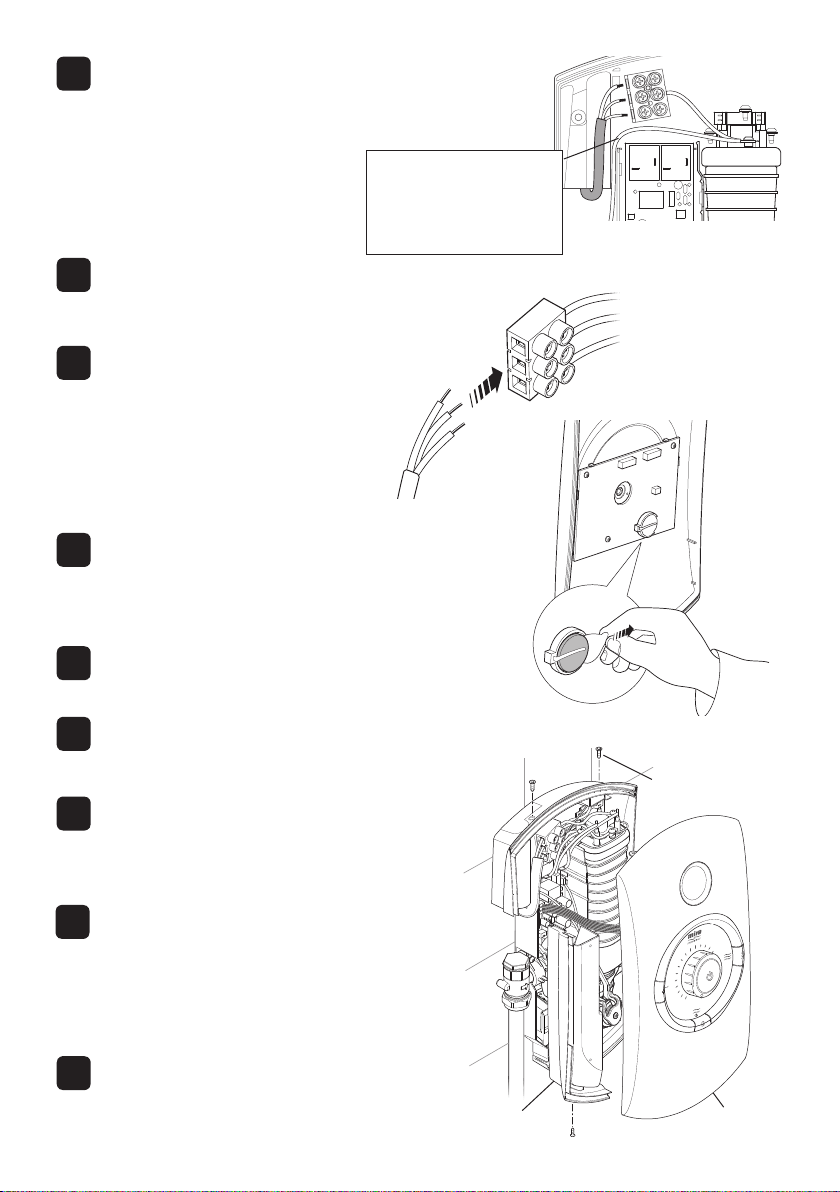

Feed cable into Case. Fit Earth sleeve (not supplied) and strip insulation.

Do not twist cable cores.

Loosen the screws in the terminal block and insert the wires.

Tighten the screws in the terminal

block, ensure the wires are secure and tight. Note! Ensure the earth bonding complies with relevant regulations.

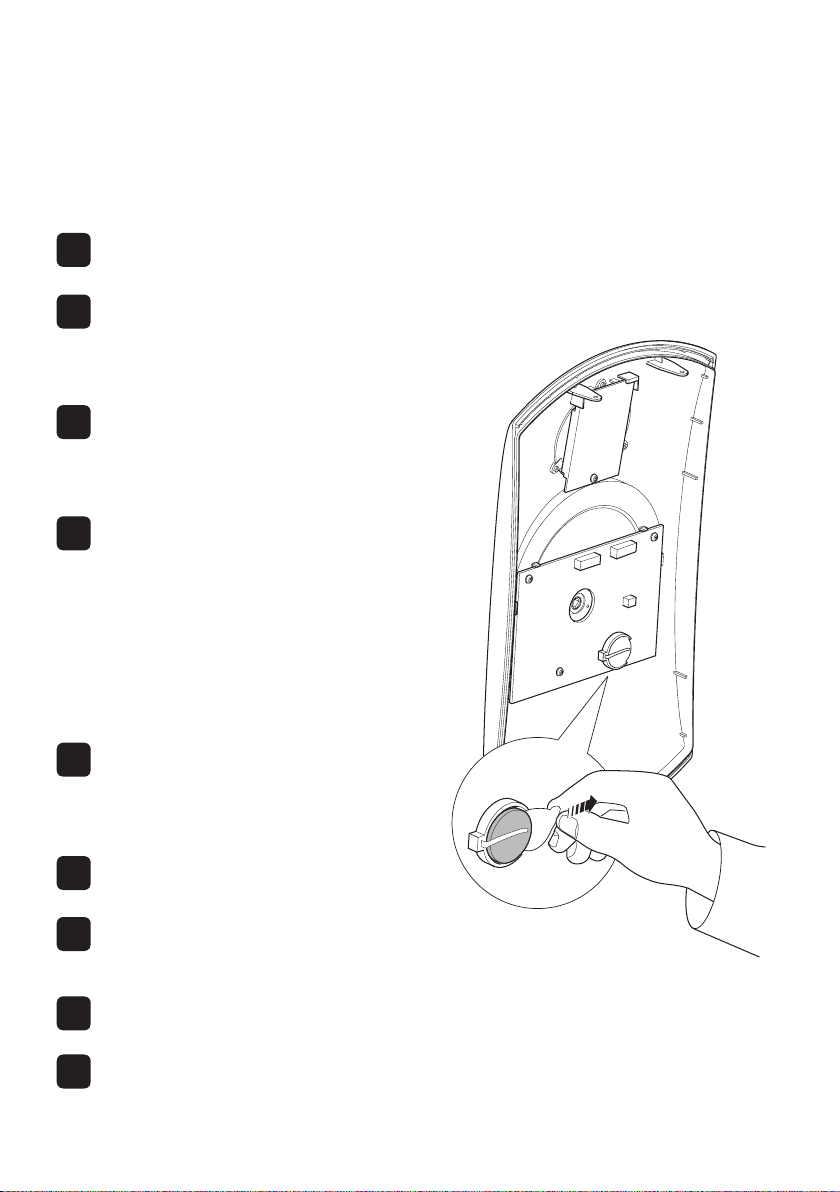

Before retting the cover, pull

the plastic tab off the battery to activate it.

Important! Make sure that the inlet earth wire is routed as shown. Failure to do so may cause product malfunction.

L = BROWN

E = GREEN/YELLOW

N = BLUE

Ret the Service Tunnel.

Connect the multi-connector to the socket on the PCB.

Ret the Cover. Make sure that it ts correctly. Do not overtighten

screws.

Do not use alternative screws to secure the Cover. This can cause internal damage to the appliance. Do not seal around the back of appliance.

Install the shower fittings in accordance with the manufacturer’s instructions.

Service Tunnel

Cover Retaining Screw

Cover

Page 13

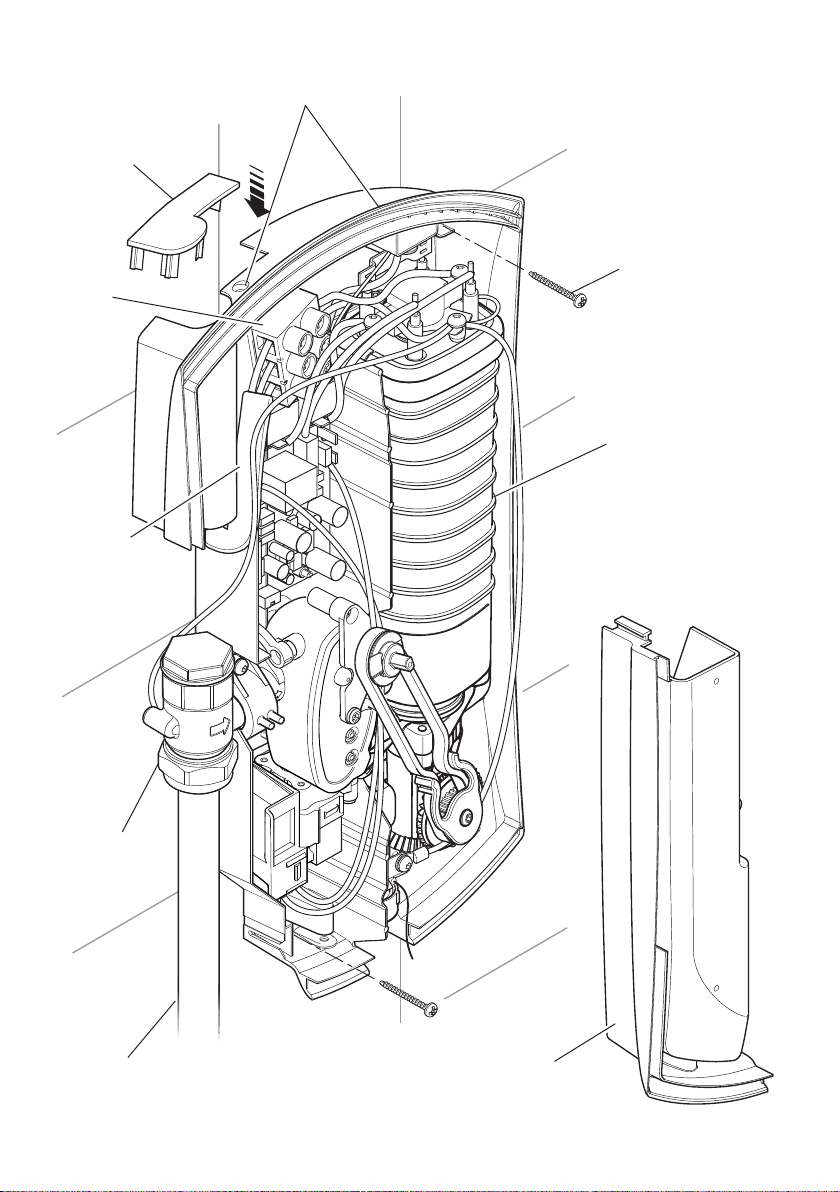

Case Insert

Terminal Block

Electrical Supply Cable

Holes For Cover Retaining Screws

Fixing Screw

Heater Tank

Inlet Connector

Assembly

Cold Water Supply Pipe (Bottom Entry)

Service Tunnel

Page 14

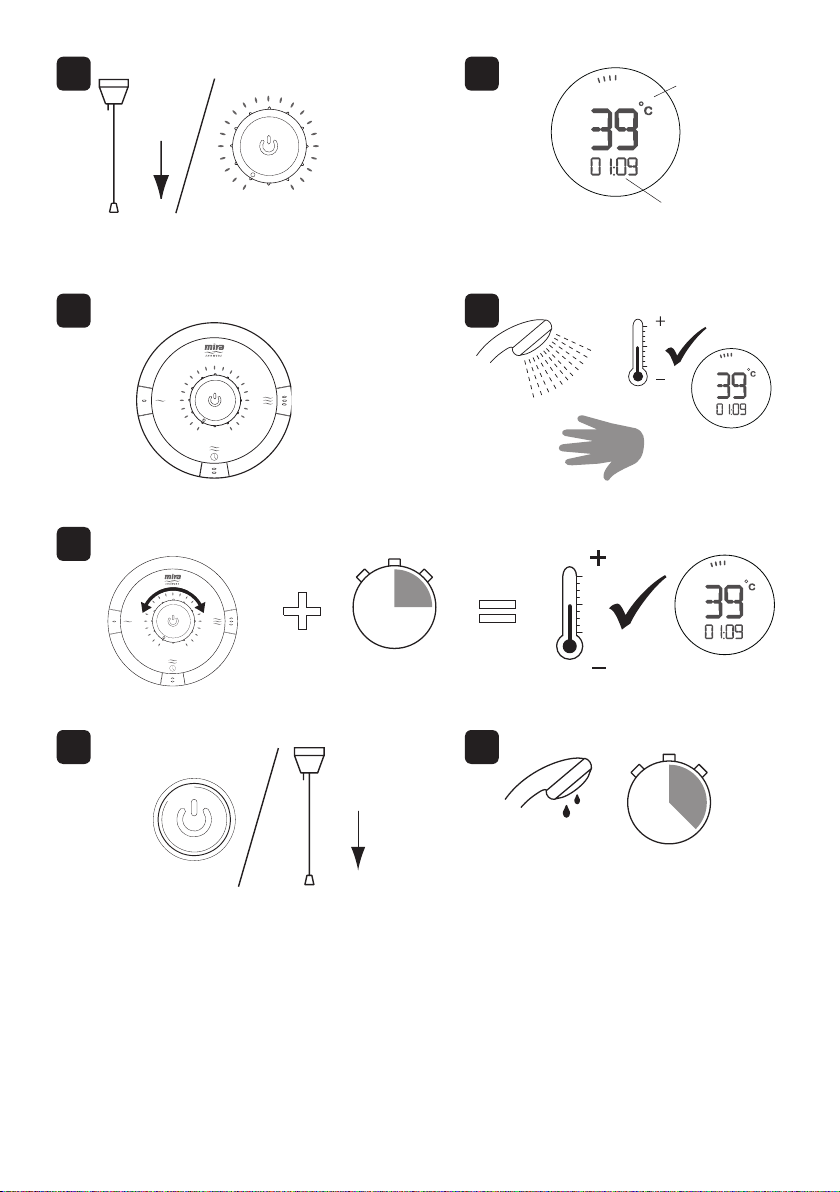

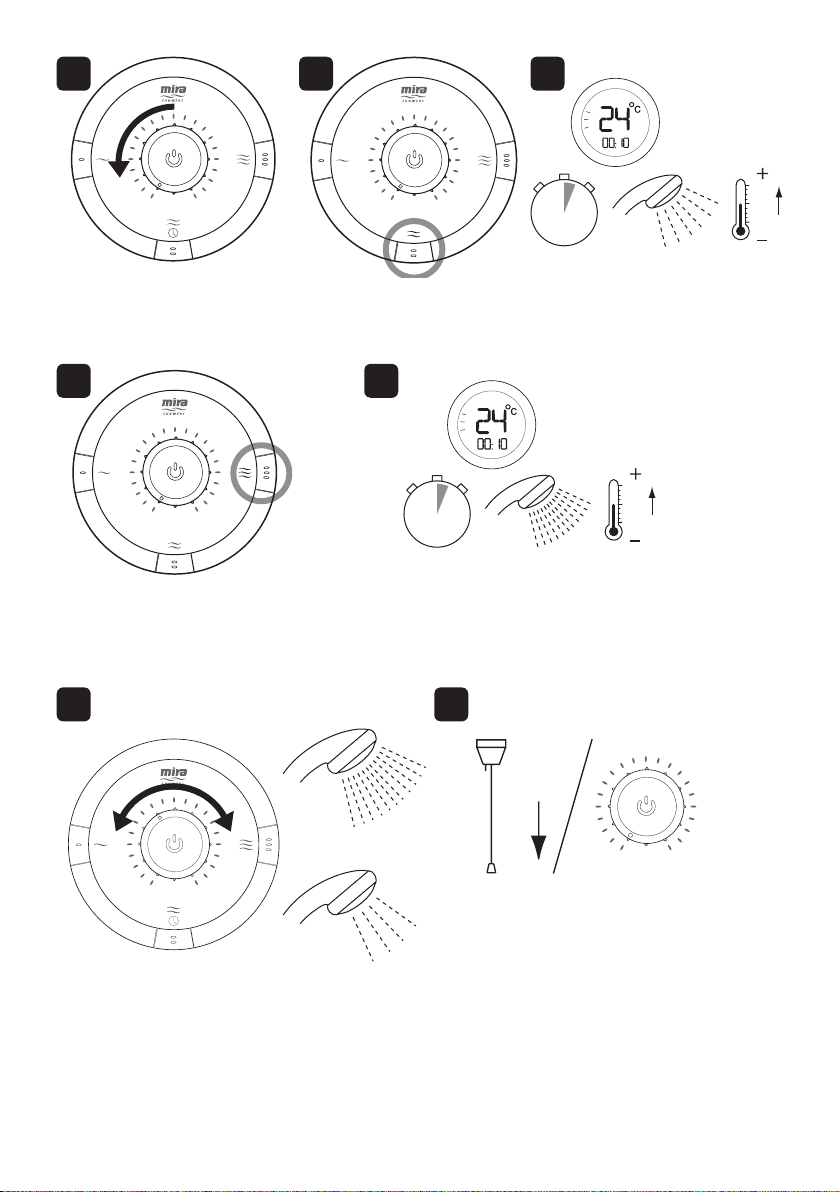

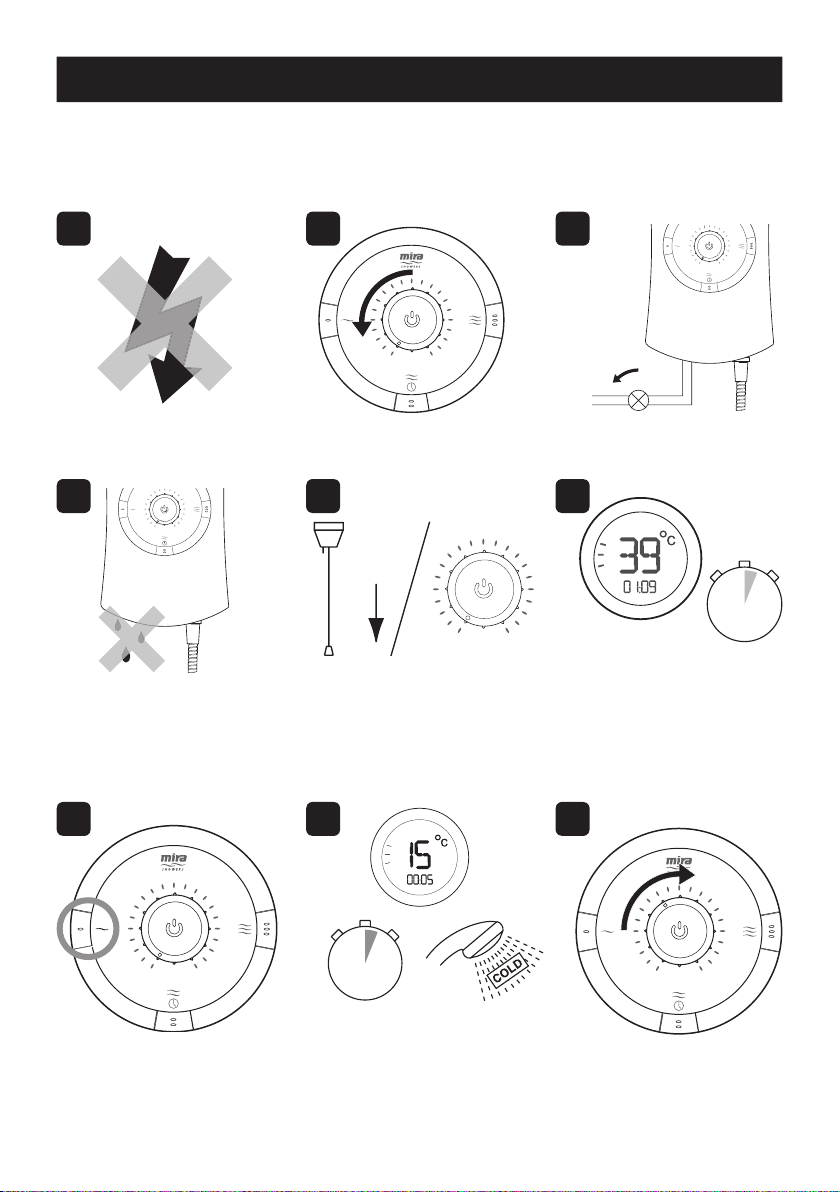

COMMISSIONING

If you are unsure how an electric shower works, please read through the User Instructions section before continuing.

Note! The temperature display throughout this guide will depend upon inlet supply

conditions and product settings.

1 2 3

Electrical supply is turned off at the mains.

4 65

Check for water leaks. Switch on the electrical

7 8 9

Turn control to full cold.

supply and press the ‘Start/Stop’ button

Turn the water supply fully on.

5 - 10 Secs

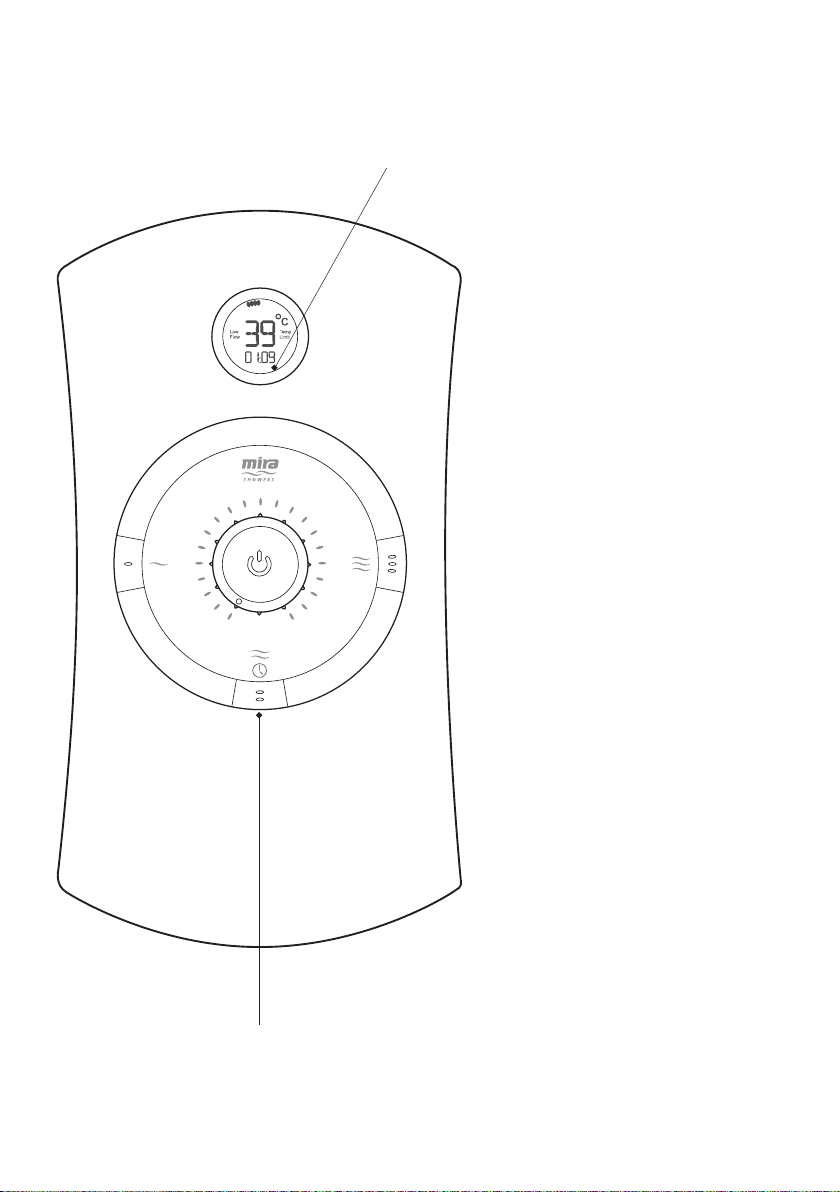

The temperature indicator becomes illuminated, showing time. Temperature will be displayed after a few seconds.

Press the ‘Low’ button, light on the display comes on

0 - 5 Secs

Water will be at full force and at a cool temperature as indicated by the temperature indicator.

Turn the control slowly. Temperature remains cool

and ow is reduced

Page 15

10 11 12

0 - 10 Secs

Turn control to full cold. The temperature will rise

Press the ‘Medium’ button, light on the display comes on

slightly as indicated by the temperature indicator.

13 14

5 - 10 Secs

Press the ‘High’ button,

The ow rate will increase.

light on the display comes on

15 16

Adjust temperature as

required. Flow rate will adjust automatically.

Press STOP button, light on the temperature indicator dims to standby state. When the shower has stopped running the temperature display will only show the clock. The water flow will continue for a few seconds before stopping. Isolate power. Display will go blank.

Page 16

17 18

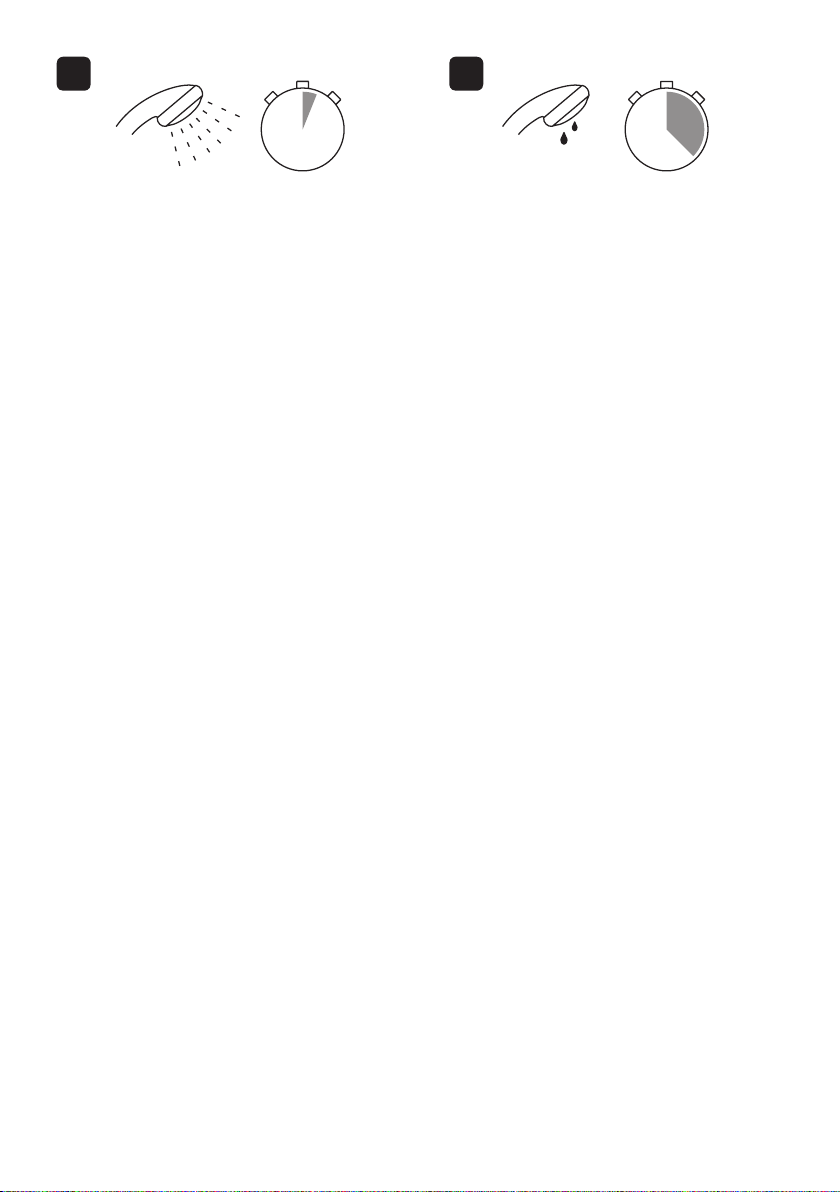

0 - 5 Secs

The shower will purge water from its tank for a few seconds.

Residual water may drain over a few minutes.

Note! A slight hissing sound may be heard from the Mira Orbis during operation.

High mains water pressure and high shower temperatures will affect the tone. This is quite normal in use.

Page 17

USER INSTRUCTIONS

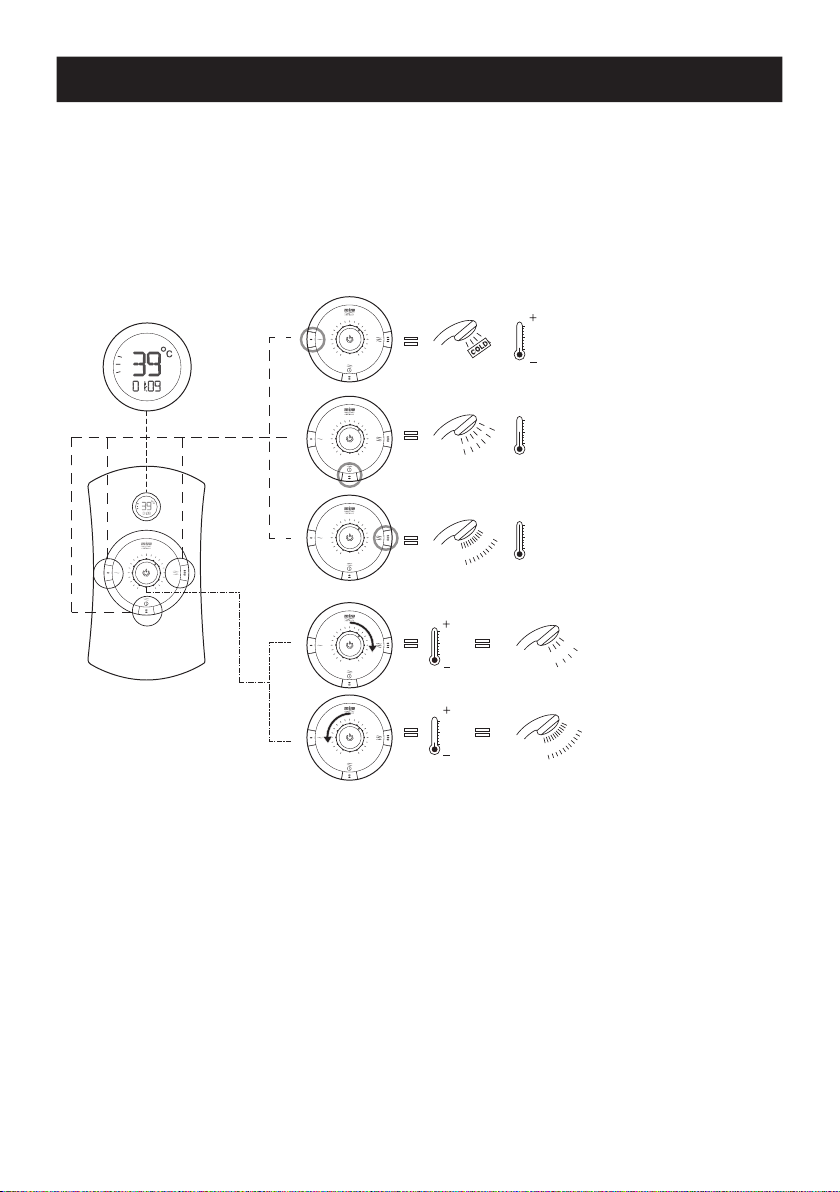

How Your Electric Shower Works

Heated water is produced by adjusting the ow of cold water passed through a

heater tank.

The temperature indicator shows the temperature of the shower.

The shower has three heater settings.

The warmer the shower, the lower

the ow rate and vice

versa.

Page 18

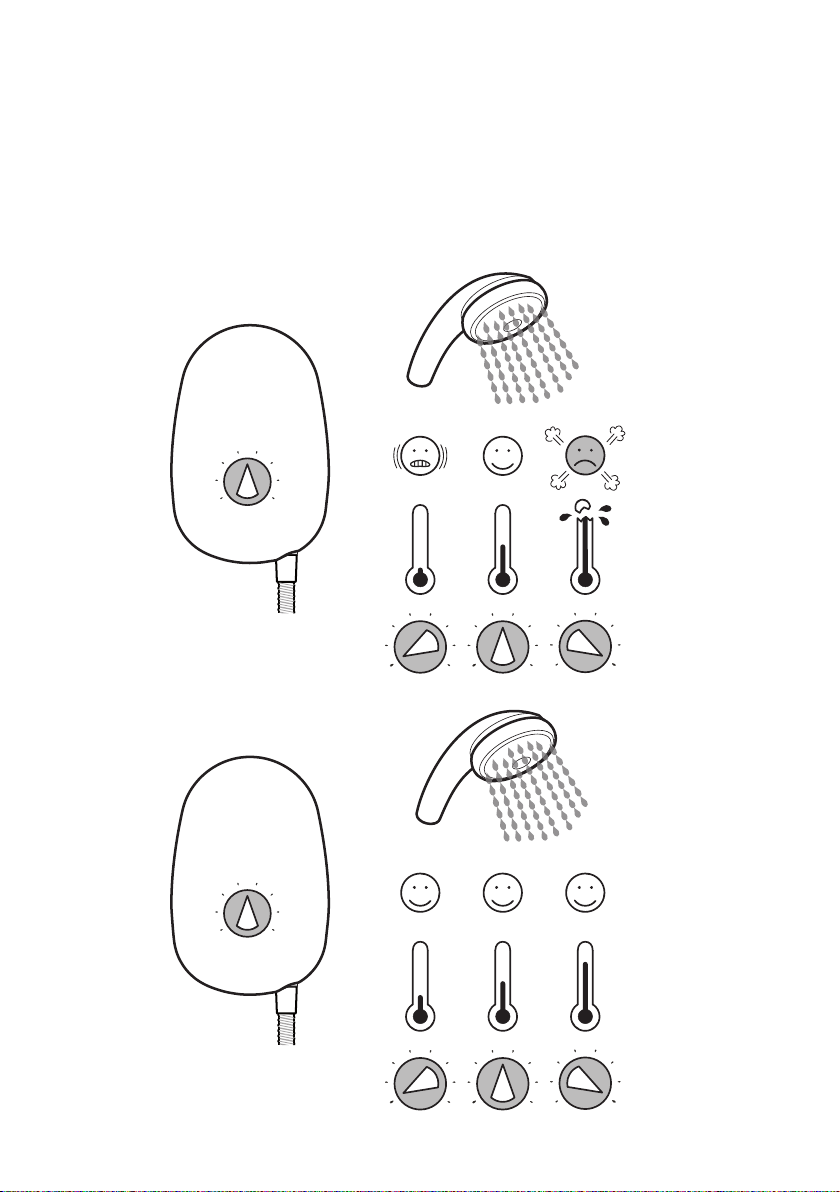

Thermostatic (Temperature-Stable)

The shower's top priority is to keep the desired water temperature constant. Electric showers with thermostatic control are able to keep a stable temperature across the

range from hot to cold, whilst also dealing with uctuations in electrical and water supplies. As a result, there is a temperature limit the shower cannot go beyond. For

safety, this temperature is factory set and cannot be adjusted to make the shower hotter or colder.

ORDINARY ELECTRIC

SHOWER

THERMOSTATIC

ELECTRIC

SHOWER

Page 19

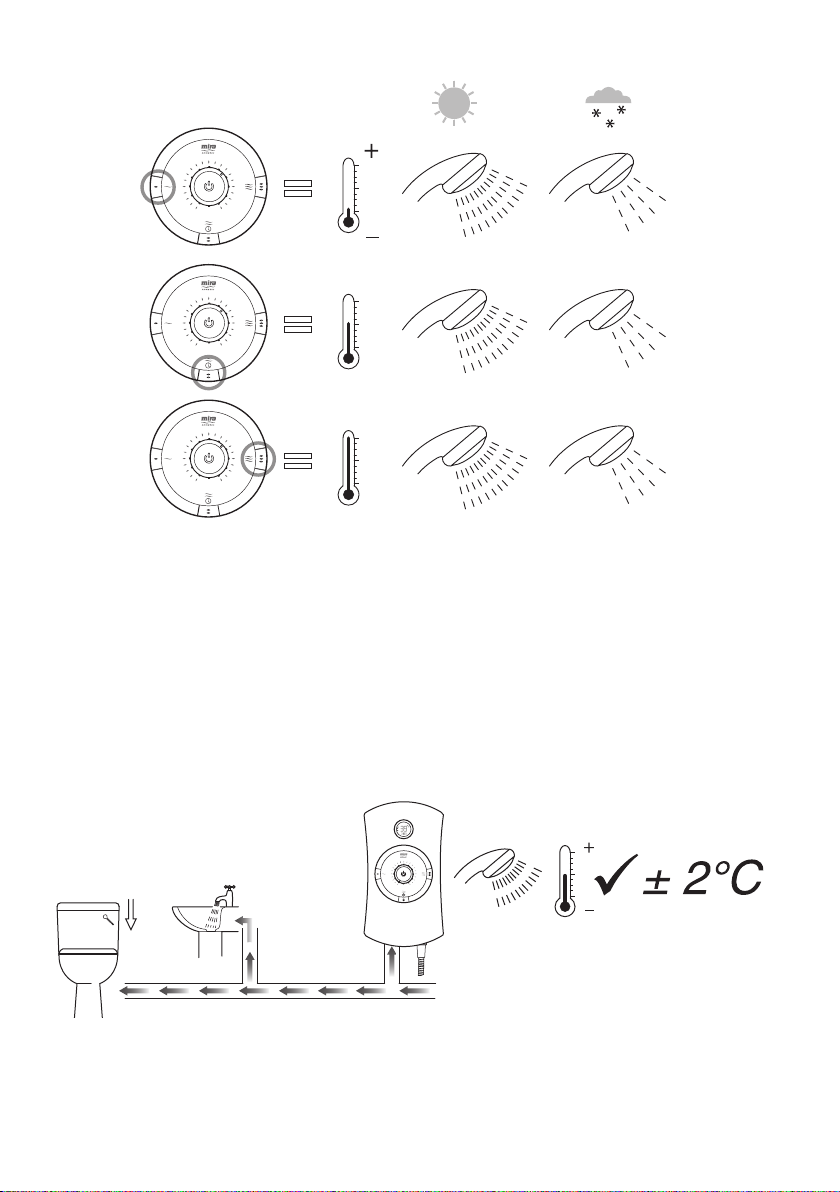

The Effect of Seasonal Changes

For a cold shower select ‘Low’. For a summer warm shower select ‘Medium’. For a winter warm shower select ‘High’.

During extremes of mains water supply temperature, adjust heater setting to obtain a better showering temperature.

The Effect of Other Water Devices

Example of how shower temperature stabilises due to pressure changes.

Water inlet pressure uctuations due to other draw offs (e.g. ushing toilet). Shower

temperature will be controlled to within ± 2°C of the set temperature provided that the supply conditions remain within the required operating parameters (refer to section: ‘Specications’).

Page 20

USER SAFETY INFORMATION

WARNING - THIS SHOWER CAN DELIVER SCALDING TEMPERATURES IF NOT OPERATED,

INSTALLED OR MAINTAINED IN ACCORDANCE WITH THE INSTRUCTIONS, WARNINGS AND CAUTIONS CONTAINED IN THIS GUIDE AND ON OR INSIDE THE APPLIANCE.

To reduce the risk of re, electric shock or injury:

1. Make sure that you fully understand how to operate this shower before use, read all operating instructions and retain this guide for future reference.

2. This shower is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the shower by a person responsible for their safety.

3. Children should be supervised to ensure that they do not play with the shower.

4. DO NOT switch the shower on if there is a possibility that the water in the shower is frozen.

5. DO NOT switch the shower on if water leaks from the shower unit. Isolate the electrical supply to the shower immediately.

6. DO NOT switch the shower on if the case appears to be damaged or incorrectly

tted. Isolate the electrical supply to the

shower immediately.

7. DO NOT connect the outlet of the shower to any tap, control valve, trigger handset

or showerhead other than those specied

for use with this shower - scalding water temperatures and product damage may occur. Only Kohler Mira recommended accessories should be used.

8. The showerhead must be de-scaled regularly, refer to the user maintenance section towards the rear of this guide for details.

9. The shower hose must be checked regularly and replaced if damaged, refer to the user maintenance section towards the rear of this guide for details.

10. DO NOT store bathroom items on top of the shower case. ie. Shampoo or shower gel containers.

11. Always check the water temperature before entering the shower. Sunburn or skin conditions can increase your sensitivity to hot water. Make sure that you set the shower to a cooler temperature.

12. DO NOT operate the temperature control rapidly, allow 10 – 15 seconds for the temperature to stabilise before use.

13. DO NOT block or restrict ow through the handset or hose whilst showering. eg. By placing in direct contact with your body.

14. Be aware that any adjustment to temperature control or power control whilst showering will affect the showering temperature and may result in a burst of hot water.

15. Care is required if the shower is turned off and then back on after a short time as this will result in a burst of hot water from the showerhead. Ensure temperature has stabilised before re-using shower.

16. Switch off the appliance at electrical isolating switch when not in use. This is for safety and is recommended with all electrical appliances.

17. If any of the following conditions occur, isolate the electricity and water supplies and contact your installer:

If the case is damaged or the cover is not

correctly tted and water has entered the

shower case.

If the shower begins to make an odd

noise, smell or smoke.

If the shower shows signs of a distinct

change in performance indicating a need for maintenance.

Page 21

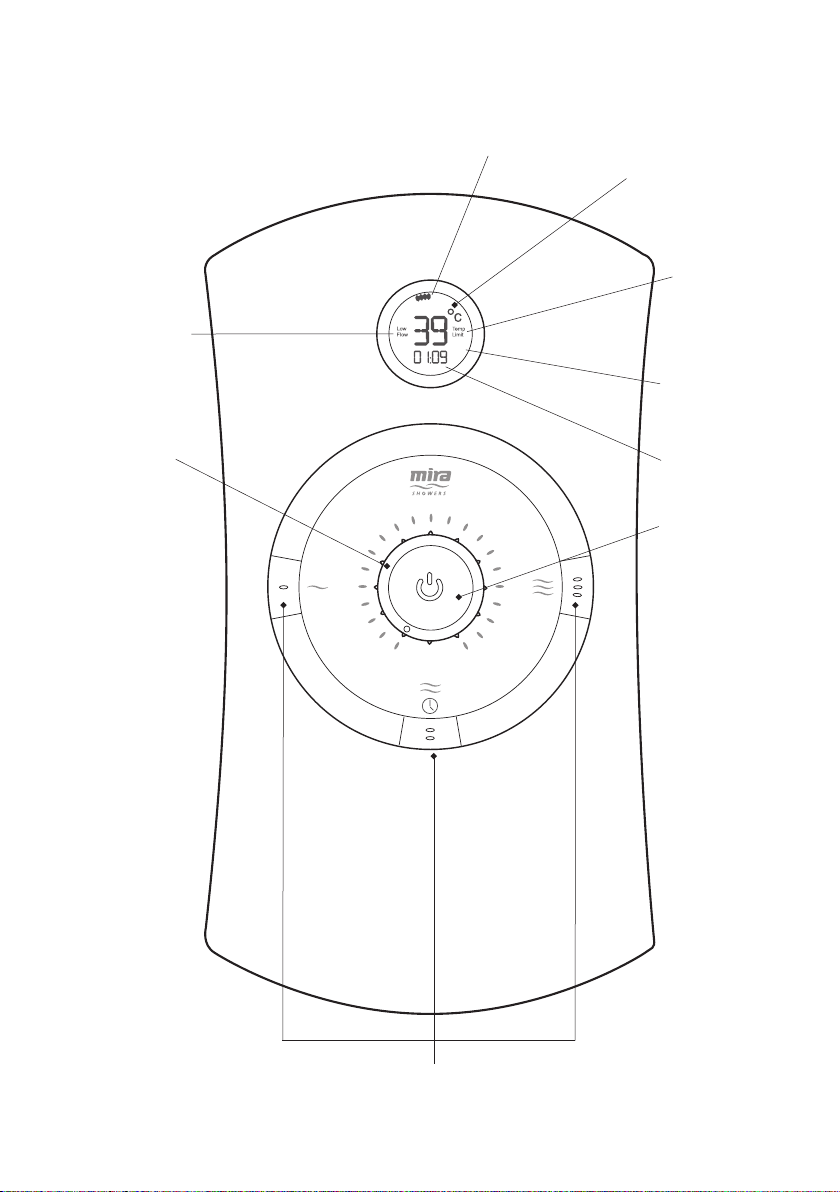

Using your Shower

Read the section “User Safety Information” rst.

Low Flow Indicator

Temperature Setting

Clock (seconds)

Temperature Display (Backlit during operation)

Temperature of Shower

Temperature Limit Indicator

Clock (hours/minutes)

Start/Stop Button

Heater Settings

Low, Medium, High

Page 22

1 2

Switch on the electrical supply and press the ‘Start/Stop’ button

3 4

Temperature of Shower

Clock

The temperature indicator becomes illuminated.

Set to the desired position.

Check the water temperature before entering shower.

Allow 10 - 15 seconds for any temperature adjustments to reach the Showerhead.

Press STOP button, the light on the button

goes out. The Shower ow will continue for a

Residual water may drain over a

few minutes. few seconds before stopping. Switch off the electrical supply.

Note! After 40 minutes of continuous use, the

shower will automatically switch OFF.

Note! At the end of every shower make sure that the showerhead points into the catchment area. A small amount of water may be retained in the showerhead after

the shower has been turned off. This may drain over a few minutes.

Page 23

Clock Setting

Clock

1. Make sure that the product is in ‘Standby’ state (i.e. Isolator switch on).

2. Press and hold the ‘Medium Power’ button - the clock backlight will come on full brightness.

3. After a delay of a few seconds

the hour segments of the clock

start ashing

4. Press ‘Medium Power’ button repeatedly until desired ‘hours’ are displayed on the clock.

Medium Power

Pushbutton

5. After a short delay of a few

seconds the minute segments

of the clock start ashing.

6. Press ‘Medium Power’ button repeatedly until desired ‘minutes’ are displayed on the clock.

7. After a short delay of a few

seconds the minutes segments stop flashing and the clock backlight dims to its standby state.

Page 24

LCD Indications

The table below shows what is shown on the LCD display once the shower has been installed and is in use.

Product State LCD Display Backlight Comments

Off Blank Off Product turned off at pull

Standby Clock shown Dim

Product turned on via Start / Stop button

Switching Power Clock Shown

Product turned off via - on / off button

Low Flow Clock shown

Temp Limit Clock shown

Clock Shown

Will display temperature after a few seconds

Clock shown including second indicators

Low Flow graphic displayed

Temp Limit graphic displayed

Full Brightness On initial start up unit will

Full Brightness Flow will change

Fade to Dim

Backlight ashes Product will stop heating

cord

turn onto low power. The next time you turn the unit on it will be at the previous setting

accordingly

the water, ow will reduce.

for 10 seconds and then restart.

Turn the temperature control down.

Page 25

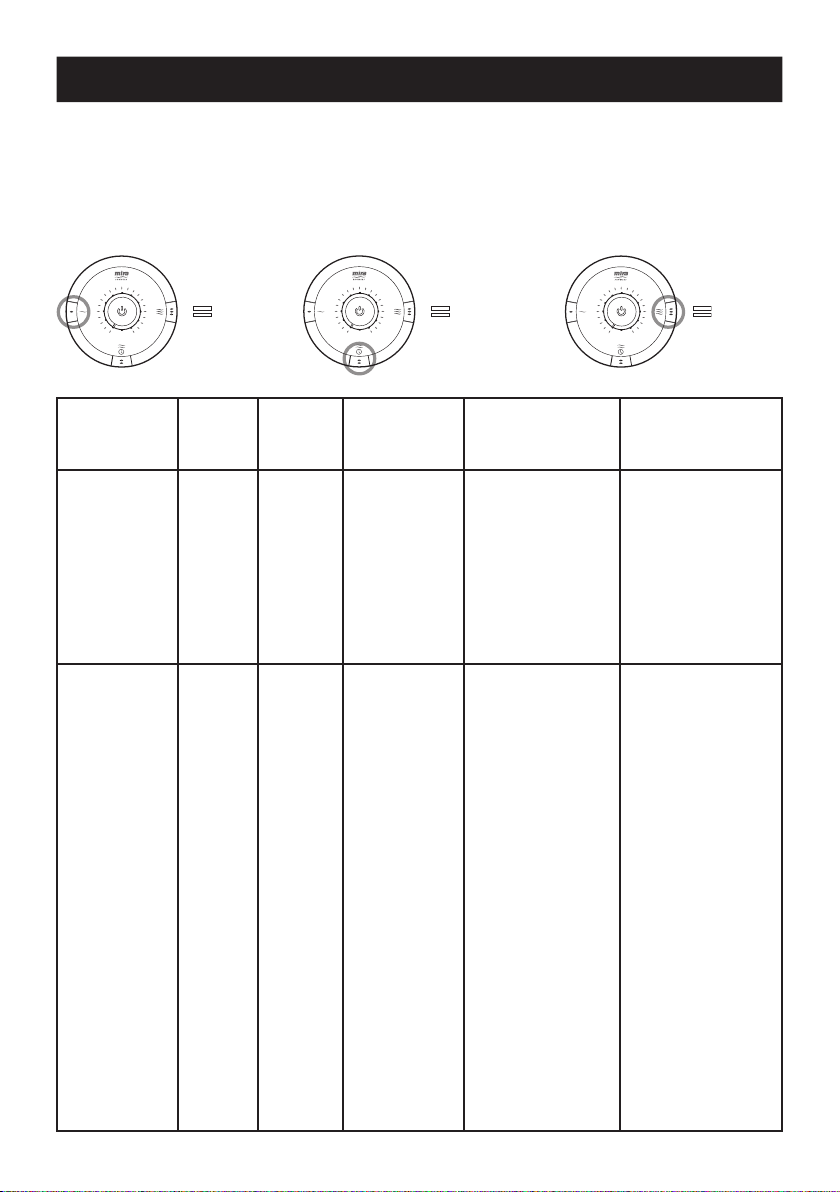

FAULT DIAGNOSIS

The trouble shooting information tabled below gives details on probable causes

and remedies should difculties be encountered whilst the shower is in operation.

Warning! There are no user serviceable components beneath the cover of the appliance. Only a competent tradesperson should remove the front cover!

Heater Settings

Low Medium High

Symptom LCD

Back Light

Appliance fails

to operate

Shower cycles from hot to cold

OFF

Low Flow Warning

OFF

Heater Setting Low/Medium/ High

Medium/High

High

Medium/High

Probable Cause Probable Remedy

Electrical supply isolated at double pole switch.

Fuse blown or MCB/RCD tripped, indicating possible electrical fault.

Faulty Relay PCB.

Faulty Control PCB.

Showerhead blocked.

Inlet Filter blocked.

Water pressure below minimum required for the appliance to operate.

Faulty Relay PCB.

Faulty Inlet Valve.

Temperature limit

reached (ashes on

LCD).

Thermostatic mechanism is faulty or damaged.

Scaled Heater Tank assembly.

Damaged Hose.

Switch on electrical supply via the pullcord or wall mounted switch.

Renew the fuse or reset the MCB/RCD. If fault persists, contact your installer.

Replace Relay PCB.

Replace Control PCB.

Remove and clean.

Make sure incoming mains water stopcock and / or appliance isolating valve is fully turned on.

Replace Relay PCB.

Replace Inlet Valve assembly.

Turn the temperature control down or reduce heater setting to Medium until a cooler temperature is achieved.

Replace.

Page 26

Symptom LCD

Back Light

Showerhead dripping

Low or no ow

rate

Low or no ow

rate

No information shown on LCD display

Operation of temperature control has little or no effect on water temperature.

OFF

ON OFF Any Faulty Control PCB. Replace Control PCB.

OFF

Low Flow Warning

OFF

Heater Setting Low/Medium/ High

Any

Medium/High

Probable Cause Probable Remedy

Insufcient water

supply pressure for shut off.

Inlet valve assembly faulty.

Water supply pipework

or inlet lter restricted

by a blockage or partial blockage.

Insufcient water supply pressure / ow

for operation.

Faulty Relay PCB.

Faulty Control PCB.

Other outlets (e.g. toilet, garden hose, washing machine etc.) drawing water whilst the shower is being used.

Hose Damaged.

Showerhead blocked.

Heater tank excessively scaled.

Showerhead or inlet

lter blocked.

Thermostatic valve faulty.

Heater tank failure.

Relay PCB failure.

The minimum static pressure to ensure shut off and prevent dripping is 0.2 bar. Note! If other appliances are operating, static pressure may drop below 0.2 bar. Contact local water company.

Replace.

Flush supply pipe.

Clean inlet lter.

Contact local water company.

Replace Relay PCB.

Replace Control PCB.

Turn off the other appliances whilst the shower is in use.

Replace.

Remove and clean.

Replace. In hard water areas consider the use of a water softener.

Remove and clean.

Replace.

Replace Relay PCB assembly.

Page 27

Symptom LCD

Back Light

No change in temperature between Low/ Medium/High setting.

Water will not turn off.

Appliance fails

to produce hot water when set on ‘Medium / High’ heater setting.

Unable to select a cool enough shower.

Clock does not keep time

E1 displayed on screen

OFF

ON OFF High Due to the rise in

ON OFF Any Battery needs

ON OFF Any Check thermistor is

Low Flow Warning

OFF

Heater Setting Low/Medium/ High

Any

Medium/High

Probable Cause Probable Remedy

Insufcient mains

water pressure.

Possible failure of thermostatic valve or heater tank.

Control PCB failure.

Thermal Trip failed.

Inlet valve, solenoid, stop switch, relay PCB or Control PCB faulty.

Supply pressure below 20 kPa (0.2 bar).

Inlet valve assembly faulty.

Faulty relay PCB.

Possible failure of the thermal switch.

Heater tank failure.

mains water supply temperature, the heater setting may be too high.

replacing.

Faulty Control board.

plugged in.

Contact local water company.

Check the continuity of the heater tank and replace parts as necessary.

Replace Control PCB assembly.

Replace thermal trip or check the continuity of the heater tank / replace parts as necessary.

Replace as necessary.

Contact local water company. Check mains water static pressure.

Replace inlet valve assembly.

Replace relay PCB.

Check the continuity of the heater tank / replace parts as necessary.

Replace.

Press the ‘Medium’ heater setting and adjust the temperature control until a suitable temperature is reached.

Replace battery.

Replace.

Ret or replace.

Note! The Mira Orbis Thermostatic Shower offers a water saving feature where the shower will automatically switch OFF after 40 minutes of continuous use.

Page 28

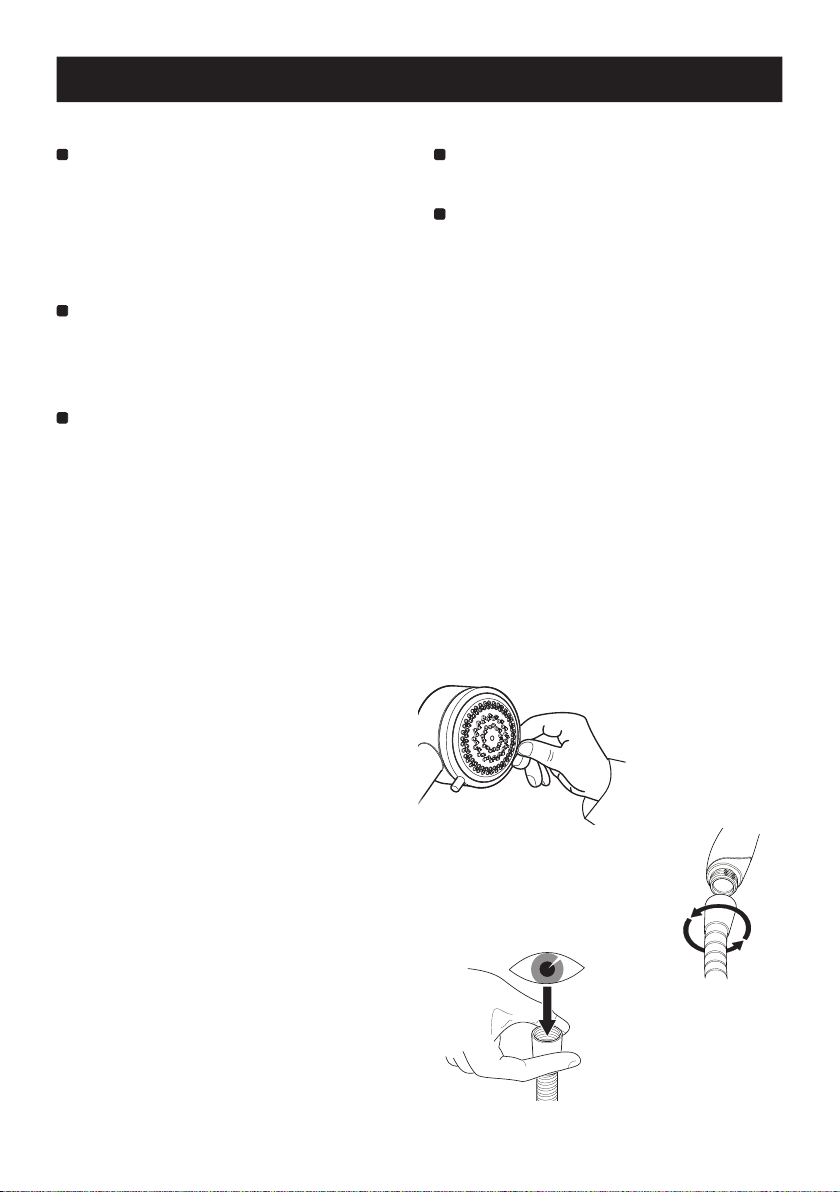

USER MAINTENANCE

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

There are no user serviceable parts inside the shower. Only qualified, competent personnel should remove the front cover, mains connections are exposed when the cover is removed.

Switch the shower off at the isolator switch before performing any user maintenance or before cleaning the shower.

DO NOT use the showerhead to clean the shower.

If the shower is not to be used for a long period, the electrical supply and water supply to the shower should be isolated. If the shower or pipework is at risk of freezing during this period a qualified, competent person should drain them of water.

DO NOT allow young children to perform user maintenance including cleaning of the shower.

Cleaning

Many household cleaners contain abrasives and chemical substances, and should

not be used for cleaning plated or plastic products or ttings. These nishes should

be cleaned with a mild washing up detergent or soap solution, and then wiped dry using a soft cloth.

De-scaling the Showerhead

Important! Keeping the showerhead

clean and free from limescale will ensure that your shower and showerhead

Use your thumb or a soft cloth to wipe any limescale from the soft nozzles

continue to perform to their maximum.

A blocked showerhead can restrict the

flow rate and may cause damage to your shower

Unscrew the hose from

Inspecting the hose.

the showerhead and the shower outlet.

Important! The shower hose should be inspected periodically for damage or internal collapse, internal collapse can restrict the flow rate from the showerhead and may cause damage to the shower. Remove the shower hose

Inspect the hose.

from the shower, inspect and replace the hose if necessary.

Page 29

Servicing

WARNING There are no user serviceable parts inside the shower. MAINS CONNECTIONS ARE EXPOSED WHEN THE COVER IS REMOVED.

Servicing of the shower must only be carried out by qualied, competent personnel

following the instructions provided in this guide and those provided with any spare part. Before replacing any parts, ensure that the underlying cause of the malfunction has been resolved.

Inlet Filter - Cleaning / Renewing

Read the section “Important Safety Information” rst

Make sure that the electrical supply is turned off at the mains and that the water supply is fully turned off.

Remove the three screws. Carefully remove the cover, making sure that you do not strain the multi-connector.

Carefully remove the multiconnector from the socket on the control PCB in the case. Remove the service tunnel.

Cover Retaining Screw

Hold a wrench across the ats

of the metal connector. Unscrew

the lter using another wrench as

shown. Clean or renew the Filter

as necessary. Ret in reverse

order making sure the Filter is screwed fully home.

Do not overtighten. Make sure

plumbing connections are tight before restoring the electricity and water supply. Check for leaks.

Refit the Service Tunnel and

connect the multi-connector to the socket on the PCB.

Ret the Cover. Make sure that it

ts correctly. Do not overtighten

screws.

Service Tunnel

Cover

Filter

Page 30

Clock Battery Replacement Procedure

WARNING There are no user serviceable parts inside the shower.

Only a competent tradesperson should remove the front cover!

MAINS CONNECTIONS ARE EXPOSED WHEN THE COVER IS REMOVED.

Read the section “Important Safety Information” rst.

Make sure that the electrical

supply is turned off at the mains.

Remove the three screws.

Carefully remove the cover, making sure that you do not strain the multi-connector.

Unplug the multi-connector from

the socket on the relay PCB in the case. Remove the service tunnel.

Carefully remove the battery from

the housing.

When the battery has reached the end of its serviceable life, make sure the battery is disposed of in a safe manner, in accordance with current local authority recycling, or waste disposal policy.

Refit a new battery, pull the

plastic tab off the battery to activate it.

(Battery type BR2032 or CR2032)

Connect the multi-connector to

the socket on the relay PCB.

Ret the Cover. Make sure that it

ts correctly. Do not overtighten

the three cover retaining screws.

Restore the electrical supply.

Reset the clock, refer to the

‘Clock Setting’ procedure.

Page 31

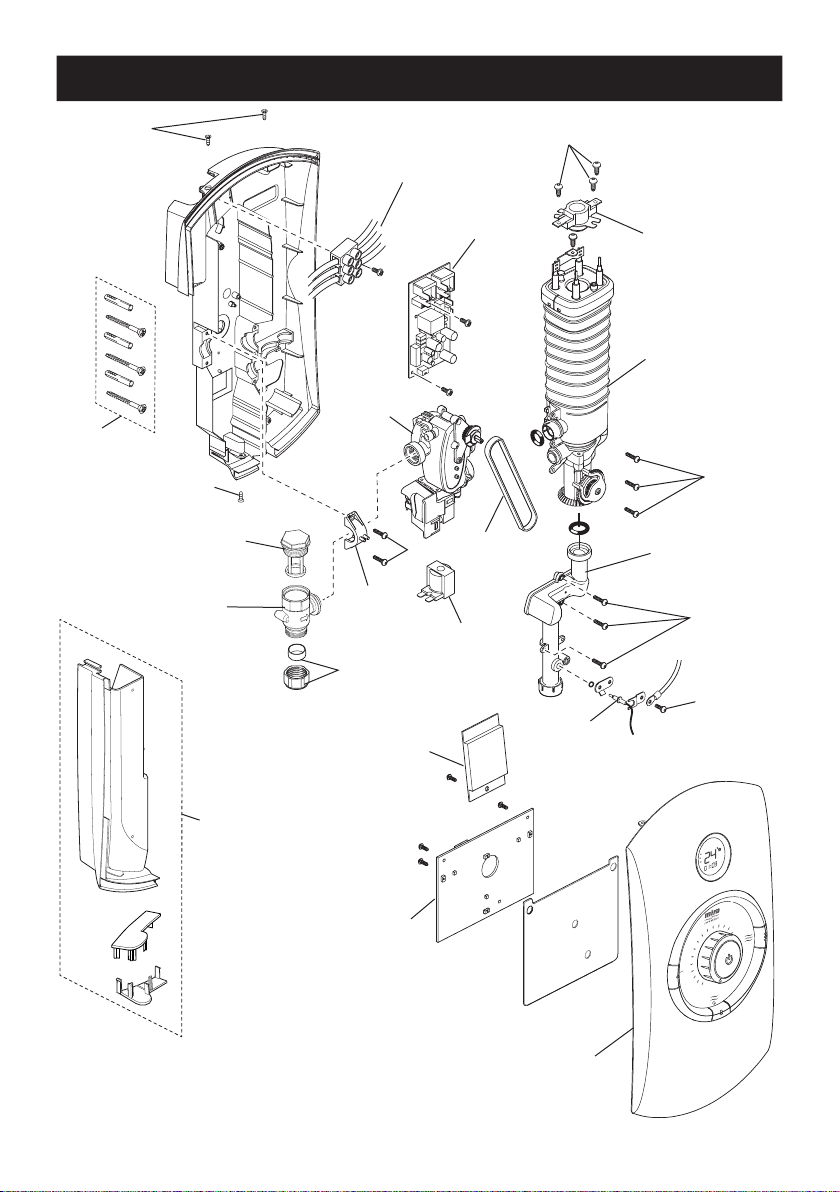

SPARE PARTS

1647.103

Inlet Valve

1829.062

Inlet Filter

1829.063

Inlet Connector

1647.096

Terminal Block

416.38

Inlet Clamp

LCD Display

1647.107

1647.105

Relay PCB

1647.102

Control Belt

416.51

Coil

1647.095

Thermal Switch

1647.008 (9.0kW)

1647.009 (9.8kW)

1647.010(10.8kW)

Heater Tank

1647.101

Outlet Connector

1647.108

Thermistor

1647.109 (White)

1647.150 (Black)

Service Tunnel and Case Inserts

1647.106

Control PCB

1563.518 Component Pack - identied 'A'

1563.522 Cover Seal (not shown)

1563.541 Screw Pack - identied ‘B’

1647.110 Wire Pack (not shown)

1647.104 (White)

1647.148 (Black)

Cover

Page 32

CUSTOMER SERVICE

Guarantee

Your product has the benefit of our manufacturer’s guarantee which starts from the date of purchase. To activate this guarantee, please return your completed registration card, visit our website or free phone 0800 0731248 within 30 days of purchase (UK only).

Within the guarantee period we will resolve defects in materials or workmanship, free of charge, by repairing or replacing parts or product as we may choose.

This guarantee is in addition to your statutory rights and is subject to the following conditions:

● The guarantee applies solely to the original installation under normal use and to the original purchaser only. The product must be installed and maintained in accordance with the instructions given in this user guide.

● Servicing must only be undertaken by us or our appointed representative. Note! if a service visit is required the product must be fully installed and connected to services.

● Repair under this guarantee does not extend the original expiry date. The guarantee on any replacement parts or product ends at the original expiry date.

● For shower ﬁ ttings or consumable items we reserve the right to supply replacement parts only.

The guarantee does not cover:

● Call out charges for non product faults (such as damage or performance issues arising from incorrect installation, improper use, inappropriate cleaning, lack of maintenance, build up of limescale, frost damage, corrosion, system debris or blocked ﬁ lters) or where no fault has been found with the product.

● Water or electrical supply, waste and isolation issues.

● Compensation for loss of use of the product or consequential loss of any kind.

● Damage or defects caused if the product is repaired or modiﬁ ed by persons not authorised by us or our appointed representative.

● Routine maintenance or replacement parts to

comply with the requirements of the TMV 2 or TMV 3 healthcare schemes.

● Accidental or wilful damage.

● Products purchased ex-showroom display.

What to do if something goes wrong

If your product does not work correctly refer to this manual for fault diagnosis and check that it is installed and commissioned in accordance with our instructions. If this does not resolve the issue, contact us for help

and advice.

Extended Guarantees

A selection of protection plans are available that enable you to cover repair bills (excludes Eire). Ring 01922 471763 for more details.

Helpdesk Service - Ring our Customer Services Team for product advice, to purchase spare parts or accessories or to set up service visit. Yo u can contact us via phone or e-mail, details below. Please provide y our model name, power rating (if applicable) and date

of purchase.

Mira Showers Website (www.mirashowers. co.uk)

Visit our website to register your guarantee, download user guides, diagnose faults, purchase our full range of accessories and

popular spares, or request a service visit. Spares and Accessories - We hold the largest

stocks of genuine Mira spares and accessories. Contact us for a price or visit our website to purchase items from our accessory range and

popular spares Service/Repairs - No one knows our products

better than our nationwide team of Service Technicians. We can carry out service or repair work to your product both during and after the guarantee period. Ask about our ﬁ xed price service repairs.

To Contact Us: UK

0844 571 5000

Fax: 01242 282595

E-mail: Visit www.mirashowers.co.uk/ contactus

Mira Customer Services Dept, Cromwell Road, Cheltenham, Gloucestershire, GL52 5EP

To Contact Us: Eire Only

01 531 9337

E-mail: CustomerServiceEire@ mirashowers.com

Mira is a registered trade mark of

Kohler Mira Limited.

The company reserves the right to alter

product speciﬁ cations without notice.

FM 14648
