ACT-70T

Wideband Bodypack Transmitter

User Guide

Design and specifications are subject to change without prior notice

AS121015

Page 2

Wideband Bodypack Transmitter Wideband Bodypack Transmitter

1 Features

3 Bodypack Controls and Indicators

6 O

7 LCD

8 T

perating Instructions

Display Screen

ransmitter Parameters

14 Battery Status

18 AF

19 B

Setting MUTE

Input Connections

attery Removal and Installation

FeaturesContents

Bandwidth to 72MHz for compatibility with the

wideband receivers.

Industry's smallest bodypack transmitter with

sturdy magnesium alloy housing for 2AA batteries.

Antenna, mute button and XLR input connector

are located on the top of transmitter.

Backlit LCD displays working band-code, group,

channel, frequency, AF input gain, RF output power, mute, battery status, and error codes.

Innovatively designed battery cover allows easy

access to operate buttons and prevents accidental operation.

Mute button and remote-control jack is equipped

for easy activation of mute function.

High efficiency, low power consumption, low

spurious emission and high stability PLL synthesized circuit is applied.

An interference-free working channel can be

synchronized quickly and precisely by MIPRO's patented ACT™ function.

High SPL input without distortion.

Can be directly matched to high-low input

impedance for microphone and guitar without switching and the input sensitivity is adjustable.

Mini-XLR input connector for quick-lock or screw-

lock with lavaliere or headworn microphones and guitar.

Adjustable belt clip allows wearing transmitter in

any position.

Page 3

Wideband Bodypack Transmitter Wideband Bodypack Transmitter

Furnished Accessories:

! USER GUIDE ×1

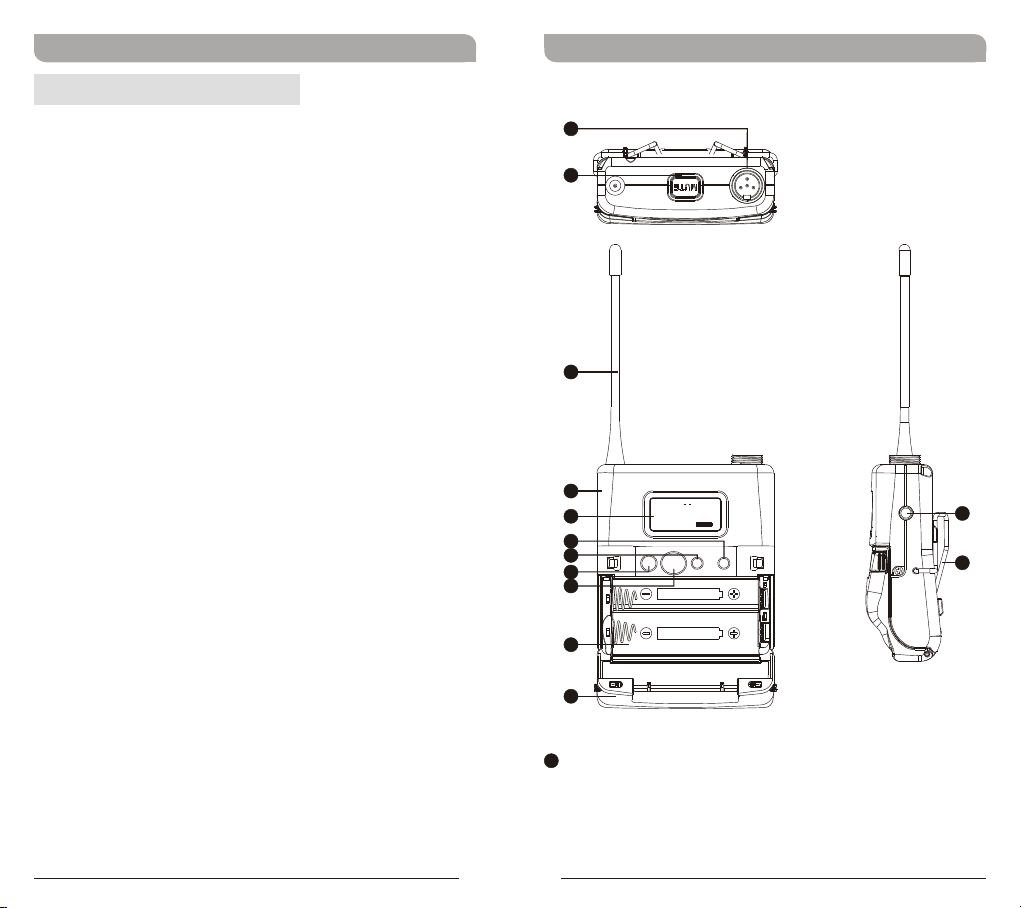

Bodypack Controls and Indicators

66 77

88 99

1010

GROUP CHAN

01 01

SET

MODEON

1212

1313

1111

Audio Input Connector: TA4F mini 4-pin connector accepts any MIPRO lavalier, instrument and headset microphones and cables. (See 5 ways of connection on AF Input Connections)

Page 4

Wideband Bodypack Transmitter Wideband Bodypack Transmitter

MUTE Button: To mute and un-mute the audio signal temporary.

Antenna: Flexible 1/ 4 wave transmitting antenna.

Transmitter Housing: Holds PCB board and wires.

LCD Panel: Display transmitter parameters.

SET Button: Parameter selection button.

MODE Button: Allows access to 7 available functions displaying in LCD panel.

Power Button: Press and hold 2 seconds to power ON or OFF.

ACT IR Port: Align and syncs the transmitter and receiver frequency automatically.

1010

Battery Compartment: Holds 2 'AA' batteries.

1111

Battery Cover: Hinged cover opens to provide access to 2 'AA' batteries.

1212

External Mute Connector: When an external mute switch cable, MJ-70 (optional) is connected, user can manually mute and un-mute the audio temporary.

1313

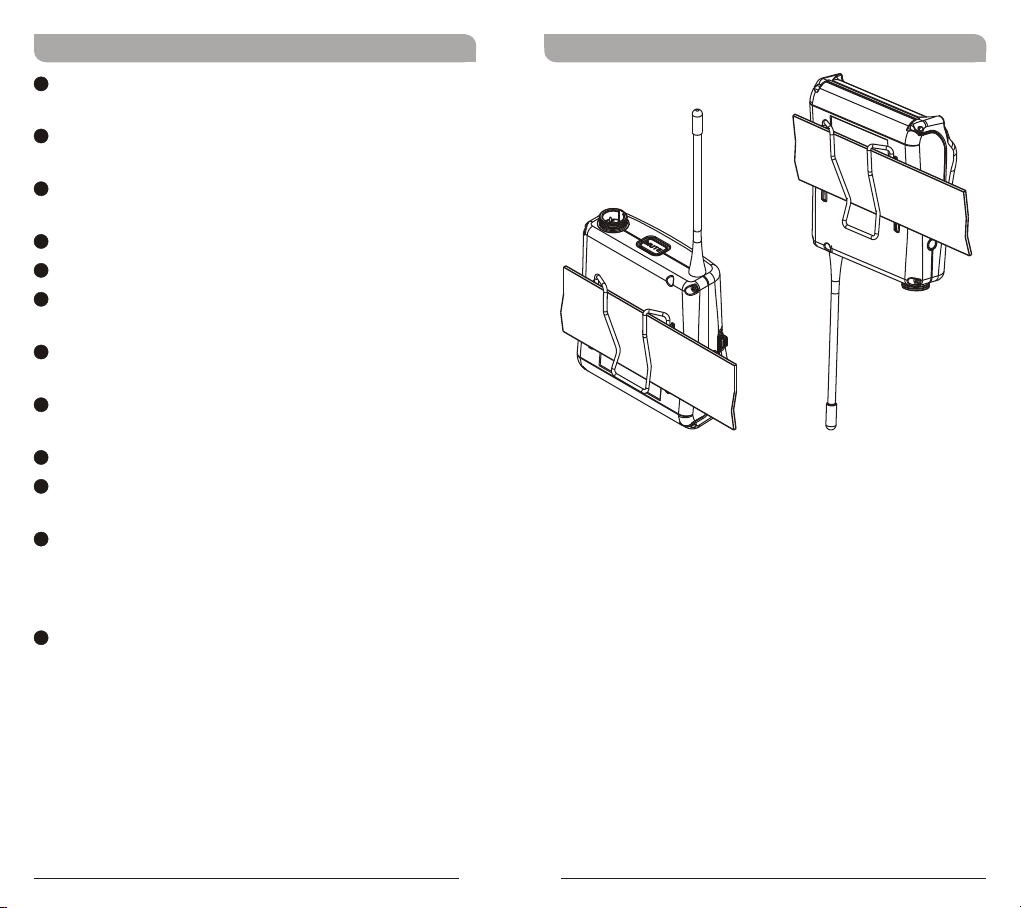

Belt Clip: Detachable and reversible design allows the transmitter to be worn on a belt, waistband, or guitar strap ( .Figure 1)

(Positive Wear) (Opposite Wear)

(Figure 1)

Page 5

Wideband Bodypack Transmitter Wideband Bodypack Transmitter

Operating Instructions

! The audio gain level is factory preset at 0dB

level.

! Guitar setting is recommended at -12dB level.

Insert the lavalier, headset microphone or

instrument cable into the audio input connector before power ON the transmitter.

Tighten the connector screw clockwise direction

as shown in (Figure 2) for a secured fit.

Capsule Connector

GROUP CHAN

01 01

SET

MODEON

Headset Lavalier

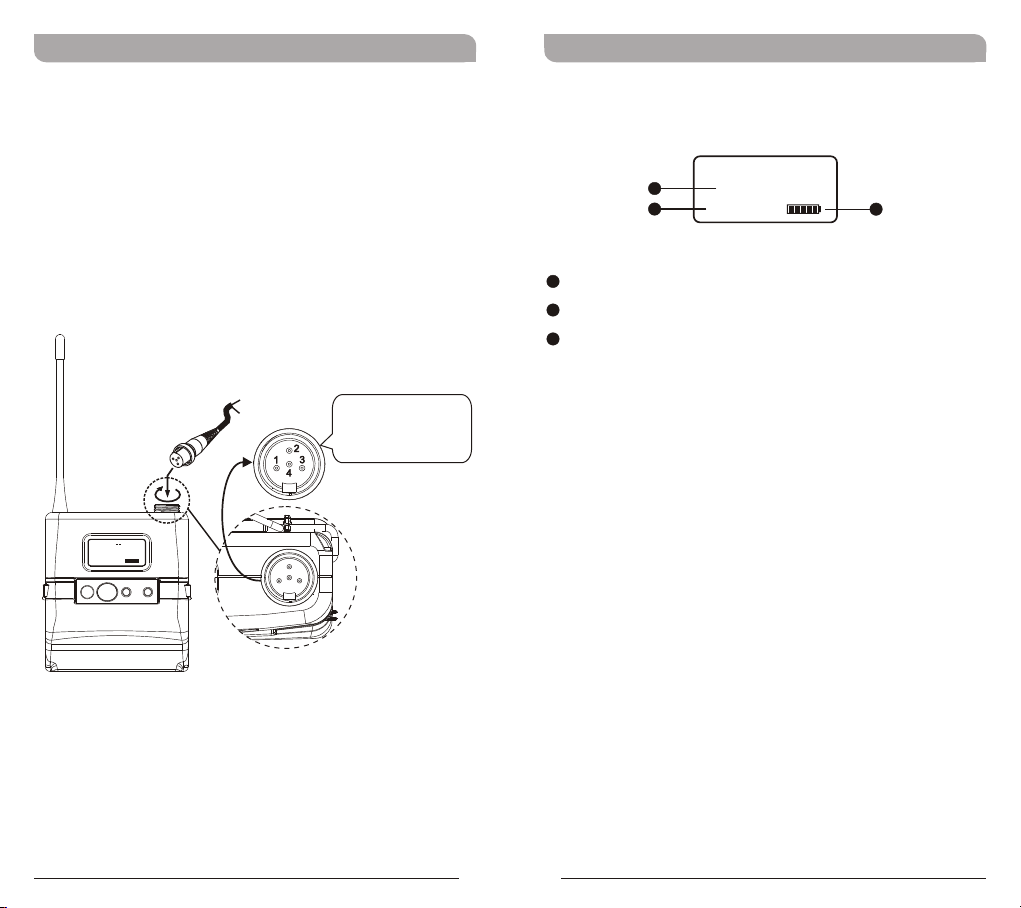

The ridge on the connector must align and match the indentation on the socket when inserting for a proper fit.

LCD Display Screen

1414

1515

1414

LCD Screen

1515

AF (audio) MUTE

1616

Transmitter Battery Meter

AF MUTE

BAND

7UA

1616

(Figure 2)

Page 6

Wideband Bodypack Transmitter Wideband Bodypack Transmitter

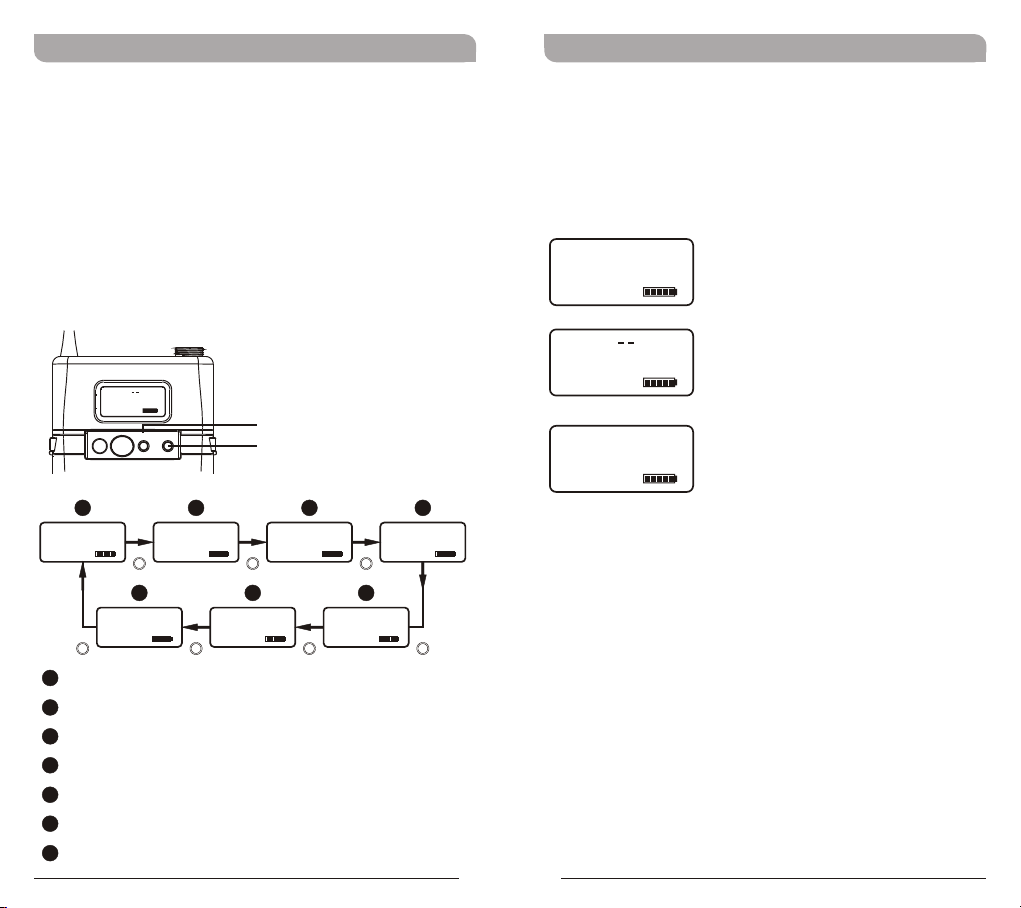

Transmitter Parameters

MODE button

Press “MODE” button to access one of the six parameters below.

SET button

Press “SET” button then the changeable functions will twinkle. Change to the desired parameters during the above twinkle by pressing “SET” button.

GROUP CHAN

01 01

MODE SET

AF GAIN

0 dB

MODE MODE

FF EE

MUTE MODE

MANUAL

MODE

RF POWER

RF-LOW

BAND

7UA

AA DDBB

GROUP CHAN

01 01

SET LOCK

UNLOCK

SET

MODEON

FREQUENCY

775.275MHz

MODE

! Frequency Band, Group & Channel and Frequency

are factory pre-set, thus, its parameter values are displayed after it is ACT synced. Values cannot be changed.

BAND

7UA

GROUP CHAN

01 01

FREQUENCY

775.275MHz

MODEMODE MODE

( )Frequency Band

( )Group and Channel

( )Frequency

Group and Channel

Frequency

Sensitivity Level

RF Output Power

Frequency Band

MUTE Mode

Parameters Lock & Unlock Status

Page 7

Wideband Bodypack Transmitter Wideband Bodypack Transmitter

Setting Input Gain Level

SET

AF GAIN

6 dB

SET

AF GAIN AF GAIN

0 dB -6 dB

SET

AF GAIN

-18 dB

SET

AF GAIN

12 dB

SET

AF GAIN

6 dB

SET

AF GAIN

-12 dB

SET

AF GAIN

-6 dB

SET

! Selectable between 12dB to -18dB with

6dB parameter up or down selection.

! Press MODE button until mode

appears.

! Press SET button once to activate function.

! Press SET button to select the desired sensitivity

level.

! Press MODE button to confirm and save the

change.

! The higher the sensitivity level, the lower the

dynamic range of input signals. Meanwhile noise will increase, and the feedback problem will be getting more serious.

NOTE: Guitar setting is recommended at -12dB level.

AF GAIN

0 dB

AF GAIN

-12 dB

Setting RF Output Power

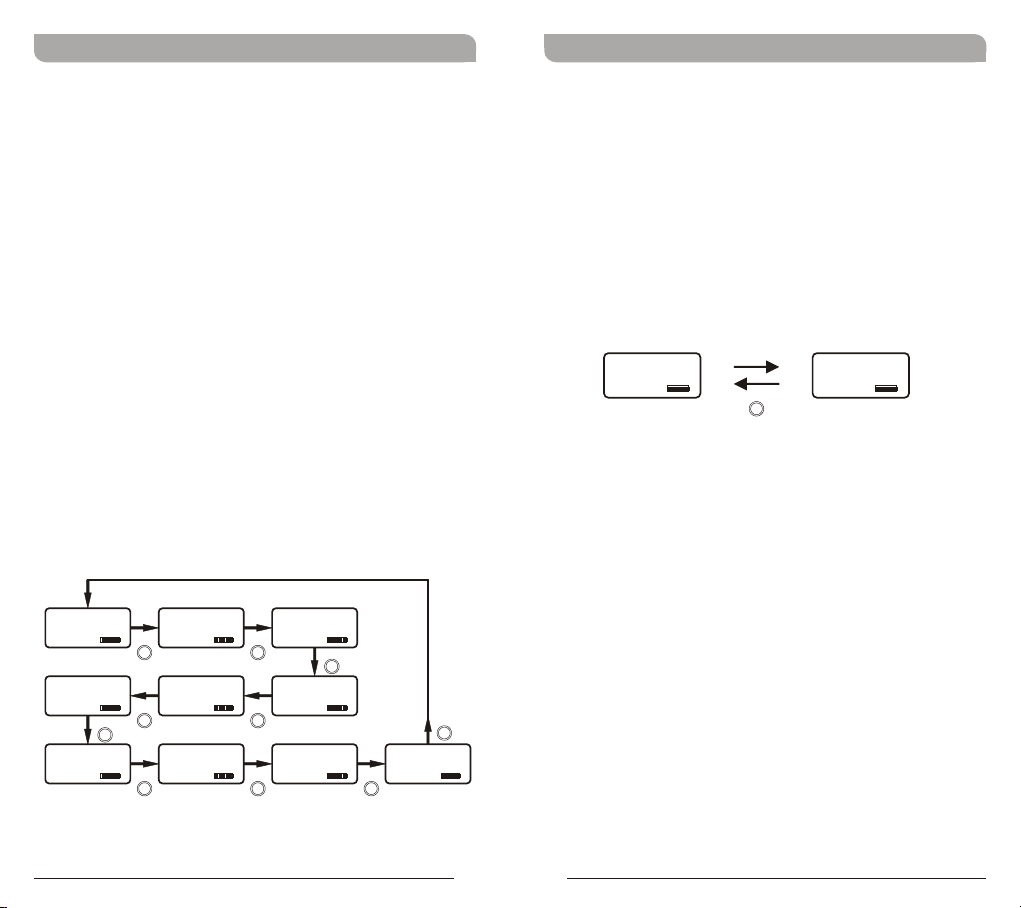

! 2 RF Output Power Levels: RF-LOW and RF-HI.

! Press MODE button until RF POWER mode

appears.

! Press SET button once to activate function.

! Press SET button to select the desired RF output

power.

! Press MODE button to confirm and save the

change.

RF POWER

RF-LOW

SET

RF POWER

RF-HI

Page 8

Wideband Bodypack Transmitter Wideband Bodypack Transmitter

MUTE MODE

! MUTE MODE: Select from MANUAL and

DISABLE.

! Press MODE button until MUTE MODE appears.

Press SET button once, the LCD screen starts flashing to denote it is ready to accept mode changes. Press SET button to change between MANUAL and DISABLE in cycle. Press MODE button to confirm and save the change, or LCD will stop flashing after 5 seconds and parameter will be saved.

! MUTE button is operable when MUTE MODE is

set in MANUAL mode.

! MUTE button is not operable when MUTE MODE

is set in DISABLE mode.

MUTE MODE

MANUAL

SET

MUTE MODE

DISABLE

Setting LOCK

! Setting LOCK can be switched to LOCK or

UNLOCK mode.

! Press MODE button until SET LOCK mode

appears.

! Press SET button to select the desired parameter.

! Press MODE button to confirm and save the

change.

! Press SET button twice to remove the LOCK

function.

! The LOCK function will be removed automatically

when losing power.

! Mute function can still work properly when LOCK.

NOTE: Once locked, all 7 parameter values cannot be changed.

SET LOCK

LOCK

SET

MODE

SET LOCK

UNLOCK

RF POWER

RF-HI

RF POWER

SET

LOCKED

Page 9

Wideband Bodypack Transmitter Wideband Bodypack Transmitter

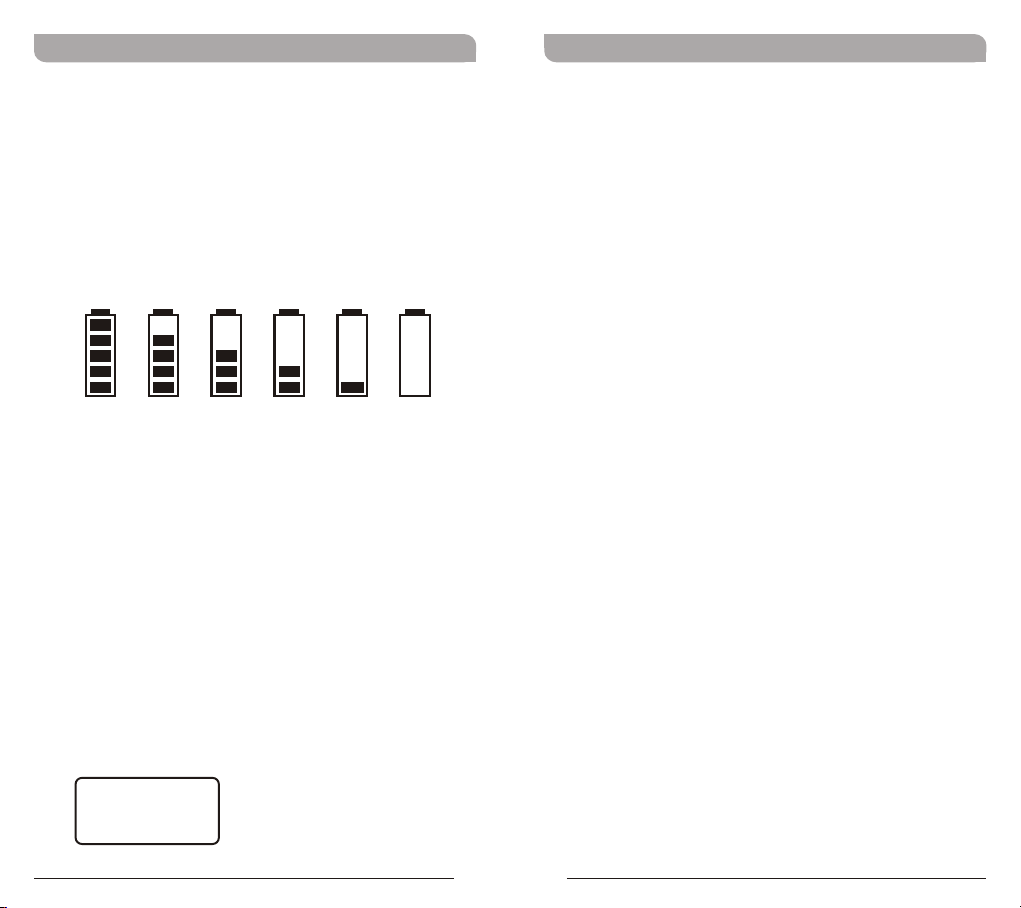

Battery Status

! Indicates the power remaining in the transmitter

battery. When the battery has less than 10% power remaining it must be replaced or recharged. If an under voltage condition continues, the LCD will show “OFF...” and the system will shut down to prevent being overly discharged.

10 0% 80 % 60 % 40 % 20 % 10 %

Power Button

! Press and hold for 2 seconds to power on & off.

“OFF...” - Power Off

! When the power switch is turned off, the LCD will

show “OFF...” (for Power Off) first and then the system will shut down and no further messages will be displayed.

ERR Message

! When “ERR” appears in the display it indicates

that an operational error has occurred. Please refer to the following codes to diagnose which error you are experiencing.

ERR no01 EEPROM is not being programmed or internal

data error.

ERR no02 For testing only.

ERR no03 The frequency you want to program is above

the switching bandwidth of the transmitter. Use a receiver with an appropriate frequency group. (At this time the microphone is still operating and the frequency remains unchanged. To clear the displayed "ERR" message, switch the handheld transmitter off and on again.)

ERR no04 The frequency you want to program is below

the switching bandwidth of the transmitter. Use a receiver with an appropriate frequency group. (At this time the microphone is still operating and the frequency remains unchanged. To clear the displayed “ERR” message, switch the handheld transmitter off and on again.)

! “Group” & “Channel” : When both the group

and channel numbers are displayed, it means that you are using the pre-programmed frequency of the receiver.

! “Channel” Only : If “Channel” only is displayed,

it means that you are using a frequency which is not pre-programmed.

OFF...

Page 10

Wideband Bodypack Transmitter Wideband Bodypack Transmitter

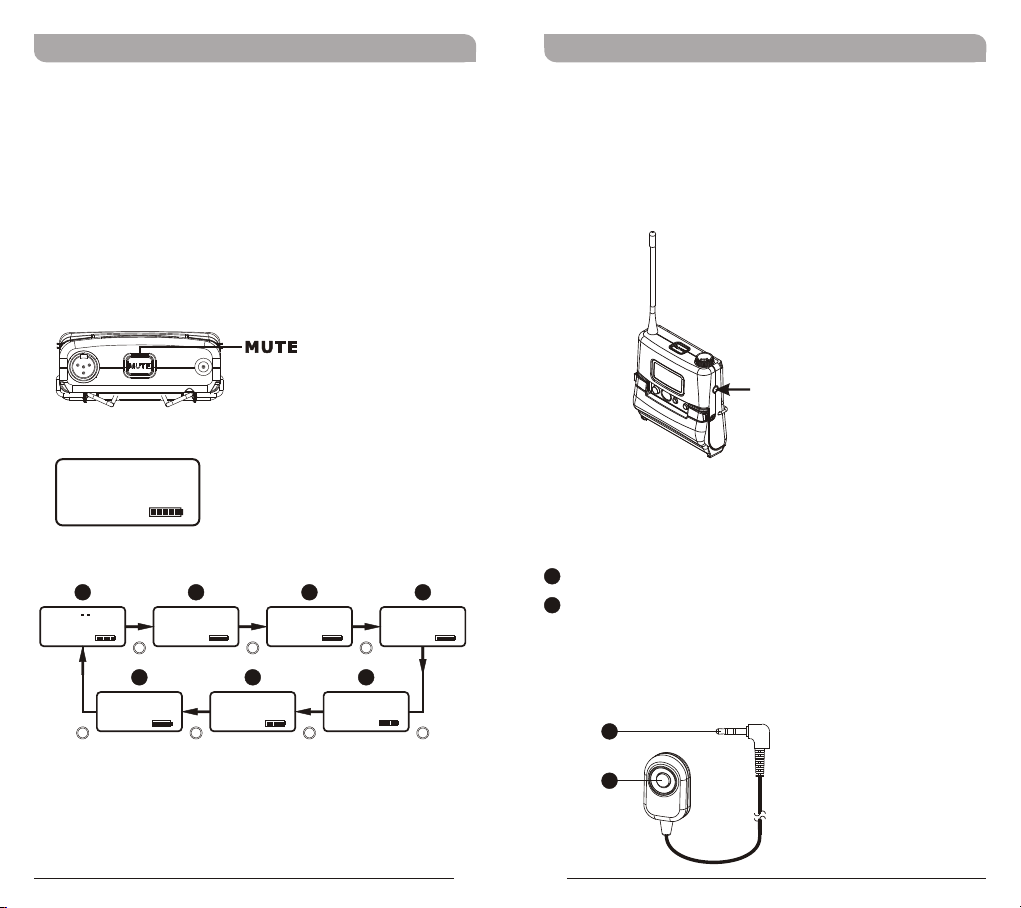

Setting MUTE

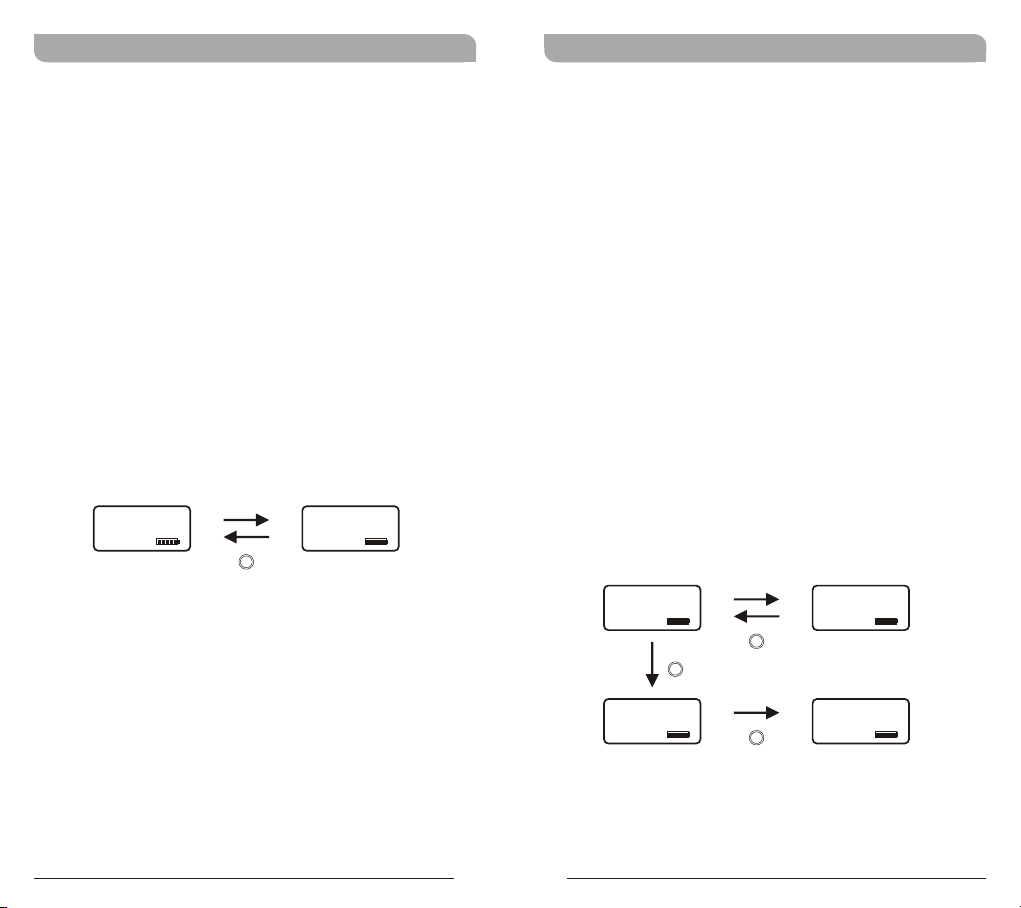

! Press MUTE button to enter MUTE mode.

! Under MUTE mode, press MUTE button to exit

MUTE mode.

! MUTE button is operable when SET LOCK mode

is LOCK.

! MUTE button is not operable when MUTE MODE

is set in DISABLE mode.

AF INPUT

MUTE

AF MUTE

AA DDBB

GROUP CHAN

01 01

AF MUTE AF MUTE AF MUTE AF MUTE

AF MUTE AF MUTE AF MUTE

FREQUENCY

775.275MHz

MODE

SET LOCK

UNLOCK

MODE MODE

MUTE MODE

MANUAL

AF GAIN

0 dB

FF EE

BAND

7UA

MODE

RF POWER

RF-LOW

MODEMODE MODE

External Mute Connector

! External mute connector is a 3.5mm jack. When

an external mute switch cable, MJ-70 (optional) is connected, user can manually mute and un-mute the audio temporary.

External mute connector

MJ-70 External Mute Switch (optional)

1717

3.5mm jack.

1818

External mute switch on/off button.

NOTE: Plug in the device before power on the bodypack transmitter.

1717

1818

Page 11

Wideband Bodypack Transmitter Wideband Bodypack Transmitter

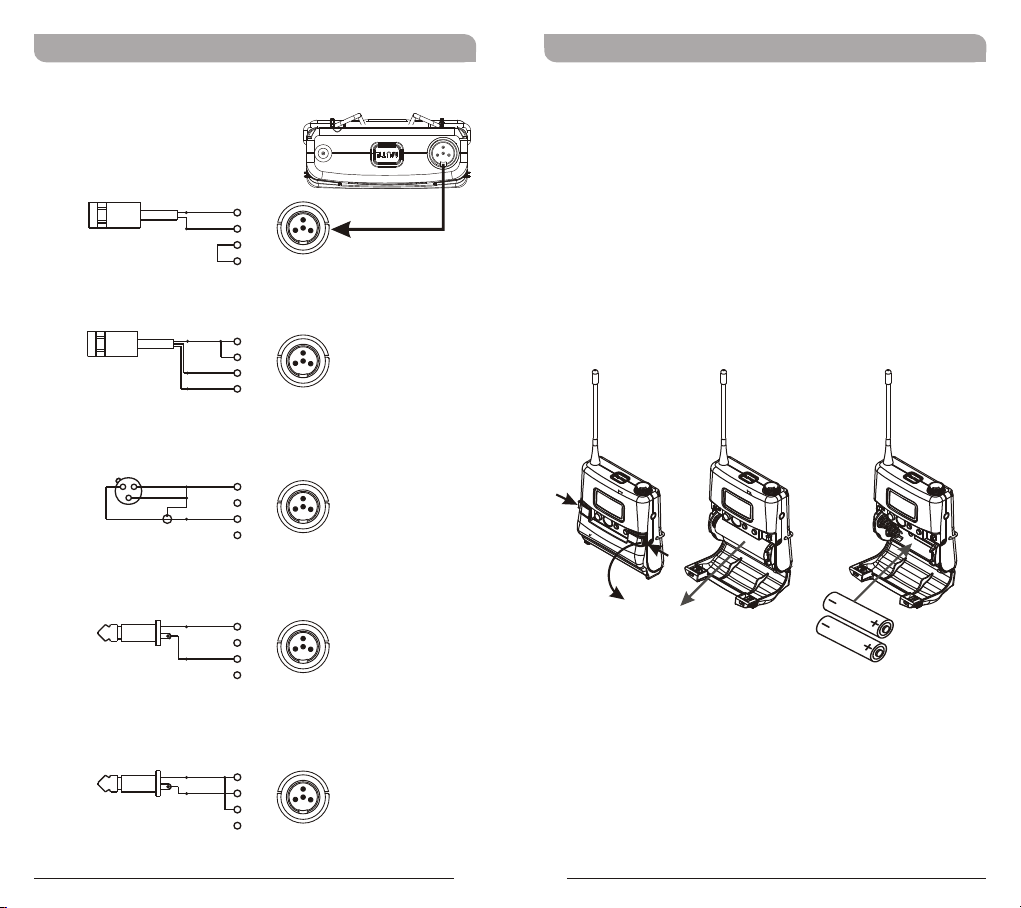

AF Input Connections

(1) 2-Wire Electret condenser microphone Capsule

SHIELD

AUDIO

(2) 3-Wire Electret condenser microphone Capsule

SHIELD

AUDIO

BIAS

(3) Dynamic Microphone

SHIELD

AUDIO

(4) Electric Guitar

SHIELD

AUDIO

Battery Removal and Installation

! Pushing down both snap locks on the sides to

open battery compartment cover. Take out the two batteries. (Figure 3)

! Insert two fresh AA batteries (alkaline type is

recommended) into the battery compartment according to the correct polarity (- and +) as shown in (Figure 4). Then close the battery compartment cover tightly.

(Figure 4)(Figure 3)

(5) Line-in (Impedance 8KΩ ATT. 10dB)

SHIELD

AUDIO

Caution:

Remove the batteries if unused for a long period of time to prevent battery leakage, corrosion and causes possible damage to electronics.

Page 12

Wideband Bodypack Transmitter Wideband Bodypack Transmitter

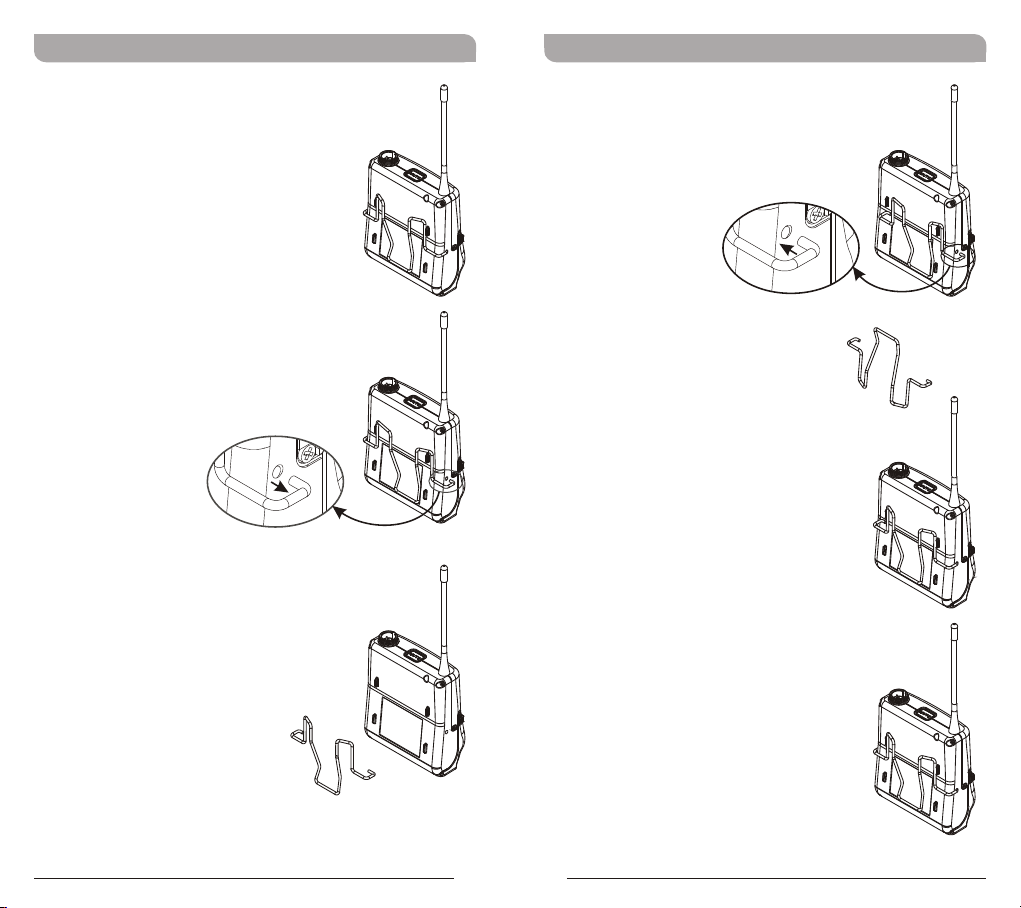

Disassemble the Belt Clip

! Turn the bodypack transmitter

to the back side like the right diagram.

! Pull open one side of the belt

clip and make it depart from the slot of the bodypack transmitter like the right diagram.

! Then the other side of the belt

clip can be departed from the other slot easily. The whole belt clip is departed from the bodypack transmitter completely like the right diagram.

Assemble the Belt Clip

! Turn the bodypack transmitter

to the back side. Put the belt clip to the right direction and aim the one side of the belt clip to the slot of the bodypack transmitter like the right diagram.

! For opposite wear of bodypack

transmitter, just rotate the belt clip by 180℃ like the right diagram.

! Put one side of the belt clip to

the slot of bodypack transmitter and fix it like the right diagram.

! Pull open the other side of the

belt clip and put it to the other slot of bodypack transmitter and fix it like the right diagram.

Page 13

Wideband Bodypack Transmitter Wideband Bodypack Transmitter

& IC - ID

FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

This device complied with FCC radiation exposure limits as set forth for an uncontrolled environment. This device should be installed and operated so that its antenna(s) are not co-located or operating in conjunction with any other antenna or transmitter

FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices).

Disposal

2005 -08-132005 -08-13

Dispose of any unusable devices or batteries responsibly and in accordance with any applicable regulations.

Disposing of used batteries with domestic waste is to be avoided!

Batteries / NiCad cells often contain heavy metals such as cadmium(Cd), mercury(Hg) and lead(Pb) that makes them unsuitable for disposal with domestic waste. You may return spent batteries/ accumulators free of charge to recycling centres or anywhere else batteries/accumulators are sold.

By doing so, you contribute to the conservation of our environment!

IC This device complies with Industry Canada’s RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage; (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
