ACT-31T
2CE347E
Bodypack Transmitter 漀 渀 攀
User Guide
All rights reserved. Do not copy or forward without prior approvals MIPRO.
Specifications and design subject to change without notice. MN 013/09
Page 2
! IMPORTANT SAFETY INSTRUCTIONS !
2005 -08-1 3
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance
with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat
registers, stoves,
that produce heat.
9. Do not defeat the safety purpose of the polarised or ground
plug: A polarised plug has two blades with one wider than
the other. The wide blade is provided for your safety. When
the provided plug does not fit into your outlet,
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched
particularly at plug, convenience receptacles, and the point
where they exit from the apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with a cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has
been spilled or objects have
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
15. To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture.
16. Apparatus should not be exposed to dripping or splashing
objects filled with liquids, should be placed on the
and no
apparatus.
17. Use only with the battery which specified by manufacturer.
18. The power supply cord set is to be the main disconnected
device.
or other apparatus (including amplifiers)
consult an
injury from tip-over.
fallen into the apparatus, the
WARNING
1. FOR OUTDOOR USE:
To reduce the risk of fire or electric shock, do not expose
this apparatus to
2. UNDER WET LOCATION:
Apparatus should not be exposed to dripping or splashing
and no objects filled with liquids, such as vases should be
placed on the apparatus.
3. SERVICE INSTRUCTIONS:
CAUTION - These servicing instructions are for use by
qualified service personnel only. To reduce the risk of
electric
contained in the operating instructions unless you are
qualified to do so.
This symbol indicates that dangerous voltage
constituting a risk of electric shock is present within
this unit.
This symbol indicates that there are important
operating and maintenance instructions in the
literature accompanying this unit.
Disposal
2005-08-13
rain or moisture.
shock, do not perform any servicing other than that
Dispose of any unusable devices or batteries
responsibly and in accordance with any applicable
regulations.
Disposing of used batteries with domestic waste is
to be avoided!
Batteries / NiCad cells often
contain heavy metals
such as cadmium(Cd), mercury(Hg) and lead(Pb)
that makes them unsuitable for disposal with
domestic waste. You may return spent batteries/
accumulators free of charge to recycling centres or
anywhere else batteries/accumulators are sold.
By doing so, you contribute to the conservation of
our environment!
Page 3
Bodypack Transmitter Bodypack Transmitter
2
1
2
3
4
5
8
12
13
1
6
7
9
11
10
Contents
1 Bodypack Controls and Indicators
3O
4 LCD
5T
12 Battery Status
13
15 AF
16 B
perating Instructions
Display Screen
ransmitter Parameters
MUTE Control Set-Up
Input Connections
attery Removal and Installation
Bodypack Controls and Indicators
CH GRP
10
11
CH GRP
07 03
07 03
12
13
Audio Input Connector: TA4F mini 4-pin
connector accepts any MIPRO lavalier,
instrument and headset microphones and
cables. (See 5 ways of connection on AF Input
Connections)
MUTE Button: To mute and un-mute the audio
signal temporary.
01
Page 4
4
5
6
7
8
9
10
11
12
13
3
Bodypack Transmitter Bodypack Transmitter
Antenna: Flexible 1/4 wave transmitting
antenna.
Transmitter Housing: Holds PCB board and
wires.
LCD Panel: Display transmitter parameters.
SET Button: Parameter selection button.
MODE Button: Allows access to 7 available
functions displaying in LCD panel.
Power Button: Press and hold 2 seconds to
power ON or OFF.
ACT IR Port: Align and syncs
the transmitter
and receiver frequency automatically.
10
Battery Compartment: Holds 2 'AA' batteries.
11
Battery Cover: Hinged cover opens to provide
access to 2 'AA' batteries.
12
External Mute Connector: When an external
mute switch cable, MJ-70 (optional) is
connected, user can manually mute and unmute the audio temporary.
13
Belt Clip: Detachable and reversible
design
allows the transmitter to be worn on a belt,
waistband, or guitar strap (.Figure 1)
Operating Instructions
! The audio gain level is factory preset at
Microphone-Low level. Guitar setting is
recommended at LINE level.
!!Insert the lavalier, headset microphone or
instrument cable into the audio input connector
before power ON the transmitter.
Tighten the connector screw clockwise direction
as shown in (Figure 2) for a secured fit.
Capsule Connector
CH GRP
CH GRP
07 03
07 03
Headset
Lavalier
The ridge on the
connector must align and
match the indentation on
the socket when inserting
for a proper fit.
(Figure 2)
(Positive Wear)
(Figure 1)
(Opposite Wear)
23
Page 5
B
A
C
D
E
F
G
14
15
16
14
15
16
07 03
CH GRP
Bodypack Transmitter Bodypack Transmitter
G
E
A
D
B
C
F

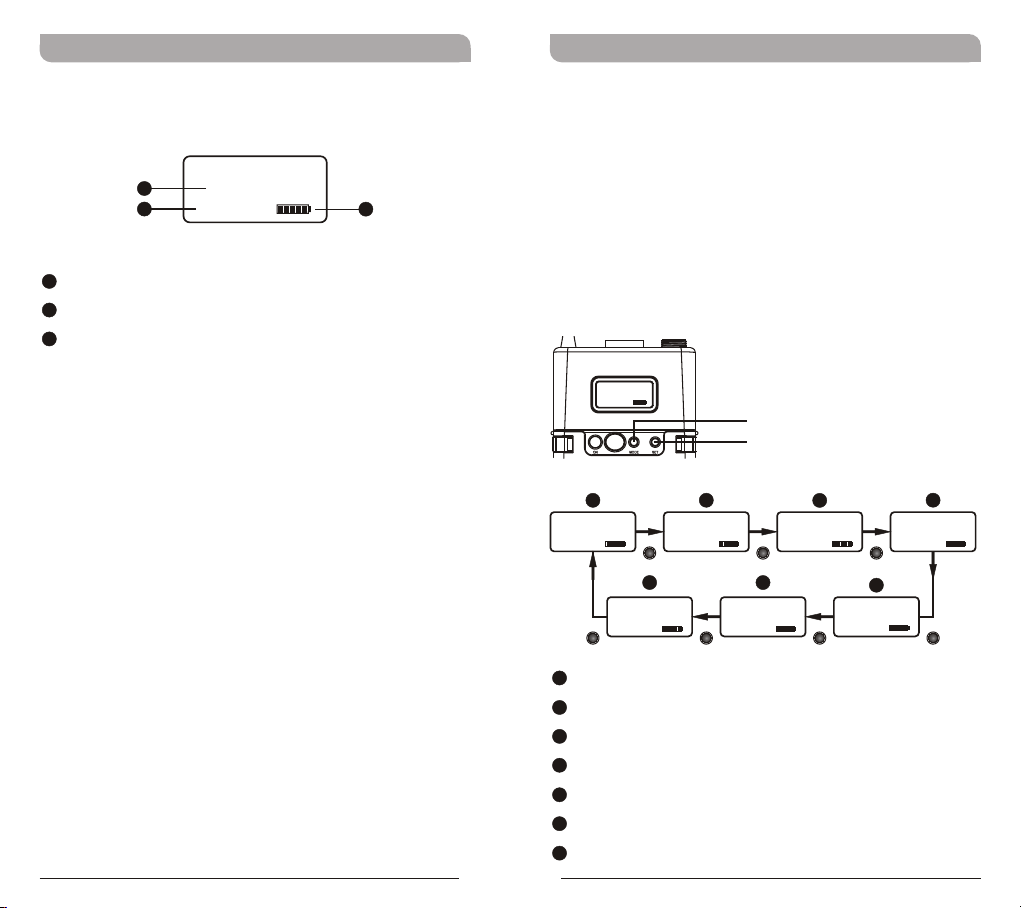

LCD Display Screen Transmitter Parameters
!!MODE button
Press “MODE” button to access one of the
7 parameters below.
SET button
Press “SET” button then the changeable
functions will twinkle. Change to the desired
parameters during the above twinkle by pressing
“SET” button.
MODE
SET
14
15
14
LCD Screen
15
AF (audio) MUTE
16
Transmitter Battery Meter
AF MUTE
BAND
8A
16
GRP CH
07 03
UNLOCK
Group and Channel
Frequency
Sensitivity Level
RF Output Power
Frequency Band
MUTE Mode
45
Parameters Lock & Unlock Status
MODE
SET LOCK
FREQUENCY
802.000
MHz
MUTE MODE
MANUAL
AF GAIN
MIC-L
MODE MODE
MODE
RF POWER
RF-LOW
BAND
8A
MODEMODE MODE
Page 6
Bodypack Transmitter Bodypack Transmitter
! Frequency Band, Group & Channel and
Frequency are factory pre-set, thus, its
parameter values are displayed after it is ACT
synced. Values cannot be changed.
BAND
8A
CH GRP
07 03
FREQUENCY
802.000MHz
()Frequency Band
()Group and Channel
()Frequency
Setting Input Sensitivity Level
! 4 Selectable Sensitivity Levels:
LINE、
(MICROPHONE-LOW)、
MIC-L
MIC-M (MICROPHONE-MID)、
MIC-H (MICROPHONE-HIGH).
! Press MODE button until mode
appears.
! Press SET button once to activate function.
! Press SET button to select the desired
sensitivity
level.
! Press MODE button to confirm and save the
change.
! The higher the sensitivity level, the lower the
dynamic range of input signals. Meanwhile noise
will increase, and the feedback problem will be
getting more serious.
NOTE: Guitar setting is recommended at LINE
level.
AF GAIN
AF GAIN
LINE
67
AF GAIN
MIC-L
SET
AF GAIN
MIC-M
SET SET
SET
AF GAIN
MIC-H
Page 7
Bodypack Transmitter Bodypack Transmitter

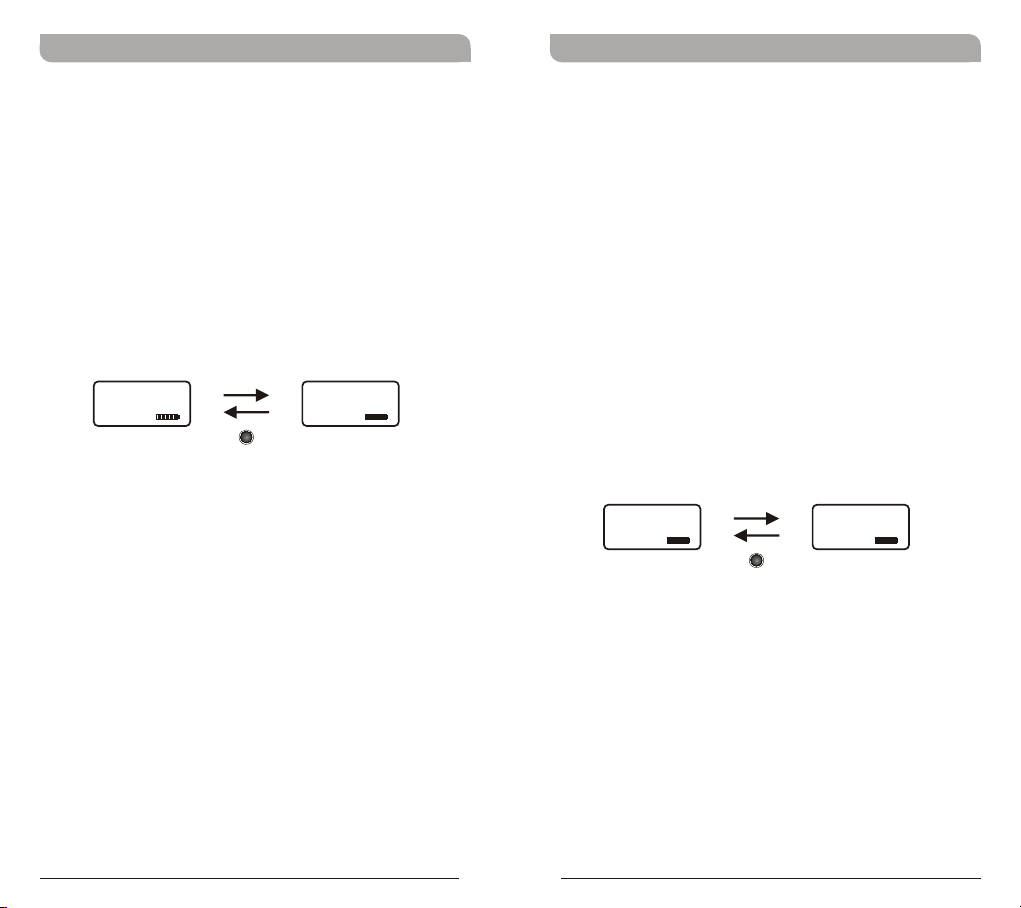

Setting RF Output Power
! 2 RF Output Power Levels: RF-LOW and RF-HI.
! Press MODE button until RF POWER LOW or
RF POWER HIGH mode appears.
! Press SET button once to activate function.
! Press SET button to select the desired RF output
power.
! Press MODE button to confirm and save the
change.
RF POWER
RF-HI
SET
RF POWER
RF-LOW
MUTE MODE
! MUTE MODE: Select from MANUAL and
DISABLE.
! Press MODE button until MUTE MODE appears.
Press SET button once, the LCD screen starts
flashing to denote it is ready to accept mode
changes. Press SET button to change between
MANUAL and DISABLE in cycle. Press MODE
button to confirm
will stop flashing after 5 seconds and parameter
will be saved.
! MUTE button is operable when MUTE MODE is
set in MANUAL mode.
! MUTE button is not operable when MUTE
MODE is set in DISABLE mode.
MUTE MODE
MANUAL
and save the change, or LCD
MUTE MODE
DISABLE
SET
89
Page 8
Bodypack Transmitter Bodypack Transmitter

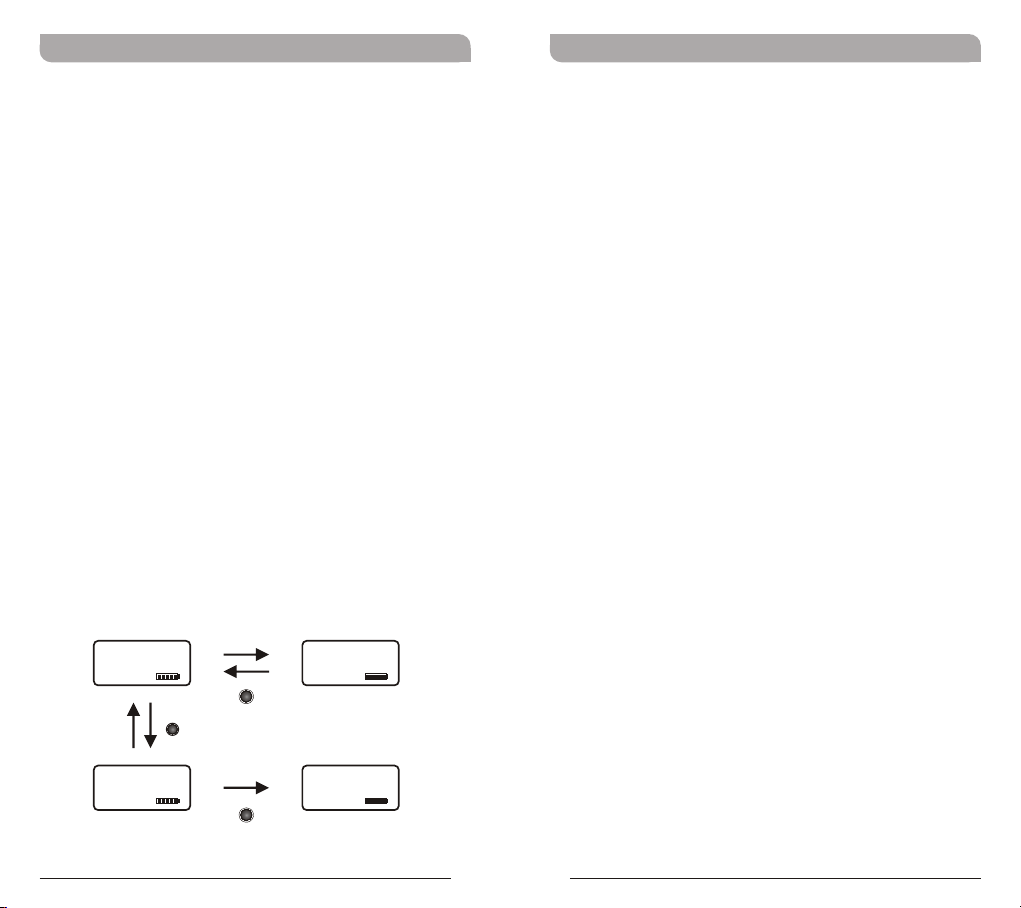

Setting LOCK
! Setting LOCK can be switched to LOCK or
UNLOCK mode.
! Press MODE button until SET LOCK mode
appears.
! Press SET button to select the desired
parameter.
! Press MODE button to confirm and save the
change.
! Press SET button twice to remove the LOCK
function.
! The LOCK function will be removed
when losing power.
! Mute function can still work properly when
LOCK.
NOTE: Once locked, all 7 parameter values
cannot be changed.
SET LOCK
LOCK
SET
MODE
automatically
SET LOCK
UNLOCK
ERR Message
! When “ERR” appears in the display it indicates
that an operational error has occurred. Please
refer to the following codes to diagnose which
error you are experiencing.
ERR no01 EEPROM is not being programmed or
internal data error.
ERR no02 For testing only.
ERR no03 The frequency you want to program is
above the switching bandwidth of the
transmitter. Use a receiver with an
appropriate frequency group. (At this time
the microphone is still operating and the
frequency remains unchanged.
the displayed "ERR" message, switch the
handheld transmitter off and on again.)
ERR no04 The frequency you want to program is
below the switching bandwidth of the
transmitter. Use a receiver with an
appropriate frequency group. (At this time
the microphone is still operating and the
frequency remains unchanged.
displayed “ERR” message, switch the
handheld transmitter off and on again.)
! “Group” & “Channel”: When both the group
and channel numbers are displayed, it means
that you are using the pre-programmed
frequency of the receiver.
To clear
To clear the
RF POWER
RF-HI
RF POWER
SET
LOCKED
! “Channel” Only: If “Channel” only is displayed,
it means that you are using a frequency which
is not pre-programmed.
10 11
Page 9
Bodypack Transmitter Bodypack Transmitter
G
E
A
D
B
C
F

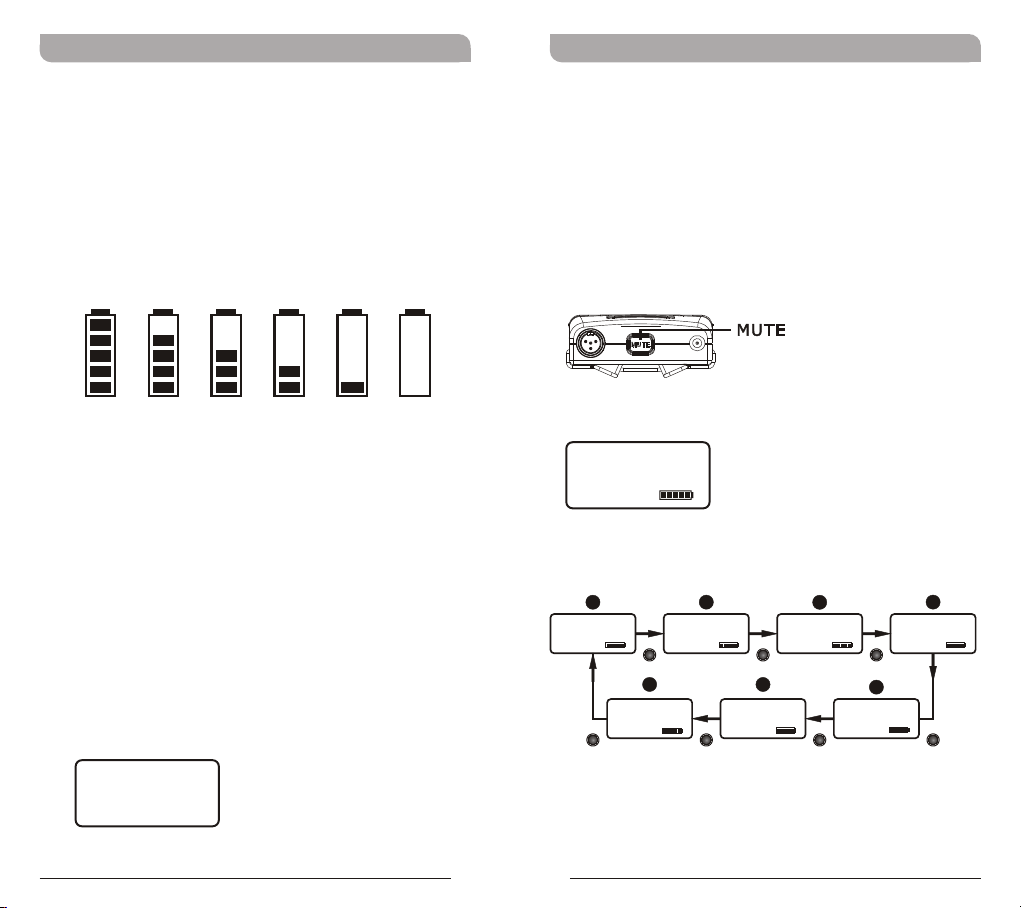

Battery Status
Indicates the power remaining in the transmitter
battery. When the battery has less than 10% power
remaining it must be replaced or recharged. If an
under voltage condition continues, the LCD will
show “OFF...” and the system will shut down to
prevent being overly discharged.
100% 80% 60% 40% 20% 10%
Power Button
“OFF...” - Power Off:
! When the power switch is turned off, the LCD
will show “OFF...” (for Power Off) first and then
the system will shut down and no further
messages will be displayed.
! Press and hold for 2 seconds to power on & off.

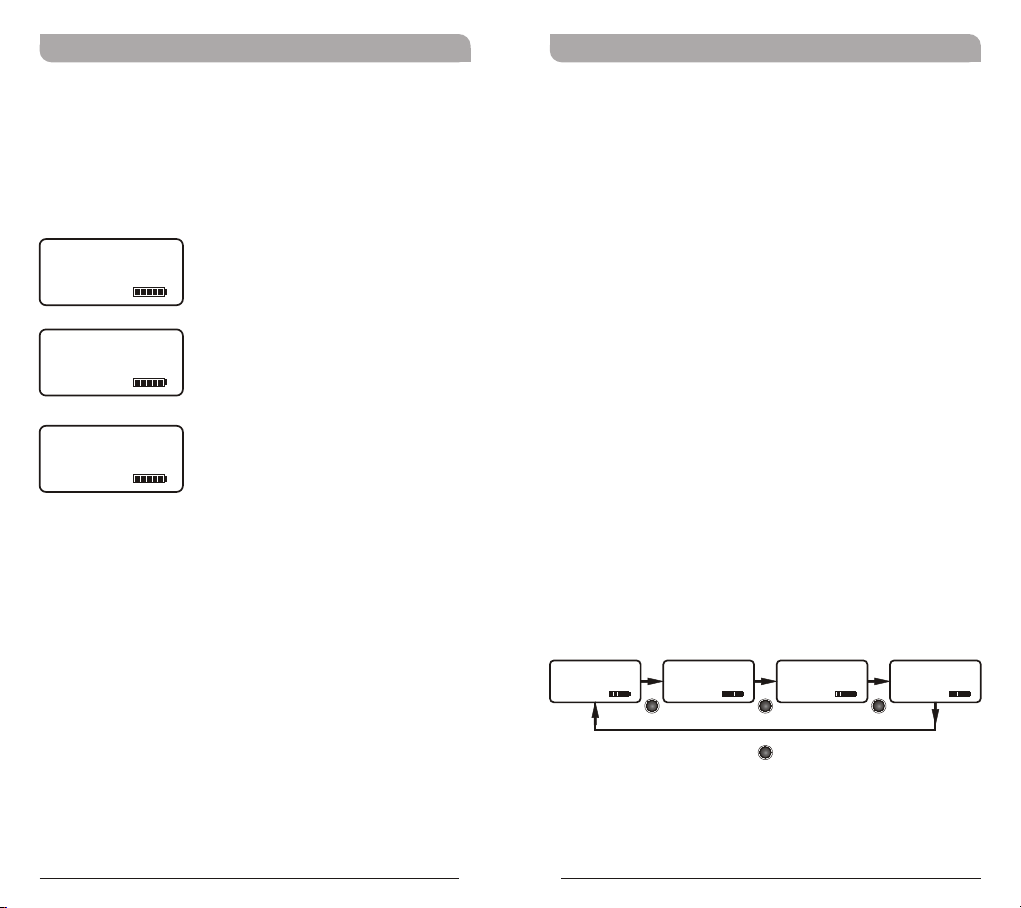

MUTE Control Set-Up
MUTE control enables audio to be muted or un-
muted temporarily.
!
Press MUTE button to mute audio temporarily.
Parameter values can be changed and ACT sync
activate during this MUTE mode.
Press MUTE button to un-mute.
!
AF INPUT
MUTE
AF MUTE
RF POWER
RF-LOW
MODEMODE MODE
FREQUENCY
802.000
MHz
MUTE MODE
MANUAL
AF GAIN
MIC-L
MODE MODE
MODE
BAND
8A
GRP CH
07 03
AF MUTE AF MUTE AF MUTE AF MUTE
MODE
SET LOCK
UNLOCK
AF MUTE AF MUTE AF MUTE
OFF...
12 13
Page 10
Bodypack Transmitter Bodypack Transmitter
17
18
17
18
External Mute Connector
! External mute connector is a 3.5mm jack. When
an external mute switch cable, MJ-70 (optional)
is connected, user can manually mute and unmute the audio temporary.
External mute connector
MJ-70 External Mute Switch (optional)
17
3.5mm jack.
18
External mute switch on/off button.
NOTE: Plug in the device before power on the
bodypack transmitter.

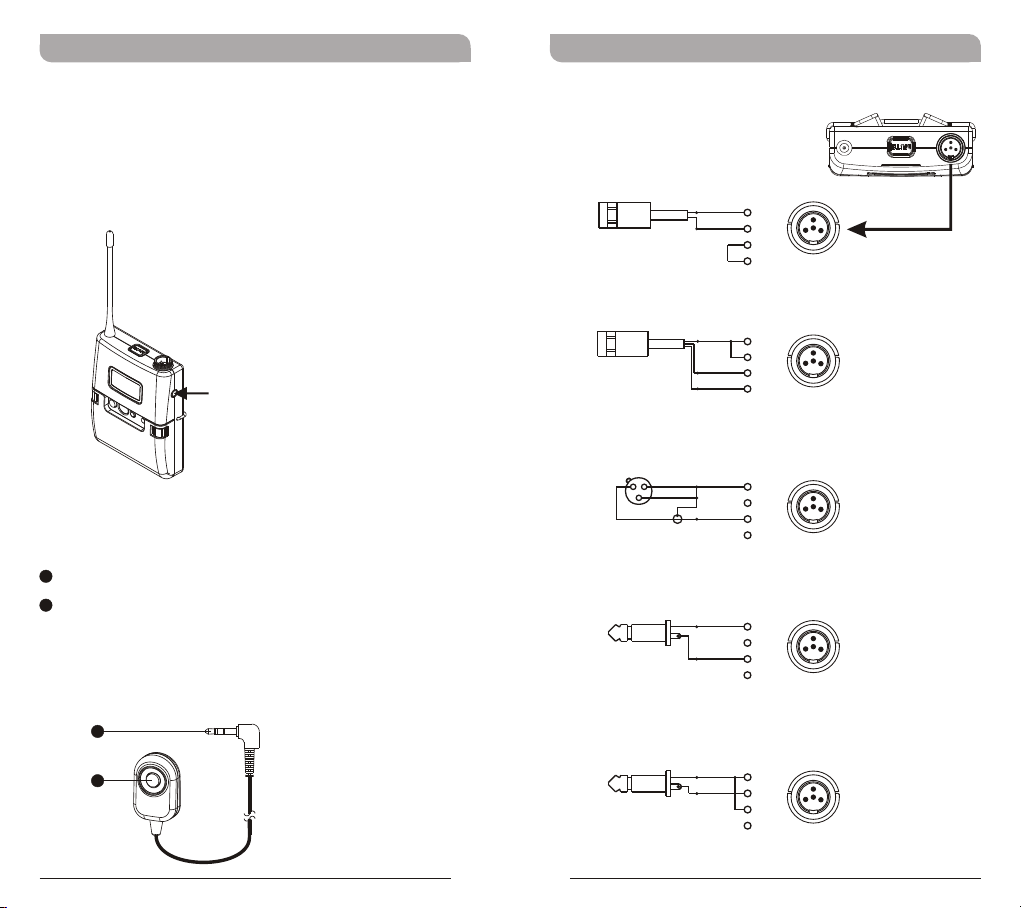

AF Input Connections
(1) 2-Wire Electret condenser
microphone Capsule
PIN
SHIELD
1
AUDIO
2
3
4
(2) 3-Wire Electret condenser microphone Capsule
PIN
SHIELD
1
2
AUDIO
3
BIAS
4
(3) Dynamic Microphone
PIN
2
3
SHIELD
1
AUDIO
1
2
3
4
(4) Electric Guitar
PIN
SHIELD
1
2
AUDIO
3
4
2
3
1
4
2
3
1
4
2
3
1
4
2
3
1
4
17
18
(5) Line-in (Impedance 8KΩ ATT. 10dB)
PIN
SHIELD
AUDIO
1
2
3
4
2
3
1
4
14 15
Page 11
Bodypack Transmitter Bodypack Transmitter

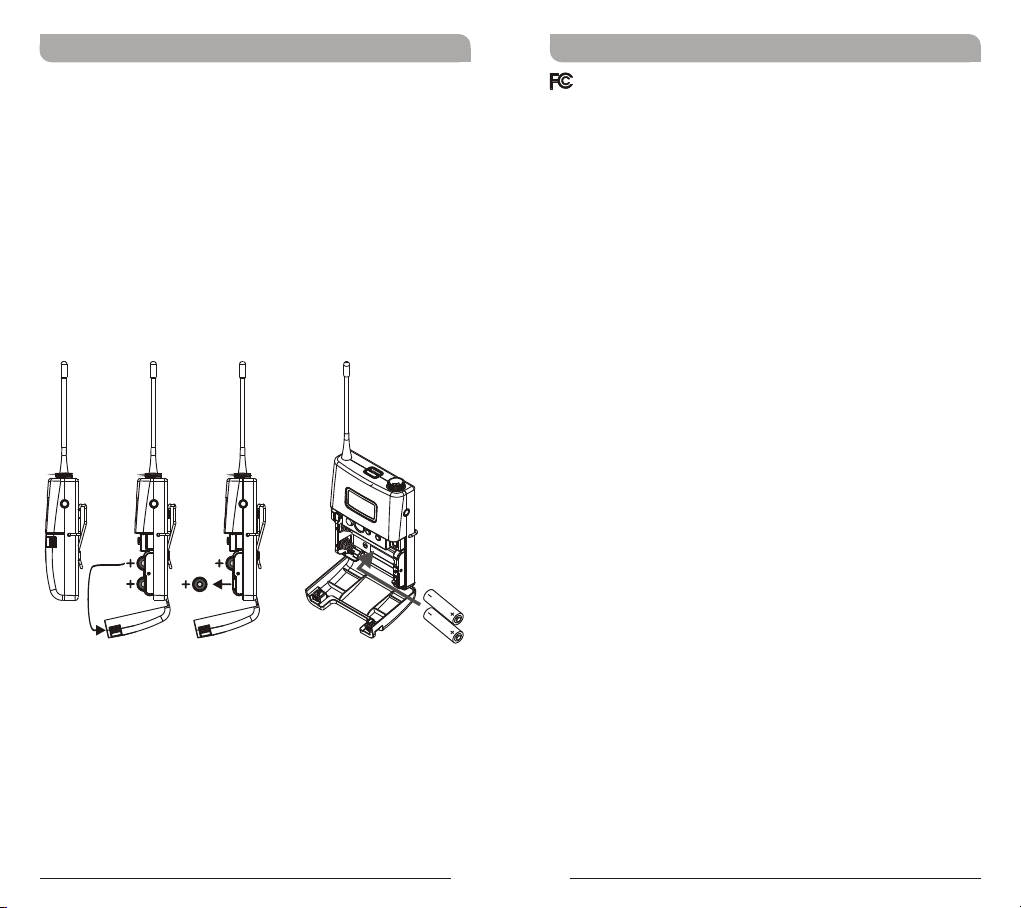

Battery Removal and Installation
Pushing down both snap locks on the sides to open
battery compartment cover. Take out the two
batteries. (Figure 3)
Insert two fresh AA batteries (alkaline type is
recommended) into the battery compartment
according to the correct polarity (- and +) as shown
in (Figure 4). Then close the battery
cover tightly.
compartment
& IC - ID
THIS DEVICE COMPLIES WITH PART 15 & 74 OF THE FCC RULES
AND RSS-123 ISSUE 2, RSS-210 ISSUE 8 OF CANADA.
OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) This device may not cause interference.
(2) This device must accept any interference, including
interference that may cause undesired operation of the
This equipment complies with FCC RF radiation
device.
exposure limits set forth for an uncontrolled environment.
Le présent appareil est conforme aux CNR d'Industrie
Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil
radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement.
doit accepter tout brouillage
(Figure 4)(Figure 3)
Caution:
Remove the batteries if unused for a long period of
time to prevent battery leakage, corrosion and
causes possible damage to electronics.
16 17
Page 12
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 & 74 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
. Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices).
Loading...
