ACT-71TC / ACT-72TC

Rechargeable Bodypack Transmitter

Page 2

Rechargeable Bodypack Transmitter

Contents

1 Bodypack Controls and Indicators

3 O

4 LCD

5 T

perating Instructions

Display Screen

ransmitter Parameters

11 Battery Status

13 Setting MUTE

15 AF

16 B

Input Connections

attery Removal and Installation

Bodypack Controls and Indicators

4 5

6 7 8 9

FREQ UENCY

718.275MHz

ON MODE

SET

Audio Input Connector: TA4F mini 4-pin connector accepts any MIPRO lavalier, instrument and headset microphones and cables. (See 5 ways of connection on AF Input Connections)

Page 3

MUTE Button: To mute and un-mute the audio signal temporary.

Antenna: Flexible 1/ 4 wave transmitting antenna.

Transmitter Housing: Holds PCB board and wires.

LCD Panel: Display transmitter parameters.

SET Button: Parameter selection button.

MODE Button: Allows access to available functions displaying in LCD panel.

ACT IR Port: Align and syncs the transmitter and receiver frequency automatically.

Power Button: Press and hold 2 seconds to power ON or OFF.

Battery Circuitry Protection Reset Button

Battery Compartment: Accommodates one 18500 rechargeable battery.

Battery Cover: Hinged cover opens to provide access to one 18500 rechargeable battery.

External Mute Connector: When an external mute switch cable, MJ-70 (optional) is connected , user can manually mute and un-mute the audio temporary.

Belt Clip: Detachable and reversible design allows the transmitter to be worn on a belt, waistband, or guitar strap ( .

Battery Charging Contact: Align contacts

Figure 1)

during charging.

Rechargeable Bodypack TransmitterRechargeable Bodypack Transmitter

(Positive Wear)

(Figure 1)

(Opposite Wear)

Operating Instructions

Insert the lavalier, headset microphone or

instrument cable into the audio input connector before power ON the transmitter.

Tighten the connector screw clockwise direction

as shown in (Figure 2) for a secured fit.

Capsule Connector Headset

FREQU ENCY

718.275MHz

ON MODE

Lavalier

SET

The ridge on the connector must align and match the indentation on the socket when inserting for a proper fit.

(Figure 2)

Page 4

Rechargeable Bodypack TransmitterRechargeable Bodypack Transmitter

LCD Display Screen

LCD Screen

AF (audio) MUTE

Transmitter Battery Meter

FREQUENCY

775.275MHz

AF MUTE

Transmitter Parameters

MODE button

Press “MODE” button to access one of the functions below.

SET button

Press “SET” button then the changeable functions will twinkle. Change to the desired parameters during the above twinkle by pressing “SET” button.

FREQU ENCY

718.275MHz

ON MODE

AF MUTE

UNLOCK

AF MUTE AF MUTE

SET

A B

GRP CH

01 01

SET LOCK

MODE SET

FREQUENCY

775.275MHz

AF MUTE AF MUTE

MUTE MODE

MANUAL

AF GAIN

0 dB

MODE MODEMODE

RF POWER

RF-LOW

MODEMODE MODE

AF MUTE

Group and Channel

Frequency

Sensitivity Level

RF Output Power

MUTE Mode

Parameters Lock & Unlock Status

Page 5

Rechargeable Bodypack TransmitterRechargeable Bodypack Transmitter

! Group & Channel and Frequency are factory pre-

set, thus, its parameter values are displayed after it is ACT synced. Values cannot be changed.

GRP CH

01 01

FREQUENCY

775.275MHz

( )Group and Channel

( )Frequency

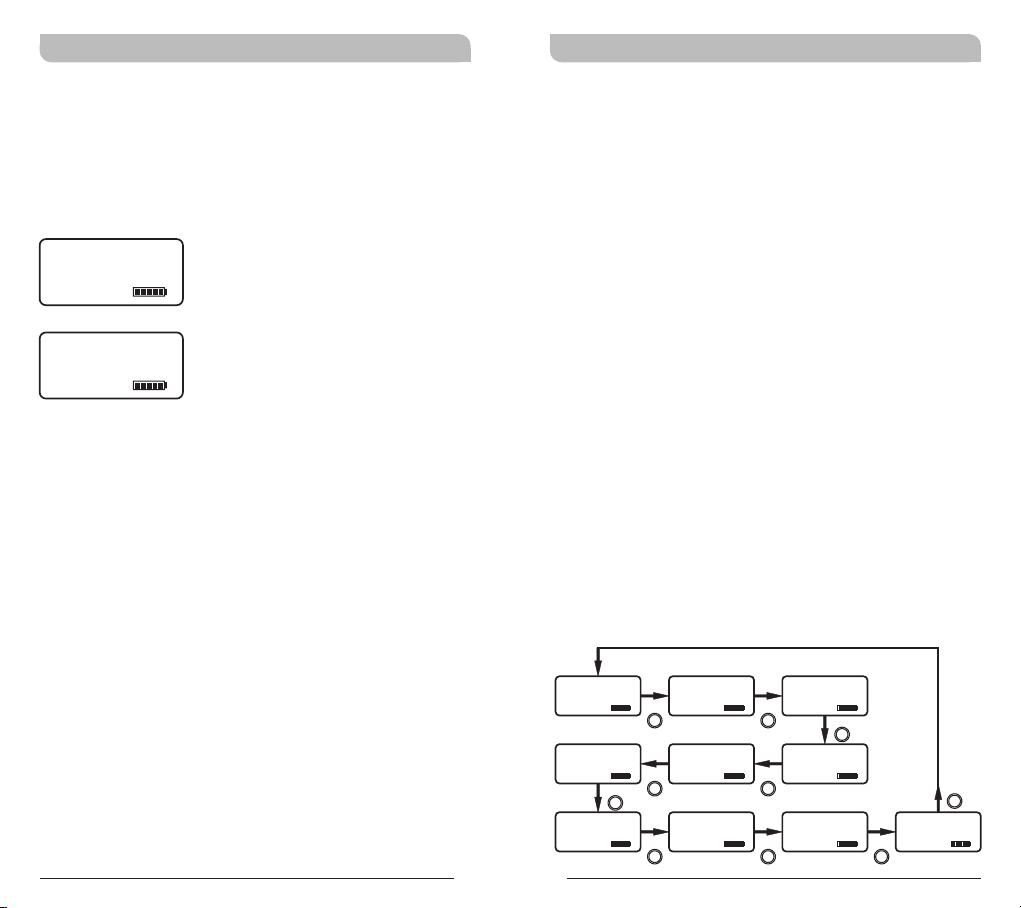

Setting Input Gain Level

! Selectable between 12dB to -18dB

with 6dB parameter up or down selection.

! Press MODE button until mode

appears.

! Press SET button once to activate function.

! Press SET button to select the desired

sensitivity level.

! Press MODE button to confirm and save the

change.

! The higher the sensitivity level, the lower the

dynamic range of input signals. Meanwhile noise will increase, and the feedback problem will be getting more serious.

NOTE:

! The audio gain level is factory preset at 0dB

! Guitar setting is recommended at -12dB

AF GAIN

level.

AF GAIN

0 dB

SET

AF GAIN

-12 dB

AF GAIN

6 dB

SET

AF GAIN AF GAIN

0 dB -6 dB

SET

AF GAIN

-18 dB

SET

AF GAIN

12 dB

SET

AF GAIN

6 dB

SET

AF GAIN

-12 dB

SET

AF GAIN

-6 dB

SET

Page 6

Rechargeable Bodypack TransmitterRechargeable Bodypack Transmitter

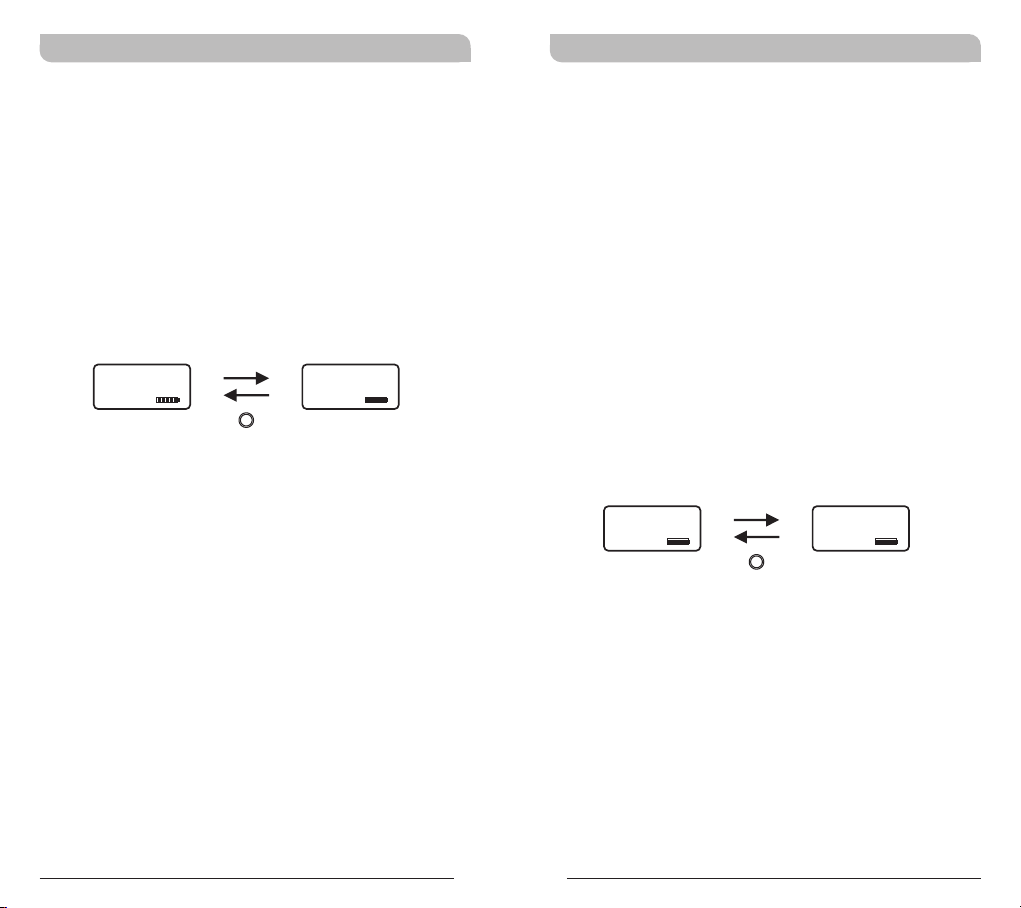

Setting RF Output Power

! 2 RF Output Power Levels: RF-LOW and RF-HI.

! Press MODE button until RF POWER mode

appears.

! Press SET button once to activate function.

! Press SET button to select the desired RF output

power.

! Press MODE button to confirm and save the

change.

RF POWER

RF-LOW

SET

RF POWER

RF-HI

MUTE MODE

! MUTE MODE: Select from MANUAL and

DISABLE.

! Press MODE button until MUTE MODE appears.

Press SET button once, the LCD screen starts flashing to denote it is ready to accept mode changes. Press SET button to change between MANUAL and DISABLE in cycle. Press MODE button to confirm and save the change, or LCD will stop flashing after 5 seconds and parameter will be saved.

! MUTE button is operable when MUTE MODE is

set in MANUAL mode.

! MUTE button is not operable when MUTE

MODE is set in DISABLE mode.

MUTE MODE

MANUAL

SET

MUTE MODE

DISABLE

Page 7

Rechargeable Bodypack TransmitterRechargeable Bodypack Transmitter

Setting LOCK

! Setting LOCK can be switched to LOCK or

UNLOCK mode.

! Press MODE button until SET LOCK mode

appears.

! Press SET button to select the desired

parameter.

! Press MODE button to confirm and save the

change.

! Press SET button twice to remove the LOCK

function.

! The LOCK function will be removed automatically

when losing power.

! Mute function can still work properly when

LOCK.

NOTE: Once locked, all 6 parameter values cannot be changed.

SET LOCK

LOCK

MODE

RF POWER

RF-HI

SET

SET LOCK

UNLOCK

RF POWER

LOCKED

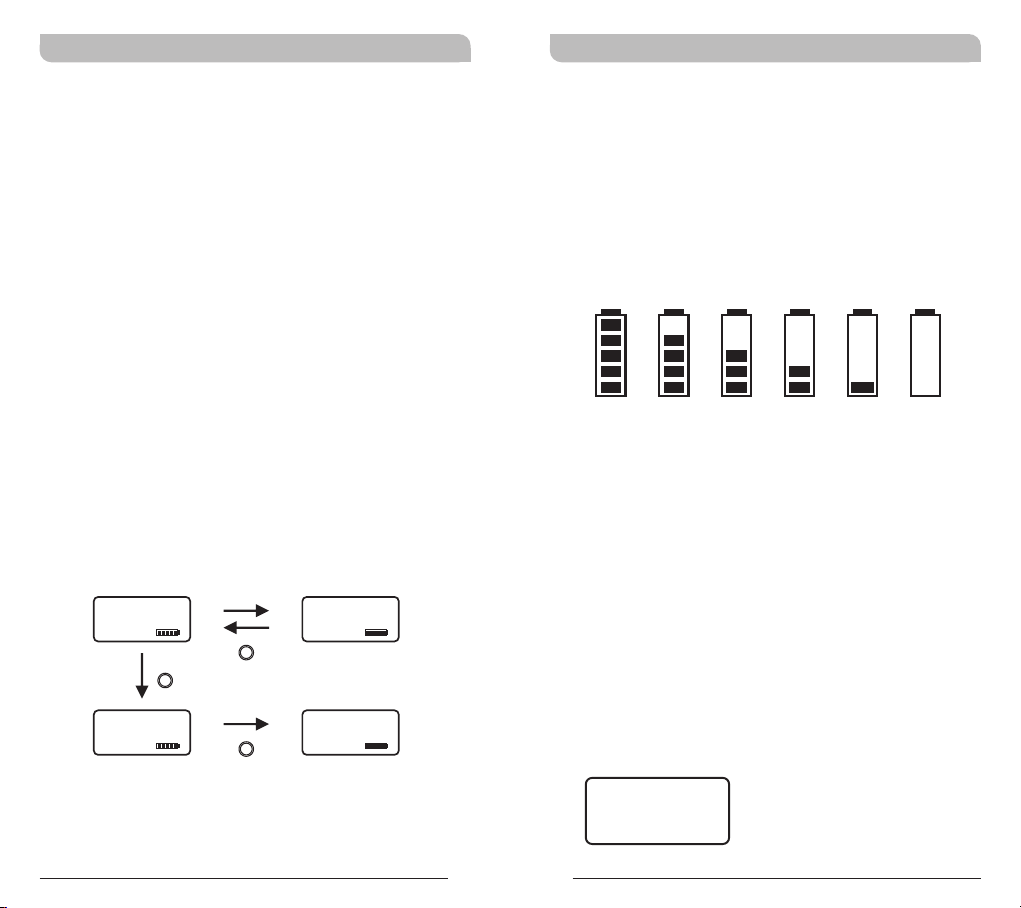

Battery Status

! Indicates the power remaining in the transmitter

battery. When the battery has less than 10% power remaining it must be replaced or recharged. If an under voltage condition continues, the LCD will show “OFF...” and the system will shut down to prevent being overly discharged.

10 0% 80 % 60 % 40 % 20 % 10 %

Power Button

! Press and hold for 2 seconds to power on & off.

“OFF...” - Power Off

! When the power switch is turned off, the LCD

will show “OFF...” (for Power Off) first and then the system will shut down and no further messages will be displayed.

OFF...

Page 8

Rechargeable Bodypack TransmitterRechargeable Bodypack Transmitter

ERR Message

! When “ERR” appears in the display it indicates

that an operational error has occurred. Please refer to the following codes to diagnose which error you are experiencing.

ERR no01 EEPROM is not being programmed or

internal data error.

ERR no02 For testing only.

ERR no03 The frequency you want to program is

above the switching bandwidth of the transmitter. Use a receiver with an appropriate frequency group. (At this time the microphone is still operating and the frequency remains unchanged. To clear the displayed "ERR" message, switch the handheld transmitter off and on again.)

ERR no04 The frequency you want to program is

below the switching bandwidth of the transmitter. Use a receiver with an appropriate frequency group. (At this time the microphone is still operating and the frequency remains unchanged. To clear the displayed “ERR” message, switch the handheld transmitter off and on again.)

! “Group” & “Channel” : When both the group

and channel numbers are displayed, it means that you are using the pre-programmed frequency of the receiver.

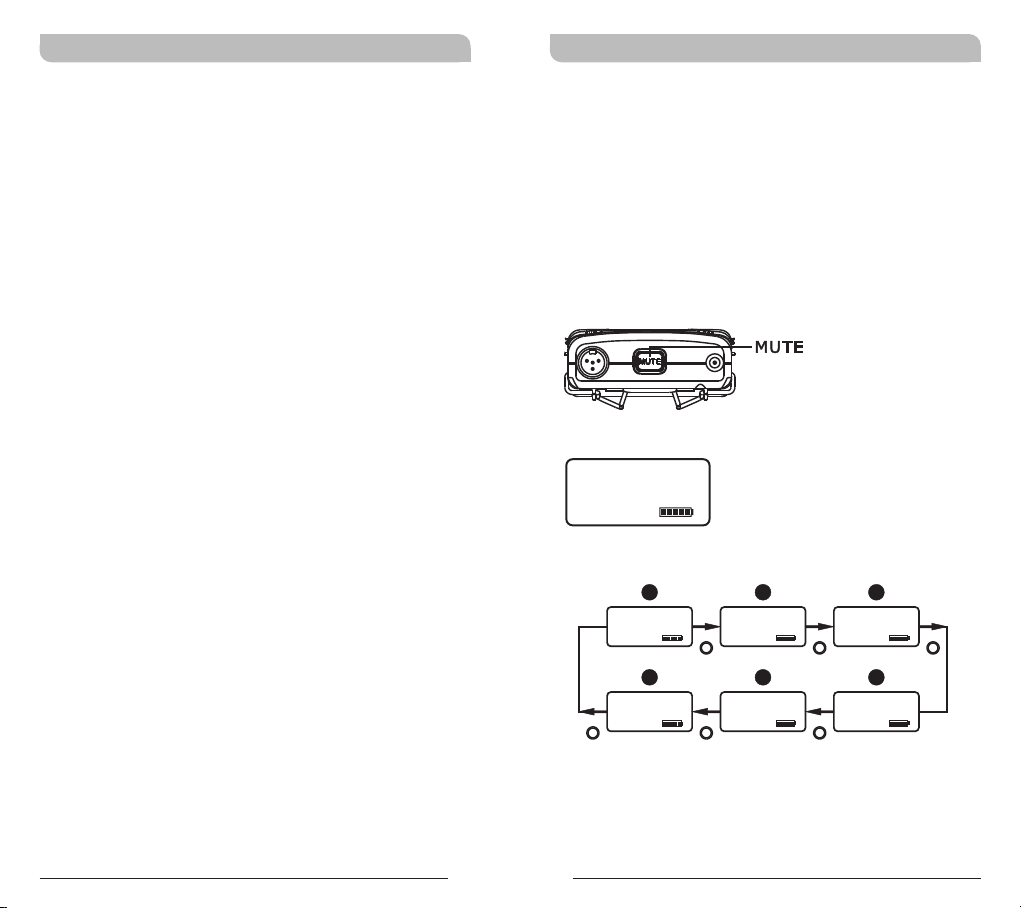

Setting MUTE

! Press MUTE button to enter MUTE mode.

! Under MUTE mode, press MUTE button to exit

MUTE mode.

! MUTE button is operable when SET LOCK mode

is LOCK.

! MUTE button is operable when MUTE MODE is

set in MANUAL mode.

AF INPUT

MUTE

AF MUTE

A B

GRP CH

01 01

AF MUTE

SET LOCK

UNLOCK

AF MUTE AF MUTE

FREQUENCY

775.275MHz

AF MUTE AF MUTE

MUTE MODE

MANUAL

MODE MODEMODE

MODEMODE MODE

AF GAIN

0 dB

RF POWER

RF-LOW

AF MUTE

! “Channel” Only : If “Channel” only is

displayed, it means that you are using a frequency which is not pre-programmed.

Page 9

Rechargeable Bodypack TransmitterRechargeable Bodypack Transmitter

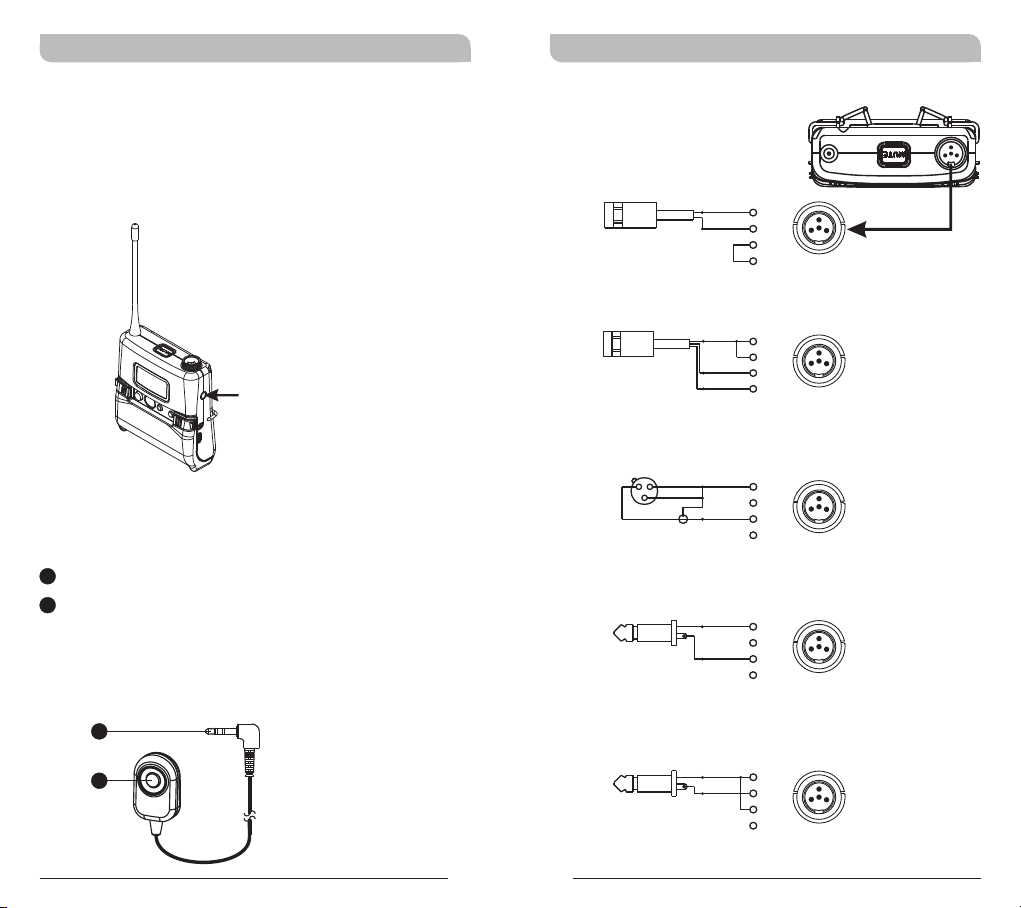

External Mute Connector

! External mute connector is a 3.5mm jack. When

an external mute switch cable, MJ-70 (optional) is connected, user can manually mute and unmute the audio temporary.

External mute connector

MJ-70 External Mute Switch (optional)

3.5mm jack.

External mute switch on/off button.

NOTE: Plug in the device before power on the bodypack transmitter.

AF Input Connections

(1) 2-Wire Electret condenser microphone Capsule

SHIELD

AUDIO

(2) 3-Wire Electret condenser microphone Capsule

SHIELD

AUDIO

BIAS

(3) Dynamic Microphone

SHIELD

AUDIO

(4) Electric Guitar

SHIELD

AUDIO

(5) Line-in (Impedance 8KΩ ATT. 10dB)

SHIELD

AUDIO

Page 10

Rechargeable Bodypack TransmitterRechargeable Bodypack Transmitter

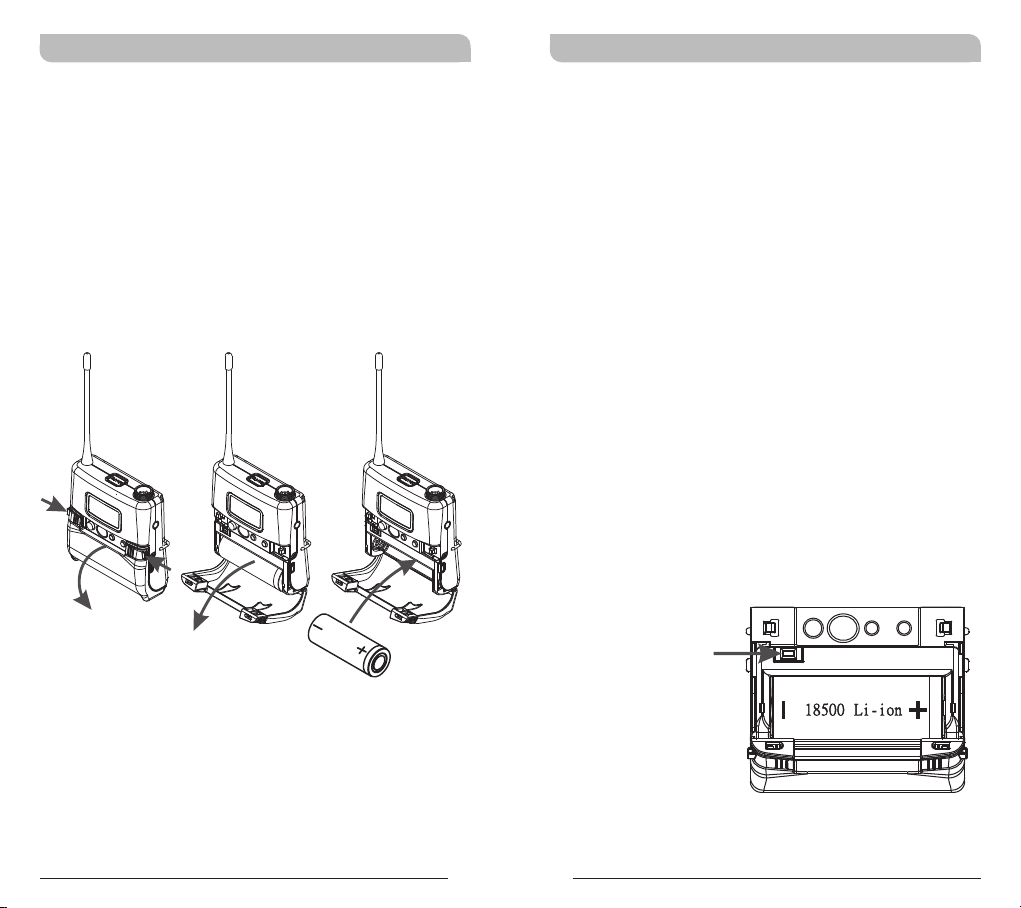

Battery Removal and Installation

! Pushing down both snap locks on the sides to

open battery compartment cover. Take out the two batteries. (Figure 3)

! Insert one charged 18500 rechargeable battery

into the battery compartment according to the correct polarity (- and +) as shown in (Figure 4) . Then close the battery compartment cover tightly.

(Figure 4)(Figure 3)

Caution

Note: Transmitter cannot be powered on with

charged battery.

Method 1:

a. Ensure battery is inserted correctly with + top

side.

b. If battery is inserted correctly it could be due

to self battery protection mechanism. Insert the transmitter into the charger to re-charge for 10-20 seconds to wake-up the battery. It should work.

c. If charger cannot be used, reverse the battery

insertion for 10-20 seconds, wake up the battery with correct polarity. It should work.

Method 2:

a. Power off the transmitter before open the

hinged cover. Press battery protection circuitry reset button once to wake-up battery. Power on the transmitter.

ON MODE

Battery Protection Circuitry Reset Button

SET

Caution

Remove the batteries if unused for a long period of time to prevent battery leakage, corrosion and causes possible damage to electronics.

Page 11

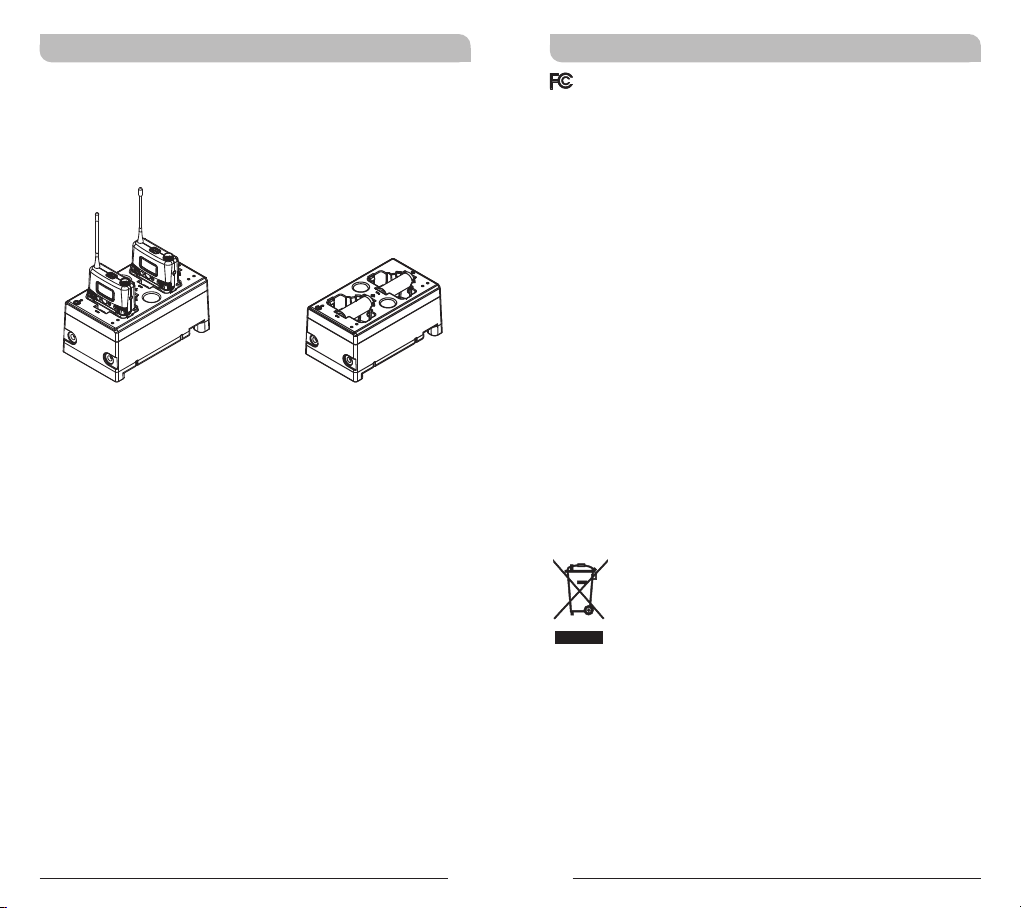

MP-80 Battery Charger (Optional)

MP-80 Charger charges both transmitters and 18500 rechargeable batteries.

Transmitters Charging

18500 Charging

Rechargeable Bodypack TransmitterRechargeable Bodypack Transmitter

& IC - ID

THIS DEVICE COMPLIES WITH PART74 OF THE FCC RULES AND RSS-123 ISSUE 2 OF CANADA. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) This device may not cause interference.

(2) This device must accept any interference, including interference that may cause undesired operation of the device. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio

exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :

(1) l'appareil ne doit pas produire de brouillage, et

(2) l'utilisateur de l'appareil doit accepter tout brouillage

radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

Notes

1. Refer to actual product in the event of product description discrepancy.

2. Frequency range and maximum deviation comply with the regulations of different countries.

Disposal

2005 -08- 13

Dispose of any unusable devices or batteries responsibly and in accordance with any applicable regulations.

Disposing of used batteries with domestic waste is to be avoided!

Batteries / NiCad cells often contain heavy metals such as cadmium(Cd), mercury(Hg) and lead(Pb) that makes them unsuitable for disposal with domestic waste. You may return spent batteries/ accumulators free of charge to recycling centres or anywhere else batteries/accumulators are sold.

By doing so, you contribute to the conservation of our environment!
