Contents

True Diversity Receivers

TRUE DIVERSITY RECEIVERS

2 MIPRO'S Proprietary “ACT" Function & Operation

24 Troubleshooting

Product Overview

Part Names and Functions

Receiver Installation

Receiver Operation Tips

Rackmount Installation for Receivers

Receiver VFD Interface

Computer Network Interface Operation

General Tips for Improving System Performance

PRODUCT OVERVIEW

The ACT-71/ACT-72/ACT-74 receivers feature a full-color Vacuum Fluorescent Display (VFD) which delivers a very bright light with exceptionally clear contrast. The VFD has a wide viewing angle and can be viewed clearly in both indoor and outdoor environments. Since it displays all pertinent parameters on the same screen, audio professionals can clearly monitor group, channel, frequency, name, RF & audio signal strength, diversity condition, transmitter battery level, squelch level and indication of interference at a glance.

True diversity technology ensures exceptionally long range for greatest RF reliability and freedom of movement, while the industry's first AutoScan & Automatic Channel Targeting (ACT) channel set-up technology and dual-squelch "PiloTone & NoiseLock" circuits minimize interference.

ACCESSORIES

The following accessories are included:

AC Power Cord x 1Antenna × 2 User Guide × 1

Phone Cable × 1

Audio Output Cable × 1

(ACT-71)

Rack-mount kit × 1 set

(ACT-71 )1 half-rack

Page 4

True Diversity ReceiversTrue Diversity Receivers

CHANNEL

ACT SET

GRP

NAME

ADD

FRQ

SET

MIPRO'S PROPRIETARY "ACT" FUNCTION & OPERATION

What is ACT?

! “ACT” stands for “Automatic Channel Targeting”. MIPRO was the first manufacturer in

the industry to use infrared (IR) technology to automatically synchronize the frequency selected on the receiver to any ACT handheld or bodypack transmitter on the same frequency band.

ACT Features

No manual frequency adjusting needed, unlike traditional transmitters.

Simple, fast and precise frequency set-up without mechanical errors.

Once the frequency has been set, the data is stored in memory, meaning that the frequency is set until it is changed by performing the “ACT” function again, even after powering off.

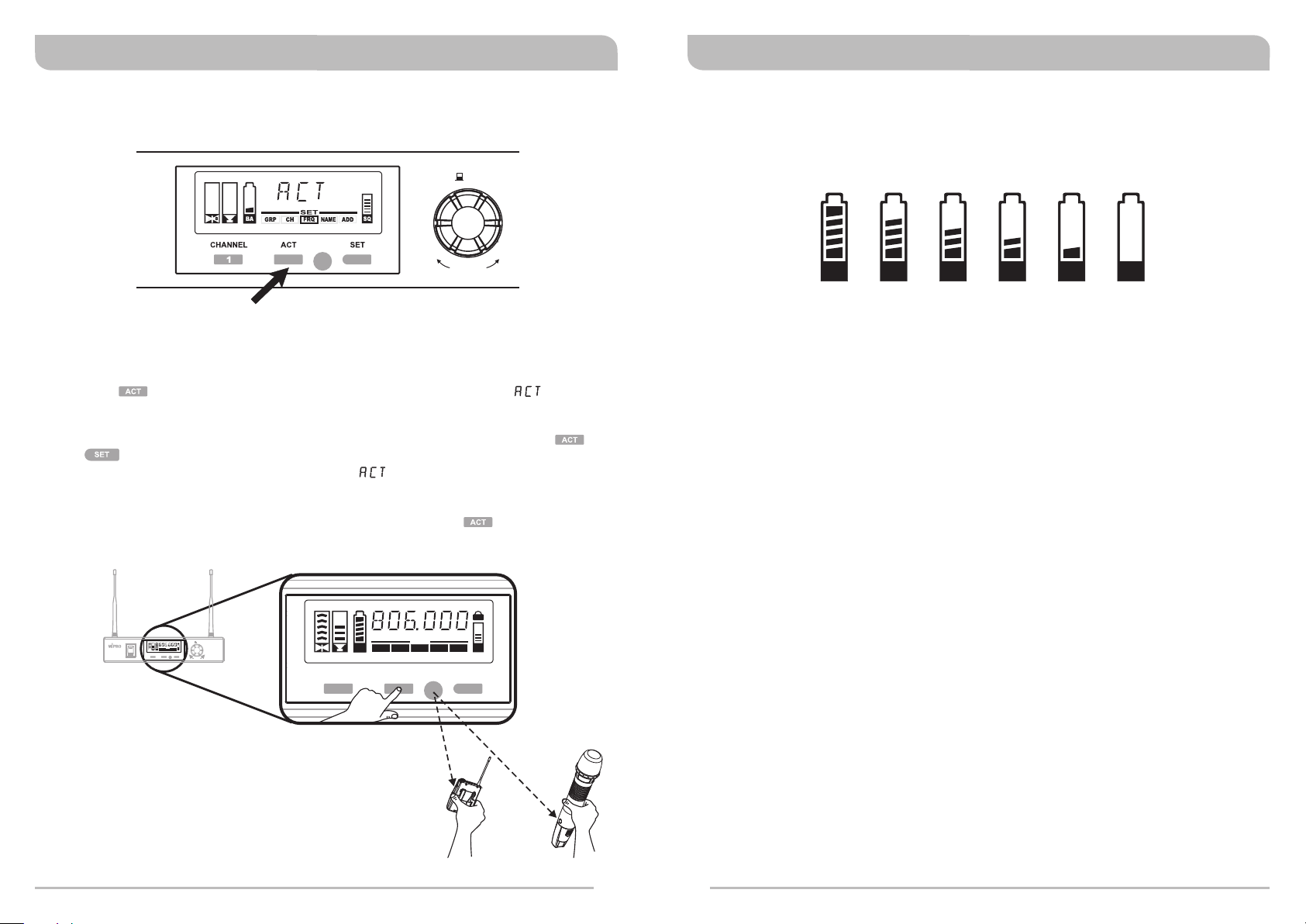

ACT Set-Up

Ensure a receiver channel is set up.

Press and release the “ACT” button to activate the ACT function. Once activated, the

word “ACT” appears. Turn the transmitter’s power on and locate the transmitter infrared (IR) port and bring

it within 30cm (12”) of the receiver's ACT port. The receiver's IR port is a round “window” located between the ACT & SET buttons. The transmitter IR port is normally indicated by a round red colored spot.

When the frequencies are synchronized successfully between the transmitter and

receiver, the word “ACT” disappears and the original group and channel reappears.

PART NAMES AND FUNCTIONS

Front Panel:

ACT-71 Single-Channel True-Diversity Receiver

GRPCHNAME

CHANNEL1ACT SET

POWER

ACT-72 Dual-Channel True-Diversity Receiver

POWER

ACT-74 Four-Channel True-Diversity Receiver

CHANNEL1ACT SET

POWER

GRPCHNAME

SET

FRQ

ADD

SET

FRQ

GRPCHNAME

CHANNEL2ACT SET

ADD

SET

FRQ

ADD

3 4

GRPCHNAME

CHANNEL1ACT SET

GRPCHNAME

CHANNEL3ACT SET

SET

SELECT

SET

FRQ

ADD

SET

FRQ

GRPCHNAME

CHANNEL2ACT SET

ADD

SET

FRQ

ADD

SET

FRQ

GRPCHNAME

CHANNEL4ACT SET

ADD

SET

SELECT

SET

SELECT

POWER

CHANNEL1ACT SET

GRPCHNAME

Antenna “A” Front Mount: Allows an optional FBC-71 rear-to-front antenna cable for front antenna placement.

SET

FRQ

ADD

ACT-71 7

SELECT

Power Switch and Indicator: When the switch is turned on, the red indicator illuminates to denote normal power status.

Receiver Display: Color VFDs.

Rotary Controller: To set up parameters. Move cursors by turning the control clockwise or counterclockwise.

Antenna “B” Front Mount: Allows an optional FBC-71 rear-to-front antenna cable for front antenna placement.

cm (

Page 5

Rear Panel:

ACT-71 Single-Channel True-Diversity Receiver

ACT-72 Dual-Channel True-Diversity Receiver

ANTENNA B +8V DC BIAS

0dB

-6dB

+16dB

LIFT

GND

LEVEL

8 11

BALANCED OUT

1: GND

2: HOT

3: COLD

CH 1CH 2MIXED

True Diversity ReceiversTrue Diversity Receivers

Unbalanced Audio Output Jack: ¼” PHONE PLUG type connector provides

unbalanced audio output signal from this jack to the mixer (ACT-71 only). Output level is selectable from among 3 levels: “-6dB”, “0dB” and +10dB (the switch will show +16dB on the receiver, but actually puts out +10dB on the unbalanced jack).

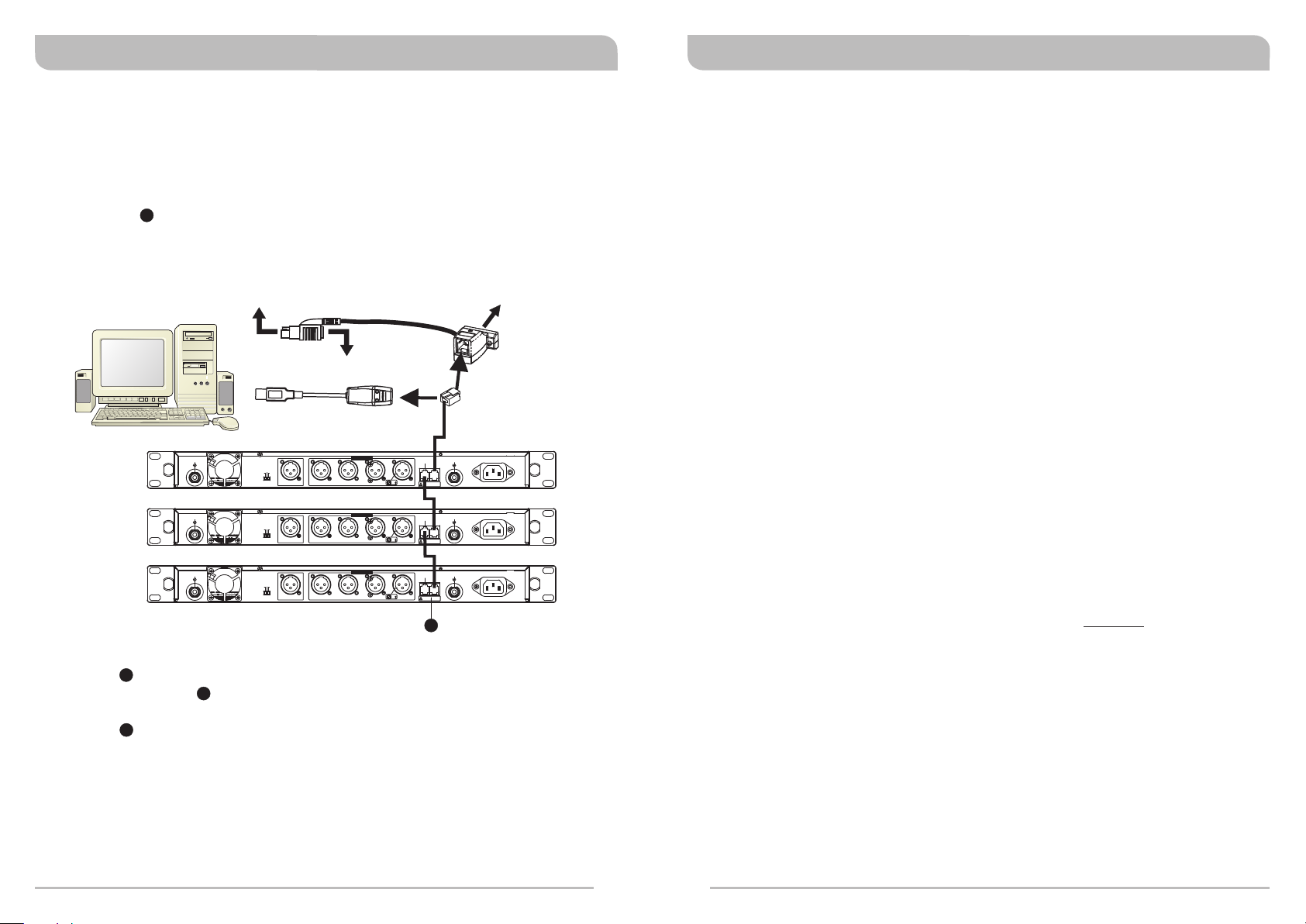

Network Interface Connector: For linking the receivers to a computer system-

monitoring program.

14 13

REMOTE

OUT

This connector can not be connected to telecommunication networks.

ANTENNA A

+8V DC BIAS

AC INPUT: 100~240V

Rear Antenna “A” Input Connector: The A antenna can be installed directly to this antenna connector which also provides power to an optional antenna booster.

AC Power Socket: The input socket for AC power ranging from 100VAC ~ 240VAC.

Rack-Mount Brackets: To install the receiver into a standard EIA 19-inch rack case.

LIFT/GND Switch: Lifts ground from Pin 1 of the XLR connector. (GND = default).

13 14

ACT-74 Four-Channel True-Diversity Receiver

ANTENNA B +8V DC BIAS

Rear Antenna “B” Input Connector: The “B” antenna can be installed directly to

0dB

-6dB

+16dB

LIFT

GND

LEVEL

8 9

BALANCED OUT

1: GND

2: HOT

CH 1CH 2CH 3CH 4MIXED

3: COLD

REMOTE

OUT

This connector can not be connected to telecommunication networks.

ANTENNA A

+8V DC BIAS

13 14

AC INPUT: 100~240V

this antenna connector which also provides power to an optional antenna booster.

Ventilation Fan: Ensures stable performance in long hours of operation under high

temperature environments.

Level Switch: "0dB" selection is for "Microphone level" output. "+16dB" selection is

for “LINE level” output. “-6dB” selection is for half of cable microphone volume.

Mixed AF Output Jack: A balanced output jack for mixed AF signals from all

installed channels; 3 output levels to choose from.

Balanced Audio Output Jack: XLR type connector provides balanced audio

output signal from this jack to the mixer, and output level is selectable from among 3 levels: “-6dB”, “0dB” and “+16dB”.

Page 6

True Diversity ReceiversTrue Diversity Receivers

RECEIVER INSTALLATION

ANTENNA B +8V DC BIAS

0dB

-6dB

+16dB

LIFT

GND

LEVEL

BALANCED OUT

1: GND

2: HOT

CH 1CH 2CH 3CH 4MIXED

3: COLD

REMOTE

OUT

This connector can not be connected to telecommunication networks.

ANTENNA A

+8V DC BIAS

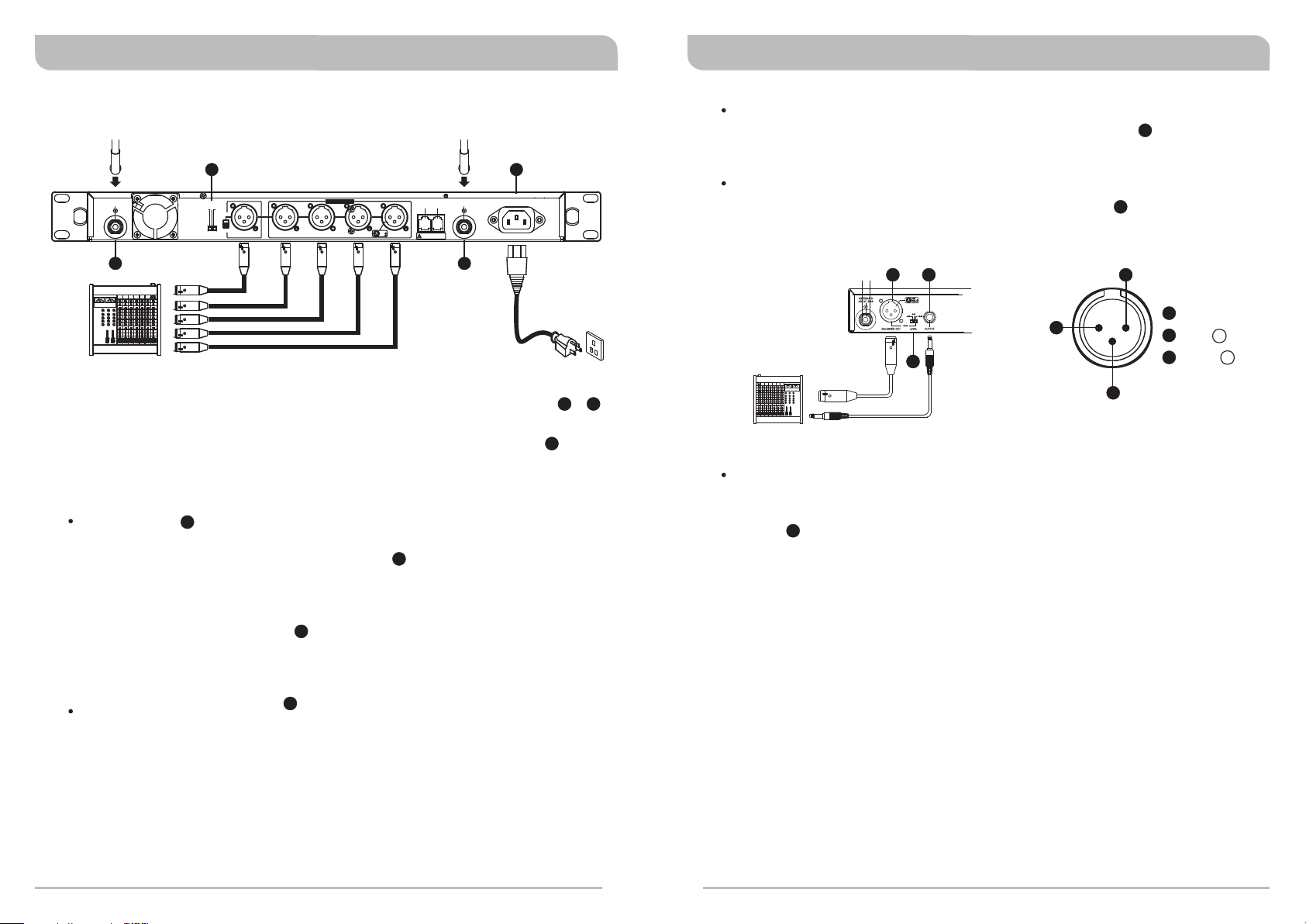

1. Antenna Installation: Install 2 separate antennas on the antenna sockets , on the rear panel. Illustrated in Figure 1.

2. AC Power Operation: Connect the AC power cable to the AC Input Jack , then plug the other end into an AC outlet having the correct voltage and rating, as shown in Figure 1.

3. Audio Output Connection:

Level Switch Setting Position: When connecting from the receiver's

unbalanced ¼” output (ACT-71 only) to the "LINE-IN" jack of a mixer or an electric guitar amplifier, switch the Level Switch to the “+16dB” position. Low

sensitivity may occur if switched to the wrong level position; therefore, don't use the “0dB” or “-6dB” positions as they may not deliver a sufficiently high level of input. When connecting from a receiver's balanced output to the "MIC-IN" jack of a mixer, switch the Level Switch to the “0dB” position. Overload distortion may

occur if switched to the wrong level position. There are many different amplifiers for Karaoke machines in today's market; however, the gain of many of these amplifier's "MIC IN" is not consistent. Therefore, if distortion is encountered, please switch the Level Switch to the “-6dB” position.

Mixed Output: Balanced output socket (XLR) must connect to the balanced input

socket of the mixer. This output socket generates the mixed output of Ch.1~Ch.4 and the output sensitivity can be adjusted to “+16dB” or “0dB” or “-6dB” by the level switch on the right side of the socket. (ACT-72/ACT-74)

AC INPUT: 100~240V

(Figure 1)

Unbalanced Output: Using an audio output cable with ¼” “PHONE PLUG” type

connectors, connect one end from the unbalanced output jack of the receiver,

and the other end to the “LINE-IN” input jack of the mixer or guitar amplifier, as shown in Figure 2. (ACT-71 only)

Balanced Output: Using audio output cables with “XLR” or “Cannon” type connectors, connect one end to the balanced output jacks of the receiver, and

the other end to the “MIC IN” input jack of the mixer or amplifier, as shown in Figure 1. (The configuration of the 3-pin connector is as shown in Figure 3)

GND

HOT

COLD

(Figure 2) (Figure 3)

Electric Guitar Output: Using audio output cable with ¼” “phone plug” type connectors, plug one end into the unbalanced output jack of a receiver (ACT-71 only), and the other end into the input jack of a guitar amplifier. Switch the Level Switch to “+16dB” position (the switch will show “+16dB” on the receiver, but

actually puts out “+10dB” on the unbalanced jack).

Page 7

True Diversity ReceiversTrue Diversity Receivers

RECEIVER OPERATING TIPS

Prior to powering on the receiver, ensure all transmitters are turned off and the mixer's volume control is set to a minimized setting. Red LED power indicator is lit when powered on.

Normally, the RF meter level glows when a transmitter is powered on to indicate the receiver is ready for operation. Once an audio signal is received from the transmitter, the AF meter level glows based on signal strength. If the meter or indicator does not glow or there is no audio output, the system may not be set up properly. Re-check that the transmitter is turned on and the receiver and transmitter are on the same frequency (if not, the transmitter will need to be reset via the ACT function).

The microphone output level needs to be adjusted at the mixer. There is no need to adjust output levels at the receiver itself.

The antenna inputs provide 8-volt DC biased and are designed to work with MIPRO antenna boosters. If the connecting cable is longer than 10 meters (approx. 30'), it is advisable to install an antenna booster to ensure optimal reception.

Antenna dividers and receivers must be from the same frequency band.

RACKMOUNT INSTALLATION FOR RECEIVERS

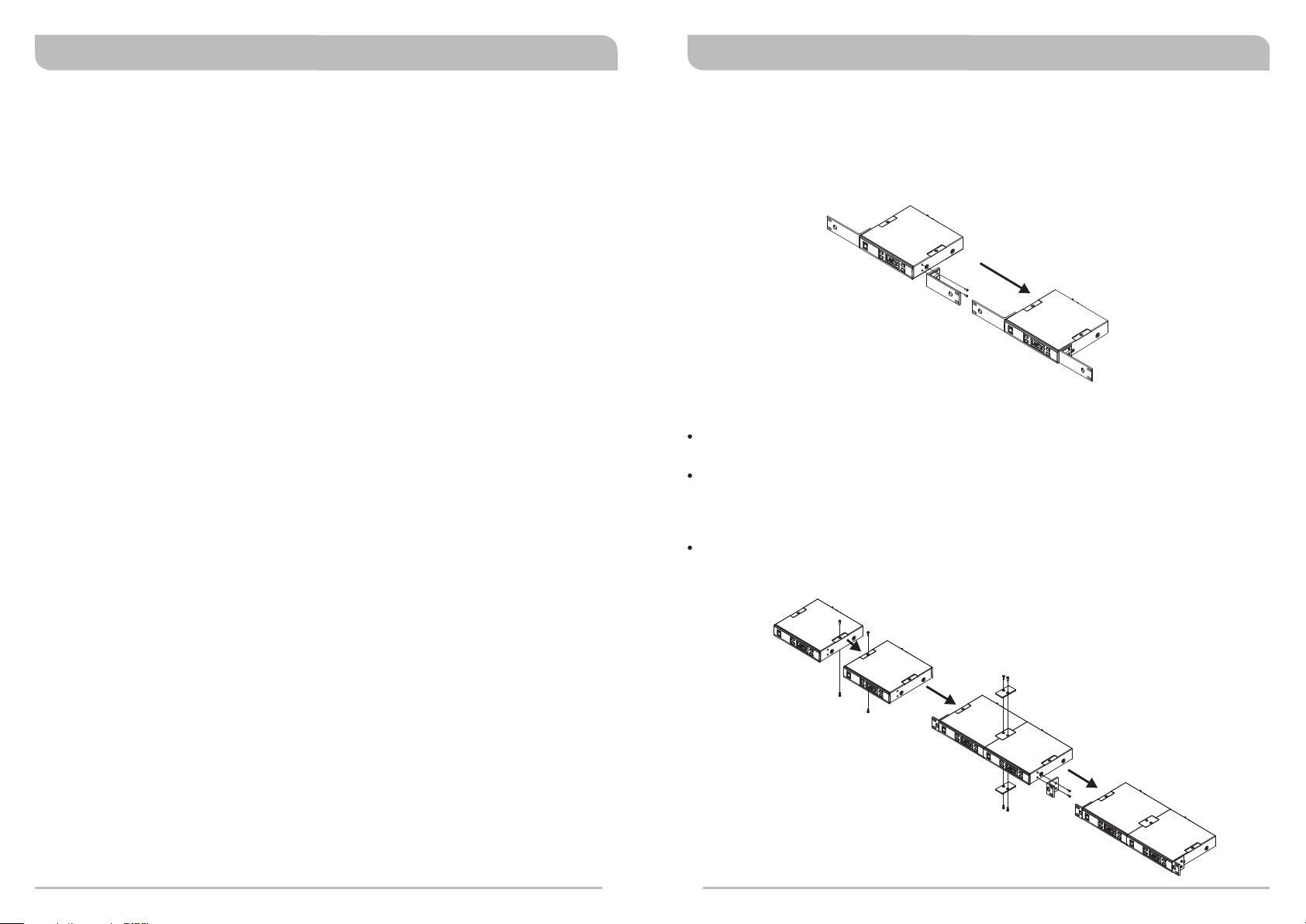

Single half-rack receiver

Install provided rack mount kit and fasten with screws on both sides. (Figure 4)

(Figure 4)

Dual half-rack receivers

Unfasten the top and bottom screws for each receiver. Push the receivers next to each

other.

Place holding plates on top and bottom of the two receivers first, and following the directions, slide both plates into position over the screw holes. Then tighten screws (screws should be used in their original location; i.e., top screws for top holding plate and bottom screws for bottom holding plate).

After both receivers are fixed together, fasten the rack mount kit on both sides of the joined receivers as shown in Figure 5.

(Figure 5)

Page 8

True Diversity ReceiversTrue Diversity Receivers

Receiver Rack-Mount Kits

FB-71 FB-72

Mounts 1 half-rack in a single rack space

! The rack mountable kits are pre-drilled with 4 opening holes to be fitted on an EIA

standard 19-inch rack case. (Figure 6)

! For ideal reception and performance, install the receiver at least 1 meter (3 feet)

above the ground and away from EMI / RFI “noise” sources. In addition, place the transmitter microphone at least 1 meter (3 feet) away from the receiving antenna, as shown. (Figure 7)

(Figure 6) (Figure 7)

Mounts 2 half-racks in a single rack space

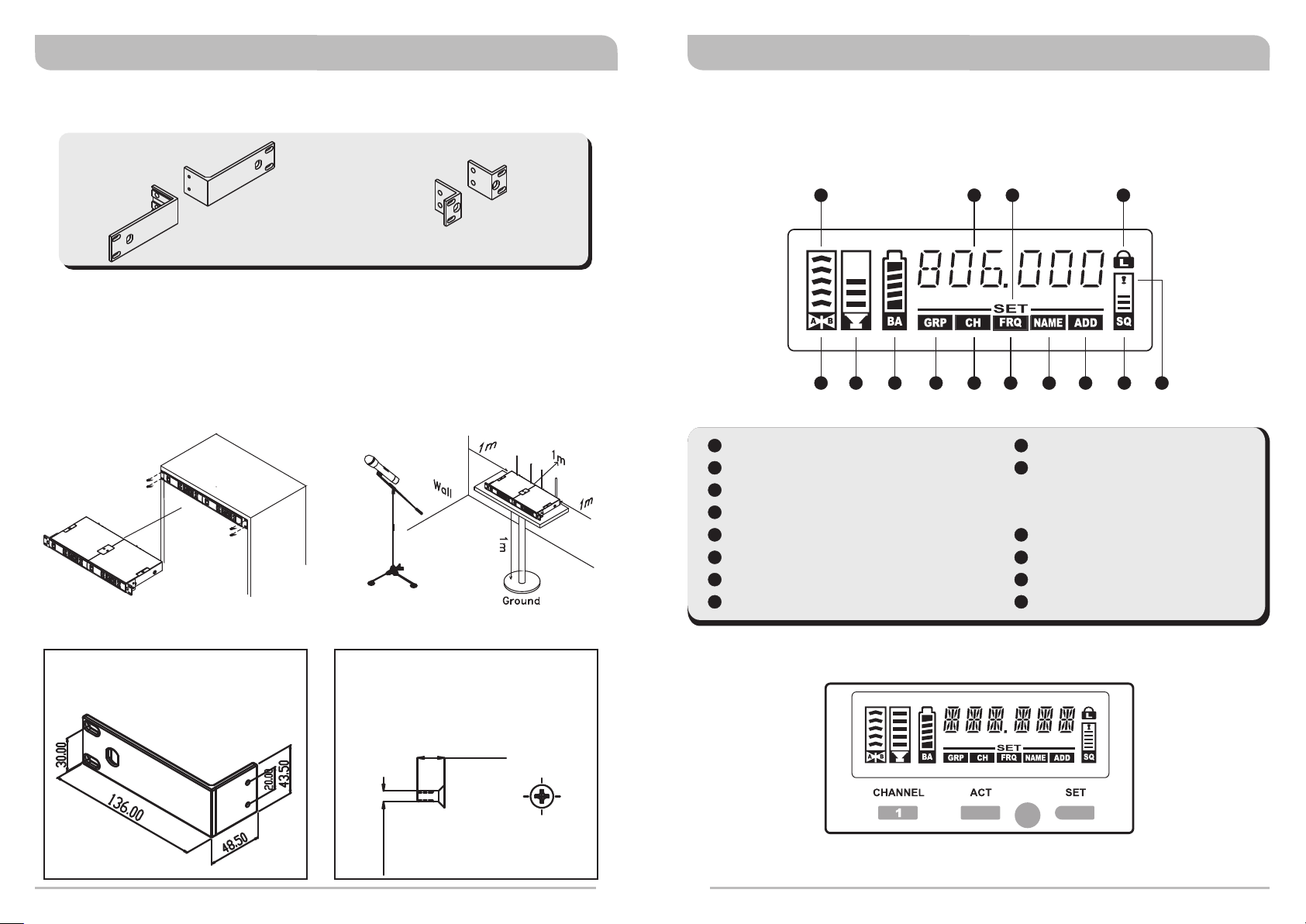

RECEIVER VFD INTERFACE

Displays all Parameters

5 4

3 2 8 11 1 7

Channel (can be programmed)

Diversity A/B Antenna

RF Signal Meter

Interference Indicator (lit denotes presence of interference)

Frequency (can be programmed)

Squelch Meter (levels can be programmed)

Group (can be programmed)

Lock Icon (can be turned on or off)

Audio Signal Meter

Working Frequency

Battery Meter

PC Address (can be programmed)

Name (can be programmed)

Setting Cursor

! L-Shaped steel bracket size for

rack mounted function:

! Please note the main disconnected

device is the AC Inlet

! The screw size for rack mounted

function is as below：

10.00mm

Total 4 screws provided

M4xP0.7mm

Display Panel and Buttons

Page 9

True Diversity ReceiversTrue Diversity Receivers

Receiver Parameters

Rotary Control Knob: To set parameter values

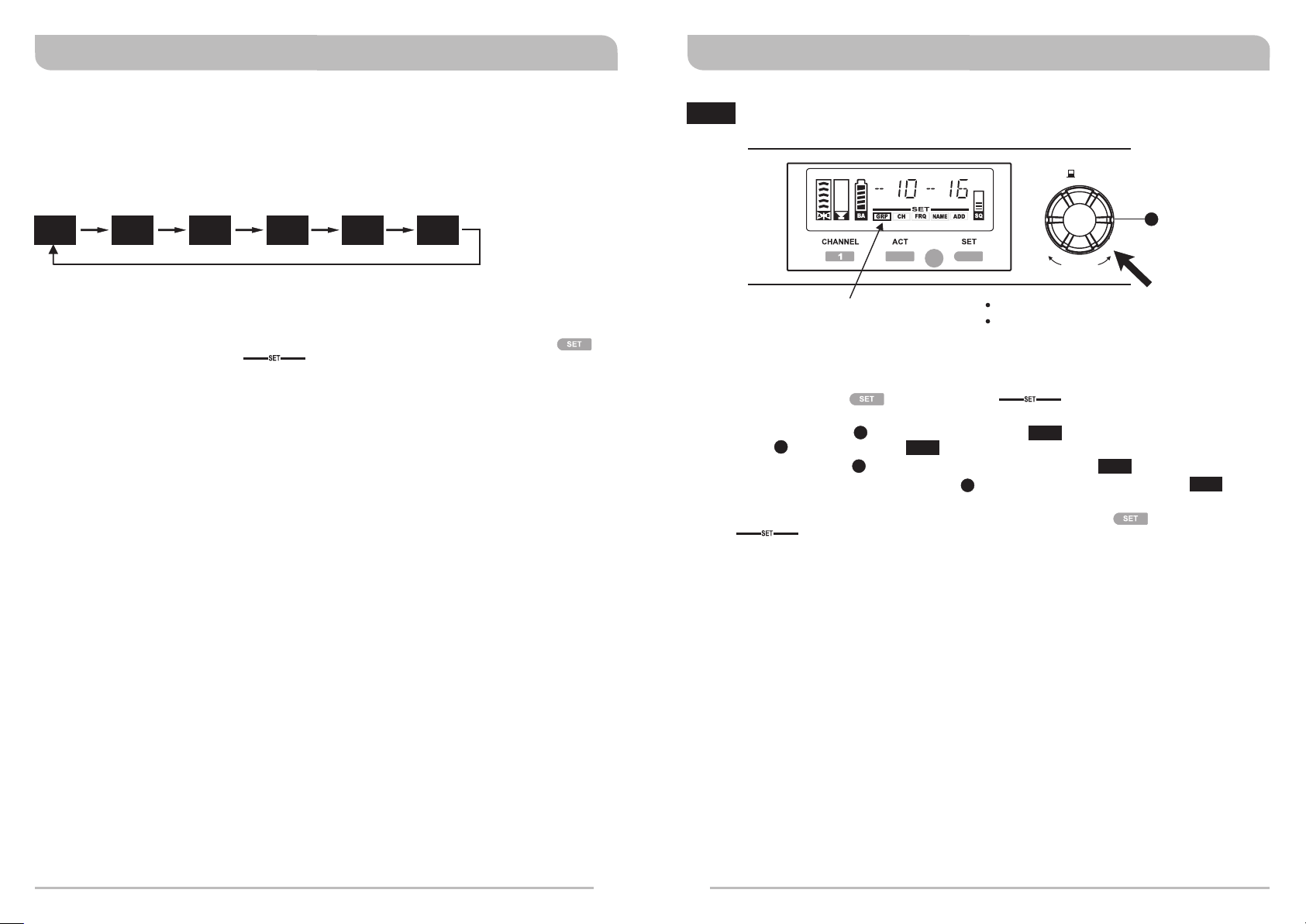

6 parameters can be selected and programmed. See instructions below:

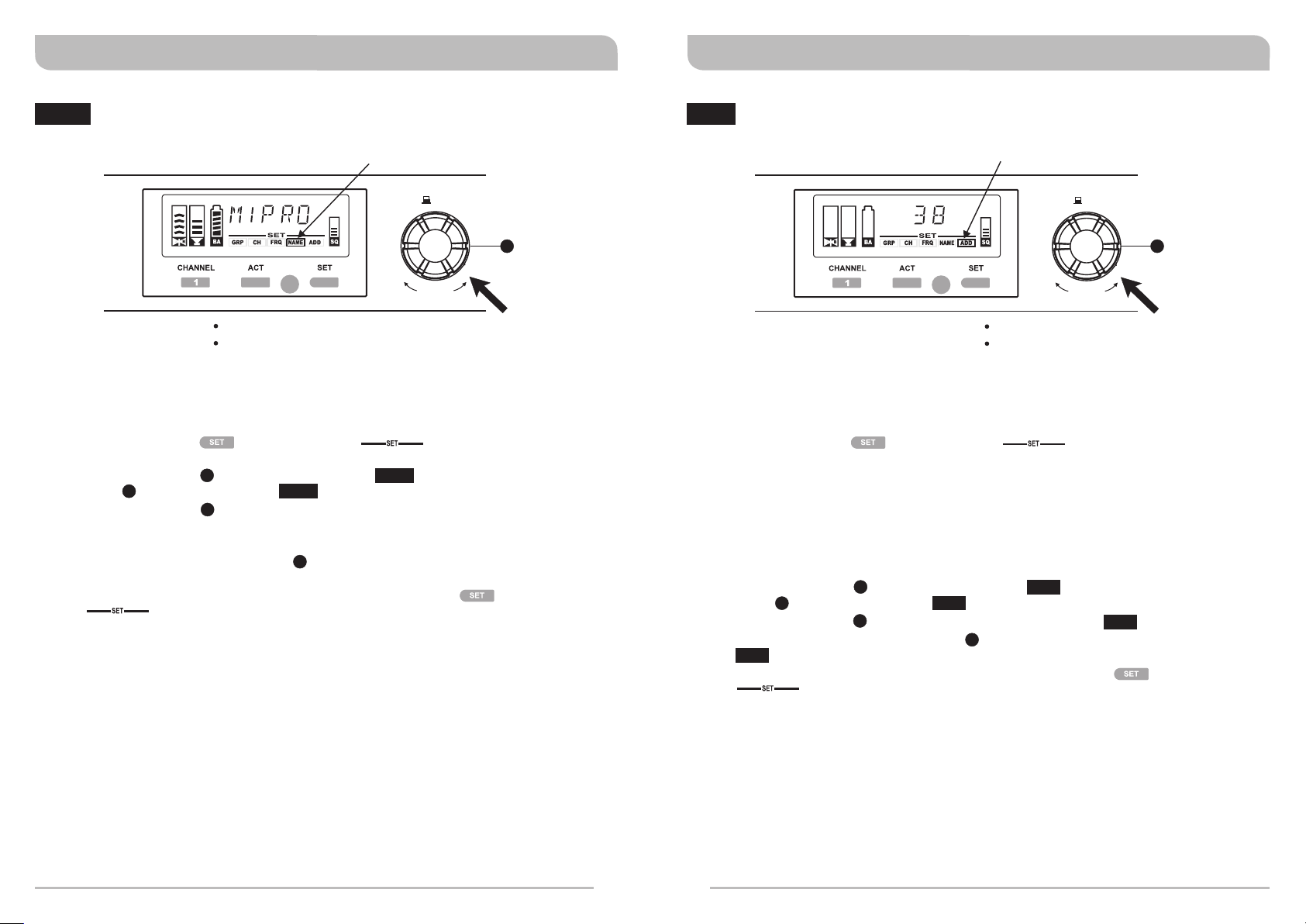

GRP

FRQ

NAME

ADD

Programmable Parameters:

NOTE: To confirm a parameter change and save it into the system, you must press the

button to end the flashing of the cursor. If this step is missing, the new parameter is not saved and will not be stored in the system when powered off.

GROUP setting

GRP

SET

SELECT

GRP Cursor

Turn knob clockwise to increase values Turn knob counterclockwise to decrease values

Instructions:

1. Press and release the button once. The cursor starts flashing to denote it is ready to accept parameter changes.

2. Turn Rotary Controller left or right and stop at . Press and release the Rotary Controller once and current number starts flashing.

3. Turn Rotary Controller left or right to increase or decrease numbers.

4. Press and release the Rotary Controller once to confirm the change. The

GRP

number stops flashing.

5. To confirm and save the new parameter, press and release the button once. The cursor stops flashing and the new GRP number is now stored into memory.

Page 10

True Diversity ReceiversTrue Diversity Receivers

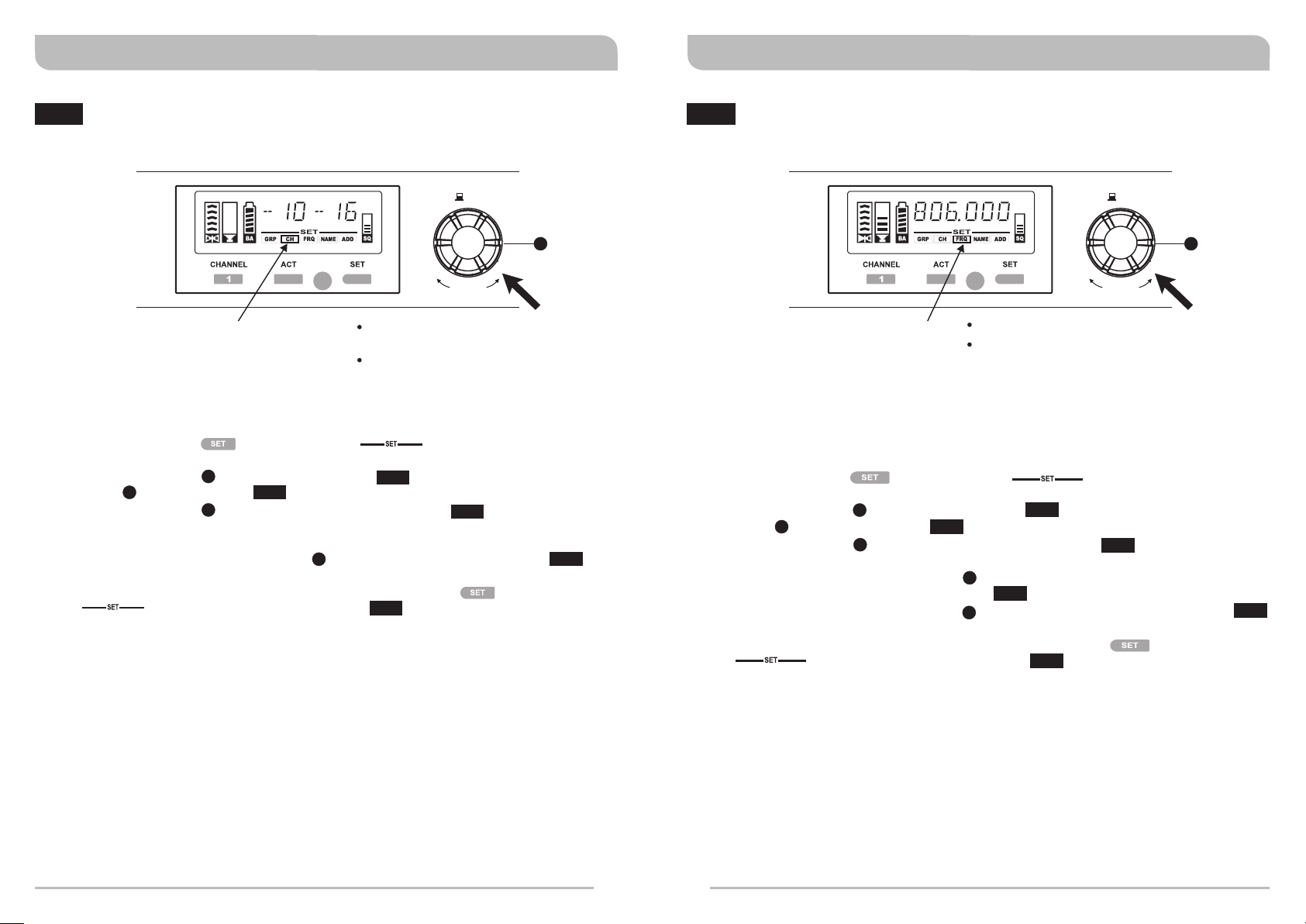

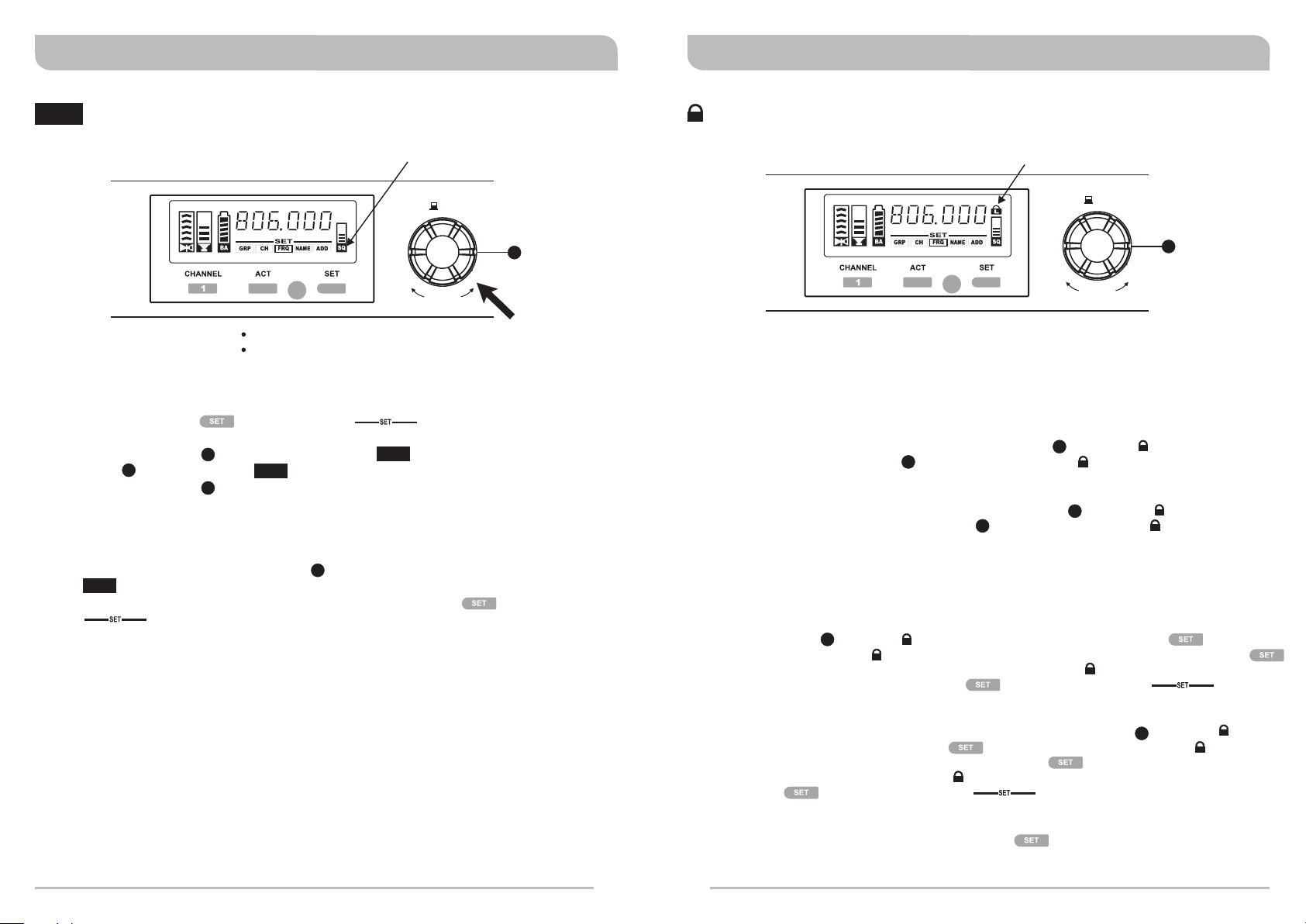

CHANNEL setting

SET

SELECT

CH Cursor

Turn knob clockwise to auto scan from beginning to the end of frequency band

Turn knob counterclockwise to auto scan from end to the beginning of frequency band

Instructions:

1. Press and release the button once. The cursor starts flashing to denote it is ready to accept parameter changes.

2. Turn Rotary Controller left or right and stop at . Press and release the Rotary Controller once and current number starts flashing.

3. Turn Rotary Controller left or right to increase or decrease numbers. If there

is interference on your chosen CH, it will automatically jump to the next interferencefree CH.

4. Press and release the Rotary Controller once to confirm the change. The

number stops flashing.

5. To confirm and save the new parameter, press and release the button once. The cursor stops flashing and the new number is now stored into

memory.

FRQ

FREQUENCY setting

FRQ Cursor

SET

SELECT

Turn knob clockwise to increase frequency

Turn knob counterclockwise to decrease frequency

Instructions:

1. Groups 16 contains 2,881 user-defined frequencies. Up to 16 frequencies can be selected and stored.

2. Press and release the button once. The cursor starts flashing to denote it is ready to accept parameter changes.

3. Turn Rotary Controller left or right and stop at . Press and release the Rotary Controller once and the current number starts flashing.

4. Turn Rotary Controller left or right to increase or decrease numbers in

FRQ

increments of 1MHz (first 3 digits of the frequency #).

5. Press and release the Rotary Controller again to confirm the first 3 digits, then turn left or right to adjust the last 3 digits of the number in increments of 25 KHz.

6. Press and release the Rotary Controller once more to confirm the change. The

FRQ

number stops flashing.

7. To confirm and save the new parameter, press and release the button once. The cursor stops flashing and the new number is now stored into

FRQ

memory. If the new frequency is not one of the preset channels for that Group, the display will show asterisks in place of the Group and Channel designations.

NOTE: If a new frequency is selected that is not among the preset channels for the chosen Group, it MAY not be compatible with the other channels within that Group and may potentially cause interference. If this occurs, the frequency will need to be changed to avoid problems. The preset channels within each Group are specifically selected to work together when using multiple systems simultaneously.

Page 11

True Diversity ReceiversTrue Diversity Receivers

NAME

NAME setting

NAME Cursor

SET

SELECT

Turn knob clockwise to increase letters, values, and symbols Turn knob counterclockwise to decrease letters, values, and symbols

Instructions:

1. Press and release the button once. The cursor starts flashing to denote it is ready to accept parameter changes.

2. Turn Rotary Controller left or right and stop at . Press and release the Rotary Controller once and the current alphanumeric characters start flashing.

3. Turn Rotary Controller left or right for alphanumeric characters like numbers, letters

NAME

and signs.

4. A total of 6 alphanumeric characters can be changed.

5. Turn and press the Rotary Controller once to confirm each character change. Once

all 6 characters are changed, the character stops flashing.

6. To confirm and save the new parameter, press and release the button once. The cursor stops flashing and the new NAME is now stored into memory.

ADD

ADDRESS setting

ADD Cursor

SET

SELECT

Turn knob clockwise to increase values

Turn knob counterclockwise to decrease values

Instructions:

1. Press and release the button once. The cursor starts flashing to denote it is ready to accept parameter changes.

2. Up to 64 receiver channels can be remotely monitored and controlled by MIPRO proprietary software and hardware via its ACT-BUS computer interface.

3. Address numbers need to be pre-programmed in advance from “01 ~ 64” before interfacing for network monitoring and control. However, to ensure networking is working properly, all address numbers need to be different from each other to avoid address conflicts. (Note: The same address number can be repeated for different receiver channels IF a computer is not being used to control / monitor the systems.)

4. Turn Rotary Controller left or right and stop at . Press and release the Rotary Controller once and the current number starts flashing.

5. Turn Rotary Controller left or right to increase or decrease numbers.

6. Press and release the Rotary Controller once to confirm the change. The number stops flashing.

ADD

7. To confirm and save the new parameter, press and release the button once. The cursor stops flashing and the new address is now stored into memory.

Page 12

True Diversity ReceiversTrue Diversity Receivers

SQUELCH setting

SQ Cursor

SET

SELECT

Turn knob clockwise to increase one segment at a time Turn knob counterclockwise to decrease one segment at a time

Instructions:

1. Press and release the button once. The cursor starts flashing to denote it is ready to accept parameter changes.

2. Turn Rotary Controller left or right and stop at . Press and release the Rotary Controller once and current setting starts flashing.

3. Turn Rotary Controller left to decrease sensitivity level by 1 indicator or turn right to

increase sensitivity level by 1 indicator.

4. The higher the level indicators, the lower the sensitivity which shortens the transmission ranges. The lower the level indicators, the higher the sensitivity which increases the transmission ranges.

5. Press and release the Rotary Controller once to confirm the change.

The number stops flashing.

6. To confirm and save the new parameter, press and release the button once. The cursor stops flashing and the new SQ level is now stored into memory.

Receiver Lock & Unlock

Lock cursor

SET

SELECT

Press and hold knob to lock and unlock the display panel

Instructions:

ACT-71 Receiver

1. Receiver Lock: Press and hold the Rotary Controller until the “ ” icon appears. Release the Rotary Controller immediately when the “ ” icon appears. When

locked, the receiver parameters can no longer be changed. However, you can still navigate the Rotary Control Knob to view existing settings and parameters.

2. Unlock Receiver: Press and hold the Rotary Controller until the “ ” icon disappears. Release the Rotary Controller immediately when the “ ” icon

disappears.

ACT-72 & ACT-74 Receivers

1. To Lock or Unlock All Receiver Channels: Same instructions as ACT-71 receiver. (See “1” above)

2. To Lock 1 Receiver Channel only: For example, locking Channel 1. Press & hold Rotary Controller until all “ ” icons start flashing. Press & hold the button

on Channel 1 when the “ ” icon appears , then release the “Rotary Controller” and button of Channel 1 simultaneously when the rest of the “ ” icons in the other

channels disappear. Press & release the button again while the cursor is flashing to confirm and save.

3. To Unlock 1 Receiver Channel only: For example, unlocking Channel 1. Press & hold Rotary Controller until all “ ”

icons start flashing. Press & hold the button on Channel 1 until the “ ” icon

disappears, then release the “Rotary Controller” and button of Channel 1 simultaneously when the rest of the “ ” icons in the other channels appear. Press &

release the button again while the cursor is flashing to confirm and save.

4. To Lock or Unlock 2~3 Channels (ACT-74): Follow the same procedure as above, using the button on each channel to set the lock status as desired. (Note: This is easier if you keep an eye on the unset channels' icons as they flash on and off.)

Page 13

True Diversity ReceiversTrue Diversity Receivers

CHANNEL

ACT SET

GRP

NAME

ADD

FRQ

SET

Setting ACT transmitter frequency

SET

SELECT

Press ACT button

Instructions:

1. Press the button once to activate the syncing function. The word “ ” appears immediately on the receiver screen.

2. Turn the transmitter’s power on and bring handheld or bodypack transmitter within 30cm (12”) of the IR port on the receiver. The IR port is located between the and buttons. The frequency will sync automatically.

3. When the sync is done successfully, the word “ ” will disappear from the receiver screen and the transmitter LCD will show the group & channel.

4. The word “A--LOSE ” will appear on the receiver screen after 10 seconds if the syncing was unsuccessful. To start the “ ACT ” syncing again, press the button again.

BA: Transmitter Battery Meter

BA BA BA BA BA BA

100% 90% 80% 40% 10% 0%

The battery meter is lit when the transmitter is powered on. The LCD battery meter gives a % indication of remaining battery life, as shown above. Replace with new, fresh batteries when battery indicators fall to 10% (1 level remaining).

CHANNEL1ACT SET

POWER

SET

FRQ

GRPCHNAME

ADD

ACT-71 7

SELECT

30c

m (12

)

Page 14

True Diversity ReceiversTrue Diversity Receivers

COMPUTER NETWORK INTERFACE OPERATION

1. MIPRO ACT receivers have an advanced computer network-interfaced controlling system.

2. Wiring Instructions

! The network interface of ACT-71/ACT-72/ACT-74 receivers is the ''REMOTE''

RX1

RX2

RX3

Connect to RS-232 jack on PCConnect to keyboard jack on PC

Connector of keyboard should plug in here

Connect to U SB jack on P C

ANTENNA B +8V DC BIAS

0dB

+16dB-6dB

LEVEL

0dB

+16dB-6dB

LEVEL

0dB

+16dB-6dB

LEVEL

MIPRO DVU

BALANCED OUT

ANTENNA A

REMOTE

+8V DC BIAS

OUT

1: GND

2: HOT

This connector can not be connected

CH 1CH 2CH 3CH 4MIXED

3: COLD

to telecommunication networks.

ANTENNA A

REMOTE

+8V DC BIAS

OUT

1: GND

2: HOT

This connector can not be connected

CH 1CH 2CH 3CH 4MIXED

3: COLD

to telecommunication networks.

ANTENNA A

REMOTE

+8V DC BIAS

OUT

1: GND

2: HOT

This connector can not be connected

CH 1CH 2CH 3CH 4MIXED

3: COLD

to telecommunication networks.

MIPRO DVJ

AC INPUT: 100~240V

connector that can be linked to a computer by a MIPRO-DVU or MIPRO-DVJ hardware device. By using a RS-232 or USB connector, you can link to a computer through the RS-232 COM PORT or USB PORT. (See diagram below)

! Plug one side of the provided cable (w/ RJ-11 connectors) to the REMOTE OUT

socket on the rear of the receiver and the other end of the phone cable to the REMOTE IN socket on the rear of the second receiver. Repeat this connection for each receiver in the system as per the illustration. Finally, connect the REMOTE IN socket on the rear of the first receiver to the MIPRO-DVU or MIPRO-DVJ.

! This system can link, monitor and control up to 64 receiver channels simultaneously.

! The connecting cable to the computer can be up to 300 meters (330 yards) in

length; however, signal stability decreases the longer the cable distance. Therefore, the cable length is recommended not to exceed 100m (110 yards) to maintain the highest quality as well as a high speed of transmission.

GENERAL TIPS FOR IMPROVING SYSTEM PERFORMANCE

1. Since the installation of the antenna influences the operating efficiency of the receiver, the most important rule is to minimize the distance as much as possible between the receiving antenna and the microphone for the best reception and performance.

2. Use MIPRO supplied antennas to ensure proper receiver sensitivity.

3. A built-in worldwide approved switching power supply assures stable performance in the range of 100~240V AC power input.

4. Please note the main disconnected device is the AC Inlet. (ACT-71/ACT-72/ACT-74)

5. The antenna socket provides an 8V DC biased output. Therefore, shorting on the antenna socket should be avoided. Temporary shorting on the antenna socket will not affect system performance; however, continuous shorting on the antenna socket will cause permanent system damage.

6. If extended reception distance is needed, installing a MIPRO directional antenna kit (AT-90W) will increase the reception distance.

7. Proper antenna distribution is vital to achieving ideal performance from multiple wireless systems operating in the same environment. To greatly reduce antenna clutter in multi-system installations, a MIPRO AD-707/AD-707a UHF antenna divider system is recommended. Each AD-707/AD-707a supports up to four UHF diversity

receivers to operate from a single pair of antennas. When combined with an AT-70A omnidirectional extension antenna and an AT-70B antenna booster or an AT-90W directional antenna, the AD-707/AD-707a antenna divider provides optimal signal reception with minimal dropouts or interference.

8. Preset non-interfering channels within the same channel group are recommended to

ensure optimum performance from multiple wireless systems installed in the same venue. Use of preset non-interfering channels from different channel groups

may cause interference, thus is not recommended.

Page 15

TROUBLESHOOTING

True Diversity Receivers

Symptom Solutions

No Sound

! Power-on receiver & transmitter ! Receiver is plugged into a power outlet and cable connected

to mixer/amplifier

! Fresh batteries in transmitter and inserted with correct

polarity

! Match receiver & transmitter frequency

Signal Drop-outs

! Close proximity between the transmitter and receiver antenna ! Line-of-sight path between the transmitter and receiver

antenna

! Reposition the receiver and/or receiver antennas ! Receiver antennas are connected ! Elevate receiver antennas as high as possible ! Keep hands off of the transmitter antenna

Limited Range

! Close proximity between the transmitter and receiver antenna ! Adjust antenna orientation ! Reposition the receiver and/or receiver antennas ! Receiver antennas are connected ! Undamaged antennas ! Fresh batteries in transmitter ! Adjust for proper squelch level setting

Symptom Solutions

RF Interference

! Press AutoScan button to locate a clear, interference-free

channel

! Use preset compatible channels in the same group when

operating multiple systems.

! Place receivers away or remove the sources of RF

interference like solid metal objects, electronic equipment & digital devices, dimmers, effect equipment, motors,

! Avoid operating a frequency on a local TV channel ! A higher squelch setting improves protection against

interference. (however, resulting in limited range)

! Turn off one transmitter, if both transmitters are operating on

the same frequency.

! Fresh batteries in transmitter

Feedback

! Turn down the sound system volume ! Move microphone closer to the performer's mouth ! Reduce transmitter gain if set too high ! Position microphone further away from the speakers. Do not

point towards speakers.

! Use right type of microphone for the specific applications.

Uni/Omni, Supercardioid/Cardioid

! Power off all unused microphones

No RF Signal

Distortion

! Match receiver & transmitter frequency ! Adjust for proper squelch level setting

! Reduce transmitter gain, if set too high. ! Recommendation: set to 0dB (Mic Level) ! Reduce receiver output setting ! Proper setting on mixer input gain or integrated amplifier mic

level control

! Fresh batteries in transmitter
