Mio MiVue R User Manual
User Manual
R Series
Table of Contents
Getting to know the recorder ........................................................................................................2
Using the Control panel ............................................................................................................3
Inserting a memory card ................................................................................................................. 4
Using your recorder in a vehicle .................................................................................................... 5
Operating basics ............................................................................................................................... 7
Turning the recorder ON .......................................................................................................... 7
Continuous recording ................................................................................................................ 7
Event recording...........................................................................................................................8
Camera mode .............................................................................................................................8
Playback mode ...........................................................................................................................8
Configuring the recorder .................................................................................................................9
Recording settings .....................................................................................................................9
System settings ........................................................................................................................ 10
GPS settings ...............................................................................................................................11
Other settings............................................................................................................................11
MiVue Manager ..............................................................................................................................12
Installing MiVue Manager ......................................................................................................12
Playing the recording files ...................................................................................................... 12
For more information .................................................................................................................... 15
Caring for your device ............................................................................................................. 15
Precautions and notices ..........................................................................................................16
Safety precautions ................................................................................................................... 16
About GPS ................................................................................................................................. 17
Regulatory information (CE)..................................................................................................18
WEEE ..........................................................................................................................................18
en
1
Getting to know the recorder
Note: The screenshots and other presentations shown in this manual may differ from the
screens and presentations generated by the actual product.
en
1
Rear-view mirror
2
LCD monitor
3
Control panel
4
Speaker
5
Microphone
6
Mini-USB port
7
Camera lens
8
Hooks
9
Memory card slot
2
Using the Control panel
POWER
- Press and hold for 2 seconds to manually turn the recorder on and off.
- When the recorder is turned on, press to switch the LCD monitor on and off.
REC/OK
- In Recording mode, press to start and stop recording.
- In Camera mode, press to take a 4-megapixel photo.
- Acts as the ENTER button in the Settings menu.
MENU
- While continuous recording is in progress, press to manually start an event recording.
- Press to access the Settings menu.
- Acts as the BACK button in the Settings menu.
MODE
- Press briefly repeatedly to cycle through the modes: Recording > Camera > Playback.
- While continuous recording is in progress, press to take a photo.
/
- In the Settings menu, press / to move to the previous/next item.
- While continuous recording is in progress, press to include or exclude sound in
recordings.
RESET
Press to restart the recorder.
en
3
Inserting a memory card
You must insert a memory card (not included) before you can start recording. The recorder
supports memory cards with up to 32GB capacity.
1. Hold the card by the edges and gently insert it into the slot with the label facing the
rear side of the recorder.
2. To remove a card gently push the top edge of the card inwards to release it and pull it
out of the slot.
Note:
DO NOT apply pressure to the centre of the memory card.
You are advised to use a Class 10 memory card with at least 8GB capacity.
MiTAC does not guarantee the product’s compatibility with memory cards from all
manufacturers.
Before you start recording please format the memory card to avoid malfunction
caused by files not created by the recorder.
You are recommended to turn the recorder off before removing the memory card.
en
4

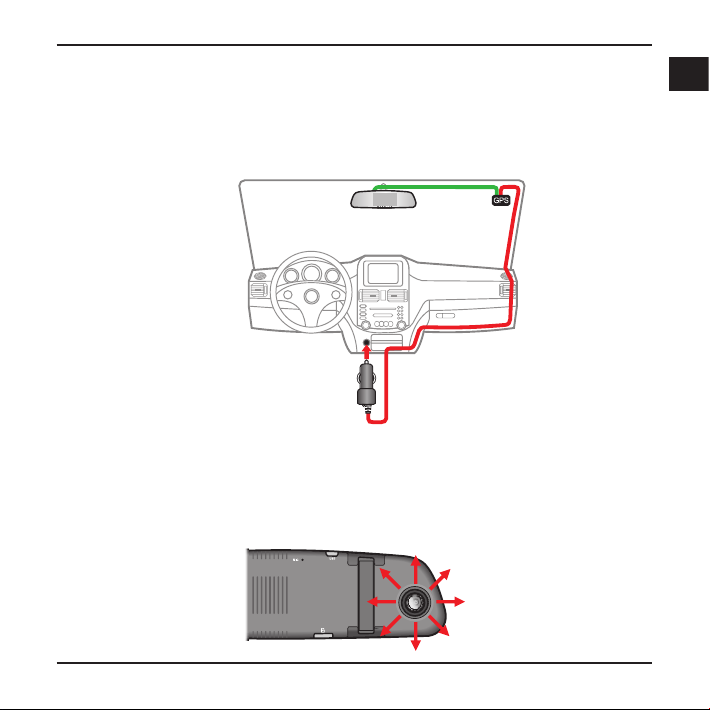

Using your recorder in a vehicle
1. Make sure that your car is parked on level ground.
2. Use the provided rubber bands to mount the recorder on the rear-view mirror securely.
3. a. Connect the car charger to the mini-USB port of the recorder and then plug it to the
cigarette lighter.
a.
en
5
