MINUTEMAN PRO750RT2U, PRO1000RT2U, PRO1500RT2U, PRO2000RT2U User Manual

Para Systems, Inc.

1455 Lemay Dr.

Carrollton, TX 75007

Phone: [phone]

Fax: [phone]
Internet: minutemanups.com
UPS Sizing: sizemyups.com

PRO-RT 2U
Series UPS

User's Manual

PN - 34000526 R3

1. Introduction 2

2. Controls and Indicators 8

3. Installation 11

4. Operation 18

5. Obtaining Service 22

6. Troubleshooting 23

7. Replacing the Battery 24

8. Specifications 28

9. Limited Product Warranty 30
A1 . Declaration of Conformity 31

1

Chapter 1: Introduction

Thank you for purchasing this power protection product. It has been designed
and manufactured to provide many years of trouble free service. Please read
this manual before installing your PRO-RT2U Series UPS, models PRO750RT2U,
PRO1000RT2U, PRO1500RT2U, PRO2000RT2U as it provides important in­formation that should be followed during the installation and the maintenance
of the UPS system allowing you to correctly set up your system for the maxi­mum safety and performance. Included is information on customer support
and factory service, if it is required. If you experience a problem with the UPS
system please refer to the Troubleshooting guide in this manual to correct the
problem or collect enough information so that the Technical Support Depart­ment can assist you.

IMPORT ANT SAFETY INSTRUCTIONS

SA VE THESE INSTRUCTIONS !

CONSIGNES DE SÉCURITÉ IMPORT ANTES

SAUVEGARDEZ CES CONSIGNES!

CAUTION! This UPS series is ONLY intended to be installed in an indoor

temperature controlled environment that is free of conductive contaminants.
This UPS series is not intended for use in a computer room as defined in the
Standard for the Protection of Electronic Computer/Data Processing Equip­ment ANSI/NFP A 75.

ATTENTION! Cette série d'onduleurs est uniquement destinée à être installée
dans un environnement intérieur à température contrôlée, exempt de contami­nants conducteurs. La série d'onduleurs ne convient pas pour une utilisation
en salle d'ordinateur comme défini dans la norme pour la Protection des
ordinateurs électroniques/équipements de traitement de données, ANSI/NFP A

75.

CAUTION! Connect the UPS to a two pole, three wire, grounded, utility power
AC wall outlet. The receptacle must be connected to the appropriate branch
protection (circuit breaker or fuse). Connection to any other type of recep­tacle may result in a shock hazard and violate local electrical codes. Do not
use extension cords, adapter plugs, or surge strips.

Veuillez lire ce manuel avant l'installation de l'onduleur modèles PRO750R T2U,
PRO1000RT2U, PRO1500RT2U, PRO2000RT2U. Il contient de l'information
importante qui doit être respectée au cours de l'installation et de l'entretien de
l'onduleur et des batteries. Cette information vous permettra de correctement
installer le système pour atteindre son rendement maximum en toute sécurité.

CAUTION! The maximum ambient operating temperature for this UPS series
is 40°C (“0 ~ 40°C” for Ambient Operation).

ATTENTION! La température ambiante de fonctionnement maximale pour
cette série d'onduleurs est de 40° C ("0 ~ 40° C " pour une opération ambiante).

 The external vents and openings on the UPS are provided for ventilation.

T o ensure reliable operation of the UPS and to protect the UPS from over­heating, these vents and openings must not be blocked or covered. Do not
insert any object into any of the vents or openings that may hinder the ve­ntilation.

 Install the UPS system in a well ventilated area, away from excess moistu-

re, heat, dust, flammable gas or explosives.

 Leave adequate space (at least 20cm) at the front and rear of the UPS

system for proper ventilation.

 Do not mount the UPS system with its front or rear panel facing down at

any angle.

 Before usage, you must allow the UPS system to adjust to room temper-

ature (20°C~25°C or 68°F~77°F) for at least one hour to avoid moisture
condensing inside the UPS.

2

ATTENTION! Branchez l'UPS sur une prise murale c.a. de terre bipolaire à

trois fils. La prise de courant doit être connectée au circuit de protection
approprié (disjoncteur ou fusible). Une connexion à tout autre type de prise
peut entraîner le risque d'électrocution et enfreindre les codes électriques
locaux. N'utilisez jamais de rallonge, d'adaptateur ou de limiteur de surtension.

CAUTION! To reduce the risk of fire, connect only to a utility power circuit
provided with 20 amperes maximum branch circuit over-current protection in
accordance with the National Electric Code, ANSI/NFPA 70.

ATTENTION! Pour réduire les risques d'incendie, faites le raccordement
uniquement sur un circuit d'alimentation électrique équipé d'un dispositif de
protection de surintensité de circuit de dérivation de maximum 20 ampères,
conformément au Code national de l'électricité, ANSI/NFPA 70.

CAUTION! To reduce the risk of electrical shock with the installation of this
UPS equipment and the connected equipment, the user must ensure that the
combined sum of the AC leakage current does not exceed 3.5mA.

ATTENTION! Pour réduire le risque de choc électrique pendant l'installation
de cet onduleur et du matériel connecté, l'utilisateur doit s'assurer que la quantité
de courant de fuite c.a. ne dépasse pas 3,5 mA.

3

CAUTION! To reduce the risk of electrical shock in conditions where the load

equipment grounding cannot be verified, disconnect the UPS from the AC wall
outlet before installing a computer interface cable. Reconnect the power cord
only after all signaling connections are made.

ATTENTION! Pour réduire le risque de choc électrique dans une situation où
il n'est pas possible de vérifier la mise à la terre du matériel de charge, il faut
d'abord débrancher l'onduleur de la prise murale c.a. avant d'installer un câble
d'interface ordinateur. Rebranchez le cordon d'aliment ation uniquement après
que toutes les connexions de signalisation aient été établies.

CAUTION! DO NOT USE THE MOUNTING BRACKETS TO LIFT THE

UPS. The mounting brackets are ONLY for securing the UPS to the rack.

A TTENTION! N'UTILISEZ JAMAIS LES SUPPORTS DE MONT AGE POUR
SOULEVER L'ONDULEUR. Ces supports sont uniquement conçus pour

fixer l'onduleur au rack.
NOTE: These UPSs are shipped with the batteries disconnected. The batter-

ies must be connected before putting these UPSs into service. Refer to Sec­tion 3 "Installation" for connecting the batteries.

WARNING: This Uninterruptible Power Supply contains potentially hazard-

ous voltages. Do not attempt to disassemble the UPS beyond the battery
replacement procedure. This UPS contains no user serviceable parts. Re­pairs and battery replacement must be performed by QUALIFIED SERVICE

PERSONNEL ONL Y.
AVERTISSEMENT! Cet onduleur contient des tensions potentiellement

dangereuses. N'essayez pas de le démonter au-delà de la procédure de
remplacement de la batterie. L'onduleur ne contient aucune pièce réparable
par l'utilisateur. SEUL UN TECHNICIEN QUALIFIÉ est autorisé à effectuer
les réparations et le remplacement d'une batterie.

WARNING: Qualified Service Personnel ONLY must perform the Installa­tion and Servicing of these UPS systems. MINUTEMAN accepts no liabilities
and is not limited to: injury to the Service Personnel, or damages to; the UPS,
or the connected equipment caused by the incorrect installation or servicing
of the UPS system.

AVERTISSEMENT! Seul un technicien qualifié peut installer et entretenir
ces systèmes UPS. MINUTEMAN n'accepte aucune responsabilité pour, sans
s'y limiter : les blessures souffertes par le personnel de service ou les dommages
infligés à l'onduleur ou au matériel connecté, résultant d'une mauvaise installa­tion ou d'un entretien incorrect de l'onduleur.

WARNING: Risk of Electrical Shock. Hazardous live parts inside these

power supplies are energized from the battery even when the AC input is
disconnected.

AVERTISSEMENT! Risque de choc électrique. Les p arties actives dangereuses
à l'intérieur de ces blocs d'alimentation sont sous tension à partir de la batterie,
même lorsque l'alimentation c.a. est coupée.

T o de-energize the outputs of the UPS:

1. If the UPS is on, press and release the On/Off/T est button during the aud­ible alarm's first beep to turn the UPS off.

2. Disconnect the UPS from the AC wall outlet.

3. T o de-energize the UPS completely, disconnect the battery .

ON / OFF / TEST BUTTON: When the UPS is connected to an AC

source and there is an acceptable AC volt age present;

Press and then
release the On/Off/T est button during the audible alarm's first beep to
turn the UPS on. UPS will provide an output and the load will be
powered. Then the UPS will perform a five second self-test. Once
the UPS has passed its self-test the UPS will be ready for normal
operation.

When the UPS is in the AC mode; Press and then release the On/
Off/Test button during the audible alarm's first beep to turn the UPS

off.

To perform a ten-second self-test: With the UPS in the AC mode,
press and hold the On/Off/T est button until the audible alarm sounds
four beeps, and then release. During the test, the UPS will switch to
the Battery mode, the On-Battery icon will illuminate and the audible
alarm will sound.

NOTICE! The output of this device is not sinusoidal. It has a voltage total
harmonic distortion and maximum single harmonic distortion as below:

Model
T otal harmonic
Single harmonic 15.7%

PRO750RT2U

31.3%

14.5% 14.9% 18.7%

PRO1000RT2U

30.3%

PRO1500RT2U

37.2%

PRO2000RT2U

35.6%

4

5

NOTICE: This equipment has been tested and found to comply with the limits

for a Class A and/or B computing device in accordance with the specifications
in Subpart J of Part 15 of FCC Rules and the Class A and/or B limits for radio
noise emissions from digital apparatus set out in the Radio Interference of the
Canadian Department of Communications. These limits are designed to pro­vide reasonable protection against such interference in a residential installa­tion. This equipment generates and uses radio frequency and if not installed
and used properly, that is, in strict accordance with the manufacturer's in­structions, this equipment may cause interference to radio and television re­ception. If this equipment does cause interference to radio or television re­ception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:

 Re-orient the receiving antenna.
 Relocate the computer with respect to the receiver.
 Move the computer away from the receiver.
 Plug the computer into a different outlet so that the computer and receiver

are on different branch circuits.

 Shielded communications interface cables must be used with this product.

Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equip­ment.

Receiving Inspection

After removing your UPS from its carton, it should be inspected for damage
that may have occurred in shipping. Immediately notify the carrier and place
of purchase if any damage is found. Warranty claims for damage caused by
the carrier will not be honored. The packing materials that your UPS was
shipped in are carefully designed to minimize any shipping damage. In the
unlikely case that the UPS needs to be returned to the manufacturer, please
use the original packing material. Since the manufacturer is not responsible
for shipping damage incurred when the system is returned, the original pack­ing material is inexpensive insurance. PLEASE SA VE THE P ACKING MA TE-

RIALS!

Life Support Policy

As a general policy, we do not recommend the use of any of our products in
life support applications where failure or malfunction of the product can be
reasonably expected to cause failure of the life support device or to signifi­cantly affect its safety or effectiveness. We do not recommend the use of any
of our products in direct patient care. We will not knowingly sell our products
for use in such applications unless it receives in writing assurances satisfac­tory to us that (a) the risks of injury or damage have been minimized, (b) the
customer assumes all such risks, and (c) our liability is adequately protected
under the circumstances.

© COPYRIGHT 2018 BY PARA SYSTEMS, INC.

All Rights Reserved. All rights of this User Manual (“Manual”), including but not
limited to the content, information, and figures are solely owned and reserved
by Para Systems, Inc. (“Para Systems”). The Manual can only be applied to
the operation or the use of this product. Any disposition, duplication, dissemi­nation, reproduction, modification, translation, extraction, or usage of this
Manual in whole or in part is prohibited without the prior written permission of
Para Systems. Given that Para Systems will continuously improve and de­velop the product, changes may be made to the information in this Manual at
any time without obligation to notify any person of such revision or changes.
Para Systems will make all possible efforts to secure the accuracy and the
integrity of this Manual. Para Systems disclaims any kinds or forms of war­ranty, guarantee, or undertaking, either expressly or implicitly, including but
not limited to the completeness, faultlessness, accuracy, non-infringement,
merchantability or fitness for a particular purpose of the Manual.

6

7

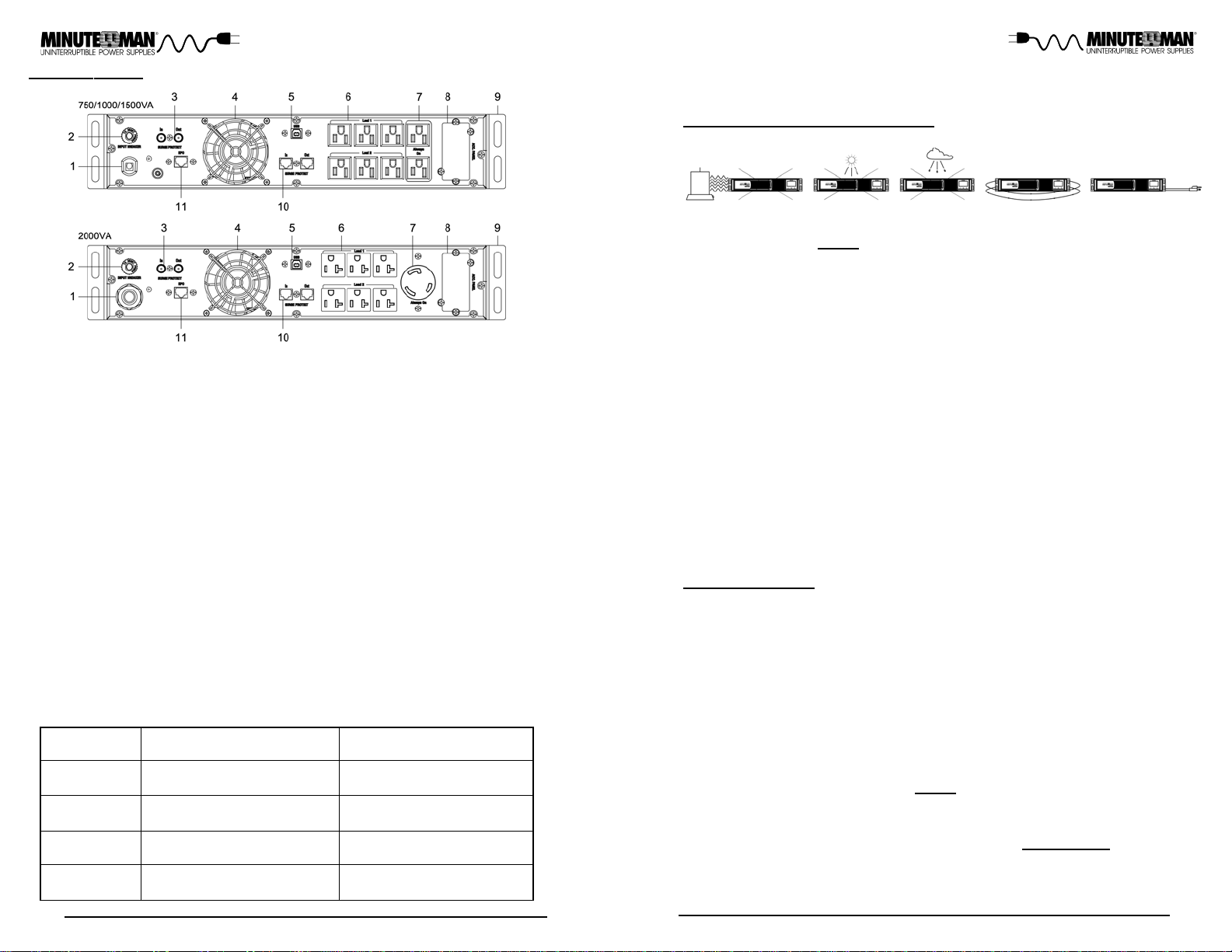

Chapter 2: Controls and Indicators

CONTROL PANEL

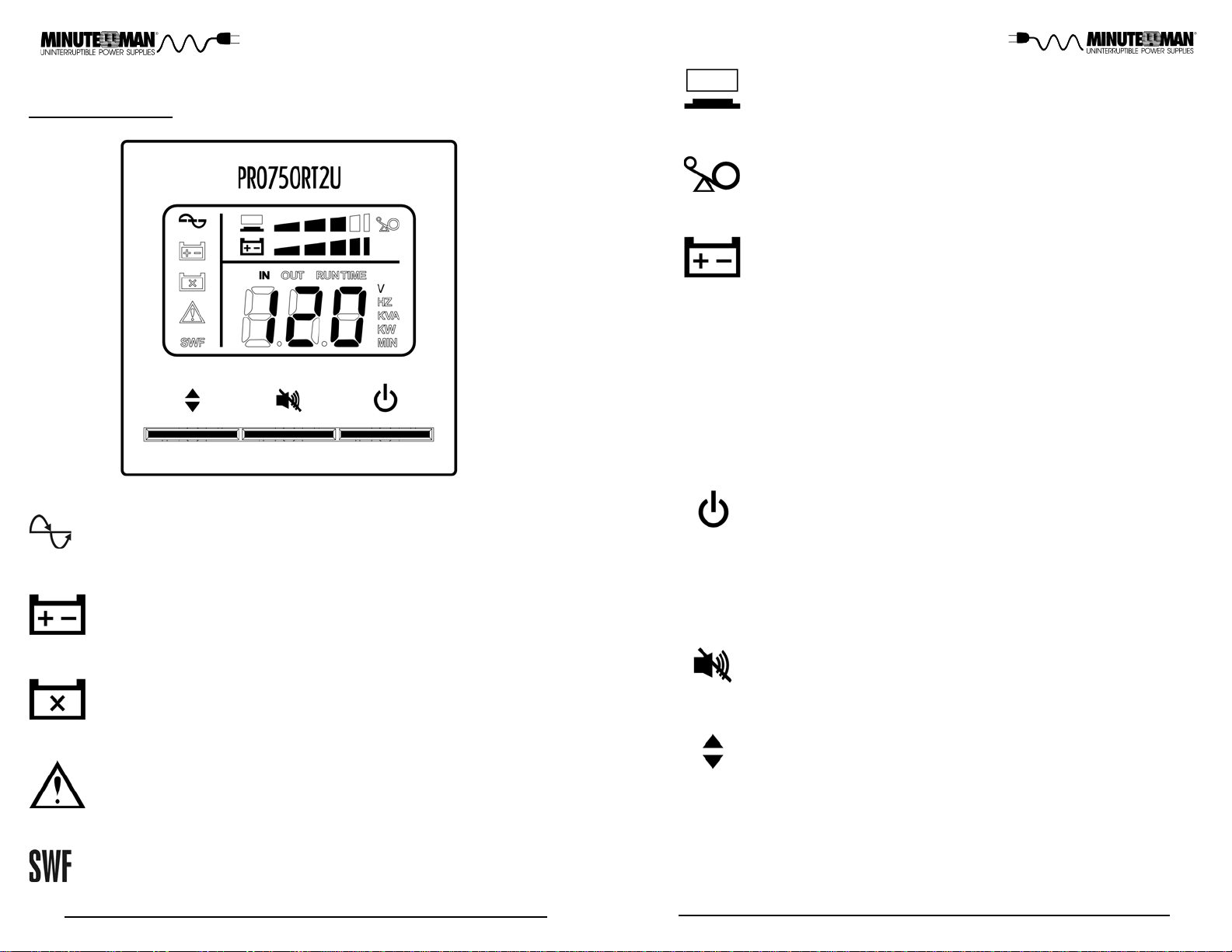

Load Capacity Bar Graph: Displays the amount of load connected
to the UPS in the AC and Battery mode as 20%, 40%; 60%, 80%,
100%.

When the amount of load attached to the UPS exceeds 1 10% of its
power rating; the Overload and Fault icons will flash Off and On, the
Overload error code will be displayed and the UPS will sound a
constant alarm to indicate that there is an Overload condition.

Battery Capacity Bar Graph: Displays the amount of Battery Ca­pacity available in the AC and Battery mode as 20%, 40%; 60%,
80%, 100%.

UPS Parameters:
Input Volt age and Frequency
Output Voltage and Frequency
Connected load KV A and KW
Estimated Runtime (minutes) - AC mode and Battery mode

The Multi-Function On/Off/T est button functions as follows:
When the UPS is off, press and then release the On/Off/Test button
during the audible alarm's first beep to turn the UPS on.

The AC mode icon illuminates when the UPS is on and operating in
the AC mode. The AC mode icon will extinguish when operating in
the Battery mode. The AC mode icon will blink when the UPS is
operating in the AVR (Boost and Buck) mode.

The On-Battery icon illuminates when the UPS is operating in the
Battery mode. The On-Battery icon will extinguish when operating in
the AC mode.

The Weak/Bad Battery icon illuminates and the Weak/Bad Battery
error code will be displayed when the UPS detects a weak battery , a
bad battery or a disconnected battery . The Weak/Bad Battery icon
is extinguished when the battery's condition is good.

The Fault icon illuminates and the appropriate error code will be
displayed when the UPS detects an internal fault. The Fault icon is
extinguished when the UPS is operating properly .

The Site Wiring icon illuminates and the Site Wiring Fault error
code will be displayed when the UPS detects a site wiring problem.
The SWF icon is extinguished when the UPS is connected to proper
site wiring.

8

NOTE: The LCD backlight will illuminate for 20-seconds when the UPS switches

to the Battery mode and then turn off. When the UPS has an event and/or an
error code the LCD backlight will turn on and remain on to alert the user that
an event has occurred.

When the UPS is on, press and then release the On/Off/T est button
during the audible alarm's first beep to turn the UPS off.

When the UPS is in the AC mode, press and hold the On/Off/Test
button until the audible alarm sounds four beeps, then release. The
UPS will perform a 10-second Self-T est.

When the unit is operating in Battery mode, pressing the Alarm
Silencer button will silence the audible alarm. Once the UPS reaches
the LBW (Low Battery Warning) threshold the audible alarm will be
re-activated. The audible alarm cannot be silenced during the LBW
alarm. Once the UPS transfers to the AC mode the audible alarm
will be reset to default.

The Scroll button allows the user to scroll through the UPS param­eters that are available on the LCD screen.

9

REAR P ANEL

1. The input power cord is for connecting the UPS to utlity power. NOTE: The AC

wall outlet shall be near the UPS and easily accessible.

2. The input circuit breaker will trip in the event the load exceeds the UPS’s power
rating.

3. Coax connectors are for transient voltage surge suppression for cable modem,
CA TV converter , DSS receiver or DVR.

4. The fan is for ventilation. NOTE: The fan only operates during the battery mode
and the AVR mode.

5. The USB Communications Port is for UPS monitoring and control.

6. The Battery Backup output receptacles. The output receptacles are electrically
wired into two segments to support the "Load Shedding Function" (Labeled
Load 1 & Load 2).

7. The Always On Battery Backup output recept acles (Labeled Always On) does
not support the "Load Shedding Function". NOTE: The locking recptacle is
only on the PRO2000RT2U model.

8. The option slot is for option cards.

9. The rackmount brackets are for mounting the UPS to the rack.

10.The RJ11/45 modular connectors are used for transient voltage surge suppre­ssion for 10/100/1000 Base-T Network/single line Phone/Fax/Modem.

1 1.The RJ1 1 EPO (Emergency Power Off) Port is for UPS control. This connect-

ion is not for T elecommunication use.

Model #

PRO750RT2U

PRO1000RT2U

PRO1500RT2U

PRO2000RT2U

Input Power Plug

(All power cords are 10ft)

NEMA 5-15P

NEMA 5-15P

NEMA 5-15P

NEMA 5-20P

Output Power Receptacles

6-NEMA 5-15R (Controllable)
2-NEMA 5-15R (Always On)

6-NEMA 5-15R (Controllable)
2-NEMA 5-15R (Always On)

6-NEMA 5-15R (Controllable)
2-NEMA 5-15R (Always On)

6-NEMA 5-15/20R (Controllable)
1-NEMA L5-20R (Always On)

Chapter 3: Installation

INSTALLATION PLACEMENT

This UPS series is ONLY intended to be installed in an indoor temperature
controlled environment that is free of conductive contaminants. DO NOT oper­ate the UPS in: extremely dusty and/or unclean areas, locations near heating
devices, water or excessive humidity, or where the UPS is exposed to direct
sunlight. Select a location, which will provide good air circulation for the UPS
at all times. Route power cords so they cannot be walked on or damaged.
This UPS series is not intended for use in a computer room as defined in the
Standard for the Protection of Electronic Computer/Data Processing Equip­ment ANSI/NFPA 75. Typical battery life is 3 to 5 years. Environmental
factors do affect battery life. High temperatures, poor utility power, and fre­quent, short duration discharges have a negative impact on battery life.

Operating Temperature (Maximum): 40°C (+32 to +104°F)
Operating Elevation: 0 to 3,000m (0 to +10,000 ft)
Operating and Storage Relative Humidity: 95%, non-condensing
Storage Temperature: -15 to +45°C (+5 to +113°F)
Storage Elevation: 0 to 15,000m (0 to +50,000 f t)

INSTALLATION

Be sure to read the installation placement and all the cautions before installing
the UPS. Place the UPS in the final desired location and complete the rest of
the installation procedure. These UPSs are shipped with the internal batteries
disconnected. The batteries must be connected before putting these UPSs
into service. See the "Connecting the Batteries" procedure to connect the
batteries and then the "Rackmount Configuration" to install the UPS into the
rack. Use CAUTION: The UPS is heavy. Use the appropriate number of
personnel when installing the UPS.

CAUTION! DO NOT USE THE MOUNTING BRACKETS TO LIFT THE

UPS. The mounting brackets are ONLY for securing the UPS to the rack.

A TTENTION! N'UTILISEZ JAMAIS LES SUPPORTS DE MONT AGE POUR
SOULEVER L'ONDULEUR. Ces supports sont uniquement conçus pour

fixer l'onduleur au rack.

10

11

CONNECTING THE BA TTERIES

(QUALIFIED SERVICE PERSONNEL ONL Y)
Please read all of the WARNINGS and CAUTIONS before attempting to con­nect the batteries.

CAUTION! DO NOT USE THE MOUNTING BRACKETS TO LIFT THE

UPS. The mounting brackets are ONLY for securing the UPS to the rack.

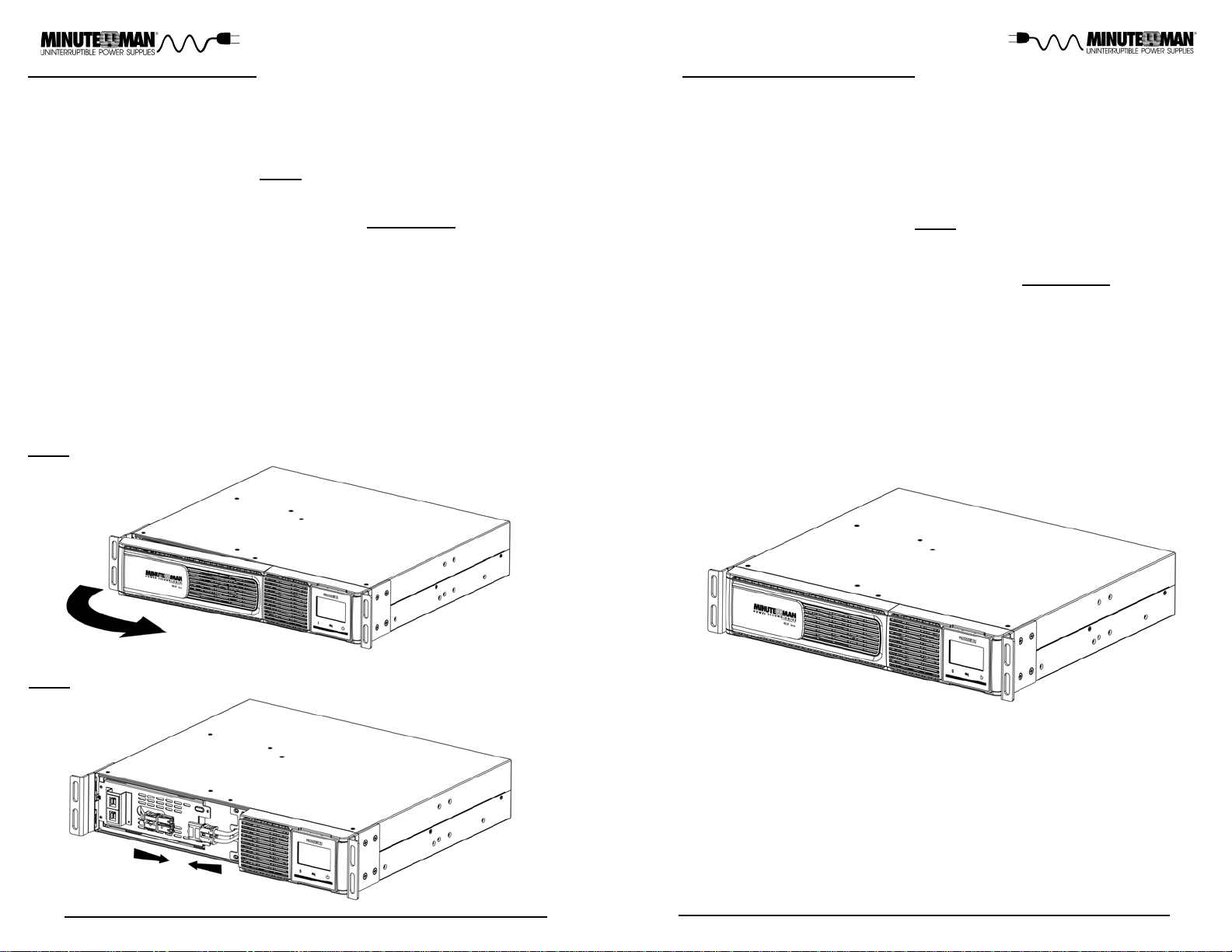

RACKMOUNT CONFIGURA TION

This UPS series comes with mounting brackets for the standard 19" (46.5cm)
rack pre-installed on the UPS. The mounting brackets to fit a 23" (59.2cm)
rack and Rail Kits for 4-post racks and cabinets are also available. The
screws for mounting the UPS to the rack are included. NOTE: The mounting
brackets can be mounted in the middle of the UPS.

A TTENTION! N'UTILISEZ JAMAIS LES SUPPORTS DE MONT AGE POUR
SOULEVER L'ONDULEUR. Ces supports sont uniquement conçus pour

fixer l'onduleur au rack.
Use two or more people when installing the UPS, the UPS is extremely heavy .

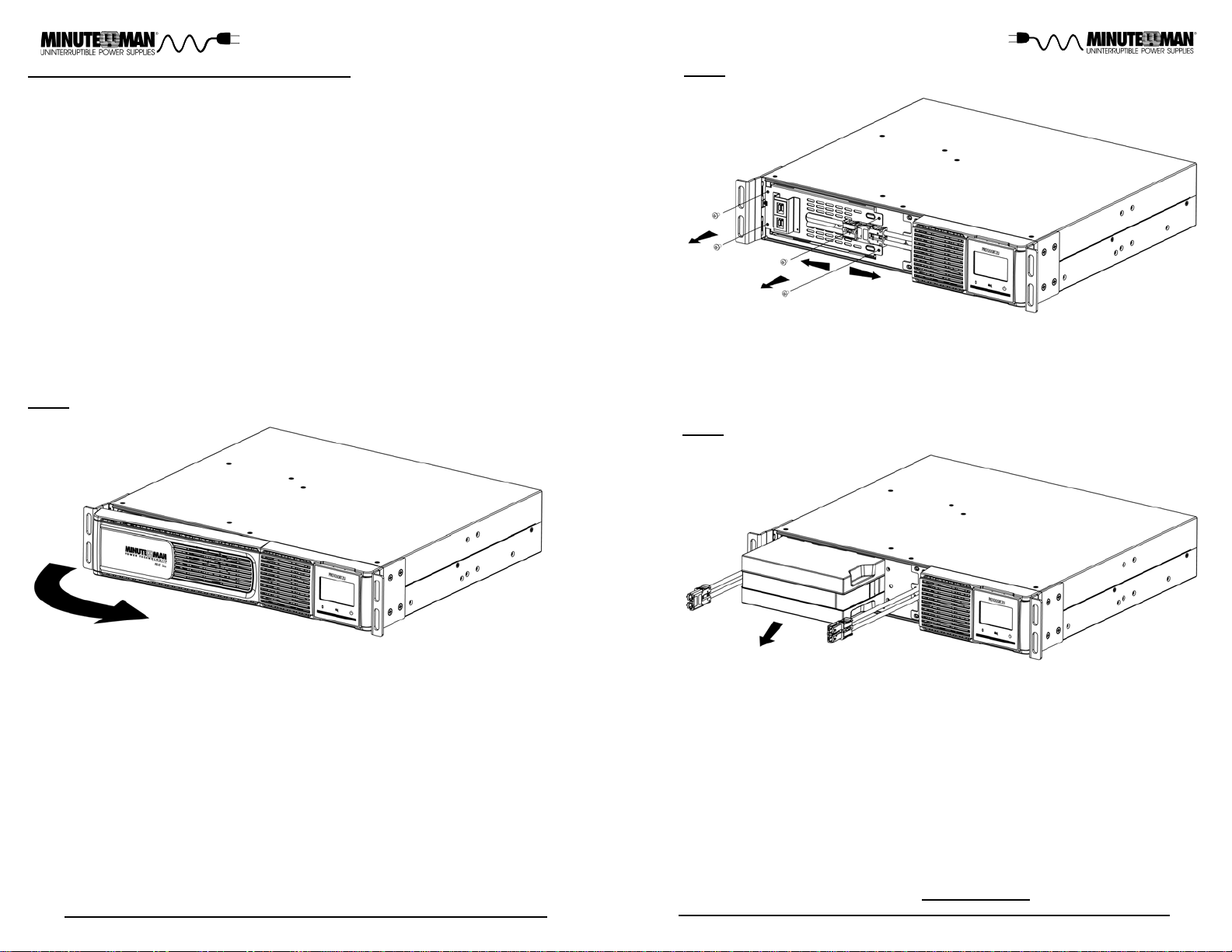

1. Remove the UPS from the shipping box and place on a flat surface.

NOTE: No tools are required for removing or installing the battery door .

2. Grasp the battery door on the left hand side, pull it outward and then set it
aside (FIG. 1).

3. Verify proper polarity. Connect the battery connectors together. (FIG. 2).

NOTE: Some sparking may occur this is normal.

4. Re-install the battery door on the UPS.

5. Connecting the Batteries is complete. See the Rackmount Configuration.

FIG. 1

CAUTION! DO NOT USE THE MOUNTING BRACKETS TO LIFT THE

UPS. The mounting brackets are ONLY for securing the UPS to the rack.

A TTENTION! N'UTILISEZ JAMAIS LES SUPPORTS DE MONT AGE POUR
SOULEVER L'ONDULEUR. Ces supports sont uniquement conçus pour

fixer l'onduleur au rack.

1. Mount the UPS into the rack and secure with the four retaining screws pro­vided. Use two or more people when installing the UPS, the UPS is extrem­ely heavy . Do not move the rack after the units have been inst alled. The
rack may become unstable due to the weight distribution.

2. The Rackmount Configuration is complete. See Connecting your Equipm­ent.

FIG. 2

12

13

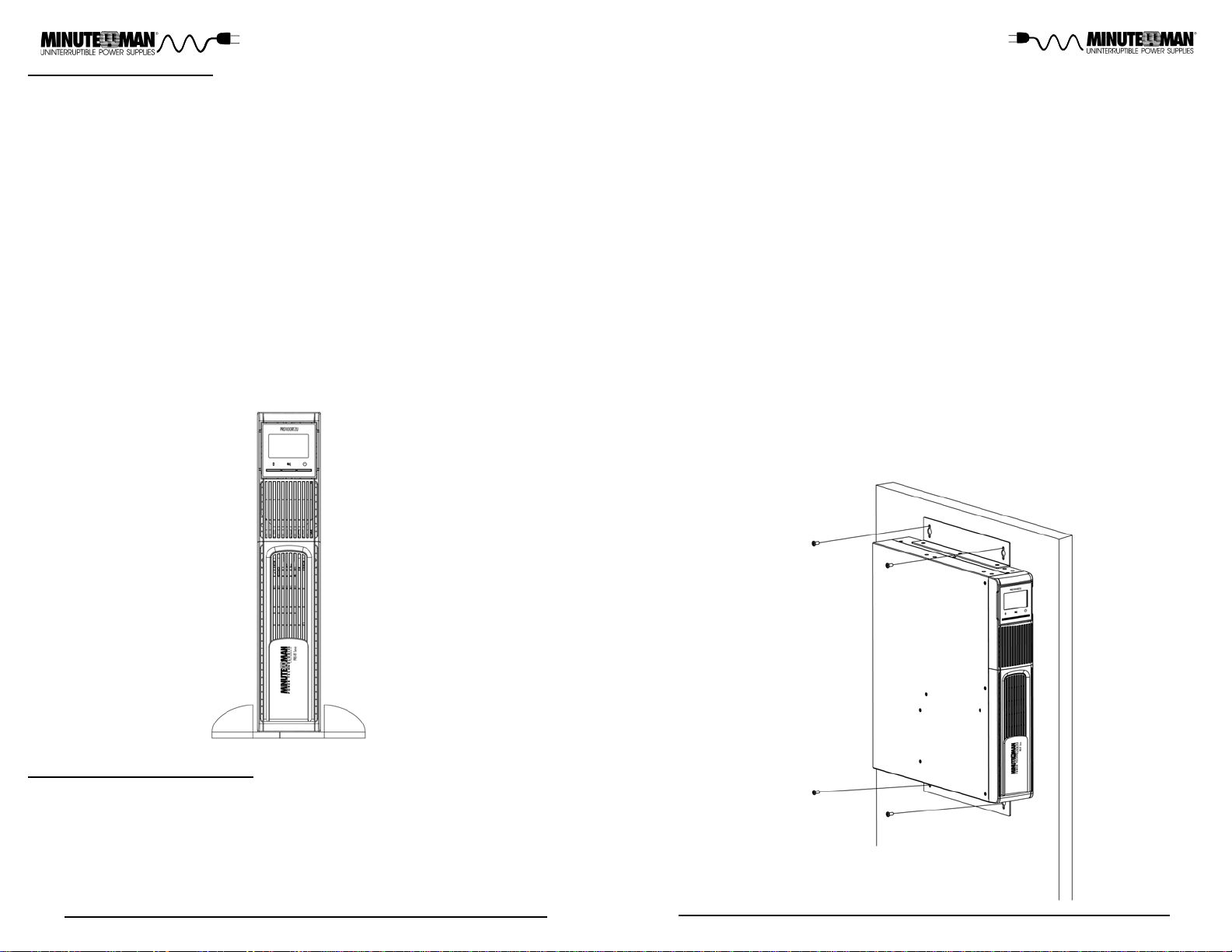

TOWER CONFIGURATION

The tower configuration allows the user to install the UPS in the up-right position.
The tower brackets are provided with the UPS. Use two or more people when
installing the UPS, the UPS is extremely heavy .

1. Once the location of the UPS has been determined, place the UPS on a flat sur­face, remove the rackmount brackets from the UPS and then place the tower br­ackets in the desired location.

2. The LCD panel can be rotated to read in the up-right position. There is a small
slot on each side of the LCD panel. Insert a small flat head screwdriver into one
of the small slots and gently pry the LCD outward. Position the LCD panel so
that it reads in the upright position. Gently press LCD panel back into the front
panel.

NOTE: The UPS must be installed in the proper up-right position. If the UPS is not
installed in the proper up-right position the batteries will be damaged. Once the
UPS is placed in the tower brackets in the up-right position, looking at the front
panel the YELLOW Battery disconnected label on the top cover of the UPS MUST
be on your left hand side.

3. Slide the UPS into the tower brackets. Make sure that the UPS is stable.

4. The T ower Configuration is complete. See Connecting your Equipment.

2. The LCD panel can be rotated to read in the up-right position. There is a small
slot on each side of the LCD panel. Insert a small flat head screwdriver into one
of the small slots and gently pry the LCD outward. Position the LCD panel so
that it reads in the upright position. Gently press LCD panel back into the front
panel.

NOTE: The UPS must be installed in the proper up-right position. If the UPS is not
installed in the proper up-right position the batteries will be damaged. Once the
UPS is attached to the wall, looking at the front panel the YELLOW Battery discon­nected label on the top cover of the UPS MUST be on your left hand side.

3. Align the wall mounting brackets with the wall mounting bracket screw holes on
the side panels of the UPS and attach with the six retaining screws.

4. Use the template to mark the screw hole position on the wall. Use CAUTION,
you should always were protective gear for your hands and eyes when operat­ing power tools.

5. Attach the four retaining screws to the wall and make sure that all of the retain­ing screws are screwed into structural material. Then clean the area of any loo­se material. Do not tighten the retaining screws all the way , leave approximately
3/8" of the retaining screws sticking out.

6. Position the UPS, so that the mounting bracket keyed holes line up with the four
retaining screws. Slide the UPS down until its resting securely on the four reta­ining screws.

7. Tighten the four retaining screws to secure the UPS to the wall.

8. The Wallmount Configuration is complete. See Connecting your Equipment.

WALLMOUNT CONFIGURATION

The wallmount configuration allows the user to mount the UPS on the wall. There is
a wallmount bracket kit available for the UPS. The kit includes two wall mounting
brackets, ten retaining screws, and the wallmount template. Use two or more people
when installing the UPS, the UPS is extremely heavy . The UPS's side panels have
mounting bracket screw holes for attaching the wall mounting brackets.

1. Once the location of the UPS has been determined, place the UPS on a flat sur­face and remove the rackmount brackets from the UPS.

14

15

CONNECTING YOUR EQUIPMENT

Plug the equipment into the output receptacles on the rear panel of the UPS.
Ensure that you do not exceed the maximum output rating of the UPS (refer to
the information label or the Electrical Specifications in this manual). DO NOT
PLUG EXTENSION CORDS, ADAPTER PLUGS OR SURGE STRIPS INT O
THE OUTPUT RECEPT ACLES OF THE UPS, there is a risk of damaging the
UPS and/or connected equipment.

CAUTION! DO NOT connect a laser printer, copier, vacuum cleaner or any
other large electrical device into the output receptacles of the UPS.

CONNECTING THE UPS TO AN AC SOURCE
CAUTION - To reduce the risk of fire, connect only to a utility powered circuit

with 20 amperes maximum branch circuit over-current protection in accor­dance with the National Electric Code, ANSI/NFPA 70. Plug the UPS into a
two pole, three wire, grounded receptacle only. The AC wall outlet shall be
near the UPS and easily accessible. The plug on the input power cord on this
UPS series is intended to serve as a disconnect device. DO NOT PLUG THE
UPS INTO EXTENSION CORDS, ADAPTER PLUGS, SURGE STRIPS OR
POWER STRIPS. DO NOT CUT THE INPUT PLUG OFF AND A TTEMPT T O
HARDWIRE THIS UPS, DOING SO WILL VOID THE WARRANTY.

CONNEXION DE L'ONDULEUR À UNE SOURCE C.A.
ATTENTION! Pour réduire les risques d'incendie, faites le raccordement

uniquement sur un circuit d'alimentation électrique équipé d'un dispositif de
protection de surintensité de circuit de dérivation de maximum 20 ampères,
conformément au Code national de l'électricité, ANSI/NFPA 70. Branchez
l'onduleur uniquement sur une prise bipolaire à trois fils mise à la terre. NE
BRANCHEZ P AS L'ONDULEUR SUR UNE RALLONGE, UN ADAPT A TEUR,
UN LIMITEUR DE SURTENSION OU UNE BARRE MUL TIPRISES. NE COUPEZ
JAMAIS LE CONNECTEUR D'ENTRÉE POUR TENTER DE CÂBLER CET
ONDULEUR; CECI ANNULERA LA GARANTIE.

CHECKING THE SITE WIRING FAULT

After plugging the UPS into the AC wall outlet, check the Site Wiring Fault
(SWF) icon on the front panel of the UPS. If the SWF icon is illuminated, the
UPS is plugged into an improperly wired AC wall outlet. If the UPS indicates a
Site Wiring Fault (SWF), have a Qualified Electrician correct the problem.

CHARGING THE BA TTERY

The UPS will charge the internal batteries whenever the UPS is connected to
an AC source and there is an accept able AC voltage present (90-150V AC). It
is recommended that the UPS's batteries be charged for a minimum of 4 hours
before use. The UPS may be used immediately, however, the “On-Battery”
runtime may be less than normally expected. NOTE: If the UPS is going to be
out of service or stored for a prolonged period of time, the batteries must be
recharged for at least twenty-four hours every ninety days.

16

USB COMMUNICA TIONS PORT CONNECTION (OPTIONAL)

The power monitoring software and interface cable can be used with the UPS.
Use only the interface cable that comes with these UPSs. The USB communi­cations protocol is HID. The HID USB driver comes standard in the Windows
OS. Simply connect the USB cable to the USB communications port on the
rear panel of the UPS. Connect the other end of the USB cable to the device
that will be monitoring/controlling the UPS and then follow the prompts on the
screen. NOTE: When using the UPS's USB port with Windows XP , 7, 8 or 10
the Power Options in the Control Panel may need to be configured. Connect­ing to the Communications Port is optional. The UPS works properly without
this connection.

POWER MONITORING SOFTW ARE

This UPS series supports Minuteman's SentryHD power monitoring software.
Please go to our web site at www.minutemanups.com/support, then look under
Downloads, and then Software Download Center. Please download (Free of
Charge) the latest version of the Minuteman SentryHD software.

RJ11 EPO (Emergency Power Off) PORT (OPTIONAL)
Connect one end of the RJ1 1 cable to the EPO port and the other end of the
RJ11 cable to the EPO switch. In the AC or the Battery mode short pin4 to
pin5 for approximately 0.5-seconds to shutdown the UPS. The UPS must be
turned on to restart the UPS. NOTE: Connecting to the EPO port is optional.
The UPS works properly without this connection. This connection is not for
T elecommnication use.

NETWORK/PHONE/FAX/MODEM PROTECTION CONNECTION (OP­TIONAL)
Connect a 10/100/1000 Base-T network, single line phone, Fax or Modem line
to the RJ11/45 modular connectors on the rear panel of the UPS. This con­nection will require another length of telephone or network cable. The cable
coming from the telephone service or networked system is connected to the
port marked “IN”. The equipment to be protected is connected to the port
marked "OUT". NOTE: Connecting to the Network/Phone/Fax/Modem modu­lar connectors is optional. The UPS works properly without this connection.

COAX PROTECTION CONNECTION (OPTIONAL)
Connect a cable modem , CA TV converter, DSS receiver or DVR to the coax
connectors on the rear panel of the UPS. This connection will require another
coax cable. The cable coming from the coax service is connected to the port
marked “IN”. The equipment to be protected is connected to the port marked
"OUT". NOTE: Connecting to the coax connectors is optional. The UPS
works properly without this connection.

OPTION SLOT

The option slot on the rear panel of the UPS is for option cards. Contact your
local dealer or visit our Web site at www.minutemanups.com for the available
option cards for this UPS series.

17

Chapter 4: Operation

TURNING THE UNIT ON/OFF

SYSTEM OVERVIEW

This Line-Interactive UPS protects computers, servers, telecom systems, VoIP
systems, security systems, and a variety of electronic equipment from black­outs, brownouts, overvoltages, and surges. The AVR function continuously
corrects the voltages, in-between the brownout and overvoltage transfer points
(90 - 150V AC), to a safe usable level. When the UPS is operating in the AVR
mode the audible alarm will remain silent and the AC mode indicator will blink.
During normal AC operation, the UPS will quietly and confidently protect your
system from power anomalies.

The UPS will charge the batteries with the UPS in the on or off position when
the UPS is plugged into the wall outlet and there is an acceptable AC voltage
present (90 - 150V AC). When a blackout, brownout, or an overvoltage condi­tion occurs; the UPS will transfer to the battery mode, the On Battery indicator
will illuminate and the audible alarm will sound once every ten seconds indicat­ing that the commercial power is lost or unacceptable. When the commercial
power returns or is at an acceptable level, the UPS will automatically transfer
back to the AC mode and st art recharging the batteries. During an extended
outage when there is approximately two minutes of backup time remaining the
audible alarm will sound twice every five seconds. This Low Battery Warning
is informing the user that they should save all open files and turn off their
computer. When the batteries reach the predetermined level the UPS will
automatically shutdown protecting the batteries from over discharging. Once
the commercial power returns and is at an acceptable level the UPS will auto­matically restart, providing safe usable power to the connected equipment and
start recharging the batteries.

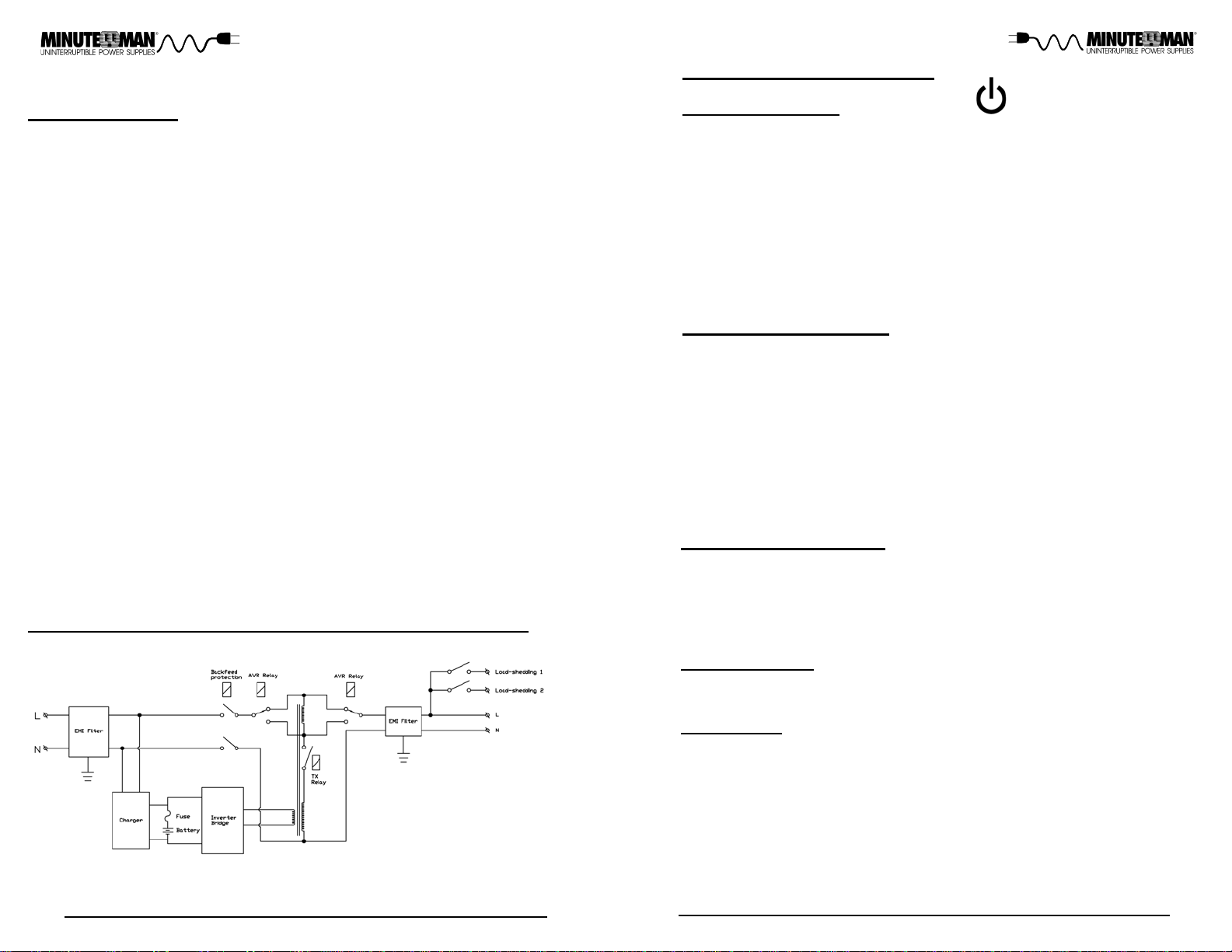

Block Diagram of the Basic Wiring and Internal Circuit Configuration

On / Off / Test Button

When the UPS is connected to an AC source and there is an accept able AC volt­age present;

alarm's first beep to turn the UPS on. UPS will provide an output and the load
will be powered. Then the UPS will perform a five second self-test. Once the
UPS has passed its self-test the UPS will be ready for normal operation.

When the UPS is in the AC mode; Press and then release the On/Off/Test
button during the audible alarm's first beep to turn the UPS off. The UPS will
continue to charge the batteries whenever it is plugged into an AC wall outlet
and there is acceptable AC voltage present.

USER INVOKED SELF-TEST

The user invoked self-test feature is useful to verify the correct operation of
the UPS and the condition of the batteries. With the UPS in the AC mode;
Press and hold the On/Off/Test button until the audible alarm sounds four
beeps, and then release. The UPS will perform a ten-second battery test to
measure the battery’s capability to support the connected load. During the
battery test, the UPS will switch to the battery mode and the On-Battery icon
will illuminate and the audible alarm will sound. If the UPS fails a battery test,
one of the icons will remain illuminated and an error code will be displayed
indicating the type of problem. NOTE: The UPS will automatically perform a
self test on start-up.

ALARM SILENCER BUTTON

When the unit is operating in Battery mode, pressing the Alarm Silencer But­ton will silence the audible alarm. Once the UPS reaches the LBW (Low
Battery Warning) threshold the audible alarm will be re-activated. The audible
alarm cannot be silenced during the LBW alarm or any fault condition. Once
the UPS transfers to the AC mode the audible alarm will be reset to default.

Press and then release the On/Off/T est button during the audible

18

SCROLL BUTTON

Press the Scroll Button to scroll through the UPS parameters. The UPS pa­rameters are displayed on the LCD screen.

LCD SCREEN

The LCD scrren provides the user with a variety of useful information. The
LCD has a real-time meter to display , in numeric fashion, the following data:

Input Volt age and Frequency
Output Voltage and Frequency
Connected Load KV A and KW
Estimated runtime in the AC and DC mode
Error Codes
Connected Load Capacity Bar Graph
Battery Capacity Bar Graph

19

The LCD screen will include dedicated icons for the following information:

AC Mode / AVR Mode (Boost and Buck: The AC mode icon will flash)
On-Battery
Weak/Bad Battery
UPS Fault
SWF (Site Wiring Fault)
Overload
EPo (Emergency Power Off)

ALARMS

ON BA TTERY

When the UPS is operating on the batteries, the AC mode icon will extinguish,
the On-Battery icon will illuminate, the LCD will display the estimated runtime
remaining and the audible alarm will sound one beep every 10 seconds. Once
the UPS returns to the AC mode, the audible alarm will stop, the On-Battery
icon will extinguish and the AC mode icon will illuminate.

The LCD backlight that will turn on when the UPS is turned on. Af ter approxi­mately 20-seconds the backlight will turn off to conserve energy. When an
event (alarm) occurs, such as going to the battery mode, the backlight will turn
on for approximately 20-seconds to alert the user that an event has occurred
and then the backlight will turn off. While the Scroll button is in use the
backlight will remain on. Approximately 20-seconds af ter the Scroll button has
stopped being used the backlight will turn off.

LOAD SHEDDING FUNCTION

The output receptacles are electrically wired into two segments to support the
"Load Shedding Function" (Labeled Load 1 & Load 2). The user can control
the two segments individually or both at the same time. The Load Shedding
Function is controllable by the Power Monitoring Software or the SNMP card.
NOTE: The output segment labeled 'Always On' does not support the "Load
Shedding Function".

EMERGENCY POWER OFF (EPo) FUNCTION

Connect one end of the RJ1 1 cable to the REPO port and the other end of the
RJ11 cable to the EPO switch. In the AC or the Battery mode short pin4 to
pin5 for approximately 0.5-seconds to shutdown the UPS. The UPS must be
turned on to restart the UPS. The LCD screen will display EPo for this func­tion.

POWER MONITORING SOFTWARE

This UPS series supports Minuteman's SentryHD power monitoring software.
Please go to our web site at www.minutemanups.com/support, then look under
Downloads, and then Software Download Center. Please download (Free of
Charge) the latest version of the Minuteman SentryHD software. The USB
communications protocol is HID. The HID USB driver comes standard in the
Windows OS. Simply connect the USB cable to the USB communications port
on the rear panel of the UPS. Connect the other end of the USB cable to the
device that will be monitoring/controlling the UPS and then follow the prompts
on the screen. NOTE: When using the UPS's USB port with Windows XP, 7,
8 or 10 the Power Options in the Control Panel may need to be configured.

20

LOW BA TTERY WARNING

When the batteries reach the predetermined level, the audible alarm will sound
two beeps every five seconds, the Battery Bar Graph will display the remain­ing battery capacity and the LCD will display error code E07. This informa­tion is to inform the user that there is approximately two minutes of runtime
remaining before the UPS shuts down. This condition will continue until either
AC returns or the UPS’s self protection circuit shuts the UPS down to protect
the battery from over discharging.

WEAK/BAD BA TTERY

The UPS automatically tests the battery’s condition. If the battery is weak, bad
or disconnected, the Weak/Bad Battery icon will illuminate and the Battery
Capacity Bar Graph will turn off, the LCD screen will display error code E06
and the audible alarm will sound three beeps every five minutes until the bat­tery is either reconnected or replaced. This alarm will be repeated until the
batteries pass a self-test. It is recommended that the UPS be allowed to
charge overnight before performing a battery test to confirm a Weak/Bad
Battery condition.

OVERLOAD

When the amount of load attached to the UPS exceeds its power rating, the
Overload icon will illuminate, the LCD scrren will display error code E02 and
the audible alarm will sound continuously (AC and Battery modes). This alarm
will remain on until the excess load is removed or the UPS’s self protection
circuit shuts the UPS down.

T o clear the overload alarm when the UPS has shutdown requires that the UPS
perform a battery test. First remove part of the load, then turn the UPS on, the
Overload icon and the audible alarm will be on. Second either use the Test
Button or unplug the input power cord to perform the battery test.

UPS FAULT

When the UPS detects an internal fault, the Fault icon will illuminated and an
error code will be displayed on the LCD screen, the audible alarm will sound
continuously and the output will be turned off. The fault condition, in some
instances, may be cleared by turning the UPS off and then on. If the fault
condition does not clear the UPS must be sent in for service. See the Trouble­shooting section.

21

Chapter 5: Obtaining Service

Chapter 6: Troubleshooting

IF THE UPS REQUIRES SERVICE

1. Use the Troubleshooting section to eliminate obvious causes.

2. Verify there are no tripped circuit breakers and that the batteries are good.

A tripped circuit breaker and defective batteries are the most common iss­ues.

3. Call your dealer for assistance. If you cannot reach your dealer, or if they

cannot resolve the issue call or fax the T echnical Support dep artment at the
following numbers; Voice phone [phone], F AX line (972) 446-901 1
or visit our Web site at http://www .minutemanups.com/callrequest.php. Bef­ore calling the T echnical Support Dep artment have the following informati­on available:
a) Contact name and address.
b) Where and when the unit was purchased.
c) The model number of your unit.
d) The serial number of your unit.
e) Any information on the failure, including icons that may be illuminated

or error codes displayed.

f) A description of the protected equipment including model numbers, if

possible.

g) A technician will ask you for the above information and if possible,

help solve the issue over the phone. In the event that the unit requires
factory service, the T echnical Support Represent ative will issue you a
Return Material Authorization Number (RMA #). NOTE: We must

have the model number and the serial number of the product to
issue an RMA #.

h) If the unit is under warranty, the repairs will be done at no charge. If

the unit is not under warranty there will be a charge for the repair .

4. Pack the unit in its original packaging. If the original packaging is no lon-

ger available, ask the T echnical Support Represent ative about obtaining a
new set. It is important to pack the unit properly in order to avoid damage
intransit. Never use Styrofoam beads for a p acking material.
a) Include a letter with your name, address, day time phone number ,

RMA number, a copy of your original sales receipt, and a brief desc­ription of the problem.

5. Mark the RMA # on the outside of all packages. The factory cannot accept

any package without the RMA # marked on the outside.

6. Return the unit by insured, prepaid carrier to:

Para Systems Inc.
MINUTEMAN UPS

1809 W. Frankford Road, Suite 150

Carrollton, TX 75007

A TTN: RMA # _______

22

Symptom / Error Code
UPS will not turn on.

UPS operates in battery
mode only , even though
there is AC present.

The AC mode icon is
blinking and the alarm
is silent.

UPS does not provide
expected runtime.

The AC mode icon is
illuminated, but there is
no output.

Fault icon is illuminated
and a constant alarm.

Error Code: E01. UPS
is shutdown.

Error Code: E02.
Overload icon is illumi­nated and a constant
alarm.

Error Code: E03. Over
Temperature Shut­down.

Error Code: E04: In­verter/Output Failure
Shutdown.

Error Code: E05. Charger
Failure Warning.

Error Code: E06.
Weak/Bad Battery icon
is illuminated.

Error Code: E07. Low
Battery Warning.

Error Code: E08. SWF
icon is illuminated.

Cause / What To Do

Press the On/Off/Test button and release after one
beep.

Reset the input circuit breaker by pressing the
plunger back in. If the input circuit breaker trips af­ter the UPS restarts, reduce the load on the UPS.

The UPS is in either the Boost or the Buck mode. It
is performing its intended function.

Charge the batteries for 8-hours and retest. If the
runtime is still less than expected, the batteries may
need to be replaced.

Disconnect the computer cable from the UPS, press
the On button. If UPS works normally, the software
had control of the UPS.

The UPS has an internal problem, call for service.

The UPS has detected a short-circuit on its output.
Check the attached load.

Check the specifications and remove part of the load.
If the UPS shuts down because of an Overload, the
UPS must perform an Inverter function or a Self T est
to clear the Overload Alarm.

The internal or ambient temperature has exceeded
the safe operating range for the UPS. Check the
specifications.

The UPS has an internal fault, call for service.

The charger has failed, call for service.

Check the battery connections, charge the batteries
for 8-hours and retest, or replace the batteries.

The UPS's battery reserve is low. This condition will
continue until AC returns or the UPS shut s down from
battery exhaustion.

Have a qualified electrician correct the service
wiring.

23

Chapter 7: Replacing the Battery

REPLACING THE BA TTERY

(QUALIFIED SERVICE PERSONNEL ONL Y)
Please read all of the WARNINGS and CAUTIONS before attempting to ser-

vice the batteries. Typical battery life is 3 to 5 years. Environmental factors
do affect battery life. High temperatures, poor utility power, and frequent,
short duration discharges have a negative impact on battery life.

WARNING! This UPS contains potentially hazardous voltages. Do not at­tempt to disassemble the UPS beyond the battery replacement procedure.
This UPS contains no user serviceable parts. Repairs and battery replace­ment must be performed by QUALIFIED SERVICE PERSONNEL ONL Y.

AVERTISSEMENT! Cet onduleur contient des tensions potentiellement
dangereuses. N'essayez pas de le démonter au-delà de la procédure de
remplacement d'une batterie. L'onduleur ne contient aucune pièce réparable
par l'utilisateur. SEUL UN TECHNICIEN QUALIFIÉ est autorisé à effectuer
les réparations et le remplacement d'une batterie.

CAUTION: Do not open or mutilate batteries. Released electrolyte is harmful
to the skin and eyes and may be toxic.

ATTENTION! Évitez d'ouvrir ou d'abîmer les batteries. L'électrolyte qu'elles
contiennent nuit à la peau et aux yeux et peut être toxique.

CAUTION: Do not dispose of batteries in a fire. The batteries may explode.
The batteries in this UPS are recyclable. Dispose of the batteries properly.
The batteries contain lead and pose a hazard to the environment and human
health if not disposed of properly. Refer to local codes for proper disposal
requirements or return the battery to the supplier .

ATTENTION! N'essayez jamais de vous débarrasser d'une batterie en la
brûlant. Elle risque d'exploser. Les batteries de cet onduleur sont recyclables.
Éliminez-les de manière appropriée. Les batteries contiennent du plomb et
posent un danger pour l'environnement et la santé si elles ne sont pas éliminées
de façon appropriée. Consultez les codes locaux pour savoir comment
correctement éliminer une batterie ou renvoyez-la au fournisseur.

CAUTION: The battery system can present a risk of electrical shock. These
batteries produce sufficient current to burn wire or tools very rapidly, produc­ing molten metal. Observe these precautions when replacing the batteries:

1. Remove watches, rings, or other metal objects.

2. Use hand tools with insulated handles.

3. Wear protective eye gear (goggles), rubber gloves and boots.

4. Do not lay tools or other metal parts on top of batteries.

5. Disconnect the charging source prior to connecting or disconnecting the
battery terminals.

6. Determine if the battery is inadvertently grounded. If the battery is, remove
the source of the grounding. Contact with any part of a grounded battery
can result in an electrical shock. The likelihood of such shock will be redu­ced, if such grounds are removed during installation and maintenance.

ATTENTION! Les batteries peuvent entraîner le risque de choc électrique.
Elles produisent suffisamment de courant pour brûler très rapidement des fils
ou outils, les causant à fondre. Prenez les précautions suivantes lors du
remplacement d'une batterie.

1. Retirez votre montre, bagues ou autres objets métalliques.

2. Utilisez des outils à main à poignées isolantes.

3. Portez des lunettes de protection, des gants en caoutchouc et des bottes.

4. Ne placez jamais des outils ou autres objets en métal sur le dessus d'une
batterie.

5. Déconnectez la source d'alimentation avant de brancher ou de débrancher
les bornes d'une batterie.

6. Vérifiez si, par inadvertance, la batterie est toujours mise à la terre. Si
c'est le cas, supprimez la source de mise à terre. Le contact avec n'importe
quelle partie d'une batterie mise à la terre peut causer un choc électrique.
La suppression de dispositifs de mise à terre pendant l'installation et
l'entretien réduit le risque de chocs électriques.

CAUTION: Replace the batteries with the same number and type as originally
installed in the UPS. These batteries have pressure operated vents. These
UPSs contain sealed non-spillable maintenance-free lead acid batteries.

ATTENTION! Remplacez les batteries par des batteries du même numéro et
type que celles d'origine. Une batterie de numéro et type différents peut causer
une explosion. Les batteries sont équipées de purgeurs actionnés par pression.
Les onduleurs contiennent des batteries au plomb étanches et inversables qui
ne requièrent aucun entretien.

24

Model #

Battery Module
Part #

PRO750RT2U

BM0072

PRO1000RT2U

BM0073

PRO1500RT2U

BM0074

PRO2000RT2U

BM0075

25

BATTERY REPLACEMENT PROCEDURE

PLEASE READ THE CAUTIONS AND W ARNINGS BEFORE A TTEMPTING
TO REPLACE THE BA TTERIES

Hot-swappable batteries mean that the batteries can be replaced without pow­ering down the whole UPS system.
NOTE: If there is a power interruption while replacing the hot-swappable batter­ies, with the UPS on, the load will not be backed up. To hot-swap the battery
module start with step number 6.

1. T urn off the equipment that is plugged into the output of the UPS.

2. Press the On/Off/Test Button on the front panel to turn the UPS of f.

3. Unplug the UPS's AC power cord from the AC wall outlet.

4. Unplug the equipment from the output receptacles of the UPS.

5. Unplug the computer interface cable from the rear panel of the UPS.
NOTE: No tools are required for removing or installing the battery door .

6. Grasp the battery door on the left hand side, pull it outward and then set it
aside. (FIG. 1)

FIG. 1

FIG. 2

10.Grasp the battery pull tab and gently pull the battery module out of the UPS
and set aside. (FIG. 3)
NOTE: DO NOT use the battery wires to pull the battery module out. Use
Caution, the battery module is heavy .

FIG. 3

7. Disconnect the battery connectors. (FIG. 2)

8. Remove the four ret aining screws for the battery retaining bracket. (FIG . 2)

9. Remove the battery retaining bracket and set aside.

26

1 1.Slide the new battery module into the UPS.

12.Re-install the battery retaining bracket.

13.Re-install the four retaining screws for the battery retaining bracket.

14.Verify proper polarity . Reconnect the battery connectors together.
NOTE: Some sparking might occur, this is normal.

15.Re-install the battery door on the UPS.

16.Properly dispose of the old batteries at an appropriate recycling facility or
return them to the supplier in the packing material for the new batteries.

17.The UPS is now ready for the normal operation.
NOTE: If the UPS has a Weak/Bad Battery Alarm after replacing the battery
module, the user must initiate a self-test to clear the Weak/Bad Battery Alarm.
To initiate a self-test see section 4 "TEST BUTTON".

27

Chapter 8: Specifications

SYSTEM SPECIFICA TIONS

Model Number

T opology
Maximum Power Capacity

PRO750RT2U PRO1000RT2U

Line-Interactive, Simulated Sine Wave

750V A
525W

1000VA
700W

INPUT

Number of Phase

Nominal Voltage 120VAC

Acceptable Input voltage
Voltage Range

Frequency Limits
Low Voltage Transfer Point

High Voltage Transfer Point
Protection

Power Cord (10ft) NEMA 5-15P

89V resets to Utility Power at 94V or higher

151V resets to Utility Power at 146V or lower

Single (1∅ 2W +G)

Resettable Circuit Breaker

OUTPUT NON-BA TTERY OPERA TION

Voltage Range

Voltage Regulation 120V AC: ±13.3%
Frequency Range 60Hz: 54 - 66Hz
Efficiency (Line Mode)

>96% (Full Load)

OUTPUT BA TTERY OPERA TION

Waveform T ype

Nominal Voltage

Voltage Regulation 120VAC ±5% (until Low Battery W arning)
Frequency

Transfer Time
Overload Capacity

Protection
Receptacles (NEMA) 8: 5-15R

DC Mode: 110% for 20-seconds then shutdown, 150% Shutdown Immediately

60Hz, ±0.5Hz (unless synchronized to utility)

AC Mode: 110% for 1-minute then shutdown, 150% Shutdown Immediately

Over-Current, Short-Circuit Protected and Latching Shutdown

Simulated Sine Wave

REGULA TORY COMPLIANCE

Safety and Approvals

cTUVus (Conforms to UL1778 5th Edition & CSA 22.2 no. 107.3­14 / R: 2014), FCC Class B, CE certified, RoHS2 (EU Directive
2011/65/EU & 2015/863/EU)

PRO1500RT2U

1500VA
1050W

0 - 150VAC

90 - 150VAC

60 Hz, ±6Hz

103 - 136VAC

120VAC

6-10 ms Typical

PRO2000RT2U

2000VA
1400W

NEMA 5-20P

6: 5-15/20R
1: L5-20R

BA TTERY SYSTEM

Battery Type

Typical Recharge T ime
Typical Battery Life

Battery Module Part #

Runtime: Full Load (minutes)
Runtime: Half Load (minutes)

Sealed, Non-Spillable, Maintenance Free, V alue Regulated Lead Acid

8-hours to 90% capacity from a full load discharge

3 to 5 years. Environmental factors do affect battery life. High
temperatures, poor utility power, and frequent, short duration
discharges have a negative impact on battery life.

BM0073 BM0074

5

15

4

14

4

14

SURGE PROTECTION AND FIL TERING

UPS Surge Energy Rating 960 J
Surge Current Capability
Response Time

Surge voltage let-through (as a
percentage of an applied ANSI
C62.41 Cat. A ±2 kV)

Noise Filter

Audible Noise at 1 m (3 ft.)

Network/Phone/Fax/Modem
transient voltage surge protection

Coax transient voltage surge
protection

6500 Amps total (one time 8 to 20us waveform)

0 ns (instantaneous) normal mode; <5 ns common mode

< 0.30%

>45db normal and common mode EMI/RFI suppression

<45 dBA

10/100/1000 Base-T network, single line phone, Fax or Mo­dem. 1-in / 1-out combo RJ11/45 connectors

Cable modem , CATV converter , DSS receiver , DVR.
1-in / 1-out

ENVIRONMENT AL

Operating T emperature

Operating Elevation
Operating/Storage Humidity 5- 95% Non-Condensing
Storage T emperature

Storage Elevation

0 to 40°C (+32 to +104°F)

0 to 3000m (0 to +10,000 ft)

-15 to +45°C (+5 to +113°F)

0 to 15,000m (0 to +50,000 ft)

PHYSICAL

Size - Net

L X W X H

Weight - Net

Size - Shipping

L X W X H

Weight - Shipping

16.1 X 18.9 X 3.4"
410 X 480.6 X 86.2 mm

31.3 lbs

14.2 Kgs

22.4 X 21.7 X 9.4"
570 X 550 X 240 mm

37.5 lbs

17.0 Kgs

35.7 lbs

16.2 Kgs

41.9 lbs

19.0 Kgs

20.1 X 18.9 X 3.4"
510 X 480.6 X 86.2 mm

48.7 lbs

22.1 Kgs

26.4 X 22.4 X 9.4"
670 X 570 X 240 mm

56.4 lbs

25.6 Kgs

BM0075BM0072

4

14

62.8 lbs

28.5 Kgs

70.5 lbs

32.0 Kgs

28

29

Chapter 9: Limited Product Warranty

Para Systems, Inc. (Para Systems) warrants this equipment, when properly applied and
operated within specified conditions, against faulty materials or workmanship for a pe­riod of three years from the date of purchase. For equipment sites within the United
States and Canada, this warranty covers depot rep air or replacement of defective equip­ment at the discretion of Para Systems. Depot repair will be from the nearest authorized
service center. The customer pays for shipping the product to Para Systems. Para
Systems pays ground freight to ship the product back to the customer . Replacement
parts and warranty labor will be borne by Para Systems. For equipment located outside
of the United St ates and Canada, Para Systems only covers faulty parts. Para Systems
products that are depot repaired or replaced pursuant to this warranty shall only be
warranted for the unexpired portion of the warranty applying to the original product. This
warranty applies only to the original purchaser who must have properly registered the
product within 10 days of purchase.

The warranty shall be void if (a) the equipment is damaged by the customer, is improp­erly used, is subjected to an adverse operating environment, or is operated outside the
limits of its electrical specifications; (b) the equipment is repaired or modified by anyone
other than Para Systems or Para Systems approved personnel; or (c) has been used in
a manner contrary to the product’s User's Manual or other written instructions.

Any technical advice furnished before or after delivery in regard to use or application of
Para Systems’ equipment is furnished without charge and on the basis that it represents
Para Systems’ best judgment under the circumstances, but it is used at the recipient’s
sole risk.

A1. DECLARATION OF CONFORMITY

Application of Council Directive(s): 2014/35/EU, 2014/30/EU, cTUVus (for
UL1778)

St andard(s) to which Conformity is declared: EN61000-3-2, EN61000-3-3,
EN62040-2, IEC61000-2-2 IEC61000-4-2, IEC61000-4-3, IEC61000-4-4,
IEC61000-4-5, IEC61000-4-6, IEC61000-4-8, IEEE C62.41 Category A1,
UL1778, CSA 22.2 no. 107.3-14 / R: 2014, FCC Class B

Manufacturer’s Name: Para Systems, Inc. (MINUTEMAN UPS)
Manufacturer’s Address:1455 LeMay Drive

Carrollton, Texas 75007 USA

Type of Equipment: Uninterruptible Power Supplies (UPS)
Model No: PRO750RT2U (Y), PRO1000RT2U (Y), PRO1500RT2U (Y),

PRO2000RT2U (Y)

Year of Manufacture: Beginning January 2018

EXCEPT AS PROVIDED HEREIN, PARA SYSTEMS MAKES NO W ARRANTIES, EX­PRESSED OR IMPLIED, INCLUDING WARRANTIES OF MERCHANT ABILITY AND FIT­NESS FOR A P ARTICULAR PURPOSE. Some states do not permit limitation of implied
warranties; therefore, the aforesaid limitation(s) may not apply to the purchaser .

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL P ARA SYSTEMS BE LIABLE
FOR DIRECT , INDIRECT , SPECIAL, INCIDENT AL, OR CONSEQUENTIAL DAMAGES
ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSI­BILITY OF SUCH DAMAGE. Specifically , Para Systems is not liable for any costs, such
as; labor for on-site installation, on-site maintenance or on-site service, lost profits or
revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, cost
of substitutes, claims by third parties, or otherwise. The sole and exclusive remedy for
breach of any warranty , expressed or implied, concerning Para Systems’ products and
the only obligation of Para Systems hereunder, shall be depot rep air or replacement of
defective equipment, components, or parts; or, at Para Systems’ option, refund of the
purchase price or substitution with an equivalent replacement product. This warranty
gives you specific legal rights and you may also have other rights which vary from state
to state.

No employee, salesman, or agent of Para Systems is authorized to add to or vary the
terms of this warranty .

30

I hereby declare that the equipment specified above conforms to the above
Directive(s).

Robert Calhoun
(Name)

Place: Carrollton, Texas, USA

Manager Engineering
(Position)

Date: January 2, 2018

31

Notes:

Notes:

32

33
