Minuteman H20 User Manual

User Manual

H20 Walk-Behind Scrubber
Disc Traction Drive

This manual is furnished with each new MINUTEMAN H20. This provides the necessary operating and preventive
maintenance instructions. Operators must read and understand this manual before operating or servicing this machine.

This machine was designed to give you excellent performance and efficiency. For best results and minimal cost,
please follow the general guidelines below:

· Operate the machine with reasonable care.

· Follow the manufacturer’s suggested maintenance instructions as provided in this booklet.

· Use original Minuteman supplied parts.

2

Model H20 Traction Drive

Model No. H20DTD / H20DTDCE / H20DTDQP / H20DTDQPG

H20
Current (Max)
Battery Capacity (Lead Acid)
Battery Capacity (Gel)
Sound Level
Cleaning path width
Squeegee width
Productivity
Working speed
Transport Speed
Rated voltage
Vacuum flow
Vacuum waterlift
Vacuum power
Brush type
Brush motor(s) power
Number of brushes
Brush RPM
Aqua-Stop equipped
Solution capacity
Recovery capacity
Working Grade
Weight with batteries
Weight without batteries

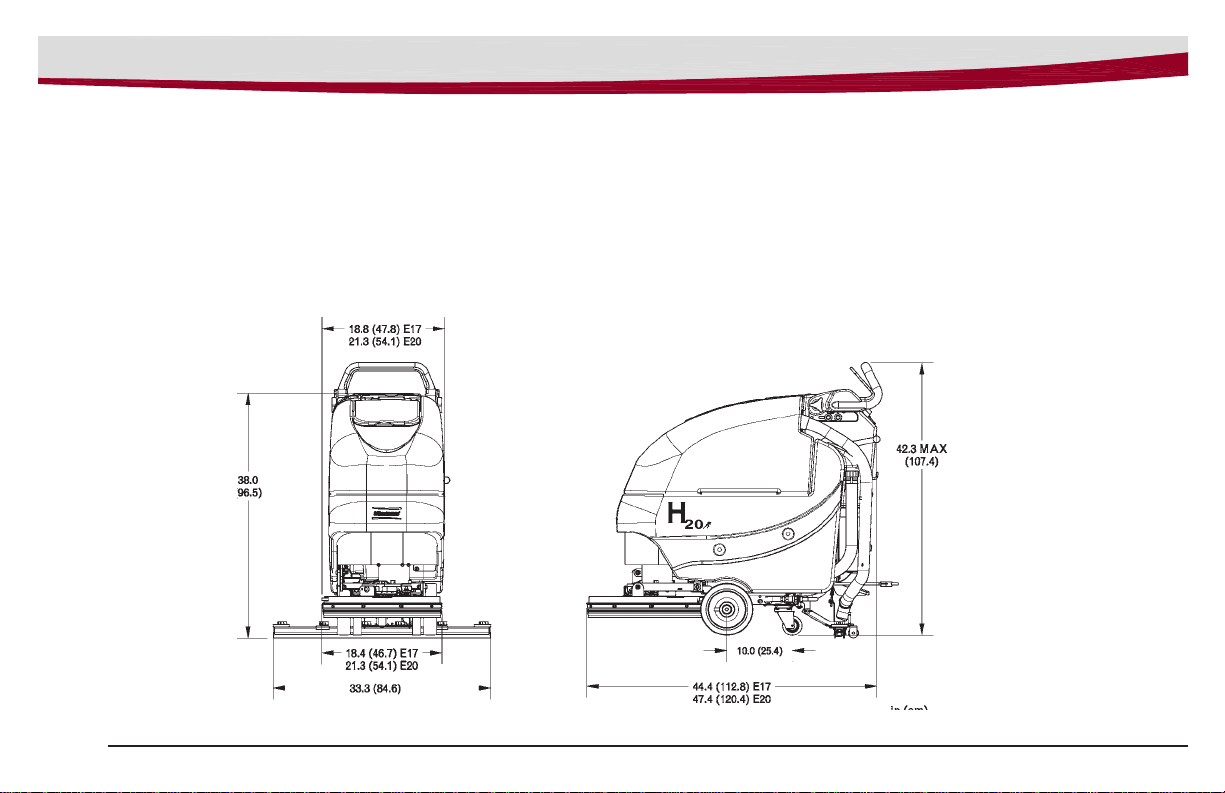

Dimensions (LxWxH)
Drive Motor Power

47.4 x 21.3 x 42.3 (120.4 x 54.1 107.4 cm)

40 amps

140Ah @20 hr

95Ah @20 hr

65.5 dBA
20 in (51 cm)
34 in (86 cm)

27,280 ft2 /hr ( 2,534 m2)

3.1 mph (5 km per hr)
3 mph (4.8 km per hr)

24 volts

65 cfm (110 m3/hr)

46 inches ( 112mbar)

.60 HP (450 W)

Disc

3/4 HP (560W)

1

180 RPM

Coming Soon

12 Gal (45 liters)
13 Gal (49 liters)

2%
372 lbs (169 kg)
238 lbs (108 kg)

1/5 HP (150W)

Technical Specifications

3

4

Table Of Contents

Technical S pecifications............................................................. 3

Table Of Content s........................................................................ 5

Safety Instructions ......................................................................6

For Safety During Operation ......................................................... 6

When Servicing / Maintaining Machine ......................................... 6

Unpacking Instructions .............................................................. 7

Inspection ...................................................................................... 7

Electrical ........................................................................................ 7

Batteries ........................................................................................ 7

Operator Responsibility ................................................................. 7

Machine Overview ....................................................................... 8

Front .............................................................................................. 8

Rear............................................................................................... 9

Control Panel............................................................................... 10

Bail Handle.......................................................................... 11

Handle Adjustment Knobs ................................................... 11

Key Switch .......................................................................... 11

Direction Switch .................................................................. 11

Squeegee Lift Lever ............................................................ 11

Solution Control Lever ........................................................ 11

Battery / Fault Gauge .......................................................... 11

Speed Control ..................................................................... 11

Charge Status Indicator ...................................................... 11

Optional Hour Meter .................................................................... 12

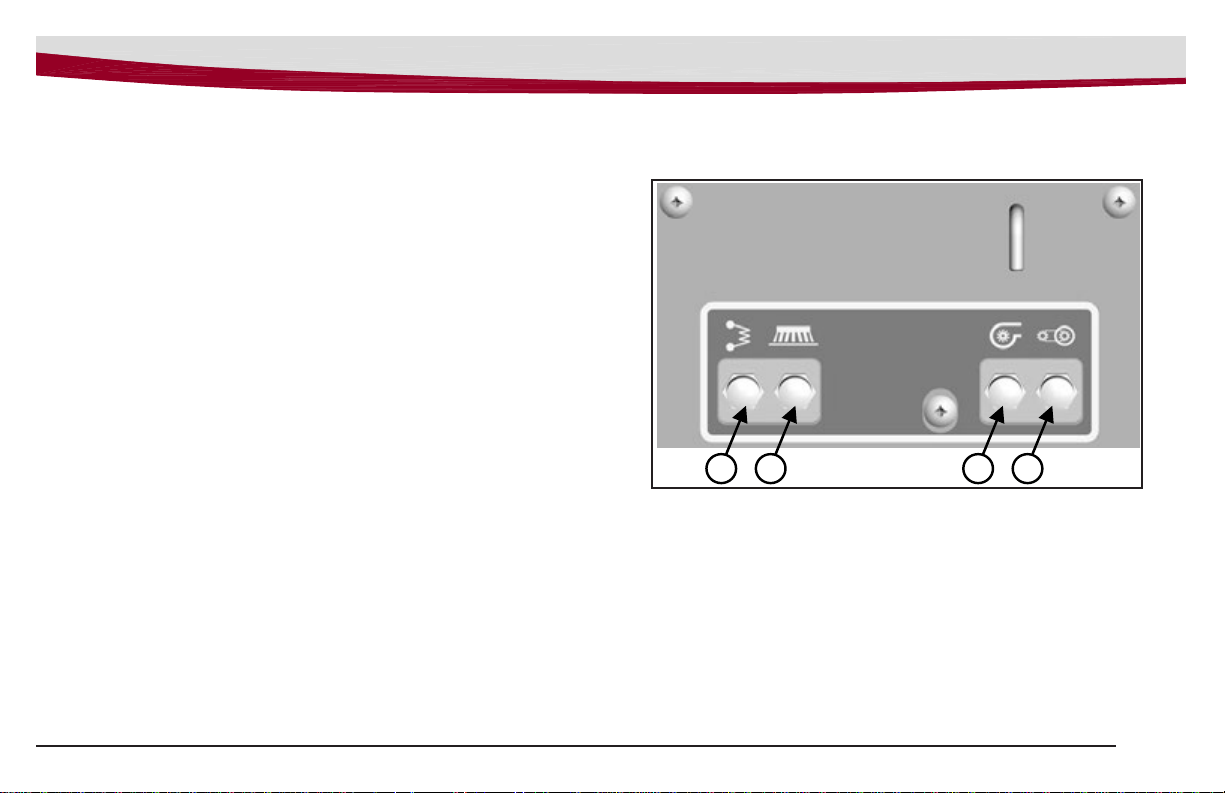

Circuit Breakers........................................................................... 13

Battery Compartment ..................................................................14

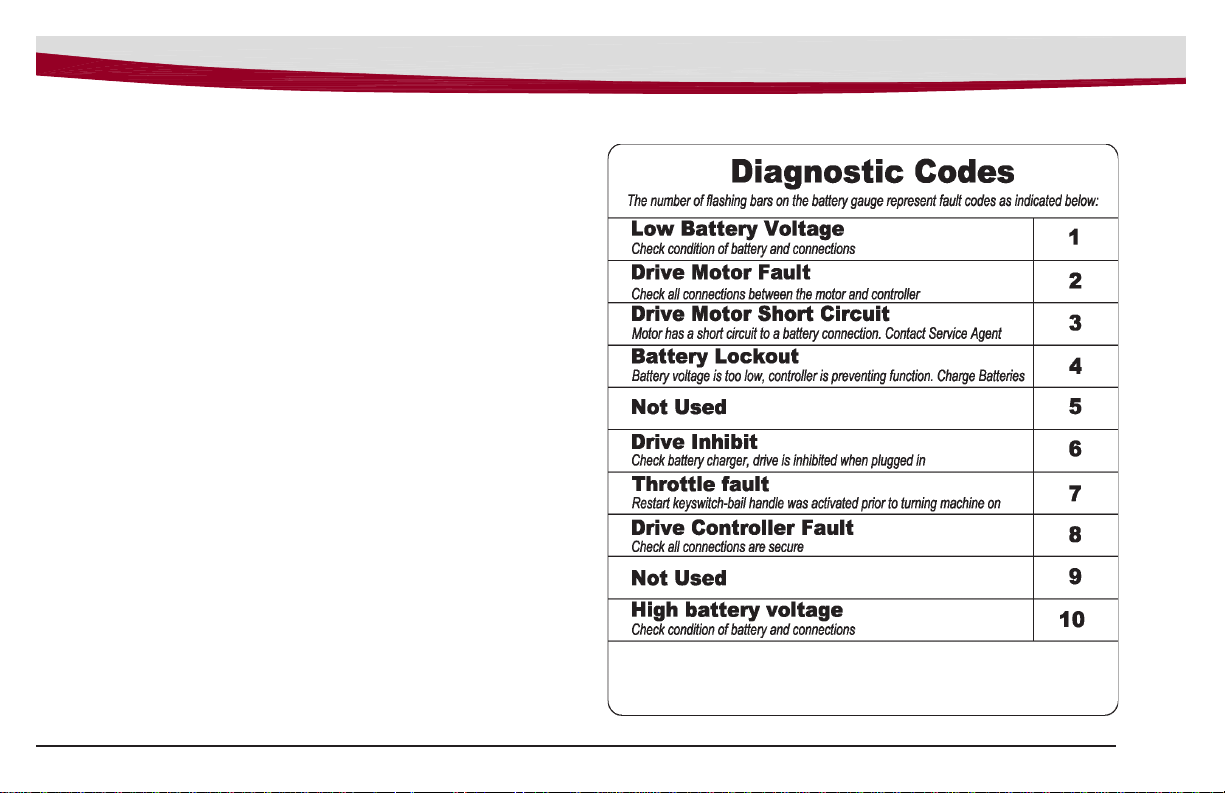

Diagnostic Code Guide ............................................................... 15

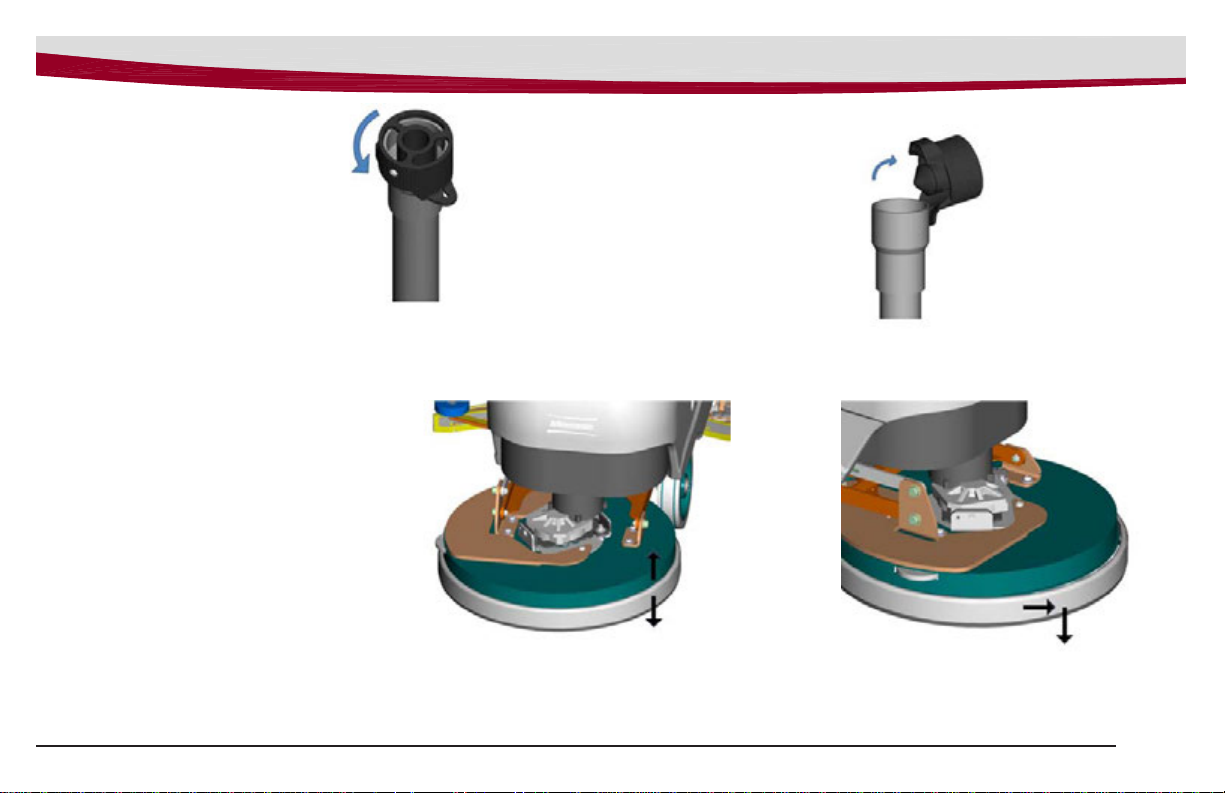

Handle Adjustment ......................................................................16

Angle Adjustment ................................................................16

Horizontal Adjustment ......................................................... 17

Solution T ank Drain Hose............................................................ 18

Solution Level Indicator...................................................................... 18

Solution Fill Filter................................................................................ 19

Screened Float ................................................................................... 20

Screened Float Removal ........................................................... 21

In-Line Solution Filter Assembly......................................................... 22

Rear Squeegee .................................................................................. 23

Cleaning the Squeegee ............................................................. 23

Changing the Squeegee Blades ................................................ 23

Adjusting the Squeegee Blades................................................. 24

Angle Adjustment ....................................................................... 24

Height Adjustment ...................................................................... 25

The H20 ............................................................................................. 26

Machine Operation ........................................................................... 28

To Turn on Machine............................................................................ 28

To T urn on Vacuum ............................................................................ 28

To Turn on Brush Motor...................................................................... 28

To Turn on Cleaning Solution............................................................. 28

Direction Switch.................................................................................. 28

Speed control ..................................................................................... 28

Driving ................................................................................................ 28

To Turn on Cleaning Solution............................................................. 29

To Charge Batteries............................................................................ 29

Solution Solenoid ............................................................................... 29

Hour Meter (Optional) ........................................................................ 29

Loading Brush .................................................................................... 30

Unloading Brush................................................................................. 31

After Use............................................................................................ 32

Maintenance...................................................................................... 33

Troubleshooting ............................................................................... 36

Minuteman International Limited Warranty ................................... 38

5

Safety Instructions

IMPORTANT SAFETY INSTRUCTIONS

Operators must read and understand this manual before operating or maintaining this machine.
Do not operate this machine in flammable or explosive areas.
This machine is designed solely for scrubbing dirt and dust in an indoor environment. Minuteman does not recommend using this machine
in any other capacity.
The following information below may cause a potential hazard to the operator and equipment. Read this manual carefully and be aware
when these conditions can exist. Take necessary steps to locate all safety devices on the machine and train the personnel operating the
machine. Report any machine damage or faulty operation immediately. Do not use machine if it is not in proper operating condition.

FOR SAFETY DURING OPERA TION

Keep hands and feet clear of moving parts while machine is in operation.
Make sure all safety devices are in place and operate properly. All covers, doors and latches must be closed and fastened before use.
During operation, attention should be paid to other persons in the work area and especially if small children are present.
Electric motors and components can cause an explosion when operated near explosive materials or vapor. Do not operate this machine
near flammable materials such as solvents, thinners, fuels, grain dust, etc.
Store or park this machine on a level surface only. To prevent unauthorized use, machine should be stored or parked with the key removed.
This machine is designed for level operation only. Do not operate on ramps or inclines greater than 2%.
This machine is not suitable for picking up hazardous dusts.
Use caution when moving this machine into areas that are below freezing temperatures. Any water in the tanks or hoses can cause damage
to the machine.

FOR SAFETY WHEN SERVICING or MAINTAINING MACHINE

Stop on level surface.
Disconnect the power to the machine by unplugging the red Battery connector located under the recovery tank near the batteries.
Avoid moving parts. Do not wear loose jackets, shirts, or sleeves when working on machine.
Avoid contact with battery acid. Battery acid can cause burns. When working on or around batteries, wear protective clothing and safety
glasses. Remove metal jewelry. Do not lay tools or metal objects on top of batteries.
Charging batteries generates explosive gasses.

Do not charge batteries when open flames or sparks are present. Do not smoke.

Make sure the charger is turned off before disconnecting it from the machine.
Charge the batteries in a well-ventilated area with the battery cover removed completely.
Do not clean machine with a pressure washer.
Authorized personnel must perform repairs and maintenance. Use Minuteman supplied replacement parts.

6

SAVE THESE INSTRUCTIONS

Unpacking Instructions

Inspection

Carefully unpack and inspect your H20 Walk-Behind Scrubber for shipping damage. Follow unpacking instructions on shipping pallet.
Each unit has been tested and thoroughly inspected before shipment.
should be notified immediately.

Electrical

This machine is battery operated and designed to operate on 24 volts DC (2) 12-volt batteries.

Batteries

The recommended batteries are rated 140Ah WET (Minuteman P/N 956140) or 95Ah Maintenance Free GEL (Minuteman P/N 956100).
W

e do not recommend mixing AMP hour cap

alternate battery sets are used please contact Minuteman for on board charger settings.

Operator Responsibility

Read this manual carefully before operating this machine.
The operator is responsible for taking care of the daily maintenance and check ups of the machine to keep it in good working

condition. The operator must inform the service mechanic or supervisor when the scheduled maintenance intervals are required as
s

tated in the MAINTENANCE section of this manual.

acities. Alternate battery sets can be used if they equal physical size and capacity. If

Any damage is the responsibility of the delivery carrier who

Before starting familiarize yourself with the machine and its controls (see “Machine Overview, Front”, “Machine Overview, Rear”,
“Control Console” diagrams).

7

Machine Overview

Machine Overview

- Front

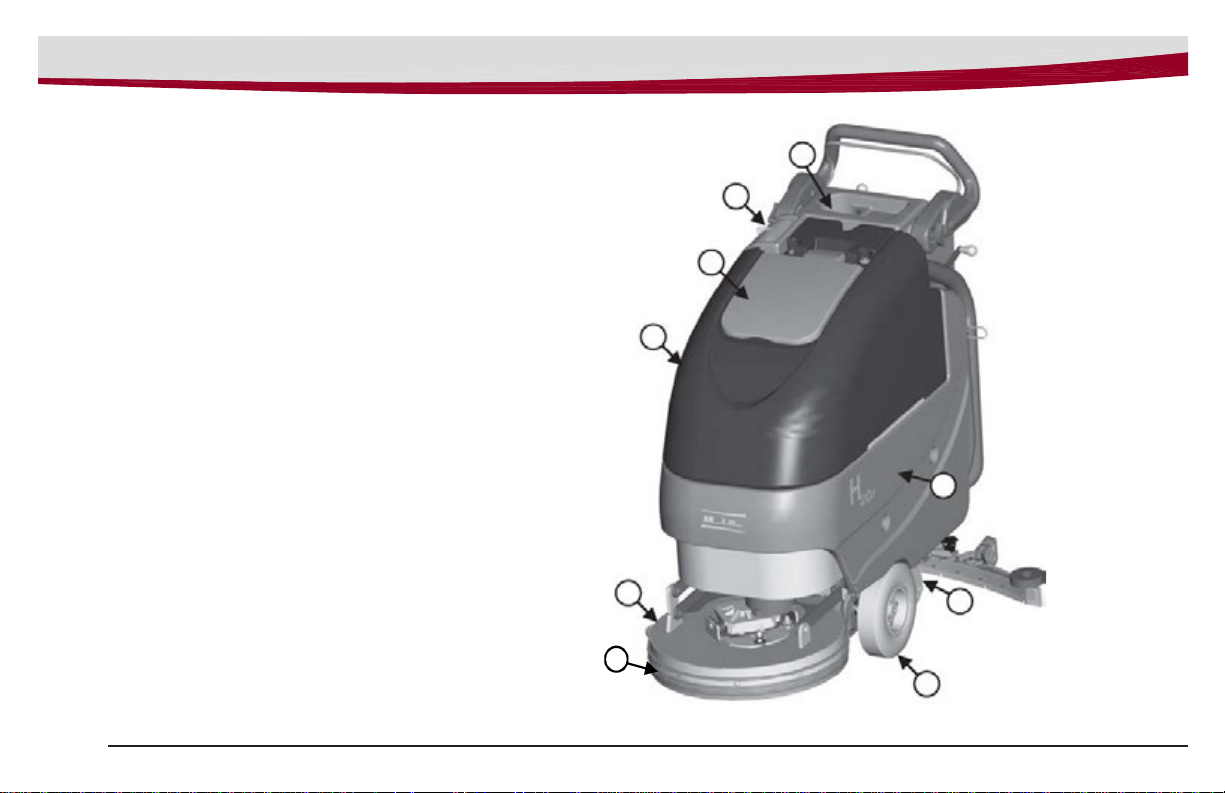

A CUP HOLDER
B SOLUTION FILL PORT
C RECOVERY TANK LID
D RECOVERY T ANK
E BRUSH DECK
F FRONT WHEEL*
G REAR CASTER
H SOLUTION TANK
J FLOATING DECK SKIRT

* NOTE - Front tires are foam filled to be
maintenance free, no air can be added

8

A

B

C

D

H

E

G

J

F

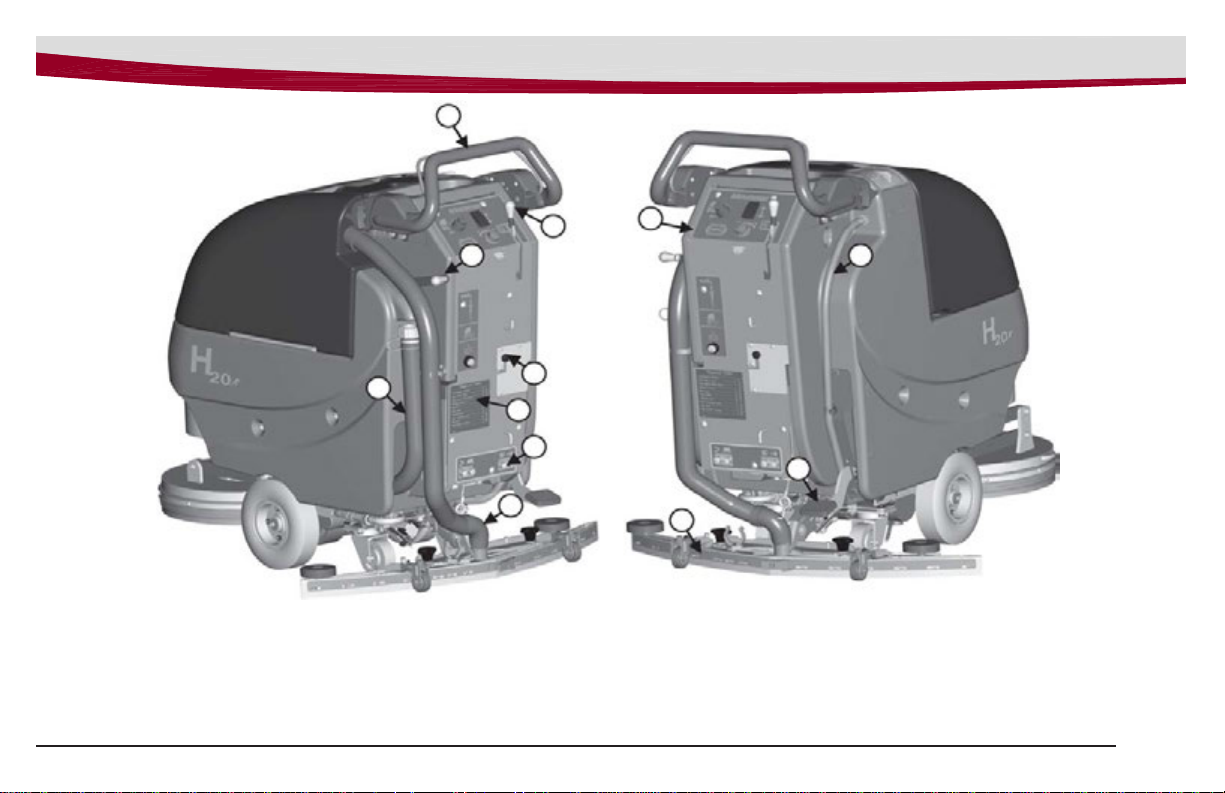

Machine Overview - Rear

Machine Overview

A

C

D

A BAIL HANDLE
B SQUEEGEE LIFT LEVER
C SOLUTION CONTROL LEVER
D RECOVERY TANK DRAIN HOSE
E ONBOARD CHARGER CORD
F CIRCUIT BREAKERS

B

E

L

F

G

H

I

J

K

G RECOVERY HOSE
H CONTROL P ANEL
I SOLUTION TANK DRAIN HOSE / LEVEL INDICAT OR
J BRUSH LIFT PEDAL
K REAR SQUEEGEE
L DIAGNOSTIC CODE GUIDE

9

Machine Overview

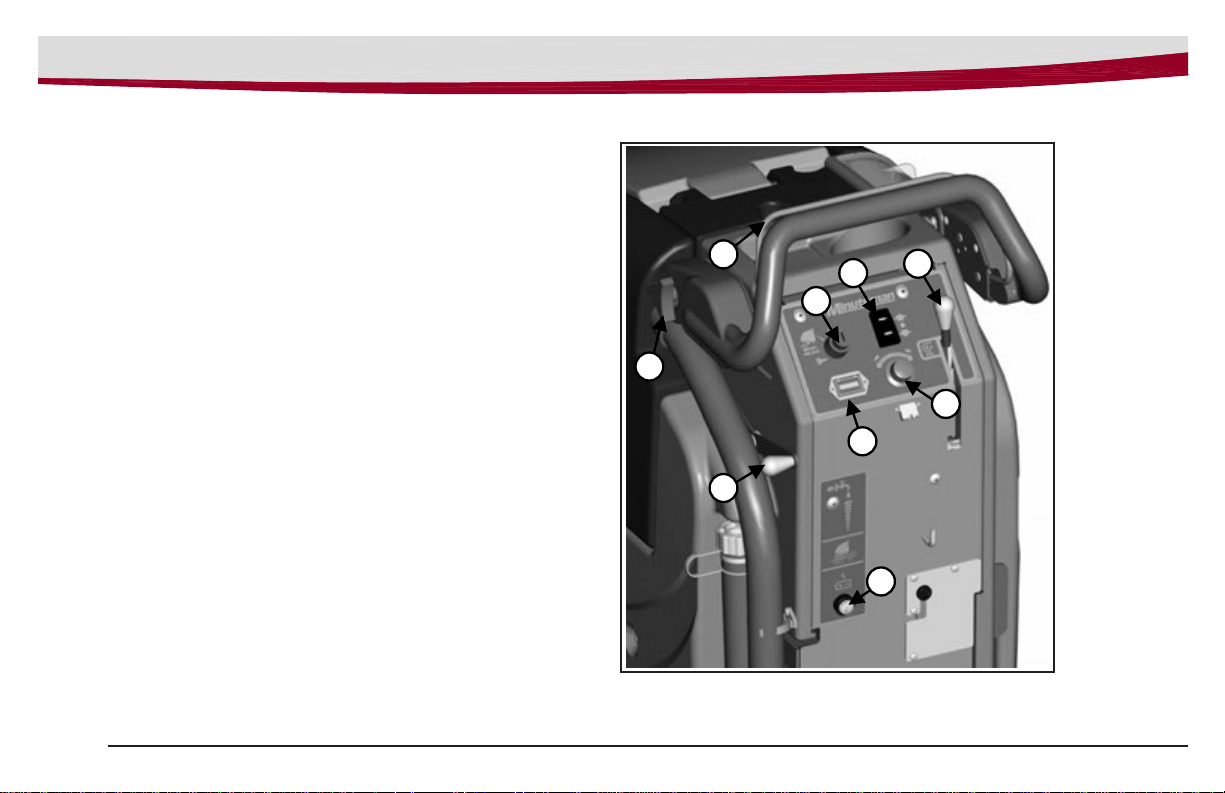

Control Panel

A BAIL HANDLE
B HANDLE ADJUSTMENT KNOB
C KEY SWITCH
D DIRECTION SWITCH
E SQUEEGEE LIFT LEVER
F SOLUTION CONTROL LEVER
G BATTER Y / FAULT GAUGE
H SPEED CONTROL
I CHARGE ST ATUS INDICATOR

A

D

C

B

F

E

H

G

I

10

Machine Overview

Bail Handle

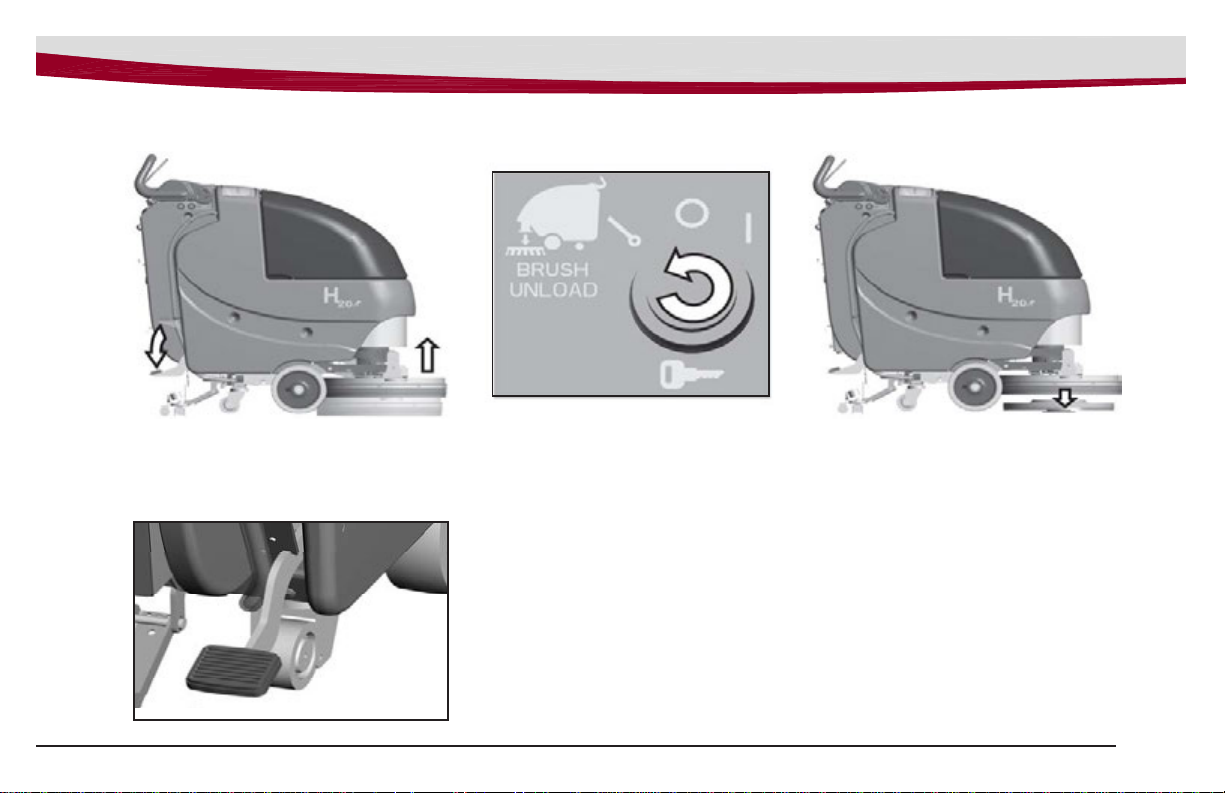

(A) When the scrub deck is lowered to the floor, the bail handle enables the brush motor and moves the machine forward once

depressed. This also allows the operator to automatically load the brush when the scrub deck is lowered.

Handle Adjustment Knobs

(B) Allows the handle position to be raised or lowered.

Key Switch

(C) Controls the machine’s power (Brush Unload/Off/On) with a key for safety. This switch, when turned counter clockwise, operates

the auto brush unload when scrub deck is in the raised position. When it is turned to the on position, the machine will operate.

Direction Switch

(D) This switch sets the direction the machine will move when the bail handle is pulled.

Squeegee Lift Lever

(E) When actuated to the top position, the squeegee is lowered and the vacuum motor is turned on. When locked in the bottom

position, the squeegee is raised and the vacuum motor shuts off after a 10 second delay.

Solution Control Lever

(F) This lever controls the rate at which solution is put down. Moving the lever up will increase the amount of solution. Moving the

lever down will decrease the solution rate. Moving the lever all the way down shuts off solution flow.

Battery / Fault Gauge

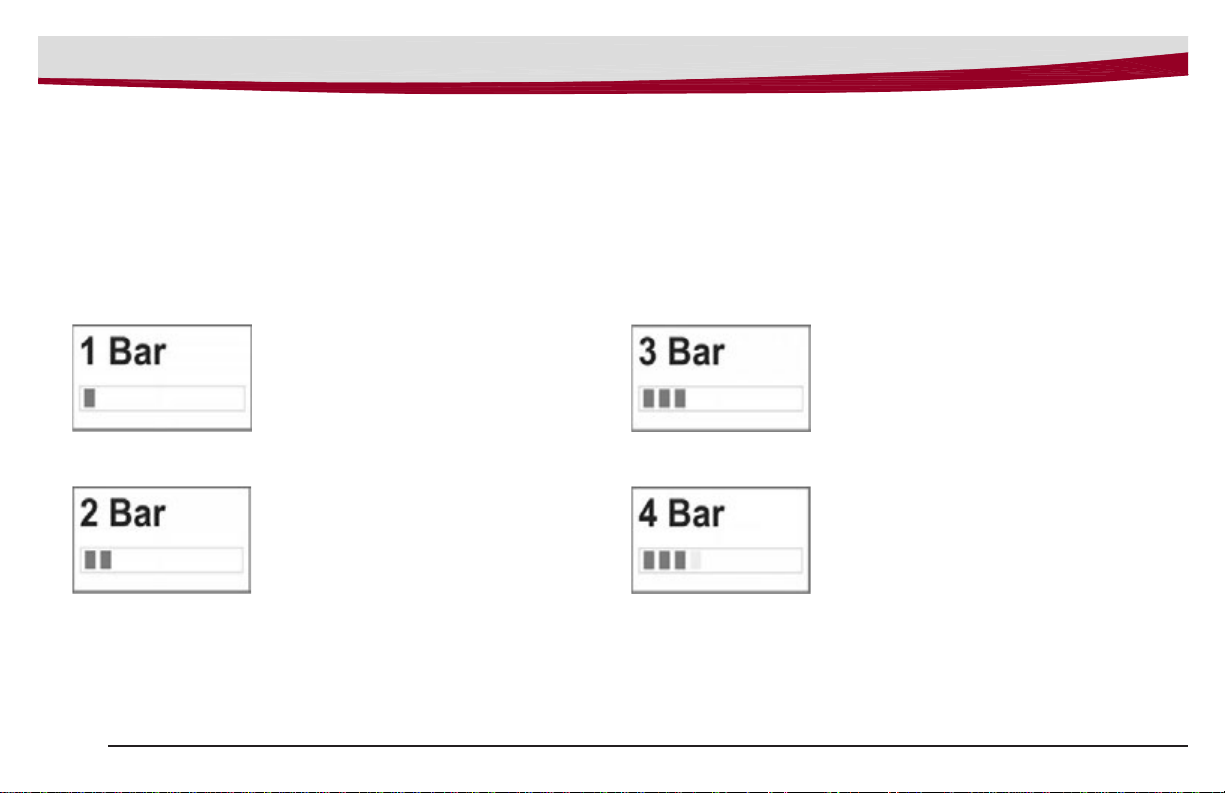

(G) This gauge displays the remaining battery charge. This gauge also displays any fault codes that might occur with the Drive Motor

Controller (see Diagnostic Codes).

Speed Control

(H) This control sets the speed at which the machine will move.

Charge Status Indicator

(I) This gauge displays the status of the batteries during charging. The gauge has a readout of 3 LEDs. 1 Green, 1 yellow, 1 Red.

Green indicating a full charge, Yellow indicating 80% charged, Red indicating the batteries are charging.

11

Machine Overview

Optional Hour Meter

Minuteman offers an optional hour meter for the
E17/E20. The optional kit replaces the power cord
mounting bracket at the rear of the machine with
one that contains an hour meter.

Kit# K-E1720HM

12

Circuit Breakers

The circuit breakers are located at the bottom of the back
panel of the machine.

A Main Control Circuit Breaker - 4A
B Brush Motor Circuit Breaker - 30A
C Vacuum Motor Circuit Breaker - 20A
D Drive Motor Circuit Breaker - 20A

If any of the functions above are not operating, check if the
circuit breaker buttons have tripped. Press to reset.

Machine Overview

B

A

C

D

13

Machine Overview

Battery Compartment

The battery compartment is located under the recovery tank. The
Battery compartment can be accessed for servicing and mainte­nance by tilting the recovery tank (make sure recovery tank has
been drained before tilting). The battery compartment contains

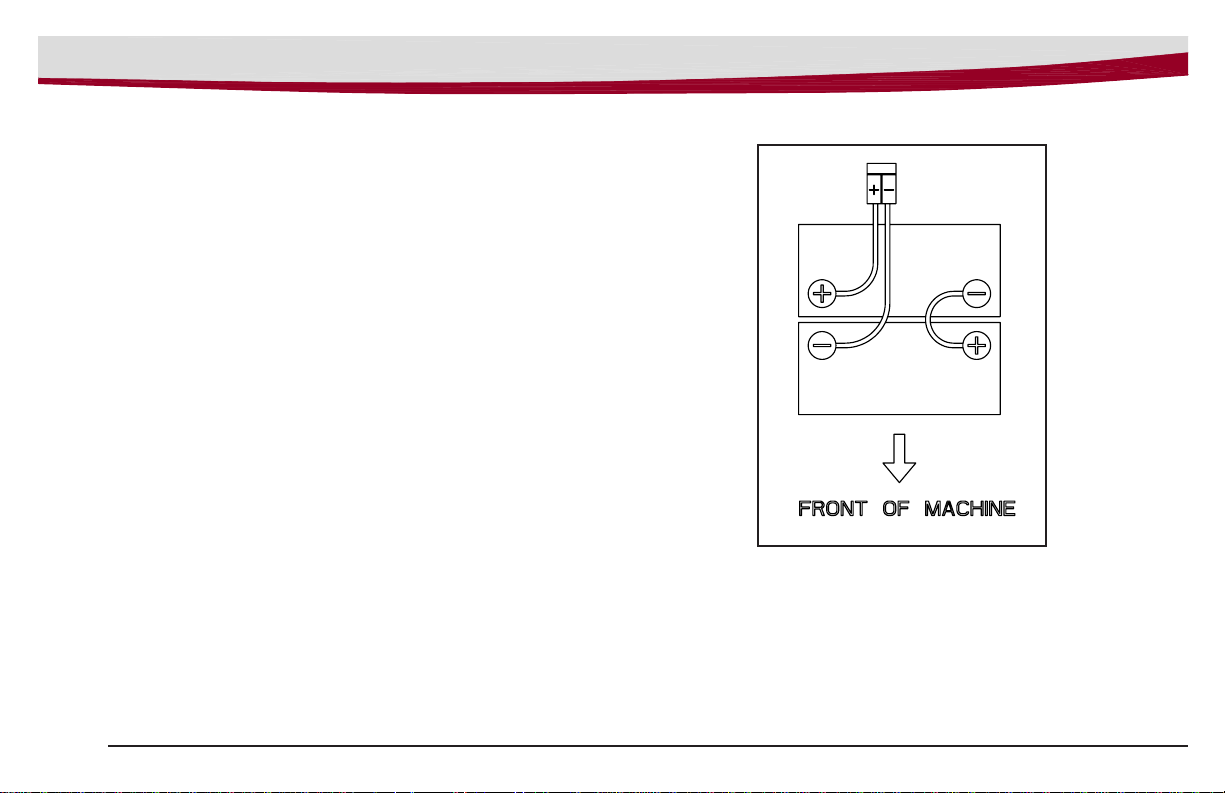

two 12-volt batteries connected in series. Connect the batteries
according to the battery connection diagram (see diagram). The
recommended batteries are 140Ah (Minuteman P/N 956140) or
100Ah (minuteman P/N 956100) Gel. The battery tray may be
drained if necessary using the orange drain hose located above
the rear caster on the right side of the machine.

14

Diagnostic Code Guide

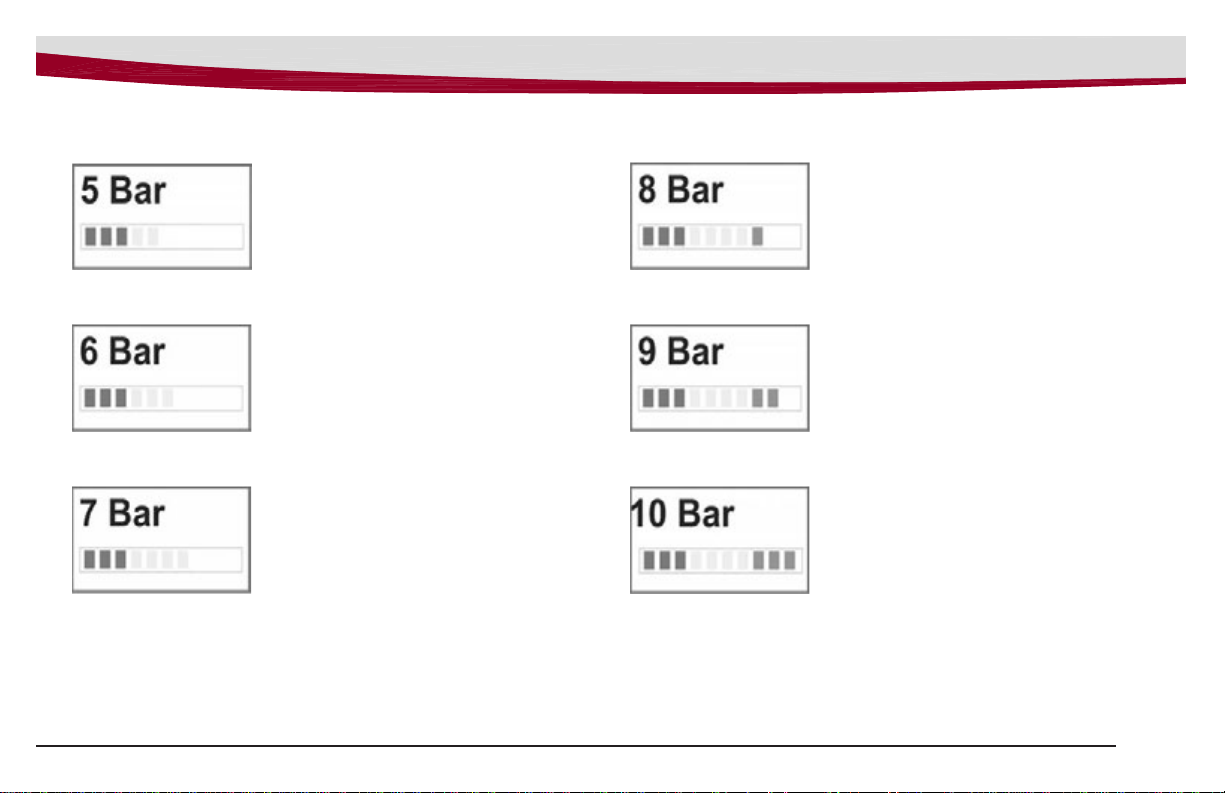

When an error or fault occurs within the machine, a fault
code will appear on the battery gauge represented by a
specified number of flashing LEDs. (See “Troubleshooting”
for further information)

Machine Overview

15

Machine Overview

Handle Adjustment

The H20 handle was designed with operator comfort in mind. The
angle and horizontal position of the handle can be adjusted to suit
the needs of the operator.

Angle Adjustment

The handle angle can be adjusted without tools by loosening the
Angle Adjustment Knob (A) on each side and rot ating the handle
to the desired position. There are 5 angular positions 1 1.25° apart
for a total of 45° between the minimum and maximum position.

A

16

Horizontal Adjustment

Machine Overview

The horizontal position can be adjusted by removing the 4 Mounting
Bolts (B) (2 each side) with a 9/16” socket and sliding the Mounting
Plate (P) to one of the 3 available positions. The machine is shipped

from the factory in position 1.

Plate Position 3

Plate Position 2

(Fully Extended)

3

PB

Plate Position 1

(Shipping Position)

12

17

Machine Overview

Solution Tank Drain Hose

The solution tank may be drained by removing the Solution Tank Drain
Hose (A) from the Hose Barb (B) and routing the hose to a floor drain.

18

A

B

Solution Level Indicator

The Solution Tank Drain Hose also serves as a water level indicator for
the solution tank. The amount of water remaining in the solution tank
can be seen through the clear drain hose. Level markers molded into
the solution tank are positioned at 1/4, 1/2, 3/4, and full levels.

Machine Overview

Solution Fill Filter

The Solution Fill Filter (B) should be cleaned regularly.
To remove, simply open the Solution Tank Lid (A) and
pull the filter out.

A

B

19

Machine Overview

Screened Float

If the recovery tank (C) is overfilled or a large amount of foaming
is present, the screened float (B) blocks the vacuum intake inside
the tank protecting the vacuum motor and internal electronics from
water damage. It is essential to keep the float in working order
through regular maintenance.
The float should be cleaned daily by thoroughly rinsing with a
hose. Removal of the screened float is not necessary for daily
maintenance.
At least once a month the screened float should be completely
removed, cleaned, and checked for any damage to the seal or
metal screen.

Screened Float Removal

The screened float is positioned between the vacuum manifold (A)
and recovery tank (C). The screened float (B) can be accessed by
removing the 1.5” bolt (D) and two 1.25” bolts (E) that attach the
manifold to the recovery tank using a 7/16” socket.

E

D

E

F

WARNING: Damage to the machine may occur if operated
without the screened float properly in place.

A

B

C

20

A Vacuum Manifold
B Screened Float
C Recovery T ank
D 1.5” Bolt
E 1.25” Bolt (2)
F Helical Washer (3)
G Flat Washer (3)

G

A

B

Recovery Tank Drain Hose

Machine Overview

Twist Cap to Open and Drain

Deck Skirt Removal

(Do not lower with out brush)

CAUTION: Bristles may be
damaged if deck is lowered
onto floor without brush/pad
driver installed.

Twist & Lift cap to clean out
large debris

Brush Deck Skirt will ride on
the floor in use and float up or
down based on amount of pad/
brush remaining.

With brush removed & deck raised,
Remove skirt for cleaning by pulling
forward, then down over the edge of
the deck.

21

Machine Overview

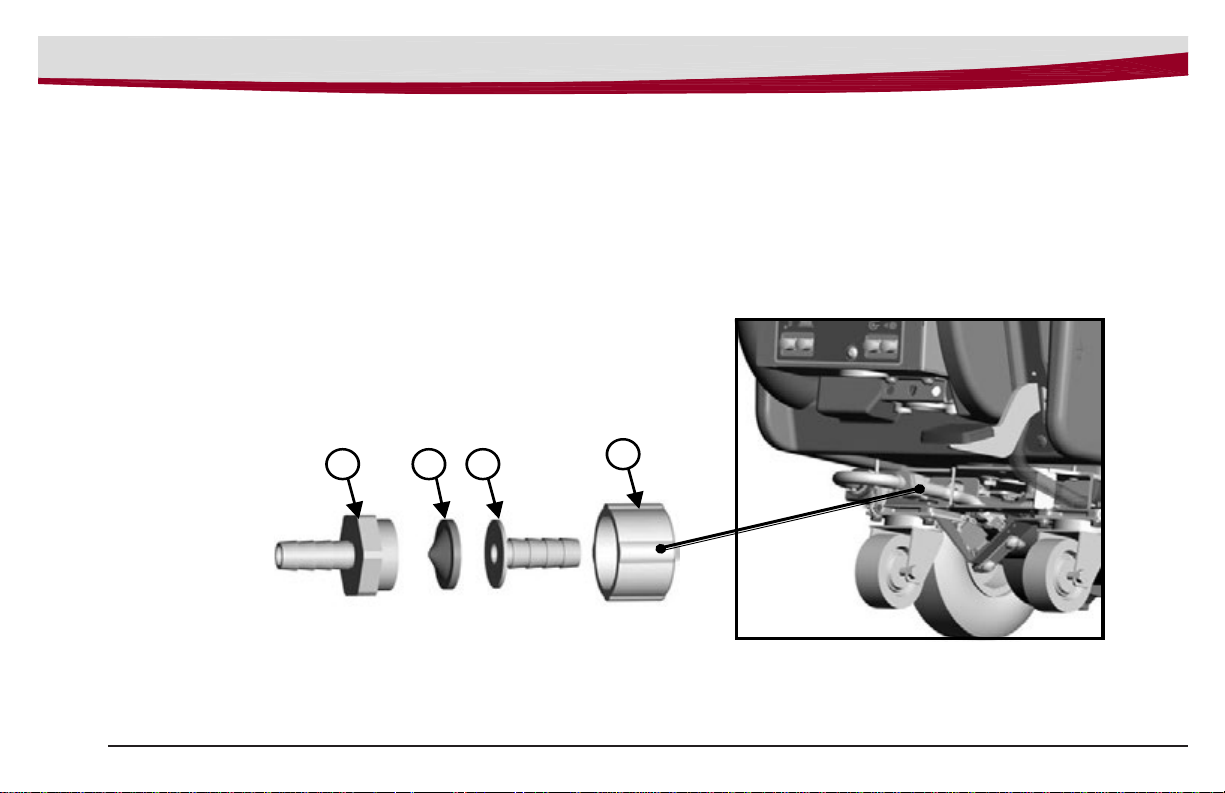

In-Line Solution Filter Assembly

The solution solenoid, which shuts off solution flow when the bail handle is released, is protected from debris by the in-line filter assembly. The
filter assembly is located at the rear of the machine on the left hand side, just under the solution tank. It is important to check and clean the
screened washer inside the assembly regularly to ensure proper solution flow. To open, unscrew the assembly (Note that the cone of the
washer is facing out toward the rear of the machine). Remove washer and rinse, reinsert and screw assembly together, tightening by hand.

Overtightening with tools may damage the plastic threads.
A Fitting, MGHT

B Screened Washer
C Hose Barb Insert
D Fitting, FGHT

22

A

BDC

Machine Overview

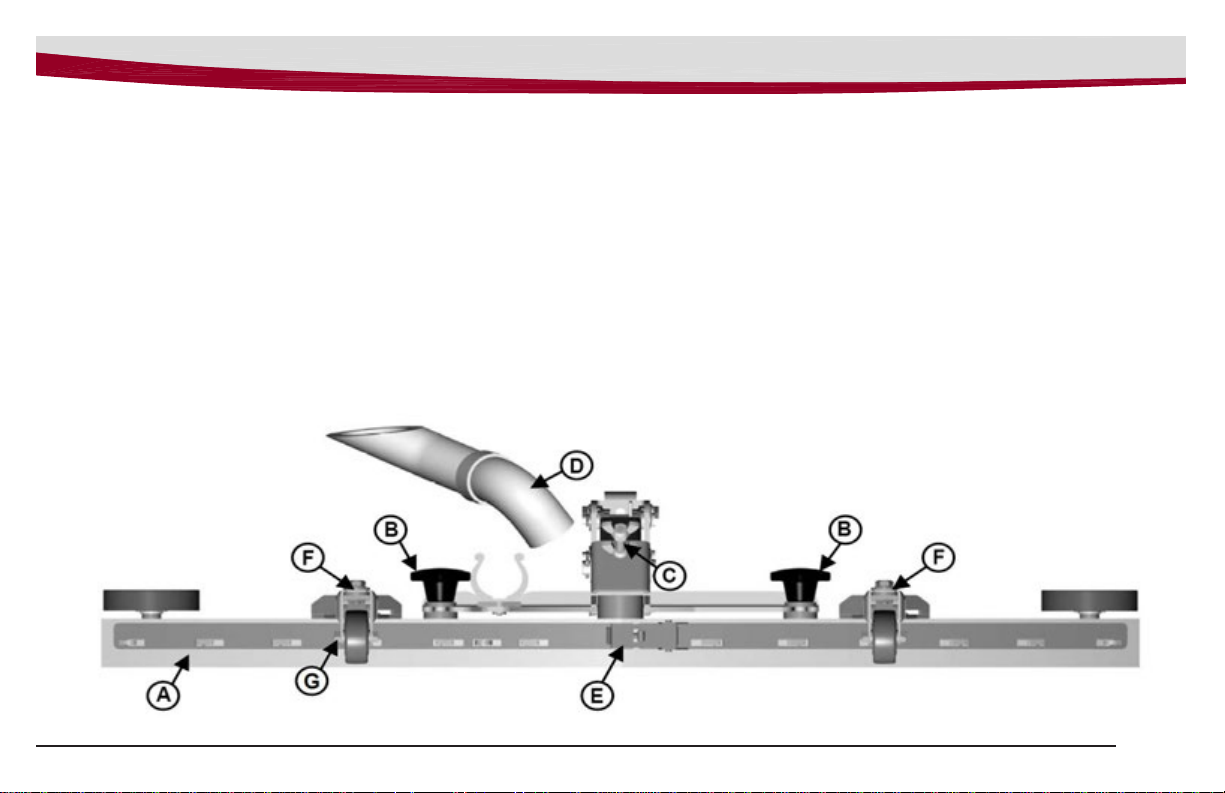

Rear Squeegee

A Squeegee
B Star-shaped knob
C Adjusting screw for angle adjustment
D Suction hose
E Blade fastening latch
F Washers for caster height adjustment
G Caster Wheel Axle

Cleaning the Squeegee

Check the squeegee (A) daily and clean as
necessary.

1. Pull off the suction hose (D).

2. loosen the two star-shaped knobs (B).

3. Remove the squeegee (A).

Changing the Squeegee Blades

Check the inner and outer squeegee blades on
the squeegee (A) weekly for signs of wear. The
squeegee blades can be reused by turning them
(can be turned for 4 total uses).

1. Pull off the suction hose (D), loosen the two star­shaped knobs (B) and remove the squeegee.

2. Unlock the fastening device (E) and remove the
outer squeegee blade. Turn the squeegee blade
or install a new one, as necessary . Change the

inner squeegee blade in the same way.

23

Machine Overview

Adjusting the Squeegee Blades
Angle Adjustment

The angle adjustment is the decisive factor in
ensuring that the squeegee blades on the
squeegee lie evenly on the floor.

1. Park the machine on a level surface and lower
the squeegee.

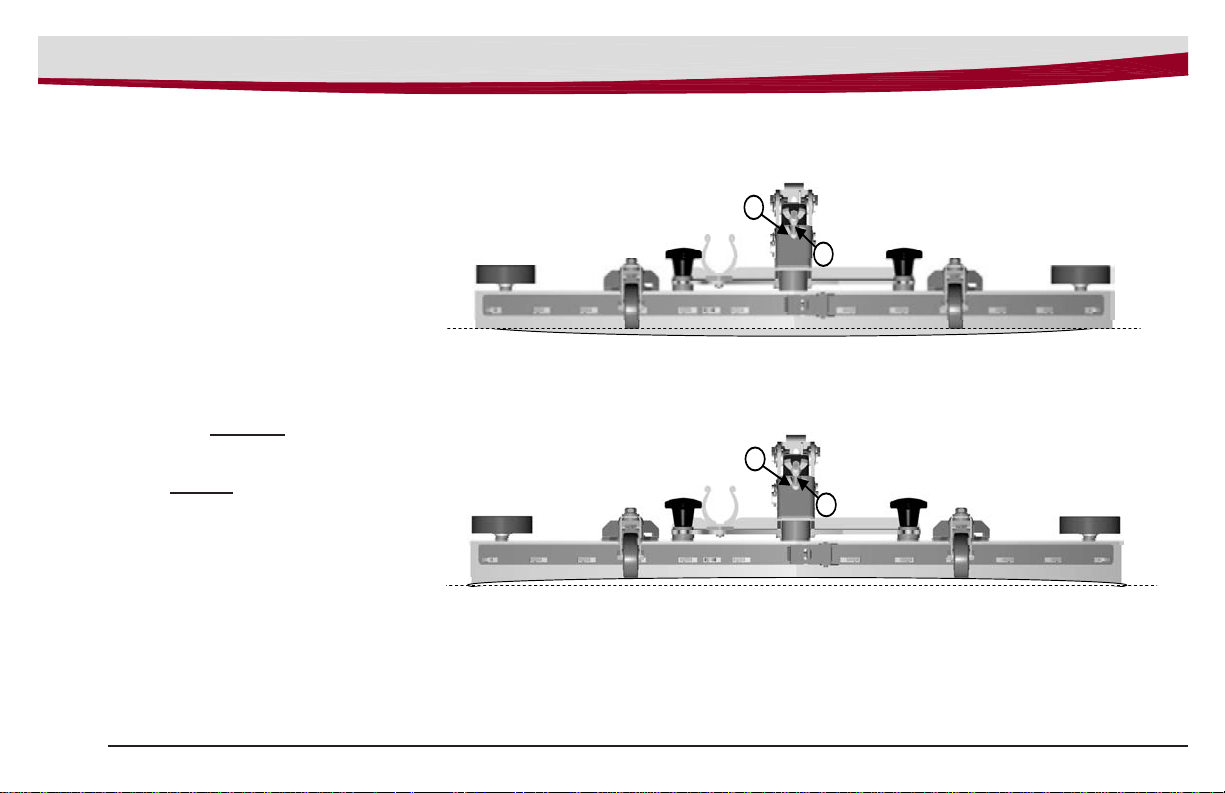

2. Loosen the lower wing nut (B) on the adjust­ing screw (C) and adjust the squeegee using
the adjusting screw so that the ends of the
squeegee blades still have contact with the
floor. By turning the adjusting screw (C) coun­terclockwise, the clearance between squeegee
blade and floor is increased in the center (Fig.

1). When turning the adjusting screw (C) clock­wise, the clearance between squeegee blade
and floor is redused in the center (Fig. 2).

3. Switch the machine on and check the suction
pattern. When the machine is in operation, the
entire surface of the squeegee blades (center
and outer areas) must be applied as evenly as
possible.

4. Tighten the lower wing nut (B) on the adjust­ing screw (C) against the metal bracket to lock
in the pitch setting.

1

2

B

A

B

A

24

Adjusting the Squeegee Blades
Height Adjustment

If streaks are present, despite an optimum
angle adjustment, the clearance between the
caster wheels and floor must be adjusted by
changing the number of washers underneath
the bracket that holds the wheel. The
squeegee height is preset at the factory to
3mm.

In cases of very smooth floors, e.g. finished
floors, PVC, linoleum, etc., see 2mm
illustration for washer configuration.
In cases of very uneven floors, e.g. poorly laid
tiles (water does not run off) ,, configure as
shown in 4mm illustration.

Keep the extra washers by
installing them above the bracket
as shown.

3 mm

2 mm

Machine Overview

4 mm

25

The H20

26

The H20

This machine was designed with total operator comfort and ease of use in mind. All machine components have been designed
as a total system to efficiently clean dirty floors. The H20 has two available scrub head types and sizes to fit specific applications.

Please contact your Minuteman representative for specific recommendations for the correct scrub head type, size, and brush
type and chemical applications.

Before using the machine, always perform the following steps to ensure proper machine operation:

• Check under the machine for leaks.

• Check the rear squeegee for wear and damage.

• Check the solution and recovery tank levels.
After using the machine, always perform the following steps:

• Check the battery charge level. Charge batteries if necessary. When charging batteries, extra precaution is required:

- Battery acid can cause burns.

- When working on or around batteries, always wear protective clothing and safety glasses.

- Remove metal jewelry. Do not lay tools or metal objects on top of the batteries.

- Charging batteries generate explosive gasses.

DO NOT CHARGE BA TTERIES WHEN OPEN FLAMES OR SPARKS ARE PRESENT. DO NOT SMOKE.

- Charge the batteries in a well-ventilated area.

- Fluid levels should be checked before and after charging and maintained at the proper levels. If low, add distilled water until
the metal plates are covered.

- If the machine is not used for an extended period of time, batteries should be kept fully charged with a boost charge once a
week.

• Check for wire, string, or twine wrapped around the scrub brushes.

• Check the rear squeegee for wear and damage.

• Check the rear squeegee suction hose for obstructions.

• Drain and clean the recovery tank and drain hose cap.

• Check under the machine for leaks.

• Check the service records to determine maintenance requirements.

WARNING!

- Be sure you understand the machine controls and their functions.

- While on ramps or inclines, avoid sudden stops when tanks are filled.

- Avoid abrupt sharp turns. Slow down driving speed when going downhill.

The H20

27

Machine Operation

Machine Operation

To Turn on Machine:

Turn key to operate position ( I ). Wait for battery gauge to stop flashing. (If flashing continues, see troubleshooting guide)

To Turn on Vacuum:

Lower squeegee into operating position, vacuum motor will turn on automatically.

To Turn on Brush Motor:

Lower the scrub deck to the floor by moving the brush lift pedal from the “home” (down) position to the operating position (up).
Depress the operator bail handle. Brush motor will turn on.

To Turn on Cleaning Solution:

Move solution lever from closed (down) position up to the desired flow position. With the scrub deck on the floor, depress the
bail handle, solution will begin to flow
Note: The solution solenoid will stop solution flow whenever the bail handle is released.

Direction Switch:

Select direction of machine by moving the directional rocker switch from the neutral position to the forward or reverse position.
The direction of the machine movement is shown on the operator p

Speed control:

Move the speed dial to the desired position. Turning the dial clockwise increases the speed. T urning the dial counterclockwise
decreases the speed.

.

anel with forward and reverse arrows.

28

Driving:

Depress the operator bail handle, the machine will move in the direction selected.

Machine Operation

To Charge Batteries:

When the battery status indicator reaches the red zone the batteries need to be recharged. Take the machine to a well ventilated
area, unwind the battery charger power cord from the electrical box cover and plug into an appropriate power source. After
approximately 10 seconds the battery charge st

WARNING: Charging batteries generates explosive gasses. Do not charge batteries when open flames or sparks are
present. Do not smoke. Charge the batteries in a well-ventilated area .

Solution Solenoid:

Water solenoid will operate when the brush motor is turned on. The solution lever must be moved to the desired operating
position, but does not need to be moved to the closed position when stopping for brief periods.

Hour Meter (Optional):

Hour meter will automatically record operating time of the brush motor.

atus indicator will turn on. Be sure to check the battery water levels as recommended.

29

Machine Operation

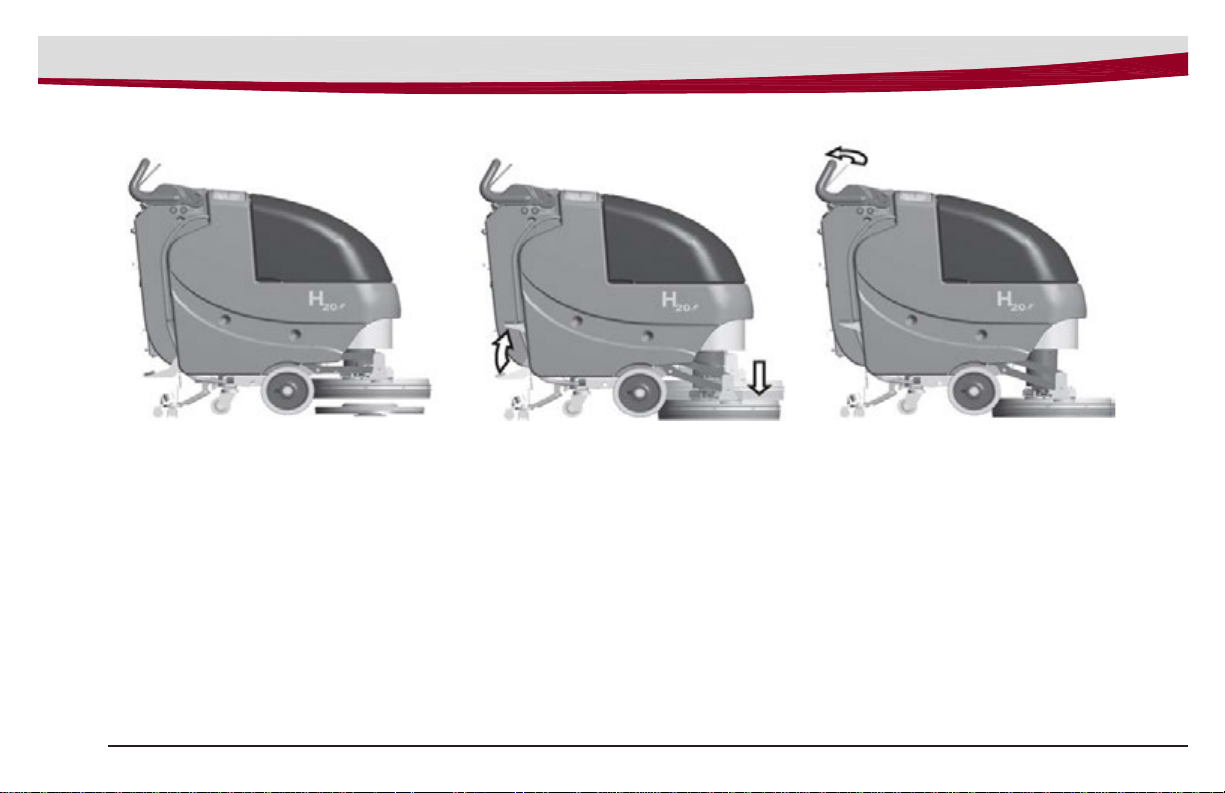

Loading Brush

30

1. To load the brush, first center the
H20 brush deck over the scrub
brush.

2. Lower the scrub deck by releasing
the deck lift pedal.

3. With the key turned on, pull the bail
handle to engage the scrub brush
onto the scrub deck.

Unloading Brush

Machine Operation

1. To unload the brush, first lift the scrub
deck by pressing down on the deck
lift pedal . Make sure the pedal is in
the “home” position shown below.

2. Momentarily turn the key (1 to 2
seconds) to the “Brush Unload”
position then let the key return
to the off (O) position.

CAUTION: Make sure scrub deck is clear of all personnel
and obstructions before operating Brush Unload.

3. When done correctly the brush
should release from the scrub deck
and fall to the floor.

31

After Use

After Use

1. When finished scrubbing, lift the scrub deck and turn the solution lever off. Lif t the rear squeegee (the vacuum motor
will turn off after 10 seconds). Move the machine to a service area for daily maintenance and review items that may
need service.

2. Empty the solution tank by disconnecting the solution tank drain hose from the barb fitting and routing hose to a
drain. Rinse the tank with clean water to prevent any buildup of dried chemicals that could clog the plumbing inside the
recovery tank and the drain hose cap.

3. Empty and clean the recovery tank by flushing with a hose. Be sure to also clean the float shut off screen.

4. Remove the brushes or pad holders and rinse them in warm water and hang to dry.

5. Remove the rear squeegee, rinse with warm water and reinstall after cleaning.

6. Check the maintenance schedule in the next section and perform any required maintenance before storing the
machine.

7. Store the machine indoors in a clean dry place. Keep from freezing. Leave solution and recovery tank lids open for
ventilation to prevent odor buildup.

8. Turn Key switch OFF (O) and remove key.

32

Maintenance

Daily Weekly Monthly Yearly

Charge Batteries

C he ck/ Clea n Tank s
& H oses
C he ck/ Clea n the
B rush and Pad

C he ck/ Clea n the
Squeegee
C heck/ Clean
Vacuum Shut-Off
Float in Recovery
Tank

Have a qualified service technician check the vacuum motor carbon motor brushes once a year or after 300 operating hours.
The brush motor and transaxle motor carbon brushes should be checked every 500 hours or once a year.
NOTE: Refer to the Service Manual for more detail on maintenance and service repairs.

Regularly scheduled lubrication of certain machine parts should be performed to insure trouble-free operation of the
machine. Apply a generous amount of grease into the fittings on the rear caster swivel (2) until grease seeps out around the

bearings.

Check Ea ch
Bat tery Cell(s )
Water Level
Ch ec k/Clean
brus h dec k sk irt
Ch ec k /C lean I n­Lin e So lution
Filte r

Lubrication –
Gr eas e F ittings

Check Carbon
Brus he s

Apply lubricant or light machine oil to lubricate the:

• Pivot mounting point of the rear squeegee to the chassis (1)

• Rear squeegee caster wheel axle (2)

33

Troubleshooting

p

Adj

pty

Problem Possible Cause Remedy

Poor wate r pi ck-up

Poor scrubbing performance

Inadequate solution flow or
no solution to the floor

Ma c hin e does not move

Worn or torn squeegee blades Rotat e or replace blades
R ecovery tank full Empt y reco v er y tank
R ecov ery tank drain hose le ak Secu re dr ain hose cap, rep l ace o-rin g

if damaged

in ca
Recovery tank lid gasket leak Replace gasket li d cover properly
Debris caught in squeegee Clean squeegee
Vacuum h ose clogged Remove debris and flush hose
Using too much solution Adjust solution control valves
Recovery hose to squeegee or tank
disconnected or damage d
Worn brush Replace brush
Wrong brush or cleaning ch em ical Cons ult Minutem an
Debris caught on scrub brushes Remove debris
Moving machine too fast Slow down
No t us i ng eno ugh solution
Lo w batt ery ch ar ge Rec har ge ba tt er ies
So l ut ion ta nk em
Solution lines, valve, filter cl ogged Flush lines, and clean solution filter.
Solution Lever in down position Move lever up
D i r ectional switch in neutral position Act i vate s witch in FWD or REV

Squeegee is down and directional
switch is in reverse position

Tracti on drive circuit breaker has tripped Reset circuit breaker
Ba tt er ies lost powe r Rec har ge ba tt er ies

Fill solution tank

Rec onnect or replace rec overy hose

ust soluti on f l ow s et t i ng

position

Raise squeegee when in reverse

mode

34

Problem Possible Cause Remedy

p

y

g

g

A

Tripped Cont rol Power circuit breaker Reset breaker
Batteries have low charge Recharge batteries

Ma c hine doe s not o pe rate

Vacuum motor does not turn
on

B rush does not unload

Batteries d o not charge

Battery charger operating Unplug battery charger wh en charge
Key switch off Turn key on

Bail handle depressed too qui ckly after
tur nin g k ey on
Recover
Excessive foaming in recovery tank. Empty recovery tank.

Tripped vacu um motor circuit breaker Reset breaker
Broken vacuum limit switch Replace switch
Squeegee in raised position Lower squeegee
Carbon B rushes wor n R epl ace carbon br ushes
Vacuum swi tch disconnected Connect wiring
Foot pe dal not in “h ome” p osition Place pedal in notch
Trippe d bru sh m oto r ci rcui t bre ake r Res e t bre ake r
Broken brush motor switch Replace sw itch near the vac lever
Dam aged brush block or drive hub Repla ce
Char
Circuit breaker tripped in wall outlet Reset breaker
Battery disconnected from ma chine Connect battery to m ac h i ne
Charger malfunc tion Call se r vice

tank full Empty recovery tank

er not plugged to wall outlet Plug into wal l outlet

is co m
Turn key of f, tur n o n , wai t un til bat tery

gauge lights up without fla shing

U se less or c hange c hemical.
U s e de fo ami n g agen t.

lete

Charger Warning Ind icators

LED Status Description

Output open circuit or short circuit or reverse polarity connection of

RED LED lamp blink once

Warning

RED LED lamp blink twice

ch arg er t o bat tery. Ba t te ry voltag e is too hi gh (may be connecte d to

voltage ba ttery).

wron

bn ormal cycle (m ay be wea k or bad b attery)

Char ging time has safety timed ou t du e to battery prob lem.

Troubleshooting

35

Troubleshooting

Fault / Diagnostic Codes

The Battery / Fault gauge will flash when a fault is detected. A decal labeled “Diagnostic Codes” is located below the battery gauge as an abbreviated
and convenient guide to determine the cause of the fault and the remedy (refer to machine or see “Diagnostic Code Guide” section of this manual). The
flashing codes are for the following:

36

The battery needs charging, there is a bad
connection to the battery or dependent on
programming, may indicate that the battery
lockout function is active and the controller is
in a restricted mode of operation. Check the
connections to the battery. If the connections
are good, try charging the battery.

There is a bad connection to the motor. Check
all connections between the motor and the
controller.

The motor has a short circuit to a battery
connection. Contact your service agent.

The battery charge level has fallen below the
Battery Lockout level and the controller is
inhibiting certain machine functions. Charge
the battery.

Troubleshooting

Not used.

The controller is being inhibited from driving,
this may be because the battery charger is
connected.

The bail handle was activated prior to turning
the machine on. Make sure that the bail handle
is in the rest position. Restart the key switch.

A controller fault is indicated. Make sure that
all connections are secure.

Not used.

An excessive voltage has been applied to the
controller. This is usually caused by a poor
battery connection. Check the battery
connections.

37

Minuteman International Made Simple Commercial Limited Warranty

REVISION F EFFECTIVE 6/1/2009

Minuteman International, Inc. warrants to the original purchaser/user that the product is free from defects in workmanship and materials
under normal use. Minuteman will, at its option, repair or replace without charge, parts that fail under normal use and service when operated
and maintained in accordance with the applicable operation and instruction manuals. All warranty claims must be submitted through and
approved by factory authorized repair stations.

This warranty does not apply to normal wear, or to items whose life is dependent on their use and care, such as belt s, cords, switches, hoses,
rubber parts, electrical motor components or adjustments. Part s manufactured by Minuteman are covered by and subject to the warranties
and/or guarantees of their manufacturers. Please contact Minuteman for procedures in warranty claims against these manufacturers.

Special warning to purchaser — Use of replacement filters and/or prefilters not manufactured by Minuteman or its designated licensees, will
void all warranties expressed or implied. A potential health hazard exists without original equipment replacement.

All warranted items become the sole property of Minuteman or its original manufacturer, whichever the case may be.
Minuteman disclaims any implied warranty, including the warranty of merchantability and the warranty of fitness for a particular purpose.

Minuteman assumes no responsibility for any special, incidental or consequential damages.
This limited warranty is applicable only in the U.S.A. and Canada, and is extended only to the original user/purchaser of this product.

Customers outside the U.S.A. and Canada should contact their local distributor for export warranty policies. Minuteman is not responsible for
costs or repairs performed by persons other than those specifically authorized by Minuteman. This warranty does not apply to damage from
transportation, alterations by unauthorized persons, misuse or abuse of the equipment, use of non-compatible chemicals, or damage to
property, or loss of income due to malfunctions of the product.

If a difficulty develops with this machine, you should contact the dealer from whom it was purchased.
This warranty gives you specific legal rights, and you may have other rights which vary from state to state. Some states do not allow the

exclusion or limitation of special, incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above
exclusions and limitations may not apply to you.

38

Cord Electric Group: Three years parts, two years labor, ninety days travel (Not to exceed two hours)
Exceptions……….

Model Parts Labor Poly Travel

Port A Scrub 1 yr 6 months 10 yrs 0
MPV 13 1 yr 0 0 0
MPV 14 & 18 2 yrs 1 yr 0 0
V Series Upright Vacuums 1 yr 1yr 0 0
Rapid Air Blower 1 yr 1 yr 10 yrs 0
Explosion Proof Vacuum 1 yr 1 yr 0 0
X12, X12H & TRS 14 1 yr 1 yr 10 yrs 0
E17 & E20 Electric Scrubbers 1 yr 6 months 10 yrs 0

Pneumatic Vacuums 3 yr 1 yr 0

0

Description Parts Labor Poly Travel

Battery Operated Group 3 yrs 2 yrs 10 90 days
Sweepers 1 yr 1 yr 10 90 days
Internal Combustion Group 1 yr 1 yr 10 90 days

Not to exceed two hours

Exception: PAS 14B 1 yr 1 yr 10 yr 0

Battery Chargers: One year replacement

Replacement Parts: Ninety days
Batteries: 0-3 months replacement, 4-12 months pro-rate
Polyethylene Plastic Tanks: Tanks have 10yr warranty, no additional labor

39

Rev A 12/09

988735UM

A Member of the Hako Group

www.minutemanintl.com

Phone [phone]

Minuteman International · 14N845 U.S. Route 20 · Pingree Grove, Illinois 60140 USA
