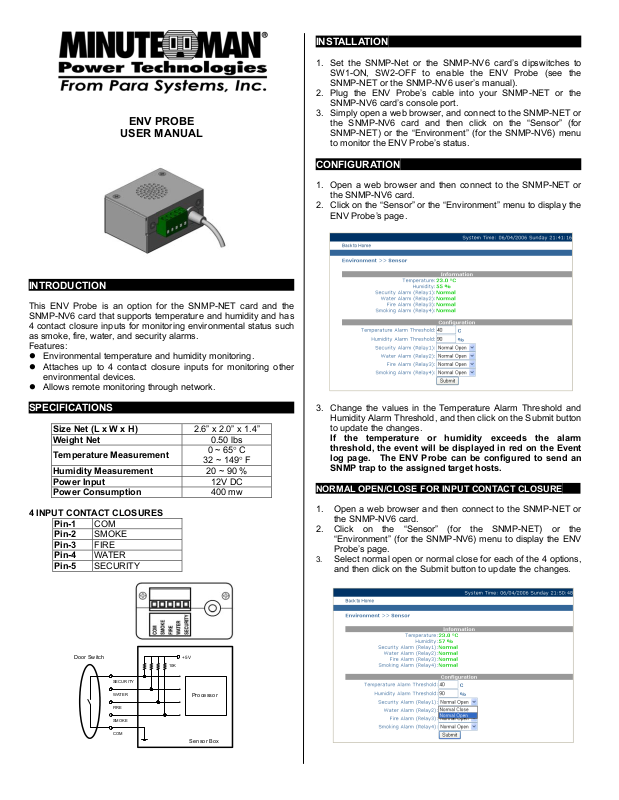

Minuteman ENV PROBE User Manual

ENV PROBE

USER MANUAL

INTRODUCTION

This ENV Probe is an option for the SNMP-NET card and the
SNMP-NV6 card that supports temperature and humidity and has
4 contact closure inputs for monitoring environmental status such
as smoke, fire, water, and security alarms.
Features:

 Environmental temperature and humidity monitoring.
 Attaches up to 4 contact closure inputs for monitoring other

environmental devices.

 Allows remote monitoring through network.

SPECIFICATIONS

Size Net (L x W x H) 2.6” x 2.0” x 1.4”
Weight Net 0.50 lbs

Temperature Measurement

Humidity Measurement 20 ~ 90 %
Power Input 12V DC
Power Consumption 400 mw

4 INPUT CONTACT CLOSURES

Pin-1 COM
Pin-2 SMOKE
Pin-3 FIRE
Pin-4 WATER
Pin-5 SECURITY

Door Switch

10K

SECURITY

WATER

FIRE

SMOKE

COM

0 ~ 65° C

32 ~ 149° F

+5V

Processor

Sensor Box

INSTALLATION

1. Set the SNMP-Net or the SNMP-NV6 card’s dipswitches to
SW1-ON, SW2-OFF to enable the ENV Probe (see the
SNMP-NET or the SNMP-NV6 user’s manual).

2. Plug the ENV Probe’s cable into your SNMP-NET or the
SNMP-NV6 card’s console port.

3. Simply open a web browser, and connect to the SNMP-NET or
the SNMP-NV6 card and then click on the “Sensor” (for
SNMP-NET) or the “Environment” (for the SNMP-NV6) menu
to monitor the ENV Probe’s status.

CONFIGURATION

1. Open a web browser and then connect to the SNMP-NET or
the SNMP-NV6 card.

2. Click on the “Sensor” or the “Environment” menu to display the
ENV Probe’s page.

3. Change the values in the Temperature Alarm Threshold and
Humidity Alarm Threshold, and then click on the Submit button
to update the changes.

If the temperature or humidity exceeds the alarm
threshold, the event will be displayed in red on the Event
log page. The ENV Probe can be configured to send an
SNMP trap to the assigned target hosts.

NORMAL OPEN/CLOSE FOR INPUT CONTACT CLOSURE

1. Open a web browser and then connect to the SNMP-NET or

the SNMP-NV6 card.

2. Click on the “Sensor” (for the SNMP-NET) or the

“Environment” (for the SNMP-NV6) menu to display the ENV
Probe’s page.

3. Select normal open or normal close for each of the 4 options,

and then click on the Submit button to update the changes.

If an alarm for one of the 4 input contact closures occurs, the
alarm will be displayed in red on the Event log page. The 4
input contact closures can be configured to send an SNMP
trap to the assigned target hosts.

OBTAINING SERVICE

1. Call your dealer for assistance. If you cannot reach your
dealer, or if they cannot resolve the problem call or fax
MINUTEMAN Technical Support at the following numbers;
Voice phone [phone], FAX line [phone] or visit
our Web site at www.minutemanups.com the "Discussion
Board". Please have the following information available
BEFORE calling the Technical Support Department.
a. Your name and address.
b. Where and when the unit was purchased.
c. All of the model information about your ENV Probe.
d. Any information on the failure.
e. A technician will ask you for the above information and, if

possible, help solve your problem over the phone. In
the event that the unit requires factory service, the
technician will issue you a Return Material Authorization
Number (RMA #).

f. If the ENV Probe is under warranty, the repairs will be

done at no charge. If not, there will be a charge for
repair.

2. Pack the ENV Probe in its original packaging. If the original
packaging is no longer available, ask the Technical Support
Technician about obtaining a new set. It is important to pack
the ENV Probe properly in order to avoid damage in transit.
Never use Styrofoam beads for a packing material.
a. Include a letter with your name, address, daytime phone

number, RMA number, a copy of your original sales
receipt, and a brief description of the problem.

3. Mark the RMA # on the outside of all packages. The factory
cannot accept any package without the RMA # marked on the
outside.

4. Return the ENV Probe by insured, prepaid carrier to:

Para Systems Inc.

MINUTEMAN UPS

1455 LeMay Drive

Carrollton, TX 75007

ATTN: RMA #

LIMITED PRODUCT WARRANTY

Para Systems Inc. (Para Systems) warrants this equipment, when
properly applied and operated within specified conditions, against
faulty materials or workmanship for a period of three years from the
date of purchase. For equipment sites within the United States
and Canada, this warranty covers repair or replacement of
defective equipment at the discretion of Para Systems. Repair
will be from the nearest authorized service center. Replacement
parts and warranty labor will be borne by Para Systems. For
equipment located outside of the United States and Canada, Para
Systems only covers faulty parts. Para Systems products
repaired or replaced pursuant to this warranty shall be warranted
for the un-expired portion of the warranty applying to the original
product. This warranty applies only to the original purchaser who
must have properly registered the product within 10 days of
purchase.

The warranty shall be void if (a) the equipment is damaged by the
customer, is improperly used, is subjected to an adverse operating
environment, or is operated outside the limits of its electrical
specifications; (b) the equipment is repaired or modified by anyone
other than Para Systems or Para Systems-approved personnel; or
(c) has been used in a manner contrary to the product’s User's
Manual or other written instructions.

Any technical advice furnished before or after delivery in regard to
use or application of Para Systems’ equipment is furnished without
charge and on the basis that it represents Para Systems’ best
judgment under the circumstances, but it is used at the recipient’s
sole risk.

Except as provided herein, Para Systems makes no warranties,
expressed or implied, including warranties of merchantability and
fitness for a particular purpose. Some states do not permit
limitation of implied warranties; therefore, the aforesaid limitation(s)
may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL PARA
SYSTEMS BE LIABLE FOR DIRECT, INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES ARISING OUT
OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE. Specifically, Para Systems is
not liable for any costs, such as lost profits or revenue, loss of
equipment, loss of use of equipment, loss of software, loss of data,
cost of substitutes, claims by third parties, or otherwise. The sole
and exclusive remedy for breach of any warranty, expressed or
implied, concerning Para Systems’ products and the only
obligation of Para Systems hereunder, shall be the repair or
replacement of defective equipment, components, or parts; or, at
Para Systems’ option, refund of the purchase price or substitution
with an equivalent replacement product. This warranty gives you
specific legal rights and you may have other rights, which vary from
state to state.
