User's Manual
Entrepid
Series UPS
Para Systems, Inc.
1455 LeMay Dr.
Carrollton, TX 75007
Phone: 1-972-446-7363
Fax: 1-972-446-9011
Internet: minutemanups.com
UPS Sizing: sizemyups.com
PN - 34000491 R3
Page 2
1
1. Introduction 2
2. Controls and Indicators 6
3. Installation 8
4. Operation 11
5. Troubleshooting 14
6. Replacing the Battery 15
7. Obtaining Service 18
8. Specifications 19
9. Limited Product Warranty 21
A1. Declaration of Conformity 22
Table Of Contents
Page 3
3
2
Thank you for purchasing this power protection product. It has been designed
and manufactured to provide many years of trouble free service. Please read
this manual before installing your Entrepid Series UPS, models EP500LCD,
EP700LCD, EP1000LCD, EP1500LCD as it provides important information
that should be followed during the installation and the maintenance of the UPS
system allowing you to correctly set up your system for the maximum safety
and performance. Included is information on customer support and factory
service, if it is required. If you experience a problem with the UPS system
please refer to the Troubleshooting guide in this manual to correct the problem
or collect enough information so that the Technical Support Department can
assist you.
CAUTION! The maximum ambient operating temperature for this UPS series
is 40°C (“0 ~ 40°C” for Ambient Operation).
The external vents and openings on the UPS are provided for ventilation.
T o ensure reliable operation of the UPS and to protect the UPS from overheating, these vents and openings must not be blocked or covered. Do not
insert any object into any of the vents or openings that may hinder the ventilation.
Install the UPS system in a well ventilated area, away from excess moistu-
re, heat, dust, flammable gas or explosives.
Leave adequate space (at least 20cm) around all sides of the UPS system
for proper ventilation.
Do not mount the UPS system with its front or rear panel facing down at
any angle.
Before usage, you must allow the UPS system to adjust to room temper-
ature (20°C~25°C or 68°F~77°F) for at least one hour to avoid moisture
condensing inside the UPS.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS !
CONSIGNES DE SÉCURITÉ IMPORTANTES
SAUVEGARDEZ CES CONSIGNES!
Chapter 1: Introduction
WARNING: Risk of Electrical Shock. Hazardous live parts inside these
power supplies are energized from the battery even when the AC input is
disconnected.
CAUTION! T o de-energize the outputs of the UPS:
1. If the UPS is on press and release the On/Off/T est Button.
2. Disconnect the UPS from the AC wall outlet.
3. T o de-energize the UPS completely , disconnect the battery.
CAUTION! To reduce the risk of electrical shock in conditions where the
load equipment grounding cannot be verified, disconnect the UPS from the
AC wall outlet before installing a computer interface cable. Reconnect the
power cord only after all signaling connections are made.
CAUTION! Connect the UPS to a two pole, three wire grounding AC wall
outlet. The receptacle must be connected to the appropriate branch protection (circuit breaker or fuse). Connection to any other type of receptacle may
result in a shock hazard and violate local electrical codes. Do not use extension cords, adapter plugs, or surge strips.
CAUTION! T o reduce the risk of electrical shock with the installation of this
UPS equipment and the connected equipment, the user must ensure that the
combined sum of the AC leakage current does not exceed 3.5mA.
WARNING: This Uninterruptible Power Supply contains potentially hazard-
ous voltages. Do not attempt to disassemble the UPS beyond the battery
replacement procedure. This UPS contains no user serviceable parts. Repairs and battery replacement must be performed by QUALIFIED SERVICE
PERSONNEL ONL Y.
CAUTION! T o reduce the risk of fire, connect only to a circuit provided with
20 amperes maximum branch circuit over-current protection in accordance
with the National Electric Code, ANSI/NFPA 70.
WARNING: Qualified Service Personnel ONL Y must perform the inst allation
and servicing of these UPS systems. MINUTEMAN accepts no liabilities and
is not limited to: injury to the Service Personnel, or damages to; the UPS, or
the connected equipment caused by the incorrect installation or servicing of
the UPS system.
Veuillez lire ce manuel avant l'installation de l'onduleur modèles EP500LCD,
EP700LCD, EP1000LCD, EP1500LCD. Il contient de l'information importante
qui doit être respectée au cours de l'installation et de l'entretien de l'onduleur et
des batteries. Cette information vous permettra de correctement installer le
système pour atteindre son rendement maximum en toute sécurité.
CAUTION! This UPS series is ONLY intended to be installed in an indoor
temperature controlled environment that is free of conductive contaminants.
This UPS series is not intended for use in a computer room as defined in the
Standard for the Protection of Electronic Computer/Data Processing Equipment ANSI/NFPA 75.
Page 4
5
4
Life Support Policy
As a general policy, we do not recommend the use of any of our product s in life
support applications where failure or malfunction of the product can be reasonably expected to cause failure of the life support device or to significantly affect
its safety or effectiveness. We do not recommend the use of any of our products in direct patient care. We will not knowingly sell our products for use in
such applications unless it receives in writing assurances satisfactory to us
that (a) the risks of injury or damage have been minimized, (b) the customer
assumes all such risks, and (c) our liability is adequately protected under the
circumstances.
After removing your UPS from its carton, it should be inspected for damage that
may have occurred in shipping. Immediately notify the carrier and place of
purchase if any damage is found. Warranty claims for damage caused by the
carrier will not be honored. The packing materials that your UPS was shipped
in are carefully designed to minimize any shipping damage. In the unlikely
case that the UPS needs to be returned to the manufacturer, please use the
original packing material. Since the manufacturer is not responsible for shipping damage incurred when the system is returned, the original packing material is inexpensive insurance. PLEASE SAVE THE P ACKING MA TERIALS!
Receiving Inspection
NOTE: These UPSs are shipped with the batteries disconnected. The batter-
ies must be connected before putting these UPSs into service. Refer to Section 3 "Installation" for connecting the batteries.
NOTICE: This equipment has been tested and found to comply with the limits
for a Class B computing device in accordance with the specifications in Subpart J of Part 15 of FCC Rules and the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference of the Canadian Department of Communications. These limits are designed to provide reasonable
protection against such interference in a residential installation. This equipment generates and uses radio frequency and if not installed and used properly,
that is, in strict accordance with the manufacturer's instructions, this equipment may cause interference to radio and television reception. If this equipment does cause interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient the receiving antenna.
Relocate the computer with respect to the receiver.
Move the computer away from the receiver.
Plug the computer into a different outlet so that the computer and receiver
are on different branch circuits.
Shielded communications interface cables must be used with this product.
WARNING: Changes or modifications to this unit not expressly approved by
the party responsible for compliance could void the user's authority to operate
the equipment.
ON / OFF / TEST BUTTON: T o turn the UPS on: press and hold the
On/Off/T est Button until the alarm sounds one beep and then release.
The UPS will perform a five second battery test. Once the UPS has
passed the battery test the UPS will reset to the norml AC mode and
provide power to the connected load. T o turn the UPS off: press and
hold the On/Off/T est Button until the alarm sounds one beep and then
release. To perform a ten-second battery test: With the UPS in the
normal AC mode, press and hold the On/Off/Test Button until the
alarm sounds four beeps, and then release. During the test, the
UPS will switch to the Battery mode, the On-Battery icon will illuminate and the alarm will sound.
NOTICE! The output of this device is not sinusoidal. It has a total harmonic
distortion and maximum single harmonic as below:
EP500LCD T otal harmonic: 43.1% Single harmonic: 30.7%
EP700LCD T otal harmonic: 46.5% Single harmonic: 35.9%
EP1000LCD T otal harmonic: 36.3% Single harmonic: 19.0%
EP1500LCD T otal harmonic: 33.6% Single harmonic: 13.3%
© COPYRIGHT 2015 BY PARA SYSTEMS, INC.
All Rights Reserved. All rights of this User Manual (“Manual”), including but not
limited to the content, information, and figures are solely owned and reserved
by Para Systems, Inc. (“Para Systems”). The Manual can only be applied to
the operation or the use of this product. Any disposition, duplication, dissemination, reproduction, modification, translation, extraction, or usage of this
Manual in whole or in part is prohibited without the prior written permission of
Para Systems. Given that Para Systems will continuously improve and develop the product, changes may be made to the information in this Manual at
any time without obligation to notify any person of such revision or changes.
Para Systems will make all possible efforts to secure the accuracy and the
integrity of this Manual. Para Systems disclaims any kinds or forms of warranty, guarantee, or undertaking, either expressly or implicitly, including but
not limited to the completeness, faultlessness, accuracy, non-infringement,
merchantability or fitness for a particular purpose of the Manual.
Page 5
7
6
Output Power Receptacles
NEMA 5-15P W/6 ft cord
Model # Input Power Plug
EP500LCD
EP700LCD
EP1000LCD
EP1500LCD
6-NEMA 5-15R Battery Backup & Surge
2-NEMA 5-15R Surge Only

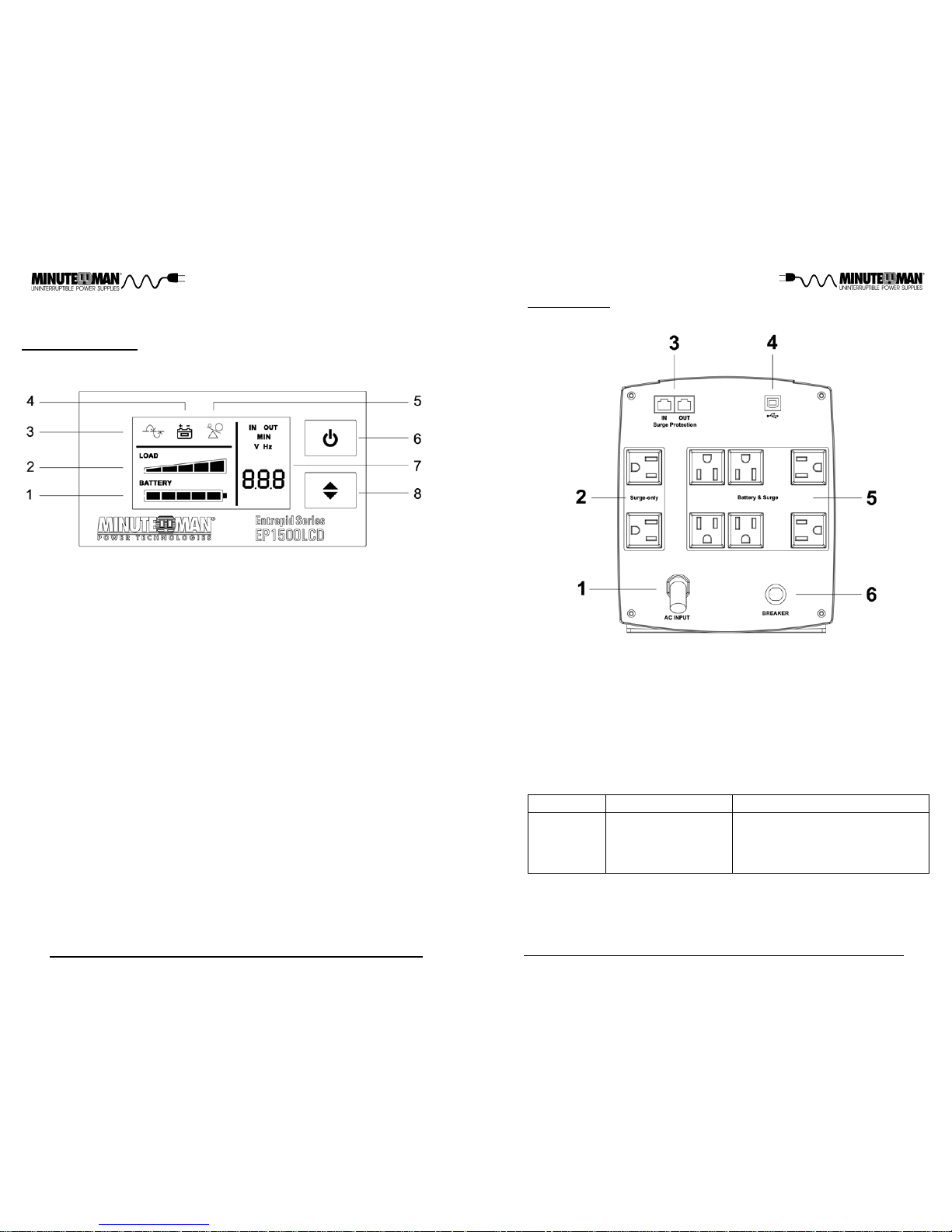

REAR PANEL
1. Input power cord: Connecting to the Utility Power.
2. Surge-only output receptacles: Noncritical equipment.
3. The RJ11/45: Phone/fax/network protection.
4. USB Communications Port: UPS monitoring and control.
5. Battery Backup & Surge output receptacles: Mission critical equipment.
6. Input circuit breaker: Protection against an excessive overload.
1. Battery Capacity Bar Graph: Displays the amount of Battery Capacity available in the AC and Battery mode.
2. Load Capacity Bar Graph: Displays the amount of load connected to the
UPS in the AC and Battery mode.
3. AC normal and Boost/Buck mode Icon: Illuminates when the UPS is in the
AC normal mode and flashs when the UPS is in the Boost or the Buck mode.
4. On-Battery Icon: Illuminates when the UPS is operating in the Battery mode.
5. Overload Icon: Illuminates when the amount of load attached to the UPS exceeds its power rating,
6. On/Off/T est Button: To turn the UPS On/Off and to perform a ten-second battery test.
7. UPS Parameters and Error codes:
Input - Voltage and Frequency.
Output - Voltage and Frequency.
Estimated Runtime (minutes) - AC normal and Battery mode.
S.L.F - A site wiring fault has been detected.
FAL - An internal fault has been detected.
8. Scroll Button: T o scroll through the UPS parameters.
CONTROL PANEL
Chapter 2: Controls and Indicators
Page 6
9
8
CONNECTING THE BATTERIES
(QUALIFIED SERVICE PERSONNEL ONLY)
Please read all of the WARNINGS and CAUTIONS before attempting to connect the batteries.

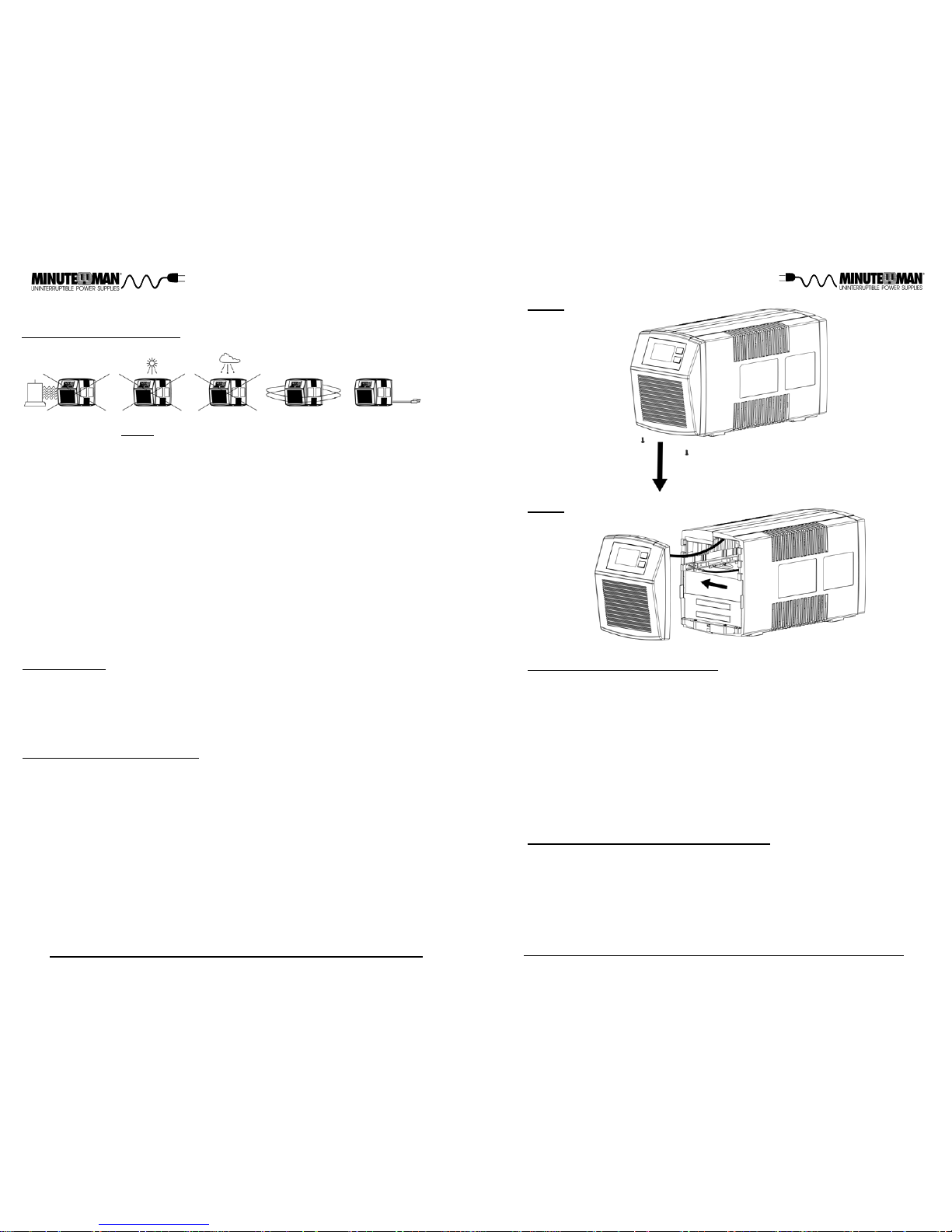

1. Remove the UPS from the shipping box and set on the floor or a bench top.

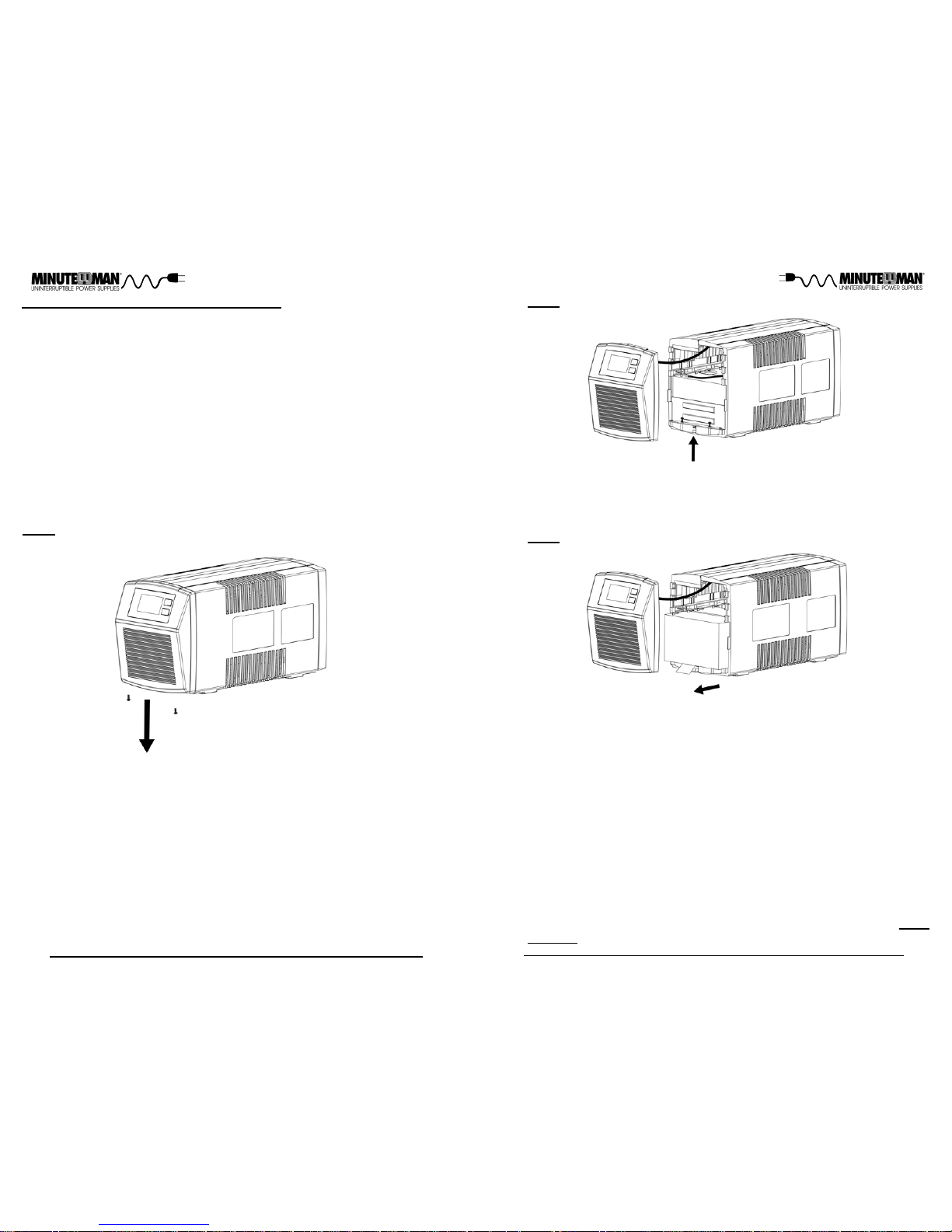

2. Remove the front panel retaining screws on the bottom side of the front panel. (FIG. 1)
3. Slide the front panel downward, then outward, and then move it to the side.
4. Verify proper polarity . Connect the battery negative (black) wire to the battery negative (black) terminal. (FIG . 2)
NOTE: Some sparking might occur, this is normal.
5. Reinstall the front panel onto the UPS.
6. Reinstall the front panel retaining screws.
7. Continue with the rest of the Installation.
INSTALLATION
Be sure to read the installation placement and all the cautions before installing
the UPS. Place the UPS in the final desired location and complete the rest of
the installation procedure. These UPSs are shipped with the internal batteries
disconnected. The batteries must be connected before putting these UPSs into
service. See Connecting the Batteries to connect the batteries.
INSTALLATION PLACEMENT
This UPS series is ONLY intended to be install in an indoor temperature con-
trolled environment that is free of conductive contaminants. DO NOT operate
the UPS in: extremely dusty and/or unclean areas, locations near heating
devices, water or excessive humidity, or where the UPS is exposed to direct
sunlight. Select a location, which will provide good air circulation for the UPS at
all times. Route power cords so they cannot be walked on or damaged. Typical battery life is 3 to 5 years. Environmental factors do affect battery life.
High temperatures, poor utility power, and frequent, short duration discharges
have a negative impact on battery life. This UPS series is not intended for use
in a computer room as defined in the Standard for the Protection of Electronic
Computer/Data Processing Equipment ANSI/NFP A 75.
Operating T emperature (Maximum): 0 to 40°C (+32 to +104 °F)
Operating Elevation: 0 to 1500m (0 to +5000 ft)
Operating and Storage Relative Humidity: 95%, non-condensing
Storage Temperature: -15 to +50°C (+5 to +122°F)
Storage Elevation: 0 to 15,000m (0 to +49,213 ft)
FIG. 1
FIG. 2
CONNECTING YOUR EQUIPMENT
Plug the mission critical equipment into the Battery Backup & Surge output
receptacles on the rear panel of the UPS. Plug the noncritical equipment into
the Surge Only output receptacles on the rear panel of the UPS. Ensure that
the connected equipment does not exceed the maximum output rating of the
UPS (refer to the information label on the UPS or the electrical specifications in
this manual). DO NOT PLUG EXTENSION CORDS, ADAPTER PLUGS, SURGE
STRIPS OR POWER STRIPS INTO THE OUTPUT RECEPT ACLES OF THE
UPS. NOTE: Risk of damaging the UPS and/or connected equipment.
CONNECTING THE UPS TO AN AC SOURCE
CAUTION - T o reduce the risk of fire, connect only to a circuit provided with 20
amperes maximum branch circuit over-current protection in accordance with
the National Electric Code, ANSI/NFP A 70. Plug the UPS into a two pole, three
wire, grounded receptacle only . DO NOT PLUG THE UPS INTO EXTENSION
CORDS, ADAPTER PLUGS, SURGE STRIPS OR POWER STRIPS. DO NOT
CUT THE INPUT PLUG OFF AND A TTEMPT TO HARDWIRE THIS UPS, DOING SO WILL VOID THE WARRANTY.
CAUTION! DO NOT connect a laser printer to the output of the UPS.
Chapter 3: Installation
Page 7
11
10
PHONE/FAX/NETWORK PROTECTION CONNECTION (OPTIONAL)
Connect a 10/100 Base-T network, single line phone, or fax line to the RJ1 1/45
modular connectors on the rear panel of the UPS. This connection will require
another length of telephone or network cable. The cable coming from the telephone service or networked system is connected to the port marked “IN”. The
equipment to be protected is connected to the port marked "OUT". NOTE:
Connecting to the Phone/Fax/Network modular connectors is optional. The
UPS works properly without this connection.
SYSTEM OVERVIEW
This Line-Interactive UPS protects computers, servers, telecom systems, VoIP systems, security systems, and a variety of electronic equipment from blackouts, brownouts, overvoltages, and surges. The AVR function continuously corrects the voltages, in-between the brownout and overvoltage transfer points (90 - 150VAC), to a
safe usable level. When the UPS is operating in the A VR mode the audible alarm
will remain silent and the AC normal mode indicator will blink. During normal AC
operation, the UPS will quietly and confidently protect your system from power
anomalies.
The UPS will charge the batteries with the UPS in the on or off position when the
UPS is plugged into the wall outlet and there is an acceptable AC volt age present
(90 - 150VAC). When a blackout, brownout, or an overvoltage condition occurs;
the UPS will transfer to the battery mode, the On Battery indicator will illuminate and
the audible alarm will sound once every five seconds indicating that the commercial
power is lost or unacceptable. When the commercial power returns or is at an
acceptable level, the UPS will automatically transfer back to the AC normal mode
and start recharging the batteries. During an extended outage when there is approximately two minutes of backup time remaining the audible alarm will sound
twice every five seconds. This Low Battery Warning is informing the user that they
should save all open files and turn off their computer. When the batteries reach the
predetermined level the UPS will automatically shutdown protecting the batteries
from over discharging. Once the commercial power returns the UPS will automatically restart, providing safe usable power to the connected equipment and start
recharging the batteries.
CHARGING THE BATTERY
The UPS will charge the internal batteries whenever the UPS is connected to
an AC source and there is an acceptable AC voltage present (90 - 150V AC). It
is recommended that the UPS's batteries be charged for a minimum of 4 hours
before use. The UPS may be used immediately, however, the “On Battery”
runtime may be less than normally expected. Typical battery life is 3 to 5
years. Environmental factors do affect battery life. High temperatures, poor
utility power, and frequent, short duration discharges have a negative impact on
battery life. NOTE: If the UPS is going to be out of service or stored for a
prolonged period of time, the batteries must be recharged for at least twentyfour hours every ninety days.
USB COMMUNICATIONS PORT CONNECTION (OPTIONAL)
This UPS series supports USB communications. The power monitoring software and interface cable can be used with the UPS. Use only the interface
cable that come with these UPSs. The USB communications protocol is HID.
The HID USB driver comes standard in the Windows OS. Simply connect the
USB cable to the USB communications port on the rear panel of the UPS.
Connect the other end of the USB cable to the device that will be monitoring/
controlling the UPS and then follow the prompts on the screen. NOTE: When
using the UPS's USB port with Windows XP, 7 or 8 the Power Options in the
Control Panel may need to be configured. Connecting to the Communications
Port is optional. The UPS works properly without this connection.
CHECKING THE SITE WIRING FAULT
After plugging the UPS into the wall outlet, check the LCD screen on the front
panel of the UPS for a Site Wiring Fault (S.L.F). If the S.L.F is illuminated, the
UPS is plugged into an improperly wired wall outlet. If the UPS indicates a Site
Wiring Fault (S.L.F), have a Qualified Electrician correct the problem.
CAUTION! The TNV connector shall use the same type of RJ45.
POWER MONITORING SOFTW ARE
This UPS supports Minuteman's SentryHD power monitoring software. Please
go to our web site at www.minutemanups.com/support, then look under Downloads, and then Software Download Center. Please download (Free of Charge)
the latest version of the Minuteman SentryHD software.
TURNING THE UPS ON / OFF
T o turn the UPS on: press and hold the On/Off/Test Button until the alarm sounds
one beep and then release. The UPS will perform a five second battery test. Once
the UPS has passed the battery test the UPS will reset to the norml AC mode and
provide power to the connected load. T o turn the UPS off: press and hold the On/
Off/T est Button until the alarm sounds one beep and then release.
TEST BUTTON
T o perform a ten-second user invoked battery test: With the UPS in the normal AC
mode, press and hold the On/Off/T est Button until the alarm sounds four beeps, and
then release. During the test, the UPS will switch to the Battery mode, the OnBattery icon will illuminate and the alarm will sound.
Chapter 4: Operation

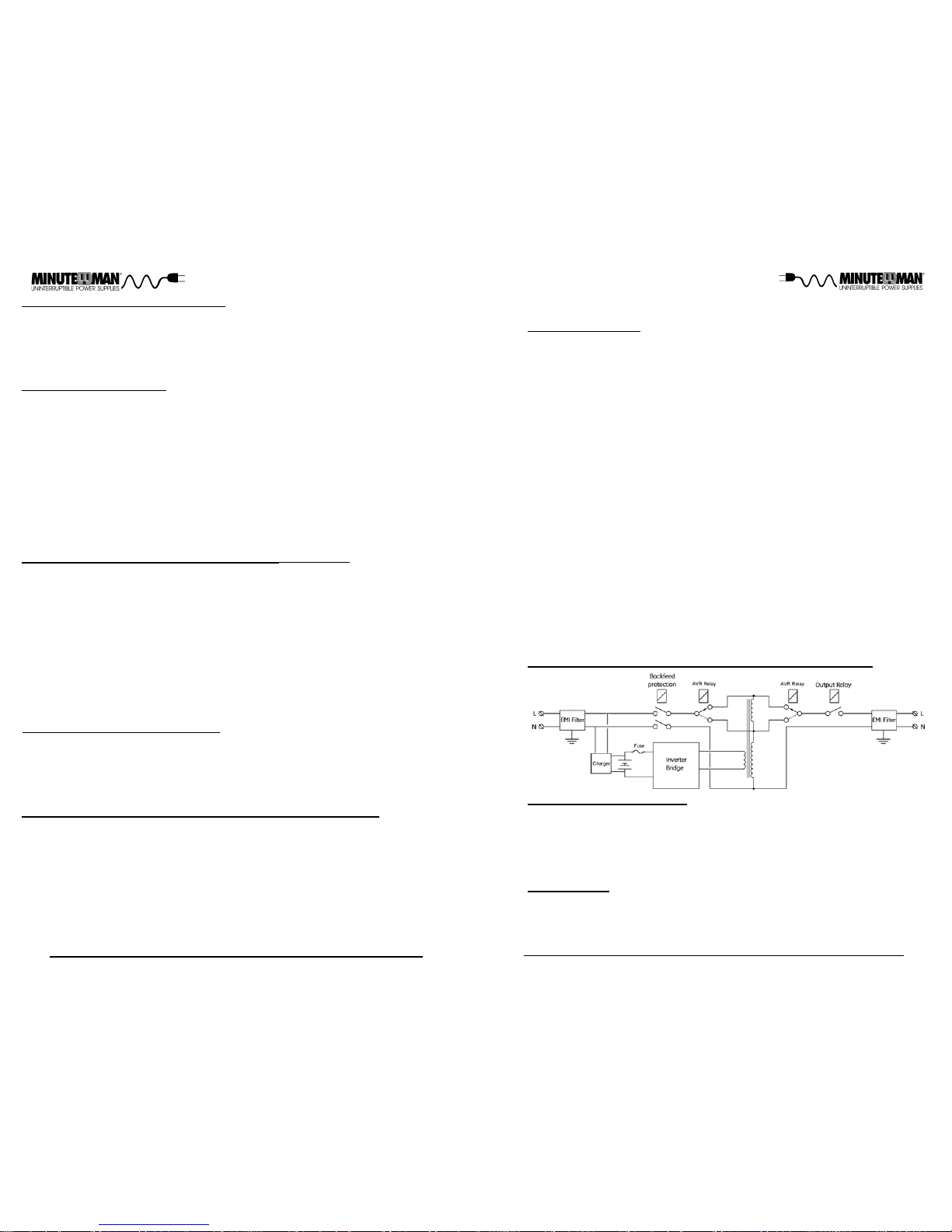

Block Diagram of the Basic Wiring and Internal Circuit Configuration
Page 8
13
12
WEAK/BAD BATTER Y
The UPS automatically tests the battery’s condition. If the battery is weak, bad
or disconnected, the Battery Capacity Bar Graph will flash and the alarm will
sound three beeps every five minutes until the battery is either reconnected or
replaced. This alarm will be repeated until the batteries pass a self-test. It is
recommended that the UPS be allowed to charge overnight before performing a
battery test to confirm a Weak/Bad Battery condition.
OVERLOAD
When the amount of load attached to the UPS exceeds its power rating, the
Overload icon will illuminate and the alarm will sound continuously (AC and
Battery modes). This alarm will remain on until the excess load is removed or
the UPS’s self protection circuit shuts the UPS down.
T o clear the overload alarm when the UPS has shutdown requires that the UPS
perform a battery test. First remove part of the load, then turn the UPS on, the
Overload icon and the alarm will be on. Second either use the Test Button or
unplug the input power cord to perform a battery test.
ALARMS
ON BATTER Y
When the UPS is operating on the batteries, the AC normal icon will extinguish,
the On-Battery icon will illuminate and the alarm will sound one beep every five
seconds. Once the UPS returns to the normal AC mode, the alarm will stop,
the On-Battery icon will extinguish and the AC normal icon will illuminate.
LOW BATTERY WARNING
When the batteries reach the predetermined level, the alarm will sound two
beeps every five seconds and the Battery Bar Graph will display the remaining
battery capacity. This condition will continue until either AC returns or the
UPS’s self protection circuit shuts the UPS down to protect the battery from
over discharging.
UPS FAULT
When the UPS detects an internal fault, "FAL" will be displayed on the LCD
screen, the alarm will sound continuously and the output will be turned off. The
fault condition, in some instances, may be reset by turning the UPS off and
then on. If the fault condition does not clear the UPS must be sent in for
service.
SELF-TEST
The start-up and user invoked tests are useful to verify the correct operation of
the UPS and the condition of the batteries. The start-up and user invoked test
will run for approximately ten-seconds to measure the battery’s capability to
support the output load. If the UPS fails one of these tests, one of the icons or
the information displayed on the LCD will remain illuminated indicating the
type of problem.
SCROLL BUTTON
Press the Scroll Button to scroll through the UPS parameters. The UPS parameters are displayed on the LCD screen.
LCD SCREEN
The LCD provides the user with a variety of useful information. The LCD has a
real-time meter to display, in numeric fashion, the following data:
Input Voltage and Frequency
Output Voltage and Frequency
Connected Load Capacity
Battery Capacity
Estimated runtime in the AC and DC mode
The LCD will include dedicated icons for the following information:
AC Normal
On Battery
AVR Mode (Boost and Buck) – The AC Normal icon will flash
Overload
Weak/Bad Battery (Battery Capacity Bar Graph will flash)
Site Wiring Fault (S.L.F. will be displayed)
UPS Fault (FAL will be displayed)
The LCD does have a backlight that will turn on when the UPS is turned on.
After approximately 20-seconds the backlight will turn off to conserve energy .
When an event (alarm) occurs, such as going to the battery mode, the backlight will turn on for approximately 20-seconds to alert the user that an event
has occurred and then the backlight will turn off. While the Scroll button is in
use the backlight will remain on. Approximately 20-seconds after the Scroll
button has stopped being used the backlight will turn off to conserve energy.
BATTER Y OVER CHARGE PROTECTION
If the charger is providing too much voltage to the battery the UPS will turn off
the charger to protect the battery. When the charger volt age exceeds 14.52V/
battery the charger will turn off. The alarm will sound three beeps every five
seconds and the Battery Capacity Bar Graph will flash. In some instances, the
charger may be reset by turning the UPS off and then on. When the charger
voltage exceeds 15.0V/battery the charger will turn off. The alarm will sound
three beeps every five seconds and the Battery Capacity Bar Graph will flash.
The UPS will automatically transfer to the battery mode and operate until the
UPS shuts down due to battery exhaustion. The UPS must be sent in for
service.
Page 9
15
14
REPLACING THE BATTERY
WARNING! This UPS contains potentially hazardous voltages. Do not at-
tempt to disassemble the UPS beyond the battery replacement procedure.
This UPS contains no user serviceable parts. Repairs and battery replacement must be performed by QUALIFIED SERVICE PERSONNEL ONL Y.
CAUTION: Do not open or mutilate batteries. Released electrolyte is harmful
to the skin and eyes and may be toxic.
(QUALIFIED SER VICE PERSONNEL ONL Y)
CAUTION: Do not dispose of batteries in a fire. The batteries may explode.
The batteries in this UPS are recyclable. Dispose of the batteries properly.
The batteries contain lead and pose a hazard to the environment and human
health if not disposed of properly. Refer to local codes for proper disposal
requirements or return the battery to the supplier.
CAUTION: The battery system can present a risk of electrical shock. These
batteries produce sufficient current to burn wire or tools very rapidly, producing molten metal. Observe these precautions when replacing the batteries:
1. Remove watches, rings, or other metal objects.
2. Use hand tools with insulated handles.
3. Wear protective eye gear (goggles), rubber gloves and boots.
4. Do not lay tools or other metal parts on top of batteries.
5. Disconnect the charging source prior to connecting or disconnecting the
battery terminals.
6. Determine if the battery is inadvertently grounded. If the battery is, remove
the source of the grounding. Contact with any part of a grounded battery
can result in an electrical shock. The likelihood of such shock will be reduced, if such grounds are removed during installation and maintenance.
Please read all of the WARNINGS and CAUTIONS before attempting to service
the batteries. Typical battery life is 3 to 5 years. Environmental factors do
affect battery life. High temperatures, poor utility power, and frequent, short
duration discharges have a negative impact on battery life.
Possible Cause
Symptom
What T o Do
Press, hold and then release
the On/Off button to start UPS
On/Off/Test button not
pressed
UPS will not turn on
Reset circuit breaker by
pressing the plunger back in.
If the AC circuit breaker trips
after UPS starts up, reduce
the load on the UPS
UPS operates in
battery mode only,
even though there
is normal AC
present
Input AC circuit breaker is
tripped
UPS has detected an internal fault
Call for service
"FAL" is displayed
on the LCD
The AC mode icon
is illuminated, but
there is no output
Disconnect the computer
cable from the UPS and press
the On button. If UPS works
normally, the software has
control of the UPS
The UPS is being controlled via its communications port
The batteries may be
weak or at the end of their
useful service life
Charge the batteries for 8hours and retest. If the runtime
is still less than expected, the
batteries may need to be
replaced, even though the
Weak/Bad Battery LED is not
illuminated
UPS does not
provide expected
runtime
The Battery Capacity Bar Graph is
flashing
The Overload icon
is illuminated
Loose connections at the
batteries, Weak batteries,
Bad batteries
The output load has exceeded the UPS's capacity
Check battery connections,
charge the batteries for 8hours, replace the batteries
Check the specifications (see
section 8). Remove part of
the load
The AC mode icon
is flashing and the
alarm is silent
The UPS is operating in
the Boost or the Buck
mode
The UPS has detected an
improperly wired wall outlet
The UPS is performing its intended function
Contact a Qualified Electrician
to correct the problem
"S.L.F" is displayed on the LCD
Chapter 5: Troubleshooting
Chapter 6: Replacing the Battery
CAUTION: Replace batteries with the same number and type as originally
installed in the UPS. These batteries have pressure operated vents. These
UPSs contain sealed non-spillable maintenance-free lead acid batteries.
Battery Module
Part #
EP1500LCD
BM0062
Model #
EP500LCD
BM0059
EP700LCD
BM0060
EP1000LCD
BM0061
Page 10
17
16
FIG. 2
FIG. 3
7. Slide the front panel downward, then outward, and then move to the side or
lay it on the top of the unit. (FIG. 2)
8. Disconnect the battery negative (black) wire.
9. Disconnect the battery positive (red) wire.
CAUTION: Do not short the battery positive wire to the Battery negative wire.
10.Remove the two screws for the battery retaining bracket.
11.Slide the battery retaining bracket upwards and then remove from the unit.
BATTERY REPLACEMENT PROCEDURE
PLEASE READ THE CAUTIONS AND W ARNINGS BEFORE A TTEMPTING
TO REPLACE THE BA TTERIES
Hot-swappable batteries mean that the batteries can be replaced without powering down the whole UPS system.
NOTE: If there is a power interruption while replacing the hot-swappable batteries, with the UPS on, the load will not be backed up. T o hot-swap the batteries
start with step number 6.
1. Turn off the equipment that is plugged into the output of the UPS.
2. Turn off the UPS.
3. Unplug the UPS's AC power cord from the AC wall outlet.
4. Unplug the equipment from the output receptacles of the UPS.
5. Unplug the computer interface cable from the rear panel of the UPS.
6. Remove the front panel retaining screws on the bottom side of the front panel. (FIG. 1)
FIG. 1
12. Grasp the battery pull tab and gently pull the battery module out of the UPS
and set aside. (FIG. 3)
CAUTION: DO NOT pull the battery module out by pulling on the battery
wires.
13. Slide the new battery module into the UPS.
14. Reinstall the battery retaining bracket.
15. Reinstall the two screws for the battery retaining bracket.
16. Verify proper polarity. Reconnect the battery positive (red) wire to the battery positive (red) terminal.
17. Verify proper polarity. Reconnect the battery negative (black) wire to the
battery negative (black) terminal.
NOTE: Some sparking might occur, this is normal.
18. Reinstall the front panel on the UPS.
19. Reinstall the front panel retaining screws.
20. Properly dispose of the old batteries at an appropriate recycling facility or
return them to the supplier in the packing material for the new batteries.
21. The UPS is now ready for the normal operation.
NOTE: If the UPS has a Weak/Bad Battery Alarm after replacing the battery
module, a user invoked battery test must be performed to clear the Weak/Bad
Battery Alarm. To initiate a user invoked battery test see section 4 "TEST
BUTTON".
Page 11
19
18
IF THE UPS REQUIRES SERVICE
Chapter 7: Obtaining Service
1. Use the Troubleshooting section to eliminate obvious causes.
2. Verify there are no tripped circuit breakers and that the batteries are good.
A tripped circuit breaker and defective batteries are the most common issues.
3. Call your dealer for assistance. If you cannot reach your dealer, or if they
cannot resolve the issue call or fax the T echnical Support department at the
following numbers; Voice phone (972) 446-7363, F AX line (972) 446-901 1
or visit our Web site at www.minutemanup s.com the "Discussion Board".
Before calling the T echnical Support Department have the following information available:
a) Contact name and address.
b) Where and when the unit was purchased.
c) All of the model information about your unit.
d) The serial number of your unit.
e) Any information on the failure, including LEDs that may be illuminated
or error codes displayed.
f) A description of the protected equipment including model numbers, if
possible.
g) A technician will ask you for the above information and if possible,
help solve the issue over the phone. In the event that the unit requires
factory service, the T echnical Support Representative will issue you a
Return Material Authorization Number (RMA #). NOTE: We must
have the model number and the serial number of the product to
issue an RMA #.
h) If the unit is under warranty, the repairs will be done at no charge. If
the unit is not under warranty there will be a charge for the repair.
4. Pack the unit in its original packaging. If the original packaging is no longer available, ask the T echnical Support Representative about obtaining a
new set. It is important to pack the unit properly in order to avoid damage
in transit. Never use Styrofoam beads for a packing material.
a) Include a letter with your name, address, day time phone number,
RMA number, a copy of your original sales receipt, and a brief description of the problem.
5. Mark the RMA # on the outside of all packages. The factory cannot accept
any package without the RMA # marked on the outside of the package.
6. Return the unit by insured, prepaid carrier to:
Para Systems Inc.
MINUTEMAN UPS
1809 W. Frankford Road, Suite 150
Carrollton, TX 75007
ATTN: RMA # _______
120VAC
1000VA
600W
Protection
Waveform Type
Over-Current, Short-Circuit Protected and Latching Shutdown
Simulated Sine Wave
Frequency
50/60Hz, +/-0.5Hz (unless synchronized to utility)
Nominal Voltage
Maximum Power Capacity
6 ms Typical
>93% (Full Load)
Resettable Circuit Breaker
50 or 60 Hz, +/-5Hz, autosensing
0 - 160VAC
90 - 150VAC
102 - 133VAC
Transfer Time
Efficiency (Line Mode)
Input Protection
Frequency Limits
Voltage Range
Acceptable Input voltage
EP1000LCD
Model Number
SYSTEM SPECIFICATIONS
Voltage Range
Topology
Line-Interactive, Simulated Sine Wave
OUTPUT NON-BATTER Y OPERA TION
INPUT
Number of Phase Single (1∅ 2W +G)
Nominal Voltage 120VAC
Low Voltage T ransfer Point
90V resets to Utility Power at 94V or higher
High Voltage T ransfer Point
150V resets to Utility Power at 146V or lower
Voltage Regulation
120VAC: -15% - +10.9%
Frequency Range 60Hz: 55 - 65Hz or 50Hz: 45 - 55Hz
OUTPUT BATTER Y OPERA TION
Voltage Regulation Nominal +/-6% (until Low Battery Warning)
Overload Capacity
AC Mode: 110% for 5-minutes then fault,
120% Shutdown Immediately
EP1500LCD
1500VA
900W
REGULATO RY COMPLIANCE
Safety and Approvals
cTUVus (Conforms to UL1778 5th Edition & CSA 22.2 no. 107.314 / R: 2014), FCC Class B, CE certified, Energy Star certified,
RoHS2 (EU Directive 2011/65/EU)
EP500LCD EP700LCD
500VA
300W
700VA
420W
DC Mode: 110% for 10-seconds then shutdown,
120% Shutdown Immediately
Chapter 8: Specifications
Page 12
21
20
BATTER Y SYSTEM
Typical Recharge T ime
Typical Battery Life
3 to 5 years. Environmental factors do affect battery life. High
temperatures, poor utility power, and frequent, short duration
discharges have a negative impact on battery life.
8-hours to 90% (From a full load discharge)
Battery Type
Sealed, Non-Spillable, Maintenance Free, Value Regulated Lead Acid
Runtime: Full Load (minutes)
Runtime: Half Load (minutes)
SURGE PROTECTION AND FIL TERING
Audible Noise at 1 m (3 ft.)
10/100 Base-T surge protection
let-through (as a percentage of an
applied +/-6 kV 1.2/50 us, 500 a 8/
20 uS test)
Telephone line surge protection
let-through (as a percentage of an
applied +/-6 kV 1.2/50 us, 500a 8/
20 uS test)
Noise Filter
Surge voltage let-through (as a
percentage of an applied ANSI
C62.41-1991 Cat. A +/-6 kV)
Surge Response Time
Surge Current Capability
Surge Energy Rating 320 J
0 ns (instantaneous) normal mode; <5 ns common mode
< 5%
>45db normal and common mode EMI/RFI suppression
<45 dBA
< 1%
< 5%
10000 Amps total (one time 8 to 20us waveform)
PHYSICAL
Weight - Net
Size - Net
L X W X H
Size - Shipping
L X W X H
Weight - Shipping
12.5 x 6.7 x 7.9"
317.5 x 170 x 200.5 mm
15.7 x 10.0 x 11.6"
399 x 255 x 294 mm
23.7 lbs
10.74 Kgs
26.4 lbs
11.98 Kgs
ENVIRONMENTAL
Operating/Storage Humidity 0 - 95% Non-Condensing
Storage Elevation
0 to 15,000m (0 to +50,000 ft)
Storage T emperature
-15 to +45°C (+5 to +113°F)
Operating Temperature 0 to 40 degrees C (+32 to +104 degrees F) at
Operating Elevation 0 to 1,500m (0 to +5,000 ft)
Operating Temperature 0 to 35 degrees C (+32 to +95 degrees F) at
Operating Elevation 1501 to 3,000m (0 to +10,000 ft)
14.9 lbs
6.78 Kgs
17.5 lbs
7.92 Kgs
13
3
12
3
17.3 lbs
7.83 Kgs
29.6 lbs
13.44 Kgs
32.3 lbs
14.67 Kgs
19.8 lbs
8.96 Kgs
13
3
11
3
15.3 x 6.7 x 7.9"
387.5 x 170 x 200.5 mm
18.5 x 10.0 x 11.6"
469 x 255 x 294 mm
Battery Module Part #
BM0062BM0059
BM0060 BM0061
Para Systems, Inc. (Para Systems) warrants this equipment, when properly applied and
operated within specified conditions, against faulty materials (excluding the batteries) or
workmanship for a period of three years from the date of purchase. Para Systems Inc.
(Para Systems) warrants the batteries for a period of two years from the date of purchase. For equipment sites within the United States and Canada, this warranty covers
depot repair or replacement of defective equipment at the discretion of Para Systems.
Depot repair will be from the nearest authorized service center. The customer p ays for
shipping the product to Para Systems. Para Systems pays ground freight to ship the
product back to the customer. Replacement parts and warranty labor will be borne by
Para Systems. For equipment located outside of the United States and Canada, Para
Systems only covers faulty parts. Para Systems products that are depot repaired or
replaced pursuant to this warranty shall only be warranted for the unexpired portion of
the warranty applying to the original product. This warranty applies only to the original
purchaser who must have properly registered the product within 10 days of purchase.
The warranty shall be void if (a) the equipment is damaged by the customer, is improperly used, is subjected to an adverse operating environment, or is operated outside the
limits of its electrical specifications; (b) the equipment is repaired or modified by anyone
other than Para Systems or Para Systems approved personnel; or (c) has been used in
a manner contrary to the product’s User's Manual or other written instructions.
Any technical advice furnished before or after delivery in regard to use or application of
Para Systems’ equipment is furnished without charge and on the basis that it represents
Para Systems’ best judgment under the circumstances, but it is used at the recipient’s
sole risk.
EXCEPT AS PROVIDED HEREIN, PARA SYSTEMS MAKES NO WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WARRANTIES OF MERCHANT ABILITY AND FIT NESS FOR A P ARTICULAR PURPOSE. Some states do not permit limitation of implied
warranties; therefore, the aforesaid limitation(s) may not apply to the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL P ARA SYSTEMS BE LIABLE
FOR DIRECT , INDIRECT , SPECIAL, INCIDENT AL, OR CONSEQUENTIAL DAMAGES
ARISING OUT OF THE USE OF THIS PRODUCT , EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically , Para Systems is not liable for any costs, such
as; labor for on-site installation, on-site maintenance or on-site service, lost profits or
revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, cost
of substitutes, claims by third parties, or otherwise. The sole and exclusive remedy for
breach of any warranty, expressed or implied, concerning Para Systems’ products and
the only obligation of Para Systems hereunder, shall be depot repair or replacement of
defective equipment, components, or parts; or , at Para Systems’ option, refund of the
purchase price or substitution with an equivalent replacement product. This warranty
gives you specific legal rights and you may also have other rights which vary from state
to state.
No employee, salesman, or agent of Para Systems is authorized to add to or vary the
terms of this warranty.
Chapter 9: Limited Product Warranty
Page 13
23
22
A1. DECLARATION OF CONFORMITY
Application of Council Directive(s): 2004/108/EC, 2006/95/EC, cTUVus (for
UL1778)
Standard(s) to which Conformity is declared: EN55022, EN55024,
EN61000-3-2, EN61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4,
EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11, UL1778, FCC
Class B
Manufacturer’s Name: Para Systems, Inc. (MINUTEMAN UPS)
Manufacturer’s Address: 1455 LeMay Drive
Carrollton, Texas 75007 USA
Type of Equipment: Uninterruptible Power Supplies (UPS)
Model No: EP500LCD, EP700LCD, EP1000LCD, EP1500LCD
I hereby declare that the equipment specified above conforms to the above
Directive(s).
Place: Carrollton, Texas, USA
Date: May 1, 2015
Robert Calhoun
(Name)
Manager Engineering
(Position)
Y ear of Manufacture: Beginning May 1, 2015
Notes:
Loading...
