Enspire Series UPS
EN350 / EN550
User's Manual
PN - 34000495 R2
Table Of Contents
1. Introduction 2
2. Controls and Indicators 6
3. Installation 8
4. Operation 11
5. Troubleshooting 14
6. Replacing the Battery 15
7. Obtaining Service 18
8. Specifications 19
9. Limited Product Warranty 21
A1 . Declaration of Conformity 22
1
Chapter 1: Introduction
Thank you for purchasing this power protection product. It has been designed
and manufactured to provide many years of trouble free service. Please read
this manual before installing your Enspire Series UPS, models EN350, EN550
as it provides important information that should be followed during the installation and the maintenance of the UPS system allowing you to correctly set up
your system for the maximum safety and performance. Included is information on customer support and factory service, if it is required. If you experience a problem with the UPS system please refer to the T roubleshooting guide
in this manual to correct the problem or collect enough information so that the
T echnical Support Dep artment can assist you.
IMPORT ANT SAFETY INSTRUCTIONS
SA VE THESE INSTRUCTIONS !
CONSIGNES DE SÉCURITÉ IMPORT ANTES
SAUVEGARDEZ CES CONSIGNES!
CAUTION! This UPS series is ONLY intended to be installed in an indoor
temperature controlled environment that is free of conductive contaminants.
This UPS series is not intended for use in a computer room as defined in the
Standard for the Protection of Electronic Computer/Data Processing Equipment ANSI/NFP A 75.
CAUTION! Connect the UPS to a two pole, three wire, grounded, utility
power AC wall outlet. The receptacle must be connected to the appropriate
branch protection (circuit breaker or fuse). Connection to any other type of
receptacle may result in a shock hazard and violate local electrical codes. Do
not use extension cords, adapter plugs, or surge strips.
CAUTION! To reduce the risk of fire, connect only to a utility power circuit
provided with 20 amperes maximum branch circuit over-current protection in
accordance with the National Electric Code, ANSI/NFPA 70.
CAUTION! T o reduce the risk of electrical shock with the inst allation of this
UPS equipment and the connected equipment, the user must ensure that the
combined sum of the AC leakage current does not exceed 3.5mA.
Veuillez lire ce manuel avant l'installation de l'onduleur modèles EN350, EN550.
Il contient de l'information importante qui doit être respectée au cours de
l'installation et de l'entretien de l'onduleur et des batteries. Cette information
vous permettra de correctement installer le système pour atteindre son
rendement maximum en toute sécurité.
CAUTION! The maximum ambient operating temperature for this UPS series
is 40°C (“0 ~ 40°C” for Ambient Operation).
The external vents and openings on the UPS are provided for ventilation.
T o ensure reliable operation of the UPS and to protect the UPS from overheating, these vents and openings must not be blocked or covered. Do not
insert any object into any of the vents or openings that may hinder the ventilation.
Install the UPS system in a well ventilated area, away from excess moistu-
re, heat, dust, flammable gas or explosives.
Leave adequate space (at least 20cm) around all sides of the UPS system
for proper ventilation.
Before usage, you must allow the UPS system to adjust to room temper-
ature (20°C~25°C or 68°F~77°F) for at least one hour to avoid moisture
condensing inside the UPS.
2
CAUTION! To reduce the risk of electrical shock in conditions where the
load equipment grounding cannot be verified, disconnect the UPS from the
AC wall outlet before installing a computer interface cable. Reconnect the
power cord only after all signaling connections are made.
W ARNING: This Uninterruptible Power Supply contains potentially hazard-
ous voltages. Do not attempt to disassemble the UPS beyond the battery
replacement procedure. This UPS contains no user serviceable parts. Repairs and battery replacement must be performed by QUALIFIED SERVICE
PERSONNEL ONL Y.
WARNING: Qualified Service Personnel ONLY must perform the Installa-
tion and Servicing of these UPS systems. MINUTEMAN accepts no liabilities
and is not limited to: injury to the Service Personnel, or damages to; the UPS,
or the connected equipment caused by the incorrect installation or servicing
of the UPS system.
WARNING: Risk of Electrical Shock. Hazardous live parts inside these
power supplies are energized from the battery even when the AC input is
disconnected.
CAUTION! T o de-energize the output s of the UPS:
1. If the UPS is on press and release the On/Off Button.
2. Disconnect the UPS from the AC wall outlet.
3. T o completely de-energize the UPS, disconnect the battery .
3
NOTICE! The output of this device is not sinusoidal. It has a total harmonic
distortion and maximum single harmonic as below:
Model
T otal harmonic
Single harmonic
ON / OFF BUTTON: To turn the UPS on: press and hold the
On/Off button until the alarm sounds one beep and then release. Then in aproximately twenty seconds the UPS will perform a five second self-test. Once the UPS has passed its
self-test the UPS will be ready for normal operation. To turn
the UPS off: press and hold the On/Off button until the alarm
sounds one beep and then release.
NOTICE: This equipment has been tested and found to comply with the limits
for a Class B computing device in accordance with the specifications in Subpart J of Part 15 of FCC Rules and the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference of the Canadian Department of Communications. These limits are designed to provide reasonable
protection against such interference in a residential installation. This equipment generates and uses radio frequency and if not installed and used properly ,
that is, in strict accordance with the manufacturer's instructions, this equipment may cause interference to radio and television reception. If this equipment does cause interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient the receiving antenna.
Relocate the computer with respect to the receiver.
Move the computer away from the receiver.
Plug the computer into a different outlet so that the computer and receiver
are on different branch circuits.
Shielded communications interface cables must be used with this product.
WARNING: Changes or modifications to this unit not expressly approved by
the party responsible for compliance could void the user's authority to operate
the equipment.
NOTE: These UPSs are shipped with the batteries disconnected. The batteries must be connected before putting these UPSs into service. Refer to Section 3 "Installation" for connecting the batteries.
4
EN350
28%
EN550
26%
16%20%
Receiving Inspection
After removing your UPS from its carton, it should be inspected for damage that
may have occurred in shipping. Immediately notify the carrier and place of
purchase if any damage is found. Warranty claims for damage caused by the
carrier will not be honored. The packing materials that your UPS was shipped
in are carefully designed to minimize any shipping damage. In the unlikely
case that the UPS needs to be returned to the manufacturer, please use the
original packing material. Since the manufacturer is not responsible for shipping damage incurred when the system is returned, the original packing material is inexpensive insurance. PLEASE SA VE THE P ACKING MA TERIALS!
Life Support Policy
As a general policy , we do not recommend the use of any of our products in life
support applications where failure or malfunction of the product can be reasonably expected to cause failure of the life support device or to significantly affect
its safety or effectiveness. We do not recommend the use of any of our products in direct patient care. We will not knowingly sell our products for use in
such applications unless Para Systems receives, in writing, assurances satisfactory to us that (a) the risks of injury or damage have been minimized, (b)
the customer assumes all such risks, and (c) our liability is adequately protected under the circumstances.
© COPYRIGHT 2016 BY PARA SYSTEMS, INC.
All Rights Reserved. All right s of this User Manual (“Manual”), including but not
limited to the content, information, and figures are solely owned and reserved
by Para Systems, Inc. (“Para Systems”). The Manual can only be applied to
the operation or the use of this product. Any disposition, duplication, dissemination, reproduction, modification, translation, extraction, or usage of this
Manual in whole or in part is prohibited without the prior written permission of
Para Systems. Given that Para Systems will continuously improve and develop the product, changes may be made to the information in this Manual at
any time without obligation to notify any person of such revision or changes.
Para Systems will make all possible efforts to secure the accuracy and the
integrity of this Manual. Para Systems disclaims any kinds or forms of warranty, guarantee, or undertaking, either expressly or implicitly, including but
not limited to the completeness, faultlessness, accuracy, non-infringement,
merchantability or fitness for a particular purpose of the Manual.
5
Chapter 2: Controls and Indicators
1. Alarm Silencer Button: Silences the alarm during the Battery mode.
2. Battery Backup & Surge output receptacles: Mission critical equipment.
3. Input circuit breaker: Protection against an excessive overload.
4. AC normal (Green) LED.
5. On/Off Button: T urns the UPS On or Of f.
6. On-Battery (Y ellow) LED.
7. Warning / Fault (Red) LED.
8. Input power cord: Connecting to Utility Power.
9. Surge-only output receptacles: Noncritical equipment.
10.USB Communications Port (EN550 only): UPS monitoring and control.
1 1.RJ1 1/45 Single line Phone/Network protection port.
The AC normal (Green) LED will be on when the UPS is operating in
the normal AC mode and will turn of f when the UPS is operating in
the Battery mode.
The On-Battery (Y ellow) LED will turn on when the UPS is operating
in the Battery mode and will turn off when the UPS is operating in the
AC normal mode.
The Warning / Fault (Red) LED will turn on when the UPS detects an
internal fault, an Overload, a Weak/Bad/Disconnected Battery or a
Low Battery Warning. The LED will be of f when the UPS is operating
normally .
NOTE: See the LED and Alarm functions t able for more information.
The On/Off Button functions as follows:
When the UPS is in the Off position, press and hold the On/Off
button until the alarm sounds one beep and then release to turn the
UPS On.
When the UPS is in the On position, press and hold the On/Off
button until the alarm sounds one beep and then release to turn the
UPS Off.
When the unit is operating in Battery mode, pressing the Alarm
Silencer Button will silence the audible alarm. Once the UPS reaches
the LBW (Low Battery Warning) threshold the alarm will start beeping. The alarm cannot be silenced during the LBW alarm. Once
the UPS transfers back to the AC normal mode the alarm will reset
back to the default setting.
NOTE: With the exception of the On-Battery alarm all the other Warning/Fault
alarms cannot be silenced. Once the Warning/Fault condition has been corrected the alarm will reset to default.
Model # Input Power Cord
EN350
EN550
6
NEMA 5-15P W/4 ft cord
Output Power Receptacles
4 - NEMA 5-15R Battery Backup & Surge
4 - NEMA 5-15R Surge Only
7
Chapter 3: Installation
INSTALLATION PLACEMENT
This UPS series is ONLY intended to be install in an indoor temperature controlled
environment that is free of conductive contaminants. DO NOT operate the UPS in:
extremely dusty and/or unclean areas, locations near heating devices, water or excessive humidity, or where the UPS is exposed to direct sunlight. Select a location,
which will provide good air circulation for the UPS at all times. Route power cords
so they cannot be walked on or damaged. Typical battery life is 3 to 5 years. Environmental factors do affect battery life. High temperatures, poor utility power , and
frequent, short duration discharges have a negative impact on battery life. This
UPS series is not intended for use in a computer room as defined in the Standard
for the Protection of Electronic Computer/Data Processing Equipment ANSI/NFP A
75.
Operating Temperature (Maximum): 0 to 40°C (+32 to +104°F)
Operating Elevation: 0 to 3,000m (0 to +10,000 ft)
Operating and Storage Relative Humidity: 95%, non-condensing
Storage Temperature: -15 to +50°C (+5 to +122°F)
Storage Elevation: 0 to 15,000m (0 to +50,000 ft)
4. Verify proper polarity . Connect the battery positive (Red) wire to the battery
positive (Red) terminal. (FIG 3)
5. Reinstall the battery.
6. Reinstall the battery door onto the UPS and slide inward.
7. Continue with the rest of the Installation.
FIG. 1
FIG. 2
INSTALLATION
(QUALIFIED SER VICE PERSONNEL ONL Y)
Be sure to read the installation placement and all the cautions before installing the
UPS. Place the UPS in the final desired location and complete the rest of the
installation procedure. These UPSs are shipped with the internal batteries disconnected. The batteries must be connected before putting these UPSs into service.
See Connecting the Battery.
These UPSs can be wallmounted.
mount the UPS on the wall. There is a wallmount kit that comes with the UPS. The
kit includes the wallmount template and two wallmount screws. See the Wallmount
T emplate for the wallmount installation instructions.
CONNECTING THE BATTERY
(QUALIFIED SER VICE PERSONNEL ONL Y)
Please read all of the WARNINGS and CAUTIONS before attempting to connect
the battery .
Use CAUTION, the UPS is heavy . Remove the UPS from the shipping box
1.
and set upside down on a desk or a bench top.
NOTE: No tools are required for removing or installing the battery door.
2. Grasp the battery door handle and slide the battery door outward. (FIG. 1)
3. Lift the battery door upwards and then remove the battery by pulling the pull-tab.
(FIG . 2)
8
The primary installation is the Desktop / Office type.
The wallmount configuration allows the user to
FIG. 3
9
CONNECTING YOUR EQUIPMENT
Plug the mission critical equipment into the Battery Backup & Surge output receptacles on the top panel of the UPS. Plug the noncritical equipment into the Surge
Only output receptacles on the top panel of the UPS. Ensure that the connected
equipment does not exceed the maximum output rating of the UPS (refer to the
information label on the UPS or the electrical specifications in this manual). DO
NOT PLUG EXTENSION CORDS, ADAPTER PLUGS, SURGE STRIPS OR
POWER STRIPS INTO THE OUTPUT RECEPTACLES OF THE UPS, there is a
risk of damaging the UPS and/or connected equipment. CAUTION! DO NOT
connect a laser printer, copier , vacuum cleaner or any other large electrical device
into the output of the UPS.
PHONE/FAX/NETWORK PROTECTION CONNECTION (OPTIONAL)
Connect a 10/100 Base-T network, single line phone, or fax line to the RJ11/45
modular connectors on the side panel of the UPS. This connection will require
another length of telephone or network cable. The cable coming from the telephone
service or networked system is connected to the port marked “IN”. The equipment
to be protected is connected to the port marked "OUT". NOTE: Connecting to the
Phone/Fax/Network modular connectors is optional. The UPS works properly without this connection.
Chapter 4: Operation
CONNECTING THE UPS TO AN AC SOURCE
CAUTION - T o reduce the risk of fire, connect only to a utility powered circuit with 20
amperes maximum branch circuit over-current protection in accordance with the
National Electric Code, ANSI/NFPA 70. Plug the UPS into a two pole, three wire,
grounded receptacle only . DO NOT PLUG THE UPS INTO EXTENSION CORDS,
ADAPTER PLUGS, SURGE STRIPS OR POWER STRIPS. DO NOT CUT THE
INPUT PLUG OFF AND ATTEMPT TO HARDWIRE THIS UPS, DOING SO WILL
VOID THE WARRANTY .
CHARGING THE BATTERY
The UPS will charge the internal batteries whenever the UPS is connected to an AC
source and there is an acceptable AC voltage present (95 - 140V AC). It is recommended that the UPS's batteries be charged for a minimum of 4 hours before use.
The UPS may be used immediately , however, the “On Battery” runtime may be less
than normally expected. Typical battery life is 3 to 5 years. Environment al factors
do affect battery life. High temperatures, poor utility power, and frequent, short
duration discharges have a negative impact on battery life. NOTE: If the UPS is
going to be out of service or stored for a prolonged period of time, the batteries
must be recharged for at least twenty-four hours every ninety days.
POWER MONITORING SOFTWARE
The EN550 supports Minuteman's SentryHD power monitoring software. Please
go to our web site at www.minutemanups.com/support, then look under Downloads,
and then Software Download Center. Please download (Free of Charge) the latest
version of the Minuteman SentryHD software.
USB COMMUNICATIONS PORT CONNECTION (OPTIONAL)
The EN550 supports USB communications. The power monitoring software and
interface cable can be used with the UPS. Use only the interface cable that come
with these UPSs. The USB communications protocol is HID. The HID USB driver
comes standard in the Windows OS. Simply connect the USB cable to the USB
communications port on the side panel of the UPS. Connect the other end of the
USB cable to the device that will be monitoring/controlling the UPS and then follow
the prompts on the screen. NOTE: When using the UPS's USB port with Windows
XP, 7, 8 or 10 the Power Options in the Control Panel may need to be configured.
Connecting to the Communications Port is optional. The UPS works properly without this connection.
10
SYSTEM OVERVIEW
This Standby UPS protect s computers, servers, telecom systems, V oIP systems,
security systems, and a variety of electronic equipment from blackouts, brownouts,
overvoltages, and surges. During normal AC operation, the UPS will quietly and
confidently protect your system from power anomalies.
The UPS will charge the batteries with the UPS in the on or off position as long as
the UPS is plugged into the wall outlet and there is an acceptable AC voltage present
(95 - 140V AC). When a blackout, brownout, or an overvolt age condition occurs;
the UPS will transfer to the battery mode, the On Battery indicator will illuminate and
the audible alarm will sound once every five seconds indicating that the commercial
power is lost or unacceptable. When the commercial power returns or is at an
acceptable level, the UPS will automatically transfer back to the AC normal mode
and start recharging the batteries. During an extended outage when there is approximately two minutes of backup time remaining the audible alarm will sound
twice every five seconds. This Low Battery Warning is informing the user that they
should save all open files, turn off their computer and then turn off the UPS. When
the batteries reach the predetermined level the UPS will automatically shutdown
protecting the batteries from over discharging. Once the commercial power returns the UPS will automatically restart, providing safe usable power to the connected equipment and start recharging the batteries.

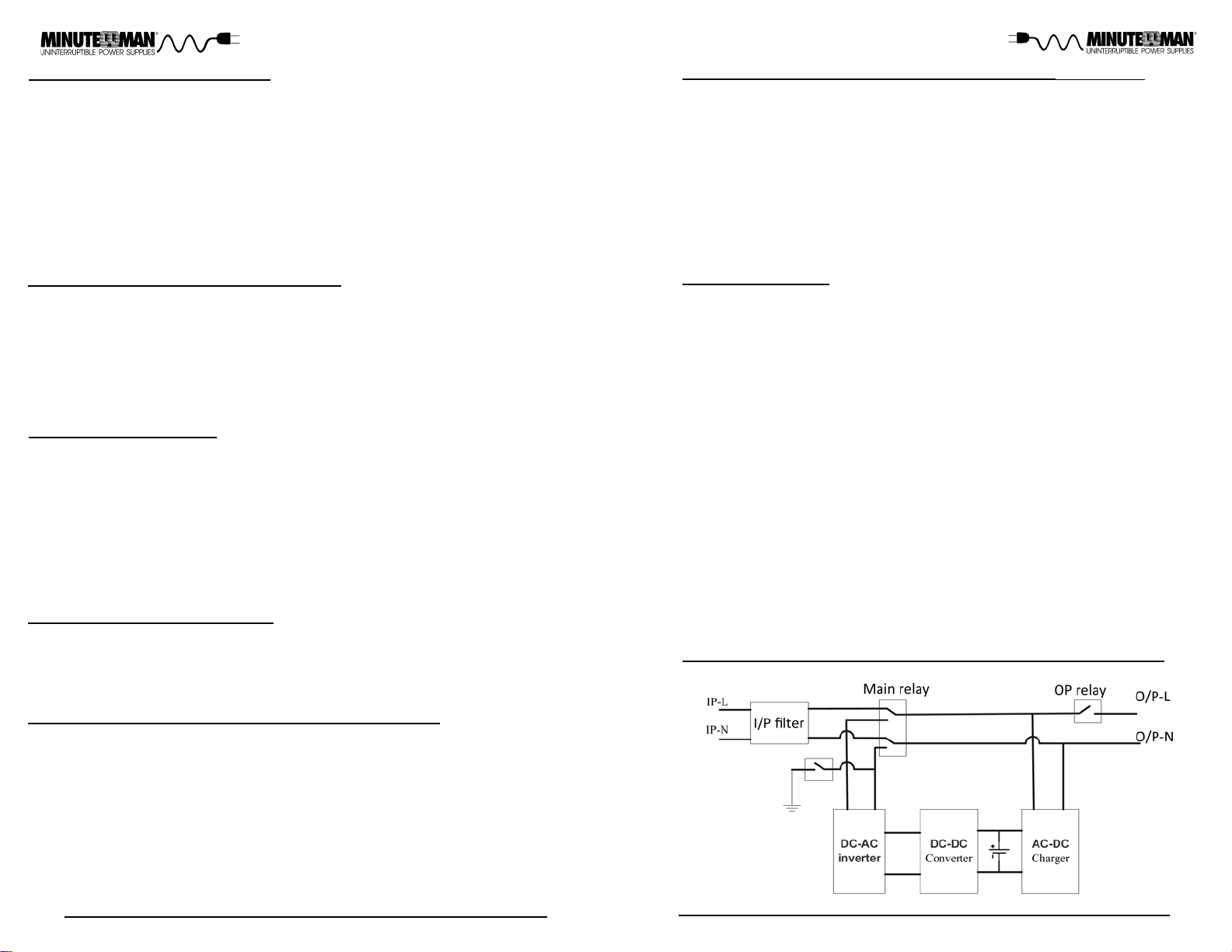

Block Diagram of the Basic Wiring and Internal Circuit Configuration
11
TURNING THE UPS ON / OFF
To turn the UPS on: press and hold the On/Off button until the alarm sounds
one beep and then release. Then in aproximately twenty seconds the UPS will
perform a five second self-test. Once the UPS has passed its self-test the
UPS will be ready for normal operation. To turn the UPS off: press and hold
the On/Off button until the alarm sounds one beep and then release. The UPS
will continue to charge the batteries whenever it is plugged into a wall outlet
and there is an acceptable AC voltage present (95 - 140VAC).
ALARM SILENCER BUTTON
When the unit is operating in Battery mode, pressing the Alarm Silencer Button will silence the audible alarm. Once the UPS reaches the LBW (Low
Battery Warning) threshold the alarm will start beeping. The alarm cannot be
silenced during the LBW alarm or any fault condition. Once the UPS transfers to the AC mode the alarm will be reset to default.
LED and ALARM FUNCTIONS
Description
AC Mode
Battery Mode
AC Normal
(Green) LED
ON
OFF
On-Battery
(Y ellow) LED
OFF
ON
Warning / Fault
(Red) LED
OFF
OFF
Audible Alarm
OFF
1-Beep every
5-seconds
Low Battery
Warning
Overload AC
Mode
Overload
Battery Mode
Weak / Bad /
Disconnected
Battery
Internal Fault
OFF
ON
OFF
ON (AC Mode)
OFF (Unit off,
but plugged in)
OFF
ON ON
OFF O N
ON
ON
OFF (AC Mode) ON (AC Mode)
OFF (Unit off,
but plugged in)
ON (Unit off,
but plugged in)
OFF ON
2-Beeps every
5-seconds
1-Beep every
0.5-seconds
1-Beep every
0.5-seconds
3-Beeps every
5-minutes
Constant
Beeping
The unit is off,
OFF
OFF OFF
OFF
plugged into
the wall outlet
and charging
the battery
ALARMS
BA TTERY MODE
When the UPS is operating in the Battery mode, the AC normal LED will turn
off, the On-Battery LED will turn on and the alarm will sound one beep every
five seconds. Once the UPS returns to the normal AC mode, the alarm will
stop, the On-Battery LED will turn off and the AC normal LED will turn on.
LOW BA TTERY WARNING
When the batteries reach the predetermined level, the Warning/Fault LED will
turn on and the alarm will sound two beeps every five seconds. The audible
alarm cannot be silenced during the LBW alarm. This information is to inform
the user that there is approximately two minutes of runtime remaining before
the UPS shuts down. This condition will continue until either AC returns or the
UPS’s self protection circuit shuts the UPS down to protect the battery from
over discharging.
WEAK / BAD / DISCONNECTED BA TTERY
The UPS automatically tests the battery’s condition. If the battery is weak, bad
or disconnected, the Warning/Fault LED will turn on and the alarm will sound
three beeps every five minutes until the battery is either reconnected, replaced or passes a self-test. The audible alarm cannot be silenced during the
Weak/Bad/Disconnected Battery alarm. It is recommended that the UPS be
allowed to charge overnight before performing a battery test to confirm a
Weak/Bad Battery condition.
OVERLOAD
When the amount of load attached to the UPS exceeds its power rating, the
Warning/Fault LED will turn on and the alarm will sound one beep every half a
second (AC and Battery modes). This alarm will remain on until the excess
load is removed or the UPS’s self protection circuit shuts the UPS down. If the
UPS has shutdown, remove part of the load and then press the On/Off button
to turn the UPS on. The audible alarm cannot be silenced during the Overload
alarm.
UPS FAULT
When the UPS detects an internal fault, the Warning/Fault LED will turn on
and the alarm will sound continuously and the output will be turned off. The
audible alarm cannot be silenced during the Fault alarm.The fault condition, in
some instances, may be cleared by turning the UPS off and then back on
again. If the fault condition does not clear the UPS must be sent in for service.
See the Troubleshooting section.
12
13
Chapter 5: Troubleshooting
Chapter 6: Replacing the Battery
Symptom / Error Code
UPS will not turn on.
UPS operates in battery
mode only , even though
there is AC present.
Low Battery Warning.
UPS does not provide
expected runtime.
The AC normal LED is
illuminated, but there is
no output.
The Warning / Fault
LED is illuminated and
the alarm is sounding
continuously.
The Warning / Fault
LED is illuminated and
the alarm is sounding
1-beep every 0.5 seconds.
The Warning / Fault
LED is illuminated and
the alarm is sounding
3-beeps every 5 minutes.
Cause / What To Do
Press the On/Off button and release after one beep.
Reset the input circuit breaker by pressing the
plunger back in. If the input circuit breaker trips after the UPS restarts, reduce the load on the UPS.
The UPS's battery reserve is low. This condition will
continue until AC returns or the UPS shut s down from
battery exhaustion.
Charge the batteries for 8-hours and retest. If the
runtime is still less than expected, the batteries may
need to be replaced.
Disconnect the computer cable from the UPS, press
the On/Off button. If UPS works normally, the software had control of the UPS.
The UPS has an internal problem. Call for service.
Check the specifications and remove part of the load.
If the UPS shuts down because of an Overload, re-
move part of the load and then press the On/Off button
to turn the UPS on.
Check the battery connections, charge the batteries
for 8-hours and retest, or replace the batteries.
REPLACING THE BA TTERY
(QUALIFIED SERVICE PERSONNEL ONL Y)
Please read all of the WARNINGS and CAUTIONS before attempting to ser-
vice the batteries. Typical battery life is 3 to 5 years. Environmental factors
do affect battery life. High temperatures, poor utility power, and frequent,
short duration discharges have a negative impact on battery life.
WARNING! This UPS contains potentially hazardous voltages. Do not attempt to disassemble the UPS beyond the battery replacement procedure.
This UPS contains no user serviceable parts. Repairs and battery replacement must be performed by QUALIFIED SERVICE PERSONNEL ONL Y.
CAUTION: Do not open or mutilate batteries. Released electrolyte is harmful
to the skin and eyes and may be toxic.
CAUTION: Do not dispose of batteries in a fire. The batteries may explode.
The batteries in this UPS are recyclable. Dispose of the batteries properly.
The batteries contain lead and pose a hazard to the environment and human
health if not disposed of properly. Refer to local codes for proper disposal
requirements or return the battery to the supplier .
CAUTION: The battery system can present a risk of electrical shock. These
batteries produce sufficient current to burn wire or tools very rapidly, producing molten metal. Observe these precautions when replacing the batteries:
1. Remove watches, rings, or other metal objects.
2. Use hand tools with insulated handles.
3. Wear protective eye gear (goggles), rubber gloves and boots.
4. Do not lay tools or other metal parts on top of batteries.
5. Disconnect the charging source prior to connecting or disconnecting the
battery terminals.
6. Determine if the battery is inadvertently grounded. If the battery is, remove
the source of the grounding. Contact with any part of a grounded battery
can result in an electrical shock. The likelihood of such shock will be reduced, if such grounds are removed during installation and maintenance.
14
CAUTION: Replace the batteries with the same number and type as originally
installed in the UPS. These batteries have pressure operated vents. These
UPSs contain sealed non-spillable maintenance-free lead acid batteries.
Model #
Battery Module
Part #
EN350
BM0067
EN550
15
BATTERY REPLACEMENT PROCEDURE
(QUALIFIED SERVICE PERSONNEL ONL Y)
PLEASE READ THE CAUTIONS AND W ARNINGS BEFORE A TTEMPTING
TO REPLACE THE BA TTER Y MODULE.
Hot-swappable batteries mean that the battery module can be replaced without
powering down the whole UPS system.
NOTE: If there is a power interruption while replacing the hot-swappable
battery module, with the UPS on, the load will not be backed up. To hot-swap
the battery module start with step number 6.
1. Turn off the equipment that is plugged into the output of the UPS.
2. Turn off the UPS.
3. Unplug the UPS's AC power cord from the AC wall outlet.
4. Unplug the equipment from the output receptacles of the UPS.
5. Unplug the computer interface cable from the side panel of the UPS.
NOTE: No tools are required for removing or installing the battery door .
6. Grasp the battery door handle and slide the battery door outward. (FIG . 1)
FIG. 1
FIG. 2
FIG. 3
7. Lift the battery door upwards, remove the battery module by pulling the pull-tab,
and then set aside . (FIG . 2)
CAUTION: DO NOT pull the battery module out by pulling on the battery
wires.
8. Disconnect the battery positive (Red) wire. (FIG. 3)
9. Disconnect the battery negative (Black) wire and set the old battery module
aside. (FIG. 3)
CAUTION: Do not short the battery positive wire to the battery negative wire.
10.Verify proper polarity. Connect the battery negative (Black) wire to the battery
negative (Black) terminal on the new battery module. (FIG 3)
11.Verify proper polarity . Connect the battery positive (Red) wire to the battery
positive (Red) terminal on the new battery module. (FIG 3)
16
12.Slide the new battery module into the UPS.
13.Reinstall the battery door on the UPS.
NOTE: Some sparking might occur this is normal.
14.Properly dispose of the old battery module at an appropriate recycling
facility or return them to the supplier in the packing material for the new
battery module.
15.The UPS is now ready for the normal operation.
NOTE: If the UPS has a Weak/Bad Battery Alarm after replacing the battery
module, a battery test must be performed to clear the Weak/Bad Battery Alarm.
A battery test can be performed by using the software or by disconnecting the
power cord from the wall outlet for 10-seconds and then reconnecting the
power cord back to the wall outlet.
17
Chapter 7: Obtaining Service
Chapter 8: Specifications
IF THE UPS REQUIRES SERVICE
1. Use the Troubleshooting section to eliminate obvious causes.
2. Verify there are no tripped circuit breakers and that the batteries are good.
A tripped circuit breaker and defective batteries are the most common issues.
3. Call your dealer for assistance. If you cannot reach your dealer , or if they
cannot resolve the issue call or fax the T echnical Support dep artment at the
following numbers; Voice phone (972) 446-7363, F AX line (972) 446-901 1
or visit our Web site at www .minutemanups.com the "Discussion Board".
Before calling the Technical Support Department have the following information available:
a) Contact name and address.
b) Where and when the unit was purchased.
c) All of the model information about your unit.
d) The serial number of your unit.
e) Any information on the failure, including LEDs that may be illuminated
or error codes displayed.
f) A description of the protected equipment including model numbers, if
possible.
g) A technician will ask you for the above information and if possible,
help solve the issue over the phone. In the event that the unit requires
factory service, the T echnical Support Represent ative will issue you a
Return Material Authorization Number (RMA #). NOTE: We must
have the model number and the serial number of the product to
issue an RMA #.
h) If the unit is under warranty, the repairs will be done at no charge. If
the unit is not under warranty there will be a charge for the repair.
4. Pack the unit in its original packaging. If the original packaging is no longer available, ask the T echnical Support Represent ative about obtaining a
new set. It is important to pack the unit properly in order to avoid damage
in transit. Never use Styrofoam beads for a packing material.
a) Include a letter with your name, address, day time phone number,
RMA number, a copy of your original sales receipt, and a brief description of the problem.
5. Mark the RMA # on the outside of all packages. The factory cannot accept
any package without the RMA # marked on the outside of the package.
6. Return the unit by insured, prepaid carrier to:
SYSTEM SPECIFICA TIONS
Model Number
T opology
Maximum Power Capacity
EN350
Standby , Simulated Sine Wave
350V A
200W
EN550
550VA
300W
INPUT
Number of Phase Single (1∅ 2W +G)
Nominal Voltage 120VAC
Acceptable Input voltage
Voltage Range
Frequency Limits
Low Voltage Transfer Point
High Voltage Transfer Point
Input Protection
95V resets to Utility Power at 99V or higher
140V resets to Utility Power at 136V or lower
0 - 150VAC
95 - 140VAC
60 Hz, +/-6Hz
Resettable Circuit Breaker
OUTPUT NON-BA TTERY OPERA TION
Voltage Range
Voltage Regulation 120V AC: -20.8% - +16.7%
Frequency Range 60Hz: 54 - 66Hz
Efficiency (Line Mode)
95 - 140VAC
>96% (Full Load)
OUTPUT BA TTERY OPERA TION
Waveform T ype
Nominal Voltage
Voltage Regulation +/-5% (until Low Battery Warning)
Frequency
Transfer Time
Overload Capacity
Protection
60Hz, +/-0.5Hz (unless synchronized to utility)
AC Mode: 105% for 1-minute then shutdown, 115% Shutdown Immediately
DC Mode: 105% for 20-seconds then shutdown, 115% Shutdown Immediately
Over-Current, Short-Circuit Protected and Latching Shutdown
Simulated Sine Wave
120VAC
6 ms Typical
REGULA TORY COMPLIANCE
Safety and Approvals
cTUVus (Conforms to UL1778 5th Edition & CSA 22.2 no. 107.314 / R: 2014), FCC Class B, CE certified, Energy Star certified,
RoHS2 (EU Directive 2011/65/EU)
18
Para Systems Inc.
MINUTEMAN UPS
1809 W. Frankford Road, Suite 150
Carrollton, TX 75007
A TTN: RMA # _______
19
BA TTERY SYSTEM
Battery Type
Typical Recharge T ime
Typical Battery Life
Battery Module Part # BM0067
Runtime: Full Load (minutes)
Runtime: Half Load (minutes)
Sealed, Non-Spillable, Maintenance Free, V alue Regulated Lead Acid
8-hours to 90% capacity from a full load discharge
3 to 5 years. Environmental factors do affect battery life. High
temperatures, poor utility power, and frequent, short duration
discharges have a negative impact on battery life.
3
12
SURGE PROTECTION AND FIL TERING
Surge Energy Rating 500 J
Surge Current Capability
Surge Response Time
Surge voltage let-through (as a
percentage of an applied ANSI
C62.41 Cat. A +/-6 kV)
Noise Filter
Audible Noise at 1 m (3 ft.)
10000 Amps total (one time 8 to 20us waveform)
0 ns (instantaneous) normal mode; <5 ns common mode
< 14%
>45db normal and common mode EMI/RFI suppression
<45 dBA
ENVIRONMENT AL
Operating T emperature
Operating Elevation
Operating/Storage Humidity
Storage T emperature
Storage Elevation
0 to 40°C (+32 to +104°F)
0 to 3000m (0 to +10,000 ft)
0 - 95% Non-Condensing
-15 to +45°C (+5 to +113°F)
0 to 15,000m (0 to +50,000 ft)
PHYSICAL
Size - Net
L X W X H
Weight - Net
Size - Shipping
L X W X H
Weight - Shipping
Power Cord
Output Receptacles
6.2 lbs
2.8 Kgs
6.8 lbs
3.1 Kgs
4 - NEMA 5-15R Battery Backup & Surge
4 - NEMA 5-15R Surge Only
12.4 x 5.1 x 3.7"
316 x 130 x 94 mm
14.7 x 5.6 x 8.3"
374 x 143 x 210 mm
NEMA 5-15P W/4 ft cord
3
11
6.4 lbs
2.9 Kgs
7.0 lbs
3.2 Kgs
Chapter 9: Limited Product Warranty
Para Systems, Inc. (Para Systems) warrants this equipment, when properly applied and
operated within specified conditions, against faulty materials (excluding the batteries) or
workmanship for a period of three years from the date of purchase. Para Systems Inc.
(Para Systems) warrants the batteries for a period of two years from the date of purchase. For equipment sites within the United States and Canada, this warranty covers
depot repair or replacement of defective equipment at the discretion of Para Systems.
Depot repair will be from the nearest authorized service center. The customer pays for
shipping the product to Para Systems. Para Systems pays ground freight to ship the
product back to the customer. Replacement p arts and warranty labor will be borne by
Para Systems. For equipment located outside of the United St ates and Canada, Para
Systems only covers faulty parts. Para Systems products that are depot repaired or
replaced pursuant to this warranty shall only be warranted for the unexpired portion of
the warranty applying to the original product. This warranty applies only to the original
purchaser who must have properly registered the product within 10 days of purchase.
The warranty shall be void if (a) the equipment is damaged by the customer, is improperly used, is subjected to an adverse operating environment, or is operated outside the
limits of its electrical specifications; (b) the equipment is repaired or modified by anyone
other than Para Systems or Para Systems approved personnel; or (c) has been used in
a manner contrary to the product’s User's Manual or other written instructions.
Any technical advice furnished before or after delivery in regard to use or application of
Para Systems’ equipment is furnished without charge and on the basis that it represents
Para Systems’ best judgment under the circumstances, but it is used at the recipient’s
sole risk.
EXCEPT AS PROVIDED HEREIN, PARA SYSTEMS MAKES NO W ARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WARRANTIES OF MERCHANT ABILITY AND FITNESS FOR A P ARTICULAR PURPOSE. Some states do not permit limitation of implied
warranties; therefore, the aforesaid limitation(s) may not apply to the purchaser .
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL PARA SYSTEMS BE LIABLE
FOR DIRECT , INDIRECT , SPECIAL, INCIDENT AL, OR CONSEQUENTIAL DAMAGES
ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically , Para Systems is not liable for any costs, such
as; labor for on-site installation, on-site maintenance or on-site service, lost profits or
revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, cost
of substitutes, claims by third parties, or otherwise. The sole and exclusive remedy for
breach of any warranty , expressed or implied, concerning Para Systems’ products and
the only obligation of Para Systems hereunder, shall be depot rep air or replacement of
defective equipment, components, or parts; or, at Para Systems’ option, refund of the
purchase price or substitution with an equivalent replacement product. This warranty
gives you specific legal rights and you may also have other rights which vary from state
to state.
20
No employee, salesman, or agent of Para Systems is authorized to add to or vary the
terms of this warranty .
21
A1. DECLARATION OF CONFORMITY
Application of Council Directive(s): 2004/108/EC, 2006/95/EC, cTUVus (for
UL1778)
St andard(s) to which Conformity is declared: EN61000-3-2, EN61000-3-3,
EN62040-2, IEC61000-2-2 IEC61000-4-2, IEC61000-4-3, IEC61000-4-4,
IEC61000-4-5, IEC61000-4-6, IEC61000-4-8, IEEE C62.41 Category A1,
UL1778, CSA 22.2 no. 107.3-14 / R: 2014, FCC Class B
Manufacturer’s Name: Para Systems, Inc. (MINUTEMAN UPS)
Manufacturer’s Address: 1455 LeMay Drive
Carrollton, Texas 75007 USA
Type of Equipment: Uninterruptible Power Supplies (UPS)
Model No: EN350, EN550
Year of Manufacture: Beginning July 1, 2016
Notes:
I hereby declare that the equipment specified above conforms to the above
Directive(s).
Robert Calhoun
(Name)
Place: Carrollton, Texas, USA
22
Manager Engineering
(Position)
Date: July 1, 2016
23
Notes:Notes:
24
25
Loading...
