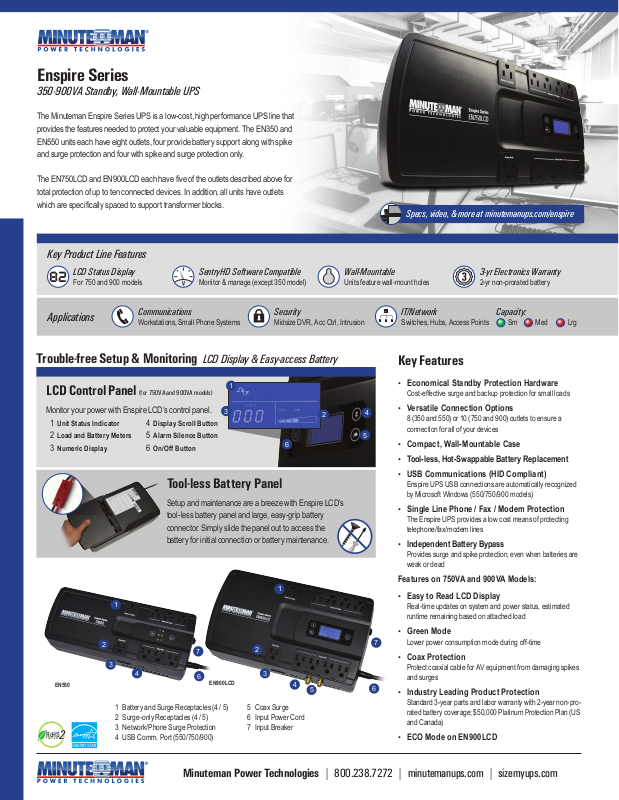

Minuteman EN550 Specsheet
Enspire Series
350-900VA Standby, Wall-Mountable UPS
The Minuteman Enspire Series UPS is a low-cost, high performance UPS line that
provides the features needed to protect your valuable equipment. The EN350 and
EN550 units each have eight outlets, four provide battery support along with spike
and surge protection and four with spike and surge protection only.
The EN750LCD and EN900LCD each have ve of the outlets described above for
total protection of up to ten connected devices. In addition, all units have outlets
which are specically spaced to support transformer blocks.
Key Product Line Features
LCD Status Display
For 750 and 900 models
SentryHD Software Compatible
Monitor & manage (except 350 model)
Specs, video, & more at minutemanups.com/enspire
Wall-Mountable
Units feature wall-mount holes
3-yr Electronics Warranty
2-yr non-prorated battery
Applications
Communications
Workstations, Small Phone Systems
Security
Midsize DVR, Acc Ctrl, Intrusion
Trouble-free Setup & Monitoring LCD Display & Easy-access Battery
LCD Control Panel (for 750VA and 900VA models)
Monitor your power with Enspire LCD’s control panel.
1 Unit Status Indicator
2 Load and Battery Meters
3 Numeric Display
4 Display Scroll Button
5 Alarm Silence Button
6 On/Off Button
1
3
6
2
Tool-less Battery Panel
Setup and maintenance are a breeze with Enspire LCD’s
tool-less battery panel and large, easy-grip battery
connector. Simply slide the panel out to access the
battery for initial connection or battery maintenance.
1
1
5R+6
&203/,$17
EN550
2
3
4 3
1 Battery and Surge Receptacles (4 / 5)
2 Surge-only Receptacles (4 / 5)
3 Network/Phone Surge Protection
4 USB Comm. Port (550/750/900)
7
6
EN900LCD
2
4
5 Coax Surge
6 Input Power Cord
7 Input Breaker
5
IT/N etwork
Switches, Hubs, Access Points
Capacity:
Sm Med Lrg
Key Features
• Economical Standby Protection Hardware
Cost-effective surge and backup protection for small loads
Versatile Connection Options
4
5
•
8 (350 and 550) or 10 (750 and 900) outlets to ensure a
connection for all of your devices
• Compact, Wall-Mountable Case
• Tool-less, Hot-Swappable Battery Replacement
• USB Communications (HID Compliant)
Enspire UPS USB connections are automatically recognized
by Microsoft Windows (550/750/900 models)
• Single Line Phone / Fax / Modem Protection
The Enspire UPS provides a low cost means of protecting
telephone/fax/modem lines
• Independent Battery Bypass
Provides surge and spike protection, even when batteries are
weak or dead
Features on 750VA and 900VA Models:
• Easy to Read LCD Display
Real-time updates on system and power status, estimated
runtime remaining based on attached load
• Green Mode
7
6
Lower power consumption mode during off-time
• Coax Protection
Protect coaxial cable for AV equipment from damaging spikes
and surges
• Industry Leading Product Protection
Standard 3-year parts and labor warranty with 2-year non-prorated battery coverage; $50,000 Platinum Protection Plan (US
and Canada)
• ECO Mode on EN900LCD
Minuteman Power Technologies | 800.238.7272 | minutemanups.com | sizemyups.com
Enspire Series Specifications & Features
C
EN350 / EN550 / EN750LCD / EN900LCD
Model Number EN350 EN550 EN750LCD EN900LCD
Apparent Output Power 350VA 550VA 750VA 900VA
Active Output Power 200 Watts 300 Watts 450 Watts 500 Watts
General
Power Factor 0.571 0.545 0.6 0.556
Topology Standby UPS
Type Low-Prole Oce Format
Agency Approvals
Green Compliance RoHS 2 Directive 2011/65/EU
Warranty 3-years Electronics / 2-years Batteries
Equipment Protection Policy Up to $50k (Continental U.S. and Canada only)
Battery/Surge-Protected Outlets (4) NEMA 5-15R (5) NEMA 5-15R
Surge-only Protected Outlets (4) NEMA 5-15R (5) NEMA 5-15R
Voltage Range 95VAC to 140VAC
Input
Frequency Range 60Hz ±6Hz
Typical Transfer Time 6 ms (max 10ms)
Surge Protection >500 joules
Voltage Default 95VAC to 140VAC
Frequency 60Hz ±6Hz
Output
Eciency (AC-AC) >95% at full-rated load (complies with Energy Star)
Voltage 120VAC
Voltage Regulation 120VAC ±5% until low battery warning
Frequency 60Hz ±0.5Hz unless synchronized to line
On-Battery
Wave Form Simulated sine wave
Communications Port USB (550/750/900 models only)
Audible Alarms
Full-Load Runtime (non-linear) 3 min. 3 min. 3 min. 3 min.
Half-Load Runtime (non-linear) 12 min. 11 min. 11 min. 11 min.
Hot Swappable Batteries Yes
Interal Battery Yes
Battery System
Battery Type
Net Dimensions: D x W x H
Net Weight: lbs. (Kgs.) 6.2 (2.81) 6.4 (2.90) 7.7 (3.49) 8.4 (3.81)
Physical
Shipping Dimensions: D x W x H
Shipping Weight: lbs. (Kgs.) 7 (3.18) 9 (4.08)
cTUVus (conforms to UL1778 5th Edition, CSA 22.2 no 107.314
/ R: 2014), CE, FCC Class B, U.S. DOE Energy Star
On Battery, Low Battery, Internal Fault, Overload, Weak/Bad/
Sealed, non-spillable, maintenance-free, valve regulated lead acid
12.4” x 5.1” x 3.7”
(316 x 130 x 94 mm)
14.7” x 5.6” x 8.3”
(373.4 x 142.2 x 210.8 mm)
Disconnected Battery
12.6” x 7.2” x 3.6”
(320 x 183 x 92 mm)
15.0” x 5.6” x 10.4”
(381.0 x 142.2 x 264.2 mm)
US
5R+6
&203/,$17
Feature-rich Design
• Compact case design
• LCD front panel display (EN750LCD, EN900LCD)
• USB communications (except EN350)
• Hot-swappable batteries
• Easy battery access
• RJ11/45 Network/Phone/Fax protection
• 3-year limited warranty (electronics) 2-year warranty
(batteries)
• RoHS 2 compliant
• Energy Star certied
• Transformer-friendly receptacles
• DC startup capability
• Independent battery bypass
• Built-in self-diagnostics testing
• Audio & visual alarms
• ECO Mode (EN900LCD)
Compatible with Minuteman SentryHD
Management Software
• Automatically saves and shuts down unnished
applications
• Gracefully powers down your PC during extended
blackouts
• Provides comprehensive monitoring capabilities
• Integrates into SNMP network (when connected to
a computer via USB port)
• Free download at minutemanups.com/sentryhd
• Not supported by EN350
LCD Display Provides Real-Time
Information (750/900 models)
• UPS status and condition
• Battery capacity bar graph
• Estimated runtime AC and DC modes
• Load capacity bar graph
• Warning / Fault icons
Complete Protection for:
• Desktop computers
• Standalone servers
• Network switches, hubs, and peripherals
• VoIP communications
• Telephone systems
• External computer accessories
• Security cameras and DVRs
Para Systems, Inc.
1455 LeMay Drive
Carrollton, TX 75007
800.238.7272 • 972.446.7363
www.minutemanups.com • www.sizemyups.com
© Copyright 2016, Para Systems, Inc. Product specications are subject to change without notice. Minuteman, Platinum Protection Plan,
are registered trademarks of Para Systems, Inc. Enspire and SentryHD are trademarks of Para Systems, Inc. All other trademarks are the
property of their respective holders. All rights reserved.
Publication No. 34000518 (8-2016)
