Minuteman ED5000RT-XFR User Manual

Para Systems, Inc.
1455 Lemay Dr.
Carrollton, TX 75007
Phone: 1-972-446-7363
Fax: 1-972-446-9011 Internet: minutemanups.com UPS Sizing: sizemyups.com
Endeavor 5 - 10KVA
Step Down Transformer
User's Manual
PN - 34000473 R2
Table Of Contents
1. Introduction 2
2. Rear Panels 6
3. Installation 8
4. Operation 14
5. Obtaining Service 16
6. Specifications 17
7. Limited Product Warranty 18 A1 . Declaration of Conformity 19
1
Chapter 1: Introduction
Thank you for purchasing this power protection product. It has been designed and manufactured to provide many years of trouble free service. Please read this manual before installing your Endeavor Series step down transformer (ED-XFR), models ED5000RT-XFR, ED6000RT-XFR, ED8000RT-XFR and ED10000RT-XFR as it provides important information that should be followed during installation and maintenance of the ED-XFR allowing you to correctly set up your system for the maximum safety and performance. Included is information on customer support and factory service if it is required. If you experience a problem with the ED-XFR please refer to Obtaining Service sec­tion in this manual to collect enough information so that the T echnical Support Department can rapidly assist you.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS !
CAUTION! This ED-XFR series is ONLY intended to be installed in an indoor
temperature controlled environment that is free of conductive contaminants. This ED-XFR series is not intended for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Dat a Processing Equip­ment ANSI/NFPA 75. The AC inputs of these Step Down Transformers are ONLY intended to be connected to the output of their respective UPS models.
The ED-XFR's input voltage setting must be the same as the UPS's output voltage setting.
CAUTION! The maximum ambient operating temperature for this ED-XFR series is 40°C (“0 ~ 40°C” for Ambient Operation). The external vents and openings on the unit are provided for ventilation.
T o ensure reliable operation of the unit and to protect the unit from over­heating, these vents and openings must not be blocked or covered. Do not insert any object into any of the vents or openings that may hinder the ve­ntilation.
Install the unit in a well ventilated area, away from excess moisture, heat,
dust, flammable gas or explosives.
Leave adequate space (at least 15cm) around all sides of the unit for pr-
oper ventilation.
Do not mount the unit with its front or rear panel facing down at any angle. Before usage, you must allow the unit to adjust to room temperature
(20°C~25°C or 68°F~77°F) for at least one hour to avoid moisture cond­ ensing inside the unit.

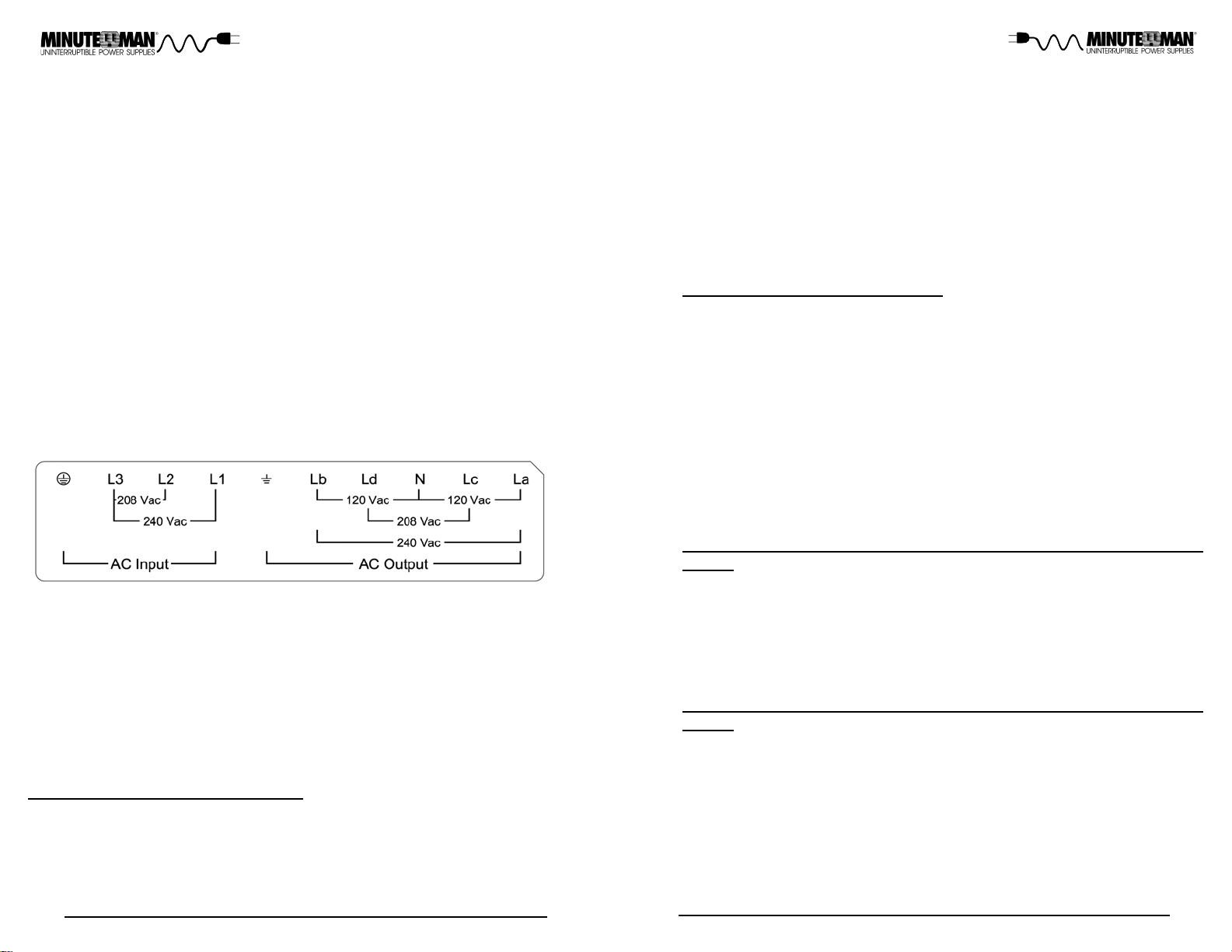

CAUTION! The ED5000RT-XFR and ED6000R T-XFR come with an attached #10 AWG input power cord. Connect the input power cord to the output terminal block on the UPS. The AC input s of these Step Down Transformers are ONLY intended to be connected to the output of their respective UPS models. Do not use extension cords, adapter plugs, or surge strips. The installation of upstream and downstream protective devices is highly recom­mended when the UPS system is connected to the mains and the load.
CAUTION! The ED8000RT -XFR and ED10000RT-XFR come with an #6 A WG input power cable in the box. The pins for the input and output cables are included. Connect one end of the input power cable to the input terminal block on the ED-XFR. Connect the other end of the input power cable to the output terminal block on the UPS. The AC inputs of these Step Down T ransformers are ONLY intended to be connected to the output of their respective UPS models. Do not use extension cords, adapter plugs, or surge strips. The installation of upstream and downstream protective devices is highly recom­mended when the UPS system is connected to the mains and the load.
CAUTION! To reduce the risk of electrical shock with the installation of this unit and the connected equipment, the user must ensure that the ED-XFR is properly grounded due to a possible risk of AC current leakage.
WARNING: Qualified Service Personnel ONLY must perform the Installa­tion and Servicing of these ED-XFR. MINUTEMAN accepts no liabilities and is not limited to: injury to the Service Personnel, or damages to; the Step Down Transformer , the UPS, the Battery Pack, or the connected equipment caused by the incorrect installation or servicing of the UPS system. These ED-XFR MUST be operated with their respective UPS models, see the table below:
ED-XFR
UPS
WARNING: When using these S tep Down T ransformers with their respective UPS models, the load capacity of the UPS MUST be derated as follows:
ED5000RT -CU ED5000RT -XFR
4556V A 4100Watts
ED5000RT -XFR ED6000RT -XFR
ED5000RT -CU ED6000RT -CU
ED6000RT -CU ED6000RT -XFR
5556VA 5000Watts
ED8000RT -XFR ED10000RT -XFR
ED8000RT -CU ED10000RT -CU
ED8000RT -CU ED8000RT -XFR
6889V A 6200Watts
ED10000RT-CU ED10000RT -XFR
8889V A 8000Watts
WARNING: This ED-XFR contains potentially hazardous voltages. Do not attempt to disassemble the unit. This unit contains no user serviceable parts. Repairs must be performed by QUALIFIED SERVICE PERSONNEL ONLY.
2

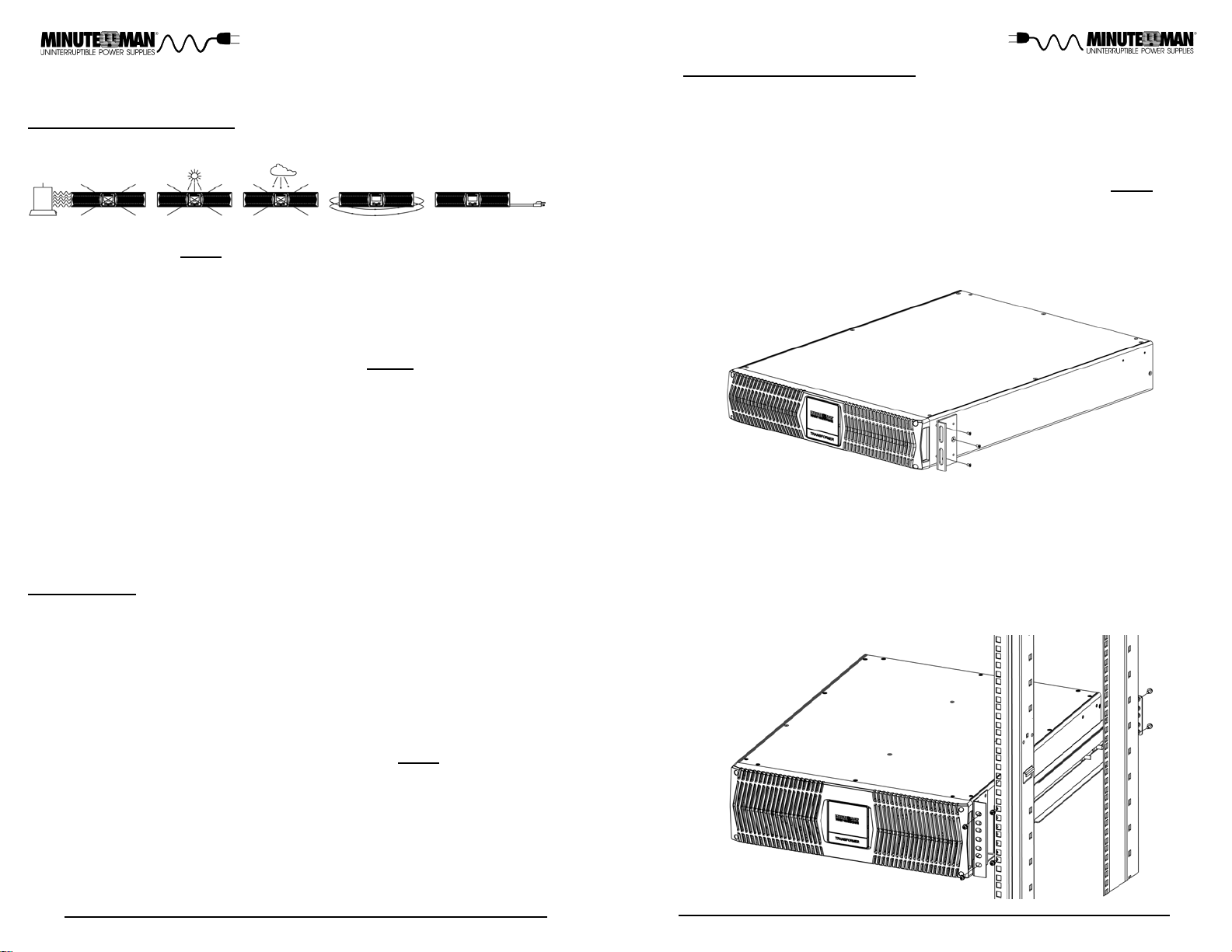

CAUTION! DO NOT USE THE MOUNTING BRACKETS TO LIFT THE STEP DOWN TRANSFORMER. The mounting brackets are ONLY for securing the
unit to the rack.
3
CAUTION! T o de-energize the output s of the ED-XFR:
1. Turn off the Load breakers on the rear p anel of the ED-XFR.
2. If the UPS is on press and release the On/Off/Test button after the sec­ond beep.
2. Turn off the input circuit breaker on the rear p anel of the UPS.
3. Turn off the DC breaker on the rear p anel of the Battery Pack.
4. Disconnect the UPS from the AC source.
NOTICE: This equipment has been tested and found to comply with the limits for a Class B computing device in accordance with the specifications in Sub­part J of Part 15 of FCC Rules and the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference of the Canadian Depart­ment of Communications. These limits are designed to provide reasonable protection against such interference in a residential installation. This equip­ment generates and uses radio frequency and if not installed and used properly , that is, in strict accordance with the manufacturer's instructions, this equip­ment may cause interference to radio and television reception. If this equip­ment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Re-orient the receiving antenna.Relocate the computer with respect to the receiver.Move the computer away from the receiver.Plug the computer into a different outlet so that the computer and receiver
are on different branch circuits.
Shielded communications interface cables must be used with this product. WARNING: Changes or modifications to this unit not expressly approved by
the party responsible for compliance could void the user's authority to operate the equipment.
RECIEVING INSPECTION
Once you receive the product it should be visually inspected for damage that may have occurred in shipping. Immediately notify the carrier and place of purchase if any damage is found. Warranty claims for damage caused by the carrier will not be honored by the manufacturer. The packing materials that the product was shipped in were carefully designed to minimize any shipping damage. In the unlikely case that the product needs to be returned to the manufacturer, use the original packing material. Since the manufacturer is not responsible for shipping damage incurred when the product is returned, the original packing material is inexpensive insurance. PLEASE SAVE THE
PACKING MATERIALS!
LIFE SUPPORT POLICY
As a general policy , Para Systems does not recommend the use of any of our products in life support applications where failure or malfunction of the product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. We do not recommend the use of any of our products in direct patient care. We will not knowingly sell our prod­ucts for use in such applications unless it receives in writing assurances satis­factory to us that (a) the risks of injury or damage have been minimized, (b) the customer assumes all such risks, and (c) our liability is adequately protected under the circumstances.
Examples of devices considered to be life support devices are neonatal oxygen analyzers, nerve stimulators (whether used for anesthesia, pain relief, or other purposes), auto transfusion devices, blood pumps, defibrillators, arrhythmia detectors and alarms, pacemakers, hemodialysis systems, peritoneal dialysis systems, neonatal ventilator incubators, ventilators for both adults and infants, anesthesia ventilators, and infusion pumps as well as any other devices desig­nated as “critical” by the United States FDA.
© COPYRIGHT 2014 BY PARA SYSTEMS, INC.
All Rights Reserved. All right s of this User Manual (“Manual”), including but not limited to the content, information, and figures are solely owned and reserved by Para Systems, Inc. (“Para Systems”). The Manual can only be applied to the operation or the use of this product. Any disposition, duplication, dissemi­nation, reproduction, modification, translation, extraction, or usage of this Manual in whole or in part is prohibited without the prior written permission of Para Systems. Given that Para Systems will continuously improve and develop the product, changes may be made to the information in this Manual at any time without obligation to notify any person of such revision or changes. Para Systems will make all possible efforts to secure the accuracy and the integrity of this Manual. Para Systems disclaims any kinds or forms of warranty , guar­antee, or undertaking, either expressly or implicitly , including but not limited to the completeness, faultlessness, accuracy , non-infringement, merchantability or fitness for a particular purpose of the Manual.
4
5
