Minuteman E24 User Manual

User Manual

E24 (7061.31) Walk-Behind Scrubber

Introduction

Preface

Dear customer, It is our desire that the good
characteristics of the E 24 should justify the
confidence you demonstrated by making this
purchase. Prior to the first use, carefully read
the chapter “Safety Information” as this will
ensure your safe operation of the machine.
Your own safety, as well as the safety of
others, depends to a great extent on how
the machine is moved and operated.
Therefore, this operation and maintenance
manual must be read and understood prior
to the machine being used for the first time.
The manual provides valuable information
about operation, service and maintenance.
The warning symbols as used in this manual
identifies items relevant to safety. Please
observe the safety provisions (see chapter
“Safety Information”).
Minuteman dealer will be pleased to answer
further questions regarding the vehicle or the
operation and maintenance manual.

Your authorized

Please be advised explicitly that we cannot
accept any legal issues out of the contents
of this manual. If repair work has to be
performed make sure that only genuine
spare parts are used; only genuine spare
parts may guarantee a dependable machine.
We reserve the right for technical
improvement..

Valid as of: June 2012

Minuteman International Inc.
14N845 U.S. Route 20
Pingree Grove, IL 60140
U.S.A

Proper use

The machine is a vacuum scrubbing
machine for wet cleaning of hard-surfaced
floors. Using the machine beyond this scope
of application will be deemed improper use;
The manufacturer cannot be held liable for
consequential damages; the user alone
bears the risk.
includes operation, maintenance and repair
work to be performed in compliance with the
manufacturer’
only be used by persons that are familiar with
the machine and aware of possible hazards
involved. If modifications to the machine are
made in absence of the manufacturer’s prior
consent, the latter cannot be held liable for
damage resulting from such unauthorized
modification.

The term of proper use also

s specifications. The E 24 may

2

Introduction

Notes on warranty

The terms of the sales contract apply.
Damages are not subject to warranty if they
are due to non-compliance with the
maintenance and service provisions. The
maintenance work has to be performed by
an authorized Minuteman service center and
confirmed in the “Maintenance certificate”
which is the warranty document.
The following is excluded from warranty:
fuses, natural wear, damages caused by
overload, inexpert handling and
unauthorized modification of the machine.
Moreover, any claim for warranty cannot be
accepted if damages of the machine are
caused by fitting parts or accessories without
Minuteman’s prior and explicit consent or by
non-compliance with the maintenance
instructions.

Acceptance of the machine

Upon arrival, check machine for possible
damages in transit. Follow unpacking
instructions on shipping pallet. Each unit has
been tested and throughly inspected before
shipment. Any damage is the responsibility
of the delivery carrier who should be notified
immediately

Minuteman International Inc.
14N845 U.S. Route 20
Pingree Grove, IL 60140
U.S.A

.

3

4

Table of Contents

Introduction......................................... 2

Preface

.................................................

Proper use ............................................

Notes on warranty

Acceptance of the machine .................. 3

Safety Information .............................. 6

1

Safety and Warning Symbols ............... 6

1.1

General Provisions ............................... 7

1.2

Provisions for Operation....................... 7

1.3

Maintenance instructions ..................... 7

1.4

Specific Hazards...................................8

1.5

Information for Protection of

1.6

Environment ......................................... 9

Labels at the Machine ........................ 10

1.7

First Operation.................................. 11

2

Instruction ........................................... 11

2.1

Initial charging procedure ................... 11

2.2

Before Putting into Operation ............. 11

2.3

Start machine ..................................... 11

2.4

Operation............................................ 12

2.5

Stop Machine......................................12

2.6

After Work........................................... 12

2.7

Transporting the machine................... 12

2.8

Tie-down points .................................. 12

2.9

Operation........................................... 13

3

................................ 3

Method of Operation General............. 13

3.1

2
2

Brush Deck ......................................... 13

3.1.1

Solution Tank ...................................... 13

3.1.2

Squeegee ........................................... 14

3.1.3

Recovery T ank.................................... 14

3.1.4

Traction Drive ..................................... 14

3.1.5

Batteries and Charger ........................ 14

3.1.6

Options ............................................... 14

3.1.7

Operating and Indicating Elements .... 15

3.2

Operating Panel ................................. 15

3.2.1

At the machine ................................... 18

3.2.2

Technical Dat a .................................. 21

4

Maintenance and Care ..................... 23

5

Minuteman System Maintenance ....... 23

5.1

Maintenance document ...................... 24

5.2

Maintenance Schedule....................... 25

5.3

Battery Systems ................................. 29

5.4

Charging Batteries.............................. 30

5.4.1

Low Discharge Signal sender (LDS) . 30

5.4.2

Maintenance of Drive Batteries .......... 30

5.4.3

Removing Batteries ............................ 30

5.4.4

Installing Batteries .............................. 30

5.4.5

Disposal of Batteries .......................... 30

5.4.6

Solution Tank ...................................... 31

5.5

Filling Solution Tank ........................... 32

5.5.1

Emptying Solution Tank...................... 32

5.5.2

5.5.3

Solution Filter ..................................... 32

5.6

Recovery T ank....................................33

5.6.1

Emptying Recovery Tank....................34

5.6.2

Cleaning Recovery Tank ....................34

5.6.3

Cleaning Suction Filter ....................... 34

5.7

Disc Brush Deck ................................. 35

5.7.1

Cleaning Brushes ............................... 35

5.7.2

Changing Brushes..............................35

5.7.3

Changing Roller Bumper .................... 35

5.7.4

Changing Sealing Strip....................... 35

5.8

Cylindrical Brush Deck ....................... 36

5.8.1

Cleaning Dirt Hopper.......................... 36

5.8.2

Removing Brushes ............................. 36

5.8.3

Cleaning Brushes ............................... 36

5.8.4

Installing Brushes ............................... 36

5.8.5

Changing Roller Bumper .................... 36

5.9

Squeegee ........................................... 37

5.9.1

Cleaning the Squeegee...................... 37

5.9.2

Changing the Squeegee Blades ........ 37

5.9.3

Adjusting the Squeegee Blades ......... 38

EC- Declaration of Conformity ........ 41

Minuteman International Warranty 42

5

Safety Information

1.1 Safety and Warning Symbols

All paragraphs in this manual referring to your
personal safety, the safety of your machine and the
environment protection are attributed one of the
following warning symbols:

Symbol Hazardous for ... Description
Safety Provisions persons and goods

Safety Provisions in dangerous situation caused by
misuse inaccurate adherence of instructions or pres­cribed work routine.

CAUTION the machine

important information on handling the machine in
order to maintain operability.

Ecological hazard

the environment

due to use of substances representing an inherent
danger to health of environment

6

Safety Information

1.2 General Provisions

• Apart from the provisions contained in
this instruction manual, the general safety
provisions and the accident prevention
regulations as imposed by law have to be
complied with.

• Before taking your machine into operation,
carefully read the instruction manual as
well as other separate instructions for ac­cessories or attached implements and
comply with all points mentioned there dur­ing work.

• Persons being trained by qualified Minute­man technicians only are authorized to
operate, service and repair the machine.

• You are advised to thoroughly study the
safety instructions since precise knowl­edge helps prevent errors during machine
operation and thus guarantee proper use
of the machine.

• The operating instructions have to be
onhand at the place of use of the machine,
and therefore have to be kept readily avail­able at the machine.

• When selling or letting the machine for
rent, hand out these documents to the new

owner/operator and have the transfer cer­tified!

• The warning and instruction plates at­tached to the machine contain valuable
advice about safe operation. Immediately
replace incomplete or illegible labels.

• As far as safety standards are concerned,
use only genuine spare parts!

1.3 Provisions for Operation

• Before first operation of the machine, fully
charge the battery with an initial charging
procedure and comply with the operating
instructions of the charger as well as with
those of the battery manufacturer. Minute­man cannot be held liable for damages
resulting from an insufficient initial charge.

• Before taking into operation, check the
machine for operational safety! Immedi­ately remedy malfunctions!

• It is indispensable for the operator to get
acquainted with all attached implements
and controls as well as with their function
before operation begins. Once you have
started to work, no time will be left to do
so!

• When working with the machine use firm
and skid proof shoes.

• The machine may be used only on such
surfaces clearly specified by the owner or
his authorized representative.

• When working with the machine, pay strict
attention to any persons in the close vi­cinity.

• Start moving immediately after brush head
has switch on otherwise the brush might
leave traces on the floor. Lift the brush
deck before moving over obstacles (door­steps).

• Only fold open empty recovery tank.

• Use only cleaning agents suitable for au-

tomatic machines (low-foaming) and com­ply with the instructions for use, disposal
and with the warning information specified
by the cleaning agent’s manufacturer.

• The machine is not designed for collect­ing hazardous, flammable or explosive
dusts or substances.

• Usage of the machine in explosive areas
is prohibited.

• Remove the key to avoid unauthorized use
of the machine.

• Before transport of the machine, lift the
squeegee and the brush deck.

7

Safety Information

Adapt driving habits to local conditions.

• The machine may be used only for opera­tion on flat floors with a maximum inclina­tion of up to 2 %.

1.4 Maintenance instructions

• The daily and weekly maintenance and

repair task must be performed by a quali­fied operator. For further maintenance and
repair work, please contact your local Min­uteman service center.

• Observe the maintenance activities and
intervals set out in the instruction manual.

• Maintenance and repair work may be car­ried out only by means of appropriate
tools.

• Have the machine checked for safe con­dition in the sense of the Accident Pre­vention Regulation by an expert at regu­lar intervals (recommendation: at least
once yearly) as well as after modifications
or repair.

• Spare parts have to equal the technical
requirements as specified by the manu­facturer! Genuine spare parts guarantee
compliance with these requirements.

• Turn off and remove the key before in­specting the machine or performing any
maintenance work.

• To prevent the machine from being used
by unauthorized persons, the control key
must be removed.

• When performing work on the electrical
system, be sure to disconnect the battery
plug.

• Make sure to protect the recovery tank
against accidental closing or tilting down
before working in the area of a lifted tank
lid.

• Do not clean the electrical parts by means
of high-pressure cleaning equipment.

• The use of aggressive detergents is pro­hibited.

• Let the machine dry after cleaning

• The machine may be taken into operation

after all protective devices have been fit­ted and positioned.

1.5 Specific Hazards

Electric system

• Only use genuine fuses with specified rat-

ings.

• In case of malfunction of the electric sys-

tem, shut the machine down immediately
and have it serviced.

• Only qualified personnel are authorized to
work on the electrical equipment and only
according to electro-technical rules.

• Inspect/check the electrical equipment of
the machine at regular intervals. fix any
defects immediately, such as loose con­nections or damaged cables..

Battery

• Observe the operating instructions of the

battery manufacturer.

• Never place metal objects or tools on bat­teries - short-circuit hazard!

• Due to alteration of the center of gravity,
Use batteries as released and at the pre­scribed position only.

• Charge batteries only in areas with suffi­cient ventilation – Explosion hazard!

8

1.6 Information for Protection of Environment

• Observe the legal directives and local regulations

for disposal of detergents.

• Used batteries labelled as recyclable contain reus­able economic goods. These batteries must not be
added to the normal waste.

Safety Information

9

Safety Information

1.7 Labels at the Machine

The following safety and information labels
are legibly attached to the machine. Replace
missing or illegible labels immediately.
Minuteman nameplate (Fig. 1/1)

Machine identification number (Fig. 1/2)

A = Read and observe the instruction
manual (Fig. 1/2)
B = Maximum grade of 2 %
(Fig. 1/2)
C = Do not clean the machine by means of
high-pressure cleaning equipment
(Fig. 1/2)

A

2

3

Recovery tank drain hose (Fig. 1/3)

10

B

1

C

Fig.1

First Operation

2 First Operation

2.1 Instruction

Only persons trained by qualified Minuteman
technicians are authorized to operate,
service and repair the machine. Operators
must read and understand this manual
before operating or maintaining this
machine.

2.2 Initial charging procedure

Before first operation of the machine,
fully charge the battery with an initial
charging procedure and comply with
the operating instructions of the
charger as well as with those of the
battery manufacturer. Minuteman
cannot be held liable for damages
resulting from an insufficient initial
charge.

2.3 Before Putting into Operation

Complete the following inspections before
taking the machine into operation:

1.Check the area around the machine for
signs of leakage. Hoses, lines and tanks
must be free from any leakage or dam­age.

2.

Install brushes and squeegee, see
maintenance chapter.

1.Install batteries and connect battery plug,
see maintenance chapter.

2. Check battery charge and recharge bat­teries if required. An initial charge before
first operation is required.

3. Empty recovery tank and clean it if re­quired, see maintenance chapter.

4.Re-fill solution tank and add cleaning
agent according to the manufacturer’s
recommendations.

Use only cleaning agents suitable
for automatic machines (low­foaming) and comply with the
instructions for use, disposal and
with the warning information
specified by the cleaning agent’s
manufacturer.

2.4 Start Machine

Proceed with the following to set the
machine to operating mode:

• Disconnect mains plug of the charger from
outlet and fasten to holder.

• Switch on machine by actuation of key
switch from position (0) to position (1).

11

First Operation

2.5 Operation

1.Switch on the machine.

2. Use lever (Fig. 5/3) to lower squeegee.
V acuum motor switches on automatically .

3.Switch on solution supply by means of tip­switch (Fig. 4/14).

4. Adjust solution amount by means of tip­switch(Fig. 4/13).

5.Use pedal (Fig. 5/1) to lower brush deck.
Solution supply switches on automatically.

6. Use the speed control knob (Fig. 4/16b)
to adjust the work speed. Use the direc­tion switch (Fig. 4/16a) to select forward
or reverse. Pull the bail handle (Fig. 4/16c)
to start moving.

Lift brush deck before passing over
steps and other obstacles.

2.6 Stop Machine

Releasing the bail handle will stop the
motion of the machine as well as the brush
head. Switch the machine off using the
key-operated switch. Protect the machine
against unintentional movements or
against being inadvertently started.

2.7 After Work

1. Move the machine to a suitable site for
maintenance.

2. Stop machine, lift squeegee and brush
deck and remove the key.

3.Empty and clean recovery tank.

Observe the legal directives
and local regulations for disposal
of detergents.

4. Check solution filter.

5. Check seals and suction hose.

6. Check operating fluid levels, function and
setting.

7.Charge batteries.

8.Clean the machine.
Empty the solution tank before shutting
down the machine for a longer time.

Do not clean the electrical parts
using high pressure cleaning
equipment.

2.8

Transporting the machine

To move the machine to the place of
use, switch it on, lift the squeegee and
brush deck and pull the bail handle to
start movement.

2.9 Tie-down points

When transporting on a vehicle or trailer,
the machine has to be secured. Tie the
machine down firmly by straping it to the
front with the eye bolts (Fig. 2/1) and to
the rear with the chassis (Fig. 2/2) .

1

Fig.2

2

12

3 Operation

3.1 Method of Operation General

The E 24 is a vacuum scrubbing machine
for wet cleaning of hard-surfaced floors.

Operation

3.1.1 Brush Deck

Lower brush deck (Fig. 3/1) via pedal before
scrubbing. The brushes rotate and solution
supply switches on automatically . When the
machine is stopped, brushes and solution
supply switch off automatically.

3.1.2 Solution Tank

Fill the solution tank (Fig. 3/2) after removing
the cover. The solution tank holds 18.5
gallons and the filling level can be checked
visually (through transparent hose).
Regulation of solution amount is available
via adjustment handle.

7

Fig.3

6

4

1

3

5

2

13

Operation

3.1.3 Squeegee

The movable squeegee (Fig. 3/3) consists
of the squeegee lift-out, the vacuum motor
and squeegee blades. The soiled water is
wiped from the floor by means of
squeegee blades. Squeegee is lowered
via hand lever. Simultaneously, the
vacuum motor switches on. The vacuum
motor works independent of direction of
travel and even if the machine stops.
Second actuation of the hand lever lifts the
squeegee up again and the vacuum motor
is automatically switched off with a delay of
15 seconds.

3.1.4 Recovery Tank

The soiled water is taken from squeegee
to the recovery tank (Fig. 3/4) by vacuum
motor and suction hose.

3.1.5 Traction Drive

The machine features a continuous
traction drive (Fig. 3/6). The electronic
traction drive control realises modification
of travel speed, direction as well as
dynamic braking.

3.1.6 Batteries and Charger

The machine is equipped with 235 Ah
batteries (Fig. 3/5), an automatic charger
unit (Fig. 3/7) and a low discharge signal
sender (LDS) for protection against low
discharge.

Options

3.1.7

• Extraction hose including suction pipe,
joint nozzle and wet suction nozzle

• Mop holder and tool-box for cleaning uten­sils

Accessories such as brushes,
rollers, pads, pad holder with
centerlock and squeegee blades
are available. Contact your
Minuteman Dealer for more
information.

14

Operation

3.2 Operating and Indicating Elements

3.2.1 Operating Panel

1 Display
2 Key switch
3 Battery charge indication
4 LDS indicator
5 Symbol brush drive
6 Symbol vacuum motor
7 Hourmeter
8 Symbol Service indicator
9 free
10 Symbol Silence Kit (optional)
11 Symbol solution flow
12 Tip-switch Silence Kit (optional)
13 Tip-switch solution flow
14 Tip-switch solution supply On/Off
15 Symbol vacuum scrubbing tool (optional)
16 Drive direction control (16a) with speed control

knob (16b) and bail handle (16c)

Fig.4

13

17 9 843

11

5

12

16a16c

15

6
10

14

2

16b

15

Operation

Display (Fig. 4/1)

This panel allows centralized monitoring of
functions and detection of all available
operating modes.

The key switch turns the electrical system
on and off.

Remove the key to avoid un­authorized use of the machine.

A B C D

Battery charge indication (Fig. 4/3)

Battery charge indication appears on
the panel during the charging procedu­re and shows the current charge condi­tion of batteries during the procedure.
The following symbols appear:
Battery symbol A < charge of 20 %
Battery symbol B = charge of 80 %
Battery symbol C = charge of 100 %
Battery symbol D (flashes) = error

LDS indicator (Fig. 4/4)

Upon switching on, the LDS indication is
output on the panel to show the current
battery charge condition during operation.
Additional Information see chapter
maintenance.

Symbol brush drive (Fig. 4/5)

This symbol appears when brush drive is
switched on.

Symbol vacuum motor (Fig. 4/ 6)

This symbol appears when vacuum motor
is switched on.

1.1.1.1

Hourmeter (Fig. 4/7)

Upon switching on, the hourmeter briefly
displays the software version and the last
error code. Then the current operating hour
level is shown.

Service indicator (Fig. 4/8)

The service indicator lights after a system
error or when cleaning or transporting
procedure is interrupted. In addition to the
service indicator, a 4-digit code is displayed
on the hourmeter.

16

Operation

A

free (Fig. 4/9)

Silence Kit tip symbol (optional)
(Fig. 4/10)

This symbol appears when Silence Kit tip­switch is switched on.

Solution flow symbol (Fig. 4/11)

This symbol appears upon actuation of the
solution flow tip-switch.

Silence Kit tip-switch (optional)
(Fig. 4/12)

This tip-switch is used to change the
vacuum motor to silent mode. The silent
mode symbol appears in the display.

Solution flow tip-switch (Fig. 4/ 13)

This tip-switch is used to regulate the
amount of solution. Additionally, solution
amount is adapted to driving speed. The
display shows a six-stage symbol for the
supplied amount of solution.

Solution supply ON/OFF tip-switch
(Fig. 4/14)

This tip-switch is used to switch solution
supply ON or OFF.

Scrubbing tool symbol (optional)
(Fig. 4/15)

This symbol appears when scrubbing tool­switch (A) is switched on

Hand cleaning tool (optional)

Hand-cleaning tool with spray function for
the E 24 with scrubbing tool connection for
thorough cleaning on areas which are
difficult to reach.

Drive direction control with speed
control knob/bail handle (Fig. 4/16)

The drive direction control (16a) is used to
control the driving direction (forward or
reverse). The bail handle (16c) must be
pressed in order to drive. The speed can
be adjusted continuously by means of the
speed control knob (16b). The machine
stops when the bail handle is released
(deadman function).

Secure the machine from moving
before leaving it unattended.

17

Operation

3.2.2 At the machine

1 Brush deck pedal
2 Opening of solution tank
3 Squeegee lift lever
4 Solution filter
5 Recovery tank drain hose
6 Solution level indication
7 Brush ejector
8 Power connection charger unit

18

Fig.5

Operation

Brush Deck Pedal (Fig. 5/1)

Use this pedal to lift and lower the brush
deck.

Opening of Solution Tank (Fig. 5/2)

The solution tank is filled through the
opening under the solution tank cover.

Squeegee Lift Lever (Fig. 5/3)

Use this hand lever to lift and lower the
squeegee.

Solution Filter (Fig. 5/4)

While solution flows from tank to brush
deck, it is cleaned by the filter element.

Recovery Tank Drain Hose (Fig. 5/5)

This hose allows draining of the collected
soiled water from the tank.

Solution Tank Drain Hose (Fig. 5/6)

This hose allows draining of the solution
tank.

Brush Ejector (Fig. 5/7)

The brush ejector makes brush removal
fast and easy.

Power Connection Charger Unit
(Fig. 5/8)

The power connection supplies the
charger unit with power.

19

Operation

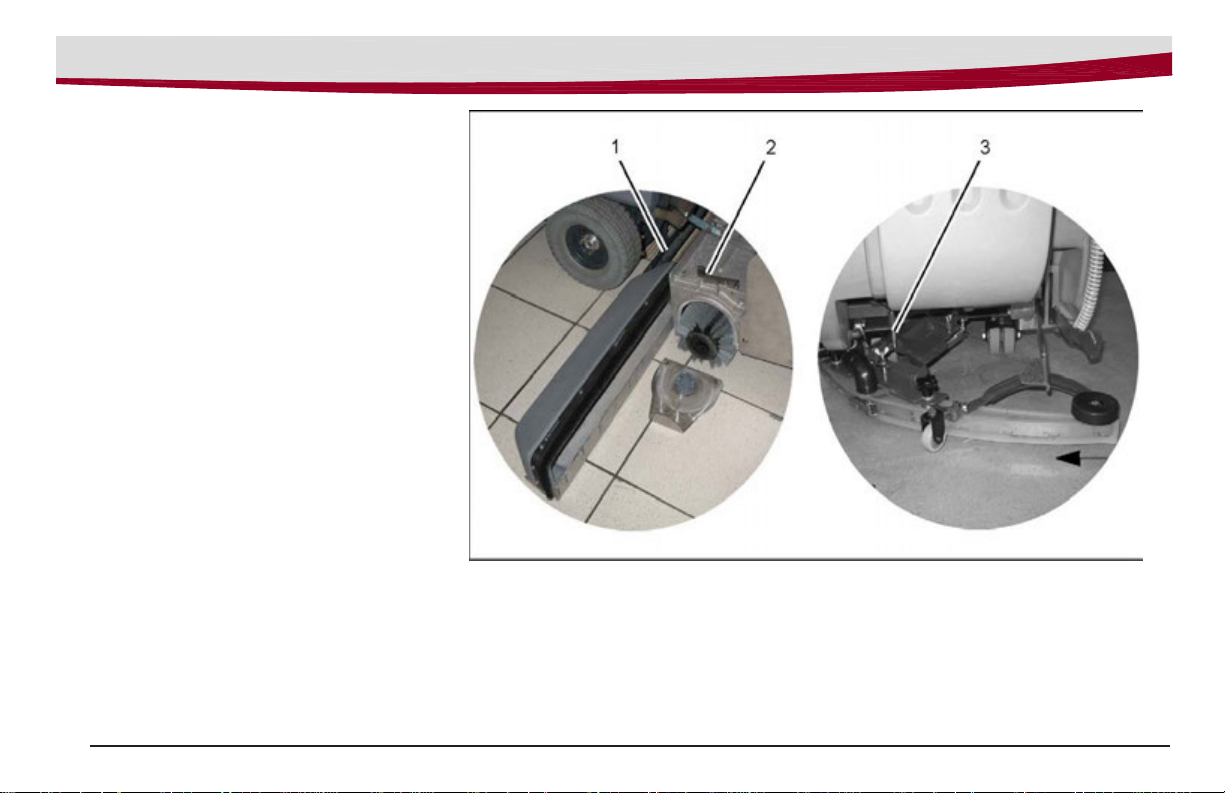

Dirt Hopper Guiding Rail (Fig. 6/1)

The dirt hopper located at the cylindrical
brush deck is fastened by a guiding rail. This
dirt hopper may be easily removed for
cleaning.

Lever for Cylindrical Brush Seating
(Fig. 6/2)

This lever (both sides) is used to release/
lock the cylindrical brush seating. The
cylindrical brushes may be easily removed
without tools.

Swing Aside Squeegee

In the lifted position the squeegee can swing
to allow passage through tight spaces. This
can be done by foot or by hand by swinging
the squeegee to the left in the area of the
deflector bail / deflector roller until the locking
pin (Fig. 6/3) catches. In order to release
locking of the squeegee, actuate the hand
lever (Fig. 5/3) of the squeegee lift lever
(lowering).

Fig.6

1 Dirt hopper guiding rail
2 Lever for cylindrical brush seating
3 Locking pin

20

4 Technical Data

Technical Data

Machine length
Machine height
Machine width without Squeegee
Machine width with Squeegee
Working width
Squeegee width
Surface performance theoretical
Service voltage
Nominal power drive motor
Nominal power suction motor
Nominal power brush motor
Number of brushes
Diameter of brushes
Work rid e
Solu tio n tank
Recovery tank
Weight without batteries and solution
We ig h t w ith s o lu tio n a n d b a tteries

Disc brush deck Cylindrical brush deck

59.5 in ( 1 51.1 cm )

43.7 in (1 11 cm)

26.8 in (68.1 cm)

37.5 in (95.3 cm)

25.6 in (6 5 cm)

37.5 in (95.3 cm)

34983 (3250 m²/h)

24
260
520

2x720

2

13.0 (33 cm)

3,0 (4 .8 ,0 k m /h)

15.4 (58.3 l)

16.5 (62.5 l)
417 (189 kg)
855 (388 kg)

62.6 (159 cm)

43.7 (111 cm)

26.8 (68.1 cm)

37.5 (95.3 cm)

23.6 (60 cm)

37.5 (95.3 cm)

32292 (3000 m²/h)

24
260
520

2x720

2

5.9 (15 cm)

3,0 (4 .8 ,0 km/h)

15.4 (58.3 l)

16.5 (62.5 l)
399 (181 kg)
838 (380 kg)

21

Technical Data

Noise emission The sound pressure level measured under maximum conditions of use

(LwA) according to DIN EN 60335-2-72 amounts to:
The sound pressure level measured (at the ear of the driver) under normal conditions of use
(LpA) according to DIN EN 60335-2-72 amounts to:
Measurement inaccuracy (KpA):

Vibration The frequency weighted acceleration measured according to DIN EN ISO
5349 which have an effect upon the upper limbs (hand-arm-system) amounts under
normal working conditions:

dB (A)
dB (A)

dB (A)

82
67

1,6

m/s² < 2,5

22

Maintenance and Care

5 Maintenance and Care

General

Before proceeding to maintenance
and care work you are advised to
read and comply with the Safety
Information chapter!

Compliance with the recommended
maintenance work will ensure that you
always have a reliable machine available.
Daily or weekly maintenance and repair work
may be executed by the driver/ operator
having been trained accordingly. Further
Minuteman system maintenance work must
be performed by qualified personnel only.
Please contact your local Minuteman Service
Center or Minuteman contract dealer. We
cannot be held liable for damages resulting
from non-compliance with these instructions.
Please indicate the machine’s serial number
with any enquiry or spare part order, see
paragraph 1.7 - Nameplate.

5.1 Minuteman System Maintenance

The Minuteman System Maintenance:

• guarantees reliable operability of the Min­uteman machines (preventive mainte­nance)

• minimizes operating costs, repair costs
and maintenance costs

• ensures long service life and operability
of the machine

The Minuteman System Maintenance is
structured in separate modules and de­termines specific technical works to be
executed as well as the intervals for such
maintenance works. For any specific
maintenance type, the replacement parts are
determined and listed in spare part kits.

System Maintenance K:

To be performed by the customer in ac­cordance to the maintenance and care
instructions contained in the operating
instructions (daily or weekly). operator will
be instructed upon delivery of the machine.

System Maintenance I :

(every 125 hours of operation)
To be performed by qualified personnel of
authorized Minuteman Service Center in
accordance with the machine-specific
system maintenance including spare part kit.

System Maintenance II:

(every 250 hours of operation)
To be performed by qualified personnel of
authorized Minuteman Service Center in
accordance with the machine-specific
system maintenance including spare part kit.

System Maintenance S:

(every 500 hours of operation safety check)
To be performed by qualified personnel of
authorized Minuteman Service Center in
accordance with the machine-specific
system maintenance including spare part kit.

23

Maintenance and Care

5.2 Maintenance document

Handing over

Upgrade

Test drive
Handing over to the customer

Instruction
carried out on:

at _________________ operating hours

System Maintenance S

500 operating hours

Workshop stamp

carried out on:
at _________________ operating hours

System Maintenance S

1000 operating hours

Workshop stamp

carried out on:
at _________________ operating hours

24

System Maintenance I

125 operating hours

Workshop stamp

carried out on:
at _________________ operating hours

System Maintenance I

625 operating hours

Workshop stamp

carried out on:
at _________________ operating hours

System Maintenance I

1125 operating hours

Workshop stamp

carried out on:
at _________________ operating hours

System Maintenance II

250 operating hours

Workshop stamp

carried out on:
at _________________ operating hours

System Maintenance II

750 operating hours

Workshop stamp

carried out on:
at _________________ operating hours

System Maintenance II

1250 operating hours

Workshop stamp

carried out on:
at _________________ operating hours

System Maintenance I

375 operating hours

Workshop stamp

carried out on:
at _________________ operating hours

System Maintenance I

875 operating hours

Workshop stamp

carried out on:
at _________________ operating hours

System Maintenance I

1375 operating hours

Workshop stamp

carried out on:
at _________________ operating hours

5.3 Maintenance Schedule

System Maintenance Customer

The daily and weekly maintenance
intervals must be performed by the
customer/operator.

Maintenance and Care

To be performed

Fill s o lu t io n ta n k and proceed to chemical agent dosage
Charge batteries
Check brush deck and clean if required
Check squeegee and clean if required
Clean tank lid seal of the recovery tank
Empty recovery tank. Clean recovery tank and suction filter
Check brushes/pads and replace if required
Clean suction hose of recovery tank
Check squeegee blades and turn around or replace if required
Clean drain hose of solution tank
Check solution supply to brushes and clean if required
Check solution filter and clean if required
Test drive and function test

daily

Interval

o
o
o
o
o
o

weekly

o
o
o
o
o
o
o

25

Maintenance and Care

System Maintenance I

The following maintenance work must be
performed by an authorized Minuteman
Service workshop.

To be performed

Check battery charger
Check tank lid seal of the recovery tank and replace if required
Check drain hose of the recovery tank and replace if required
Grease joints at the brush lift-out
Check wheel mounting bolts and tighten (24 lb ft) if required
Check condition of tires
Grease joints at the squeegee holder
Test drive and function test

26

Interval

every 125 hours of operation

o
o
o
o
o
o
o
o

System Maintenance II

The following maintenance work must be
performed by an authorized Minuteman Service
workshop.

Maintenance and Care

To be performed

Perform m aintenance work according to System Maintenance I
Inspect steering rollers for tread damages and bearing slackness and replace if

required
Check drain hose of the recovery tank and replace if required
Check bump er roller of the brush deck and replace if required
Check suction hose for tight fit and damages and replace if required
Check supporting wheel of the squeegee and replace if required
Test drive and function test

Interval

every 250 hours of operation

o
o

o
o
o
o
o

27

Maintenance and Care

System Maintenance S (Safety check)

The following maintenance work must be performed by
an authorized Minuteman Service workshop at least
once a year.

To be performed

Perform maintenance work according to System Maintenance II
Clean traction drive motor from carbon dust and check carbon brushes for smooth

operation and wearing and replace carbon brushes if required
Clean brush motors from carbon dust and check carbon brushes for smooth opera-

tion and wearing and replace carbon brushes if required
Test drive and function test

28

Inte rv a l

every 500 hours of operation

o
o

o

o

Maintenance and Care

5.4 Battery Systems

1 LDS display
2 Charger indicator
3 Charger
4 Mains cable charger
5 Battery connector
6 Batteries
7 Recovery tank
8 Support
9 Wiring diagram

Fig.7

12

7

56

9

43

8

29

Maintenance and Care

5.4.1 Charging Batteries

Use the integrated battery charger
(Fig. 7/3) to charge batteries. Connect the
charger by means of the mains cable (Fig.
7/4) with safety plug. Charging batteries is
recommended if at least one bar of the LDS
display has extinguished after operation of
the machine. Observe the operating
instructions of the charger 88-60-2723 as
well as the operating instructions of the
battery manufacturer. If the battery type is
changed (ex. from lead acid to gel) the
charger has to be adjusted by a Minuteman
contract workshop.

Charge the batteries properly
before starting the machine for the
first time. Minuteman cannot be
held liable for battery damage
resulting from failure to initially
charge batteries.

Provide for sufficient ventilation of
areas where batteries are
charged. – Explosion hazard!

5.4.2 Low Discharge Signal sender

(LDS)

The machine has been equipped with a
charge indicator to preclude the batteries
from low discharge. This low discharge
signal sender has been integrated into the
electronics. If other batteries are used, re­adjustment of the low discharge signal
sender is required.

Only Minuteman contract
workshops are authorized to adjust
the low discharge signal sender.

5.4.3 Maintenance of Drive Batteries

Refer to operating instructions 88-60-2556
for information on care of drive batteries.

5.4.4 Removing Batteries

1

Park machine on level ground.

2 Switch off machine by key switch.
3 Open empty recovery tank (Fig. 7/7) and

secure by support (Fig. 7/8).

4 Disconnect battery connector (Fig. 7/ 5).
5 Disconnect battery connection cables.
6 Remove batteries.

5.4.5 Installing Batteries

Due to alteration of the center of
gravity , only use batteries as released
and at the prescribed position.

1 Switch off machine by key switch.
2 Open empty recovery tank (Fig. 7/7) and

secure by support (Fig. 7/8).
3 Place batteries according to figure.
4 Connect battery poles and enclosed con-

necting cables according to wiring diagram

(Fig. 7/9). Tighten fasteners and grease

poles.

5.4.6 Disposal of Batteries

Used batteries labelled by the recycling
symbol contain re-usable substances. Such
batteries must not be added to normal
household waste. Obtain local information
for the proper disposal of used batteries.

30

Maintenance and Care

5.5 Solution Tank

1 Solution tank
2 Marker
3 Fill level hose
4 Solution filter
5 Tank lid

5

2

3

1

4

Fig.8

31

Maintenance and Care

5.5.1 Filling Solution Tank

Fill solution tank (Fig. 8/1) before work or as
required. Park machine on level ground.
Open tank lid (Fig. 8/5) and fill tank up to the
maximum (1/1 marker) (Fig. 8/2).
Alternatively, filling of the machine via quick
coupling (Fig. 8/6) is available. Before doing
so, connect the filling hose of the dosage
unit and the quick coupling. The floater valve
automatically closes after the maximum
filling level has been attained.
(Refer to specific operating instructions for
information on operation of the dosage unit)
The maximum admissible service pressure
of the floater unit is 87psi.

5.5.2 Emptying Solution Tank

Park machine such that the fill level hose
(Fig. 8/3) is located above the drain aperture
in the floor. Take fill level hose from holder
and remove lid.

5.5.3 Solution Filter

Check solution filter (Fig. 8/4) at weekly
intervals and clean or replace if required.

Only clean solution filter when the
solution tank is empty.

1 Empty solution tank (Fig. 8/1), see para-

graph 5.5.2.
2 Unscrew filter cap.
3 Remove the filter element from the filter

case for cleaning. Replace if required.
4 Re-inst

all filter element and filter cap.

32

5.6 Recovery Tank

1 Recovery tank
2 Drain hose
3 Suction filter
4 Tank lid

Maintenance and Care

Fig.9

4

2

3

1

33

Maintenance and Care

5.6.1 Emptying Recovery Tank

Clean recovery tank (Fig. 9/1) at daily
intervals, as required or upon acoustic signal
(increased vacuum motor speed).

1.Take machine to appropriate place for dis­charge.

2.Park machine such that drain hose
reaches the drain aperture in the floor.

3.Switch off machine.

Observe the legal provisions and
the local regulations for disposal of
detergents!

4.Take drain hose (Fig. 9/2) from holder and
empty recovery tank completely.

5.6.2 Cleaning Recovery Tank

Clean recovery tank (Fig. 9/1) at daily
intervals or as required.

1. Empty recovery tank, see paragraph 5.6.1.

2. Open tank lid (Fig. 9/4) of the recovery
tank.
T ake drain hose (Fig. 9/2) from holder and

3.
empty recovery tank completely.

4. Remove remaining dirt by rinsing with
clean water.

5.Rinse drain hose as well.

5.6.3 Cleaning Suction Filter

Check suction filter (Fig. 9/3) for function at
daily intervals and clean if required. The
suction filter is clipped and can be easily
removed.

34

Maintenance and Care

5.7 Disc Brush Deck

1 Brush deck lift pedal
2 Brush deck
3 Brush ejectors
4 Roller bumper
5 Sealing strip

1 2

5.7.1 Cleaning Brushes

Clean brushes of the brush deck (Fig. 10/2)
at daily intervals or as required.

1.Use pedal (Fig. 10/1) to lift up brush deck.

2.Press brush ejectors (Fig. 10/3) down to
remove brushes for cleaning.

4

3

5

5.7.2 Changing Brushes

Check brushes of the brush deck for wearing
at weekly intervals. Replace brushes if
bristles are worn down to a length of 5/8".

1.Use pedal (Fig. 10/1) to lift up brush deck.

2.Press brush ejectors (Fig. 10/3) down to
remove old brushes.

3.Push new brush under brush deck and use
both hands to press it into seating.

5.7.3

Changing Roller Bumper

Check roller bumper (Fig. 10/4) at weekly
intervals or replace as required.

5.7.4 Changing Sealing Strip

Check sealing strip (Fig. 10/5) at weekly
intervals or as required. Before doing so,
open toggle-type fastener and remove
sealing strip.

Fig.10

35

Maintenance and Care

5.8 Cylindrical Brush Deck

1 Brush deck lift pedal
2 Dirt hopper
3 Cylindrical brush deck
4 Roller bumpers
5 Quick-release
6 Feed inlet
7 Brush seating
8 Locking lever

1

2 3

5.8.1 Cleaning Dirt Hopper

Clean dirt hopper (Fig. 11/2) at daily intervals
or as required.
Remove dirt hopper from the right machine
side (seen in direction of travel).
Use quick-release (Fig. 11/5) to loosen
feed inlet (Fig. 11/6) and clean dirt hopper.

A

4

56 8

7

Removing Brushes

5.8.2

1.Raise the cylindrical brush deck (Fig. 11/

3) using pedal (Fig. 1

2.Release brush seating (Fig. 11/7) by lock­ing lever (Fig. 11/8).

3. Remove brush seating by lowering and
removing it to the front.

4.Remove and check the brushes.

5.8.3 Cleaning Brushes

Clean brushes in the brush deck at daily
intervals or as required.

5.8.4 Installing Brushes

Check brushes in the brush deck for wearing
at weekly intervals and replace as required.

1.Insert brush into brush head and let it catch
(Side A has to point to the outside).

2.Place brush seating and lock by lever.

5.8.5 Changing Roller Bumper

Check roller bumpers (Fig. 11/4) at weekly
intervals and replace if required.

1/1).

Fig.11

36

Maintenance and Care

5.9 Squeegee

1 Squeegee
2 Star-shaped knob
3 Adjusting screw for angle adjustment
4 Suction hose
5 Fastening device
6 Washers for height adjustment

16 2435 2 6

5.9.1 Cleaning the Squeegee

Check the squeegee (Fig. 12/1) daily and
clean as necessary. To clean it lift the
squeegee out, pull off the suction hose (Fig.
12/4), loosen the two star-shaped knobs (Fig.
12/2) and remove the squeegee.

5.9.2 Changing the Squeegee Blades

Check the inner and outer squeegee
blades on the squeegee (Fig. 12/1) weekly
for signs of wear. The squeegee blades
can be re-used by turning them.

1.Lif

t the squeegee out.

2.Pull off the suction hose, loosen the two
star-shaped knobs and remove the squee­gee.

3. Unlock the fastening device (Fig. 12/ 5)
and remove the outer squeegee blade.
Turn the squeegee blade or install a new
one, as necessary. Change the inner
squeegee blade in the same way.

Fig.12

37

Maintenance and Care

38

Fig.13

Height Adjustment

The height adjustment is set to 3 mm at
the factory. If streaks are produced,
despite an optimum angle adjustment, the
clearance between the rollers and floor
must be adjusted by changing the number
of washers on the holder.

Maintenance and Care

3 mm

In the case of very smooth floors, e.g.
finished floors, PVC, linoleum, etc.
Number of washers = 2. This corresponds
to a clearance of approx. 2 mm.
In the case of very uneven floors, e.g.
poorly laid tiles (water does not run off)
Number of washers = 4. This corresponds
to a clearance of approx. 4 mm.

The Squeegee is equipped with
two additional rollers which are
adjusted at the factory to a
distance of 10 mm to the floor by
means of spacers.

Fig.14

2 mm

4 mm

39

40

EC-Declaration of Conformity (according to Directive 98/37/EC)

Minuteman International Inc.
14N845 U.S. Route 20
Pingree Grove, IL 60140
U.S.A.

declare under our sole responsibility, that
the product

E 24
Typ: 7061

to which this declaration relates,
corresponds to the relevant basic safety and
health requirement of the Directive 98/ 37/
EC, and to the requirements of the other
relevant Directives:
89/336/EEC.

For the relevant implementation of the safety
and health requirements mentioned in the
Directives, the following standard (s) and/or
technical specification(s) has (have) been
respected:

DIN EN 60335-2-72
DIN EN 61000-6-2
DIN EN 61000-6-3

Bad Oldesloe, 26.09.2006

Bernd Heilmann
Managing director

41

Minuteman International Made Simple Commercial Limited Warranty

Minuteman International, Inc. warrants to the original purchaser/user that the product is free from defects in workmanship and materials
under normal use. Minuteman will, at its option, repair or replace without charge, parts that fail under normal use and service when
operated and maintained in accordance with the applicable operation and instruction manuals. All warranty claims must be submitted
through and approved by factory authorized repair stations.

This warranty does not apply to normal wear, or to items whose life is dependent on their use and care, such as belts, cords, switches,
hoses, rubber parts, electrical motor components or adjustments. Parts not manufactured by Minuteman are covered by and subject
to the warranties and/or guarantees of their manufacturers. Please contact Minuteman for procedures in warranty claims against
these manufacturers.

Special warning to purchaser — Use of replacement filters and/or prefilters not manufactured by Minuteman or its designated
licensees, will void all warranties expressed or implied. A potential health hazard exits without original equipment replacemen t.

All warranted items become the sole property of Minuteman or its original manufacturer, whichever the case may be.
Minuteman disclaims any implied warranty, including the warranty of merchantability and the warranty of fitness for a particular

purpose. Minuteman assumes no responsibility for any special, incidental or consequential damages.
This limited warranty is applicable only in the U.S.A. and Canada, and is extended only to the original user/purchaser of this product.

Customers outside the U.S.A. and Canada should contact their local distributor for export warranty policies. Minuteman is not responsible
for costs or repairs performed by persons other than those specifically authorized by Minuteman. This warranty does not apply to
damage from transportation, alterations by unauthorized persons, misuse or abuse of the equipment, use of non-compatible chemicals,
or damage to property, or loss of income due to malfunctions of the product.

If a difficulty develops with this machine, you should contact the dealer from whom it was purchased.

42

This warranty gives you specific legal rights, and you may have other rights which vary from state to state. Some states do not allow the
exclusion or limitation of special, incidental or consequential damages, or limitations on how long an implied warranty lasts, so the
above exclusions and limitations may not apply to you.

Cord Electric Group............Three years parts, two years labor, ninety days travel (Not to exceed two hours)

Exceptions.....................Port-A-Scrub, one year parts, six months labor

MPV 13, one year parts
MPV 14 and 18, two years parts, one year labor
RapidAir blower, one year parts, one year labor
Explosion-Proof Vacuum, one year parts, one year labor
Pneumatic Vacuums, three years parts, one year labor
EX 12 and EX12H, one year parts, one year labor

Battery Operated Group…...Three years parts, two years labor, ninety days travel

(Not to exceed two hours)

Exceptions......Sweepers, one year parts, one year labor, ninety days travel

(Not to exceed two hours)

Internal Combustion Group….One year parts, one year labor, ninety day travel

(Not to exceed two hours)

Replacement Parts……………..Ninety days
Batteries………………………….0-3 months replacement, 4-12 months pro-rate

43

Rev A 06/12

88-10-2761

A Member of the Hako Group

www.minutemanintl.com

Phone [phone] · Fax [phone]

Minutman International · 14N845 U.S. Route 20 · Pingree Grove, Illinois 60140 USA

Excellence Meets Clean
