Explosion Proof/
Model:
Dust Ignition Proof
Class I Group D
Class II Group F, G
OPERATION
SERVICE PARTS

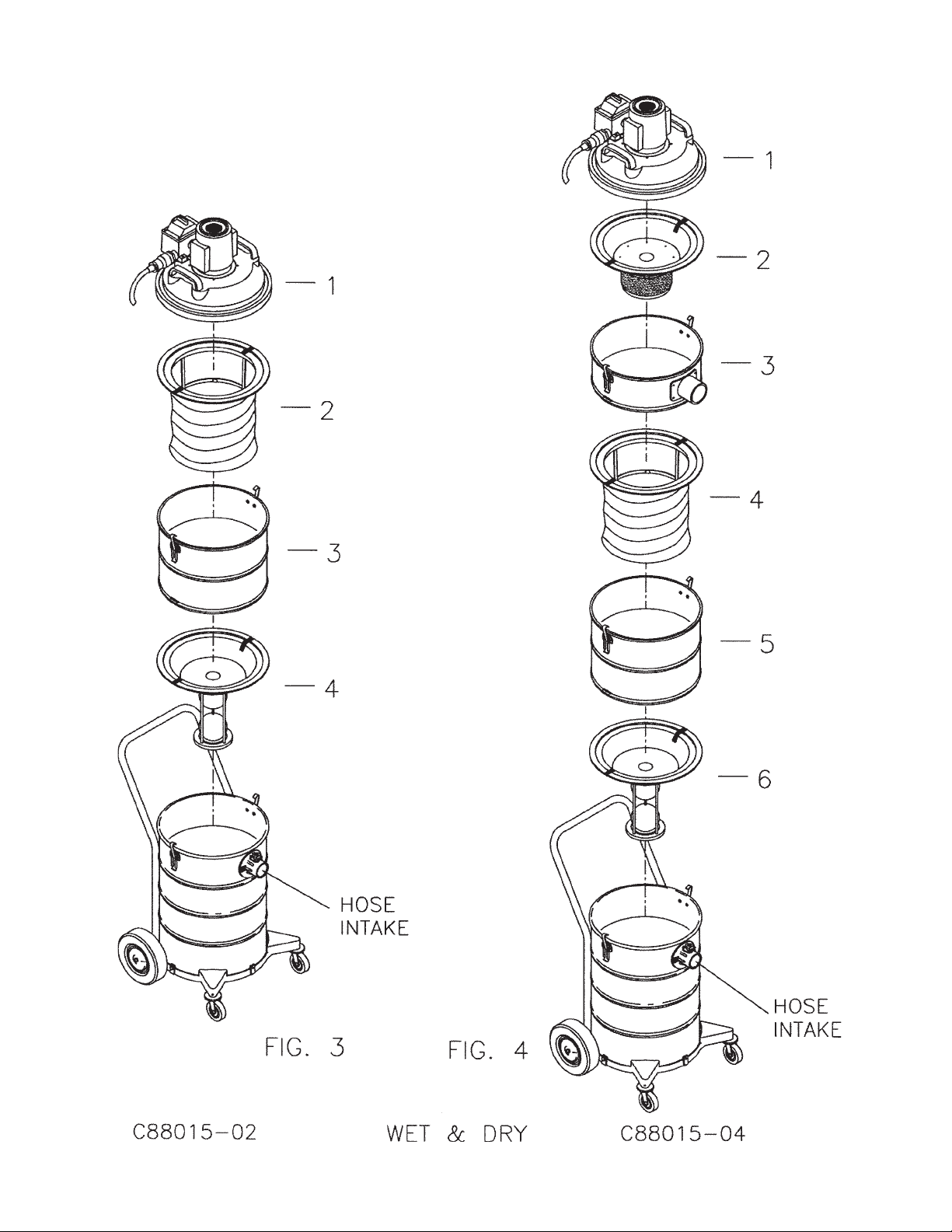

C88015-01,
02, 03, 04
CARE
123456789
BILL OF MATERIAL - 800266
Item Part No Req'd Description
1 110040 1 HEP A Filter S M Round
2 110121PK G 1 Impact Filter 6. 00 Dia.
3 740401 2 Wir e, Br aided Ground S t rap
4 712537 2 SCR-MC 10-24 x . 62 SS
5 712537 8 SCR-MC 10-24 x . 62 SS
6 712638 8 Nut- Hex 10- 24 SS Nyloc
7 712635 2 Nut- Hex 10- 24 SS
8 712757 2 WS R- Helical #10 SS
9 750006 1 Retainer I mpact A s sy. Comp.
10 800265 1 HEP A Plate Ex p- P roof
11 800273 1 Gasket, Bag Ring Exp.
12 712764 12 WS R- Flat #10 S S
1011121314
TOOL KIT EXPLOSION PROOF WET/DRY 800271
A
B
C
D
E
F
G
H
I
800022 4" RD DUST BRSH, ALUM
800023 BRUSH-BRISTLE INSERT 4"
800175MCH HOUSING-DUST BRUSH
800034 24" CREV TOOL ALUMINUM
800267 EXP-PROOF WAND ASY 1 1/2
800268 SET TUBE,HIGH-UP 10FTEXP
800064 5 FT TUBE LOWER SECTION
800269 5FT SECT UPPER EXP-PROOF
800270 SWIVEL HOSE END EXP. PRF
800276 HOSE ASSY-1 1/2"X 12' EXP
800285 TOOL-CURVED PIPE 6"
712562 BLT-HH 1/4-20 X .75 SS
712758 WSR-HELICAL 1/4 SS
800033 BRUSH-BRISTLE INSERT CURVED 6+
800193POL 6" CURVED PIPE TOOL
800286 TOOL-12" GULPER EX PROOF
710154 SCR-MC TR HD 10-32 X .625 SS
800187 GULPER NOZZLE
800217 FIBRE SHOE REAR
800218 FIBRE SHOE FRONT
800287 14" FIBRE FLR TOOL EXPRO
710530 SCR-MC FH 8-32 X .50 BRS
800003MCH FIBRE SHOD
800178MCH CASTING,TOOL MCH
J
K
800288 TOOL W/ HANDLE TUBE 6"
800280 14" SQUEEGE EX PROF
712516 SC-BHCS 8-32 X .62 SS
800121 14" RETAINING STRIP
800178MCH CASTING,TOOL MCH
800209 SQUEEGE BLAD COND WIDE
800210 SQUEEGEE BLADE COND NARROW
15
Minuteman International Made Simple Commercial Limited Warranty
REVISION H
EFFECTIVE 05/30/2012
Minuteman International, Inc. warrants to the original purchaser/user that the product is free from defects in workmanship and materials under
normal use. Minuteman will, at its option, repair or replace without charge, parts that fail under normal use and service when operated and
maintained in accordance with the applicable operation and instruction manuals. All warranty claims must be submitted through and approved by
factory authorized repair stations.
This warranty does not apply to normal wear, or to items whose life is dependent on their use and care, such as belts, cords, switches, hoses,
rubber parts, electrical motor components or adjustments. Parts manufactured by Minuteman are covered by and subject to the warranties
and/or guarantees of their manufacturers. Please contact Minuteman for procedures in warranty claims against these manufacturers.
Special warning to purchaser — Use of replacement filters and/or prefilters not manufactured by Minuteman or its designated licensees, will void
all warranties expressed or implied. A potential health hazard exists without original equipment replacement.
All warranted items become the sole property of Minuteman or its original manufacturer, whichever the case may be.
Minuteman disclaims any implied warranty, including the warranty of merchantability and the warranty of fitness for a particular purpose.
Minuteman assumes no responsibility for any special, incidental or consequential damages.
This limited warranty is applicable only in the U.S.A. and Canada, and is extended only to the original user/purchaser of this product. Customers
outside the U.S.A. and Canada should contact their local distributor for export warranty policies. Minuteman is not responsible for costs or
repairs performed by persons other than those specifically authorized by Minuteman. This warranty does not apply to damage from
transportation, alterations by unauthorized persons, misuse or abuse of the equipment, use of non-compatible chemicals, or damage to property,
or loss of income due to malfunctions of the product.
If a difficulty develops with this machine, you should contact the dealer from whom it was purchased.
This warranty gives you specific legal rights, and you may have other rights which vary from state to state. Some states do not allow the
exclusion or limitation of special, incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above
exclusions and limitations may not apply to you.
Cord Electric Group: Three years parts, two years labor, ninety days travel (Not to exceed two hours)
Exceptions……….
Model Parts Labor Poly Travel
Port A Scrub 1 yr 6 months 10 yrs 0
MPV 13 1 yr 0 0 0
MPV 14 & 18 2 yrs 1 yr 0 0
Phenom Upright Vacuums 1 yr 1yr 0 0
Rapid Air Blower 1 yr 1 yr 10 yrs 0
Explosion Proof Vacuum 1 yr 1 yr 0 0
C-BOX 100, H-BOX 200 & TRS 14
1 yr 1 yr 10 yrs 0
E17 & E20 Electric Scrubbers 1 yr 6 months 10 yrs 0
Pneumatic Vacuums 3 yr 1 yr 0 0
Description Parts Labor Poly Travel
Battery Operated Group 3 yrs 2 yrs 10 90 days
Sweepers 1 yr 1 yr 10 90 days
Internal Combustion Group 1 yr 1 yr 10 90 days
Not to exceed two hours
Exception: PAS 14B 1 yr 1 yr 10 yr 0
Battery Chargers: One year replacement
Replacement Parts: Ninety days
Batteries: 0-3 months replacement, 4-12 months pro-rate
Polyethylene Plastic Tanks: Tanks have 10yr warranty, no additional labor
987845
Rev C 10/12
