Flammable Liquid
Model:
Reco v ery V acuum
OPERATION
SERVICE PARTS
C87355-01
7910-00-632-9840
CARE
Revised 7/02
Model C87355-01, Air Operated Wet/Dry
Vacuums
Operating Instructions
Inspection
Carefully unpack and inspect your machine for shipping damage. Each unit is tested and thouroghly
inspected before shipment. Therefore any damage is the responsibility of the delivering carrier who
should be notified. Read all instructions carefully before operating.
Special W arning
Air operated equipment can generate static electricity during use. S tatic dissipating arcing can be
generated and occur if equipment and accessories are not grounded.
Air Pressure and CFM V olume Required
For maximum performance, operate with requirements listed below:
Model Air Supply Line Maximum Pressure CFM
C87355-01 1/2” 100 46
Air pressure control valve can be regulated to operate with lower pressure and CFM when maximum
is not required. OPTIONAL: Air pressure regulator can be attached at air valve for positive air pressure
and CFM control.
1
Parts List
Item Part No. Qty. Description
1 701033 1 Muffler/Flame Arrester
2 7910001 1 Lid Sub Asy
3 7910005 1 Intake Asy Complete
4 760998 1 Cover
5 7910018 1 Inlet Hose Asy
6 7910006 1 Intake Valve
7 711229 4 BLT-HH 5/16-18 x .87 STPL
8 711545 4 WSR-Helical 5/16
9 711542 13 WSR-Helical #10
10 710353 4 SCR-MC 10-32 x .37 STPL
11 701006MCH 1 Venturi Horn
12 711005 1 SCR-SK 1/4-20 x .31
13 701005MCH 1 HSG, Air Vac Mch
14 7910010 1 Relief Valve
15 701029 1 Orifice, Hex
Item Part No. Qty. Description
16 750641 1 Needle Asy
17 711010 1 SCR-SK 3/8-24 x .25
18 711357 1 Nut-Acron 5/8-11 STPL
19 701009 1 Valve, .50
20 791025 1 Lid Gasket Buna-N
21 760159 1 Splash Guard
22 701010 1 Coupler, Male .50
23 7910009 2 Latch Plate Lid Asy
24 710356 8 SCR-MC 10-32 x .62 STPL
25 701007 1 A s y , Air Inlet
26 701204 1 Wire, Braided Grnd Strap
27 711109 8 SCR-ST-A 12 x .50 PL
28 711503 2 WSR-Flat #10
29 710352 1 SCR-MC 10-32 x .25 STPL
*** 7910000 1 Lid Asy Complete
2

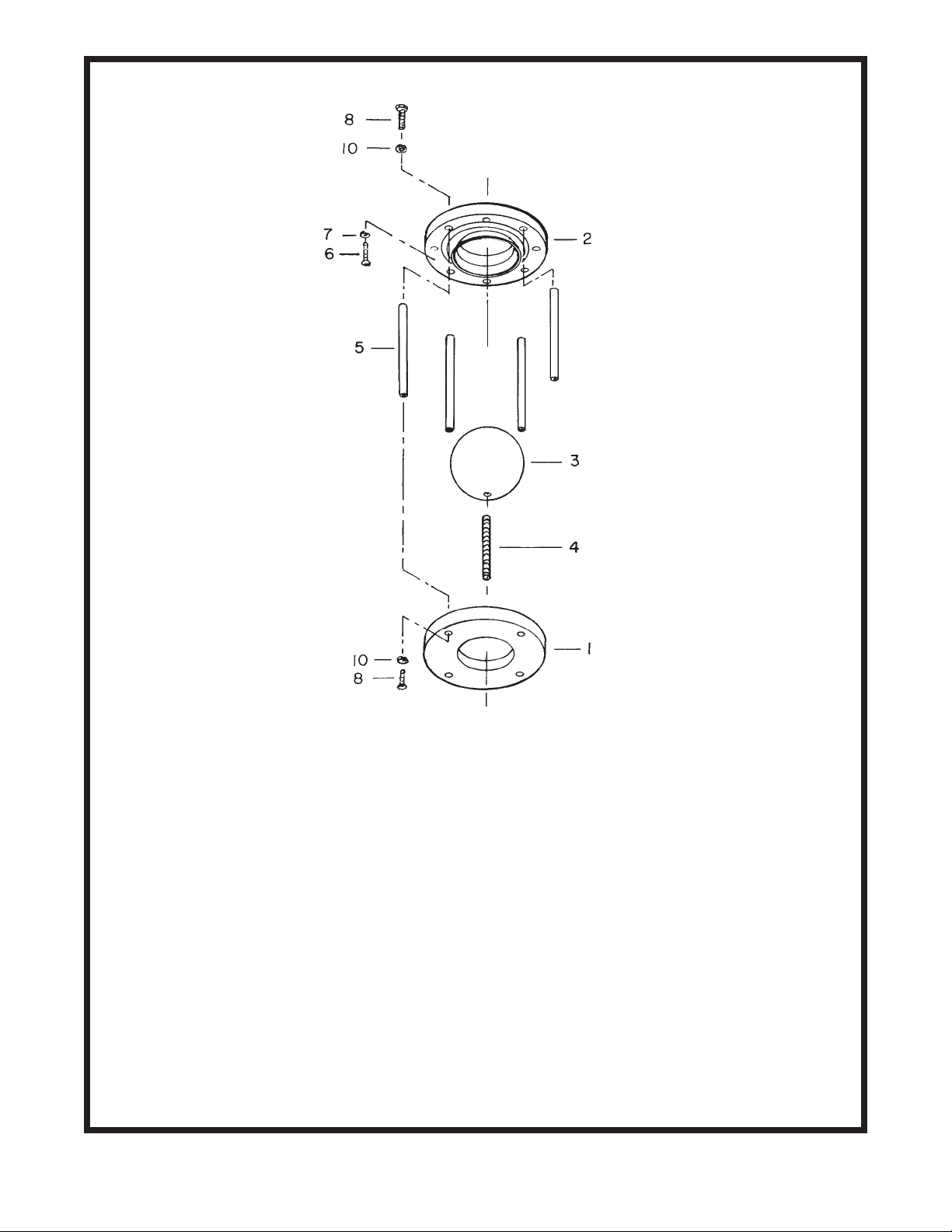

Parts List
Item Part No. Qty. Description
1 701041 1 Plate, End Cap Water Shut
2 750049 1 Plate & Tube Asy Exp
3 701016 1 Ball, Float 4 Dia
4 701013 1 Stud
5 515007 4 Rod Spacer for 51006
6 710360 2 SCR-MC 10-32 x 1.00 STPL
7 711543 2 WSR-Helical #10
8 711204 4 BLT-HH 1/4-20 x .75 STPL
9 711206 4 BLT-HH 1/4-20 x .87 STPL
10 711544 10 WSR-Helical 1/4
*** 515006 1 Liquid Shut Off Asy 55G
3
10

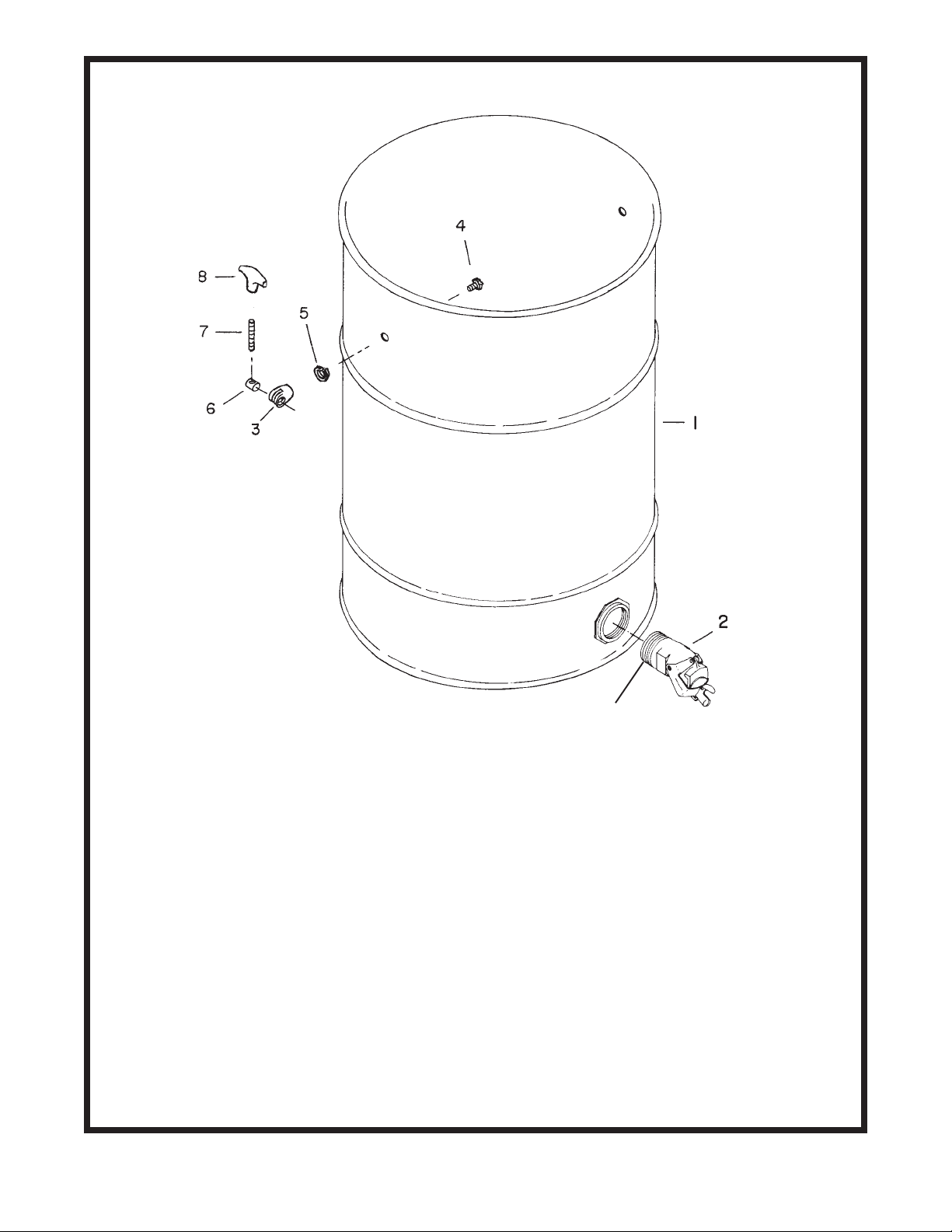

Parts List
Item Part No. Qty. Description
1 7910012 1 Drum 55 Gal Red with Yellow
2 7910026 1 Valve 2” SS Full Port Ball
3 130071PLT 2 Cam Crome Plated
4 712089 2 BLT HH 1/2 x 13 5/8
5 711556 2 WSR-Internal Lock 1/2
6 130073PLT 2 Pin, Cam Plated
7 712033 2 Stud 3/8-16 x 4.00 ST
8 130015 2 Handle, Tee
9 722508 2 WSR-Flat .44 x 1.00 x .06
10 7910027 1 2” SS Nipple
4

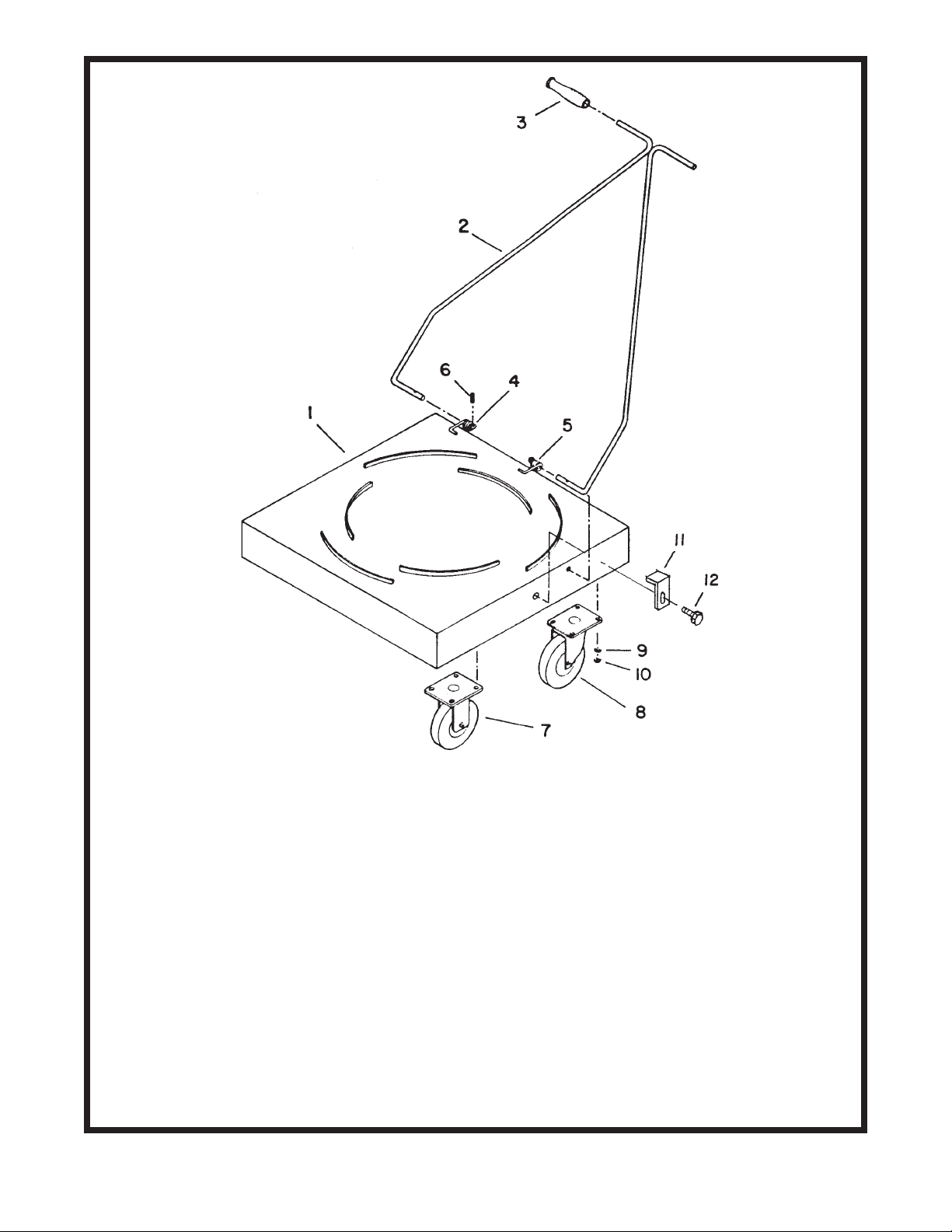

Parts List
Item Part No. Qty. Description
1 750045 1 Weldment Dolly 30/55
2 900051 1 Weldment, Hamdle
3 900052 2 Grip, Handle
4 900080 1 Spring, Torsion RH
5 900081 1 Spring LH
6 711642 2 Rollpin .187 x 1.00
7 7910015 2 Caster Rigid Conductive
8 7910014 2 Caster Swivel with Brake
9 711545 16 WSR-Helical 5/16
10 711319 16 Nut-Hex 5/16-18 STPL
11 7910016 2 Dolly Drum Loc Bkt
12 712083 2 BLT Flgd Wizz Loc 3/8 x 16
*** 7910013 1 Dolly Asy 55G with Cond Whl
5

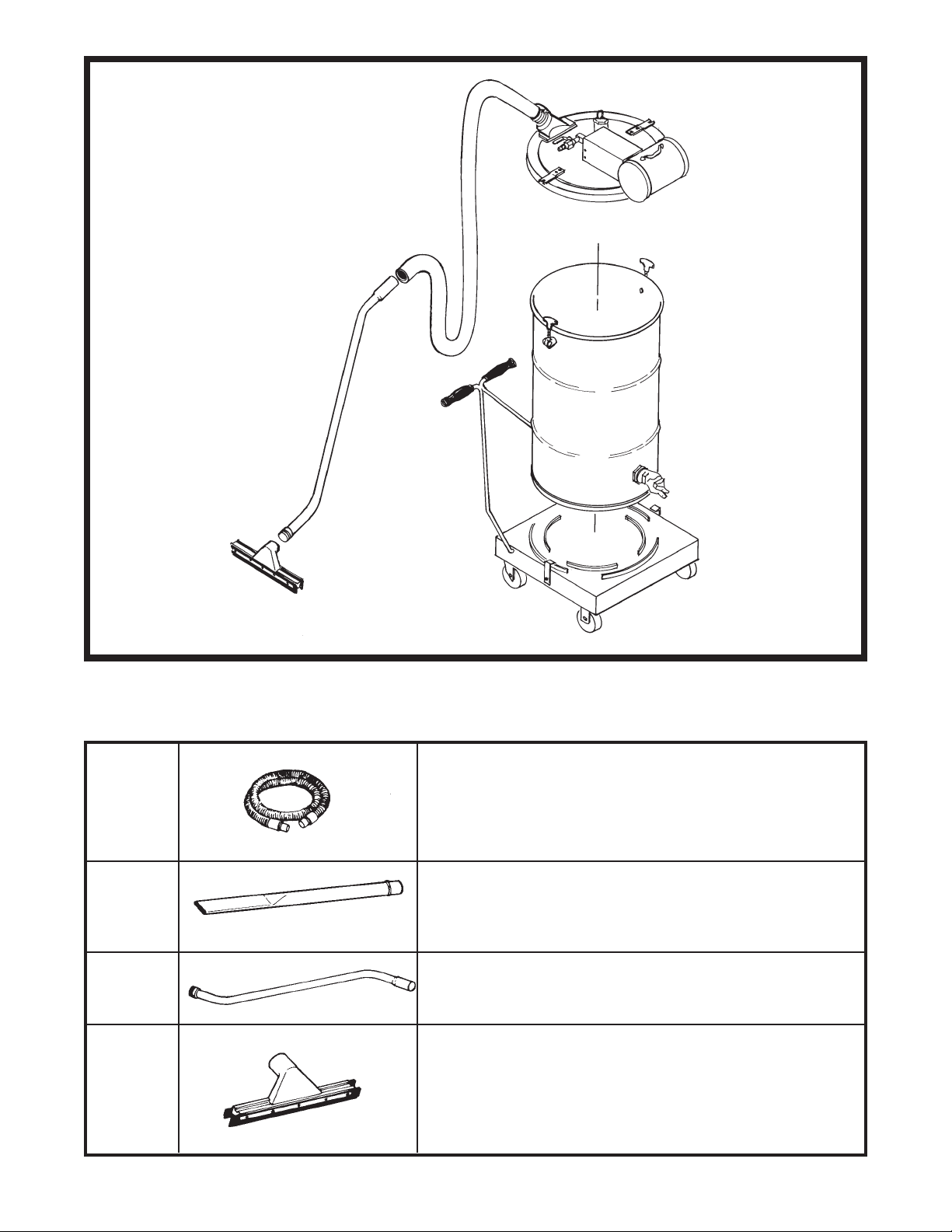

TOOLS AND ACCESSORIES
Part No. Description
A
B
C
D
7910019 Hose Nitrile 1.5 x 25 Comp.
800034 24" Crev Tool Aluminum Comp
800267 Exp-Proof Wand Asy 1-1/2 Comp
7910022 Squeege Tool Buna-N Comp
712516 SCR-SC 8/32 x .62 SS
800121 14” Retaining Strip
800178MCH Casting
7910023 Blade Buna-N Wide
7910024 Blade Buna-N Narrow
6
