Parts and Instruction Manual
Critical Filter Vacuum
Page 2
This manual is furnished with each new MINUTEMAN Critical Filter Vacuum. This provides the
necessary operating and preventive maintenance instructions. Operators must read and understand this
manual before operating or servicing this machine.
This machine was designed to give you excellent performance and efficiency. For best results and
minimal cost, please follow the general guidelines below:
· Operate the machine with reasonable care.
· Follow the manufacturers suggested maintenance instructions as provided in this booklet.
· Use original Minuteman supplied parts.
Model Critical Filter Vacuum
Model No. C82908-00
Page 3
Table of Contents
IMPORTANT SAFETY INSTRUCTIONS.............................................................................................. 1
INSPECTION........................................................................................................................................ 2
ELECTRICAL....................................................................................................................................... 2
GROUNDING INSTRUCTIONS ........................................................................................................... 2
USER MAINTENANCE INSTRUCTIONS ............................................................................................ 3
CLOTH BAG & HOSE ASSEMBLY ..................................................................................................... 3
CORD STORAGE ................................................................................................................................ 3
Operation and FIlter Care Instructions ............................................................................................. 4
Tank/Filter Set-Up Procedure.......................................................................................................... 4
Procedures in Removing Contaminated Filters and Cleaning of Contaminated Tank ..................... 4
Changing the Black Foam Prefilter.................................................................................................. 5
Filter Assembly ................................................................................................................................... 6
Changing of Pre-Filters...................................................................................................................... 6
Exploded Views .................................................................................................................................. 7
Lid Assembly ................................................................................................................................... 7
Lid Assembly BOM .......................................................................................................................... 8
Tank Assembly ................................................................................................................................ 9
Bag Assembly ............................................................................................................................... 10
Tools and Accessories ..................................................................................................................... 11
Minuteman International Made Simple Commercial Limited Warranty........................................ 12
Page 4
FOR COMMERCIAL USE ONLY
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including the
following:
READ ALL INSTRUCTIONS BEFORE USING
DANGER!
-
THIS VACUUM IS FOR PICK UP OF PARTICULATE MATERIAL ONLY.
NOT FOR VAPOR RECOVERY.
WARNING - To reduce the risk of fire, electric shock, or injury:
• Do not return to manufacturer for repair.
• Do not leave appliance when plugged in. Unplug from outlet when not in use and before
servicing.
• To avoid electrical shock, do not expose to rain, store indoors.
WARNING:
To reduce the risk of electrical shock - Do not use on wet surfaces. Do not expose to rain. Store
indoors.
• Do not allow to be used as a toy . Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been
dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around
sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust,
lint, hair, and anything that may reduce air flow.
• Keep hair , loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without dustbag and/or filters in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where
they may be present.
• Connect to a properly grounded outlet only. See grounding instructions.
SAVE THESE INSTRUCTIONS
Parts an d Instruction Manual
Page 1
Page 5
INSPECTION
Carefully unpack and inspect your machine for shipping damage. Each unit is tested and thoroughly
inspected before shipment, and any damage is the responsibility of the delivery carrier who should
be notified immediately.
ELECTRICAL
This machine is designed to operate on a standard 15 amp. 115 volt, 60 hz, AC circuit. V oltages
below 105 volts AC or above 125 volts AC could cause serious damage to the motor.
-
115 Volt
WARNING
Electric motors can cause explosions when operated near explosive materials or vapors. Do not
operate this machine near flammable materials such as solvents, thinners, fuels, grain dust, etc.
GROUNDING INSTRUCTIONS
This appliance must be grounded. If it should malfunction or breakdown, grounding provides a
path of least resistance for electric current to reduce the risk of electric shock. This appliance is
equipped with a cord having an equipment-grounding conductor and grounding plug. The plug
must be plugged into an appropriate outlet that is properly installed and grounded in accordance
with all local codes and ordinances.
DANGER
Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or service person if you are in doubt as to whether the outlet is
properly grounded. Do not modify the plug provided with the appliance — if it will not fit the outlet,
have a proper outlet installed by a qualified electrician.
This machine is for use on a nominal 120 volt circuit and has a grounding plug that looks like the
plug illustrated in Sketch A. Make sure that the machine is connected to an outlet having the
same configuration as the plug. No adapter should be used with this appliance.
Parts an d Instruction Manual
Page 2
Page 6
WARNING
This vacuum may contain potentially hazardous dust depending on its appilcation. Special handling
of contaminated disposal bags and filters is recommended. Disposal must be in compliance with
local EPA regulations
USER MAINTENANCE INSTRUCTIONS
All service and repair should be performed by qualified vacuum service representative or electrician.
No user serviceable components are employed in the electrical vacuum lid head assembly. No
lubrication of the motor is required.
CLOTH BAG & HOSE ASSEMBLY
Cloth bag and hose assembly are user maintenance items and can be replaced when worn out.
For optimum performance, empty and clean filter bag regularly. A clogged and dirty bag restricts
the flow of air and results in reduced vacuum. The hose assembly can be maintained by wiping
off with a dampened cloth of mild liquid soap and water, then allowed to dry.
CORD STORAGE
While not in use storage can be accomplished by winding cord around motor lid assembly. Cord
should be completely unwound from lid assembly during operation.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been
dropped, damaged, left outdoors, or dropped into water, return to service center.
• Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp
edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Always unplug the machine when removing the motor head off the tank. This equipment should
be stored indoors and not exposed to rain.
Always unplug the machine when removing the motor head off the tank. This equipment should
be stored indoors and not exposed to rain.
Parts an d Instruction Manual
Page 3
Page 7
Operation and FIlter Care Instructions
The Minuteman Critical Filter Vacuum has been specifically designed to clean up hazardous dust of all types.
Special filters reduce the incidence of airborne dust that would be created by any other method of cleaning.
• During the removal of hazardous dust, do not sweep, scoop, shovel, or in any manner handle other than by
• Do not at any time attempt to bypass, remove, substitute or by any other means change the filters used in this
• Before attempting to use and before cleaning, be certain that you fully understand the instructions given for the
• Use only approved Minuteman Critical Filter Vacuum filters and filter bags.
• In light cleaning situations Change filters once daily uless you have determined by checking that a shorter or
Each facility has its own individual and unique cleaning problems, it is suggested that you use the following:
Tank/Filter Set-Up Procedure
1. Fully open the plastic bag and place it down into the tank on the underside of the intake tube as shown.
2. Take the paper bag that has the cardboard collar attached and open it up by gently pulling the folds apart.
3. You will notice two creases on the top side of the collar; carefully bend the ends down (toward) the bag.
4. Insert this bag into the tank and push it to the bottom, taking care not to snag the plastic bag.
5. Locate the cardboard collar around the intake tube and gently work it up past the raised ring that runs around
6. Push the plastic bag down past the paper bag; position it about 1/2 to 2/3 down past the top of the bag.
7. Starting at the bottom of the cloth filter, slip the paper filter protector over the entire cloth filter until the elastic
8. Ensure that the inside steel frame that supports the cloth filter is inserted into the tank with the cut out section
9. Position the lid onto the tank, making sure that the paper filter elastic is inside the cloth filter frame so that the
10. Snap the lid latches into place.
vacuuming.
vacuum.
setting up or cleaning/changing of filters of this vacuum.
longer period of time would be necessary to meet 10 pounds of material
the tube.
band on the paper filter protector goes around the black plastic frame of the cloth filter.
facing the front of the down tube. Then insert the cloth filter and paper filter protector inside the tank. Be careful
not to rip the paper filter protector when pushing the cloth filter with steel frame into the tank.
U.L.P.A. filter will go down inside the cloth filter. Make sure that the motor lid is seated onto the ring of the cloth
filter frame completely around the tank.
For proper cleaning of the tank and removal/changing of the filters, see “Procedures in Removing Contaminated
Filters and Cleaning of Contaminated Tank.”
Procedures in Removing Contaminated Filters
and Cleaning of Contaminated Tank
Always wear a facemask and gloves when conducting this procedure.
1. Unplug the machine from the power source.
2. Carefully and slowly unlatch the tank latches and remove the vacuum lid only (be sure when you lift up on the
lid that the cloth filter stays inside the tank.) Set the lid with the U.L.P.A. filter assembly aside.
3. Gently remove the cloth and paper filter protector from the tank. Carefully place the paper and cloth filter into a
plastic bag. With one hand grab the bottom of the paper filter protector through the plastic bag and with the
other hand release the elastic band from around the cloth filter frame. Slide the cloth filter out of the paper bag.
Set the cloth filter and frame aside.
4. Before closing up the plastic bag with the used paper filter inside, check the prefilter filter attached to the
U.L.P.A. filter for any noticeable dirt. The impact filter should be changed every other time you change the
paper filter or if any dirt particles are noticed during inspection. Then the used impact filter can also be put into
the plastic bag before sealing up for disposal. See “Changing the Black Foam Prefilter” for more information.
(Continued on next page)
Parts an d Instruction Manual
Page 4
Page 8
Procedures in Removing Contaminated Filters
and Cleaning of Contaminated Tank (Con’t)
5. Carefully surround the paper debris bag with the plastic bag in the bottom of the tank. Pull the opening of the
6. Slowly pull the top of the plastic bag upwards. When you have the plastic bag fully extended upwards,
7. Lift the bag out of the tank and dispose of it properly.
8. Before inserting another plastic bag and paper debris bag, take a wet paper towel and wipe out the inside of
9. To help prolong the life of the U.L.P.A. filter, a spare cloth filter should be interchanged with the existing cloth
10. CAUTION: Any hazardous materials must be disposed of properly. Never throw contaminated debris into you
11. For proper assembly of new filters, see “Tank Filter Set Up Procedures.”
plastic bag securely around the down tube with one hand. This plastic bag will completely encapsulate the
debris bag. Push downward on the debris bag on the debris bag’s cardboard collar until it slips off of the
downtube.
slowlysqueeze the plastic bag closed to avoid trapping excess air. Twist the plastic bag until enough plastic
can be tied into a knot.
the tank of any dirt contaminate. Put this inside the plastic bag along with the used paper filter protector and
impact filter. This plastic bag should also be twisted shut, tied into a knot and disposed of properly.
filter. Vacuum out when there is any noticeable dirt or soil. The cloth bag can also be sprayed with a garden
hose from the inside out to remove any soil. Make sure that the cloth filter is completely dry before reinstalling
it into the vacuum.
usual trash receptacle. Place debris in a plastic bag or can marked “Hazardous Materials” and take to a
hazardous waste handler.
Changing the Black Foam Prefilter
The prefilter should be changed using all of the precautions previously mentioned.
The prefilter should be changed when any of the following takes place:
1. Anytime there is an indication of a filter tear during normal operation of the unit. This tear could be in any of the
filters used.
a. paper dust containment bag
b. paper bag protector
c. cloth filter bag
These tears would show up during the tank clean-out procedure, or...
2. Every other tank clean-out period. To change the prefilter, do the following before you do Step #3 of the normal
clean-out procedure.
a. Wipe down all of the exposed surfaces on the underside of the removed lid, using the dampened wiping
cloth.
b. Remove the prefilter from the high efficiency filter. Be careful so as not to damage or puncture the U.L.P.A.
media used in the final filter . Do not attempt to clean the prefilter in any way; dispose of by placing it into the
tank you are now in the process of cleaning. DO NOT USE ANY TOOLS TO REMOVE THE PREFILTER.
c. Before proceeding any further in cleaning the tank, first place a new prefilter (one only) onto the U.L.P.A.
filter.
Parts an d Instruction Manual
Page 5
Page 9

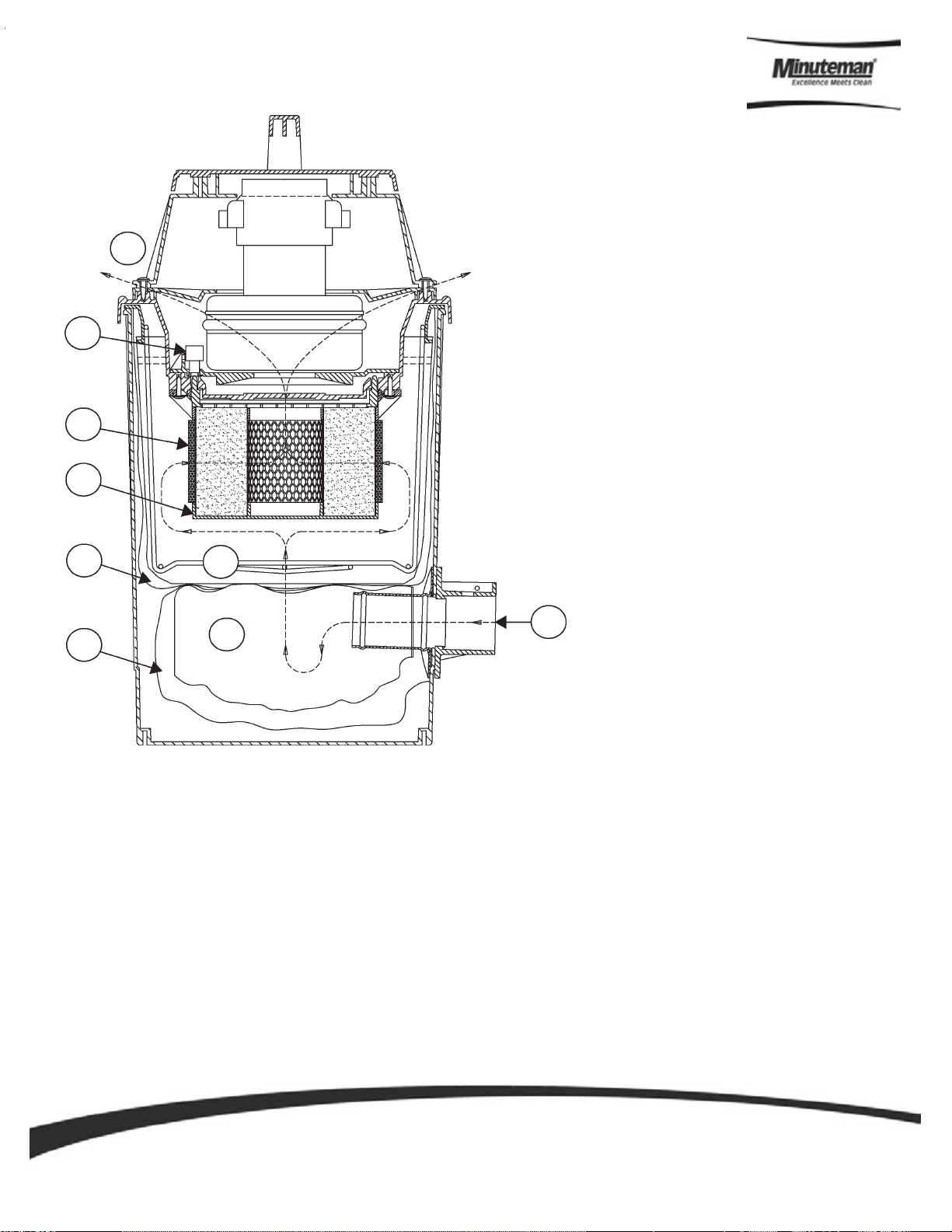

Filter Assembly
9
8
6
7
1) Intake
2) Disposable Paper Collector Bag,
384003PKG (10/pkg)
3) Plastic Bag, 802206PKG (10/pkg)
4) Disposable Paper Filter Protector,
761 177PKG (10/pkg)
5) Cloth Filter w/Frame
6) Disposable Impact Filter
7) Critical Filter
8) Safety Interlock
9) Exhaust
4
3
5
2
1
Changing of Pre-Filters
In order to prolong the efficiency and performance of the critical filter it is recommended that
each pre-filter, debris bag and paper filter protector be changed every time the debris bag is
full. Change the impact filter every second time or if a bag breaks or tears. Follow the manual
for bag replacement.
Whenever the vacuum is in operation or being emptied, the operator should be wearing
protective clothing and respirator for protection.
All used pre-filters and debris bags should be handled and disposed of in accordance with local
regulations.
Parts an d Instruction Manual
Page 6
Page 10
Exploded Views

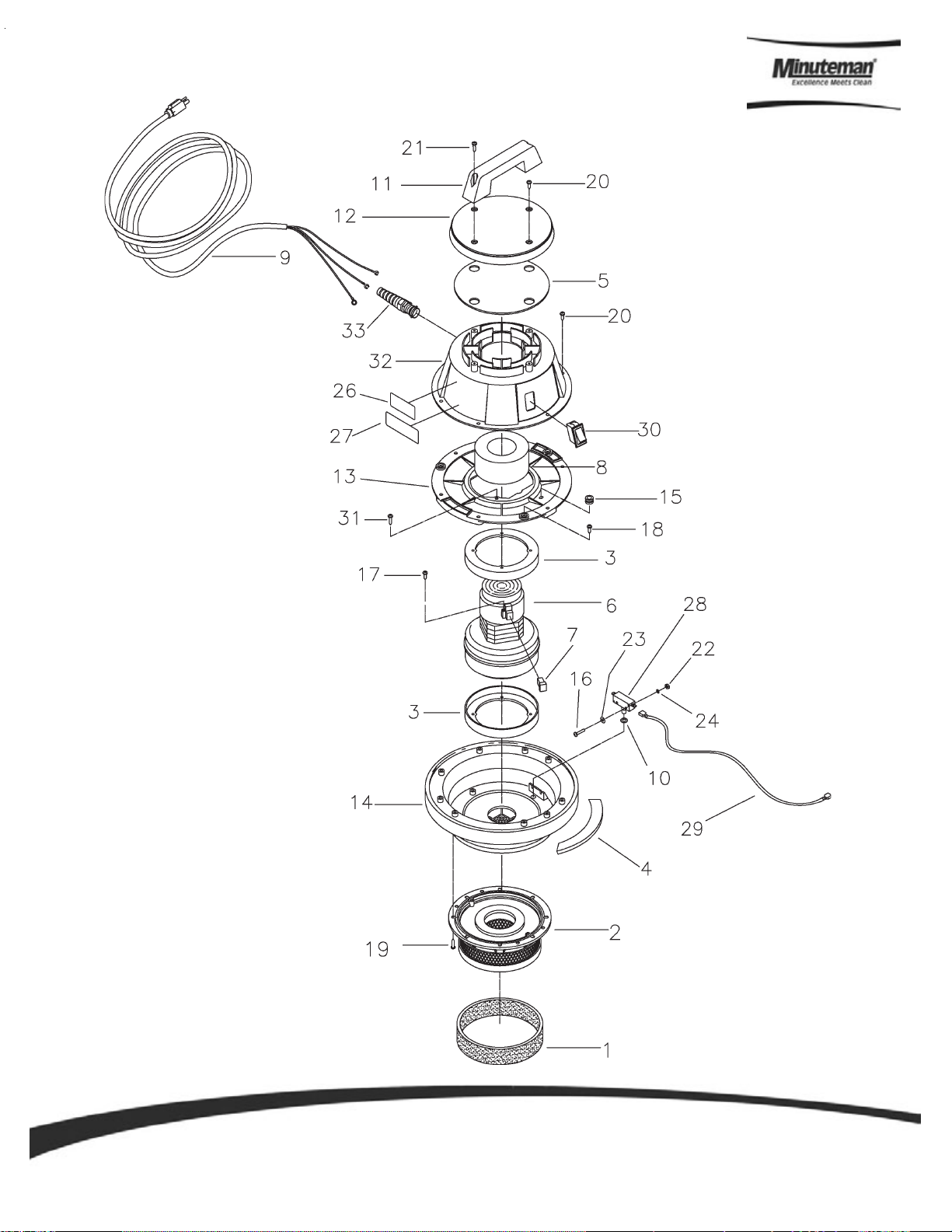

Lid Assembly
Parts an d Instruction Manual
Page 7
Page 11
Lid Assembly BOM
Item Part No. Qty. Description
1 110030PKG 1 Prefilter Sleeve, 829/839, PKG of 6
2 110029 1 Filter-ULPA X829 Series
3 290017 2 Molded Vac Motor Gasket
4 290031 1 Gasket Lid 294/6 Diecut
5 290032 1 Dome Seal 296
6 380001-4 1 Motor-Vac 120V (ECM) w/ Wires
7 380005 2 Carbon Brush Replacement (ECM)
8 380064 1 Foam Ring
9 381020 1 Cord-16GA-3 50FT Med Grey
10 390062 1 O-Ring Valve Seat Body
11 460001 1 Handle Basic 460 Black
12 460101 1 Motor Cap Black
13 460104MCH 1 Motor Holddown 829Series
14 460120 1 Motor Pan Assy 829Series
15 700287 1 Grommet
16 710307 2 SCR-MC 6-32 x 1 Zinc
17 711124 1 SCR-ST-B 10 x .37 NI
18 711125 3 SCR-ST-B 10 x .50 NI
19 711160 9 SCR Hi/Lo #10 x 5/8 Zinc
20 711161 8 SCR Hi/Lo #10 x 3/4 Zinc
21 711162 2 SCR Hi/Lo #10 x 1 1/2 Zinc
22 711301 2 Nut-Hex 6-32 ST PL
23 711502 2 WSR-Flat #8
24 711551 2 WSR-Int Lock #6
26 715009 1 Decal, Warning to Avoid
27 715531 1 Decal, Danger Do Not Return
28 740029 1 Switch-Snap SPST PB NO/NC
29 740938 1 Wire Assy 16G Black 14.00”
30 809754 1 Switch Rocker
31 828893 1 Rivet-BAP KTR64BX
32 460100 1 Motor Lid Cover - Black
33 833237 1 Strain Relief w/Nut
*** 829117-3 1 Lid Assy Critical Filter 115V
To install prefilter simply slide black foam sleeve over ULPA canister
WARNING
This vacuum may contain potentially hazardous dust depending on its appilcation. Special handling of
contaminated disposal bags and filters is recommended. Disposal must be in compliance with local
regulations.
Parts an d Instruction Manual
Page 8
Page 12

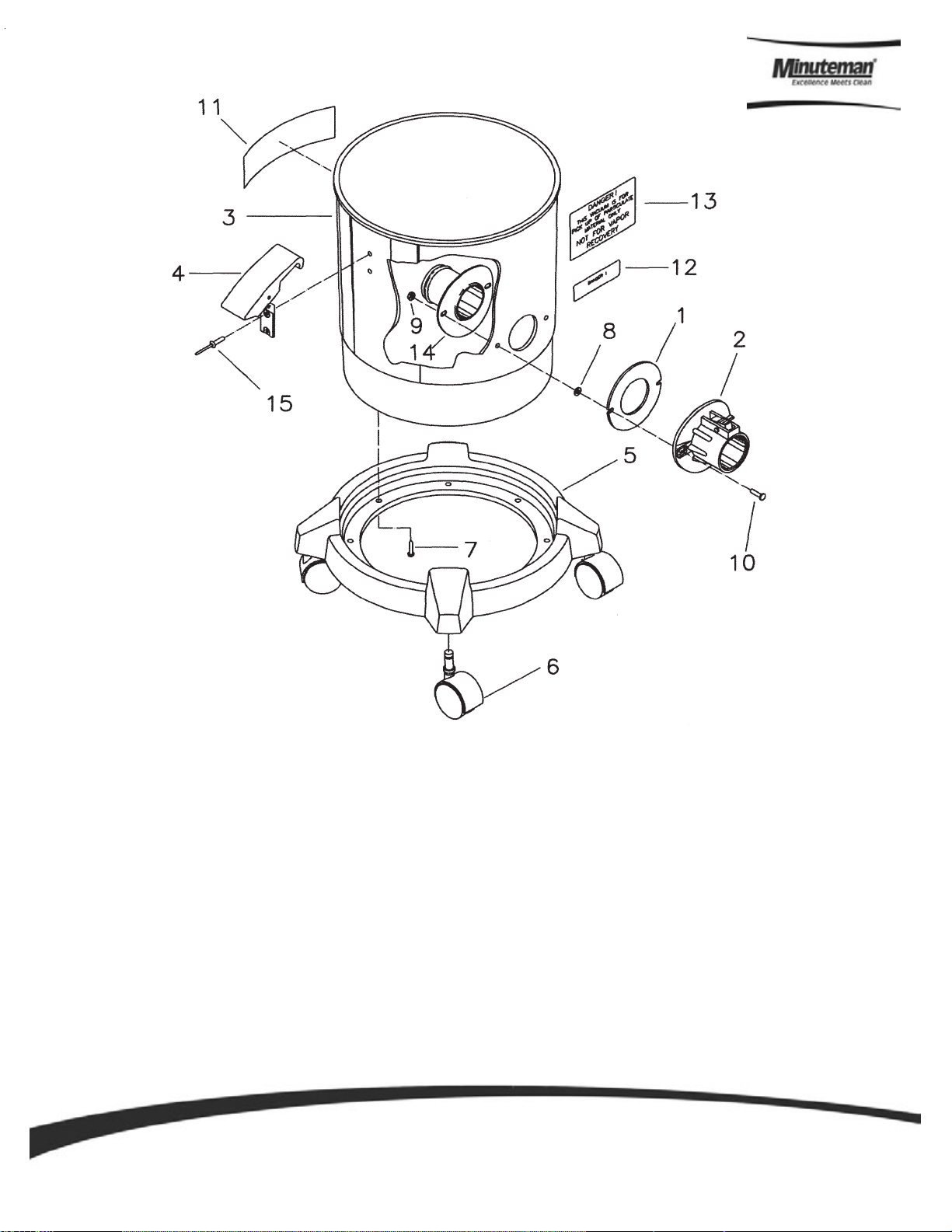

T ank Assembly
Parts an d Instruction Manual
Item Part No. Qty. Description
1 390087 1 Gasket Diecut VNN
2 390110 1 Intake Assembly Aluminum
3 460109 1 Tank 6 Gal Low Intake
4 46011 4 2 Latch Poly Tank
5 460115 1 Dolly, Plast Vac Tnk Blk
6 46011 8 4 Caster
7 711160 4 SCR Hi/Lo #10 x 5/8 Zinc
8 712320 2 WSR .20 x .45 x .048 NYL
9 712638 2 Nut Hex 10-24 SS Nyloc
10 712824 2 SCR-MC 10-24 x .75 Truss HD ST
11 715383 1 Decal, MMN 1x6.88 Lt Gry
12 715531 1 Decal, Danger Do Not Return
13 715532 1 Decal, Danger THis Vacuum Is
14 750118 1 Intake Asy Tube 4/6 Gal
15 828893 4 Rivet-BAP KTR64BX
*** 290010-3 1 Tank Assy Low Intake 6G
Page 9
Page 13

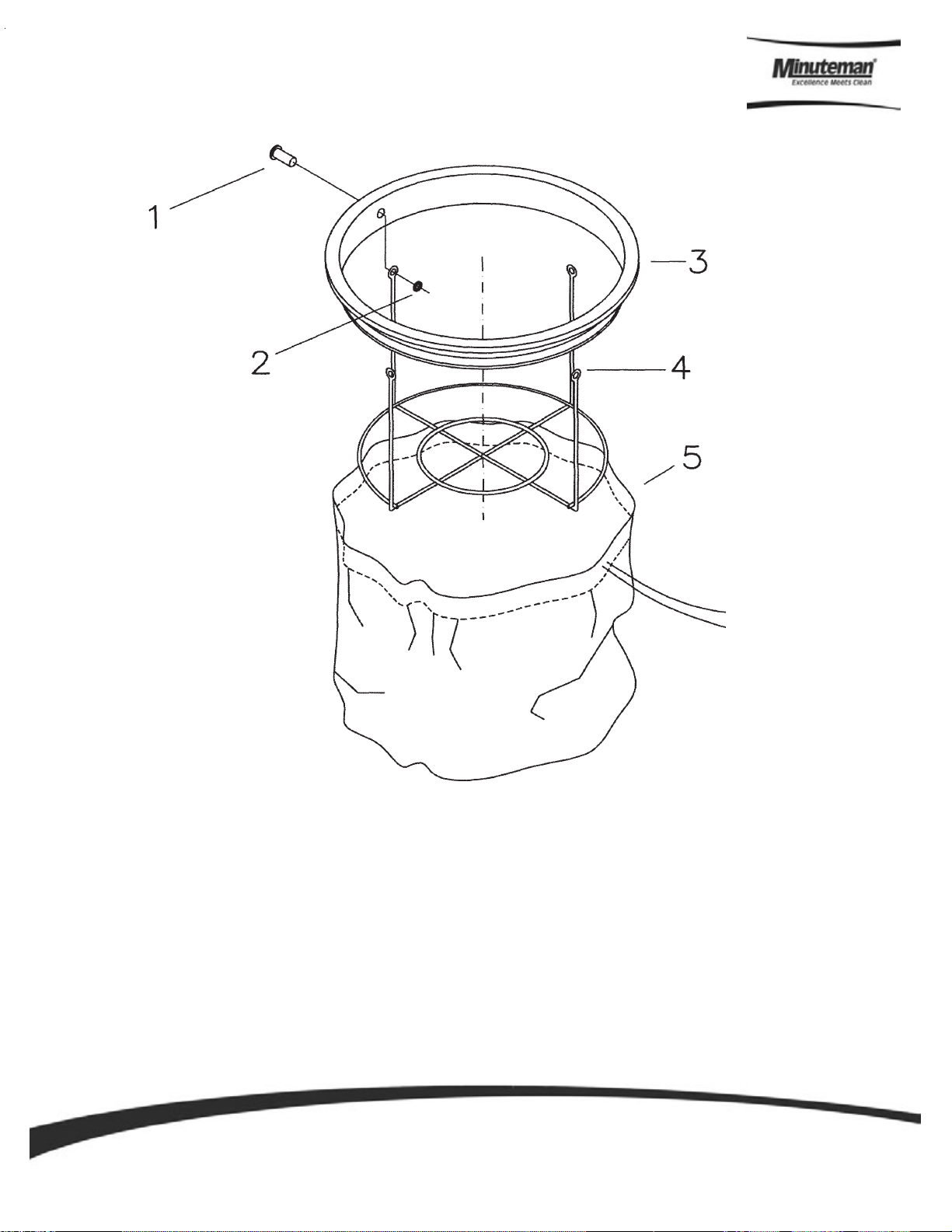

Bag Assembly
Parts an d Instruction Manual
Item Part No. Qty. Description
1 711909 4 Pop Rivet .19x.44 AL
2 712764 4 WSR #10 SS
3 760244MCH 1 Bag Frame w/Hole
4 760406PLT 1 Bag Frame 6 Gal Plated
5 805040 1 Bag, Cloth Bag Only 6G
*** 800056 1 Bag Asy w/Frame 6 Gal
Page 10
Page 14

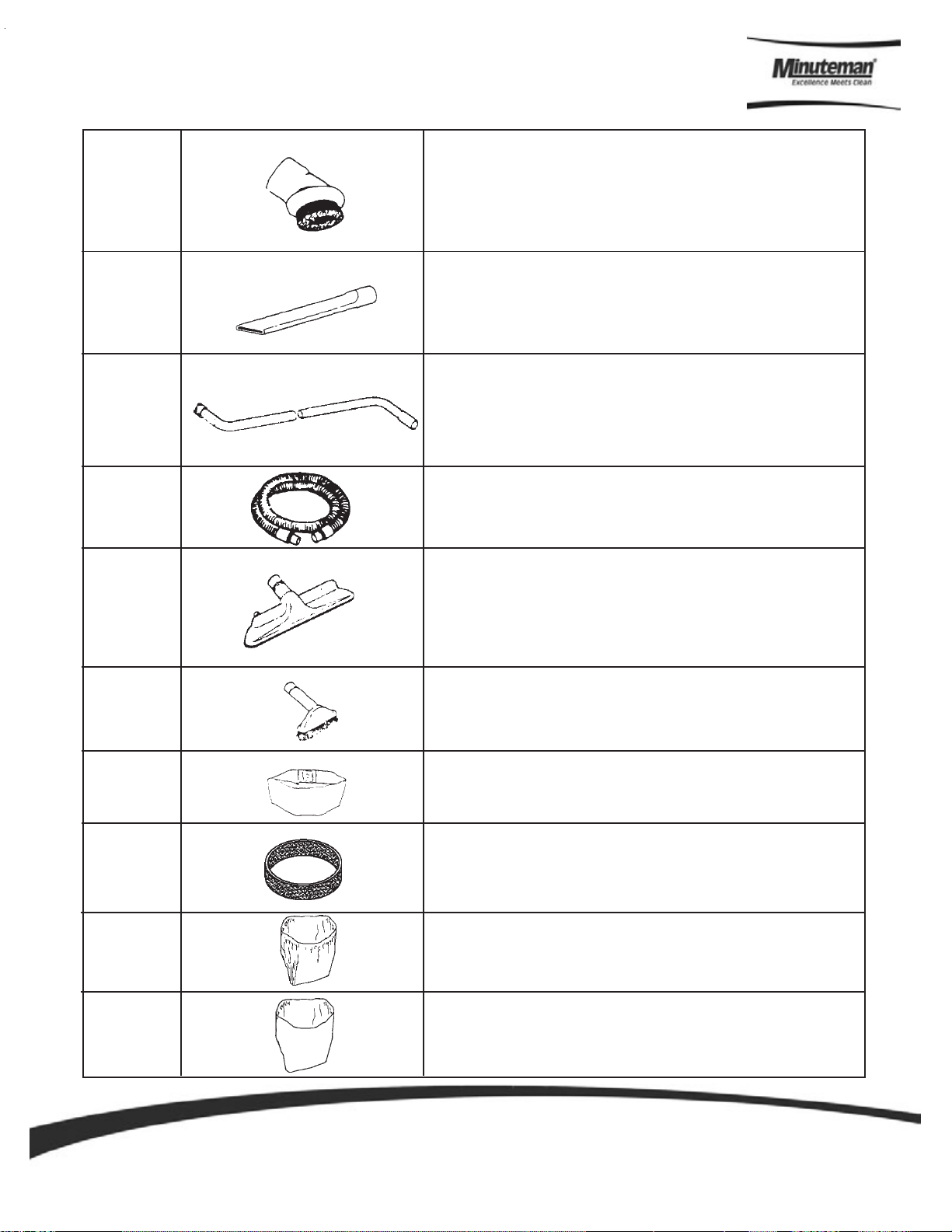

Tools and Accessories
A
B
C
D
Part No. Description
800083 3” Rd Dust Brush Complete
133249 Dust Brush HSG 3”
800084 Bristle Insert 3”
808023 Adapter
800035 12” Crev Tool Complete
290000 Wand Asy 1-1/2”, Complete
290001 Wand - Upper
290002 Wand - Lower
800317 Hose Assy. 1-1/2” x 10’
390014 Cuff
801044 Hose
E
F
G
H
I
J
807237 16” Floor Tool, Complete
807374 Brush Replacement
133215 Sleeve Support
807214 Nozzle Floor
807381 Adj. Lever
800124 5” Tool Only Without Insert
384003PKG Disposable Paper Replacement
Filter Bags
Package of 10
110030PKG Pre-Fliter Assembly
Package of 6
761 177PKG
802206PKG Plastic Bag
Disposable Paper Filter Protector
Package of 10
Plain Brown, 2 mil.
Package of 10
133214 Spring
712065 Screw
133217 Adj. Screw
Parts an d Instruction Manual
Page 11
Page 15
Minuteman International Made Simple Commercial Limited Warranty
Minuteman International, Inc. warrants to the original purchaser/user that the product is free from defects in
workmanship and materials under normal use. Minuteman will, at its option, repair or replace without charge, parts
that fail under normal use and service when operated and maintained in accordance with the applicable operation and
instruction manuals. All warranty claims must be submitted through and approved by factory authorized repair
stations.
This warranty does not apply to normal wear, or to items whose lif e is dependent on their use and care, such as belt s,
cords, switches, hoses, rubber parts, electrical motor components or adjustments. Parts not manufactured by
Minuteman are cover ed by and subject to the warranties and/or guarantees of their manufacturers. Please contact
Minuteman for procedures in warranty claims against these manufacturers.
Special warning to purchaser -- Use of replacement filters and/or prefilters not manufactured by Minuteman or its
designated licensees, will void all warranties expressed or implied. A potential health hazard exits without original
equipment replacem ent .
All warranted items become the sole pro perty of Minuteman or its ori gi nal manufactu rer, whicheve r the case ma y be.
Minuteman disclai ms any implied warranty, including t he warranty of merchantability and the warranty of fitness f or a
particular purpose. Minuteman ass um es no responsibility for any special, incidental or consequential damages.
This limited warranty is applicable only in the U.S.A. and Canada, and is extended only to the original user/purchaser
of this product . Customers outside the U.S.A. and Canada should contact their local distributor for export warranty
policies. Minuteman is not responsible for costs or repairs performed by persons other than those specifically
authorized by Minut eman. This war ranty does not apply to damage from transportation, alterations by unauthorized
persons, misuse or abuse of the equipment, use of non-compatible chemicals, or damage to property, or loss of
income due to malfunct io ns of th e product.
If a difficulty develops with this machine, you should contact the dealer from whom it was purchased.
This warranty gives you specific legal rights, and you may have other rights whic h vary from state to state. Some
states do not allow the exclusion or limitation of special, inci dental or consequent ial damages, or limitations on how
long an implied warr anty lasts, so the above exclusions and limitations may not apply to you.
Cord Electric Group………. Three years part s, two years labor, ninety day s travel (Not to exceed tw o hours)
Exceptions………. Port-A-Scrub, one year parts, six months labor
MPV 13, one year parts
MPV 14 and 18, two years parts, one y ear labo r
RapidAir blower, one year parts, one year labor
Explosion-Proof Vacuum, one year parts, one year labor
Pneumatic Vacuums, three years parts, one year labor
Battery Op er ated Group….. Three years parts, two years labor, ninety days travel
(Not to exceed two hours )
Exceptions……Sweepers, one year parts, one year labor, ninety days travel
(Not to exceed two hours )
Internal Combustion Group….One year parts, one year labor, ninety day travel
(Not to exceed two hours)
Replac ement Parts……………..N i net y days
Batteries………………………….0-3 months replacement, 4-12 months pro-rate
Polypropylene Plastic Tanks…Ten years, no additional labor
Parts an d Instruction Manual
111 South Rohl wing Road · Addison, Illinoi s 60101 USA
Phone 630- 627-6900 · Fax 630- 627-1130
E-Mail, www.minutemanintl.com
A Member of the Hako Gr oup
987814-2
Page 12
Rev B 08/07
Loading...
