Parts and Instruction Manual
ET™ Extraction Tool
This manual is furnished with each new MINUTEMAN ET™ Extraction Tool. This provides the
necessary operating and preventive maintenance instructions. Operators must read and understand this
manual before operating or servicing this machine.
This machine was designed to give you excellent performance and efficiency. For best results and
minimal cost, please follow the general guidelines below:
· Operate the machine with reasonable care.
· Follow the manufacturers suggested maintenance instructions as provided in this booklet.
· Use original Minuteman supplied parts.
TECHNICAL SPECIFICATIONS
Model ET™
Model No. C46300-00 / C46300-02
Motor 100 W atts, grounded
Switch Splash Proof - Two Speed
Brush Speed 1600 & 2000 rpm
Brush Change No Tools Required
Power Cable 15 ft. (4.6m) Standard, STJW
Handle 32” (81cm)
Cleaning Width 3.75” (9.5 cm)
Brushes Stiff Nylon Carpet Brush
IMPORTANT SAFETY INSTRUCTIONS ....................................................................... 1
INSPECTION ................................................................................................................. 2
ELECTRICAL ................................................................................................................2
Model C46300-00 (115V) ..........................................................................................2
Model C46300-02 (230V)..........................................................................................2
GROUNDING INSTRUCTIONS.....................................................................................2
(for Model C46200-00 Carpet Spotter and C46000-00 Ambassador) ....................... 2
USER MAINTENANCE INSTRUCTIONS......................................................................3
DAILY MAINTENANCE .............................................................................................3
MONTHLY/BI-MONTHLY MAINTENANCE ...............................................................3
CORD STORAGE .....................................................................................................3
OPERATING INSTRUCTIONS ......................................................................................4
EXTENSION WAND INSTALLATION............................................................................ 5
BRUSH REPLACEMENT ..............................................................................................5
Exploded Views............................................................................................................6
Main Assembly ..........................................................................................................6
Head Assembly ......................................................................................................... 7
Handle Assembly....................................................................................................... 8
Minuteman International Made Simple Commercial Limited Warranty ................... 9
Table of Contents
FOR COMMERCIAL USE ONLY
When using an electrical appliance, basic precautions should always be followed, including the
following:
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING
WARNING
• Do not leave appliance when plugged in. Unplug from outlet when not
in use and before servicing.
- To reduce the risk of fire, electric shock, or injury:
WARNING
To reduce the risk of electrical shock, do not expose to rain. Store indoors.
• Do not immerse.
• Use only with Minuteman Carpet Spotter model C46200-00 and Ambassador
Model C46000-00.
• Do not allow to be used as a toy. Close attention is necessary when used
by or near children.
• Use only as described in this manual. Use only manufacturer’s recommended
attachments.
• Do not use with damaged cord or plug. If appliance is not working as it
should, has been dropped, damaged, left outdoors, or dropped into water,
return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or
pull cord around sharp edges or corners. Do not run appliance over cord.
Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked;
keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings
and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes,
matches, or hot ashes.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids such as gasoline or
use in areas where they may be present.
• Connect to a properly grounded outlet only. See grounding instructions.
• This machine is not suitable for picking up health endangering dust.
• Do not use for general wet pick up applications - use only on carpet moistened
by the cleaning process.
SAVE THESE INSTRUCTIONS
Parts an d Instruction Manual
Page 1
INSPECTION
Carefully unpack and inspect your machine for shipping damage. Each unit is tested and thoroughly
inspected before shipment, and any damage is the responsibility of the delivery carrier who should
be notified immediately.
ELECTRICAL -
This machine is designed to operate on a standard 15 amp. 115 volt, 60 hz, AC circuit. V oltages
below 105 volts AC or above 125 volts AC could cause serious damage to the motor.
ELECTRICAL -
This machine is designed to operate on a standard 16 amp. type L fused 230 volt, 50 hz, AC
circuit. Voltages below 200 volts AC or above 250 volts AC could cause serious damage to the
motor. I.E.C. Class 1.
Model C46300-00 (115V)
Model C46300-02 (230V)
WARNING
Electric motors can cause explosions when operated near explosive materials or vapors. Do not
operate this machine near flammable materials such as solvents, thinners, fuels, grain dust, etc.
GROUNDING INSTRUCTIONS
This appliance must be grounded. If it should malfunction or breakdown, grounding provides a
path of least resistance for electric current to reduce the risk of electric shock. This appliance is
equipped with a cord having an equipment-grounding conductor and grounding plug. This plug
must be plugged into the Carpet S potter Model C46200-00 or C46000-00 as shown on page 4 fig.
2. The power supply cord plug on Model C46200-00 and C46000-00 must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and
ordinances. See grounding instructions below for Model C46200-00 and C46000-00.
DANGER - Improper connection of the equipment-grounding conductor can result in a risk
of electric shock. Check with a qualified electrician or service person if you are in doubt as to
whether the outlet is properly grounded. Do not modify the plug provided with the appliance — if
it will not fit the outlet, have a proper outlet installed by a qualified electrician.

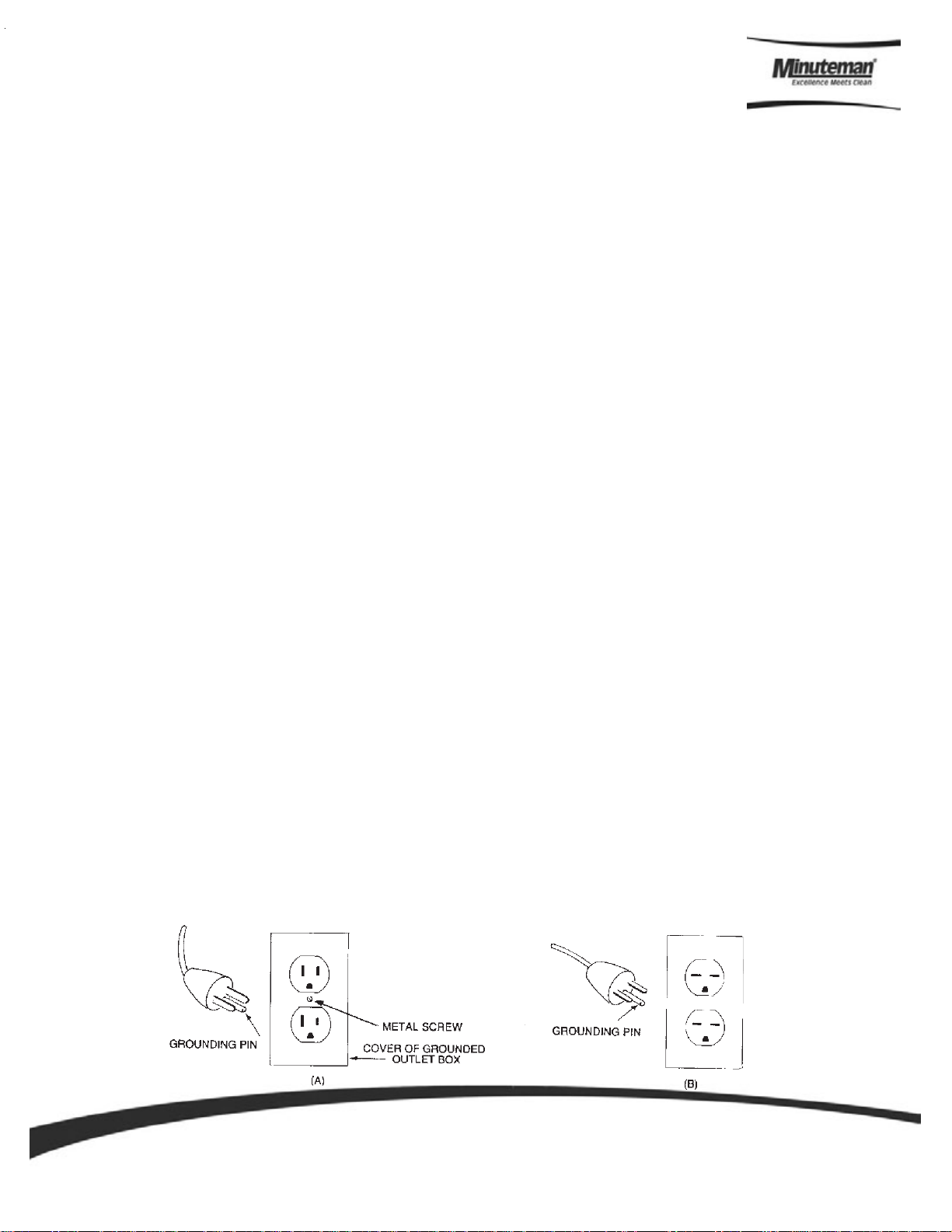

GROUNDING INSTRUCTIONS
(for Model C46200-00 Carpet Spotter and C46000-00 Ambassador )
This appliance is for use on a nominal 120-volt circuit and has a grounding plug that looks like the
plug illustrated in sketch A below. Make sure that the appliance is connected to an outlet having
the same configuration as the plug. No adapter should be used with this appliance.
Parts an d Instruction Manual
Page 2

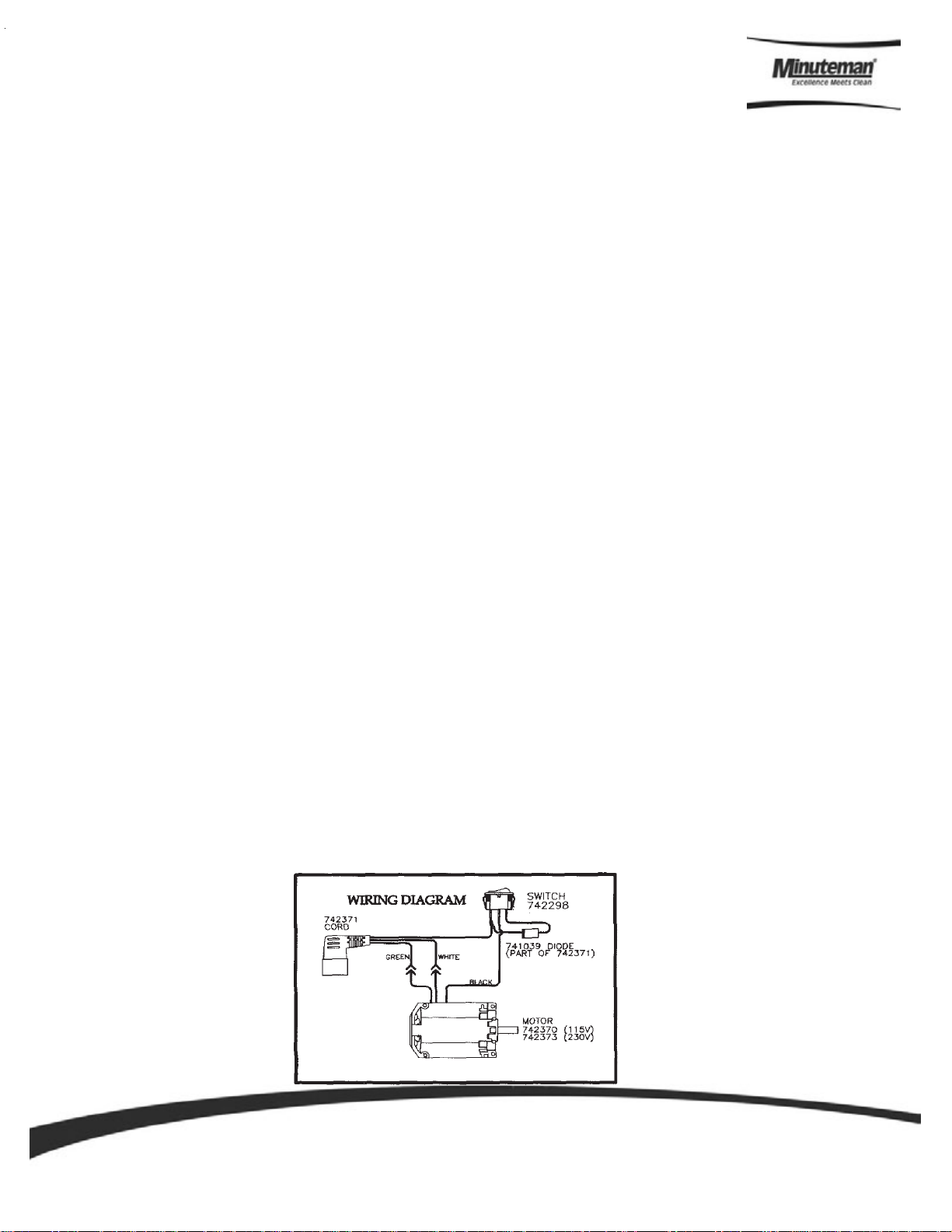

USER MAINTENANCE INSTRUCTIONS
All service and repair should be performed by qualified vacuum service representative or electrician.
No user serviceable components are employed in the electrical assembly. No lubrication of the
motor is required.
DAILY MAINTENANCE
1. The powerhead should be cleaned daily. Flush pumping system with 1 gallon of
clean water after use.
2. Check and clean vacuum inlet and solution inlet daily.
3. Brushes should be cleaned after each use.
4. Spray jet should be checked for correct spray pattern and cleaned if plugged. Do not
clean out spray tip with pins or wire, this may cause damage to the jet spray pattern
and cause streaking.
5. Protect equipment from freezing. Severe pumping system damage can occur if
allowed to freeze.
6. Inspect vacuum hoses for tight connections. Check electrical cable for abrasion
or cuts in jacket. Cord should be replaced if worn or damaged.
MONTHLY/BI-MONTHLY MAINTENANCE
The Solution Pump System should be purged monthly to remove alkaline residue build-up. To
flush system out, use 1 quart of white vinegar to 1 1/2 gallons of clean hot water, followed by a
clear 1 1/2 gallon rinse. Clean spray jets if required.
CORD STORAGE
While not in use storage can be accomplished by winding cord around machine. Cord hooks
are provided.
• Do not use with damaged cord or plug. If appliance is not working as it should, has
been dropped, damaged, left outdoors, or dropped into water, return to service center.
• Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord
around sharp edges or corners. Do not run appliance over cord. Keep cord away
from heated surfaces.
• Do not unplug by pulling cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
This equipment should be stored indoors and not exposed to rain.
Parts an d Instruction Manual
Page 3
FIG. 2
OPERATING INSTRUCTIONS
1. Follow the operating instructions as
described in the “Gotcha!” (or the
Ambassador) Parts and Instruction
Manual.
2. Connect the vac/solution hose
assembly to the “Gotcha!” (see
fig. 1) or the Ambassador
(see fig. 2A).
3. Plug power cord into the receptacle
FIG. 1
located at the lower back portion of
the machine. (see fig. 2 and fig. 2A).
4. For the brush and spray to operate,
the switch on the “Gotcha!” (see fig. 2)
must be on the double bar position
(vac & pump) or the Ambassador
“pump aux” switch must be on.
5. This tool is equipped with a 3-position
power switch. The single bar position
is for ”low” speed. The center position
is “off”. Double bar position for “high”
speed (see fig.1)
6. Minuteman recommends using the
“stiff” bristled brush for carpet and
the “soft” bristled brush for upholstery.
See fig. 5 for brush replacement
instructions.
WARNING:
DO NOT USE WITH THE
100 PSI MACHINE.
FIG. 2A
Parts an d Instruction Manual
Page 4

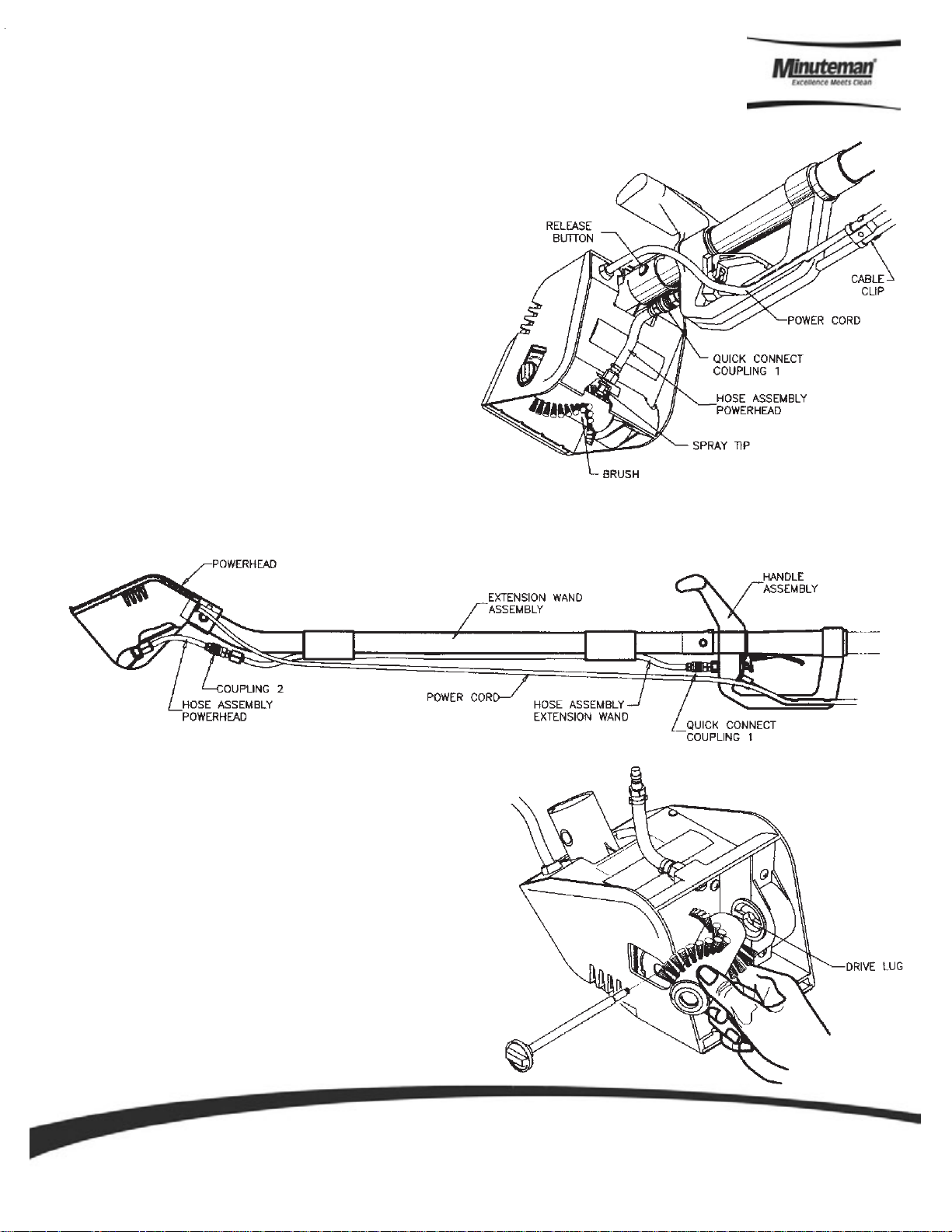

EXTENSION WAND INSTALLATION
1. Detach power cord from the trigger guard and
the cable clip.
2. Disengage powerhead from handle
assembly by depressing the burgundy
coupling 1. (see fig. 3).
3. Insert the stainless steel extension wand
curved end, (see fig. 4) into the powerhead
assembly until the locking button is
engaged. Connect coupling 2 to the
hose assembly on the powerhead.
4. At the other end of the extension wand,
(fig. 4) insert the handle assembly to the
flared end until the locking button is
engaged. Connect coupling 1 from
handle assembly to the hose assembly
on the extension wand.
5. Reposition the power cord to the trigger
guard and secure it to the cable clip.
locking button and disconnecting
FIG. 3
BRUSH REPLACEMENT
Before reinstalling the brush, make sure that
the drive lugs on the pulley are oriented as
shown. Align notches on brush to engage with
lugs on pulley . Position brush to reinstall brush
shaft.
Parts an d Instruction Manual
FIG. 4
Page 5
Exploded Views
Main Assembly
Parts an d Instruction Manual
Page 6
Head Assembly
ITEM P ART NO QTY DESCRIPTION
1 450260 1 Powerhead Assembly
2 715339 1 Decal, Switch
3 742298 1 Switch, 3-Position
4 450274 1 Knob Assembly
5 715336 1 Decal, Brush Removal
6 711158 2 SCR-Hi/Lo #7-19 x 3/8
7 450287 1 Brush Assembly , Carpet
7A 450288 1 Brush Assembly , Upholstery
8 450273 1 Pulley
9 850042 1 Bearing 6000 Sealed
10 711163 2 SCR-Hi/Lo #10-16 x ½
11 450264 1 Belt Cover
12 450269 1 Brushing Shaft Support
13 450276 1 Flat Belt
14 712822 2 SCR-MC #10-24 x ½ SS
15 712764 2 WSR-Flat #10 SS
16 742370 1 Motor Assembly 120V
16A 742373 1 Motor Assembly 230V
17 450285 2 Standoff
18 711551 3 WSR-Internal Lock #6
19 710305 3 SCR-MC #6-32 x 3/4 ST
ITEM PART NO QTY DESCRIPTION
20 742371 1 Cord Assembly
21 711157 6 SCR-Hi/Lo #7-19 x ½
22 715338 1 Decal, Service Warning
23 450293 1 Standoff-Nylon
24 380032 1 Strain Relief
25 450223 1 1/8 Barb x 1/8 FPT Brass
26 450294 1 WSR-Special
27 450278 1 VeeJet Spray Nozzle
28 830082 2 Hose Clamp 3/8
29 450282 1 Hose, Powerhead
30 450279 1 Quick Connect Nipple 1/8
31 715337 1 Decal, Warning
32 450263 1 Back Cover
33 711597 1 WSR-Nylon Flat #6 x 3/8
34 712068 1 SCR-Nylon BH #6-32 x 3/8
35 740099 5 Wire Tie Small
36 450290MCH 1 Snap-In Fastener
37 711530 1 Thrust Bearing
38 715342 1 Decal - Warning
39 450277 2 Press Bearing
Parts an d Instruction Manual
Page 7
Handle Assembly
Parts an d Instruction Manual
ITEM PART NO QTY DESCRIPTION
1 450256 1 Pick-up Tube
2 450258 1 Trigger Guard, Right
3 450249 1 Spotter Hose Assembly Complete
4 711163 5 SCR-Hi/Lo #10-16 x ½
5 450257 1 Trigger Guard, Left
6 390053 1 Trigger Solution Valve
7 711803 1 Cotter Pin .06 x .75
8 390063 2 Grove Stud Rd. Hd. #2427
9 712323 1 WSR-Flat .195 x .281 x .03 SS
10 450267 1 Spring Valve SS
1 1 450265 3 0-Ring, Brown
12 450221 1 Quick Connect Coupler
13 450261 1 Brass Valve Stem
14 450262 1 Locking Button
15 833725 1 Cord Clip
Page 8
Minuteman International Made Simple Commercial Limited Warranty
Minuteman International, Inc. warrants to the original purchaser/user that the product is free from defects in
workmanship and mat erials under normal use. Minuteman will, at its option, repair or replace without charge, parts
that fail under normal use and service when operated and maintained in accordance with the applicable operation and
instruction manuals. All warranty claims must be submitted through and approved by factory authorized repair
stations.
This warranty does not apply to normal wear, or to items whose life is dependent on their use and care, such as belt s,
cords, switches, hoses, rubber parts, electrical motor components or adjustments. Parts not manufactured by
Minuteman are covered by and subject to the warranties and/or guarantees of their manufacturers. Please cont act
Minuteman for procedures in warranty claims against these manufacturers.
Special warning to purchaser -- Use of replacement filters and/or prefilters not manufactured by Minuteman or its
designated licensees, will void all warranti es expressed or implied. A potential health hazard exits wit hout original
equipment replacem ent .
All warranted items become the sole property of Minuteman or its original manufacturer, whichever the case may be.
Minuteman disclai ms any implied war ranty, including the warranty of mer chantability and the warranty of fitness for a
particular purpose. Minuteman assumes no responsibility for any special, incidental or consequential damages.
This limited warranty is applicable only in the U.S.A. and Canada, and is extended only to the original user/purchaser
of this product . Customers outside t he U.S.A. and Canada should contact their local distributor for export warranty
policies. Minuteman is not responsible for costs or repairs performed by persons other than those specifically
authorized by Minut eman. This war ranty does not apply to damage from transportat ion, alterati ons by unauthorized
persons, misuse or abuse of the equipment, use of non-compatible chemicals, or damage to property, or loss of
income due to malfunct io ns of th e product.
If a difficulty develops with this machine, you should contact the dealer from whom it was purchased.
This warranty gives you specific legal rights, and you may have other rights which vary from state to state. Some
states do not allow the exclusion or limitation of special, incidental or consequential damages, or limitations on how
long an implied warr anty lasts, so the above exclusions and limitat i ons m ay no t apply t o you.
Cord Electric Group………. Three y ear s part s, two y ears labor, ninety days travel (Not to exceed two hours)
Exceptions……… . Port-A-Scrub, one year parts, six months labor
MPV 13, one year parts
MPV 14 and 18, two years parts, one y ear labo r
RapidAir blower, one year parts, one year labor
Explosion-Proof Vacuum, one year parts, one year labor
Pneumatic Vacuums, three years parts, one year labor
Battery Op er ated Group….. Three years parts, two years labor, ninety days travel
(Not to exceed two hours )
Exceptions……Sweepers, one year parts, one year labor, ninety days travel
(Not to exceed two hours )
Internal Combustion Group….One year parts, one year labor, ninety day trav el
(Not to exceed two hours)
Replac ement Parts……………..N i nety days
Batteries………………………….0-3 months replacement, 4-12 mont hs pro-rate
Polypropylene Plastic Tanks…Ten years, no additional labor
111 South Rohlwing Road · Addison, Illinois 60101 USA
Phone 630- 627-6900 · Fax 630- 627-1130
E-Mail, www. minutemanintl.com
A Member of the Hako Group
988612
Rev A 02/07
Loading...
