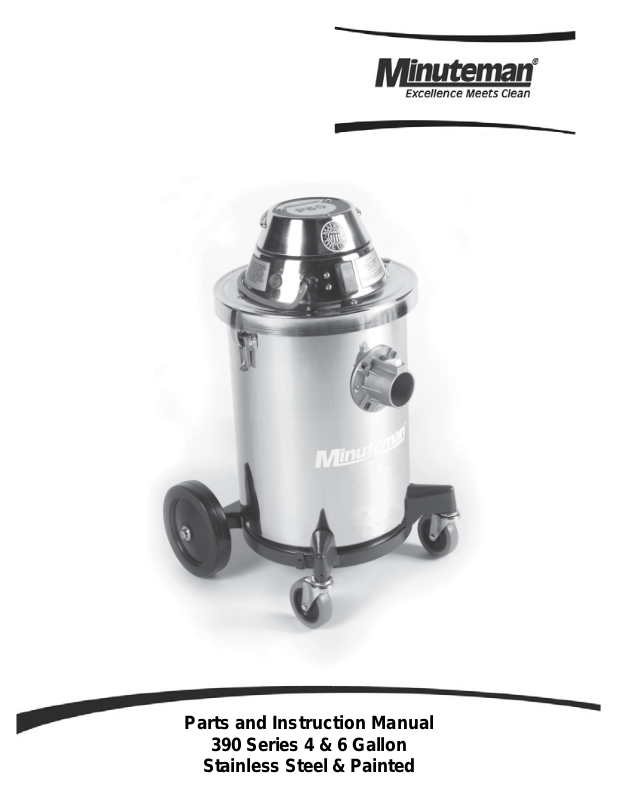

Page 1
Parts and Instruction Manual
390 Series 4 & 6 Gallon
Stainless Steel & Painted
Page 2
This manual is furnished with each new MINUTEMAN 390 Series Vacuum. This provides the necessary
operating and preventive maintenance instructions. Operators must read and understand this manual before
operating or servicing this machine.
This machine was designed to give you excellent performance and efficiency. For best results and
minimal cost, please follow the general guidelines below:
• Operate the machine with reasonable care.
• Follow the manufacturers suggested maintenance instructions as provided in this booklet.
• Use original Minuteman supplied parts.
Model 390
Model No. C39485-01 / C39485-03 / C39485-11 / C39485-13
C39685-01 / C39685-03
Page 3
Table of Contents
IMPORTANT SAFETY INSTRUCTIONS.............................................................................................. 1
Inspection............................................................................................................................................ 2
Electrical.............................................................................................................................................. 2
Grounding Instructions...................................................................................................................... 2
User Maintenance Instructions ......................................................................................................... 3
Cloth Bag & Hose Assembly.............................................................................................................. 3
Cord Storage....................................................................................................................................... 3
Optional Industrial T ools and Accessories ...................................................................................... 4
Lid Assembly ................................................................................................................................... 5
Lid Assembly BOM .......................................................................................................................... 6
Tank Assembly ................................................................................................................................ 7
Tank Assembly BOM ....................................................................................................................... 8
Bag Assembly ................................................................................................................................. 9
Hose Assembly ............................................................................................................................. 10
Minuteman International Made Simple Commercial Limited Warranty........................................ 1 1
Page 4
FOR COMMERCIAL USE ONLY
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including the
following:
READ ALL INSTRUCTIONS BEFORE USING
WARNING
- To reduce the risk of fire, electric shock, or injury :
WARNING: C39685-01, 03 Wet and Dry
To reduce the risk of electric shock - Do not expose to rain. Store indoors.
WARNING: C39685-01, 03 Dry Only
To reduce the risk of electric shock - Do not expose to rain. Store indoors.
• Do not leave appliance when plugged in. Unplug from outlet when not in use and
before servicing.
• Do not allow to be used as a toy. Close attention is necessary when used by
or near children.
• Use only as described in this manual. Use only manufacturer’s recommended
attachments.
• Do not use with damaged cord or plug. If appliance is not working as it
should, has been dropped, damaged, left outdoors, or dropped into water, return
it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull
cord around sharp edges or corners. Do not run appliance over cord. Keep
cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked;
keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings
and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes,
matches, or hot ashes.
• Do not use without dustbag and/or filters in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids such as gasoline or
use in areas where they may be present.
• Connect to a properly grounded outlet only. See grounding instructions.
Parts an d Instructio n Manu al
SA VE THESE INSTRUCTIONS
Page 1
Page 5
Inspection
Carefully unpack and inspect your machine f or shipping damage. Each unit is tested and thoroughly
inspected before shipment, and any damage is the responsibility of the deliv ery carrier who should
be notified immediately.
Electrical
This machine is designed to operate on a standard 15 amp. 115 volt, 60 hz, AC circuit. Voltages
below 105 volts AC or above 125 volts AC could cause serious damage to the motor.
WARNING
To reduce the risk of electric shock - Do not expose to rain. Store indoors.
Grounding Instructions
This appliance must be grounded. If it should malfunction or breakdown, grounding provides a
path of least resistance for electric current to reduce the risk of electric shock. This appliance is
equipped with a cord having an equipment-grounding conductor and grounding plug. The plug
must be plugged into an appropriate outlet that is properly installed and grounded in accordance
with all local codes and ordinances.
D ANGER - Improper connection of the equipment-grounding conductor can result in a risk
of electric shock. Check with a qualified electrician or service person if you are in doubt as to
whether the outlet is properly grounded. Do not modify the plug provided with the appliance — if
it will not fit the outlet, have a proper outlet installed by a qualified electrician.

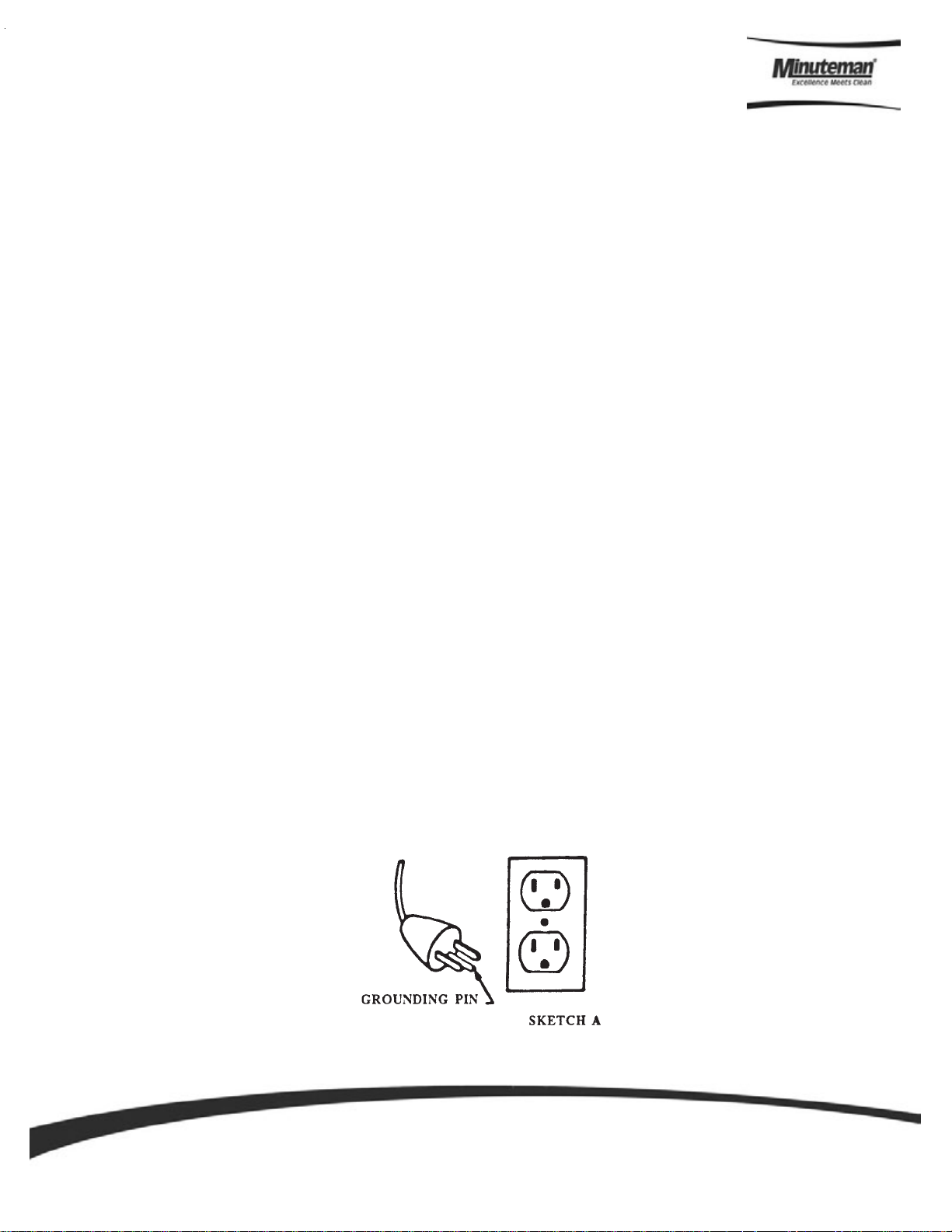

This appliance is for use on a nominal 120-v olt circuit and has a grounding plug that looks like the
plug illustrated in sketch A below. Make sure that the appliance is connected to an outlet having
the same configuration as the plug. No adapter should be used with this appliance.
Parts an d Instructio n Manu al
Page 2
Page 6
User Maintenance Instructions
All service and repair should be performed by qualified vacuum service representative or
electrician. No user serviceable components are employed in the electrical vacuum lid
head assembly. No lubrication of the motor is required.
Cloth Bag & Hose Assembly
Cloth bag and hose assembly are user maintenance items and can be replaced when worn
out. For optimum performance, empty and clean filter bag regularly. A clogged and dirty
bag restricts the flow of air and results in reduced vacuum. The hose assembly can be
maintained by wiping off with a dampened cloth of mild liquid soap and water , then allowed
to dry.
Cord Storage
While not in use storage can be accomplished by winding cord around motor lid assembly .
Cord should be completely unwound from lid assembly during operation.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been
dropped, damaged, left outdoors, or dropped into water, return to service center.
• Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around
sharp edges or corners. Do not run appliance over cord. Keep cord away from heated
surfaces.
• Do not unplug by pulling cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Always unplug the machine when removing the motor head off the tank.
This equipment should be stored indoors and not exposed to rain.
Always unplug the machine when removing the motor head off the tank. This equipment
should be stored indoors and not expposed to rain.
Parts an d Instructio n Manu al
Page 3
Page 7

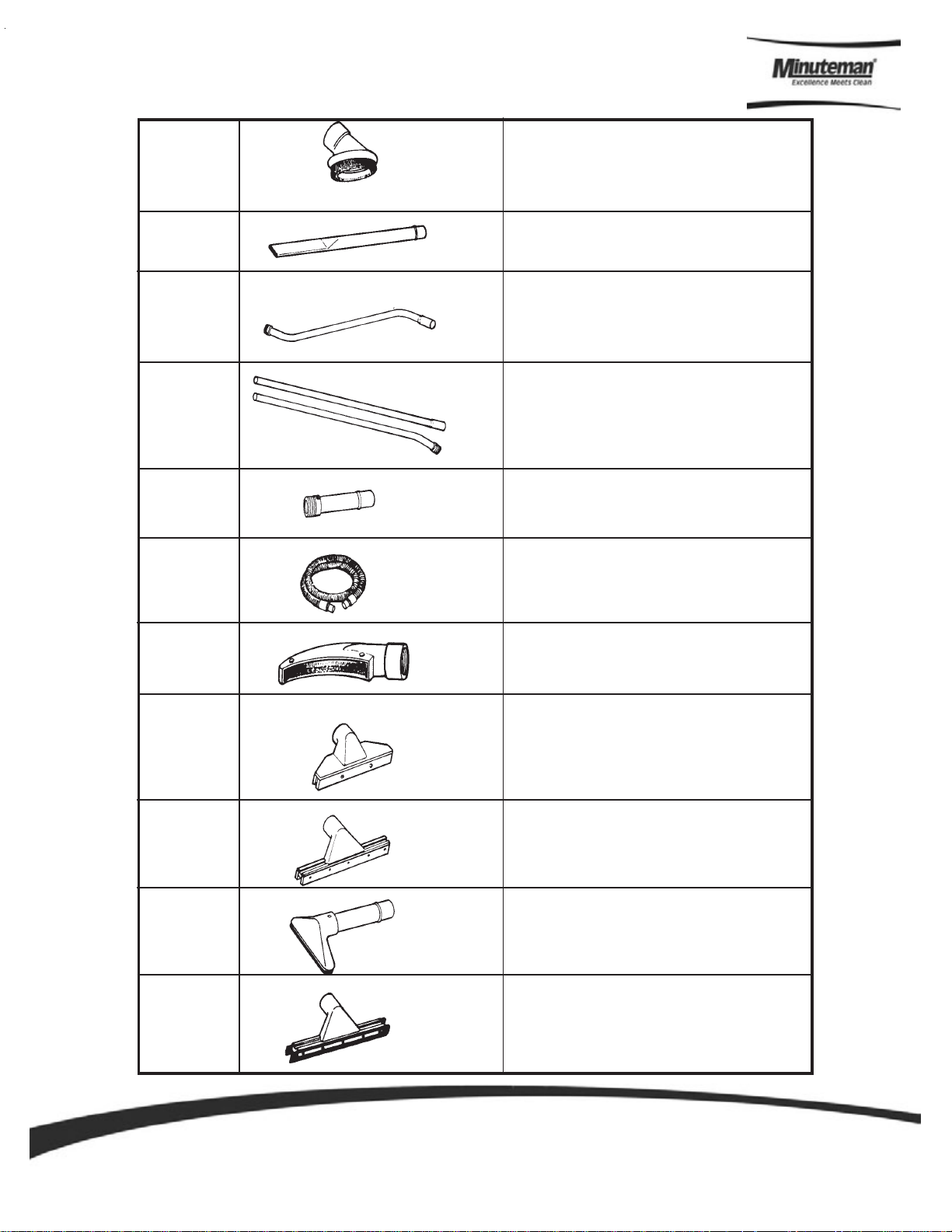

Optional Industrial Tools and Accessories
A
800024 3” Rd Dust Brush Complete
800022 5” Rd Dust Brush Complete
800023 Bristle Insert 5”
800175MCH Dust Brush HSG 5”
800176MCH Dust Brush HSG 3”
800025 Bristle Insert 3”
B
C
D
E
F
G
800034 24” Crev Tool Aluminum Comp
800015 Wand Asy 1-1/2, Complete
800017 Set Tube, High-up 10’
800064 5’ Tube Lower Section
800019 5’ Section Upper
800116 Swivel, Hose End Exp, Comp
800317 Hose Asy 1-1/2 x 10’
800032 6” Curved Pipe Tool, Comp
711006 Set Screw
800033 Bristle Insert Curved 6’
800193POL 6” Curved Pipe Tool
800070 12” Gulper Tool, Comp
710356 SCR-MC 10-32 x .62
710357 SCR-MC 10-32 x .75
H
I
800187PTD Gulper Nozzle
800217 Fibre Shoe Rear
800218 Fibre Shoe Front
800108 14” Fibre Tool Complete
710530 Screw 8/32 x 1/2 Brass
800003MCH Fibre Shod
800178PTD Tool Casting
800038 6” Tool Squeegee, Complete
800029 Bristle Insert Replacement
J
800109 14” Squeegee, Comp
710330 SCR-SC 8-32 x .62
800121 14” Retaining Strip
K
800178PTD Casting, Tool MCH
800239 Blade Squeegee Wide
800240 Blade Squeegee Narrow
Parts an d Instructio n Manu al
Page 4
Page 8

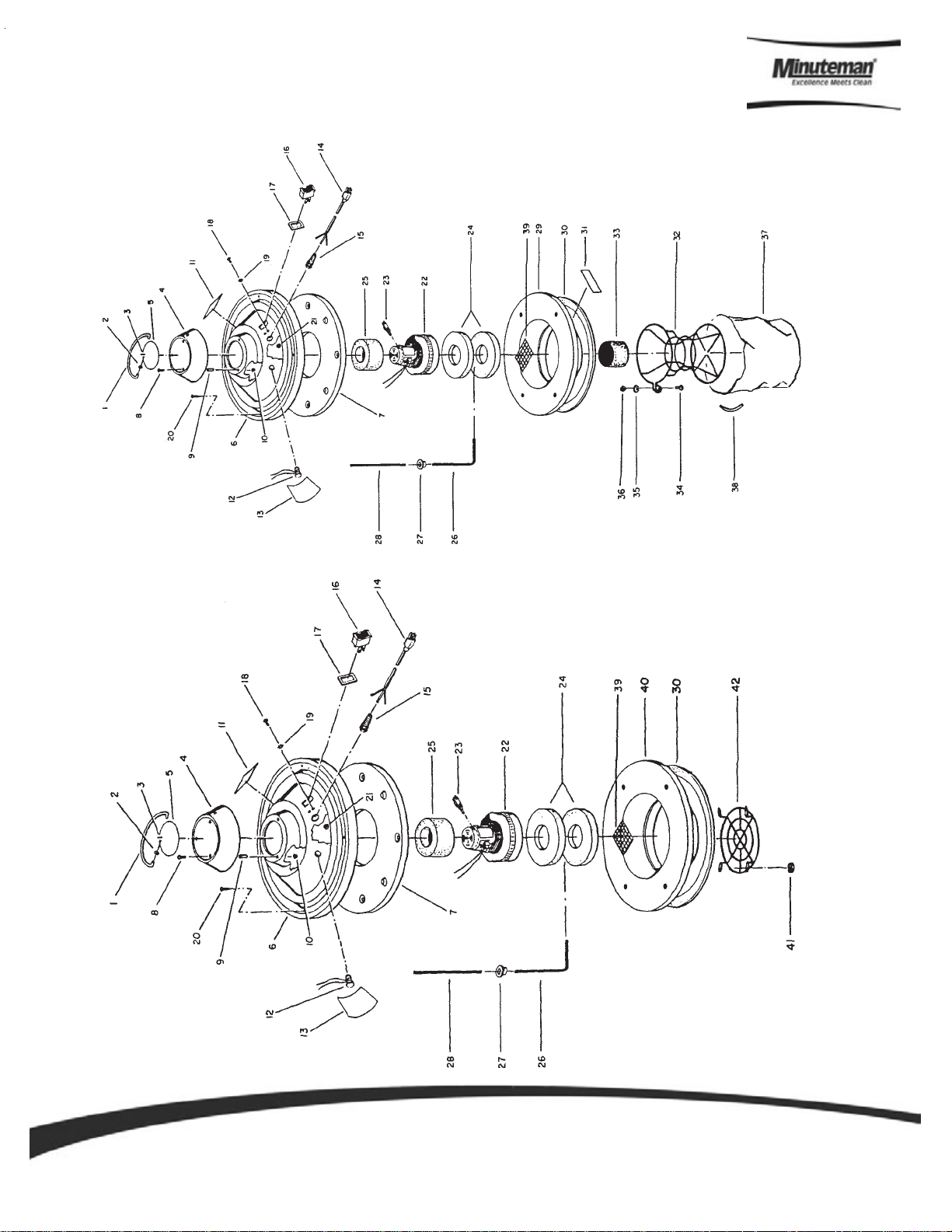

Lid Assembly
Wet and Dry Pickup
Parts an d Instructio n Manu al
Dry Pickup Only
Page 5
Page 9
Lid Assembly BOM
Item Part No. Qty. Description
1 827743 1 Handle
2 711505 2 WSR-Flat 1/4
3 711803 2 Pin Cotter
4 831480 1 Motor Cap
5 715127 1 Decal Color Bar P85
6 760243PLT 1 Motor Lid Cover PV6 Plated
7 760242PLT 1 Motor Hold Down P85 PLT
8 712823 3 SCR-THMS 10-24 x 1.00 STPL
9 831652 3 Spacer
10 712908 3 Nut-Flanged Wizz 10-24
11 715086 1 Decal Warning PV Wet/Dry
11A 715115 1 Decal Warning PV Dry
12 740088 1 Vac Light Sensor SW 115V
13 715069 1 Decal Check Filters
14 381020 1 Orange Cord Set 16-3 50'
15 833237 1 Strain Relief
16 809754 1 Switch Rocker
17 831543 1 Gasket Switch
18 710355 2 SCR-MC 10-32 x .50 STPL
19 711553 2 WSR-Internal Lock #10
20 711126 4 SCR-ST-B 10 x .75
21 711310 2 Nut-Hex 10-32 STPL
22 380001-4 1 Vac Motor Bypass 85" 115V (ECM)
23 380005 2 Carbon Brush Replacement (ECM)
24 828995 2 Gasket, Neop. 2.5 x 6 x .62
25 380064 1 Ring, Foam
26 760213 1 Venturi Tube
27 760904 1 Snub Bushing K375 x 125
28 760212 1 Vac Sensor Tube
29 760241PLT 1 Motor Pan PV6 Plated
30 290031 1 Gasket Lid
31 831576 1 Decal Warning CK Screen
32 760240 1 Float Cage PV6
33 460117 1 Float Assembly 4/6 Gal.
34 712569 1 SCR-MC 1/4-20 x 1.50 SS
35 711506 1 WSR-Flat 5/16 STPL
36 712667 1 Nut-Hex 1/4-20 SS Nyloc
37 760901 1 Lint Trap
38 760479 1 Retainer Spring
39 807051 1 Screen SS 85/105
40 760248 1 Motor Tank Lid w/Studs
41 711373 4 Nut-Nyloc 1/4-20
42 384001PLT 1 Bag Guard New/Style
*** 394115 Lid Assy. Comp. P85 Dry 115
*** 396115 Lid Assy. Comp. P85 Wet/Dry 115
Parts an d Instructio n Manu al
Page 6
Page 10

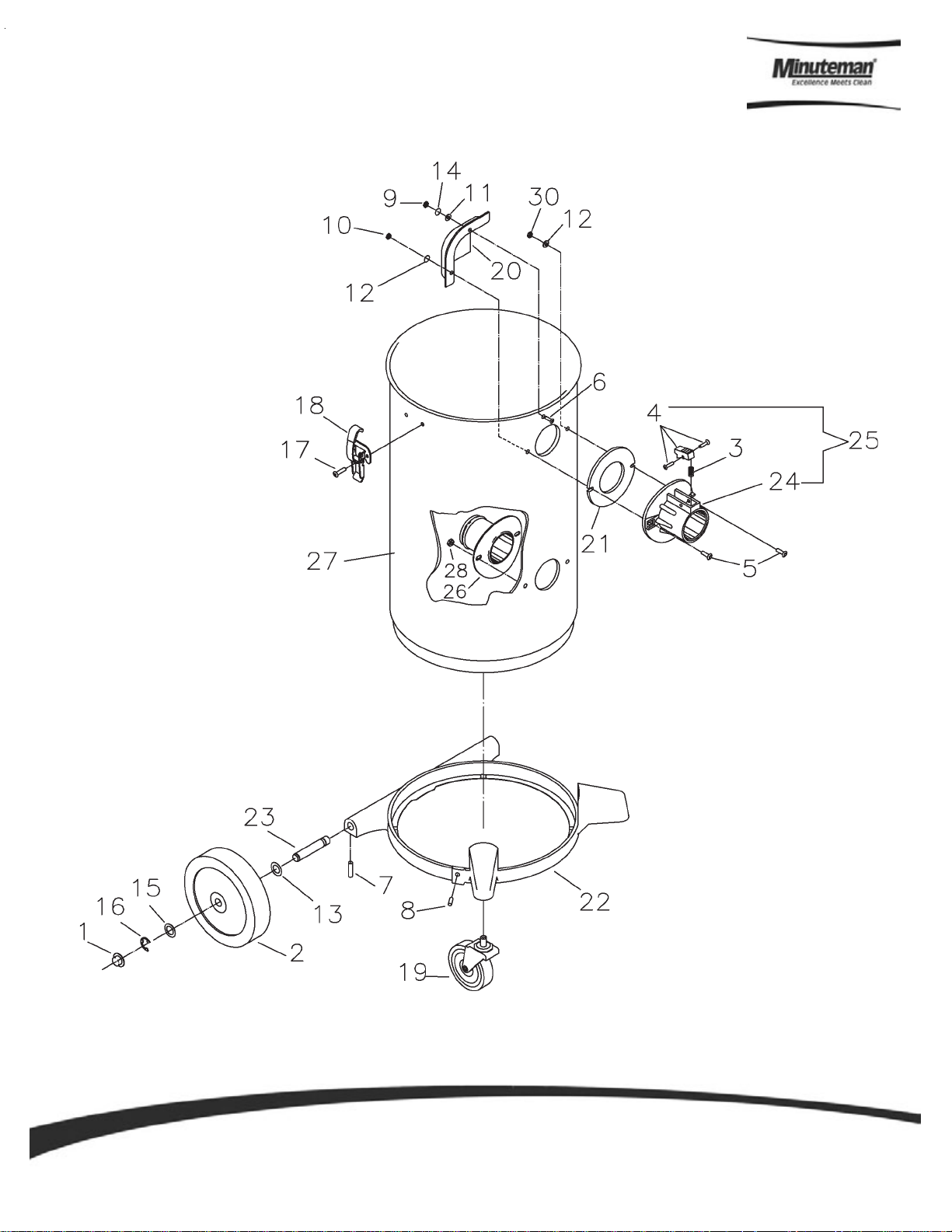

T ank Assembly
Parts an d Instructio n Manu al
Page 7
Page 11
T ank Assembly BOM
Item Part No. Qty. Description
1 130032 2 Cap, Retainer
2 760083 2 Wheel-6" 6-105 .5 ID
3 390002 1 Sring-Return (390001)
4 390001 1 Molded Trigger W/ 2 Pins
5 712824 2 SCR-MC 10-24 X .75 Truss HD STL Zinc
6 710530 1 SCR-MC 8-32 X .50 BRS
7 711005 4 SK 1/4-20 X .31
8 711006 3 SK 1/4-20 X .62
9 711304 1 Nut-Hex 8-32 ST PL
10 711310 2 Nut Hex 10-32 ST PL
11 711502 1 WSR-Flat #8
12 711503 4 WSR-Flat #10
13 711524 2 WSR-Wave .52 X .87 X .01
14 711542 1 WSR-Helical #8
15 711594 2 WSR-FLT .56 X .88 X .03 Nickel
16 711713 2 Ret Ring-E EXT .50
17 711915 4 Rivet-Tube .19X.28 NI PL
18 761054 2 Latch
19 280016 2 Caster-3" W/ 3/8 X 5/8 Stem
20 900035 1 Deflector, Intake
21 390087 1 Gasket
22 900055PTD 1 Bracket, Wheel
23 900066 2 Axle
24 390101 1 Intake Aluminum
25 390110 1 Intake Assembly Aluminum
26 750118 1 Intake Assembly Tube 4/6 Gal
27A 900107 1 Tank,4 Gal SS High Intake
27B 900083 1 TANK 4 Gal PTD High Intake
27C 900109 1 TANK 4 Gal SS Low Intake
27D 900085 1 TANK 4 Gal PTD Low Intake
27E 900014 1 TANK 6 Gal SS High Intake
27F 900012 1 TANK 6 Gal PTD High Intake
28 712638 4 Nut Hex 10-24 SS Nyloc
Parts an d Instructio n Manu al
Page 8
Page 12

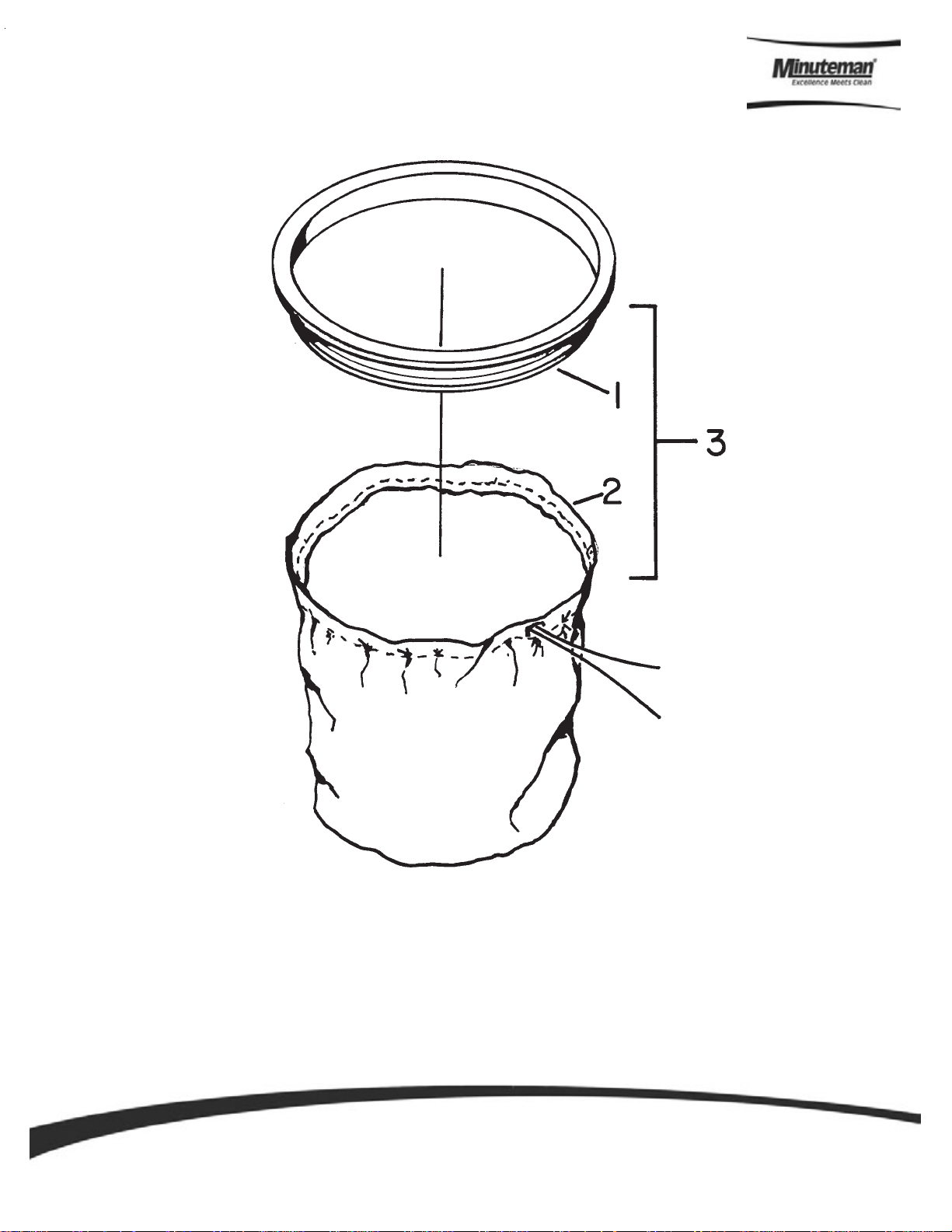

Bag Assembly
Parts an d Instructio n Manu al
Item Part No. Qty. Description
1 760244 1 Molded Bag Ring
2 805043 1 Cloth Filter 4 Gallon
2a 805040 1 Cloth Filter 6 Gallon
3 805044 1 Bag Asy Complete 4 Gallon
3a 805041 1 Bag Asy Complete 6 Gallon
Page 9
Page 13

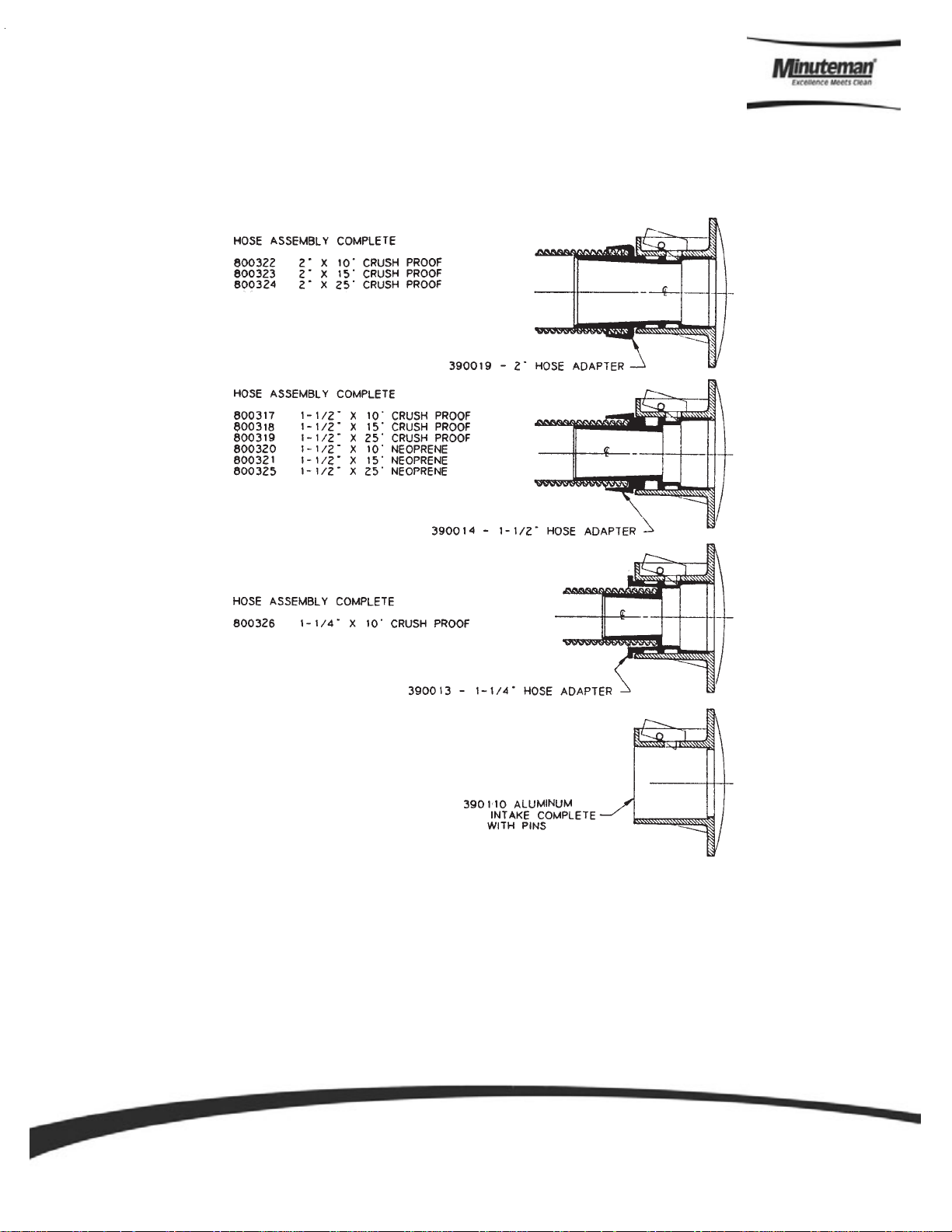

Hose Assembly
Parts an d Instructio n Manu al
Page 10
Page 14
Minuteman International Made Simple Commercial Limited Warranty
Minuteman International, Inc. warrants to the original purchaser/user that the product is free from defects in
workmanship and materials under normal use. Minuteman will, at its option, repair or replace without charge, parts
that fail under normal use and service when operated and maintained in accordance with the applicable operation and
instruction manuals. All warranty claims must be submitted through and approved by factory authorized repair
stations.
This warranty does not apply to normal wear, or to items whose life is dependent on their use and care, such as belts,
cords, switches, hoses, rubber parts, electrical motor components or adjustments. Parts not manufactured by
Minuteman are covered by and subject to the warranties and/or guarantees of their manufacturers. Please contact
Minuteman for procedures in warranty claims against these manufacturers.
Special warning to purchaser -- Use of replacement filters and/or prefilters not manufactured by Minuteman or its
designated licensees, will void all warranties expressed or implied. A potential health hazard exits without original
equipment replacem ent .
All warranted items become the sole property of Minut eman or its original manufacturer, whicheve r the case ma y be.
Minuteman disclaims any implied warranty, including the warranty of merchantability and the warranty of fitness for a
particular purpose. Minuteman assumes no res ponsibility for any special, incidental or consequential damages.
This limited warranty is applicable only in the U.S.A. and Canada, and is extended only to the original user/purchaser
of this product. Customers outside the U.S.A. and Canada should contact their local distributor for export warranty
policies. Minuteman is not responsible for costs or repairs performed by persons other than those specifically
authorized by Minuteman. This warranty does not apply to damage from transportation, alterations by unauthorized
persons, misuse or abuse of the equipment, use of non-compatible chemicals, or damage to property, or loss of
income due to malfunct io ns of th e product.
If a difficulty develops with this machine, you should contact the dealer from whom it was purchased.
This warranty gives you specific legal rights, and you may have other rights which vary from state to state. Some
states do not allow the exclusion or limitation of special, incidental or consequential damages, or limitations on how
long an implied warr anty lasts, so the above excl usions and limitati ons m ay not apply to you.
Cord Electric Group………. Three years parts, two year s labor, ninety days tr avel (Not to exceed two hou rs)
Exceptions………. Port-A-Scrub, one year parts, six months labor
MPV 13, one year parts
MPV 14 and 18, two years parts, one y ear labo r
RapidAir blower, one year parts, one year labo r
Explosion-Proof Vacuum, one year parts, one year labor
Pneumatic Vacuums, three years parts, one year labor
EX 12 and EX12H, one year parts, one year labor
Battery Op er ated Group….. Three years parts, two years labor, ninety days travel
(Not to exceed two hours)
Exceptions……Sweepers, one year parts, one year labor, ninety days travel
(Not to exceed two hours )
Internal Combustion Group….One year parts , one year labor, ninety day travel
(Not to exceed two hours)
Replac ement Part s……………..Ninet y days
Batteries………………………….0-3 months replac em ent, 4-12 months pro-rate
Polypropylene Plastic Tanks…Ten years, no additional labor
111 South Rohlwin g Ro ad · Addison, Illi nois 60101 USA
Phone 630- 627-6900 · Fax 630- 627-1130
E-Mail, www.minutemanintl.com
A Member of the Hako Group
987307
Rev B 08/07
Loading...
