Page 1

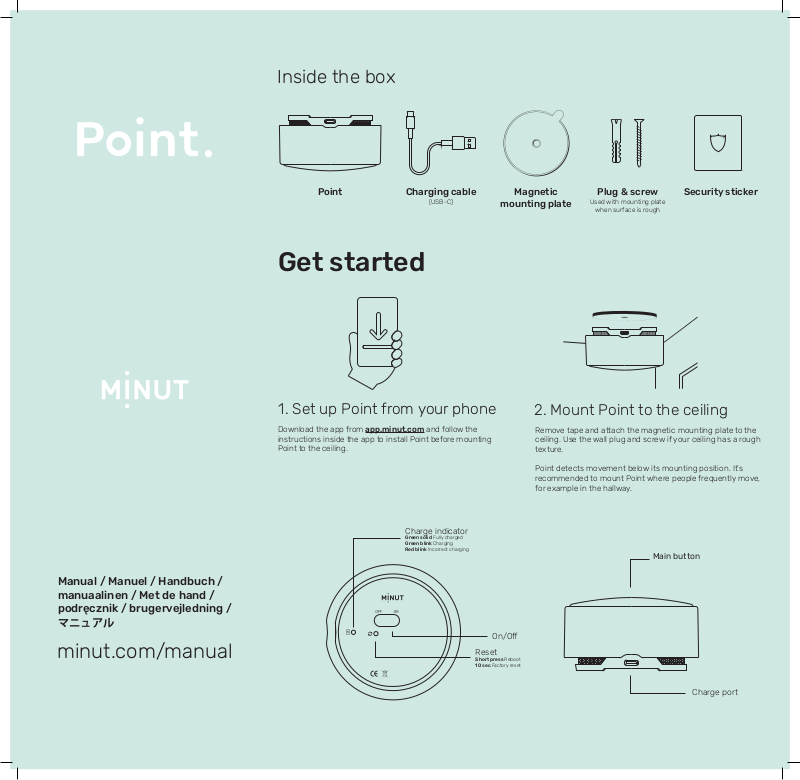

Inside the box
(USB-C)
Get started
1. Set up Point from your phone
Magnetic
mounting plate
2. Mount Point to the ceiling
Plug & screwPoint
Used with mounting plate
when surface is rough
Security stickerCharging cable
Manual / Manuel / Handbuch /
manuaalinen / Met de hand /
podręcznik / brugervejledning /
マニュアル
minut.com/manual
Download the app from app.minut.com and follow the
instructions inside the app to install Point before mounting
Point to the ceiling.
Charge indicator
Green solid Fully charged
Green blink Charging
Red blink Incorrect charging
Reset
Short press Reboot
10 sec Factory reset
Remove tape and attach the magnetic mounting plate to the
ceiling. Use the wall plug and screw if your ceiling has a rough
texture.
Point detects movement below its mounting position. It’s
recommended to mount Point where people frequently move,
for example in the hallway.
Main button
On/O
Charge port
Page 2
Join the facebook group
‘PointUser’ to discuss Point!
Got a question?
minut.com/support
Charging your Point
A normal charge takes between 4-6 hours.
Point needs to be recharged approximately twice a year, depending on
the environment and wi connectivity where it’s installed.
Technical Specications
Dimensions Diameter: 85 mm (3.3”), height: 46 mm (1.8”)
Weight 180 gram (6.3 oz)
Battery Up to 6 months (rechargeable, non-replaceable)
Connectivity Wi-Fi (2.4GHz), Bluetooth
Sound frequency 0-24KHz
Sensors Sound, smoke, temperature, humidity, tamper,
barometric pressure, ambient light and motion.
Indoor use only
General maintenance
Only clean Point with a dry cloth. Do not wash or submerge the
Point under water. Use indoors only (0 to 40°C/32°F to 104°F) and
avoid exposure to direct sunlight for prolonged periods of time.
Exposure to prolonged high humidity may have negative eects on
sensors. Low temperatures may aect battery performance negatively.
Condensation may damage the device. Do not tamper, disassemble,
paint, puncture, hammer, or drop the Point as this may degrade
performance or render Point inoperable, void the warranty and the
user’s authority to operate this equipment.
Point contains a built-in, non-replaceable, lithium-ion battery. e
WEEE symbol means that your Point must be disposed of separately
from general household waste. When Point reaches its end of life,
take it to a designated waste collection point in your area for safe
disposal or recycling. By doing this, you’ll conserve natural resources,
protect human health and help the environment.
Point contains strong magnets used to attach the device to the ceiling.
Avoid direct contact with objects sensitive to magnetic elds, such as
hard drives (including laptops), credit cards, etc.
Estimated battery life is dependent the Wi-Fi signal strength.
Interference from walls, other electrical equipment, and Wi-Fi
networks may reduce Point’s estimated battery life.
Regulatory
Important Disclaimer: Because the Point’s primary purpose is not
to be a re or smoke alarm, the Point DOES NOT conform to the
regulatory requirements mandated for re or smoke alarms, such
as UL 217, EN14604 or any other regulatory requirement. To
properly protect your home, please purchase and install re and/
or smoke alarms that comply with regulatory requirements.
EU Declaration of Conformity
Hereby, Minut, Inc. declares that the Point Connected Home Alarm,
model MT-P2, is in compliance with the Directive 2014/53/EU.
e full text of the EU declaration of conformity is available at the
following Internet address: https://minut.com/eu-doc
FCC
Federal Communication Commission Interference Statement
FCC ID: 2AFXO-P2-01, 15.247
is equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
ese limits are designed to provide reasonable protection against
harmful interference in a residential installation. is equipment
generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment o and on, the user is encouraged to try to correct the
interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: Any changes or modications not expressly
approved by the party responsible for compliance could void the
user’s authority to operate this equipment.
Industry Canada (IC) Compliance Notice
IC: 23212-P201
is device complies with Industry Canada license-exempt RSS
standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada
applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
CALIFORNIA PROPOSITION 65 WARNING: is product may
contain chemicals known to the State of California to cause birth
defects or other reproductive harm.
Legal
Your use of Point is subject to the Terms of Service, available in full at
https://minut.com/terms, and the Privacy Policy, available in full at
https://minut.com/privacy.
Limited Liability
Please see the Terms of Service, available in full at https://minut.com/
terms.
Warranty and Warranty Disclaimers
Please see the Terms of Service, available in full at https://minut.com/
terms.
Trademarks
Minut, Point and the Minut logo are trademarks and/or registered
trademarks of Minut, Inc. in the USA and other countries. Apple and
the Apple logo are trademarks of Apple Inc., registered in the USA
and other countries. App Store is a service mark of Apple Inc. Google
Play is a trademark of Google Inc. Bluetooth and the Bluetooth logos
are trademarks owned by Bluetooth SIG, Inc., U.S.A. Wi-Fi is a
registered trademark of Wi-Fi Alliance.
Open source compliance
Point stands on the shoulders of giants. It is built using open source
tools and code. Minut is forever grateful to the respective authors. For
a full list of open source software used in Point, please see
https://minut.com/opensource.
© Minut, Inc. 2018. All rights reserved.
Minut AB
Bredgatan 4
211 30 Malmö
Sweden
is device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) is device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
