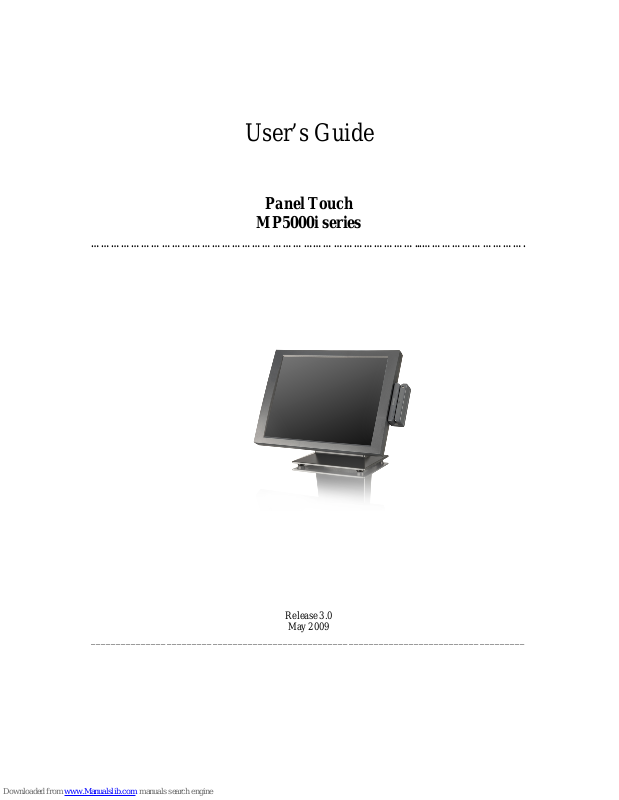

User’s Guide
Panel Touch
MP5000i series
……………………………………………………………………………………...………………………….
______________________________________________________________________________________
Release 3.0
May 2009
Panel Touch Computer Manual
This manual is intended to provide both general information on small point of sales technology and
technical specifications of the Panel Touch computer. The information provided herein is of a proprietary
nature to the original manufacturer and may not be distributed without express written consent from an
officer of the company. This manual has been supplied in confidence and is intended for use by authorized
recipients only. This manual may not be copied or reproduced in whole or in part, nor may its contents be
revealed in any manner to any person other than the authorized personnel.
This document has been prepared with the utmost effort to insure that the information contained within is
accurate and complete. However, the original manufacturer reserves the right to make product
improvements or changes at any time without advance notice. Furthermore, the original manufacturer
assumes no liability arising from use of the products described herein. Working with the Panel Touch
computer involves hazardous levels of voltages and can present serious shock hazard. Work should only be
performed by appropriately qualified technical personnel.
The original manufacturer’s products are not authorized or designed for use in critical life saving
equipment.
The original manufacturer’s products are warranted for one year from the date of purchase against
component and workmanship defects. The original manufacturer’s Return Merchandise Authorization
(RMA) policy requires the user to obtain an RMA # prior to sending back any item to be repaired or
replaced. Replacement or repair will be free of charge for all items under warranty only when the
merchandise is returned to the original manufacturer, not a third party repair depot. Returned goods need to
have pre-paid freight along with a copy of the original invoice; collect freight items will not be accepted
and will be returned to sender. For specific return circumstances and/or warranty information, please
contact your dealer.
All trademarks mentioned herein belong to their respective companies.
Copyright: 2009
INTRODUCTION...................................................................................................................................................1
CHAPTER 1 STANDARD FEATURES..................................................................................................... 1
STANDARD SYSTEM ........................................................................................................................................... 1
STORAGE DEVICES ............................................................................................................................................. 1
PORTS AND EXPANSION .....................................................................................................................................1
LCD DISPLAY/VGA INTERFACE....................................................................................................................... 1
TOUCH SCREEN .................................................................................................................................................. 1
POWER SUPPLY...................................................................................................................................................1
ENVIRONMENT ...................................................................................................................................................2
PHYSICAL DIMENSIONS...................................................................................................................................... 2
MAGNETIC STRIPE READER (OPTIONAL).......................................................................................................... 2
CUSTOMER DISPLAY (OPTIONAL).....................................................................................................................2
BAR CODE SCANNER (OPTIONAL)..................................................................................................................... 2
CHAPTER 2 SETTING UP YOUR PANEL TOUCH COMPUTER.................................................... 3
UNPACKING YOUR PANEL TOUCH COMPUTER.................................................................................................3
SITE SELECTION.................................................................................................................................................. 3
INSTALLATION PROCEDURES ............................................................................................................................. 3
CHAPTER 3 INSTALLING DRIVERS AND SOFTWARE.................................................................. 5
OPERATING SYSTEMS.........................................................................................................................................5
VIDEO DRIVER....................................................................................................................................................5
AUDIO DRIVER ................................................................................................................................................... 5
NETWORK DRIVER .............................................................................................................................................5
TOUCH SCREEN DRIVER ....................................................................................................................................5
Tuning the Touch Screen Under Windows...................................................................................................5
OTHER APPLICATIONS........................................................................................................................................5
CHAPTER 4: TROUBLESHOOTING ........................................................................................................6
INITIAL INSPECTION ...........................................................................................................................................6
PERIPHERALS ......................................................................................................................................................6
Configuration Problems................................................................................................................................6
Connection Problems....................................................................................................................................6
APPENDICES
STANDARD IRQ SETTINGS ................................................................................................................................. 7
OPTIONAL MAGNETIC STRIPE READER............................................................................................................. 7
Reader Test.................................................................................................................................................... 7
Changing Configuration............................................................................................................................... 7
OPTIONAL 2X20 LCD CHARACTER DISPLAY...................................................................................................8
Power-Up Initialization:............................................................................................................................... 8
Character Codes............................................................................................................................................ 8
OPTIONAL BAR CODE SCANNER........................................................................................................................9
Technical Specification.................................................................................................................................9
Introduction
The Panel Touch is an all-in-one touch screen computer with adjustable viewing angle. The flexibility of a
PC-based architecture combined with advanced LCD and touch screen technology comes together to form
a low cost, small-sized computer that runs all PC-based software. Its unique design allows for ease of use
with any applications. With networking capability, this computer is ideal for information kiosk, point of
sales, and practically anything one can imagine.
Chapter 1 Standard Features
Standard System
Processor Socket P, uFC-PGA 478 for Intel Celeron/Core 2 duo
with up to 800MHz front side bus speed CPU’s.
Cache CPU Cache, 1 to 4MB
Memory Up to 4GB, 2x DDR2 533/667 SODIMM
BIOS AMI 16MB SPI BIOS
CMOS Backup CMOS data backed up in Flash BIOS to avoid
configuration loss
Watchdog Timer Timer generates system reset at 1 ~ 62 second interval.
Software enabled/disabled.
Storage Devices
SATA Hard Disk One 2.5” SATA hard disk drive
Compact Flash One CF type I/II slot
Ports and Expansion
Serial Ports 4x RS-232, 1 internal used for Touch screen, 2 external
DB9
Parallel Ports 1x with EPP/ECP support
Ethernet Port 2x RJ45 Giga Ethernet port
Keyboard/mouse 2x PS/2 style connector
USB 8x USB 2.0 ports, 4x external, 4x internal
Audio Ports Line-in, Line-out & Microphone
LCD Display/VGA Interface
Display Controller Intel mobile GMA3100 integrated graphic interface, up
to 384MB shared RAM
Display Supports VGA/DVI & flat panel LCD dual displays
Touch Screen
Touch Screen 5 wire resistive technology, integrated serial controller,
using mouse emulation
Power Supply
Power Supply Full range auto sensing 100-250 V, 50-60Hz external
power adapter, max. 96W, typical 40~60W
1
Environment
Operating Temperature
Storage Temperature
Operating Altitude: 0 ~ 10,000 feet
0° ~ 40°C
-20° ~ 60°C
Physical Dimensions
Weight 9 lb. without alloy stand, 16 lb with the stand
Width 14.25”
Depth 3.0” without stand
Height 10.75” without stand
Magnetic Stripe Reader (Optional)
MSR 1~2 track HID USB reader
Customer Display (Optional)
Display 2 line by 20 character LCD with backlight
Bar Code Scanner (Optional)
Bar Code Scanner CCD miniature scanner
2
Chapter 2 Setting up your Panel Touch Computer
Unpacking Your Panel Touch Computer
You should have the following components:
Panel Touch computer & Panel Touch base unit
Screws to attach the base unit to the computer
Power adapter & power Cord
Drivers & manual files are included on the hard drive
Site selection
Consider the following when selecting sites:
The area should be well ventilated.
Avoid glare from bright overhead lighting.
The system should be placed on a hard surface.
There should be easy access for power and other cabling requirements.
Installation Procedures
For the physical installation, simply:
• Route cables through the cast alloy stand. Position the cables to the side of the stand.
• Insert stand front tabs into slots on back of MP5000.
• Remove the screw on the center top of the MP50000 and use it to secure the stand to the computer.
3
• Route all other peripheral cables through the stand. Connect them to the M P5000 computer. Set the
computer in upright position.
• Connect all the peripherals to the cables.
• Turn the computer on.
• Install operating system software (pre-installed if purchased with system).
• Install software drivers.
• Install application software.
4
Chapter 3 Installing Drivers and Software
Drivers and utilities are located in the Drivers directory of the hard drive.
Operating Systems
Your Panel Touch is designed to work with a wide variety of operating systems including but not limited to
Embedded OS, Windows XP, Windows Vista & Windows 7.
If you purchased the Windows operating system for your Panel Touch, the operating system and drivers
have already been installed for you.
Video Driver
The MP5000i series use The Mobile Intel® GM965 Express chipset, featuring the Mobile Intel® Graphics
Media Accelerator X3100:
• Microsoft Windows Vista* Premium support with the highest level of Windows Aero* experience
• Intel® Clear Video Technology for excellent video quality
• Enhanced 3D graphics performance, delivering over 2X scores on 3DMark*06?
Audio Driver
The MP5000i has a build-in audio controller. Windows driver can be installed by running the program in
the respective audio directory.
Network Driver
The MP5000i has two Realtek 10/100/1000 network interface.
Network driver can be installed by running the program in the respective LAN directory.
Touch Screen Driver
The MP5000 has an ELO serial touch controller. A universal driver is included in the respective ELO
touch directory.
Tuning the Touch Screen Under Windows
If you wish to calibrate the touch screen while under Windows, go to “Control Panel” and select “Touch”
icon. Choose “calibrate” to set the touch positions, and click “OK” to save the setup.
Other Applications
Please refer to the manuals accompanying your additional software or hardware.
5
Chapter 4: Troubleshooting
If your system does not operate correctly at first, re-read the instructions regarding the procedure being
performed. If problems occur with third party software, consult the accompanying documentation.
Please check this section for possible solutions. If the problem still cannot be resolved, contact your
authorized dealer.
Initial Inspection
Oftentimes the simplest things can cause the most confusing errors. Always check the following:
1. The power cord is securely connected to both the AC outlet and your Panel Touch.
2. The Panel Touch is turned on.
Peripherals
Configuration Problems
If one or more of your peripherals is not working correctly, it often can be the result of an improper
configuration either with the device driver or the BIOS. To check device drivers, enter Windows and check
the Control Panel for possible conflicts. Default IRQ settings are included in appendices. Enter the BIOS
program to verify the configuration settings
Connection Problems
If you are having problems with your peripherals and have checked the possible solutions above, the
connection between your Panel Touch and the peripheral may be the problem. Verify the cable signal
output.
6
Appendices
Standard IRQ settings
Table 1.5: Standard Interrupt Assignments
IRQ Priority Standard Function
0 1 System Timer
1 2 Keyboard Controller
2 - Redirect to IRQ#9
3 11 IRQ holder for PCI steering*
4 12 Communications Port (COM1)*
5 13 IRQ holder for PCI steering*
6 14 Floppy Disk Controller
7 15 Printer Port (LPT)*
8 3 System CMOS/Rear Time
9 4 IRQ holder for PCI steering*
10 5 IRQ holder for PCI steering*
11 6 IRQ holder for PCI steering*
12 7 PS/2 Compatible Mouse Port*
13 8 Numeric Data Processor
14 9 Primary IDE Channel
15 10 Secondary IDE Channel
Optional Magnetic Stripe Reader
MSR213U is a HID Keyboard emulation device. It accepts keyboard input from Windows applications.
Reader Test
The following process will test MSR213U installation.
1) Run the Notepad application from Start ? Programs ? Accessories ? Notepad under Windows
2) Swipe any card through the reader MSR213U.
3) The card data should appear on the Notepad if the MSR213U installed properly.
Changing Configuration
The MSR configurations can be changed through software installed on the system. They are factory preset
and normally do not need to be changed by the user.
To enter the setting mode:
• Connect keyboard to your MP5000 computer.
• Run .MSR213U setting AP
• Follow instructions on the screen to change settings.
7
Optional 2x20 LCD Character Display
The 2x20 character display is an alpha numeric LCD with back light. It is driven by a serial interface
controller and normally set at COM4. The board receives control and character codes which are then
displayed on the LCD. This is a receive-only device.
Power-Up Initialization:
Upon power-up, the controller goes into its initialization sequence. The board is designed to initialize in
two states: (1) the physical power up, then (2) the software power up. After 250mS, the board is ready to
receive software power up. YOU MUST SEND THE BOARD A CLEAR SCREEN COMMAND (HEX
0C) TWO TIMES AT HALF SECOND INTERVALS. This will initialize the controller completely. The
LCD display is NOT hot pluggable or hot swappable!
Communications Settings: 9600,N,8,1, COMx
Character Codes
0 1 2 3 4 5 6 7
0
1 pass char ! 1 A Q a Q
2 reject char " 2 B R b R
3 hide # 3 C S c S
4 Invisible cursor $ 4 D T d T
5 Underscore cursor % 5 E U e U
6 block cursor & 6 F V f V
7 home ' 7 G W g W
8 backspace ( 8 H X h X
9 forward ) 9 I Y i Y
A line feed * : J Z j Z
B up + ; K [ k {
C clear , < L \ l |
D Carriage return - = M ] m }
E . > N ^ n ~
F / ? O _ o
Space
0 @ P ` P
Delete
8
Optional Bar Code Scanner
The miniature CCD scanner is a small integrated HID USB device.
Technical Specification
Item Description
Power Requirement
Input voltage
LED On
LED Off
Decode
Operational
Sensor
Illumination
Depth of field
Scan rate
Minimum bar width
Print contrast
Indicators (LED)
Beeper operation
Scan angle
Pitch angle
Skew angle
Specular reflection angle
System interface
Environment
Operating temperature
Storage temperature
Humidity
Ambient light immunity
Shock
Vibration
Physical dimension
Height
Width
Depth
Weight
Mounting
Decode symbology
Consult Scanner Manual for programming details.
5V ±5% VDC
87mA typical
37mA typical
120mA typical
150mA @ 100msec
Max. 250mA @ 1msec peak
2,500 pixels CCD
617nm visible red LED
40 – 235mm
200 scans per second
0.125mm (5mil) (0.1mm actually)
30% @ UPC/EAN 100%
“OK”, “NG”, “PWR” and “TEST”
Programmable tone & beep time
43°
±65°
±65°
±5°
HID USB
0? ~ 50? (32? ~ 122? )
-20? ~ 60? (-4? ~ 140? )
5% to 95% non-condensing
7,000 Lux max. (fluorescence)
2,000G
Unpowered engine withstands a random
vibration along each of the X, Y and Z axis for
a period of 10 min. per axis, defined as follows:
¦ 20~80Hz ramp up to 0.04G2/Hz at the rate of
3dB/oct.
¦ 80~350Hz 0.04G2/Hz
¦ 350~2000Hz ramp down at the rate of
3dB/oct.
15.8mm (0.62”)
26.6mm (1.05”)
39.0mm (1.54”)
15g
3-M1.6 * 0.35 screw hole
UPC/JAN/EAN, Code 39, Code 93,
Codabar, Interleave 2 of 5, IATA,
Standard 2 of 5, ISBN/ISSN,
Chinese post code, MSI/Plessy,
EAN 128, Code 128
9
Loading...
