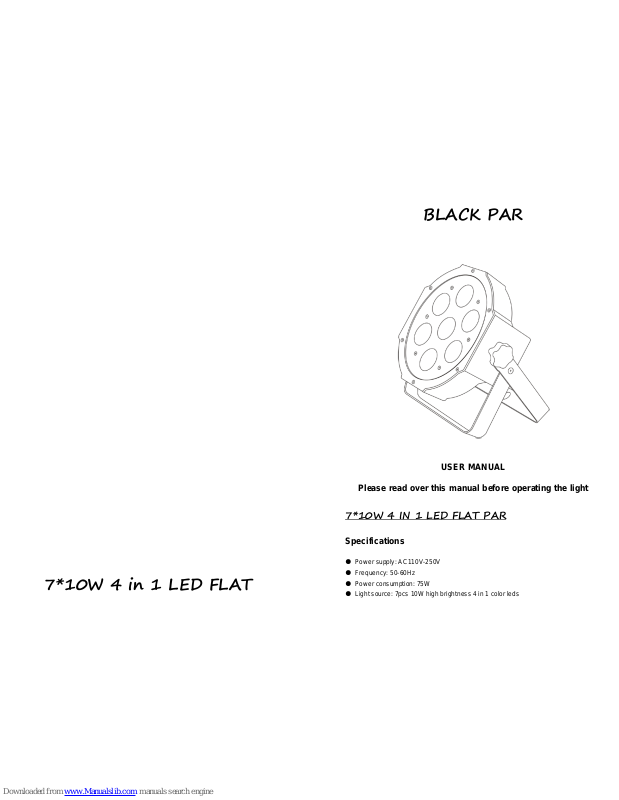

Page 1
7*10W 4 in 1 LED FLAT
BLACK PAR
USER MANUAL
Please read over this manual before operating the light
7*10W 4 IN 1 LED FLAT PAR
Specifications
● Power supply: AC110V-250V
● Frequency: 50-60Hz
● Power consumption: 75W
● Light source: 7pcs 10W high brightness 4 in 1 color leds
Page 2
● Lamp life: 6-10 ten thousand hrs
● LED angle: 25 degree
● Color: 16.7 million kinds of color change
● Control channels: 8chs
● Control mode: DMX512 / w irele ss D M X 512 C ontro l, master/sl av e, auto, sound active
● Automatic model(by function but t on) : color change, color strobe, color dimmer, color
gradual change/color jump change
● Operation menu: 4 digit digital LED display
● Packing size: 240*240*235mm
● N.W: 1.5kg
● G.W: 1.8kg
7*10W 4 IN 1 LED FLAT PAR
Cleaning
Due fog residue, smoke ,and dust cleaning the internal and external
optical lenses must be carried out periodically to optimize lig h t outp ut.
1. Use normal glass cleaner and a soft cloth to wipe down the outside casing.
2. Clean the external optics with glass cleaner and a soft cloth every 20 days.
3. Always be sure to dry all parts completely before plugging the unit back in.
Cleaning frequency depends on the environment in which the fixture
Operates (I .e. smoke, fog residue, dust dew)
Trouble shooting
Listed below are a few common problems the user may encounter, with solutions.
Unit not responding to DMX:
Check that the DMX cables are connected properly and are wired correctly (pin 3 is hot,
on some other DMX devices pin 2 may be ‘hot’). Also, checking that all cables are
connected to the right connectors; it does matter which way the inputs and outputs are
connected.
Unit does not respond to sound:
Quiet or high pitched sounds will not activate the unit .if problems
are not resolved, contact your dealer for service
7*10W 4 IN 1 LED FLAT PAR
DMX channel
8CH Mode
Value Description
0 No action
CH1
1-255 Dimmer
CH2
0 No action
1-255 RED dimmer
CH3
0 No action
1-255 GREEN dimmer
CH4
0 No action
1-255 BLUE dimmer
Page 3
CH5
0 No action
1-255 WHITE dimmer
CH6
0-15 No action
16-255 strobe slow to fast
CH7
0
No action
1-255 Speed
CH8
1-255 color mixing and run automatically (from slow to fast)
255 Sound Active
7*10W4 IN 1 LED FLAT PAR
LED Operation Menu:
There are four touch buttons under the LED Alpha-numerical
display: Menu, Down, Up, Enter. Normally, the LED will display
the current DMX address code of the fixture. At this time, presses
Menu to choose the function you want to set up. Press and hold
Up or Down to fast scrolling within the menu options. When an
options flashing the L ED displ ay, press Enter to con firm and M enu
to exit.
Menu down up Enter
After initialization, the unit is ready for setting and working.
Please see the following table for setting information
MODE
set the operation modes
A001 A512 DMX mode:select channel 1—c han nel 512
ADYE ADNO AUXX Open or Close
AUXX AU01~AU08 Color choose
FF00 Colorful change(FF00----FF99) up and down keys to modify the transition speed
EE00 Colorful Fade(dE00------dE99)up and down keys to modify the transition speed
CC00 Blasting flash (CC00------CC99)up and down keys to modify t he tran sit ion s peed
FF00 FF00----FF99 Strobe, speed from slow to fast
SOUD Sound Strobe Effect
SOND
Sound Change Color Effect
R000 R001---R255 Red bright from weak to strong
G000 G001----G255 Green bright from weak to strong
B000 B001----B255 Blue bright from weak to strong
W000 W001----W255 White bright from weak to strong
7*10W 4 IN 1 LED FLAT PAR
Features
● Multi-Colors
● Color Strobe
● Electronic Dimming 0-100%
● Built in Microphone
● DMX-512Conlrol / wireless DMX512 Control
● Auto/ Master &Slave synchronization
● Multi-channel mode
● Dip switch to choose men
General instructions
To optimize the performance of this product, please read these operating instructions
carefully to familiarize you with the basic operations of this unit. These instructions
contain important safety information regarding the use and maintenance of this unit.
Please keep this manual with the unit, for future reference.
Unpacking:
Thank you for purchasing the LED-PAR. Every LED-PAR has been thoroughly tested
and has been shipped in perfect operatin g con diti on. carefully check the shipping carton
for damage that may have occurred during shipping. lf the carton appears to be
damaged, carefully inspect your fixture for any damage and be sure all accessories
necessary to operate the unit has arrived intact. In the case damage has been found or
Page 4
parts are missing. plea se con t act the m anuf acturer or y our dealer for fur ther instruc tions.
do not return this unit to your dealer without first contacting.
Introduction:
The LED-PAR is a DMX control PAR light. this LED PAR is light weight and co mp a ct
which makes it a great piece for mobile DJ’s and clubs. thi s unit can be used as a stand
alone, or a sound-active mode. the unit can also be controlled via DMX controller.
